14 best marantz portable recorders

Product description

The Marantz Professional pmd-661mkiii is a 2-channel handheld solid-state audio recorder. With its uncompromisingly high performance and rugged build quality, The PMD-661 MKIII gives news journalists, court/municipal reporters, public safety Personnel, investigators and researchers a professional device that produces accurate, detailed in-field recordings. Plus, its file-encryption function offers the maximum security for sensitive information. It’s ideal for situations where no-compromise audio data capture is required, but bulky equipment and separate microphones are not possible or appropriate.









measuring just 165 x 93 x 36 mm (6.5” x 3.7” x 1.4”) with a highly visible 128 x 64 dot matrix OLED (organic LED) display ensures ease of use wherever recording, Playback or setup may be taking place.  a high-resolution 96kHz/ 24-bit recording option means Quality is never an issue when recording to the supplied SD flash card.  compatibility with SDHC media means cards up to 32 GB in size can be used. In addition, the new built in ‘SD card check’ makes it easy convenient to insert any SD card and check compatibility. High capacity media storage is matched by six hours of recording time from four AA alkaline/ ni-mh batteries. Drag and drop file transfer is supported via the USB port.







furthermore, the ‘retake’ feature allows a simple button press to take you back though the previously recorded audio and create a drop-in point to overdub.  this enables easy re-recording part way through unwanted takes ideal for dictation and electronic note gathering applications.

• Superior Field Recording Guaranteed - Portable, battery powered field recorder with built-in studio-grade stereo condenser microphone array
• Studio Grade Capture - WAV recording at 44.1/48/96kHz, 16/24-bit; MP3 re-cording at six selectable recording bit rates from 32 to 320 kbps
• Security Simplified - Password-protected file encryption; record directly to stable and reliable SD/SDHC flash media
• Connectivity Covered - Balanced XLR Mic inputs with +48V phan-tom power; built-in playback speaker and headphone jack
• Ready for Any Situation - Dictation Functions including Pitch control and Skip Back; card check compatibility feature; Includes omni-directional boundary microphone and convenient carrying case

User questions & answers

Question:	It states it can use a 32 gig SD card. Can it use a higher gig or just 32 gig
Answer:	I had an older digital recorder that only used 4 gig compact flash memory cards. I tried using 8 gig, but it would stop recording when it reached 4 gig. I keep a watch on this one to make sure it does not go over the maximum it says in case it performs similarly. 32 gig is hundreds of hours of mp3 recording.
Question:	The device is listed as running on battery for 6 hours. Can we use it while plugged with DC power adapter to potentially use for 12 hours
Answer:	Sorry, I strictly use DC power adapter which has a very short cord. You'll always need an extension cord. You may try getting rechargeable batteries to use if you plan on alternating between DC and battery.
Question:	Does it really work
Answer:	Several problems. When it is connected to a comuter via USB all buttons lock, ever after it is disconnected. You have to remove the batteries to get it working a again. Contacted Marantz about this and they send a programme to upload, which initially fixed the problem, but it keeps recurring. Also in mono mode it only records on one channell, the level on the second is so low as to be unuseable, and this needs to be corrected in your laptop.
Question:	Is there a foot pedal available for this recorder
Answer:	Hi, Marantz Pro support here! Our PMD661MKIII does not feature the ability to connect a foot pedal. For further support on this subject, please feel free to contact us directly - [email protected]

Product features

Studio-Grade Stereo Condenser Mics

The Marantz Professional PMD-661 MKII features a set of integrated condenser microphones for ‘point and shoot’ operation with no extra accessories needed for high-quality audio recordings.

Balanced XLR Line Inputs

Two Neutrik XLR microphone inputs are featured on the PMD-661 MKIII. They provide switching for stereo, mono, and dual mono input recording, as well as +48V phantom power for condenser mics.

RCA Connectors

Unbalanced RCA line outputs provide users with easy-to-use audio outputs. This is ideal for situations where you want to connect the PMD-661 MKIII into a stereo or PA system for louder playback.

Includes Omni-Directional Microphone

PMD661MKIII includes an external, omni-directional boundary microphone, suited for capturing audio from different directions such as in meetings, court rooms, conferences and more!

Direct SD Card Recording

You can record right to a SD card with the PMD-661 MKIII. With sample rates of up to 24-bit/96khz, and 32 gig SDHC card compatibility, audio quality and length won't be anything to worry about.

Built-In Stereo Playback Speakers

When you're not around any type of playback stereo or device and need to hear the audio you recorded, the PMD 661 MKIII features two built-in stereo speakers and a 1/4" headphone jack for on-the-go listening.

Features

-Built-in studio-grade stereo condenser microphone array.

-Password-protected file encryption.

- Balanced XLR Mic inputs with +48V phantom power.

-Dictation Functions including Pitch control and Skip Back.

-Large OLED (organic LED) Display.

-Built-in playback speaker and headphone jack.

-Up to 6 hours of continuous recording time from a set of batteries.

-Includes omni-directional boundary microphone and convenient carrying case.

Marantz Professional Family | MPM-1000 | Large Diaphragm Condenser Microphone

Marantz Professional is proud to present the MPM-1000 Studio Series microphone, a high-quality condenser mic that delivers studio-grade audio performance along with unexcelled value. The MPM-1000 Studio Series microphone exemplifies Marantz Professional's commitment to users who demand no-compromise components that fit within a realistic budget.

Marantz Professional Family | MPM-2000U | USB Studio-Quality Condenser Microphone for DAW Recording

Topping the line of Marantz USB microphones, the MPM-2000U is perfect for recording high-quality audio directly to a digital audio workstation (DAW). Its studio-quality frequency response and built-in 48kHz/16-bit A-D converter make it ideal for recording vocals, instruments and percussion.

Marantz Professional Family | PHA-3 | Stereo Field Production Headphone Amplifier

The Marantz Professional PHA-3 is a high-end headphone amplifier for production field work. It provides three independent headphone feeds from balanced or unbalanced sources, and can drive headphones to high levels at audiophile quality with low distortion, so it’s ideal for high SPL environments. If your other equipment—and ears—are up to the job, PHA-3 ensures you’ll hear it.

Marantz Professional Family | PMD-300CP | Dual Cassette Player & Digital Record

Whether maintaining a cassette library or making new recordings, Marantz Professional makes it easy to create, copy and digitize cassette-tape media with this dual-well recorder/player.

The PMD-300CP will let you back up all of your favorite tapes so you can listen to your old albums at the gym on your smartphone or play the originals on the deck at home without worrying you’ll ruin them.

Product description

Whether maintaining a cassette library or making new recordings, Marantz Professional makes it easy to create, copy and digitize cassette-tape media with this dual-well recorder/player.

The PMD-300CP will let you back up all of your favorite tapes so you can listen to your old albums at the gym on your smartphone or play the originals on the deck at home without worrying you’ll ruin them.

Houses of worship and organizations with legacy media players should find it at the right ease and price level to finally make the switch to digital. New musicians unable to afford a vinyl printing of their first promising tracks can also use the recorder to create physical copies of their songs that have an analog, retro feel.

Specifications:

• Type: Stereo dual cassette deck
• Track System: 4-track, 2-channel
• Frequency Response (-20dB recording level)
  • Chrome tape: 40-15,000Hz (± 3dB)
  • Normal tape: 40 - 14,000Hz (± 3dB)
• Signal-to-Noise Ratio: 58 dB
• Wow and Flutter: <0.2% (DIN45500)
• Crosstalk: 40 dB (1 kHz)
• Total Harmonic Distortion (THD): <1.0% (1 kHz, 0VU 3rd H.D. normal tape)
• Channel Separation: 40 dB (1 kHz)
• Heads
  • Deck A: Playback
  • Deck B: Recording / playback, 2-gap ferrite head for erasure
• Motor: 2 DC servo motors
• Fast Forward / Rewind Time: ~100 seconds with C-60 cassette
• Inputs: 2 RCA line inputs
  • Min. input level: 600mV (0dB)
  • Input impedance: 50kΩ
• Outputs: 2 RCA line outputs
  • Output level: 600 mV (0dB)
  • Output impedance: 5kΩ
• USB Audio Interface
  • USB 1.1 compatible; 16-bit, 44.1 or 48 kHz
• Power:110-120 VAC, ~50/60 Hz
• Consumption: 11W
• Dimensions: 16.5” x 8.5” x 5.3” (420 x 215 x 135mm)
• Weight: 8.5 lbs (4.0 kg)”

Box Contents

• PMD-300CP
• Rack Ears with Screws
• User Guide
• Safety & Warranty Manual

• Dual-well recorder/player
• Cassette dubbing from A to B
• Real-time or high-speed dubbing options
• Digitally backup tapes to computer via USB using tape converter software
• Dynamic Noise Reduction option

User questions & answers

Question:	When playing older cassettes the speed is too fast - like hearing 45 speed on a lp. only worked correctly briefly. Suggestions
Answer:	I did not have a problem getting it in LI,NY.
Question:	Does this have outputs so I can transfer a cassette tape to a CD recorder
Answer:	Top to bottom in line!!
Question:	can I record vinyl to tape with this unit
Answer:	I’m not remember sorry! The posters are placed on the wall with frames. Happy new year!
Question:	can I record mp3 to cassette
Answer:	It has spring number and repetitions in very small print

Product description

The CDR300 is the first device to merge the stand-alone portable functionality of a professional tape recorder with the capability to directly record live spoken word to blank CD-R/RW media. These CDs can then be played back in any standard CD player and the innovative ?Minute Track Mode? allows for easy navigation during playback. Highlights Record live directly to blank CDs "Minute Track Mode" for spoken word recording Transportable, table-top operation CD-R/RW compatible AC Power or 4-pin DC connection, for use with RPS300 Simple Tracking System Avoid having to fast forward or rewind. The "Minute Track Mode" recording feature marks each minute of spoken word as a track so that during playback the listener can automatically navigate to a minute-specific track anywhere in the recording via track markers and not ff or fr searching. Reliable Battery Backup Using the optional RPS300 battery system, you can record up to four hours in the field or have battery backup capability in case of power loss to save your recording. First-rate meeting recording The convenient, tabletop design, built-in microphone, internal speaker, and microphone inputs, automatic level control, mic filtering, limiter, and programmable EQ make stereo recording possible without the need for external mic preamps or mixer. Other Features Record live directly to blank CDs "Minute Track Mode" for spoken word recording Transportable, table-top operation CD...

• Marks each minute of spoken word as a track so that during playback the listener can automatically navigate to a minute-specific track
• Reliable Battery Backup Using the optional RPS300 battery system, you can record up to four hours in the field
• First-rate meeting recording
• Convenient, tabletop design, built-in microphone, internal speaker, and microphone inputs, automatic level control, mic filtering, limiter
• Programmable EQ make stereo recording possible without the need for external mic preamps or mixer

User questions & answers

Question:	Can I record when I play my guitar
Answer:	Please check this dc converter input (12V) side, red is positive, black is negative. Or please check the product image diagram (image 4). Thanks!
Question:	What kind of microphone do I need to buy to record
Answer:	Yes, I am using this 12v to 5v DC converter for my iPhone.
Question:	is this unit good to take to a persons house do a session recording and hand them the cd to keep when you leave
Answer:	Output regulated, depent on your device with draw.

Product description

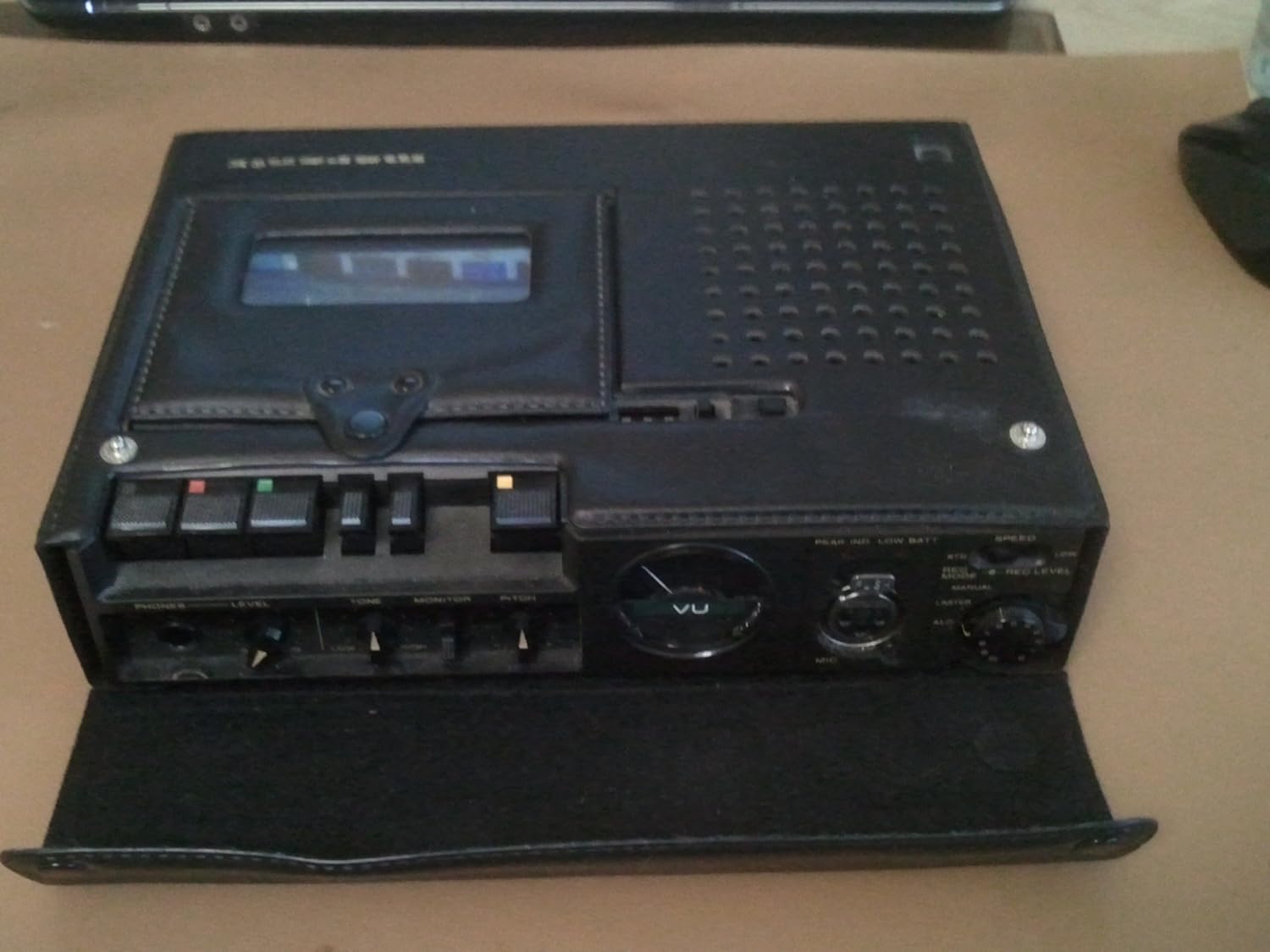

The highly respected Marantz PMD line of portable cassette recorders represents the industry standard for analog recorders. Solid reliability and durability combined with exceptional audio quality make these recorders ideal for applications that demand flawless performance first time, every time. With a wide range of valuable features?including professional inputs, two- or three-head cassette mechanisms, half-speed recording, pitch control capabilities, and more.

• Mono, 3 Heads, VU Meter
• XLR Balanced Input, RCA Line Input/Output
• 2 Speeds: Full and Half Speed Recording and Playback, +/-20% Pitch Control During Playback
• Built-in Condenser Mic, Power: Batteries or AC Adapter

User questions & answers

Question:	What is the A/C adapter amperage
Answer:	This 12v to 5v dc converter from the converter module to the USB length is about 12.2inch/ 31cm. And yes, it produces a 5v 3a usb port. Good amount for charge your phone.

Product description

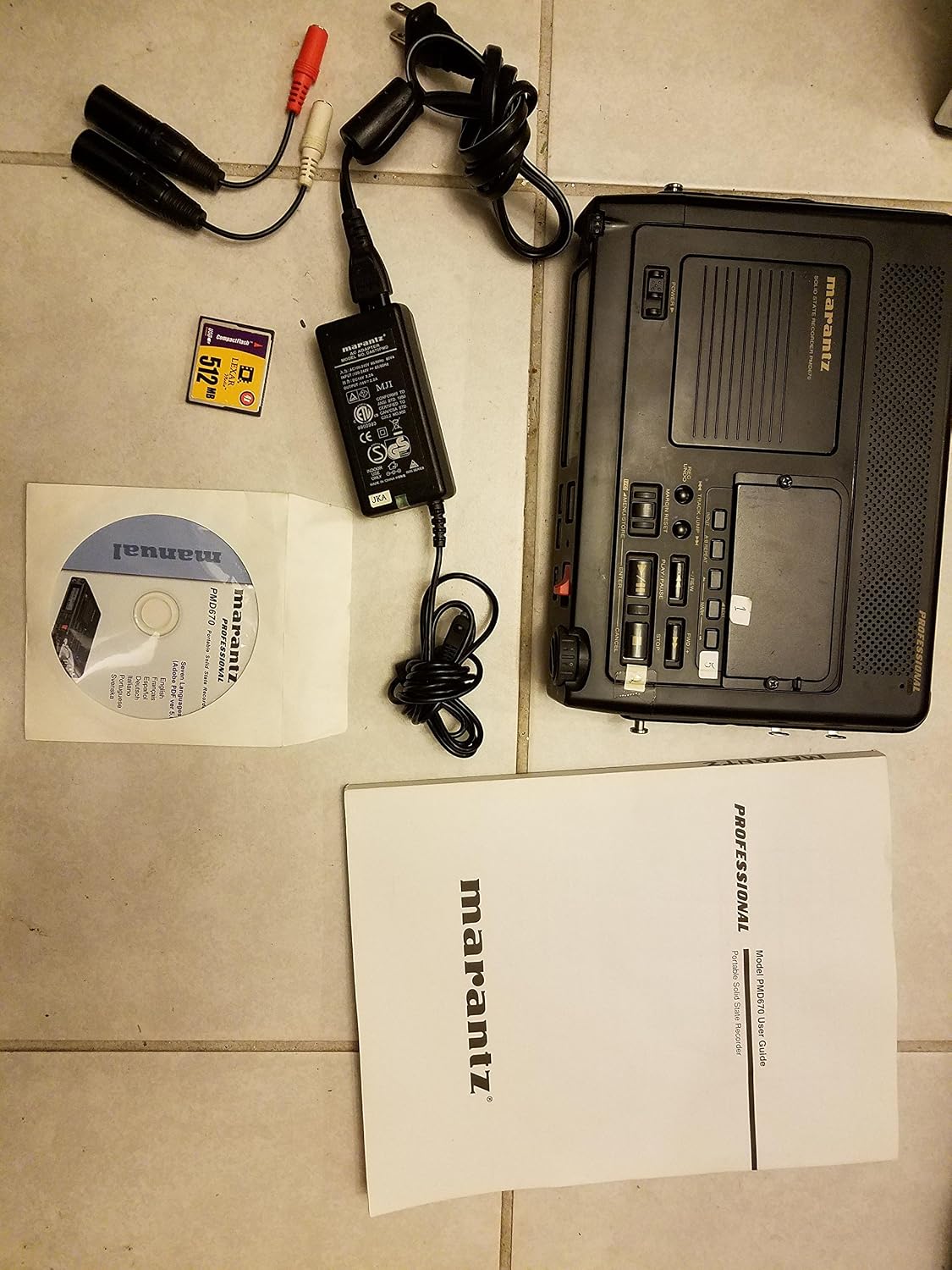

The PMD670 Solid State Recorder features non-stop record with 7 hours of battery life, a menu-driven remote operation, and an EDL marking system for creating new files on-the-fly during the recording for easy file selection during playback. Users are assured a high-quality recording result due to the built-in lock down panels that secure the recording setting switches and media door from accidental changes in-the-field.Record Directly to Compact Flash CardsEasy One Touch RecordPortable OperationNo Moving PartsMP3, MP2, WAV, BWF Format CompatibleOver 40 Assignable Quality SettingsDesigned with compatibility for MP3, MP2, BWF, WAV formats the PMD670 boasts an impressive 40 assignable quality settings as well as a FAT32 File Allocation Table for future multi-gig file capability.With the flip of a switch record audio files to affordable and widely available Microdrives or compact flash cards.A table-top portable model, the PMD670 features a computer I/O connection that allows it to be easily linked for easy file transfer. Drag and drop recorded audio files to your computer?s hard drive in minutes without the real-time delay disadvantages of cassette, MiniDisc, and DAT recording! The optional PMDEdit software enables easy file Edit software enables easy file management and editing with its combined use. Record Directly to Compact Flash Cards Easy One Touch Record Portable Operation No Moving Parts MP3, MP2, WAV, BWF Format Com...

• The PMD670 Solid State Recorder features non-stop record with 7 hours of battery life, a menu-driven remote operation
• Users are assured a high-quality recording result due to the built-in lock down panels that secure the recording setting switches
• Record Directly to Compact Flash Cards
• Easy One Touch RecordPortable Operation

User questions & answers

Question:	does this recorder make mp3 files stored on cf flash
Answer:	Dear customer,  Here is Luna of Teckin Service Team. Our travel plug adapters compatible in most European countries such as France,Germany, Italy, Greece, Austria, Spain,ect，but not  work in UK / Ireland / Scotland, which requires Type G adapter. If you have any problem or need support, feel free to contact us via [email protected]  Best wishes to you and hope this adapter will bring you a wonderful trip! Faithfully Luna
Question:	Generally speaking, how does this unit compare to the marantz pmd
Answer:	This DC converter no-load current only have10mA, so it will not draw power too much, even omitted.

Product description

Marantz Mono, 2 Head, 2 Speed, Pitch Control Portable Cassette Recorder

Product description

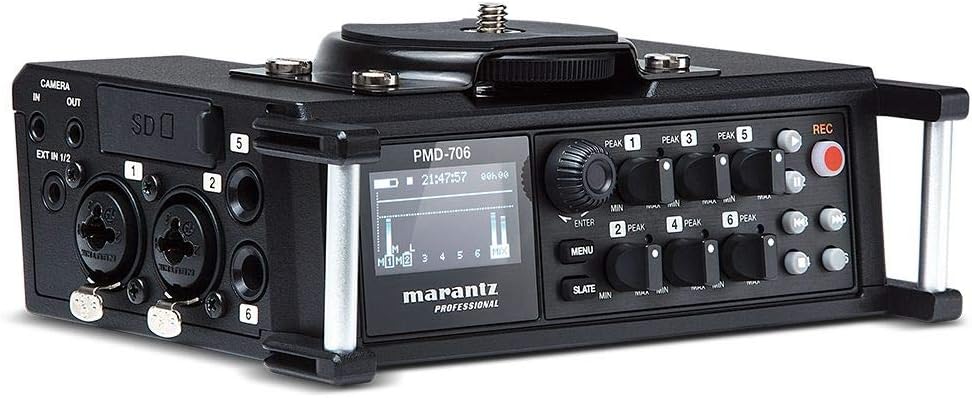

Marantz Professional PMD-706 96kHz 6-Channel DSLR Recorder

The PMD-706 is a compact handheld professional-grade DSLF recorder that records directly onto SD/SDHC flash media. It’s compact and lightweight, yet it delivers audio recording quality of the very highest caliber, thanks to its sensitive stereo microphone arrangement and superior solid-state recording process. The PMD-706 is intended for reporters, safety personnel, researchers, anyone who needs accurate, detailed, reliable in-field recordings. It’s ideal for situations where no-compromise recordings are required, but bulky equipment and separate microphones are not possible or appropriate.

Features

6-Channel DSLR recorder

Compact handheld

Very highest caliber​ recording ​

• Compact handheld professional-grade DSLR recorder
• Records directly onto SD/SDHC flash media
• Yet it delivers audio recording quality of the very highest caliber
• It’s ideal for situations where no-compromise recordings are required
• Superior solid-state recording process.

User questions & answers

Question:	Can the marantz professional pmd-706 be used as an audio interface for a computer
Answer:	Dear friend, Here is Luna of TECKIN service. We offer 12 months of warranty and replacement services and lifetime technical support services. If you have any problem or need support, feel free to contact us via [email protected] Best wishes to you and hope this adapter will bring you a wonderful trip! Faithfully Luna
Question:	Are 6 seperate tracks recorded onto the card? what type and size card
Answer:	Dear customer, Here is Luna of Teckin Service Team. The adapter can only support dual and multi worldwide voltage (100V-240V) electronics products. So your appliances should support Dual Voltage (100V-240V)that can use in Europe. If you have more problems, feel free to contact us via [email protected] Best wishes to you. Sincerely Luna
Question:	How comparable is it with Sound devices mixpre
Answer:	Dear customer, Thanks for your question. Our travel adapter delivers ideal current for attached devices to avoid battery life’s loss, charging your devices with high speed. Hope this can help you. Thanks

Product description

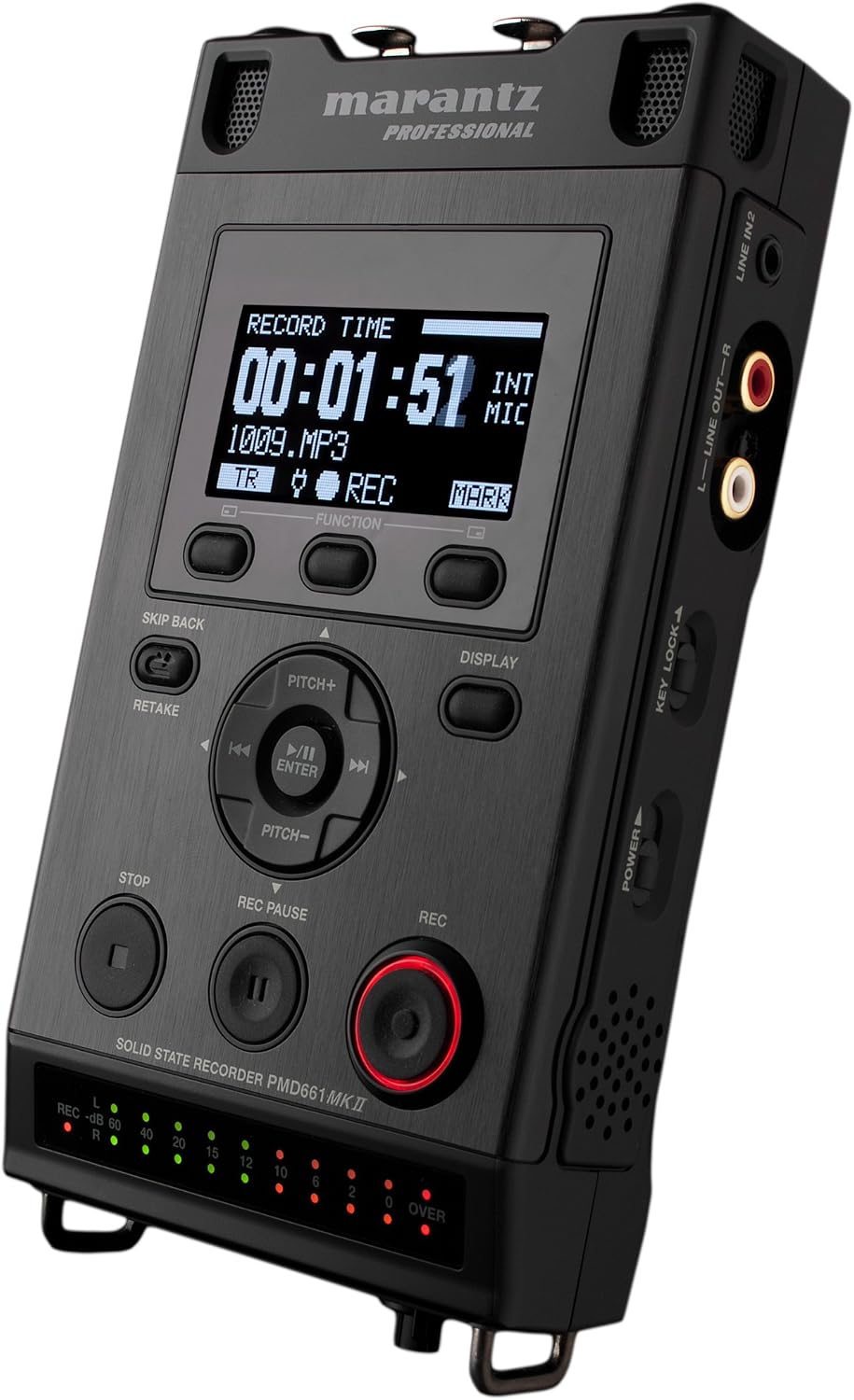

The Marantz Professional PMD661 MKII provides exceptional professional audio capture capability for virtually any application: broadcast, electronic news gathering/journalism, DSLR video, sound effects capture, law enforcement, municipal and court recording, government and surveillance, musicians, dictation for law, medical, education, and meeting recording.

This recipient of the Recorder of the Year award by Resolution Magazine sports a refined professional feature set that builds upon the legacy of the original PMD661 by maintaining the ergonomic layout focused around highly developed multi-functional controls, ensuring comprehensive single-handed operation. The 128x64 dot matrix organic light-emitting diode (OLED) display ensures ease of use during any recording, playback or setup.

A high-resolution 24-bit / 96 kHz recording option means quality is never an issue when recording to the supplied SD flash card, and the MKII is compatible with SDHC media up to 32 GB. The new built in ‘SD Card Check’ makes it easy and convenient to insert any SD card and check compatibility. High capacity media storage is matched by five hours recording time from four AA Alkaline / Ni-MH batteries. Drag and drop file transfer is supported via the USB port.

The new ‘Retake’ feature allows a simple button press to take you back though the previously recorded audio and create a drop-in point to overdub. This enables easy re-recording part way through unwanted takes ideal for dictation and electronic note gathering applications.

Marantz Professional added new security features into the MKII with Password Protection and File encryption ability to keep recordings safe form unauthorized access. MP3 files can be encrypted to .MPS files and WAV files encrypted to .WAS files. Both MPS and WAS files utilize a 4 digit password protection feature so that only those with the 4 digit key can open and play the files either on the player, or in the new updated PMD Marker Editor software, included in the box.



Frequently Asked Questions



Where do my recordings save?

The PMD661MKII is a solid-state audio recorder that saves directly to the inserted SD or SDHC card up to 32GB in size.



Can digital recordings be encrypted?

Security features of the PMD661MKII include Password Protection and File encryption ability that work hand in hand to keep recordings safe form unauthorized access. MP3 files can be encrypted to .MPS  files and WAV files encrypted to .WAS files. Both MPS and WAS files utilize a 4 digit password protection feature so that only those with the 4 digit key can open and play the files either on the player, or in the new updated PMD Marker Editor software, available as a direct download from the PMD661MKII product page.



How long can it record on battery power?

The PMD661MKII is a robust and industry leading high-quality solid state portable audio recorder that allows for total portability by providing a battery compartment for your convenience. Four AA Alkaline / Ni-MH batteries allow for up to and around 5 hours of actual recording time.

Alternatively, the PMD661MKII also provides a power supply connection for use with the included 5V, 1.5A pin-positive auto-switching power supply.



How can I transfer files?

There a few different ways of transferring files. The most common and easiest are:

1. Simply remove the SD card and insert it to a computer. You will be able to access the files easily and immediately from the SD card as though it were an additional hard drive on the computer. Drag-and-drop the preferred audio files.
2. The PMD661MKII can be connected directly to a computer via the included mini-USB to USB-B cable. With the SD card still inserted in the PMD661MKII, the audio files can be accessed directly in the same manner as described above. More information on this process is available on page 38 of the attached Reference Manual.



Can parts of an audio file be separated or marked so I can transfer or locate it easily?

Every time a recording begins, a new file is created. Each file is saved individually and can be accessed as described above.

There are also a number of other advanced options as well. For example, Manual Track allows the user to create a new track (new audio file) on the fly. Sections of a longer audio track can be segmented out and copied using the Copy Segment option. Use the File Divide option to cut up longer audio recordings. Also, Marks can be added to a long recording to easily find specific points of interest without dividing the file.



 Further Technical Support

Whether you are a customer or dealer, if you already own a Marantz Professional product, or if you just have pre-sales questions, the Marantz Professional technical support team is available to help!

Visit the link below to connect with any of the following support options: phone support, email support.

• marantzpro.com/support



Technical Specifications

Digital Audio System

• System: Solid State Recorder
• Usable media: SD/SDHC cards
• Recording format


  • MP3: MPEG1 Layer III Compression
  • WAV: 16/24 bit linear PCM
• Recording MP3 bit-rate
  • Stereo: 320/256/192/128/64 kbps
  • Mono: 96/64/32 kbps
• Sample rate: 44.1/48/96 kHz
• Number of channels: 2 (Stereo) / 1 (Mono)

Audio Performance

• Frequency response: 20 Hz - 20,000 Hz (±1dB)
• S/N ratio IEC-A weighted


  • MIC: 65 dB
  • LINE: 85 dB
• Total harmonic distortion at 0 VU


  • MIC: 0.08%
  • LINE: 0.02%
• Dynamic range: 85 dB

Inputs

• External MIC


  • Type: XLR stereo jack
  • Input sensitivity: 1.2 mVrms/4.2 kΩ
• LINE


  • Type: XLR stereo jack
  • Input sensitivity: 0dBu/4.2 kΩ
• LINE 2


  • Type: 1/8” stereo jack
  • Input sensitivity: 500 mVrms/20 kΩ

Outputs

• LINE


  • Type: RCA stereo jack
  • Standard level: 2.0 V/10 kΩ
• Headphone


  • Type: 1/4” stereo jack
  • Standard level: 16 mW/32 Ω
• Speaker


  • Standard level: 450 mW/8 Ω

General

• Power consumption


  • Recording/Playback: 4.2 W (DC)
  • Battery life (Alkaline): 5 hours (Typical)
  • Phantom power: 48V, 10mA (Max.)
• Power


  • AC Adapter: DA620PMD (included)
  • Batteries: 4 x AA type alkaline dry cells or 4 x AA type Ni-MH rechargeable batteries
  • Backup battery: Lithium battery for real-time clock
• Environmental conditions


  • Operational temperature: 0 to 40°C (32 to 104°F)
  • Operational humidity: 25 to 85% (no condensation)
  • Storage temperature: –20 to 60°C (–4 to 140°F)
• Dimensions


  • Width: 93 mm (3.7”)
  • Height: 165 mm (6.5”)
  • Depth: 36 mm (1.4”)
• Weight (Excl. batteries): 410g (14 oz)



Included accessories

• Audio cable (RCA – 1/8” stereo type)
• USB cable (Type mini–B – Type-A)
• AC adapter (DA620PMD)
• User guide
• CD-ROM
• Carry strap
• SD card

• Record mono/stereo audio directly to SD/SDHC cards for virtually any audio capture application
• MP3 and uncompressed WAV formats up to 24-bit / 96kHz
• Advanced features include Passcode protection for device, password protection for file encruption, 'Retake' for overdubbing within a single file
• Large multi-function display, switchable MIC/Line XLR inputs with +48V phantom power, S/PDIF digital input
• Dictation functions including pitch control and skip back and included DMP Mark Editor software for advanced marking features and simple audio editing

User questions & answers

Question:	What's included in the box: Marantz PMD661MKII | Professional Handheld Solid State Recorder
Answer:	Its absolute junk! It’s broken within in 6 months!!
Question:	Can you use a external shotgun mic
Answer:	I'm very sorry not to know how to answer that question, because I bought it, for a friend who asked me. I know it has a lot of strength because he managed to remove the bolt from the crankshaft pulley, in three cars, without much effort, when he took it out of the box to test the strength.
Question:	how big is the SD card that comes with it? Do I need to buy an additional one
Answer:	Taiwan
Question:	Is this a refurbished recorder
Answer:	To convert newton meters to foot pounds you would divide by 0.73756. To convert foot pounds to newton meters you would times the foot pounds by 0.73756.

Product description

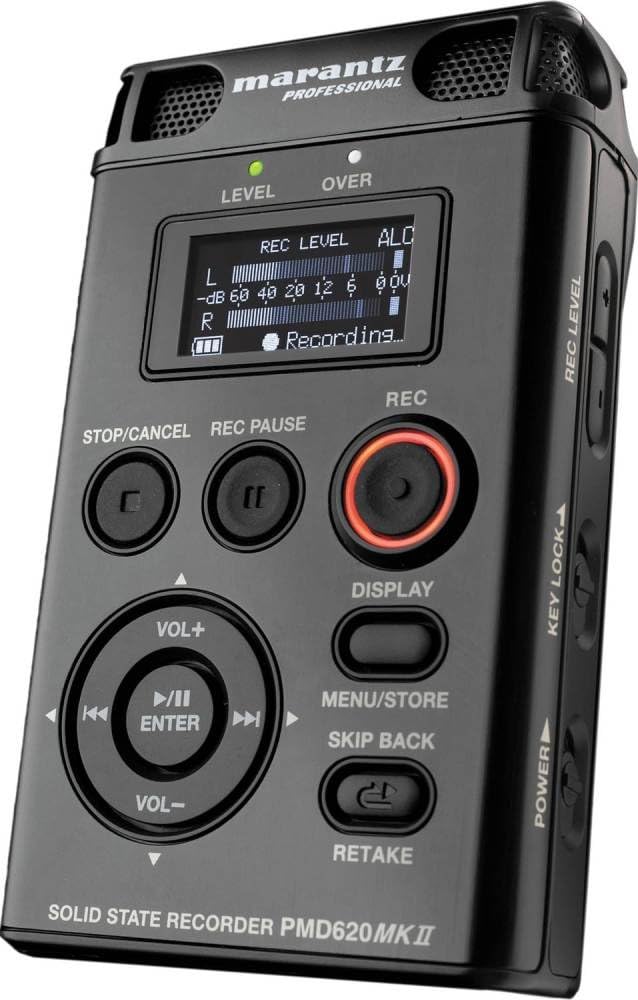

The Marantz Professional PMD620 MKII is a high-performance handheld digital recorder that records to SD flashcard media in either PCM (.WAV) or MP3 audio formats.

The ergonomic design and ease of operation lend the PMD620 MKII to a wide range of users, including journalists, reporters, municipal and meeting recorders, podcasters, musicians, and sound recordists everywhere.

A built-in stereo condenser microphone array allows ‘point and shoot recording,’ and an intuitive control surface enables single-handed operation with thumb operated transport wheel and a tactile, red illuminating, record button. A high-contrast, low-power draw organic light emitting diode (OLED) screen provides vivid display of menus which guide you through the optimum set up and operation for your application.

The new ‘Retake’ feature allows a simple button press to take you back though the previously recorded audio to create a new drop-in point. This enables easy re-recording part way through unwanted takes ideal for dictation and verbal note gathering.

New security features have also been added into the MKII with Password Protection and File encryption abilities that work hand-in-hand to keep recordings safe form unauthorized access.

Technical Specifications

Digital Audio System

• System: Solid State Recorder
• Usable media: SD/SDHC cards
• Recording format
  • MP3: MPEG1 LayerIII Compression
  • WAV: 16/24 bit linear PCM
• Recording MP3 bit-rate


  • Stereo: 192/128/64 kbps
  • Mono: 96/64/32 kbps
• Sample rate: 44.1/48 kHz
• Number of channels: 2 (Stereo) /1 (Mono)

Audio Performance

• Frequency response: 20 Hz - 20,000 Hz (±1dB)
• S/N ratio IEC-A weighted
  • MIC: 68 dB
  • LINE: 80 dB
• Total harmonic distortion at 0 VU


  • MIC: 0.06%
  • LINE: 0.02%
• Dynamic range: 81 dB

Inputs

• External MIC


  • Type: 1/8” stereo jack
  • Input sensitivity 6 mVrms/30 kΩ
• LINE


  • Type: 1/8” stereo jack
  • Input sensitivity 500 mVrms/20 kΩ

Outputs

• LINE


  • Type: 1/8” stereo jack
  • Standard level: 1.0 V/10 kΩ
• Headphone


  • Type: 1/8” stereo jack
  • Standard level: 16 mW/16 Ω
• Speaker


  • Standard level: 150 mW/8 Ω

General

• Power consumption


  • Recording/Playback: 1.5W (DC)
  • Battery life (Alkaline): 5 hours (Typical)
  • Phantom power: 5V, 1mA (Max.)
• Environmental conditions


  • Operational temperature: 0 to 40°C (32 to 104°F)
  • Operational humidity: 25 to 85% (no condensation)
  • Storage temperature: –20 to 60°C (–4 to 140°F)
• Dimensions


  • Width: 62 mm (2.5”)
  • Height: 102 mm (4”)
  • Depth: 25 mm (1”)
• Weight (Excl. batteries): 110g (4 oz)

Included Accessories

• Audio cable
• USB cable
• AC adapter
• User guide
• CD-ROM
• Handy strap
• Tripod/Belt clip adapter
• SD card

• Handheld compact rugged design with passcode protection
• MP3 and uncompressed WAV formats up to 24-bit / 48kHz
• Linear style Retake record function
• Professional recording, editing and playback features
• Includes DMP Editor software for advanced features and functionality

User questions & answers

Question:	I've used a Marantz in the past for radio interviews. I went through loads of AA batteries. Can this one be charged & used without batteries
Answer:	I use same shop air pressure as other impacts. Keep in mind the reduced size means less power. If u are an nit picker u will most likely find a reason to not like it. It is meant for tight places.
Question:	can you use a sdxc card with this? if so, how do you format
Answer:	450 for 1/2 version and 380 for 3/8 version
Question:	What is the difference between this model and the PMD
Answer:	The supplier can not meet demand.
Question:	Does this come with any accessories (power cord, stand, etc
Answer:	Fox run tools. Part number 35-BOOT

Product description

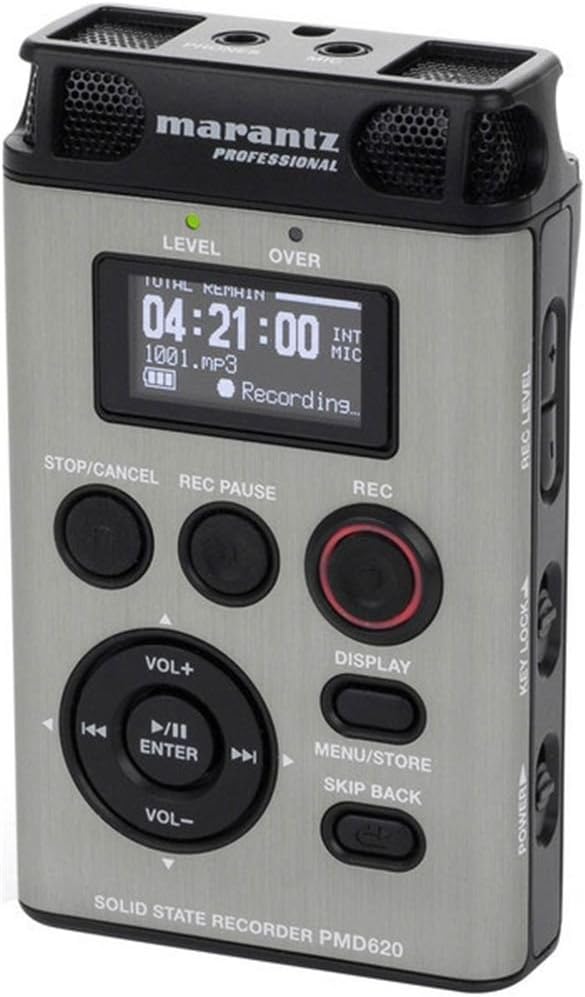

The PMD620 is a rugged yet lightweight digital recorder that doesn't skimp on features or performance. It records to SD or SDHC cards (even the huge ones!) so storage media is affordable and readily available. The PMD620 fits comfortably in the palm of the hand and houses two high-quality electret condenser microphones and a monitor speaker, making it ideal for go-anywhere field recording application, such as interviews, podcasting, and meeting recording ? even live music. The PMD620 can record in MP3 or WAV formats in 16 or 24 bit resolution. MP3 offers stereo 192kbps, 128kbps. and 64kbps recording. WAV offers 44.1 or 48k recording.

Marantz puts the world of professional field recording within easy reach with the PMD620, a rugged yet lightweight digital recorder that doesn’t skimp on features or performance. The PMD620 fits comfortably in the palm of the hand and houses two high-quality electret condenser microphones and a monitor speaker, making it ideal for go-anywhere field recording application, such as interviews, podcasting, and meeting recording – even live music.

A true handheld, the PMD620 features an intuitive layout and tactile buttons for easy one-hand operation, while a high-contrast organic LED (OLED) screen makes setup a cinch under any lighting conditions. Just hit the Menu/Store button and the interface quickly walks you through the choices to ensure optimal recording for your needs.

The Marantz PMD260 is small, portable, and super powerful

The PMD620 uses convenient SD/SDHC cards, the most stable and commonly available type of flash media. Audio can be recorded either as uncompressed WAV files or any of three quality levels of MP3, in mono or stereo. So whether it’s capturing an interview, a lengthy board meeting or a band’s jam session, the PMD620 is always ready for action.

The PMD620 shines in post-production as well. Journalists and podcasters will especially appreciate its non-destructive on-board editing. Transcription is a breeze with its Skip Back function, and file transfers to any computer are drag-and-drop simple with the USB 2.0 connectivity. In short, the PMD620 combines ease of operation, professional recording quality and insightful features in a compact, ergonomic design.

Key Features

• True handheld portability with one-touch stereo recording
• Professional recording features and flexible file formats
• Digital recording with file size limited only by SD card capacity
• On-board editing and playback features
• Full inputs and outputs, including USB 2.0 connectivity

A True Handheld with Ergonomic Form Factor

At 2.5 by 4 inches by 1 inch and weighing under 6 ounces, the PMD620 slips easily into a pocket and fits comfortably in the palm of the hand, with oversized, tactile buttons that are laid out for intuitive, one-hand operation, from recording to playback. The high contrast OLED screen provides at-a-glance status of all critical functions, even offering a large font option. Integral high quality electret condenser microphones pick up the action, while LED telltales track Peak and Level conditions.

Professional Digital Recording

The PMD620 can record uncompressed WAV files for high fidelity stereo music, or lower resolution, mono MP3 files to maximize record time. For WAV files, choose from 16- or 24-bit linear PCM recording at either 44.1 or 48 kHz sample rates. Podcasters will appreciate having a total of six MP3 bit rates available, ranging from 192 kbps stereo down to 32 kbps mono. And, the menu selectable Auto-Input feature detects whether the line input or external mic input is being used, switching off the dual integrated mics automatically.

Stability and Portability

The PMD620 is a true handheld, light in weight yet ruggedly constructed. The use of SD cards as a recording medium provides the ultimate in space efficiency and stability, with no practical limit on file size. Two AA batteries, either alkaline or NiMH rechargeables, provide upward of five hours of operation.

On-board Editing and Playback Features

The PMD620 makes field production amazingly easy. Use the integrated speaker or mini-plug headphones to monitor or transcribe. The Copy Segment function extracts a piece of audio as a separate file while keeping the original intact, while the Skip Back feature acts as a preset "back up and replay" function, programmable for audio jumps of up to 59 seconds at the touch of a button.

Connectivity and Hardware

Despite its compact, slender profile, the PMD620 offers a full array of 1/8-inch stereo connectivity, including both line and mic inputs, a Line Out for playback, and a headphone jack for monitoring. A pair of convenient Up/Down buttons allows adjustment of input sensitivity, while the USB 2.0 port makes file transfers to any computer a breeze. Once connected, the PMD620 appears as a device on your PC desktop, with all files contained in a master folder. Just drag and drop any or all of them onto your desktop.

The PMD620 comes complete with SD card, audio and USB cables, AC adapter and more – everything needed to step into the world of high-resolution field recording.

Specifications

Digital Audio System System: Solid State Recorder Usable Media: SD/SDHC Cards Recording Format: MP3: MPEG1 Layer III Compression WAV: 16/24 Bit Linear PCM Recording MP3 Bit-rate: Stereo: 192/128/64 kbps Mono: 96/64/32 kbps Sample Rate: 44.1/48 kHz Number of Channels: 2 (Stereo) / 1 (Mono) Audio Performance Frequency Response: 20 Hz ~ 20 kHz (±1 dB) Signal-to-noise Ratio, IEC-A Weighted: MIC: 68 dB LINE: 80 dB Total Harmonic Distortion at 0 VU: MIC: 0.06% LINE: 0.02% Dynamic Range: 81 dB

Inputs External MIC: Type: 1/8" stereo jack Input Sensitivity: 6 mVrms/30 kohms LINE: Type: 1/8" stereo jack Input Sensitivity: 500 mVrms/20 kohms Outputs LINE: Type: 1/8" stereo jack Standard Level: 1.0 Vrms/10 kohms Headphone: Type: 1/8" stereo jack Standard Level: 16 mW/16 ohms Speaker: Standard Level: 150 mW/8 ohms

General Power Consumption: Recording/Playback 1.5 W (DC) Battery Life (Alkaline) 5 hours (Typical) Phantom Power 5V, 1mA (Max.) Environmental Conditions: Operational Temperature: 0 ~ 40°C (32 ~ 104°F) Operational Humidity: 25 ~ 85% (No condensation) Storage Temperature: –20 ~ 60°C (–4 ~ 140°F) Dimensions: Width: 62 mm (2.5") Height: 102 mm (4") Depth: 25 mm (1") Weight: (Excluding Batteries) 110 g (4 oz) Included Accessories: Audio Cable, USB Cable, AC Adapter, User Guide, CD-ROM,Handy Strap, Customer Registration Document (U.S. Only), Tripod/Belt Clip Adapter, SD Card

• One Touch Stereo or Mono Recording
• Uses SD/SDHC Cards for Recording Uncompressed WAV or MP3 files
• 2 Condenser Microphones & Built-in Monitor Speaker
• 16-Bit or 24-Bit Linear PCM Recording at 44.1 or 48kHz Sample Rates for WAV Files
• Operates on 2-AA Alkaline or NiMH Batteries

User questions & answers

Question:	What are the specs on the adapter cord? Mine is broken and cant find what specific cord i need
Answer:	Yes. There is a simple process called finalizing that takes about two minutes. Then the CD cannot be recorded over again.
Question:	Are there 1 or 2 mic inputs? I want to use with separate mics, one for voice, the other at the piano
Answer:	Yes
Question:	Are you able to use this with another software to take this from speech to text? If so, what do you recommend
Answer:	Stated torque is 250

Product description

Marantz Mono, 2 Head, 2 Speed, Cassette Player w/VU Meter, telephone jack.

• RCA line in/out
• Built in microphone and monitor speaker
• 1/8" mic in and Telephone jack
• External speaker out, VU meter

User questions & answers

Question:	Hi: I'm looking for a manual for this Marantz PMD201. Do you know where I can get one? Or do you have one to sell? Or download to me
Answer:	The PMD670 is a larger unit and it has RCA Line inputs. The PMD661 is smaller and uses a stereo mini-plug for line level input. Both recorders have XLR inputs for mic-level signals (the PMD661's XLR inputs can also take a line level signal). If you want to use the internal mics, the PMD670 has a mono mic and the PMD661 has a built-in set of stereo mics. The PMD670 records on CF (Compact Flash) cards. The PMD661 uses smaller SD cards. If you want to record very high bitrate music, the PMD661 can record up to PCM-24 (96KHz), although the PMD670 can record WAV files up to 16 bit, 48Hz, which is still higher than ordinary music CDs. Both can record in various qualities of MP3. If you intend to record while carrying the recorder, or at a very high bitrate, the PMD661 would be the better choice, although it is more expensive. If you are not carrying the recorder with you as you record, the PMD661 has less of an advantage. I personally have used the PMD670 for years and have found it to be a very rugged and reliable recorder. I like having RCA inputs for line level as most mixers also use RCA connections for their line level outputs. The PMD670 has a larger display that is easier to read. I also like that it is larger as someone can't just stick it in their pocket and run off with it! I hope this is helpful. Best Wishes, Steve Dean Aurora Recording
Question:	The description says it will take a 1/8th mike plug. Is that an RCA or a 3.5 mm size
Answer:	AC Adapter, Class 2 Transformer, Input: 120V - 60Hz 15W, Output: 4.5VDC 700mA
Question:	Does this have 3 heads
Answer:	Yes. You can't record while playing a CD at the same time, though. Best Wishes, Steve Dean Aurora Recording
Question:	does anyone know if this specific tape deck is in mono or stereo
Answer:	Depending on your genre-the BEST you can afford. Sony used to sell a professional stereo condenser 'recording' mike (not for singing solos-output too low for an amp) that you could adjust the L+R Axis as well as the input levels (reduction needed for Rock Concerts). Runs on a simple AAA battery seemingly forever and is wired with a highly shielded single molded cord with a Left and Right 1/4" TS plug (your typical guitar cord). Has built in pop filter and battery test led. Used on several occasions-no detectable distortion or hiss and the frequency range is superior in specs. The included self contained mic is only good for meetings but is perhaps slightly better than an ole-fashioned Panasonic portable cassette player. There's very little this cannot do. Two caveat though. One is the rechargeable battery pack is expensive (not included). I devised an adapter I could latch onto a sealed lead acid battery (think emergency lights or UPS backup) if needed. I prefer straight power from the line cord. {beware of polarity-it's reversed in the schematic}. Two would be it's fussy about CD quality discs. My recommendation use only SONY CD-Rs to avoid a failure writing to disc. Haven't tried a Sony CD-RW. This last disadvantage is it's Achilles heel. I guess I should mention you cannot copy CD's internally, there is no hard drive or flash memory to contain the original image. Once Finalized (needed to play on other audio CD players) you can make copies via a PC or other means. Finalization takes approximately 2 minutes to complete.

Product description

The PMD660 is small enough to fit in the palm of your hand, but it has features that make more expensive, full-sized field recorders green with envy. It can run for hours on just four AA batteries. It records on Compact Flash media cards which you can find in any discount store, and will store more than 36 hours of mono on a single card. If audio quality is your key requirement, you get over an hour of pristine, uncompressed, 16-bit .wav files. Editing can be achieved right there in the field using either of two editing modes, or you can use your favorite audio editing application by transferring files to your PC-the PMD660 even has its own USB port. XLR inputs, phantom power, built-in mics and more-it's all there in the PMD660.   Highlights Smallest PMD yet-fits in your hand Records uncompressed 16-bit PCM .wav files at 44.1 kHz or 48 kHz Records mono .mp3 files at 64 kbps Records stereo .mp3 files at 128 kbps Uses inexpensive, widely available Compact Flash media (CF) 1 GB CF card can hold over 1 hour of uncompressed stereo 1 GB CF card can hold over 17 hours (stereo) or 36 hours (mono) .mp3 Operates for four hours on four AA batteries Two XLR mic connections with +48v phantom power Two built-in condenser mics for easy, true stereo recordings Stereo line I/O Solid State Design No moving parts-no maintenance "Copy Segment" cut-and-paste editing to a new sound file 99 "Virtual Tracks" for immediate playback access of ...

• Records uncompressed 16-bit PCM .wav files at 44.1 kHz or 48 kHz; onboard editing
• Records mono .mp3 files at 64 kbps; Records stereo .mp3 files at 128 kbps
• Uses inexpensive Compact Flash media; 1 GB CF card can hold over 1 hour of uncompressed stereo
• Operates for four hours on four AA batteries; Two XLR mic connections with +48v phantom power
• Two built-in condenser mics; Built-in USB port for easy file transfer; Stereo line I/O

Product description

Zoom H5 handheld portable digital recorder.

• Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
• Includes detachable x/Y capsule (xyh-5) with extended signal capacity and shock mounted mics for reduced handling noise
• Four-track simultaneous recording; Built-in speaker: 400mw 8 Ω mono
• Two mic/line inputs with XLR/TRS combo connectors each with selectable Phantom power and -20dB pad
• Runs on 2 AA batteries and records directly to SD/ SDHC cards up to 32GB
• Max sound pressure input: 140 dB SPL

User questions & answers

Question:	I am a new podcaster. Would someone be kind enough to explain how I would use this to interview someone over the telephone? Would skype be involved?th
Answer:	Yes, you will want to use a software like Skype or Google Voice. You can connect the headphone output of your computer to one of the H5 inputs.
Question:	If this unit is powered off and a USB cable is connected to a computer does it automatically turn on or will it stay off
Answer:	It will automatically turn on with the option to select its use as an interface or storage device...hope this helps.
Question:	Is the battery life significantly improved over the H4N? I like my H4N, but it's terrrible on phantom power for battery life
Answer:	I can't compare it to the H4n. I got about 8-10 hours on the h5 using alkalines and phantom being on for nearly all of that time. It gives very little warning when the batteries are about to go.
Question:	Judging from the pictures it looks to be made of plastic. Is this fragile or robust
Answer:	It does not have a plastic feel. If you have ever held an H4n than this will feel somewhat the same. The H5 has a slim, but sturdy feel. It's not the kind of item that would break easily. The thing with the H5 is that it is so cool looking that you're always worrying about getting a single scratch on it. Fortunately, the rubber like exterior seems to handle scratches pretty well. Highly recommend that you get a screen protector as soon as you take it out of the box. I've held both the H5 and H6 and while the H6 feels slightly heavier and more professional with all the knobs, nice looking finish and a great color screen. The H5 feels lighter, has great build quality and you are more likely to use it because it light enough to mount on a rig or carry around... Without the fear of it breaking. I've bumped it on a few corners with my rig and it has held up pretty well. The only thing that feels like plastic are the adapters, but that applies to both the H5 and H6.Hope that helps.

Product features

The Zoom H5 Handy Recorder

The compact and portable H5 gives you everything you need to create professional quality audio. It comes with a detachable stereo X/Y microphone and utilizes a system of interchangeable input capsules that allow you to choose the best mic for every situation.

Ideal for live concert and rehearsal recording as well as audio for video, the H5 is equally well-suited for podcasting, broadcasting and electronic newsgathering.

XYH-5 shockmounted X/Y mic capsule

The advanced XYH-5 provides dual matched unidirectional condenser microphones housed in an advanced shockmount to minimize vibration and handling noise-ideal for location videography and broadcasting/podcasting. In addition, the XYH-5 is designed to handle extremely loud sounds, making it the perfect choice for capturing the sound of live rock concerts and for electronic newsgathering (ENG) applications.

XYH-6 large diaphragm X/Y mic capsule

The XYH-6 allows you to do stereo X/Y recording and provides dual large diaphragm mic elements with adjustable width-choose 90 degrees for a more focused sound or 120 degrees for a wider stereo image. It''s great for recording classical music and for capturing sound effects in the field.

MSH-6 MS (Mid-Side) mic capsule

Step up to a whole new level of precision sound-shaping with the MSH-6, which contains a forward-facing, unidirectional mic (the 'Mid') and a side-facing, bi-directional mic (the 'Side'). In conjunction with the H5''s onboard MS decoder, it allows you to capture a fully mono-compatible stereo image that can actually be adjusted after recording-ideal for film, video, and television projects.

SGH-6 Shotgun mic capsule

Get all the pickup with half the length by connecting an SGH-6, which adds a professional-quality, highly directional shotgun microphone to your H5. Three elements, combined with digital signal processing, give you the highly directional pickup power of a conventional shotgun in a unit only half the size, making it optimum for recording dialogue and narration with no intrusive mic in the scene.

EXH-6 Dual XLR/TRS Combo capsule

The EXH-6 adds two more mic- or line-level inputs to your H5, allowing you to connect up to four discrete signals from external microphones, instruments, mixers, or portable music players and fully realize your creative vision.

Product description

Zoom H1n Handy Recorder (2018 Model)

• Streamlined Body with matte finish and newly designed protective mic enclosure
• Built-in stereo condenser microphones in 90-Degree x/Y format
• One-touch button controls.Battery life (alkaline batteries): Approximately 10 hours (continuous recording time using built-in mic, 44.1 kHz/16-bit)
• Localized and intuitive menus for easy operation.Input impedance: 2 kΩ
• Playback Speed Control, Voice Emphasize Filter, and Stereo overdubbing functions

User questions & answers

Question:	When you connect a mic into the input line. Can you mix it with the built-in mics
Answer:	No, but ZOOM makes (and Amazon sells) another model that will record FOUR channels --- the "same" two built-in mics PLUS two LINE/XLR jacks: the H5 (which I also own). (See here: http://amzn.to/2l8U4nC) (that's a lowercase L and N)
Question:	How can I use the zoom h1 as a dslr mic.? If it is possible do I have to press record on the zoom h1 and and press the record button on the dslr whe
Answer:	Just a note about recording into a dslr: the bitrate and sample rate you set on the zoom doesn't affect the bitrate and sample rate recorded onto the dslr file. Your dslr always determines the bitrate and sample rate. (IE: for most Canon's that's 44khz/16 bit). The audio quality from the zoom will be better than your on-camera mic simply because the microphone itself is higher quality, but don't expect to be recording 96khz/24 bit audio straight into your dslr's .mov files!
Question:	can I record a piece to video with the Zoom recording my voice and then synch it to video
Answer:	Sure thing. I use mine as a primary aiduo recorder for my Nikon D5300. I use the sound from the camera as areference track and then stnc the wave file from the Zoom to the video using Final Cut X. Works perfect with much better sound quality.
Question:	What does this device actually record onto - some sort of a memory card or flash drive? I'm looking for something that will record at least 6 hours
Answer:	You get roughly 12 hours on the 2GB micro SD card included, in MP3 320kbps. Quality is excellent. If you want WAV format your looking at about 2.5 hours with the stock card. Larger cards are cheap though so it's upgradable.

Product features

Zoom H1n

The evolution in portable recording continues with the Zoom H1n. Designed for creators of all kinds, the H1n boasts built-in 90-degree X/Y stereo mics, advanced one-touch button controls, and distortion-free recording. It’s powerful enough for professional projects yet small enough to fit into your pocket. It’s the ultimate.

take-anywhere recorder for every creators gig bag.

Built-in 90˚ X/Y Microphones

The H1n features built-in X/Y stereo microphones for capturing high-quality stereo sound. The mic itself covers a wide area while emphasizing the center of the sound field, allowing creators to record crystal clear audio in almost any setting.

Record Anytime, Anywhere

Thanks to the H1n’s compact and rugged design, it can record high-quality sound just about anywhere. It features a newly designed mic enclosure to protect the X/Y mics from wear and tear, so you can put it your pocket, toss it in your backpack, or take it out in the field.

Distortion-Free Recording

An advanced onboard limiter enables the H1n to record distortion-free signal up to 120 dB SPL. Capture concerts, band practice, or other loud environments without compromising audio quality.

Enhanced Playback and Control

Playback Speed Control lets you easily transcribe interviews. For musicians, the A-B repeat comes in handy when you are learning and rehearsing. The overdub feature lets you add new sounds over existing recordings. You can also set the H1n to auto-record, pre-record, and self-time.

Easy-to-Use Menus and Controls

Graphic LCD display, one-touch button controls, and localized menus make the H1n perfect for both entry-level and professional creators. Quickly record song ideas, audio for film projects, lectures or meetings, podcast interviews, and more—all with exceptional audio quality.
