13 best hex threading dies
Hex threading dies are cutting tools used in industrial applications for creating external threads on cylindrical surfaces, specifically hexagonal shapes. These dies are a crucial component in the process of threading, which involves cutting or forming threads on a workpiece. Threading dies come in various shapes and sizes to accommodate different threading requirements, and hex threading dies are designed for producing hexagonal threads.
Here are some key points about hex threading dies:
Material and Construction: Hex threading dies are typically made from high-speed steel (HSS) or other durable materials. The choice of material depends on factors such as the type of material being threaded and the volume of work. High-quality construction ensures longevity and precision in the threading process.
Hexagonal Threads: Unlike traditional round threads, hex threading dies are specifically designed to create hexagonal threads on the external surface of a cylindrical workpiece. Hex threads are commonly used in applications where a hexagonal shape is desirable for better grip or specific functional requirements.
Usage: Hex threading dies are employed in various industries, including manufacturing, construction, and automotive, where hexagonal threads are needed.These dies can be used with different threading tools such as die stocks or threading machines.
Sizes and Pitches: Hex threading dies are available in various sizes and pitches to accommodate different thread specifications. The size of the die corresponds to the diameter of the workpiece, while the pitch refers to the distance between individual threads. Users must select the appropriate die size and pitch based on their threading requirements.
Cutting Process: Threading dies, including hex threading dies, work by removing material from the external surface of a cylindrical workpiece to create threads. The die is rotated around the workpiece, and as it makes contact, it cuts into the material, forming the desired thread pattern.
Precision and Quality: The precision of hex threading dies is crucial to ensure accurate and consistent thread profiles. High-quality dies help achieve clean and well-defined hexagonal threads, contributing to the overall quality and functionality of the threaded product.
Maintenance: Proper maintenance of hex threading dies is essential for extending their lifespan and ensuring optimal performance. Regular cleaning, lubrication, and inspection help prevent wear and maintain cutting edges in good condition.
In summary, hex threading dies are cutting tools designed for creating hexagonal threads on cylindrical workpieces. They play a vital role in various industries where hex threads are required for specific applications, and their quality and precision are critical for producing accurate and reliable threaded products.
Below you can find our editor's choice of the best hex threading dies on the market
60-Piece Master Tap and Die Set - Include Both SAE Inch and Metric Sizes, Coarse and Fine Threads | Essential Threading and Rethreading Tool Kit with Complete Accessories and Storage Case
Product description
EFFICERE 60-Piece Premium Tap and Die Sets is your best choice tools for hand threading jobs at home, garage, shop and work sites. It is perfect for a wide range of applications, such as auto repairs, metal fabrication, machinery, plumbing and a lot more. It can be used to both cut new threads and chase / renew existing threads. This set is made from highly durable GCr15 bearing steel, and cuts through a wide range of metal pipes and rods including carbon steel, cast iron, stainless steel, aluminum, brass, copper and much more. All the cutting teeth are professionally CNC (computer numerical controlled) machined and heat treated to Rockwell hardness 60 HRC for providing aggressive, clean and precise threading results. The taps and dies also feature a tapered design, allowing an easier start and preventing over threading. Set Includes: (27) Taps; (27) Dies; Adjustable Tap Wrench; T-handle Tap Holder; Adjustable Die Wrench; Flat Screw Driver; Thread Pitch Identifier; Storage Case; Tap and Die Sizes: (20-Piece) Metric taps and dies: M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1.0, M7 x 1.0, M8 x 1.25, M9 x 1.25, M10 x 1.0, M10 x 1.5, M12 x 1.75; (20-Piece) Numbered and Standard Fractional taps and dies for Coarse threads (UNC): #4 - 40 NC, #6 - 32 NC, #8 - 32 NC, #10 - 24 NC, #12 - 24 NC, 1/4” - 20 NC, 5/16” - 18 NC, 3/8” - 16 NC, 7/16” - 14 NC, 1/2” - 13 NC; (12-Piece) Numbered and Standard Fractional taps and dies for Fine threads (UNF): #10 - 32 NF, 1/4” - 28 NF, 5/16” - 24 NF, 3/8” - 24 NF, 7/16” - 20 NF, 1/2” - 20 NF; (2-Piece) Pipe Threader (NPT): 1/8” - 27 NPT;
- ▲ PREMIUM MATERIAL AND DURABILITY - Industrial grade GCr15 bearing steel construction ensures durability and tool longevity to withstand professional uses
- ▲ EXCELLENT CUTTING PERFORMANCE - All cutting teeth are precisely CNC machined and accurately heat treated to Rockwell hardness 60 HRC for best threading performance
- ▲ VERSATILITY AND TAPERED TEETH DESIGN - Perfect to create new threads or repair damaged threads on most metals like carbon steel, cast iron, aluminum, brass, copper and stainless steel; Taps (for internal threads) and Dies (for external threads) feature with tapered teeth that start threading more easily
- ▲ MOST POPULAR SIZES - Set includes (20) Metric taps and dies: M3x0.5, M4x0.7, M5x0.8, M6x1.0, M7x1.0, M8x1.25, M9x1.25, M10x1.0, M10x1.5, M12x1.75; (20) SAE Fractional taps and dies for coarse thread (UNC): 4-40 NC, 6-32 NC, 8-32 NC, 10-24 NC, 12-24 NC, 1/4-20 NC, 5/16-18 NC, 3/8-16 NC, 7/16-14 NC, 1/2-13 NC; (12) SAE Fractional taps and dies for fine thread (UNF): 10-32 NF, 1/4-28 NF, 5/16-24 NF, 3/8-24 NF, 7/16-20 NF, 1/2-20 NF; NPT tap and die: 1/8-27 NPT
- ▲ COMPREHENSIVE ACCESSORIES - Comes with Adjustable Tap Handle; T-type Small Tap Handle; Adjustable Die Handle; Thread Pitch Gauges; Slotted Screwdriver; Storage and Carry Case
User questions & answers
| Question: | Can this tap a 14mm |
| Answer: | Reverse thread or left handed threads are very different and not readily found. While this is a great set it doesn’t contain tap and dies you need. |
| Question: | Need reverse threads set any ideas |
| Answer: | M3 is the smallest |
| Question: | Does this have 2.5mm tap and die or is 3mm the smallest |
| Answer: | I do not believe it does. |
| Question: | Doe's it have a 1/4 pipe thread tap |
| Answer: | Yes it will. You may have to drain the gas on some equipment depending on how you hang it though. It is certainly strong enough. |
Century Drill & Tool 98513 Solid Die Stock, 1-7/16" Hex Dies
Century Drill & Tool
Product description
Century's hex die wrench allows for equal pressure to be applied to the die while cutting for professional results. Non-adjustable die stock firmly locks hex dies with one set screw.
- Holds 1-7/16" across the flats hex dies
- Century's hex die wrench allows for equal pressure to be applied to the die while cutting for professional results
- Solid zinc alloy cast
User questions & answers
| Question: | New to this, will this fit a hex die M14x |
| Answer: | No, this Die Stock will be too small for the 14x2.0 die which is 1-1/2" across flats. You would want to choose item 98516, which is our 1-13/16" Die Stock to fie that size die. |
| Question: | Is the 1 7/16" dimension across the points or flats? I have a 5/8"-11 rethread die that is 1 7/16" across the points and 1 1/4" across the flats |
| Answer: | The die stock I have measures 1-7/16" across the points and 1" across the flats. |

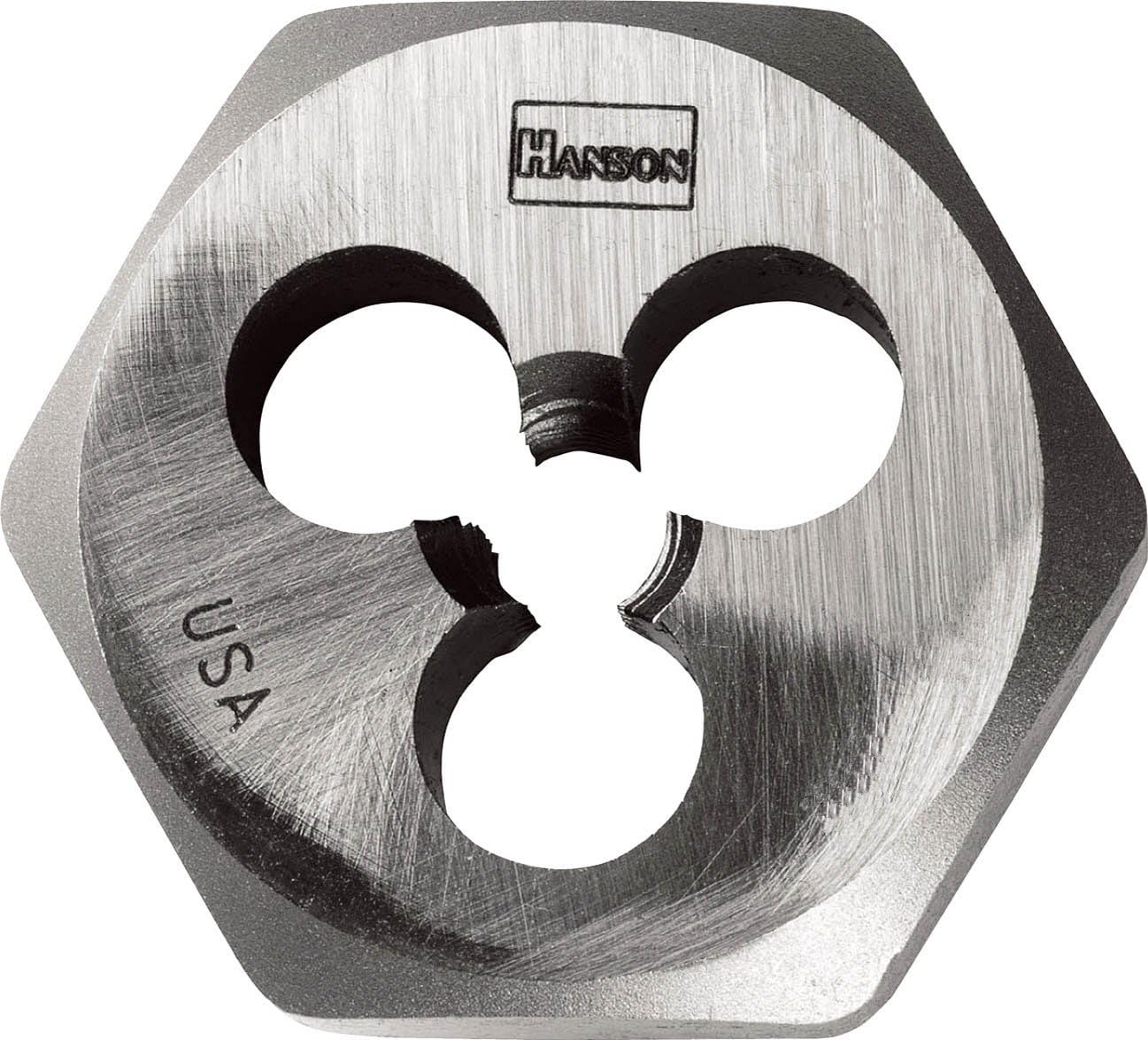

Irwin Tools 9739 10mm x 1.25 Hex Die
IRWIN
Product description
Die metric 10MM-1.25mm. Made of shock-resistant and heat treated S2 steel for maximum strength and hardness, ideal for maintenance and repair work, manufactured in United states.
- Made of shock-resistant and heat treated S2 steel for maximum strength and hardness
- Ideal for maintenance and repair work
- Country Of Origin: United States
- Model Number: 9739
User questions & answers
| Question: | is this die for right hand threading |
| Answer: | This die is: turn clockwise (right) to tighten and counter-clockwise (left) to loosen. |
| Question: | Cam this extend the tread length |
| Answer: | yes it is made to cut new threads. use thread cutting oil with it. |
| Question: | Will this work with a Die stock for |
| Answer: | Yes, it is 1" diameter and hexagonal. |
Drill America - DWTMHX16X2 m16 X 2 Carbon Steel Hex Rethreading Die, DWT Series
Drill America
Product description
Drill America DWT Series Qualtech carbon steel hex die is for dressing over bruised or rusty threads, this is the most cost effective rethreading tool available. No special holder is required for this type of die, any wrench large enough will suffice. Ideal for maintenance in the shop or field.
- Made of carbon steel
- Right-hand cut tools have a cutting action that engages when they are run in a clockwise direction
- Hex die is for dressing over bruised or rusty threads
- No special holder is required for this type of die, any wrench large enough will suffice
- Ideal for maintenance in the shop or field
User questions & answers
| Question: | What die handle size can be used with dwthx51618lh left hand hex die, 5/16" - 18", size of die is 0.7 inches |
| Answer: | Doesn't require a die handle; just use the appropriate size box wrench or socket wrench. Much better control and even application of torque. |
| Question: | I'm looking for a die to cut threads for a metric plumbing pipe for a sink sprayer I bought from China. Will this work or is this for a 16mm bolt |
| Answer: | This is rethread die. Not really good to cut new threads. For 16 mm bolt or straight threads. Not for pipe threads if that what you want. |
| Question: | How big a socket do I need for the M22 x |
| Answer: | The 22m x 1.25 hex dies have Approx. 1-5/8 across the flats. |
| Question: | is the die stamped or laser-etched? thanks |
| Answer: | I assume you mean the markings to know what size it is. It is laser etched. It says 14mm x 1.50 start this side. |
Product features
No Special Holder Required
Unlike round dies, Drill America Carbon Steel Hex Dies do not require a special holder. Any wrench large enough will suffice.

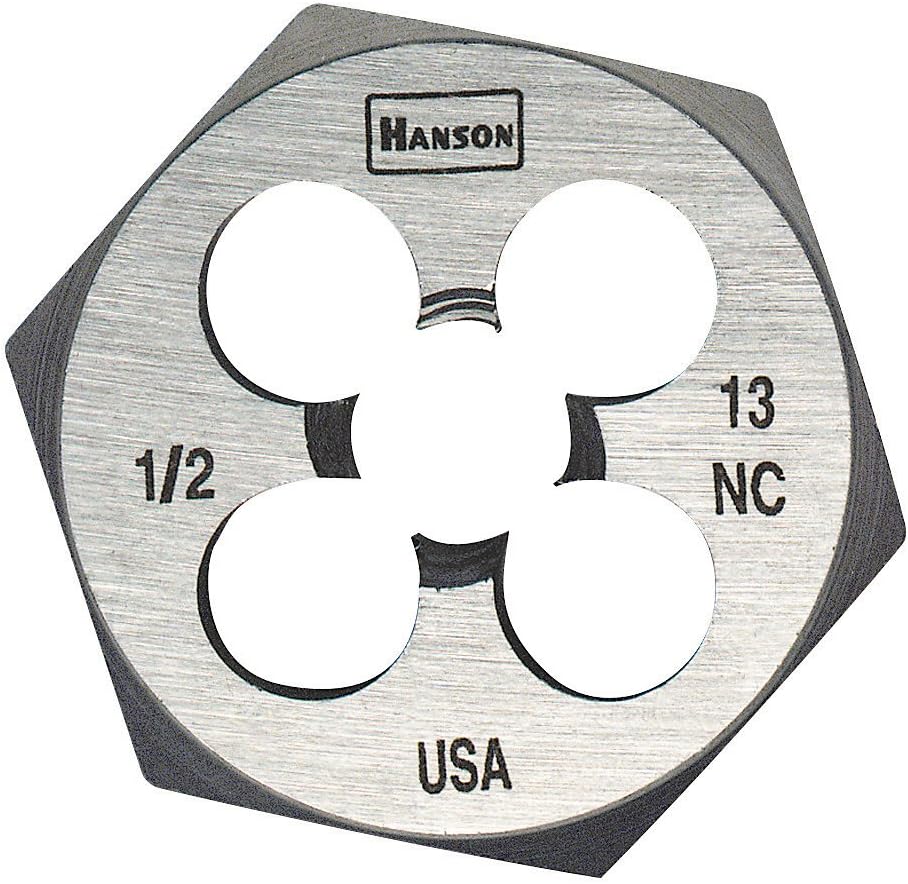

IRWIN Hanson 6544 1/2"-13Nc 1" Hex Die for Tap Die Extraction
Product description
These IRWIN HANSON Hexagon Dies are ideal for maintenance and repair work. They are recommended for use with hexagon die stocks, but when space is limited, they can be used with a wrench or socket. The thread die is constructed from high-carbon steel for extended use.
- Dies are ideal for maintenance and repair work
- Dies are recommended for use with hexagon die stocks
- Threading die can be used with a wrench or socket when space is limited
- Dies are made of HCS (high-carbon steel) for lasting durability
- 1/2" - 13 Nc
User questions & answers
| Question: | Need to extend threads on a 1/2" grade 8 U-bolt. Will this Die handle grade 8 stock |
| Answer: | You should be able to, USA made product so you have that going for you, use plenty of oil. I used on regular grade so I cannot say 100%. |
Bosch BHD4M75 4mm - .75 High-Carbon Steel Metric Hex Die
Product description
Bosch metric dies are ideal for cutting right-hand external metric threads. The hex head shape is designed for use in die stocks and adjustable wrenches. They are commonly used for threading rods, bolts, and studs. Made from heat-treated carbon steel, they are rust- and tarnish-resistant tools. The hex head shape of the die is designed for use in die stocks and adjustable wrenches; dies measure 1 in. Across the Flat. They are tooled to the most exacting specifications to ensure that threads provide a tight fit. Laser-etched marking indicates starting side, ensures size identification and won’t wear off.
- Metric Dies – engineered for cutting right-hand external metric threads; commonly used for threading rods, bolts, and studs
- Heat-treated carbon steel – provides superior durability and speed
- 1 in. Measurement – Dies measure 1 in. Across the flat
- Package dimension: 12.0" L x 11.8" W x 14.0" H

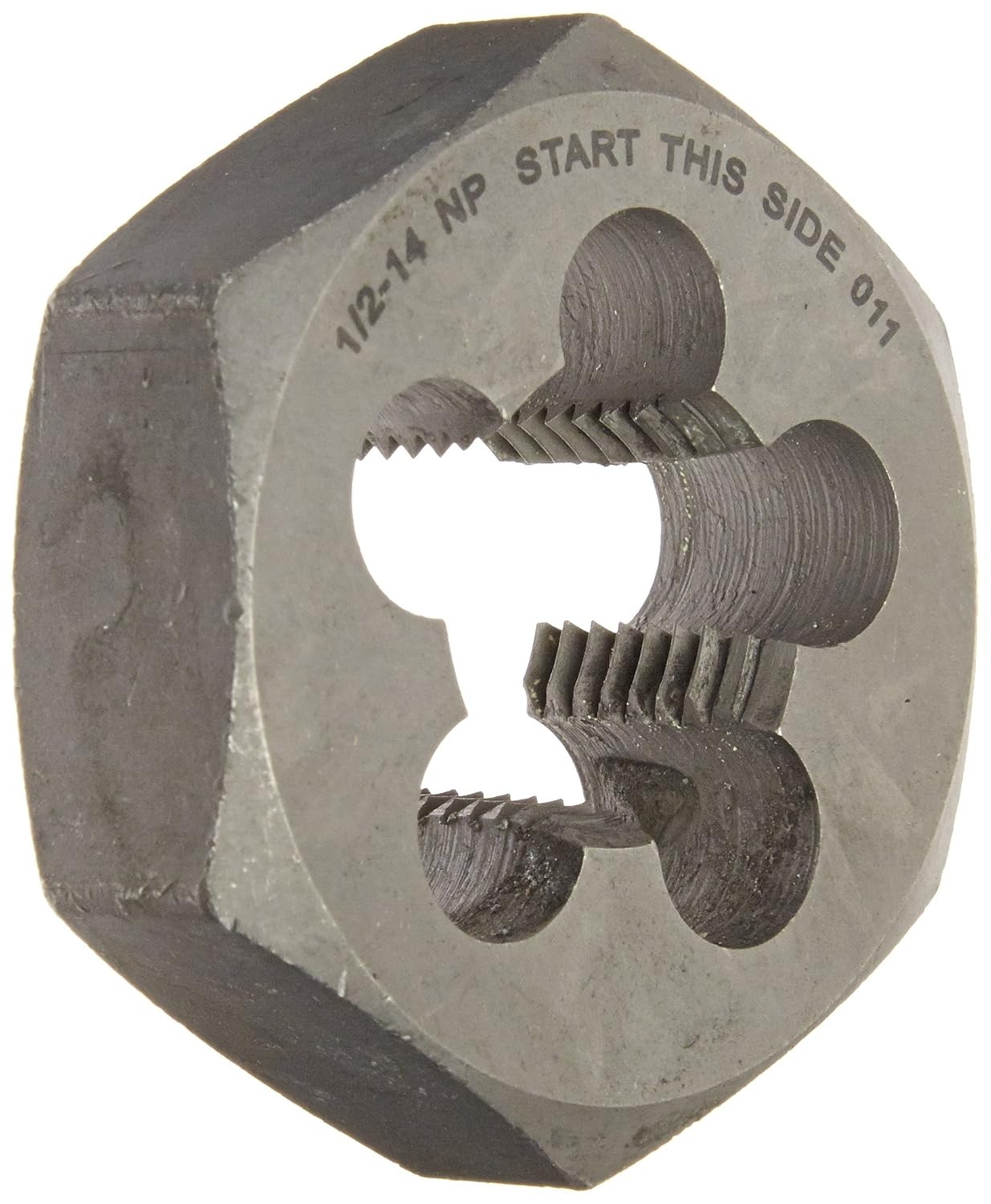

Drill America 1/2"-14 Carbon Steel Hex NPT Pipe Rethreading Die, DWT Series
Drill America
Product description
Drill America DWT Series Qualtech carbon steel hex die is for dressing over bruised or rusty threads, this is the most cost effective rethreading tool available. No special holder is required for this type of die, any wrench large enough will suffice. Ideal for maintenance in the shop or field.
- Made of carbon steel
- Right-hand cut tools have a cutting action that engages when they are run in a clockwise direction
- Hex die is for dressing over bruised or rusty threads
- No special holder is required for this type of die, any wrench large enough will suffice
- Ideal for maintenance in the shop or field
User questions & answers
| Question: | does the 1-11-1/2 work for American Pipe Threads, and is it for 1" pipes |
| Answer: | Yes, this is a die for NPT (National Pipe Thread). It will thread 1 inch pipe with threads that are 11 1/2 TPI (Threads Per Inch). NOTE: this is for dressing up threads or rethreading a pipe. It is NOT for making new threads. For cutting new threads you will need something more durable than carbon steel. |
| Question: | Is 1/8" the inner diameter of the pipe, meaning this will thread pipe with an outer diameter of |
| Answer: | This die is meant to thread 1/8" Nominal Pipe Size (NPS) pipe. The outer diameter is about 0.41". The inner diameter depends on the wall thickness but the most commonly found type, Schedule 40, that you'll find on the shelves in big box stores, has an inner diameter of about 0.27".Jay is correct that if you thread 1/8" NPS pipe with this die, it will connect to other 1/8" fittings. |
| Question: | What size is the die - what is the distance across the flats |
| Answer: | 2-1/8" ACROSS THE FLAT |
| Question: | Will this work on aluminum pipe |
| Answer: | Yes it will work on aluminum. Even T6 aluminum. It is HIGHLY advisable to use a lube when cutting aluminum. |
Product features
No Special Holder Required
Unlike round dies, Drill America Carbon Steel Hex Dies do not require a special holder. Any wrench large enough will suffice.
Channellock 9434 3/8 Inch x16 NC Hex Die
Channellock
Product description
3/8inch x 16, National Course Thread, 1inch Hexagon Fractional Die, Carbon Steel, Ideal For Routine Maintenance, Repair Work & For Rethreading Where High Accuracy & Tolerance Thread Is Not Critical, Recommended For Use With Hexagon Die Stock, Die Can Be Used With A Wrench Or Socket When Space Is Limited, Designed For Hand Threading Work In A Variety Of Materials.
- Designed For Hand Threading Work In A Variety Of Materials Taps
- Ideal For Routine Maintenance, Repair Work & For Rethreading
- To Provide Rapid Chip Removal For Efficient Threading
User questions & answers
| Question: | What's the measurement across the flats - ie what size die stock does it require |
| Answer: | This hexagonal die takes a 1" stock, as indicated on the packaging (and as measured by me.) |

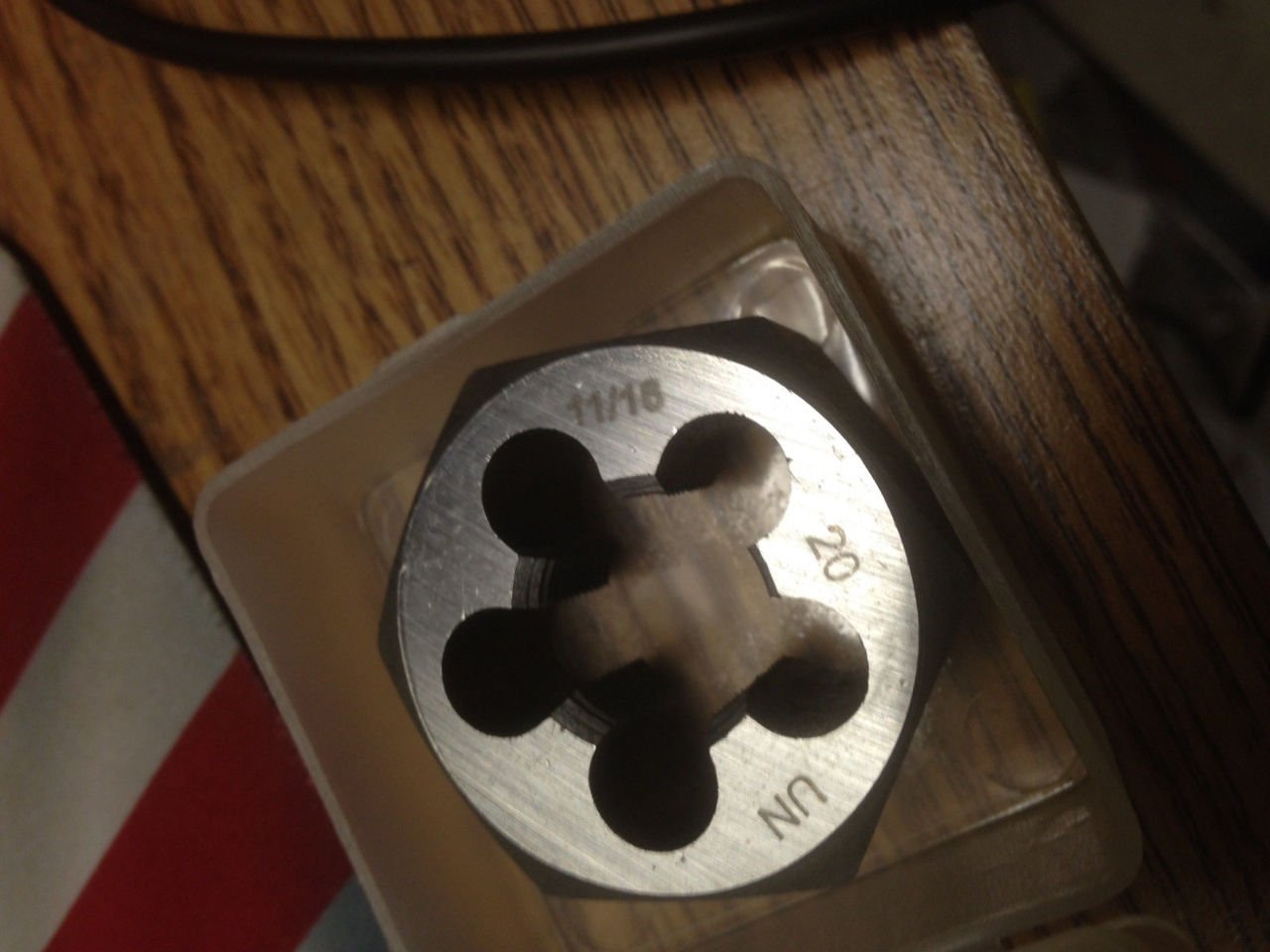

11/16"-20 Carbon Hex Special Rethreading Die
Michigan Drill
Product description
11/16"-20 CARBON STEEL HEXAGONAL RE-THREADING DIE
Quality Import
User questions & answers
| Question: | is this a nf |
| Answer: | 11/16"-16 is NF National Fine - 11/16-20 is considered NS National Special If you have a shaft or bolt with an 11/16"-20 thread that needs to be fixed this is the re-threading die that you need. |

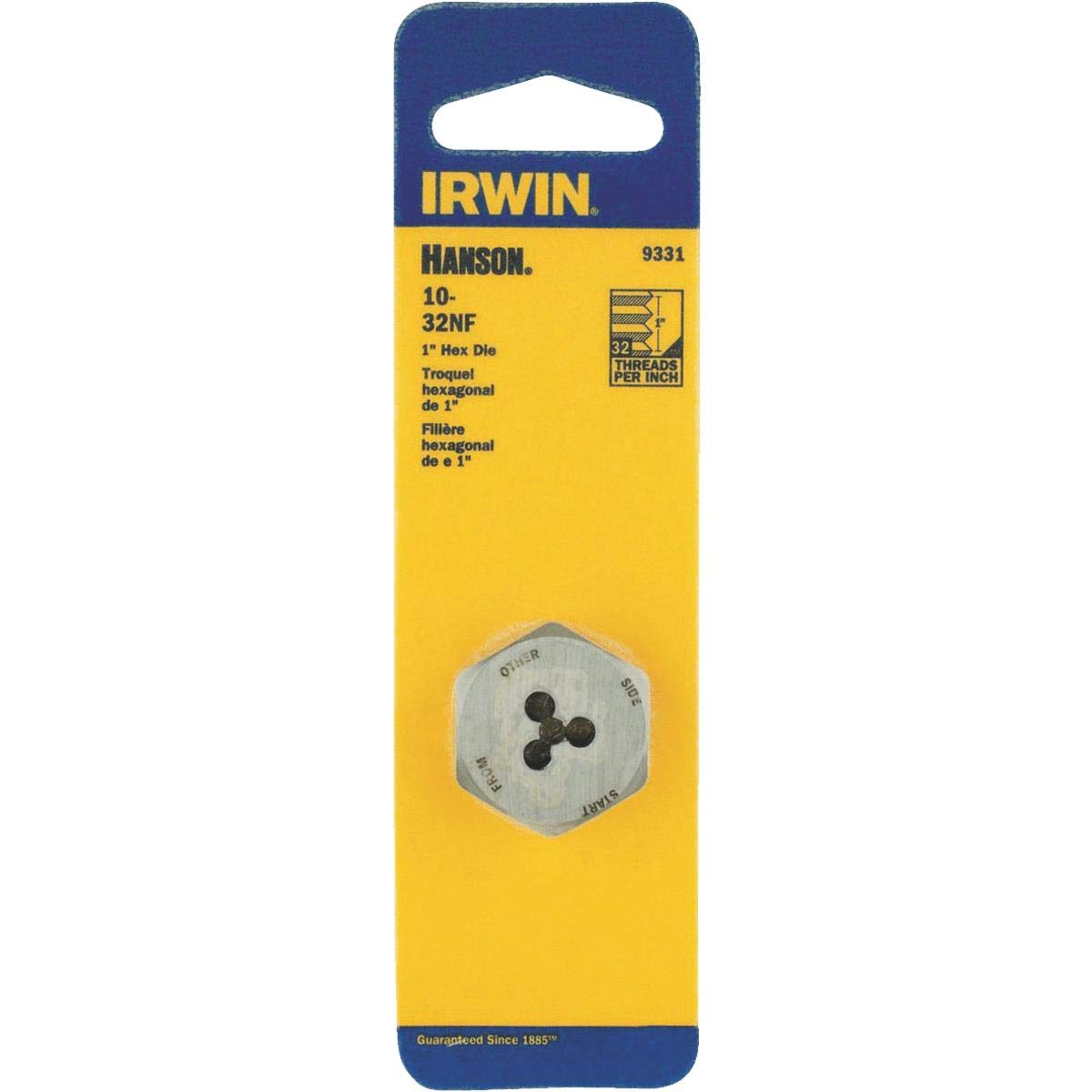

Hanson-Die 10-32 Nf 1 Sh 9331ZR
Irwin Tools
Product description
585-9331 Features: -Ideal for maintenance and repair work. -Recommended for cutting external threads by hand. -In areas with limited space, the dies can be used with a wrench or socket. -Advanced die geometry provides faster cutting and longer life. Dimensions: Overall Product Weight: -0.09 Pounds.
- Free shipping, often faster than Prime (i.e Next Day!)
- D.1 HX CD 10-32
- Cutting Tools
- Individual Dies
- Professional

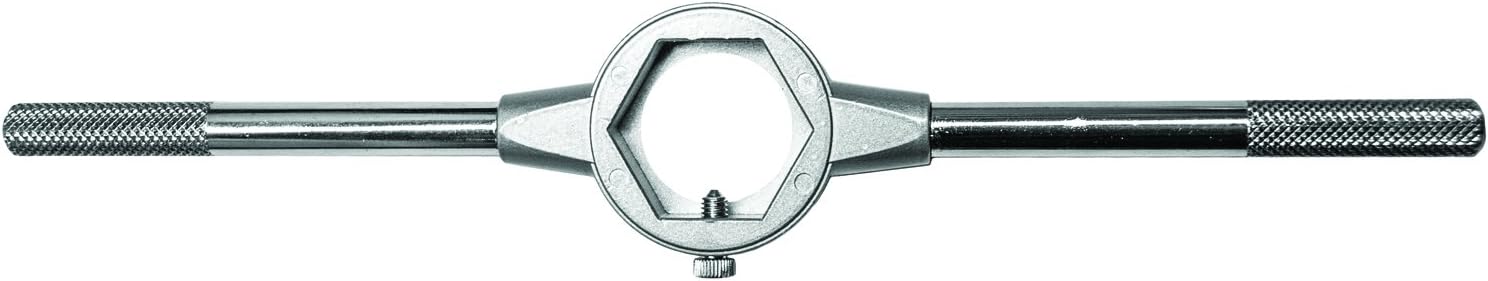

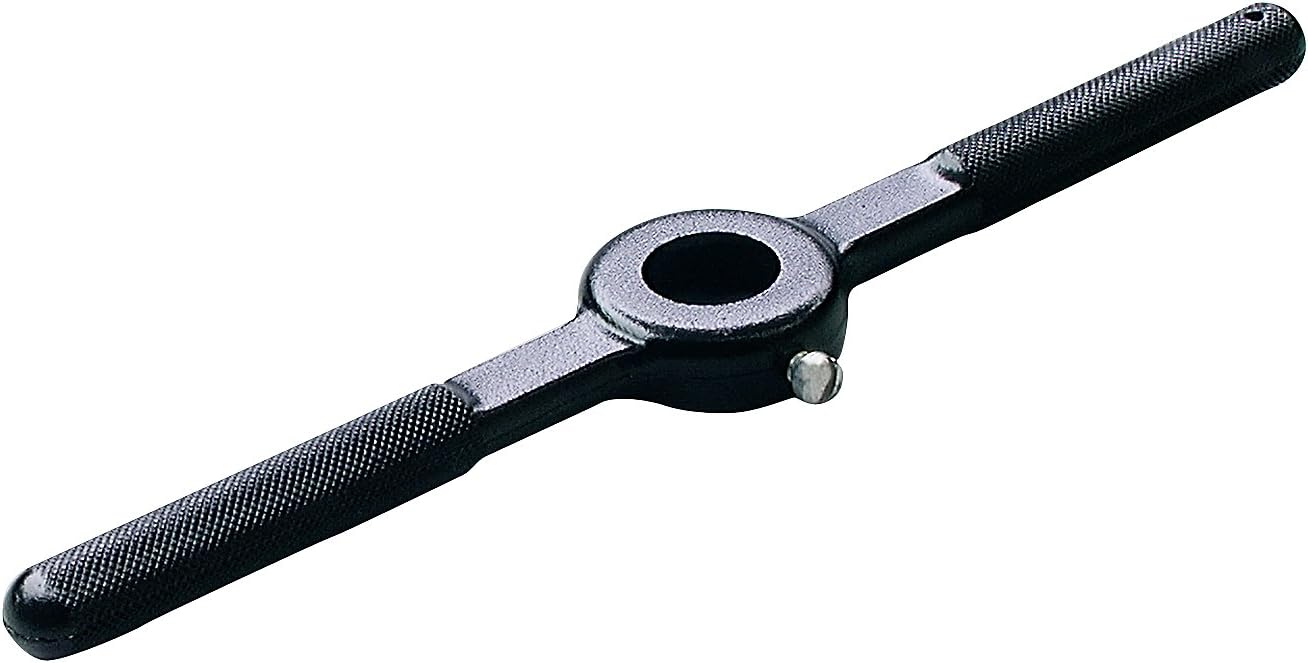

Hanson 12008 1" Rd Hex Plain Die Stock for Tap Die Extraction
IRWIN
Product description
This IRWIN HANSON Plain Die Stock Handle allows dies to easily lock into position with a set screw. Use for threading hexagon or round dies.
- Dies easily lock in position with set screw
- For 1-inch hexagon or round dies
- Threading tool
- Die stock 9
- Carded package
User questions & answers
| Question: | Will this hold a hexagonal die that measures .685" measured flat to opposite flat side |
| Answer: | No, it is made for dies that measure 1.0" across. I just looked at mine and .685 is too small and would not work, the set screw isn't long enough to try to secure a die that small, and even if it was there would be no way to center it in the tool. Are you sure it isn't 5/8" (.625) across? If so the HANSON 12457 should work, or any other 5/8 hex die stock. |
| Question: | What's it made out of? Steel, aluminum, or zinc |
| Answer: | It is made of steel. |
| Question: | How do you use a tap in this tool what do i need to buy in order to do so |
| Answer: | THIS TOOL IS USED FOR DIES BUT CAN BE USED FOR TAPS WITH A SPECIAL INSERT THAT HAS THE SMALL SQUARE HOLES TO PUT THE END OF THE TAP INTO BUT I DON'T KNOW THE NAME OF THE INSERT. IT IS EASER TO USE A T-HANDLE FOR TAPS, THEY HAVE THE RIGHT SIZE HANDLE SO NOT TO SNAP THE TAP OFF IN THE HOLE. |
| Question: | I am confused. is this for hexagon 1" dies or is it for round dies |
| Answer: | This is a hex head die that works with both. The set screw is positioned to hold a round in place. |
HHIP 1017-1726 Hex Rethreading Die, 1/2-20"
HHIP
Product description
Hex head shape is designed for use in die stocks and adjustable wrenches.
- Package Dimensions: 7.62 H x 5.08 L x 5.842 W (centimetres)
- Country of Origin : China
- Carbon steel hexagon dies are ideal for cutting right-hand external threads
- Package Weight: 0.018 kilograms
Irwin Tools 9436 3/8" x24 Nf Hex Die
Product description
IRWIN 9436 HANSON 3/8"-24 Nf thread 1" hexagon machine screw die (HCS) - 1" across flats. Ideal for maintenance and repair work. Recommended for use with hexagon die stock. Die can be used with a wrench or socket when space is limited. Advanced die geometry: allows for faster cutting with longer life. Material types: high carbon steel (HCS) for cutting of external threads by hand. Etched: die size is etched on each tool for easy identification.
- Package Dimensions: 1.27 cms (L) x 5.842 cms (W) x 1.27 cms (H)
- Product Type: Tools
- Package Quantity: 1
- Country Of Origin: United States
