13 best quadcopter frames

• ★ S500 is the quadcopter frame for upgrade F450 FPV Frame Kit.
• ★High quality PCB version carbon fiber material and exquisite design.
• ★PCB Center plate with solder point ,good qiality carbon fiber landing gear;
• ★Good work with Gopro Hero 3 2 Axis brushless gimbal for FPV
• ★Learned arm design from DJI S800 EVO, and enhanced.

User questions & answers

Question:	Does this com w/ a transmitter
Answer:	No,it's just the frame kit.
Question:	I'm looking to use this as a photography drone, is it possible to mount an fpv cam and a gimbal
Answer:	Yes,off course it can mount an fpv cam and a gimbal.
Question:	Will the tarot tl2d01 t2-2d 2-axis brushless gimbal ptz for gopro hero 4/3+/3 tl2d01 fpv gimbal work on this frame
Answer:	If your gimbal have hook,the hook diameter is 10mm then is ok.
Question:	What type of plastic are the arms made of
Answer:	High quality plastic with carbon fiber rod inside, strong enough.

Product features

Specification & Suggested Configuration

-1.Wheelbase: 500mm

-2.Motor suggest: 2212 KV980; 2216 KV880 KV900; 3108 900KV (not include)

-3.Prop suggest: 1045/1047/1147/1238 (not include)

-4.Battery suggest: 3S-4S 2200mAh-5200mAh (not include)

Features:

- F450 upgrade quadcopter

- Learned arm design from DJI S800 EVO, and enhanced

- Good work with Gopro Hero 3 2 Axis brushless gimbal for FPV

- PCB Center plate with solder point

- High quality carbon fiber landing gear

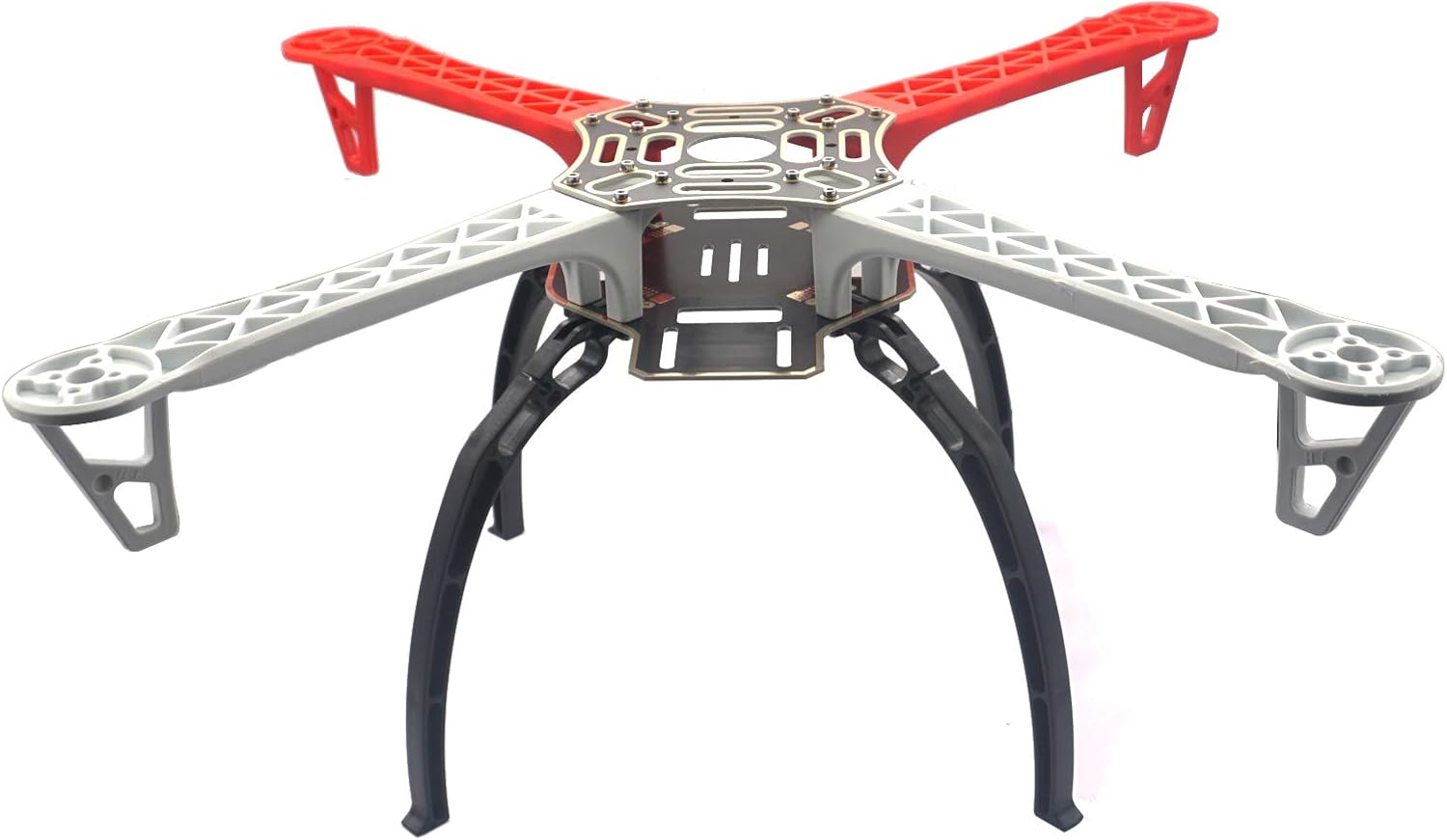

Product description

Features:

Built from quality glass fiber and polyamide nylon.

Integrated PCB connections for direct soldering of your ESCs.

Pre-threaded brass sleeves for all of the frame bolts.

Colored arms for orientation to keep you flying in the right direction.

Large mounting tabs on main frame bottom plate for easy camera mounting.

Easy assembly.



Specification:

Width: 450mm

Height: 55mm

Weight: 280g (w/out electronics)

Motor Mount Bolt Holes: 16/19mm

G.Weight: 395g

Wheelbase: 17.7in/450mm

Net weight: 272g

100% Brand new

Made by advanced engineering material, superstrong & smooth Kit



Recommended uses(Not Included):

A2208/A2212 800KV~1100kv brushless motor

ESC 15~25A

1800mAh~3600mAh 3S LiPo battery

1045/8045 Forward&Reverse propeller



Package:

1 X F450 Drone Frame Kit

1 set X f450 Landing Gear Skids

• ★Ultra high strength material: Built from quality glass fiber and polyamide nylon.It is stable to falling and impact.
• ★Integrated PCB connections for direct soldering of your ESCs, make your esc,power supply and other wiring more quickly and reliable.
• ★Pre-threaded brass sleeves for all of the frame bolts.Colored arms for orientation to keep you flying in the right direction.
• ★Large mounting tabs on main frame bottom plate for easy camera mounting. Easy assembly.

User questions & answers

Question:	What size are the included assembly screws? (the ones that attach the arms to the top and bottom
Answer:	M2.5
Question:	What propeller guards fit with this model
Answer:	1045/8045 Forward & Reverse propeller
Question:	Can I drill my own mounting holes in the power distribution board so long as I use nylon screws
Answer:	Yes you can.
Question:	Which direction is the bottom plate supposed to mount? Your pictures in this ad are different than the paper that it came with
Answer:	Depends on what you're going to put on your quad I have my battery on the bottom of it no camera flight controllers on top with the GPS and compass

Product description

Propeller: 5 inch

Weight: 121g

Motor to motor: 224MM

Size: 138*176MM

Arms plate: 5MM

Top plate: 2.5MM

Bottom plate: 2.5MM

Side plate: 2. 5MM

Recommended configuration:

Flight Controller: RF/Kiss/F3/F4/F7

Motors: 2205 /2206/2207/2305/2306

ESC: 30A-50A

Propeller: 5 inch FPV: DI FPV Air Unit

Battery: 4S 1500mAh-6s 11 50mAh

Package including :

- 1 x 5 inch FPV Frame Kit (unassembled)

- 1 x Lipo Battery Strap

• ★The Mark4-HD frame kit fits the amazing new DJI FPV system.
• ★Full 3K carbon fiber,make the drone body light weight but very strong.
• ★Super lightweight Freestyle frame
• ★Beautiful appearance design，durable in crashing.
• ★FPV :DJI FPV Air Unit.

User questions & answers

Question:	Will this house a 20x20 stack
Answer:	This can house both 30.5*30.5 and 20*20 stack.

Product description

Propeller: 7 inch

Weight: 121g

Motor to moto: 295MM

Size: 193*223MM

Arms plate: 5MM

Top plate: 2.5MM

Bottom plate: 2.5MM

Side plate: 2.5MM

Recommended configuration:

Flight Controller: RF/Kiss/F3/F4/F7

Motors: 2305/2306/2407/2408/2507

ESC: 40A-60A

Propeller: 7 inch

Battery: 4S 1800mAh-6s 2200mAh

Package Included:br<> 1Set x 7inch 295mm FPV Frame kit

1pc x lipo battery strap

• 7 inch FPV freestyle frame design for long range flight.
• Full 3K carbon fiber material, make the drone light weight but very strong.
• 5mm frame arm thickness design,make the flight more flexible and stable.
• Good balance between weight and performance.
• Easy to assemble, suitable for both beginners and senior players.

User questions & answers

Question:	Can I mount a 20x20 FC stack in this frame or only 30x30mm
Answer:	It design for 30..5*30.5mm,if you need mounta 20*20,you need a transfer adapter board(30*30 to 20*20)
Question:	What is the range of compatible prop sizes
Answer:	6 and 7inch propeller are all ok

• ★Stable - 4mm carbon fiber frame arms and shock absorber cottons.
• ★Convenient - Plenty of space is reserved on multiple layers so that you can easily fit your FPV and neatly tuck away all the wires.
• ★Shockproof - Equipped with rubber damper: AV shockproof ball, high quality and strong ability of shock absorption.
• ★Smooth - Super strong & smooth flight: 1.5mm full carbon fiber fuselage and 4mm frame arms effectively reduce vibration during flight, guaranteeing the flying ability of the Quadcopter.
• ★Easily assembled - Suitable for both beginners and senior players: Compact design with small numbers of components, can be easily assembled.

User questions & answers

Question:	How thick is the top plate? I've been using a 3d printed replacement top plate after I snapped the original in half
Answer:	Hi friends,the top plate thick is 1.5mm
Question:	Does this frame have enough room for a 36x36mm flight controller
Answer:	I think it only uses a 27 X 27 MM flight controller
Question:	Is this a true 250 frame that can fit a 6 inch prop? Seems like most on amazon can only fit 5 inch, thank you
Answer:	I use cheap, 2-bladed, 6040 props with this, and I like it a lot that way. I'm using the orange 2205 2300KV motors that were advertised alongside it, on a 3S 1300mAh LiPo, and it's very quiet, cool, and lightly loaded.
Question:	Does this frame include mounting hardware for a flight controller and power board
Answer:	Have mounting hole for 35*35mm size flight control but not have screws and others,normally flight control will have these equipment.

Product features

Readytosky 250mm FPV Racing Drone Frame Carbon Fiber Quadcopter Frame Kit with 4mm FPV Frame Arms and Lipo Battery Strap

Specifications:

Main Material: carbon fiber

Arm Plate Thickness: 4mm

Diagonal Length: 250mm

Plenty of space is reserved on multiple layers so that you can easily fit your FPV and neatly tuck away all the wires.

Equipped with rubber damper to decrease vibration during flight.

Recommended Configuration(Not included)

Prop suggest: 5*3

Motor suggest: 1804-2204

Battery suggest: 3S 1300-1800ma

Flight Controller: 30.5x30.5 mount holes CC3D, RMRC CC3D, Naze32, Flip Pro MWC

Receiver: FrSky T6- receiver

CCD Camera: SONY Super HAD CCD 600TVL Board Camera w/ 2.8mm lens - Settings to use on camera

HD Camera: Mobius Action Camera

Video Transmitter: ImmersionRC 600mw Video Transmitter

Antenna: ImmersionRC SpiroNet V2 (SMA)

Features:

This quadcopter frame is an exremely durable yet lightweight one that is perfect for FPV.

Plenty of space is reserved on multiple layers so that you can easily fit your FPV and neatly tuck away all the wires.

Package including:

1 set x carbon fiber 5 inch fpv Frame Kit with 4mm Arms

1x Drone Lipo Battery Strap

2 Pairs x 5045 3-Blades propeller

• ★With cool print sticker,make your drone more fashion,colorful and beautiful.
• ★Featuring a solid 4mm removable arms, guaranteeing the flying ability of the Quadcopter.
• ★Full 3K carbon fiber material,make the drone body light weight but very strong.
• ★Stable structure,Body great structure help the top plate with bottom board and arm get more solid support
• ★Suitable for both beginners and senior players: Compact design with small numbers of components, can be easily assembled.

User questions & answers

Question:	Is the gopro mount adjustable? I want mine 20-30 degrees, 45 is way too much
Answer:	No not adjustable, it is fixed about 35 degrees, also the top plate is only 1.5 mm vs 3mm like a real version. Other then that its pretty nice.
Question:	Are replacement camera side plates available
Answer:	It can be printed or adapters made for it
Question:	is a foxeer arrow micro pro big enough to fit in this
Answer:	Dear,micro camera is too small and cannot fit it. Standard size is ok.
Question:	Is the print a sticker or is the frame permanently this design
Answer:	Dear,it's a sticker,these are pictures after pasting the sticker,if you don't like to the sticker,it could be the normal black frame.

Product features

Readytosky 235mm FPV Racing Drone Frame 3k Full Carbon Fiber Quadcopter Frame Kit 4mm Removable Arms with 20cm Lipo Battery Strap

Features

Top mount battery design for excellent balance during freestyle flying

Press nuts for fast removal of arms

20mm standoffs for sleek low profile design - Built-in GoPro mount system

Easy grip black anodized spacers

Supports 20mm and 30mm bolt pattern for a wide variety of 4in1/Flight Controllers

Unique spiral design interlocking arms for extra support and flight stability

Heat treated aluminum hardware

Arm spikes for extreme motor protection during crashes

Recommended: (Not included)

Flight Control: 30.5x30.5 mount holes CC3D / NAZE32 / SP F3

Motor: 2204/2205/2206

ESC: 12A/ 20A

Remote control: 6-10 channels remote control

Propeller:5030/5040/5045,2 blades / 3 blades

Product description

Note: Unassembled ,come with Landing Gear Skids.Not included Propeller,Battery,ESC motor Electric parts

The F450 Flame Wheel frame arms are built from very strong materials, these arms are made from the ultra strong material which provides better resistance to damage on hard landings.



Built from quality glass fiber and polyamide nylon.

Integrated PCB connections for direct soldering of your ESCs

Pre-threaded brass sleeves for all of the frame bolts.

Colored arms for orientation to keep you flying in the right direction.

Large mounting tabs on main frame bottom plate for easy camera mounting.



Specification:

Easy for install on the F450 F550 or similar frame

Come with 4pcs for one full set.

Come with M2.5*8 Screws for assembling

Frame arm size: 21.5 * 3.8 * 5cm / 8.5 * 1.6 * 2.0inch

Weight: 270g



Package includes:

1 x F450 Drone Frame Kit

1 x F450 Landing Gear Skids

• The F450 Quadcopter frame are built from very strong materials, these arms are made from the ultra strong material which provides better resistance to damage on hard landings
• High quality and strong ability of anti-fall, lower maintenance cost,it can achieve hovering, cruising, even rolling and other flight elements;
• Suitable for both beginners and senior players, can be applied for entertainment, aerial photography, FPV and other aeromodelling activities.
• Using optimized design to provide adequate installation space for the flight control systems and accessories
• Compact design with small numbers of components, you can assemble it by youself quickly and easily.

Product description

Frame Weight approx 123 grams(5inch)

Motor to Motor :225mm (5inch)

Frame Shape: Compressed X

Main Plate Thickness: 4mm

Arm Thickness: 4mm

Stainless Steel Bolts

Aluminum Cage

Aluminum Standoffs

Center Stack Mount: 30.5mm

FPV Camera Mount: 28.5mm (Swift v2, Arrow v3, etc)

Recommend Parts:(Does not include)

Motor Size: 2306/2450kv

ESCs: 30a

Prop Size: 5" or 6" (arm options available)

LiPo 4-5S/1300mAh

Package included:

1 x 225mm 5inch FPV frame kit

1 x battery strap

• Made of 3K Pure Carbon Fiber Plates,lightweight,but very strong.
• Featuring a solid 4mm removable arms, guaranteeing the flying ability of the Quadcopter.
• Plenty of space to easily fit your FPV and reduce the wring messing.
• Suitable for competition and free style fly,can be easily assembled.
• Made of high quality carbon fiber,designed to sustain crash.

User questions & answers

Question:	How tall of a stack can be mounted in it
Answer:	Dear,Center Stack Mount: 30.5mm.FPV Camera Mount: 28.5mm.
Question:	motors would fit right
Answer:	2205 motors fit very good!
Question:	So if I read this right, i am not able to build a 6s setup out of this frame? Or can I
Answer:	Yes, you can use a 6s setup out of this frame.
Question:	What size screws do you recommend for mounting FPV camera
Answer:	8mm M2 screws

• Full 3K carbon fiber material, make the drone body light weight but very strong.
• Suitable for competition and free style fly,can be easily assembled.
• Featuring a solid 5mm fpv frame arms.
• Thickness of top plate: 2mm,thickness of bottom plate: 2mm.
• Support 5 inch props.

User questions & answers

Question:	What size are the mounting holes for the FC
Answer:	They are standard M3 holes spaced 30.5x30.5mm apart.
Question:	Will this frame fit 2305 motors
Answer:	I TINK THAT IT IS OK.
Question:	Will the pdb that comes with this work with an f3 board
Answer:	It works, my friend, But it cannot connect to F3 board directly since it does not have the BEC function.Please kindly use 12v to 5v step down for connection.Besides, Omnibus F3 Pro can connect directly because it has the Step-down function.
Question:	How big is the pdb like width and length
Answer:	Not sure. If you are familiar with the alien, it is the same size. The screw pattern is different

Product features

215mm FPV Racing Drone Frame 5 inch Carbon Fiber Quadcopter Frame Kit with 5mm Arm+Lipo Battery Strap

Item Name: 215mm 5 Inch Racing Frame Kit

Wheelbase: 215mm

Material: Carbon fiber

Arm thickness: 5mm

Thickness of top plate: 2mm

Thickness of bottom plate: 2mm

Standoff Height: 30mm (M3)

Net Weight: about 115g

Recommend Parts:(Not Include)

Flight Controller: 20x20mm OR 30.5x30.5mmmm F3 / F4 Flight Controller

Brushless ESC: 20x20mm OR 30.5x30.5mm 20A-30A ESC

Propeller: 5 Inch Prop

Motor: 2204 / 2205 / 2206 Motor ( Mounting hole 16x19 )

FPV Camera: Runcam Mini ( Mounting Dimension 22x22mm)

Lipo Battery: 4S 1500mAh Lipo

• Come with Anti-vibration EVA Sponge to protect the frame kit.
• The 3 inch carbon fiber frame,mini size,light weight.
• Support DJI FPV Air Unit.
• High quality carbon plate, precise cutting.
• Exquisite design, durable structure.

Product features

149HD FPV Racing Drone Frame Carbon Fiber 3 Inch Quadcopter Frame Kit with PFV TPU Mount Support DJI FPV Air Unit

Rack type: H type

Maximum support paddle: 3inch

Wheelbase: 149mm

Upper plate length: 156mm

Lower plate length: 156mm

Weight: 115g (including 3D printed parts)

Floor thickness: 2mm

Roof thickness: 2mm

Arm thickness: 3mm

Flight control mounting hole: 20*20mm/30.5*30.5mm compatible with two specifications

Camera mounting hole distance: 20mm

Motor mounting hole position: 12mm diagonal (fit 13 14 15 series motor)

Product description

This 250 frame is made of 3K carbon fiber. Plenty of space to easily fit your FPV and neatly tuck away all the wires.

Equipped with rubber damper to reduce jello effect during flight.

Features:

This quadcopter frame is an exremely durable yet lightweight one that is perfect for FPV.

Plenty of space to easily fit your FPV and neatly tuck away all the wires.

Equipped with rubber damper to reduce jello effect during flight.

Easy to assemble and convenient to use.

Compare to All carbon fiber,3K carbon fiber and glass fiber frame:

All carbon fiber 250 frame: 200g

3K carbon fiber 250 frame:180g

Glass fiber 250 frame:150g

Specifications:

Main Material: 3K carbon fiber

Arm Plate Thickness: 3mm

Diagonal Length: 250mm

Package Weight(approx.): 7.5oz 200.63g

Packag Size(approx.): 10.43x4.92z1.77 quot;26.5x12.5x4.5cm

--------------------------------------------------------

Package Including

1 * 3K Carbon Fiber 250 Quadcopter Frame Kit

Other parts you might be interested:

5.8G fpv receiver for Android phone http://www.amazon.com/dp/B06ZZG6GSR

Self-binding Micro DSM2 DSMX receiver http://www.amazon.com/dp/B01NAEN5RG http://www.amazon.com/dp/B01JWFCRYA

4mm thick 210 Frame http://www.amazon.com/dp/B06XXH6JXG https://www.amazon.com/dp/B07219Q4TX http://www.amazon.com/dp/B071WVNFMM

F450 frame https://www.amazon.com/dp/ B016OBSW08

25mW/ 100mW / 200mW Switchable AIO FPV Camera http://www.amazon.com/dp/B06Y6G19FQ

65mm frame https://www.amazon.com/dp/B06Y6J49HS

80mm frame https://www.amazon.com/dp/B071LM4ZGQ https://www.amazon.com/dp/B071VYNXGL

88mm framehttps://www.amazon.com/dp/B06ZZG62PX/

112mm 4mm thickness frame http://www.amazon.com/dp/B01N6KBFQH

130mm framehttps://www.amazon.com/dp/B01M27Y92D http://www.amazon.com/dp/B019V9SYVC

• This 250 frame is made of 3K carbon fiber
• Plenty of space to easily fit your FPV and neatly tuck away all the wires.
• Equipped with rubber damper to reduce jello effect during flight.
• Perfect combination with Emax MT2204, simon 12A ESC, CC3D flight controller, 6045 propeller
• 4mm arms for this frame http://www.amazon.com/dp/B01D8IW8QE

User questions & answers

Question:	How big is this in inches? L/W/H
Answer:	Hi, Diagonal distance is 250mm, that's why it called 250 quad
Question:	What is the size of the metal standoffs
Answer:	The standoffs measure 32mm long and 5mm diameter, threaded for M3 screws.
Question:	Motors fit on this Frame
Answer:	Yes, mine did
Question:	Can you mount 6" blades on this frame
Answer:	Yep. Things get a bit tight (less than 1cm clearance between prop tips) but they do fit.

Product description

This lightweight drone frame provides excellent strength with glass filled nylon arms. Recommended for 6" propellers, there are a wide range of motors that can be used for this build. We recommend a 2205 2300kv motor with 4s lipo.



Simple to assemble frame with readily available replacement parts that can be swapped in the field.



Specifications:

Wheelbase: 325mm

Weight: 155g

Recommended Motor: 2204/2205

Recommended Propeller: 6045

Recommended ESC: 30A 3-4S ESC

Recommended Battery: 3-4S 1500-2200mAh 40C(minimum) LiPo battery

• High strength with light weight
• Easy assembly with readily available replacement parts
• Fits 6" propellers
• Includes red or black arms

User questions & answers

Question:	Anyone have a way to add landing gear? I may need to mount things on the bottom
Answer:	I used the landing legs from a Bugs 3 Spare Part Kit. you can get them on Amazon

Product description

Description

Item Name: Acrobrat 163 frame kit

Material: carbon fiber

Wheelbase: 163mm

Bottom Plate: 3mm

Side Plate: 2mm

Holedimension: 20mm*20mm

Weight: about 85.7g

Features

1. 3” quad that feels and flies like a 5”

2. Uses the runcam split mini, but mitigates the jello issues that the split is prone to

3. All in a package that is fairly durable and not intimidating for the pilot or spectators

Recommend (Not Included)

Propeller: 3 inch

Battery: about 7.4V 500mah

Motor: 1306 motor

ESC: mini 12A or 20A ESC

Package Included

1 x Acrobrat 163mm frame kit unassembled

1x 25cm battery strap

• ✈ This 163mm frame made of full carbon fiber material,light weight but very sturdy
• ✈ Uses the runcam split mini, but mitigates the jello issues that the split is prone to
• ✈ Compatible with Runcam split mini camera
• ✈ Unibody design with rigid arm supports
• ✈ Easily assembled, compact design with small numbers of components

User questions & answers

Question:	Does anyone know if you can squeeze an DJI air unit behind a 20 x20 stack
Answer:	yes, you can. this is taller than the original ummagawd acrobat, so you have more room in this one. it's easier to put the FC in the front of the dji air unit, but you may want to put the air unit in front and FC in back. Dry fit it when you get it. But definitely can fit air unit and 20x20 stack in it. Flies great too!
Question:	What is the clearance between the side plate, and the bottom plate, also what grade carbon is this
Answer:	It's 20x20mm stack. And the fpv frame made of full carbon fiber material, it is sturdy enough.
Question:	Will 1103 motors fit
Answer:	We suggest 1406 or 1306 motor.
Question:	Are these sturdy, good quality
Answer:	They are sturdy to an extent good quads will take a beating broke one frame from a high drop due to a battery failure other than that it's been great
