12 best shop fox wood lathes

Product description

1/3 Horsepower bench top lathe with variable speed motor

• Motor: 1/3 HP, 2 Amp, 110V, Single-phase, 60 Hz
• 12-inch distance between centers
• 8-inch swing over bed
• Cast iron construction and infinitely variable speed control
• Includes two tool rests

User questions & answers

Question:	I have a chuck that is 1"-8tpi female thread (nova 48111), it doesn't fit on this lathe. what adapter should i buy
Answer:	Buy a 3/4" 16 TPI to 1" 8 TPI adapter. If you further questions go to http://www.woodturningz.com/downloads/w1704_ds.pdf for the specs on this machine.
Question:	is there an adapter for the face plate for mounting live center chucks? I bought one but won't line up with holes
Answer:	I'm not sure if they make the adapter to mount on the face plat. I have a 2" diameter three jaw,self centering scroll type chuck that i bought from Amazon that ihave used that works great,but i think that the holes in the face plate is for mounting a backing block to the piece of wood stock to turn a bowl. It says in the manual that you glue the block to the wood your turning and use the holes to screw the block on to face plate. Hope this helped.
Question:	What size wood stock can it hold? How about something like 12'' long by 8" wide piece of wood
Answer:	The length it will hold will be dependant upon what chucks you have in the head and tail stock. The bulkier the chucks, the shorter the length it will handle. I'd say it will hold 12" lengths unless your chucks are sizable. I wouldn't try more than 4" width stock unless it was short. Although the lathe may hold the stock, it would be too much for the motor. The intended purpose of this lathe is to make small things like ink pens, Christmas ornaments, small toys like tops or yo-yo's and tool handles etc. If you want to mount 12" X 8" stock you should be looking at full sized lathes.
Question:	is there anyway to secure to a bench
Answer:	Yes. It has has three holes in the base that you can bolt it down with. I bolted mine down on a metal stand. It holds it down real solid. Mine is the Shop Fox W1704 also. It is well built. I really like mine. Hope this helps!

Product features

Shop Fox W1704 Benchtop Wood Lathe

Tackle pen turning or other small cutting or shaping projects using the Shop Fox W1704 bench-top lathe from Woodstock International. Made of cast iron, and designed to fit neatly on a workbench, this lathe features a 1/3-horsepower, variable-speed motor and delivers spindle speeds between 700 and 3,200 revolutions per minute (RPM). It also features a safety paddle switch, an MT No. 1 spur center, an MT No. 1 live center, 4-1/4-inch and 7-inch tool rests, a 5-3/4-inch faceplate, and a 3/4-by-16-inch TPI RH spindle.

Includes Two Tool Rests

The W1704 includes both a 4-1/2 and 7-inch tool rest for various turning applications and with a 13-inch distance between centers and an 8-inch swing over the bed this lathe is ideal for a variety of turning projects.

Variable Speed

The infinitely variable speed from 700-3200 RPM comes in handy when turning hard or soft species of wood.

5-3/4-inch Faceplate Included

This benchtop lathe includes a 5-3/4-inch faceplate which threads onto the headstock spindle for non-spindle turning (usually used for making bowls or other items that cannot be supported from the tailstock).

Product description

Wood turners who enjoy making large bowls, vases, furniture pieces, and other Large-Diameter projects require power, capacity and high-torque to meet their performance needs. You get all three and then some with this burly Lathe that weighs in at over a quarter-of-a-ton. With a 3 HP, 3-Phase motor that runs off of Single-Phase power, electronic variable speed control, 22" of swing, and 1-1/4" x 8 TPI RH Spindle, this Lathe delivers the goods to gratify even the most discerning of turners. Features a variable speed range of 100 – 3200 RPM, perfect for both large and small turning projects and finishing.

• Motor: 3 HP, 220V
• Swing over bed: 22", distance between centers: 42"
• Variable speed: 100–3200 RPM
• Tailstock, headstock, and tool rest support have lever-action CAM locks for quick positioning
• Forward/reverse spindle control

User questions & answers

Question:	What is the maximum degree the headstock can swing for outboard turning
Answer:	The headstock does not swivel (or swing) at all. The headstock can be released and can slide down the bed to the far end. The oversize banks can then hang out past the lathe bed. This lathe can swing a 22 inch blank over the bed. The advantage to this, is you never have to realign the headstock to the tailstock. I have not seen any sort of outboard tool rest from Shop Fox. Other manufactures do make them. I love my W1852.
Question:	Does this lathe have an optional bed extension which will fit it
Answer:	It has 42 inches between centers. I have this lathe, enjoy it very much. I have not found any type bed extension. The headstock can be easily moved down the bed and the tasilstock removed, to give better access for bowl work. Bill

Product features

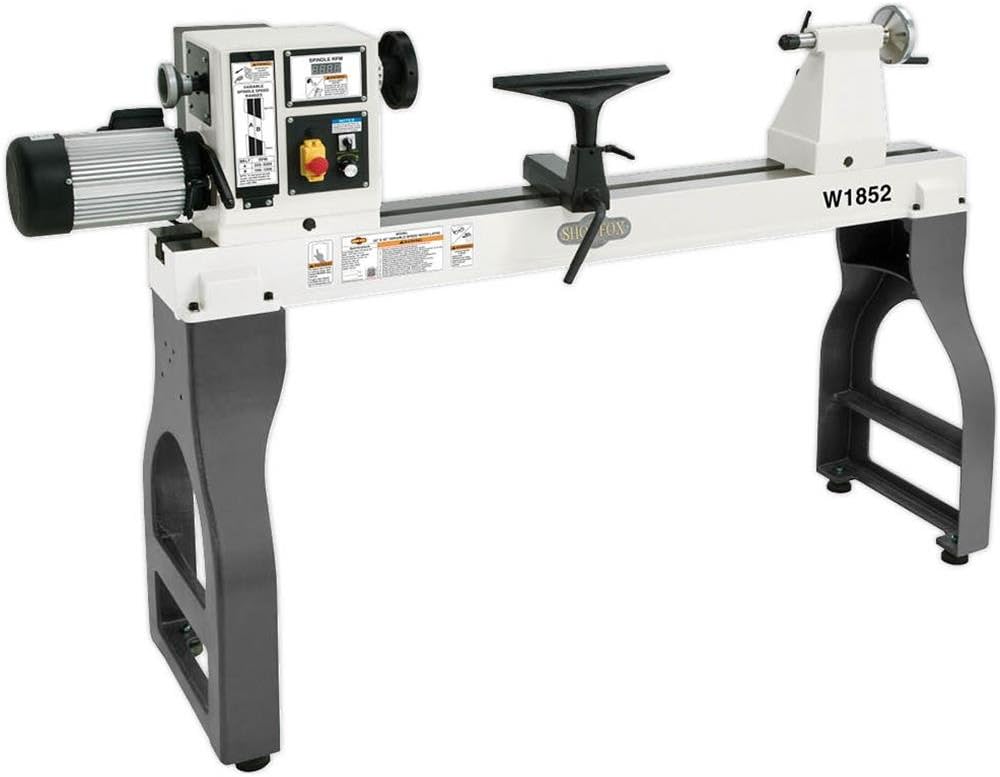

SHOP FOX W1852 VARIABLE SPEED WOOD LATHE

Wood turners who enjoy making large bowls, vases, furniture pieces, and other large-diameter projects require power, capacity and high-torque to meet their performance needs. You get all three and then some with this burly lathe that weighs in at over a quarter-of-a-ton. With a 3 HP, 3-phase motor that runs off of single-phase power, electronic variable speed control, 22" of swing, and 1-1/4" x 8 TPI RH spindle, this lathe delivers the goods to gratify even the most discerning of turners.

Variable Speed Range

This beast features a variable speed range of 100 – 3200 RPM, perfect for both large and small turning projects and finishing.

Changing Speed Ranges

The pulley belt configurations provide two speed ranges. To maximize the spindle torque, use low spindle speed range for spindle feeds of 1200 RPM or less.

Cam-Action Clamping System

Shop Fox W1852 headstock is equipped with a cam-action clamping system to secure it to the lathe bed. When the lever is tightened, a locking plate lifts up underneath the bed and secures the headstock in place. The headstock can be positioned anywhere along the lathe bed.

Adjusting Tailstock

The tailstock adjusts in the same manner as the headstock. Make sure both the headstock and the tailstock are firmly locked to the lathe bed.

Outboard Turning

Outboard turning is a variation of faceplate turning and is accomplished with the headstock positioned so the faceplate is not directly over the bed, allowing a larger turning capacity than the swing specification of the lathe.

When outboard turning, ALWAYS use a floor-mounted tool rest and keep tool in contact with rest during all turning operations.

Product description

10" x 18" Lathe #70-105 was designed specifically at the request of pen turners who wanted a sturdy, dedicated machine for their craft. This scaled-down, basic mini lathe is constructed of cast iron so vibration is not a factor, unlike other lathes made of aluminum. 5 Speed ranges cover the bases for boring barrel holes, roughing out pen billets, turning to shape and finishing. Lathe includes a live center, tool rest, knock-out bar and wrenches.

• Rikon mini lathe: This Rikon mini lathe features a ½ motor that provides ample power for all turning needs. With a 10” swing and 18” between centers, this mini lathe also has a self ejecting tail stock and has easy access to speed change.
• Sturdy and Dedicated: Designed specifically at the request of pen turners who wanted a sturdy, dedicated machine for their craft. This scaled-down, basic mini lathe is made from cast iron, so vibration is not a factor, unlike other lathes made of aluminum.
• 5 speed ranger: This mini lathe has a 5 speed range that covers the bases for boring barrel holes, roughing out pen billets, turning to shape and finishing.
• Includes: This lathe includes a live center, tool rest, knock-out bar, and wrenches.

User questions & answers

Question:	Does the headstock have a morse taper and also the tailstock
Answer:	Yes they are both #2 taper
Question:	Does this lathe have a 1 inch 8tpi
Answer:	yes
Question:	Does Rikon or another manufacturer make a steady rest for this lathe
Answer:	Carter products and Ron Brown's Best (Peacetree), make steady rests suitable for. 10 inch lathes. Carter Products is about $375 and Ron Brown's Best is about $160. I believe either can be adapted to Rikon 105, 10" lathe.
Question:	can a veriabule speed drive add to this lathe
Answer:	You can buy a conversion kit from Penn State. It comes with a new motor and electronics. Note that the lowest speed is 650 vs 500 RPM which is faster that recommended if you use Cole Jaws.

Product description

The JET JWL-1015 is an ideal choice for the novice woodturner looking for an affordable, user-friendly first lathe, as well as the advanced enthusiast or professional who wants to add a full-featured mini-lathe to the shop. This sturdy, smooth-running 15” mini-lathe has the power, precision and versatility to turn out any number of projects. When you're ready to make your ideas a reality... start here.

• 15-1/2" BETWEEN CENTERS
• SIX SPINDLE SPEEDS: 500/840/1,240/1,800/2,630/3,975
• Integrated 24-position indexing
• IMPROVED TENSIONING SYSTEM: Easier access to belts.
• INCREASED RIGIDITY: Wider bed ways.

User questions & answers

Question:	Can you add an extendion table on it to turn long spindel legs
Answer:	Yes! You just can't buy it on amazon..rockler and woodcraft sell them for around $150.
Question:	Is it a Morse taper
Answer:	Yes both the head stock and tail are #2
Question:	what is needed with this lathe for pen turning
Answer:	Basically, you will need a 7mm MT2 mandrel and your tools. When you order your pen kits, make sure you get the bushings and drill bit. Depending on how you finish the pens, you may need a buffing system. For acrylics, get a set of micro pads, they really bring the shine out. I also use a "french polish" and shellac to put a lasting hard coat on the finished product. Good luck and enjoy the lathe.
Question:	what is the thread size on the head stock
Answer:	Headstock Spindle Thread is 1" x 8 TPI.Complete data sheet is here:http://content.jettools.com/assets/manuals/719100_man_EN.pdf

Product description

JET JWL-1221VS 12"x21" Variable-Speed Wood Lathe (719200)

• VERSATILITY: 24 integrated indexing positions.
• CONVENIENCE: Easy-to-reach controls and DRO.
• OPTIMAL SPEED: Choose from 60 to 3,600 RPM.
• INNOVATION: Ratchet-style belt tension system (patent pending).
• ON-BOARD STORAGE: Two handy tool caddies.

User questions & answers

Question:	Will 1221 tail stock accept #2 Morse taper drill chuck
Answer:	Yes! Just be sure that the tail stock hole and morse taper are clean, otherwise the #2 morse taper can be difficult to remove...
Question:	has this lathe have a indexing head
Answer:	William, yes this lathe has an indexing head. I have not yet used the feature but it is done with a spring loaded pin which you lock into anyone of 24 positions. The spring loaded pin in screwed in once the pin is set to hold it in place.Rich F
Question:	Is this Ron Swanson approved
Answer:	Yes, Ron personally blesses each unit as it’s loaded onto a truck.
Question:	Do you need to move a belt to change speeds? Or is there a dial or switch
Answer:	This lathe has a variable speed controller, so the speeds may be changed using the simple rotating knob. To provide speed ranges to suit any situation, especially for the more experienced turner, there is a three step pulley. This arrangement allows the variable speed controller to adjust speeds from 60 to 900 rpm on the low step of the pulley, 110 -1800 rpm on the 2nd step (medium), and a high speed range of 220 -3600 rpm on the the 3rd step. The belt need only be changed if you want to move to a different range of speeds. This is a very simple process.

Product features

JET 12'' X 21'' Variable Speed Wood Lathe - JWL-1221VS

The JET 1221VS lathe is different from anything we’ve made before. In truth, it’s different from anything that anybody has ever made before. The design is better. The features are better. The entire turning experience is better. And it all focuses on one concept … Control.

• 【550W POWERFUL MOTOR】- The powerful motor starts softly ensuring motor's maximize safety and low noise. 550W provide great power for the lathe operation.
• 【UNRIVALED SPEED CONTROL】- Turning speed control knob clockwise or counterclockwise to adjust the speed freely within 500-3800 RPM. MT2 Spindle. It is easy to read via digital speed display.
• 【LARGE WORK CAPACITY】- 18" (460mm) distance between centers, swing over bed 10" (254mm). High concentricity. Moving tailstock to adjust proper distances for workpieces.
• 【CAST IRON CONSTRUCTION】- Cast iron constructed wood lathes for durability and strength, providing increased stability and smooth operation. Extremely sturdy cast iron construction to reduce vibration.
• 【PROFESSIONAL TOOL RESTS】- Moving the lock lever to adjust or replace the tool rest. 6" (150 mm) tool rests for easy replacement, ideal for a variety of turning projects in labs, workshops, engineering education, etc.

User questions & answers

Question:	What is the warranty on this lathe
Answer:	One year
Question:	is there somewhere I can find an owner’s manual
Answer:	Go to harbor freight web sight look up central machianery 10x18 lathe it has a pdf for the owners manual it's the same machine as the morphon
Question:	My motor burned out, where do I get a replacement
Answer:	Good luck with that. The control switch burned out on mine and after communicating with them for awhile to arrange a fix they just stopped answering by emails. All my emails to them and Amazon went unanswered. Now all I have is a boat anchor. I only had it 3 or 4 months. Good luck.
Question:	what is the spindle thread
Answer:	Depending on what you are trying adapt to your spindle , you should not need a adapter just make sure its a 1" x 8tpi . I made the mistake of buying an adapter 33x3.5 to1"x8tpi and it wont fit down the spindle shaft again just a 1"x 8tpi for a self centering jaw or any other plate,ect.ect plus try not to use adapters if you can

Product features

Powerful Motor

550W Power motor, turning speed 500-3800 RPM, Voltage: 120V/60Hz. Our powerful motor starts softly to offer motor's maximize safety and low noise design.

Variable Speed

Optimally designed speed ranges of 500-3800 RPM variable speed. MT2 Spindle.

Large Work Capacity

Distance between centers: 18" (460mm). Swing over bed: 10" (254mm). High concentricity. Moving tailstock to adjust proper distances for workpieces.

Stable Operation

Mini lathes constructed by cast iron are of increased stability and smooth operation.

Interchangeable Tool Rests

6" (150 mm) tool rest can be adjusted to any position and direction for various needs in turning applications.

Wide Application

Benchtop wood lathe, an ideal tool for use in labs, workshops, engineering, and education.

10'' x18'' Benchtop Wood Lathe

The premier quality wood lathe features with a powerful motor with electronic variable-speed spindle control and a digital RPM readout for precise speed adjustments, make this lathe a top choice. Heavy-duty cast iron construction and rubber feet provide increased stability and smooth turning operation.

Product description

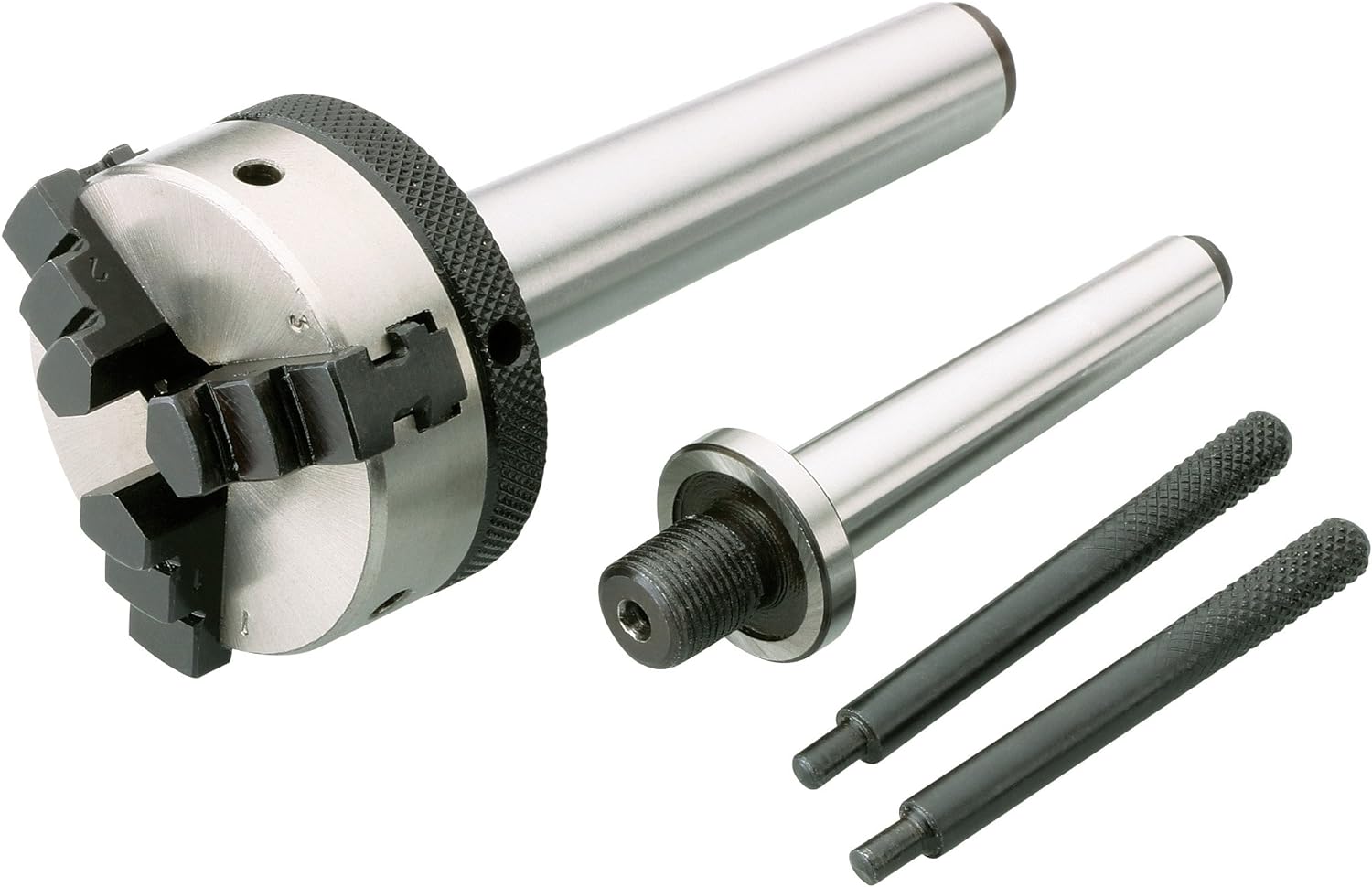

This 2-Inch diameter 3-jaw mini lathe chuck is a self-centering scroll type chuck with reversible jaws. Includes MT no.1 and MT no.2 arbors and wrenches.

From the Manufacturer

This 2-Inch diameter 3-jaw mini lathe chuck is a self-centering scroll type chuck with reversible jaws. Includes MT no.1 and MT no.2 arbors and wrenches.

• 2-Inch diameter 3-jaw mini lathe chuck
• Includes MT#1 and MT#2 arbors and wrenches

User questions & answers

Question:	What is the largest size piece you can fit in the chuck
Answer:	Pen blanks maybe a little larger. This chuck is smaller than you would think. Not a bad product but it does come a bit loose sometimes while using it
Question:	would this fit in a drill chuck
Answer:	No. It will not fit in a drill chuck. It uses a taper that will not allow a drill chuck to tighten on it safely.
Question:	Is it self centering
Answer:	This is a scroll chuck and as suck is a centering chuck. If the Chuck is not centering the jaws are in the wrong slots. They are numbered and you line the numbers up.
Question:	I have a 618 atlas metal lathe with a m2 taper in the spindle. will this hold turning steel securely
Answer:	If the steel you're turning is round stock or 3 sided and you're connecting it to a live center, I don't think you'll have a problem. However, if it's 4-sided, you will be disappointed.

Product description

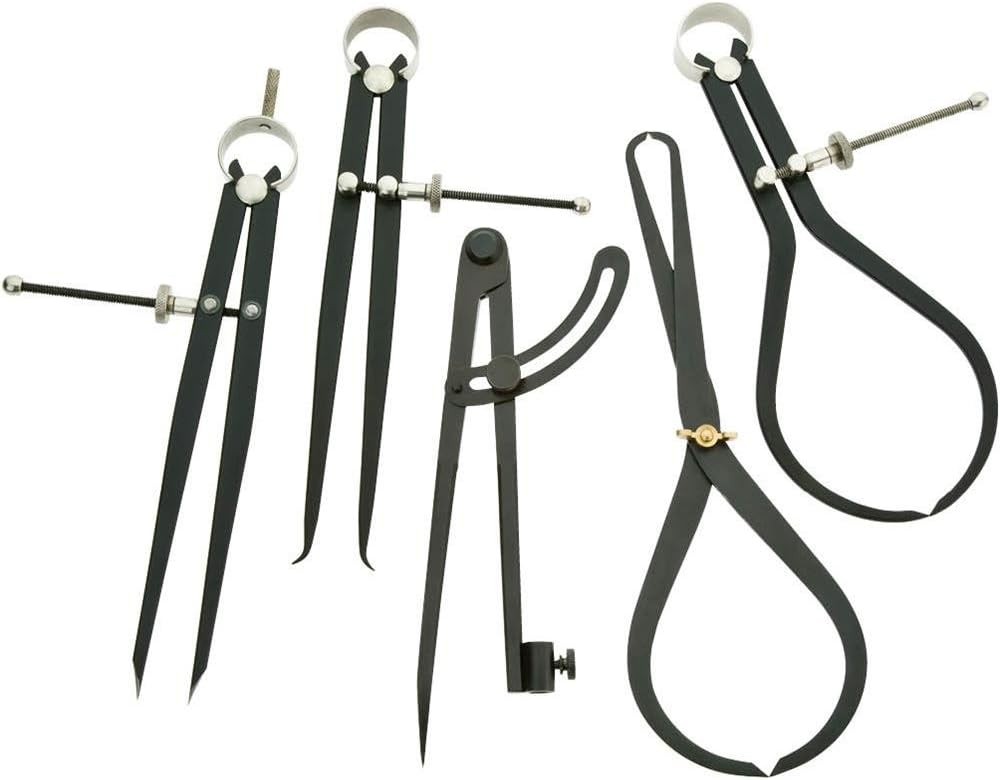

This 5 piece Woodworking Caliper Set includes compass, straight dividers, inside calipers, outside calipers, and inside/outside calipers. Perfect for wood turning and general layout work.

• Each piece measures roughly 9" long
• Includes compass, straight dividers, inside calipers, outside calipers, and inside/outside calipers
• Perfect for wood turning and general layout work
• Item Package Dimension: 13.0" L x 5.0" W x 14.0" H

User questions & answers

Question:	What's the max radius that the outside calipers can measure
Answer:	do not know have not extended to the fullest yet

Product description

This Pan and Box Brake is an indispensable tool if you need to increase the strength of sheet metal plates with bends, or you intend on fabricating more complicated brackets, gussets, boxes, or fixtures. The removable and adjustable fingers can be installed in a variety of positions to accommodate varying widths of metal. The Model M1011 bends mild steels up to 20 gauge thick, 24" wide, and ranging in angle from 0° to 135°. Specifications: Max. workpiece width: 24". Max. bending capacity: 20 gauge. Box fingers: 1" (x2), 2" (x4), 3" (x2), 4" (x2). Brake angle: 0-135°. Footprint: 10-1/2" x 26-1/4". Max. box depth: 1-3/4". Approximate shipping weight: 99 lbs.

• Material capacity: 24-Inch by 20 gauge mild steel
• Brake angle: 0-135 Degrees
• Approximate shipping weight: 91-Pounds
• Maximum box depth: 1-3/4-Inch
• Footprint: 10-1/2-Inch by 26-1/4-Inch.Box fingers: 1" (x2), 2" (x4), 3" (x2), 4" (x2)

User questions & answers

Question:	Why does this look different from the one listed on the grizzly website
Answer:	Can’t say for sure I don’t look a little different in Color shade that’s mostly what I see
Question:	Can this be shipped to Vermont
Answer:	We do ship to any state located in the lower contiguous US.
Question:	Where can someone get replacement parts for this? I need a new handle and to replace one of the "teeth
Answer:	Shop Fox is product of Woodstock Int.you will need to contact them on their web site https://www.woodstockint.com/parts
Question:	Do you think I could bend .100" x 1" wide Zinc plated steel 90 degrees
Answer:	I just bent a sample piece, it will do it, if properly adjusted. But if thats a thickness you will bend a lot a press brake may be a better option. I will add that I have been very happy with this brake. Its perfect for the home shop and I have done some nice work for my race car with it!

Product features

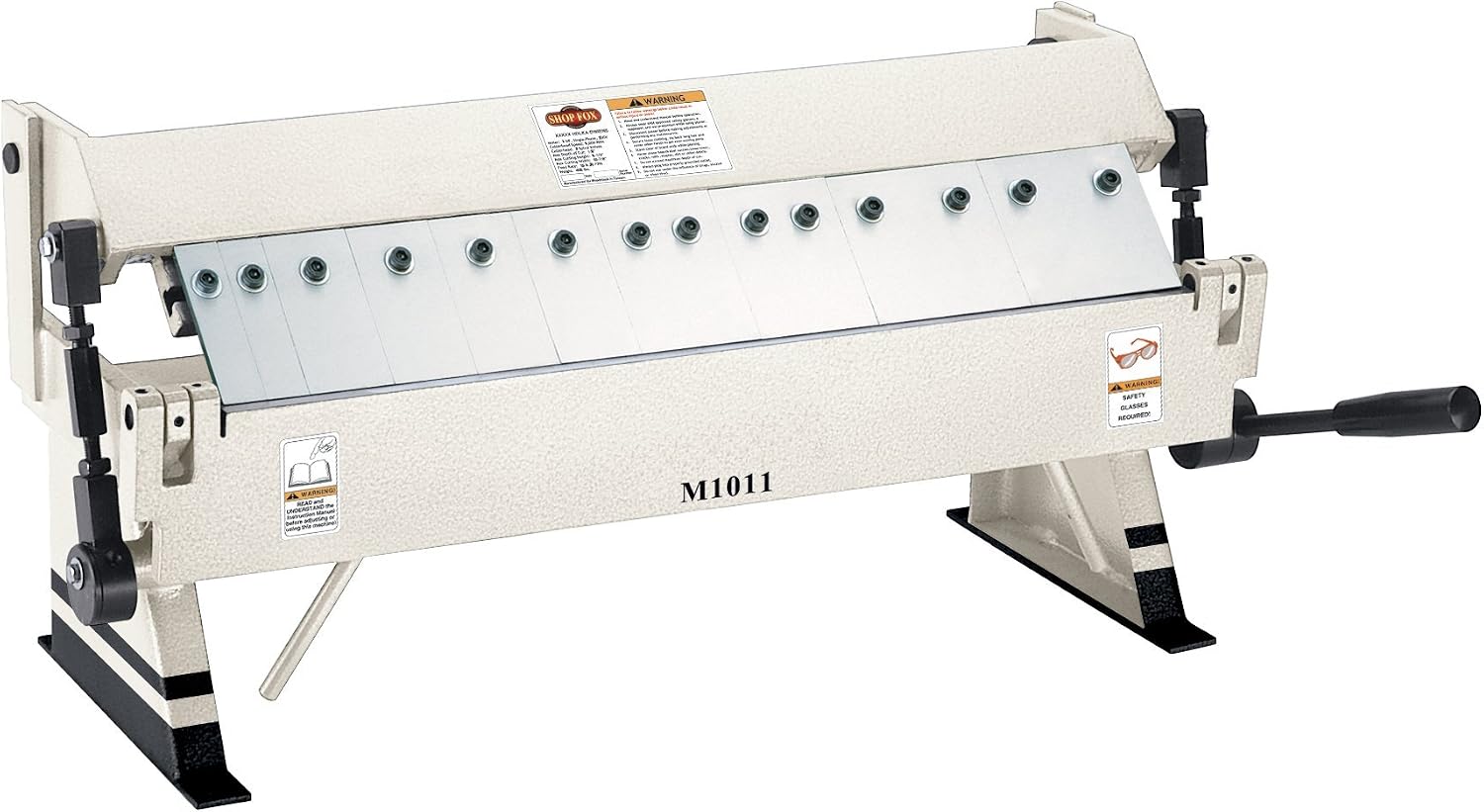

Shop Fox M1011 24-Inch Pan and Box Brake

This pan and box brake is an indispensable tool if you need to increase the strength of sheet metal plates with bends, or you intend on fabricating more complicated brackets, gussets, boxes, or fixtures. The Model M1011 bends mild steels up to 20 gauge thick, 24-inches wide, and ranging in angle from 0 to 135-degrees.

Adjustable Fingers

The removable and adjustable fingers can be installed in a variety of positions to accommodate varying widths of metal.

Quick indexing of one or many fingers makes this the perfect machine for multiple applications. Achieve extremely sharp bends and easily adjust the fingers closer or farther from the point of bend.

Heavy Duty Hold Down Clamp Lever

Bending sheet metal is a breeze with the M1011. The heavy duty hold down clamp lever allows for clamping and unclamping the sheet metal through the cam mechanism. This machine is built to take on any serious bending work.

Product description

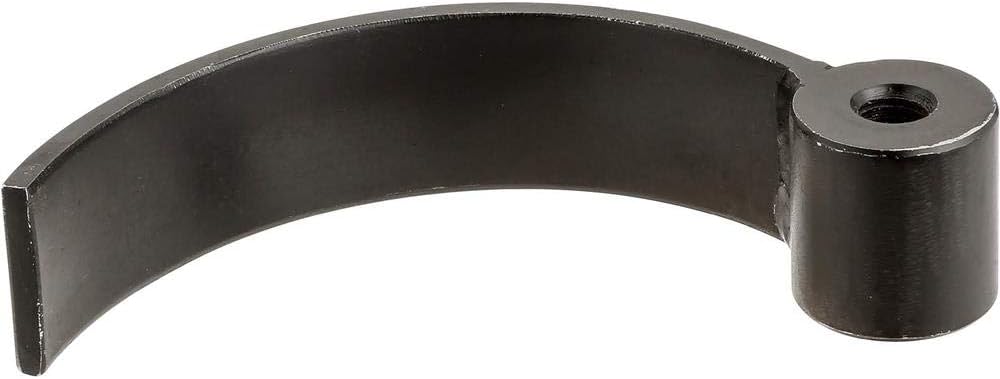

The small but stout curved bowl rest is perfect for your tight inside and outside bowl curves. The 5-7/8" X 1-1/4" High Steel radius offers maximum rigidity for accurate cuts. Features a 5" Radius and M12-1.75 threads for mounting to tool rest post.

• 5-7/8" Long
• 1-1/4" Tall
• 5" Radius
• Thread: M12-1.75
• Perfect for your tight inside and outside bowl curves

Product description

We are proud to offer a full lineup of tool rest posts designed to mount directly to our D4802, D4803, and D4804 bowl rests, so you can quickly swap out posts from project to project. Thread size: M12-1. 75

• 25mm x 8", M12-1. 75
• Designed for use with models D4802, D4803, and D4804 bowl rests
• Quickly swap out posts from project to project
• Country of Origin: CHINA

Product description

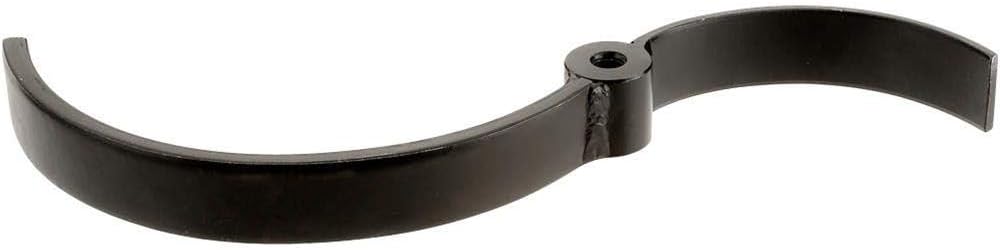

Use all the swing your lathe has to offer on your next bowl turning project with the D4804 15-1/8" Bowl Rest. The rest is made from solid steel, and features a 5" and 8" radius for the ultimate in usability and control. Easily mount to any tool rest post with M12-1. 75 threads for even more flexibility!

• 15-1/8" Long
• 5" And 8" Radius
• Constructed of solid steel
• Thread: M12-1. 75
• Use all the swing your Lathe has to offer on your next bowl turning project
• Offers the ultimate in usability and control for your bowl turning projects
