11 best stud finder that works

• The Most Accurate Wall Scanner- Tavool specializes in stud finder for years and adopts the most Advance Sensors Technology for accurately & quickly locating studs wood metal AC wires! In all modes, this wall scanner always detect and indicate the Live AC Wire. Whether you are a professional, homeowner or a DIY enthusiast, you can find great use in this electronic stud scanner
• 4 IN 1 Multiplication Plus Deep Detection - This digital wall scanner includes four different scanning modes for woods, beam, joist, metals, AC wires and deeply embedded objects behind floor, ceiling, wall. Stud mode detects wooden beams and joists in drywall up to 1.2 inches. Metal mode detects pipe , rebar, aluminum and copper up to 1.57 inches.Deep mode detects wood and metal parts located up to 1.77 inches while 85~240 volt AC current for voltage and live electrical lines up to 2.36 inches
• Upgrade Design of LCD Screen - Displaying the Desired Stud Material As Well As the Precise Position of the Stud - The Tavool digital stud scanner features large LCD display together with the big sound to detect the accurate location of stud metal Ac wires. When find the material, the LCD display will indicate the direction and the intensity of sound tells whether you are more close to the target. The fast detection saves users time and efforts, making the task completion EASIER
• Automatic Calibration and Ergonomic Grip for Comfortable Use - Turning on the stud finder and Completing Calibration. The automatic calibration before using provides users with maximum reliability and accuracy. Then put it on the wall. The wood beam finder will flash once it has picked up the edge of a stud.The ergonomic design of this wall stud finder makes it comfortable to hold from any angle
• Professional Design with Top Quality - Tavool has been dedicated to Research and develop stud finders for many years, and we have a professional team and mature productions process. This stud joist finder wall detector can quickly locate the metal wood AC wire that are hidden in the walls, floors and ceilings of your house, help you find the exact stud while installing TVs, cabinets, garage shelves etc.

User questions & answers

Question:	Is there an instruction manual online? I misplaced the manual that came in the box
Answer:	Si puede solicitar un manual de instrucciones en [email protected]
Question:	Will this locate studs behind bathroom tiles
Answer:	If your tile wall has cement backer board, then this device will not work. If your tile is backed by sheetrock, then it will probably work unless your tile is took thick. I wouldn't trust it to locate pipes behind tile, so take care if you're working in a bathroom.
Question:	Is the battery included
Answer:	No the 9volt battery is not included.
Question:	Can this detect a stud behind plaster walls
Answer:	This tud finder can quickly locate metal, studs, joists, pipes, live AC wire behind all kinds of walls floors and ceilings but except the cement board wall, you can use it on popcorn ceilings, plaster walls, textured surfaces,etc

Product features

Stud Scan Detection

Deep Scan Mode scans through 2 layers of drywall up to 1.5 in. (38 mm) deep. DeepScan Mode is a higher sensitivity scanning mode that should be used when there are extra layers of wallboard or paneling. To minimize false positives and/or finding other objects further behind the wall that may not be a stud, always start your scan in StudScan Mode first.

Metal Scan Detection

Tavool wall canner will locate metal studs in StudScan, DeepScan, and Metal Scan Modes. Since Tavool stud finders are looking for a change in density behind drywall, not a particular material, in StudScan and DeepScan Modes the detector will react to metal studs the same as it would for wooden studs.

After you detect the center of a object, Please Use Metal Scan to determine if the previous reading in Stud scan was a wood stud, metal stud, or pipe.

Live AC Wire Detection

AC Wire detection indicates the presence of live, unshielded electrical wiring up to 2 inches (51 mm) deep. In all modes, this wall scanner always detect and indicate the Live AC Wire.

Note: AC Wire Detection works in both StudScan / DeepScan / MetalScan Modes. The AC Wire Detection Icon will flash when live, unshielded wires are detected.

Step 1:Calibrate the tool before every scan

After choose the mode, press and hold the scan button( on the side of the tool) to calibrate this tool. Wait for the reducing bars disappeared and beep to confirm calibration has completed.

In stud/deep mode, put it on the wall where you want to detect to calibrate it ;In AC/Metal mode, put it in the air to calibrate it.

Step 2: Scan the wall

Hold down the button, then move the stud finder along the wall slowly, if shake or lift the scanner accidently, the device needs to be re-calibrate.

The narrow on the screen togather with the beep signal alter, guides you to find the location of the stud.

Step 3: Find the location of the stud

When the signal bar is full and the beep alarm is loudest, it means you have found the center of an object.Mark it with your pencil.

Then choose the Metal Scan mode to test whether it is a metal. After you confirm that it is not a metal, it means that you found the center of a stud. (More details refer to the above description of "Metal Scan Detection")Then you can drill it to hang thing

Product description

The Pros Ensor 710 incorporates innovative stud sensing technology that instantly finds hidden studs. No sliding is required. This patent-pending detector senses the wall in thirteen locations simultaneously, then immediately illuminates the display elements that are in front of a stud. The Pros Ensor 710 is faster, less error prone and more accurate than other products on the market. It is the easy way to find studs. - advanced Multi-Sense technology senses the wall in multiple locations simultaneously and uses data from many readings to accurately determine the position of studs, operates effectively even through difficult architectural construction features (such as wall and ceiling textures, uneven plaster thickness, uneven paint, and difficult wallpaper, thick walls, etc. ) that can cause other detectors to fail. - bright LEDs lights illuminate to indicate the position of hidden objects – making it very easy to visualize the position of studs. - The only stud Finder available that does not require swipes across a wall to determine the location of studs, so that the readings are immediately accurate. - identifies the width of hidden objects so that you not only know the position of hidden objects, but so you also know the size of them. - can identify the position of multiple studs simultaneously. This is particularly useful for when there might be two or more studs in close proximity, which can often confuse conventional stud finders. - The Pros Ensor 710 has more sensor pad area than conventional stud finders and can sense more accurately through many real-world architectural features such as texturing, uneven plaster thickness, uneven paint, difficult wallpaper patterns, etc. - deep scanning is always active (up to 1. 5"). - The Pros Ensor 710 can be initialized at any position along a surface. - ergonomic soft grip.

• Advanced Multi-Sense technology senses the wall in multiple locations simultaneously
• Bright LEDs lights illuminate to indicate the position of hidden objects - making it very easy to visualize the position of studs
• Identifies the width of hidden objects so that you not only know the position of hidden objects, but so you also know the size of them
• Can identify the position of multiple studs simultaneously
• Deep scanning is always active (up to 1. 5")

User questions & answers

Question:	how well over thick second floor carpet
Answer:	the studpop doesn't respond to electricity at all. But since the studpop is looking for actual metal fasteners, when it does find one, it's a good bet that it's not in a wire.
Question:	Will this detect studs behind plaster and will it detect wires
Answer:	3/4" might be pushing it but that also seems awful thick for plaster over lath. IT always works for me on L & P
Question:	can this alert you to AC runs in t he wall
Answer:	The studpop was designed to work on any kind of wall. Sheetrock, plaster, lath and plaster, tile. That's the guarantee. If it doesn't appear to be working then it's either defective or you're not using it right. In either case contact the company and they'll figure it out. Being a new company with a very new product, they are very eager to please ; )
Question:	Can you find studs thru exterior stucco or wood siding? Thanks
Answer:	We don't have popcorn textured ceilings. I think ours are called slap brush, and it definitely does stay on them (I just tried it tonight to find out).

Product features

Franklin Sensors ProSensor 710

Unlike conventional stud finders which use only 1 or 2 sensors, the Franklin Sensors ProSensor 710 and 710+ use 13 sensors simultaneously to detect studs. This multi-sense technology eliminates the calibration step other brand stud finders require. Just put it on the wall and press the button. It's quick and easy.

The ProSensor 710 and 710+ can detect multiple studs simultaneously. they accurately display the center and edges of a stud at the same time. Made in the USA.

• ❆ 【Easy to Use】Only three buttons, first press ON/OFF power button, then select the Mode Switch Button,after that just press the “Scan button”(at the left side of the device) and scan horizontally across the object surface
• ❆ 【Smart Beep Function & Ergonomic Design】With an audible beep to remind you of the stud's location and position to find the stud center quickly. Handheld and anti-slip body for comfortable and firm grip, convenient to use
• ❆ 【LCD with Backlight Display】Large LCD digital display with illuminated graphical and sound signal indication, also with battery level indication
• ❆ 【Three Detecting Modes】During the stud sensor mode, it can locate the the edges of wood or metal studs up to 3/2" (38mm), metal rebar up to 3"(76mm) and AC wire up to 2"(51mm)
• ❆ 【Widely Application】Multi-scanner stud finder for Wood, Metal, Deep, AC Current. Quickly locates edges and center of wood ,wall studs, metal pipes,wooden joist ,rebar behind walls, floors and ceilings, also indicates the presence of live AC wire

User questions & answers

Question:	is it ultrasonic
Answer:	Yes, the magnet is very strong and will hold itself to the wall.
Question:	Does this work in older homes with plaster walls
Answer:	The Studbuddy attaches to the fasteners in the wall. The differences I can see is that since this stud finder's base is plastic you run no risk of scratching the paint, also, the Studbuddy is about 6 inches long and you may find a screw or nail more easily than with a smaller magnet.
Question:	Wil this locate studs thru 3/4” tongue and groove paneling
Answer:	It is better at doing what it is designed to do. An electronic stud finder measures the density of the wall from one area to the next. This is great for then making a mark on either side of the stud as a reference, however, what it detects may or may not be a stud. A magnetic stud finder like the Studbuddy uses its magnets to detect and attach itself to the nails or screws in the drywall, or in the case of metal studs, the studs themselves. In this way you do not need to make a mark on the wall, simply position the Studbuddy on the wall above or below where you need to drive a screw or nail and then remove it when you are finished.
Question:	Will it find floor joists
Answer:	It detects the screw or nail heads that are in the studs, so yes it should be able to detect the studs through wood paneling.

Product features

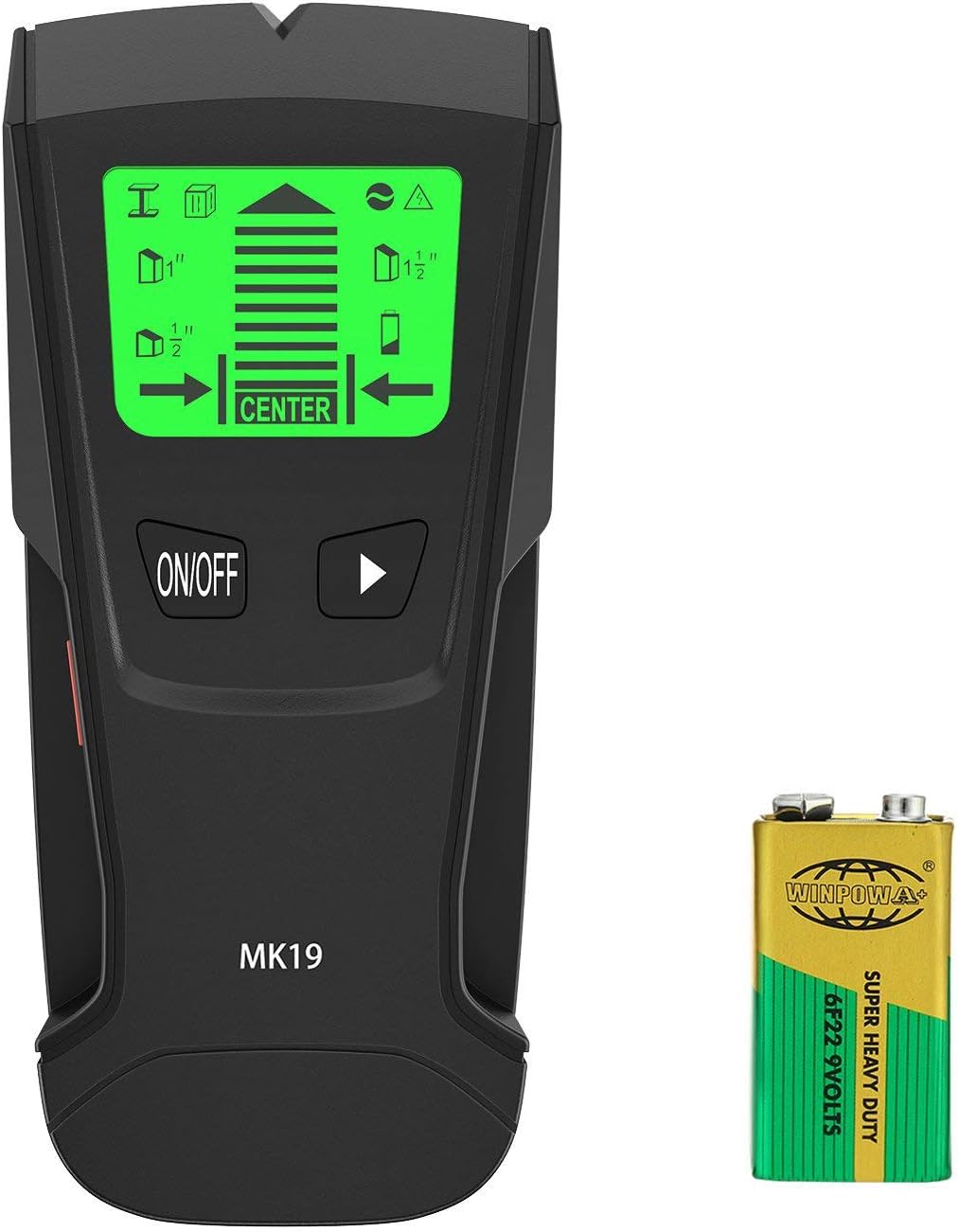

5 modes

Stud 1⁄2 in. scan: Locates the center and edges of wood and metal studs up to 1⁄2 in. (13 mm) deep.

Stud 1 in. scan: Locates the center and edges of wood and metal studs up to 1 in. (25 mm) deep.

Stud 11⁄2 in. scan: Locates the center and edges of wood and metal studs up to 1½ in. (38 mm) deep.

Metal Scan: Detects metal up to 3 in. (76 mm) deep.

AC Scan: Detects live unshielded AC wires up to 2 in. (51mm) deep.

How to use?

Step 1: Press on/off to power on the device.

Step 2: Choose the scanning mode.

Step 3: Press 口 before each scan. The bars indicated on the screen will go from full to none. It beeps once to indicate that it has been successfully calibrated. Do not let go of the button during calibrating.

Step 4: Move slowly on the desired surface. It beeps continually if the object has been detected.

Low Battery Indicator

The Low Battery Indicator icon displays when the battery level is getting low.

Product description

The Stud Finder -- for Easier DIY Projects Done

Whether you’re trying to hang a painting or mounting a TV in your living room, installinging a pair of shelves in your laundry room, or taking on a serious renovation or demolition project, having a dependable stud finder is going to make the task drastically more manageable.

Features

Detects wood, metal and electric wires & cables.

With a stud finder, you’ll be able to find studs easily without having to play any guessing games.

5 Modes Scanning

Detects wooden beams or joists at 13mm, 25mm and up to 38mm depth.

Detects metal studs, pipes, rebar, aluminum and copper up to 60mm depth.

Detects living electricl wires up to 51mm depth.

Center locating

This is a feature that you really only see in more advanced electronic scanners. Essentially, it'll allow you to determine the center point of the stud through scanning, rather than having to perform your own calculations and hope that the stud size correlates to standard conventions.

Digital display

Features with a digital display that indicates when a stud has been detected, while the altering system will help your confirm the center of the objects being detected.

PACKAGE CONTENT:

1 * Stud finder

1 * User manual

1 * 9V battery

• 【Accurate and Fast Location】-stud detector wall scanner adopt 2019 Upgraded intelligent micro-sensor chip which can precisely and quickly find edges and center of metal, studs, joists, pipes, live AC wire behind walls, floors and ceilings.Whether you are a professional, homeowner or a DIY enthusiast,this electronic stud scanner 5 in 1 is a Must Have Device that you Never Knew You Needed!
• 【5 in 1 Multifunctional Plus Deep Detection】-This stud sensor included 5 different scanning modes. 1/2 inch scan mode locates the center and edges of wood and metal studs up to 1/2 inch deep.Medium scan locates the center and edges of wood and metal studs up to 1 inch deep.Deep scan locates the center and edges of wood and metal studs up to 1.5inch deep; Metal scan detects metal (Ferrous and Non-Ferrous Metal) up to 2.36 inch deep; AC scan detects live unshielded AC wires up to 2 inch deep.
• 【Simple to Use&Auto Calibration】-Bright, Easy-to-read LCD display and ergonomic anti-slip handle make detecting the target on the wall easily and conveniently. The wall detector can be automatically calibrated anywhere on the wall to successfully find the center of studs very efficiently. This function provides maximum reliability to the user, greatly reduces errors in the application, and ensuring that most objects behind the wall can be detected.
• 【Digital LCD Display & Audio Alarm】-The wall stud locator has large LCD display together with the big sound warning to detect the accurate location of the objects. When find the target, the LCD display will indicate the direction and the intensity of beeping tells whether you are more close to the target. The fast detection saves users time and efforts, making the task completion EASIER and SAFER.
• 【Wide Use and 24-Month】-The beam finder is the handheld devices widely used for home improvement projects. This electronic stud finder quickly locates wood, metal and AC wires hidden in the walls, floors,lathe and ceilings of the house. It can work on different wall surfaces, such as lath, wallpaper wood flooring, acoustic ceiling,plaster wall,drywall etc,save you to have a potential accident when installing TVs, cabinets, garage racks, etc.

User questions & answers

Question:	What type of battery does this wall scanner use? And is the battery included
Answer:	Dear customer, thanks for your question. The stud finder can scan through the plaster(about 3/4 inch).
Question:	Can it detect floor joists
Answer:	Dear customer, thanks for your question. The stud finder can scan through the plaster(about 3/4 inch).
Question:	Will this tool detect the location and number of plastic water lines that may or may not be behind a wall
Answer:	No, it calibrated just fine and would find studs as well. my other stud finder verified it. The problem is the battery compartment cover is cheaply made and pops off. I wrapped the damn thing with packing tape and used it anyway.
Question:	Can this device distinguish between metal studs and wood studs
Answer:	Absolutely NOT! Please note that General Tool is a completely different company offering high quality precision tools for a reasonable price.

Product description

Whether you’re hanging a picture, mounting a TV, renovating part of your home, or working as a professional contractor, you need to know what is on the other side. Our stud finder is one of those tools that you will eventually need. PERLESMITH stud finder can help you finish your DIY home project well. The wall detector features large LCD display, ergonomic design and multi-sense technology for accurate detection of both metal and wooden studs. It will also detect live wiring up to two inches into walls and metal up to 2.36 inches deep. The five scanning modes (1/2” stud scan, 1” stud scan, 1.5” stud scan, metal scan & AC scan) make it ideal for both tradesmen and home carpenters. With this device, you can immediately find a suitable place on the wall without making any extra holes

There are two tips to ensure the wall scanner never trick you again

1. Go slowly: To be effective, stud finders need to be properly calibrated. First, place yours on the wall and turn it on — you can usually do this by holding in a button. Let the stud finder read the density of the material (this will only take a second or two and you will hear the sound of " beep"), then slowly move it from side to side. Go back and forth over the wall a few times, starting from a different spot with each pass. Mark each stud you discover with a pencil. We recommend finding three and using a tape measure to make sure they are the same distance apart. This will help you avoid false positives.

2. Always double-check: After you have marked your studs and where you want to drill your holes, you should use something to poke into the wall to ensure you actually marked a stud. We would recommend doing this by hand, rather than using a power tool, as you will have a better feel for what’s inside the wall. You can also tap a small nail into the wall; get past the drywall without the nail “falling in” and you’ve found a stud.

• 🔨 Upgraded 5 in 1 Stud Finder Wall Detector: wall scanner wood stud finder features 5 scanning modes respectively. Includes 1/2” stud scan, 1” stud scan, 1.5” stud scan, metal scan & AC scan. Helps you quickly & easily locate wood, metal studs, joists, beams, metal pipes, rebar & live AC wire behind walls, floors, ceilings
• 🔨 Clear LCD Display & Sound Warning: stud detector features a large LCD display & the beeping sound to help you get a more accurate result in both visible and audible way. Saves you lots of time by displaying the desired stud center & the precise position of the stud
• 🔨 To Be DIYer: our wall stud finder sensor is lightweight, long-lasting and convenient can be applied to various wall surfaces, from lath, wallpaper wood flooring, painted walls, acoustic ceiling, etc. Makes all of your DIY home projects easier such as mounting your TV, bathroom cabinet, photo frame, garage racks etc.
• 🔨 Comfortable Ergonomic Design: the ergonomic design means you can hold the wall scanner in your hand comfortably. Strong grip let you hold the electric stud finder tightly & keep it moving correctly to get more accurate results. Suitable for all types of people
• 🔨 Automatic Calibration & Simple Use: Just press the scan button to start calibrate and it will complete the moment the BEEP sound and screen shows disappear. Calibration before using provides users with maximum reliability & accuracy. If you have any questions in the process of using, feel free let us know

User questions & answers

Question:	Does it work on plaster walls
Answer:	No. This model does not detect electrical wiring. I don't think Franklin has a model for detecting electrical current. However it is the best I have found that can detect wall studs accurately.
Question:	Does this work on ceilings
Answer:	Hello, Sadly, the T6 is not capable of sensing through tile.
Question:	Where is this made
Answer:	Hello, Yes, it tends to be even more accurate with metal studs. Our stud finders sense density, and since metal is more dense than wood, the reading will tend to be more accurate on metal studs. Thank you for your inquiry. Best regards, The Franklin Sensors Team

Product description

EZ Stud Finder - 4 tools in 1 -1.Magnetic Stud Finder, 2. Magnetic Markers that sticks to the wall where a screw or nail is located. 3. Level , 4. 12"/30 CM ruler. Requires no adjustment, calibration nor batteries. So easy to use that my 6 year ago grand daughter was able to find and tag a stud with magnetic marker. The EZ stud finder will NOT STICK TO THE WALL WHEN A SCREW OR NAIL IS FOUND (A MAGNET WILL MOVE) TO INDICATE A SCREW OR NAIL IS FOUND. The magnetic marker will sticks to the wall where a screw or nail is located. MAY NOT WORK ON PLASTER WALLS THICKER THEN 1/4". When scanning for a stud, move the EZ Stud Finder slowly and insure EZ Stud Finder lays flat against the wall.

• 4 tools in 1 Magnetic Stud Finder - No Batteries, No Adjustments nor Calibration Required
• 12 magnets 1" apart covers a wider area then most magnetic Stud Finders- Assembled In USA
• No marking walls - includes 2 Stud Location Magnetic Markers that sticks to the wall!
• 12 inch - 30 CM Ruler - to measure distance between wall Mounted Items
• Level to Insure wall Mounted Items are Leveled -See Videos in Product Video Page for help in using EZ Stud Finder

User questions & answers

Question:	Will it work on ceilings
Answer:	Short for package which can be 1 or many. If a number comes before it that means multiple.
Question:	what depth will it scan up to
Answer:	No! The Stud Buddy does not detect water pipes. When you run the stud finder across the wall it is drawn to drywall screws of nails holding the sheet rock to the wall framework we carpenters call studs. That's all it does. If the texture is really heavy you will have a harder time determining where the studs are located. However, I find these devices very helpful in my remodel work. I believe you will too.

Product description

Stud finders are great and necessary tools when you begin certain home project. A good stud finder can make your DIY task easier and more safely. MERECE stud finder could help with all these and keep you away from unnecessary mishaps and miserable damages.



Merece stud finder is equipped with large LCD display, ergonomic design and advanced sensor technology, giving you a higher accuracy when detecting wood metal studs or live AC wires. The 5 scanning modes (1⁄2in scan, 1in Scan, 1½in scan, metal scan and AC scan) makes it a good helper for both DIYers and carpenters. With this device, you could quickly find a proper position on the wall without making any extra holes. Merece wall scanner is a great tool that is used to detect exact location of framing studs that are located behind drywalls, ceilings etc.



This electronic sensor wall stud finder quickly locate edges and centers of metal, studs, joists, pipes, live AC wire behind walls, floors and ceilings, via electronic signals. The cost of a wall scanner is certainly always less than the cost of repairing the damage from various mishaps before hanging something. TAKE MERECE HOME AND START YOUR PROJECT EASILY AND SAFELY!



Note:

This stud finder can quickly locate metal, studs, joists, pipes, live AC wire behind all kinds of walls floors and ceilings but except cement board walls and brick walls.

• ADVANCED SENSOR TECHNOLOGY AND HIGH ACCURACY Leading You to Locate Wood Metal Stud Live AC Wires Quickly - Merece stud finder is an electronic sensor wall detector which can well locate wood beam joist pipe metal live AC wire behind drywalls. You would surely enjoy a good project with this wall scanner
• UPGRADED 5 SCANNING MODES UP TO 60MM DEPTH Providing You More and Better Scanning Choices - Merece wall stud finder features 5 scanning modes for woods, metals, AC wires and other objects in different wall structures. 3 Stud Scan modes give you a detecting range up to 0.5-1.5 inches(12-38mm) in drywalls, Metal mode could detect pipes, rebars or copper bits deep up to 2.36 inches(60mm), while AC mode for live electrical lines up to 2 inches(51mm).
• LARGE LCD SCREEN Displaying Making your Results EASY TO READ - This Merece wall scanner is equipped with a large LCD display and a clear sound warning. The LCD displays the direction and intensity of beeping indicates whether you are closer to the target. All these makes your scanning project easier and with less efforts
• AUTOMATIC CALIBRATION – Power on this stud finder and it would complete once calibration. A correct calibration before your each detection could ensure you more reliability and accuracy. Please make sure you didn’t calibrate it on the stud position accidently. Then just move it around as you need and it would make your project better and efficiently
• Ergonomic Grip and High Quality Ensuring your Project Safely and Easily - its ergonomic design would give you better experience when you hold this Merece wall scanner from any angle. This wall detector can quickly locate edges and centers of studs metals AC wires and make you stay away from project damages and mishaps

User questions & answers

Question:	does this scan through tile
Answer:	I believe so.
Question:	Is it working for metal studs too?Some walls instead of wood studs have metal studs
Answer:	16 from ground
Question:	Can the metal detection mode be used to locate non-live wiring
Answer:	Yes you can. We have used ours during Beach Volleyball Competitions.
Question:	How do I turn sound on
Answer:	I'm 6/4 and it's tall enough

Product description

The MultiScanner A200 is Zircon’s newest electronic stud finder and metal detector that is sold exclusively on Amazon. The A200 is designed with a smooth, ergonomic rubber grip allowing for a comfortable yet secure hold for any size hand, at any angle. This multifunctional surface scanner uses the most recent technology in density detecting software and circuitry. The Zircon A200 has a 3-mode selector switch making it easy to change functions while the ultra-bright LCD screen, patented SpotLite Pointing System, and audio tone all indicate the location of the target. This Zircon scanner also comes equipped with a Signal Strength Indicator that helps to distinguish between shallow and deep targets. The MultiScanner A200 includes a backlit display for hard to see places and ACT (Auto Correcting Technology) that automatically corrects common user errors, such as when scanning begins over a stud, in addition to a Low Battery Indicator to alert its users to replace its battery for optimal performance results. The tool constantly scans its surroundings and recalibrates itself if necessary. The scanner has 2 stud scanning modes to locate the center, edges, and direction of wood and metal studs and joists behind walls, floors, and in ceilings. In StudScan Mode, the MS A200 scans up to 0.75 of an inch (19 mm) deep. Switch over to DeepScan Mode to double the scanning depth to 1.5 inches (38 mm). Metal Scan Mode locates non-ferrous metal, such as copper pipes, up to 1.5 inches (38 mm) deep and ferrous metal, such as rebar, up to 3 inches (75 mm) deep. Metal Scan Mode finds studs behind lath and plaster walls, tile, drywall and stucco walls by identifying the consistent pattern of screw or nail heads in the studs. The A200 is programmed with a Wire Warning Detection feature that indicates the presence of live, unshielded electrical wires up to 2 inches (50 mm) deep when scanning in all modes. With the Zircon MultiScanner A200, you can safely maneuver through the most complicated of projects with the professional confidence that comes from owning a Zircon.

• The Zircon MS A200 is an electronic edge and center stud finder and ferrous and non-ferrous metal Detector sold exclusively on Amazon Wire warning detection indicates the presence of live, unshielded electrical AC wiring while scanning in all scanning modes
• Act (auto correcting technology) automatically corrects common user errors, I.E. When scanning begins over a stud, as the signal strength indicator help distinguish shallower targets from deeper ones
• Ergonomically designed grip allows a comfortable hold on the tool for any size hand, at any angle while the patented spotlite pointing system clearly indicates the target location
• One fully charged 9V battery, not included, is required for the stud scanner to run at optimal performance to help you easily find studs and metal while avoiding electrical hazards

User questions & answers

Question:	Does this work to detect studs in walls with spray foam insulation
Answer:	Hi. Zircon stud finders and multiscanners are optimized for standard interior drywall construction. Other interior surfaces can be penetrated with our scanners, but brick, slate, and rock type material are too dense. Thanks.
Question:	How is "wirewarning detection" different than "ac scan mode"? both say they find, "live, unshielded electrical ac wires up to 2 inches (50 cm) deep
Answer:	Hi. The packaging you received your A250 in is called "FFP". That stands for frustration free packaging. The other type would be the standard plastic "clamshell". Most folks prefer the FFP. I believe you can purchase the stud finder products either way from Amazon. Thanks.
Question:	does this stud finder come packaged, mine did not is that normal
Answer:	Hello Chris. Due to the variables in building techniques, materials and densities in exterior construction Zircon stud sensors are recommended for interior use only. Our stud sensors locate studs by finding changes in density and the density of the material you mention would not allow the A250 to calibrate properly and as such would prevent it from scanning for the studs. Thank you.
Question:	Will it work with brick walls
Answer:	Hello. The stud finder A250 does not come with a case. Thank you.

Product features

Zircon MultiScanner A200

The MS A200 is a handheld tool dedicated to quickly and efficiently find studs, detect metal and alert you of live AC wiring. The A200 comes equipped with 3 scanning modes: StudScan, DeepScan and Metal Scan.

3 Mode Multifunctional Wall Scanner with Backlit Display

The Zircon MultiScanner A200 makes scanning easy with its newly designed ergonomic grip. The scanner's StudScan finds shallower wood or metal studs up to 0.75 in. (19 mm) deep while DeepScan doubles the scanning depth to 1.5 in. (38 mm).

Metal Scan locates both non-ferrous (non-magnetic) metal, such as copper pipe, and ferrous (magnetic) metal, such as rebar. The A200 is able to detect non-ferrous metal up to 1.5 in. (38 mm) deep, and ferrous metal up to 3 in. (75 mm) deep.

The A200 also includes WireWarning Detection that automatically operates in StudScan, DeepScan and Metal Scan Modes. This safety feature alerts you to the presence of live, unshielded electrical AC wires while scanning for studs and metal.

Before use, always be sure to install a brand new 9V alkaline battery. Zircon stud finders, particularly those with LCD screens, require and consume a great deal of current from batteries. For optimal performance, brand-new, recently purchased alkaline batteries with an extended expiration date, are strongly recommended for use in these tools.

StudScan and DeepScan

Use StudScan Mode to find the center, edges, and direction of wood or metal studs up to 0.75 in. (19 mm) deep.

For best results, always start in StudScan Mode when looking for studs.

If StudScan Mode provides irregular readings, or the Signal Strength Indicator is weak, the studs might be behind deeper than 0.75 in. (19 mm). Slide the Mode Selector Switch to DeepScan Mode. This doubles the scanning depth to 1.5 in. (38 mm) deep and allows for increased accuracy on deeper targets.

Before scanning, hold the A200 flat against wall and press the Power Button to calibrate. Be sure not to move the scanner while calibrating. After a short beep sounds confirming calibration is complete, continue pressing the Power Button and slide the scanner slowly against the surface.

When the A200 finds the edges and center of a stud, 'Edge' and 'Center' displays respectively, indicating you have found your target. When the stud's center is located, the SpotLite Pointer also illuminates and a short beep sounds.

The center of the stud is the stud's most secure location. It is critical to drill in the center of a stud when mounting heavy objects.

Note: WireWarning Detection works in both StudScan and DeepScan Modes. The WireWarning Detection Icon will appear when live, unshielded wires are detected.

Metal Scan

Detect Both Ferrous and Non-Ferrous Metal.

Use Metal Scan Mode to locate and avoid hazards, such as pipes, behind walls and determine if a stud is wood or metal.

Metal Scan Mode detects non-ferrous metal, such as copper pipe, up to 1.5 in. (38 mm) deep, and ferrous metal, such as rebar, up to 3 in. (75 mm) deep.

To use, be sure to first calibrate the A200. For maximum sensitivity, press and hold the Power Button while holding the scanner away from the surface. Once a short beep sounds confirming calibration is complete, place against the surface to be scanned. Be sure to continue to hold the Power Button.

Just like in AC Scan Mode, slowly slide the scanner across the surface and mark the spot where the most display bars peak. Continue scanning until the bars reduce and reverse the direction.

The midpoint between the two marks is the location of the metal target.

Note: WireWarning Detection works in Metal Scan Mode. The WireWarning Detection Icon will appear when live, unshielded wires are detected.

WireWarning Detection

Be Alerted of Live Electrical Wiring in all Modes.

WireWarning Detection is a feature that is always on while scanning in StudScan, DeepScan, and Metal Scan Modes.

It alerts you to the presence of live, unshielded electrical AC wires up to 2 inches (50 cm) deep.

As you approach an area with live AC voltage, a lightning bolt icon will display on the LCD screen. This the WireWarning Detection Icon. If your scan directly starts over an area with live AC voltage, the WireWarning Detection Icon will flash.

Note: Please turn off the electricity and use extreme caution in areas where live AC voltage is detected before nailing or drilling.

Auto Correcting Technology (ACT)

Automatically Have Common Errors Corrected.

This feature enables the scanner to automatically adjust for common calibration errors. It checks calibration 10 times per second and automatically recalibrates when/if needed. If scanning begins directly over a stud, the tool will transparently recalibrate, so you don't have to, and will find that stud when you scan back over it.

This recalibration is usually transparent and no indication is made. If an arrow icon illuminates, the scanner was calibrated near or over a stud and then moved away. The arrow indicates the direction of the missed stud.

Frequently Asked Questions

Question: Does the MultiScanner A200 include a battery?

Answer: No. Zircon stud finders and detectors, particularly those with LCD screens, require and consume a great deal of current from batteries. For optimal performance, a brand-new, recently purchased 9V alkaline battery with an extended expiration date, is not included but is required to properly power the A200.

Question: I inserted a 9V battery, but the scanner doesn't turn on or is giving me strange readings. Is my scanner broken?

Answer: Please be sure to use a fresh, brand new 9V alkaline battery with an extended expiration date. Batteries that may work in a smoke detector or remote control may not have adequate voltage to power the sensing technology in MultiScanners.

Question: Does this scanner need to be calibrated?

Answer: Yes, as with all Zircon scanners, the MultiScanner A200 needs to calibrate to the surface before scanning. Calibrating the scanner on an empty wall gives the device a chance to measure the wall thickness and material density, as well as register factors like humidity, temperature, and even the minor electric readings from your hand, which all have an impact on the readings from the wall. Calibrating is easy and just takes a second. To calibrate, simply place the unit flat against the surface to be scanned and press the Power Button. When powering the A200 on, all the icons on the screen and the SpotLite Pointing System will briefly flash and the scanner will beep. After this occurs, the screen will then clear and, depending on the selected mode, the words 'StudScan', 'DeepScan' or 'Metal' will remain, indicating that calibration has occurred and the scanner is ready to begin scanning. It is important not to move the scanner or begin scanning until the calibration process has taken place for the most accurate results.

Question: What does 'Center Finding' mean?

Answer: Center Finding stud finders locate both the edges and the center of wood and metal studs and joists in one step. 'Edge Finding' stud finders, on the other hand, only find the edges of studs, so you must determine the center. Finding the center of the stud to mount heavy objects is critical as the stud's center is the most secure location of the stud.

Question: What is DeepScan Mode?

Answer: Unlike StudScan Mode, which scans through one layer of drywall up to 0.75 in. thick (19 mm), DeepScan Mode scans through 2 layers of drywall up to 1.5 in. (38 mm) deep. DeepScan Mode is a higher sensitivity scanning mode that should be used when there are extra layers of wallboard or paneling. Extra layers in a wall can make it difficult to find studs in regular StudScan Mode. To minimize false positives and/or finding other objects further behind the wall that may not be a stud, always start your scan in StudScan Mode first.

Question: How can I be certain the objects found behind my wall are studs in DeepScan Mode?

Answer: DeepScan Mode has increased sensitivity so you may have located something other than a stud. Studs are equally spaced to either side (12, 16, or 24 in. apart) and typically run from floor to ceiling. To better confirm that what you found is a stud, check for other studs equally spaced to either side and for the same stud at several heights directly above and below the first stud indication. A stud reading would also measure approximately 1.5 in. (38 mm) apart from each edge. Anything larger or smaller may not be a stud if not near a door or window.

Question: Will this MultiScanner A200 locate metal studs?

Answer: Yes, the A200 will locate metal studs in StudScan, DeepScan, and Metal Scan Modes. Since stud finders are looking for a change in density behind drywall, not a particular material, in StudScan, DeepScan, and Metal Scan Modes, the detector will react to metal studs the same as it would for wooden studs. The A200 will locate wood and metal studs up to 0.75 in. (19 mm) deep while DeepScan Mode locates targets up to 1.5 in. (38 mm) deep. In Metal Scan Mode, the detector will only detect metal studs, in addition to any other metal, within its specified scan depth and range.

Question: Why does the scanner beep and the lights flash when scanning for a stud?

Answer: The scanner could've been calibrated over a stud, calibrated on a dense part of the wall, or the back of the unit may have slightly lifted or tilted during the scan. Move the MultiScanner A200 over a couple of inches to the left or right, re-calibrate, and start your scan again.

Question: What is WireWarning Detection?

Answer: WireWarning Detection is a feature that is always on while you are scanning in StudScan, DeepScan, and Metal Scan Modes to alert you to the presence of live, unshielded electrical AC wires up to 2 in. (50 mm) deep. As you approach an area with live AC voltage, a lightning bolt icon will display on the LCD screen. This is the WireWarning Detection Icon. If your scan directly starts over an area with live AC voltage, this icon will flash. Please turn off the electricity and use extreme caution in areas where live ac voltage is detected before nailing or drilling.

Question: Why does the area of voltage appear much larger than an actual wire?

Answer: Static charge may develop on drywall, spreading voltage detection as much as 12 in. (30 cm) laterally from each side of an actual wire. To narrow detection, turn the scanner off and on again at the edge of where the wire was first detected and repeat the scan.

Question: I suspect electrical wires in a certain area when I scan, but why am I not detecting any?

Answer: Wires may be shielded in metal conduit or behind a metallic wall covering. It could also be that the wire is deeper than 2 in. or that the wire may not be live (hot). Try Metal Scan Mode to see if you can find metal, wire, or metal conduit. Always exercise extreme caution when working near electricity.

Question: Does the A200 work on wood paneling and other wood surfaces?

Answer: The A200 is optimized to scan through standard interior sheetrock / drywall (gypsum) construction. This scanner will work on wood, plywood, wood paneling and particle board up to 1.5 in. (38 mm) thick when in DeepScan Mode.

Question: Will the A200 work on textured wall surfaces, acoustic ceilings, or wallpaper?

Answer: Yes, the A200 will work on textured surfaces and dried wallpaper as long as it does not contain any metallic foil or fibers. For highly textured walls or acoustic ceilings, place or tape a thin piece of cardboard onto the surface to be scanned. Recalibrate and scan over the cardboard in DeepScan Mode.

Question: Can I use this scanner to find studs behind carpet?

Answer: No. Zircon scanners are designed for hollow interior walls. They will generally work well to find studs or joists through a plywood subfloor, after the carpeting/flooring has been removed.

Question: Will the A200 work on ceramic tile?

Answer: While the MultiScanner A200 may be able to scan through ceramic tile in DeepScan mode to locate studs, the many variable layers behind tiled surfaces make it one of the more difficult scanning environments. To find studs through ceramic tile, we suggest using Metal Scan Mode to find the nails or screw heads attaching the backing surface to the studs.

Question: Does this MultiScanner work on lath and plaster?

Answer: Yes. Using Metal Scan Mode, you can identify a stud behind the lath and plaster wall by locating the pattern of nail or screw heads attaching the wood lath to the studs. The nails or screws should be found in a column when scanning for metal. However, if the plaster has metal mesh reinforcement, the MultiScanner A200 will not be able to detect an accurate pattern of nail heads through that material.

Question: What does the Signal Strength Indicator do?

Answer: To help you filter out the target from potential decoys that would give the A200 a false reading, the Signal Strength Indicator gives a reading of the strength, or the certainty, of the returning signal from the wall. Three bars (the highest level) indicates an obvious result behind a normal wall, while two bars (or below) indicates that while the device has found something, it may either be a smaller object than your target, or the target is behind an extra thick wall. Since every wall is built differently, and since any wall can have pipes, wires, or other objects behind it that can return a result, you can use the Signal Strength Indicator to 'map out' your wall to determine the target from the other objects.

Question: Can I use this scanner to scan the outside wall of my house?

Answer: No. Zircon MultiScanners are designed and recommended for interior use only.

Question: I'm planning to mount my new flat screen TV to the wall. Will this scanner help me?

Answer: Yes. The A200 is ideal for basic home or office projects. The center-finding technology allows you to easily find and mark the center of the stud for secure mounting of TV's and AV equipment, closet or garage shelving, heavy mirrors, light fixtures, coat racks and more.

Question: Is the scanner waterproof?

Answer: No. The MultiScanner A200 is splash and water resistant, but not waterproof.

Question: What is the difference between magnetic and electronic stud finders?

Answer: Magnetic stud finders are simply magnets that look for anything magnetic behind a wall. Typically, they are advertised to find screws or nails that hold the wall surface to the studs. However, nails often times are not placed in the center of studs, making it difficult to determine where the stud's center is or how wide the stud is.

Electronic stud finders, such as the A200, on the other hand, operate by detecting density changes behind a surface (like a wall) and will clearly and precisely indicate the edges and center of a stud. The center of a stud is the most secure location when mounting anything heavy. For applications like mapping out floor joists, electronic stud finders have an advantage over magnets because they are not attracted to nails holding floor boards to a subfloor, as well as nails in joists.

Question: Does the MultiScanner A200 come with a warranty?

Answer: The MultiScanner A200 includes limited one year warranty when fulfilled by and shipped from Amazon.

Question: Where can I get help using my MultiScanner A200?

Answer: Zircon's team of Tool Pro Experts provide superior customer service. They know the ins and outs about tools, construction, and the challenges that DIYers and professionals face. Rest assured, at Zircon you can reach live, knowledgeable, honest people who want to work with you.

Zircon also provides support via an online 24/7 interactive support center, step-by-step instructions, how-to videos, and online engagement. Visit Zircon's website today.

• 📍【High-Precision Detector】 Quickly locate the stud wood metal AC wire. Wood measurement has two modes to detect depth to the greatest extent: precise mode (20 mm), depth mode: (38 mm); metal measurement mode, which can measure non-magnetic metals: (80 mm) and magnetic metal (100 mm); power cable Mode (40mm).
• 📍【2 in 1 Stud Finder Laser Distance 】 The new measuring device can not only measure metals (steel rods, copper pipes) and cables, wood, etc. hidden under walls, ceilings, floors and gypsum boards, but also measure laser ranging, area. Whether you are a professional, homeowner or DIY enthusiast, you can find great use in this stud scanner.
• 📍【Multi-Function Distance Meter】 This instrument uses laser precision technology as a distance meter, with an accuracy of ±5MM and a measurement distance of up to 40m; it can be freely switched between M / In / Ft; multiple measurement functions Range, distance, length, continuous measurement, Pythagorean method, and 30 sets of data storage functions.
• 📍【Energy Saving and Calibration Function】 The device has an automatic shutdown function. If there is no function within 20 seconds, it will automatically shut down. In addition, the device is powered by a lithium battery. We provide a USB charging cable that can be used multiple times; calibrating before use can provide you with maximum reliability and accuracy.
• 📍 【Mute Setting and LCD Backlight】 Large backlit screen can provide better visibility in dark areas. Using the mute function, you can turn the signal tone on or off as needed. Suitable for libraries, classrooms and other quiet places.

Product features

Locator Specifications

Wood (foreign body): 20 / 38MM

AC cable: 40MM

Non-magnetic metal: 80 MM

Magnetic metal: 100MM

USB charging

Wood Measurement

• Maximum detection depth: precision mode: 20 mm, depth mode: 38 mm. Press and hold the button in the center to switch to precision and depth scan modes.

• The foreign body detection mode detects objects in plasterboard walls, plywood, solid wood and coated wooden walls.

Metal Measurement

• Press the center button to turn on the detection function and press the right button to access the detection metal interface.

• Place the instrument on the surface of the detector and move the instrument left or right in the same direction. When the instrument gradually recognizes the metal object, the metal symbol * appears on the screen and gradually grows as the instrument approaches the metal object. At the same time, the loudspeaker reports "metal". When the instrument is closest to the metal, a central symbol appears on the display.

Power Cable Measurement

• Press the center button to turn on the detection function, then press the right button to access the metal detection interface.

• Place the instrument on the surface of the detector and move the instrument left and right in the same direction. When the instrument gradually recognizes the power cord, the * cord symbol appears on the screen and gradually increases as the instrument approaches the power cord.

Screen Declaration

A: Magnetic / non-magnetic

B: Depth

C: Central location

Single and Continuous Measurement

• Single measurement: Briefly press the "ON" button to switch on the device. The device automatically switches to the individual measurement interface of the laser and the loudspeaker sends the current measurement mode. Aim the laser at the target to be measured and press the button for single measurement. The measurement result is displayed in the main display area and the loudspeaker announces the current value

• Continuous measurement: Long press the "ON" key to enter the continuous measurement mode. The maximum value (Max) and the minimum value (Min) are displayed in the auxiliary display area.

Area Measurement

• Area measurement: Measure the area of a rectangle. Measure the length and width of the rectangle according to the screen mode. The results are displayed in the main display area.

Single Pythagorean Measurement

• Measure one hypotenuse side and the right angle side according to the Pythagorean theorem principle, and the instrument automatically calculates the length of the other right angle side that is displayed in the main display area. Note: When testing the Pythagorean method theorem, the two measurements mean that the reference point of the measurement must remain unchanged and the line between the two laser points and the three reference points must be a right-angled triangle, otherwise the calculation result differs significantly from the actual results.

Double Pythagorean Measurement

• Similar to the simple Pythagorean measurement, when measuring 2 hypotenuse edges and 1 right-hand edge, it must be ensured that the reference points of 3 measurements remain unchanged and the right-hand edge must be measured perpendicular to the target edge, otherwise the calculated results differ significantly from the actual ones Results.

Product description

Highlights: No batteries or calibration required Contains powerful neodymium magnets Remove magnetic shield and slide stud magnet across wall unit until it attracts a nail or screw head in stud Replace magnetic shield after use to prevent the powerful magnets from attracting to tools in tool box

User questions & answers

Question:	Will this locate studs/nails in plaster lath construction walls
Answer:	No. Its terrible as a stud finder. Buy an electric one.
Question:	Is there a magnet/stud finder that will work and locate nails/stud inceiling to hang/anchor a sturdy hook to hang two hanging chairs for my daughters
Answer:	This will work. The drywall nails/screws are usually centered in the stud or ceiling joist. You have to move the magnet around until you find the first nail/screw. Then there should be another nail 16 inches or so on either side of the first nail you found. That should tell you which way the joists are running. Moving up or down the joists the nails will most likely be much greater than 16 inches apart Personally I would make sure not to hang the chairs from the same joist. And use a good strong hook and make sure it’s screwed in deep.
Question:	Will this hold on ceiling
Answer:	Maybe. How it finds the stud is the magnet is attracted to the drywall screws/nails. So it depends on how deep the screw/nail is under the mud and how strong the magnetic hold will be. I've never used it on a ceiling but on walls it usually holds on but sometimes falls off. You need to mark your spot then remove in in case it does fall. This is the best stud finder I've ever had, a carpenter showed it to me. I have never seen it in a hardware store only on Amazon. All the battery operated ones I've used are junk. This thing never fails.
Question:	I need something to locate nails or screws behind a popcorn ceiling
Answer:	I just tested it on some medium size popcorn material and it worked fine.

Product features

Products For A Variety Of Industrial Needs

Heavy duty holding and retrieving magnets that can lift up to 4,400 pounds.

Bulk parts lifters that make it easy to collect and transfer sharp nails, screws, and other bulk metal.

Workholding and welding industrial magnets that help to lift and position heavy metal objects.

Round magnetic bases to hold signs and equipment in place.

Separation magnets for things like conveyor belts and water treatment.

Magnetic tool organizers, trays, and inventory labels to tidy up your warehouse or shop.

Industrial magnetic hooks, hangers, and clamps that can hold between 9-55 pounds.

Name badge magnets.

Magnetizers, magnetic pole indicators, and gaussmeters.

Cow magnets that prevent Hardware Disease in cattle.

Flexible Magnets Ideal For Signs And Displays

Magnetic sheets, in rolls and custom cut sizes, for vehicle and point of purchase signage.

Magnetic strips for shelf labeling and other small applications.

Promotional and point of purchase magnets to hang and position signs and banners.

Printable flexible magnets for photos, graphics, etc.

Magnetic pouches, photo pockets, and business cards.

High energy magnets with excellent chemical resistance to weather, water, and ozone.

Vehicle wrap magnets for positioning graphics during installation.

Flexible magnetic labels for inventory, crafted so replaceable cards slide easily in and out.

FlexIRON receptive flexible magnet sheets.

Special magnet-to-magnet strips.

Quality magnets to help you accomplish a plethora of tasks

Choose from our four superior categories of permanent magnets: Neodymium — the strongest magnetic material in the world, Ceramic — powerful and economically priced, Samarium Cobalt — small size and extremely powerful, or Alnico — high heat resistance and made in horseshoe, rod, and bar shapes.

Sold at local and national retailers throughout North America

Our high quality, strong magnets are sold at all your favorite big box home improvement centers, hardware stores, industrial supply outlets, online retailers, craft and hobby shops, farm and ranch supply stores, and many others.

Packaged magnets for home improvement & handicrafts

We have a wide variety of packaged magnets for the retail market, including hardware heavy duty magnets for home improvement, automotive, and houseware needs, as well as small magnets for crafts, hobbies, and office use. Look no further than Master Magnetics, Inc., for all your magnet needs.

Product description

Android compatible only - stud finder and wall scanner. Detects studs (metal & wooden), pipes & wires and movement Works on drywall. Sees 4 in / 10 cm deep into your walls Provides 2 different sensing modes – Images and Expert.

• Detects wood & metal studs, PVC & metal pipes, electric cables and wires inside walls
• Uses cutting-edge radar technology to see inside drywall
• Scans up to 4 inches (10 centimeters) deep into your walls
• Works with Android phones running Android 6. 0 and above with USB on-the-go (OTG).
• Not compatible with iPhone and iPads and tablets

User questions & answers

Question:	Where is this product made
Answer:	I don't know the maximum thickness it can gauge, but it is totally Awesome for finding the nails in standard sheet rock thickness. An electrician used it on my walls to find the stud, and it was so effective, that I purchased a set for me. No more random knocking on the walls to find the studs
Question:	Does this case fit the “New” T
Answer:	I have 3/4 inch drywall and it finds the studs really easily, but I don't have carpeting. Guess you should give it a try, can't hurt. If it finds the tacking on the carpeted side walls through your carpet thickness, it might find the joists too! Best answer I can give you.
Question:	Will this fit the M150 series
Answer:	Nothing, I bought it and it was just one magnet. I contacted seller and they said they have only ever sold one at a time.
Question:	What are the inside dimensions
Answer:	Wow, they sure don’t make it very clear. I just one unit, and took about eight weeks to get it. Does work great though.

Product features

Avoid DIY drilling disasters & take your renovation projects to the next level!

Walabot DIY is a cutting-edge wall scanner that takes stud finder technology to the next level. Capable of "seeing" up to four inches into walls, it uses radio frequency technology to provide users with the location of studs, plumbing pipes, electric wires, and other objects hiding inside walls.

The Walabot Difference

See it, don’t hear it! Other stud finders beep to alert you that an object has been found behind your walls without showing you whether the object is a stud to drill into or a pipe or wire to avoid? Now you can be safe with the Walabot DIY. Only Walabot uses cutting-edge radar technology to allow your smartphone to show you actually what is behind your walls.

Walabot DIY Wall Scanner

Walabot DIY is paired with an Android phone (see specifications for details) to produce a visual image of what is inside drywall and lath & plaster up to 4 inches (10 cm) deep. Your Walabot detects metal studs, wood studs, wires, pipes and can even find pests by showing movement behind walls. Walabot can be used by contractors, electricians, plumbers, carpenters, and those in need of advanced wall imaging capabilities. The advanced technology is also perfect for ambitious DIYers and those who want real-time visual images of what is behind a wall. It can show users what is in their wall in multiple modes (Image mode and Expert mode).

Image Mode: A visual image of metal and wooden studs, pipes, and wires.

To use image mode, hold the Walabot against the wall, calibrate and scan the wall. Walabot’s Radio Frequency technology will analyze the objects and using artificial intelligence, translate the results into images which are identified as wooden studs, metal studs, pipes, and wires.

Expert Mode: See the raw radar signals from the Walabot sensor

To use expert mode, hold the Walabot against the wall, calibrate and move over the objects seen in Image mode. Expert mode gives a direct view into the unfiltered Radio Frequency images. This image can show location in more detail, curves in pipes and wires, the intersection between two objects, pest movement in real time and can be used to confirm objects found in Image mode. You can focus the expert mode by managing the intensity bar to better see the objects.

Which phones work with Walabot?

COMPATIBLE: Android phones with O.S. 6.0 and above with on-the-go (OTG).

NOT COMPATIBLE: iPhones or tablets.

Once connected to your phone via the included cable, place Walabot DIY against the wall, calibrate and then start scanning to detect pipes, wires and studs. Check the app store for free updates and upcoming features.

*If you are not sure what operating system your Android phone uses or if it has OTG, see the video listed in the image gallery above for a short walkthrough on how to identify this on your phone.

In-Wall Imager – For home remodeling, renovation and construction

Walabot DIY Wall Scanner



The Walabot Multifunction Wall Scanner uses Radio Frequency (RF) technology to provide advanced detection capabilities. The tool is a cutting edge device which is paired with an Android phone (see specifications for details) to produce a visual image of what is inside concrete and drywall up to 4 inches (10 cm) deep. It can show users what is in their wall in multiple modes (Pan mode, Image mode, and Expert mode).



The Walabot detects metal objects, wood studs, wires, pipes and can show movement behind walls. Walabot can be used by contractors, electricians, plumbers, carpenters, and those in need of advanced wall imaging capabilities. The advanced technology is also perfect for ambitious DIYers and those who want real-time visual images of what is hidden within a wall.



COMPATIBLE SMARTPHONE

• Most Android phones running Android 5.0 and above, with USB On-The-Go (USB OTG)

KNOWN INCOMPATIBLE SMARTPHONES:

• iPhone, iPads
• Tablets
• Blackberry, Asus Zenfones, HomTom, Vodafone, Kyocera, Alcatel, BQ, Moto, Samsung Note 7, Pixel 2 XL, Xperia and LG G4



Cutting Edge Technology Transforms Your Smartphone into an Advanced Wall Imaging Device

Learn to Use the Walabot

Walabot's Multiple Modes Work Together: Pan Mode, Image Mode and Expert Mode

                        Step 1:



Pan Mode: Panoramic view of a full wall line, with distances.



To use pan mode, hold the Walabot against the wall, calibrate and scan from one side of the wall to the other. Pan mode will show an image of objects within the wall and approximately where they are located. Pan facilitates a quick overview of where studs are placed in the wall.



Different>


Each type of object will be defined by the stripes and can be used for future reference in either Image or Expert mode.
