3 best submersible pumps 12vs

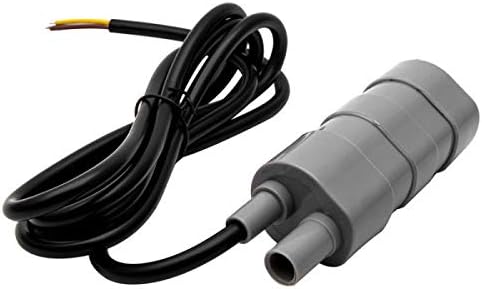

Product description

Rated voltage: 12V

working voltage 6-15V

Rated current: 1.2A

Maximum flow: 840L/H



Weight: 160 g

Size: 106 * 33 * 38MM

Water outlet OD: 12MM

Inner diameter: 9.7MM

The temperature of the water cannot be over 40℃



Brown cable connects the Positive Pole "+"

Blue cable connects Negative Pole "-"

Yellow cable is GND, don't need to connect.



Please don't work 24 hours.

DC submersible pump is mainly for washing pump, washing machine pump, garden fountain, rockery water pump, shower pump, no soil cultivation pump.



Package includes : 1* Micro Submersible Water Pump

• Rated voltage: 12V
• Working voltage: 6-15V
• Rated Current: 1.2A
• Max water head: 5M (the higher the voltage the greater the lift)
• Max flow rate: 840L/H

User questions & answers

Question:	How long is the power cord
Answer:	Hello, 1.5 m/4.92 feet, Thanks for your support.
Question:	can it be used in saltwater
Answer:	I Believe with proper matenace you could use pump in salt water but as with any equipment exposed to the harsh salt water it may not perform as it would in a fresh water environment.
Question:	Will a siphon start if I’m using this to pump water from a jug down to a lower point once the pump is turned off
Answer:	Think so but have not tried for sure
Question:	I.D. Tubing size in inches
Answer:	The tubing I used was 3/8 I'd 1/2od clear tubeing and it is working well

Product description

Performance date:

12V Farm & Ranch Solar Powered Submersible DC Water Well Pump 26FT Lift

Voltage:12V

Power:120W

Caliber:25mm(1")

Capacity:20US.GPM

Head:6m(20ft)

Main applications:water

Features:

Suitable for all types of vessels and aquaculture, prairie ranch, industrial and mining drainage, washing, watering, water the flowers, is an ideal lightweight water tool.

1).Simple structure, less components, easy maintenance and repair.

2).Use High-quality corrosion-resistant materials, compact and durable.

3).Safety: DC voltage, 60V maximum security and stability, will not burn out the machine.

4).Coaxial machine,use floating port ring structure ,improve the mechanical efficiency and volumetric efficiency.

5).High-lift: Use Bi-turbo roundabout countercurrent technology,stable drainage and can greatly improve the pump head, meet rinse water.

6).Small sound, no noise pollution, pagoda shaped outlet easy connected for pipe, mini-handle with good insulation properties, surface antisepsis, wear resistance,high mechanical hardness.

Precautions for use

1). Forbid idling

2). Do not pull on wires

3). Check if power & voltage are fit with pump

4). Check if red line is on(+) of battery, and another is on (-)

5). Keep pump out of water after use and dry it inventilation places.

6). Before use, please put electric pump in water first, then power-on

7).If water is with sundries like silt, please put pump in bamboo basket or other prevention device to prevent the blocking

• Voltage:12V Power:120W Capacity:20US.GPM Head:20ft Caliber:25mm(1")
• Simple structure, less components, easy maintenance and repair.
• Stable Performance; has less power cost, larger flow and great anticorrosion ability.
• Wonderful water pump for all the drainage of shipping,aquaculture,graziery,and industrial & mineral industry.
• Use with solar panels and 12V battery systems

User questions & answers

Question:	want to use this for sump backup Anyone try this?Also can a float switch be hooked to it
Answer:	3 pcs 120w solar panels shoud put for best run performance
Question:	Do ikt need a check valve
Answer:	You are absolutely correct. This unit does not work under Solar power at all.The unit ran for 8 hours on batteries now it does not work at all. This is some of brand Chinese unit. Not worth the postsge.
Question:	What are the max and min operating temperatures for this pump
Answer:	Not certain, however based on design the unitnis more intended for unpressurized use. I am installing mine to fill 1000 gallon holding tank then run a 24v pressure pump off the holding tank to run irrigation
Question:	What kind of flow does it have for a 12' or 15' lift
Answer:	You need to remove panels, the Maximum power of this pump is 600watts. So the 6 solar panels are too many.

Product features

Diverse Power Supply

During the sunny weather, you can work directly with a solar panel. However, a cloud could lead into the solar panels losing sunlight and consequently cause the pump to halt work.

If you need the pump to steadily work for above 6 hours, we recommend you follow the power supply method on the left. The specific configurations are as follows:

One 12V 100W solar panel + One 20A controller + One 70AH battery + Water pump

Note: The controller is to protect the pump from overload

Diverse Use Scenarios

The filter screen at the base ensures the pump is not wrapped around by algae around the impeller.

The large flow of 20GPM can satisfyingly serve watering of a small garden/farm.

The 20ft head can be used for domestic well pumping. However, only for wells with a water depth of less than 6 meters.

Note: When not in use for a long time, please take the pump out of the water to avoid corrosion of the rubber seal ring by weak alkaline water (such as sea water).

It can't pump lots of water like it was advertised?

The positive and negative poles of your pump may be reversed, please connect the red wire to the positive pole. Reversed negative and positive poles will not affect the service life, but will greatly reduce the flow and lift.

My pump stops working three months later?

• Check the power supply system firstly to see if the battery is working properly.
• Working vibration may cause the connector loosen, so check whether the power cord is connected well.
• Clean the impeller and restart this pump.
• Request BACOENG For A Replacement if Above Methods Were Tried

Can I use it in dirty water?

Not Recommended. The 3mm filter port can effectively filter large particle impurities. A 1 cm high foot prevents the inhalation of sludge. However, if the impellers are blocked, pump will break down quickly.

Product description

Features:



- This submersible pump is designed for reliable fountains

- Waterproof and long continuous working time provide you an amazing glow

- Unique design of motor and pump body structure, low power consumption and longer life

- Extremely quiet operation and wide application

- Dual connecting ways with tubes of variety sizes

- Safety, anti-corrosive, acid-resisting and durable

- Suitable for both fresh-water and salt-water. Applied in aquarium, fountains, spout, fish tank, garden watering and hydroponic



Specifications:



- Voltage: DC12V

- Power: 4.8W

- Max Flow Rate: 240L/H

- H-Max (Lift height): 0-3m (pls add a water pipe if you need to reach 3m, you may reference picture 7)

- Working Temperature: 0℃ - 35℃

- Cable Length: 45cm

- Size: 2.1 x 1.5 x 1.4 inch

- Gross Weight: 105g



Note

-This pump don't has the self-absorption function, it need to place in the water when using.

-Please use it in clean water and clean the pump regularly to avoid clogging.

- Confirm the supplied voltage is stable and required

- Do not use it into flammable liquid

- Better working temperature is 0 - 35 degrees Celsius

- Cut the power OFF when install, detach or clean

- 3m fountain can be reached by connecting a water pipe with 3m length - Not Included

- The black line is negative pole; the red line is positive pole





Package Included:



2 x Submersible Water Pump

• Voltage: DC12V/4.8W （AC is forbiden). Red is "+" and black is "-". Please wire it correctly.
• Max Flow: 240L/H (63 Gallon); H-Max (Lift height): 0-3m (pls add a water pipe if you need to reach 3m).
• Super quiet operation, safety and durable.Great use in aquarium, fountains, spout and hydroponic.
• No Self-priming function-It must be completely immersed in water when using.
• Detachable & Cleanable-Use only in clean water, not corrosive liquids. Can be disassemble if you need.

User questions & answers

Question:	Is there a datasheet available for this pump
Answer:	Hello, this water pump didn't have user manal, if you have any question about this water pump, pls contact us and we will help you to solve it.
Question:	Can this pump be powered by a car battery
Answer:	As long as your car battery is 12 volts, which most are you are good. works great with solar, and 12VDC wall warts too.
Question:	will this pump 2 stroke oil 6ft head I plan to use on outboard motor as a transfer pump between storage tank inside of boat, and the engine reservoir
Answer:	While these are decent, but small little pumps it ultimately depends on the viscosity of the fluid being pumped. I don't think it would work for your desired application, ie 6 ft head.
Question:	Is there an adjustable flow rate knob included with this pump? If not how could you adjust the flow rate
Answer:	Sorry, it can not adjustable flow rate.
