12 best lcr meters

Product description

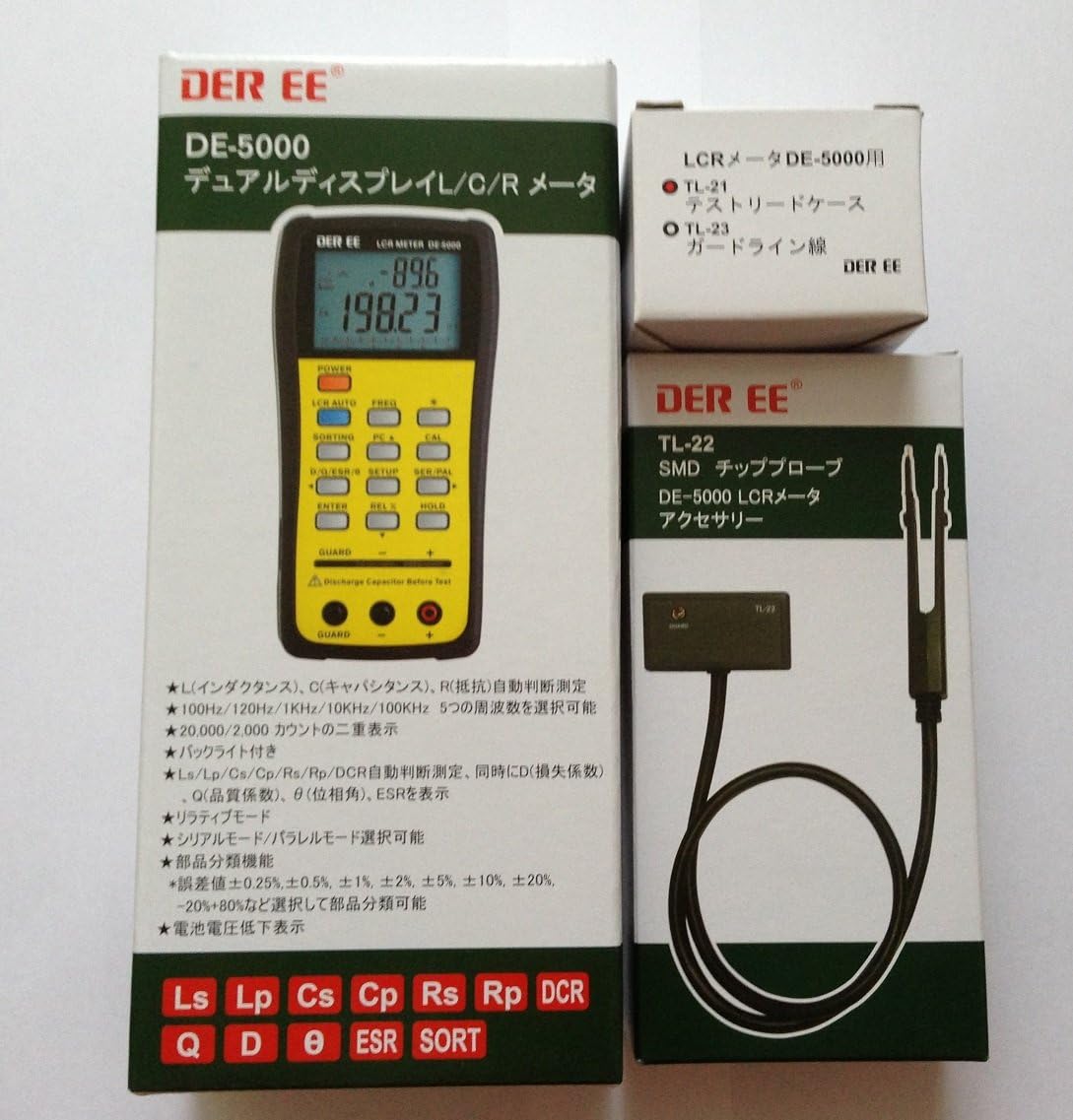

1. 100 / 120 / 1k / 10k / 100k Hz test frequency

2. Dual 19999/1999 display

3. Backlight

4. Ls / Lp / Cs / Cp / Rs / Rp / dissipation factor (D) / quality factor (Q) /phase angle/ ESR LCR auto selection

5. Auto Ranging mode

6. Auto Serial / Parallel mode

7. Components sorting function

*Selectable tolerance ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%, -20% +80%

8. Low battery indication

User questions & answers

Question:	Does this product reliably mesure small capacitances (<50pF) and small Inductances (<1uH
Answer:	I would suggest constructing a set of kelvin clips (there are many youtube links about this) for measuring capacitances and inductances this small.
Question:	Does it currently (as of today April 25 2018) come with power adapter too? or may be currently as a gift or something
Answer:	The power adapter is sold separately. I got mine on eBay. Just search DE5000 Adapter and it'll be there.
Question:	What is the lowest inductance range
Answer:	lowest range is 20.000 uH so it will measure down to 0.001 uH at 2.5% 100KHz
Question:	Does it test capacitors in circuit as well as out of circuit like the atlas esr70 does
Answer:	It can, but like any tester, it will be affected by connected components. ESR test is usually pretty reliable in-circuit as it sends 100kHz (or whatever frequency you pick from the selection) and the impedance of a good cap will be low - 1-2 ohms typically so parallel components should not show up. Capacitance may not be, depends as it will measure all capacitance in-circuit across the node (across the capacitor). Large electrolytics may test close enough, small caps probably not. The other tests, Q, leakage, etc are not in-circuit tests.

• Power Supply: The meter can be powered by included Φ5 DC power supply cable and mini USB cable. You can also install 4×AA batteries. Each way makes the meter work. Note: the AA battery is not included.
• Measuring Range: Capacitance 0.01pF-100mF, inductance 0.001uH-100H, frequency 500KHz/500Hz-50KHz.
• High Precision: Accuracy 1% of capacitance range 1pF~1uF, 5% of range 1uF~100mF; 1% of inductance range 1uH~1H, 5% of range 1H~100H
• Easy to Calibrate: just press the button "ZERO" to calibrate, open circuit calibration in capacitance measuring mode, short circuit calibration in inductance measuring mode.
• Applications: This portable and handheld tester 1×handheld LC meter, 1 pair of alligator clip test leads, 1×LCR Kelvin alligator clip test lead, 1×mini USB cable, 1×manual

Product features

FEATURES

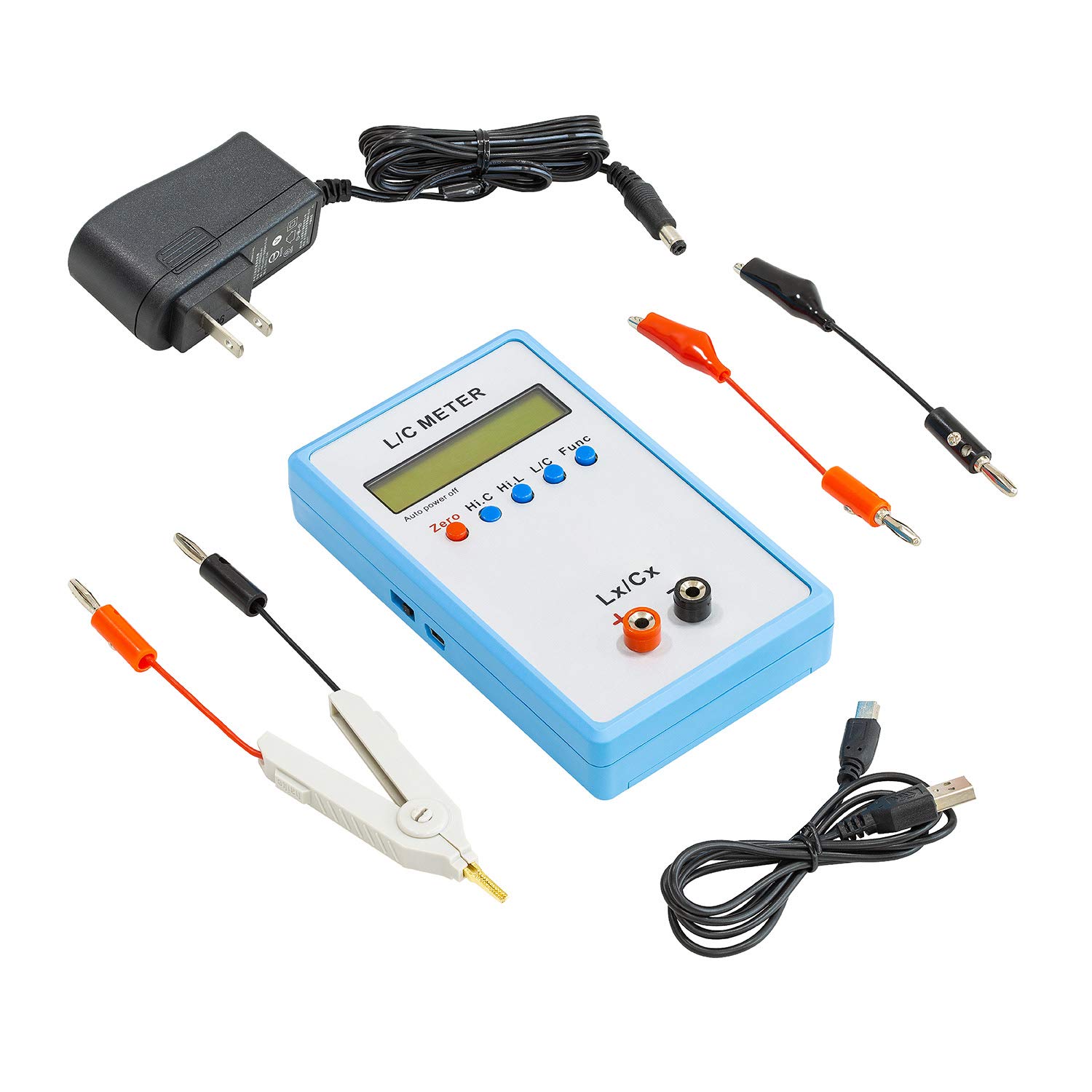

Measurement Range:

• C -----Capacitance (0.01pF-10uF)
• L -----Inductance (0.001uH-100mH)
• Hi.L -----Large inductance (0.001mH-100H)
• Hi.C -----Large capacitance (1uF-100mF)

Calibration:

• Capacitance mode -----open circuit calibration;
• Inductance mode -----short circuit calibration.

Frequency display:

• Press the function button while testing, the current frequency will be displayed.

Product description

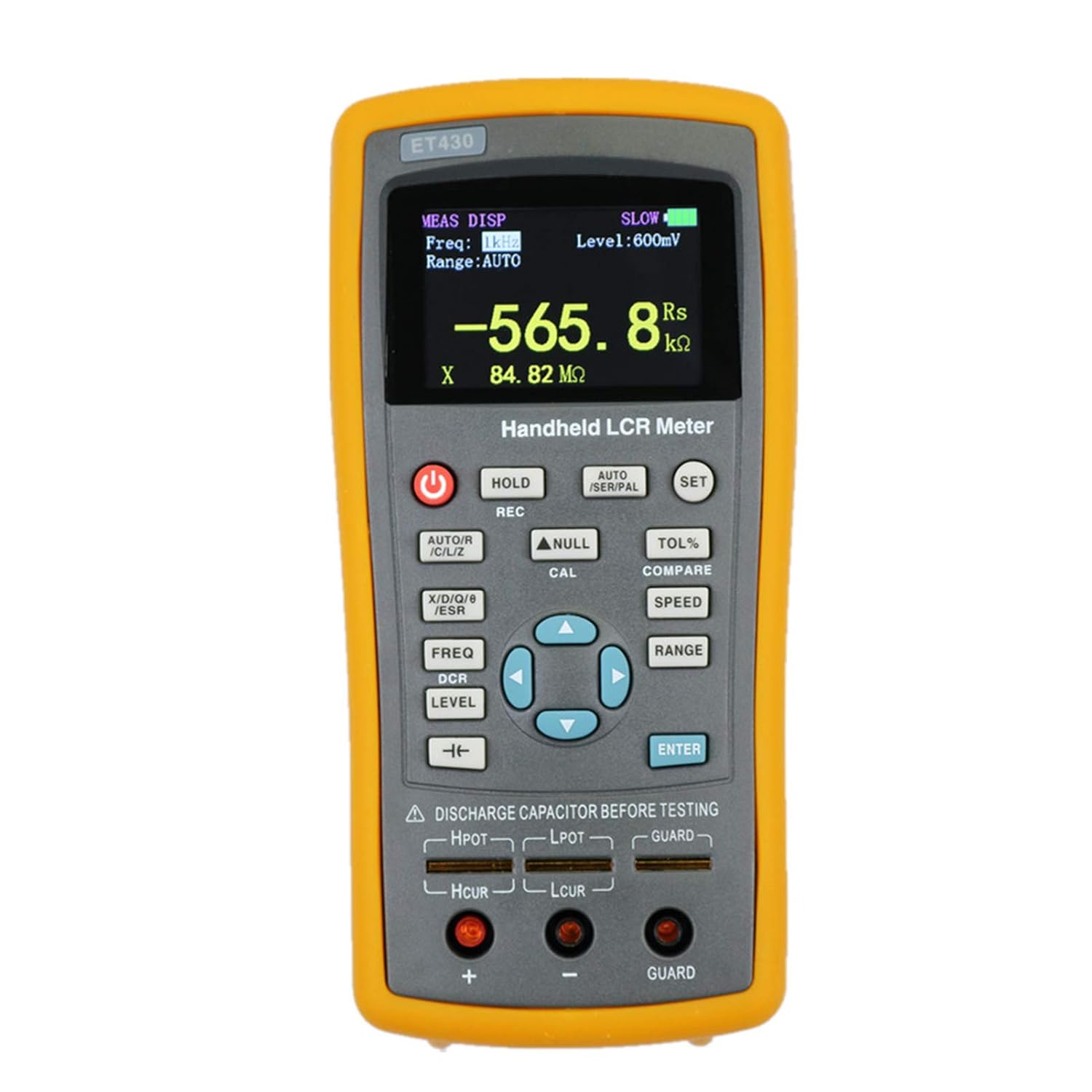

ET43 series hand-held bridge sets 2.8 inch TFT display, flexible and convenient button operation and full speed USB communication in one; large capacity lithium battery can ensure long-term work. Functionally, it has not only comprehensive measurement parameters, but also deviation measurement and screening. The output frequency can be continuously adjusted. In terms of performance, the basic accuracy is up to 0.2%.



Main features:

¤ The highest measuring frequency is 100kHz, and the stepping frequency is continuously adjustable at 1Hz;

¤ Supporting DC Resistance and Electrolytic Capacitance Measurement;

¤ Internal bias voltage output (10mV-500mV);

¤ Automatic Recognition of Component Measurement;

¤ Support screening and deviation measurement;

¤ 2.8-inch TFT display, 4-bit semi-display;

¤ USB communication interface;

¤ Large capacity lithium battery power supply;

¤ Support SCPI protocol;

¤ Provide system settings, can configure language, buzzer, screen brightness and so on according to their own requirements;

¤ The basic measurement accuracy is 0.3%;

¤ Adjustable measuring speed, manual and automatic range;

¤ Short circuit correction with open circuit;

¤ Provide multiple test ports.

Standard accessories:

¤ Mini-USB data Wires;

¤ power adapter;

¤ short circuit chip;

¤ red&black rubber plug;

¤ large capacity lithium battery

• 2.8-inch TFT display, 4-bit semi-display; Display digit: Main parameters: 5 bits, secondary parameters: 5 bits
• Supporting DC Resistance and Electrolytic Capacitance Measurement; Automatic Recognition of Component Measurement; Support screening and deviation measurement;
• USB communication interface; Large capacity lithium battery power supply; Support SCPI protocol;
• Test frequency: 100Hz,20Hz,1KHz,10KHz, 40kHz,100KHz; Basic accuracy: 0.30%
• Adjustable measuring speed, manual and automatic range; Short circuit correction with open circuit; Provide multiple test ports.

Product description

With its integrated non-contact voltage detection and the AutoV/LoZ function preventing false readings caused by ghost voltage, the Fluke 117 Electrician's Multimeter is the ideal multimeter for electricians. In fact, users around the world have said their 117 is an investment in accuracy. The Fluke 117 provides Min/Max/Average readings, measuring frequency and capacitance. With its easy-to-use design, the Fluke 117 will save you time, allowing you to move from job to job with ease. Surge protection 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2

From the Manufacturer

Compact true-rms meter for commercial applications. The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact-voltage detection to help get the job done faster.

• VoltAlert technology for non-contact voltage detection
• AutoVolt automatic AC/DC voltage selection. DC millivolts - Range : 600.0 mV, Resolution : 0.1 mV
• Low input impedance: helps prevent false readings due to ghost voltage
• Large white LED backlight to work in poorly lit areas
• True RMS for accurate measurements on non-linear loads.Operating temperature:-10°C to +50°C.Battery life:400 hours typical, without backlight

User questions & answers

Question:	Can this multimeter be used for an Automtive Tech
Answer:	While this multimeter can do plenty of things for automotive. Most serious mechanics get the 87 or 88 series.
Question:	what is the range of the capacitor that can be tested in this model
Answer:	hope this helps. Range/Resolution: 1000 nF / 1 nFRange/Resolution: 10.00 μF / 0.01 μFRange/Resolution: 100.0 μF / 0.1 μFRange/Resolution: 9999 μF / 1 μFRange/Resolution: 100 μF to 1000 μFAccuracy: 1.9% + 2Range/Resolution: > 1000 μFAccuracy: 5% + 20%
Question:	Can this multimeter be used on vehicles for a parasitic load test? I don't want to spend over $400 for the Fluke 88 as it is for personal vehicle use
Answer:	it has been used on motorbikes for sure. It just needs to be in amp mode. If you're doing parasitic load, then you're focused on DC Amps. The 117 has up to 6, while the 88 has up to 10. I don't see a big issue as you're just doing parasitic, not actual use. If anything actually pulls more than 6, you'll blow the internal fuse and have to replace it, but that's about it. Shouldn't be a problem(I've just tested mine on my car and it works).
Question:	What are the differences to pick between the Fluke 117 and the Fluke 115? My intended use would for ham radio and kit-building of electronic kits
Answer:	The 117 adds • VoltAlert™ technology for non-contact voltage detection • AutoVolt automatic ac/dc voltage selection Both are handy but not essential. Be aware of none of these 'electrician' Flukes (115/116/117) read milliamps or microamps -- essential for electronics troubleshooting & design work but unnecessary for electrician tech work. That said, when reading current in amps they do seem to read accurate down to around at least 0.010 amps (10 milliamps) or so.
Question:	is it two prong or three prong? can't see it in the picture
Answer:	It's actually made to be plugged into a grounded wall socket, replacing the 2 3-pronged outlets with its 6 available grounded outlets. It can even replace the outlet cover and be screwed into place. I've got a bunch of these and love them.
Question:	What are the actual dimensions of this unit
Answer:	against the wall, mine is about 4 inches wide, 4 3/4 inches tall, and about 1 3/4 inches deep
Question:	Will this work with half-switched outlets (where one outlet is always live and one is switched), or do all the outlets get power from only one outlet
Answer:	All power for this device comes from the TOP outlet of your receptacle -- so if that is switched then all outlets on this device will be switched (or if your bottom outlet is switched then all outlets on this device will NOT be switched).
Question:	Can this actually completely replace the existing outlet wall plate, or does it only plug in/screw on TOP of the wall plate
Answer:	This can replace the existing wall plate -- that's how I am using it.

Product features

More Outlets

6-outlet wall plug adapter power strip expands 2 grounded outlets into six to power any smartphone including iPhone and Android, lamps, laptops, hair dryer or other electronic device

Space-Saving Design

This outlet tap has three standard outlets and three extra wide spaced outlets to fit your bulky cell phone charger or power adapter

Compatibility

This GE wall plug works with your existing grounded 3-prong 2 outlet duplex receptacle to create a charging station in any room in your home, office, bedroom, kitchen, living room, dorm room or any area with limited outlets

Fluke 117 Electrician’s Multimeter

The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact voltage detection to help get the job done faster.

Complete the Tool Belt

The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools.

Hands Free Operation

Compatible with optional magnetic hanger (ToolPak) for hands free operation.

Non-Contact Voltage Detection

The 117 includes integrated non-contact voltage detection to help get the job done faster.

Perfect for Preventative Maintenance

The Fluke 117 is a key piece of a full tool belt of Fluke tools for all preventative maintenance needs.

• Proster LCR Meter: inductance, capacitance and resistance measuring meter,it is a Specialdigital instrument which is easy to be operated, the reading accuracydegree is higher with liquid crystal display 3 1/2.
• High Accuracy : (Inductance) Measuring accuracy up to ±(2%+5); (Capacitance) Measuring accuracy up to ±(2%+5)Forward voltage drop of diode:Displaty forward voltage drop of diode;Forward voltage of DC:Approx.1mA;Reverse DC voltage:Approx.2.8V
• Rotable LCD Display : Multi angle adjustment for easy reading.There is no need to hold tester while measuring, more convenient operation.
• Multi-function: Auto power off; Data Hold function; Low Power Indication; ZERO ADJ for Capacitance.
• New Version Test Leads: Comes with crocodile clip/ Test Loads/ mini Alligator Clip; The black pen is connected to the negative pole and the red test lead is connected to the positive pole

User questions & answers

Question:	Seller,what are minimum measured values of capacitance-10pf?,inductance-100uh?,resistance-100ohm? put your answer here and in description near price
Answer:	Thanks for your asking. For Our Proster LCR Meter,it is a inductance, capacitance and resistance measuring meter, and a specialdigital instrument which is easy to be operated, the reading accuracydegree is higher with liquid crystal display 3 1/2. The minimum values for your measurement: the capacitance, 1.0pf; inductance, 1.0uh; resistance, 1.0ohm. All our products have full 18 months warranty, if there is any problem,we will try our best to help, please rest assured. Belle Proster Customer Service Team [email protected]
Question:	Can you check the inductance/capacitance of a component using test leads, not using the "flat" slots on the front of the meter, designated "LCR
Answer:	Thanks for your asking. For Our Proster LCR Meter,it is a inductance, capacitance and resistance measuring meter, and a specialdigital instrument which is easy to be operated, the reading accuracydegree is higher with liquid crystal display 3 1/2. All our products have full 18 months warranty, if there is any problem,we will try our best to help, please rest assured. Belle Proster Customer Service Team [email protected]
Question:	I need to measure down to 2uh, will this meter do that
Answer:	Lowest range on the BM4070 is 200 microhenries, with a resolution of 0.1 uH. However, accuracy degrades substantially at small inductance values. For example, my instrument reads 0.9 uH with zero test inductance (test lead length is 2 x 8 inches). With a 26 inch pair of test leads, this error increases to 2.3 uH. Thus, it's important to determine and subtract out the stray inductance of your test setup before trying to measure anything as small as 2 uH. Also, I have no precisely known inductances at values this small, so cannot say what the instrument calibration accuracy is in this range. If accuracy/precision are important, I'm afraid you're going to have to obtain a (much more expensive) lab-grade instrument, such as an inductance bridge, capable of measuring down to this level.
Question:	For l/c measurement, what frequency do this use? 100hz? 1khz? 10khz? or
Answer:	Thanks for your asking. For our Proster LCR Meter,it is a inductance, capacitance and resistance measuring meter, and a special digital instrument which is easy to be operated, the reading accuracydegree is higher with liquid crystal display 3 1/2. All our products have full 18 months warranty, if there is any problem,we will try our best to help, please rest assured. Belle Proster Customer Service Team [email protected]

Product features

Tips for not accurate measurement:

To measure small capacitance, different measurement principles and different measurement frequencies will lead to different measurement results.

The resistance component affects the accuracy, and the measurement results need to be subtracted from the data displayed before the measurement.

When measuring small inductors and capacitors, if the component feet are suitable, it is recommended not to use the test leads. Please just insert component feet directly into two rectangular jacks of LCR Meter to measure.

1 LCR meter, 1 pair of Crocodile Clip, 1 pair of Alligator, 1 pair of Test Probe, 1 Screwdriver, 1 9V Battery, 1 User Manual,1 Portable Bag

Inductance (L): 200uH-20H, up to accuracy: ± 2.5% (μH=10-6H; mH=10-3H);

Resistance (R): 200Ω-20MΩ, accuracy up to: ±0.8%;

Capacitance (C): 200pF-2000uF, accuracy up to: ± 2.5% (PF=10-12F;nF=10-9F;μF=10-6F;mF=10-3F);

Note: If you are measuring a patch component (SMD), the shorter the measurement line, the more accurate the measurement.

Inductance (L): 200uH - 20H

Range:200uH;Accuracy±(3%+5);Resolution:0.1uH

Range:2mH;Accuracy±(2%+5);Resolution:1uH

Range:20mH;Accuracy±(2%+5);Resolution:10uH

Range:200mH;Accuracy±(2%+5);Resolution:100uH

Range:2H;Accuracy:±(2%+5);Resolution:1mH

Range:20H;Accuracy±(5%+5);Resolution:10mH

Resistance (R): 200Ω - 200MΩ

Range:200Ω;Accuracy±(0.8%+2);Resolution:0.1Ω

Range:2KΩ;Accuracy±(0.8%+2);Resolution:1Ω

Range:20KΩ;Accuracy±(0.8%+2);Resolution:10Ω

Range:200KΩ;Accuracy±(0.8%+2);Resolution:100Ω

Range:200MΩ;Accuracy±(1.5%+5);Resolution:10KΩ

Capacitance (C): 200pF - 2uF

Range:200pF;Accuracy±(2.5%+5);Resolution:0.1pF

Range:2nF;Accuracy±(2.5%+5);Resolution:1pF

Range:20nF;Accuracy±(2.5%+5);Resolution:10pF

Range:200nF;Accuracy±(2.5%+5);Resolution:100pF

Range:2uF;Accuracy±(2.5%+5);Resolution:1nF

Range:20uF:Accuracy±(2.5%+5);Resolution:10nF

Range:200uF;Accuracy±(2.5%+5);Resolution:100nF

Range:2000uF;Accuracy±(5%+5);Resolution;1uF

Product description

Measure inductance, capacitance, & resistance with Jameco's stock of extech inductance meters. These passive component LCR meters allows you to set Hi / Lo limits using absolute values or percentage limits. You'll discover the tremendous value with a range of features that help these meters provide the precise measurements you need. Open and Short Zero removes unwanted stray impedances from the measurement, and included is the built-in test fixture or external test leads.

• Primary display of inductance, capacitance or resistance
• Secondary display of Q, dissipation (1/Q) and resistance
• Built in test fixture or use external test leads
• Sort components using programmable Hi/Low values
• Parallel or series equivalent circuit

User questions & answers

Question:	Will this device measure ESR
Answer:	I think Extech uses "ESR" and "SER" for the same measurement. Makes no sense to me either. Btw, I bought the more expensive Extech LCR200 meter and do not recommend it. The ESR, Q, D, readings do not repeat very well at all. I cannot speaker for the 380193, as I had an accident with mine.
Question:	is it possible to measure caps in the low pf range
Answer:	Yes, you can measure as low as 2000pF. Capacitance 2000.0pF, 20.000nF, 200.00nF, 2000.0nF ±(0.7%rdg + 5 digit) 20.000μF, 200.00μF, 2000.0μF, 10.000mF (DF
Question:	Is the Extech 380193 capable of in circuit testing
Answer:	Thank you for your question. The Extech 380193 is not capable of in circuit testing.
Question:	What is the accuracy of the meter
Answer:	This is a great question and since we want to address your inquiries with all the expertise that our technicians have, please forward us this questions to https://flir.custhelp.com/ and click on where it says Technical support and then “ask a question”; we will be looking forward to hearing back from you!.

Product features

Comprehensive Display

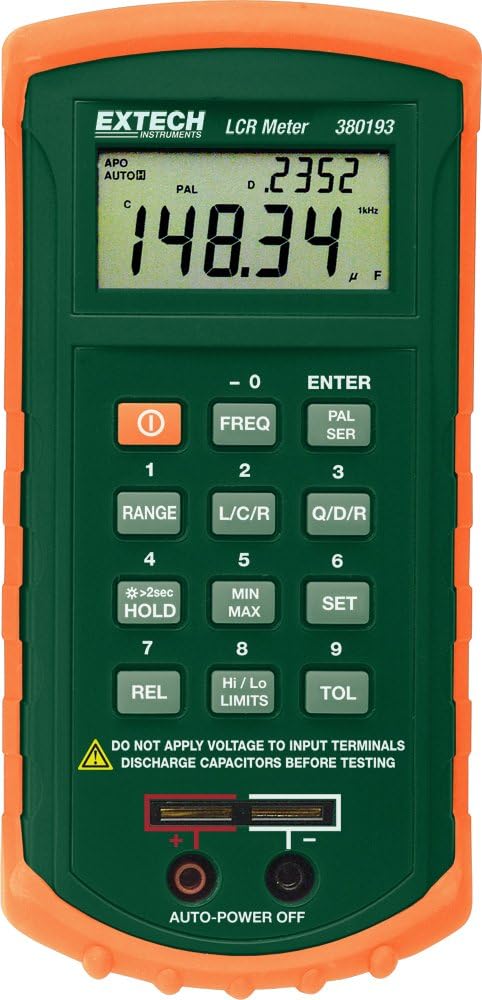

The Extech 380193 Component Meter’s dual display simultaneously displays the associated quality factor, dissipation, or resistance value using a series or parallel equivalent circuit.

Enhanced Data Analysis

The included RS-232c PC interface feature with Data Acquisition permits the user to capture readings to a PC for data storage, viewing, printing, and exporting to a spreadsheet for graphing and other data manipulation tasks.

Open and Short Calibration

The Open and Short function removes stray parallel and series fixture impedances from the measured value. This feature improves accuracy for very high as well as very low impedances.

MAX/MIN/AVG Functionality

The Extech 380193’s averaging feature provides a true average of up to 3,000 recorded values while MAX/MIN feature indicates the highest and lowest recorded values in perpetuity.

Diverse Applications

Ensure Component Efficacy: The Extech 380193 can be used throughout an electronic component’s lifecycle including research and development, production, quality assurance, installation and maintenance to ensure satisfactory performance. Regular assessments can help to identify potential inefficiencies and ultimately prolonging the life of the item.

Diverse Applications

Ideal for Field Operations: The lightweight, durable, and highly portable design of the Extech 380193 LCR meter makes it suitable for use by technicians operating in the field to service and maintain electronic components in remote locations.

Product description

Capacitance: 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF (2.5%+10) ;

Inductance 200uH/2mH/20mH/200mH/2H/20H (2.5%+10) ;

Resistance 20ohm/200ohm/2kohm/20kohm/200kohm/20Mohm (0.5%+3)

• Capacitance: 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF (2.5%+10)
• Inductance 200uH/2mH/20mH/200mH/2H/20H (2.5%+10)
• Resistance 20ohm/200ohm/2kohm/20kohm/200kohm/20Mohm (0.5%+3)

User questions & answers

Question:	Can this be used to safely slowly discharge the capacitor of a microwave without any sparks
Answer:	No
Question:	how well does this work on induction loop testing

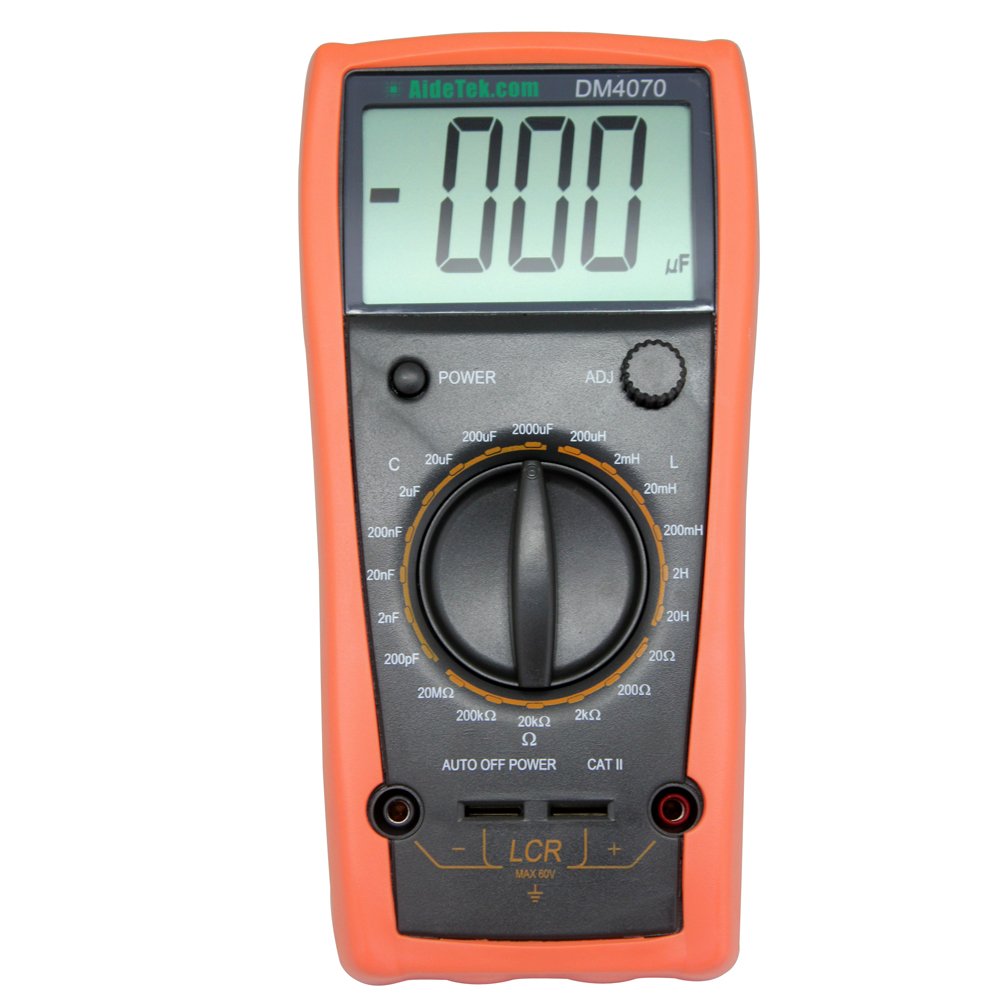

Answer:	The DM4070 LCR meter is not for induction loop testing. Induction loop equipment is used to transmit signals to receivers by induction. The DM4070 LCR meter is for measuring the inductance of wire coils, chokes, or transformers. The meter could be used to measure the inductance of the transmitter coil but it is not designed to transmit any signal to be measured by a receiving device.As a side note, I have found the meter to be quite accurate in Inductance and Capacitance measurement. It does exhibit erratic readings if the battery is weak. I have calculated the permeability of transformer cores with the inductance measurements and have been very pleased with the results.

Product description

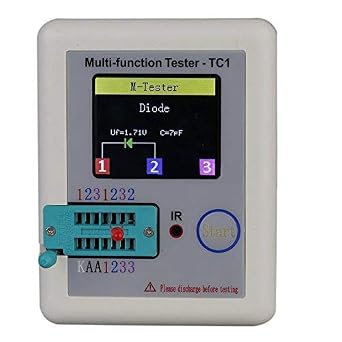

LCR-TC1 Multi Transistor Tester for Diode Triode Capacitor Resistor Transistor LCR ESR NPN PNP MOSFET with 1.8 inch Colorful Display



Product description:

Display: 1.8-inch TFT Screen

Diode Range : < 4.5V

Zener Diode : Transistor Detect Area : 0.01-4.5V

Zener Diode Detect Area : 0.01-30V

Triac Range : IGT < 6mA

Capacitance : 25pF-100mF

Resistor : 0.01-50MΩ

Inductance : 0.01mH-20H

Battery : 0.1-4.5V

Power Mode : Rechargeable Lithium Battery (Include)

Size : Approx 90 x 50 x 25mm

Weight : Approx 110g /set

NOTE :

oBuilt-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!

oFor your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!

oAlways be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!

oWe do not recommend using the tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!



Package included:

1 x Multi-functional TFT Transistor tester

1 x Electronic component set(Send Randomly)

3 x Test hooks

1 x Cable

• Widely Use: Transistor Tester is for detecting NPN and PNP transistor, capacitor, resistor, diode, tripode capacitor, N-channel and P-channel MOSFET, IGBT, JFET, trial and battery etc. detect infrared wave forms, zener diode and has the function of self-calibration
• Display the data code and infrared wave form: Align the infrared remote control with the "IR" light after detection, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form
• One Button Operation: automatically detect and shutdown, and you can press the multi-functional button to close the detector too
• Easy Operation: Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly
• Pocketable: Big Color Display of 1.8 inch TFT backlight with small site, easy to carry and helpful

Product description

DESCRIPTION This set includes DE-5000 itself TL-21 Alligator Test Lead Case TL-22 SMD ISO 9001 Auto L.C.R. check 100 / 120 / 1k / 10k / 100k Hz test frequency 20,000 / 2,000 counts display Backlit Ls / Lp / Cs / Cp / Rs / Rp / DCR with D / Q / θ / ESR measurement Relative mode Series / Parallel modes Components sorting function *Selectable tolerance ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%, -20% +80% Low battery indication Optical IR to USB PC link (USB/CD can send to the PC via USB measurement data.) Main Specifications Infrared communication module (One-touch detachable to DE-5000 body, with lock mechanism) · USB mini-B jack Windows-compatible version: 98, SE/2000/XP, Vista, 7 - All captured data to the PC, can be saved in CSV format together with the measurement date and time information. Output voltage: DC9V - Rated output current: 1A · PSE safety standards obtained from · Input: AC100 ~ 240V 60/50Hz - Polarity: Center plus You can check the English manual this link　 http://akizukidenshi.com/download/ds/deree/DE-5000_manu_en2p.pdf

• This set includes DE-5000 itself TL-21 Alligator Test Lead Case TL-22 SMD
• Line ISO 9001 Auto L.C.R. check 100 / 120 / 1k / 10k / 100k Hz test frequency 20,000 / 2,000 counts
• counts display Backlit Ls / Lp / Cs / Cp / Rs / Rp / DCR with D / Q / θ / ESR measurement Relative
• mode Series / Parallel modes Components sorting function
• Selectable tolerance ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%, -20% +80%

User questions & answers

Question:	Is this the Japanese meter or china
Answer:	Hi, this meter made in Taïwan. Offer many test. I like.
Question:	can I get an instruction/user manual in English?......the one that came with it is in beieve Chinese or Japanese
Answer:	I was able to download one from IET's website:
Question:	Mine is reading around 11% less capacitance than my fluke (and other multimeters). calibrated and with default settings (auto lcr @ 1khz). anyone
Answer:	What frequency do your other meters use? My DE-5000 measures several standards rated to 0.1% within about 0.5% to 1.0%. More than adequate for my needs.

Product description

Features:

1. Support boot voltage detection function

2. Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, triodes, resistors, and capacitors. Automatically testing the component leads and displaying them on the LCD

3. The forward bias voltage of the emitter transistor can be determined by detecting the amplification factor and base number of a transistor, a MOSFET protection diode, and the like

4. Measure gate threshold voltage and gate capacitance MOSFET

5. The display uses 12864 lcd LCD (128 * 64 characters)

6. High test speed, valid component test: In 2 seconds (except in larger capacitors, large capacitance measurement also takes a long time, the measurement time in 1 minute is normal)

7. One-button operation, power-on test.

8. Power Consumption Shutdown Mode: Less than 20 nA

9. Automatic shutdown function can avoid unnecessary waste, save battery energy and improve battery life.



Note:

Please make sure that capacitors are discharged before testing.

Battery is not included.

Please tear off the paper outside the case.



Specifications:

Material: PCB

Display: 128 x 64 LCD

Normal Testing Speed: 2 seconds

Shutdown Current: 20nA



Package included:

1 x Transistor Tester with case

• Test ranges:Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube, ESR, Resistance, Adjustable potentiometer
• Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.
• High test speed, valid component test: 2 seconds (except in the larger capacitor of large capacitance measurement also takes a long time, the measured time of one minute is normal)
• 128*64 big Backlight LCD display,only 2mA when stand by.
• Auto power off function to avoid unnecessary waste, saving battery power, improved battery life

User questions & answers

Question:	how to test smd components with the tester
Answer:	As smd components are so small I don't think you could check them with this tester.
Question:	How do i make it read out the esr value when measuring capacitors
Answer:	It should show it automatically. Mine shows the 'capacitance', 'ESR' and 'Vloss'. Mine shows all 3 readings on the same screen. You have to plug component into holes (1 & 2) or (2 & 3) or (1 & 3).
Question:	Can it check jfets
Answer:	My tester is about a year old so I am sure the new ones have a newer software than mine but I dug out a few JFETs from my parts bin and put them to the test and it seems to check them ok.
Question:	What is the software version? I think it appears on the screen as it boots up
Answer:	I am sitting here looking at my unit and it does not show a software version when it is turned on. I got this one about 6 months ago. May be some changes and newer units may show the software version but mine don't.

• ★Professional LCR Meter and Frequency Generator★ DT71 supporting Resistance,Capacitance,Inductance,Voltage,Frequency,Diode test and sine/noise/pulse user frequency signal output with automated component identification measurement and manual R, D, C, L, F, V measurement
• ★Smart SMD Tweezers★ Built-in angular velocity sensor to automatically recognize the working hand then change the screen display direction, Built-in smart MCU support firmware updating and parameters customization,calibration
• ★User-friendly Design★ Innovative detachable mechanical design combines a pair of gold-plated tweezers and a digital adaptive LED tester support screen 360° rotation enable user easy to read the parameters and touch switch to operate the tester easily
• ★Long Battery Life★ Built-in 2pcs Li-Ion battery in the tweezer arms provide long working time up to 10 hours (Please must provide DC 5V voltage to charge the tweezer arms only, do not connect the controller(Display Part))
• ★Widely Applications★ A pair of ultra precise gold-plated Test Leads to testing and identification of SMD components as well as for troubleshooting of complex electronic systems

Product features

Detachable Mechanical Design

Innovative detachable mechanical design combines a pair of gold-plated tweezers and a digital adaptive LED tester

Magnet Embed Tweezer Arms

Built-in 2 sets magnet in the tweezer arms each side via Repulsion of same poles and attraction of opposite poles principle to provide excellent clipping performance after long time use

Touch Switch Operation

Equipped with touch switch to turn on the DT71 or set the working modes with your fingers, easily to operate

360 Degree Reading

360 degree rotatable tester with OLED screen enable user view parameters easily

Automatically Change Display Direction

Built-in angular velocity sensor to automatically recognize the working hand then change the screen display direction automatically

10 Hours Working Time

Built-in 2 sets lithium-ion battery providing long working time up to 10 hours for your whole day works

LCR Meter and Diode Check

• Support Resistance,Capacitance,Inductance,Voltage,Frequency,Diode measurement
• Suport automated component identification measurement and manual R, D, C, L, F, V measurement

Frequency Signal Output

Support sine/noise/pulse/user type frequency signal output

Pocket Size

• Test Arms:106mm/4.2inch
• Controller:47mm/1.9inch

Charging Note

• Must provide DC 5V charging voltage
• Only connect the test arm to charge, do not connect the controller(Display Part)

• Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.
• Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.
• Measuring range from 0.001 to 100.0R, support IN CIRCUIT Testing.
• Auto-ranging capacitor ESR and Low Ohm Meter.
• Wide Measurement Range

User questions & answers

Question:	Can this unit test capacitors as small as 5 Volt 15 PF
Answer:	As long as the Capacitor is discharged, yes than you can measure it's value in 15 pf. AK
Question:	can this meter perform a leak test on motor start capacitors
Answer:	No. This meter is for one test only - ESR of a capacitor. It does not perform any other tests.
Question:	Is there a way to confirm it's v2 with sine wave and not v
Answer:	In the description on my order it is listed as V2. On a scope, with the meter open circuit, the test waveform is a rounded square wave. When connected to a 100 ohm resistor, the waveform is more of a triangle wave. When connected to a capacitor, it is somewhere between a triangle and a sine wave.
Question:	Does this come with an instruction or user manual of sorts
Answer:	A small (pocket size) instruction booklet is included. I was not impressed with the MESR100 V2. My opinion of this product, it is a toy tester, the cables are much too short. I was dragging the tester all over the circuit board trying to get readings because of the (WAY TOO SHORT CABLES.) I 1st used it on a sound bar that was not working which has several electrolytic caps. Some had bulging tops, yet the tester indicated every caps was within specs. I also tested some electrolytic caps in a electronic siren (also not working) and the same results. I also tested other non working products, again the same results. ***I highly suggest you save your money and get a well known brand***.Hope this helps you.

Product features

Advantage of V2:

• 1) Change square wave to sine wave 100 KHz, reduce square wave’s high frequency component, and affect the reading passing the test leads and capacitor.
• 2)Higher Resolution up to 0.001 ohm.
• 3)128X64 dot matrix LCD, with larger value display and information
• 4)Embedded 25V capacitor table at LCD, auto display the capacitor is good or bad reference to common 25V electrolytic capacitor.
• 5)New plastic case, curve design for hand carrying. New stand for 60 degree stand on desk.
• 6)Use 2X AA battery, more convenience and longer battery life than 9V battery.
• 7)Support external USB power, using standard micro-USB port.

Features:

• It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
• The impedance become small, and we can then measure the true series resistor value.
• Using this theory, we can measure the capacitor is bad/ damaged or good in condition.
• Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.
• During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
• Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.

Specification:

• 1)Accuracy: Up to 1% (detail on above table)
• 2) High Resolution: 4 digit, or 0.001Ohm @ 1 Ohm range
• 3)Measuring voltage: <~40mV RMS (TESTING VOLTAGE)
• 4)Clamping voltage: ~0.15V (open voltage)
• 5)Battery 2X AA 1.5V battery
• 6)External Power: 5V micro USB
• 7)Operating current0.02A
• 8)Battery Life time: >80 Hours

Parameter

• Item Size: Approx 14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in
• Item Weight: Approx 139.6g / 4.9oz
• Package Size: Approx 17 * 9 * 5cm / 6.7 * 3.5 * 2.0in
• Package Weight: Approx 218g / 7.7oz

Package List:

• 1 * Capacitance Meter
• 2 * Test Clips
• 1 * User Manual
