14 best blue sky charge controllers

Blue Sky charge controllers are electronic devices used in solar power systems, particularly in off-grid and grid-tied solar installations. These controllers are related to Controls Indicators, Industrial Electrical, and Industrial Scientific fields. Here's what you need to know about Blue Sky charge controllers:

  1. Solar Power Regulation: Blue Sky charge controllers are designed to regulate the power generated by solar panels in a solar power system. They play a crucial role in managing the flow of electricity from the solar panels to the batteries and loads (appliances or devices) within the system.

  2. Efficient Charging: These charge controllers are known for their efficiency in optimizing the charging process.They prevent overcharging of batteries, which can damage them, and ensure that batteries are charged to their optimal capacity.

  3. Protection: Blue Sky charge controllers often include built-in protection features such as overcurrent protection, short-circuit protection, reverse polarity protection, and temperature compensation. These features help safeguard the entire solar power system.

  4. Battery Maintenance: They are designed to help prolong the life of the connected batteries by preventing overcharging and deep discharging, which can reduce battery lifespan.

  5. User-Friendly Interface: Many Blue Sky charge controllers come with user-friendly interfaces and indicators that display information about the status of the solar power system, including battery charge levels and system performance.

  6. Compatibility: Blue Sky charge controllers are typically compatible with various types of batteries, including lead-acid and lithium-ion batteries, making them versatile for different solar power setups.

  7. Remote Monitoring: Some models may offer remote monitoring capabilities, allowing users to monitor and control their solar power system remotely using smartphone apps or other monitoring tools.

  8. Industrial Use: These charge controllers are often used in industrial and commercial solar power installations where precise control and reliable performance are essential.

  9. Energy Efficiency: Blue Sky charge controllers are designed to be energy-efficient, helping users maximize the energy generated by their solar panels.

Blue Sky charge controllers are trusted components in solar power systems and are known for their reliability and performance in managing and regulating solar energy. When selecting a Blue Sky charge controller, it's important to consider the specific requirements of your solar installation to ensure that you choose the right model with the appropriate capacity and features for your needs.

Below you can find our editor's choice of the best blue sky charge controllers on the market

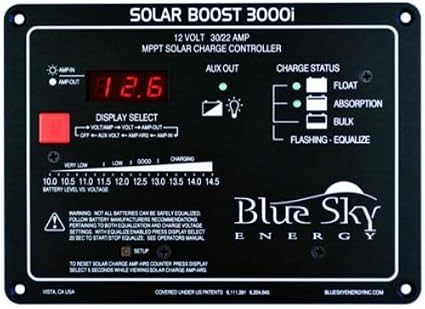

Blue Sky Energy SB3000i Solar Boost 30A MPPT Charge Controller with Display, Fully programmable for Lead-Acid or Lithium Batteries. Auxiliary Output for Dual Battery Charge or 20A LVD Load Output

Blue Sky Energy

Based on 44 reviews Check latest price

Product description

Overview

Compact, reliable, and fully programmable: the SB3000i is ready to work! The SB3000i, featuring our patented MPPT technology, is ideal for RVs and Marine applications with a second battery output and IPN connection for remote display and networking. This controller can be programmed for any type of Lead-Acid or Lithium batteries from its onboard display or in conjunction with an IPN ProRemote. Its IPN Network interface can communicate with other Blue Sky Energy charge controllers as a single charging system, allowing increased flexibility in system design.



Features:

- MPPT BUCK technology

- 3-Stage charge control plus Equalization (if enabled)

- Built in digital display for monitoring and programming (Pb or Li batteries)

- Auxiliary Output max 20A with Low Voltage Disconnect (LVD)

- Flush mounting (surface wall mount box optional SIN B08H9Z1YH6)

- Temperature compensated charge profile with battery temperature sensor ASIN: B007S3HWDA

- Compatible with Blue Sky Energy IPN ProRemote-S display ASIN: B007S2VT9E

- Fully programmable for any type of Lead-Acid or Lithium batteries

- Made in the USA

- 5-Year Warranty



Specification:

- Max. Recommended Panel Power: 400W (36-cell solar panel) or 290W (60-cell solar panel)

- Rated Battery (Output) Current: 30A (36-cell panel) or 22A (60-cell panel)

- Nominal Battery Voltage: 12V

- Max Panel Voltage: 50V

- Max Recommended Panel Voc @ STC 40V

- Continuous DC Load Current: 20A

- Absorption Voltage: 14.4V - User Adjustable

- Float Voltage: 13.2V - User Adjustable

- Equalization Voltage: 15.2V - User Adjustable

- Operating Temp. Range: -40°C - 45°C

- Connection: 6-position terminal block for 8-16 AWG wire

- Panel Dimensions: 6.35 x 4.6 x 2.2" (16.1 x 11.7 x 5.6 cm)

- Certifications: CE, FCC, RoHS

  • MPPT solar charge controller for 12V-nominal battery (Pb or Li), charge current 30A with 36-cell panels max 400W or 22A with 60-cell panel max 290W
  • Max. recommended panel Voc at STC 40V (max voltage input 50V). Auxiliary Output programmed for max 20A with LVD or for 2A maintaining of a secondary battery
  • Fully programmable multi-stage charge profile for Lead-Acid and Lithium batteries through the onboard display
  • Perfect for RVs and Marine, Flush mounting, and real-time data through the onboard display
  • 5-Year Warranty, Made in the USA, CE/FCC/RoHS certifications. Datasheet in “Product Information” below

User questions & answers

Question: I have no load on the 2 new batteries, plenty of sun, yet it never gets out of bulk charging mode
Answer: Yes! It has a built-in 20ah lithium battery which runs a 200w inverter, it will charge anything that draws 200w or less continuous on AC power. The review mentioning a charge controller doesn't know what they're talking about.
Question: Issues with push 420W of solar through this controller
Answer: No it will not but if you buy a propane tankless water heater heater you could run a pump with it to push water through it
Question: anyone have this unit? I think I may want to buy it,,,however be nice to have some feed back from someone who has run it though it's paces,I
Answer: No
Question: Does this controller monitor battery temperature
Answer: I have the smaller 10 watt foldable Renogy solar panel. When I first got it I did a few different tests with my multi meter. In one test I noticed that my uv tinted house windows did drop the power output by about half vs. being outside. I can't vouch for car glass as I didn't think about that scenario but I'd have to assume that it would drop it too. The one I have is really remarkable and I am thinking about buying this larger one myself.

Blue Sky Energy Solar Boost SB3024iL MPPT Charge Controller 40A/30A, 12V/24V Battery. Auxiliary Output for Dual Battery Charge or 20A LVD Load Output

Based on 14 reviews Check latest price

Product description

Overview

The SB3024iL charge controller featuring our patented MPPT technology for 12/24V battery. This controller is ideal for RVs and Marine applications with its auxiliary output for charging a second battery, and can utilize a remote display with its IPN connectivity. When programmed with the IPN Pro Remote or UCM, it can be used for charging Lead-Acid or Lithium batteries. It can communicate with other Blue Sky Energy charge controllers allowing increased flexibility, optimization in system design, and improve reliability by dividing a large system with multiple controllers.



Features:

- MPPT BUCK technology

- 3-Stage charge plus Equalization (if enabled)

- Battery system 12V or 24V

- LED indicator for battery and DC Load status

- DC Output Load with Low Voltage Disconnect

- Battery temperature compensation (for Pb batteries) with battery temp. sensor ASIN: B007S3HWDA

- Fully programmable (for Pb or Li batteries) by remote display (kit RV ASIN: B087V3LHLN)

- Made in the USA

- 5-Year Warranty



Specifications:

@12V battery:

- Max. Recommended Panel Power: 540W (36-cell panels) or 400W (60/72-cell panels)

- Rated Battery (Output) Current: 40A (36-cell panel) or 30A (60/72-cell panel)

- Absorption Voltage: 14.4V

- Float Voltage: 13.2V

- Equalization Voltage: 15.2V (if needed)

@24V battery:

- Max. Recommended Panel Power: 800W (72-cell panels)

- Rated Battery (Output) Current: 30A

- Absorption Voltage: 28.8V

- Float Voltage: 26.4V

- Equalization Voltage: 30.4V (if needed)



- Max Panel Voltage: 57V

- Max Recommended Panel Voc at STC 45.6V

- Operating Temp. Range: -40°C - 40°C

- Battery/Panel Connections: terminal block for 2-14 Gauge wire

- Dimensions: 6.86 x 6.6 x 3.38"

- Certifications: ETL, CE, FCC, RoHS

  • MPPT BUCK charge controller 12/24V battery. With 12V-nominal battery, 40A charge with 36-cell panels up to 540W or 30A with 60/72-cell panel up to 400W
  • Max. recommended panel Voc 45.6V at STC (max input voltage 57V). Auxiliary Output programmed for max 20A with LVD or for 2A maintaining of a secondary battery
  • Advanced 3-stage charge profile plus equalization for Lead-Acid batteries. Programmable for Lithium batteries with IPN ProRemote display ASIN: B01GW3UPV2
  • Ideal for RVs and Marine. IPN capability network interface coordinates up to 8 controllers (Master/Followers)
  • 5-Year Warranty, Made in the USA, UL/CSA Safety, CE, FCC, RoHS certifications. Datasheet in “Product Information” below

User questions & answers

Question: Where is it manufactured
Answer: Ask that question to the manufacturer's Tech. Support for best answers, because they know their equipment better than any Seller in amazon--ok!
Question: Is the second output also programmable for absorption and float levels
Answer: Make sure system is properly grounded. Are you using correct size cable for your run from panels to controller and from controller to batteries? At 9pm (well after sun down) check your voltage. Your new batteries should have started around 12.5 (85% charged). Your batteries should show higher if charging under no load for a few days. Be sure to check after any surface charge on the batteries has a chance to drop off. My controller showed bulk for 3 days (new batteries), then absorption. It goes to float only occasionally. This makes sense as my refrigerator is on and the compressor kicks on every 20 min or so. Getting to absorption or float could take a while if you have small panels (100 watt and less) or a lot of battery capacity, amp hours. Hope that helps you.
Question: Can a 3024iL be networked with a 3024i
Answer: 420W is too much for this controller, at 370 i am really pushing the limit
Question: Does it have remote sensing
Answer: I have one. It replaced a Specialty Concepts Mark 22, and has been a big improvement. I have 220 watts of solar charging 4 optima blue tops. It can pretty easily bring them all to charge after my too-old nor cold fridge drains them overnight,

Blue Sky Energy SC30 30A PWM Solar Charge Controller with Display, Fully programmable for Lead-Acid or Lithium Batteries

Based on 9 reviews Check latest price

Product description

Overview

Blue Sky Energy’s Sun Charger 30 (SC30) solar charge controller charges 30A for 12V-nominal batteries. The SC30 uses precise PWM charge voltage control combined with a sophisticated multi-stage charge algorithm to optimally charge flooded, GEL, AGM lead-acid, or Lithium chemistry batteries. To periodically condition flooded lead-acid batteries the SC30 will also perform a manual or automatic Equalization charge. The SC30 is fully programmable, through the onboard display is possible to program the charge profile for any type of Lead-Acid and Lithium batteries and gmonitor real-time data from battery and solar array.



Features:

  • PWM technology
  • Multi-Stage charge control (plus Equalization if enabled)
  • Built-in digital display for real-time data and charge profile settings
  • Flush mounting (surface wall mount box optional ASIN: B08H9Z1YH6)
  • Temperature compensated charge profile with battery temperature sensor ASIN: B007S3HWDA
  • Fully programmable for any type of Lead-Acid or Lithium batteries
  • Made in the USA
  • 5-Year Warranty


    • Specification:



  • Max. Recommended Panel Power: 450W (36-cell solar panel)
  • Rated Battery (Output) Current: 30A
  • Nominal Battery Voltage: 12V
  • Max Panel Voltage: 30V
  • Max Recommended Panel Voc @ STC 24V
  • Power Consumption: 14mA standby / 19mA display On
  • Charge Algorithm: 3-stage plus Automatic/Manual Equalization
  • Absorption Voltage: 14.4V - User Adjustable
  • Float Voltage: 13.2V - User Adjustable
  • Equalization Voltage: 15.2V - User Adjustable
  • Operating Temp. Range: -40°C - 40°C
  • Connection: 4-position terminal block for 10-30 AWG wire
  • Panel Dimensions: 6.35 x 4.6 x 1.18" (16.1 x 11.7 x 3 cm)
  • Certifications: CE, FCC, RoHS

  • PWM solar charge controller for 12V-nominal battery (Lead -Acid or Lithium), 30A charge current with max. recommended power 450W (36-cell solar panel)
  • Fully programmable multi-stage charge profile for Lead-Acid and Lithium batteries through the onboard display
  • Max. recommended panel Voc at STC 24V (max voltage input 30V)
  • Perfect for RVs and Marine, Flush mounting, and real-time data. Compatible with Blue Sky Energy remote displays
  • 5-Year Warranty, Made in the USA, CE,FCC,RoHS certifications. Datasheet in “Product Information” below

User questions & answers

Question: how do you set automatic equalize batteries
Answer: It can, IF you buy that optional battery temp sensor and hook it up.

Blue Sky Energy Solar Boost SB2512iX-HV, 25A MPPT Solar Charge Controller for 12V Battery. Auxiliary Output for Dual Battery Charge or 25A LVD Load Output

Based on 7 reviews Check latest price

Product description

Overview

The SB2512iX-HV charge controller featuring our patented MPPT technology for 12V battery. This controller is ideal for RVs and Marine applications with its auxiliary output for charging a second battery, and can utilize a remote display with its IPN connectivity. When programmed with the IPN ProRemote or UCM, it can be used for charging Lithium batteries. It can communicate with other Blue Sky Energy charge controllers allowing increased flexibility, optimization in system design, and improve reliability by dividing a large system with multiple controllers.



Features:

- MPPT BUCK technology

- 3-Stage charge plus Equalization (if enabled)

- Battery system 12V

- Surface or Flush Wall mounting

- Auxiliary Output max 25A with Low Voltage Disconnect (LVD)

- Temperature compensated charge profile with battery temperature sensor ASIN: B007S3HWDA

- Fully programmable (for Lead-Acid or Lithium batteries) by IPN ProRemote-S remote display ASIN: B007S2VT9E

- Made in the USA

- 5-Year Warranty



Specifications:

- Max. Recommended Panel Power: 340W (36-cell panel) or 270W (60-cell panel)

- Rated Battery (Output) Current: 25A (36-cell panel) or 20A (60-cell panel)

- Absorption Voltage: 14.2V

- Float Voltage: 13.2V

- Equalization Voltage: 15.2V (if needed)

- Max Panel Voltage: 50V

- Max Recommended Panel Voc @ STC 40V

- Operating Temp. Range: -40°C - 45°C

- Battery/Panel Connections: 4-position terminal block for 10-20 AWG wire

- Dimensions: 5.3x5.3x2.5"

- Certifications: CE, FCC, RoHS

  • MPPT BUCK charge controller for 12V-nominal battery, 25A with 36-cell panels up to 340W or 20A with 60-cell panel up to 270W
  • Max. recommended panel Voc 40V at STC (max input voltage 50V). Auxiliary Output programmed for max 25A with LVD or for 2A maintaining of a secondary battery
  • Advanced Multi-Stage charge profile plus equalization for Lead-Acid batteries. Programmable for Lithium batteries with IPN ProRemote display ASIN: B01GW3UPV2
  • Surface or Flush Wall mounting, ideal for RVs and Marine. IPN capability network interface coordinates up to 8 controllers (Master/Followers)
  • 5-Year Warranty, Made in USA, CE/FCC/RoHS certifications. Datasheet in the “Technical Specification” below

Blue Sky Energy Solar Boost SB1524iX MPPT Charge Controller 20A/15A, 12V/24V battery, Dual Battery charge or 20A LVD Load Output

Based on 1 reviews Check latest price

Product description

Overview

The SB1524iX charge controller featuring our patented MPPT technology for 12Vnominal or 24V-nominal battery. This controller is ideal for RVs and Marine applications with its auxiliary output for charging a second battery, and can utilize a remote display with its IPN connectivity. When programmed with the IPN ProRemote or UCM, it can be used for charging Lithium batteries. It can communicate with other Blue Sky Energy charge controllers in IPN Network allowing increased flexibility, optimization in system design, and improve reliability by dividing a large system with multiple controllers.



Features:

- MPPT BUCK technology

- 3-Stage charge plus Equalization (if enabled)

- Battery system 12V/24V autodetect

- Surface or Flush Wall mounting

- Auxiliary Output max 20A @12V or 15A @24V with Low Voltage Disconnect (LVD)

- Temperature compensated charge profile with battery temperature sensor ASIN: B007S3HWDA

- Fully programmable (for Pb or Lithium batteries) by IPN ProRemote-S remote display ASIN: B007S2VT9E

- Made in the USA

- 5-Year Warranty



Specifications:

@12V battery:

- Max. Recommended Panel Power: 270W (36-cell panel) or 200W (60/72-cell panel)

- Rated Battery (Output) Current: 20A (36-cell panel) or 15A (60/72-cell panel)

- Absorption Voltage: 14.2V

- Float Voltage: 13.2V

- Equalization Voltage: 15.2V (if needed)

@24V battery:

- Max. Recommended Panel Power: 400W (72-cell panel)

- Rated Battery (Output) Current: 15A

- Absorption Voltage: 28.4V

- Float Voltage: 26.4V

- Equalization Voltage: 30.4V (if needed)



- Max Panel Voltage: 57V

- Max Recommended Panel Voc @ STC 45.6V

- Operating Temp. Range: -40°C - 50°C

- Battery/Panel Connections: 4-position terminal block for 10-20 AWG wire

- Dimensions: 5.3x5.3x2.5"

- Certifications: CE, FCC, RoHS

  • MPPT BUCK charge controller 12/24V battery. With 12V-nominal battery, 20A charge with 36-cell panels up to 270W or 15A charge with 60/72-cell panel up to 200W
  • Max. recommended panel Voc 45.6V at STC (max input voltage 57V). Auxiliary Output programmed for max 20A with LVD or for 2A maintaining of a secondary battery
  • Advanced 3-stage charge profile plus equalization for Lead-Acid batteries. Programmable for Lithium batteries with the IPN ProRemote display ASIN: B01GW3UPV2
  • Surface or Flush Wall mounting, ideal for RVs and Marine. IPN capability network interface coordinates up to 8 controllers (Master/Followers)
  • 5-Year Warranty, Made in the USA, FCC/CE/RoHS certifications. Datasheet in “Product Information” below

Blue Sky Energy Solar Boost SB3024iL MPPT Charge Controller 40A/30A with display, 12V/24V battery. Auxiliary Output for Dual Battery charge or 20A LVD Load Output

Check latest price

Product description

Overview

The SB3024DiL charge controller featuring our patented MPPT technology for 12/24V battery. This controller is ideal for RVs and Marine applications with its auxiliary output for charging a second battery, and can utilize a remote display with its IPN connectivity. When programmed with the IPN ProRemote or UCM, it can be used for charging Lithium batteries. It can communicate with other Blue Sky Energy charge controllers allowing increased flexibility, optimization in system design, and improve reliability by dividing a large system with multiple controllers.



Features:

- MPPT BUCK technology

- 3-Stage charge plus Equalization (if enabled)

- Battery system 12V or 24V autodetect

- Onboard display and LED indicator for battery status

- Auxiliary Output programmed for a 20A DC Load with Low Voltage Disconnect or for charging a secondary battery

- Temperature compensated charge profile with battery temperature sensor ASIN: B007S3HWDA

- Fully programmable by IPN ProRemote-S remote display ASIN: B007S2VT9E

- Made in the USA

- 5-Year Warranty



Specification:

With 12V battery:

- Max. Recommended Panel Power: 540W (36-cell panel) or 400W (60/72-cell panel)

- Rated Battery (Output) Current: 40A (36-cell panel) or 30A (60/72-cell panel)

- Absorption Voltage: 14.4V

- Float Voltage: 13.2V

- Equalization Voltage: 15.2V (if needed)

With 24V battery:

- Max. Recommended Panel Power: 800W (72-cell panel)

- Rated Battery (Output) Current: 30A

- Absorption Voltage: 28.8V

- Float Voltage: 26.4V

- Equalization Voltage: 30.4V (if needed)



- Max Panel Voltage: 57V

- Max Recommended Panel Voc at STC 45.6V

- Operating Temp. Range: -40°C - 40°C

- Battery/Panel Connections: terminal block for 2-14 gauge wire

- Dimensions: 6.86 x 6.6 x 3.38"

- Certifications: UL/CSA, CE, FCC, RoHS

  • MPPT BUCK charge controller 12/24V battery. With 12V-nominal battery, 40A charge with 36-cell panels up to 540W or 30A with 60/72-cell panel up to 400W
  • Max. recommended panel Voc 45.6V at STC (max input voltage 57V). Auxiliary Output programmed for max 20A with LVD or for 2A maintaining of a secondary battery
  • Advanced 3-stage charge profile plus equalization for Lead-Acid batteries. Programmable for Lithium batteries with IPN ProRemote display ASIN: B01GW3UPV2
  • Ideal for RVs and Marine. IPN capability network interface coordinates up to 8 controllers (Master/Followers)
  • Made in the USA, 5-Year Warranty, UL/CSA Safety, FCC, CE, RoHS

Blue Sky Energy IPN ProRemote with shunt

Blue Sky

Check latest price

Product description

This model does include a shunt. The IPN-ProRemote combines full-featured charge controller monitoring and battery system monitoring into a single user friendly remote display. The IPN-ProRemote also monitors and controls Blue Sky Energys IPN based charge controllers. It can monitor both the combined total and individual status of up to eight IPN charge controllers on a single IPN network. Depending on the particular charge controller model, certain additional parameters or settings can be accessed or modified with the IPN-ProRemote. By combining an advanced battery system monitor and charge controller display into a single unit, the IPN-ProRemote eliminates the need for a separate battery monitor. It also simplifies installation and eliminates the headaches of trying to setup and synchronize separate charge controller and battery monitor systems.Click on PDF link on the lower lefthand side for more information.

Kit composed of Blue Sky Energy SB3000i Solar Boost 30A MPPT Charge Controller with Wall Mount Box and Battery Temperature Sensor

Based on 2 reviews Check latest price

Product description

Overview

Kit composed of SB3000i, wall mount box, and the battery temperature sensor. The SB3000i, featuring our patented MPPT technology, is ideal for RVs and Marine applications with an axiliary output for charging a secondary battery and IPN connection for remote display and networking. This controller can be programmed for any type of Lead-Acid or Lithium batteries from its onboard display or in conjunction with an IPN Pro Remote. Its IPN Network interface can communicate with other Blue Sky Energy charge controllers as a single charging system, allowing increased flexibility in system design.



Features:

  • MPPT BUCK technology
  • 3-Stage charge control plus Equalization (if enabled)
  • Built in digital display for monitoring and programming
  • Auxiliary Output max 20A with Low Voltage Disconnect (LVD)
  • Metal Wall Mount Box
  • Battery temperature compensation (for Lead-Acid batteries)
  • Compatible with Blue Sky Energy remote display IPN ProRemote-S ASIN: B007S2VT9E
  • Fully programmable for any type of Lead-Acid or Lithium batteries
  • Made in the USA
  • 5-Year Warranty


    • Specifications:



  • Max. Recommended Panel Power: 400W (36-cell solar panel) or 290W (60-cell solar panel)
  • Rated Battery (Output) Current: 30A (400W solar panel) or 22A (290W solar panel)
  • Nominal Battery Voltage: 12V
  • Max Panel Voltage: 50V
  • Max Recommended Panel Voc @ STC 40V
  • Continuous Load Current: 20A
  • Absorption Voltage: 14.4V - User Adjustable
  • Float Voltage: 13.2V - User Adjustable
  • Equalization Voltage: 15.2V - User Adjustable
  • Operating Temp. Range: -40°C - 45°C
  • Connection: 6-position terminal block for 8-16 AWG wire
  • Panel Dimensions: 6.35 x 4.6 x 2.2" (16.1 x 11.7 x 5.6 cm)
  • Certifications: CE, FCC, RoHS

  • MPPT solar charge controller for 12V-nominal battery (Pb or Li), charge current 30A with 36-cell panels max 400W or 22A with 60-cell panel max 290W
  • Max. recommended panel Voc at STC 40V (max voltage input 50V). Auxiliary Output programmed for max 20A with LVD or for 2A maintaining of a secondary battery
  • Fully programmable multi-stage charge profile for Lead-Acid and Lithium batteries through the onboard display
  • Kit includes a metal wall mount box and the battery temperature sensor to improve performances and extend the battery lifetime
  • 5-Year Warranty, Made in the USA, CE/FCC/RoHS certifications

User questions & answers

Question: Does the item includes: cable ? if it is not, the photo is misleading
Answer: This controller uses the IPN remotes which would be purchased separately.

Blue Sky Energy IPN Remote, Remote Display for Battery Monitoring

Blue Sky Energy

Check latest price

Product description

IPN Remote display provides basic monitoring for IPN compatible charge controllers from Blue Sky Energy. Monitor battery voltage, output current, and charge control system status for up to 8 charge controllers on a single IPN network. The bright, crisp LED screen reports battery voltage for each controller or across the whole system and provides excellent readability in all lighting conditions. Monitor charge status with simple and intuitive LED indicator. Multiple IPN Remote displays can be used with the same system and along with an IPN ProRemote.

  • Display compatible with Blue Sky Energy charge controllers with IPN capability to monitor Lead-Acid or Lithium batteries
  • The IPN Remote provides real-time data for a single or multiple charge controllers in IPN Network (Master/Followers)
  • Flush Mounting, ideal for RVs, Motor-home, and Boats
  • RJ-11 cable 25' included. For advanced battery monitoring and settings is recommended the IPN ProRemote ASIN: B01GW3UPV2
  • 5-Year Warranty, Made in the USA, FCC/CE/RoHS certifications. Datasheet in “Product Information” below

Blue Sky Energy Solar Boost SB2512i-HV, 25A MPPT Solar Charge Controller for 12V Battery

Check latest price

Product description

Overview

The SB2512i-HV charge controller featuring our patented MPPT technology for 12V battery is ideal for RVs and Marine applications. When programmed with the IPN ProRemote or UCM, it can be used for charging any type of Lithium batteries.



Features:

- MPPT BUCK technology

- 3-Stage charge plus Equalization (if enabled)

- Battery system 12V

- Surface or Flush Wall mounting

- Fully programmable (for Lithium batteries) by IPN ProRemote-S remote display ASIN: B007S2VT9E

- Made in the USA

- 5-Year Warranty



Specifications:

- Max. Recommended Panel Power: 340W (36-cell panel) or 270W (60-cell panel)

- Rated Battery (Output) Current: 25A (36-cell panel) or 20A (60-cell panel)

- Absorption Voltage: 14.2V

- Float Voltage: 13.2V

- Equalization Voltage: 15.2V (if needed)

- Max Panel Voltage: 50V

- Max Recommended Panel Voc @ STC 40V

- Operating Temp. Range: -40°C - 45°C

- Battery/Panel Connections: 4-position terminal block for 10-20 AWG wire

- Dimensions: 5.3x5.3x2.5"

- Certifications: CE, FCC, RoHS

  • MPPT BUCK charge controller for 12V-nominal battery, 25A with 36-cell panels up to 340W or 20A with 60-cell panel up to 270W
  • Max. recommended panel Voc 40V at STC (max. input voltage 50V).
  • Advanced Multi-Stage charge profile plus equalization for Lead-Acid batteries. Programmable for Lithium batteries with IPN ProRemote display ASIN: B01GW3UPV2
  • Surface or Flush Wall mounting, ideal for RVs and Marine.
  • 5-Year Warranty, Made in USA, CE/FCC/RoHS certifications

Blue Sky Energy SB-RVK-S, Kit composed of SB3024iL MPPT Charge Controller 30/40A and IPN ProRemote-S remote display with Current Shunt

Blue Sky Energy

Based on 2 reviews Check latest price

Product description

All-in-one fully programmable controller and monitoring solution for mid-sized solar systems. The SB-RVK(-S) kit includes a SB3024iL charge controller, featuring patented MPPT technology, an IPN ProRemote with current shunt for monitoring and programming your system. This kit is ideal for marine or RV applications with an auxiliary output for charging a second battery or can manage up to a 20A load output for off-grid electrification or telecommunication systems. The IPN ProRemote, utilizing its smart dusk-to-dawn feature, allows flexibility for PV street lighting. The IPN network allows communication with up to seven other controllers on a single system, so your system can grow with time and provides maximum flexibility in system design.

  • Ideal kit for RV/Motorhome/Marine. Charge Controller SB3024iL programmable by the IPN ProRemote-S for any type of Lead-Acid or Lithium batteries
  • SB3024iL MPPT BUCK charge controller 12/24V battery. With 12V-nominal battery, 40A charge with 36-cell panels up to 540W or 30A with 60/72-cell panel up to 400W
  • IPN ProRemote-S, remote display for programming the battery charge profile and monitoring real-time data of battery and solar panels, current shunt included, Flush Mounting
  • Kit compatible with IPN Network to coordinates multiple controllers (Master/Followers) and increase flexibility and optimize the system design. SB3024iL provides an Auxiliary Output programmed for max 20A with LVD or for 2A maintaining of a secondary battery
  • 5-Year Warranty, Made in the USA, FCC/CE/RoHS certifications. Datasheet in “Product Information” below

Blue Sky Energy Metal Wall Mount Box Charge Controllers SB3000i and SC30

Based on 1 reviews Check latest price

Product description

The Wall Mount Box is compatible with charge controllers SB3000i and SC30.

  • Black anodized metal wall mount box compatible with Blue Sky Energy charge controllers SB3000i and SC30
  • Box dimensions 6.35 x 4.6 x 2.75 inches
  • 5-Year Warranty, Made in the USA

Blue Sky Energy SB-RVK, kit Composed of SB3024iL MPPT Charge Controller 30/40A and IPN ProRemote Remote Display

Check latest price

Product description

All-in-one fully programmable controller and monitoring solution for mid-sized solar systems. The SB-RVK kit includes an SB3024iL charge controller, featuring patented MPPT technology, and the IPN ProRemote for monitoring the solar system and programming your Pb or Li battery. This kit is ideal for marine or RV applications with auxiliary output for charging a second battery or can manage up to a 20A load output. The IPN network allows communication with up to seven other controllers on a single system, so your system can grow with time and provides maximum flexibility in system design.

  • Ideal kit for RV/Motorhome/Marine. Charge Controller SB3024iL programmable by the IPN ProRemote for any type of Lead-Acid or Lithium batteries
  • SB3024iL MPPT BUCK charge controller 12/24V battery. With 12V-nominal battery, 40A charge with 36-cell panels up to 540W or 30A with 60/72-cell panel up to 400W
  • IPN ProRemote, remote display for programming t
  • Kit compatible with IPN Network to coordinates multiple controllers (Master/Followers) and increase flexibility and optimize the system design. SB3024iL provides an Auxiliary Output programmed for max 20A with LVD or for 2A maintaining of a secondary battery
  • 5-Year Warranty, Made in the USA, FCC/CE/RoHS certifications. Datasheet in “Product Information” below

12V/30A 400W MPPT Solar Boost 3000i Solar Charge Controller SB3000i

Blue Sky

Based on 1 reviews Check latest price

Product description

Blue Sky Energy's new Solar Boost 3000i solar charge controller charges 12V batteries at up to 30 amps from conventional 36 cell 12V PV modules. Patented MPPT technology operates the modules electrically in a manner that harvests all available PV power and can increase charge current up to 30% or more compared to conventional PWM type controllers. The voltage step-down operation of the MPPT power converter also allows use of higher voltage lower cost 60 cell grid-tie PV modules at up to 22 amps of output current. The process of converting the much higher 60 cell input voltage down to battery voltage may produce a charge current increase approaching 200%. Solar Boost 3000i's sophisticated 3-stage charge control plus auto/manual equalization optimally charges flooded, GEL and AGM lead-acid chemistry batteries. A user configurable auxiliary output is also provided which can serve as either a 20 amp LVD load controller, 20 amp lighting controller with LVD, or 2 amp auxiliary battery charger for a second battery such as the engine start battery in an RV. The low power LED display combines excellent readability with very low power consumption, includes an automatic night time diming feature and may be turned off completely if desired. The high accuracy display shows battery voltage, input & output current, auxiliary battery voltage, and computes total solar charge amp-hours produced. To provide optimal charge control for various battery types all digital setpoints for charge control and load control are user adjustable. Solar Boost 3000i may also operate as an IPN Network Master controlling up to 7 remote Blue Sky Energy IPN compatible charge controllers such as the SB3024iL. Blue Sky Energy's IPN Network allows multiple charge controllers to communicate with each other and coordinate their activities to charge the battery as a single coordinated charging machine. All networked controllers display through the SB3000i's digital display and may share a battery t

Latest Reviews

View all
