13 best mini cnc milling machine

Product description

Overview

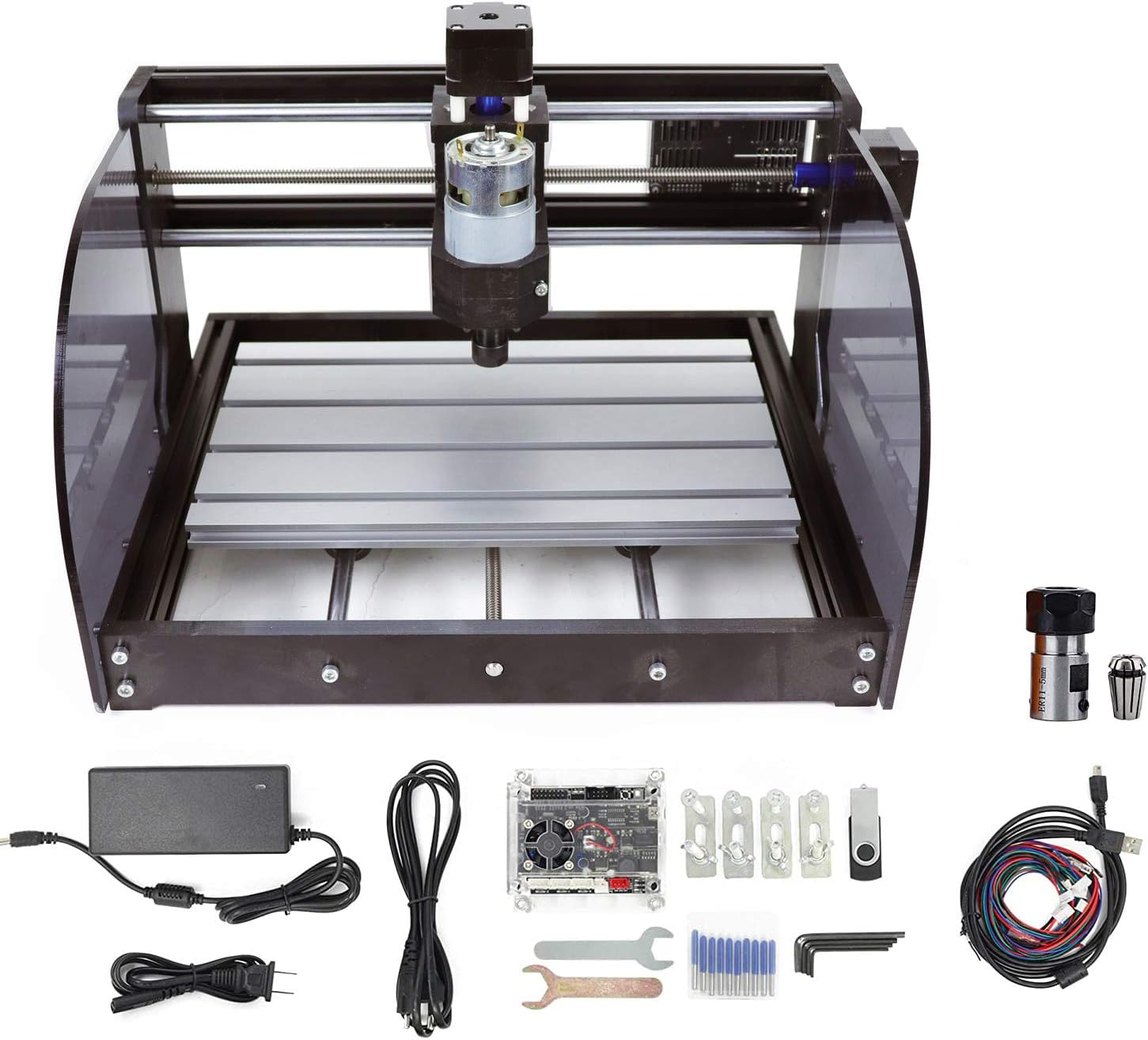

Genmitsu 3018-PROVer is the successor to the 3018-PRO, and the new version has brought improvements to many parts, including the excellent design and safety features, pre-assembly, upgraded mainboard, etc. It's perfect for CNC beginners, hobbyists, and small business owners.



SPECIFICATION



Effective Engraving Area: 260 x 155 x 35mm(10.2 x 6.1 x 1.4”)

Frame Size: 400 x 330 x 240mm(15.7 x 13.0 x 9.4”)

Frame Material: Aluminum

Z-Axis Component Material: ABS

Spindle: 775 motor, 12V~24V, 10000 RPM;

Rated power: 60W; Maximum power: 120W

Step Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in-lb)

Drill Bits: Tip 0.1 mm, 20 degrees, Diameter 3.175 mm

Supported OS: Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10, Linux, MAC OS

Software: Grbl control(Candle)

Power Supply: 24V/5A, with CE, FCC & PSE certifications

Perfect for: Hobbyists, Crafters, Woodworkers, Industrial Designers, Educators, Engineers, Jewelers and more!



WHAT'S INCLUDED?



1 x 3018-PROVer CNC Router Machine (Some parts need to be assembled)

1 x Tools Box

1 x Screw/Nut Accessories Box

1 x Offline Control Module

• Class leading value got even easier to use.
• The 3018-PROVer is the latest version of the 3018 Desktop CNC DIY Kit Series. Now Pre-assembled and no fuss with assembly taking less than 30 minutes out of the box.
• Still based on open-source Grbl v1.1 the PROVer has stepped up to more powerful but silent Toshiba TB6S109 drivers with added life and performance along with added Optocouplers to protect your mainboard from hard stops without risk of damage and eliminate signal noise for more consistent projects and longevity.
• Make more with the all-aluminum body and take advantage of the added stability for milling a wider range of materials while also making clean up even easier with acrylic safety baffles to help contain dust and provide a safety barrier.
• Take control of your 3018-PROVer Desktop CNC machine with controls at your fingertips. The 1.8” display will clearly display readouts and provide manual control of your mill without any computer. If a project gets out of hand the PROVer has an emergency stop control that is very visible and easy to access for immediate shutdown of your machine.

User questions & answers

Question:	What is the cost of the software and what do I need
Answer:	You can get free software. I grbl is free to convert STL to GCODE. Anything that can generate a STL file will work.
Question:	Does the 3018-prover come with clamps? i don't see any pictured or mentioned
Answer:	There are some basic clamps that use bolts placed in the t-track of the bed.
Question:	Second question. Can this be used as a pass through to do longer pieces than the surface? Making wood onlays. Need narrow, but longer than work area
Answer:	Yes
Question:	Is this too loud for someone living in an apartment? Is it quieter like a Dremel, or more like a more powerful power tool
Answer:	I have this in an apartment and I run it as part of a business. The noise level depends on what you are doing with it. When doing light engraving it's not too bad. However, when cutting/milling with a spiral up-cutting bit or doing a deeper v groove/engraving, it is quite loud and it is even louder now that I have the 20000 RPM spindle (highly recommended for proper feeds/speeds by the way). As Brian mentioned, the dust is an issue as well. To address both of these issues, I built an enclosure similar to the one by James Dean Designs; however mine is simpler and lined with pink insulation foam that I cut into sound foam with a larger V bit. This contains the dust and noise for the most part. I also had to put extra TPU feet under the machine inside the enclosure to dampen the vibrations. Even with these precautions I only run my PROVer during business hours for noise reasons. The only problem with the enclosure is that is makes it a bit difficult to reach the sockets in the back if you are going to be switching between and spindle and laser engraver. IF YOU BUILD AN ENCLOSURE BE SURE TO MOUNT THE EMERGENCY STOP BUTTON ON THE OUTSIDE.

Product features

Efficient Pre-assembly

The 3018-PROVer is the newest addition to the Genmitsu CNC 3018 series family. This pre-assembled desktop CNC machine allows you to be up and running in 30 minutes instead of 2 hours, making it no challenge for beginners.

Safety Design

The 5mm acrylic baffles can block the 'flying' pieces of wood/other cutaway materials so that you can safely monitor the engraving process.

Offline Controller with 1.8" TFT LCD Display

This machine comes standard with a newly designed offline controller with 1.8" display so you can view readouts clearly and control the CNC router without connecting to a computer.

High Quality

Boasts an all-aluminum body with an oxide blue look, the 3018 PROVer gives you a premium look and feel for your machine.

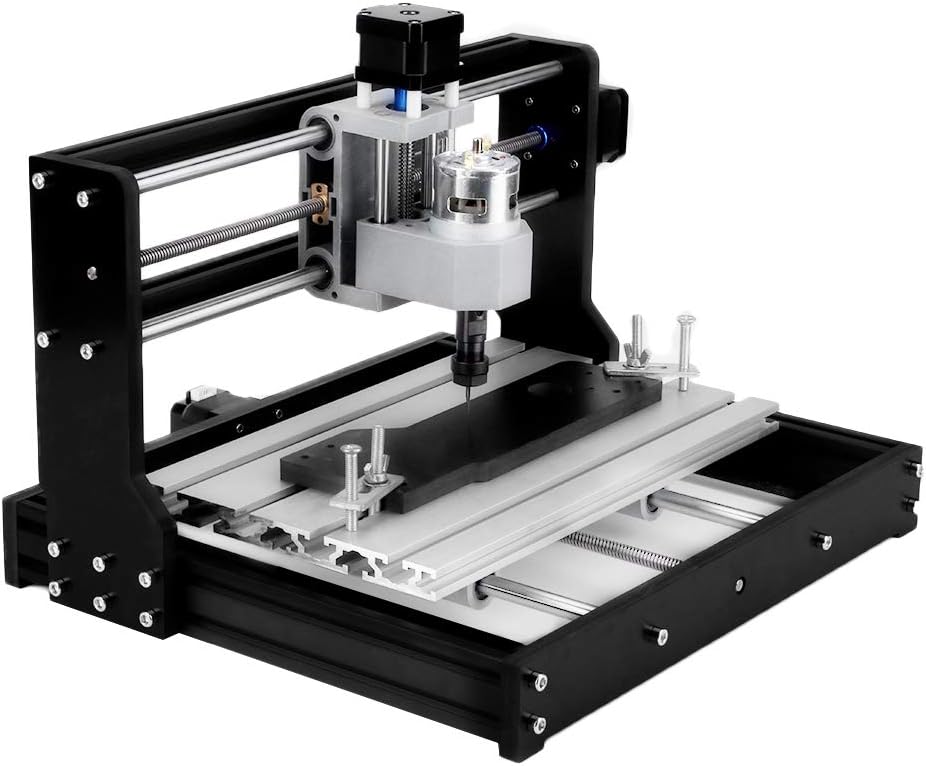

Product description

• Control software: Grbl Control/Candle; Interface: USB; System requirements: windows XP SP3, win7. (32/64 can be). Linux; Can't support Apple product
• The machine for a full set of spare parts, shall be installed by the buyers,the package include the CD with detailed user manual, buyers don‘t need to worry about machine assembly.
• GRBL control board does not support updating software or refreshing firmware, otherwise the control board will be damaged.
• Main applications: Can engrave materials such as plastic, wood, acrylic, PVC, PCB, wood.

Product features

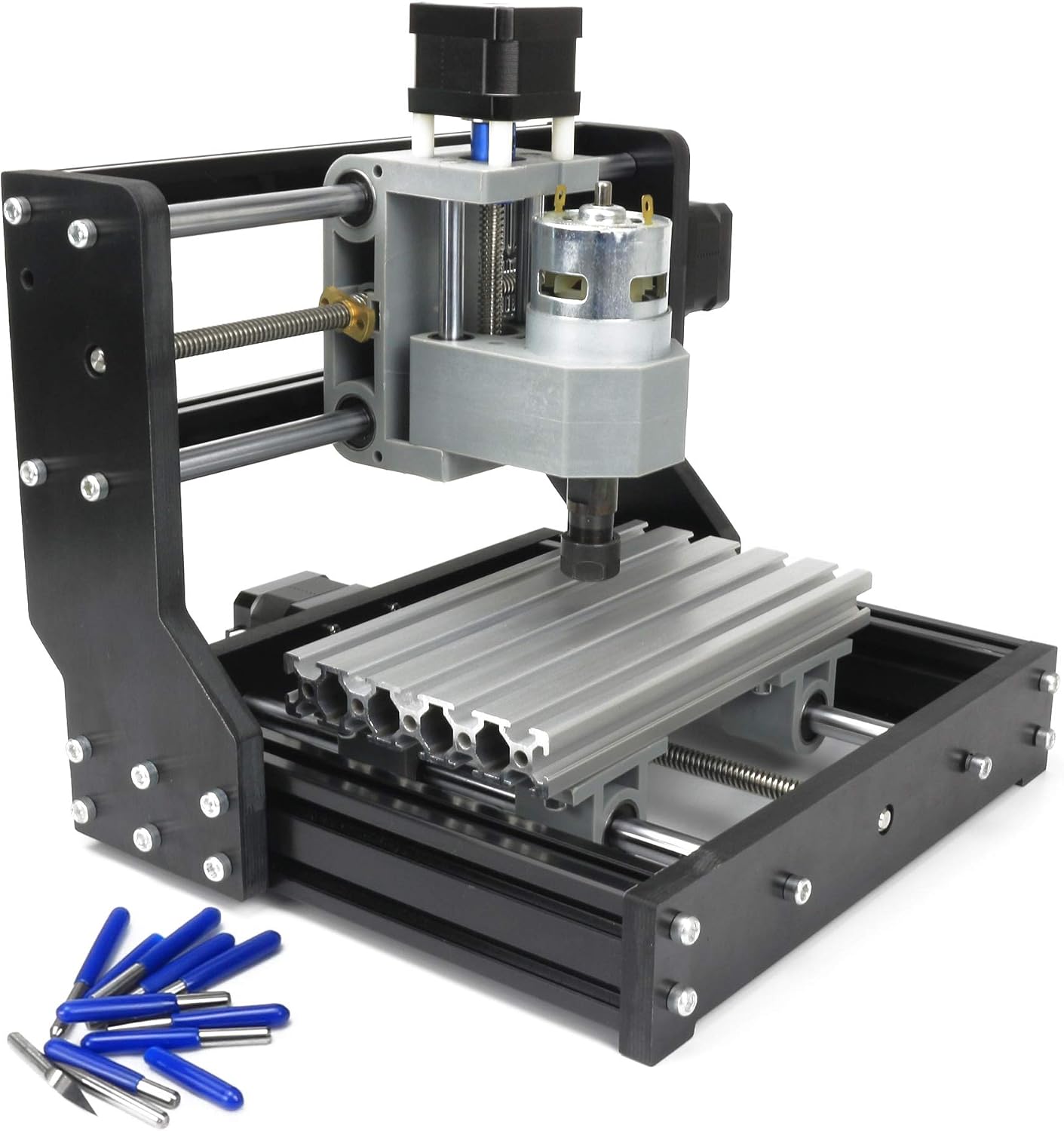

Specification

• Profile Dimensions: 260x240x220mm
• Travel (engraving range): 160x100x45mm
• Table size: 180x100mm
• Screw: Professional T8 screw, lead 4mm, double copper nuts eliminate the poor back
• Stepper motor: 42 stepper motor
• Voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m
• Spindle: 775 spindle motor (12-36V) 24V: 7000r / min, 36V: 9000r / min
• Power: 24V 5A power adapter (input voltage 110-240V), simple and convenient
• System requirements: windows XP SP3, win7. (32/64 can be). Linux
• Drill bits: tip 0.1mm ,20 degree , diameter 3.175mm

GRBL control 1.1f USB port CNC engraving machine control board

• Connection: USB (USB-CH340)
• Software: GRBL control/Candle
• Input voltage: 12-36V
• Master chip: atmel 328P
• Stepper motor driver: A4988
• Spindle drive chip: MOSFET (recommendation 12~36V, current : within 10A )
• Spindle PWM speed: Support
• Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
• Power Interface: 5.5-2.5mm DC interface
• Main application:Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material

• 🎁【Update CNC 3018PRO】2-in-1 CNC 3018-PRO with 3000mW Module is an upgraded version of 3018. Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage.(🎄🎄:Provide technical support and electronic software)
• 🎁【CNC Engraving】 With an effective engraving area of 300 x 180 x 45 mm, the 3018pro can easily accommodate most projects. Control software: GRBL; Spindle: 775 spindle motor (12-36V) 24V:10000r / min. Supported System: Windows XP / Win 7 / Win 8 / Win 10.
• 🎁【3000MW Head】High precision - focus < 0.1mm, High engraving power and long-term available. Can directly import pictures to lasergrbl for engraving, --Adding a pair of safety goggles protect your eyes from injury.
• 🎁【Offline Controller】 DO NOT need to connect the computer. Manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan. Note: Please don't use the computer and the Offline Controller at the same time, otherwise it will block the communication.
• 🎁【Wide Application】Suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other like materials, but can not carve hard metal, jade and other hard materials.

Product features

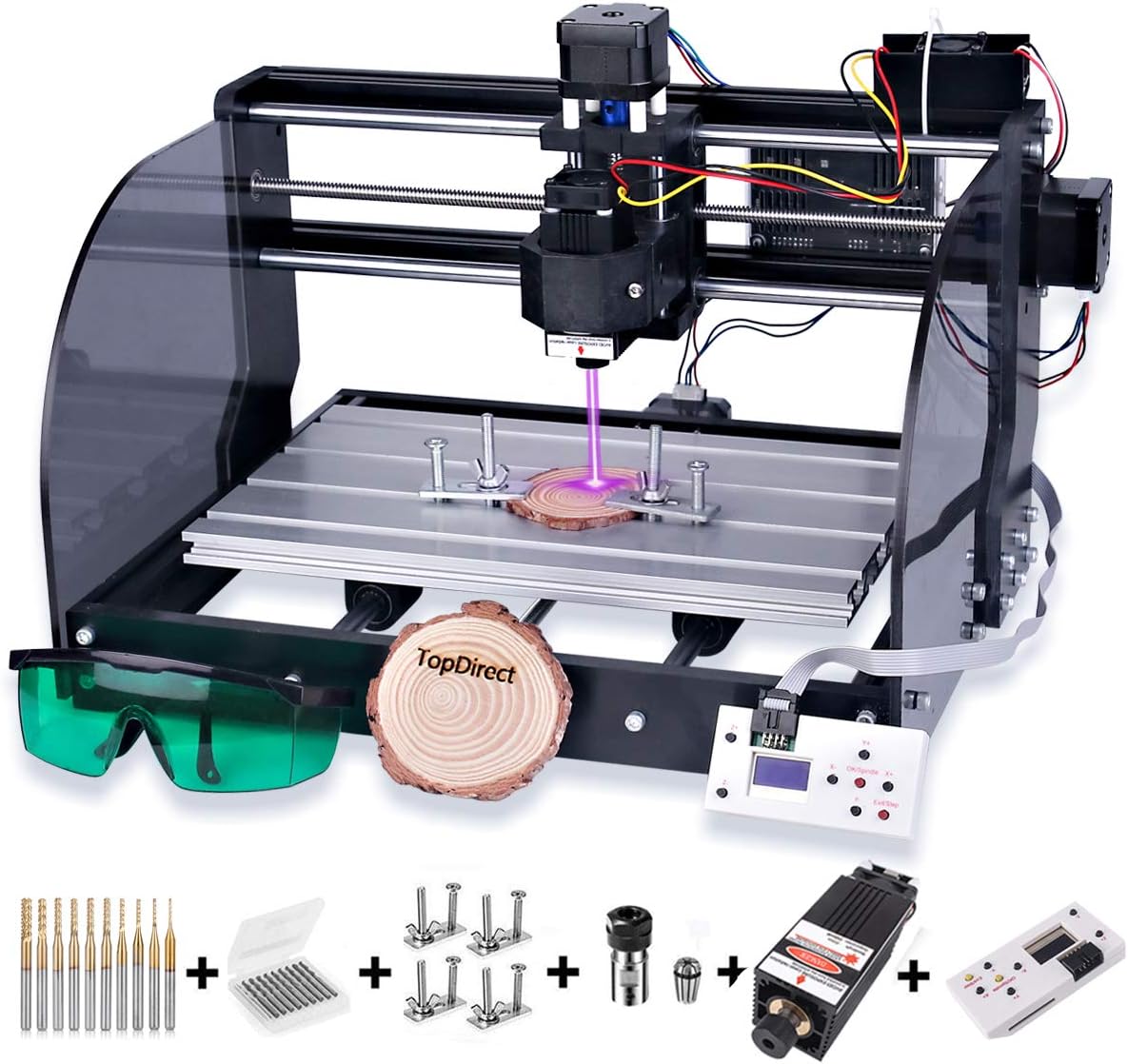

The Titoe CNC 3018Pro with 5500mW Module

Designed for the absolute beginner, the Titoe is a great tool for starting CNC learning. If wood-working is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models which you are coding and designing.

The Advantages of CNC 3018Pro Machine:

• 2-In-1 Design: Replacing the spindle with a suitable power head, The Titoe CNC 3018-PRO can be used as a CNC Router or a Engraver.
• Easy to Assembly:All the parts are in the package. It only takes 20-60 minutes to assemble it. Search "Titoe 3018pro" to watch the instructional video on Youtube.
• Offline Controller: Take control of your 3018-PRO Desktop CNC machine with offline control, provide manual control of your mill without any computer.
• Upgraded Control Board: Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Case to extend the life of the control board. Self-contained short circuit protection to prevent it from burning due to overload.
• High Quality and Affordable: Make more with the 80% aluminum body and take advantage of the added stability for milling a wider range of materials.

CNC 3018pro Machine with Spindle Module

• 775 DC Motor
• Speed: 10000/min
• Rated Current: 1.5A
• Voltage: 24V
• High speed and high performance

5500mW Module Set

• Suitable for carve wood, plastic, acrylic, PCB CCL, but can not carve metal, necklace.
• If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the 5500mw Module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity.

Grbl Software

• It can support G-file not picture, such as nc, ncc, ngc, tap, tax.Port:Com*and Com # for option. If the first one does not work, you can choose the second one.Or check the manual.
• Note:
• It does not re present the actual speed, and it represents the ratio.And this percentage is not linear.
• 100 = 100/1000-------10%
• 1000 = 1000/1000------100% max

5500mW Software

• It can support the Image & Gcode.If the moving frame does not turn green, please click the lock in the lower left corner.
• Note:
• Turn on: M03 S500
• Adjustable: M03 S500/M03 S5500 S100/ S1000/S5500
• Turn off: M05

5500mW 5.5W Module:

• Wavelength: 450nm
• Power: 5.5W
• Output current: 3A
• Input voltage: DC 12V
• Working temperature: 10°-40°
• With this module, it can absolutely give you different ways to unleash your creativity.

Upadate Control Board

GRBL 1.1 , The new control board adds fixed heat sink and external fan, as well as a sturdy shell, which greatly extends the service life of the control board.

Offline Control

With offline controller module, you can control the CNC router without connecting to the computer. The computer and the controller cannot be used at the same time.

Open Source

It’s built on Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and easy to find elsewhere online.

Sturdy machine frame:

Sturdy aluminum and nylon, make the machine more work more stable, run and engrave better, one-piece molding, easy to install.We provide assembly video.

Wide Application

Suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other materials, but can not carve hard metal, jade and other very hard texture of the items.

Titoe Service Team

• Please check if the accessories are complete when you get the package.
• There are installation videos in the installation package. Please watch the videos carefully before installation.If you cannot download the software from my page, please let us know in time.
• Software for Control the machine(3Axis)
• Software for Module(2Axis)
• The parameters in the GRBL software have been set specifically, changing them arbitrarily will cause engraving errors.
• GRBL software and offline controller are only compatible with G-codes such as NC files, TXT files and TAP files. ModuleGRBL software is compatible with G codes and pictures. Use software such as CopperCAM, Inkscape, MeshCAM, Carbide create and MasterCam to create G-code.
• Welcome to show us your carving works.

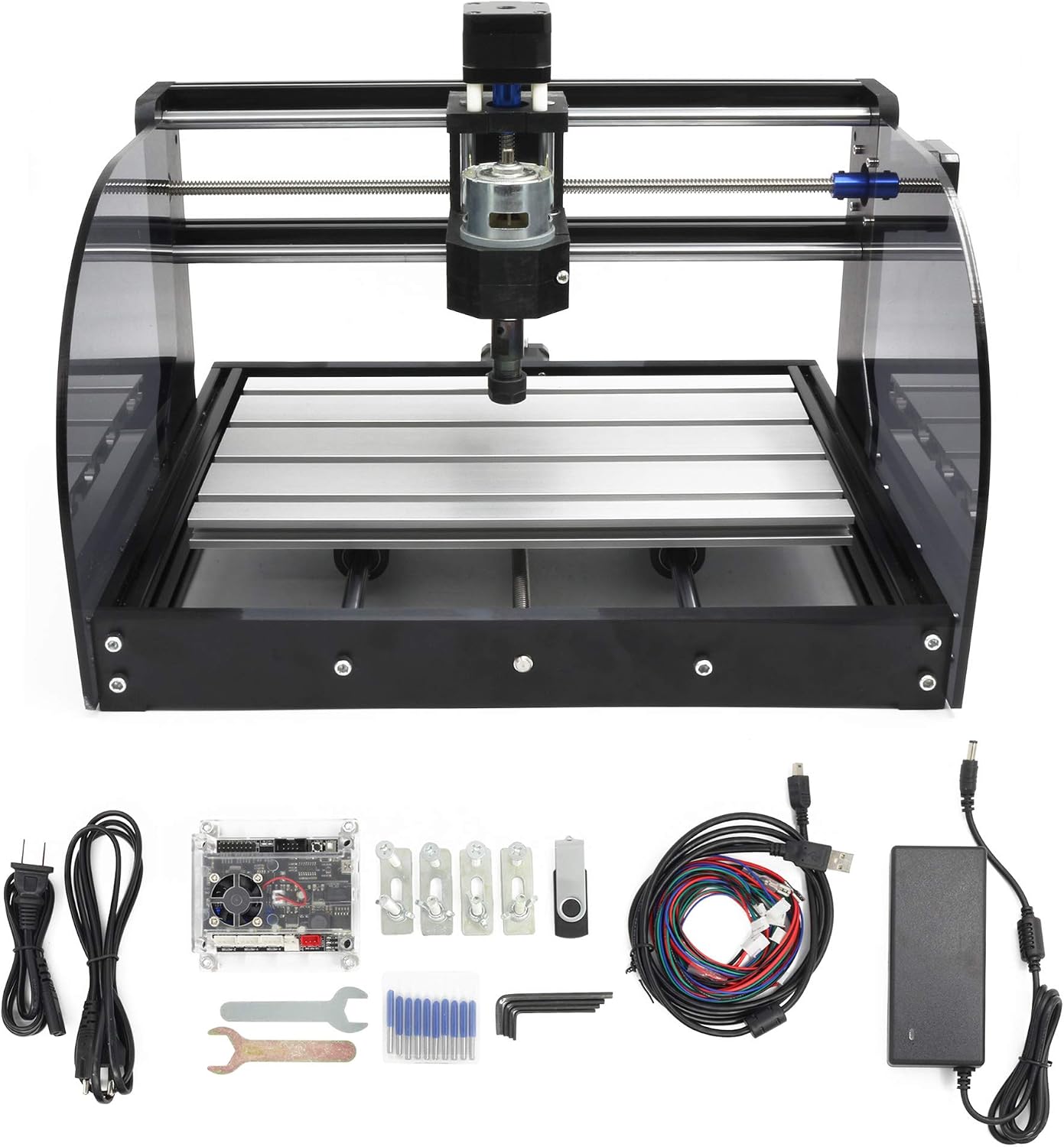

• Material: PA6 Nylon + Aluminum profile; Interface: USB
• GRBL Control; Power Supply: 24V 5A(110V-220V)
• Application areas: plastic, wood, acrylic, pvc, pcb and other soft materials
• The machine is shipped in bulk, and the full set of parts needs to be assembled by the customer (the instructions are included in the package).

Product features

Basic Parameters:

• Work area: 300x180x45 mm (approx.11.81x7.08x1.77 inches)
• Mesa: 300x180mm (approximately 11.81x7.08 inches)
• Frame: 420x350x270mm (approximately 16.53x13.78x10.63 inches)
• Workable thickness: 45mm (height 64mm)
• Material: PA6 Nylon + Aluminum profile

• Power supply: 24VDC power adapter (110-240VAC input voltage)
• Stepper motor: 1.3A,0.25N.m
• Spindle: 775 spindle motor (12-36V); 24V: 10000 rpm
• Collet: ER11 3.175mm (Can be equipped with 0-7mm)
• Screw rod: T8 screw rod, lead 4mm, double copper nut backlash
• Connection: PC-USB connection
• Support system: Windows XP / Win 7/ linux

Aluminum Alloy Worktop

Increase the thickness of the thick aluminum alloy work surface, higher stability.

Isolation plate

Isolation plate for testing is added, with simple structure, compact design and convenient adjustment.

Ballscrew

Isolation plate for testing is added, with simple structure, compact design and convenient adjustment.

3 Axis GRBL 1.1J USB Port CNC Engraving Machine Control Board

• Support limit switch, tool setting, steering gear, cooling fan and other functions
• The spindle supports 0-100% adjustable PWM power. Support PWM / TTL signal control, power 0-100% adjustable!
• Increase the power button switch (this switch is the control signal of the power supply, no large current passes through the switch, don't worry about the size of the switch)
• Cancel the drive module, integrate the imported stepper motor drive, and comes with short circuit protection, no need to worry about module damage. And integrated heat dissipation aluminum alloy.
• Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.
• Enhanced spindle drive. It can support 20,000 rpm spindle. Support higher power spindle.

• 【Upgrade Version 3018 Pro】Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;The CNC3018 PRO machine is very easy to install,stable structure,our parcel also include english user manual.
• 【Working area】 30x18x4.5cm;Frame size: 40x33x24cm;Type:USB Port Desktop cnc router【Spindle】 775 spindle motor (12-36V) 24V:10000r / min【Stepper Motor】42 stepper motor,1.3A, phase resistance 2.1 ohms, torque 0.25N.m
• 【System requirements】 Windows XP SP3,Win 7,Win 8,Win 10 (32/64 can be). Linux; Can't support Apple product
• 【Main application】Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.

User questions & answers

Question:	Follow up to my prev. question. All of the “test” files are (.nu) what software are they from
Answer:	About software: cnc 3018 software: ​https://my.pcloud.com/publink/show?code=XZh0fSkZDn1g9WlY8dkCoFK1lGFnv5XP6PU7 Grbl software: https://my.pcloud.com/publink/show?code=XZp2ldkZC2NGws1EqH5xTmTfEBTyP5VSBjBV If you need software, please download the link above. Any questions, please feel free to contact us
Question:	Do I need any additional equípment or software in order to make custom cuts on wood with this or is everything I need included
Answer:	You will need CAD software to model the custom cuts, then CAM software to convert your models to GCode, which this machine can understand. Fortunately, it's possible to get all this software for free. You also need to understand a fair amount about routing wood before you do anything with any equipment.
Question:	How big a power supply is included
Answer:	24V DC power supply
Question:	Do you need additional software to get pictures or text to print on router? I see no way to send text to router
Answer:	About software: cnc 3018 pro software: ​https://my.pcloud.com/publink/show?code=XZh0fSkZDn1g9WlY8dkCoFK1lGFnv5XP6PU7 Grbl software: https://my.pcloud.com/publink/show?code=XZp2ldkZC2NGws1EqH5xTmTfEBTyP5VSBjBV If you need software, please download the link above. Any questions, please feel free to contact us

Product features

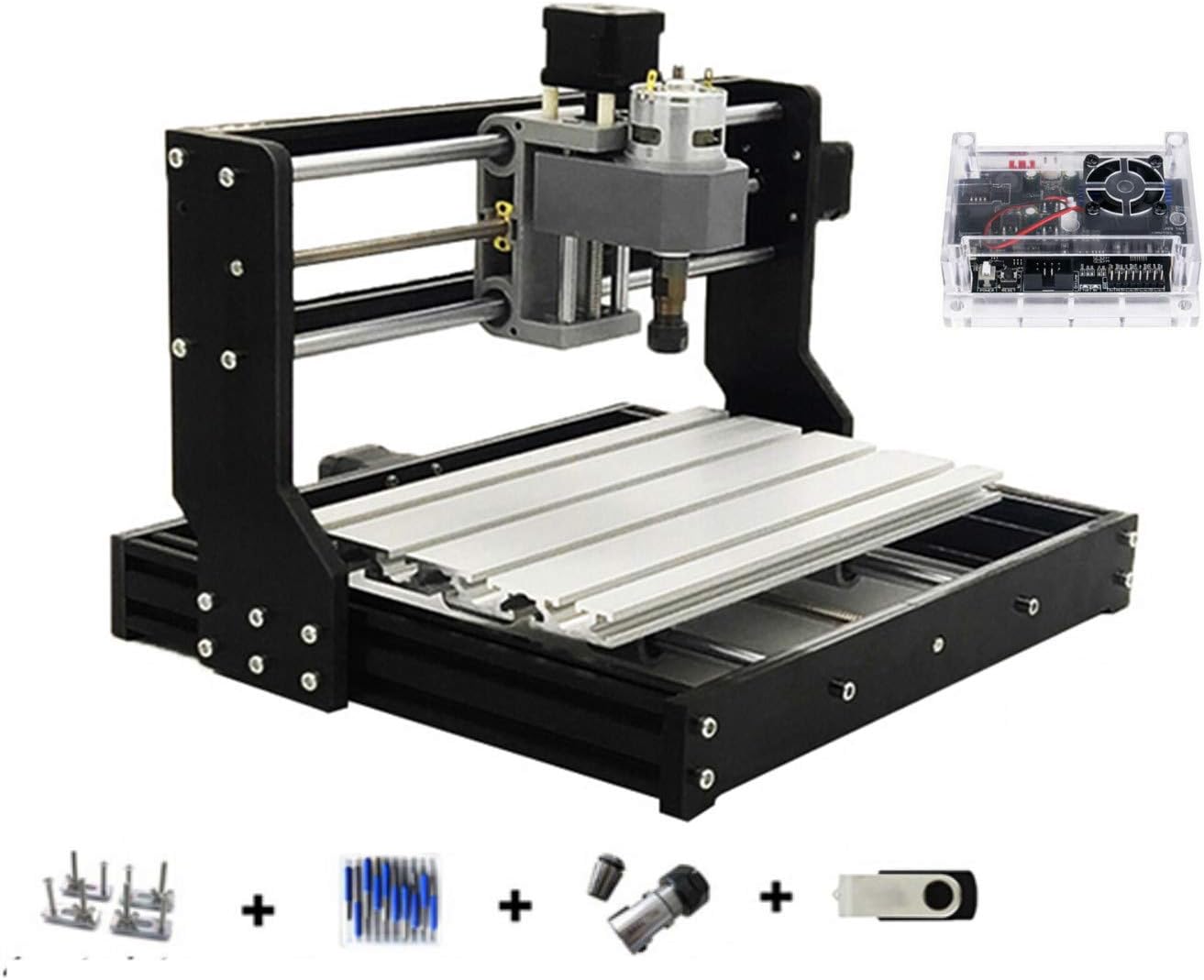

CNC 3018 Pro

• Dimensions: 40x33x24cm
• Stepper motor: 42 stepper motor 34MM,1.33A,0.25N.M
• Maximum stroke: 30x18x4.5cm
• System support: windows XP SP3, win7. (32/64 can be). Linux;
• Power supply parameters: AC110-240V
• Chuck specification: ER11 Collet
• Processing thickness:4.5cm
• Material: Aluminum Alloy
• Control system:grblcontrol, USB interface
• Drill bits: 10pcs tip 0.1mm ,20 degree,diameter3.175mm.

GRBL1.1f Control Board

1. Support oftware: GRBL controller,Candle, UniversalGcodeSender
2. Input voltage: 12-24VDC
3. The spindle supports 0-100% adjustable PWM power.
4. Support limit switch, tool setting, steering gear, cooling fan and other functions.
5. Support PWM / TTL signal control, power 0-100% adjustable!
6. Increase the power button switch
7. Cancel the drive module,integrate the imported stepper motor drive, and comes with short circuit protection, no need to worry about module damage. And integrated heat dissipation aluminum alloy.
8. Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.
9. Enhanced spindle drive.can support 20,000 rpm spindle.
10. Add the fan port to force heat dissipation

Applications:

1. CNC 3018 Pro Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;3018 Rro cnc machine is very easy to install,stable structure.
2. Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.
3. Software: GRBL control (candle)
4. Parcel include a 4G USB flash drive which can download the english user manual and GRBL software.

• ⚒ 〖Double Safety Design〗New version - The protective design of a 5mm translucent brown acrylic baffle on both sides enables you to watch the engraving procedures safely.
• ⚒ 〖Offline Controller Included〗1. DO NOT need to connect the computer; 2. DO NOT need to download files, the engraving file can be directly accessed. Manually adjust X, Y, Z axis locations as engraving start point, manually open or close spindle, manually open or close cooling fan. Note: Please don't use the computer and the Offline Controller at the same time, otherwise it will interference the communication.
• ⚒〖5500 mW Laser Module〗High engraving power with remarkable working time. Can read files directly in JPG, BMP, SVG and engrave images easily. Comes with a pair of safety goggles to protect your eyes. Aircraft aluminum heatsink with cooling fan ensures long working time continuously. Suitable for engraving wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other similar materials, but can not engrave hard materials such as hard metal and jade.
• ⚒ 〖Complete Kit〗3018 PRO-M is a build-it-yourself CNC router that allows you to create 3D objects from wood, plastic, acrylic, and soft surface of the aluminum. It includes everything you need to start your CNC project (1 year warranty covered). If you need instruction and software or have any questions about our product, please do not hesitate to contact us. We strive to offer the 100% satisfaction for all our customers.

User questions & answers

Question:	Is this machine easy to use for a beginner? Can it be programmed to engrave wood products
Answer:	Any CNC has some time to learn. Generally this is a way to use and you can absolutely engrave wood
Question:	What is the difference between your Pro-M and Pro versions
Answer:	3018 pro-m comes with 2 protective acrylic baffle but 3018pro doesn't.-The protective design of a 5mm translucent brown acrylic baffle on both sides enables you to watch the engraving procedures safely.
Question:	can this machine cut
Answer:	〖Materials can be engraved and cut〗 5500mw laser module can engrave and cut cork wood(≤5mm thick), 250g/300g cardboard, non-woven fabrics, cotton fabric, polyester silk fabric, canvas, leather. 〖Materials can be engraved BUT cannot be cut〗 5500mw laser module CAN engrave BUT cannot cut plastic, solid wood, bamboo, acrylic, jade, ceramics, stone, metal with paint coating, soft metal (Cu, Al). 〖Materials CANNOT be engraved or cut〗 5500mw laser module CANNOT engrave or cut plywood, and any metal material.
Question:	Which motor is x y z
Answer:	Hello, the motor is universal.

Product features

Specifications

• Effective Engraving Area: 30 x 18 x 4.5cm
• Frame Size: 400 x 330 x 240 mm
• Frame Material: Aluminum + PF
• Material of Z-axis Component: ABS
• Spindle: 775 motor; 24V, 9000rpm
• Software: GRBL control systems / Laser GRBL control systems
• Rated Power: 60W. Maximum Power: 120W
• Stepper Motor: 1.3A, 12V, 0.25Nm torque
• Supported: Win XP/Win 7 32/64 Bit/Win 8/Win 10
• Drill: Tip 0.2 mm, 20 degrees, diameter 3.175 mm

Functions

1. Manual Control: Manually adjust the position of the three axes of X, Y, Z as the start point of carving, manually open or close the spindle.
2. Document Engraving: The offline board can be linked to the GRBL control board for engraving without storing a computer.
3. Storage File: After the offline board is connected to the computer, it is recognized as a USB mass storage device, and the engraving file can be directly accessed.

Great Tool for Beginners

• Designed for the absolute beginner, it's a great tool to start CNC learning. If wood-working is your hobby, you can use it to add features like engraving curved words and exquisite patterns. If you are a student just start learning CNC, it can help you engrave the models you are coding and designing.

Laser Module Available

1. If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the laser module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity.
2. Laser GRBL supported, please contact me for the laser software if you want to upgrade.

Product description

Package include:



1 set 3018PRO GRBL Control CNC Engraving Milling Machine Kit

1 set ER11 Collet

1 set Power Supply

10 set 20°0.1mm Drill Bits

1 set Allen Wrench



Specification:



Working area: 30x18x4.5cm

Frame size: 40x33x24cm

Material: Aluminum Alloy

Processing thickness:4.5cm

Chuck specification: ER11 Collet

Control software: Grbl Controller

Interface: USB

Stepper motor: 42 stepper motor

Voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m

Spindle: 775 spindle motor (12-36V) 24V:10000r / min

Power: 24V 5.6A power adapter (input voltage 110-240V), simple and convenient

System requirements: windows XP SP3, win7. (32/64 can be). Linux; Can't support Apple product





GRBL 1.1f,USB port cnc engraving machine control board, 3 axis control:



Connection: USB (USB-CH340)

Software: GRBL controller,UniversalGcodeSender

Input voltage: 12-24V

Master chip: atmel 328P

Stepper motor driver: A4988

Spindle drive chip: MOSFET (recommendation 12~24V, current : within 10A )

Spindle PWM speed: Support

Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)

Power Interface: 5.5-2.5mm DC interface



Main application:Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.

• It is not recommended to update the software or firmware of the control board, otherwise the GRBL control board will be damaged
• This machine can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material. Aluminum alloy material with high precision and long service life.
• If you have any questions about this DIY mini cnc machine, please feel free to contact us.

User questions & answers

Question:	Where can I download the software for my Mac to run the cnc? If not how can get it to run on my computer
Answer:	You will need to download GRBL for Mac from the github website. The software you are looking for is GRBL Control which will allow you to send the gcode. There are other programs that can do the same. Universal Gcode Sender is one of them. I am using ESTLCAM which is a little more user friendly. There is a free version available. Since this is an Arduino based machine you could use Pronterface also. There is just a small learning curve. Carbide Create is supposed to work but I have not used yet.
Question:	Does this include a precompiled gbrl controller package for windows
Answer:	It includes grbl controller software, which is in the Cd disc
Question:	Will this engrave brass
Answer:	As with aluminum, yes, but you need to choose your settings well.
Question:	Can this engrave steel? Cut steel
Answer:	You would need to master cut parameters and would still be very limited in what you would do. This machine isn't intended for steel.

• Please dowmload the files form here: https://drive.google.com/drive/folders/1rjUtawvg5VgDPTFGfN-OBi1DF7kUrPhl?usp=sharing
• Material: PA6 Nylon + Aluminum profile; Interface: USB
• GRBL Control; Power Supply: 24V 5A(110V-220V)
• Application areas: plastic, wood, acrylic, pvc, pcb and other soft materials
• The machine is shipped in bulk, and the full set of parts needs to be assembled by the customer (the instructions are included in the package).

Product features

Basic Parameters:

• Work area: 300x180x45 mm (approx.11.81x7.08x1.77 inches)
• Mesa: 300x180mm (approximately 11.81x7.08 inches)
• Frame: 420x350x270mm (approximately 16.53x13.78x10.63 inches)
• Workable thickness: 45mm (height 64mm)
• Material: PA6 Nylon + Aluminum profile

• Power supply: 24VDC power adapter (110-240VAC input voltage)
• Stepper motor: 1.3A,0.25N.m
• Spindle: 775 spindle motor (12-36V); 24V: 10000 rpm
• Collet: ER11 3.175mm (Can be equipped with 0-7mm)
• Screw rod: T8 screw rod, lead 4mm, double copper nut backlash
• Connection: PC-USB connection
• Support system: Windows XP / Win 7/ linux

Aluminum Alloy Worktop

Increase the thickness of the thick aluminum alloy work surface, higher stability.

Isolation plate

Isolation plate for testing is added, with simple structure, compact design and convenient adjustment.

Ballscrew

Isolation plate for testing is added, with simple structure, compact design and convenient adjustment.

3 Axis GRBL 1.1J USB Port CNC Engraving Machine Control Board

• Support limit switch, tool setting, steering gear, cooling fan and other functions
• The spindle supports 0-100% adjustable PWM power. Support PWM / TTL signal control, power 0-100% adjustable!
• Increase the power button switch (this switch is the control signal of the power supply, no large current passes through the switch, don't worry about the size of the switch)
• Cancel the drive module, integrate the imported stepper motor drive, and comes with short circuit protection, no need to worry about module damage. And integrated heat dissipation aluminum alloy.
• Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.
• Enhanced spindle drive. It can support 20,000 rpm spindle. Support higher power spindle.

CNC Offline Controller, 3 Axis GRBL DIY CNC Rounter Offline Control Button/Module LCD Screen

• Support SD card and TF card at the same time, standard capacity 1G.
• With this offline controller module, you can directly control the CNC router without connecting it to your computer.
• After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.
• Easy to use: All you have to do is connect the offline module to the GRBL controller board, which you can use it to control the CNC rounter.

• 【Model】1310 with ER11 Collet;【Working area】126mm*88mm*38mm;【Machine Dimension】 281mm*281mm*287.5mm;Type:Desktop cnc router
• 【Spindle&Stepper Motor】775 spindle (12 -36 V) (8000r /min, if 24 V) ER11 is pre -assembled on spindle shaft.; Stepper motor:2-Phase 4-Wire Stepper Motors (1.3A 0.25N.m);
• 【Power Supply】DC24V adapter (input: 110VAC-240VAC) ; Screw:T8 Lead Screw
• 【Software】Support GRBL Control;【Support System】windows XP, win7,win 8 (32/64 can be). Linux;
• 【Applicable material】 copper, aluminium and other soft metal;plastic, wood, acrylic, pvc, pcb, etc

User questions & answers

Question:	can engrave gold ring or bracelet
Answer:	Shure , it will. Ihave a SO3 XL and just took me 5 minutes to get it working, just follow intructions here: http://community.carbide3d.com/t/triquetra-3-axis-touch-plate-for-shapeoko-3-setup/7848
Question:	Can I cut carbon fiber
Answer:	The large side is 20cc so less than 1 oz
Question:	Can this engrave silver
Answer:	That slot is3 inches wide
Question:	Can I fully mill brass with this? Not just engrave, but mill 3D shapes
Answer:	Yes

Product features

CNC 1310

1Set 1310 CNC Router All-Metal Engraving Milling Machine Kit

2 x drill bits

1 x 775 Spindle with ER11 collet

1 x Power Supply

1 x Control Board

CD include GRBL Software and english user manual.

Descriptions:

Machine Dimension:281mm*281mm*287.5mm

Working Range:126mm*88mm*38mm

Software:GRBL control

Machine Material:Aluminum+Profile

Spindle:775 Spindle(12-36V) (8000r/min, if 24V)

Stepper Motor:2-Phase 4-Wire Stepper Motors(1.3A 0.25N.m)

Lead Screw:T8 Lead Screw

Power Supply:DC24V adapter (110V-240VAC)

Supported OS: Windows XP, Win 7, Win 8 (32/64 can be),Linux

Standard Package:All parts of this machine for assembly, spare tools

Applicable Materials:

Spindle with cutter especially for engraving: copper, aluminium, wood, plastic, PCB, acrylic, pvc, plywood, etc.

Module engraving suitable for: wood, plastic, leather, bone, stone, paper, shell, etc.

• ***【 Guarantees & Honest After Sale-Service 】*** The CNC 3018 Pro machine with 5500mw blue laser is the latest machine from Mostics Tech; Guarantee for this CNC 3018 Pro Router is 12 months. Additionally, we provide technical support and fittings for life. Any problems, please be free to contact us. We have professional technicians here to help you solve any problems. (For instance, we can teach you how to better polish your finished works or help you to transfer G-Code). Be free to Contact us.
• 【Update CNC 3018 PRO Machine 】 This 2-in-1 CNC 3018-PRO Router with 5.5W Power Module is an enhanced version of 3018. Newly designed handwheels + Integrated Driver Chip + Fixed heat sink + External fan + Sturdy housing to extend the life of the control panel, Self-sufficient short-circuit protection, Not easily damaged.
• 【Easy Assembling & Using 】Core components assembled. Making it much easier to install with clear assembly instructions and software, it only takes about 20 minutes to make it work. We also added 3 handwheels to make it easier to adjust the starting point for engraving. Save more time.
• 【Upgrade Offline Controller 】1,No need to connect the computer; 2, No need to download files. Manually adjust X, Y, Z axis location as engraving starting point, Manual opening or closing spindle, Manual opening or closing fan. 3, Included SD card reader to write into root directory G-code files or NC file.
• 【 Versatile & Widely Application】: Standard GRBL control, the working area can be 300x180x45mm with 775 spindle motor (12-36V) 24V: 10000r/min; Control software: Lasergrbl , supports the system Win xp/Win7/Win8/Win10 ; Suitable for cutting plastics, soft aluminum, wood, acrylic, PVC and PCBs.

Product features

Operating Software and Compatibility

• Dual software operation, newly upgraded “Candle 1.17” and “LaserGRBL V3.0.10”.

All the control software are open source programs,the relevant basic introductory tutorials can be found online, and you can also contact to get more supports.

• 【Upgrade Version CNC3018 Pro Max】Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;3018 PRO MAX machine is very easy to install,stable structure,our parcel also include english user manual.
• 【Working area】30x18x4.5cm;Frame size: 42x35x27cm;Type:USB port Desktop cnc router【System requirements】Windows XP / Win 7 / Win 8 / Win 10 / Linux; Can't support Apple product ; Supporting files:G-code (.nc/.txt/.tape/.gcode)
• 【Spindle&Stepper Motor】775 spindle motor (12-36V) 24V:10000r / min; Collet: ER11 3.175mm (Can be equipped with 0-7mm); Nema17 42 stepper motor 1.3A/0.25N.m
• 【Main application】Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.

User questions & answers

Question:	does it come with the xyz limit sensors
Answer:	Mine did not but I added them for about $20 in parts and a tweak to the firmware.
Question:	how wide of a surface can it engrave acrylic
Answer:	I use mine for specific CNC milling of parts so I couldn't say. With that said, I have cut to the edge of the bed minus the instep loss from the limiting switches I installed.
Question:	Spindle connection, does it matter how the red and black wire are connected? Spindle is not labeled
Answer:	red wire connect to "+" , black wire connect to "-"
Question:	Your cnc router comes only with the Microsoft drivers, do you have a site to get the linux drivers
Answer:	As I'm running windows on my system, I never checked for others. I have been told they are available online with a Google search.

Product features

CNC 3018 PRO MAX DIY Mini CNC Router Kit engraving machine

Package include:

• 1 set 3018 Pro Max CNC Router Kit w/ ER11 Collet
• 1x GRBL 1.1f Control Board
• 1x Power Supply
• 10x 20°0.1mm Drill Bits
• 1Set Allen Wrench
• 1x 4G USB flash drive include english user manual & GRBL software

Package:

GRBL 1.1f Control Board

1. Connection: USB (USB-CH340)
2. Software: GRBL controller, UniversalGcodeSender
3. Input voltage: 12-24V
4. Master chip: atmel 328P (arduino nano)
5. Spindle drive chip: MOSFET (recommendation 24V, current : within 10A
6. Spindle PWM speed: Support
7. Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
8. Power Interface: 5.5-2.5mm DC interface

Product description

• Please dowmload the files form here: https://drive.google.com/drive/folders/1rjUtawvg5VgDPTFGfN-OBi1DF7kUrPhl?usp=sharing
• GRBL control board does not support updating software or refreshing firmware, otherwise the control board will be damaged.
• System requirements: Windows XP SP3; Win7 (32/64 can be); Linux; Can't support Apple system
• The machine for a full set of spare parts, shall be installed by the buyers,the package include the U Disk with detailed user manual, buyers don‘t need to worry about machine Assembly.
• Main application:Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.

User questions & answers

Question:	Since this just takes G-Code, why doesn't it support anything above Windows
Answer:	The compatibility of the win10 system is very poor, the GRBL control board and the window10 system may not be compatible, and unknown (unsolvable) problems may occur. In order to ensure a good shopping experience for buyers, we have made a reminder.

Product features

CNC 1610Pro

• Dimensions: 30*26*25cm (including motor and other protrusions)
• Machine net weight: 5kg
• Guide rail diameter: 10mm
• Stepper motor: 42 stepper motor 1.3A/0.3N.m
• Maximum stroke: 18*10*4.5cm
• Table size: 18*10cm
• System support: Windows XP/7;Linux
• Power supply parameters: AC110-240V
• Control system:grblcontrol, USB interface

GRBL1.1f Control Board

• Support limit switch, tool setting, steering gear, cooling fan and other functions
• The spindle supports 0-100% adjustable PWM power.
• Support PWM / TTL signal control, power 0-100% adjustable!
• Increase the power button switch (this switch is the control signal of the power supply, no large current passes through the switch, don't worry about the size of the switch)
• Cancel the drive module, integrate the imported stepper motor drive, and comes with short circuit protection, no need to worry about module damage. And integrated heat dissipation aluminum alloy.
• Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.
• Enhanced spindle drive. It can support 20,000 rpm spindle. Support higher power spindle.

• 【Update CNC 3018PRO】The 3018-PRO Ver is the latest version of the 3018 Desktop CNC DIY Kit Series, with an offline controller, it can be sculpture in the offline state. Now Pre-assembled and no fuss with assembly taking less than 15 minutes out of the box.
• 【Offline Controller】Do not need to connect the computer. You can download the needed carving files into off-line controller. Manually adjust X, Y, Z axis location as engraving starting point. Note: Please don't use the computer and the offline controller at the same time, otherwise it will block the communication.
• 【DIY Fun】This DIY CNC engraving machine is especial designed for DIY fun, study and research with professional GRBL control software, giving you extreme portable experience. Don't need to download any files. The off-line controller can control all actions, can directly do some simple curving, such as punching, curving rectangle shape and so on.
• 【CNC Engraving】 With an effective engraving area of 300x180x40mm / 11.8*7.1*1.6in. the 3018pro can easily accommodate most projects. Spindle: 775 spindle motor. Supported System: Windows XP / Win 7 / Win 8 / Win 10.

User questions & answers

Question:	I like the ofline capability version, but it doesnt have option to select the size option as mentioned in brief descriptions. What shouod I do? Than
Answer:	The size of the pattern can't be adjust, because the size is decided and fixed when transferred to code. For more information, you can browse http://youtu.be/----y1dwEBvKEy1dwEBvKE
Question:	What would be the axial loads applied to the workpiece during the process
Answer:	The axial load is depended by the code, and it won't show you the data, so we are unable to know how much is the axial load
Question:	It's laser engraving
Answer:	It's a standard machine+ grbl offline control, not laser engraving
Question:	Can i engrave jewelry like ring
Answer:	The machine is suitable to engrave on a flat surface, a ring is arc-shaped, it will be very difficult to curve.

Product features

CNC 3018 Pro Engraving Router Machine

Designed for the absolute beginner, it's a great tool for starting CNC learning. If you are a wood-working amateur, you can use it to add features like curved words and exquisite patterns. If you are a student just start learning CNC, it can help you engrave the models you are coding and designing.
