Below you can find our editor's choice of the best batteries with pcbs on the market
DALY BMS 4S 12V 250A LiFePO4 Battery Protection Module PCB Protection Board with Balance Leads Wires Protect BMS 18650 Battery Pack 12V Common Port with Cooling Fan
Product description
Adopt top quality (A-level) Seiko IC from Japan.
BMS owning waterproof patent, no worry in rainy days.
Extending battery life-span, improve performance.
Parameters:
BMS protect battery charge current: 400A.
BMS protect battery discharge current: 600A.
BMS protect battery charge voltage: 3.75V.
BMS protect battery discharge voltage: 2.2V.
Continuous charging current: 125A.
Continuous discharging current: 250A.
Balance voltage: 3.7V.
Package:
3.2V LiFePO4 BMS*1, matching balance wires*1, English version wiring manual*1.
- Over current protection---18650 LiFePO4 battery pack will stop charging when current over 400A(AMP) and will stop discharging when current over 600A(AMP).
- Over-charge over-discharge protection---18650 LiFePO4 battery pack will stop charge when its voltage reaches 3.75V and stop discharge when its voltage reaches 2.2V.
- Temperature protection---low temperature -7℃ battery protection and high temperature 70℃ discharging battery protection.
- Quality Guarantee--- ISO/ FCC/ RoHS/ PSE/ CE APPROVED.
- Shipping time---within 9-14 days from China Dalyelec usually. Only during Labor Day(May 1-3), National Day(October 1-5) and Spring Festival(Feb 9-18, 2021) need most extra 3-10 days. Tracking information available.
User questions & answers
| Question: | Can low temp protection be changed to 0c as needed for most lifepo4 3.2v cells |
| Answer: | Yes with the right connection |
| Question: | Can you set temperature parameters to be higher than -7c and lower than 70c |
| Answer: | If you have the right connection. |
| Question: | Does this include the high-amp battery connectors |
| Answer: | Yes |
| Question: | is this just a "plug and play" system? If I buy 4 cells from china, will hooking up to this automatically balance them out? Anything else needed |
| Answer: | No.... you’re going to have to start with them balanced to connect. Top balance first. |
DAOKI 2Pcs PCB Protection Board 25A 3S 11.1V 12.6V Li-ion 18650 Lithium Battery Charger PCB BMS Protection Board Lipo Cell Module with Balance Charging for Current Drill Motor
DAOKI
Product description
Description:
Features:
100% Brand New and High Quality
Strictly according to the diagram wiring: 0V (B) 3.7V (B1)7.4V (B2)11.1V (B+), Do not deliberately short circuit.
After the line is connected, need to charge first, then have output.
When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use.
Do not mix the good battery and the battery.
The capacity of the battery internal resistance is closer will be better.
Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying.
Specification:
Over voltage range: 4.25 4.35±0.05v
Over discharge voltage range: 2.3 3.0±0.05v
Maximum operating current: 0 25A
Maximum transient current: 34 40A
Quiescent current: less than 30uA
Internal resistance: less than 100m?
Working temperature: 40 +50°C
Storage condition: 40 +80°C
Effective life: more than30000h
Short circuit protection: Yes, delayed self-recovery
Size: 56mm x 45mm x 1.2mm/2.2 x 1.8 x 0.05inch (L*W*H)
Material: PCB
Package Includes:
2 x Battery Protection Board 25A 3S 11.1V 12.6V
1 x 14AWG 50cm/19.6inch Power Wire
- High-accuracy voltage detection circuit, fine workmanship and durable.
- Highlight: Over-discharge protection, overcurrent protection, overcharge protection, Short Circuit Protection; High charge and discharge current; Compact size and lightweight.
- With equalizer. Increase battery life, safety and stability.
- MOS transistor can control the battery charge and discharge, low standby current consumption.
- 0
User questions & answers
| Question: | Will these work with just 2 batteries |
| Answer: | I have had this Tea kettle for about 2-3 weeks now. I have not had any rusting. I am careful about emptying it out when I am done for the day. It is light weight and pretty. I am pleased with it. |
| Question: | What is the physical size? I see 2 different sets of numbers. 56mm x 45mm and 122mm x 90mm |
| Answer: | It made from CHINA. |

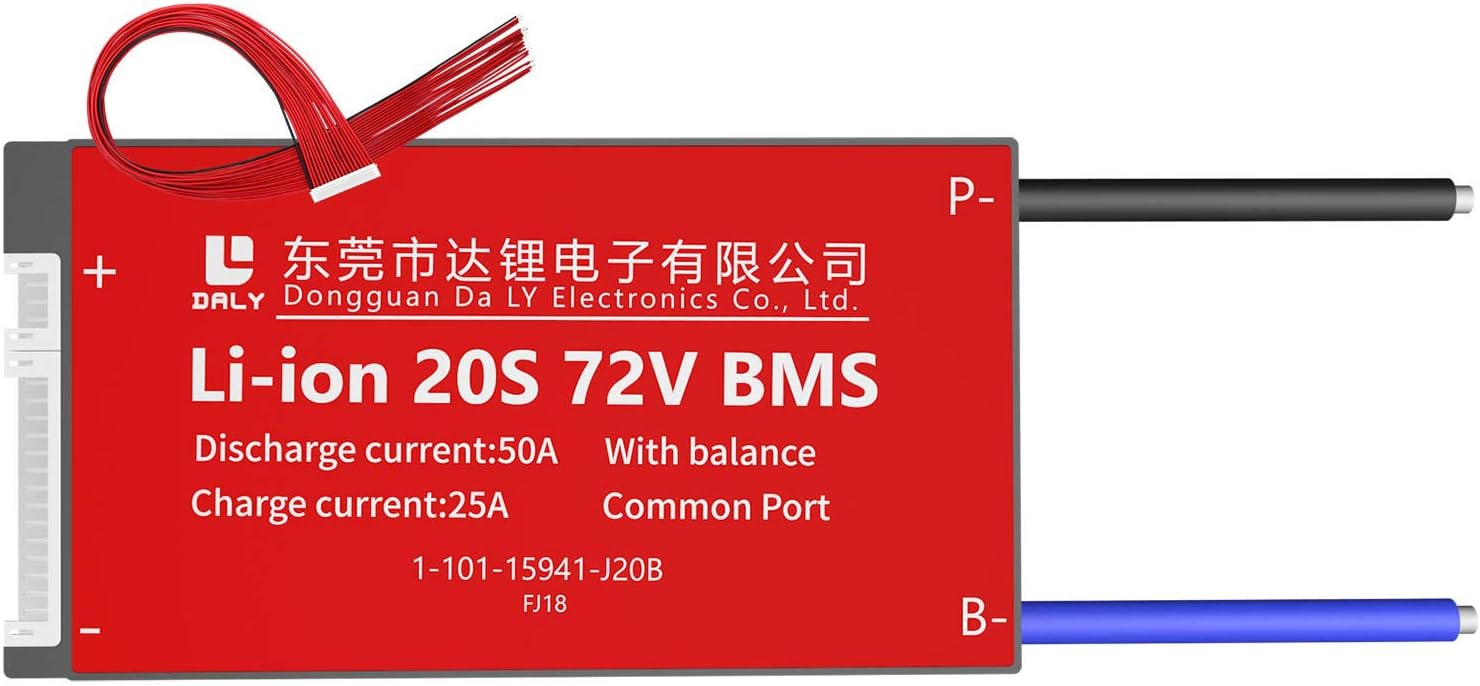

DALY BMS 20S 72V 50A Li-ion Battery Protection Module PCB Protection Board with Balance BMS Leads for 18650 Battery Pack 72V
DALY
Product description
Adopt top quality (A-level) Seiko IC from Japan.
BMS owning waterproof patent, no worry in rainy days.
Extending battery life-span, improve performance.
Parameters:
BMS protect battery charge current: 33A.
BMS protect battery discharge current: 150A.
BMS protect battery charge voltage: 4.25V.
BMS protect battery discharge voltage: 2.7V.
Continuous charging current: 25A.
Continuous discharging current: 50A.
Balance voltage: 4.2V.
Package:
3.7V Li-ion BMS*1, matching balance wires*1, English version wiring manual*1.
If you have any other questions, please leave us a message.
We are happy to assist you and are willing to offer a 100% satisfactory shopping experience.
Welcome to this DALY BMS only official store DalyElec to buy.
- Current Protection----BMS will stop LiFePO4 18650 battery pack from charging when instantaneous charge current over 33A and discharging when instantaneous discharge current over 150A.
- Over-charge over-discharge protection---18650 Li-ion battery pack will stop charging when its voltage reaches 4.25V and stop discharging when its voltage reaches 2.7V.
- Temperature protection---low temperature 0℃ battery protection and high temperature 70℃ discharging battery protection.
- Quality Guarantee--- ISO/ FCC/ RoHS/ PSE/ CE APPROVED.
- Shipping time---within 9-14 days from China Dalyelec usually. Only during Labor Day(May 1-3), National Day(October 1-5) and Spring Festival(Feb 9-18, 2021) need most extra 3-10 days. Tracking information available.
WSDMAVIS 1 Pcs Portable 7-16V High Rate Lithium Battery Energy Storage PCB Circuit Board DIY 12V Spot Welder PCB Board for Battery
Product description
Note:
Actual color may be slightly different from the image due to different monitor and light effect. Please allow minor deviation due to manual measurement.
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
Package Includes: 1pcs
- This circuit with 12V battery will become a storage spot welding machine for lithium battery, nickel-chromium battery and other nickel sheet welding.
- According to different configurations, the welding thickness can be about 0.1MM-0.15mm. By replacing the thicker wire (10 square), it can barely weld 0.2MM thickness.After all, this device is geared towards electronics enthusiasts, and the frequency of use will not be very high, so it can also use 0.1-0.15 solder 2 to replace thicker nickel pieces.
- The keys can switch modes, each mode corresponds to different welding time, LED corresponds to red / green / blue / white / yellow / pink / purple, 7 modes, the shortest red time and the largest purple welding time. Long press to set the waiting time. The default is 3 seconds and the maximum can be set to 10 seconds.
- Supply Voltage: 12V-16.8V (capacity X rate = must be greater than 150A).Current Requirements: 150A or more instantaneous output (such as car starter power supply, 3S RC high-power battery pack, 20A lead-acid battery with good performance above 20A).
- Note:18650 battery cannot be used as power supply.Support Farad capacitor, Aircraft model high rate battery.
18V Battery Chip PCB Board 18650 Battery Charging Protection Circuit Module Board Green Compatible With Makita BL1830 BL1840 BL1850 LXT400
Product description
Item Descriptions:
-[Model]: BL1830 BL1840 BL1850 LXT400 bms PCB board.
-[Type]: Charging protection board.
-[Compatibility]: Suitable for 18V Makita BL1830 BL1840 BL1850 LXT400 Power Tool Battery.
-[Function]: Offering over charge protection, over discharge protection, short circuit protection, over current protection, reverse charge protection, over heat protection etc.
-[Replacement]: Easy to repair the broken circuit board, can use many times will not broken until the battery cells dead.
-[Note]: Please allow 1-2cm errors due to manual measurement.
Package:
1 x Lithium Battery PCB Board
(Note:Battery not Included)
Item Specifications:
Voltage:18V
Nominal Capacity:3.0Ah
Size:45x33mm/1.77x1.29inch
Main Color:Green
Material:CCL(Copper Clad Laminate)
Country/Region of Manufacture:Hong Kong
Brand:Unbranded/Generic
MPN:[AUTO FILL EAN]
- [Model]: BL1830 BL1840 BL1850 LXT400 bms PCB board.
- [Type]: Charging protection board.
- [Compatibility]: Suitable for 18V Makita BL1830 BL1840 BL1850 LXT400 Power Tool Battery.
- [Function]: Offering over charge protection, over discharge protection, short circuit protection, over current protection, reverse charge protection, over heat protection etc.
- [Replacement]: Easy to repair the broken circuit board, can use many times will not broken until the battery cells dead.
2Pcs 3S 11.1V 12.6V 25A W/Balance 18650 Li ion Lithium Battery PCB Protection Board
Product description
Product Description
Features:
100% Brand New and High Quality
Strictly according to the diagram wiring: 0V(B )3.7V(B1)7.4V(B2)11.1V(B+), Do not deliberately short circuit.
After the line is connected, Need to charge first, then have output.
When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use.
Do not mix the good battery and the battery.
The capacity of the battery internal resistance is closer will be better.
Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying.
Specification:
Over voltage range: 4.25 4.35v¡À0.05v
Over discharge voltage range: 2.3 3.0v¡À0.05v
Maximum operating current: 0 25A
Maximum transient current: 34 40A
Quiescent current: less than 30uA
Internal resistance: less than 100m?
Working temperature: 40 +50?
Storage condition: 40 +80?
Effective life: more than30000h
Short circuit protection: Yes, delayed self recovery
Size: 56mm*45mm*1.2mm(LXWXH)
Material: PCB
Color: Green
Quantity: 1 PC
Net Weight: 12g
Note: Lighting, display and other factors may cause COLOR SHADING, please comprehensive pictures and text descriptions to determine!
Package Includes:
2 x Battery Protection Board
- Over voltage range: 4.25-4.35v ± 0.05v; Over discharge voltage range: 2.3-3.0v ± 0.05v
- Maximum operating current: 0-25A ;Maximum transient current: 34-40A
- Wiring:(please check the picutre 3 wiring diagram)Strictly according to the diagram wiring: 0V(B )3.7V(B1)7.4V(B2)11.1V(B+), Do not deliberately short circuit. After the line is connected, Need to charge first, then have output.
- When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use. Do not mix the good battery and the battery.
- Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better.
User questions & answers
| Question: | Is the max power handling 25 amps at 12v or 3.7? (300w or 92.5w |
| Answer: | At 12v. I've had no problems pulling 15-20 amps out at 12v. |
| Question: | If a single cell drops below 2.3V will the entire battery pack be disconnected? It appears that all three cells need to drop below 2.3V |
| Answer: | Calling this tiny board "BMS" is overkill, This is more of a simple "Battery Protection board" with little bit of so called "BMS" thingy. This BMS won't cut on discharge until at least one "cell-group" has dropped to a dangerously low voltage.. Since you see the arrangement is 3S and with 5 x 18650 in parallel, one of such cell-group developing an internal fault and dropping to a dangerous low level of 2.3 while the rest of the cells in the 3S configuration having more than 4.0 is very rare and if that ever happens, it better that the BMS disconnects that cell-group to save the other two groups. To answer your question: - Yes! if single cell drops below 2.3v it does have a potential for the entire battery pack to be disconnected from the output terminal by design. |
| Question: | When using a 12v power supply to charge the battery, will the BMS automatically shut off, or can it be overcharged |
| Answer: | For this item the max voltage that should be put into it for standard max voltage 4.2v 18650 batteries is 12.6v (4.2v x 3s). Any more than that and you risk overcharging (damaging) your batteries. For the longest life for the batteries over time 12v should be most optimal (ends up being about 8-10% under max capacity of most batteries). |
| Question: | One you build the battery, i assume you need a 12v dc charger. anyone have any reccomendations for chargers |
| Answer: | find something at 12.6v - there is a company called talentcell on amazon that sells some already put together batteries using 3s 18650 cells at various parallel configs to give different capacity. They do sell their 12.6v chargers separately - but keep in mind they are designed for 3s2p or 3s3p levels of setup - i think 1 or 2 amp - so depending on how big your build is - these may not work for you. I have in the past gone with 12.6 volts and used 1 amp for every parallel set of cells. so for a 3s5p battery i had a 12.6v 5a charger - lots of those on here too. |
M12 Li-ion Battery Plastic Case PCB Charging Protection Circuit Board Label For Milwaukee 12V 48-11-2411 6Ah Sticker Box Housing (M12-3-BOXPCB)
Product description
M12 Battery Plastic Case (no battery cell ) PCB Circuit Board For Milwaukee 48-11-2411 M12 Li-ion Battery
Note: This product is only the shell material, does not contain any battery, there is no battery inside.
DORHEA 5PCS 18650 Battery Charger Digital Protection Board Dual USB 5V 1A 2.1A Mobile Power Bank Battery Charging PCB Module Board with Digital LCD Charging Module for Phone DIY Mobile Power Bank
DORHEA
Product description
Features:
Input Port:micro USB
Input Power Supply: DC 5V
Output Power Supply: DC 5V 1A 2.1A
Batteries Type: liquid lithium-ion batteries (186 50)
Protection: overcharge protection,overdischarge protection, short circuit protection,over current protection,over temperature protection.
Installation instructions:
The circuit board is connected to the battery negative B-, B + is the positive, do not connecting reversed, connecting reversed will burn the board, the battery is connected in parallel welding, assembling battery.
Note that the insulation between the battery and the circuit board, battery lead not to touch the circuit board, so as not to cause a short circuit.
Package included:
5 x Mobile power bank battery charger protection module
Note:
Long press the switch, the manboard will turn on the USB output,long press it again to turn off the USB output; Press the switch twice to turn on the lamp, and press twice again to turn off the lamp
When use the board at first time, please connect 5V power adapter to the micro USB port to activate the board.
It support multi battery in parallel connection.
How to choose the right battery:
The battery should be flat 18650-battery, 65mm long, pointed battery can not be used.
If you use old batteries, different capacities, different brands are not available, disassemble the battery to ensure that each voltage is at least 3.5V or more.
If the voltage is too low, then you can put it into the battery.
(Note: You can also use lithium battery, mobile phone tablet battery)
- The battery of the 186 50 battery must be flat, and the length is 65MM. The pointed battery cannot be used.
- Connection methods: It is possible to connect only one lithium battery or multiple lithium batteries in parallel.
- Charge indication of this power bank pcb board: The word "IN" will be shown in the display.
- Output indication: Long press the LED button after turning on the load, Start output, "OUT" and the current and voltage of 5.0V1.0A or 5.0V2.1A will be displayed in the display.
- Note: The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it.
User questions & answers
| Question: | Can it charge battery while discharging to load |
| Answer: | While the performance chip is unable to disable codes or check engine lights caused from an EGR delete, it's fully compatible and stackable with other power programmers and tuners, so you can use both our performance chip and an EGR delete kit at the same time with great results! We proudly stand behind everything we sell with our 100% Money-Back Guarantee and guarantee that our performance chips will improve your vehicle's performance and fuel mileage, typically by up to +50 horsepower and up to +5 MPG! If you have any other questions, then please feel welcome to contact our Customer Loyalty team. |
for Dewalt 18V 20V Battery PCB Board 1.5Ah 2.0Ah 2.5Ah DCB200 DCB201 DCB203 DCB204 Li-ion Battery Cover Parts
AuthFrank
Product description
DCB200 Replacement PCB Chip Board:
1. Standard chip board PCB for replace for
Dewalt tools battery DCB200
2.For Dewalt 20V DCB200 DCB201DCB203
DCB204 Li-Ion Battery
Packing List:
1*PCB
- Circuit board for Dewalt 18V 20V 1.5Ah DCB200 DCB201 DCB203 DCB204 Lithium Ion battery
- Designed 100% compatible and easy to repair the broken circuit board
- Completely protection and replacement for original Battery
- Offering overall battery protections on over-charge, over-discharge, over-temperature etc.
- Quick-responding technical support for free
MNJKH 3pcs/Lot 3.7v 18650 2500mah 1s1p Li-Ion Battery, with PCB Wires and Jst Ph2.0 Connector
Product description
Type: Li-Ion
Weight: 50g
Model Number: 18650 battery with wires and pcb
Size: 18*65mm
Nominal Capacity: 2600mah
Voltage: 3.7v
- Long life, large capacity and good shock resistance,Low self-discharge and good discharge performance at low temperature
- Strong charging acceptance and quick-charging capability
- Strong over-discharge resistance and charge retention
- Maintenance-free and no acid or water for maintenance in usage
- Excellent large current discharge performance, and have obvious advantages in startup and climbing High temperature performance Environmental friendly,Lighter weight smaller size
12V DIY Portable Spot Welding Machine Battery Storage PCB Circuit Board Welding Device Spot Welders for 18650 26650
Product description
This product is very useful in daily life, with an battery, it will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries practical, easy to operate and use, wide application range, has a long service life. Come on and try it.
Specifications:
Material: PCB
Suitable for: 18650/26650/32650 lipo battery
System voltage: 12-V-14.6V
Working current: 90-150A
Suggested battery: (not included)
20-45ah Lead-acid battery with fine performance and small internal resistance
3.5-5.5ah 45C 3S aeromodel lithium battery pack
30-35ah capacity 18650 battery pack
Package size: 190 * 110 * 30mm / 7.5 * 4.3 * 1.2in
Package weight: 110g / 3.9ounce
Note:
If the battery is pretty and the internal resistance is very low, and then there may be large current overload.
If you are not sure about your battery, it's better to extend the wire by around 1 meter with 2.5² or 4² wire, then it will reduce the risk of power tube burnt.
Packing list:
1 * Main Circuit Board
2 * Input Wire
2 * Output Wire(with Welding Pen)
1 * Welding-Components Kit
- 🛠 There is a window on the back of the drive part, you can add copper or tin by yourself.
- 🛠 The external pads for the LED and the on-board buttons are added to facilitate the connection of the LEDs and buttons on the board to other places.
- 🛠 The upper and lower MOS design is bold and tinned to make the internal resistance smaller and the current stronger.
- 🛠 Using 25V low internal resistance and high frequency capacitors makes the power supplies more stable.
- 🛠 This circuit with a 12-V battery will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries. According to different configurations, the thickness can be about 0.1mm-0.15mm
TZHK Lithium Ion Rechargeable Battery Cell for Li-Ion 18650 Battery Pack 2S1P 7.4V 2200Mah Rechargeable Battery Pack with PCB and Ntc Blue-Blue
TZHK
Product description
Color:
blue
Weight: 120g
Size: 32 * 68mm
Model number: 18650 2S
Nominal capacity: 2200mah
Type: Li-Ion
Voltage: 3.7V
- Rechargeable battery, Stable discharge rate, no '' memory effect '' lithium battery cell
- High energy density and long-lasting power, ensures extremely long charging circles, ideal for long-term daily use.
- Durability, cost savings, high energy density, ensures a long-lasting power supply, providing continuous power to your equipment.
- The PTC Internal Safety switch is automatically disconnected in the event of a short circuit and internal pressure of the Safety valve, which can effectively prevent the explosion.
- It is widely used in flashlights, headlights, power groups, microphones, radios, LED lights, cameras, toys, remote controllers, miniature fans, portable printers, emergency lights, Intercoms, portable DVDs, notebook computers, stereos, models of aircraft and other electronic equipment that require batteries.
Protection Circuit Module Board For Makita Replacement Battery PCB Li-ion 18V, Battery PCB Chip Board For Makita 18V bl1830 bl1840 bl1850(1 PC)
MAYiT
Product description
Description:
100% brand new and high quality!
Made of copper clad laminate, durable.
For Makita 18V bl1830 bl1840 bl1850 power tool battery.
Durable,can use many times will not broken until the battery cells dead.
Easy to use.
Charging protection board.
Specification:
Material: copper clad laminate
Color: as shown
Size: Approx. 4.6x3.3cm
Applicable model: for Makita bl1830 bl1840 bl1850 bms PCB board
Voltage: 18V
Nominal Capacity: 3.0Ah
Package:
1 pc x Lithium Battery PCB Board
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
- Main Function:over charge protection, over discharge protection, short circuit protection, over current protection, reverse charge protection, over heat protection
- Replacement :Replace part number for Makita bl1830 bl1840 bl1850 power tool battery.
- Compatible with: For Makita 14.4V BL1430 BL1440 BL1450 Power Tool Battery.
- Durable,can use many times will not broken until the battery cells dead.
- Voltage: 18V Nominal Capacity: 3.0Ah
User questions & answers
| Question: | Is there any information about where to connect the wires |
| Answer: | No, need 3 18650s |
| Question: | Where the thin red wire should be connected to |
| Answer: | 56mm x 45mm |
Latest Reviews
View all
Cable Tv Boxes
- Updated: 10.07.2023
- Read reviews
Tweezerman Magnifying Mirrors
- Updated: 08.04.2023
- Read reviews
Car Air Filters
- Updated: 07.07.2023
- Read reviews
Robotics Kits For Adults
- Updated: 12.02.2023
- Read reviews
Sleep
- Updated: 22.02.2023
- Read reviews
