10 best open operator for sliding gates

• Stainless Steel
• For 40 ft. & 1,400 lb. Gate ----- This product is designed for heavy-duty sliding gate up to a maximum length of 40 ft. (includes 20 ft of chain) or a maximum of weight of 1,400 lb.
• Quiet & Powerful 280W Motor ----- The integrated 280W AC motor drives the gate opener smoothly at the speed of 43 ft. /min while producing less than 56 dB noise.
• Auto-Close Feature ----- Featuring an auto-close option, this slide gate opener can be set to close in 12, 24, or 36 seconds after it opens; you can add 23 more remotes to control this system for convenience.
• 100 ft. Range ----- The complementary remote controls operate perfectly within 100 ft, so you do no get out of your car to open the gate ever again, comes with 4 buttons for open/close/stop open/close stop.
• Durable with Unparalleled Safety ----- Constructed with aluminum base, copper worm-gear for durability; CE approval for ultimate safety. RF Hopping Code Technology prevents your remote code from being accessible to others. Suitable for 110V.

Product features

DIY Lovers' Preference

• Perfect for DIY lovers, same quality but easier to install, our gate opener operates smoothly and delivers outstanding performance with the capability to open gates up to 3,300 lb. Versatile and can be upgraded with a few more functions with the compatible accessories. (Including solar power recharge, auto-stop function, emergency notification etc.)

Convenient Remote Control

• Your gate comes with 2 remote controls that can be securely matched during installation and operate the gate from distances of up to 100 ft. whether on foot or in your car. The gate opener's control system can be matched to up to 25 remotes to accommodate large families and small businesses.

Magnetic Limit Switches

• The magnetic limit switches set the gate's maximum open and closed positions and ensure safe operation. The switches automatically buffer the gate's operation and keep it from misalignment or going off the rails.

Failsafe Manual Release

• If the remote controls are not around or there's a power outage, Plan B to open the gate is your manual release keys, which easily unlock the automated gears and let you push it open by hand.

• 1800 lb Capacity ----- The smooth-drive 200W AC motor powerfully propels gates with a maximum length of 43 feet or a maximum weight of 1,800 lb while producing under 56 dB noise.
• Auto-Close Feature ----- For your convenience, this slide gate opener can be set to close automatically in 12, 24, or 36 seconds after it opens. For safety, the 2 intelligent infrared sensors will stop and reverse the door if it encounters an obstruction when closing or opening.
• 100-FT Range Remodes ----- Includes 2 remote controls with a 100-foot operation range. Each remote has 4 buttons: Open/Close/Stop Open/Stop Close. You can add up to 23 more remotes to control this system.
• Stainless Steel Durability ----- Carefully constructed with an aluminum base, durable copper gears, and stainless steel for rust-resistance. RF Hopping Code Technology secures your remote code from potential intruders.
• 1-Year Warranty ----- We pledge a one-year 100% return & exchange service. Instructions are included for an easy DIY installation. Suitable for 110V.

User questions & answers

Question:	If my gate is 26 feet in length, I have to buy more chain? Confusing because says compatible with gates up to 40 feet
Answer:	Yes it works with both 110v 220v
Question:	Does it have pedestrian mode
Answer:	I'm using it in Saudi Arabia. :)
Question:	How could I order more controls
Answer:	No Battery backup for the Battery installed. There is a CR2 3v Battery in the device. The SmartThings app can tell you the status of the Battery.
Question:	Can it work of a solar panel
Answer:	There is no USB port on this model. It uses a CR2 3v Battery. One Battery is included.

Product features

DIY Lovers' Preference

• Perfect for DIY lovers, same quality but easier to install, our gate opener operates smoothly and delivers outstanding performance with the capability to open gates up to 1,800 lb. Versatile and can be upgraded with a few more functions with the compatible accessories. (Including solar power recharge, auto-stop function, emergency notification etc.)

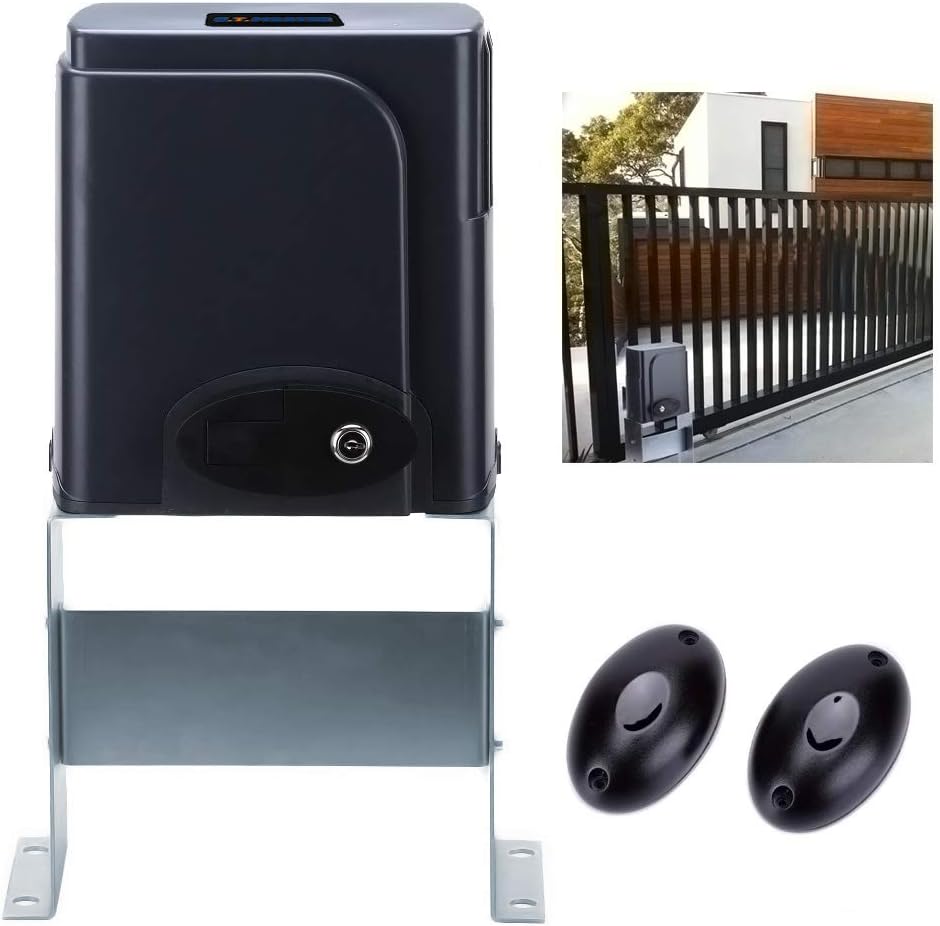

Intelligent Infrared Sensors

• Our sliding gate opener is equipped with two infrared sensors that protect you and your loved ones if you're in the wrong place as it starts to close. When there are obstacles detected, the opening gate will pause and the closing gate will reopen.

Convenient Remote Control

• Your gate comes with 2 remote controls that can be securely matched during installation and operate the gate from distances of up to 100 ft. whether on foot or in your car. The gate opener's control system can be matched to up to 25 remotes to accommodate large families and small businesses.

Magnetic Limit Switches

• The magnetic limit switches set the gate's maximum open and closed positions and ensure safe operation. The switches automatically buffer the gate's operation and keep it from misalignment or going off the rails.

• GT1300 Sliding Gate Opener -- The gate weight is less than 1300lb and length is less than 27ft. The length of the chain is 20ft, it can be shortened. If it need to be lengthened, make sure to use same type of chain.
• Remote Control -- Remote control is single button mode, one same button on the remote control to circularly control the main engine OPEN/STOP/CLOSE/STOP, the three buttons have the same function, the other button is pedestrian mode. Supports up to 25 Remotes (Including batteries).
• Infrared Photocell Function -- In the closing process, when infrared ray of the infrared sensor is covered, the gate will open immediately, to protect user and property security. (The Infrared sensor is free as a gift.)
• Automatic Close Function -- Auto-Close time can be set to 12, 24, or 36 seconds and no automatic close function.
• Intelligent Control Board -- Soft start and slow stop function,which can extend the life of the gate opener and safer.

User questions & answers

Question:	Hi seller.. I've installed the opener but now I don't really know how to adjust the open and close limits. Need help with instructions
Answer:	No, You need the S89852000 grill & lens if you have a 668RP.
Question:	How do i contact someone about site prep, additional parts needed to complete installation etc
Answer:	Be careful when you are ordering light covers for exhaust fans. They make a million of them. The reason I ordered one on Amazon (other than the fact that it's the best way to buy :) ) is that Home Depot doesn't sell the right one for mine. The measurements for mine are 5 1/4" x 10 1/2" Hope this helps.
Question:	I ordered the motor but I want to go back and add insurance is it possible
Answer:	You need to disassemble the motor (device above the heater) and tighten all of the nuts, bolts and screws. If it looks dirty and rusty, spray some WD-40. We just fixed ours by doing it. It was really obnoxiously loud, and now it is a normal bathroom exhaust. So happy!
Question:	Can you ship to Puerto Rico
Answer:	The measurements are as specified under the description. The cover is held in place by the central light-can that pins the cover in place. Therefore it is very specific to this vent design.

Product features

NOTE

• -The product is AC motor, so it can not connect with solar panel or storage battery.
• -Remote controller can be deleted together, but can not be partially deleted.
• -The motor will has thermal protection function if the machine keeps working over 15 minutes.
• -You can add 25 extra remotes at most to control this system.
• -You can also use the manual release key if a power outage or an emergency happening.

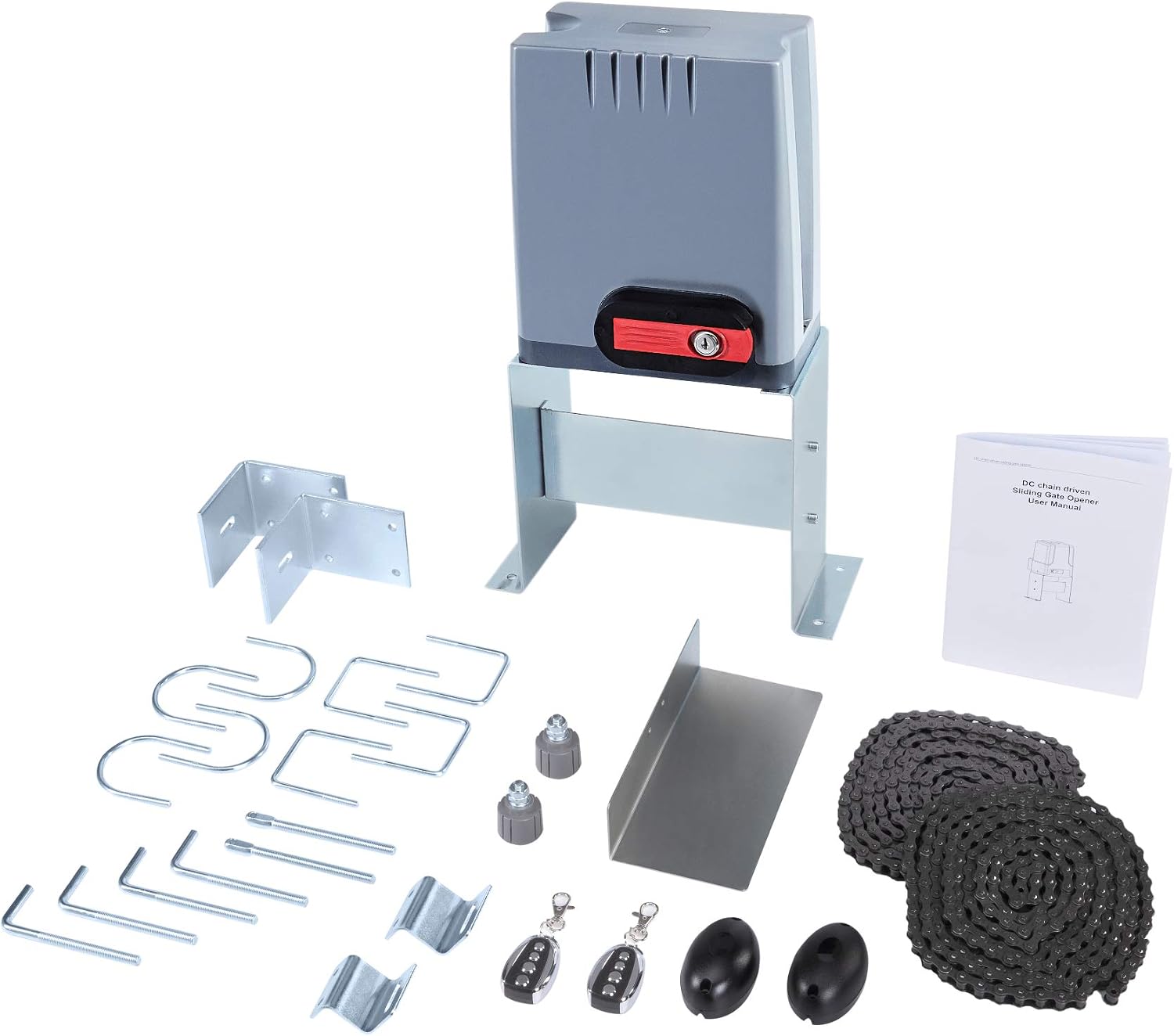

PACKAGE INCLUDES

• 1*Sliding Gate Opener Unit
• 1*20ft of Chain
• 2*Remote Controls
• 2*Manual Release Keys
• 2*Infrared sensor
• 1*Mounting Hardware
• 1*Manual

• 【Powerful Output & Solar Capable】- Featuring a STRONG 350W 1/2 HP DC motor with low power consumption, TOPENS DKC1000 Sliding Gate Opener is designed for HEAVY DUTY sliding gates up to a maximum of 1800 lbs. in weight and 40’ in length. Powered by the AC source or by the battery & solar panel, the durable and reliable motor made by pure-copper wire brings a superior performance. The ultra-quiet system provides a long operating life with minimum maintenance requirement.
• 【Multiple Applications】- Suitable for all types of sliding gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as tube, panel, and chain-link. Typical application includes residential, commercial, courtyard, farm & ranch. Easy DIY installation with commonly available tools, no extra welding, no high-voltage electrical connection. Full mounting hardware and easy-to-follow instructions are included for your peace of mind. The whole installation takes just a few hours.
• 【Clever Design】- Using advanced technology, the open/close direction is easy to switch. The adjustable midway/pedestrian mode allows the gate open for only a few feet. Chain length is adjustable. The energy-saving designed system supports all the power supply modes, by 24V battery (battery NOT included), by AC 110V electricity, or both at the same time. A wide range of accessories are available, include Solar Panel, TC186-R WiFi Remote, TKP3 Wireless Keypad, TEW3 Vehicle Sensor Exit Wand, etc.
• 【Safe to Use】- Features TOPENS security technology that ensures multiple protection & safety. Reliable magnetic limit switch for easy adjustment. Soft start and soft stop ensuring a long-lasting performance. Adjustable auto-close time (0/30/60/90s), adjustable stall force, max motor running time (90s), and microchip rolling code for remote keys. Built-in stop and reverse mode in case of obstruction. Equipped with manual release key in case of power outage or when you lose your remote.
• 【Outstanding Customer Service】- Backed by a 12-month TOPENS Warranty, and free product return & exchange service within 30 days. More than a gate opener, our complimentary TopensCare+ Customer Support provides you comprehensive system solutions.Simply contact us via the service Email for any concerns during product installation and use.We are quite sure that you will be super-impressed with HIGH QUALITY of our Sliding Gate Opener.

Product features

Durable & Reliable Sliding Gate Opener

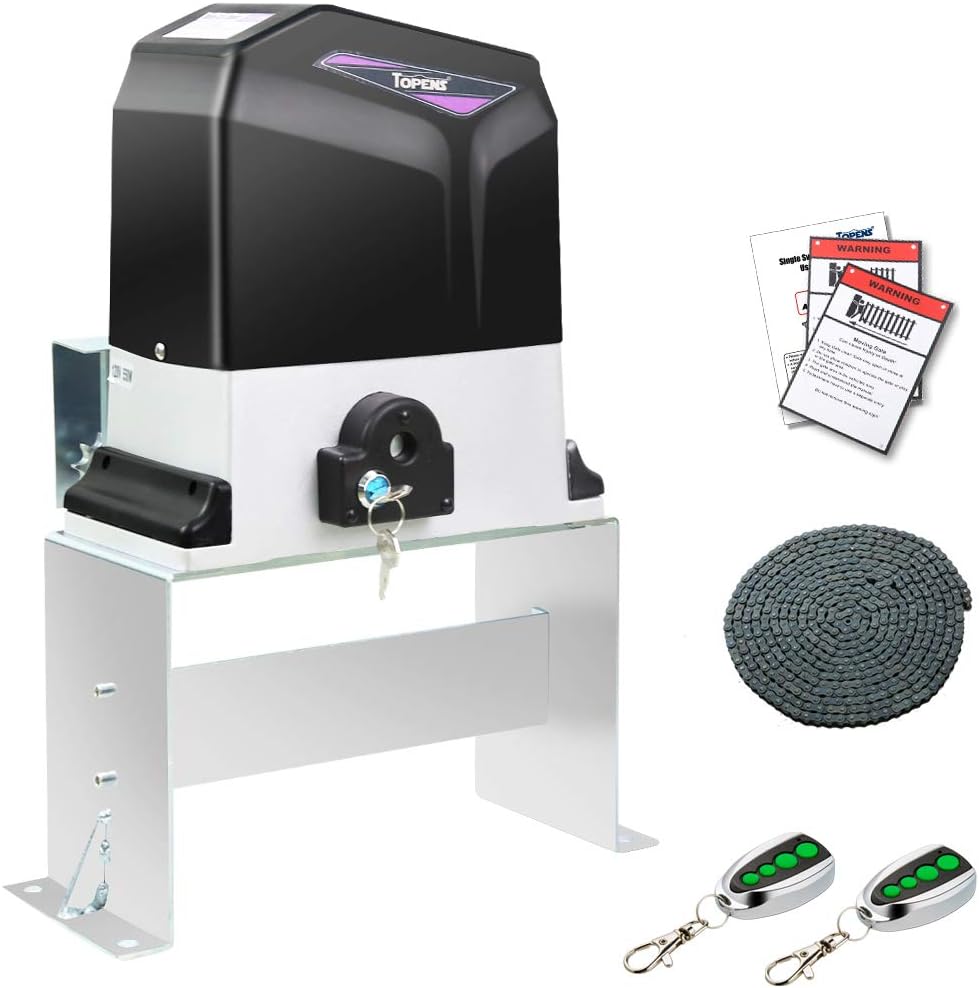

TOPENS DKC1000 Automatic Gate Opener features a STRONG 350W 1/2 HP DC motor with higher efficiency, low power consumption, and greater safety. It is designed as the best value performance kit for HEAVY DUTY sliding gates up to a maximum of 1800 lbs. in weight and 40’ in length. The durable and reliable motor made by pure-copper wire brings a superior performance and longer operating life.

Battery and/or AC Electricity Powered, Solar Capable

DKC1000 Gate Opener can be powered by AC 110-120V electricity, by 24V 12Ah Automotive / Marine type battery (Battery is NOT included), or both at the same time. You can use AC power, or the extra TSP30W Solar Panel Charging kit (Not included) to charge the battery. 2 pcs 12V batteries connected in series for 24V.

Multiple Applications, Easy DIY Installation

Suitable for all types of sliding gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as tube, panel, and chain-link. Typical application includes residential and courtyard. The step-by-step instruction manual makes installing the opener fool-proof. The whole installation takes just a few hours.

Technical Guidance & Assistance

More than a gate opener, our complimentary TopensCare+ Plan provides you comprehensive system solutions. Search topenstool for online technical guidance, and instruction manual downloading. Getting one-stop assistance from TOPENS professional who knows your products well.

DKC1000 Features & Benefits

• Using advanced technology, the open/close direction is easy to switch. Your gate is allowed to open toward left or right.
• Equipped with 180° manual release key in case of power outage or when you lose your remote.
• Advanced TOPENS microchip rolling code technology for remote controls. To improve your gate safety, only TOPENS authorized remote controls and wireless accessories are allowed to operate TOPENS Gate Opener.
• The adjustable midway/pedestrian mode allows the gate open for only a few feet.
• Soft start and soft stop ensure a long-lasting performance. The soft stop time is adjustable.
• Stop in case of obstruction during gate opening, and reverse in case of obstruction during gate closing.
• Reliable electromagnetism limit for easy adjustment.
• Built-in adjustable auto-close time (0, 30, 60, 90 seconds) and adjustable open/close obstruction sensitivity (stall force).
• Built-in max. Motor Running Time (MRT 90 seconds) for multiple safety protection.
• Easy to install, and minimum maintenance requirement.
• Assurance: 12 Month TOPENS Assurance, plus professional TopensCare+ technical guidance.

DKC1000 Technical Diagram

NOTE: The tiny CR2025 3V button cell batteries that come with the package are ONLY for the remote control.

Power Mode 1 - Use only the AC 110-120V electricity to power the system

• Recommended where AC electricity is accessible and stable.
• The power supply cord is NOT included. The power supply cord should be at least 3C×18AWG (3×0.75mm2). Connect the live wire, neutral wire and earth wire to the “L”, “N” and “PE” terminal respectively. Release the clutch and open the gate manually in case of power outage.

Power Mode 2 - Use the AC 110V electricity and the back-up batteries to power the system

• Recommended where AC electricity is accessible, but not stable.
• Requires additional 24V 12Ah Automotive / Marine type battery (Battery is NOT included). 2 pcs 12V batteries connected in series for 24V.

Power Mode 3 - Batteries as main power source, use only solar panel & solar charge controller to charge the batteries

• Recommended in remote location such as farm, ranch, pasture, etc.
• TOPENS TSP30W 30-Watt 24V Solar Panel Charging Kit is offered online (Asin: B07ZTBRVXL).

Power Mode 4 – by AC 110-120V electricity and back-up batteries, use the AC electricity, solar panel & solar charge controller together to charge the batteries

• Recommended where AC electricity is accessible, but not stable.

NOTE ABOUT THE CHAIN:

• The package includes a 20ft. roller chain. The length of the chain is adjustable. Extra TOPENS 20 Feet Roller Chain is available online (Asin: B07ZTBD6JZ). The specification of the chain is #428 (08B).
• Keep the chain from any debris to ensure the smooth operation of the motor. Oil the chain periodically for ultimate performance.

Specifications

• Product Model: DKC1000 Gate Opener
• Motor Voltage: DC 24V
• Motor Power: 350W 1/2 HP
• Max. Torque: 16Nm
• Max. Gate Weight: 1800 lbs. (800 kg)
• Max. Gate Length: 40 ft. (12 m)
• Motor Speed: 60 RPM
• Gate Moving Speed: 8 in/s (20 cm/s)
• Gate Opening/Closing Time: approx. 20-60 seconds depends on the gate length

• Operation Range for the Remote Control: 65' (20m)
• Frequency: 433.92MHz, unique code per gate opener
• Max. # of Remote Control Supported: 8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver that is sold separately
• Working Temperature: -4°F to 122°F (-20℃~+50℃)
• Sound Level: < 50 dB
• Protection Class: IP44 - Waterproof and Dustproof
• Overall Dimension: 15.8 x 7.7 x 22.2” (401 x 195 x 565 mm)

Access & Control (1)

• M12 Remote Control (Asin: B075L4BN21)
• ERM12 External Receiver (Asin: B075KHPLHD)
• TC186-R WiFi Smartphone Remote Control with Camera (Asin: B07ZSXPSZZ)
• TC186 Universal WiFi Smartphone Remote Control with Camera (Asin: B07ZVHM2WL)
• HLR01 Homelink Remote Control Kit (Asin: B07CWNX1P8)

Access & Control (2)

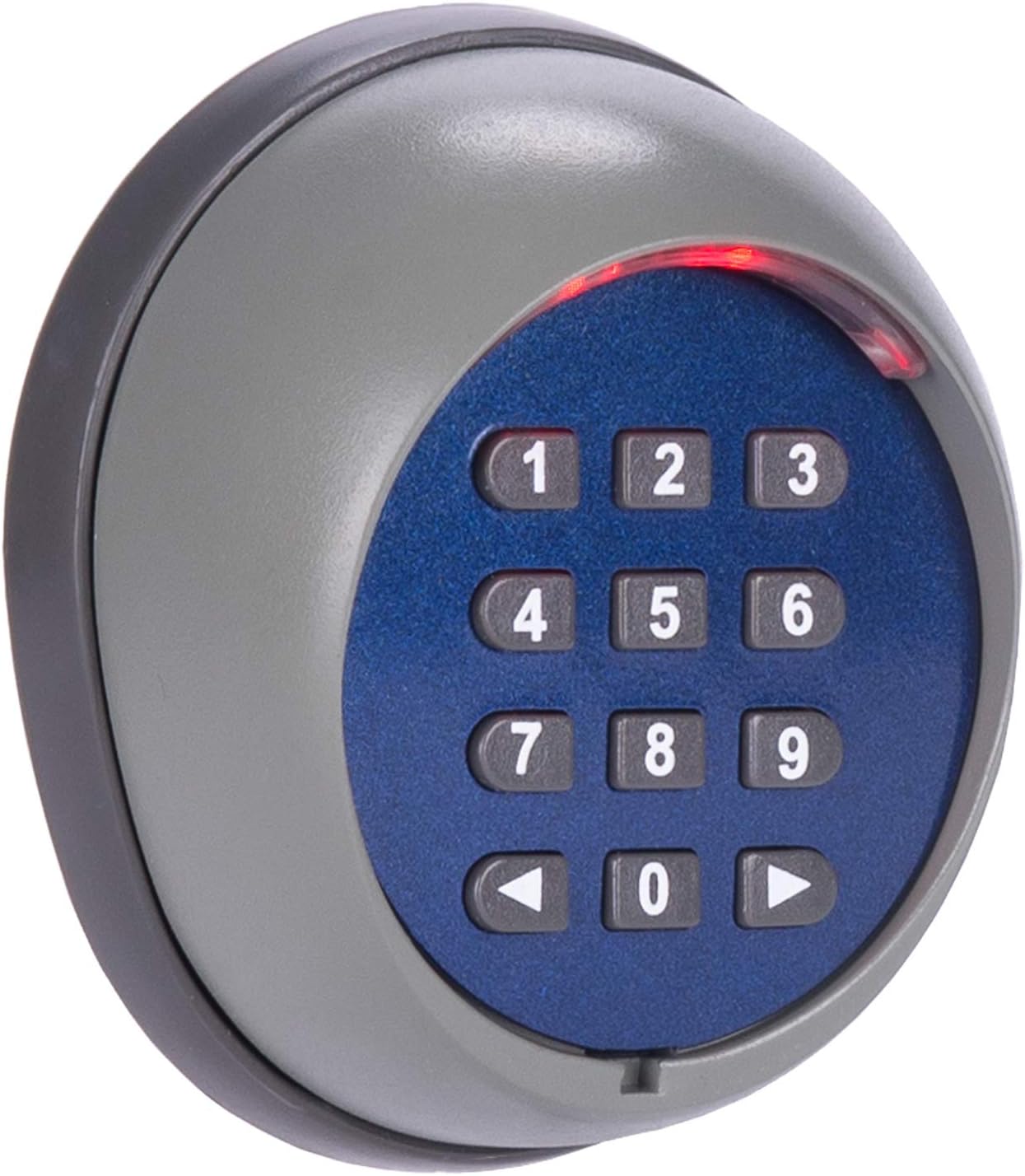

• TKP3 Wireless Keypad (Asin: B075K783DS)
• TC175P Wired Keypad (Asin: B07ZTB33JK)
• TC173 Wireless Push Button (Asin: B07ZTC75CX)
• TC147 Wired Push Button (Asin: B07ZTB2TQH)
• TEW3 Vehicle Sensor Exit Wand (Asin: B07DF8ZQNB)

Security & Power Supply

• TRF3 Reflection Photocell Sensor (Asin: B07ZTCMWFT)
• TC102 Photo Eye Beam Sensor (Asin: B07ZTB4VML)
• JD24VY DC 24V Warning Light (Asin: B07ZTB326B)
• TSP30W 30W Solar Panel Charging Kit (Asin: B07ZTBRVXL)
• TCS3 Solar Charge Controller (Asin: B07ZTC6317)

Replacement Parts & Extra Chain

• DKPYMJ2A Control Panel (Asin: B07H91XP6H)
• PYMJ-CKG Limit Switch (Asin: B078WJQDYF)
• LT08B 20 Feet Roller Chain (Asin: B07ZTBD6JZ)

• 3300 lb Capacity ----- The smooth-drive 550W AC motor powerfully propels gates with a maximum length of 40 feet (Includes 20 ft chain) or a maximum weight of 3,300 lb at 36-40 feet per minute (8”/second) while producing under 60 dB noise.
• Auto-Close Feature ----- For your convenience, this slide gate opener can close automatically in 12, 24, or 36 seconds after it opens. The 2 intelligent infrared sensors will stop and reverse the door if it encounters an obstruction when closing or opening.
• 100-FT Range Remotes ----- Includes 2 remote controls with a 100-foot operation range. Each remote has 4 buttons: Open/Close/Stop Open/Stop Close. You can add up to 23 more remotes to control this system.
• Stainless Steel Durability ----- Carefully constructed with an aluminum base, durable copper gears, and stainless steel for rust-resistance. RF Hopping Code Technology secures your remote code from potential intruders.
• Easy Installation ----- Instructions are included for an easy DIY installation. CE safety approved. Take advantage of ultimate convenience!

User questions & answers

Question:	when you close the gate, and photocell is there, the gate won't open unless you block the photocell, how can I solve this problem
Answer:	By photocell, I assume you mean a motion sensor that would cause the gate to open or close. My opener came with 2 remotes, no sensor. Assuming you have the sensor placed right, the problem would have to be in the programing. If the sensor came with the gate opener, I should be addressed in the owners manual. If it was an after market purchase get with the people you got it from. Sorry I'm not more help but mine is not set up for a sensor.
Question:	Can this control be set up at the top of the gate to open it
Answer:	No, we're afraid it can't be set up at the top of the gate.
Question:	Pictured are 4 round and 4 square U-bolts. I assume they go on the gate posts to hold the chain brackets. What size tubing are they for
Answer:	They are for about 3". If you have any other questions, please feel free to contact our customer support directly. Thanks.
Question:	Can photocells be added
Answer:	as a power source photo cells can be used but the unit needs 110 AC so would need a battery for storage and an inverter to turn the power into 110.

Product features

DIY Lovers' Preference

• Perfect for DIY lovers, same quality but easier to install, our gate opener operates smoothly and delivers outstanding performance with the capability to open gates up to 3,300 lb. Versatile and can be upgraded with a few more functions with the compatible accessories. (Including solar power recharge, auto-stop function, emergency notification etc.)

Intelligent Infrared Sensors

• Our sliding gate opener is equipped with two infrared sensors that protect you and your loved ones if you're in the wrong place as it starts to close. When there are obstacles detected, the opening gate will pause and the closing gate will reopen.

Convenient Remote Control

• Your gate comes with 2 remote controls that can be securely matched during installation and operate the gate from distances of up to 100 ft. whether on foot or in your car. The gate opener's control system can be matched to up to 25 remotes to accommodate large families.

Magnetic Limit Switches

• The magnetic limit switches set the gate's maximum open and closed positions and ensure safe operation. The switches automatically buffer the gate's operation and keep it from misalignment or going off the rails.

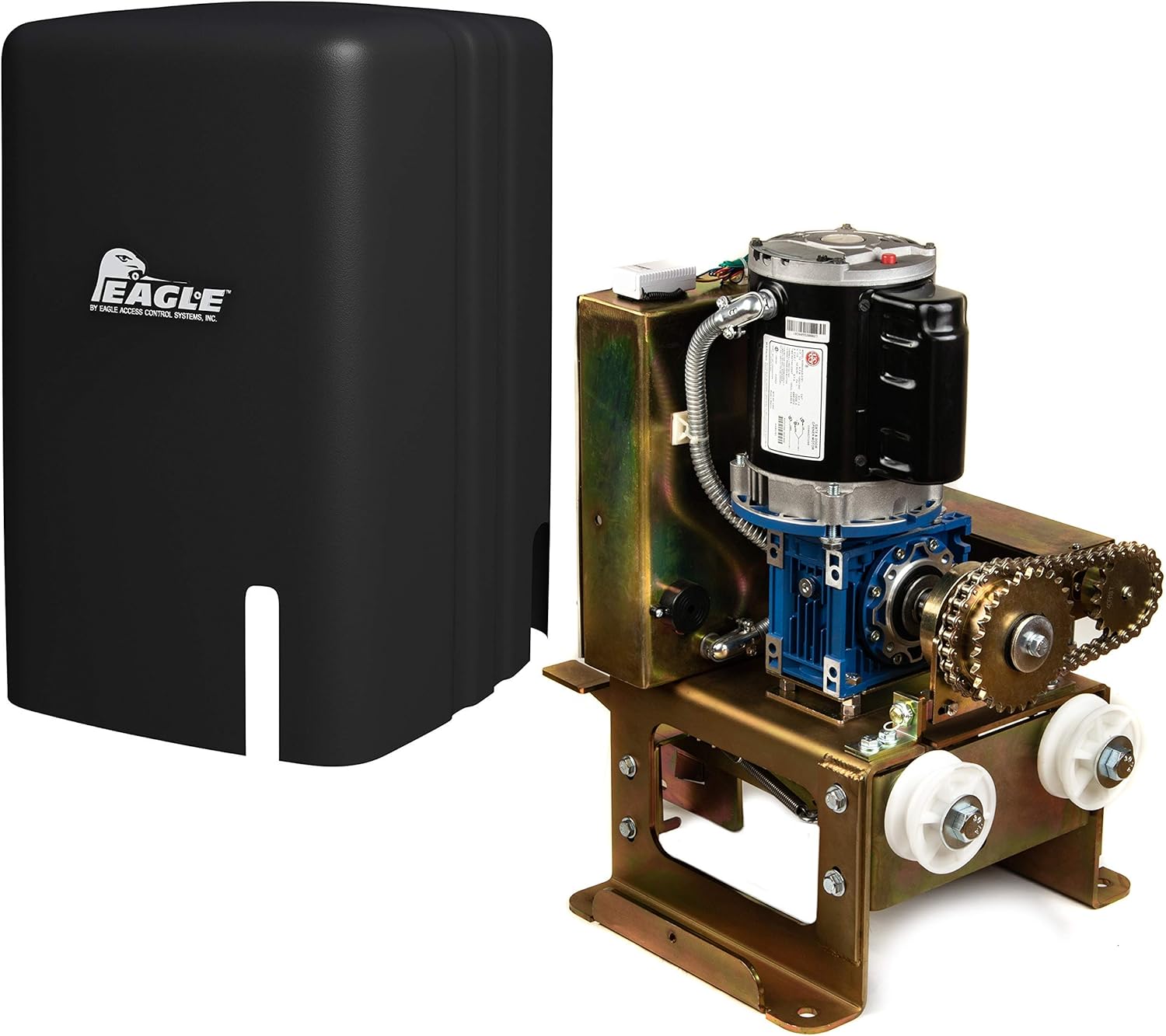

• The Eagle-2000FR- ½ Motorized Slide Gate Operator is designed for Commercial Large Gates up to 45’ feet and 1000lbs weight capacity. Build with a Heavy Duty idler wheels making the opener quiet and smooth when operated.
• Easy to Install – The Industrial Gate Opener is designed with The Eagle Diamond Board the most advanced and user friendly control board in the market. The Gate Systems control board is equipped with features like Anti Tailgating, Partial Open and Auto Close Timers.
• Safety – Built with a Foot Pedal Release Mechanism. In case of an emergency or a power outage the foot pedal provides the Sliding Gate Operator to be operable manually by simply pushing the gate open. It also Includes a lighting and surge protection built in.
• Hardware – The Sliding Gate Operator System has a ½ Heavy Duty Horse Power Motor making it ideal for heavy vehicle traffic properties. Additionally, it is built with an Open/close delay and Motor brake disengaging chain mechanism.
• Package Kit Includes – Eagle-2000FR Motor Operator, Two 10ft Nickle Plated Chain, 2 Wireless Visor Transmitters, 1 Long Range Receiver, and 1 Reflective Photo Eye. We also provide a 5-Year Limited Warranty.

User questions & answers

Question:	Will this unit stop opening if it hits an object in its path, like a garbage can or homeless person
Answer:	It can work with any Eagle operator that uses the Eagle Chrome receiver.
Question:	i need to open gate in morning and close in the evening is there a way to do this
Answer:	I’m pretty sure all eagle remotes are compatible with one another. However they do not work with any other remotes including your car remotes.
Question:	Can you use a solar panel with this unit
Answer:	I got bad news for you. I went through several batteries trying to get it connected. Bottom line is they are different frequencies. Eagle only wants us to use their stuff. ☹️
Question:	does this come with a sensor or capability to have a sensor to open the gate Automatically when a car approaches the gate
Answer:	Multi code eagle receiver yes. Other brand receiver, I don't know. It does have a small button (learn button). Push the little button on receiver light turns Amber. Push the button on transmitter the light on receiver then turns green and your Ready to go. Call Eagle Tech line very knowledgable and helpful at least they were for me.

• 【Powerful Output】- Featuring a STRONG 300W 2/5 HP AC motor with greater start force and pulling force, TOPENS CK700 Sliding Gate Opener is designed for HEAVY DUTY sliding gates up to a maximum of 1600 lbs. in weight and 40’ in length. The durable and reliable motor made by pure-copper wire brings a superior performance. The ultra-quiet system provides a long operating life with minimum maintenance requirement.
• 【Multiple Applications】- Suitable for all types of sliding gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as tube, panel, and chain-link. Typical application includes residential and courtyard. Easy DIY installation with commonly available tools, no extra welding. Full mounting hardware and easy-to-follow instructions are included for your peace of mind. The whole installation takes just a few hours.
• 【Clever Design】- Using advanced technology, the open/close direction is easy to switch. The adjustable midway/pedestrian mode allows the gate open for only a few feet. Chain length is adjustable. A wide range of accessories are available, include M12 Remote Control, TKP3 Wireless Keypad, ERM12 External Receiver, etc. So smart!
• 【Safe to Use】- Features TOPENS security technology that ensures multiple protection & safety. Reliable magnetic limit switch for easy adjustment. Adjustable auto-close time (1-99s), adjustable stall force, max motor running time (90s), and microchip rolling code for remote keys. Built-in stop and reverse mode in case of obstruction. Equipped with manual release key in case of power outage or when you lose your remote.
• 【Outstanding Customer Service】- Backed by a 12-month TOPENS Warranty, and free product return & exchange service within 30 days. More than a gate opener, our complimentary TopensCare+ Customer Support provides you comprehensive system solutions.Simply contact us via the service Email for any concerns during product installation and use.We are quite sure that you will be super-impressed with HIGH QUALITY of our Sliding Gate Opener.

User questions & answers

Question:	Does the ink cartridge come in a sealer package or in the pen? I recently purchased a waterman ballpoint pen. The cartridge was in the pen and leakin
Answer:	Welcome to TOPENS! Yes, the RNH4 4pc Heavy Duty Gear Rack should be attached and set on the bottom of the gate and be used with a rack driven gate opener.
Question:	How can I tell if the refill should be .5 or
Answer:	Welcome to TOPENS! The RNH4 gear rack can work with a wood gate.
Question:	Will this fit in Waterman Expert ball point pen
Answer:	¡Bienvenido a TOPENS! Cada juego de RNH4 tiene 4 piezas, 3.3ft cada pieza, 13ft total. Puede ordenar de acuerdo a su necesidad, le sugerimos dos juegos.
Question:	I have a Waterman OPERA ballpoint it is a thick pen. Is this the correct refill
Answer:	Yes, I just installed one AR1400 using that rack, and it’s working fine!

Product features

Durable & Reliable Sliding Gate Opener

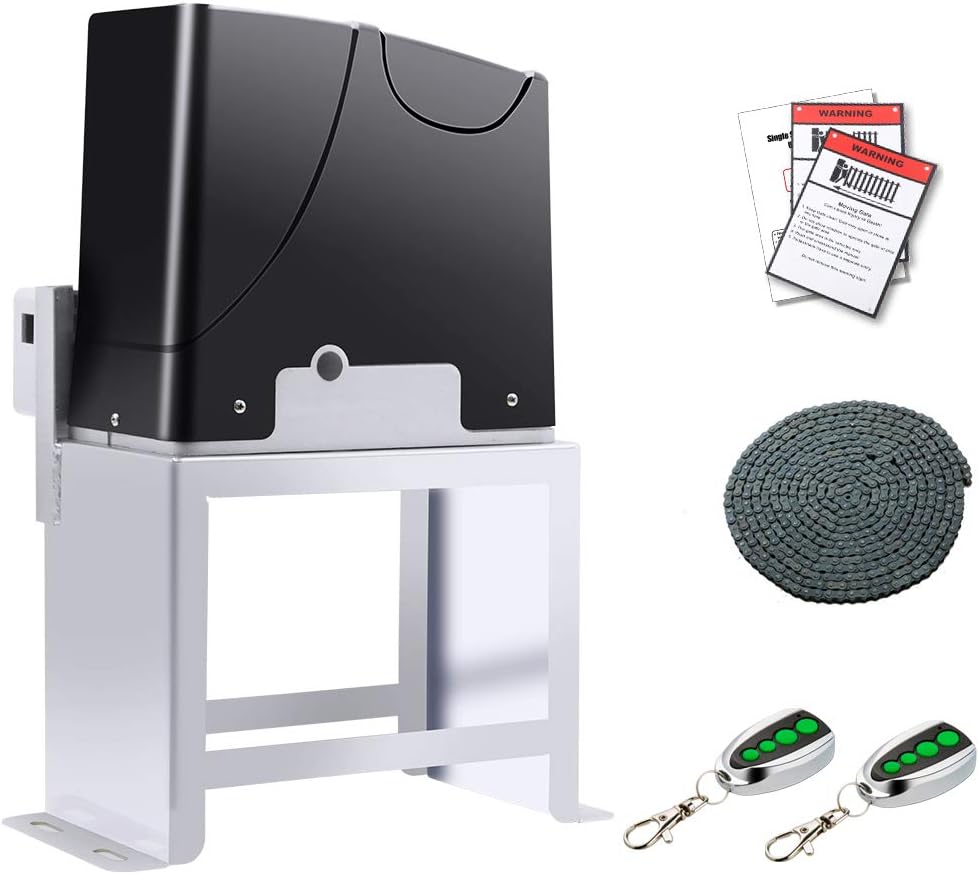

TOPENS CK700 Automatic Gate Opener features a STRONG 300W 2/5 HP AC motor with greater start force, pulling force, and greater safety. It is designed as the best value performance kit for HEAVY DUTY sliding gates up to a maximum of 1600 lbs. in weight and 40’ in length. The durable and reliable motor made by pure-copper wire brings a superior performance and longer operating life.

AC Electricity Powered

CK700 Gate Opener is ONLY powered by AC 110-120V electricity. TOPENS DK1000/DK1000S/DKC1000 and DSR/DSC Series Sliding Gate Openers are recommended if you want to power your gate by batteries and solar system.

Multiple Applications, Easy DIY Installation

Suitable for all types of sliding gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as tube, panel, and chain-link. Typical application includes residential and courtyard. The step-by-step instruction manual makes installing the opener fool-proof. The whole installation takes just a few hours.

Technical Guidance & Assurance

More than a gate opener, our complimentary TopensCare+ Plan provides you comprehensive system solutions. Search topenstool for online technical guidance, and instruction manual downloading. Getting one-stop assistance from TOPENS professional who knows your products best.

CK700 Features & Benefits

• Using advanced technology, the open/close direction is easy to switch. Your gate is allowed to open toward left or right.
• Equipped with 180° manual release key in case of power outage or when you lose your remote.
• Advanced TOPENS microchip rolling code technology for remote controls. To improve your gate safety, only TOPENS authorized remote controls and wireless accessories are allowed to operate TOPENS Gate Opener.
• The adjustable midway/pedestrian mode allows the gate open for only a few feet.
• Stop in case of obstruction during gate opening, and reverse in case of obstruction during gate closing.
• Reliable electromagnetism limit for easy adjustment.
• Built-in adjustable auto-close time (1-99 seconds) and adjustable obstruction sensitivity / stall force.
• Built-in max. Motor Running Time (MRT 90 seconds) for multiple safety protection.
• Easy to install, and minimum maintenance requirement.
• Assurance: 12 Month TOPENS Assurance, plus professional TopensCare+ technical guidance.

CK700 Technical Diagram

• CK700 Gate Opener is ONLY powered by AC 110-120V electricity.
• The power supply cord is NOT included. The power supply cord should be at least 3C×18AWG (3×0.75mm2). Connect the live wire and neutral wire to the “L” and “N” terminal respectively; and connect the earth wire to “PE”.
• TOPENS DK1000/DK1000S/DKC1000 and DSR/DSC Series Sliding Gate Openers are recommended if you want to power your gate by batteries and solar system.
• The tiny CR2025 3V button cell batteries that come with the package are ONLY for the remote control.

NOTE ABOUT THE CHAIN:

• The package includes a 20ft. roller chain. The length of the chain is adjustable.
• Extra TOPENS 20 Feet Roller Chain is available online (Asin: B07ZTBD6JZ).
• The specification of the chain is #428 (08B).
• Keep the chain from any debris to ensure the smooth operation of the motor.
• Oil the chain periodically for ultimate performance.

Specifications

• Product Model: CK700 Gate Opener
• Motor Voltage: AC 120V
• Motor Power: 300W, 2/5 HP
• Max. Torque: 16Nm
• Max. Gate Weight: 1600 lbs. (700 kg)
• Max. Gate Length: 40 ft. (12 m)
• Motor Speed: 50 RPM
• Gate Moving Speed: 6 in/s (15 cm/s)
• Gate Opening/Closing Time: approx. 20-60 seconds depends on the gate length

• Operation Range for the Remote Control: 65' (20m)
• Frequency: 433.92MHz, unique code per gate opener
• Max. # of Remote Control Supported: 8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver that is sold separately
• Working Temperature: -4°F to 122°F (-20℃~+50℃)
• Sound Level: < 50 dB
• Protection Class: IP44 - Waterproof and Dustproof
• Overall Dimension: 12.9 x 8.7 x 18.1” (327 x 222 x 460 mm)

Access & Control (1)

• M12 Remote Control (Asin: B075L4BN21)
• ERM12 External Receiver (Asin: B075KHPLHD)
• TC186-R WiFi Smartphone Remote Control with Camera (Asin: B07ZSXPSZZ)
• TC186 Universal WiFi Smartphone Remote Control with Camera (Asin: B07ZVHM2WL)
• HLR01 Homelink Remote Control Kit (Asin: B07CWNX1P8)

Access & Control (2)

• TKP3 Wireless Keypad (Asin: B075K783DS)
• TC175P Wired Keypad (Asin: B07ZTB33JK)
• TC173 Wireless Push Button (Asin: B07ZTC75CX)
• TC147 Wired Push Button (Asin: B07ZTB2TQH)
• The Vehicle Sensor Exit Wand is NOT compatible with this gate opener.

Safe & Security

• TRF3 Reflection Photocell Sensor (Asin: B07ZTCMWFT)
• TC102 Photo Eye Beam Sensor (Asin: B07ZTB4VML)
• JD110VY AC 110V Warning Light (Asin: B07ZTB175Z)

Replacement Parts & Extra Chain

• ACPYMJ5A Control Panel (Asin: B078TCCSH4)
• PYMJ-CKG Limit Switch (Asin: B078WJQDYF)
• LT08B 20 Feet Roller Chain (Asin: B07ZTBD6JZ)

• COMPONENT -- Brushed aluminum shell, DC24V motor with buit-in control unit, buit-in backup battery.( 2pcs 12V batteries included)
• GATE RESTRICTION -- Max weight is 600lbs, max length is 26ft.
• COMPATIBILITY -- Solar system compatible(not included).
• ELECTRONIC LIMIT -- Easy to set open and close positions.
• INFRARED CONNECTION -- In this closing process, when infrarad ray of the infrarad sensor is covered, the gate will open immediately, to protect user and property security.
• Available when power is off, but please note that it can only work for a period of time without power. If it is used for a long time, it needs to be plugged in.

User questions & answers

Question:	I need remote control this machine model AT
Answer:	Mine have N710 printed on the box.
Question:	Technical details say 2 batteries 12v but the voltage says dc 110v. is that a mistake
Answer:	Sí, así es.
Question:	will the transformer charge the batteries (should the batteries be connected if using the transformer
Answer:	hello Del Can you please tell me what it says on the product page that led you to buy this refill? We have sold a ton of these but there have been a few returns and I need to get an idea of the misleading info on the page so I can correct it. Tell me what pen you have and I will ask my distributor what refill you need. Thanks Lou...
Question:	Do I need to run power to this unit? Or can it operate on solar power alone
Answer:	Welcome to TOPENS! Currently, online, the RNH4 gear rack is only sold by set (4pcs, total around 13 feet). Please contact us so that we can provide you with corresponding help. Click “TOPENS” on the right side of the product page (which appears below the “Add to Cart” button), and in the next page click “Ask a question” button to leave a message to us TOPENS Seller. Or contact our service E-mail indicating at the end of the user manual. All your concerns will be replied within 24 hours.

Product features

Remote Control

• Remote control mode:Single button mode
• Recording of up remote controls:20
• Remote control distance:≥30m

Infrared Sensor

• Infrared sensor is needed for security.

Chain

• Chian driven system.

Solar Panel Kit

• When it is without the power supply, you can unlock the gate opener with release bar, and push the gate manually.

• Code Activation ----- This dual channel transmitter can only be activated after entering the compatible codes.
• Utmost Safety ----- The transmitted code is changed at each transmission session, utmost safety is guaranteed.
• Long Transmission Range ----- The estimated transmission range is 656 ft. in open space and 115ft. indoors.
• Long Serve Time ----- The batteries in this wireless keypad can serve up to 2 years considering 10 transmissions per day.
• Wide Compatibility ----- Compatible with all CO-Z gate openers, this product is perfect for big family with over 3 family members.

User questions & answers

Question:	I did not recieve instructions with my keypad. Where can i obtain the operating instructions
Answer:	Yes. I just bought and tried in my 4+1. Fits perfectly... a little tricky to install though.
Question:	I see in videos the code is only 2 digits. Can you program it for longer codes
Answer:	From end to end the refill measures 99mm or 3.897 inches. Apparently you may need a different brand. Dr. Grips are one of the best if you use a ball point for extended periods!
Question:	Will this work with Topens 1000 opener (already installed)? Also, is there an arm that you recommend that cards pull up to
Answer:	97 mm or 3 13/16 inches
Question:	Are there DIP switches in this keypad
Answer:	NO!!! Received my order and does NOT fit my Mont Blanc Meisterstuck!!! It is too short. And then they charged me $5.99 to return!!!!! Grrrrrrrr!!!

Product features

Rainproof

The top of the keypad extends like eaves and protects it from being damaged by rain. The light under the keypad eaves lightens the buttons at nights.

Wide application

This product is more convenient than the keypad that needs to install wires. The transmission range is 115ft indoors and 656ft outdoors. It’s compatible with most sliding gate openers.

Safe and convenient

To prevent leaving the remote indoors accidentally, password lock is another way. You can choose to use the temporary password or the fixed password set by yourself.

• 【Powerful Output】- Featuring a STRONG 3/4 HP 550W AC motor with greater start force and pulling force, TOPENS CK1200 Sliding Gate Opener is designed for HEAVY DUTY sliding gates up to a maximum of 3400 lbs. in weight and 40’ in length. The durable and reliable motor made by pure-copper wire brings a superior performance. The ultra-quiet system provides a long operating life with minimum maintenance requirement.
• 【Multiple Applications】- Suitable for all types of sliding gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as tube, panel, and chain-link. Typical application includes residential, commercial, and courtyard. Easy DIY installation with commonly available tools, no extra welding. Full mounting hardware and easy-to-follow instructions are included for your peace of mind. The whole installation takes just a few hours.
• 【Clever Design】- Using advanced technology, the open/close direction is easy to switch. The adjustable midway/pedestrian mode allows the gate open for only a few feet. Chain length is adjustable. A wide range of accessories are available, include M12 Remote Control, TKP3 Wireless Keypad, TEW3 Vehicle Sensor Exit Wand, ERM12 External Receiver, etc. So smart!
• 【Safe to Use】- Features TOPENS security technology that ensures multiple protection & safety. Reliable magnetic limit switch for easy adjustment. Adjustable auto-close time (0/30/60/90s), adjustable stall force, max motor running time (90s), and microchip rolling code for remote keys. Built-in stop and reverse mode in case of obstruction. Equipped with manual release key in case of power outage or when you lose your remote.
• 【Outstanding Customer Service】- Backed by a 12-month TOPENS Warranty, and free product return & exchange service within 30 days. More than a gate opener, our complimentary TopensCare+ Customer Support provides you comprehensive system solutions.Simply contact us via the service Email for any concerns during product installation and use.We are quite sure that you will be super-impressed with HIGH QUALITY of our Sliding Gate Opener.

User questions & answers

Question:	It’s currently not available, but what was list price in case they come back in stock
Answer:	Generally, I have found with Waterman refills "Fine" tip is 0.5 and "Medium" tip is 0.7. My experience has been much better with the Medium tip refills - best in the world in my opinion.
Question:	Does this opener have a battery back up if the power is out in the area
Answer:	Yes it will. That is a standard Waterman ball point refill that will fit any regular size Waterman ball point pens.
Question:	Does this have pedestrian mode
Answer:	I think the ballpoint refills work in all Waterman ballpoint pens. I have two different pens and I use the same kind of refill for both of them.
Question:	What size chain does the CK1200 use? It is not a #41 chain
Answer:	No the limited takes the G2 refills

Product features

Durable & Reliable Sliding Gate Opener

TOPENS CK1200 Automatic Gate Opener features a STRONG 550W 3/4 HP AC motor with greater start force, pulling force, and greater safety. It is designed as the best value performance kit for HEAVY DUTY sliding gates up to a maximum of 3400 lbs. in weight and 40’ in length. The durable and reliable motor made by pure-copper wire brings a superior performance and longer operating life.

AC Electricity Powered

CK1200 Gate Opener is ONLY powered by AC 110-120V electricity. TOPENS DK1000/DK1000S/DKC1000 and DSR/DSC Series Sliding Gate Openers are recommended if you want to power your gate by batteries and solar system.

Multiple Applications, Easy DIY Installation

Suitable for all types of sliding gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as tube, panel, and chain-link. Typical application includes residential and courtyard. The step-by-step instruction manual makes installing the opener fool-proof. The whole installation takes just a few hours.

Technical Guidance & Assurance

More than a gate opener, our complimentary TopensCare+ Plan provides you comprehensive system solutions. Search topenstool for online technical guidance, and instruction manual downloading. Getting one-stop assistance from TOPENS professional who knows your products well.

CK1200 Features & Benefits

• Using advanced technology, the open/close direction is easy to switch. Your gate is allowed to open toward left or right.
• Equipped with manual release key in case of power outage or when you lose your remote.
• Advanced TOPENS microchip rolling code technology for remote controls. To improve your gate safety, only TOPENS authorized remote controls and wireless accessories are allowed to operate TOPENS Gate Opener.
• The adjustable midway/pedestrian mode allows the gate open for only a few feet.
• Stop in case of obstruction during gate opening, and reverse in case of obstruction during gate closing.
• Reliable electromagnetism limit for easy adjustment.
• Built-in adjustable auto-close time (0, 30, 60, 90 seconds) and adjustable obstruction sensitivity / stall force.
• Built-in max. Motor Running Time (MRT 90 seconds) for multiple safety protection.
• Easy to install, and minimum maintenance requirement.
• Assurance: Assurance: 12 Month TOPENS Assurance, plus professional TopensCare+ technical guidance.

CK1200 Technical Diagram

• CK1200 Gate Opener is ONLY powered by AC 110-120V electricity.
• The power supply cord is NOT included. The power supply cord should be at least 3C×18AWG (3×0.75mm2). Connect the live wire and neutral wire to the “L” (1#) and “N” (3#) terminal respectively; and connect the earth wire to (2#) terminal.
• TOPENS DK1000/DK1000S/DKC1000 and DSR/DSC Series Sliding Gate Openers are recommended if you want to power your gate by batteries and solar system.
• The tiny CR2025 3V button cell batteries that come with the package are ONLY for the remote control.

NOTE ABOUT THE CHAIN:

• The package includes a 20ft. roller chain. The length of the chain is adjustable.
• Extra TOPENS 20 Feet Roller Chain is available online (Asin: B07ZTBD6JZ).
• The specification of the chain is #428 (08B).
• Keep the chain from any debris to ensure the smooth operation of the motor.
• Oil the chain periodically for ultimate performance.

Specifications

• Product Model: CK1200 Gate Opener
• Motor Voltage: AC 120V
• Motor Power: 550W, 3/4 HP
• Max. Torque: 35 Nm
• Max. Gate Weight: 3400 lbs. (1500 kg)
• Max. Gate Length: 40 ft. (12 m)
• Motor Speed: 60 RPM
• Gate Moving Speed: 8 in/s (20 cm/s)
• Gate Opening/Closing Time: approx. 20-60 seconds depends on the gate length

• Operation Range for the Remote Control: 65' (20m)
• Frequency: 433.92MHz, unique code per gate opener
• Max. # of Remote Control Supported: 8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver that is sold separately
• Working Temperature: -4°F to 122°F (-20℃~+50℃)
• Sound Level: < 50 dB
• Protection Class: IP44 - Waterproof and Dustproof
• Overall Dimension: 14.7 x 8.9 x 20.3” (373 x 226 x 515 mm)

Access & Control (1)

• M12 Remote Control (Asin: B075L4BN21)
• ERM12 External Receiver (Asin: B075KHPLHD)
• TC186-R WiFi Smartphone Remote Control with Camera (Asin: B07ZSXPSZZ)
• TC186 Universal WiFi Smartphone Remote Control with Camera (Asin: B07ZVHM2WL)
• HLR01 Homelink Remote Control Kit (Asin: B07CWNX1P8)

Access & Control (2)

• TKP3 Wireless Keypad (Asin: B075K783DS)
• TC175P Wired Keypad (Asin: B07ZTB33JK)
• TC173 Wireless Push Button (Asin: B07ZTC75CX)
• TC147 Wired Push Button (Asin: B07ZTB2TQH)
• TEW3 Vehicle Sensor Exit Wand (Asin: B07DF8ZQNB)

Safe & Security

• TRF3 Reflection Photocell Sensor (Asin: B07ZTCMWFT)
• TC102 Photo Eye Beam Sensor (Asin: B07ZTB4VML)
• JD110VY AC 110V Warning Light (Asin: B07ZTB175Z)

Replacement Parts & Extra Chain

• ACPYMJ1A Control Panel (Asin: B07H924KRB)
• CKG21 Limit Switch (Asin: B07ZTB23B6)
• LT08B 20 Feet Roller Chain (Asin: B07ZTBD6JZ)
