13 best generator watt meters

Product description

The Reliance Controls MB125 Indoor 50-Amp Wattmeter Box is ideal for use with any 125/250VAC installation where balancing the generator load is necessary for optimum performance. This wattmeter box can also be for use with any portable generator to monitor the load. Since 1909, Reliance Controls Corporation has contributed more innovations than any other single manufacturer and has been awarded over 85 patents on manual transfer switches, time switches and accessories. Reliance Controls Corporation specializes in the manufacturing of a wide variety of electrical products. The primary product line consists of heavy duty time clocks and controls, generator accessories, transfer switches and transfer panels for portable generators. And after over a century of innovation, Reliance Controls Corporation has built an enviable reputation for high quality, superior engineering and exceptional customer service.

• Ideal for any 125/250 VAC installation where balancing the generator load is necessary for optimal performance
• For use with a portable generator to monitor the lead
• Made specifically for indoor use
• Maximum geneartor running watts: 12,500
• Mostly gray in color

User questions & answers

Question:	Does anyone know where I can get just the meters and the current transformers
Answer:	More then likely your 8000 watt generator has a 30 amp 240 V outlet on the control panel. If, yes, then the MB75 is sufficient. The MB125 is for 50 amp 240V generators.
Question:	Are the meters the same scale for both, the MB75 and MB125, the pictures indicate they are. If so whats the point of the larger wattage box
Answer:	YES I AM RUNNING 5500 WATT EASY TO SEE 2500 AVERAGE EACH LEG. BUT IF I WERE YOU I WOULD USE THESE ONE ON EACH LEG TO SEE FREQUENCY AND VOLTAGE AND AMPSi HAVE ALL THREE WOULD ONLY REALLY NEEDED TWO DIGITAL'S ONE EACH LEG DROK™ Digital Volt Ampere Amp Voltmeter Ammeter 100-300V 100A AND ONE DROK™ Two Wires Digital Frequency AND ONE Panel Meter 10-199.9Hz LCD Electric Reading AC 80-250V MEASURES ACROSS BOTH HOT LEGS
Question:	I have a 8000 watt/13000 surge generator. Which is best for this wattage. 75 or
Answer:	Question:El voltaje es 220V? Answer:The maximum power capacity of Wemo is 15 Amps, 1800 Watts at 120 Volts U.S. Exceeding this limit can damage your Wemo device.
Question:	I currently have 6Kw generator; but am thinking of installing the 50Amp power meter in case of a future upgrade. Can you easily see the 30 amp mark
Answer:	I am very gald to answer your question.you can go youtube to see the installation video. I recommand hire a certified eletrician to do the job.for the smart plug is perrty simple,just plug it into a existing outlet. for the smart switch, it should consist of three colors wires which are Green, Black, White.green means ground,somtimes bare copper( wire is used as ground wire Black is Live wire will carry 110v voltage, white is neutrual. L represents live wire( black, red, orange, ect), N represents Neutual , Green or bare copper is ground. BY following wiring diagram connect wires to switch terminal accordingly.Make sure you turn off the breaker before any installation, checking the live wire with a mutlimeter,making sure no power before you start to put hands on any wires .safety precaution applies at all time.After you have completed the installation, download the wemo app to set up your smart swith and plug.

Product description

Electrical Load Tester

From the Manufacturer

AmWatt Plug-In Digital Appliance Load tester. Only tester of its kind that gives a quick digital readout of Amps or Watts used by any plug-in appliance. Eliminates the need for expensive clamp-on meters and line splitters. Perfect for choosing the correct portable generator to purchase. Easy to use: 1. Plug appliance or light into AmWatt, 2. Plug the AmWatt into any 15A electrical outlet, 3. Turn ON the appliance or light. UL listed.

• Meter gives instant, accurate digital readout
• Readout measures amps or watts used by common-cord connected household appliances (1.0 to 15.0 amps, 125 to 1,875 watts)
• Long 26-inch cord reaches remote electrical outlets
• Rugged, high-impact construction
• Easy slide-switch action insantly converts between amps and watts

User questions & answers

Question:	Can I leave this plugged into an appliance for 2 to 3 days to get an overall reading of what the applicance is using
Answer:	What we got was for 110 volt only... I don't know if they have anything for 220.
Question:	Hello is suitable for honda eu20i output 220v ?. thank you
Answer:	There are a lot of differences of the THP103 and Kill-A-Watt. The THP103 has a cord for hard to reach places, plugs in and gives an instant readout in amps or watts. The Kill-A-Watt is designed to remain plugged into a specific appliance to keep track of how much power is being used over a time period to relate to understanding how one might be charged for power consumption. The THP103 is a quick readout to help plan a generator setup, but with knowing the watts and how often it’s on per day someone calculates the expenses involved over any period of time. Let us know if you find yourself with any additional questions.
Question:	Will this work on 220 volts
Answer:	I bought this just to get the meters to monitor the load. I expect the case itself is only adding $15-20 more. Maybe you can call Reliance and see if they sell parts but I bet they would be more than just buying the unit on Amazon....
Question:	What's the difference in function between this and the Kill-A-Watt
Answer:	NO! - Yeah! The pictures tripped me up also - I ordered the wrong one at first. The MB75 measures up to 3750 watts / per phase (2 meters) which is perfect for me and my 10,000 watt (peak) generator. The MB125 meters are scaled for for a larger generator, don't remember the scale, but it was an overkill for me. I would have thought someone would have corrected the obvious picture error by now? Anyway - the meter is great! It gives me piece of mind that I am not overloading the generator.

Product features

Reliance Controls THP103 AmWatt Appliance Load Tester/Plug, Blue

Reliance Controls THP103 AmWatt Appliance Load Tester gives instant accurate readings of wattage and amperage used by household appliances and eliminates the need for expensive clamp-on meters and line splitters. Check the quality of outlets before plugging in your refrigerator and other appliances to ensure there're no immediate risks and hazards. Reads from 1-1875 watts. 26" cord. cULus listed.

Keep your house safe and ready for a power outage

Installing a power generator will make sure your house stays functioning in the event of a power outage. Installing a transfer switch will make the process as easy as, well, flipping a switch.

Prepare for when severe weather hits

Storms and severe weather can be all the more frightening if you don't have anything to back up your house in the event that power lines go down. Having that backup generator means one less thing to worry about.

Call your local and trusted electrician for installation

For those that are not experienced working with electrical wires, it is highly recommended to call your local electrician. The installation process can be dangerous, utilize a professional to do it safely and correctly.

You can rely on Reliance Controls!

Reliance Controls is here to ensure every residential and commercial building is equipped to any electrical issue that could occur, whether it's dangerous weather or damaged power lines.

Product description

Software download:

1. User manual, PC software installation instruction and PC software and Android APP

2. IOS APP: search E_test on iphone APP store to download

3. Android APP: search E-test at Google play to download

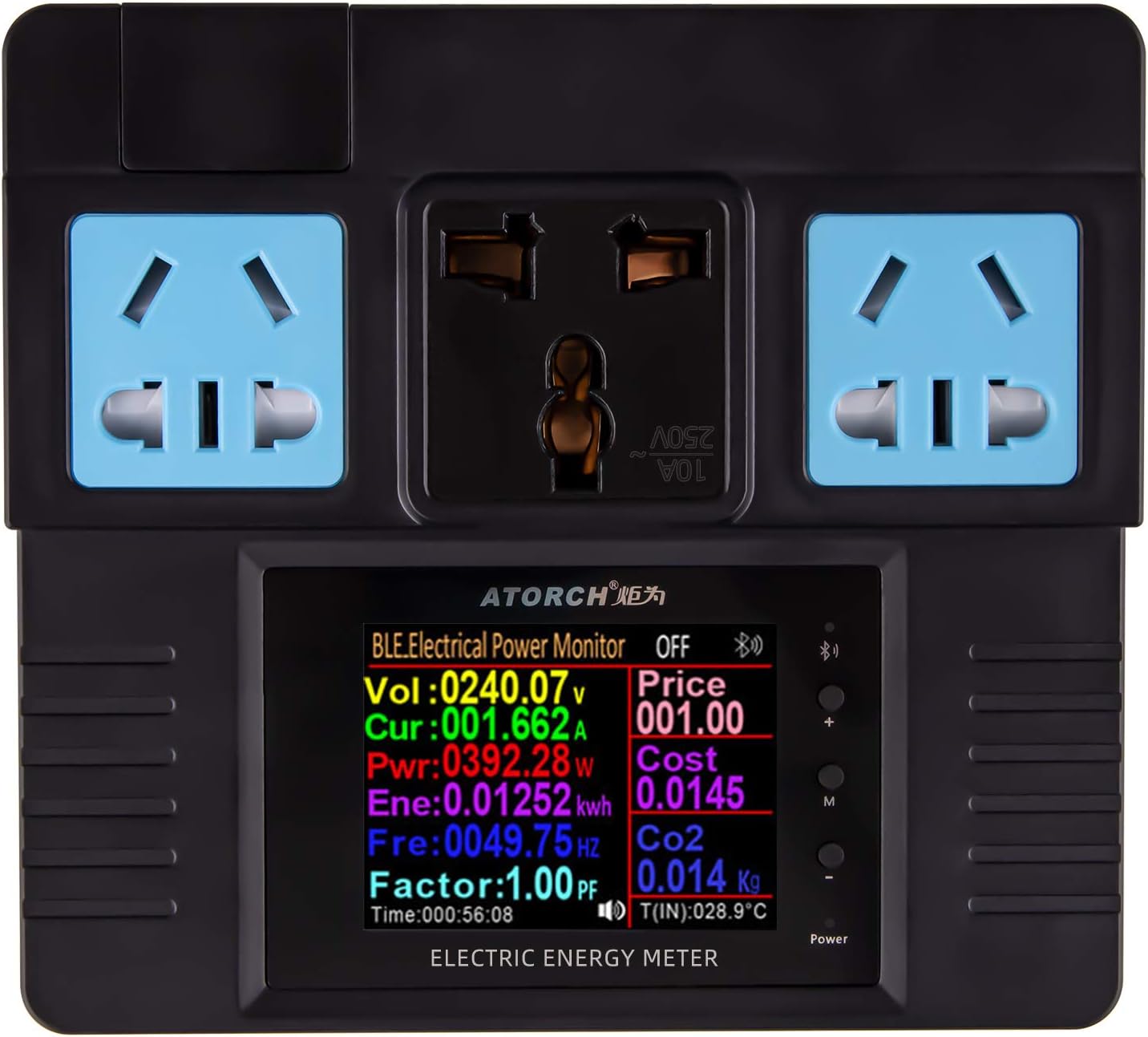

Electrical parameters

Measuring AC voltage range: AC85 ~ 265V

Measuring power range: 0 ~ 3680 W (0 ~ 3680W)

Measuring current range: 0 ~16A

（Function continues to improve）

2.4 "  7 kind of  large function display interface

① Start screen

② Main function interface

③ Security protect interface

④ Smart power off protection (A)

⑤ Smart power off protection (B)

⑥ Timing power supply interface

⑦ Timing Cycle interface

⑧ Timing Countdown switch interface

• 【 Electricity Usage Monitor 】 Power consumption meter can measure power (W), volts, amps, frequency, power factor, maximum and minimum power (W), cumulative time, and energy (kWh). You can measure the electricity (KWH) and the cumulative electricity bill (Cost), and you can set the electricity price in different countries!
• 【 LCD Display 】 Electricity monitor kilowatt meter has a 2.4 - inch true color TFT LCD display and 7 kinds of large function display interface. Full wide view clear visible, make it easy to read and record the data, especially in the darkness.
• 【 Refined Accuracy 】 Built-in high precision current sensor. 1.0 - level measuring accuracy. Ensures you the best accuracy-Class 1.0 with 0.01W, 0.01V and 0.001A resolution.
• 【 Overload Protection 】 It has alarmed and cut off working function, when the voltage, current, power exceeds setting can be set to alarm and cut off work.
• 【 We Are Different 】 Our products support Infrared remote control, programmed control function, and has 3 APP connection modes: IOS, Android, and computer.

Product description

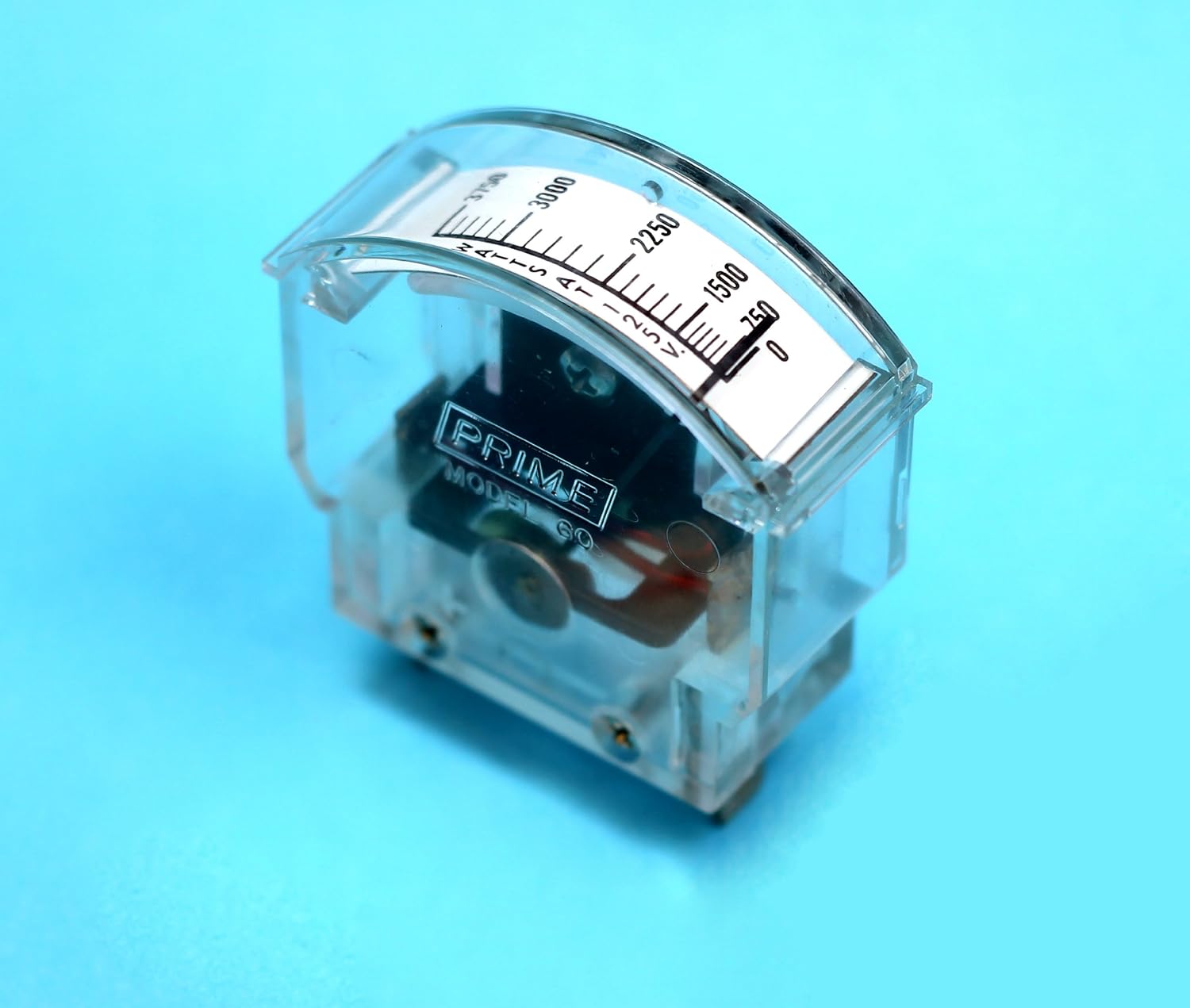

New analog panel mount wattmeter Manufacturer: Prime Model: 60 Range: 0 - 3,750 Watts Dimensions: 1.95" x 1.83" x .775" Clear plastic case Voltage: 125 V AC Tin plated brass terminals Brass mounting frame included (2.75" x 1.125") Commonly used in emergency backup power generators Weight: 1 oz (28 g)

User questions & answers

Question:	Unused slots in my panel with nothing behind them. Will the dimensions of this allow it to be installed in the panel itself for my generator switch
Answer:	d905k kubota engine in a rl4000 light tower we used this in.. and it showes the watts well ...hope this helps... but the kubota uses a regular alternator
Question:	Does 10awg/12awg thick wire go in series with this meter (i.e., all current goes thru it) or does it use a shunt or current transformer
Answer:	I am not sure what your question is but I think you are asking if this is for a 30 Amp service and yes it is. I used it for metering my transfer switch for my portable generator to power my well pump.
Question:	Which current transformer do you use with these
Answer:	Hello, thank you for contacting us about the THP103 AmWatt. The readings are real time and this device does not keep track of any data. Most appliances can be estimated with the continuous wattage being known and the estimated time per day the appliance is drawing its power. If you do a search for something like ‘calculating energy costs’ online you will see the basic formulas for estimating costs over time. Hope this helps! Thank you!
Question:	What current transformer model for 30 Amps line
Answer:	This is a 120 volt up to 15 amp load measuring device. It is used to make sure you do not overload a 120 volt 15 amp circuit.

Product description

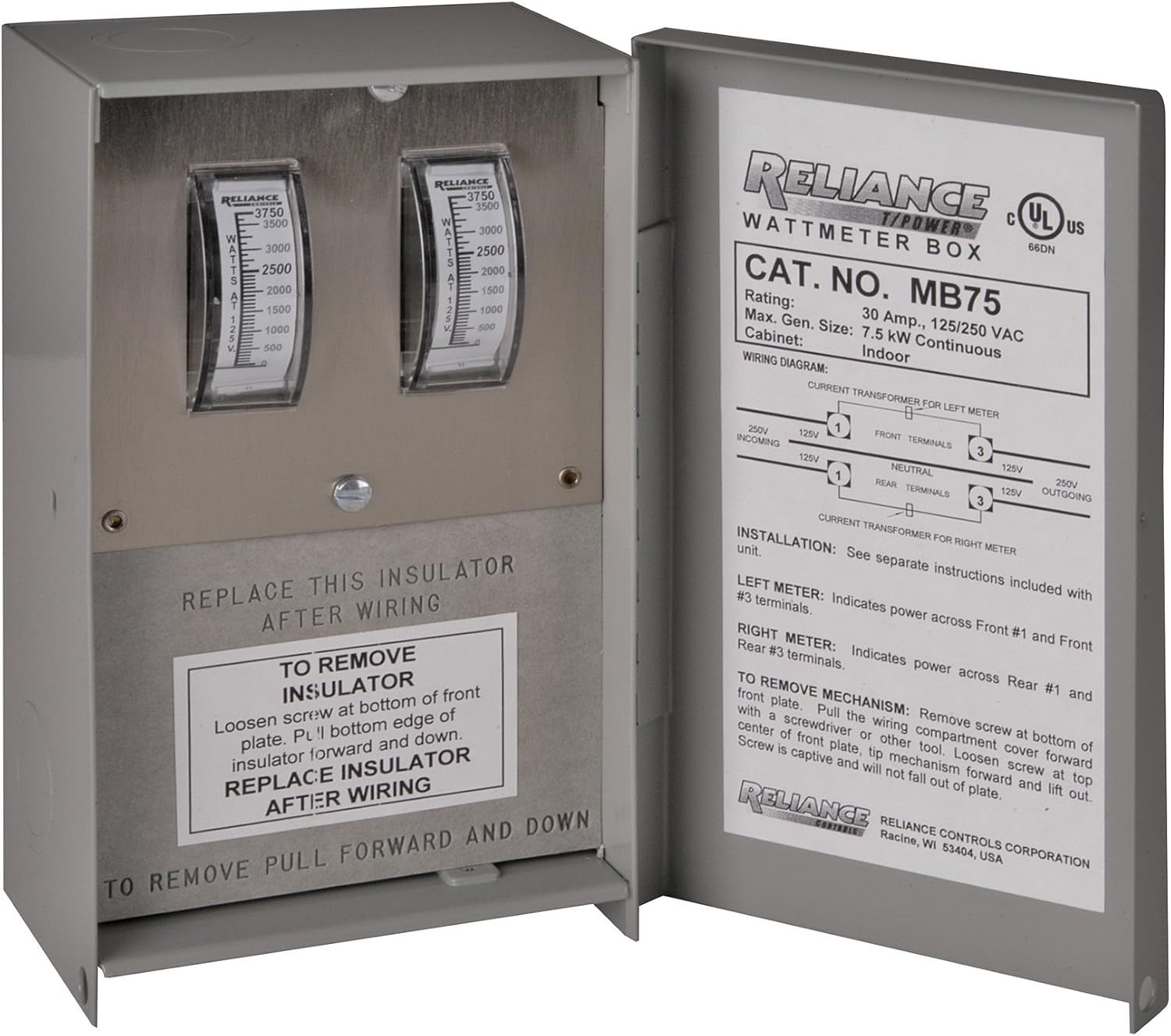

The Reliance Controls MB75 Wattmeter Box is designed to give you an accurate reading of how much of your portable generator's power you are using. Knowing this information can come in handy when you are trying to balance the load on the generator, or when attempting to figure out the generator's fuel efficiency. Since 1909, Reliance Controls Corporation has contributed more innovations than any other single manufacturer and has been awarded over 85 patents on manual transfer switches, time switches and accessories. Reliance Controls Corporation specializes in the manufacturing of a wide variety of electrical products. The primary product line consists of heavy duty time clocks and controls, generator accessories, transfer switches and transfer panels for portable generators. And after over a century of innovation, Reliance Controls Corporation has built an enviable reputation for high quality, superior engineering and exceptional customer service.

• Aids in calculating generator fuel efficiency
• Designed specifically for generators up to 7,500 maximum running watts
• Made specifically for indoor use
• Maximum geneartor running watts: 7,500
• Mostly gray in color

User questions & answers

Question:	hi I have a generator that runs a wattage of 5250 watts with a surge of 6500 would the mb75 be suitable or would it be better to use the mb
Answer:	You have 2 legs (hot wires) that feed the panel and 1 neutral. Between the 2 hot legs = 240 volts and between any hot leg and neutral = 120V. When you load balance a panel you will measure the total amps for what you will be using on generator power for each hot leg. If one side is higher than the other you can balance it closer by moving a breaker a position up or down with that adjacent breaker. If you have an amp probe you can find the specific circuits amp value to help you instead of guessing. Keep in mind loads will vary depending on what is in use so to have it perfectly balanced all the time is not realistic but you want to see it close to keep your generator happy.
Question:	How is this thing 8-1/2" x 5-1/2" x 8-1/2"??? 8-1/2" x 5-1/2" x 5-1/2" I would believe. What are its actual dimensions please? Thanks
Answer:	I purchased one of these controls and when my electrician came and saw it he told me to send it back. He said that to get any real benefit from it you would have to watch it all of the time. But, to answer your question it should work fine. You can only draw the wattage that your generator can produce from the main breaker. I have a Westinghouse 7500 watt with 9000 watt peak voltage and it would have worked fin with it. The main breaker on my generator is 30 amps.
Question:	What is load balancing? So single pole breakers can be moved which shifts devices from 1 pole to the 2nd pole
Answer:	My Switch Had 2 meters already installed , with connecting cables, So I don't know if your switch has the same Sequence.
Question:	i have a sportsman 7000 wat with 6000 surge will this be good for that
Answer:	It is wired in series from generator power source to circuit breaker in my transfer switch application.

Product features

Reliance MB75 Watt Meter Box

The Reliance MB75 Watt Meter Box is designed to give you an accurate reading of how much of your portable generator's power you are using. Knowing this information can come in handy when you are trying to balance the load on the generator or when attempting to figure out the generator's fuel efficiency.

Why do I need one?

The MB75 is ideal for use with any 125/250VAC installation where balancing the generator load is necessary for optimum performance. Perfect for monitoring generator load when your transfer switch or panel does not have meters.

Reliance Controls L1430P 30-Amp 125/250 Vac Male Plug for Generator Cords

Reliance Controls 30508B Pro/Tran 8-Circuit 30 Amp Generator Transfer Switch

Reliance Controls Corporation PC3040 30-Amp, 40-Foot Generator Power Cord

Reliance Controls KF10 Mounting Kit

Product description

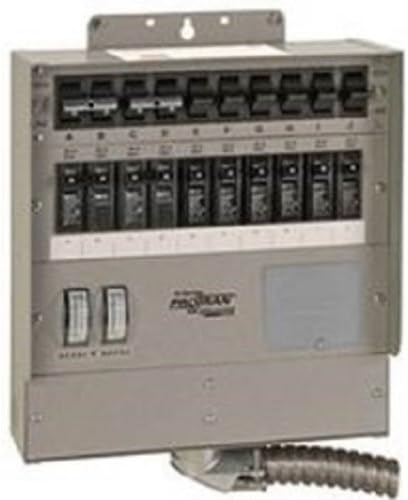

510C Features: -Pro/Tran 2 series is UL listed to UL standard 1008 and is suitable for use in accordance with article 702 of the national electrical code ANSI/NFPA 70. -Made in the USA. Country of Manufacture: -United States. Product Type: -Transfer switch cover. Hardware Finish: -Painted steel cabinet. Finish: -Steel. Dimensions: Overall Height - Top to Bottom: -11.25". Overall Width - Side to Side: -11.75". Overall Depth - Front to Back: -4.5". Overall Product Weight: -19 lbs.

• Transfer switch enables generators, has analog wattmeter for measuring generator load and is suitable for hardwire connection

User questions & answers

Question:	Can this be installed outdoors in the weather? I noticed the flex was not water tight
Answer:	Yes, the switch comes with 16" conduit plus 3" of extra wire.
Question:	Can I run my central heat and air with this
Answer:	You could mount it in a weather proof enclosure.
Question:	Does this come with the wire to go to the outdoor plug
Answer:	Answer here...Hi,you need the mb75,the mb125 is for a generator that is 7500watts or above,I have the mb75,and I have a westinghouse generator that has 5500 watts with a surge of 6750,and the mb75 works great with my generator,hope this helps.looks like you have enough wattage for all your 120v,because you need at least 5000watts for your home.Good luck to you.
Question:	Can this be mounted outdoors
Answer:	Hello and thank you for your inquiry! The dimenions of our Watt Metter Box are as follows: 7" H x 4" W x 2.25" D. Please let us know if you have any further questions that we can help answer!

Product description

Reliance Controls Corporation PB30 30-Amp NEMA 3R Power Inlet Box for Generators Up to 7, 500 Running Watts

The Reliance Controls 30 Amp power inlet box is designed for outdoor use and can be hardwired directly to Reliance Controls transfer switches or panels, eliminating need for cords running through windows or doors. This rain-tight, rust-proof unit includes an NEMA L14-30P inlet plug, six knockout holes, and push-in wire connections. Using one of the four combination 1/2-inch and 3/4-inch knockouts (one on each side, bottom and back), the power inlet box can be wired directly to the transfer switch or panel. The exclusive patented design provides generous wiring space and facilitates rough-in. The face of the box is removable for easy placement and wiring. It is cUL 1008 listed and covered by a 5-year warranty.

• Material Type: Powder Coated Steel

User questions & answers

Question:	I watched one of your videos on youtube for installing this and the tech used 10/3 wire! Is that suitable or do I need
Answer:	You are correct. The image is wrong, It's of a PB20 box. It's just the photo that's incorrect. You'll get the 30amp box if you order this item. I did and I was happy when it came.
Question:	Can this be used without a transfer switch. i know you have to use one, but will it work without it
Answer:	This box is to connect your generator to the transfer switch, not to connect any sort of load (like your welder) to the generator or panel. As an aside, if your welder is 50A @ 220v then that's 11,000 watts and way over the rating of your generator.
Question:	The picture shows a 20 amp, ground lug pointing out. A 30 amp has the ground lug pointing in. Am I correct
Answer:	I didn’t realize until after I received it that the unit is intended eve installed indoors. I needed outdoors. I tried to communicate with the company to exchange it for the one I needed. The response was that they carry over 100000 items from hardware to healthcare products and unless I could provide them the ID number of the one I needed they would not know what to send me! Furthermore if I did do an exchange I would have to pay shipping both ways and it’s quite heavy. In the end the back and forth with them took so long that the 30 day return option ran out and I’m now stuck with it. I do not recommend this company under any circumstances. I’ve had it since last summer and am trying to find someone who can figure out a way to install it before Hurricane season.
Question:	fo I need the 50amp inlet box if I plan to run a welder? my generator is 7500 watt, but I know my welder has a 50amp plug
Answer:	Yes you can but be aware that the outside unit will take 2 ganged breakers as well as 2 ganged breakers for the air handler leaving you with only 6 for other items. This is the way I have mine configured. This also assumes you have a generator capable of handling load. I have a 12,000 watt generator and a 2 1/2 tin heat pump ac.

Product features

Reliance Controls Corporation PB30 30 Amp NEMA 3R Power Inlet Box for Generators

The Reliance Controls PB30 NEMA 3R Power Inlet Box is an outdoor/watertight electrical inlet for a 30 Amp L14-30 generator cord. It is designed to be located outdoors where the generator is running to prevent dangerous carbon monoxide fumes from the generator from entering your house. This inlet box is then safely hardwired through an outside wall directly to the transfer switch or panel, eliminating the need for cords running through windows or doors. It is designed to be wired directly to the transfer switch or panel by using one of the four combination 1/2-inch and 3/4-inch knockouts (one on each side, bottom and back). The exclusive patented design provides generous wiring space and facilitates rough-in. The face of the box is removable for easy placement and wiring. It is constructed of steel with rugged, anti-corrosive powder-coat paint and has a spring-loaded inlet cap to prevent moisture front entering the connector inlet when not in use.

Product description

Empowers You to Save Hundreds on Electric Bills

Electricity bills are rising. Now you can cut down on costs and find out what appliances are actually worth keeping plugged in. Simply connect these appliances to the Kill A Watt, and it will assess how efficient they really are. The large LCD display counts consumption by the kilowatt-hour, the same as your local utility. You can calculate your electrical expenses by the day, week, month, even an entire year. Also check the quality of your power by monitoring voltage, line frequency, and power factor. Now you will know if it is time for a new refrigerator or if that old air conditioner is still saving you money. Kill A Watt can help you reduce your power bill and will help find power-wasting appliances so you are able to decide whether it is worth keeping them plugged in. For standard 115 VAC appliances only, 15 amps maximum, 125 VAC maximum.

Find Out How Much Electricity You're Using

The U.S Department of Energy reports that 20% of our electric bills come from items that are left plugged in when they are not in use, or items that are in standby mode. With the Kill A Watt P4400 we can monitor the energy eaters in our homes and cut down our electric bills at the same time. Plug whatever item you want into the device and it will tell you the efficiency of that item by displaying the kilowatt per hour. This device will help you determine which items are costing you the most to run. The Kill A Watt also calculates voltage, line frequency, current, and power factor. You can calculate your electric bill before you even receive it from the electric company.



Test The Quality of Your Home's Power



But measuring appliance consumption is just the tip of the iceberg. Because it can monitor voltage (Volt) and line frequency it can also test if an outlet is working, or evaluate the quality of the electrical power provided by your utility company. It can detect voltage drops around the house, help to predict brownout conditions or to make sure a new home's outlets are in working condition before escrow closes.



About P3 International



Founded in 1987, P3 International is a privately owned manufacturer of solution oriented consumer products. For the last twenty years they have strived to develop products that are easy to use and ahead of their time. Thanks to their customer-centric attitude and support from their clients, they have experienced steady growth over the past decade.



They are committed to manufacturing high quality products that appeal to a variety of different people, from the environmentally conscious to the more technologically-minded consumer. With this philosophy driving them they are always looking for innovative new products which they can offer their customers.



Their unique products have garnered much attention, in particular the Kill A Watt. Reviews of P3 products have been featured in newspapers such as The New York Times and The Wall Street Journal.

Technical Specifications

Accuracy: +/- 0.2%

Input Power: 115 volts AC, 60 Hz

Max Current: 15 amps

Max Voltage: 125 volts

Max Power: 1875 VA

Dimensions: 5.1 inches long x 1.6 inches thick x 2.4 inches wide

Approvals: ETL (c), ETL (us)

Origin: China

Manufacturer Warranty: 6 months

• Choose from the Kill-a-Watt's four settings to monitor your electrical usage
• Monitor your electrical usage by day, week, month, or year
• Features easy-to-read screen
• Electricity usage monitor connects to appliances and assesses efficiency
• Large LCD display counts consumption by the kilowatt-hour
• Calculates electricity expenses by the day, week, month, or year
• Displays volts, amps, and wattage within 0.2 - 2.0percent accuracy
• Compatible with inverters; designed for use with AC 115-volt appliances

User questions & answers

Question:	Hi, is this unit able to capture peak current draw? I want to see if my audio amplifier ever gets close to tripping my breaker
Answer:	This will only plug into a 120 VAC outlet. The standard 120 VAC outlet in almost all homes is only rated 15A continuous duty, but can take more for a second like when a room air conditioner compressor starts up. This is probably following those same rules. If the wiring is 12 gauge or thicker, it can be hooked to a 20 amp breaker even though all of the outlets in the average house are rated 15A, at least in most states. The reality of the matter is that wiring and outlets can always take somewhat more than the ratings and everything is oversized for safety. But is is always considered unsafe to plug in any device that uses more than 15 amps into a typical house outlet. An exception is commercial outlets that fit both home devices and heavier duty commercial device plugs and those outlets are usually rated at 20 amp. Those outlets are more common in businesses and uncommon in homes. An air conditioner or commercial refrigerator that uses more than about 10 continuous amps will normally be a 240 volt appliance and require different type of outlet designed for 240 volts, same is true of typical electric clothes dryer and this device would not adapt to those.
Question:	Will this work with two prong (non-grounded) outlets
Answer:	This device, the P4400, will reset all of its timed measurement values to zero if power is lost or the device is unplugged. The P4460 has "non volatile" memory, using a battery to provide the necessary voltage to power the (S)RAM memory, which means that it will not lose the data if power to the 4460 is lost. The P4460 also will let you input the cost per KWH from your provider to calculate the cost to operate the appliance over a week, month and year (assuming that your use is the same during the extrapolated period as it was during the measurement period). For me the data retention feature is well worth the extra $4 since I want to keep track of the energy used by a window air conditioner which will vary by the outdoor temperature, the sun hitting the building, the humidity, etc.
Question:	most of my outlets are 20 amps or more, the killawatt is only 15 amps does that make a difference in calculations, the garage is 40 amp
Answer:	Hello, the correct wire is typically referred to as 10/3 with ground, but yes 10/4 would be the correct amount of wires. Reliance Controls videos have the 10/3 with ground used in install videos. Any other video done by others may not have the correct wire.
Question:	what is the difference between the p4400 and the p
Answer:	Hello and thanks for your question! The PB30 inlet box is just a plug for a generator cord in an outdoor rated enclosure. It is used to connect a generator cord and then bring the wiring into a building to connect to what should be a transfer switch or device. The wiring from the PB30 brought inside doesn’t have to connect to a transfer switch for the power to be utilized, but every state law requires a transfer device to connect generator power to. Hope this helps!

Product features

Kill A Watt EZ Power Monitor

Calculate your homes cumulative electrical expenses and forecast by the day, week, month, even an entire year. Also check the quality of your power by monitoring Voltage, Line Frequency, and Power Factor. Now you’ll know if it is time for a new refrigerator or if that old air conditioner is still saving you money. With the amazing Kill A Watt EZ you’ll know 'Watts' killing you.

Kill A WATT EZ Power Monitor

With the P4460 you can easily identify which appliance in your home is costing you the most money. The Power Monitor also allows you to enter your Utility providers cost of electricity so you can monitor and pinpoint what each appliance is costing you.

Founded in 1987, P3 International is a privately owned manufacturer of solution oriented consumer products. For the last twenty five years we have strived to develop products that are easy to use and ahead of their time.

We are committed to manufacturing high quality products that appeal to a variety of different people, from the environmentally conscious to the more technologically minded consumer. With this philosophy driving us we are always looking for innovative new products which we can offer our customers.

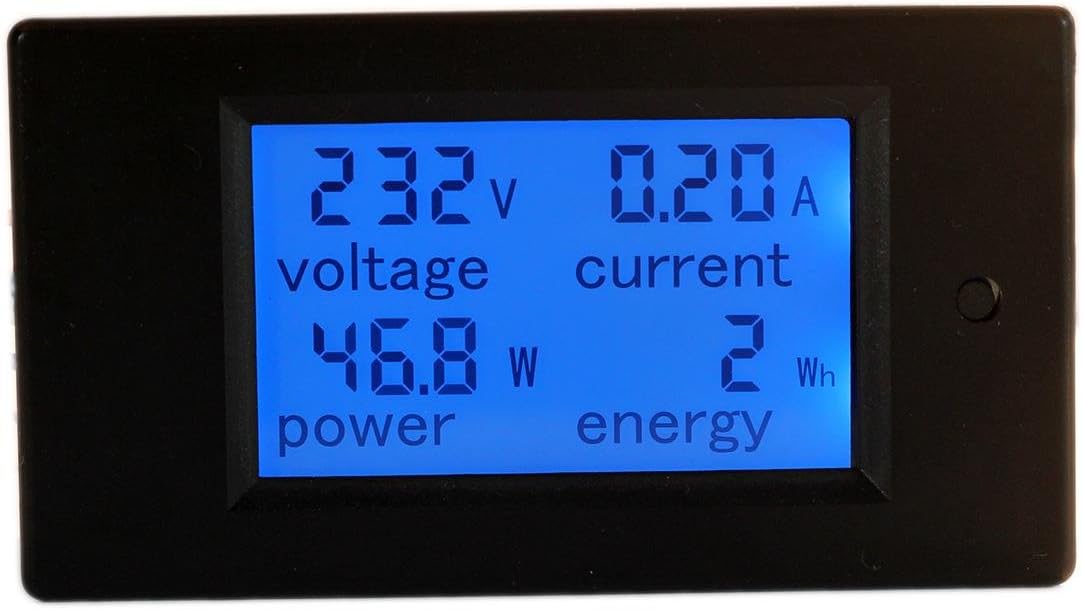

• The meter can only measure the active power(real power). It doesn't show Apparent power. If you measure power from a DC-AC inverter, please make sure it's PURE SINE WAVE. Otherwise the meter can be burnt or melted.
• 6 in 1 Meter：The large clear screen can display voltage/ current/ active power/ cumulative energy/ frequency/ power factor at the same time.
• Easy to Read: The backlight can be turned on/off manually, easy to read in the dark or in bright light.
• Overload Alarm Feature: Backlight and power digits will flash when exceeding the preset power value.
• One Button Control: The button is designed to control the backlight, reset energy data, or preset power alarm threshold.

User questions & answers

Question:	Does anybody make one of these that allows monitoring two circuits with two ct's, and just toggle the display
Answer:	I bought two meters and hooked up the coils to my wires coming from my generator feed to my double pole breaker , then I bought two more coils on eBay and put them on my main feed .Soldered the coils from both feeds to a four double pole mini switches so when the switches were in the up position the meters read the house power (normal power) When the four switches are in the down position I would monitor the generator feed when using the generator during a power outage.Wasn’t sure if the switches were necessary or if I could just parallel the coils from the a Phase and the ones feeding the b phase but used the switches to separate the coils from each other just in case. Works perfect this way.Now I can monitor normal power or generator power with just two meters.
Question:	es resistente al agua
Answer:	Saludo amigo no para nada no es resistente al agua
Question:	Does the meter display values up to the test values or main specifications? (ie. rated up to 100 amps, but displays only up to 5 amps
Answer:	(What are you connecting this too?) You’ll get what ever the AMP value from the watts divided by voltage. Watts / voltage = amps Im running 3500 watts at 240v = 14.5 amps (this is shown on my display) If you are only seeing 5 amps, then your wattage is only around 600w on 120v circuit. Hope this helps
Question:	Does this record the amount of power used over a period of time
Answer:	It records watt-hours, but not time. If you want to know how much power was used over, say 30 days, you must manually note when you first began monitoring the circuit. This can be as simple as taking a picture of the display with your phone, which will of course time/date stamp your picture. One added benefit, it will retain watt-hours even if power is lost. It is not cleared until you manually clear it with the button to the right of the display.

Product features

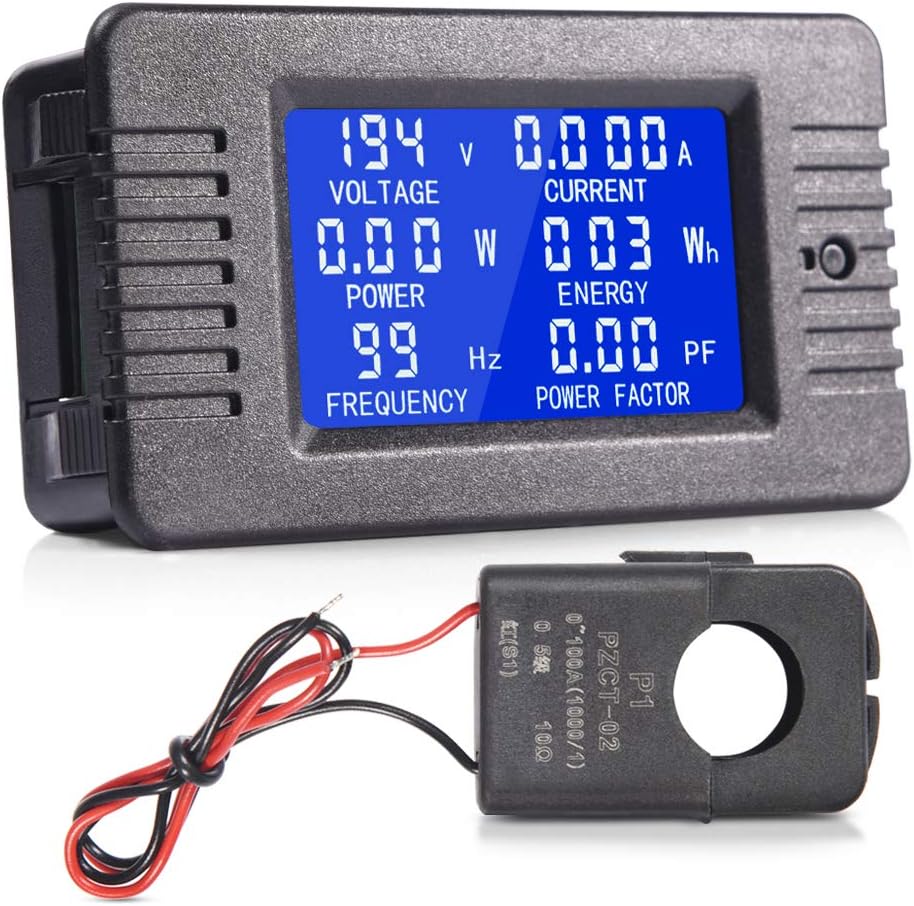

The large-screen LCD can display 6 electrical parameters at the same time. Test Range:

1. Voltage: 80~260V

2. Current: 0~100A

3. Power: 0~22kW

4. Energy: 0~999kWh

5. Frequency: 45~65Hz

6. Power Factor: 0~1PF

Durable Material

• GFR Nylon Enclosure
• Fireproof & Shock-resistant

Easy to Read

• High Resolution LCD
• 360 Degree Viewable

Split Core CT

• No need to cut the wire
• Ideal for retrofit installations

NOTES

1. This meter is used for single-phase power with one hot line and one neutral line. If you want to measure the circuit with 2 hot lines, you will need 2 meters, one for each line.

2. Applied load should not exceed the rated power.

3. Wiring order cannot be wrong.

4. This unit is suitable for indoor application only, do not use outdoors.

Product description

With a push button electric start, the Briggs & Stratton P4500 Power Smart Series inverter generator is ready to go when you need it most. The telescoping handle allows for easy maneuverability, ideal for RV, campsite, and recreational use. The multi functional display panel monitors power usage, fuel level, and run time. 120V, 20A outlets, 120V, 30A RV outlet, and USB ports allow you to stay connected and keep multiple items powered simultaneously. For added protection, CO Guard carbon monoxide shutdown technology shuts down the generator if harmful levels of CO accumulate in the generator’s operating area.

• Automatically adjusts the engine speed further reducing noise, fuel consumption and emissions
• Product dimensions – 24.5" L x 17.6” W x 20.3” H | Running Wattage – 3700 | Battery type – Lead acid | Fuel capacity – 3.5 gallon | Outlets voltage – 120V | Decibel rating – 61 Dba | Run time – 16 hrs. @ ¼ load
• Parallel compatible – No | Oil type – Non-synthetic, SAE 30 Oil | Recommended plug – NEMA TT-30 plug rated for 125 Volt AC loads at 30 Amps | Wave output – True Sine wave
• With inverter technology, it produces smoother power for sensitive electronics such as laptops, phones and gaming systems
• Advanced Detection. Added Protection. This patent-pending technology shuts down your generator when harmful levels of carbon monoxide accumulate in the generator's operating area

User questions & answers

Question:	What type of fuel do you put in
Answer:	no, it has a pull start but it pulls very easy. Never had to pull more than twice. Electric starter is just one more thing to go wrong on a generator
Question:	Has anyone converted theirs to propane
Answer:	The Westinghouse product I am interested in will not ship to CA. What makes this odd is this exact unit is sold online and in stores here in CA. If it were in stock I would gladly buy locally. Maybe these situations will slowly bring Amazon to its long overdue knees.
Question:	Does it have an electric start
Answer:	I don't have it but from what I know about it is that you can measure watts for long period of time, So - reset meter, set it to continuously measure watt*hour (WH, watt for 1 hour=60 minutes*60=for 3600 seconds), connect your turned off amp, turn it on and immediately turn it off exactly after 1/2 second. Meter SHOULD show wattage consumed for 1/2 second because they say it measures power FEW TIMES PER Second (though still will be measuring after amp will be turned off, but it is ALMOST not consuming power) - that will be your surge power - multiply it by 3600 and by 2 (because 3600 for hour and for whole 1 sec it would be twice higher) and divide it on 115, or whatever voltage will be during measurements (put voltmeter to measure voltage, or just measure voltage before starting test, though voltage can can change fast). And you will get average current for first 1/2 sec. If you manage to turn it off exactly after 1/4 sec (but don't forget to multiply measured WattHour by 3600 and by 4, because 3600 higher for 1 hour and for whole 1 sec it would be 4 times higher) then measuring current surge will be more accurate. This calculation imitates WattHours consumed by amp as if it worked with average current equal to surge current for 1 hour, and that is why you divide those WattHours on voltage to get average current equal to surge current (which actually happened only during part of first second). So, if meter accurate enough to measure small power consumption then all this will work.But remember: amp MAY not like it, though SHOULD Tolerate such thing - anyway, don't blame me if something happens to it. I would do that myself, i believe this is not unusual for amp.
Question:	Why won't it ship to California
Answer:	Be Careful- defeating a polarized plug can be dangerous. The wide prong is neutral and connected to ground. The narrow prong is "hot" (energized) compared to ground. Some devices such as tools, chargers, and others use polarization to reduce the chance of electrical shock. If the device, such as most lamps, doesn't have a polarized plug then there is no concern, an adapter or extension cord is fine. If a device has a polarized 2 prong plug and you decide to use an adapter anyway, make sure the KillaWatt's plug's small slot on front is aligned with the wall plugs small slot and the larger slot on front aligns with the larger slot on the wall plug to maintain polarity. It is impossible to reliably maintain polarity using an extension cord so I would never attempt it. I would never cut off the ground prong, the blade prongs on the KillaWatt are the same size because the ground prong aligns the correct prongs with the wall plug so they do not need to be different sizes. Once you cut off the ground prong the odds are 50/50 of dangerously reversing the polarity of the plug on the front of the KillaWatt since it may, or may not, be plugged in correctly. Similarly if the wall plug slots are both the same size you are once again at 50/50 odds of plugging the KillaWatt in incorrectly with an adapter making the KillaWatt itself an "adapter" permitting you to plug polarized plugs into unpolarized wall plugs. Once again if the lamp etc doesn't have a polarized plug this is not an issue. (If you want to know more about why polarization makes things safer just ask)

Product description

This meter can only be used with one-phase AC power. And it can only measure the active power(real power). It doesn't show Apparent power. For more information about the difference, please search AC POWER on wikipedia.



Main Specifications:



Working voltage: 80 ~ 260VAC

Working frequency: 50/60Hz

Measuring Accuracy: 1%

Power Consumption: 0.2W

Measurement speed: 2 times/s

Store data when power off.

The blue backlight can be turned on/off manually



Test Range:



1. Power test range: 0~22kW

2. Energy test range: 0~9999kWh

3. Voltage test range: 80~260V(single-phase)

4. Current test range: 0~ 100A



Cautions



1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.

2. Applied load should not exceed the rated power.

3. Wiring order can not be wrong.

4. This module is suitable for indoor applications, please do not use outdoors.



Package includes:

1x AC Power Multimeter



Warranty:

1-year free replacement or full refund without return.

If the item you have received is defective in any way, please message us for free replacement or a full refund without return.

• The meter can only measure the active power(real power). It doesn't show Apparent power.
• Voltage test range: One-Phase 80~260V AC Power, 50/60HZ
• Store energy data when power off(can be reset).
• Large-screen LCD (display voltage, current, active power, energy at the same time).
• The blue backlight can be turned on/off manually.

User questions & answers

Question:	What is the hole size in CT
Answer:	NO.We don't have a AC meter which can measure up to 200A power.
Question:	What are the cutout dimensions? What panel thickness is max
Answer:	Yes, but note that the Watts and Watt-Hour readings will be inaccurate. The meter uses the voltage reading to determine watts and watt-hours. So you can monitor a 240V line with the unit powered off 120V. You just have to multiply watts and watt-hours by 2. I am doing this exact thing on my baseboard heater circuit. The heater is 240VAC but I don't have handy access to 240V to power the meter where I want to use it. So I plug it into 120VAC using an old power cord and multiply "power" and "energy" by 2 to get correct values.
Question:	Do you have a unit that can measure up to 200Amp
Answer:	Fuel must meet these requirements. Clean, fresh, unleaded gasoline A minimum of 87 octane/87 AKI (91 RON). Gasoline with no more than 10% ethanol is acceptable. Do not use unapproved gasolines, such as E85. Do not mix oil in gasoline or modify the engine to run on alternate fuels. This will damage the engine components and void the warranty, To protect the fuel system from gum formation, mix a fuel stabilizer into the fuel. Please refer to your owners manual for further instructions.
Question:	Can the meter be powered from a different circuit then the circuit that's being monitored
Answer:	I don't know of anyone converting, but would be interested in any response from someone who has. My home standby generator, Generac, is propane and I love it.

• 6 Test Functions - The MICTUNING AC multimeter is mainly used to measure the voltage(80-260V), current(0-100A), power(0-22000W), energy(0-999kWh), frequency(45-65Hz), power factors(0-1PF)
• Excellent Visual Experience - The LCD HD display screen, combined with the backlight function, makes it easy to read the displayed data, giving you an excellent visual experience
• Safer Use - With the overload alarm function, when the actual value exceeds the preset value, the backlight will flash to make you know in time. You can set power limits as your need
• Firmer Installation - With the three-point snap design on both sides, high flexibility, make the installation firmer. The design of the screw wiring makes the wiring firmer
• Wide Application - Widely used in home appliances, inverter power supply, high and low distribution cabinet, photovoltaic system, etc

User questions & answers

Question:	Can this be connected to mains 240v to read l1 l2 of an electrical panel? or is there one that will work
Answer:	yes
Question:	What's the test clip/ring for
Answer:	You would need to use a grip amp meter to be sure take measurements with it first then fit extended leads and compare results
Question:	Can i use this on a portable generator to see power being used
Answer:	The inner diameter of the CT coil is approx 1.6cm.
Question:	Does anyone know if increasing the split transformer leads length to 24" would affect the accuracy
Answer:	The cutout would be 1.8" x 3.4" for a slightly loose fit. standard max panel thickness would be .032" but if you trimmed the holding tabs you could accommodate up to a .150" panel. If you remove the holding tabs and use a different retention system 1/2" panel would work.

Product features

Monitor AC circuits more comprehensively with power energy meter!

One interface displays 6 kinds of measurement parameters at the same time, including voltage, current, power, energy, frequency, and power factors, and display the data through the LCD screen.

LCD HD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night.

One-button control, which can be used to control the backlight, reset energy, and preset power alarm values, very convenient.

With memory function, if the power-off will automatically save the last test data.

Package includes:

1x AC Power Multimeter,

1x 100A Split Core Current Transformer

High Precision Chip Control

Efficient and stable operation, safe and reliable welding process, more accurate measurement.

LCD Backlight Display

Easily read the displayed data, giving you an excellent visual experience.

Firmer Installation

The screw wiring makes the installation firmer.

With Split Core Current Transformer

LCD multimeter ammeter comes with 100A Split Core Current Transformer, more convenient to install.

Product description

Emporia has developed the next generation of the Vue Energy Monitor. Committed to bringing the best value at the lowest price possible, the Vue provides everything you need to monitor your entire home's energy usage in real time. See how much electricity your home is using anywhere, anytime.

• INSTALLS IN CIRCUIT PANEL of most homes with clamp-on sensors. INSPECT YOUR ELECTRICAL PANEL for compatibility. Panels with access only to busbars will need flexible sensors available from the emporiaenergy website. Includes DIY instructions, though a professional electrician is recommended.
• 24/7 ENERGY MONITORING: Monitor your home's real power anywhere, anytime to prevent costly repairs, conserve energy, and save costs. Monitor solar / net metering. Light commercial 3 phase option available as a separate bundle.
• APPLIANCE MONITORING WITHOUT GUESSWORK: Comes with up to sixteen (16) 50A sensors to accurately monitor your air conditioner, furnace, water heater, washer, dryer, range, etc.
• LOWER YOUR ELECTRIC BILL: Gauge real-time spending and get actionable notifications to understand where you can save costs.
• REAL-TIME ENERGY DATA: Vue connects to 2.4GHz WiFi to monitor energy use with iPhone / Android app. Vue sensors provide 1-second data and are accurate from ±2%. The Vue is UL and CE Listed for your safety.

User questions & answers

Question:	Can this be set up to use and view on a desktop computer or does a person have to have a cellphone
Answer:	The OUT signal is a simple on/off detector with no adjustments. However, the analog detector signal can be tapped at pin 12 on the IC. The output is not doppler. The RCWL-0516 appears to be a free-running 3 GHZ oscillator tank that moves around in frequency depending on multipath resonances in the near environment. I did try doppler-like detection at very close proximity, and was able to see heartbeat frequency on pin 12 with a digital scope. If you tune the chip placement inside a Cantenna, it might be highly directional. Happy Hacking!
Question:	Does this work with a 240 line
Answer:	Customers who bought this module for their own DIY projects did not say that permission/certification is required to use this module. And no one is saying this product is illegal. Thanks
Question:	Any monthly app fees
Answer:	You need a transistor or Mosfet to either control the motor directly or to activate a relay that can turn the motor on or off. I have notes on this unit on my web page - they may help See: http://www.trainelectronics.com/MicrowaveRADARSensor/index.htm dave
Question:	Is there a subscription needed
Answer:	Sorry for the misunderstanding It means this module can detect human or rat or cat

Product features

Turning Power Into Knowledge

Emporia has developed the next generation of the Vue Energy Monitor. Committed to bringing the best value as affordable possible, the Vue provides everything you need to monitor your entire home's energy usage in real time. See how much electricity your home is using anywhere, anytime.

Monitor Individual Circuits without the Guesswork

Add individual 50A sensors to your Vue to monitor up to 16 individual circuits — providing accurate energy use for the appliances and equipment that is important to you. No guesswork. No trying to discern energy signals from background noise. Just simple, easy, and accurate insight into your home. 50A sensors are sold separately and also sold in bundles with the Vue.

Measure Solar Net Metering without Extra Hardware

Solar net metering is built right into the Emporia Vue. The simple Emporia iOS and Android app will show when and how much electricity you are consuming and when and how much excess energy you are producing back to the grid — giving you keen insight into the impact of your solar panels as they relate to your energy use.

Installs in the Electrical Circuit Panel of your Home

The Gen 2 Vue installs in your home's electrical panel using CT sensor clamps that go around your mains and the other circuits you wish to monitor. DIY instructions included, but a professional electrician is recommended. The Vue system is designed for field installation in a switch enclosure as per 312.8(B) of the 2017 NEC regarding Power Monitoring Equipment.

Do You have Metal Bus Bar Mains in Your Panel?

Our Flexible Current Sensor solution is now available on the EmporiaEnergy website. These current sensors are meant to replace the 200A main sensors that ship with Gen 2 Vues. They employ a bendable Rogowski coil with a 1.4” (36mm) opening that can fit around most bus bars or into tight spaces where a standard current sensors clamp cannot fit. Installing the Flexible Current Sensors is still dangerous, and Emporia highly recommends that installation be performed by a licensed electrician or other qualified professional.

Add Emporia Smart Plugs to Your Vue

Emporia Smart Plugs (sold separately) can be added to your Vue system to help you to not only monitor the energy of lighting and small appliances, but to also set timers, schedules, and turn them on and off from anywhere, any time with the Emporia app.
