12 best linear electronic gate openers

Product description

Multi Code 3089, mcs308911 Multi Code single button remote, 300 mhz, 10 switch, visor style remote with clip and battery. **Old style case shown for reference only it is no longer available. Features Test/operate LED Neutral case color Molded design to comfortably fit the hand Easy access to battery and dip switch Operates with all Multi-Code receivers and transmitters Power: long-life 9 V battery Frequency: 300 MHz (310 MHz also available) Codes: 1,024 (set by dip switches) Dimensions: 3.75 x 2.5 x .875 inches Compatible with the following units: Multi Code: 1089, 3089, 3089-11, 4120, 4120-01, 4140, 4140-01, 3060, 3060-01, 3070-01, 3083, 3083-01, and the 4200 or 4200-01 wireless keypad. Linear: MCS308911, MCS412001, MCS414001, MCS306001, MCS307001, MCS308301, and MCS420001 Digi Code: 5010, 5030, 5040, 5060, and 5070 MultiElmac: 3089 Eagle: EG 140, EG 144, EG 148 AND EG 152

• The Multi-Code 3089 by Linear Corporation MCS308911 remote is directly compatible with the following models to control one device: Challenger: MC1010, MC1020, MC4210, MC4220. Carper: CX-300 Digi Code: 5010, 5060, 5030, 5040, 5070. Heddolf: M219, M220. Multi-Code: 1083, 3060, 3070, 3083, 3089, 4120, 4140. Multi Elmac: 3089. Chamberlain: 300MC. Not all compatible models may be listed.
• Activates one Multi-Code or compatible receiver on 300MHz Test/operate LED Visor mounting clip supplied One-Year manufactures warranty
• Power: 9V battery (included) Frequency: 300MHz Codes: 1,024 (set by 10 dip code switches) Dimensions: 3.75 x 2.5 x .875 inches

User questions & answers

Question:	Where can i find the 310Mhz remote
Answer:	Go to our store. It is under 3089-13, or 1050-15 and DC5012 These are 3 versions all at 310 and all work great.
Question:	Is there such a thing as an omega magic garyage door opener
Answer:	There may be but I do not think this would be the remote for it.
Question:	Omega garage door opener
Answer:	This remote will work with a Multi Code receiver only
Question:	My gate equipment dosent have lerning button and is allomatic, how can I program this remote please
Answer:	This is an old-style remote that you have to put the switches in either "open" or "close" position to match the switches on the gate/door.

Product description

There’s little more important than the safety of you and your family, and so a strong, dependable gate motor is integral to keep your gate running reliably. ALEKO’s chain driven AC1500 110V AC gate motor provides exceptional starting torque and is well made enough to stand up to continuous operation, making it ideal to keep your gate running smoothly for a long time. Constructed with an aluminum alloy chassis, it's corrosion resistant and light enough for one person to carry and install. The heavy duty gate motor opens gates up to 1500 pounds and up to 45 feet in length using an included 20 feet of chain; additional length of chain is available sold separately if needed. Not only are ALEKO’s gate motors strong and durable enough to stand up to regular activity, but they’re the industry standard in safety as well. If the gate encounters an obstruction, the motor will stop and reserve, keeping anything that passes through safe and undamaged. Includes AC 110V motor, remotes, 20 feet of chain, and all needed installation hardware.

• Chain driven sliding gate can be used to open gates up to 1500 pounds of 45 feet in length
• User programmable and user erasable remote codes
• Aluminum alloy chassis is corrosion resistant while still being light enough for 1 person to carry
• For your safety, this model will stop and reverse if encounters an obstruction on closing or opening
• Includes AC 110V motor, remotes, 20 feet of chain, and all needed installation hardware

User questions & answers

Question:	Will this work with remote Aleko 2LM
Answer:	Yes, the instructions to do so are included in the installation and operations manual that comes with the opener.
Question:	Can these be hooked up to solar power with an inverter
Answer:	This product comes with all of the installation hardware required to install the gate opener, not the gate itself.
Question:	Can this opener be set on a timer so it closes automatically
Answer:	gear racks are sold separately.
Question:	Does this gate opener come with all the installation hardware needed
Answer:	Yes they can be installed

• Chain driven sliding gate can be used to open gates up to 2700 pounds of 40 feet in length
• User programmable and user erasable remote codes
• Aluminum alloy chassis is corrosion resistant while still being light enough for 1 person to carry
• For your safety, this model will stop and reverse if encounters an obstruction on closing or opening
• Includes AC 110V motor, 20 feet of chain, and remotes and all needed installation hardware

User questions & answers

Question:	whats included in the package
Answer:	Everything needed to install a basic gate. Not included, motion eyes, anchor bolts for stand.
Question:	Can be operated manually
Answer:	Good morning yes you can with using the manual release key Thanks AC
Question:	What comes in this package? Does it have everything necessary to install such as brackets
Answer:	yes comes w/everything you need
Question:	what is the Horse Power rating on this motor
Answer:	I think that the one that I got was a 1/2 hp. Im using it to move a HEAVY 16 foot gate. It seems to handle it without any problems.

Product features

ALEKO Chain Driven Sliding Gate Opener and Accessory Kit for Gates

ALEKO’s chain-driven gate motors provide exceptional starting torque and are built tough to stand up to continuous operation, so your gate stays running smoothly for a long time.

Not only are ALEKO’s gate motors strong and durable enough to stand up to regular activity, they’re also the industry standard in safety as well. If the gate encounters an obstruction, the motor will stop and reverse, keeping anything that passes through safe and undamaged.

Strong and Durable

A strong, dependable gate motor is integral to keep your gate running reliably. Not only are ALEKO’s gate motors strong and durable enough to stand up to regular activity, they’re also the industry standard in safety as well.

Quick and Easy Installation

Constructed with an aluminum alloy chassis, it's corrosion resistant and light enough for one person to carry and install. The heavy duty gate motor opens gates up to 1400 pounds and up to 50 feet in length using an included 20 feet of chain

Accessory Kit Available

The Chain Driven Sliding Gate Opener comes with an accessory kit for selected models that includes AC 110V motor, 20 feet of chain, and remotes and all needed installation hardware.

Product description

4 channel garage door opener remote control. Activates one DRG gate receiver and up to 3 separate Delta3 receivers. 310 MHz frequency. Battery, visor clip and instructions included. 256 + 64 different digital codes. Dimensions 2 1/8" x 1" x 3 3/4".

• 4 channel garage door opener remote control 310MHz frequency.
• Activates one DRG gate receiver and up to 3 separate Delta3 receivers.
• Battery, visor clip and instructions included.
• Dimensions 2 1/8" x 1" x 3 3/4".

User questions & answers

Question:	Does this have settable switches? If so - how many
Answer:	4 channel - 8 dip switch- 310 MHz
Question:	Does this have 2 sets of 8 dip switches? The dt4b that we ordered only has one set of 8 dip switches
Answer:	It does indeed have 2 sets of 8 dip switches.

• COMPONENT -- Brushed aluminum shell, DC24V motor with buit-in control unit, buit-in backup battery.( 2pcs 12V batteries included)
• GATE RESTRICTION -- Max weight is 600lbs, max length is 26ft.
• COMPATIBILITY -- Solar system compatible(not included).
• ELECTRONIC LIMIT -- Easy to set open and close positions.
• INFRARED CONNECTION -- In this closing process, when infrarad ray of the infrarad sensor is covered, the gate will open immediately, to protect user and property security.
• Available when power is off, but please note that it can only work for a period of time without power. If it is used for a long time, it needs to be plugged in.

User questions & answers

Question:	I need remote control this machine model AT
Answer:	Mine have N710 printed on the box.
Question:	Technical details say 2 batteries 12v but the voltage says dc 110v. is that a mistake
Answer:	Sí, así es.
Question:	will the transformer charge the batteries (should the batteries be connected if using the transformer
Answer:	hello Del Can you please tell me what it says on the product page that led you to buy this refill? We have sold a ton of these but there have been a few returns and I need to get an idea of the misleading info on the page so I can correct it. Tell me what pen you have and I will ask my distributor what refill you need. Thanks Lou...
Question:	Do I need to run power to this unit? Or can it operate on solar power alone
Answer:	Welcome to TOPENS! Currently, online, the RNH4 gear rack is only sold by set (4pcs, total around 13 feet). Please contact us so that we can provide you with corresponding help. Click “TOPENS” on the right side of the product page (which appears below the “Add to Cart” button), and in the next page click “Ask a question” button to leave a message to us TOPENS Seller. Or contact our service E-mail indicating at the end of the user manual. All your concerns will be replied within 24 hours.

Product features

Remote Control

• Remote control mode:Single button mode
• Recording of up remote controls:20
• Remote control distance:≥30m

Infrared Sensor

• Infrared sensor is needed for security.

Chain

• Chian driven system.

Solar Panel Kit

• When it is without the power supply, you can unlock the gate opener with release bar, and push the gate manually.

• The Eagle-I Slide Gate is designed for a residential use with the power of a commercial gate. The Automatic Slide Gate Operator is equipped with a 1/2 Hp motor for rolling sliding gates up to 18ft and 300lbs.
• Package Includes – Eagle-I Slide Gate Operator, 10ft Nickle Plated Chains, 2 Wireless Remotes, 1 Receiver, 1 Photo Eye Sensor. We also Supply a 5 Year Limited Manufacturing Warranty for residential users
• Easy to Install - With the professional installer in mind, the Eagle-I is designed with an AC Mini Diamond control board; the most user-installer friendly control board in the industry that allows easy installation.
• Safety - In case the Eagle slide gate operator fails, or a power outage occurs, the Eagle-I is equipped with a fail secure release crank. The user will be able to open the gate manually using the release crank. Also included is a built-in lighting and surge protection.
• The Automatic Slide Gate Opener is designed with features such as user-friendly capabilities, open/close delay, motor brake, anti-tailgating, partial open, Stop-Reverse and auto close timer.

User questions & answers

Question:	Does the unit come with a metal base for mounting it to a concrete pad
Answer:	Yes but that’s called secondary protection this operator comes with a photo eye to prevent this in the first place.
Question:	it work on 25 feet Long gate
Answer:	You will need to buy a 7-Day timer.
Question:	During a power outage, how can you open gate
Answer:	No this is an AC gate operator uses 120v power.
Question:	My Eagle 1 opens but it won’t close, can you tell me why
Answer:	Yes it comes with the capability you will need to buy Exit 101 sold separately

Product description

Control the most popular brands of garage door openers and gate receivers such as LiftMaster, Chamberlain, Genie, Overhead Door, Wayne Dalton, Linear, Marantec, plus more!  Compatibility with most rolling code and fixed code dip switch products since 1993.  Each button is pre-programmed with a different popular manufacturers code.  Each button can also be re-programmed individually for any of the other manufacturer combination options.  A unique “Teach & Pair” feature simplifies the programming process.  Built-in LED light provides visual cues to simplify the programming process.  Versatile visor clip and keychain options in every box! Minimize inventory needs in the warehouse and on the service truck – one remote for service needs!  Reduce the clutter of multiple remotes! Operate both your gate receiver and garage door opener with a single device that fits in the palm of your hand!  Service part numbers: - Visor clip: 37768A.S - Visor clip holder: 39878A.S - Keychain loop: 39876A.S

• Control the most popular brands of garage door openers and gate receivers: Compatible with various specifications under these brands: LiftMaster, Chamberlain, Craftsman, Genie, Overhead Door, Wayne Dalton, Linear, Sommer, Ryobi, Guardian, Xtreme, Marantec, FAAC
• Each of the 4 buttons are pre-programmed with a different popular manufacturers code Each button can also be re-programmed individually for any of the other 10+ manufacturer combination options A unique “Teach & Pair” feature simplifies the programming process when an existing operational remote is available Built-in LED light provides visual cues to simplify the programming process.
• Visor clip/holder standard in each box Keychain loop standard in each box Button size perfectly fits the pad of the finger
• Minimize inventory needs in the warehouse and on the service truck – one remote for service needs! Reduce the clutter of multiple remotes! Operate both your gate and garage door with a single device that fits in the palm of your hand!
• All Genie Professional Line Universal Remotes were produced with software version v01.01.04 or greater which includes the most up to date functionality and compatibility with everything shown in the chart on the right.

• 【Heavy Duty】- Featuring two STRONG 24V DC motors, TOPENS AT1202 Automatic Gate Opener is designed for HEAVY DUTY dual swing gates up to a maximum of 18 ft. long or maximum of weight of 880 lbs. per gate leaf. The extendable and durable aluminum swing arms bring a superior performance for heavy weight gates. The system provides a long operating life with minimum maintenance requirement.
• 【Multiple Applications】- Suitable for all types of dual swing gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as panel, tube, and chain-link. Typical application includes residential, courtyard, pasture, farm & ranch. Easy DIY installation with commonly available tools, no extra welding. Full mounting hardware and easy-to-follow instructions are included for your peace of mind. The whole installation takes just a few hours.
• 【Clever Design】- Using advanced technology, two optional installation styles of Pull-to-Open / Push-to-Open enable the gate open Inwards or Outwards. Built-in transformer, AT1202 is powered by AC 110V electricity directly. The additional 24V battery and solar panel (NOT included) are also allowed to use as back-up power source. A wide range of accessories are available, include M12 Remote Control, TKP3 Wireless Keypad, ET24 Electric Gate Lock, etc. So smart!
• 【Safe to Use】- Features TOPENS security technology that ensures multiple protection & safety. Reliable electromagnetism limit switch for easy adjustment. Soft start and soft stop ensuring a long-lasting performance. Adjustable auto-close time (0-99s), adjustable stall force, max motor running time (1-50s), and microchip rolling code for remote keys. Built-in stop and reverse mode in case of obstruction. Equipped with 90° manual release key in case of power outage or when you lose your remote.
• 【Outstanding Customer Service】- Backed by a 12-month TOPENS Warranty, and free product return & exchange service within 30 days. More than a gate opener, our complimentary TopensCare+ Customer Support provides you comprehensive system solutions. Simply contact us via the service Email for any concerns during product installation and use.We are quite sure that you will be super-impressed with HIGH QUALITY of our Swing Gate Opener.

Product features

Durable & Reliable Dual Gate Opener

TOPENS AT1202 Automatic Gate Opener features two STRONG DC 24V motors with higher efficiency, lower power consumption, and greater safety. It is designed as the TOPENS Strongest Gate Opener for Heavy Duty dual swing gates up to a maximum of 18 ft. long or maximum of weight of 880 lbs. per gate leaf. The extendable and durable aluminum swing arms bring a superior performance and longer operating life.

AC Electricity Powered, Solar Capable

Built-in transformer, AT1202 is powered by AC 110-120V electricity directly. The additional 24V Automotive / Marine type battery (Battery is NOT included) and the extra TSP30W Solar Panel Charging kit (Not included) are also allowed to use as back-up power source. 2 pcs 12V batteries connected in series for 24V.

Multiple Applications, Easy DIY Installation

Suitable for all types of dual swing gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as panel, tube, and chain-link. Typical application includes residential, courtyard, pasture, farm & ranch. The step-by-step instruction manual makes installing the opener fool-proof. The whole installation takes just a few hours.

Technical Guidance

More than a gate opener, our complimentary TopensCare+ Plan provides you comprehensive system solutions. Search topenstool for online tech guidance, and instruction manual downloading. Getting one-stop assistance from TOPENS professional who knows your products.

AT1202 Features & Benefits

• Two installation modes, Pull-to-Open or Push-to-Open, allows gate open inwards or outwards.
• Equipped with manual release key in case of power outage or when you lose your remote.
• Advanced TOPENS microchip rolling code technology for remote controls. To improve your gate safety, only TOPENS authorized remote controls and wireless accessories are allowed to operate TOPENS Gate Opener.
• Soft start and soft stop ensure a long-lasting performance. The soft stop time is adjustable.
• Stop in case of obstruction during gate opening, and reverse in case of obstruction during gate closing.
• Reliable electromagnetism limit switch for easy adjustment.
• Digital display indicates the running situation and setting menu.
• Built-in adjustable auto-close time (0-99 seconds) and adjustable obstruction sensitivity / stall force.
• Built-in max. Motor Running Time (MRT 1-50 seconds) for multiple safety protection.
• Adjustable opening/closing interval (0-9 seconds) between master and slave gate.
• Dual/Single gate running mode selectable.
• Easy to install, and minimum maintenance requirement.
• Assurance: 12 Month TOPENS Assurance, plus professional TopensCare+ tech guidance.

AT1202 Technical Diagram

NOTE: The tiny CR2025 3V button cell batteries that come with the package are ONLY for the remote control.

Power Mode 1 (Default Mode) - Use only the AC 110V-120V electricity to power the system

• Recommended where AC electricity is accessible and stable.
• The power supply cord is NOT included.
• The power supply cord should be at least 2C×18AWG (2×0.75mm2). Connect the live wire and neutral wire to the (#1) and (#3) terminal respectively. No matter the polarity.
• Release the clutch and open the gate manually in case of power outage.

Power Mode 2 - Use the AC 110V-120V electricity and the back-up batteries to power the system

• Recommended where AC electricity is accessible, but not stable.
• Requires additional 24V 12Ah Automotive / Marine type battery (Battery is NOT included). 2 pcs 12V batteries connected in series for 24V.

Power Mode 3 - by AC 110V-120V electricity and back-up batteries, use the AC electricity, solar panel & solar charge controller together to charge the batteries

• Recommended where AC electricity is accessible, but not stable.
• TOPENS TSP30W 30-Watt 24V Solar Panel Charging Kit is available online (Asin: B07ZTBRVXL).

Specifications

• Product Model: AT1202 Gate Opener
• Motor Voltage: DC 24V
• Motor Power: 80W
• Rated Current: 3A
• Actuator Speed: 0.6 in/s (16 mm/s)
• Max. Actuator Travel: 15.2” (385 mm)
• Gate Opening/Closing Time: approx. 15 seconds
• Max. Opening Angle: 90° - 110° depends on the installation mode

• Operation Range for the Remote Transmitter: 65’ (20 m)
• Frequency: 433.92MHz, unique code per gate opener
• Max. # of Remote Control Supported: 8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver that is sold separately
• Working Temperature: -4°F to 122°F (-20℃~ +50℃)
• Sound Level: < 50 dB
• Protection Class: IP44 - Waterproof and Dustproof
• Dimension of the Arm (Actuator): 32.6 x 4.9 x 8.2” (829 x 124 x 208 mm)
• Dimension of the Control Box: 10.9 x 8.4 x 3.4” (276 x 214 x 87 mm)

Access & Control

• M12 Remote Control (Asin: B075L4BN21)
• ERM12 External Receiver (Asin: B075KHPLHD)
• TC186-R WiFi Smartphone Remote Control with Camera (Asin: B07ZSXPSZZ)
• TC186 Universal WiFi Smartphone Remote Control with Camera (Asin: B07ZVHM2WL)
• TKP3 Wireless Keypad (Asin: B075K783DS)
• TC175P Wired Keypad (Asin: B07ZTB33JK)
• TEW3 Vehicle Sensor Exit Wand (Asin: B07DF8ZQNB)
• HLR01 Homelink Remote Control Kit (Asin: B07CWNX1P8)
• TC173 Wireless Push Button (Asin: B07ZTC75CX)
• TC147 Wired Push Button (Asin: B07ZTB2TQH)

Safe & Security

• ET24 Electric Gate Lock (Asin: B078WQF21N)
• TRF3 Reflection Photocell Sensor (Asin: B07ZTCMWFT)
• TC102 Photo Eye Beam Sensor (Asin: B07ZTB4VML)
• JD24VY 24V Warning Light (Asin: B07ZTB326B)

Power Supply & Cables

• TSP30W 30W Solar Panel Charging Kit (Asin: B07ZTBRVXL)
• TCS3 Solar Charge Controller (Asin: B07ZTC6317)
• 25FT Extension 5-Conductor Cable (Asin: B07WCW6W8T)

Replacement Parts

• PKMJ1A Control Panel (Asin: B07ZTB4TJN)
• ALS01 Limit Switch (Asin: B078TBH86G)
• MK01 Hardware Kit (Asin: B07ZTC94Y7)

Product description

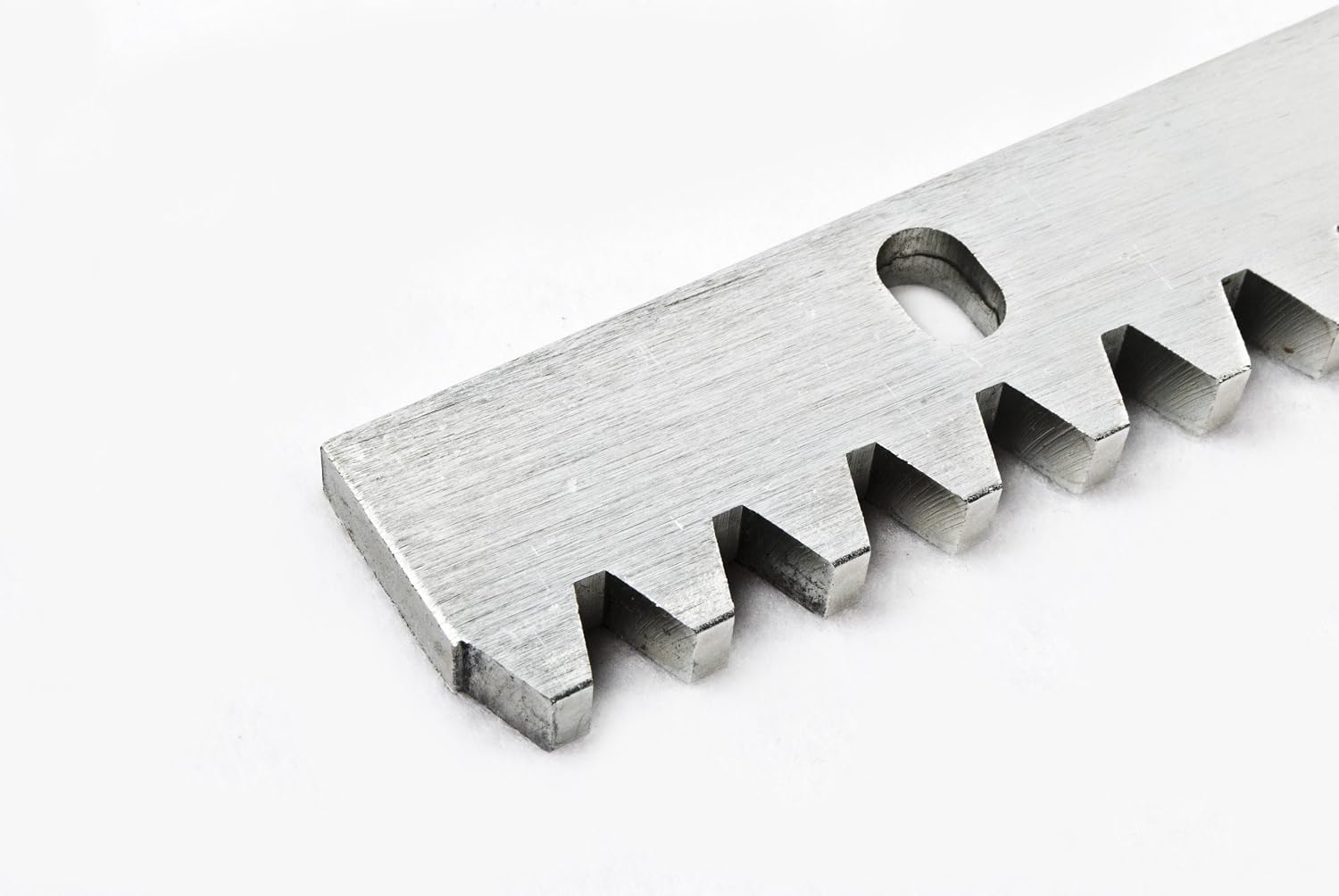

If you have an ALEKO brand AR series rack-driven gate opener, try our steel gear racks for the ultimate in easy gate opener operation. Our racks are made of solid stainless steel, and are more durable and long lasting than nylon gear racks. They are made for ALEKO brand gate openers, but they work great with most other brand of gear rack-driven openers as well. This set includes 3.3 foot long gear racks, which totals to 13 feet. Try ALEKO brand gate opener accessories, and you’ll wonder how you got by without them!

• Our steel gear racks are compatible with any ALEKO brand AR series rack driven gate openers
• Made for ALEKO brand gate openers, but compatible with most other rack driven openers
• Made of durable stainless steel
• Steel gear racks last longer than nylon racks
• Includes 3.3 foot long gear racks for a total of 13 feet, and all needed fixings

User questions & answers

Question:	Do the raks come with magnet
Answer:	Yes, but I bought the motor and gear rack together
Question:	Do the aleko steel gear racks come with lower and upper magnet
Answer:	No, racks, weld on threaded tabs and bolts only. No magnets received with mine.
Question:	What are the dimensions of this track. The listed dimensions 5” by 3” seem enormous. No way they are 3” thick from the picture
Answer:	They are 3cm thick.
Question:	Can i use aleko steel gear racks for sliding opener operator 13ft with ar2700 sliding gate opener
Answer:	Yes, that is the opener I have.

Product description

Linear Delta 3 garage door opener receiver - 2 channel. Two channel garage/gate opener receiver. Will operate up to 2 garage/gate openers. 256 different digital codes. 310 MHz frequency. 3 lead connection - 24 volt. Mounting bracket supplied. Dimen

• Linear Delta 3 garage door opener receiver - 2 channel garage gate receiver
• 3 lead connection - 24 volt 310MHz frequency
• Mounting bracket supplied.
• Dimensions 51/2:

• Solar Powered Do-it-yourself Swing Gate Opener - Being off grid has never been easier with our solar gate openers. Solar will allow your gate to open even when you don't have power at your gate. For gates up to 20' wide or up to 900 pounds
• Excellent Range - Open your gate with the press of a button from up to 1,000 ft away
• Easy Installation - Tube Gate Brackets included making for the easiest installation in the industry
• Quiet, Reliable & Lifetime Assurance* - Constructed for years of reliablility with smooth and quiet operation with lifetime assurance on the motor and gear assembly
• Complete Kit Includes - one 10 watt solar panel, one standard 3 button remote, one set of tube gate brackets, control box with system controller and a battery harness for your own 12V Battery (Battery NOT included). AC Transformer also NOT included

User questions & answers

Question:	Can i salvage any of my current gto installation parts if i switch to ghost? namely wired sensor, call box key pad, battery, push to open brackets
Answer:	Yes, you can salvage some of the items listed including the battery and the wired vehicle sensor. The keypad and push-to-open brackets are not compatible with Ghost Controls. We operate on a different frequency and use a double-shear rear mount so these items will not work with Ghost Controls. Thank you for your interest. We are here to assist you.
Question:	can you use a 12 volt marine battery
Answer:	Yes. That will be a great solution for the battery, especially if you are using solar to recharge the battery.
Question:	How fast will it open
Answer:	I don't own one but imagine it has everything to do with the weight of the gate, hinges, post, and friction. EX a lightweight 50# aluminum gate would take considerably less force than a 500# steel gate to open.
Question:	Is this compatible with the Homelink opener that is already built into my car? I tried programming it for about 30 minutes, but had no luck
Answer:	I was unable to program either one of my two Toyota Camry (2007 and 2018) Homelink systems to work with our new Ghost Controls gate system. Used two different remotes that worked on their own. Spent about 30-45 minutes, followed the instructions exactly, kept the buttons pressed until they timed out on their own -- at least 2 minutes -- no sign of recognitiion by the Homelink systems. My Genie garage door opener signals were previously cloned on both cars without difficulty, and continue to work.

Product features

Why Choose Ghost Controls?

We are the perfect solution for any single agricultural style or tubular gate used to access your property. These innovative gate opener systems were designed to be the superior solution for home and property owners wishing to automate their tubular or agricultural style gates while being the easiest system to install. REQUIRES 12-VOLT BATTERY, not included in kit.

HOW TO ATTACH ALL THE CABLES IN THE CONTROL BOX

RECHARGING THE SYSTEM WITH SOLAR OR AC POWER

OVERVIEW ON HOW TO PREPARE THE GATE FOR THE OPERATOR

PREPARING THE GATE FOR INSTALLING THE OPERATOR ARM

In this video we go over installing the rear mount of the operator to the post.

MOST COMMON INSTALLATION. GATES WILL OPEN INTO THE PROPERTY

This video goes over how to propertly measure and install the front mount of the opener to the gate.

WHERE TO INSTALL YOUR CONTROL AND BATTERY BOX

Product description

The Linear safety beam sender and receiver set is compatible with Linear garage door opener models LSO50, LDO33 and LDO50. The set includes a short wire that gets spliced into the operators existing sensor wires. Does not include sensor mounting brackets.

• Compatible with Linear garage door openers models LSO50, LDO33 & LDO50
• Projects invisible light beam across garage opening & reverses opener if anything interrupts beam
• Includes safety beam sender, receiver, wire & gel caps to splice sensor wires into existing wiring

User questions & answers

Question:	Is their any programming needed after swapping out sensors
Answer:	Worked on mine.
Question:	will this work on overhead doors
Answer:	They make connecting exsiting wires to new sensor very easy and quick, just snip and strip wires from existing sensor, remove red cap from clear plastic, place stripped wire in metal fork repositon red cap to same original orientation and press it into place, locking in the connection. Cavity in clear plastic should contain a clear grease which protects and waterproofs the connection. Don't over think this, its quick and easy. Do place wires in same orientation entering sensor as original wires. mine worked fine first try. I'm very pleased with these devices. Good luck --from Lee
Question:	I just ordered this but it came with no instructions, how to I use the clear/red cap
Answer:	Just for one door.
Question:	Is this for one door or two
Answer:	They just splice in to the existing sensor wires going up to the opener . In the front of the red cap there are two holes . Place One of the two wires coming from the center into one of the holes. Please one of the other wires coming from the garage on one of the sides of the garage into the other hole. Clamp down on the red button like it is a button with ploers and it will click in and connect the wires together and make connection without having to strip the wire at all.
