13 best digital sampling oscilloscopes

• 𝐏𝐫𝐨𝐟𝐞𝐬𝐬𝐢𝐨𝐧𝐚𝐥 𝐃𝐞𝐬𝐢𝐠𝐧𝐞𝐝 : 2 channels, 100 MHz analog bandwidth @ 1 GSa/s Real-time sampling, 240kbit Sample memory depth.
• 𝐇𝐃 𝐒𝐜𝐫𝐞𝐞𝐧 : 7'' color TFT- LCD touch screen with 800 * 480 resolution.
• 𝐄𝐚𝐬𝐢𝐥𝐲 𝐌𝐞𝐚𝐬𝐮𝐫𝐢𝐧𝐠 :Auto/Normal/Single 3 Trigger modes,it is easy to capture instantaneous waveform.
• 𝐈𝐧𝐭𝐞𝐥𝐥𝐢𝐠𝐞𝐧𝐭 𝐀𝐧𝐭𝐢-𝐛𝐮𝐫𝐧 : Built-in high-voltage protection module,can tolerate a continuous voltage of up to 400V.
• 𝐕𝐞𝐫𝐬𝐚𝐭𝐢𝐥𝐞 : ASD1013D is widely applicable in the academic experiment, electronic product design,debugging and maintenance, electronic engineering education, etc.

User questions & answers

Question:	Can you couple XY for Lissajous mode display
Answer:	Yes I do it to balance audio amplifiers.
Question:	can i see СAN bus on this oscilloscope
Answer:	Yes of course. It’s a waveform
Question:	is it a storage scope
Answer:	yes,it build-in 1GB storage space to store up to 1000 screenshots + 1000 sets of waveform data. And support USB exprot.

Product features

DETAILS

• Number of Channel :2
• Analog Bandwidth :100MHz
• Max Real-time Sample Rate : 500MSa / s
• Max Sample Memory Depth :240KB
• Horizontal Sensitivity : 50S / div~10nS / div
• Vertical Sensitivity : 550 mV / div~500 V / div
• (Analog)Input Impedance:1M ohm
• Maximum Input voltage: 40 V (1X probe), 400 V (10X probe)
• Coupling: DC, AC
• Trigger Modes: Auto, Normal, Single

• Trigger Types : Rising/falling edge
• Roll Mode : Support
• Waveform Storage:Up to 2000 wave
• Storage : 1GB
• Waveform Manager:Support
• Display : 7 in color TFT- LCD with 800 x 480 resolution
• Power Supply : 6000 mAh lithium battery
• Dimension : 7.08*4.72*1.57 in
• Weight : About 600g

High Definition Full Screen

7 inch color TFT- LCD full Capacitive Touch Screen display with 800 * 480 resolution.

Professional Designed

2 channels , 100MHz analog bandwidth @ 1 GSa/s Real-time sampling , 240kbit Sample Memory Depth

Thinner & Ultra-light

7.08*4.72*1.57 in thinner size and 600g super light weight design,easy to caryy.

Powerful Waveform Manager & USB Export

One-key screenshot and saving design,built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data,and support UBS export.

Lissajous Figures Display & FFT Analysis Function

Lissajous figures display function can be used to determine the amplitude, frequency, and phase contrast of 2 groups of signals;

FFT analysis function can analyze the harmonic components of the signal.

Super-long Stand By Time

Built-in 6000mah high-quality lithium battery, which can last for 4 hours on a full charge.

• 𝐂𝐨𝐬𝐭 𝐄𝐟𝐟𝐞𝐜𝐭𝐢𝐯𝐞 : 100 MHz analog bandwidth,Real-time sampling rate up to 500MSa / s and the price is moderate.
• 𝐇𝐃 𝐒𝐜𝐫𝐞𝐞𝐧 : 2.4'' color TFT- LCD display with 320 x 240 resolution.
• 𝐏𝐨𝐫𝐭𝐚𝐛𝐥𝐞 : Ultra small form factor easy to hand-held and carry. it's always ready when you need it.
• 𝐎𝐧𝐞 𝐊𝐞𝐲 𝐒𝐚𝐯𝐢𝐧𝐠 : The built-in 64 MB flash storage for up to 2000 waveform images.The storage process is easy and fast.
• 𝐄𝐚𝐬𝐢𝐥𝐲 𝐌𝐞𝐚𝐬𝐮𝐫𝐢𝐧𝐠 : Auto/Normal/Single 3 Trigger modes,it is easy to capture instantaneous waveform.

User questions & answers

Question:	What is max. freq. of circuits this scope provides useful/predictable results? 200khz? 400khz? some reviews say >that is squirrely
Answer:	It works very well up to about 20 or 30 MHz. Above that, you'd be using a timebase setting below 100ns/div and it goes into a software-based triggering/display mode and can have a few issues. Limited memory depth means that it will alias, depending on input frequency and timebase setting. For example, at 100ns/div, it aliased for input signal components above 31.25 MHz in my tests. At 10us/div it aliases above 1.25 MHz. Etc. BUT - if you just hit the "Auto" button, it quickly and accurately showed just about anything I threw at it :-) Good little scope !
Question:	Is it easy for a newbie to use vs something like nscope
Answer:	I am not really a Newbie since I have been a "Ham" radio operator since the 1950s, but I have found this unit quite easy to use. The controls are very self explanatory and, although sometimes the manual is a little confusing, if one takes their time reading it they will get the answe in using the equipment. I like mine and use it frequently.
Question:	What is the more realistic bandwidth with reasonable accuracy, e.g. +/- 5% or better
Answer:	+/- 5% is probably asking a lot. But I found it to do maybe +/- 10% in many tests (except at 200 mV/div where mine seems to have a vertical gain error quite a bit more than that). Frequency-wise, the answer is basically around 20 or 30 MHz for sinewaves and works well at timebases of 100ns/div or longer. At a timebase of faster than 100ns/div, it appears to enter a software-assisted/based triggering/display mode that struggles with some waveforms. At 100ns/div or longer, it works very nicely (although it will alias if you are on a timebase setting that results in more cycles than the 320 width display will support). So I would say 20 or 30 MHz sinewaves (maybe 1 to 5 MHz for digital waveforms that have lots of harmonics if you want sharp edge displays). If you push it, and have a pure sinewave signal, you can get it to show stuff up to about 125 MHz before aliasing starts at the 6ns/div setting, but the vertical readout will be no-where near 5% accuracy.
Question:	What is the battery life like? does it use usb charging
Answer:	It does use USB charging. Not sure how long the battery lasts as I tend to use it about a half an hour at a time, but it feels like it should last about 6 hours.

Product features

DETAILS

• Number of Channel:1
• Analog Bandwidth:100MHz
• Max Real-time Sample Rate:500MSa / s
• Max Sample Memory Depth:128KB
• Horizontal Sensitivity:50S / div~6nS / div
• Vertical Sensitivity: 50 mV / div~100 V / div
• (Analog)Input Impedance:1M ohm
• Maximum Input voltage: 80 V (1X probe), 800 V (10X probe)
• Coupling: DC, AC
• Trigger Modes: Auto, Normal, Single

• Trigger Types: Rising/falling edge
• Scan Mode:Support
• Waveform Storage:Up to 2000 wave
• Storage：64MB
• Waveform Manager:Support
• Afterglow Adjustable:1--8
• Display: 2.4 inch color TFT- LCD with 320 x 240 resolution
• Power Supply: 3000 mAh lithium battery
• Dimension: 114mm X 74mm X 33mm
• Weight: About 300g

High Definition Screen

2.4'' color TFT- LCD display with 320 x 240 resolution.

Mini Size

Ultra small form factor easy to hand-held and carry.

Cost-Effective Designed

100 MHz analog bandwidth,Real-time sampling rate up to 500MSa/s.Equipped with high efficiency One-key AUTO,easy to use.

Easily Saving & Manager Waveform

Built-in 64M storage space, the maximum storage of 2000 waveform pictures. Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions.

Perfect Protection

High quality silicone protective cover,non- toxic,lead-free and safe,anti-slip,anti-fall and anti shaking,soft and comfortable touch.

Super-long Stand By Time

Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use.

• Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability
• Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument
• USB2.0 interface, no external power source required, easy to use
• Be suitable for notebook computer, product line maintenance, be used easily on business

User questions & answers

Question:	Does the manufacturer provide an api for access by visual basic
Answer:	Yes, they are printed on the outside of the sealed package. Mine expire 06/2016
Question:	Will this work with a Mac
Answer:	Poppy seeds can cause you to test positive for opiates on urine screening. That is why the detection threshold was raised from 300 ng/ml to 2000 ng/ml. It's going to be difficult to claim that you failed because you ate 15 poppy seed bagels for lunch
Question:	I'm going to test my output power amplefier circuit board this product helpful
Answer:	Everything you need (just the cup) comes. You do not need to buy any strips, the strips are already in the cup. All you need to do is collect your sample, wait 5 minutes and you'll be able to view your results.
Question:	Does hantek have a PC scope which has a variable voltage trigger
Answer:	14 drogas, en la parte de atrás podrás ver cuáles son

Product features

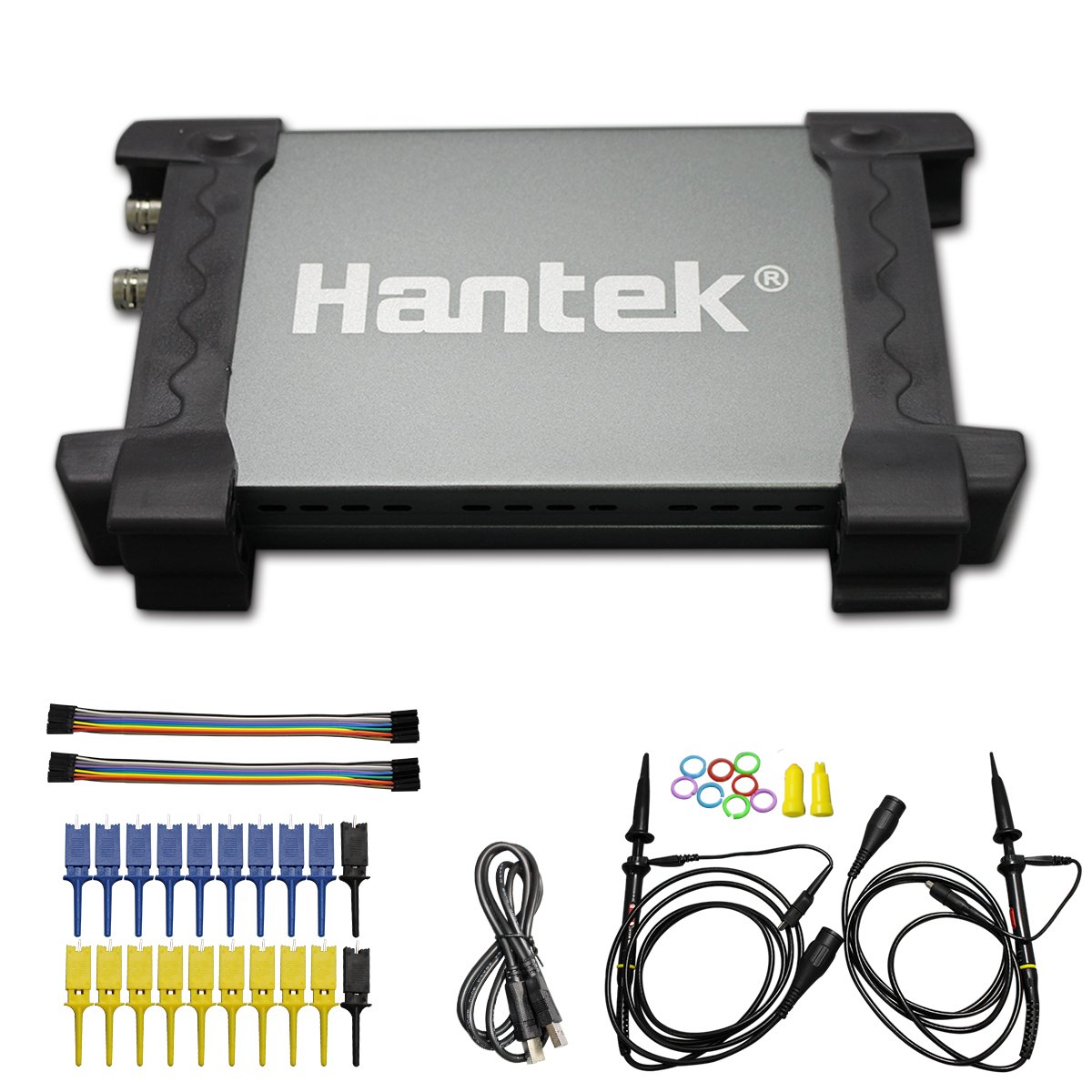

A usb oscilloscope with bonus logic analyzer

Hantek 6022BL comes with a 16-CH logic analyzer. It works with many 3rd party applications, including OpenHantek6022 for analog mode, Pulseview for logic probe mode.

Since Hantek 6022BL is PC based, it may take time to get used to on-screen button instead of physical button, but it definitely saves some space and money. Moreover, it is convenient to take screenshots right away and share scope software output in a video conference.

Do your due diligence by comparing available devices.

Note:

1) It works with Android via Openscope or H-scope, and Linux via Openhantek6022;

2) It can run on OSX through virtual box or virtual machine.

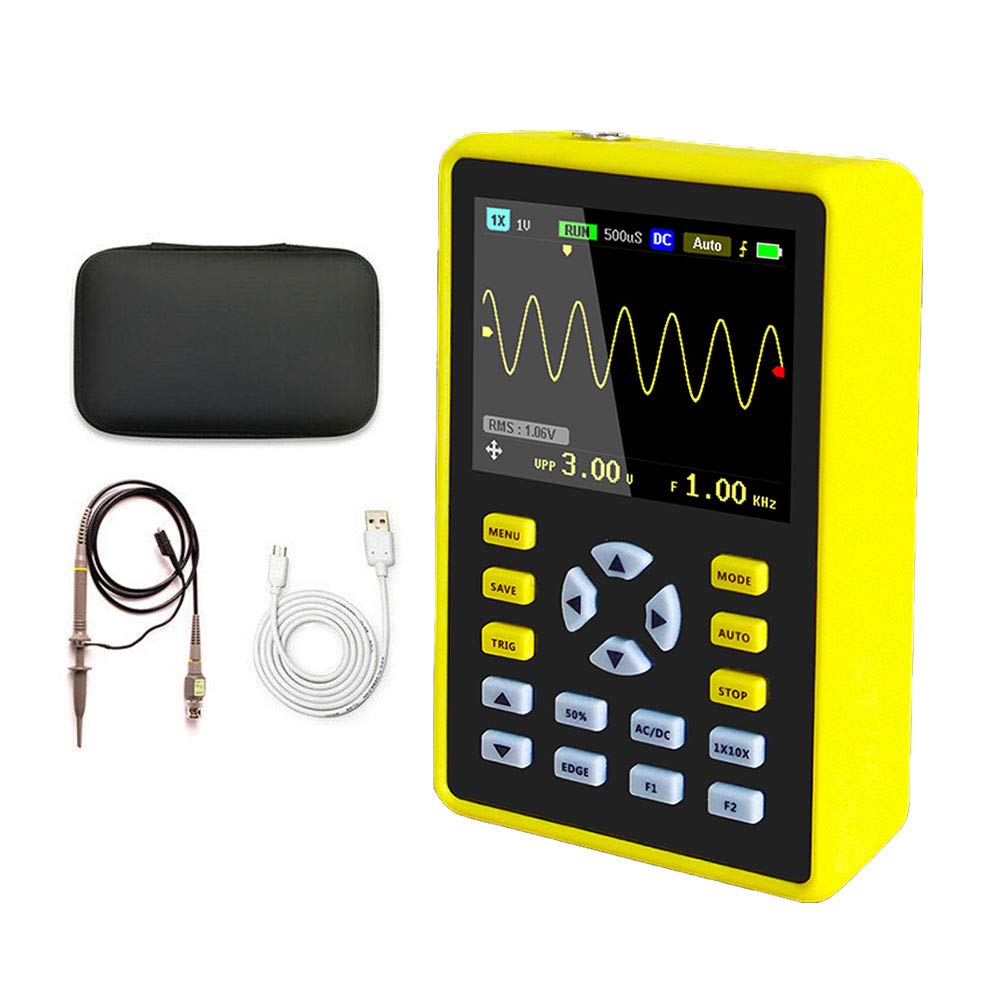

• [Faster Sampling Speed]-100MHz analog bandwidth, 500MS/s real-time sampling rate(1X=5MHz,10X=100MHz).Professional handheld oscilloscope for the maintenance industry and the R&D industry.
• [Cost Effective]-LCD screen with 2.4-inch 320*240 resolution. Built-in 64M storage space, the maximum storage of 2000 waveform pictures. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment.(Note:There is a protective screen film on the surface of the screen,please tear it off before use.)
• [Intelligent anti-burn]-1X Can withstand up to 600V withstand voltage. The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. Don't worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position.
• [Compact Design]-Handheld portable body, easy to carry. Non-toxic and lead-free environmental protection silicone protective cover, soft comfortable texture. Anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage.
• [Long Battery Life]-Built in 3000mAh high-quality rechargeable lithium battery, can be used continuously for 8 hours when fully charged.

User questions & answers

Question:	Does this unit support transfer of scope trace data to a pc or mac over usb
Answer:	I don't know what a gnark is, but I would assume they sleep the same as everyone else.
Question:	Does this require a separately purchased probe for 120 volt AC pure sine wave testing
Answer:	Thank you for your inquiry. All at home urine tests must be FDA approved to sell on the market. We do not show documentation of this on our product pages, nor is that standard. In addition, Amazon sets standards for sellers to sell and must submit information prior to selling. Feel free to look up information on the fda.gov website for further details.Best Regards,Easy at Home Customer Service1.855.822.6999 M-F 9am-5pm CST

Product features

Before you start

1. Please note that there is a thin protective film on the device screen. Please distinguish whether it is a scratch on the screen of the product or a scratch on the protective film.
2. Make sure you understand the polarities and orientations of all parts.
3. When measuring high voltage(>80V), you need to purchase a 10X probe, and must move the probe switch to 10X position, and the Vertical Sensitivity must be higher than 100mv/div to prevent the oscilloscope burnout.
4. When the frequency measurement is higher than the 5MHz, the probe handle switch needs to be moved to the 10X position, and the oscilloscope should be set to the 10X position.

Product description

ADS1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope for the maintenance and R & D industry.



Specifications:

Material: ABS

Color: black+white

Analog band width: 100MHz * 2

Number of channels: 2 channels

Maximum real time sampling rate: 1GSa/s

Vertical sensitivity: 50mV/div~500V/div

Horizontal time base range: 50S/div~10nS/div

Maximum test voltage: 40V (1X probe), 400V (10X probe)

Storage depth: 240Kbit

Input resistance: 1M

ADC precision: 8bits

Coupling mode: AC/DC

Trigger mode: Single, Normal, Auto

Trigger edge: Rising edge / Falling edge

External trigger voltage: 0~40V

Display: 7 inch - 800*480

Operating: capacitive touching screen + gesture

Extension ports: USB picture export

Power supply: 1 * lithium battery, 6000mAh (included)

Item size: 184 * 124 * 50mm / 7.2 * 4.9 * 2.0in

Package size: 200 * 134 * 60mm / 7.9 * 5.3 * 2.4in

Package weight: 700g / 1.5lb



Packing List:

1 * ADS1013D Oscilloscope Host

2 * Matching 100MHz Probe (1X and 10X)

1 * USB Cable

1 * User Manual

• 【Touch Screen】Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast. FFT display function, can analyze the spectral characteristics of the signal.Capacitive touching screen, the same as the touching mode of modern mobile tablet, is not a resistive touching screen with ancient nail operation. Screen brightness adjustment.Background grid brightness adjustment.
• 【Multi-functional】High measurement voltage range, 1X can measure 0~40V, 10X can measure 0~400V，100X can measure 0~4000V. Up to 12 parameters measurement: VPP，VP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Period.Cursor measurement function, it is convenient to manually measure the period and frequency and voltage.Complete triggering function (single, normal, automatic).At any time, the waveform display (pause function) is frozen.
• 【One-button Auto】This 2 channels oscilloscopes is equipped with high efficiency One-button AUTO.One-button waveform storage and screenshot.Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
• 【Humanized Use】This usb oscilloscope is equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis.Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.Ultra thin, easy to carry.
• 【Rechargeable】Built in 6000mAh rechargeable lithium battery，fully charged for 4 hours of continuous use at the highest screen brightness.Memory compression technology, waveform refresh screen does not flicker.Intelligent anti-burn，1X can withstand up to 400V withstand voltage.100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz，10X=100MHz)

User questions & answers

Question:	Does this oscilloscope include a charger for the battery
Answer:	yes
Question:	Has anyone purchased this? Are you satisfied with its performance and value? Any feedback or a review of capability vs specs will be appreciated
Answer:	Yes I am completely Satisfied. I work on military aircraft as a Civilian Contractor. I use this in the shop for component repair and it has performed flawlessly. I really like that it is a color display. I wanted that and the memory feature.
Question:	Does this have an XY mode
Answer:	Yes, it has an XY mode selection under MENU/System settings.
Question:	Does this scope allow you to drag and overlap both channels? Or are the channels vertically fixed
Answer:	Yes !! Just like shown in the picture -- you touch either trace (or both) and you can drag it up or down the screen -- where ever you want to place it. It is very simple to place them overlapping each other. This is a great little scope and I am very happy with it.

Product description

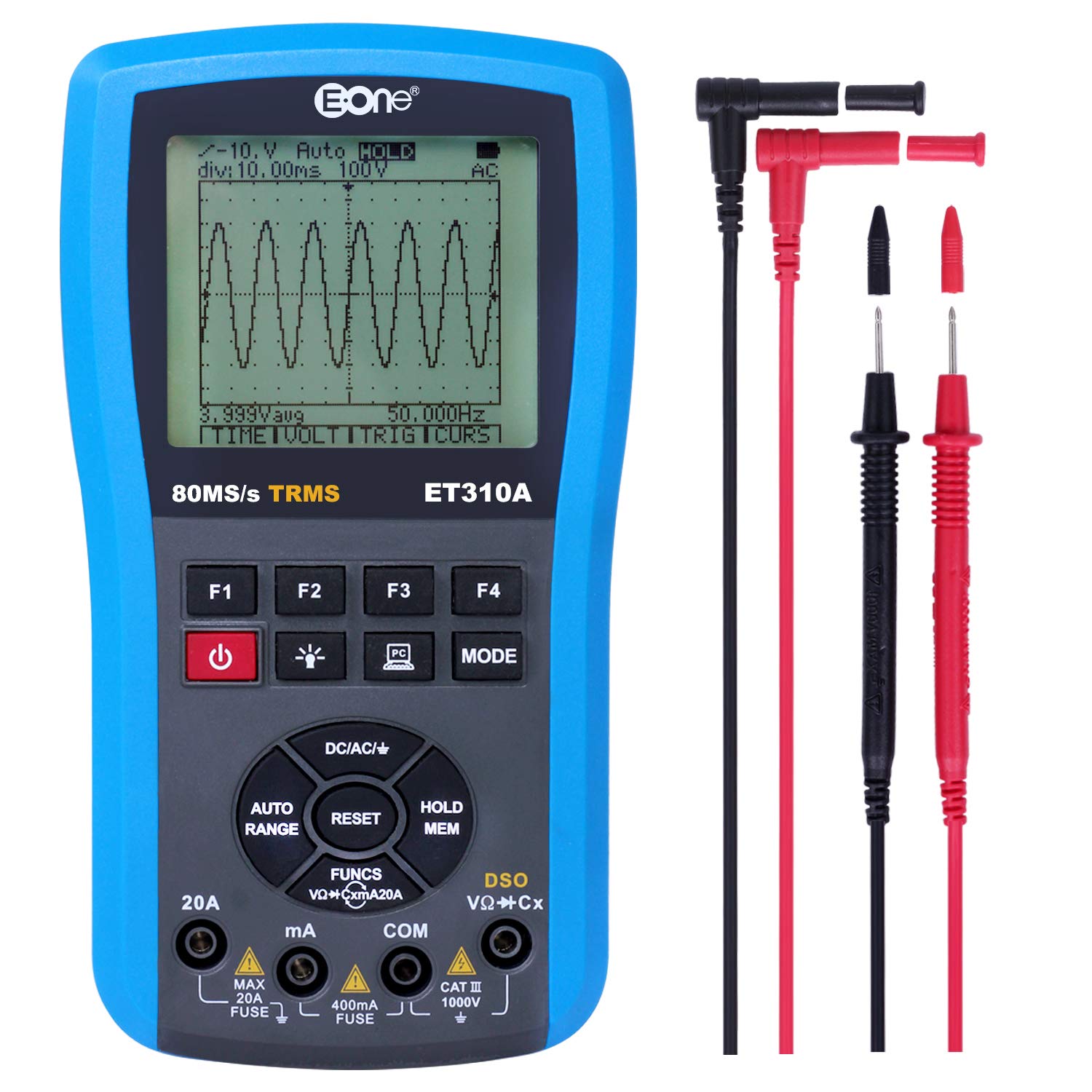

1. The ET310A is an Oscilloscope Multimeter 2-in-1 lab meter, more convenient and cost-effective for users.

2. Connectable to Computer to check data and waveform, English version software.

3. Oscilloscope functions: 80M sampling rate, 20MHz bandwidth, one key oscilloscope, storage 100 sets data and 100 sets waveform, trigger modes: single, normal, auto.

4. Multimeter functions: 4000-counts, autorange, TRMS, AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.



General characteristics:

☑ Display:128 x 128 dot matrix is a graphic FSTN LCD

☑Observation area:62mm X 62mm

☑Backlight: adjustable three levels: high, middle, low

☑Input resistance:10MΩ

☑Battery: 1000mAH lithium polymer rechargeable battery

☑Charging time:2-3h

☑Working hours: about 10 hours

☑Storage capacity: 100 sets of DMM data and 100 sets DSO waveforms

☑Use environment: 0 ~ +40 degrees Celsius; <75%

☑Storage conditions: -10 ~ +60 degrees Celsius; <90%

☑Dimensions: 186mm*86mm*32mm

☑Weight: 325g (excluding other accessories)

☑Power adapter: 110V~250V; 7.5V/500mA, switching power supply



Measure Range

☑DC Voltage: 1000V

☑AC Voltage: 750V

☑DC Current: 20A

☑AC Current: 20A

☑Resistance: 40MΩ

☑Capacitance: 51.2nF-100mF

☑Frequency: 5.12Hz-5MHz



Features:

☞80M sampling rate/20MHz analog bandwidth digital storage oscilloscope (DSO)

combined with 4000-counts auto-range true RMS digital multimeter (DMM),

one-key conversion oscillometric function

☞ Software calibration technology, memory calibration factor;

☞ DSO realizes one-button (AUTO) automatic display of measurement;

☞ Connectable to computer;



Package List

One ET310A meter

One PC310 for connecting with computer

English manual

6V power adapter, US plug

Convenient Oxford bag

Double injection molding pen

Computer software

• LCD display Oscilloscope and TRMS Multimeter in 1 lab meter, portable design, more convenient and cost-effective for user.
• Connectable to computer, English version software.
• Oscilloscope functions: 80M sampling rate, 20MHz analog bandwidth, one-key oscilloscope, auto waveform capture, three trigger modes: single, normal, auto.
• Multimeter functions: 4000-counts, automatic range, TRMS, AC/DC voltage, AC/DC current, resistance, frequency, capacitance, diode test, duty ratio, continuity test.
• Display maximum value, minimum value, difference value and relative value on the same screen. Storage/readout 100 sets waveform and 100 sets data.

User questions & answers

Question:

Does the continuity test provide an audible beep like standard DMMs do

Answer:

Dear Keith Brown, Thank you for reaching out to us. I am sorry it does not have lab result confirmation. It is a preliminary screen and we may have different cut-off levels from the lab tests. Also, it is a qualitative test, so the result won't show the exact amount. But it will show a positive if you are at or above the cut-off level and if you can find the cut-off for each drug in our manual. I hope this information would be helpful. If you have any other concerns or questions, please contact our customer service team immediately. We can be reached directly via Amazon message, or by calling our toll-free number at 1.855.822.6999 Mon-Fri 9am-5pm CST. Best regards, Heidi Customer Service Team Easy Healthcare Corporation

Product description

Why do you choose us:

✔High-tech chip

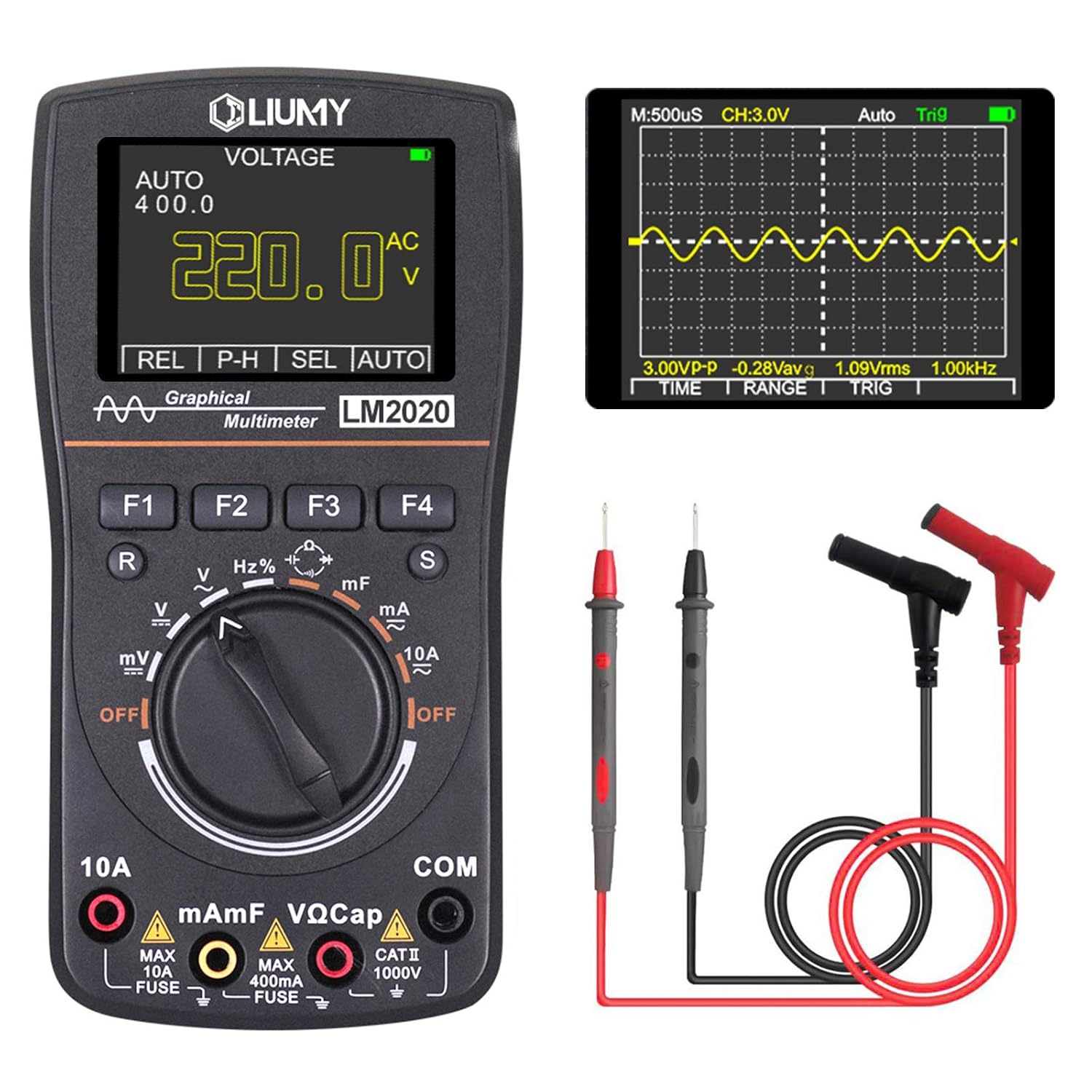

LIUMY LM2020 emphasis on functional combination for field testing process, not to replace the meter. It reflects the high-tech, using a dedicated chip has, as the wave function, you can view the waveform signal 1MHZ within.

✔Extensive detection function and range

Features include DC/AC voltage /current, resistance, capacitance, frequency, diode / continuity test. Can be home, school, power plant, work area has excellent performance!

✔Save money

As a large number of measuring instruments waveform, you will find LM2001 is the most affordable one, spend the price of a multimeter, you can have a table can be seen, as the wave of the waveform, value for money!



Specification:

Analog Bandwidth: 0~ 1MHz

The maximum real-time sampling rate: 2.5 Msps

DC voltage: 0mV ~ 1000V ± (1.5% rdg + 10dgt)

AC voltage: 0 mv ~ 750V ± (1.0% rdg + 10dgt)

DC Current: 0mA ~ 10.00A ± (1.2% rdg + 10dgt)

AC current: 0mA ~ 10.00A ± (1.5% rdg + 10dgt)

Resistance: 0W ~ 40MΩ ± (3.0% rdg + 5dgt)

Capacitance: 0nF ~ 100.0μF ± (3% rdg + 10dgt)

Frequency: 0kHz ~ 5MHz ± (1.0% rdg + 5dgt)

Diode test: open circuit voltage of about 1.5 V, judgement resistance about 50MΩ.

Continuity Test: determine resistance: about 30

Fuse specification: 500mA/250V, 10A/250V



Display: 240 * 320 LCD Color Screen

Input resistance: About 10MΩ

Working current: About 65mA

Sleep current: About 35μA

Usage time: More than 10 hours

Battery: 3 AA battery (included)

Storage capacity: DMM 100 groups of data, waveform 10 group records

Dimensions: 83mm * 160 mm * 32mm

Weight: 180g

Backlight: Constantly on

Auto shutdown: 15 minutes or disabled



Package included:

1 x LM2020 Oscilloscope Multimeter

2 x Test Lead

1 x Portable Bag

1 x English User Manual

3 x AA battery

• ▼FASTER SAMPLING SPEED - 2.5Mpsp high-speed A/D data collecting, high sampling rate and high bandwidth, one-key transform to waveform function furing measuring.3 waveform scanning modes: automatic/conventional/single. Improve work efficiency.
• ▼MORE POWERFUL DETECTION RANGE -DC voltage 0 ~ 1000V, AC voltage 0 ~ 750V, DC/AC Current 0 ~ 10A, Resistance 0 ~ 40MΩ, Capacitance 0 ~ 100μf, Frequency 0 ~ 5MHZ, Diode / Continuity open circuit voltage 1.5V, judgement resistance 50Ω. Transistor amplification test to meet all test requirements.
• ▼MORE ACCURACY -Dedicated Chip, the automatic waveform capture function, easy operation. The software calibration technology, memory calibration coefficients. Measure more accurately.
• ▼LED BACKLIGHT & STORAGE / READOUT - Analog broadband range up to: D AC ~ 1MHz, Display hold, storage / readout up to 10 waveforms and 100 sets of measurement values. 240X320 color screen with LED backlighting. More clear and suitable for working at night.
• ▼OVERLOAD PROTECTION & MULTI-PURPOSE - Built-in 500mA/10A double protective tube, dual protection of the instrument. Can choose to automatically shutdown or continuous operation, applicable to the workplace such as family, school, and factory. DISTORTION DETECTION ALSO Protect safety.

User questions & answers

Question:	Does anyone know if there is a way to disable the beep sound every time a button is pressed? I did not see anything about this in the manual
Answer:	That depends on your doctor if you’re in pain management. My doctor had a cutoff of 10ng/ml. I was using hemp oil and failed.

Product description

Specifications:

★Material: ABS

★Main color: grey

★Display: LCD display, 128*64dot-matrix graphics, 4000 counts

★LCD size: 60 * 40mm / 2.4 * 1.6in

★Backlight: white

★Power: 3 * 1.5V AA battery (not included)

★Input resistance: 10MΩ

★Auto sleep: yes (the meter automatically auto sleep in 15 minutes without any operation of button)

★Power consumption: about 40mA

★Storage capacity: DMM data: 100 groups, waveform record: 10 groups

★Operation environment: 0℃~+40℃; <75%RH

★Storage environment: -10℃~+60℃; <90%RH

★Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in

★Item weight: 190g / 6.7ounce

★Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in

★Package weight: 360g / 12.7ounce



Digital storage :

★Analog bandwidth: ACV/DCV/ACA/DCA 20KHz

★Maximum real-time sampling rate: 200ksps



Digital multimeter:

★DC voltage:

★Range: 400mV/4V/40V/400V/1000V

★Uncertainty:

400mV: ± (0.75%rdg+10dgt)

★AC voltage:

Range: 400mV/4V/40V/400V/750V

★Uncertainty:

400mV: 50Hz~1KHz / ± (2.0%rdg+10dgt) no more than 1KHz

4V/40V/400V: 50Hz~400Hz / ± (1.0%rdg+10dgt) 400Hz~20KHz / ± (5.0%rdg+10dgt)

750V: 50Hz~1KHz / ± (1.5%rdg+10dgt) no more than 1KHz

★DC current:

Range: 40mA/400mA, 4A/10A

★AC current:

Range: 40mA/400mA, 4A/10A

★Frequency:

Range: 5Hz~5MHz

Resolution: 1Hz

★Uncertainty: ± (1.0%rdg+5dgt), (signal amplitude not less than 2Vp-p, ACV, MAX 380V)

★Diode test: open circuit voltage is about 1.5V, the maximum test current is about 1.5mA

★Continuity test: reference resistance is about 50Ω

★Fuse specification: 500mA/250V, 10A/250V



Package list:

1 * Multimeter Scopemeter

1 * Pair of Test Pens

1 * Protective Bag

1 * User Manual

• ❤❤【FASTER SAMPLING SPEED】◕‿◕Digital multimeter with 200K high-speed A/D sampling, 4000 counts auto-range, one-button switch of graphical waveform display during measurement. High reliability with panel calibration technology and memory calibration, sparing the need for adjustment with potentiometer.
• ❤❤【MORE ACCURACY】◕‿◕Storing 100 sets of data and 10 waveforms independently. Capable of holding waveform and data during measurement, easy to view and analyze. Displaying historical data and real-time measurement on the same screen with particular record reading mode for easy comparison.
• ❤❤【MORE POWERFUL DETECTION RANGE】◕‿◕DC voltage 0 ~ 1000V, AC voltage 0 ~ 750V, DC/AC Current 0 ~ 20A, Resistance 0 ~ 20MΩ, Capacitance 0 ~ 20μf, Frequency 0 ~ 200KHZ, Diode / Continuity Test, Remote control test。 AC voltage bandwidth up to 20KHz. Innovative design for the one-key silent mode, quiet in mastery. Extending battery life with automatic shutdown function.
• ❤❤【LED BACKLIGHT & STORAGE / READOUT 】- ◕‿◕Analog broadband range up to: D AC ~ 10kHz, Display hold, storage / readout up to 5 waveforms and 100 sets of measurement values. 128X64 high contrast LCD with LED backlighting. Suitable for working at night. DETECTION ALSO Protect safety.convenient for small capacitors to measure quickly.
• ❤❤【FUSE PROTECTION & MULTI-PURPOSE 】- Built-in 500V/20A explosion proof fuse, 20A AC and DC test.◕‿◕10mf gear position: high capacitance and high accuracy are guaranteed. Realizing one-button automatic waveform capture, operator-friendly to learn and operate. Effectively eliminating lead resistance, distributed capacitance or interference signals with relative value measurement (clearing).

Product features

KKmoon 2-in-1 Intelligent Digital Scope Meter Multimeter

Power consumption: about 40mA

Storage capacity: DMM data: 100 groups, waveform record: 10 groups

Operation environment: 0℃~+40℃; <75%RH

Storage environment: -10℃~+60℃; <90%RH

Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in

Item weight: 190g / 6.7ounce

Specifications:

Material: ABS

Main color: grey

Display: LCD display, 128*64dot-matrix graphics, 4000 counts

LCD size: 60 * 40mm / 2.4 * 1.6in

Backlight: white

Power: 3 * 1.5V AA battery (not included)

Input resistance: 10MΩ

Auto sleep: yes (the meter automatically auto sleep in 15 minutes without any operation of button)

Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in

Package weight: 360g / 12.7ounce

Digital multimeter:

DC voltage: Range: 400mV/4V/40V/400V/1000V

Uncertainty:400mV: ± (0.75%rdg+10dgt)

AC voltage: Range: 400mV/4V/40V/400V/750V

Uncertainty: 400mV: 50Hz~1KHz / ± (2.0%rdg+10dgt) no more than 1KHz 4V/40V/400V: 50Hz~400Hz / ± (1.0%rdg+10dgt) 400Hz~20KHz / ± (5.0%rdg+10dgt) 750V: 50Hz~1KHz / ± (1.5%rdg+10dgt) no more than 1KHz

DC current: Range: 40mA/400mA, 4A/10A

AC current: Range: 40mA/400mA, 4A/10A

Frequency:Range: 5Hz~5MHz

Resolution: 1Hz

Uncertainty: ± (1.0%rdg+5dgt), (signal amplitude not less than 2Vp-p, ACV, MAX 380V)

Diode test: open circuit voltage is about 1.5V, the maximum test current is about 1.5mA

Digital storage :

Continuity test: reference resistance is about 50Ω

Fuse specification: 500mA/250V, 10A/250V

Digital multimeter with 200K high-speed A/D sampling, 4000 counts auto-range, one-button switch of graphical waveform display during measurement. High reliability with panel calibration technology and memory calibration, sparing the need for adjustment with potentiometer.

Analog bandwidth: ACV/DCV/ACA/DCA 20KHz

Maximum real-time sampling rate: 200ksps

Package list:

1 * Multimeter Scopemeter 1 * Pair of Test Pens 1 * Protective Bag 1 * User Manual

Product description

Specifications:

Material: ABS

Color: black

Display: 320*240 LCM

Display area: about 2.4 inches

Backlit: white

Input resistance: 10MΩ

Battery: 3 * AA battery (not included)

Power consumption: about 80mA

Use time: low light about 5 hours

Storage: 100 data/10 waveforms

Use environment: 0~40℃, ＜75%RH

Storage environment: -10~60℃, ＜90%RH

Bandwidth: ACV/1MHz ACA/5KHz

Max. real-time sampling rate: 2.5Msps

Multimeter measurement: automatic range + manual range

Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude

Measurement mode: normal, automatic

Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in

Item weight: 195g / 6.9ounce

Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in

Package weight: 370g / 13.1ounce



Multimeter specification:

DC voltage:

Range: 400mV/4V/40V/400V/1000V

Uncertainty: 0.75% rdg+10dgt

AC voltage:

Range: 400mV/4V/40V/400V/750V

Uncertainty: 1.0% rdg+10dgt

DC current:

Range: 40mA/400mA/4A/10A

Uncertainty: 1.2% rdg+10dgt

AC current:

Range: 40mA/400mA/4A/10A

Uncertainty: 1.5% rdg+10dgt

Resistance:

Range: 400.0Ω~40.00MΩ

Uncertainty: 1.0% rdg+5dgt

Capacitance:

Range: 0.1nF~100, 10.00mF

Uncertainty: 2.0% rdg+10dgt

Frequency:

Range: 5Hz~10MHz

Uncertainty: 1.0% rdg+5dgt

Duty cycle:

Range: 0.1%~99.9%

Uncertainty: 1.0% rdg+5dgt

Diode test: voltage is about 5V, test current is about 1.5mA

Continuity test: judgment resistance about:<50Ω beep

Fuse specifications: 500mA/250V, 10A/250V



Packing List:

1 * Graphical Multimeter

1 * Pair of Test Pens

1 * Protective Bag

1 * User Manual

• ❀❤❀❤【FASTER SAMPLING SPEED】2.5Mpsp high-speed A/D data collecting, high sampling rate and high bandwidth, one-key transform to waveform function furing measuring.3 waveform scanning modes: automatic/conventional/single. Improve work efficiency.
• ❀❤❀❤【MORE POWERFUL DETECTION RANGE】DC voltage 0 ~ 1000V, AC voltage 0 ~ 750V, DC/AC Current 0 ~ 10A, Resistance 0 ~ 40MΩ, Capacitance 0 ~ 100μf, Frequency 0 ~ 5MHZ, Diode / Continuity open circuit voltage 1.5V, judgement resistance 50Ω. Transistor amplification test to meet all test requirements.
• ❀❤❀❤【MORE ACCURACY 】Dedicated Chip, the automatic waveform capture function, easy operation. The software calibration technology, memory calibration coefficients. Measure more accurately
• ❀❤❀❤【LED BACKLIGHT & STORAGE / READOUT】 Analog broadband range up to: D AC ~ 10kHz, Display hold, storage / readout up to 5 waveforms and 100 sets of measurement values. 240X320 high contrast LCD with LED backlighting. Suitable for working at night.
• ❀❤❀❤【FUSE PROTECTION & MULTI-PURPOSE】 Built-in 500V/20A explosion proof fuse, 20A AC and DC test. Can choose to automatically shutdown or continuous operation, applicable to the workplace such as family, school, and factory. DISTORTION DETECTION ALSO Protect safety.

Product features

KKmoon Digital Oscilloscope Multimeter 3.0 Update

Use environment: 0~40℃, ＜75%RH

Storage environment: -10~60℃, ＜90%RH

Bandwidth: ACV/1MHz ACA/5KHz

Max. real-time sampling rate: 2.5Msps

Multimeter measurement: automatic range + manual range

Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude

Measurement mode: normal, automatic

Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in

Item weight: 195g / 6.9ounce

Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in

Specifications

Material: ABS

Color: black

Display: 320*240 LCM

Display area: about 2.4 inches

Backlit: white

Input resistance: 10MΩ

Battery: 3 * AA battery (not included)

Power consumption: about 80mA

Use time: low light about 5 hours

Storage: 100 data/10 waveforms

3 Safety Multimeter Oscilloscope

Double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over range, beep

High Definition Color Screen

The 240*320 color display is clearer, and the secondary display at the bottom provides more function menus. Historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.

Updated Digital Oscilloscope kit

One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display. Mass storage, 100 data/10 waveforms.

Multimeter specification:

DC voltage:

Range: 400mV/4V/40V/400V/1000V

Uncertainty: 0.75% rdg+10dgt

AC voltage:

Range: 400mV/4V/40V/400V/750V

Uncertainty: 1.0% rdg+10dgt

DC current:

Range: 40mA/400mA/4A/10A

Uncertainty: 1.2% rdg+10dgt

Product description

200Mhz, 1Gsa/s, The SDS1202X-E Series employs a new generation of Spo technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It has a minimum vertical input range of 500 UV/Div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400, 000 frames/sec (sequence mode). it also employs a 256-level intensity Grading display function and a color temperature display mode not found in other models in this Class. Siglent’s new oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering. Decoding is standard configuration including IIC, SPI, UART, can, LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1M points FFT math function that gives the sds1000x-e very high frequency resolution when observing signal Spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and high performance of the sds1000x-e Series cannot be matched else anywhere at this price. Channels 2CH+1EXT, Memory depth :7 Mpts/CH (Dual-Channel); 14 Mpts/CH (Single-Channel)/ data sheet(contains data for product relating to speed). Secure erase feature.

• 200 mhz bandwidth
• Real-time sampling rate up to 1 gsa/use
• IRecord length up to 14 Mpts
• Standard serial bus triggering and decode, supports iic, spi, uart, Rs232, can, and lin
• 1M points fft

User questions & answers

Question:	What type of probes are you guys using with these? Will 100mhz probes work on this 200mhz machine
Answer:	100mhz probes will physically work with this oscilloscope (I use a 100mhz differential probe with this due to cost limitations), but be well aware of the limitations of the probes, readings will be less accurate at 100mhz and nearly unusable at the 200mhz range of the oscilloscope. The oscilloscope does come with 4 ok probes that are rated at 200mhz. You are always better off using probes that are rated at least as high as the oscilloscope or higher, your results depend on it.
Question:	Can this model be upgraded by the USB
Answer:	I have seen 1 update to the SDS1202X-E since I have had it. The update was done by placing the update file on a USB drive, and then selecting the file. It was quick and easy.
Question:	Is there a way to use this as a spectrum analyzer ? an sa can cost easily as much as this scope. i am impressed
Answer:	You realize this scope only has an input analog bandwidth of 200 Mhz. The typical low end spectrum analyzer about ($1500) has a bandwidth up to 1.5-2.0 Ghz. SA's also generally come with a tracking generator, which outputs a signal at the exact same frequency being measured at that moment, so you can pass it through a device to measure it's spectrum attenuation. For frequency's below 200 Mhz, the FFT function on this scope will give you some of the same data a SA would give under some conditions. A SA has an enormously more sensitive input. If you connect an antenna to a SA input, it gives a very good display. An antenna connected to the input of this/most oscilloscopes will not show much of anything, as there is not enough signal strength. A SA will also generally have a much higher resolution spectrum,. If you show 200 Mhz of spectrum on this scope, with a 1 million sample FFT, that gives 1/2 million FFT buckets, so each must be about 400 Hz wide. In favor of the oscilloscope, if you're only dealing with low frequencies, a typical spectrum analyzer has a lower frequency limit, like often in the 5 khz range, so is useless below that. For audio work, a scope with a good FFT is way more useful than a RF SA. The FFT function on this scope looks a lot better than on the Rigol scopes due to it's much larger sample size limit.
Question:	Product dimensions shows 16.53 pounds - Shipping weight is 7.5 pounds. Is the box filled with helium
Answer:	All weights listed are in US pounds, not Kg. The weight of the unit is 5.51 pounds (2.49929396 kg) and the shipping weight is 7.2 pounds (3.26586506 kg.) No helium included! Hehe.

Product features

Key Features

• Math co-processor speeds front panel operation
• Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
• Low background noise and 500 μV / div to 10 V / div voltage scales
• Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN
• On-screen Bode plot and web-browser control (standard on 4 channel only)
• WiFi control (optional on 4 channel only)
• True measurement and math can use all 14 Mpts of memory
• Large 7-inch TFT-LCD display with 800 * 480 resolution

Gate and Zoom Measurement

Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility.

Hardware-Based High Speed Pass/ Fail Function

The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

1Mpts FFT

The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.Four-channel series support Peaks, Markers, a variety of numbers.

History Waveforms (History) Mode and Segmented Acquisition (Sequence)

Playback the latest triggered events using the history function.Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store riggered waveforms and timestamp of each frame.

Serial Bus Decoding Function (Standard)

SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

True Measurement to 14 M Points

SDS1004X-E can measure all sampled data points up to 14 Mpts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use.

Bode Plot (Four Channel Series Only)

SDS1004X-E can control the USB AWG module or control an independent SIGLENT SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR). It can also show the result lists, and export the data to a USB disk.

Web Control (Four Channel Series Only)

With the new embedded web server, users can control the SDS1004X-E USB WIFI Adapter series only) from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel

Product description

Key features:

1：Cursor measurement function, it is convenient to manually measure the period and frequency and voltage

2：At any time, the waveform display (pause function) is frozen

3：Equipped with high efficiency One-button AUTO

4：One-button waveform storage and screenshot

5：Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data

6：FFT display function, can analyze the spectral characteristics of the signal

7：Built in 6000mAh rechargeable lithium battery，Fully charged for 4 hours of continuous use at the highest screen brightness

8：Screen brightness adjustment

9：Background grid brightness adjustment



Specifications:

1：Analog band width: 100MHz * 2

2：Number of channels：2 channels

3：Maximum real time sampling rate: 1GSa/s

4：Vertical sensitivity: 50 mV/div ~ 500 V/div

5：Horizontal time base range: 50S/div ~ 10nS/div

6：Maximum test voltage: 40 V (1X probe), 400 V (10X probe)

7：Storage depth: 240Kbit

8：Input resistance: 1M

9：ADC precision: 8bits

10：Coupling mode: AC/DC

11：Trigger mode: Single, Normal, Auto

12：Trigger edge: Rising edge/Falling edge

13：External trigger voltage 0 – 40 V

14：Display: 7 inch - 800*480

15：Operating: Capacitive touch screen + gesture

16：Extension ports：USB picture export

17：Power supply: 6000 mAh lithium battery

18：Size: 184mm x 124mm x 50mm

19：Total weight:650g



Package include:

1 x FNIRSI-1013D oscilloscope host

2 x Matching 100MHz probe（1X and 10X）

1 x 5V2A Charger（Include USB data line）

1 x User manual (English)

• High measuring voltage range, 1X can measure 0 ~ 40V, 10X can measure 0 ~ 400V, 100X can measure 0 ~ 4000V. Up to 12 parameter measurements: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Period
• 100MHz analog bandwidth 1GSa / s sampling rate (1X = 5MHz, 10X = 100MHz), intelligent anti-burn, 1X can withstand withstand voltage up to 400V
• With complete trigger function (single / normal / automatic)， the built-in high-voltage protection module can tolerate a continuous voltage of up to 400V
• 7 inch TFT LCD and 800 * 600 pixel high resolution multi-touch capacitive screen. the powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.,
• Fully compatible with bright color and high contrast 7 inch 800 * 480 resolution color TFT LCD display. The capacitive touch panel is the same as the touch mode of modern tablet computers

Product description

Rigol DS1054Z Digital Oscilloscope 50 MHz DSO 4 Channels 50 MHz Analog Bandwidth Total of 4 Analog Channels Maximum Waveform Capture Rate of up to 30,000 wfms/s Includes FREE software bundle BND-MSO/DS1000Z AT-DS1000Z - Advanced Triggering Option MEM-DS1000Z - Memory Depth Upgrade REC-DS1000Z - Real Time Waveform Record and Relay Option SA-DS1000Z - Serial Bus Analysis OptionFind out why the DS1054Z is one of the top selling oscilloscopes in the WORLD since its release in September 2014. Read the reviews! Let our customers tell you what they think of this unit. Schools, companies, students and home hobbyists love the DS1054Z. Backed by a 30 day money back guarantee you cannot go wrong with this unit.Customer FeedbackI have used the scope for basic measurements so far, mostly audio signals and comparisons of such signals. It works well and the construction is as good as that of expensive top-brand items. The packaging was adequate and protects the instrument well. RIGOL has tried hard to pass themselves as a decent company to buy equipment from and they have succeeded, at least with this scope. I have used lots of lab equipment for many years in college labs and this would fit perfectly in every lab, given its low price, specifications and support. Highly recommended for tight budgets and high expectationsCustomer Submitted ImageUltraVisionRigol's innovative UltraVision technology provides a deeper memory depth of 12Mpts standard and is upgradeable to 24 Mpts (with purchase of MEM-DS1000Z). The DS1104Z-S Plus also provides the ability to quickly focus in on certain piece of a recorded waveform.Full VisibilityThe large 7 display of the DS1104Z-S Plus, with a resolution of 800 X 480 pixels makes it possible to view all channels on a single screen. This makes for better usability and more efficient analysis.Ultra-fast Sampling RateRigol has give

User questions & answers

Question:	I know it can do an fft but does it show frequencies for the harmonics in a waveform? what's the frequency resolution for the fft? thanks
Answer:	Normally the FFT is done on the screen data, so only about 1024 points. I read there is a settings to use 16K FFT points. This means the maximum FFT frequency resolution would be sample frequency/16K. The competing Siglent scope is available (2 channel version) or on (as of 12/07/17) backorder (4 channel version), and they both have a 1M FFT size, so much higher frequency resolution. The 2 channel version also has 200 Mhz of analog bandwidth. You also can download the samples, and use some external program for the FFT analysis. Another option is to spend $150 and get the home (or even cheaper student version if you're a student) version of Matlab, although I'd verify if the FFT function needs any extra packages (which cost extra). You could talk to the scope over Ethernet via LXI to read the sample data. In theory, you could make a 12M signal capture, and your FFT resolution would be sample rate/12M, so if you sample at a gigasample, that comes to 1,000,000,000/12,000,000=83 hz FFT resolution on like a 50 Mhz signal. Of course sampling 1 gigasample on a 50/100 Mhz bandwidth scope may be overkill, so you might reduce the sample rate, improving the maximum FFT resolution. Also note the window function may degrade the resolution some (like in the 2x range), depending on which window function you use. The window function with the best frequency resolution tends to also have large sidebands (spectrum leakage into FFT bins next to a peak). I think the question is how much frequency resolution do you need? At what frequency range? An oscilloscope FFT is generally not an RF spectrum analyzer. For things like audio signals, this scope may give very useful frequency resolution. Note that if you're looking at digital signals (square waves) the harmonics are all odd, and the 50/100 Mhz bandwidth runs out fast (like a 10 Mhz square wave clock, has 30 Mhz, 50Mhz, 70Mhz, 90Mhz harmonics), so 50 Mhz of bandwidth barely can show the 5th harmonic).
Question:	Trying to decide between this and ds102e 100mhz 2ch. will be used with arduinos, raspberry pi and ble peripherals. can you offer a pros/cons for each
Answer:	I definitely prefer a 4-channel scope. For example: you can see SI, SO, CS and SCLK all at the same time on a SPI interface.
Question:	This unit has 12 mpts of memory upgradable to 24 mpts, how do you do that? where can i buy this option. thank you
Answer:	RigolNA is currently (Dec 2017) including free option BND-MSO/DS1000Z which "includes serial decode, deep memory, record mode, and triggering". I don't know if this is the same as 24 Mpts or if this option is included with this item.
Question:	I'm new to electronics as a hobby.should i go with this model or the 100mhz model for the same price. the books say go with a 100 mhz scope
Answer:	Well, the hardware of the 50MHz, 70MHz, and 100MHz versions of this scope are all identical actually, with the bandwidth limited by software. If you bought the 50MHz version (this item), you wouldn't be the first person to accidentally stumble upon web pages telling you how to generate and enter a license key that unlocks 100MHz bandwidth and a few other features...What you don't want is one of the older DS1000E series scopes, as they lack intensity-graded display and have only 2 channels, not 4.

• NEW MODEL - the hantek bench oscilloscope DSO2C10 is the new model launched by Hantek in 2020, aimed to be cost-effective and quality stable;
• MULTI-FUNCTION - the digital storage oscilloscope is with 100mhz bandwithd, dual channel, 8M memory depth,1 GSa/s real-time sample rate;Auto measurement Supports: frequency, period, mean, peak-to-peak, RMS, minimum, mixmum, rising time, falling time, + width, - width, base, top, middle, amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, + duty, - duty, period mean, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF;
• PROBE ATTENUATION FACTOR - 1X, 10X, 100X, 1000X;
• QUALITY GUARANTEE - the hantek oscilloscope is delivered from Amazon warehouse and offered with Amazon free return policy, 7*24hours on-line technical support; any questions or problems, pls. feel free to contact us at any time;
• SUPPORTS - the hantek dso is with U-disk storage function, for Software download address: http://hantek.com/products/detail/17182;

User questions & answers

Question:	Is it software trigger or digi trigger
Answer:	Yes. Metabolites are a key subject for detection in all drug tests.
Question:	Is there a signal generator built in
Answer:	collect fresh urine sample in a container. Remove plastic cap/cover off drug test and hold in urine collection fro about one or two minutes. DON NOT PUT THE WHOLE DRUG TEST IN THE CONTAINER WITH THE URINE. Just the tips that you uncovered when you took off the cap. Replace cap and wait for about % minutes for results. Contact me if you do not understand or if you have other questions.
Question:	seems it is new model,Is it functioning working reliable
Answer:	Dip test strips into the urine for 10 seconds, make sure the urine does not touch the housing. (FYI make sure that all of the strips are wicking up the sample.) Read results after 5 mins, results not valid after 10 min. Any line color in the T window is a Neg, the absence of any line in the T is a Positive. The C should always have a line or the test didnt run correctly.
Question:	Does it support FFT function
Answer:	Just to add to my last answer the test includes * Opiates (OPI) Morphine / Codeine 2000 ng/ml which DOES cover heroin and morphine. I just wanted to clarify that.

Product features

Key Features

• 7-inch TFT LCD screen, 800 * 480 pixels, 16 million display colors (24bit true colors);
• 5-digit digital voltmeter and 6-digit hardware frequency counter functions;
• Setting, waveform, reference waveforms, CSV, pictures and other data formats record function;
• Supports SCPI programming command control;
• Support 32 kinds automatic measurement and statistics functions;
• Supports 14 trigger modes, standard five serial protocol triggering and decoding;

8Mpts memory depth

• Reduces waveform distortion and restores the real waveform

Auto Measurements

• Supports 32 types of auto measurements with statistics

Waveform Record

• Can save 10 sets of referance waveform, CSV waveform and setting;
• USB one-click screenshot

Double CH DVM

• Supports 5-digit digital voltmeter and 6-digit hardware frequency counter functions.

Serial Bus Decoding

• displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format

Pass/ Fail Function

Math & FFT Function

X-Y Format

• Supports X-Y format and display in dual windows

Product Description

The Hantek DSO2000 Series oscilloscope is the latest model from Hantek in 2020, which upgrades from original DSO5000P series, but with better cost. It employs a new generation of technology that provides excellent signal fidelity and performance.

It covers the bandwidths from 100MHz to 150MHz, and provide the real-time up to 1GSa/s. In addition, they have 7 inch color TFT LCD as well as WINDOWS-style interfaces and menus for easy operation.

What’s more, the plenty menu information and the easy-to-operate buttons allow you to gain information as much as possible in measurement; the Multifunctional Knobs and the powerful shortcut keys help you save a lot of time in operation; the Auto Scale function lets you detect sine and square waves automatically.

The Hantek DSO2000 Series includes 4models: DSO2D15, DSO2C15, DSO2C15, DSO2C10;
