12 best digital signal analyzers

Product description

HiLetgo USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug

Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;

The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;

8-channel;



Voltage range:

Input voltage range: -0.5V to 5.25V

Input Low Voltage: -0.5V to 0.8V

Input High Voltage: 2.0V to 5.25V

Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.

Input Impedance: 1Mohm || 10pF (typical, approximate)

Crystal: +/-20ppm, 24MHz

Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).



Packing Included:

1 * Logic Analyser

1 * USB Cable

1 * Dupont Cable

• The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions; 8-channel
• Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
• The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;
• Input voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V
• Input Impedance: 1Mohm || 10pF (typical, approximate); Crystal: +/-20ppm, 24MHz

User questions & answers

Question:	Anyone get this error msg? the application was unable to start correctly (0xc000007b). click ok to close the application
Answer:	I was experiencing the same error with Sigrok's PulseView x64 and ZaDiag x64 not properly starting, with the OS tossing a 0xc000007b error dialog every time I tried to launch either app. As with the other answerer, the 32bit version would install and would start, but not work correctly with this LA. I ended up giggling my way to success in determining that I didn't have the right .net libs yet installed on this box (a fresh install of Win10 x64). This site (www.techjunkie.com/0xc00007b/) pointed me to the right download needed, in the section 'HOW TO FIX ‘THE APPLICATION WAS UNABLE TO START CORRECTLY 0XC00007B’ ERRORS' - I did the Microsoft Visual C++ 'x64' recommendation (the 'x64 version' of the MS Visual C redistributable). After this, I was able to install and successfully launch the x64 versions of both the PulseView and ZaDiag apps. Currently, I am still struggling with getting PulseView x64 to work with this LA correctly, even after using ZaDiag x64 to change the driver to the default one it offers when it launches. Still working that and will update once I get it. For now, I reverted to using Saleae's Logic 1.2.29 Beta app (available from heresupport.saleae.com/logic-software/latest-beta-release - link good as of 10Jun19). To get Saleae's app to work with it, I had to repeatedly uninstall the device (including deleting the drivers) from the MMC Device Manager snap-in until, when searching for new plug and play hardware, it shows up as 'unknown device'. Once to that point, running the Saleae app should result in it seeing the driverless device with the HW IDs it is looking for and will assimilate it and install the drivers for it, and instantiate it as a 'USB Serial Bus controller|Saleae Logic USB Logic Analyzer', enabling this LA to be used from the Saleae Logic 1.2.29 app (images: i.imgur.com/J60jm8A.png & https://i.imgur.com/NA0MabE.png). As indicated above, once I get this LA to work with the 64-bit version of PulseView/ZaDiag properly, I will update this answer with additional details. Until then, take care. -t
Question:	Can you write I2C commands or is this only aquiring the commands
Answer:	I'm using the logic analyzer to show and decode logic only... and a Bus Pirate V3.6A to control the I2C bus. Sigrok and Putty for the Windows PC side of things. Nice combination!
Question:	What protocols does this support
Answer:	This product does not natively support any protocols. The protocol decoding is done by the host software. Check out the feature sets for PulseView and Saleae Logic software.
Question:	What software is required for Mac or PC
Answer:	https://support.saleae.com/hc/en-us/articles/115005972023-Saleae-Logic-Beta-Software now with real time (ish) display

• LA1010 is a logic analyzer product with high cost performance. It has 16 input channels and the sample rate is up to 100MHz. Along with the PC software KingstVIS.
• 16 channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.
• The signal could be analyzed with many standard protocols, to get more straightforward communication data.
• It helps a lot in testing and analyzing digital system(MCU/ARM/FPGA, etc.), developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.
• Supported OS: MAC OS, Linux, Windows XP, Vista, Windows 7/8/10(32/64bit)（Updated By WIKI）

User questions & answers

Question:	How fast is the sampling when doing continous capture? IS it usb3 compatable
Answer:	It is a USB 2.0 Device only from my experience. Also, its a 200Mhz max sample rate with all 16 channel enabled. The less channels enabled, the faster it can sample.
Question:	Is the unit comparable with the Saleae software
Answer:	Don’t know, but GNUPlot is free and an excellent software.
Question:	does this have an ext trigger input/output
Answer:	We provide enough memory.Not need external trigger. Internal trigger only
Question:	Does it work
Answer:	It works amazingly well especially considering the cost. The software is somewhat basic but includes a number of decoders that you have to pay big money for on other logic analyzers. I have never once had a failure of any kind using it. Even the PWM output channels are dead on when probed on the oscilloscope. Also the probe leads are some of the best quality silicone that I have ever seen on one of these. Give it a try you will not be disappointed.

Product features

InnoMaker Logic Analyzer - LA1010

LA1010 is a logic analyzer product with high cost performance. It has 16 input channels and the sample rate is up to 100MHz. Along with the PC software KingstVIS, 16 channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen. The signal could be analyzed with many standard protocols, to get more straightforward communication data. It helps a lot in testing and analyzing digital system(MCU/ARM/FPGA, etc.), developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.

Product description

LATNEX  SPA-6G is a handheld digital spectrum analyzer and RF explorer that works in all popular frequency bands.

It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost. It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

It comes with two SMA connectors and three antennas: Nagoya NA773 wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported. The unit offers coverage for most used communication frequency range such as WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.

The SPA-6G Combo package includes the SPA-6G spectrum Analyzer and an aluminum protective and carrying case as well as additional accessories. This Aluminium carrying case allows you to protect your  device and keep all the parts and components organized.

* TWO YEARS WARRANTY with full support includes free Firmware upgrades.

• IMPRESSIVE WIDE FREQUENCY BAND from 15MHz-2.7GHz (3G Combo and WSUB1G) and 4.85GHz-6.1GHz (6G Combo)
• WIFI ANALYZER MODE ( WIFI Combo) Allow you to identify Wifi issues and find the optimized channel or the best place for your routers or access-points to be places.
• MORE ADVANCED FUNCTIONALITY AVAILABLE for the SPA-6G RF explorer by connecting to a Windows or MAC PC using the free downloadable professional RF and Wifi Chanel Analyzing software with Waterfall 3D and 2D elements.
• BONUS DELUXE CARRY CASE included in this value SPA-6G combo kit. This Aluminum hard carrying case provide you with an easy and convenient way to protect and transport your spectrum analyzer and keep all the parts and components organized.
• 100% MONEY BACK GUARANTEE ensures this will quickly become your favorite no-risk purchase.

User questions & answers

Question:	can this be used to detect Emf
Answer:	Hello and thank you for reaching out to us. The Latnex SPA-6G Combo is used to determine frequency and signal strength. It cannot determine amount of EMF exposure. You will need a EMF meter for this. I would recommend the Latnex AF-5000.
Question:	Is this model the widest band of frequency coverage I can get
Answer:	A person can pay many thousands of dollars for a good Analyzer that will monitor the entire Radio Spectrum. This one, not so much.
Question:	Does this meter anaylize both 2.4 & 5G networks or do you need 2 different meters
Answer:	Hello, The frequency range of this spectrum analyzer is from 15MHz-2.7GHz and 4.85GHz-6.1GHz, and you can switch between the bands. As long as the networks you are measuring are within those ranges you are covered.
Question:	Can this demodulate signals
Answer:	This Instrument will not demodulate any signals, it just shows activity and frequency of the activity.

Product description

The EspoTek Labrador is a USB Device that turns any PC (Windows/Mac/Linux), Raspberry Pi or Android device into a full electronics lab with oscilloscope and more. The software interface was designed from the ground-up to be intuitive for students and makers, while retaining some of the more complex features than experienced engineers can make use of. Best of all, the hardware and software is 100% open source - all code and design files are publicly available on GitHub. All Labrador users have access to the best support possible: a direct line to the product developer. If you have any issues or suggestions, simply send a question to the EspoTek Amazon Storefront and I’ll do what I can to help.

• Oscilloscope (2 channel, 750ksps)
• Arbitrary Waveform Generator (2 channel, 1MSPS per channel)
• Power Supply (4.5 to 15V, 0.75W max output, with closed-loop feedback)
• Logic Analyzer (2 channel, 3MSPS per channel, with serial decoding)
• Multimeter (V/I/R/C)

User questions & answers

Question:	What is the maximum input voltage for the oscilloscope
Answer:	The scope has an input voltage range of -20V to +20v. If you need more, the device is pretty simple to modify. Just solder on an additional resistor in parallel with R3 and R4 and then rebuild the software with the R3 and R4 variable changed. All the schematics and source code are online and freely available, and I'm happy to help you out if you get stuck modifying your device. ~Chris
Question:	How connect to android phone, otg cable required? Does it power via usb
Answer:	To connect to and Android phone, you will need an OTG-compatible device as well as an OTG cable. You do not need any additional power inputs.
Question:	so is this a 0.750 Mhz then
Answer:	Hey, not exactly sure what you're asking by this question, but the oscilloscope samples at 0.75 MSa/s. So not as fast as a full size $1000 scope from Tektronix or Rigol, but more than enough for most hobby projects. ~Chris
Question:	Hi admin, it's cool you actually answer questions. mine are: 1) how high a frequency can this stably measure? 2) how short a pulse can it measure
Answer:	I've currently spent the last 5 years of my life working on this project (and still going); the least I can do is answer a few questions! Do other people not do this? The scope samples at 750ksps, so theoretically it can measure a 375kHz sin wave. In practice, though, anything more than 100kHz is not really stable or recognisable. For the pulse, you could use the digital inputs of the scope that measure at 3Msps. You'd need at least 3 samples (low, high, then low again) to guarantee that the pulse was detected correctly, so that gives a minimum pulse length of 1us.

Product description

◕‿◕This is a DIY product with vector network measurement function. It includes a 2.8-inch touching screen, TX/RX measurement, can determine the complete S11 and S21 parameters, if you need to get S12 and S22, you need to manually replace the transceiver port wiring.



◕‿◕Specifications:

★Material: PCB

★Color: white

★Measurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)

★RF output: -13dbm (maximum -9dbm)

★Frequency accuracy: <0.5ppm

★Measurement range: 70dB (50KHz-300MHz), (50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)

★Port SWR: <1.1

★Display: 2.8 inch TFT (320*240)

★USB interface: USB type-C

★Communication mode: CDC (serial)

★USB: 5V 120mA

★Battery: 1 * lithium battery, 3.7V, 450mAh (included)

★Number of calibration points: 101 (fixed)

★Number of scanning points: 101 (fixed)

★Display tracking: 4, Marking: 4, Setting save: 5

★PCB size: 85.5 * 54 * 11mm / 3.4 * 2.1 * 0.4in (without connectors and switches)

★Package size: 190 * 100 * 30mm / 7.5 * 3.9 * 1.2in

★Package weight: 139g / 4.9ounce



◕‿◕Note:

★This product does not contain SMA cable, you need to prepare yourself.



◕‿◕Features:

★It is mainly for the study of customers who can DIY, you need to prepare the SMA cable yourself.

★The 50k-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic.

★Small and portable, easy to use, this project aims to provide an RF gadget but useful instrument for enthusiast.



◕‿◕Package list:

1 * Host

1 * USB Type-C Data Cable

1 * SMA Female to Female Connector

• ◕‿◕The PC control software can export Touchstone (snp) files, which can be used for various radio design and simulation software. The 50k-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic.
• ◕‿◕The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz.
• ◕‿◕It has no metal shield. The main advantage is that users with strong hands-on ability can open the machine to view the circuit structure. However, when measuring frequencies above 300M, it is easy to be interfered by other signals. So this product is recommended for learning principles and use at lower frequencies.
• ◕‿◕The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.
• ◕‿◕It is mainly for the study of customers who can DIY, you need to prepare the SMA cable yourself. Small and portable, easy to use, this project aims to provide an RF gadget but useful instrument for enthusiast.

User questions & answers

Question:	difference between type 1 and type 2 models
Answer:	My understanding type one does NOT have internal power source (battery), whereas type two has the internal batter. You should also know that there are two different battery sizes. I chose the smaller, as I don't expect to be running it for more than 2 hours (per spec) at a crack anyway (that is, without plugging it in somewhere). And, yes, the calibration loads are included in both.
Question:	What is difference between type 1 and type
Answer:	My understanding type one does NOT have internal power source (battery), whereas type two has the internal batter. You should also know that there are two different battery sizes. I chose the smaller, as I don't expect to be running it for more than 2 hours (per spec) at a crack anyway (that is, without plugging it in somewhere).
Question:	What is the difference between the Type 1 and Type 2 model
Answer:	My understanding type one does NOT have internal power source (battery), whereas type two has the internal batter. You should also know that there are two different battery sizes. I chose the smaller, as I don't expect to be running it for more than 2 hours (per spec) at a crack anyway (that is, without plugging it in somewhere).
Question:	Can the pc software enable loading of parameters from the pc software into the nanovna
Answer:	Well, what the PC software does (I believe there are more than one out there) is to set the different parameters in the vna for measuring and retrieve the data generated during the measurement to plot it on the PC.

Product features

Note：

This product does not contain SMA cable, you need to prepare yourself.

Range：

Measurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)

RF output: -13dbm (maximum -9dbm)

Frequency accuracy: <0.5ppm

Measurement range: 70dB (50KHz-300MHz), (50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)

Specifications：

Port SWR: <1.1

Display: 2.8 inch TFT (320*240)

USB interface: USB type-C

Communication mode: CDC (serial)

USB: 5V 120mA

Battery: 1 * lithium battery, 3.7V, 450mAh (included)

Number of calibration points: 101 (fixed)

Number of scanning points: 101 (fixed)

Display tracking: 4, Marking: 4, Setting save: 5

Package list：

1 * Host

1 * USB Type-C Data Cable

1 * SMA Female to Female Connector

PCB size: 85.5 * 54 * 11mm / 3.4 * 2.1 * 0.4in (without connectors and switches)

Package size: 190 * 100 * 30mm / 7.5 * 3.9 * 1.2in

Package weight: 139g / 4.9ounce

• [Impressive frequency range] – Scan and diagnose any frequency starting in low frequency 50KHz up to high frequency 6.1GHz, with no gaps or limitations. Offering this wide operating range, it can detect all WiFi, cell stations and phones, IoT, HAM bands, Digital radio and TV, ISM bands, Drone links and pretty much all wireless technologies used in todays demanding communications world.
• [Robust design and instant power up] – A fully armored metallic enclosure provides robust mechanical strength and the high quality baked varnished paint provides a unique glossy finish. The device is designed and manufactured to last many years of demanding usage in the field, with internal rechargeable Lithium battery for hours of continuous usage.
• [Advanced features] – Included advanced high-resolution Spectrum Analyzer mode, WiFi Analyzer mode, Tracking SNA. Internal firmware is continuously updated with additional features and functions to improve the device capabilities.
• [Free Computer software] - When connected to a Windows, Linux or Mac computer the analyzer can display advanced high resolution graphics, including Power Meter and Spectrum Analyzer real time charts, historical charts, save data to CSV files and export to other tools such as WW6 or MatLab, define markers and limit lines and much more. Free open source API and libraries are available to customize your own applications and services.
• [Tracking mode enabled] – When combined with RF Explorer Signal Generator the analyzer can perform full tracking SNA to define Gain, Attenuation and SWR for 1 and 2 port RF devices such as filters, amplifiers and antennas.

User questions & answers

Question:	Does this have a usb-c port
Answer:	Hello, unfortunitly this unit doesn't have a USB-C port. It comes with a Mini USB Cable. I hope that this helps.

Product description

Specification:

Model: LHT00SU1

Size:10.4*5.5*3cm/4.1*2.2*1.2in

Weight: Approx.218g/7.7oz

Analog parameters:

Number of input channels: 2 channel

Sampling channel: 1 channel

The maximum sampling frequency: 16MHz

The maximum analog bandwidth: 3MHz

Input voltage range: -10V to + 10V

Sensitivity: 78mV

Maximum vertical resolution: 256 level

Digital parameters:

Number of channels: 8

Input voltage: 0V-5.3V

Input Low level: <0.8V

Input high level: >1.4V

Supported protocols: Serial Peripheral Interface, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2

The communication interface parameters:

USB parameters: USB2.0 high-speed 480Mbps

System requirements:

Supported operating systems Win2000 / XP / Vista / WIN7 (32bit)

Celeron 4 2.0G or Pentium 4 1.8G higher processor

Need USB2.0 high speed interface, does not support full speed USB2.0 or USB1.1

Memory Requirements 128M or more

Need 2G or more hard disk

You need to install Framework 3.5 SP1



Note:

If your system is WINDOWS XP, please check whether your computer has ".NET 3.5 SP1" this component, if not, go to the  website to download and install.

Package included:

1 x Machine

1 x Testing clamp cable

1 x USB connection cable

10 x test clip

• 【Double】Dual input oscilloscope (single, 16Msps, 3MHz bandwidth). It also has dual channel voltmeter, frequency meter, remote controller PWM controller, frequency generator, I2C controller, pulse/edge counter and other functions.
• 【Standard parameter】Standard parameters: The maximum sampling frequency is 16MHz, the maximum analog bandwidth is 3MHz, and the input voltage range is -10V~+10V. The sensitivity is 78mV and the maximum vertical resolution is 256 levels.
• 【High performance】8 digital channels + 1 analog channel logic analyzer, support for multiple protocol I2C controllers, pulse/edge counters, mixed signal oscilloscopes and logic analyzers.
• 【System Requirements】The virtual oscilloscope analyzer supports the operating system Win2000/XP/Vista/WIN7, Celeron 4 2.0G or Pentium 4 1.8G or higher processor. Requires USB2.0 high-speed interface, does not support USB2.0 full speed or USB1.1, you need to install Framework 3.5 SP1.
• 【Accessories】LHT00SU1 Virtual Oscilloscope Logic Analyzer I2C SPI CAN Uart - Arduino compatible SCM and DIY kit programmer and logic analyzer - 1 machine, 1 test clamp line (with 10 test clips), 1 USB.

Product description

Siglent’s SSA3021X Spectrum Analyzer covers signals in the 9 KHz – 2.1 GHz range and measures the magnitude of an input signal versus frequency over the full frequency range of the instrument. It is ideal for measuring the power of the spectrum of both known and unknown signals. Analyzing electrical signal spectra helps characterize wireless transmitters or other electronic devices, determining dominant frequency, power, distortion, harmonics, bandwidth, and other spectral components of a signal that are not easily detected in time domain displays. The SSA3021X Spectrum Analyzer is light weight (10lb) and small size (15.5” x 8.2” x 4.6”), with a user friendly interface on a large 10.1” TFT LCD. It features 256MB of internal storage memory, with up to 32GB supported externally via the USB port.

User questions & answers

Question:	is the tracking generator a trial period or permamently loaded
Answer:	When I ordered mine about two months ago, Siglent was offering the TG bundled with the SSA-3201x, and when I received my unit, all the extra functions were activated for a trial period, but the permanent license for the TG was included....a long-winded way of saying it was permanently loaded
Question:	The ssa3000x manual shows features that seem to be part of the advanced measurement opt. how do i know what features are included in the basic sa
Answer:	Everything except those options are standard and included with the SS3021X-TG. The manual will talk about the options when discussing the use of certain functions and notifies the user that these options are necessary for a given task. That's just my opinion. The tracking generator is of course standard, but SWR measurement, and freq. range increase,etc you must buy. hope this helps?
Question:	What other options are available and what is the cost
Answer:	Check with Siglent I believe one is a return loss bridge, dont remember the other. Seems like they were > $500.
Question:	The title on top of the sa says "9khz to 1ghz" and the specs just bellow go trough 2.1ghz. is it a mistake?. all 3021x go to 2.1ghz so yours don't
Answer:	U are right. It goes to 2.1 GHz not 1Ghz. There are only 2 models, both of which are hardware identical. Not sure why the advertiser chooses not to correct it. Remember also you can unlock the 3.2GHz capability in a 2.1GHz model.

Product description

LATNEX  SPA-6G is a handheld digital spectrum analyzer and RF explorer that works in all popular frequency bands.

It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost. It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

It comes with two SMA connectors and three antennas: Nagoya NA773 wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported. The unit offers coverage for most used communication frequency range such as WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.

The SPA-6G Combo package includes the SPA-6G spectrum Analyzer and an aluminum protective and carrying case as well as additional accessories. This Aluminium carrying case allows you to protect your  device and keep all the parts and components organized.

* TWO YEARS WARRANTY with full support includes free Firmware upgrades.

• IMPRESSIVE WIDE FREQUENCY BAND from 15MHz-2.7GHz and 4.85GHz-6.1GHz.
• WIFI ANALYZER MODE Allow you to identify Wifi issues and find the optimized channel or the best place for your routers or access-points to be places.
• MORE ADVANCED FUNCTIONALITY AVAILABLE for the SPA-6G RF explorer by connecting to a Windows or MAC PC using the free downloadable professional software with Waterfall 3D and 2D elements.
• BONUS DELUXE CARRY CASE included in this value SPA-6G combo kit. This Aluminum hard carrying case provide you with an easy and convenient way to protect and transport your spectrum analyzer and keep all the parts and components organized.
• 100% MONEY BACK GUARANTEE ensures this will quickly become your favorite no-risk purchase.

User questions & answers

Question:	what type Lithium ion battery
Answer:	Hello, Li-ion polymer rechargeable battery. Rated Voltage: 3.7V Normal Capacity: 1000mAh
Question:	Does it come with factory calibration certificate
Answer:	Hello thank you for reaching out to us. Yes it does come with a calibration certificate.
Question:	Is this a real time spectrum analyzer
Answer:	Yes. It does much of what an expensive lab instrument does for a fraction of the cost. It has fixed resolution of 112 data points at 200 ms sweep time.
Question:	work on smartmeters
Answer:	Hello, The LATNEX spectrum analyzer will accurately measure the RF signal emitted from the smart meter. Please do not hesitate to contact us in case you need assistance with measuring the smart meter signal.

Product description

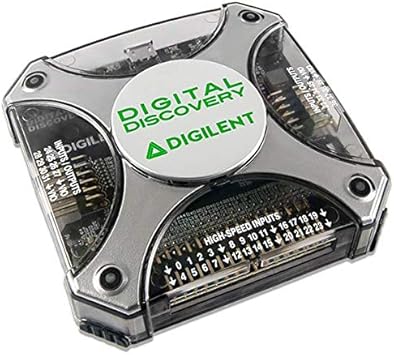

The Digilent Digital Discovery is a combined logic analyzer and pattern

generator instrument that was created to be the ultimate embedded

development companion. Digital Discovery was designed to optimize channels,

speed, and portability. A small form factor facilitates easy storage and

provides a whole suite of advanced features to allow you to debug,

visualize, and simulate digital signals for most embedded projects. Digital

inputs and outputs can be connected to a circuit using simple wire probes

or breadboard wires; alternatively, the Digital Discovery High Speed

Adapter and impedance-matched probes can be used to connect and utilize the

inputs and outputs for more advanced projects.

• Debug, visualize and stimuate digital circuits for most embedded projects
• 32-channel, and up to 800MS/s Digital Logic Analyzer
• 100MS/s, and 16-channel Pattern Generator
• Protocol Analyzer, Static I/O, and Power Supply
• Windows, Mac, and Linux compatible free software

Product features

What is the Digital Discovery?

The Digital Discovery is a High-Speed Digital Test and Measurement device that enables engineers to measure visualize simulate and analyze a large variety of digital signals. The Digital Discovery is more than just a typical USB Logic Analyzer, it provides five digital instruments in one, and the ability to script custom tests or protocols.

Digital Discovery Hardware Features​

• 16 Digital I/O (1.2 to 3.3V CMOS and 5V tolerant)​​
• 24 High Speed Digital Inputs (1.2 to 3.3V CMOS and 5V tolerant, up to 800 MS/s)​
• Digital inputs Sample rate and channel number configurable: 8 channels at 800 MS/s, 16 Channels at 400 MS/s, 32 Channels at 200 MS/s​
• Four programmable power supplies (1.2 to 3.3 V, matched with logic level selection). 100mA maximum current output​
• Selectable logic level between 1.2V to 3.3V, selectable slew rate, output current and more.

Digital Software Enabled Instruments

• 32 Channel Digital Logic Analyzer with bus analyzers including SPI, UART, CAN, I2C, I2S, 1-wire, and more
• Customizable sample rate and channel number
• 16-channel digital pattern generator ​
• 16-channel virtual digital I/O including buttons, switches, and LEDs – perfect for logic training applications
• Protocol Analyzer - SPI, I2C, CAN, and UART
• Script editor for custom bus and protocol analyzers​
• Programmable power supply

Python and C++ API, Built-in Script Editing, and Expert Forum Support

WaveForms comes with the WaveForms Software Development Kit and built-in script editing to enable custom applications and automated test and measurement.​​

The WaveForms Software Development Kit comes with C++, C#, Visual Basic and Python libraries and examples, as well as forum support from the software developers themselves!​​

The Script Editor can be accessed in the main WaveForms application, and allows for one or more instruments to be scripted in JavaScript.

Product description

Feature:

16 channels logic analyzer, 20MHz bandwidth.

Operating system: Windows 8, Windows 7, Windows NT, Windows XP ,VISTA.

More than 20 kinds of measurement functions, be suitable for technical application.

Intensity, invert, addition, subtraction, multiplication, division, X-Y plot.

Saves waveform on screen in JPG/BMP, Excel formats.

FFT spectral analysis function.

One computer can connect many DSO, extend channel easily.

VB, VC, Labview second design.

Specifications:

Oscilloscope Features,Bandwidth:20MHz

Channel:2(Digital)+16(Logic),Sample Rate:48MSa/s

Memory Depth :1M,Rise Time:17.5ns

Time Base Precision:±50ppm

Time Base Range:4ns/div-1h/div (Step by1-2-4)

Input Impendence:1MΩ 25pF

Input Sensitivity:10mV/div～5V/div

Vertical Resolution:8Bit

Vertical Position Range:20mV ~ 5V/div @ x1 probe; 200mV ~ 50V/div @ x10 probe; 2V ~ 500V/div @ x100 probe; 20V ~ 5KV/div @ x1000 probe

DC Accuracy:±3%

Bandwidth Limited:20MHz

Trigger Type:Edge, Alternative

Trigger Source :CH1, CH2

Math:+,-,x,÷,FFT, Invert

Cursor Measurement: Cross, Trace, Horizontal, Vertical

Auto Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms,

Vcrms, Preshoot, Overshoot,Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Logic Analyzer Features:

Channel:16

Max. Impendance:1MΩ(C=7.5pF)

Max. Voltage:0V~5.5V

Max. Sample:48M

Bandwidth:10MHz

Compatible Input:TTL, LVTTL, CMOS

Memory Depth :1M/CH

Package List: E0610

1 * Oscilloscope Host

1 * USB Cable

1 * CD with user manual inside

2 * Probes

2 * Bag of Logic Analyzer Probes

2 * Cables

Product description

LATNEX  SPA-6G is a handheld digital spectrum analyzer and RF explorer that works in all popular frequency bands.

It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost. It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

It comes with two SMA connectors and three antennas: Nagoya NA773 wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported. The unit offers coverage for most used communication frequency range such as WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.

The SPA-6G Combo package includes the SPA-6G spectrum Analyzer and an aluminum protective and carrying case as well as additional accessories. This Aluminium carrying case allows you to protect your  device and keep all the parts and components organized.

* TWO YEARS WARRANTY with full support includes free Firmware upgrades.

• 👍 IMPRESSIVE WIDE FREQUENCY BAND from 15MHz-2.7GHz (3G Combo and WSUB1G) and 4.85GHz-6.1GHz (6G Combo)
• 👍 WIFI ANALYZER MODE ( WIFI Combo) Allow you to identify Wifi issues and find the optimized channel or the best place for your routers or access-points to be places.
• 👍 MORE ADVANCED FUNCTIONALITY AVAILABLE for the SPA-6G RF explorer by connecting to a Windows or MAC PC using the free downloadable professional RF and Wifi Chanel Analyzing software with Waterfall 3D and 2D elements.
• 👍 BONUS DELUXE CARRY CASE included in this value SPA-6G combo kit. Crush, vibration and shock proof. Water resistance. Lockable latches protect your valuables. Watertight with neoprene o-ring. This heavy duty hard carrying case provide you with an easy and convenient way to protect and transport your spectrum analyzer and keep all the parts and components organized.
• 👍 100% MONEY BACK GUARANTEE ensures this will quickly become your favorite no-risk purchase.
