12 best linear motion actuators

• ✔Heavy Duty - The alloy-steel shaft accompanied by metal gears allows it to push and pull up to 330 lbs.It will be great to use the actuator with our controller, which helps to control your actuactor to Forward & Reverse.
• ✔Features - Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling.
• ✔Quiet & Comfortable - move at 5.7mm/s, silent and stable, make sound lower than 50db, suit for hospital and massage. Built-in safety lock, stop at any position in the stroke.
• ✔Safe - over current protection, overload protection, over-voltage protection, over-discharge protection, short circuit protection, shock protection.
• ✔We Promise:100% money back guarantee. If you have any problem with your item, simply contact us with your order ID ,we will reply within 24h,and you will receive a full refund or replacement.

User questions & answers

Question:	Duty Cycle 25% ? I don't understand 25% of what the total distance? Because the 2 inch actuator is also
Answer:	The duty cycle is actually 20%. What does that mean? It means that in a given amount of time, the device may be operated for only 20% of that time, then it must rest for the same time. So, in one minute it may be operated 12 seconds continuously, then must rest 12 seconds (or longer). Hope this explanation helps.
Question:	how many actuator I can run on a same control switch? Can I run 7 units on one control? Please advice
Answer:	Dear sir, our actuator Input Voltage 12V DC Max load current 3A. And the controller is DC 8-30V, 0-10A. So it only applies to 2 actuators instead of 7. If you use a larger 3*7A=21A controller to achieve it
Question:	How many wires does the unit have? when it hits the limit switch, do you need to reverse polarity to have it change direction
Answer:	Any DC motor will need to reverse + and - to reverse direction. Just buy a double pole, double throws switch from Amazon. Search DC motor control switch which should be able to carry 10 amps. Take the one end of the switch (which has two connections) and connect you power source to this end then take some more wire and cross connect the +/- on the other end of the switch. Then take your actuator wires and connect to the two center terminals of the switch. You can google this as it is very simple. One thing you MUST do is use a fuse between the power source. This will save you wires and switch. The actuator will run off of one amp but if you have to use the entire force of these very strong actuators you will need 6 amp so use a 10 amp fuse.
Question:	what size are the bolt hole on the actuator
Answer:	The diameter of the bolt hole on the actuator is about 0.28 inch. Thanks.

Product features

Sturdy Screw Housing

Screw gasket design, add a flat washer, effectively prevent the screw off. Automatically assure the quality, safe & convenient.

Lubricated Metal Gear

Inside the fuselage using powder metallurgy technology, pure metal gear, life is more durable.

All Metal Material

Motor design inside and outside of pure metal, greatly improve the service life of the product, when working with a little metal friction voice, it is a normal phenomenon.

Furniture and Home

In daily life uses, linear actuators can serve to adjust massage chair, TV lift, table lift, electric sofa, electric treadmill, car electric tailgate etc.

Hospitals and Healthcare

Linear actuators are used for moving and adjusting applications: patient shifter, electric wheelchair, electric nursing bed, esthetic dental chair etc.

Industrial and Construction

Actuators are widely used in industrial machinery such as engineering vehicle, electric lifting platform, CNC machine tool, Manipulator etc.

Agricultural Machinery

Linear actuators also apply to many automatic agricultural machineries: sprayers, lawn mowers, tractors, cultivators, harvesters etc.

Product description

Product features



➤Specification:Stroke length = 12 inches (305mm);Travel Speed: 0.55in/sec(14mm/sec); Retracted length = 370mm(15"); Extended Length=620mm(25");Maximum current draw = 3Amps; Maximum Load = 225lbs(1000N).

➤Material:Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling.

➤Great Performance:with reliable performance, stable running, the same characteristics of push and pull, and good environment adaptability etc.

➤Application:Widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.

➤1 Year product warranty,any problems about the product please feel free to contact us.



INSTALLATION

WARNING:1.The load added onto the actuator must be less than or equal to the rated load of actuator.

2.Install actuator so the force of the load acts in the center of the extension tube and the rear mounting adapter.



1.Mount the actuator by securing the top and the bottom mounting holes to two fixed positions.The stroke length of the actuator and the limitations of the particular application will detemine the location of the fixed mounting positions. IMPORTANT:Confirm that the two-way movement of item is smooth and within the actuator's stroke length after it has been installed .Additionally ,confirm that no obstacles exist along the travel path of the actuator .

2.Secure the top and the bottom mounting holes of the item onto the two mounting fixtures using 5/16'' diameter bolts.

3.Connect the red wire to the positive post and black wire to the negative post of the DC power supply .

4.The operation of the item should be tested manually after the installation is completed.

• ➤Specification:Stroke length = 12 inches (305mm);Travel Speed: 0.55in/sec(14mm/sec); Retracted length = 370mm(15"); Extended Length=620mm(25");Maximum current draw = 3Amps; Maximum Load = 225lbs(1000N).
• ➤Material:Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling.
• ➤Low noise: The low noise design, noise level below 50 dB;with reliable performance, stable running, the same characteristics of push and pull, and good environment adaptability etc.
• ➤Application:Widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction,chicken coop door and so on.
• ☎1 Year product warranty,any problems about the product please feel free to contact us.

User questions & answers

Question:	Why does my actuator stop actuating and start pulsing
Answer:	either internal shorted or you have it wired incorrectly
Question:	I got mine new, wired up to 12 20 amp supply, will not turn, if limit switch on both end how to turn on the motor
Answer:	There’s two wires a positive and negative. Hook to a 12v battery and it should move . Reverse the wires and it should move the other way. You will have to get a on/off/on switch to operate.
Question:	Is there a limit switch on the retract side? i would like to wire it to use auto return. thanks
Answer:	Yes, there are limit switches for extending and retracting. It is recommended that you use ECO actuator controller to achieve automatic return function
Question:	For the 10” stroke version, what are total extended and retracted lengths, including the brackets
Answer:	Its total extended length is about 24.5inch ,and retracted length is about 14.5inch ,the brackets are included.

Product description

Product features



➤Specification:Stroke length = 8 inches (200mm);Travel Speed: 0.55in/sec(14mm/sec); Retracted length = 320mm(13"); Extended Length=520mm(21");Maximum current draw = 3Amps; Maximum Load = 225lbs(1000N).

➤Material:Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling.

➤Great Performance:with reliable performance, stable running, the same characteristics of push and pull, and good environment adaptability etc.

➤Application:Widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.

➤1 Year product warranty,any problems about the product please feel free to contact us.



INSTALLATION

WARNING:1.The load added onto the actuator must be less than or equal to the rated load of actuator.

2.Install actuator so the force of the load acts in the center of the extension tube and the rear mounting adapter.



1.Mount the actuator by securing the top and the bottom mounting holes to two fixed positions.The stroke length of the actuator and the limitations of the particular application will detemine the location of the fixed mounting positions. IMPORTANT:Confirm that the two-way movement of item is smooth and within the actuator's stroke length after it has been installed .Additionally ,confirm that no obstacles exist along the travel path of the actuator .

2.Secure the top and the bottom mounting holes of the item onto the two mounting fixtures using 5/16'' diameter bolts.

3.Connect the red wire to the positive post and black wire to the negative post of the DC power supply .

4.The operation of the item should be tested manually after the installation is completed.

• დ➤Specification:Stroke length = 8 inches (200mm);Travel Speed: 0.55in/sec(14mm/sec); Retracted length = 320mm(13"); Extended Length=520mm(21");Maximum current draw = 3Amps; Maximum Load = 225lbs(1000N).
• დ➤Material:Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling.
• დ➤Low noise: The low noise design, noise level below 50 dB;with reliable performance, stable running, the same characteristics of push and pull, and good environment adaptability etc.
• დ➤Application:Widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.
• ☎We Promise:100% money back guarantee. If you have any problems with your item, simply contact us with your order ID ,we will reply within 24h,and you will receive a full refund or replacement.

User questions & answers

Question:	Can the amount of extension be stopped mid stroke with the remote
Answer:	yes
Question:	How much weight will this lift
Answer:	100kg/220lbs
Question:	This 8" stroke unit comes with a remote controller
Answer:	A remote controller does not come with this unit just the mounting brackets and pins. The remote controller is a separate purchase. There may be a combo kit available with remote and actuator you should look for that.
Question:	what is the length of the 6inch stroke version extended and retracted
Answer:	➤Specification:Stroke length = 6 inches (150mm);; Retracted length = 260mm(10"); Extended Length=410mm(16");Maximum current draw = 3Amps; Maximum Load = 332lbs(1500N).

Product description

Linear actuators are actuators which create motion in a straight line. Unlike a motor, which creates circular motion, a linear actuator can be used with any application that requires moving something in a straight line (e.g. up and down or side to side). Windy Nation LIN-ACT1 Series Linear Actuators are a powerful and reliable linear actuator for small to medium loads. We designed our linear actuator with pre-lubricated metal gears, pre-installed limit switches, and with an IP65 (suitable for outdoor use) water resistance rating. Included with your purchase is a linear actuator up/down switch, which is used to the control the motion of the linear actuator. There are two options for the switch: Momentary and Maintained. A momentary switch will only supply power to the actuator when the button is actively engaged by your finger. When you release the button, power is cut to the actuator and it stops. The maintained switch will continue to supply power to the actuator until it is manually turned off by the end user (A light bulb switch is a maintained switch, which means it will stay on until you turn it off).

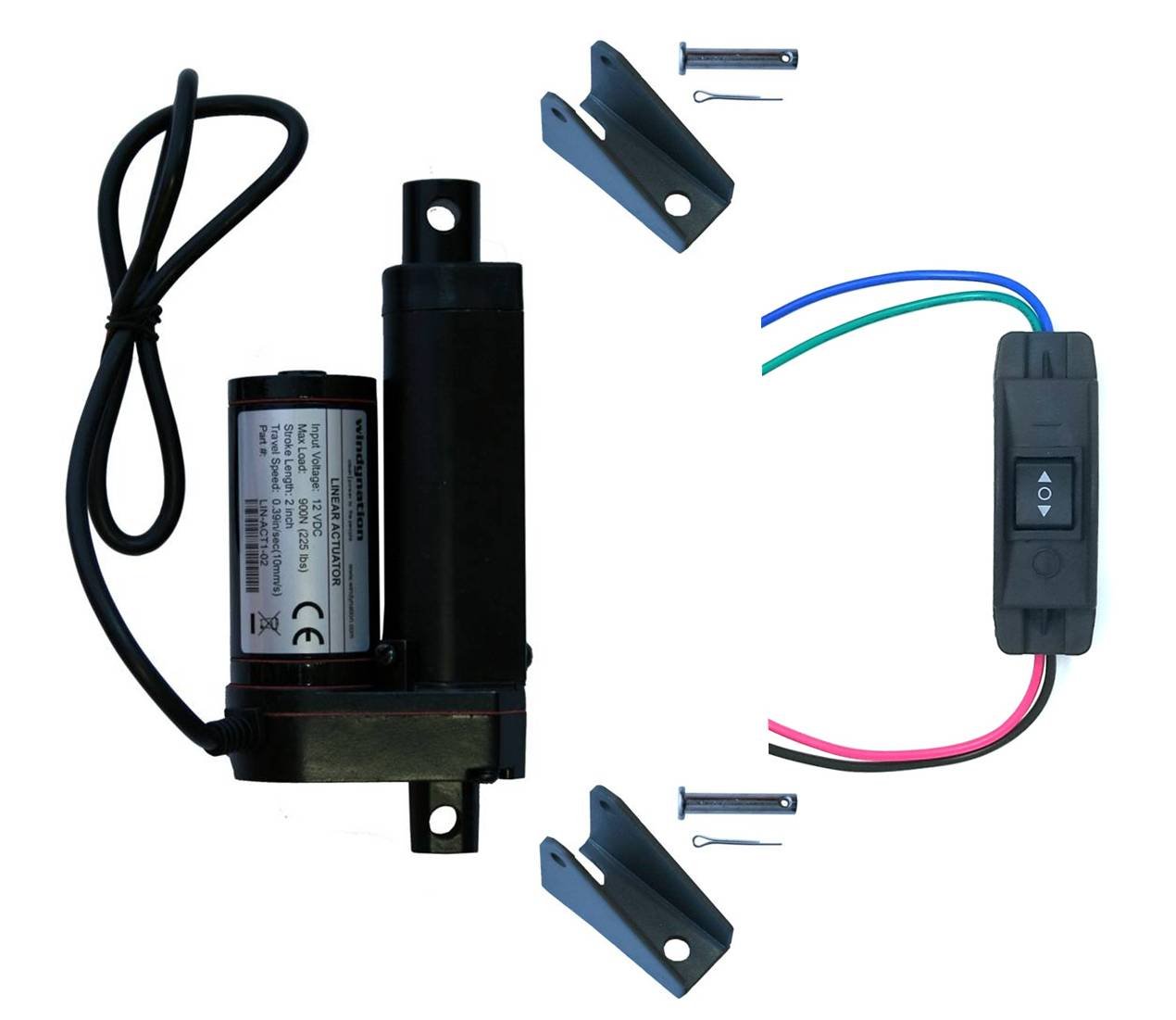

• Includes MAINTAINED Up/Down Switch: The maintained switch will continue to supply power to the actuator until it is manually turned off by the end user (A light bulb switch is a maintained switch, which means the light bulb will stay on until you manually turn the switch off).
• Includes 1pc 12 volt linear actuator (select stroke length), 1pc DPDT up/down switch, and 2pcs steel mounting brackets with fasteners.
• SEE IMAGES FOR DIMENSIONAL DRAWINGS AND ADDITIONAL SPECIFICATIONS
• Actuator Stroke Length = 2 inches, Travel speed = 0.39 inches/sec (10 mm/s). Actuator Maximum Dynamic Load = 225 lbs (900N), Actuator maximum current draw = 2.2 Amps
• Linear actuator is IP65 rated (suitable for outdoor use). Exterior material of linear actuator is 6061 Aluminum (powder coated black)

User questions & answers

Question:	What is the duty cycle on the 30" actuator
Answer:	25%
Question:	in its fully extended position can it with stand linear impacts such as a heavy lid closing onto a latch that it extends and retracts
Answer:	The static and dynamic load limits are both 225 pounds As long as the impact does not exceed this pressure, it should be ok
Question:	I am using for a trap door in the floor that is 36"x 72" x 1". What size actuator do I need to lift fully vertical? (I have gas struts to help
Answer:	It depends on where the actuator is mounted in your application and how much travel is required to fully lift the door vertically
Question:	Is the stroke arm in a fixed position or can it spin freely? I have some odd mounting points that need to be adjustable
Answer:	The stroke arm is in a fixed position.I used the actuator to get a 2" lift for a homemade snowplow on a lawn tractor.

Product description

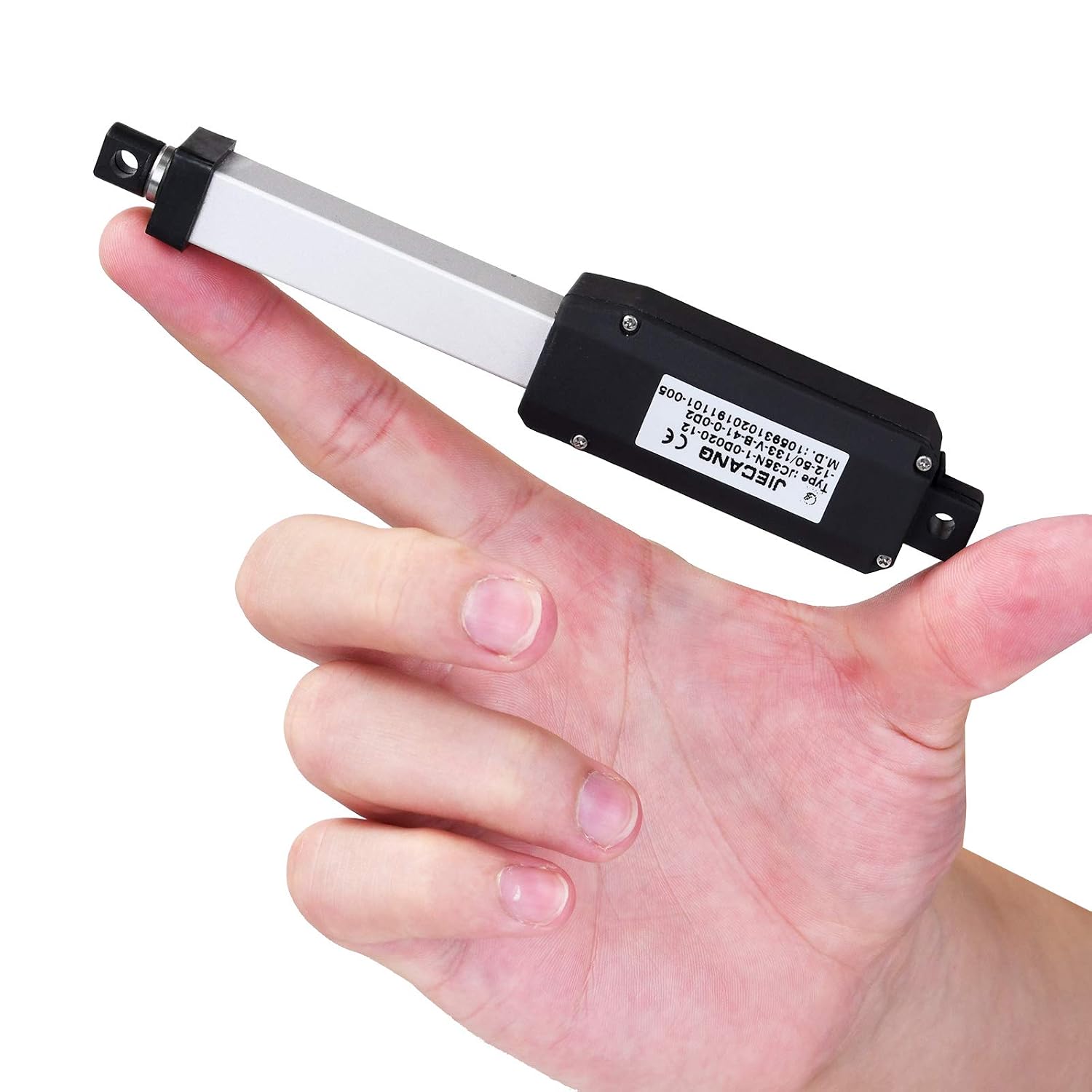

This is a small, compact linear actuator capable of lifting medium amount of force with a very low noise level. It is found in a variety of different areas like marine, automotive, manufacturing and home automation as well as hobby design and robotics. It can be combined with any of our control boxes, rocker switches and designated mounting brackets.

• Features - designed to handle considerable amounts of force for those many large-scale applications in the industrial industry. No risk of leaking oils and fluids and will eliminate upkeep. Designed to be vibration resistant. Automating industrial tasks and machinery with industrial actuators also leads to increased safety and efficiency comPAred using human operators.
• Easy connection - our mini industrial linear actuator solutions are able to fit in almost any industrial machine or piece of automated machinery. easy to install and integrate into most control systems, like arduino, control boxes or any other microcontroller kit. The best fit has BRK-09 mounting bracket (sold separately)
• Advantages - equiped with brushed dc motor, stunning operational conditions (-25ºc to +65ºc) / (-14°f to 149), and low-noise - db<45(a), which makes progressive automations products ahead of other competitors. Duty cycle of 25%.
• Tested before shipment – we care about our top quality products and check each of them prior to disPAtch to our clients to ensure you achieve consistent levels of positioning accuracy, superior quality and outstanding performance for a long time.
• 18 months warranty! Our actuators are quiet, clean, non-toxic and energy efficient. Our support team of engineers are skilled to help you with your product integration.

User questions & answers

Question:	Is this unit weatherproof, i.e.: could it be used on the outside of a motorhome to lift a collapsible roof
Answer:	Hi there, This unit has an IP rating of 65. This means that it can handle splashes of water. The unit will likely face an issue if exposed directly to the elements or if it retracts and extends while the rod is wet. Water can still get in through the shaft. Thank you
Question:	Can you stop the piston at any position
Answer:	The PA-09-8-330 actuators operate by extending from +12 VDC input voltage and retracting from -12 VDC input voltage. When there is no power supplied, the actuator will stop and remain in the last position it was left in.
Question:	Thanks Ricardo for your previous ans. Are clear wiring instructions incl with the actuator for forward and reverse using that rocker switch
Answer:	There are only 2 leads on the actuator! You will need a Double Pull Double Throw Momentary Rocker switch. The leads on one end of the rocker switch will be reversed to allow it to Pull the actuator back in.
Question:	Can the wire from the actuator to the controller be extended
Answer:	The PA-09-40-330 actuator comes with a wire length of 40 inches and has a 2 pin molex connector at the end of it. You may also cut just the very tip off to expose the 2 wire leads and splice/solder your own extra wires to the original cable to extend the total wire length. As long as the original cable is still within 39 inches, it does not void warranty when cutting less than 1 inch of the original wire off.

Product features

WHY GO PROGRESSIVE?

We are Progressive Automations, manufacturer and distributor of linear actuators and linear motion control products worldwide. We have over twelve years of experience in the industry and are always striving for more. We have developed and designed a wide range of products to match the growing demand for automation across industries.

Our goal is to lead the industry in innovation while bringing you the most affordable, high-quality linear motion products that money can buy.

INDUSTRY ACTUATOR SOLUTIONS

Continuous development of the latest technology make electric linear actuators more viable than ever in the industrial sector.

We develop and manufacture reliable actuators with compact design and high force capabilities for industries such as construction, mechanical engineering and manufacturing.

Speed, strength and compatible installation dimensions of our industrial linear products are perfectly coordinated with a cost-efficient and reliable alternative to previous industry offerings.

Solar Industry

We offer actuators specifically designed for solar applications. They can produce up to 3,300 lbs of force, capable of handling the high force requirements needed for large solar machinery. These actuator's high environmental protection rating produces durable units, able to withstand harsh outdoor environments; where most solar applications are found.

Industrial Automation

Our heavy duty linear actuators with optional feedback provide cost-effective, high force capabilities. These actuators can be found in industries such as manufacturing, agriculture and industrial automation, reducing the need for human intervention.The environmental protection rating provides a versatile unit able to withstand dust, water and harsh environments.

Machinery

Our high-force industrial linear actuators are the strongest units in our actuator range. The stainless steel shaft accompanied by metal gears allows the actuator to push and pull up to 3300 lbs, and hold up to 4000 lbs.

Product description

ECO LLC --- 10 years experience in Linear Actuator production. Expert in providing all kinds of linear actuator.Mainly serve customers in the fields of medical equipment, financial equipment, construction machinery, etc.



Product features



✦Specification:Stroke length = 2 inches (50mm);Travel Speed: 0.6in/sec(15mm/sec); Retracted length = 60mm(2.4"); Extended Length= 132mm(5.2"); Maximum Load = 4.5lbs(20N);Inner Tube: Stainless Steel Tube;Input Voltage: 12VDC;Temperature: 0-50 degrees Celsius.

✦Advantage:Our Linear Actuator with Linear Reciprocating Motor and Durable Stroke Ideal for Intelligent Range Hood, Fan Blades, Cabinets, Window Opener, Robotics, Home Automation.

✦Feel Stop: Stop at Any Position,With Automatic Machine Lock, It will Automatically Stop When It Reaches the Top.

✦Safe and Worry-Free: Overcurrent Protection, Short Circuit Protection, Overload Protection, Overvoltage Protection.

✦1 Year product warranty,any problems about the product please feel free to contact us.

• ✦Specification:Stroke length = 2 inches (50mm);Travel Speed: 0.6in/sec(15mm/sec); Retracted length = 142mm(5.59"); Extended Length= 190mm(7.5");Maximum Load = 4.5lbs(20N);Inner Tube: Stainless Steel Tube;Input Voltage: 12VDC;Temperature: 0-50 degrees Celsius.
• ✦Advantage:Our Linear Actuator with Linear Reciprocating Motor and Durable Stroke Ideal for Intelligent Range Hood, Fan Blades, Cabinets, Window Opener, Robotics, Home Automation.
• ✦Feel Stop: Stop at Any Position,With Automatic Machine Lock, It will Automatically Stop When It Reaches the Top.
• ✦Safe and Worry-Free: Overcurrent Protection, Short Circuit Protection, Overload Protection, Overvoltage Protection.
• ✦1 Year product warranty,any problems about the product please feel free to contact us.

User questions & answers

Question:	amps drawn please
Answer:	Depends entirely in the load. You can pull down the datasheet as a PDF from the Net. Max current as I recall is 500 milliamps approx at extreme load, but mine often operate under 50 milliamps.
Question:	I want to hook this up to an hbridge, how many amps does this pull when in use
Answer:	I’m not sure I run it off of a 7.2 volt battery pack with an esc
Question:	Is there a spec sheet avaliable? I need to model this for a project
Answer:	Nothing came with unit No paperwork
Question:	Can anyone provide the datasheet for this? I've searched all part numbers and I'm not coming up with anything
Answer:	Please see the second picture or contact the customer service request manual, thank you

Product description

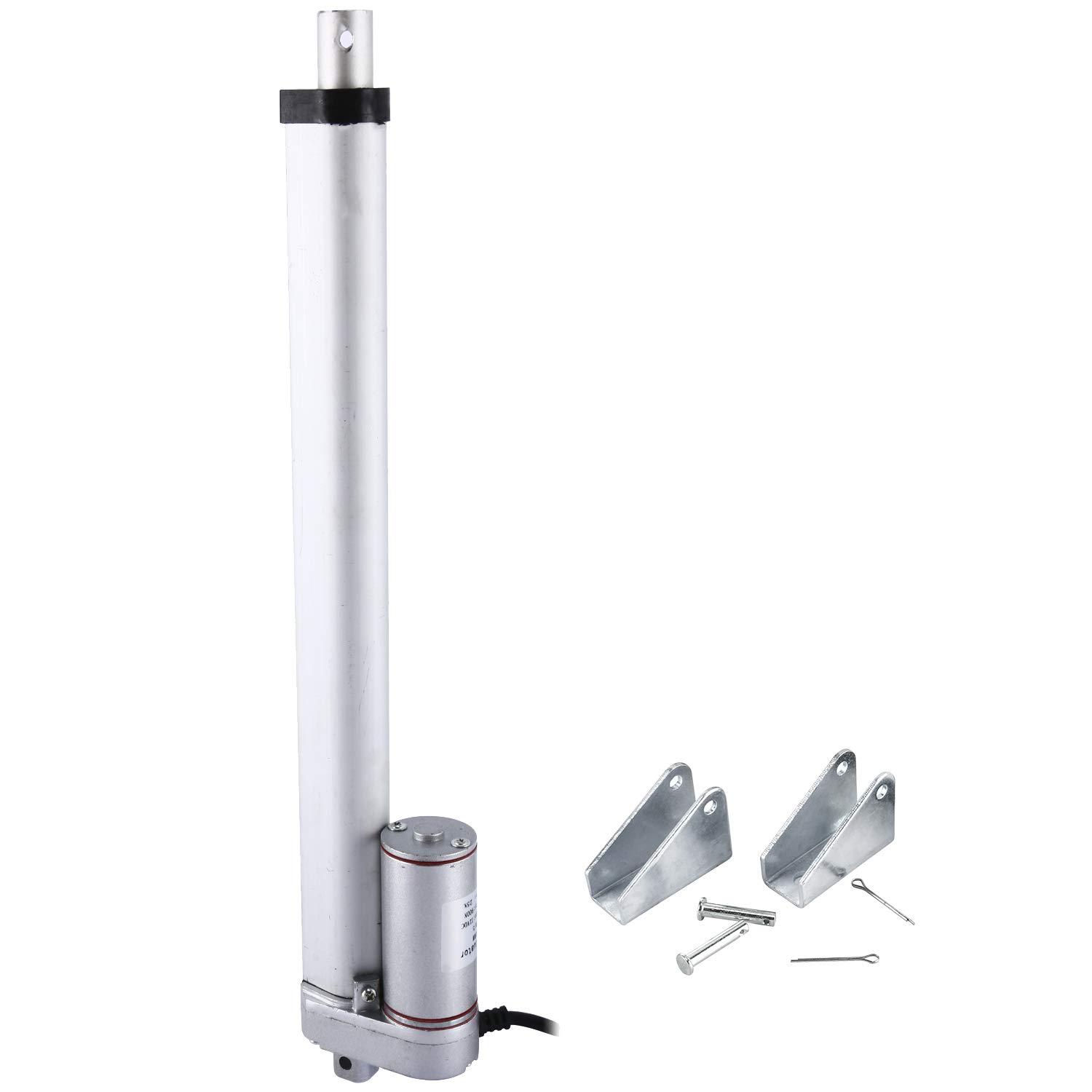

Specification:



Color: Silver

Material: Aluminum Alloy

Input Voltage: DC 12V

Rated Current: 3Amp

Stroke length = 300mm(12")

Retracted length = 420mm(16.8");

Extended Length= 720mm(28.8")

Rated Load: 900N

Travel Speed: 10mm/s

Limit Switch: Built-in

Working Temperature: -20ºC to 65ºC

Protection Class: IP54

Duty Circle: 25%

Noise Level: <50dB



How To Install



1. Prepare to connect the two wires of the actuator to a 12 volt battery

2.Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.

3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch

4. Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.

5.The actuator has pre-installed inner limit switch, it cannot be adjustable.

6. It comes with mounting brackets.



How to protect your actuator:



1. Please use the 12V DC power adapter

2. Please do not exceed the rated load

3. All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.

4. Please be careful, the actuator not completely waterproof



Widly Use:



Furniture and home application

Hospitals and healthcare

Industrial and construction application

Agricultural machinery



Package Included:



1 X 12" Linear Actuator

2 X Mounting Bracket

1 X Screw Set

• ★ Specification: Stroke length = 300mm(12"); Retracted length = 420mm(16.8"); Extended Length= 720mm(28.8“); Travel speed = 0.39 inches/sec (10 mm/s);Maximum current draw = 3Amps; Maximum Load = 225lbs(900N).
• ★ Material: High quality aluminum alloy material, sturdy enough and with fashion look, High performance motor ,Built-in high quality limit switch
• ★ Low noise: The low noise design, noise level below 50 dB
• ★ IP54 rated: (suitable for outdoor use). Commonly Used In Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.
• ★ Package Included: 1pc 12V 12 Inch Linear Actuator with 2pcs mounting brackets.

User questions & answers

Question:	Can anyone tell me the diameter of the shaft housing, that is, the stationary outer tube? My application will go through a bench top
Answer:	I would wait to cut the hole till you get it, I have a few of these and they are all different. Plus they are not ‘round’ - it’s got a flat strip on the top, so it’s more like an oval shape. As for the exact measurement goes - I can’t access any of mine without removing walls and such, but my memory serves me it’s around 2”
Question:	Can you use it on a car trunk
Answer:	Yes
Question:	Is this an immediate actuator or is it gradual? If gradual, what is the speed
Answer:	OK the motor effectively winds the central rod through a nut therefore all the actuators you see with a motor on the side are relatively slow moving I have never timed them but somewhere around 15 seconds
Question:	Can it push and pull the same amout of weight
Answer:	I use it to raise and lower a plywood chicken coop door, about 5 pounds. Do not know its max...

Product description

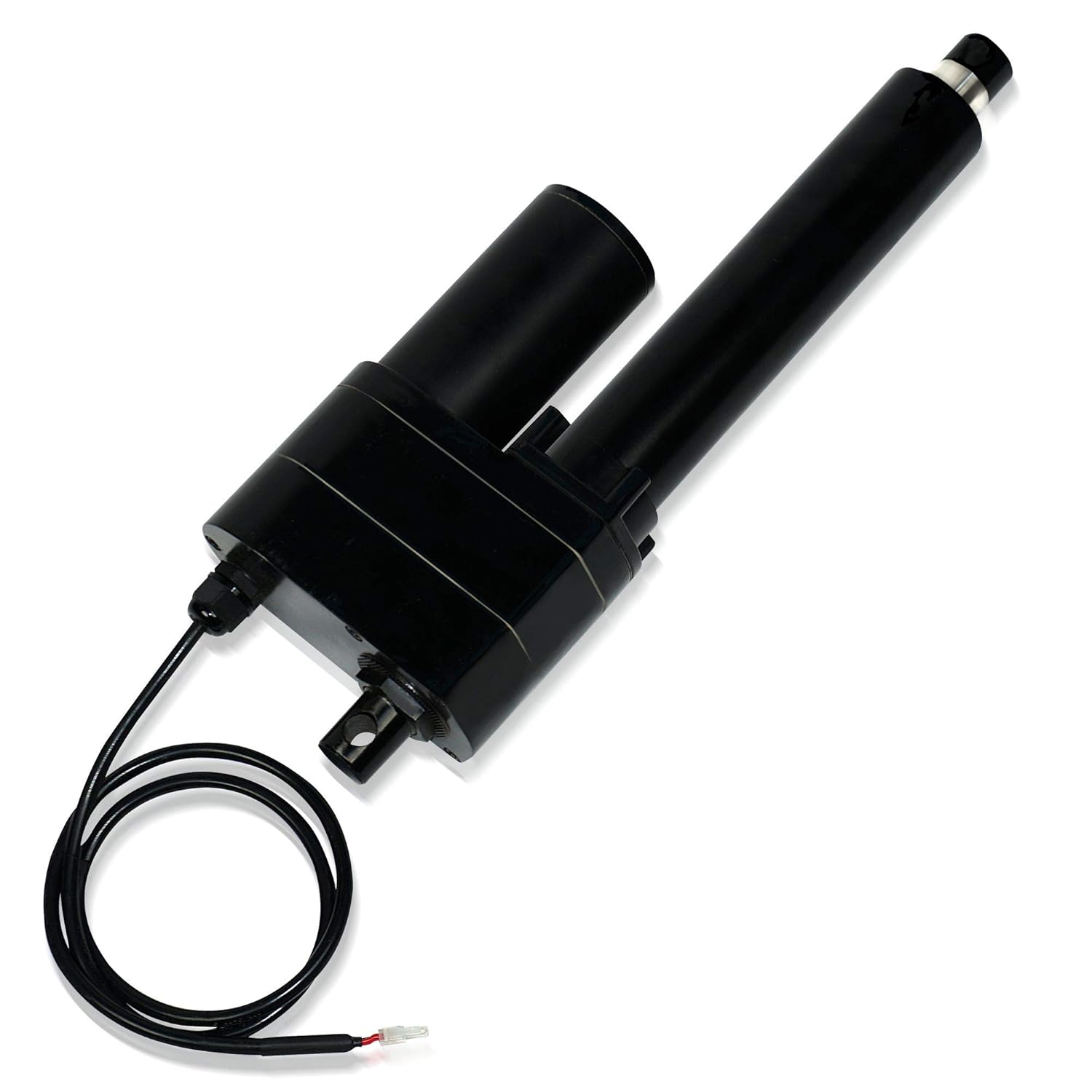

This is Heavy Duty Linear Actuator provides cost-effective high force capabilities. The stainless steel shaft accompanied by metal gears allows it to push and pull up to 2000 lbs, and hold up to 4000 lbs. The environmental protection rating provides a versatile unit able to withstand dust, water, and harsh environments. The heavy-duty actuator is the only unit in our line of products with adjustable limit switches. This feature allows the user full control over where to start and stop the actuator. We also have this model available with potentiometer feedback here! Note: limit switches are not included in stroke lengths longer than 24" Our goal is to lead innovation while bringing you the most affordable, high-quality linear motion products that money can buy.

• High force – PA 17 12vdc electric actuator offers power and durability for applications that require dynamic linear motion and versatility the stainless-steel shaft accompanied by metal gears allows it to push up to 2000 lbs and hold up to 4000 lbs
• Features – able to withstand dust, water, and harsh environments. The heavy duty actuator is the only unit in our line of products with adjustable limit switches, which allows customers fully control over where to start and stop the actuator
• Industries - can be used in a variety of different applications, from lifting a sofa, to marine hatch on a boat to being utilized in industrial machinery equipment found in the construction industry
• Testing – all our products are undergo thorough testing before they are released for sale they are designed to work in even very harsh conditions and to tolerate washing, without damaging the finer electronics inside
• Superb quality guaranteed or your money back progressive automations actuators are quiet, clean, non-toxic and energy efficient. 18 months of warranty

User questions & answers

Question:	Looking to replace actuator d12-21b5-05jd 3500 on a john deere gator
Answer:	Unfortunately, we do not have the necessary information to determine if the PA-17 linear actuator will be suitable as a replacement. There are a few specifications that can help determine if this unit is right for your application. Dynamic force, stroke length, and overall dimensions of the unit will help determine if you are able to implement this unit into your application.
Question:	Is this designed for full force in both extension and retract
Answer:	Hi There, Yes the unit is designed to push and pull 2000LBS at both extension and retraction Thanks,
Question:	Sounds like this has metal gears, is this true? What about internal limiting switches
Answer:	I has metal gears within the sealed gear box and a threaded worm-gear to extend and retract the shaft, which has both max and min limit switches.
Question:	Is their an overload protection? Thank you
Answer:	Yes there is. The PA-17 has a built in slip clutch that engages when over 2000LBS is applied to the device.

Product features

WHY GO PROGRESSIVE?

We are Progressive Automations, manufacturer and distributor of linear actuators and linear motion control products worldwide. We have over twelve years of experience in the industry and are always striving for more. We have developed and designed a wide range of products to match the growing demand for automation across industries.

Our goal is to lead the industry in innovation while bringing you the most affordable, high-quality linear motion products that money can buy.

INDUSTRY ACTUATOR SOLUTIONS

Continuous development of the latest technology make electric linear actuators more viable than ever in the industrial sector.

We develop and manufacture reliable actuators with compact design and high force capabilities for industries such as construction, mechanical engineering and manufacturing.

Speed, strength and compatible installation dimensions of our industrial linear products are perfectly coordinated with a cost-efficient and reliable alternative to previous industry offerings.

Solar Industry

We offer actuators specifically designed for solar applications. They can produce up to 3,300 lbs of force, capable of handling the high force requirements needed for large solar machinery. These actuator's high environmental protection rating produces durable units, able to withstand harsh outdoor environments; where most solar applications are found.

Industrial Automation

Our heavy duty linear actuators with optional feedback provide cost-effective, high force capabilities. These actuators can be found in industries such as manufacturing, agriculture and industrial automation, reducing the need for human intervention.The environmental protection rating provides a versatile unit able to withstand dust, water and harsh environments.

Machinery

Our high-force industrial linear actuators are the strongest units in our actuator range. The stainless steel shaft accompanied by metal gears allows the actuator to push and pull up to 3300 lbs, and hold up to 4000 lbs.

Product description

Specifications

Input Voltage:8-30V

Output Voltage:8-30V

Max Amps:5A

Prevent Back-connect Protection: Yes

Remote Control Distance:Less than 5 meters

Control Method:Pointing Control



Specific functions are described below:

1.Keys A control insist positive turn: When you press A, the motor action by corotation, stop when you loosen.

2.Keys B control insist reverse turn : .When you press B, the motor action by reversal, stop when you loosen .



Notes:

1.The supply voltage, motor voltage and operating current should be within the allowable range.

2.This is not waterproof cotroller, please keep it dry and clean and avoid from direct sunlight.

3.Do not make the forward and reverse turn in a short time.

4.The capacity of the load is in inverse proportion to the remote distance. ,the bigger the shorter .The controller can work well when it is used in the straight line without any sheid ,if there is any shade ,it will influence the control distance .

5.It needs to replace the battery inside the remote controller when the remote control distance is shorter than before.



Package Included:

*1PCS Wireless Remote Control Switch

*1PCS Wireless Remote Controller

• Application:Our Linear Actuator Controller Suitable for Different Kinds of Linear Actuator.
• It is a forward-reverse controller, which enables the motor moving forward --stop-- backward，clockwise--stop--counterclockwise.
• Remote control comes along with forward-reverse controller enables distance controlling.
• Widely input voltage for 8-30V Motor , high-current output (max output is 5A), Remote control distance can reach 5 meters .
• Can only be used with 1 single linear actuator.(Linear actuator Not conclude)

User questions & answers

Question:	Is the control box rainproff
Answer:	No it is not waterproof.
Question:	Tegarding rhw wireless system, does the controllwr limits power ? Im trying to hardwire a roof on a boat but need ri make sure that it has a overload
Answer:	The controller does not limit power.
Question:	Does the remote need to be pressed till retraction is complete or is it one touch
Answer:	The remote need to be processed till retraction is complete.
Question:	Could I adapt the remote to be triggered with an inching relay
Answer:	Yes, I believe that you'll be successful.

• Maximum Load - This linear actuator features powerful DC 12V electric motor, it can provide max.3000N pushing force and 2000N pulling force. Premium Material – It is made of OD24mm aluminum alloy tube, metal construction for good load capacity and durability
• Stroke Length - 12 inches (300mm) Quiet & Comfortable – It moves at 5mm/second, silent and stable, make sound lower than 50db, suit for hospital and massage. Built-in safety lock, stop at any position in the stroke
• Protection - Aluminum alloy #6061 housing, IP65 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling
• Wireless Remote controller – The included wireless remote helps to control your actuator to move forward & reverse. Brackets - 2 Pieces heavy duty steel mounting brackets with fasteners are included
• Wide Use - Our linear actuator with durable stroke ideal for massage sofa, recliner, TV lifter, lifting table, hood, fan blades, cabinets, window opener, robotics, home automation, etc.

User questions & answers

Question:	Can the wireless code be changed
Answer:	Sorry, it can't be changed
Question:	Can a manual switch be used with this actuator or is it remote control only
Answer:	Yes, any manual switch can be used with our linear actuator. I am glad to help you

Product description

Specification:



Color: Silver

Material: Aluminum Alloy

Input Voltage: DC 12V

Rated Current: 3Amp

Stroke length = 150mm(6")

Retracted length = 260mm(10.4");

Extended Length= 410mm(16.4")

Rated Load: 900N

Travel Speed: 10mm/s

Limit Switch: Built-in

Working Temperature: -20ºC to 65ºC

Protection Class: IP54

Duty Circle: 25%

Noise Level: <50dB



How To Install



1. Prepare to connect the two wires of the actuator to a 12 volt battery

2.Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.

3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch

4. Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.

5.The actuator has pre-installed inner limit switch, it cannot be adjustable.

6. It comes with mounting brackets.



How to protect your actuator:



1. Please use the 12V DC power adapter

2. Please do not exceed the rated load

3. All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.

4. Please be careful, the actuator not completely waterproof



Widly Use:



Furniture and home application

Hospitals and healthcare

Industrial and construction application

Agricultural machinery



Package Included:



1 X 6" Linear Actuator

2 X Mounting Bracket

1 X Screw Set

• ★ Specification: Stroke length = 150mm(6"); Retracted length = 260mm(10.4"); Extended Length= 410mm(16.4"); Travel speed = 0.39 inches/sec (10 mm/s);Maximum current draw = 3Amps; Maximum Load = 225lbs(900N).
• ★ Material: High quality aluminum alloy material, sturdy enough and with fashion look, High performance motor ,Built-in high quality limit switch
• ★ Low noise: The low noise design, noise level below 50 dB
• ★ IP54 rated: (suitable for outdoor use). Commonly Used In Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.
• ★ Package Included: 1pc 12V 6 Inch Linear Actuator with 2pcs mounting brackets.

User questions & answers

Question:	Will this raise a small snow blade on a lawn tractor
Answer:	yes .i think so. it lifted 200lb for me
Question:	Are the limit switches adjustable
Answer:	no you have to buy other length actuators . I would buy longer and not go up to the end
Question:	How can i adjust the stroke length
Answer:	The stroke is not adjustable.
Question:	How do i return this? it does not work
Answer:	Well, if it is over the allotted time, you just put it in the trash.

• ✔Heavy Duty - The alloy-steel shaft accompanied by metal gears allows it to push and pull up to 330 lbs.It will be great to use the actuator with our controller, which helps to control your actuactor to Forward & Reverse.
• ✔Features - Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling.
• ✔Quiet & Comfortable - move at 5.7mm/s, silent and stable, make sound lower than 50db, suit for hospital and massage. Built-in safety lock, stop at any position in the stroke.
• ✔Safe - over current protection, overload protection, over-voltage protection, over-discharge protection, short circuit protection, shock protection
• ✔Quality Assurance - ECO-WORTHY has manufactured actuators for years, through multiple technical testings, CE certificate. We have a professional and experienced technicians team to service you. GET FREE REPLACEMENT in a year if the problems can not be solved.

User questions & answers

Question:	I want to use your linear actuator to drive a deadbolt door lock. 4 inches is too much. Do you sell actuators with a stroke less than 4 inches
Answer:	Sir, you may need a Mini Electric Linear Actuator, please search as follows: B07ZJ4B3WW to find a miniature linear actuator, I believe you will not be disappointed.

Product features

Sturdy Screw Housing

Screw gasket design, add a flat washer, effectively prevent the screw off. Automatically assure the quality, safe & convenient.

Lubricated Metal Gear

Inside the fuselage using powder metallurgy technology, pure metal gear, life is more durable.

All Metal Material

Motor design inside and outside of pure metal, greatly improve the service life of the product, when working with a little metal friction voice, it is a normal phenomenon.

Furniture and Home

In daily life uses, linear actuators can serve to adjust massage chair, TV lift, table lift, electric sofa, electric treadmill, car electric tailgate etc.

Hospitals and Healthcare

Linear actuators are used for moving and adjusting applications: patient shifter, electric wheelchair, electric nursing bed, esthetic dental chair etc.

Industrial and Construction

Actuators are widely used in industrial machinery such as engineering vehicle, electric lifting platform, CNC machine tool, Manipulator etc.

Agricultural Machinery

Linear actuators also apply to many automatic agricultural machineries: sprayers, lawn mowers, tractors, cultivators, harvesters etc.
