13 best cylindrical roller bearings
Cylindrical roller bearings are a type of rolling element bearing used in various industrial applications to support radial loads while allowing for limited axial movement.These bearings consist of cylindrical rollers held between two bearing rings, typically an inner ring and an outer ring, and are widely employed in the field of power transmission and machinery. Here's what you should know about cylindrical roller bearings:
Purpose: Cylindrical roller bearings are designed to provide high radial load-carrying capacity, making them suitable for applications where heavy radial loads need to be supported, such as in electric motors, gearboxes, conveyor systems, and automotive transmissions.
Design: Cylindrical roller bearings consist of the following key components:
- Inner Ring: The inner ring is mounted onto the shaft and rotates with it.
- Outer Ring: The outer ring is usually stationary and provides support for the bearing.
- Rollers: Cylindrical rollers are positioned between the inner and outer rings. These rollers are designed to distribute the load evenly, reducing friction and wear.
- Cage: Some cylindrical roller bearings have a cage or separator to maintain proper spacing and alignment of the rollers.
Types:
- Single Row: These bearings have a single row of cylindrical rollers and are suitable for moderate radial loads.
- Double Row: Double row cylindrical roller bearings have two rows of rollers and can handle higher radial loads and limited axial loads.
- Full Complement: These bearings have no cage and contain the maximum number of rollers, providing high load-carrying capacity.
Applications:
- Cylindrical roller bearings are commonly used in various industrial machinery, including pumps, compressors, printing machines, and paper mills.
- They are also utilized in automotive applications, such as wheel hubs and transmissions.
- In the aerospace industry, cylindrical roller bearings are used in aircraft engines and landing gear systems.
Axial Movement: While primarily designed for radial loads, cylindrical roller bearings can accommodate limited axial movement or thrust loads when necessary.
Lubrication: Proper lubrication is essential for the long-term performance of cylindrical roller bearings. Lubricants reduce friction, dissipate heat, and prevent premature wear and failure.
Maintenance: Regular maintenance, including lubrication and inspection for wear and damage, is important to ensure the continued functionality and longevity of these bearings.
Installation: Correct installation practices, such as proper alignment and torque specifications, are critical to prevent premature bearing failure.
Seals and Shields: Cylindrical roller bearings may come equipped with seals or shields to protect the bearing's internal components from contamination and to retain lubrication.
Sizes and Configurations: Cylindrical roller bearings are available in a wide range of sizes and configurations to suit various application requirements.
In summary, cylindrical roller bearings are crucial components in many industrial and mechanical systems, providing efficient support for radial loads and limited axial movement. Their versatility, load-carrying capacity, and wide range of applications make them a fundamental element in the field of power transmission and machinery. Proper maintenance and installation practices are essential for maximizing the performance and lifespan of cylindrical roller bearings.
Below you can find our editor's choice of the best cylindrical roller bearings on the market
WJB WBMA1206EF - Rear Wheel Cylindrical Roller Bearing - Cross Reference: National MA1206EF/ Timken MA1206EF/ SKF MA1206-UV, 1 Pack
Product description
IMPORTANT FITMENT NOTES: To ensure the correct fitment between the part and your vehicle, please verify the Vehicle Fitment by entering your Vehicle's Year Make Model into Amazon's Parts Finder. In some cases, you need to match beyond year, make, model, and position, to see if there is any specific attribute like Drive Type, ABS Type or other notes in the Vehicle Fitment Details.
ISO/TS 16949
Warranty: WJB is a trusted brand in the automotive aftermarket and WJB products are manufactured through ISO certified facilities with rigorous manufacturing processes. This product is warrantied for 12 months to cover any manufacturer defects. Defective units can be replaced by WJB for up to 12 Months after the date of purchase. 12 Months Warranty, Part Replacement Only. Labor and/or any shipping costs are not covered.
- Reduced noise for smoother Performance
- All Bearings are engineered and tested to OE specifications
- WJB Bearings are Easy to Install and require Minimal Maintenance
- Increases Durability and Improves Performance
- (Where applicable) Improved Sealing Design keeps contamination out for Longer Bearing Life

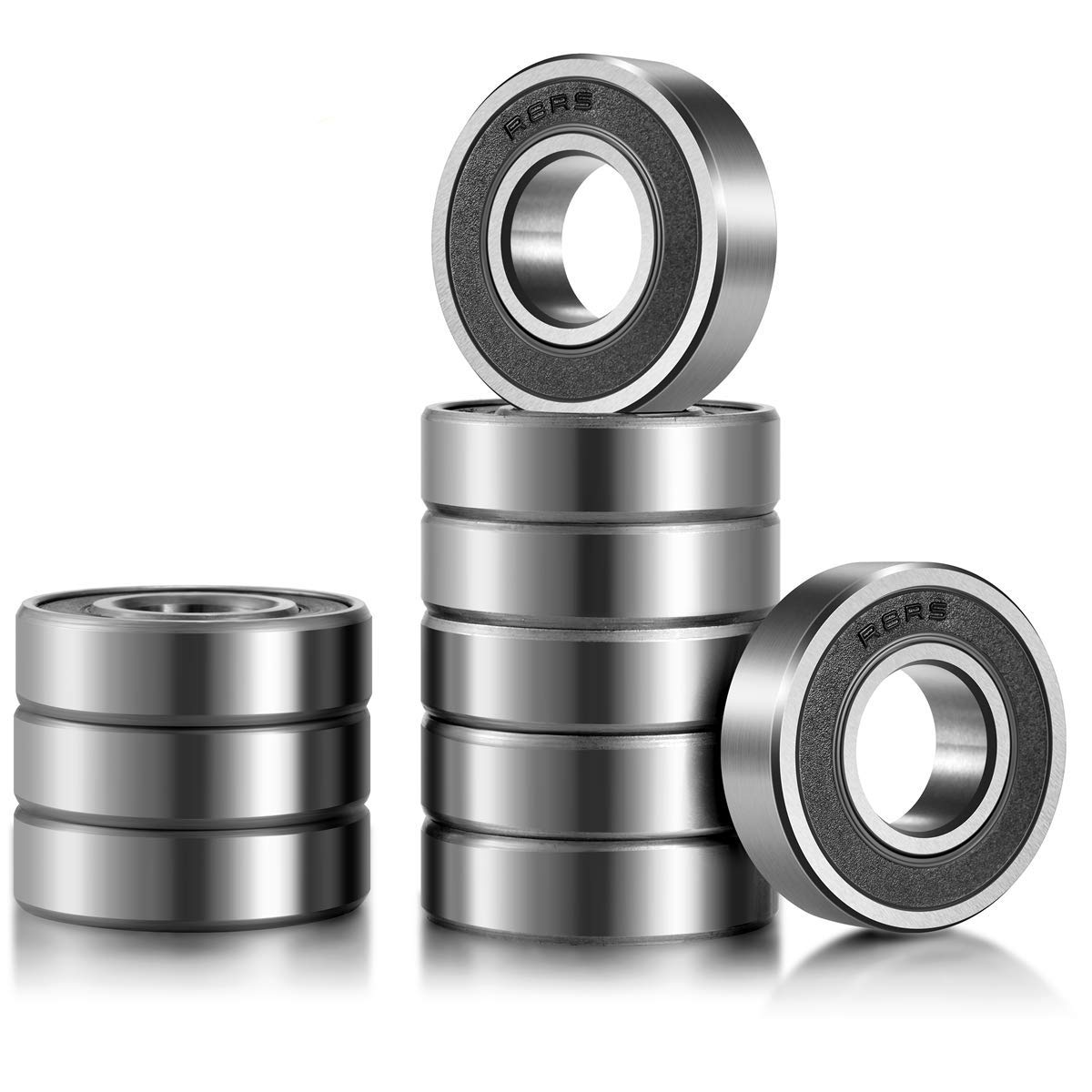

Donepart R8 2RS Bearings 1/2 x1-1/8 x5/16 Inch ABEC3 High Speed Miniature Ball Bearing for Electric Motor, Wheels, Home Appliances, Garden Machinery (10 Pack)
Donepart
User questions & answers
| Question: | Are the r8 bearings shielded on both sides |
| Answer: | Yes, you should be able to do that. Just don’t overtighten it the first time. If you do, you will deform the washer and it will leak when you put it on the second sink. |
| Question: | What is the bore size of the r8-2rs ? I need a precision bearing with a 1/2 inch bolt |
| Answer: | I needed about 12 inches for lines. The 16 inch lines worked fine with any kinks. Also available in 12 inch. |
| Question: | What are the thickness of the r8-2rs bearings |
| Answer: | Not enough information. 1) Is A) water coming out but it is not hot, or B) is no water coming out? 2) Are you A) installing new plumbing/fixture, or B) replacing existing plumbing fixture? Re: 1) - If 'A' check water heater, if 'B' check supply, plumbing and fixture. Re: 2) - If 'A' start at source, check that both supply lines flow, then attach supply hoses & check, then attach to fixture and check. Re: 2) - if 'B', assume you turned off water at BOTH supply lines, make sure you turned water back on at BOTH supply lines |
Product features
Specifications:
Model: R8-2RS
Number of Pack: 10 Pcs
Lubrication: Lubricated (Grease)
Seal Type: Double Sealed
Inner Race/Outer Race Meterial: Chrome Steel
Cage Material: Stamping Steel
Inner Diameter (d): 1/2" / 12.7mm
Outer Diameter (D): 1-1/8" / 28.575mm
Thickness (B): 5/16" / 7.938mm
Type: Bearing / Ball bearings / Deep Groove Ball Bearings / Single Row / Double Seal
Made of 100% Chrome Steel
Made of the high quality chrome steel, not carbon steel to give you more stability, control and reliability than standard bearings.
Used on Motor
Bearings are most commonly used in motors, small electric motors, pool pump motors, household appliances motor, etc.
Used on Wheels
Bearings can be used on automobile, bike, motorcycle, lawn mower, stroller, tractor, trike, trolley, karts, etc.
Used on Others
And widely used in Garden Machinery, Industrial Engineering, Home Appliances, Transport Vehicles, Agricultural Machinery, Construction Machinery.

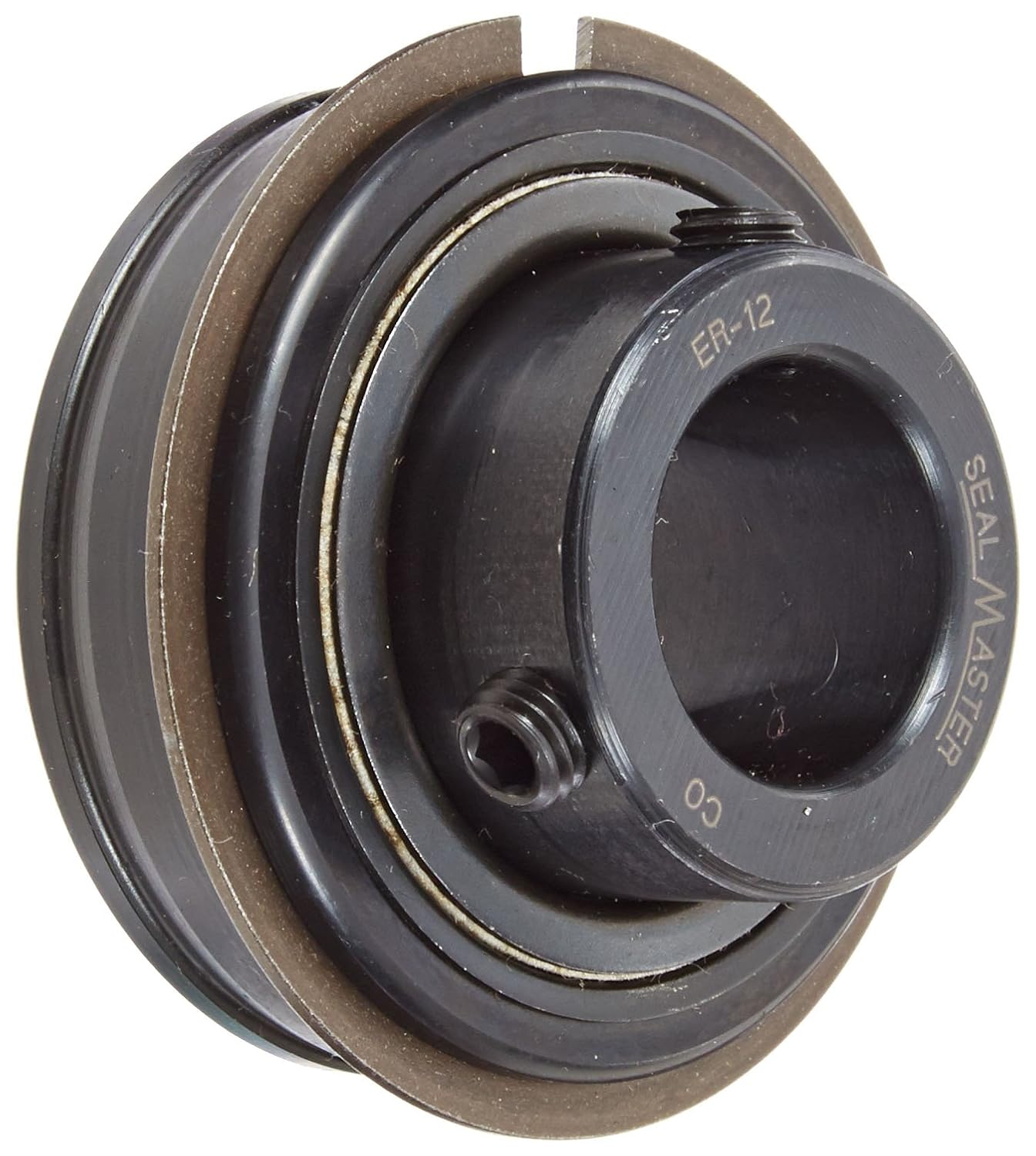

Sealmaster ER-12 Cylindrical OD Bearing, Setscrew Locking Collar, Light Contact Felt Seals, 3/4" Bore, 47 mm OD, 1-7/32" Width
Sealmaster
Product description
- Ball bearing insert for carrying shafts with radial or radial and thrust loads
- High carbon steel rings with protective coating for corrosion resistance
- Snap ring in outer bearing surface to locate insert within housing
- Setscrew locking collar for secure attachment to shaft
- Felt and flinger seals to protect against contaminants and retain lubrication

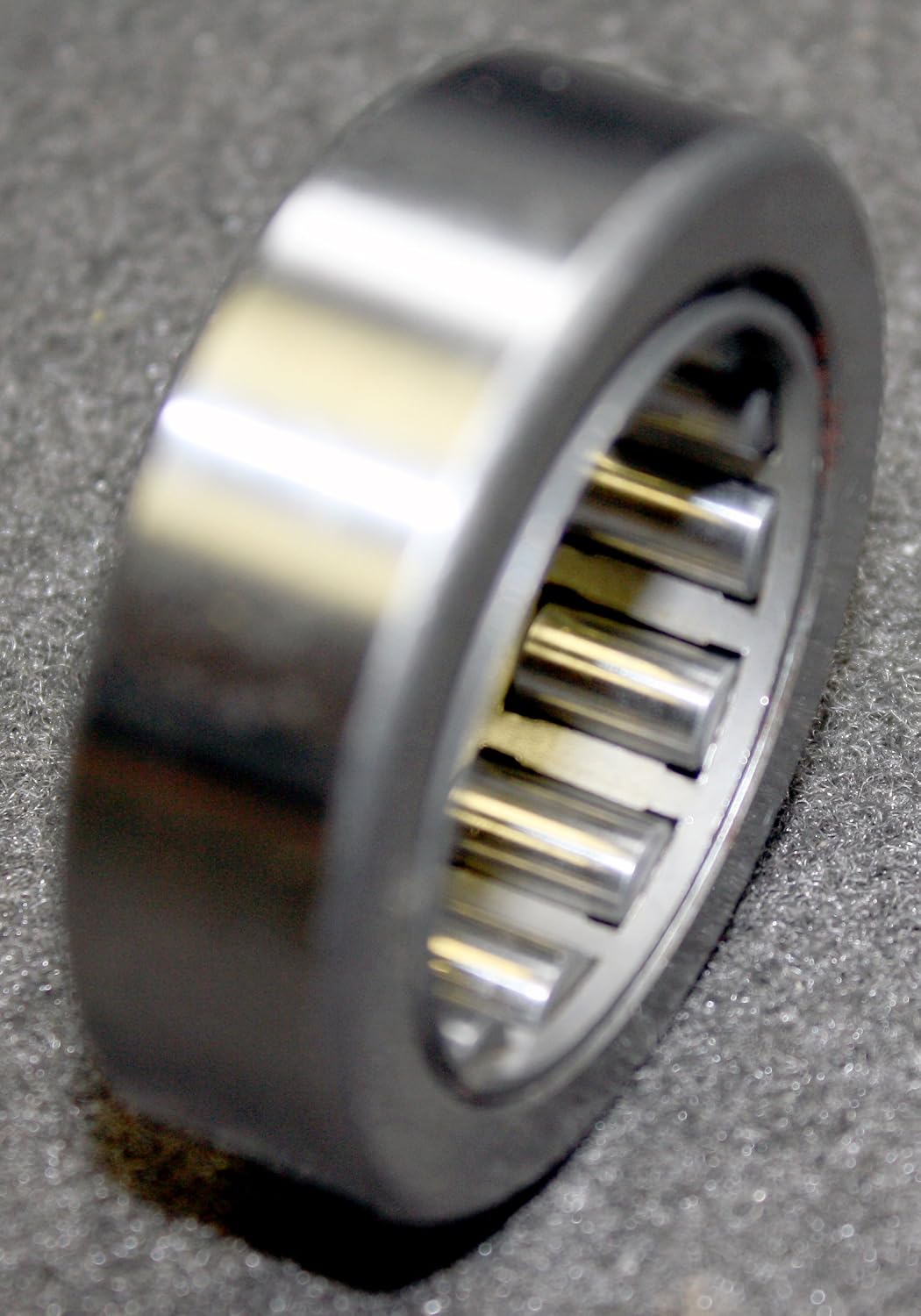

RNU205E Cylindrical Roller Bearing Harley Davidson 9135 Inner Primary Mainshaft
Superior Dixie Distributing
Product description
Part # RNU205E
Cylindrical Roller Bearing.
Specs:
32mm ID
52mm OD
15mm T
Replaces:
Harley Davidson: 9135
Inner Primary Mainshaft Bearing
Please Note:
These bearings were purchased in a business buyout / inventory acquisition. These bearings are in Distributor Master Cases, and are NOT individually boxed. Your set will arrive without retail packaging.

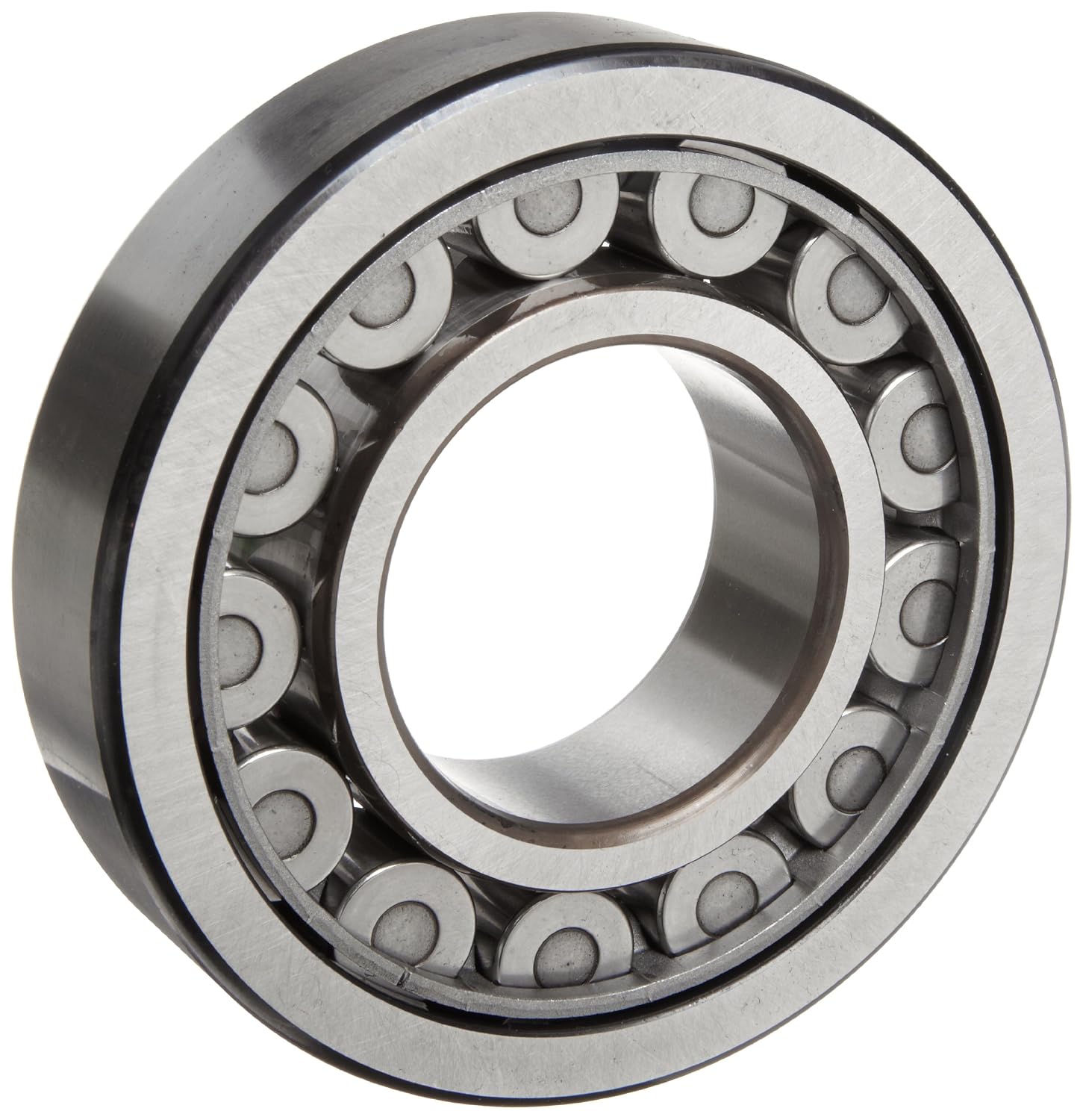

SKF NU 211 ECJ Cylindrical Roller Bearing, Removable Inner Ring, Straight, High Capacity, Steel Cage, Metric, 55mm Bore, 100mm OD, 21mm Width, 7000rpm Maximum Rotational Speed, 21400lbf Static Load Capacity, 18900lbf Dynamic Load Capacity
SKF
Product description
- SKF cylindrical roller bearing with steel cage and removable inner ring suitable for high radial loads
- Metric unit measurements for industry consistency
- Single row roller bearing for high radial loads with low friction
- Removable inner ring in open bearing allows for lubrication in place
- Steel construction for high load rating
INA 81107TN Cylindrical Roller Thrust Bearing, Polyamide Nylon Cage, Open End, Metric, 35mm ID, 52mm OD, 12mm Width, 6500rpm Maximum Rotational Speed
INA
Product description
This INA cylindrical roller thrust bearing with a polyamide nylon cage is suitable for applications that support axial loads in one direction. The polyamide nylon cage is lightweight and produces less noise than brass cages. It has an open-end design, allowing lubrication to be applied in place. This bearing uses metric unit measurements for industry consistency and interchangeability and meets quality assurance specification s Deutsches Institut für Normung (DIN) 722/ International Organization for Standardization (ISO) 104 for roller thrust bearing boundary dimensions. Cylindrical roller thrust bearings are used in applications where high axial loads are present, such as automotive transmissions, material handling equipment, and lifting mechanisms, among others.
Roller or rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction. They are usually composed of two rings, rolling bodies (such as bearings or cylinders), and a cage to house the parts. Cylindrical roller thrust bearings are suitable for applications that are required to support heavy axial loads and are used when thrust ball bearings or thrust needle bearings have insufficient load-carrying capacity. They are not suitable for transmitting radial loads. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, automotive transmission, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
INA manufactures rolling bearings, plain bearings and linear systems for the automotive industry. The company, founded in 1946, is headquartered in Herzogenaurach, Germany, and meets International Organization for Standardization (ISO) TS 16949 and 9001 standards for quality assurance.
- Suitable for axial loads in one direction
- Polyamide nylon cage is lightweight and produces less noise and vibration than brass cages
- Open configuration allows for lubrication in place
- Metric unit measurements for industry consistency
- Meets specification DIN 722/ISO 104 for roller thrust bearing boundary dimensions

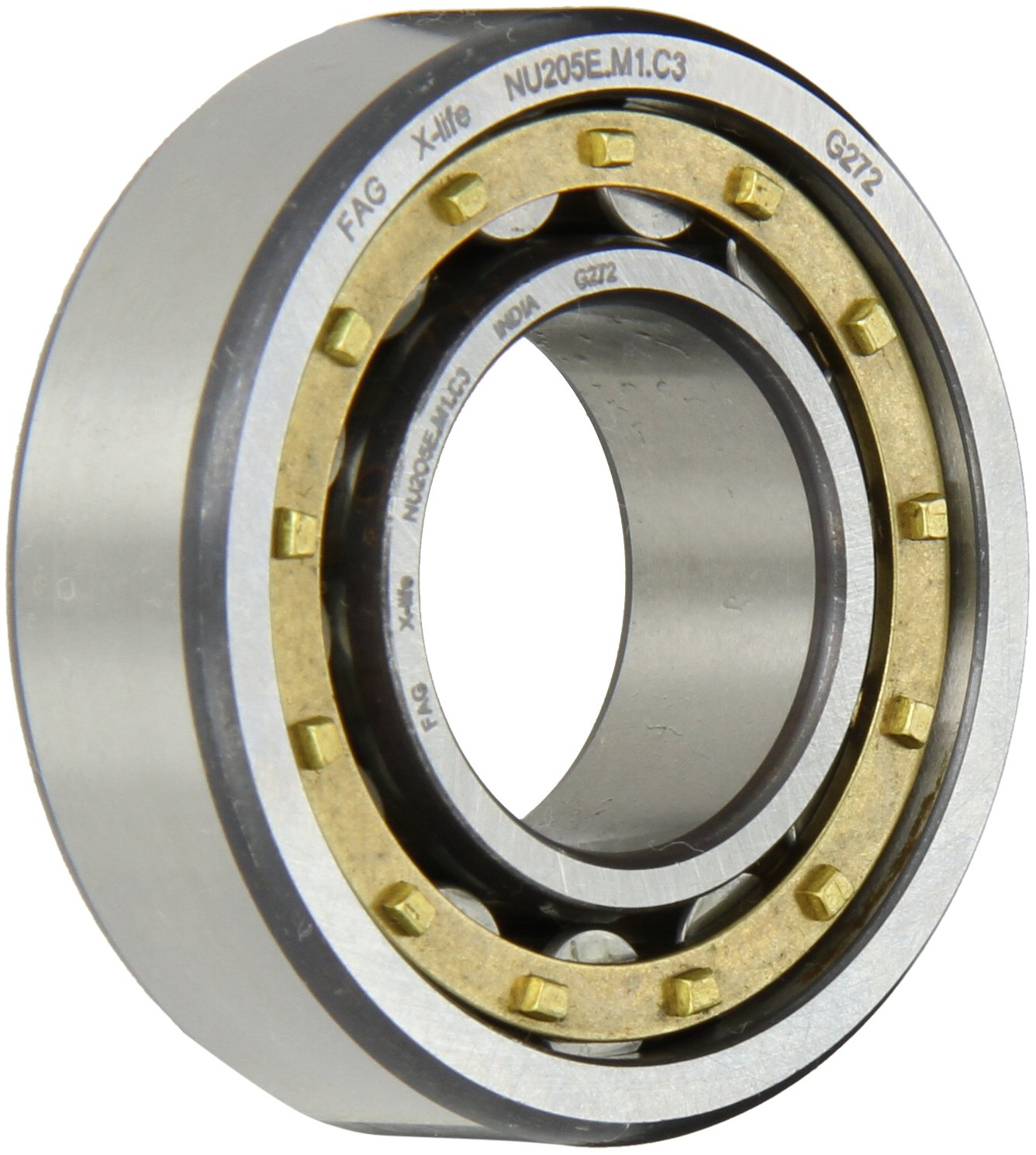

FAG NU205E-M1-C3 Cylindrical Roller Bearing, Single Row, Straight Bore, Removable Inner Ring, High Capacity, Brass Cage, C3 Clearance, 25mm ID, 52mm OD, 15mm Width
FAG Bearings
Product description
- Single row cylindrical roller bearing for applications that support high radial loads
- C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
- Non-locating bearing (two ribs on the outer ring, none on the inner ring) for allowing outer and inner rings to axially displace relative to each other from the central position
- Brass cage evenly spaces rollers for reduced friction, vibrations, and noise
- Removable inner ring in open bearing allows for lubrication in place

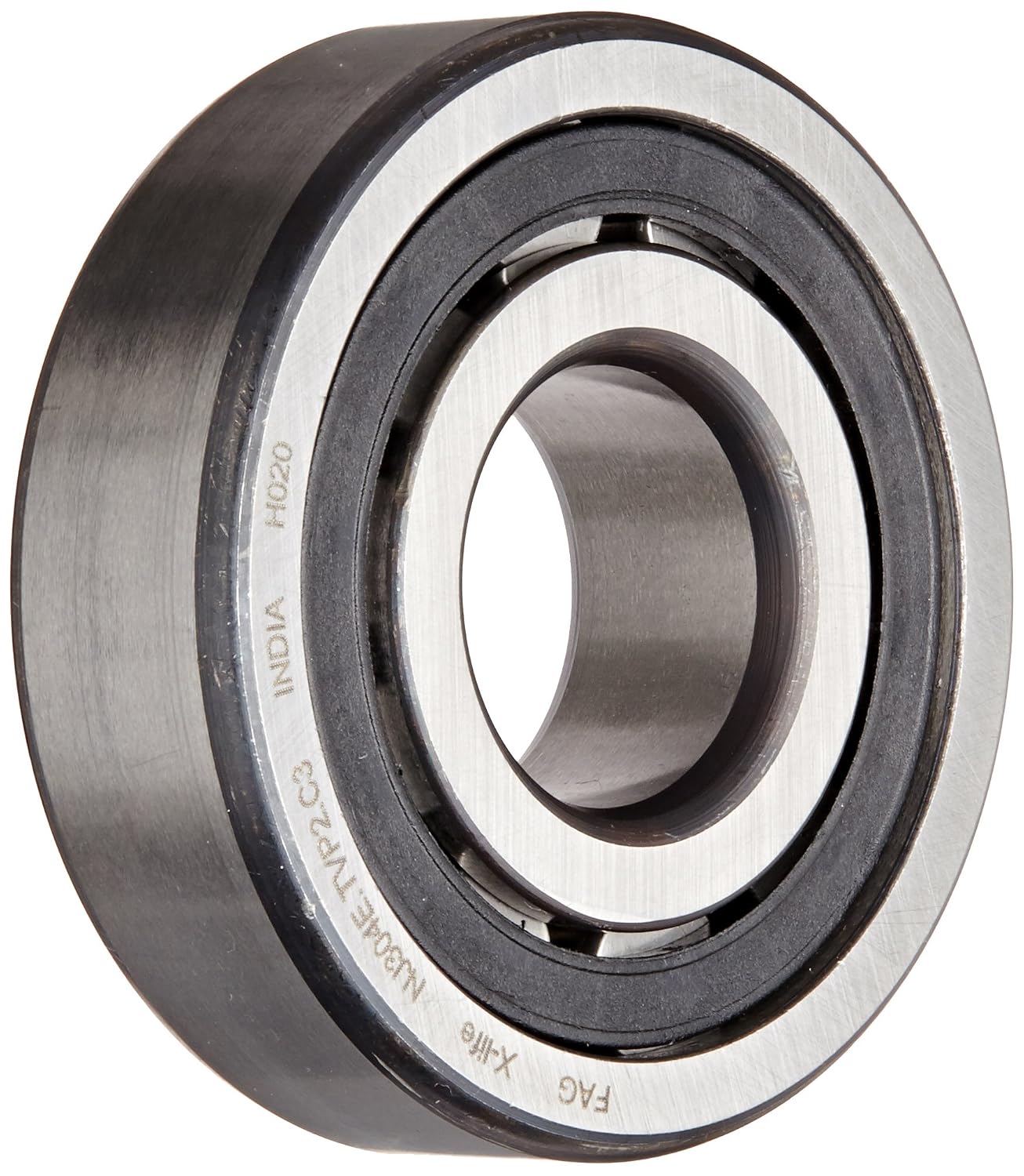

FAG NJ304E-TVP2-C3 Cylindrical Roller Bearing, Single Row, Straight Bore, Removable Inner Ring, Flanged, High Capacity, Polyamide/Nylon Cage, C3 Clearance, Metric, 20mm ID, 52mm OD, 15mm Width
FAG Bearings
Product description
- Single row cylindrical roller bearing for applications that support high radial loads
- C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
- Semi-locating bearing (two ribs on the outer ring, one rib on the inner ring) for supporting axial forces in one direction
- Polyamide cage is lightweight and produces less noise and vibrations than brass cages
- Removable inner ring in open bearing allows for lubrication in place

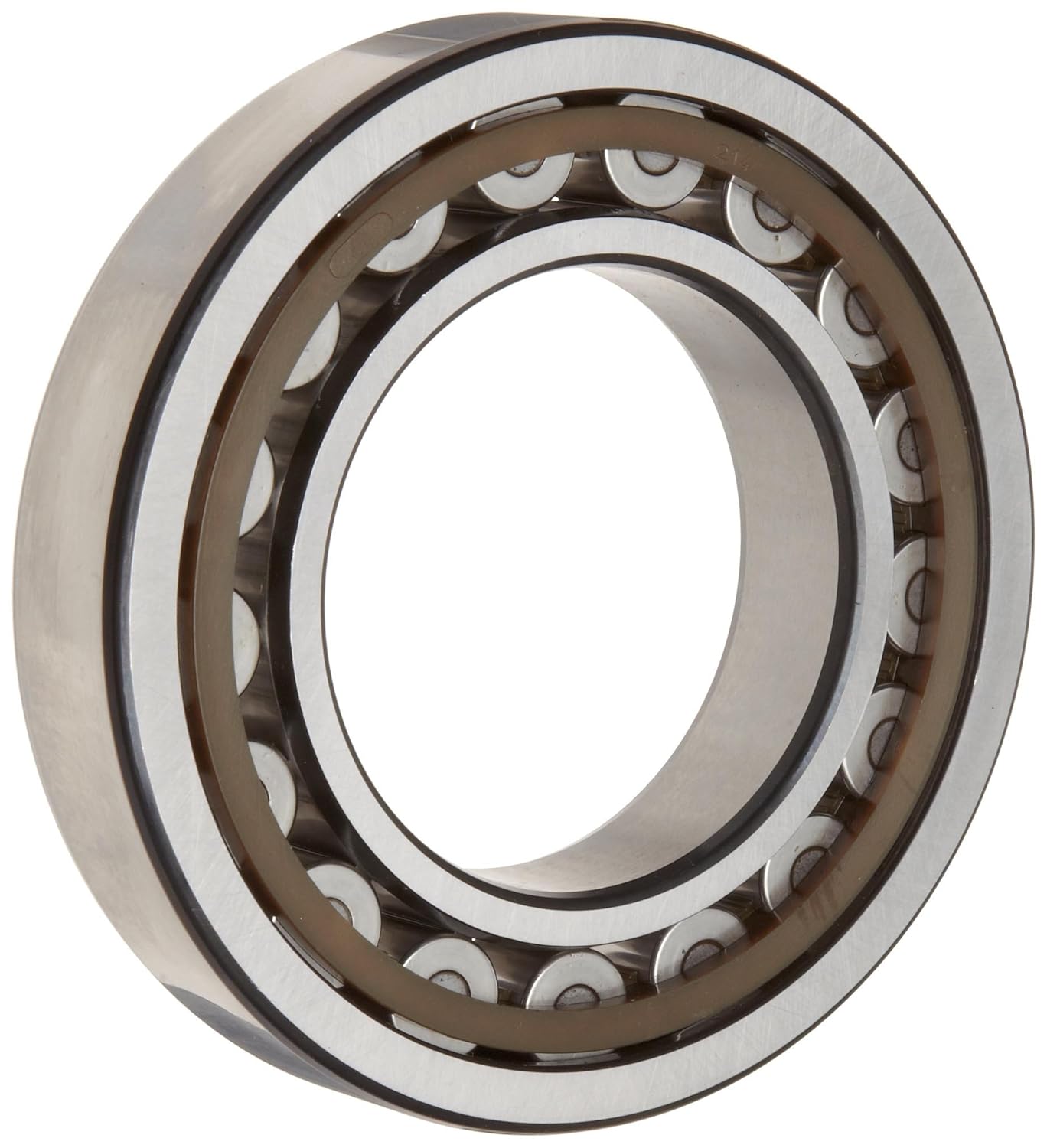

SKF NU 204 ECP Cylindrical Roller Bearing, Straight Bore, Removable Inner Ring, High Capacity, Polyamide/Nylon Cage, Metric, Normal Clearance, 20mm Bore, 47mm OD, 14mm Width, 16000rpm Maximum Rotational Speed, 4950lbf Static Load Capacity, 5640lbf Dynamic Load Capacity
SKF
Product description
- SKF cylindrical roller bearing with polyamide/nylon cage and removable inner ring suitable for high radial loads
- CN (normal) radial clearance for applications where thermal expansion is not a factor
- Single row roller bearing for high radial loads with low friction
- Removable inner ring in open bearing allows for lubrication in place
- Polyamide/nylon cage is lightweight and produces less noise and vibration than brass cages
User questions & answers
| Question: | how much lube should you use |
| Answer: | I am not certain. Attached to new faucets which were just 1/2" threaded to connect to. With the compression fittings, had no issues and no leaking. Do not need any teflon tape or pipe dope on compression fittings. |

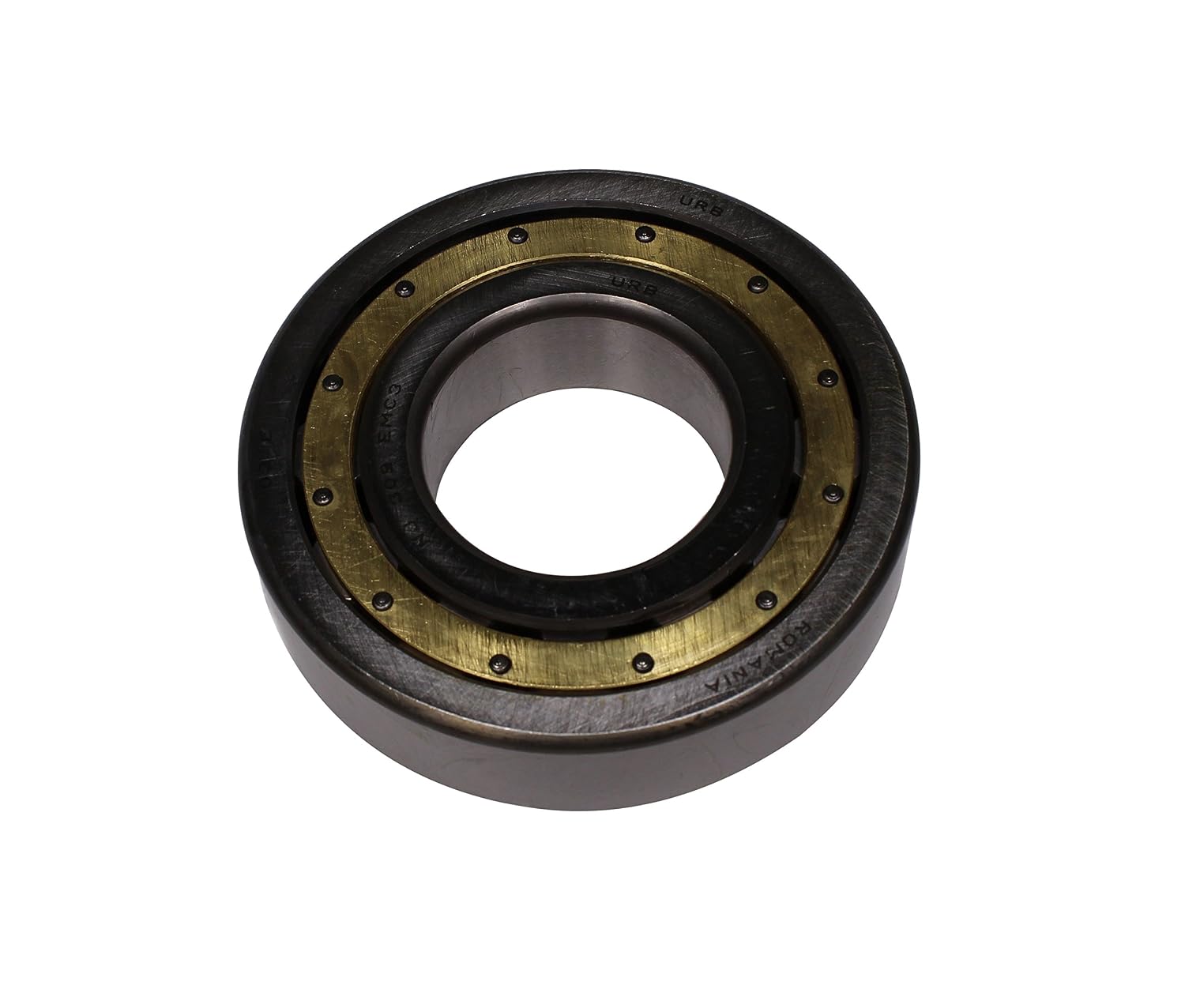

URB NJ208 EC3 Cylindrical Roller Bearing, Steel Cage, 40 mm ID x 80 mm OD x 18 mm Width
URB
Product description
Cylindrical Roller Bearing.

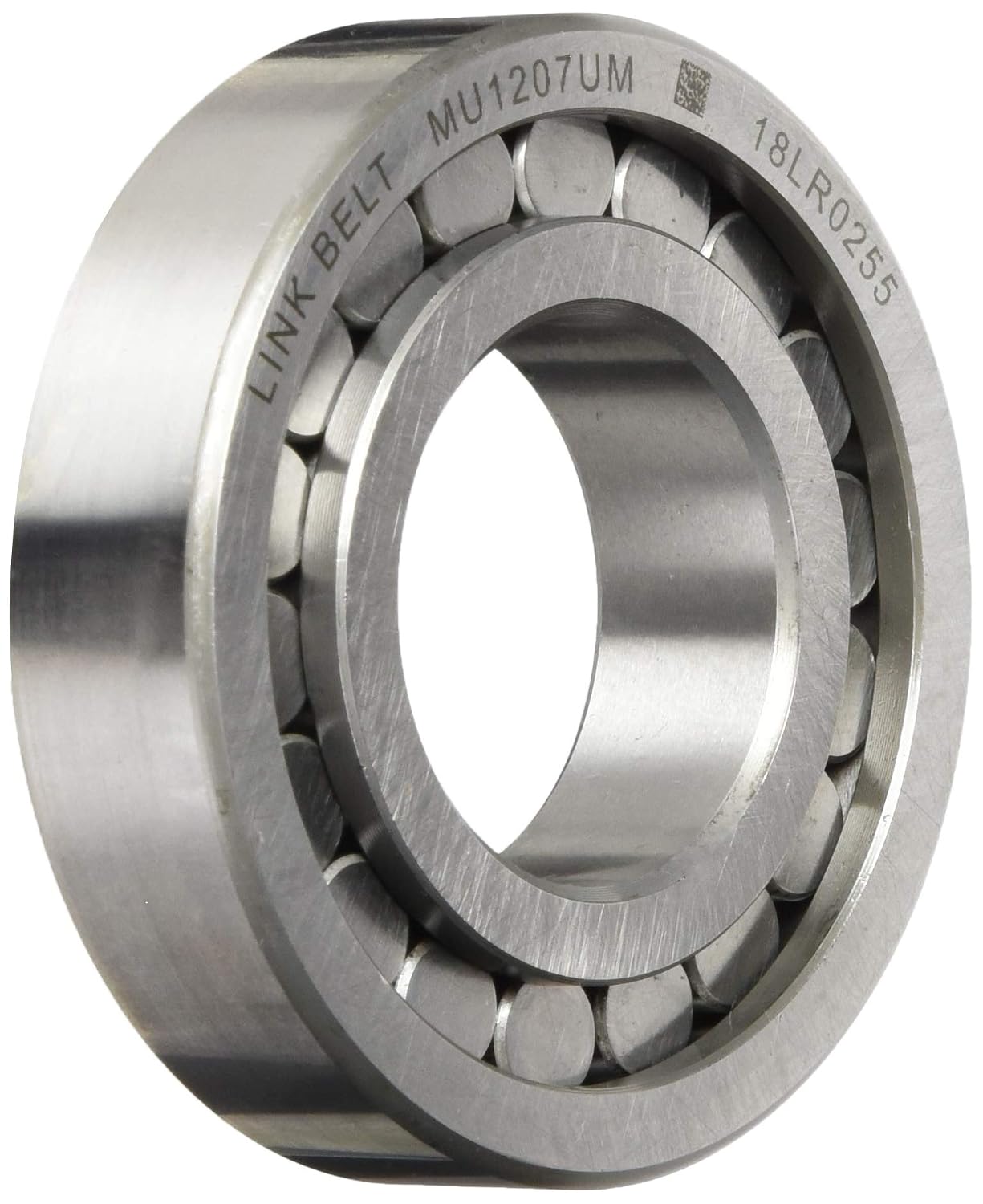

Rexnord Link-Belt MU1207UM 30mm Cylindrical Roller Bearing Unmounted Bearing
Rexnord
Product description
Link-Belt Cylindrical Roller Bearings: Value on Delivery and Performance Link-Belt cylindrical roller bearings promise you top value on delivery and performance. Whether you need a specialty cylindrical roller bearing designed for your application or a high volume of product fast, we can meet the needs and the demands of your production schedule. When you use our Link-Belt cylindrical roller bearings in your application, we know your reputation is on the line. Truck transmissions, air compressors, pumps, and other equipment require precision manufacturing and Link-Belt delivers. Our cylindrical roller bearings are proven to withstand tough conditions and hold up under pressure. When your application demands superior quality and unparalleled performance, turn to Link-Belt. High-Performance in Diverse Applications Our cylindrical roller bearings are available with multiple configurations of inner ring, outer ring, retainer and cage options, and can be tailored to a wide variety of applications. Whether you need high-speed, low-noise, or a bearing to handle a demanding load capacity, we can help you customize a bearing solution. Our cylindrical roller bearings come in a wide variety of sizes and configurations, with sizes up to 16 inches in outside diameter. Bearings feature super-finished raceways for smooth operation. Multiple retainer options maximize performance and withstand the toughest loads. Link-Belt cylindrical roller bearings are designed to work in the most extreme conditions. Interchangeable with: New Departure/Hyatt: U1207YM - NTN/BOWER: MRY1207EM - ROLLWAY: UM1207J
- 30 mm Cylindrical Roller Bearing with double rib inner ring
- single rib & 1 retaining ring in outer ring & no retainer - full complement
- It is manufactured in Mexico
SKF NUTR 1542 X Yoke Type Track Roller, Cylindrical Roller Bearing, Straight Roller, Unsealed, Metric, 15mm Bore, 42mm OD, 19mm Width
SKF
Product description
- Track roller with double-row cylindrical roller bearings supports high static and dynamic loads in track-type applications
- Straight outer ring for increased load distribution
- Full complement of rollers for higher radial load capacity than caged rollers
- Thick outer ring helps minimize deformation under bending stresses
- Unsealed for applications where contamination is not a factor
FAG NU305E-TVP2-C3 Cylindrical Roller Bearing, Single Row, Straight Bore, Removable Inner Ring, High Capacity, Polyamide Cage, C3 Clearance, 25mm ID, 62mm OD, 17mm Width
FAG Bearings
Product description
- Single row cylindrical roller bearing for applications that support high radial loads
- C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
- Non-locating bearing (two ribs on the outer ring, none on the inner ring) for allowing outer and inner rings to axially displace relative to each other from the central position
- Polyamide cage is lightweight and produces less noise and vibrations than brass cages
- Removable inner ring in open bearing allows for lubrication in place
