13 best marine wire connectors

Marine wire connectors play a crucial role in ensuring the safe and reliable electrical connections on boats, ships, and other marine vessels. These connectors are designed to withstand the harsh marine environment, including exposure to saltwater, humidity, and vibrations. They are essential for various electrical applications on board, such as powering lights, navigation equipment, communication systems, and more. Here are some key aspects of marine wire connectors:

  1. Materials and Corrosion Resistance: Marine connectors are typically constructed using materials that are highly resistant to corrosion. Stainless steel, brass, and other corrosion-resistant alloys are commonly used to ensure longevity in the marine environment.

  2. Waterproof and Sealed Design: Marine connectors are often designed with waterproof seals and gaskets to prevent water ingress.This is crucial to maintain electrical integrity and prevent damage or short circuits due to water exposure.

  3. Connector Types: There are various types of marine connectors, including:

    • Crimp Connectors: These connectors require a crimping tool to attach wires securely. They are popular for their reliability and are used for a wide range of applications.

    • Solder Connectors: Solder connectors require soldering to join wires. They provide a strong, permanent connection but may be less flexible for repairs or alterations.

    • Plug and Socket Connectors: These connectors feature male and female parts that plug into each other, creating a secure connection. They are easy to disconnect for maintenance or upgrades.

  4. Wire Gauge Compatibility: Marine connectors are available in various sizes to accommodate different wire gauges. It's essential to choose connectors that match the wire size for a secure and reliable connection.

  5. Color Coding: Color-coded connectors can help simplify installation and maintenance, ensuring that the correct wires are connected to the appropriate terminals.

  6. Certifications: Look for marine connectors that meet industry standards and certifications for electrical safety in marine applications, such as those provided by organizations like the American Boat and Yacht Council (ABYC) or the International Electrotechnical Commission (IEC).

  7. Maintenance and Inspection: Regular inspection and maintenance of marine connectors are essential to ensure their continued reliability. Corrosion, loose connections, and damaged seals should be addressed promptly to prevent electrical issues.

  8. Specialized Connectors: In addition to general-purpose connectors, there are specialized connectors for specific marine applications, such as battery connectors, navigation light connectors, and more.

  9. Proper Installation: Proper installation techniques, including crimping or soldering wires correctly, using heat shrink tubing, and applying dielectric grease to connections, are crucial to ensure the longevity of marine connectors.

In summary, marine wire connectors are vital components for maintaining safe and reliable electrical systems on boats and other marine vessels. They are designed to withstand the challenges of the marine environment, such as corrosion and water exposure, and come in various types and sizes to suit different applications. Regular maintenance and adherence to industry standards are essential to ensure the integrity of these connectors in marine electrical systems.

Below you can find our editor's choice of the best marine wire connectors on the market


Qibaok 250 PCS Heat Shrink Wire Connectors Electrical Terminals Kit Waterproof Marine Automotive Terminals Set

Qibaok

Based on 1 reviews Check latest price

Product description

Qibaok 250 PCS Heat Shrink Wire Connectors

Specification:

RED Connectors(22-16 AWG) :

●20x Butt Connectors

●10x Ring Terminals for each Size (#10, 1/4" , 5/16" , 3/8" )

●10x Fork Terminals of Size #10

●10x Quick DISC Female Spade Connector

●10x Quick DISC Male Spade Connector

Blue Connectors(16-14 AWG) :

●10x Butt Connectors

●10x Ring Terminals for each Size (#10, 1/4" , 5/16" , 3/8" )

●10x Fork Terminals of Size #10

●10x Quick DISC Female Spade Connector

●10x Quick DISC Male Spade Connector

Yellow Connectors(12-10 AWG) :

●10x Butt Connectors

●10x Ring Terminals for each Size (#10, 1/4" , 5/16" , 3/8" )

●10x Fork Terminals of Size #10

●10x Quick DISC Female Spade Connector

●10x Quick DISC Male Spade Connector

Operating Temperature Range:

Operating Temperature:-55°C-125°C

Minimum shrink temperature: 80°

Feature:

●Shrinkage ratio 3:1

●Excellent stretch and mechanical damage resistance

●Ldeally translucent provides tensile strength

●High elasticity keeps steady performance

Guarantee :

We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please do not hesitate to contact us. Thank you~

Package Included:

1 x Reusable Case

250 PCS Heat Shrink Wire Connectors

  • MULTIFARIOUS TERMINALS – All application kits include AWG12-10, 16-14, 22-16 butt, ring, fork, male and female quick disconnects connectors. Different Color coded tubing with wire gauge imprint provides easy identification.
  • DURABILITY– Each terminal in our wire connector kit features a strong copper barrel to hold the wire tight when crimped. Translucent heat shrink tubing provides high tensile strength as well as resistance to stretch and mechanical damage.
  • HIGH CONDUCTIVITY – High quality copper provides excellent conductivity, increased current flow, and ensures less voltage instability, preventing wiring failures and reducing equipment downtime.
  • EASY TO USE - Strip the wire insulation with a wire crimper, crimp the connector barrel, and heat with a hot air gun or small torch. Start establishing secure, persistent connections in seconds. No soldering kit required.
  • COMPLIANT WITH ALL ELECTRICAL STANDARDS – Qibaok heat shrink connectors are compliant with ROHS, ISO 9001:2008, SGS and CE standards.

User questions & answers

Question: Is this tinned copper connectors
Answer: Yes, I’ve used better but for the price an quality they were a nice surprise.
Question: does the shrink material have adhesive in it or is it just shrink material
Answer: Just shrink material. Very nice set.

TICONN 200PCS Heat Shrink Butt Connectors Kit, Insulated Waterproof Electrical Marine Automotive Wire Crimp Terminals, Butt Splice (3 Colors / 3 Sizes)

TICONN

Based on 3 reviews Check latest price
  • ✔️【PREMIUM QUALITY】Thick copper barrel ensures strong secure crimping every time, providing minimal voltage drop, high current flow, and less heat. These will prevent short circuits and problematic wiring that inferior connectors are known for
  • ✔️【DURABILITY】Each terminal features a thick tinned copper barrel that resists corrosion to hold the wire tight when crimped. The barrel is created from one seamless piece of copper that eliminates the problem of the barrel opening. Your wire will never slip out of the connector
  • ✔️【WATERPROOF】Insulation tubing has unique dual-walled design. High quality 3:1 shrinkage tubing has a heat-activated sealant lining to provide a 360 degree secure seal. It's flame-retardant, waterproof, and can be used underground
  • ✔️【WIDE APPLICATIONS】Compliant with all electrical standards, Perfect for marine and automobile applications, whether you are working on your boat, Vehicle, Home or scientific project, our electrical crimp connector will ensure strong watertight seal to make sure everything bond correctly. The connector assortment includes red (AWG 22 – 16), blue (AWG 16 – 14) and yellow (AWG 12 – 10) butt connectors that can be used on wire AWG from 22 to 10
  • ✔️【TICONN BRAND QUALITY COMMITMENT】We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please contact us. We provide 30-day money back and 24-month warranty. 100% Satisfaction Guarantee for risk-free shopping!

User questions & answers

Question: Do these have the adhesive inside as well
Answer: Wow, so many clueless reviews. Heat shrink can and does contain heat activated adhesive sealant. It does not affect the connection at all, only seals to prevent water intrusion on marine applications such as wiring a bilge pump. I do not know if these have it but you will see a small amount ooze out if it does.
Question: what temperature is needed to shrink these? Will a hair blow dryer work or is heat gun needed
Answer: Hair dryer, heat gun, lighter, mini torch all work.
Question: Are you certified to use them at 120/127 volts
Answer: Wire size and material determine maximum current and loss due to heat (ignore above comment). Insulation determines maximum voltage. 120 volts is American household voltage. These are designed for marine and automotive applications which are typically 12 volts, sometimes 24 volts, and rarely 48 volts or other voltage. I would verify with manufacturer what the maximum voltage the insulation can take is. I repeat, these are not designed for household use, and I have never heard of those voltages in a marine or automotive application.
Question: What crimp tool is needed to crimp these
Answer: Make sure to use a crimped for coated connectors. If you puncture the coating they will no longer be waterproof. If that doesn't matter the regular butt connectors are way cheaper. Use these for wet applications and marine for sure.

Product features

Evenly Shrinking

Evenly Shrink when heated, no deformation or burn.

Waterproof

Two ends completed sealed after shrinking, waterproof.

Thickened Copper Layer

Thickened tinned copper layer, better conductivity and shape.

Interior Structure

Delicate interior structure.

Instruction

TICONN 250PCS Heat Shrink Wire Connectors, Waterproof Automotive Marine Electrical Terminals Kit, Crimp Connector Assortment, Ring Fork Spade Butt Splices

TICONN

Based on 2 reviews Check latest price
  • 【PREMIUM QUALITY】: Thick copper barrel ensures strong secure crimping every time, providing minimal voltage drop, high current flow, and less heat. These will prevent short circuits and problematic wiring that inferior connectors are known for
  • 【DURABILITY】: Each butt, ring and fork terminal features a thick tinned copper barrel that resists corrosion to hold the wire tight when crimped. The barrel is created from one piece of copper that eliminates the problem of the barrel opening. Your wire will never slip out of the connector
  • 【WATERPROOF】: Insulation tubing has unique dual-walled design. High quality 3:1 shrinkage tubing has a heat-activated sealant lining to provide a 360-degree secure seal. It's flame-retardant, waterproof, and can be used underground
  • 【WIDE APPLICATIONS】: Compliant with all electrical standards, Perfect for marine and automobile applications, whether you are working on your boat, Vehicle, Home or scientific project, our electrical crimp connector will ensure strong watertight seal to make sure everything bond correctly
  • 【TYPE and SIZE】: The connector assortment includes red, blue and yellow connectors that can be used on wire AWG from 22 to 10. Five connector types: butt connector, ring connector (stud size: #10, ¼’’, 5/16’’, 3/8’’), female quick disconnect connector, male quick disconnect connector and fork connector (stud size: #10) are packaged in each connector kit.

User questions & answers

Question: what width is the quick connect / disconnect
Answer: this is not a quick connect/disconnect..this are permanent
Question: what is country of origin
Answer: In this price range, China
Question: What is a good crimper for these
Answer: The best crimper to use has groves on one side and studs on the opposite side. When you crimp the connector the stud compresses into a the connector and makes a 100 % connection. Also you only need to strip a quarter inch of insulation off the wire.
Question: where is it made
Answer: The parts are made in China.

Product features

Evenly Shrinking

Evenly Shrink when heated, no deformation or burn.

Waterproof

2 ends completed sealed after shrinking, waterproof.

Thickened Tinned Copper

Thickened copper layer, better conductivity and shape.

Interior Structure

Delicate interior structure.

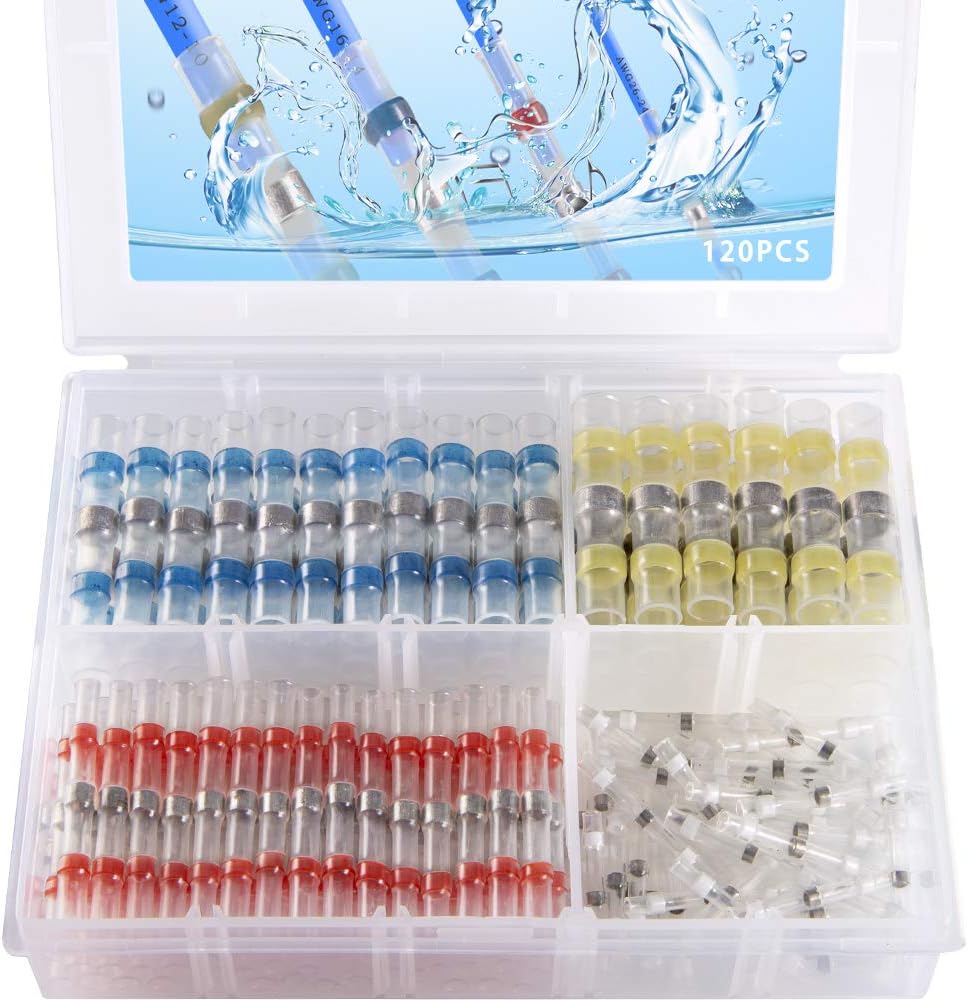

Haisstronica 120PCS Solder Seal Wire Connectors-Marine Grade Heat Shrink Wire Connectors-Heat Shrink Butt Connectors-Butt Splice Wire Connectors for Stereo,Electrical with Corrosion and Weatherproof

Haisstronica

Based on 4 reviews Check latest price
  • ABRASION RESISTANCE AND ENVIRONMENTAL PROTECTION HEAT SHRINKABLE TUBE:The heat shrink are specially designed to be used in harsh environments.Offer protection to the wires and cables from abrasion,cutting,scuffing and low impact situations.Create cable entry seals,offering environmental sealing protection.
  • PREMIUM SOLDER SEAL RING:The enough solder around the wire,Melt and flow until form seal on the wire.Ensure a long lasting connection especially if making a larger connection.
  • WEATHERPROOF:Proper amount of hot melt adhesive systems provide adhesives.Cool, harden and reach their bond strength within seconds.Weatherproof.Give your application long-lasting bond!
  • QUICK OPERATION:With only a heat gun, the wires can be tightly secured and connected.
  • QUALITY COMMITMENT:We stand behind the quality of our products. If for any reason you are not satisfied with your purchase,please contact us.We offer a 30-day money-back guarantee,and a 12-month replacement warranty giving customers a 100% Satisfaction Guarantee for risk-free purchases!

User questions & answers

Question: Can you use solid wire too
Answer: Sure
Question: What is the amperage rating when rated at 240V
Answer: Depends more on the wire size, but I would think less than the wire itself unless you mechanically twist the joint, too. Solder as the primary conductor in the joint isn't the best if the joint is likely to get heated by the current.
Question: Do you crimp these or just twist the wires together and heat shrink them? if no crimping, how strong is it compared to crimping and heat shrinking
Answer: You will just need to twist the wires together and heat shrink them. Solder inside the connector will melt and bond the wires together. The connection is almost as strong as crimping and heat shrinking. When heat is applied, polyolefin tubing reduces in size and adhesive flows inside the insulation, creating a strong seal
Question: What temp do I use on the heat gun
Answer: Low flame

Product features

Haisstronica Solder Seal Wire Connectors

  • Shrinkage ratio 2:1
  • Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside Color coded connector tubing Heat activated waterproof adhesive
  • Low temperature solder sleeve Minimum shrink temperature: 80°C
  • Minimum temperature for solder to melt: 138°C Reusable case included

THE PERFECT SOLUTION

  • The enough solder around the wire,form seal on the wire.
  • Ensure a long lasting connection.

A MUST-HAVE FOR MARINE USE

  • Proper amount of hot melt adhesive systems provide adhesives.
  • Solid water proof connections.Give your application long-lasting bond!

ABRASION RESISTANCE AND ENVIRONMENTAL PROTECTION

  • The heat shrink are specially designed to be used in harsh environments.
  • Create cable entry seals,offering environmental sealing protection.

AUTO

Used for most general purpose tasks around the boat or car. Get your back on the road.

LIGHT

The wire is firmly connected.dispel dark, the warm lights accompany you all the way.

DIY

The great variety of connector types means that there are multiple choices in the initial research model, and there are always sizes that you want to replace.

300 Pcs Heat Shrink Wire Connectors, Eventronic Waterproof Marine Electrical Wire Terminals Kit Automotive Copper Wire Electrical Connectors

Eventronic

Based on 965 reviews Check latest price
  • Heat Shrink Electrical Connectors: Complete your job or project with the right connector butts, hooks, forks, quick disconnects, and rings for automotive, marine, stereo, and many other electric oriented project. Compatible with AC and DC current.
  • Durability: Each terminal in our wire connector kit features a strong copper barrel to hold the wire tight when crimped. Translucent heat shrink tubing provides high tensile strength as well as resistance to stretch and mechanical damage.
  • Excellent Conductivity and Corrosion Resistance: Copper barrel provides increased current flow, and ensures less voltage drop, preventing wiring failures and reducing equipment downtime.
  • Easy Identification: Different Color coded tubing with wire gauge imprint provides easy identification. Measure your wire, and easily choose the right connector by looking at wire gauge imprint on polyolefin tubing.
  • What you receive: 300pcs Heat Shrink Wire Connectors, 6 months Guarantee and 24h friendly customer service.

User questions & answers

Question: Do these contain low temp Solder? In other words, you just heat, not crimp? The picture says heat, the instructions say crimp
Answer: The heat is for the heat shrink that's already on the connectors. You still have to crimp the terminal. Side note: I found these to be low quality. They'll work, but I wouldn't trust them for anything critical.
Question: Do you need to crimp the wire or just heat shrink to make connection
Answer: Crimp the wire, then apply heat to shrink the insulation down
Question: Are these copper as advertised
Answer: They dont look like copper, but I didnt have them tested or anything.
Question: Were is my package says it was delivered
Answer: Stolen obviously

Ginsco 250pcs Heat Shrink Wire Connector DIY Kit Waterproof Marine Automotive Terminals Set

Ginsco

Based on 2 reviews Check latest price

Product description

RED 22-18 ga. HEAT SHRINK RINGS #10, 1/4", 5/16" & 3/8" 10 ea. ...... = 40 PCS.

RED 22-18 ga. HEAT SHRINK BUTTS ....................................... = 20 PCS.

RED 22-18 ga. MALE AND FEMALE QUICK DISCONNECTS 10 ea. ............... = 20 PCS.

RED 22-18 ga. SPADE TERMINALS "FORKS" FOR STUD SIZE #10 ................ = 10 PCS.

BLUE 16-14 ga. HEAT SHRINK RINGS #10, 1/4", 5/16" & 3/8".10 ea. .........= 40 PCS.

BLUE 16-14 ga. HEAT SHRINK BUTTS .........................................= 10 PCS.

BLUE 16-14 ga. MALE AND FEMALE QUICK DISCONNECTS .10 ea...................= 20 PCS.

BLUE 16-14 ga. SPADE TERMINALS 'FORKS" FOR STUDE SIZE #10 ................= 10 PCS.

YELLOW 12-10 ga. HEAT SHRINK RINGS #10, 1/4", 5/16" & 3/8" .10 ea.........= 40 PCS.

YELLOW 12-10 ga. HEAT SHRINK BUTT CONNECTORS ...............................= 10 PCS.

YELLOW 12-10 ga. MALE AND FEMALE QUICK DISCONNECTS ..10 ea..................= 20 PCS.

YELLOW 12-10 ga. SPADE TERMINALS "FORKS" FOR STUD SIZE #10 .................= 10 PCS.



Operating temperature: -55 ℃ -125 ℃

Start shrink temperature: 80 ℃

Fully shrink temperature: 130 ℃



Package Included:

250 x Heat Shrink Wire Connectors

1 x Storage Box

  • Durable Insulated crimp terminals.
  • Assorted crimp terminals.
  • Can be ideal used in marine and automobile applications
  • For best results use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal
  • All packed in a plastic case for easy access and carry.

User questions & answers

Question: what type of heat gun or torch is best of shrinking
Answer: I have used a 1500 watt heat gun and also a mini butane torch. Both work but the mini torch covers a smaller surrounding area.
Question: Is the width of the red 22-18 ga. male quick disconnects
Answer: I can't answer this because of the Amazon Gestapo's
Question: Are these adhesive-lined
Answer: the adhesive is only on the ends not thru the whole connector.
Question: Can these be used by crimping? Or only heat
Answer: They are crimp fittings with the plastic part heat shrinkable. A cigaret lighter works great to shrink it to the wire.

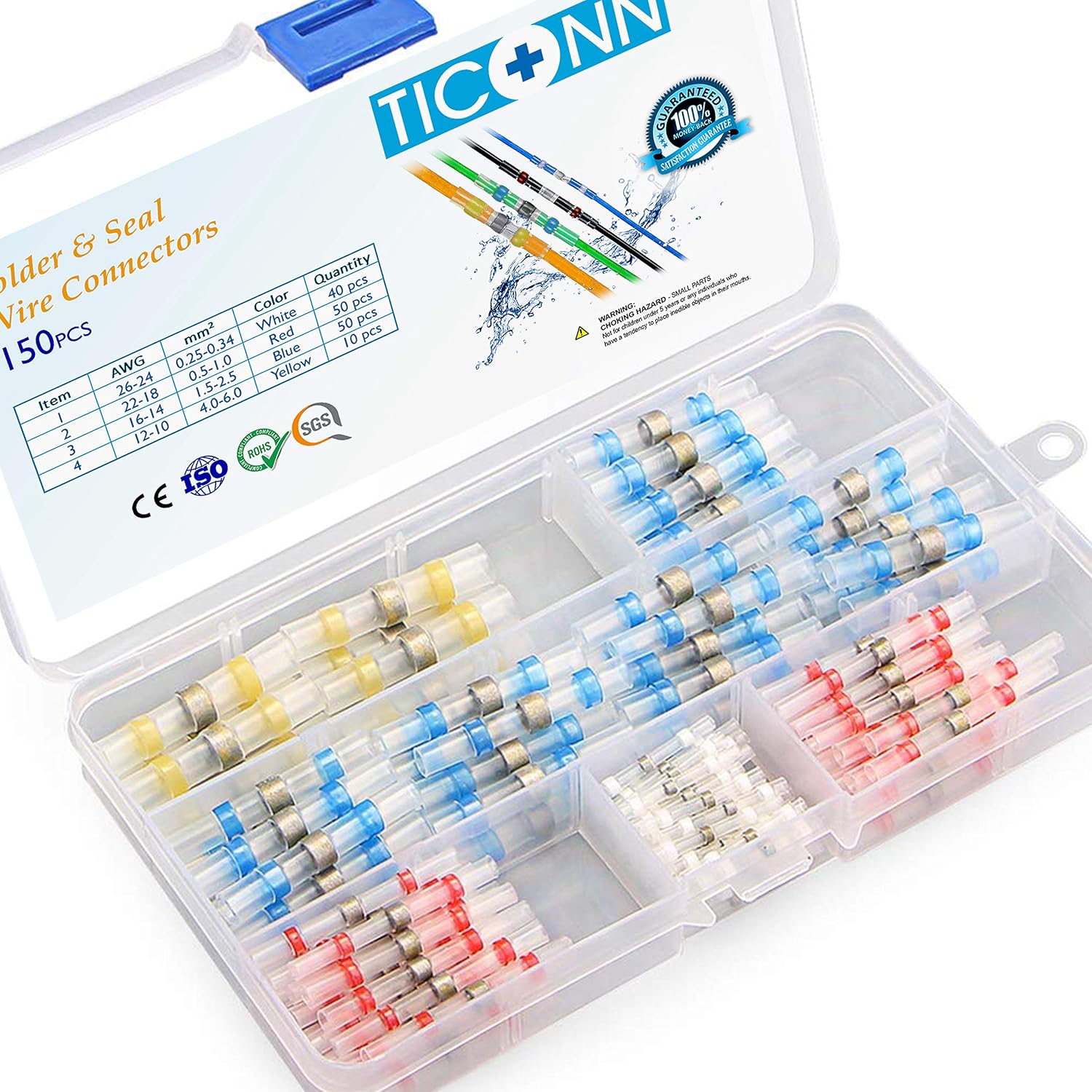

TICONN 150 PCS Solder Seal Wire Connectors, Heat Shrink Butt Connectors, Waterproof and Insulated Electrical Wire Terminals, Butt Splice (150PCS)

TICONN

Based on 5 reviews Check latest price
  • ✔️ EASY AND FAST PROCESS: All-in-one step solder and seal process. No need for crimp tools and soldering machine. Timer and mess saver
  • ✔️ WATERPROOF AND INSULATION: Dual-walled design - Outside Polyolefin tubing provides insulation and improves pullout strength; Hot Melt Adhesive & Solder inside ensures wires tightly connected and avoids wires slipping out of the terminal
  • ✔️ STAY ORGANIZED: Our connectors come within a storage box, easy to store and carry. Color-coded tubing makes it easy to identify the right size of the connector for every application. The connector assortment includes white (AWG 26 – 24), red (AWG 22 – 18), blue (AWG 16 – 14) and yellow (AWG 12 – 10) solder seal connectors that can be used on wire AWG from 26 to 10.
  • ✔️ WIDE APPLICATIONS: Shrinking ratio: 2:1. Ideal used for Automotive, Boat, Marine and other Outdoor Applications
  • ✔️ TICONN BRAND QUALITY COMMITMENT – We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please contact us. We provide 30-day money back and 12-month warranty. 100% Satisfaction Guarantee for risk-free shopping!

User questions & answers

Question: What is the voltage rating on heat shrink
Answer: I don’t know the exact rating but it is made for low-voltage like 12 V or 24 V connections. Not 120 V use.
Question: Will these work for RC cars. For the battery , motor and electronic speed control
Answer: i do not see why they would not so long as you have the right size for the wire diameter and enough room to heat them without effecting other parts of the RC car.
Question: Do you have to ceimp the connector or is it just heat shink and its done
Answer: Just heat up. That's it
Question: Why cannot we get a mutikit with bloody 8 awg butt solder joins? why such an issue
Answer: I would guess that they do not have enough solder, in the joiner, to be effective. Or there is not much call for that gauge wire, they can not be all things to all people. For that, strip the wires, place some shrink tubing on one of the wires, solder, let it cool, slide the shrink tube over, shrink it. Some times, when there is sufficient wire length, I place two different size shrink tube,. shrinking the smaller one first, letting it cool. The slide the larger one over the other.

Product features

Evenly Shrinking

Evenly Shrink when heated, no deformation or burn.

Waterproof

2 ends completed sealed after shrinking, waterproof.

Heat with a Heat Gun

Please heat with air heat and avoid using lighter for any flame.

Qibaok 560 PCS Heat Shrink Wire Connectors Insulated Electrical Terminals Kit Waterproof Marine Automotive Crimp Connector Assortment Ring Fork Hook Spade Butt Splices

Qibaok

Based on 545 reviews Check latest price

Product description

Qibaok 560 PCS Heat Shrink Wire Connectors

Specification:

RED Connectors(22-16 AWG) :

●20x Butt Connectors

●20x Ring Terminals for each Size (#10, 1/4" , 5/16" , 3/8" )

●20x Fork Terminals of Size #10

●20x Hook Terminals of Size #10

●20x Quick DISC Female Spade Connector

●20x Quick DISC Male Spade Connector

Blue Connectors(16-14 AWG) :

●20x Butt Connectors

●20x Ring Terminals for each Size (#10, 1/4" , 5/16" , 3/8" )

●20x Fork Terminals of Size #10

●20x Hook Terminals of Size #10

●20x Quick DISC Female Spade Connector

●20x Quick DISC Male Spade Connector

Yellow Connectors(12-10 AWG) :

●20x Butt Connectors

●20x Ring Terminals for each Size (#10, 1/4" , 5/16" , 3/8" )

●20x Fork Terminals of Size #10

●20x Hook Terminals of Size #10

●20x Quick DISC Female Spade Connector

●20x Quick DISC Male Spade Connector

Black Connectors(14-12 AWG) :

●10x Butt Connectors

White Connectors(26-22 AWG) :

●10x Butt Connectors

Operating Temperature Range:

Operating Temperature:-55°C-125°C

Minimum shrink temperature: 80°

Feature:

●Shrinkage ratio 3:1

●Excellent stretch and mechanical damage resistance

●Ldeally translucent provides tensile strength

●High elasticity keeps steady performance

Guarantee :

We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please do not hesitate to contact us. Thank you~

Package Included:

1 x Reusable Case

560 PCS Heat Shrink Wire Connectors

  • MULTIFARIOUS TERMINALS – All application kits include AWG12-10, 14-12,16-14,22-16,26-22 butt, ring, fork,hook,male and female quick disconnects connectors. Different Color coded tubing with wire gauge imprint provides easy identification.
  • DURABILITY– Each terminal in our wire connector kit features a strong copper barrel to hold the wire tight when crimped. Translucent heat shrink tubing provides high tensile strength as well as resistance to stretch and mechanical damage.
  • HIGH CONDUCTIVITY – High quality copper provides excellent conductivity, increased current flow, and ensures less voltage instability, preventing wiring failures and reducing equipment downtime.
  • EASY TO USE - Strip the wire insulation with a wire crimper, crimp the connector barrel, and heat with a hot air gun or small torch. Start establishing secure, persistent connections in seconds. No soldering kit required.
  • COMPLIANT WITH ALL ELECTRICAL STANDARDS – Qibaok heat shrink connectors are compliant with ROHS, ISO 9001:2008, SGS and CE standards.

540 PCS Wirefy Heat Shrink Wire Connectors - Electrical Terminals Kit - Marine Automotive Crimp Connector Assortment - Ring Fork Hook Spade Butt Splices

Wirefy

Based on 1 reviews Check latest price

Product description

In our "540 PCS Heat Shrink Wire Connector Kit" Wirefy is offering most versatile heat shrink connector kit on the market. In this kit we included extensive selection of 8 connector types: forks, rings, hooks, spade, quick disconnects, butt splices in 3 sizes: red, blue and yellow. Butt connectors are waterproof. Ring, fork, hook and spade connectors are water-resistant.

This assortment will supply you with high quality crimp terminals that will last for numerous wiring projects. Whether you are working on your boat, vehicle, home or scientific project, our heat shrink wire connectors will ensure strong crimps, increased current flow and weatherproof connections every time!



Specifications:

--Dual-walled heat shrink tubing design: polyolefin tubing on the outside and hot melt adhesive on the inside

--Tubing shrinkage ratio 3:1

--Copper crimp barrels

--Wire gauge imprint on the connectors

--Cmpliant with ROHS, ISO 9001:2008, SGS and CE standards

--No wire damage due to lower shrink temperature

--Minimum shrink temperature: 80°C

--Full recovery temperature: 130°C

--Operating temperature: from -55°C to 125°C

--Reusable case included

  • WIREFY MOST VERSATILE ELECTRICAL CONNECTOR KIT - Ring, fork, hook, spade and butt splice heat shrink wire connectors are included in this multipurpose electrical connector kit. You will not run out of heat shrink wire connectors when working on your next wiring project.
  • DURABILITY AND WEATHER RESISTANCE - Thick copper barrel ensures a strong wire crimp every time. Your wire will never slip out of these connectors. Adhesive lined heat shrink tubing provides high tensile strength, as well as resistance to weather, stretch and mechanical damage. Prevent wire corrosion in your electrical connections.
  • EASE OF APPLICATION - Strip wire insulation, crimp terminal barrel with a wire crimper, and apply heat with a heat gun while rotating a connector. Heat shrink tubing will reduce in size and adhere to the wire. No soldering kit needed. Start making secure and durable connections in seconds.
  • COMPLIANT WITH ALL ELECTRICAL STANDARDS - Wirefy heat shrink connectors are compliant with ROHS, ISO 9001:2008, SGS and CE standards. Prevent wiring failures and reduce equipment downtime by choosing certified electrical connectors.
  • WIREFY QUALITY COMMITMENT - We stand behind the quality of our electrical connectors. Our client experience team will work on every inquiry to provide comprehensive product support and ensure your complete satisfaction with Wirefy electrical connectors. Start making high quality connections today.

Kuject 120PCS Solder Seal Wire Connectors, Self-Solder Heat Shrink Butt Connector Solder Sleeve Waterproof Insulated Electrical Butt Splice Wire Terminals for Marine Automotive Boat Truck Wire Joint

Kuject

Based on 13 reviews Check latest price

User questions & answers

Question: Do these have a temperature rating? Would they be suitable for use under higher heat applications. I want to use these under the hood of a car
Answer: Yes good for under hood aplocations use the extensively for automotive repairs with no issues.
Question: Are these connectors UL listed
Answer: What is UL certified mean?-UL Certified. A certificate, issued to a manufacturer for one of its products, which indicates that the product has been tested in the US by the Underwriters Laboratories, Inc. (UL) and has met UL requirements. What you should know about UL certification?-UL Certification means that a product has undergone rigorous testing to ensure its safety standards are up-to-date. UL provides a number of services for a business—including validating, testing, inspecting, auditing, and certifying products and various businesses around the world. What is the cost to be UL Certified?-The fee, paid to UL, is often in the range between US$5,000 to 15,000. Then again, this is for he services provided by UL, and not including product development costs. China Imports -UL (Underwriter Laboratories) develops electronics safety standards for the United States, and provide related testing, certification and auditing services.- Unlike the EU, where importers must comply with a set of harmonized electronics safety standards – American electronics importers are free to choose which standards to comply with.-UL standards are developed for specific electronic products, or components, such as cords, batteries and plugs.
Question: Can you use these for speaker wires? Thanks
Answer: Dear Customer Yes, you can use it for the connection of speaker wires when the wire size is suitable. In other words, if the size of your speaker wire is (A.W.G.:26-10), then you can use our wire connectors to connect the speaker wire. Please note that our connectors are heat shrink wire connectors, NO NEED TO CRIMP for it and it can not be crimped, just heat shrink it via heat gun and then you can finish your project. Thank you Kuject customer service team
Question: are wire connectors the same thing as butt connectors
Answer: Dear Customer,  These are solder seal wire connectors, rather than butt connectors. This is the heat shrink butt connector here: https://www.amazon.com/dp/B07B518GCJ. You can check they are difference via the link above. For let you know their difference eaiser, we compare these two kinds of connectors from 4 aspects as follow:  1. Simplicity of Operation. For joining the wire with heat shirnk butts, you need a heat gun and plier, but for the solder seal coneecotrs, you just need a heat gun, as there is no need to crimp. So, the solder seal connector will be easier to use.  2. Waterproof Resistance. Both of them are waterproof, but there are two hot melt waterproof adhesive rings in the solder seal connectors, which will make it get a better waterproof and seal performance.  3. Flexibility of Use in The Confined Space. The solder seal connectors can be bent after connection and just need a heat gun to control the temperature to finish the joint, so it is more flexable and eaier when joining wire in the confined space.  4. Price. On Kuject, 210Pcs heat shrink butts is $19.99 ($1 for 10 piece) , and 120Pcs solder seal wire connectors is $16.99($1.42 for 10 piece) . The price is cheaper for every piece of the heat shrink butt connectors.  In conclusion, the solder seal connectors have a better performance than the heat shrink butts although it is a little expensive. So, we will recommend to use the solder seal connectors in most case, but it still depend on your needs. Besides, there are two kinds of butt connectors in the market: crimp butt connector & heat shrink butt connector. Maybe you refer to the crimp butts, so we also talk about the crimp butt connector here. The appearance of crimp butt is almost same as the heat shrink butt, but the tube outside of crimp butt connector is made by nylon, so they can not be heat shrinked and not waterproof, which can not be used outdoor or humid area, just only can use indoor and dry space.  These are the introduction of the three type of connectors above, hope our answer help you. Best wishes,  Kuject customer serivce team
Question: How many wires can I fit on one connector? I think I’ll be using 14 gauge
Answer: At least (2) will fit into the largest of the (3) size connectors in this kit. (3) 14 gauge wires might not.
Question: Can I use the largest size to crimp 3 14 gauge stranded wires together
Answer: Sure could. These are the fastest and the slickest crimp I've seen yet.
Question: Are these heat shrink nut
Answer: No they are not heatshrink! They are crimp pieces.
Question: Is the metal copper or aluminum
Answer: It is aluminum. Hope this helps. :)

Product features

Specification:

Shrinkage ratio is 2:1

Temperature that start to shrink: 80℃

Temperature that solder ring start to melt: 111˚C

Temperature that solder ring melt completely:138˚C

Note: It means the temperature of surface of the connector, rather than the temperature that the hot air gun should set.

Package Include:

1.30 x White Connectors: Diameter 1.7 mm, able cross-section 0.25-0.34 mm² (A.W.G.:26-24);

2.40 x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18);

3.40 x Blue Connectors: Diameter 4.5 mm, Cable cross-section 1.5-2.5 mm²(A.W.G.:16-14);

4.10 x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm²(A.W.G.:12-10).

Upgrade Overheat Resistant Material of The Shrink Wrap Tube

It is hard for beginners to control the heat shrink temperature when first to try these heat shrink wire connectors. Sometime, exorbitant temperature make the wrap tube melt but the solder ring still not melt, which result in failing to connect the wire. So, Kuject upgrade and use special material in the transparent tube, which can prevent the tube melt when it increase to a high temperature in a short time.

Solderless & Crimpless - Save Much Of Your Time

Compared to the crimp heat shrink butt connectors, you don't need to use the crimper to crimp the item when using the solder seal wire connectors, save one step to do it. And compare to the old way use solder and heat shrink tubing, you don't need to use the solder iron to solder the wire, also save one step for soldering. So, the solder seal wire connector is solderless & crimpless, which can save much of your time when you are using it for your project. Besides, you can also use them in hard to reach or limited space environments easily.

Step 1

Thread the connector to one of the wires and then twist the two conductor together.

Tips: Please make sure the end of the wire that you strip out is nice and clean (shiny).

Step 2

Move the connector to the middle of the conductor.

Tips: Make sure you strip out the end of the wire long enough for them to overlap one another and stay in the area of the solder sleeve.

Step 3

Apply heat to the connector slowly and evenly with a heat gun with reflector nozzle until it melt with the wire.

Tips: Some of our customers can use lighter to finish the joint, but we strongly recommend to use a heat gun with REFLECTOR NOZZLE to heat shrink the connector, especially for beginners.

Finished Item Display

Note: In some case, a solder ring mark will be left after the tin ring was melt, but it doesn't mean the tin ring is not melted and it fails. As long as there are enough tin melt with the copper then it will hold up strongly, it is unnecessary to pursue 100% meltdown of the solder ring. You can stretch it to test after the connector cool down.

120PCS Solder Seal Wire Connectors - Sopoby Heat Shrink Solder Connectors - Waterproof Solder Butt Connector Kit Insulated Automotive Marine Electrical Wire Terminals

Sopoby

Based on 12 reviews Check latest price
  • ● CONVENIENT TO USE - NO need to crimp. Transparent sleeve provides precise inspection when strip and insert wires inside. Color-coded tubing makes it easy for you to pick up for use.
  • ● DURABLE CONNECTION - Tubing reduces in size and solder will melt and flow through the stripped wires, ensure strong holding. Your wire will never slip out of the connector.
  • ● WIDE APPLICATIONS - Ideal used for vehicle, motorcycle, boat, DIY electrical wirings and other outdoor applications. Sopoby Solder Connector Kit compliants with ROHS, ISO 9001:2008, SGS and CE standards. (Maximum Voltage: 600V)
  • ● PACKAGE - 120PCS (40 Red, 40 Blue, 30 White, 10 Yellow). Shrink Ratio 2:1. Dual-walled Design: Polyolefin tubing outside and hot melt rings inside effectively improve waterproof performance and prevent wire corrosion.
  • ● FRIENDLY AFTER-SALE SERVICE - We have a commitment to every buyer 100% satisfaction. Please don't hesitate to contact us Sopoby if you are not satisfied with your purchase. We would try our best to assist you and ensure your satisfaction :)

User questions & answers

Question: Do you offer larger than 250 count sets
Answer: Yes
Question: is it possible to connect 3 wires together with these
Answer: Hello friend, thank you for your question. We are sorry to tell you that 3 wires could not be connected with one of these solder butt connector. It would be better for you to connect 2 wires with one connector. Hope this would help you. If you have any additional questions, please feel free to let us seller know. We would try our best to assist you. Thanks:)
Question: Is this what I'd use to wire my KC lights to the stock fog lights wiring
Answer: Yes, solder seal wire connectors are an excellent choice.
Question: What temperature should someone use to melt the solder but not burn the waterproof plastic/shrink wrap
Answer: I USED LOW TEMP SETTING ON MY HEAT GUN.. BUT I WATCHED CLOSELY TO SEE WHEN THE SOLDER MELTED AND PROMPTLY REMOVED HEAT. WORKED WELL.

Product features

IP67 Waterproof

● The design that Polyolefin Tubing outside and Hot Melt Adhesive inside creates a durable waterproof seal between the wire and the connector.

● Waterproof Connectors would prevent any corrosion even in the most humid environments.

● Transparent Sleeve of the butt connectors provide Visual Inspection. --- You can control the operating temperature and heating time.

● Any further questions, just feel free to let us seller know. We would try our best to assist you and meet your satisfaction. Thanks a lot. ^_^

660 PCS Heat Shrink Butt Connectors Qibaok Crimp Electrical Wire Connector Waterproof Insulated Butt Splice Terminal for Automotive Marine Boat Truck Trailer Stereo

Qibaok

Based on 722 reviews Check latest price

Product description

Qibaok  660 PCS Heat Shrink Butt Connectors

Specifications:

Heat activated 3:1 shrinkage ratio sleeve of tubing for a secure seal

Hot-melt adhesive provides excellent waterproof property

Excellent stretch and mechanical damage resistance

Ldeally translucent provides tensile strength

Operating temperature range:

Operating temperature: -55℃ - 125℃

Start shrink temperature: 80℃

Fully shrink temperature: 130℃

Size:

270 x Red Heat Shrink Butt Connectors : Suits cable / wire sizes 22-18AWG / 0.5-1.5mm²;

270 x Blue Heat Shrink Butt Connectors: Suits cable / wire sizes 16-14AWG / 1.5-2.5mm²;

120 x Yellow Heat Shrink Butt Connectors: Suits cable / wire sizes 12-10AWG / 4.0-6.0mm²;

Step to Use::

1.Select a heat shrink connector to suit size.Strip insulation to 8mm and insert into splice barrel.

2.Crimp using the tool for insulated connectors.

3.Apply heat while rotaing the connector.For best results use heat gun or a mini blow torch.

Inspect your waterproof quality connection.

Guarantee :

We stand behind the quality of our products. If for any reason you are not satisfied with your purchase, please do not hesitate to contact us. Thank you~

  • EASY TO IDENTIFY- Easier to choose the correct heat shrink connector, different color coded tubing with wire gauge imprint provides easy identification.
  • WATERPROOF- Polyolefin tubing on the outside and hot melt adhesive inside provides excellent waterproof property. Polyolefin tubing reduces in size and adhesive flows inside the insulation when heating.
  • HIGH QUALITY- Thick barrel ensures strong secure crimping every time to prevent wire failure, increase current flow, decrease voltage drop, and reduce equipment downtime. Your wire will never slip out of the connector.
  • DURABILITY- Seamless copper barrel design provides high tensile strength and extreme stretch and mechanical damage resistance, translucent heat shrink tubing eliminates the issue of the barrel opening, high elasticity keeps steady performance.
  • COMPLIANT WITH ALL ELECTRICAL STANDARDS - Qibaok heat shrink connectors are compliant with ROHS, ISO 9001:2008, SGS and CE standards.

User questions & answers

Question: Are the barrels plain copper or are they tinned
Answer: They are tin

Sopoby 220pcs Wire Spade Connectors, Heat Shrink Female Male Spade Terminals Electrical Crimp Connector Kit

Sopoby

Based on 580 reviews Check latest price

Product description

Item specifics: Quantity: 220PCS (Red: 80Pcs, Blue: 80Pcs, Yellow: 60Pcs)



Feature:



Red (22-18AWG) Patch size:0.8 x 6.35mm

Female full spade Terminal Connector............40Pcs

Spade Terminal Connector............................40Pcs



Blue (16-14AWG)Patch size:0.8 x 6.35mm

Female full spade Terminal Connector............40Pcs

Spade Terminal Connector............................40Pcs



Yellow (12-10AWG) Patch size:0.8 x 6.35mm

Female full spade Terminal Connector............30Pcs

Spade Terminal Connector............................30Pcs



Material : Copper + PE

Conforms to Marine automotive etc manufacturer's specifications for wiring repairs necessary for maintaining electrical warranties.

For best results use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal.



WARRANTY & Friendly Customer Service:

Sopoby has a commitment to every buyer 100% satisfaction. After all, we are customers, too, so if you have any problem about our products, just contact us anytime you feel convenient.

100% Satisfaction Guarantee for risk-free shopping.



Package Include:

1x Pack of 220pcs High quality Waterproof Heat Shrink Terminals Connectors Kit

  • High quality Waterproof Heat Shrink Terminal Connectors kit
  • Package: 220PCS (Red: 80pcs, Blue: 80pcs, Yellow: 60pcs)
  • Terminals Type: Fully Insulated Female / Male Spade Terminals
  • Material: Copper + PE
  • Ideal quick disconnects for household electrical wire connections, automotive & marine boat repairs.

User questions & answers

Question: are these difficult to use
Answer: Not at all... small butane torch works great with them.
Question: What is the guage
Answer: There are multiple gauge. If you want me to be precise I would have to get go look.
Question: What size spade do parts in this kit these fit - .125, .187, or .25 inch
Answer: I couldn't tell you unless I measured them, but they are the same size as the spade on the original horse shoe fuse that GM used before going to the mini horse shoe.
Question: Can this be used with 120 volt
Answer: Yes with low; NOT high currents

Latest Reviews

View all
