14 best compression elbow fittings
Compression elbow fittings are essential components in plumbing and fluid transfer systems, commonly used to connect pipes or tubes at an angle while maintaining a secure, leak-free seal. Here's what you need to know about compression elbow fittings:
Purpose: Compression elbow fittings are used to change the direction of a fluid or gas flow in a piping system while maintaining a tight and reliable connection. They are commonly used in applications involving water, gas, or other fluids.
Design: These fittings have a curved or angled shape, typically at a 90-degree or 45-degree angle, which allows pipes or tubing to be connected at a bend. The design ensures a smooth flow transition and minimizes pressure drop.
Compression Fitting: Compression elbow fittings are part of the broader category of compression fittings.They rely on compression to create a seal. They consist of several components, including a nut, a compression ring (often called a ferrule), and the elbow itself.
Materials: Compression elbow fittings can be made from various materials, including brass, stainless steel, copper, and plastic. The choice of material depends on the specific application, the type of fluid being transported, and environmental factors.
Installation: Installing compression elbow fittings involves placing the compression ring (ferrule) onto the pipe or tubing, inserting the pipe into the fitting, and tightening the nut. As the nut is tightened, it compresses the ferrule onto the pipe, creating a secure and leak-proof connection.
Leak-Resistance: Compression fittings are known for their reliability and leak resistance when installed correctly. They are commonly used in situations where a tight seal is essential.
Versatility: Compression elbow fittings are versatile and can be used with a variety of pipe or tubing materials, including copper, PEX, PVC, and more. This versatility makes them suitable for a wide range of plumbing and fluid transfer applications.
Sizes: Compression elbow fittings come in various sizes, allowing you to connect pipes or tubing of different diameters. It's crucial to select the appropriate size for your specific plumbing or fluid transfer needs.
Pressure Ratings: The pressure rating of compression elbow fittings varies based on material and design. Be sure to choose fittings that are rated for the pressure levels expected in your system.
Maintenance: Proper installation and periodic inspection are essential to ensure the continued performance of compression elbow fittings. Check for signs of wear or damage and replace any worn components as needed.
In summary, compression elbow fittings are important components in plumbing and fluid transfer systems, allowing for changes in direction while maintaining secure and leak-free connections. They are available in various materials, sizes, and designs to accommodate a wide range of applications. Proper installation and maintenance are key to their effectiveness in a piping system.
Below you can find our editor's choice of the best compression elbow fittings on the market
Anderson Metals - 50065-04 50065 Brass Compression Tube Fitting, 90 Degree Elbow, 1/4" x 1/4" Tube OD
Anderson Metals
Product description
Three piece construction - nut, sleeve and body with attached insert. Use with copper, brass, aluminum, or plastic tubing. -65 Degree F to +250 degree F temperature range. Standard fittings use short nuts. Easy to disassemble no flaring tool required. Primary uses water, gasoline, oil and vacuum lines. 1/4" Tube outer diameter. 7/16"-20 Thread size.
- Three piece construction - nut, sleeve and body with attached insert
- Use with copper, brass, aluminum, or plastic tubing
- Standard fittings use short nuts
- Easy to disassemble no flaring tool required
- Primary uses water, gasoline, oil and vacuum lines
- These fittings contain lead and are not allowed by federal law to be installed for potable water use in the U.S.A. and its territories.
User questions & answers
| Question: | Are these lead-free |
| Answer: | No, but I have used them in every pair of shoes I've worn for the past two years, even work boots. The only issue I've ever had is that the heel is fairly thick, so I have to lace some sneakers a little tighter so my heel doesn't ride up when running or fast walking. |
| Question: | What is the inner dimension of the nuts on this fitting |
| Answer: | Bonnie I'm assuming you are a female; if you wear size 8 this would work for you. m7-7.5, w8-9.5 means if you are a man wearing size 7-7.5 or a woman wearing size 8-9.5, this would work for you. |
Dixon 1/4" x 1/4" Brass Female Elbow Compression Fitting (170C-0404)
Dixon Valve & Coupling
Product description
1/4" x 1/4" Brass Female Elbow Compression Fitting
- Underwriter's Laboratories listed for flammable liquid; SAE J-512; ASA; reference SAE 060203 BA
User questions & answers
| Question: | Is this 90 compression by compression |
| Answer: | Probably not since the device has been altered. |
Anderson Metals 50069 Brass Compression Tube Fitting, 90 Degree Elbow, 1/2" Tube OD x 1/2" NPT Male Pipe
Anderson Metals
Product description
Three piece construction nut, sleeve and body with attached insert. Use with copper, brass, aluminum, or plastic tubing. -65 degree F to +250 degree F temperature range. Standard fittings use short nuts. Easy to disassemble no flaring tool required. Primary uses water, gasoline, oil and vacuum lines. Thread size: 11/16"-20.
- Three piece construction - nut, sleeve and body with attached insert
- Use with copper, brass, aluminum, or plastic tubing
- Standard fittings use short nuts
- Easy to disassemble no flaring tool required
- Primary uses water, gasoline, oil and vacuum lines
- These fittings contain lead and are not allowed by federal law to be installed for potable water use in the U.S.A. and its territories.
LTWFITTING 7/8-Inch OD x 3/4-Inch Male NPT 90 Degree Compression Elbow,Brass Compression Fitting(Pack of 5)
Ningbo Haishu HuaxinYicheng Trade Co., Ltd.
Product description
Product Description
Durable and high standard brass compression Elbow fitting. Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way.
Click "honest-f" to choose the product you want in our shop.
Features
- Package Include:5 pcs.
- Materies: brass.
- Net Weight: 162.5g/pc.
- Type: Male Compression elbow.
- Tube Size:7/8" OD, Thread:3/4 Male NPT.
Important Note
Pay attention to the column of size and color, you could find a variety of product types and quantities for your choice.
The more your purchase the best price you get.
About Shipping
Great stock availability and fast dispatch are our core business. We would make effort to process each order within 24 hours.
We are international seller, each item is required to be checked by two customs. China Post Air Mail and epacket are our main carriers,it normally takes about 1-2 weeks to deliver to US.
If you do not receive the item during this period or have any problems, kindly contact us firstly.
You can rest assured we would handle each order no matter big or small as faster as we can.
About Us
We are honest seller, any problems please contact us before leaving your feedback. We will try our best to work out the issue with you.
These products come from our joint factory, its annual output is about 100,000,000 pcs. It is one of the main copperware maker in China with a 25 years¡¯ experience in producing copperware and has already passed ISO 9001 quality guarantee system attestation, to ensure the long-term and stable quality of products .
- Type: Male Compression elbow
- Tube Size:7/8" OD Thread:3/4 Male NPT
- Package Content : 5 PCS(Include Nut And Ferrule)
- Materies: BRASS, Net Weight: 162.5g/PC
- Choosing products dimensions and quantities at column of size and colour seperately,price would be more favorable if choosing wholesale.
Anderson Metals 50070 Brass Compression Tube Fitting, 90 Degree Elbow, 1/4" Tube OD x 1/4" NPT Female Pipe
Anderson Metals
Product description
Three piece construction nut, sleeve and body with attached insert. Use with copper, brass, aluminum, or plastic tubing. -65 degree F to +250 degree F temperature range. Standard fittings use short nuts. Easy to disassemble no flaring tool required. Primary uses water, gasoline, oil and vacuum lines. Thread size: 7/16"-24.
- Three piece construction - nut, sleeve and body with attached insert
- Use with copper, brass, aluminum, or plastic tubing
- Standard fittings use short nuts
- Easy to disassemble no flaring tool required
- Primary uses water, gasoline, oil and vacuum lines
- These fittings contain lead and are not allowed by federal law to be installed for potable water use in the U.S.A. and its territories.
User questions & answers
| Question: | can you use this with an air-line tube? or does it have to be a hard tube |
| Answer: | Roughly 11/32". |
| Question: | Can it directly conect to ice maker Connector wiyh 1/4" Compression |
| Answer: | If you buy them directly from Superfeet, you have 60 days to return them. If you buy them from Amazon, you are limited to their 30-day return policy. |
| Question: | What is the Male end inside diameter |
| Answer: | You order them by your shoe size. |
| Question: | Will this fit a 1/4" male compression icemaker shutoff valve on one side and attach to a standard 1/4" female stainless steel water line |
| Answer: | That are 4,$inches wide!! |
Brass Elbow 1/2" Male x 1/2" inch 0,5 Female NPT Brass for Changing Flow Direction for Repair Brass Pipe Fitting Street Elbow
Metalandbrassco
Product description
WHY BUY OUR DEGREE ELBOW?
Choosing accessories for your pipe fitting tools? You can finally stop buying expensive stainless steel pipe fittings, unreliable copper pipe fittings that rust so easily, and plastic plastic hex pipe fittings that break quickly and are unreliable. The best choice you can make for your project is to utilize brass pipe fittings. These fittings are:
- durable (thanks to premium brass construction)
- resistant to corrosion
- solid
- do not leak
- have a better thermal conductivity and a low magnetic permeability
- do not deform with time
- provide tight sealing thanks to the relative softness of brass
- are easily installed or changed (thanks to the hexagonal head that increases the bearing surface when a wrench is applied to the fitting).
Our 1/2 90 degree elbow with well-machined male NPT threads on one end and female NPT threads on the other end are a great fit for connecting pipes. They provide the maximum fitting of the connected parts of the pipes. Also, it’s possible to repair any damaged part of a pipe with the help of our threaded reducer:just cut out the damaged part, place threads on both ends (these should be connected) and adjust it with pipe adapter fittings.
Bonus:
- this bushing adapter can be applied for various measuring devices and collectors
- it will also come in handy in case you accidentally damage any pipe threads: again, just make a hole, cut the threads and then install the pipe fittings
Note: Please be careful when choosing the size of the pipe fittings for your projects. The size is not the same as the diameter of a pipe. For the pipe with male threads, measure the outside diameter of the largest surface with the threads. For the pipe with female threads, measure the top diameter of the thread.- ENHANCED QUALITY BRASS Makes Brass Elbow Resistant to Corrosion and Safe for High Temperatures
- CONVENIENTLY DESIGNED TO CONNECT Pipes or Fittings of Different Diameter, Material, and End Type. Our Metal Hose Vacuum Gauge Brass Elbow has 1/2"male x 1/2"female NPT Threads.
- RELIABLE FITTING of the Bushing Reducer is Provided by the Well-Machined Threads and the Relative Softness of the Brass that Enables Tighter Sealing. Easy to Install or Change. Doesn’t Leak!
- UNIVERSAL – our Brass Elbow can be easily Used with Water or Oil for Plumbing Applications, for Various Measurable Devices, Collectors, etc
- DURABLE –Our Brass Elbow don’t Deform with Time, unlike Traditional Stainless Steel Thread Bushing or Plastic Pipe Fittings.
User questions & answers
| Question: | Is this lead free |
| Answer: | 100% brass |
Utah Pneumatic 1/4“Od Air Line Push To Connect Fittings Pneumatic Fittings Kit 2 Splitters 2 Elbows 2 Tee 2 Straight 8pack air Union Quick Disconnect Tube Fittings Assortment push fitting
Utah pneumatic
- utah pneumatic: push to connect air Pressure Range: 0-1 Mpa145 psi Max pressure:1.5 Mpa/ 217 psi/15 bar Temperature Range 0-60°C | 32～140°F Applicable Tube: PU/NYLON/Soft PE hose fitting air bag fittings pushlock air fittings
- plastic fittings for tubing Easy to install This tube connector is available in various styles and models . Each model to serve its purpose. All models of push lock fittings are designed to suit your pneumatic piping needs perfectly
- You can easily change the tubing connector direction even after installation. The release ring of conforms with the ellipse design to ensure that the disconnecting of connect push is in good shape pneumatic fittings kit
- All push to lock contains internal hexagonal holes this enhances the installation process in a narrow space.push connect fittings Can be dismantled and assembled easily These Push In Fittings Meet The Pressures And Temperatures Mentioned
- plastic tube fittings At Extreme Temperatures In Places Close To Heat Sources we Would Recommend Our Connect Push Brass Which Is More Resistant To High Temperatures We Are Ready To Answer Any Questions Related To Our Connect It Fittings
User questions & answers
| Question: | Are these fittings DOT approved for air brakes |
| Answer: | This is compression made for copper line. If you're ice maker uses a nylon (plastic) line you'll need one with an internal ferrule so it doesn't crush. If you are referring to the threaded end you'll have to check the size of your threads you be sure. 1/4 npt (national pipe thread) is quite a bit bigger than 1/4" (its the inside measurement for corresponding tubing) and all npt fittings are tapered. |
| Question: | Can these fittings be used with 1/4" od tubes and also 6mm od tubes interchangeably |
| Answer: | Slightly greater than 1/4", so that 1/4" OD tubing will fit inside it. |
| Question: | can be used for gas hose |
| Answer: | No its standard 1/4" female pipe thread to 1/4" male compression thread with a nut and ferrel To connect an ice maker use something like this they come in varying lengths LASCO 10-0946 2-Foot Ice Maker Water Supply Line, Braided Stainless Steel, 1/4-Inch Female Compression X 1/4-Inch Female Compression https://www.amazon.com/gp/product/B0066CDUHG/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1 |
| Question: | can these be used on 1/4" id air hose |
| Answer: | No it's a 90 1/4" compression on one end and a female threaded on the other The threaded end was too large for the 1/4 male threads I was trying to match up with |
Product features
Careless And Unprofessional Work When Using The Pneumatic Tube Connectors
Important. Thing Is Careless And Unprofessional Work When Using The Pneumatic Tube Connectors The Cut Of The Air Line Hose Must Be Completely Clean And Cut Straight Without Chips Or Crumbs. The Profile Of The Air Tube Must Be Round. No Elliptical Or Other Form. When Inserting The Tube Into The Push Lock Fitting Push The Tube In Until You Feel The Tube Get Stuck In The Inner Shoulder Of The Air Hose Fitting. An Operation That Requires Exerting Force On The Air Tube So It Will Pass Through The Rubber Ring Located On The Inside Of The Air Line Fitting For Complete Sealing.
LTWFITTING 1/4-Inch OD x 1/8-Inch Male NPT 90 Degree Compression Elbow,Brass Compression Fitting (Pack of 5)
HuaxinYicheng
Product description
Part NO. HF6942
Quality barbed connectors/couplers are manufactured to the highest standards. They are perfect for connecting lines for air, water, fuel, oil and inert gases

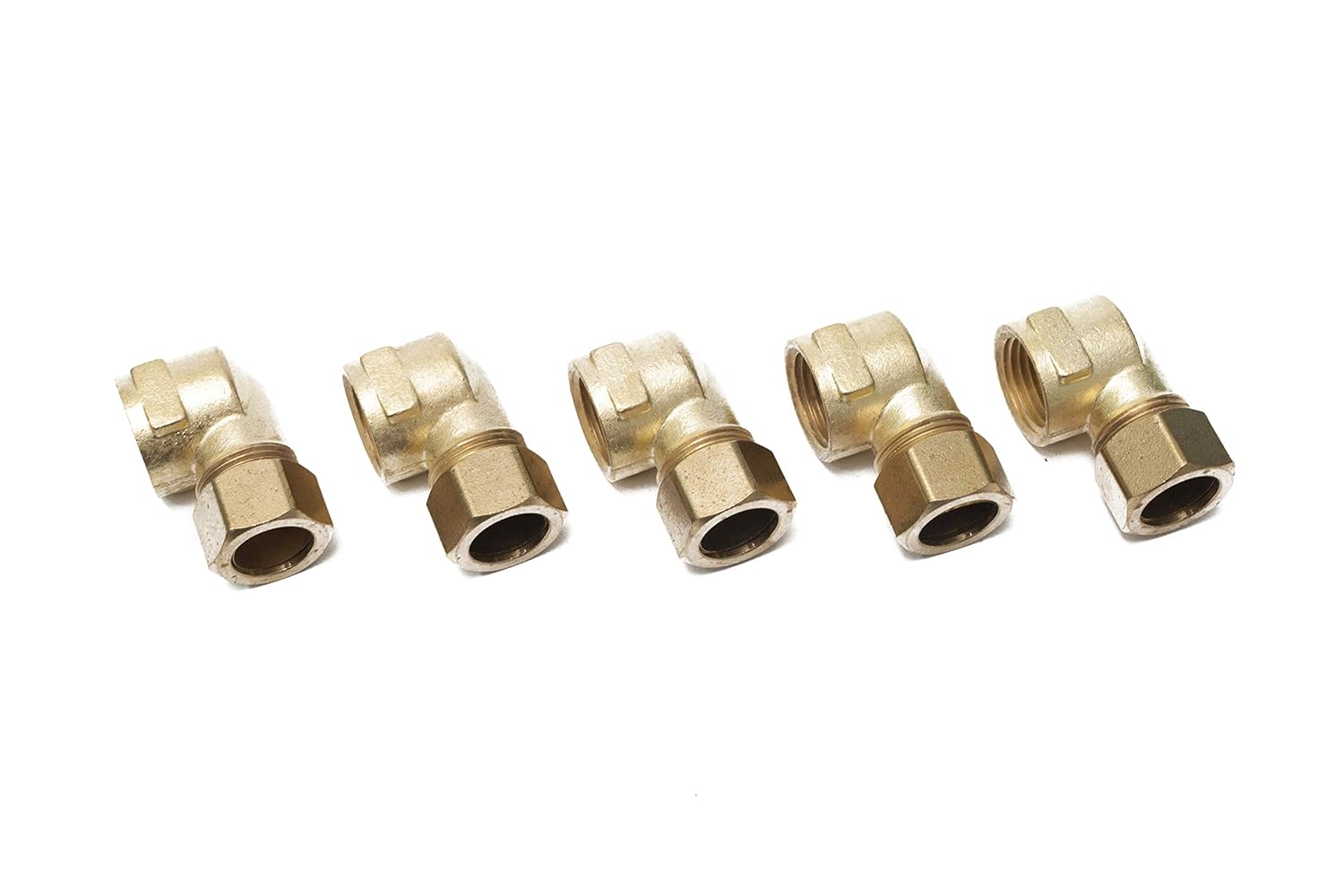

LTWFITTING 5/8-Inch OD x 1/2-Inch Female NPT 90 Degree Compression Elbow,Brass Compression Fitting(Pack of 5)
Ningbo Haishu HuaxinYicheng Trade Co., Ltd.
Product description
Product Description
Durable and high standard brass compression Elbow fitting. Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way.
Click "honest-f" to choose the product you want in our shop.
Features
- Package Include:5 pcs.
- Materies: brass.
- Net Weight: 75g/pc.
- Type: Female Compression elbow.
- Tube Size:5/8" OD, Thread:1/2 Female NPT.
Important Note
Pay attention to the column of size and color, you could find a variety of product types and quantities for your choice.
The more your purchase the best price you get.
About Shipping
Great stock availability and fast dispatch are our core business. We would make effort to process each order within 24 hours.
We are international seller, each item is required to be checked by two customs. China Post Air Mail and epacket are our main carriers,it normally takes about 1-2 weeks to deliver to US.
If you do not receive the item during this period or have any problems, kindly contact us firstly.
You can rest assured we would handle each order no matter big or small as faster as we can.
About Us
We are honest seller, any problems please contact us before leaving your feedback. We will try our best to work out the issue with you.
These products come from our joint factory, its annual output is about 100,000,000 pcs. It is one of the main copperware maker in China with a 25 years¡¯ experience in producing copperware and has already passed ISO 9001 quality guarantee system attestation, to ensure the long-term and stable quality of products .
- Type: Female Compression elbow
- Tube Size:5/8" OD Thread:1/2 Female NPT
- Package Content : 5 PCS(Include Nut And Ferrule)
- Materies: BRASS, Net Weight: 75g/PC
- Choosing products dimensions and quantities at column of size and colour seperately,price would be more favorable if choosing wholesale.
Anderson Metals - 50065-08 50065 Brass Compression Tube Fitting, 90 Degree Elbow, 1/2" x 1/2" Tube OD
Anderson Metals
Product description
Three piece construction - nut, sleeve and body with attached insert. Use with copper, brass, aluminum, or plastic tubing. -65 Degree F to +250 degree F temperature range. Standard fittings use short nuts. Easy to disassemble no flaring tool required. Primary uses water, gasoline, oil and vacuum lines. 1/2" Tube outer diameter. 3/4"-16 Thread size.
- Three piece construction - nut, sleeve and body with attached insert
- Use with copper, brass, aluminum, or plastic tubing
- Standard fittings use short nuts
- Easy to disassemble no flaring tool required
- Primary uses water, gasoline, oil and vacuum lines
- These fittings contain lead and are not allowed by federal law to be installed for potable water use in the U.S.A. and its territories.
User questions & answers
| Question: | is this price for only one unit |
| Answer: | Yes it can be used with poly air line tube. I used it on my airshock system to install a pressure gauge. |
Megairon 8mm 5/16" 90 Degree Street Elbow Compression Coupler Double Ferrule Tube Pipe Fitting,Stainless Steel 304 NPT Male Connector
Product description
Double ferrule Tube Fitting consist of four precision engineered components called the nut, the front ferrule, the back ferrule and the body
When installed affixed to tubing becomes a five piece connection provide a solid leak free joint by the sequential action of twin ferrule which is the combination of geometry and metallurgy.
This fittings are used in Oil & Gas Industries, Petro Chemicals, Power Plant, Steel Industries, Chemical Industries, Pharmaceutical Industries, Fertilizers, Hydraulic & Pneumatic, Marine & any Process Industry
Megairon is an International Company for distributing professional pipe, fittings, and valves.
Meets International Organization for Standardization (ISO) standard 9002.
Package:
1Pc x 90 Degree Compression NPT Male Elbow Double Ferrule
- 90-degree street elbow for changing flow direction
- Stainless Steel construction for durability and resistance to corrosion
- Double Ferrule Tube Fittings provide torque free,leak proof joints at all tubing
- Connections and prevent costly and hazardous leaks in process and instrumentation tubing
- Back ferrules hold tubing tight within the body of the fitting while front ferrules hold tubing tight through the nut
User questions & answers
| Question: | Can this stainless fitting be used with copper tubing |
| Answer: | Looks like a solid brass to me. Only manufacturer can tell you for sure. |
Vis Brass Compression 90 Degree Male Elbow 1/4" OD x 1/8" NPT Male Pipe to Tube Fitting (Pack of 5)
Vis
Product description
Three piece construction nut, sleeve and body with attached insert. Use with copper, brass, aluminum, or plastic tubing. -65 degree F to +250 degree F temperature range. Standard fittings use short nuts. Easy to disassemble no flaring tool required. Primary uses water, gasoline, oil and vacuum lines.
- Three piece construction - nut, sleeve and body with attached insert
- Use with copper, brass, aluminum, or plastic tubing
- Standard fittings use short nuts
- Easy to disassemble no flaring tool required
- Primary uses water, gasoline, oil and vacuum lines
Litorange 4 Pack Metal Brass Compression Tube Pipe Fitting Connector, 90 Degree Elbow Adapter, 1/4" Tube OD x 1/8" NPT Male
Litorange
Product description
★ Material:
Heavy Duty Brass,strong and durable.
Meets ASTM B584 standards for quality assurance and ASME/ASMI B16 technical specifications.
Operating temperatures range from -53 to 121 degrees C (-65 to 250 degrees F).
★ Specification:
1. Litorange tube fitting is made of brass, and connects tubing to threaded pipe conforming to the National Pipe Thread (NPT) standard in a straight run.
2. A single ferrule compression fitting connects to tubing on one end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications, and a male NPT connector on the other end connects to threaded pipe.
3. Single ferrule compression fittings have fewer possible leak paths than twin ferrule fittings. This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
4. It is commonly used in chemical, petroleum, power generation, laboratory, and medical device plants.
5. Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries.
6. Compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited.
7. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability.
8. Tips: For better sealing, we suggest that all fittings must be used with teflon tape.
★ Package includes:
4 x 1/4" Tube OD x 1/8" NPT Male Elbow
- ★ 【Material】: Heavy Duty Brass,strong and durable. Size: 1/4" Tube OD x 1/8" inch NPT Male Elbow Adapter.
- ★ 【Firm And Durable】: Litorange Brass for corrosion resistance, high temperature ductility and low magnetic permeability.
- ★ 【Function】: Fitting connects to tubing on one end and has an NPT male connector on the other. Use with copper, brass, aluminum, or plastic tubing.
- ★ 【Tips】: Single ferrule compression fitting has fewer possible leak paths than twin ferrule fittings. Primary uses water, gasoline, oil and vacuum lines.
- ★ 【Package Include】: 4 PCS 1/4" Tube OD x 1/8" NPT Male Elbow connector. Comes with 1 year warranty.
User questions & answers
| Question: | Lead free |
| Answer: | Yes, the 1/4" I/d hose is 3/8" od. |
Ham-Let Stainless Steel 316 Let-Lok Compression Fitting, 90 Degree Elbow, 1/4" NPT Male x 3/8" Tube OD
Ham-Let
Product description
- 90-degree elbow for connecting two pipes or tubes at an angle
- Fitting connects to pipes or tubing on one end and an NPT male connector on the other
- Type 316 stainless steel for higher strength and greater corrosion resistance than type 304 stainless steel
- Operating temperatures range from -100 to 1000 degrees F
- Meets ASTM standards A213 and A269 for quality assurance
Latest Reviews
View all
Auto Rotisseries
- Updated: 25.07.2023
- Read reviews
Bookshelves For Heavy Books
- Updated: 18.01.2023
- Read reviews
Flameless Fireplace
- Updated: 11.02.2023
- Read reviews
Adapters With Usb Ports
- Updated: 30.05.2023
- Read reviews
Power Cord For Generators
- Updated: 26.01.2023
- Read reviews
