13 best involute gear cutters

Involutes gear cutters are specialized cutting tools used in the manufacturing of gears. These cutters are related to Arbor Type Milling Cutters and fall under the category of Cutting Tools in the Industrial Scientific field. Here's what you need to know about involute gear cutters:

  1. Purpose: Involute gear cutters are specifically designed to create the involute tooth profile that is commonly used in gears. The involute profile ensures smooth and efficient power transmission between gears.

  2. Tooth Profile: The involute gear tooth profile is characterized by its unique shape, which is a curve generated by the unwinding of a taut string from the base circle of the gear. This profile provides consistent contact and minimizes backlash in gear systems.

  3. Types: Involute gear cutters come in various types, each corresponding to a different module or tooth size. These cutters are designed to produce specific tooth profiles to match the gear specifications.

  4. Materials: Involute gear cutters are typically made from high-speed steel (HSS) or carbide to ensure durability and precision in gear cutting operations. The choice of material depends on the hardness of the workpiece material and the requirements of the cutting operation.

  5. Milling Process: Gear cutting with involute gear cutters involves a milling process. The cutter is mounted on an arbor and is precisely positioned relative to the workpiece. As the cutter rotates, it gradually removes material from the workpiece to create the gear teeth.

  6. Accuracy: The accuracy and precision of involute gear cutters are crucial in gear manufacturing. Even small deviations in tooth profile can lead to gear misalignment and reduced efficiency in mechanical systems.

  7. Applications: Involute gear cutters are widely used in various industries where gears are essential components, such as automotive, aerospace, machinery manufacturing, and more. They are essential for creating gears with the correct tooth profiles for smooth and reliable operation.

In summary, involute gear cutters are specialized cutting tools designed for the precise manufacturing of gears with the involute tooth profile.They play a critical role in various industries where gears are used, ensuring the efficiency and reliability of mechanical systems.

Below you can find our editor's choice of the best involute gear cutters on the market


EVNSIX Dp16 PA14-1/2 Bore22 No. 1-8 Involute Gear Cutters+ 7/16 Inch 22mm R8 Shank Milling Arbor Gear Mill Cutter Holder Machine

Based on 39 reviews Check latest price

Product description

Set 8 Pcs Dp16 No1 :Z12~13; No2 :Z14~16; No3 :Z17~20; No4 :Z21~25; No5 :Z26~34; No6 :Z35~54; No7 :Z55~134; No8 :≥135

  • Set 8 Pcs Dp16 :pressure angle: 14.5 degree
  • Set 8 Pcs Dp16 : Outside Dia: 55mm
  • Set 8 Pcs Dp16 :inner Bore: 22mm
  • R8 shank gear cutter holder fitting for hole 22mm gear cutter
  • R8 shank gear cutter threaded 7/16(Inch)

User questions & answers

Question: Is this module
Answer: I believe so, definitely not carbide. They work well just keep them lubricated and don't get over jealous. I've just started learning to cut gears and my first attempt came out very well.
Question: Are the cutters HSS
Answer: If the drill chuck is mounted in an R8 spindle. Pop the chuck out and chuck this up. Else, no. Plus how are you rotating the gear? How are you moving it across the cutter with any precision? You normally need an indexer and a mill table, or possibly a mill/drill with a moving table. I have good results with this set but I use a Bridgeport and an indexer.
Question: Can I stick this in a drill press? For a small gear
Answer: MAX RPM is 35000 Recommend 25000

8Pcs 1-8 Involute Gear Cutters for Milling Machine High Speed Steel Disk-Shaped 20° Pressure Angle M1

Garosa

Based on 1 reviews Check latest price

Product description

Specification:

Item Type: Gear Milling Cutter Material: High Speed steel

Processing Gear Modulus: 1

Pressure Angle: 20°

Number of Processed Teeth:

No. 1 = 12 ~ 13 teeth

No. 2 = 14 ~ 16 teeth

No. 3 = 17 ~ 20 teeth

No. 4 = 21 ~ 25 teeth

No. 5 = 26 ~ 34 teeth

No. 6 = 35 ~ 54 Tooth

No. 7 = 55 to 134 teeth

No. 8 = 135 teeth or more



Package List:

8 x Gear Milling Cutter

  • The blade is of sharpness, with 20° pressure angle.
  • Processing Gear Modulus: 1.
  • Including 8pcs models milling cutter for a wide range of applications.
  • Made of high-quality high speed steel materials, durable to use.
  • Standard specifications, smooth and convenient to use. Great workmanship, perfect replacement for the old or damaged one.

Involute Gear Cutters DP16, HSS Gear Cutter Set Pitch Angle 14.5 Degrees (8 Pieces), with R8 Milling Machine Arbor 7/16

PHANSOGE

Product description

Gear milling can be divided into generation method and forming method. The forming method mainly uses gear hobs, etc., and the forming method mainly uses disk milling cutters and finger milling cutters.

When using an involute milling cutter to produce spur gears, the profile of the tool should be the same as the profile of the gear groove in the profile of the workpiece end.

When the DP of the gear design drawing, the pressure angle is the same as that of the milling cutter, but the number of teeth is different. The base circle diameter is different, so the shape (curvature) of the involute is also different. When milling gears with different numbers of teeth, it is necessary to use milling cutters with different gear profiles.

In order to avoid manufacturing too many milling cutters, involute gear milling cutters of the same diameter are numbered in production. Use a set of #1-8 milling cutters to mill gears with the same diametral pitch and pressure angle but different numbers of teeth.

The gear profile of each milling cutter is designed according to the gear profile of the smallest number of teeth in the milling gear range. This product is a disc-shaped involute gear milling cutter.

Involute gears have the advantage of a constant angular velocity ratio, which ensures a constant transmission ratio during meshing.

Involute gears are widely used in daily life, making disc-shaped involute gear milling cutters very suitable for small batch processing.

  • Meet the pitch system, applicable manufacturing 14.5 degrees involute ASA B6.1-1932 standard gear.
  • HSS material, up to 6000 degrees Celsius can still work normally (laboratory test environment).
  • If your gear drawing meets DP 16, PA 14.5 degree standard. Select the appropriate number corresponding to the number of teeth of the gear and the parameter Z.
  • Including Involute gear cutters set of 8 (#1-8), diametral pitch is 16, pitch angle 14.5 degrees. 7/16 inch R8 Milling Machine Arbor.
  • This is a good start to make precision gears, own it now, no fuss!

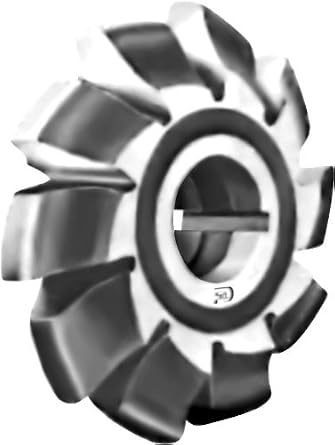

F&D Tool Company 13017 Involute Gear Milling Cutter, High Speed Steel, Form Relieved, 14 1/2 Degree Pressure Angle, 5 Cutter Number, 14" Diametrical Pitch, 7/8" Hole Size, 2 1/8" Diameter

F&D Tool Company

Product description

Cutter No. 1 will cut gears from 135 teeth to a rack. Cutter No. 2 will cut gears from 55 teeth to 134 teeth. Cutter No. 3 will cut gears from 35 teeth to 54 teeth. Cutter No 4. will cut gears from 26 teeth to 34 teeth. Cutter No. 5 will cut gears from 21 teeth to 25 teeth. Cutter No. 6 will cut gears from 17 teeth to 20 teeth. Cutters No. 7 will cut gears from 14 teeth to 16 teeth. Cutter No. 8 will cut gears from 12 teeth to 13 teeth.

Hitommy Module 1 Pa20 Bore 22Mm #1-8 Hss Involute Gear Milling Cutter - #1

Based on 3 reviews Check latest price

Product description



Description:

Module 1 PA20 Bore 22mm #1-8 HSS Involute Gear Milling Cutter

Specification:

Module Number: 1

Material: HSS

Outer Diameter: 50mm

Inside Bore: 22mm

Pressure Angle: 20 degree

Quantity: 1pc

Each of Gear is different:

1#: 12-13 Gear

2#: 14-16 Gear

3#: 17-20 Gear

4#: 21-25 Gear

5#: 26-34 Gear

6#: 34-54 Gear

7#: 55-134 Gear

8#: ≥135 Gear

Feature:

M1 HSS gear milling cutter.

Specialty cutting tools designed for milling gears.

8 cutters available to suit different numbers of teeth.

Sized and proportioned to afford a good cutting range and ample rigidity.

Straight form tooth design to suit the involute gear form.

Well suited for use in a variety of ferrous and non-ferrous materials.

Package included:

1 X HSS Gear Milling Cutter

  • Module Number: 1
  • Material: HSS
  • Outer Diameter: 50mm
  • Inside Bore: 22mm
  • Pressure Angle: 20 degree

8 pcs Module M1 Inner Bore 20° 22mm #1-8 HSS Involute Gear Cutters Disk-Shaped

Balance World Inc

Based on 5 reviews Check latest price

Product description

Specification:



Brand new

Module: M1

Material: HSS

Bore: approx. 22mm

Color: as picture shows

Pressure Angle: 20 degree

Quantity: 8pcs per set





Each of Gear is different:

1#: 12-13 Gear

2#: 14-16 Gear

3#: 17-20 Gear

4#: 21-25 Gear

5#: 26-34 Gear

6#: 34-54 Gear

7#: 55-134 Gear

8#: ≥135 Gear





Package included:

8pcs x M1 Involute Gear (from 1 to 8)

  • Brand new
  • Material: HSS
  • Bore: approx. 22mm
  • Pressure Angle: 20 degree
  • Quantity: 8pcs per set

User questions & answers

Question: what diametral pitch are these cutters
Answer: Look for a pitch angle (PA) of 20 degrees. This is 14.5 degrees

TTC 10-283-060 6 D/P-#3 E18 Involute HSS Gear Cutter

TTC

Product description

Applications Specialty cutting tools designed for milling gears. For cutting the teeth to suit a special gear shape called an involute form.Designed as arbor mounted cutters for machine tools.Well suited for use in a variety of ferrous and non-ferrous materials.For optimal performance and the best tool life the correct cutting speeds and feeds must be used and suitable lubricating/cutting oils or appropriate coolant fluids are recommended.FeaturesAvailable in sets of 8 cutters to suit different numbers of teeth.Sized and proportioned to afford a good cutting range and ample rigidity. Straight form tooth design to suit the involute gear form.For spur gears with a 14-1/2° or 20° pressure angle. 8 cutters are made for each pitch.Form relieved to allow resharpening many times without changing the form. Module Involute For finishing with a 14-1/2° or 20° pressure angle.8 cutters are made for each module.Technical Data Manufactured from high speed steel.Ground from solid.Straight teeth on periphery of cutters.Made to suit pitch diameters of 2 to 48 for either 14-1/2° or 20° pressure angle gears. Cutter sets can accommodate gears from 12 teeth to a rack gear. Bright finish.TTC E18 HSS 14-1/2° Involute Pressure Angle Gear Cutters Product Specifications Brand TTC Cutter Diameter 3-1/2" Hole Size 1-1/4" Pressure Angle 14-1/2° Module Involute Cutter Number #3 Finish Coating Bright Finish Hardness 58 to 60 RC Range of Cutter 35 to 54 Taper Per Side TTC High Speed Steel Involute Cutters-Cutter Number: #3 Cutting Diameter : 3-1/2" Finish/Coating: Bright finish. Hole Size: 1-1/4" Pressure Angle: 14-1/2° Pitch Diameter: 6 Tool Material High Speed Steel Weight 0.8 lbs. Country of Origin Import

  • Available in sets of 8 cutters to suit different numbers of teeth
  • Sized and proportioned to afford a good cutting range and ample rigidity

LW-Tool Module 1 PA20 Degrees Bore 22mm #1-8 HSS Involute Gear Milling Cutter Gear Milling Cutter Gear Cutting Tools (Cutting Edge Length : 4)

Product description

Diameter: 22mm(Inside Bore)

Overall Length: as show

Coating: other

Description:

Module 1 PA20 Bore 22mm #1-8 HSS Involute Gear Milling Cutter



Feature:

M1 HSS gear milling cutter.

Specialty cutting tools designed for milling gears.

8 cutters available to suit different numbers of teeth.

Sized and proportioned to afford a good cutting range and ample rigidity.

Straight form tooth design to suit the involute gear form.

Well suited for use in a variety of ferrous and non-ferrous materials.



Specification:

Module Number: 1

Material: HSS

Outer Diameter: 50mm

Inside Bore: 22mm

Pressure Angle: 20 degree

Quantity: 1pc



Each of Gear is different:

1#: 12-13 Gear

2#: 14-16 Gear

3#: 17-20 Gear

4#: 21-25 Gear

5#: 26-34 Gear

6#: 34-54 Gear

7#: 55-134 Gear

8#: ≥135 Gear



Package included:1 X HSS Gear Milling Cutter

  • Material: High Speed Steel
  • Type: Involute Gear Cutters
  • Diameter: 22mm(Inside Bore)
  • Model Number: #1-8 HSS Involute Gear
  • Package included:1 X HSS Gear Milling Cutter

8 pcs Module M1 Inner Bore 20° 22mm HSS Involute Gear Cutters Set Disk-Shaped

rofuu

Product description

Specification:



Module: M1



Material: HSS



Bore: approx. 22mm



Color: as picture shows



Pressure Angle: 20 degree





Each of Gear is different:



1#: 12-13 Gear



2#: 14-16 Gear



3#: 17-20 Gear



4#: 21-25 Gear



5#: 26-34 Gear



6#: 34-54 Gear



7#: 55-134 Gear



8#: ?135 Gear





Package included:



8 pcs M1 Involute Gear (from 1 to 8)

  • Pressure Angle: 20 degree
  • Bore: approx. 22mm
  • Material: HSS
  • High quality
  • Package included: 8pcs M1 Involute Gear

WSF-TOOLS, Module 1 PA20 Degrees Bore 22mm #1-8 HSS Involute Gear Milling Cutter High Speed Steel Gear Milling Cutter Gear Cutting Tools (Cutting Edge Length : 7)

Product description

Diameter: 22mm(Inside Bore)

Overall Length: as show

Coating: other

Description:Module 1 PA20 Bore 22mm #1-8 HSS Involute Gear Milling Cutter

Feature:

M1 HSS gear milling cutter.

Specialty cutting tools designed for milling gears.

8 cutters available to suit different numbers of teeth.

Sized and proportioned to afford a good cutting range and ample rigidity.

Straight form tooth design to suit the involute gear form.

Well suited for use in a variety of ferrous and non-ferrous materials.

Specification:

Module Number: 1

Material: HSS

Outer Diameter: 50mm

Inside Bore: 22mm

Pressure Angle: 20 degree

Quantity: 1pc

Each of Gear is different:

1#: 12-13 Gear

2#: 14-16 Gear

3#: 17-20 Gear

4#: 21-25 Gear

5#: 26-34 Gear

6#: 34-54 Gear

7#: 55-134 Gear

8#: ≥135 Gear

Package included:1 X HSS Gear Milling Cutter

  • Material: High Speed Steel
  • Type: Involute Gear Cutters
  • Model Number: #1-8 HSS Involute Gear
  • Description:Module 1 PA20 Bore 22mm #1-8 HSS Involute Gear Milling Cutter
  • Package included:1 X HSS Gear Milling Cutter

Dp16 PA14-1/2 Bore22 No. 1-8 Involute Gear Cutters+ 7/16 Inch 22mm R8 Shank Milling Arbor Gear Mill Cutter Holder Machine

Based on 15 reviews Check latest price

Product description



Set 8 Pcs Dp16

No1 :Z12~13;

No2 :Z14~16;

No3 :Z17~20;

No4 :Z21~25;

No5 :Z26~34;

No6 :Z35~54;

No7 :Z55~134;

No8 :≥135

Dp16 PA14-1/2 Bore22 No. 1-8 Involute Gear Cutters+ 7/16 Inch 22mm R8 Shank Milling Arbor Gear Mill Cutter Holder Machine

  • Set 8 Pcs Dp16 :pressure angle: 14.5 degree
  • Set 8 Pcs Dp16 : Outside Dia: 55mm
  • Set 8 Pcs Dp16 :inner Bore: 22mm
  • R8 shank gear cutter threaded 7/16(Inch)
  • R8 shank gear cutter holder fitting for hole 22mm gear cutter

User questions & answers

Question: my machinery handbook shows that the numbers are reversed ie: #8 should be
Answer: Jerry, the way I understand this kit is the arbor shank cutter holder is for 22mm cutters. The holder is threaded at 7/16 inches that holds the cutters on the shank. The cutters are mm but you can calculate for inches depending on the wheel diameter you are making and the number of teeth needed. A good reference site is www.helicron.net/workshop/gearcutting/involute-gears, this will explain how to calculate your needs in inches or mm. Hope this helps,
Question: Is the arbor 7/16 x 20 & are the involutes a standard size not mm
Answer: Hey are. But it is Chinese HSS. Seem ok to me. Lube em up!
Question: What material are these cutters made from? are they hss
Answer: They should be numbered 1-8
Question: Can someone please translate the miss numbered gears correctly for me. I'm just a hobbyist, and this is beyond my understanding
Answer: 1 per millimeter (mm). These cutters are metric cutters. The DP of cutters used to cut metric gears is expressed in "Modules". On metric gears the pitch circle diameter is expressed in millimeters instead of inches. Hence, the module is: the pitch diameter in mm divided by the number of teeth in the gear. this being said, if this module 1 value was expressed in standard terms it would have a DP of 25.4. This is because there are 25.4 mm in 1 inch.

22mm R8 Shank Milling Machine Arbor Gear Milling Cutter Holder Toolholder CNC Arbor Gear Mill Cutter Holder 7/16-20 Drawbar Thread (USA Stock)

Product description



Specifications:

Shank Type: R8

Drawbar Thread:7/16-20

Can used for 22mm Gear Cutter or other Milling Cutter



Package Includes:

1pcs of Shank Milling Arbor

  • 22mm R8 Shank Milling Arbor Gear Mill Cutter Holder
  • Shank Type: R8
  • Drawbar Thread:7/16-20
  • Can used for 22mm Gear Cutter or other Milling Cutte
  • USA Stock - The packages are shipped fron our USA warehouse, taking about 3-8 work days to deliver. If you have any problems, please contact us at any time and we will try our best to help you to solve it.

Set 8Pcs Module 1 PA20 Bore22 #1-8 Involute Gear Cutters

Product description

New a set 8pcs HSS module 1 involute gear cutters #1-8

  • New a set 8pcs HSS module 1 involute gear cutters #1-8
  • pressure angle 20 degree, Outside Dia: 50mm
  • Inner Bore: 22mm
