14 best ford brake controllers

Product description

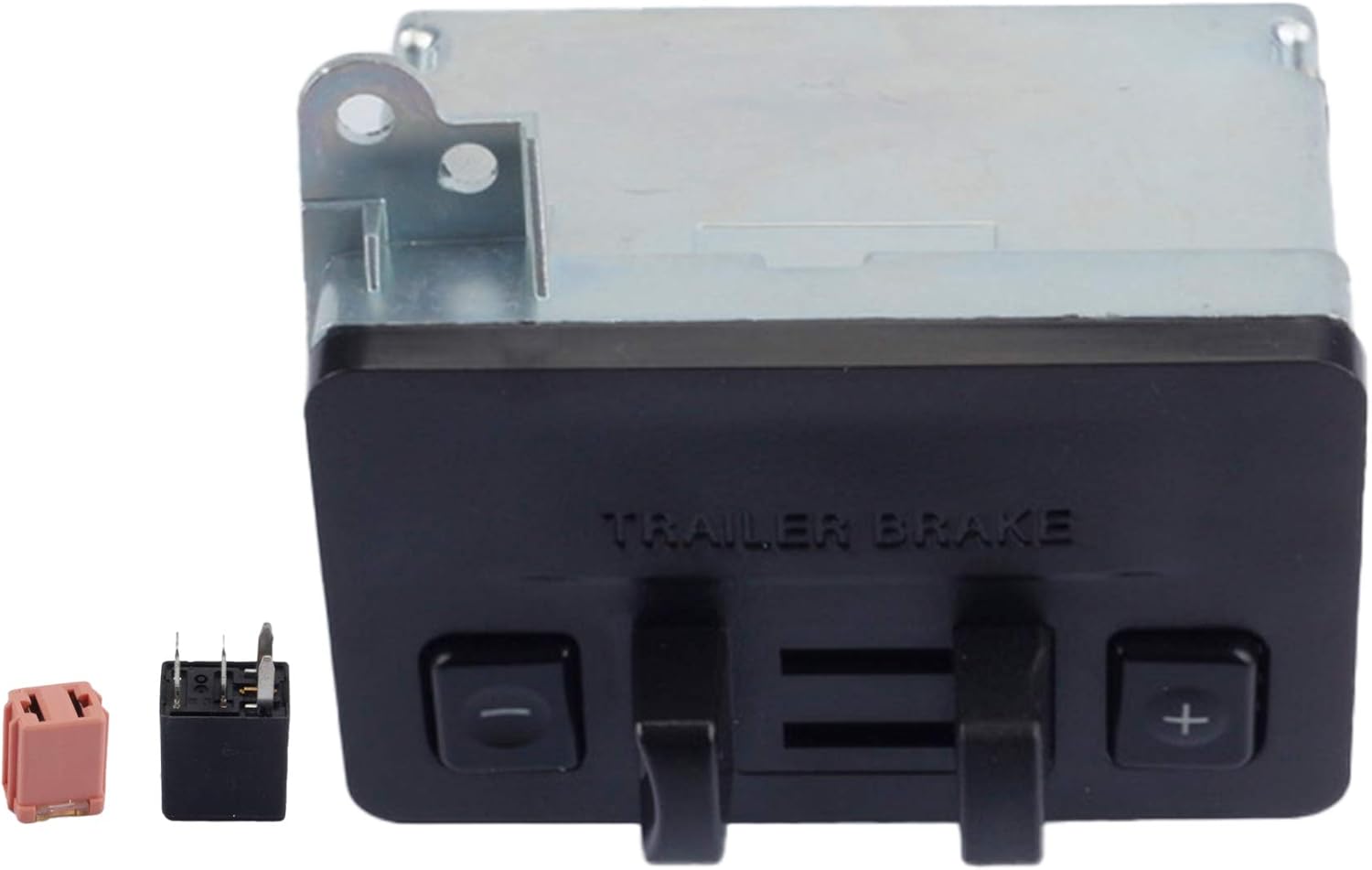

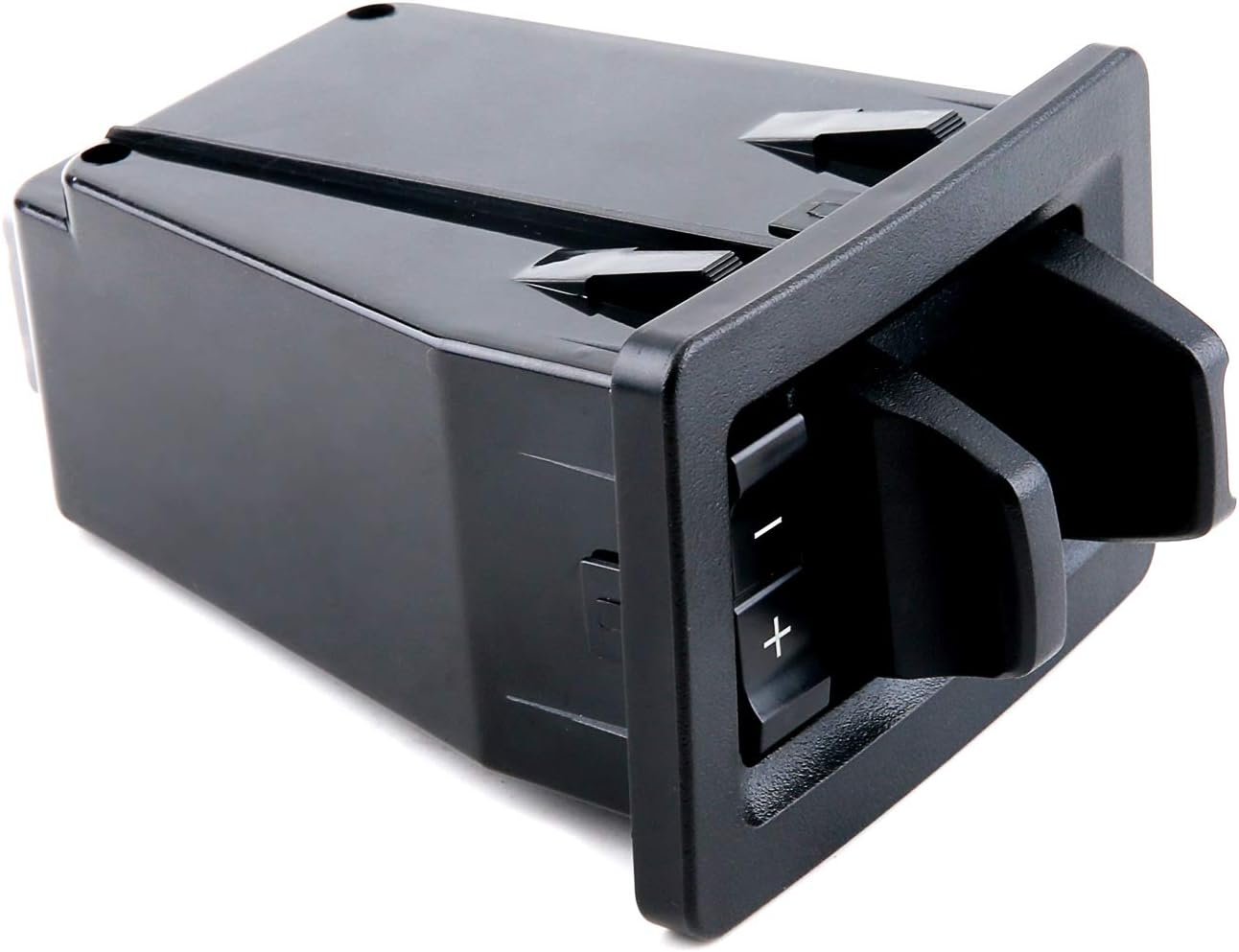

OEM Ford In Dash Trailer Brake Control Module UnitPt# FL3Z-19H332-AAAlt Pt# FL3Z19H332AAFits:2015 Ford F-150Vehicle Must Be Equipped With Trailer Tow Package or Max Trailer Tow Package (Wiring) For Unit to Be Functional Will Require Your Local Dealer to Program / Flash in Order to Work.

• OEM Ford Dashboard Trailer Brake Control Module.
• Pt# FL3Z-19H332-AA / JL3Z-19H332-AA
• Fits: 2015 Ford F-150
• Install Time - 1 hour

User questions & answers

Question:	F-150 with eco boost but my year is 2014. Will this work on a
Answer:	No, you will need part number BL3Z-19H332-AA for a 2014 F150
Question:	Is this compatible with a 2018 ford f-150? dealer states part # for 2018 f-150 is jl3z-2c006a
Answer:	There may be differences in the 2018 and 2017 and they specs might be different as well. I would ask ford first. Sorry I didn’t have a better answer.
Question:	Will it work with 2017 F 150 xlt with tow package
Answer:	Yes, we had it installed and calibrated at the dealer. Works great
Question:	does this fit a 2014 F
Answer:	no it does not fit perfect, there is a gap, was a bit disapointed

Product description

A totally proportional electric trailer brake control, the PrimusIQ is self-leveling so no level adjustment is necessary. Utilizing the primary sensor technology from Prodigy, the PrimusIQ now includes the Boost feature that gives users the ability to apply more initial trailer braking when towing heavier trailers. It works proportionally in reverse for backing into tough spots and includes a snap-in dash mounting clip and removable electrical connector that allows the unit to be quickly stored when not in use. You will appreciate the digital readout depicting a secure electrical connection, amount of voltage delivery to the trailer brakes and diagnostic features incorporated in the LED display.

• Utilizes Plug-N-Play port for 2-plug adapters
• Self-diagnostics features will illuminate LED readout when issues occur
• Works proportionally in reverse
• Includes a Boost feature
• Snap-in dash mounting clip and hardware included

User questions & answers

Question:	will this fit a toyota sequoia
Answer:	Yes, I suppose you could use it as a cutting board, there is just the metal bar that holds the cookbook at the end of the board that might get in the way.
Question:	what harness do I need for 09 gmc
Answer:	In my experience it will hold a closed book of an inch depth
Question:	I have a 2009 GMC 3500. It has the factory brake controller which I am not satisfied with. Question what happens if I an after market controller
Answer:	I have no idea what you are talking about, sorry. I do like the stand. Less strain on my beck when reading.
Question:	Does this controller come with any wiring
Answer:	I didn’t buy a warranty. I think it’s reliable enough to last a long time. I only use mine for occasional reading and my grandson uses it to roll his cars on lol

Product description

▶Compatible With

 F150 2015-2021 2.7L 3.0L 3.3L 3.5L 5.0L

F-250 / F-350 / F-450 / F-550 2017-2020

Expedition2018-2019

▶Note

* Please confirm your old part number matches up with one of the part numbers above

* Professional installation is highly recommended (No Instruction Included)

* Please confirm whether your car model is suitable in the list above Before Purchasing

• ✔【Adaptation model】 F150 2015-2021 2.7L 3.0L 3.3L 3.5L 5.0L，F-250 / F-350 / F-450 / F-550 2017-2020，Expedition2018-2019
• ✔【Upgrade】Using high-quality imported chips, each one has been strictly tested before leaving the factory, ensure that every product is qualified.Original OEM 1:1 manufacturing, can be replaced directly, easy to operate，Made of high-quality materials with more stable characteristics
• ✔【Features】When decelerating or stopping, the delay time or the electric braking system of the trailer is engaged in proportion to the braking of the tractor.
• ✔【OEM】JL3Z-2C006-AA. HC3Z-2C006-AAGL3Z2C008CB ; JL3Z19H332AA ; JL3Z2C006AA ; FL3Z-2C006-AA ; FL3Z-2C006-AB ; GL3Z-2C006-AA ; GL3Z-2C006-BA ; GL3Z-2C006-CA ; GL3Z-2C006-CB ; FL3Z2C006AA ; FL3Z2C006AB ; GL3Z2C006AA ; GL3Z2C006CB ;GL3Z2C006BA ; GL3Z2C006CA ;
• ✔【WARRANTY】2 years warranty，If there is any product quality problem, we will refund the full amount. Xiaoyudou for a true worry-free experience.

User questions & answers

Question:	Will this work on a 2019 450 Ford
Answer:	yes
Question:	Will i need to get computer programed
Answer:	no
Question:	Will this work for a 2014 f
Answer:	Hello, dear customers. Our products cannot work at work for 2014 f150. Thank you for your email and wish you a happy life.
Question:	Once connected, where is the digital display for adjustment
Answer:	Hello, dear customers. Our model is decoded and does not need to get computer programed. After you try to install it, can it be activated normally? If not, you can try the following steps, Need to load drivers and upgrade (free) to Forscan Developer's License Connect cable to Truck and PC, run Forscan Only on laptop and turn Key to On in Truck(Forscan will do all the connection stuff automatically, and ask you if you have a switch for CanBus speed)-Note, in the Cable instructions, follow the picture for the VINT module for switch setting! Under Chip Icon Select IPC Module Configuration (blank) Hit Play symbol Select Trailer Brake Control Module click on Edit Selected box Select Enable Hit OK Click on Write box Say Yes when prompted do you want to do this? Should tell you to cycle key off and then on again. Select OK and Done. Then Do Same for Trailer Brake Controller Gain Setting. After all done Hit Stop. Thank you for your question and wish you a happy life.

• 【Compatible with】Ford F150 2015 2016 2017 2018 2019 2020
• 【Manufacturer Part Number】FL3Z1-9H332-AA, FL3Z1-9H332-AB, FL3Z-19H322-AA, JL3Z-19H332-AA, FL3Z-2C006-AA, FL3Z-2C006-AB, GL3Z-2C006-CB, GL3Z-2C006-CA, JL3Z-2C006-AA, GL3Z-2C006-CB, GL3Z-2C008-CB
• 【Easy to use】Plug and play. Engineered to stringent OE specifications, easy installation and function same as original part
• 【Notice】In order to work, your Vehicle Must Be Equipped With Trailer Tow Package or Max Trailer Tow Package (Wiring). For Unit to Be Functional Will Require Your Local Dealer to Program / Flash
• 【Warranty】For any reason, if you are not satisfied with the purchasing, please contact us via Amazon message. We would offer a 1-year warranty, 100% satisfaction guarantee

Product features

High-precision mold forming

Precise size control, No burrs on the surface.

Recessed fingerprint design button

Easy operation

Precise interface

Plug And Play

Compatable With:

Ford F150 2015-2018

Compatable With:

Ford F150 2018-2020

Product description

The Reese Towpower BRAKE-EVN brake controller offers advanced proportional braking by applying brake pressure to match the vehicles deceleration rate. Proportional braking gets you get smoother stops that traditional time based controls. The boost feature gives the ability to apply more initial braking at the onset of stopping when towing heavier loads. When adjusted properly for your load, proportional brake controls can even extend the life of your vehicles brakes. The large LED display is easy to see when adjusting the control to handle the weight of your loaded or unloaded trailer. The BRAKE-EVN brake control can handle up to brake 4 axles and offers a simple plug in installation option, so be sure to get the proper factory harness for your vehicle. The perfect choice for light or heavy trailer loads.

• 1-4 Axle capacity
• Boost feature gives ability to apply more initial trailer braking
• Reverse battery protection
• No leveling required
• Diagnostics features incorporated in easy to read LED display

User questions & answers

Question:	Do I need to buy the pigtail for it to fit my 06dodge ram
Answer:	Just type in your 2002 Suburban and Amazon will put the one you need right there. That is what I did and it was perfect plugged right in. Easy as that
Question:	Is there an off and on switch or does LED indicator stay on all the time
Answer:	After 2006, Chevrolet stopped putting a terminal connector on the wire harness for the brake controller. Curt makes a “universal” harness connector that you can use to connect the controller to the truck harness. It is really very easy. Check YouTube for a video. I’m sure someone has done a video for your truck. Sorry, I don’t know the Curt part number for that universal harness but it is less than $10. I bet Amazon will List this harness as an add on if you go to the purchase page for the controller. Be sure to specify your truck info.
Question:	What is the dimensions of this unit (height, width, length front to back
Answer:	Yes, it has a knob on top and a sensitivity bottom on side. The unit will also automatically sense if you need more trailer braking on emergency stops. If you have it set on 3.0 and you are only using 2.2 , it will automatically go to 3.0 if needed. It is a nice unit. Pulling 20 ft. Enclosed with Chevy Duramax.
Question:	Why does Amazon say it won't fit my 2018 Jeep Wrangler JK, aren't they all fairly universal? Or is it just because I don't have a factory harness
Answer:	Proportional..the internal 'tri axis' sensor varies the intensity of electrical brake output dependent on vehicle motion.

Product description

▲IMPORTANT▲

▲Pls carefully verify your year, make, model in the product details or check your parts pictures, parts No. with ours before purchasing so as to prevent wrong purchasement and unnecessary expenses.

▲If you find the parts not fit your car when you received, pls kindly send it back with undamaged package. Thank you!



Compatible with Ford

F-150 2015-2020

F150 2015-2020



★1 Year Warranty

★US Stock

★Fulfilled by Amazon

★100% Tested Before On Sale

★Top OEM Quality

If you have any questions, contact with us, we will reply you in 24 hours and offer the solve way for you.

If you are satisfied with our products and services, please give us a five-star rating, thank you!

• ★1 Year Warranty. High quality replacement parts, 100% brand new, 100% tested before on sale.
• ★Please confirm your car model and the OE of the part before purchasing to avoid buying the wrong.
• ★Easy Installation. High Reliability. It could correctly replace the original part.
• Part Number Fitment: JL3Z-2C006-AA, JL3Z2C006AA, JL3Z-19H332-AA, JL3Z19H332AA, GL3Z-2C008-CB, GL3Z2C008CB, GL3Z-2C006-CA, GL3Z2C006CA, FL3Z-2C006-AB, FL3Z2C006AB
• If you have any questions, contact with us, we will reply you in 24 hours and offer the solve way for you. If you are satisfied with our products and services, please give us a five-star rating, thank you!

• 【Compatible With】Ford F150 2011-2014
• 【Replacement Part Number】 BL3Z-19H332-AA
• 【 Package List】Trailer Brake Control Switch x1pc, Connector x2pcs,Installation x1pc
• 【Installation】Vehicles must be equipped with trailer tow package or max trailer tow package wiring. Truck need to be reflashed for the instrument cluster to function properly with the new brake controller.
• 【Warranty】12-Months-Warranty,If you have any questions, please contact us via Amazon Message directly, our professional customer service would help.

User questions & answers

Question:

Is this plug n play? Doesn’t the computer need to be flashed

Answer:

It is plug and play as long as your truck came with a tow package from the factory. There should be a wiring harness taped next to your ODBII port or possibly up behind the cubby box that the trailer brake control module goes in.. Its pretty easy to flash the computer yourself too. You will need a laptop with free software called FORScan, as well as a USB or bluetooth FORScan compatible ODBII adapter. It took me about an hour to install and flash after watching Youtube videos on how to do it.

Product description

Compatible With

• 2015 2016 2017 2018 2019 2020 Ford F-150

Please check the part number before buying to make sure it fits your car

Note:

Your truck must already be equipped with Trailer Tow Package or Max Trailer Tow Package (wiring) for this kit to be functional.

After installation your F-150 will need it's Smart Junction Box "enabled" (flashed/programmed) to recognize the newly installed brake control module.

Package Included:

1 In-Dash trailer brake controller module

About Us

 Our products are 100% brand new quality products, welcome to buy. With our best products and best services, we believe this will be a pleasant shopping experience.

 We care about our valued customers and hope to establish a long-term business relationship with you, so please help us do better.

Quality assurance

 1. Each item has been factory tested and meets or exceeds OEM specifications.

 2. Provide lifetime warranty service. If you are not satisfied with the product or the product has quality problems, you can contact us at any time, we will provide you with a satisfactory answer and solve the after-sales problem for you.

We attach great importance to quality and service. If you have any questions about the project or our services, please contact us first. We value your feedback, so we will strive to answer all inquiries within 24 hours. (Except Sundays and public holidays.)

• 【Direct Replacement】: If the brakes of your main car and trailer are not coordinated, especially at high speeds, it will be very dangerous. It is recommended that you replace it in timeThis fully integrated trailer brake controller has excellent functions. It can synchronize the vehicle and trailer brakes to achieve seamless braking and provide enhanced driving control without worrying about safety. It meets or exceeds OEM standards, and has been factory tested, so you can rest assured
• 【High Quality】: The trailer brake controller uses reinforced materials, has a long service life, and is very sensitive. It can help maintain trailer control through selective wheel braking and reduced engine power. Even if you tow the maximum load, you can feel the excellent stability and control, providing you with excellent performance and absolutely stable safety guarantee
• 【Fits For】: 2015 2016 2017 2018 2019 2020 Ford F-150
• 【OE#】: JL3Z-19H332-AA；GL3Z-2C008-CB；GL3Z-2C006-CB；GL3Z-2C006-CA；GL3Z-2C006-AA；GL3Z-2C006-BA；GL3Z-2C006-CA；FL3Z-2C006-AB；FL3Z-19H332-AA ；FL3Z-2C006-AB；FL3Z-2C006-AA；FL3Z-2C006-AB This is the real part, if it is invalid, you only need a refund
• 【Buy with Confidence】: Our in-Dash trailer brake controller module has a lifetime warranty. If the part fails or breaks, please contact us for replacement. Save hundreds of dollars off of dealer prices by purchasing this part and taking advantage of our warranty.Price concessions and guaranteed, no need to worry about quality problems

Product description

Manufacturer Part Number: JL3Z2C006AA



Interchange Part Number:

JL3Z2C006AA, JL3Z-19H332-AA, GL3Z-2C008-CB, GL3Z2C006CA, FL3Z-2C006-AB, FL3Z2C006AB



Other Part Number:

GL3Z-2C008-CB, GL3Z2C006CA, FL3Z-2C006-AB



Fitment:

For 2015 Ford F-150

For 2016 Ford F-150

For 2017 Ford F-150

For 2018 Ford F-150

For 2019 Ford F-150

For 2020 Ford F-150



Package Include: 1 x In-Dash Trailer Brake Control Module

• Fits for: 2015-2020 Ford F-150
• Manufacturer Part Number: JL3Z2C006AA
• Interchange Part Number: JL3Z2C006AA, JL3Z-19H332-AA, GL3Z-2C008-CB, GL3Z2C006CA, FL3Z-2C006-AB, FL3Z2C006AB
• Other Part Number: GL3Z-2C008-CB, GL3Z2C006CA, FL3Z-2C006-AB
• Package Include: 1 x In-Dash Trailer Brake Control Module

User questions & answers

Question:	Hello all. Does the module light up (+/- symbols) when it has power
Answer:	The controller doesn’t light. It connects to the information display on your dash. You need to enable the display by using forscan or one of plug-in units sold online.
Question:	Where does it mount on the dash
Answer:	There is a change holder that lives on the lower left hand side of center stack in the dash. I couldn’t tell anything else because I never received. Beware!
Question:	Can this fit a 2020 f150 XLT truck
Answer:	I'd say so, I have a 2020 STX. As long as your dash has the cutout for it, yes. Some disassembly required to install**
Question:	Will this controller plug into factory wiring harness on my 2018 f150xlt
Answer:	Yes.

Product description

The REESE Towpower Brakeman IV is a smart electric brake controller that mounts in any direction with no leveling required. Its small, compact design and pre-wired plug-and-play feature allow for quick and easy connection to 2-, 4-, 6- and 8- brake systems. This 100% solid-state electronic includes two separate easy push-button adjustment controls (output and sync) that allow for not only different trailer weights (output) but also the speed of activation (sync) depending on your driving style. For easy-reading, the bright and prominent digital display clearly indicates the output setting, sync setting, brake overload or short connection. Smoother braking starts with a sensing device that determines the voltage power being delivered to the towing vehicle’s brakes and assists in accurately adjusting the trailer brakes for city or highway driving. Safety is key, which is why this controller includes advanced internal circuit protection to help prevent damage and is meant for use on 12-volt negative ground systems only. This essential accessory is backed by a limited lifetime warranty.

• INSTALLS QUICKLY: This 100% solid-state electronic with a small compact design mounts in any direction, no leveling required. Pre-wired plug-and-play feature allows for quick and easy connection to 2-, 4-, 6- and 8- brake systems.
• ADJUSTS EASILY: Two separate easy push-button adjustment controls (output and sync) allow for not only different trailer weights (output) but also the speed of activation (sync) depending on your driving style.
• DIGITAL DISPLAY: Bright and prominent digital display clearly indicates the output setting, sync setting, brake overload or short connection.
• SAFE & SECURE: This device includes advanced internal circuit protection to help prevent damage and is for use on 12-volt negative ground systems only. Includes a limited lifetime warranty.

User questions & answers

Question:	Will this plug and play on a 1995 gmc sierra
Answer:	Yes, they are a separate purchase, vehicle dependent, for my silverado it was $15
Question:	will this work on 2018 Silverado
Answer:	The LED lights stay on all the time.
Question:	Will it work on a 2018 dodge 3500 heavy duty
Answer:	Height is about 1 inch. Width is 2.75 inches. Length is 4.0 inches. The wire pig tail sticks out the back. With the bracket, the height is 1.5 inches and 3.0 inches wide and the length is unchanged.
Question:	does it come with a mounting bracket
Answer:	It should. They are only two kinds. You do need an additional harness to connect the unit to your factory wiring. Amazon did the same thing with my Tacoma, even though it was the ONLY controller that fit. I love it and it's very compact. It should be a good fit for your Jeep.

Product description

Ford BL3Z-19H332-AA

• The package length is 55 inches
• The package height is 23 inches
• The package width is 11 inches
• Package Weight : 0.686 kilograms

User questions & answers

Question:	Will this work for a 2013 XL? It has connector taped to obd2 port under dash and 4 pin under rear bumper
Answer:	yes it will fit your f150, the plug is up in the harness by where the controller would mount into the dash.
Question:	We have a 2013 f150 stx will this unit work
Answer:	yes this will work to add the brake controller on the truck.
Question:	Will this work on a 2016 f250xl with factory tow package and would it require dealer programming
Answer:	It would not work with a 2016 model year and yes you have to have factory installed trailer wiring.
Question:	I have a 2011 XLT with the factory tow package, my truck dosent have the 4" display. will it work with the basic cluster
Answer:	I also have a 2011 XLT with factory tow package (7 pin and 5 pin outlets) and it worked on mine. I do have the center display but I don't see any reason the controller wouldn't work. Not sure how you'd get the indications about what the settings are without the display though. You will have to get the dealer to activate the controller. My dealer did mine for free during an oil change.

• 【Premium Quality】: This trailer brake control module is a direct replacement for the original equipment module. Made of quality materials for reliable service, this plug -and-play module installs in the factory location for a clean finish.
• 【Direct Fit】: Direct replacement for a proper fit and easy installation, quality materials used, meets or exceeds OEM standards, 100% tested before shipping；
• 【Fitment/Compatibility】: for 2015-2020 Ford F-150 All Models
• 【Replacement OEM ( Original Equipment Part) Number】:  JL3Z2C006AA, JL3Z-19H332-AA, GL3Z-2C008-CB, GL3Z2C006CA, FL3Z-2C006-AB, FL3Z2C006AB
• 【Buy with Confidence】: Order from Ensun, we offer a 12 Months Warranty, truly worry-free shopping experience；

User questions & answers

Question:	do I need the module kit fit and the brake controller module and cabling
Answer:	Mine was plug and play on a 2017 F150 once I flashed the computer. No extra wiring was needed. Look to YouTube for install videos.
Question:	is this a time delay unit or is it a proportional unit
Answer:	It would be if it worked. Do yourself a favor and buy an OEM one. I unfortunately had to do that after getting screwed with this one.
Question:	Does the controller come with the eletrical hookup under the dash besides the lap top hook ups
Answer:	Hooks up under the dash but has to be flashed to the truck computer. The one I bought was fried.

Product features

Functions and Features

Functions:

• This trailer brake control module is a direct replacement for the original equipment module. Made of quality materials for reliable service, this plug -and-play module installs in the factory location for a clean finish.

Features:

• Ideal replacement - this trailer brake control module matches the fit and function of the original control module
• Easy installation - plug and play installation when replacing original equipment module
• Upgradable - can be installed as a seamless upgrade on vehicles not originally equipped with trailer brake control (programming required)
• Quality tested - this part has undergone extensive testing to ensure a quality fit and long service life

Professional Installation Recommended!

We not recommended you install the part by yourself. Professional installation is highly recommended!

Strict Quality Control!

All of our PARTS undergo strict quality control not just before shipping but throughout the production process. During each step of production multiple quality control checks are performed to insure each and every part lasts for years to come.

US Stock!

We rent large stereoscopic warehouse to storage thousands kinds of PARTS, Skilled workers sorting and packing, in order to confirm the correct part be shipping to you in time.

• Replacement OEM Part Numbers: FL3Z-19H332-AA ; FL3Z19H332AA ; GL3Z2C008CB ; JL3Z19H332AA ; JL3Z2C006AA ; FL3Z-2C006-AA ; FL3Z-2C006-AB ; GL3Z-2C006-AA ; GL3Z-2C006-BA ; GL3Z-2C006-CA ; GL3Z-2C006-CB ; FL3Z2C006AA ; FL3Z2C006AB ; GL3Z2C006AA ; GL3Z2C006BA ; GL3Z2C006CA ; GL3Z2C006CB ; HC3Z-2C006-AA
• Fit for: 2015 / 2016 / 2017 / 2018 / 2019 / 2020 Fo-rd F-150.
• A brake controller is usually mounted to the tow vehicle's driver's-side dashboard area, and engages a trailer's electrical braking system either time delayed, or in proportion to the tow vehicle's brake engagement when slowing down or coming to a halt.
• If you tow trailers, whether occasionally or regularly, a trailer brake controller is a product you should definitely consider investing in. It’s easily one of the most important towing accessories out there, probably second only to the trailer hitch itself.
• Need Programming. Professional installation is highly recommended. The part may not work properly if the installation is incorrect.

Product features

About Trailer Brake Controller Module

A brake controller is usually mounted to the tow vehicle's driver's-side dashboard area, and engages a trailer's electrical braking system either time delayed, or in proportion to the tow vehicle's brake engagement when slowing down or coming to a halt.

If you tow trailers, whether occasionally or regularly, a trailer brake controller is a product you should definitely consider investing in. It’s easily one of the most important towing accessories out there, probably second only to the trailer hitch itself.

Fit for the Following Vehicles:

2015 Fo-rd F-150

2016 Fo-rd F-150

2017 Fo-rd F-150

2018 Fo-rd F-150

2019 Fo-rd F-150

2020 Fo-rd F-150

Few Steps to Install a New TBC Module

1. Remove the center LH Instrument Panel (IP) finish panel.
2. Remove the IP storage bin: 1) Disengage the two clips on the top of the storage bin that retain it into the IP.Disengage the two clips on the top of the storage bin that retain it into the IP; 2) Remove the storage bin from the IP and disconnect the trailer control harness electrical connector.
3. Connect the trailer control harness electrical and install the new TBC module.
4. Install the center LH IP finish panel.

Caution:

1. Always check trailer and vehicle functions (I.E., Stop, Turn Signal, Electric Brakes and Running Lights) before operating your vehicle and trailer.
2. Always unplug the adapter from the trailer tow harness before unhitching.
3. If your trailer functions DO NOT operate properly, DO NOT operate your vehicle until corrections are made.

Product description

A CURT Quick Plug brake controller wiring adapter is one of the fastest and easiest ways to plug your brake controller into your vehicle. It requires no cutting or splicing! Just insert the vehicle-specific plug end into the OEM vehicle’s factory brake controller socket. The other end plugs into your CURT trailer brake controller. Quick Plug harnesses are available for a variety of vehicles and are unique for each vehicle application to provide the easiest possible installation. This particular brake controller harness fits certain years of the Ford Expedition, F150, F250 Super Duty, F350 Super Duty, F450 Super Duty, F550 Super Duty, Flex, Lincoln MKT and Navigator (see application info to verify fitment). CURT Quick Plug harnesses are compatible with most CURT brake controls and can be used as a replacement or for a new control unit installation. They're also great for towing all types of trailers with electric brakes. For versatile mounting of your trailer brake controller this Quick Plug wire harness measures two feet long. It also features a slit loom sleeve to keep the wires protected against crushing and abrasions. CURT Quick Plug wire plug-in adapters are made with 12-gauge wires for a reliable connection and braking, and come with zip ties to keep the harness contained and out of sight.

• EASY TO INSTALL. No cutting or splicing required! This vehicle-specific wiring harness allows fast, easy, plug-and-play trailer brake controller installation. Simply plug one end into your vehicle and the other into your CURT brake controller
• RELIABLE POWER. This brake controller wiring harness is constructed with quality 12-gauge wires to ensure consistent power between your trailer brake controller, vehicle and electric trailer brakes
• VEHICLE-SPECIFIC. This electrical brake controller wiring fits select model years of the Ford Expedition, F-150, F-250 Super Duty, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty, Flex, Lincoln MKT and Navigator
• VERSATILE USE. This trailer brake controller wiring kit is compatible with any CURT trailer brake controllers equipped with a quick plug connector -- proportional, inertia and time delay. It also features a 24-inch length for flexible positioning
• PROTECTED WIRES. To keep power flowing and ensure your connection stays well-protected, this trailer brake controller harness comes with a slit-loom sleeve, helping to keep the wires bundled, avoid crushing and resist abrasions

User questions & answers

Question:	I can’t find where it plugs into on my 2018 Ford F-150. Any ideas
Answer:	On the dash you have a small cubby looking a place to keep coins. The plug is attached to that in the back. You can find a video on utube that will help you
Question:	Why does the product description not match what the picture shows
Answer:	Michael , Amazon has already generated a description of this item and its hard to change the description, you would be purchasing the curt 51436 brake controller harness adapter
Question:	Amazons fitment chart says this will not fit a 2105 f150 but the curt fitment chart does???? Whos is correct
Answer:	Installed on 2013 with ease. I would think 2015 wire harness is not much different

Product features

CURT Electrical Trailer Brake Controllers

CURT offers several different trailer brake controller models to provide you with a solution that fits your unique towing setup and budget. We carry time-based and inertia-based or proportional brake controllers.

All CURT trailer brake controllers are designed for easy installation. Most use our quick plug harnesses, and each comes with its own set of features and benefits.

For a helpful guide in selecting a brake controller, see below.

Two types of brake controllers:

CURT electric brake controllers fall into one of two categories: inertia-based or time-based. These refer to the method of activation used by the brake controller. Both types are safe and effective for stopping a trailer. However, depending on your needs, one may be preferred over the other.

Inertia-based

Inertia-based or proportional trailer brake controllers use an electronic mechanism, called an accelerometer, to detect the momentum of the vehicle-trailer combination while braking. The controller accentuates the trailer brakes in proportion to the momentum, allowing for a smooth, highly efficient stop.

Time-based

Time-based activation is less complex than inertia-based. When stopping, a time-based brake controller accentuates the trailer brakes based on whatever gain setting is input by the driver. Although simple in operation, time-based trailer brake controllers are effective and provide a more budget-friendly option.

Heavy-duty towing

If you are towing a heavy trailer or cargo, an inertia-based brake controller will provide superior control to make smoother stops and to put less strain on your vehicle.

Light-duty towing

If you’re towing a simple boat trailer or popup camper, a time-based trailer brake controller may be sufficient. CURT time-based controllers are easily adjustable for varying loads.

Frequent towing

If you’re planning to tow often, an inertia-based brake controller is recommended. The sophisticated operation will help prolong the life of your vehicle and trailer.

Occasional towing

If you only plan to tow a few times a year, such as for family camping trips during the summer, a time-based brake controller is an effective and budget-conscious option.
