10 best small laser engraver for metal

• MCWlaser Fiber Laser Engraver for Industry and Business. Power: 50W/110V Engraving Area:220x220mm/8.7"x8.7" (175x175mm/6.9"x6.9", 150x150mm/5.9"x5.9", 110x110mm/4.3"x4.3", 75x75mm/2.6"x2.6" optional). Package includes fiber laser engraving machine, convenient 8-piece tool set and professional laser goggles (CE Certificate)
• Raycus/Max laser source. Lifetime 10,0000 hours, Free maintenance. Professional technology assistance online or message; Manual and Operation Video in English are provided.
• Application material: Mainly uesd for metal material (typical:Steel, stainless steel,silver, copper, alloy,aluminum,etc) ; part non-metal material (typical:plastic,ceramic,leather etc. ) ; Not sure,contact with us
• EZCAD Software included. Supports Windows XP, Win7, Win8, Win10 (32bits and 64bits). It can be compatible with Coreldraw, AutoCAD, Photoshop; The supported file formats include PLT(recommended), PCX, DXF, BMP,etc.
• Free shipping and import Duty. Delivery time 4 to 6 working days. 2-Year Warranty and free replacement for laser source within warranty period.

User questions & answers

Question:	Can i get a 110x110 lens with the larger lens as well for deeper engraving. also, does it run on ezcad2 or can i get ezcad3 with it
Answer:	Hi Hill, excellent question. The LH552301 spotlight is included in this kit. Thank you for your question.
Question:	I see it says 220v and 110v. What is the working voltage needed for the 50W laser? Thanks
Answer:	Thank you for your question. Our reciprocating blades like the 94103 are universally manufactured to work in all reciprocating saws. If you have further questions please feel free to contact our Skil Customer Service Representatives at 1-877-SKIL-999 (1-877-754-5999)

Product features

Raycus/ MAX Laser Source

Advanced Beam Quality; Stable Power Output and Higher Marking Speed; Long Service Life 100,000 Hours; Free Replacement within 2 Years

Reliable Galvanometer

High Precision; High Engraving Speed; High Efficiency; Long Life Span

Stable F-theta Lens

Energy Uniformity and Little Attenuation,Small Focus Spot; Deep Edge Marking, Various Working Area Optional

Professionl Controller and Software

Win7/8/10/XP Compatible; Coreldraw, AutoCAD, Photoshop Compatible ;Multi-language User Interface, Easy to Operate.

Red Point Position

Correct the Working Distance Without Any Tools; Easy to Work.

High Quality Material

High Quality Alloy Material; Stable Structure; Friendly Switch Button; Built-in Air Cooling.

Application：

Tips：

About Power：

●20W: No depth requirement when engraving or marking

●30W: Normal engraving or marking (most widely used and most cost-effective)

●50W: For deep marking or engraving

About working area:

●Normally, the default working area is recommended when we order the machine.

●For the same power machine, smaller working area gives higher precise and better marking effect.

About Voltage:

●Ships the machine according to the default voltage in the receiving country of the order. US 110V; Europe 220V.

Product description

Stainless Steel Permanent Engraving Etching + Rotary Chuck



Packing list:

1.50W fiber marking machine

Fiber laser source/module: MAX or Raycus

Working area(default): 220x220mm; the other area,please contact with us

Voltage: 110V in US, 220V in Europe

2. Original controller and Ezcad2 software included

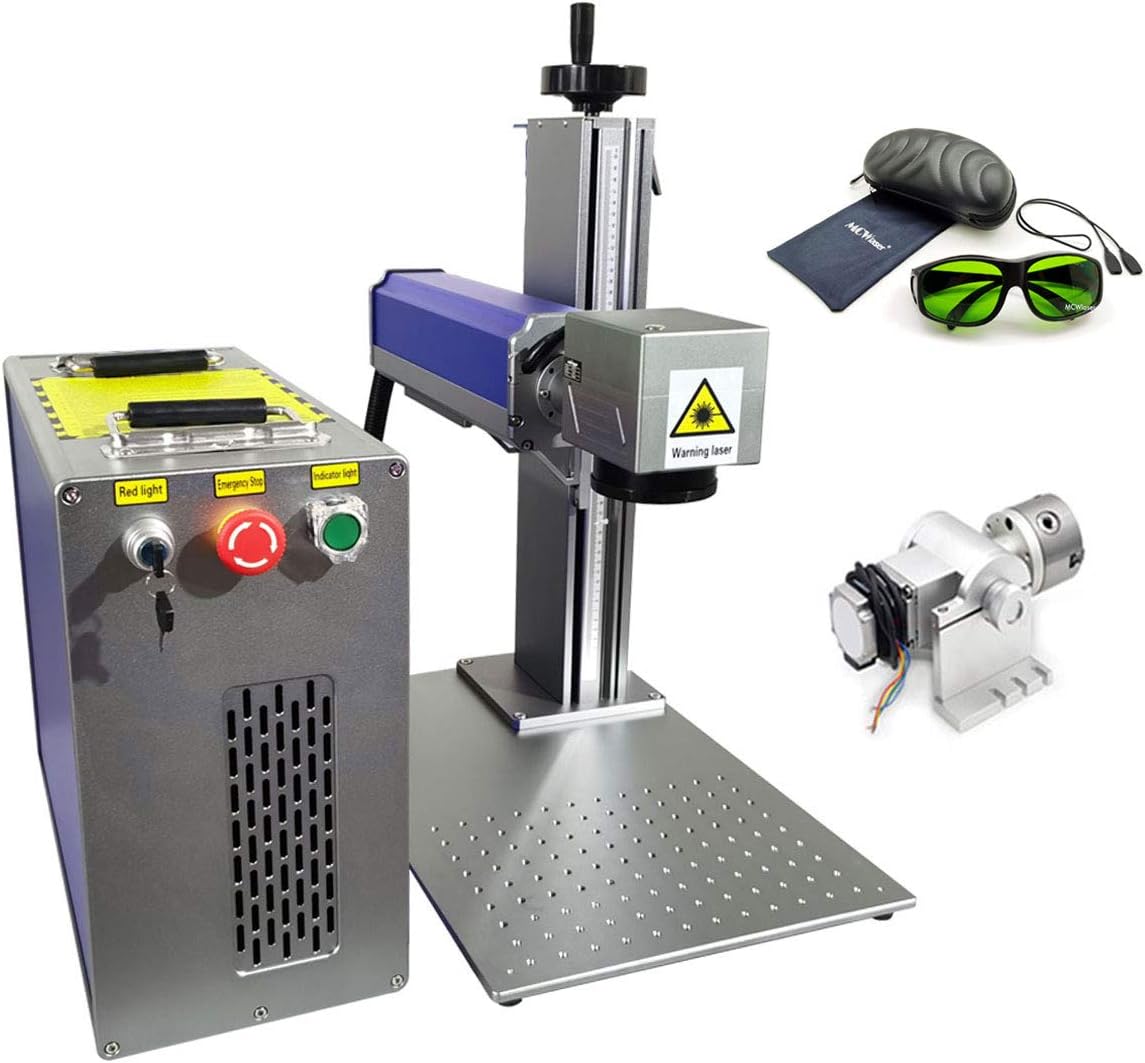

3. The rotary chuck included,working with 0-80mm diameter object)

Optional Parts:

The PC (not included, US$350);

Please contact if need



Feature:

1. Red pointer position, it's easier to find the right focal.

2. Good laser beam and higher photoelectric conversion, more finely and higher precision.

3. Air cooling, no water chiller.

4. No maintenance (100,000 hours service time); Low operation cost.

5. Good touch interface and powerful control system.

6. Easy to use by unskilled operator.

7.It can with WinXP/Win7(32/64bits)/Win8(32/64bits)/Win10;Be compatible with Coreldraw, AutoCAD, software such as Photoshop file; PCX, DXF, support PLT, BMP, SHX, TTF font can be used directly;

8. Marks directly to product, eliminates labels-cost.

9.It can mark on the steel, stainless steel, alloy,aluminum,brass,copper,sliver,gold,plastic,PP and so on.Please inquiry with us if not sure.



Technology support:

We provide the manual or operation video in English, technology support and service by online or remote control anytime.

• MCWlaser Fiber Laser Engraver for Industry and Business. Power: 20W/110V Engraving Area:220x220mm/8.7"x8.7" (175x175mm/6.9"x6.9", 150x150mm/5.9"x5.9", 110x110mm/4.3"x4.3", 75x75mm/2.6"x2.6" optional). Package includes fiber laser engraving machine, convenient 8-piece tool set and professional laser goggles (CE Certificate)
• Raycus/Max laser source. Lifetime 10,0000 hours, Free maintenance. Professional technology assistance online or message; Manual and Operation Video in English are provided.
• Application material: Mainly uesd for metal material (typical:Steel, stainless steel,silver, copper, alloy,aluminum,etc) ; part non-metal material (typical:plastic,ceramic,leather etc. ) ; Not sure,contact with us
• EZCAD Software included. Supports Windows XP, Win7, Win8, Win10 (32bits and 64bits). It can be compatible with software Coreldraw, AutoCAD, Photoshop; It also supports file formats like PLT, PCX, DXF, BMP, etc .
• Free shipping and import Duty. Delivery time 4 to 6 working days. 2-Year Warranty and free replacement for laser source within warranty period.

Product description

Prodction Description:

Item model number: ATOMSTACK A5 Pro 40w

Engraving Speed:1000mm/min

Print Size: Recommend Print Size 410*400mm

Carving Objects:All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal

Cutting Objects:Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.

Laser power: 40W

Laser output power: 5.3W

Wave Length: 445 ± 5nm

Engraving accuracy: 0.01mm

Focusing method: fixed focus laser, no need to focus

Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.

Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.

Input Format: NC, BMP, JPG, PNG, DXF, etc.

Data transmission method: USB connection.

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 5A

Equipment net weight: 4.0kg

Package weight: 5.6kg

Equipment size: 570*600*270mm

Packing size: 640*340*140mm

Certification: CE FCC RoHS FDA

• 1.New eye protection design:The laser protective cover perfectly protect your eyes,filter UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.
• 2.Solid and easy installation structure design:The full-metal structure design makes the machine more solid, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
• 3、Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
• 4.Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
• 5.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

User questions & answers

Question:	Is the machine delivered home address without any more cost
Answer:	Sorry, the size can't be increased.
Question:	Is there a rotary attachment that works with this engraver
Answer:	1 year
Question:	Can I put longer rails on it for a larger work area
Answer:	Thank for your interest in our machine. Yes, of course.It's no problem to supply the 110x110mm lens. If you want to engrave deeper, the lens with smaller working area (110x110mm or 75x75mm) is better than bigger working area( like 220x220mm or 175x175mm). Normally, we will send the Ezcad 2 with the machine, it's rather stable version.Any other question,you may also contact with us by [email protected]
Question:	Is there an warranty
Answer:	Thank for your interest in our machine. It''s no problem to send you the 110V or 220V as your request. Normally, we ship the machine according to the default voltage in the receiving country of the order/ Any other question,please feel free contact with us by [email protected] regards Shirley Cole Technology Co.,Ltd

Product description

Video

software operation marking---https://youtu.be/x2Usb3RgGZI

Stainless steel black engraving---https://youtu.be/0-WIHZ9GgIs

Steel engraving and cutting---https://youtu.be/eIrPlyombq8



User manual

https://drive.google.com/open?id=0B1RPb-RHDufBVVlJbWpXVVRXWWM



Feature:



High peak power and excellent beam quality.

Good touch interface and powerful control system.

Advanced digital high speed scanning galvanometer, small volume, quick speed, good stability.

Modular design, separate laser generator and lifter, more flexible, can marker on bigger area and complicated surface.

Be able to mark on aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

Adopt special flying marking control system, with good performance and easy operation.



Parameter:



Laser Type:Fiber Lasers Wavelength:1064nm

Laser Pulse Frequency:20-80Khz

Beam Quality:<1.4M2

Peak Laser Power:30W

Engraving Speed:<9000MM/S

Engraving area:<110x110mm or 200x200mm

Engraving Depth: less than or equal to 1MM

Repetition Precision: ±0.01MM Min.

Line Width: 0.02MM Min.

Character: 0.2MM

Cooling Mode:Air Cooling Graphic

Formats Supported:PLT. DST. AI. DXF. BMP.JPG.CAD. CDR. DWG

Power Source:AC 110V±10%, 50/60Hz

Working Temperature: 10-35 C

Working Humidity:below 75%(No condensation)

Working Environment: Clean;free of dust

Gross Power: below1000W

Safety Protection Class:IP54

Laser Generator Safety Class:IV

Adjustable Height Direction(Upper surface): 550-1200MM

Adjustable Height Direction(Side):400-1500MM

Front And Back Direction Adjustable Distance:0-200MM Marking

Angles:Any Angles

Laser Module Life:>100000 hours

Warranty:Two year

• More than 500 American customers,USA stock,2-5 day to your door,all cost covered.
• Engraving area 110x110mm with spare lens 200x200mm.Voltage:110V 60HZ

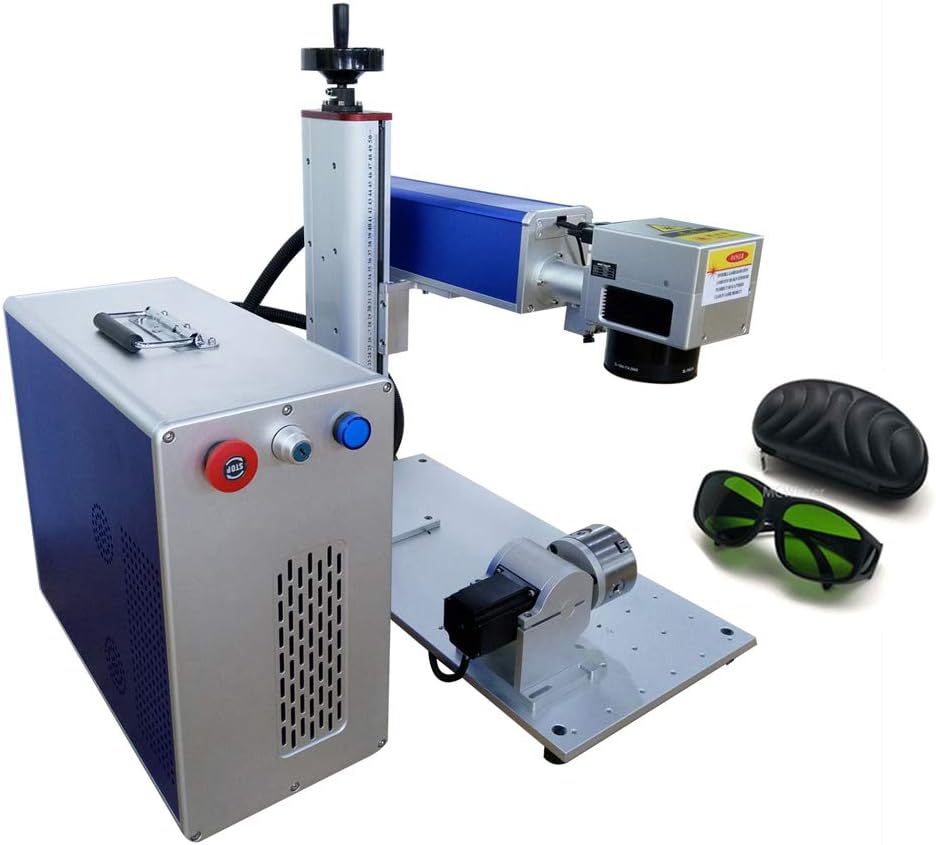

• With rotary attachment for cylinder engraving and with free goggles for eye protection
• Computer included and software installed ready to work,compatible with CORELDRAW, AUTOCAD, PHOTOSHOP format files.Support PLT, PCX, DXF, BMP, etc
• For this model,the protection enclosure is optional.Laser source is long life time as 100000hours,free maintenance.If you have any questions, please feel free to contact us.

User questions & answers

Question:	Can it mark chrome plated parts without damaging the piece
Answer:	After you ordered, pls inform us your order number and your laser source request, we will ship you machine as you requested. Thanks!
Question:	Can this machine do number marking on pc/abs plastics? The plastic i would be using is white
Answer:	We replied you this question before.Yes you can.thanks
Question:	How would i be able to choose the type of laser source if i were to purchase this laser engraver
Answer:	Yes the protection enclosure is removable.If you don't want it,we can ship you without it.Pls inform us your request and order number once you ordered it.Thanks!
Question:	I own this unit, can I purchase a 50w head for it
Answer:	50w machine is with power,working faste and egraving deeper than 30w. Thanks

Product description

Video

software operation marking---https://youtu.be/x2Usb3RgGZI

Stainless steel black engraving---https://youtu.be/0-WIHZ9GgIs

Steel engraving and cutting---https://youtu.be/eIrPlyombq8



User manual

https://drive.google.com/open?id=0B1RPb-RHDufBVVlJbWpXVVRXWWM



Feature:



High peak power and excellent beam quality.

Good touch interface and powerful control system.

Advanced digital high speed scanning galvanometer, small volume, quick speed, good stability.

Modular design, separate laser generator and lifter, more flexible, can marker on bigger area and complicated surface.

Be able to mark on aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

Adopt special flying marking control system, with good performance and easy operation.



Parameter:



Laser Type:Fiber Lasers Wavelength:1064nm

Laser Pulse Frequency:20-80Khz

Beam Quality:<1.4M2

Peak Laser Power:50W

Engraving Speed:<9000MM/S

Engraving area:<110x110mm or 200x200mm

Engraving Depth: less than or equal to 1MM

Repetition Precision: ±0.01MM Min.

Line Width: 0.02MM Min.

Character: 0.2MM

Cooling Mode:Air Cooling Graphic

Formats Supported:PLT. DST. AI. DXF. BMP.JPG.CAD. CDR. DWG

Power Source:AC 110V±10%, 50/60Hz

Working Temperature: 10-35 C

Working Humidity:below 75%(No condensation)

Working Environment: Clean;free of dust

Gross Power: below1000W

Safety Protection Class:IP54

Laser Generator Safety Class:IV

Adjustable Height Direction(Upper surface): 550-1200MM

Adjustable Height Direction(Side):400-1500MM

Front And Back Direction Adjustable Distance:0-200MM Marking

Angles:Any Angles

Laser Module Life:>100000 hours

Warranty:Two years

• Power supply 110v,60HZ.With rotary attachment which you can work with for any cylinder shape material for engraving.Protection eye goggles included.Foot switch is included.Testing aluminium sheets included.
• Engraving area 110x110mm and lens 200x200mm as spare.You can engrave all metals,polymer material,aluminum,stainless steel,copper,gun parts...
• Free maintenance/Lifetime 100000 hours,good support from our servicemen.Operation videos,tutorial videoes,manuals,tools...included.
• Computer included and Laser software EZCad installed,compatible 64bits or 32 bits computer system,supporting PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats,is installed,ready to work

User questions & answers

Question:	Do you carry one without the cabinet
Answer:	Yes we had customers who use our 50w machine for cutting thin silver and gold. Thanks
Question:	What is the difference between the 50 and
Answer:	Ours were very soft.
Question:	How tall is the adjustable pole and what’s the max engrave area in inches
Answer:	Blue
Question:	Can this be used to cut gold sheet 0.8mm thick to make nameplate necklaces
Answer:	I actually don’t have this blanket specifically but I will say I did not cover my newborns with thick blankets. I put them in warm pajamas with no blankets.

Product description

Specifications:

Plug Type: US

Model: NEJE Master 2, 20W

Optical Power: 450nm 5.5W

Control Board: 2 x MCU + wireless control + MEMS

Satety Protection: MEMS

Working Size: 170 * 170 mm

Pixel: 2266 * 2266 px

Dot Pitch: 0.075mm

Software: NEJE APP for Android, NEJE Wireless APP for iOS / macOS, NEJE software for windows, Benbox, LaserGRBL with firmware GRBL1.1f.

NEJE Software Upgrading Service: YES

NEJE Cloud Gallery: YES

NEJE Scanner Function: YES

Frame Material: CNC cutting composite plate + aluminum alloy + acrylic.

Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/Transparent Material

Continue Working: Unlimited

Wavelength: 450nm

Beam Shape: Dot (focusable)

Drive: Built-in

Lens Material: D-ZK3

Heatsink Material: Aircraft aluminum + brass shell

Luminous Color: Blue

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 3A

Image Format: .bmp \ .jpg \ .png \ .nc \ .dxf \ etc..

Item Size: Approx. 38 * 28 * 13cm / 14.96 * 11.02 * 5.12in

Item Weight: Approx. 1400g / 49.39oz

Package Weight: Approx. 2400g / 84.66oz

Package Size: Approx. 44 * 29 * 16.5cm / 17.33 * 11.42 * 6.50in



Packing List:

1 * Master 2 Laser Engraving Machine

1 * Laser Module

4 * Nuts

1 * Goggle

1 * L-shaped wrench

1 * USB Cable

1 * Small wrench

1 * Power Adapter

1 * Small Wooden block

1 * Test Paper

• 【More Convenient】Off-line and APP wireless control. NEJE scanner wireless transfer. Cloud gallery and online Gcode makes creation easier. 【Professional CNC Software】Benbox, LaserGRBL. 170 * 170 mm engraving range. Operating System: windows 7 / 8.1 / 10 / android / iOS / macOS. Picture format: BMP / PNG / JPG / NC / DXF,etc.
• 【Safe To Use】Built-in MEMS sensor protection, when accidentally touched, the machine will automatically stop working. 【Carved Material】It can carve MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc. (Not suitable for iron or other metal)
• 【Standard 450nm 7000mW Laser Tube】The Master 20W excels in fast cutting and can cut materials from 3mm to 8mm thickness. 【4Pin Laser Design with Temperature Sensing and Surge Protection Design】Can effectively extend the laser life, and the laser interface supports other machines developed by KKmoon. 【Easy to Assemble】After strict quality inspection, the whole machine was tested and assembled at the factory, you just need to assemble the X-axis and Y-axis together.
• 【Multi-functional Keys Supports Offline Work】Press 1 time to reset automatically, press 2 times to perform frame positioning, press 3 times to start engraving, press 4 times to stop engraving. Provide professionals with the ability to directly parse the works designed by Inkscape and CAD software, directly execute .nc files and .dxf files, and execute them accurately. You can do the complex edits in PS / Inkscape / CAD or similar and just burn with the included program.
• 【Engraving Materials】Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, alumina oxide, etc. Can not work on the stainless steel, alloy, glass, and some reflective materials.Especially good at cutting, It can cut wood (3-8mm). It supports engraving alumina oxide, and other non-reflective materials, depth of engraving (0.5-3mm wood). Need to switch to the CNC Mode to cutting.

User questions & answers

Question:	Is there any other videos showing what this machine can do
Answer:	Sorry, no.

Product description

Packing List:

• 50W Fiber Laser Engraver with 175*175mm(6.9"x6.9") Lens

Parameters:

• Laser Power: 50W
• Power Supply Requirements: 110V 60Hz
• Marking Area: 175*175mm
• Max. Material Thinkness: 206mm(8.1in)
• Laster Source: JPT LP-E
• Repetition Rate Frequency : 1-600kHZ
• Pulse Duration: 200ns
• Output Beam Diameter:7±0.5mm
• Output power adjustment range 10%-100%
• Marking Speed: 7m/s(275.6in/s)
• Engraving Depth:≤1.0mm(0.039in)
• Min. Line Width: ≤0.01mm（Depends on the material)
• Min. Character: 0.2mm（Depends on the material)
• Input Voltage: 110V-240V/50-60Hz
• Complete Power Consumption: 1000W
• Communication Mode for Automation TCP/IP, IO,RS232
• Operation System: Microsoft Windows 7/8/10/XP
• Control Software: EZCAD 2 Software

Advantages:

• Metal Deep ;Marking,Engraving
• Sheet metal cutting,Welding
• Metal Surface Treatment
• Metal surface processing, Peeling coating
• Compared with Q-switching technology, LP series has greater flexibility，wider frequency range, higher control precision and superior first pulse.
• The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
• Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

• Parameters--- Laser Power: 50W.Power Supply Requirements: 110V 60Hz.Marking Area: 175*175mm.Max. Material Thickness: 206mm(8.1in)
• Laser Type--- JPT LP-E Lasers.Repetition Rate:1-600kHZ.Pulse Duration: 200ns.Control board : BJ JCZ board(Original) Program : EZCAD 2 Stable performance and high reliability. Compatible with Windows XP/Vista/7/8/10.
• Configuration--- Oberservation Window;Galvanometer: Sino-Galvo Scanning Head; Lens: JollyStar; Software: EZCAD2.0 Supports PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats.
• Advantages--- Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.Red Dot Pointer:Provides a visual reference for locating where the laser will fire.
• Warranty--- Free Shipping.ETA:5 to 9 days.No Import Duty.2 years warranty.Remote assistance,Customer and Technical Support.English User Manual and Demo Video offered by USB flash disk along with the machine.

Product description

Enclosure Type JPT LP-E 50W Fiber Laser Engraver with 150*150mm Lens + shielding window + D69mm Rotary Axis

Parameters:

• Marking Area:150×150mm(5.9×5.9in)
•  Max. Material Thickness: 250mm(9.8in)
• Control board : BJ JCZ board(Original)
• Software Program : EZCAD2 (Compatible with Windows XP/Vista/7/8/10)
• Laser Type:JPT LP-E
• Repetition Rate:1-600kHZ
• Pulse Duration: 200ns
• Output poweradjustment range:10%-100%
• Marking Speed:≤7m/s(275.6in/s)
• Engraving Depth:≤1mm(0.039in)
• Power consumption: 1000W
• Communication Mode for Automation TCP/IP, IO,RS232
• Electrical Requirements:110V-240V/50Hz-60Hz(According to local electricity supply).
• Connection：USB Connection.Compatible with Windows XP/Vista/7/8/10.
• D69mm Rotary Axis---Internal Clamping Range:2-83mm.External Clamping Range:11-91mm

Advantages:

• Metal Deep Engraving
• Metal Surface Processing
• High Frequency Line Processing
• The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
• Applicable Material: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
• Focus finder can quickly find the focal length without using a ruler, just to see if the red dots and red lines overlap on the surface of the product which you want to mark.

• Laser Power: 50W.Marking Area: 150*150mm.Engraving Depth:≤1mm(0.039in) D69 Rotary Axis.Internal Clamping Range:2mm-83mm.External Clamping Range:11mm-91mm
• Laser Type:JPT LP-E Lasers.Repetition Rate:1-600kHZ.Control board : BJ JCZ board(Original) Program : EZCAD 2 Stable performance and high reliability. Compatible with Windows XP/Vista/7/8/10.
• Configuration：Observation Window;Galvanometer: Sino-Galvo Scanning Head; Lens: JollyStar; Software: EZCAD2.0 Supports PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats.Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
• Marking on various metal like Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,PBT, Silicon, Polymer andetc.
• Free Shipping.ETA:5 to 9 days.No Import Duty.2 years warranty.Remote assistance,Customer and Technical Support.English User Manual and Demo Video offered by USB flash disk along with the machine

User questions & answers

Question:	Hello , is this machine can marking and engraving on gold and silver sheet
Answer:	If you mark metal the area can be 200x200mm. Thanks
Question:	Will this machine engrave on stainless steel
Answer:	Hi,Edder,for engraving aluminium 1mm,yes,but not by one pass.And the smaller marking area,faster for deep engraving,for example 70x70mm.Certainly if you want to mark bigger area and not deep,you can buy optional lenses for 110x110mm or 150x150mm which you prefer.If you have more questions,feel free to write us.ThanksSincerelyIsaiah
Question:	what is the maximum measurement of engraving and if it can be sent from corel draw
Answer:	Cutting Carbon Steel/Stainless Steel Sheet and other non-metals like acrylic, wood, MDF, leather, fabric, etc and engraving on most of non-metals like wood, plexiglass bamboo, crystal, marble, ceramics,etc. Thanks
Question:	Can it engrave 1mm deep on metals? Aluminum
Answer:	Dear.You still need to pay tariffs!

Product description

Specifications:



Brand: Mssoomm



Power: 130W



Length: 1650mm ±30mm



Tube Diameter: 80mm



Installation Instructions



1. Determine the positive and negative poles of the laser tube (the end of the spiral glass tube inside the tube is positive and the light exit is negative).



2. The original positive and negative wires of the machine can be connected to the corresponding joints of the laser tube, and the insulation (mainly the positive high-pressure end) need to be sealed with a high-pressure tape or 704 silicon rubber.



3. Insert the inlet and the outlet water pipe into the water , usually the positive high-pressure line is the inlet, light outlet is the outlet, pay attention to the low into the high ( otherwise it is easy to cause cracking, burst pipe because the water is not filled ).



4. Adjust the optical path with the laser and test switch on the machine. The final target is to make the laser point enter from the middle of the entrance hole of the laser head, and then adjust the vertical optical path.



5. When the light path is adjusted, you can cut or use engraving, according to the actual situation to control the power output.





Tips & Warning



1. You must check whether the water circulation cycle is normal and no bubbles before each use.



2. The cooling water should have at least 20 liters, water temperature under 86℉ or 30℃, change water every 2 weeks.



3. Please keep the high voltage electrode dry and clean, and keep it away from the metal to avoid damage to the main board.



4. The laser tube is fragile. Avoid local stress when installing and using.



5.The color of the laser from new tube or with sufficient power is purple or pink. The beam is thick and strong. When the power of the laser tube decreases, the beam is thin and the color is white.

• 【REPLACEMENT DETAILS】: This CO2 laser tube Power: 130w /watt, Outer Diameter: 80mm, Length: 1650mm, universal for AC 110V and 220V, you can get more details from the 2nd image. The laser tube adopts inner discharge tube coated with nano gold catalyst, power is improved, and service life can get 10000hr
• 【WARRANTY】: Within 3 months receiving the laser tube, if there is any problem except for damage caused by man-made or improper operation, we will send a new laser tube for free or give a total refund. What you need to do is to message us through Amazon
• 【TEM00 MODE】: The output laser is the TEM00 mode, which has high spot concentration, high energy density as well as good and stable spot, making laser machine with better performance
• 【Pre-connected Wire】: There are pre-connected wires for matching positive and negative sides, make installation easy. If you need support during the installation and usage, please give us message through Amazon without hesitation
• 【METAL HEAD】: With metal head, it is not easy to crack like the glass head laser tube, make service life longer

User questions & answers

Question:	How can i have a damaged laser tube replaced
Answer:	You can see the details on the 2nd image of the 50W co2 laser tube listing. The length: 800mm; the diameter: 55mm; Beam Diameter: around 3mm; Triggering Voltage: DC 23kV; Working Voltage: 17kV; Recommended Current: 10-15mA; Max Current: 18mA. If you have other questions, you could let us know.
Question:	Hi, it says that the length is 1000mm forthe 60 watt, but is that the length of the laser portion, or the total length of the tube
Answer:	40W laser tube can not cut metal. The 220W laser tube can, you can get some information from the ASIN: B08K7HB3R6. And could tell us what kinds of metal and the thickness you want to cut. You can give Amazon Message to us to communicate more.
Question:	I am making a laser cnc machine. positioning with stepper motors is designed. where do i get info for what is needed to power and hold this laser
Answer:	Not really sure about gold, but yes for silver. I just haven't tried it on gold yet. Sorry
Question:	Will this tube cut metal
Answer:	yes it will engrave on stainless steel. Thanks!

• 30W Fiber Laser Marking Machine Equipped JPT Laser Source and Dia.80mm Rotating Head.Laser Power: 30W. Marking Area: 175*175mm Engraving Depth:≤0.4mm(0.016in)
• Laser Source: JPT LP+ Series; Repetition Rate Frequency: 1-600kHZ; Pulse Duration: 200ns. Control board : BJ JCZ board(Original).EZCAD2.Compatible with Windows XP/Vista/7/8/10.Stable performance and high reliability.
• This rotary fixture is mainly for small hardware such as rings, bracelets,Cigarette holder, Pen, Bearinge,tc. Rotary spring clamping, fast mounting and dismounting to improve work efficiency.Accurate Position.180°Rotary Positioning.Stable Positioning.
• Applicable material: Fiber laser marking machine can work on all metals such as aluminum,stainless steel, brass, copper etc. and some of nonmetal such as nylon ,light button, ABS , PVC ,PES etc.
• Free Shipping from California.ETA:7-12 days.No Import Duty.2 year warranty.Remote assistance,Customer and Technical Support.English User Manual and Demo Video offered by USB flash disk along with the machine.Returnable for Non-human-induced Malfunction Machine.

User questions & answers

Question:	can this do black marking on dog tags
Answer:	The red box is as big as what you edit, but it's the size of your lens.For example, the lens is 175mm, the maximum supported red frame range is 175mm Here is the demo videos as for your reference. https://www.youtube.com/watch?v=KQLoUgulwMU&feature=youtu.be
Question:	Does this work with Lightburn software
Answer:	Yes.If you need this machine,pls place the order.we will ship it to you today by DHL. Tomorrow,we will increase the price due to the shipping cost.
Question:	in video of other lasers it shows a red box around where the engraving is going to be done is this part of the software ezcad
Answer:	It depends,You can contact us and send us the details of the item you want to print,we can have a test first and send you video
Question:	Is this a 50w mopa jpt laser
Answer:	/Duration -:-Loaded: 0%Stream Type LIVESeek to live, currently playing liveLIVERemaining Time -0:00 Playback Rate1xChaptersChaptersDescriptionsdescriptions off, selectedCaptionscaptions off, selectedAudio TrackFullscreenThis is a modal window. .noScriptDisplayLongText { display : none; } .noScriptNotDisplayExpander { display : none; } .noScriptDisplayLongText { display : block; } 10W
Question:	Does it etch on stainless steel
Answer:	Dear,This one supports 110v-220v
Question:	what is the Wattage
Answer:	We are sorry you got a damaged laser tube, you give your address and contact number to us through Amazon Message, we will send a new laser tube to you for free.
Question:	I need for 220w 240w
Answer:	The 1000mm length is the total length, and we also have 60W laser tube with total length of 1200mm, what length is suitable for you? You can give message to us

Product features

Fiber Laser Marking Machine Parameters

• Marking Area: A Type.110×110mm(4.3×4.3in) B Type. 150×150mm(5.9×5.9in) C Type.175×175mm (6.9×6.9in)
• Maximum Material Thickness: 300mm(11.8in) by 110×110mm lens 250mm(9.8in) by 150 ×150mm lens 206mm(8.1in)by 175×175mm lens
• Laster Type and Optional Repetition Rate(Frequency): 1-600kHz by JPT LP+ Laser Source
• Pulse Duration: 200ns.
• Control board : BJ JCZ board(Original)
• Soft Program : EZCAD 2.14.7 (Compatible with Windows XP/Vista/7/8/10)
• Output poweradjustment range:10%-100%
• Laser Wavelength:1064nm
• Marking Speed:≤7000mm/s(275.6in/s)
• Laser Power :20W(Power consumption: 500W) 30W (Power consumption: 800W) 50W (Power consumption: 1000W)
• Engraving Depth:20W----- ≤0.2mm(0.008in) 30W------ ≤0.4mm(0.016in) 50W------- ≤1mm(0.039in)
• Connection：USB Connection.Packing Size:785*505*775mm Wooden Case
• Electrical Requirements:110V-240V/50Hz-60Hz(According to local electricity supply).

JPT Fiber Laser Engraver Advantages

• - Metal Deep Engraving
• - Metal Surface Processing
• - High Frequency Line Processing
• F-theta Scan Lens.Typically distortion less than 1%, Air-spaced design and high efficiency AR coatings excellent throughput and durability.
• EZCAD 2.14.7 Stable performance and high reliability,ensuring higher stability and shield-utilizing part of complex functions. Compatible with Windows XP/Vista/7/8/10.
• Quickly find the focal length without using a ruler, just to see if the red dots and red lines overlap on the surface of the product which you want to mark.
• Customer and Technical Support. Easy Operation, English User Manual and Video

JPT Laser source

Compared with Q-switching technology, JPT OLP series fiber laser is more flexible, supporting wider range of frequency adjustment and higher precise control. As compared to JPT M series fiber laser, the MOPA configuration adopts the pulse compensation, which enables minimum pulses deformation, hence makes the peak power of the fiber laser higher.

Galvometer

SINOGALVO 7110/ Scanlab

(optional))

Lens

Wavelength/Jollystar

(optional)

Three-Jaw Rotary Chuck Optional

D80mm Rotary Axis

• --80mm (3.15in) Three-jaw Rotary Axis + Drive.
• -- Internal Clamping Range:2-22mm. External Clamping Range:22-63mm
• --This rotary fixture is mainly for small hardware such as bracelets,Cigarette holder, Pen, Bearinge,tc.
• -- Rotary spring clamping, fast mounting and dismounting to improve work efficiencyAccurate Position.180°Rotary Positioning.Stable Positioning.
• -- Industrial Standard Interface. Use Aviation Plug Fits Various Board Card
