14 best hydraulic adapters

Hydraulic adapters, also known as hydraulic fittings or connectors, are essential components in hydraulic systems used for various industrial and mechanical applications. These fittings play a crucial role in connecting and sealing hydraulic hoses, pipes, and other components to ensure the efficient transfer of hydraulic fluid under pressure. Here's what you need to know about hydraulic adapters:

  1. Types of Hydraulic Adapters: Hydraulic adapters come in a wide range of types and configurations to accommodate different connection needs in hydraulic systems. Some common types include:

    • Straight Adapters: These have a simple, straight design and are used to connect two components in a straight line.

    • Elbow Adapters: Elbow adapters have a 90-degree or 45-degree bend, allowing for changes in direction within a hydraulic system.

    • Tee Adapters: Tee adapters have a T-shaped design and are used to create branching connections in hydraulic systems.

    • Cross Adapters: Cross adapters have a cross-shaped design and are used to create four-way connections.

    • Reducer Adapters: Reducer adapters are used when you need to connect components of different sizes.

    • Bulkhead Adapters: These adapters allow for connections through walls or panels, commonly used in hydraulic reservoirs or enclosures.

  2. Materials: Hydraulic adapters are typically made from materials such as steel, stainless steel, brass, or aluminum, chosen based on factors like the working pressure, fluid compatibility, and environmental conditions.

  3. Thread Types: Hydraulic adapters have various thread types, including NPT (National Pipe Thread), JIC (Joint Industry Council), SAE (Society of Automotive Engineers), ORB (O-Ring Boss), and more. The choice of thread type depends on the specific application and system requirements.

  4. Sealing Methods: Hydraulic adapters may have different sealing methods, such as O-ring seals, cone seals, or flare seals, to prevent hydraulic fluid leakage and ensure a reliable connection.

  5. Installation: Proper installation of hydraulic adapters is crucial for the safe and efficient operation of hydraulic systems. This includes ensuring that fittings are tightened to the recommended torque values and using appropriate thread sealants or Teflon tape to prevent leaks.

  6. Applications: Hydraulic adapters are widely used in various industries, including construction, agriculture, automotive, aerospace, and manufacturing.They are integral components in hydraulic systems powering equipment such as loaders, excavators, hydraulic presses, and more.

  7. Safety: When working with hydraulic systems, safety precautions are essential. Hydraulic fluid under pressure can be hazardous, and proper training and safety equipment should be used when installing or maintaining hydraulic adapters.

In summary, hydraulic adapters are vital components in hydraulic systems, enabling the connection and efficient transmission of hydraulic fluid to power machinery and equipment in various industries. Selecting the right type of adapter, considering factors like material, thread type, and sealing method, is crucial for the reliable and safe operation of hydraulic systems.

Below you can find our editor's choice of the best hydraulic adapters on the market


Flat Face ISO 16028 to Ag ISO 5675 Pioneer Style Hydraulic Quick Coupler Adapter Set

Based on 44 reviews Check latest price

Product description

This heavy-duty universal quick disconnect flat face coupler and plug set offers high flow performance with maximum service life. Summit's durable top-quality couplings are manufactured to the latest ISO 16028 standard which guarantees they are interchangeable with other couplings and give dependable operation even when used at high flow rates.

The compact flush face valve design virtually eliminates air inclusion and hydraulic fluid loss during connection and disconnection for a safer working environment. The included dust covers are an added bonus, meaning these flat face couplers are easy to keep clean, while the heavily-textured sleeve and simple push-connect design offer enhanced grip and effortless one-handed operation.

Steel bodywork with anti-corrosion plating and hardened sleeves ensure optimum damage-resistance to maximize the life of the coupler. With a locking sleeve feature and nipple seal to prevent accidental disconnection, you can use these non spill couplings under high pressure, high-temperature conditions - guaranteed.

  • Easily adapt farm implements to use with your skid steer
  • One end has a skid steer quick coupler (1/2” Body) interchanges with ISO 16028 Flat Face couplers
  • The other end has the poppet valve Pioneer style coupler that interchanges with all ISO 5675 couplers
  • Includes dust caps to keep your couplers clean and prevent contamination
  • Locking sleeve helps prevent accidental disconnects

User questions & answers

Question: Where are these Adapters made? How long are these Adapters
Answer: 5 or6 inches
Question: Do you know if this will fit my 1993 Case 1840? Need a set to hook up an Auger
Answer: Should if standard is fittings
Question: Are both pressure and return adapters included, or would you need to order 2 for something like a brush grapple
Answer: It is a complete set, you don’t need to order 2. We used these to connect a trencher to our Bobcat and they worked flawlessly.

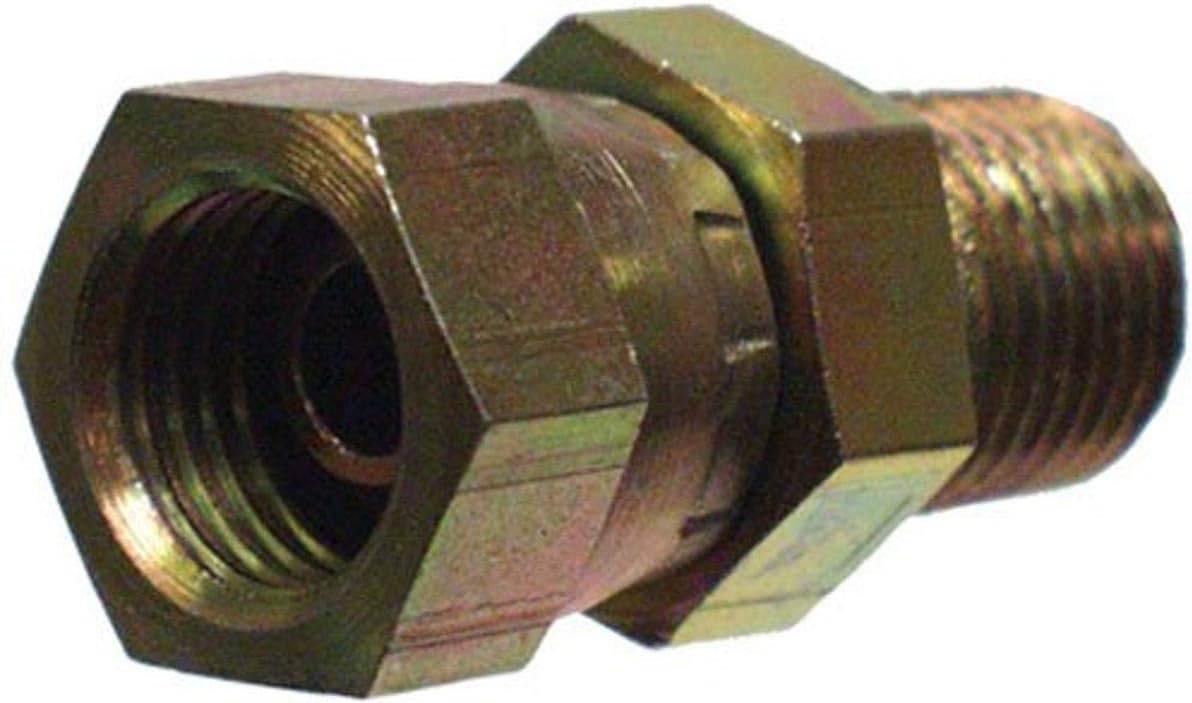

Apache 39004350 1/2" Male Pipe x 3/8" Female Pipe Swivel Hydraulic Adapter (Style 1404)

Apache

Based on 16 reviews Check latest price

Product description

1/2 inch male pipe x 3/8 inch female pipe swivel, hydraulic Adapter, can be used for industrial, commercial & agricultural hydraulic fluid applications for ease to connect/adapt existing hydraulic hose assemblies, hydraulic information: a60-r 1404-8mp6fpx.

  • The product is 1/2" male pipe x 3/8" female pipe swivel, hydraulic Adapter
  • Item Package Length: 4.29999999561399"
  • Item Package Width: 2.599999997348"
  • Item Package Height: 1.699999998266"

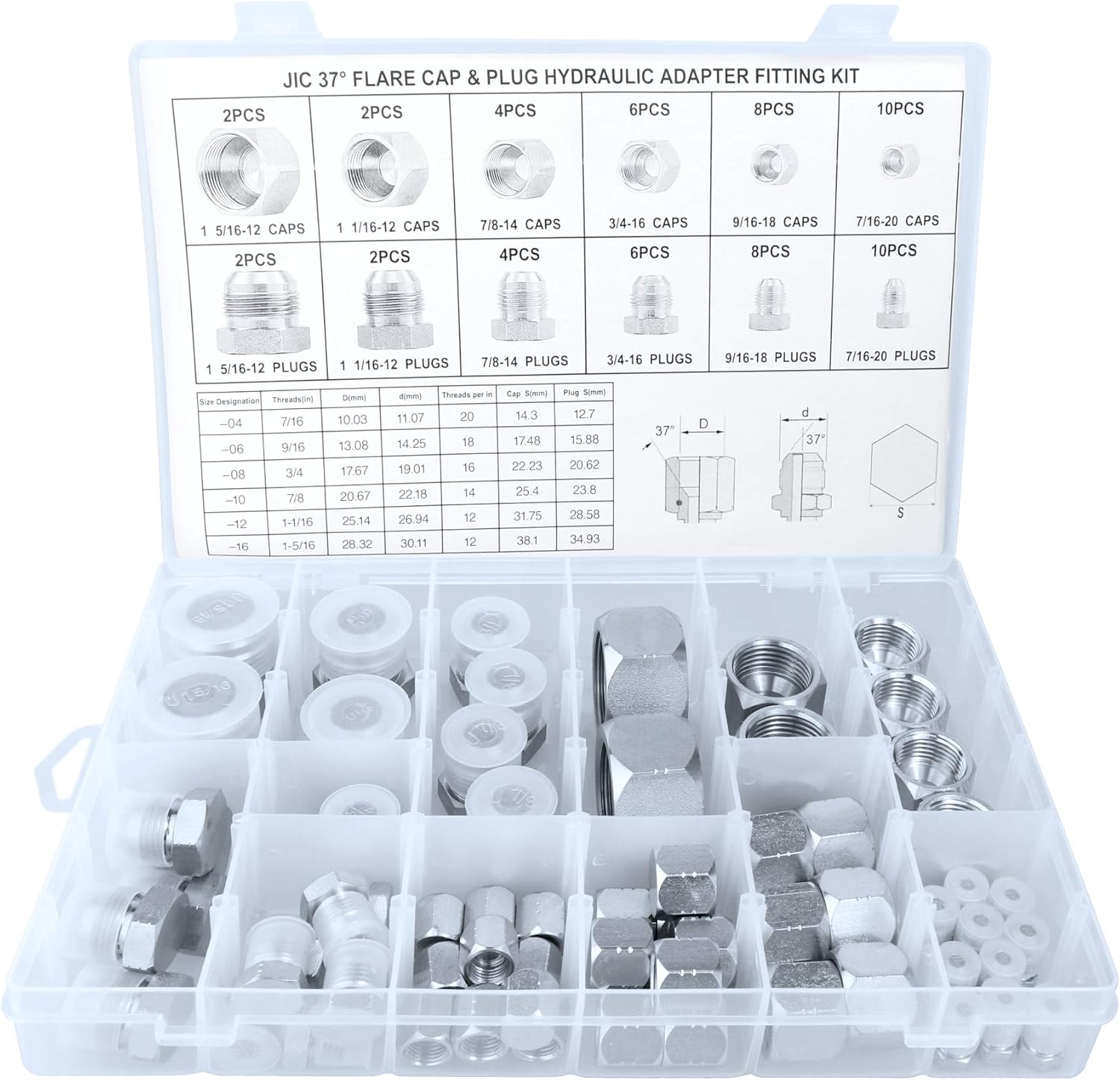

64pcs JIC 37°Flare Cap and Plug Kit,JIC Cap & Plug Assortment Hydraulic Adapter Fittings"an" Kit Set

Based on 5 reviews Check latest price

Product description

64 PCS LOT JIC 37°flare plug and cap hydraulic adapter fitting"an" kit set



The jic hydraulic caps and plug kit use for high pressure fuel delivery and fluid power applications



Packed in a plastic storage box case and with size chart with thread sizes



Package contain 64 pieces as follows:

#4 (7/16-20) JIC CAPS---10PCS

#6 (9/16-18) JIC CAPS---8PCS

#8 (3/4-16) JIC CAPS---6PCS

#10 (7/8-14) JIC CAPS---4PCS

#12 (1 1/16-12) JIC CAPS---2PCS

#16 (1 5/16-12) JIC CAPS---2PCS

#4 (7/16-20) JIC PLUGS---10PCS

#6 (9/16-18) JIC PLUGS---8PCS

#8 (3/4-16) JIC PLUGS---6PCS

#10 (7/8-14) JIC PLUGS---4PCS

#12 (1 1/16-12) JIC PLUGS---2PCS

#16 (1 5/16-12) JIC PLUGS---2PCS

  • 64 PCS hydraulic JIC cap & plug assortment hydraulic adapter fitting kit set,also known as "AN" 37 degree flare caps and plugs
  • Use for high pressure fuel delivery and fluid power applications
  • High quality:made by carbon steel,engough durable jic cap and plug kit fittings
  • Packed in a plastic storage box case and with size chart with thread sizes
  • Package including:#4 (7/16-20) JIC caps&plugs---each 10PCS| #6 (9/16-18)caps&plugs ---each 8PCS| #8 (3/4-16)caps&plugs---each 6PCS| #10 (7/8-14)caps&plugs---each 4PCS| #12 (1 1/16-12) caps&plugs---each 2PCS| #16 (1 5/16-12) caps&plugs---each 2PCS

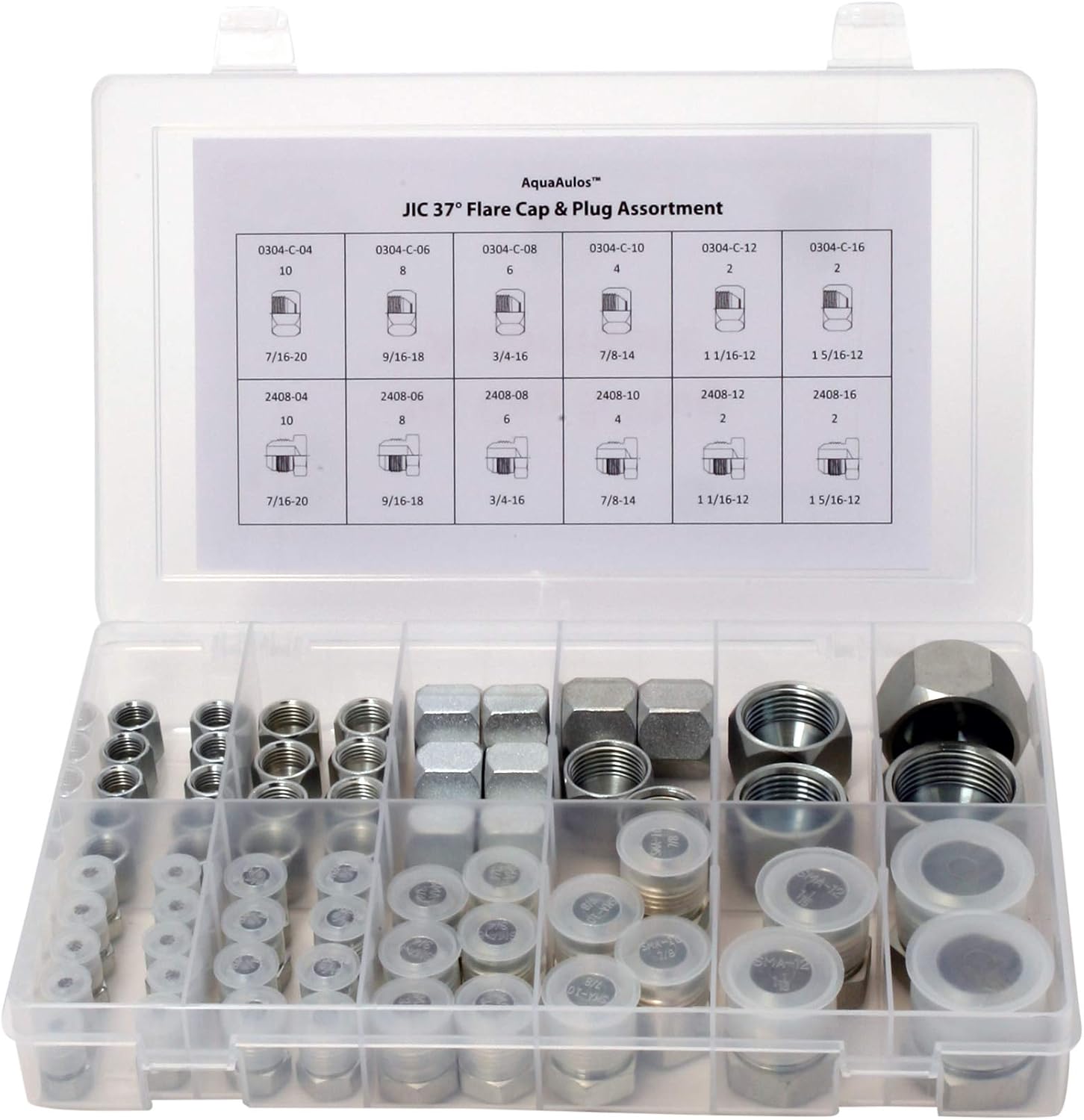

64 Pcs. JIC 37° Flare Thread Cap & Plug Assortment Kit, Galvanized Steel with Precision Threading Hydraulic Adapter AN Fitting Set, Dash Sizes 04 06 08 10 12 16

AQUAAULOS

Based on 195 reviews Check latest price

Product description

Each kit contains the following:

  • #4 (7/16-20) JIC CAPS – 10 pieces
  • #6 (9/16-18) JIC CAPS – 8 pieces
  • #8 (3/4-16) JIC CAPS – 6 pieces
  • #10 (7/8-14) JIC CAPS – 4 pieces
  • #12 (1 1/16-12) JIC CAPS – 2 pieces
  • #16 (1 5/16-12) JIC CAPS – 2 pieces
  • #4 (7/16-20) JIC PLUGS – 10 pieces
  • #6 (9/16-18) JIC PLUGS – 8 pieces
  • #8 (3/4-16) JIC PLUGS – 6 pieces
  • #10 (7/8-14) JIC PLUGS – 4 pieces
  • #12 (1 1/16-12) JIC PLUGS – 2 pieces
  • #16 (1 5/16-12) JIC PLUGS – 2 pieces

  • High-Quality and Long-Lasting Zinc Trivalent Plated AISI 12L14 Carbon Steel 37° JIC Cap & Plug Fittings Kit - Conform to SAE J514 Technical Specifications, Prevents Corrosion and Withstands High Pressure Applications
  • Set Includes 6 Most Used Cap & Plug Sizes: #4 (7/16-20), #6 (9/16-18), #8 (3/4-16), #10 (7/8-14), #12 (1 1/16-12), #16 (1 5/16-12)
  • These fittings are used in a test-point and diagnostic setting. They are most commonly used in fluid power and fuel delivery applications, especially those using high pressure
  • Suitable for use with machine tools, agricultural and earth moving machinery, truck, chemical processing systems, and most other high-pressure petroleum and mineral oil-based fluids hydraulic applications
  • Package Quantity: 64-Pieces, All of Product Will Be Packed in A Sturdy Transparent Plastic Case, Can Be Use for A Storage Box, Keeps Set Secure and Organized

User questions & answers

Question: replace broken need replacement case
Answer: Yes, it appears to be the same size as found at gas stations.
Question: Will these fit all lines on jd 310e 1999? thanks
Answer: I’ve always been told blue is for farm diesel (tax exempt fuel with red dye)

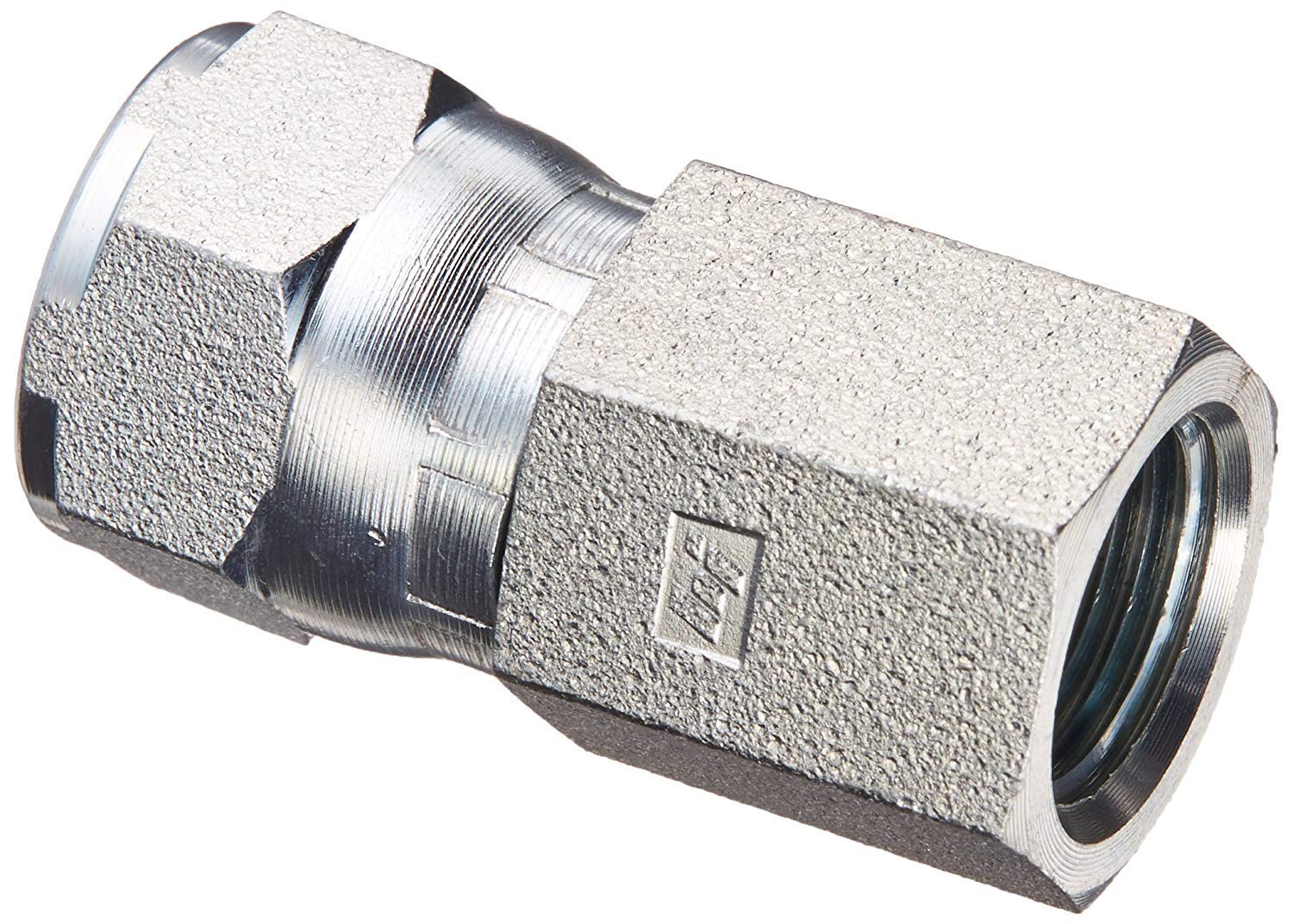

Apache 39004800 1/2" Female Pipe x 1/2" Female Pipe Swivel Hydraulic Adapter (Style 1405)

Apache

Based on 40 reviews Check latest price

Product description

For high pressure hydraulic systems. Swivel adapters are rated up to 10,000 PSI, depending on size. NPSM X NPTF thread for metal to metal seal. Swivels: Yes, Max. PSI: 10,000, Fitting Size (in.): 1/2 x 1/2

User questions & answers

Question: what is the pressure rating please
Answer: Safe to assume same as the 1/2 in hose at 3500 psi. If you have a high pressure hose, of say 5000 psi, I don't see these failing before the hose.

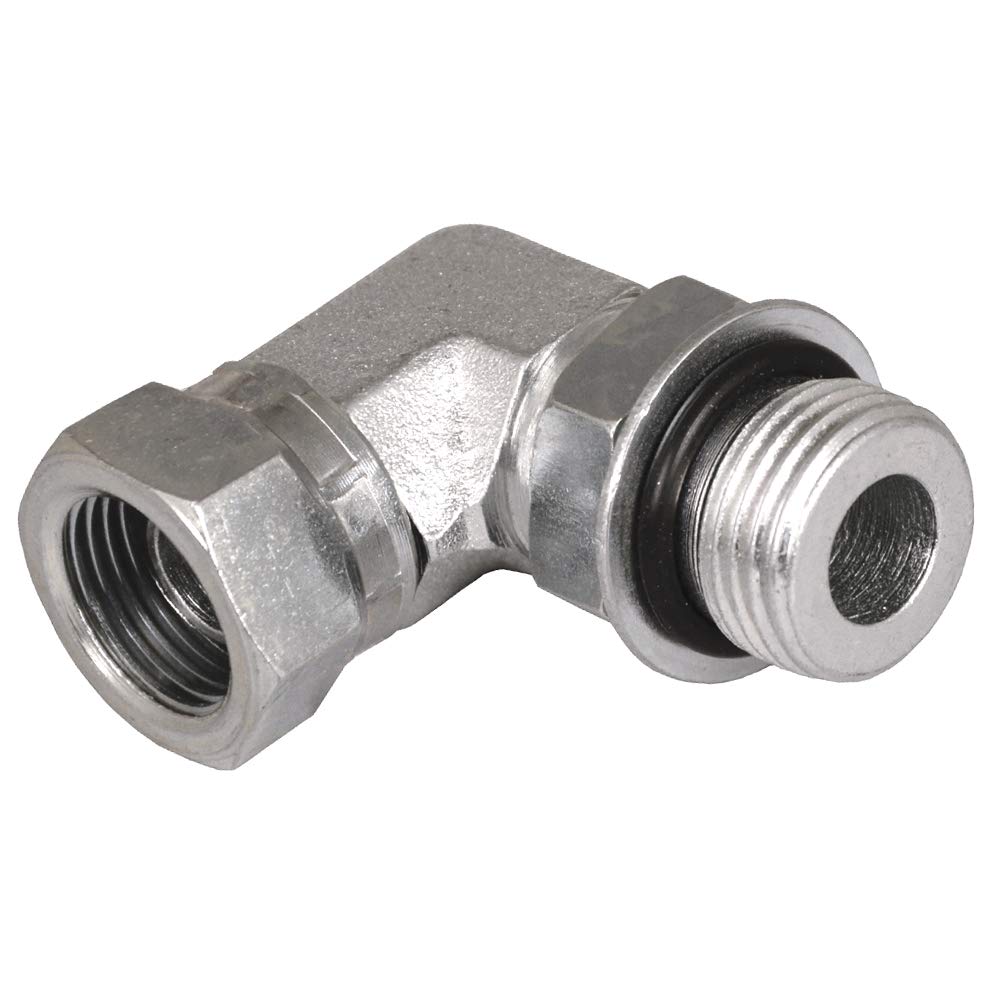

Apache 39006125 1/2" Male O-Ring Boss x 1/2" Female Pipe Swivel 90° Hydraulic Adapter (Style 6901)

Apache

Based on 19 reviews Check latest price

Product description

Apache 39006125 1/2" Male O-Ring Boss x 1/2" Female Pipe Swivel 90° Hydraulic Adapter (Style 6901)

User questions & answers

Question: Are these npt thread
Answer: Hi, yes they are npt.
Question: My male thread measures .550 o.d. with an o ring its on a plow hose and isnt npt will this work
Answer: No. The female thread is 1/2 npt. .56 male o-ring is SAE 6

Apache 39006174 1/2" Female JIC x 3/8" Female Pipe Swivel, Hydraulic Adapter

Apache

Based on 20 reviews Check latest price

Product description

Apache 39006174 1/2" Female JIC x 3/8" Female Pipe Swivel, Hydraulic Adapter

  • 1/2" Female JIC x 3/8" Female Pipe Swivel
  • Hydraulic Adapter
  • Can Be Used For Industrial
  • Model Number: 39006174

User questions & answers

Question: What is the psi rating
Answer: This is the spec hose is built to. SAE100R2AT. This would be 2 wire hydraulic hose.

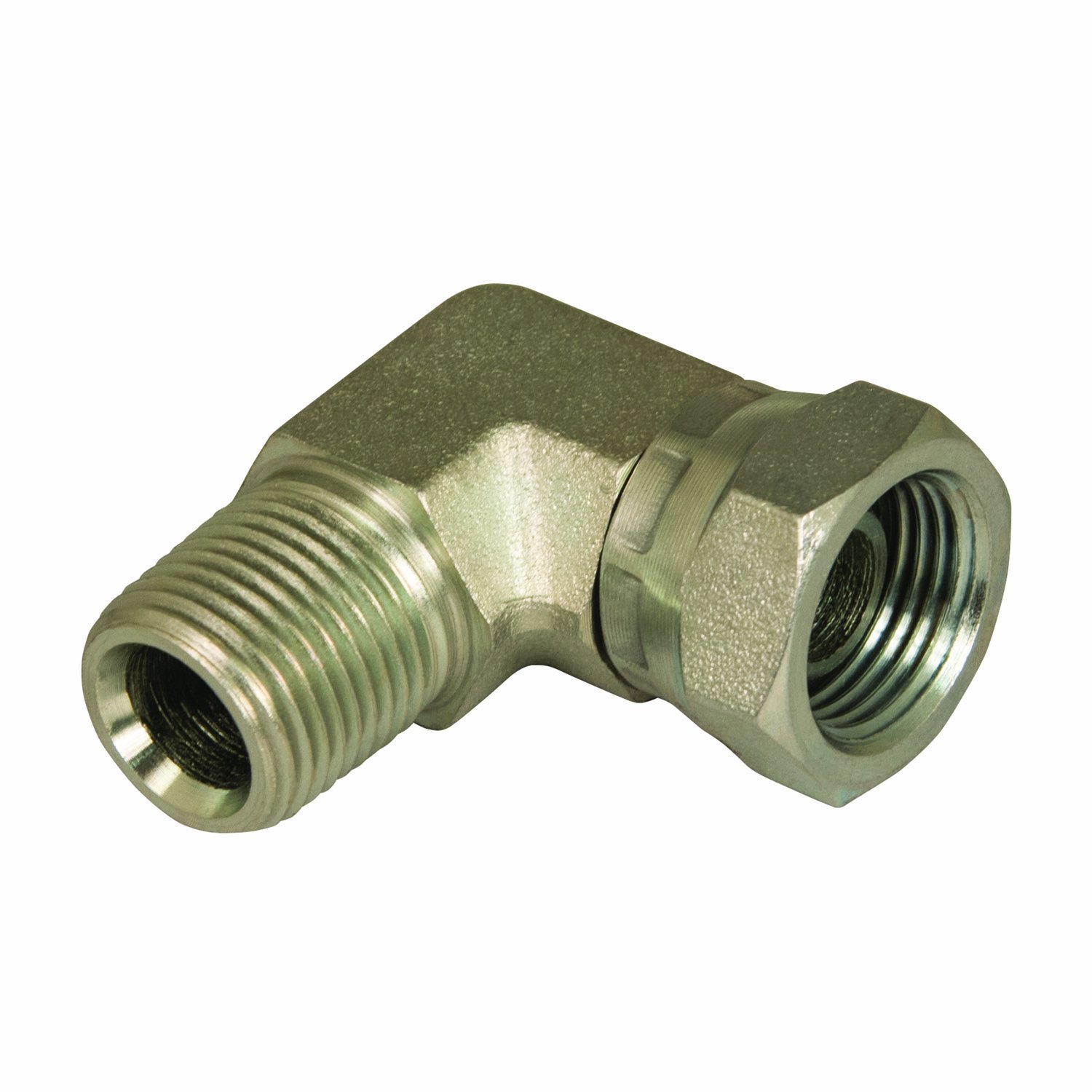

Apache 39005075 3/8" Male Pipe x 3/8" Female Pipe Swivel 90° Hydraulic Adapter (Style 1501)

Apache

Based on 79 reviews Check latest price

Product description

For high pressure hydraulic systems. Swivel adapters are rated up to 10,000 PSI, depending on size. NPSM X NPTF thread for metal to metal seal. Fitting Size (in.): 3/8 x 3/8, Max. PSI: 10,000, Degree of Angle ( deg ): 90, Swivels: Yes

User questions & answers

Question: is this NPT thread
Answer: yes it is.
Question: Is It 3/8-24 for Dexter 250 hydraulic brake line
Answer: NO i used it on my farm tractor , try Sumit auto parts or RockAuto Parts
Question: What's the pressure rating
Answer: The swivel will have a maximum pressure of 10,000 PSI.
Question: Can this be used on a water line
Answer: It is steel and designed for hydraulic oil pressures. Using it on water lines will most likely cause it to rust.

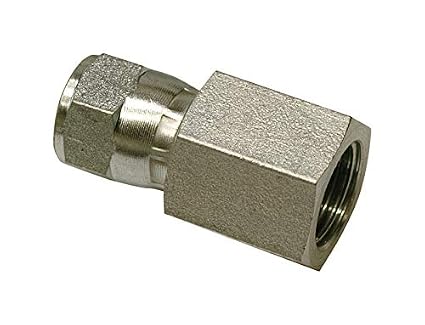

6506-06-04 Hydraulic Fitting 3/8" Female JIC Swivel X 1/4" Female Pipe Carbon Steel

Adapters&Fittings

Based on 8 reviews Check latest price

Product description

ACTUAL THREAD SIZES FOR 6506-06-04 HYDRAULIC FITTING 9/16"-18 FEMALE JIC SWIVEL X 1/4" FEMALE PIPE - SEE THREAD CHART IN PHOTO SECTION

  • 6 FEMALE JIC SWIVEL X 4 FEMALE PIPE
  • MEETS OR EXCEEDS SAE STANDARDS
  • FOR ACTUAL THREAD DEMENSIONS REFER TO THREAD CHART

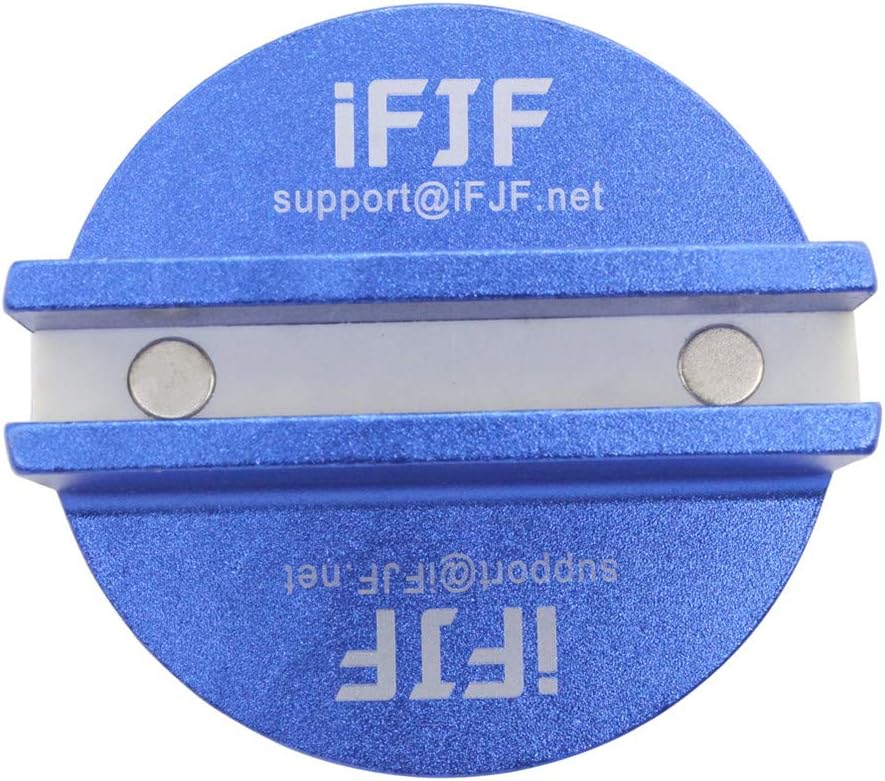

Byenins Large Slotted Universal Magnetic Jack Pad Weld Frame Rail Adapter for All Model Cars-blue

Based on 462 reviews Check latest price

Product description

This jack pad is to fit the weld on most uni-body vehicles so that the vehicle can be jacked up safely without damage to the weld or Rocker Panel. confirmation before order will be really preciated

  • Fitment : All model cars
  • This jack pad is to fit the weld on most uni-body vehicles so that the vehicle can be jacked up safely without damage to the weld or Rocker Panel.
  • There are 2 Neodymium rare earth magnets so that the supreme holding strength while placing jack and lifting vehicle.
  • Fits most pinch weld that is at least 3 inches. The opening of each slotted jack pad is 0.385" wide by 3" in length. Slot depth is 0.63". Base diameter is 3"
  • CNC machined from Billet Aluminum and anodized,a soft nylon insert to protect pinch weld.

User questions & answers

Question: Will this work on a toyota corolla
Answer: it ok
Question: Will it work on a 2018 camry
Answer: Do you have a "seam weld" under the car where you jack it up ? Look for the jack points on your Camry usually indicated by a small triangle on the molding or metal about the size of a pencil eraser on the end of a pencil, usually within a foot of each wheel. Check your manual as well. If no seam weld there are flat dense rubber-type pads you can get. These things are necessary if you want to use most jacks on seam weld cars unless you don't mind the weld getting crushed like a lot of garages don't care . . .
Question: Will this fit on the Harbor Freight 1.5 ton rapid pump floor jack
Answer: This jack pad measures 3” in diameter, and fits great in my Harbor Freight 3 Ton Rapid Pump Jack.
Question: I know this is a stupid Question. But can this be used in the lift point of a Scissors jack
Answer: I never saw a scissor jack with a saddle that this could be used with. You need a flat surface that I don't think any scissors jack could provide

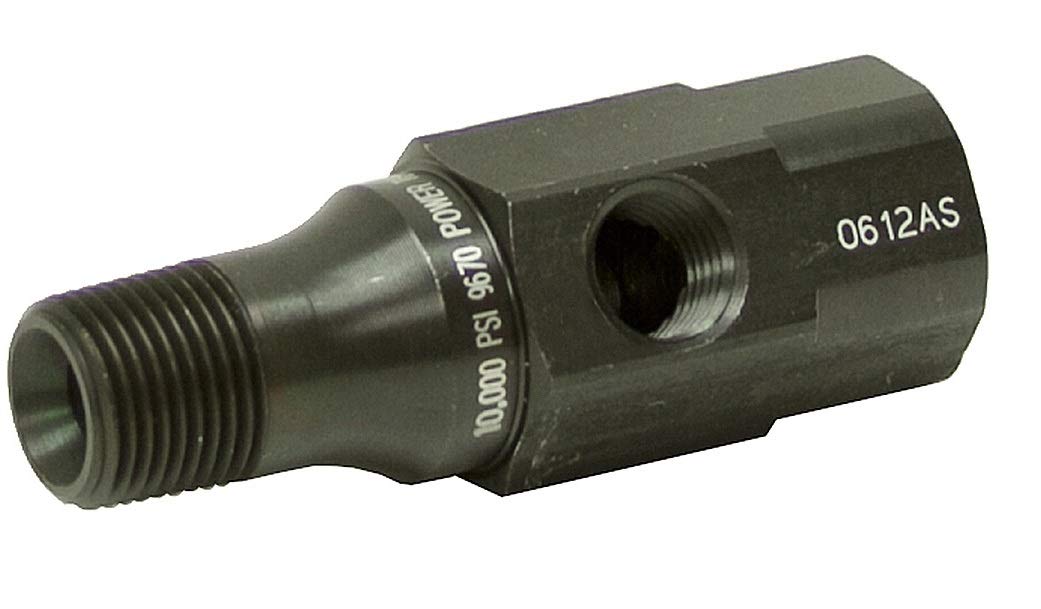

SPX Power Team 9670 Tee Adapter with 1/4" and 3/8" NPTF Female x 3/8" NPTF Male Ports

SPX POWER TEAM

Based on 7 reviews Check latest price

Product description

10,000 psi fittings for all applications.

Eaton Weatherhead C5205X8X8 Carbon Steel SAE 37 Degree (JIC) Flare-Twin Fitting, Adapter, 1/2" NPT Male x 1/2" JIC Male

Weatherhead

Based on 18 reviews Check latest price

Product description

  • Package Dimensions: 7.366 L x 2.794H x5.08 W(inches)
  • Carbon steel for durability and resistance to rupture under high pressure
  • For use with LP and natural gas, refrigeration, and hydraulic applications
  • Package Weight : 0.15 pounds

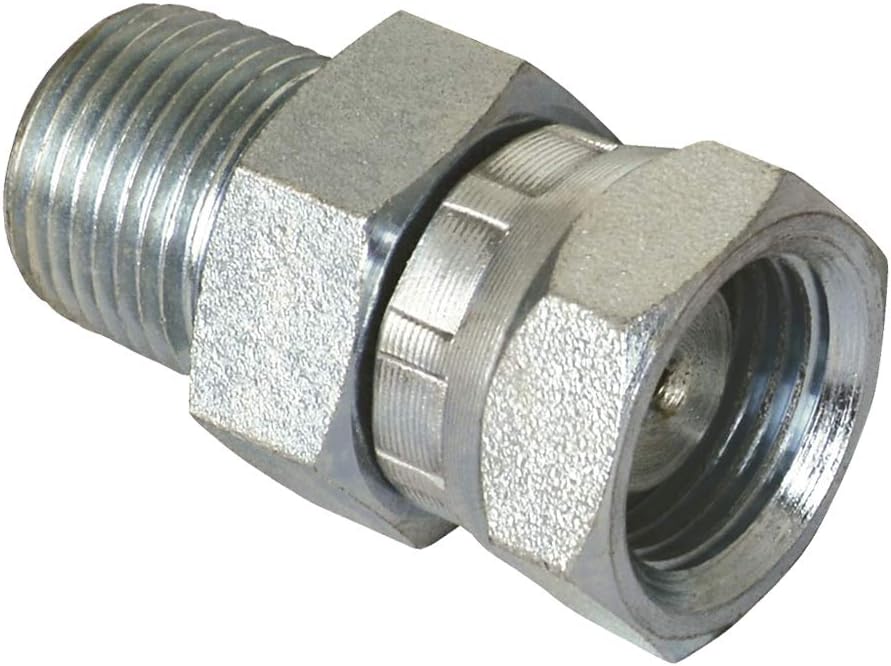

Apache 39004375 1/2" Male Pipe x 1/2" Female Pipe Swivel, Hydraulic Adapter

Apache

Based on 38 reviews Check latest price

Product description

Highlights: : Diameter: 1/2" M x 1/2" F Pipe Swivel Material: Steel Packaging Type: Clamshell 1/2" Male Pipe x 1/2" Female Pipe Swivel Heavy-duty for long service life Connects a hose with solid fittings on both ends Hydraulic adapters are designed to simplify the connection of hard to install hydraulic components and to ensure proper hose routing for longer hose service life Adapters also help to eliminate purchasing and replacing expensive specialty hose couplings, as they are replaced throughout a machine's lifetime The listed steel tube fittings and adapters meet or exceed J. I. C. /S. A. E. J514 specifications

  • The product is 1/2" male pipe x 1/2" female pipe swivel, hydraulic Adapter
  • Item Package Length: 3.599999996328"
  • Item Package Width: 2.599999997348"
  • Item Package Height: 1.699999998266"

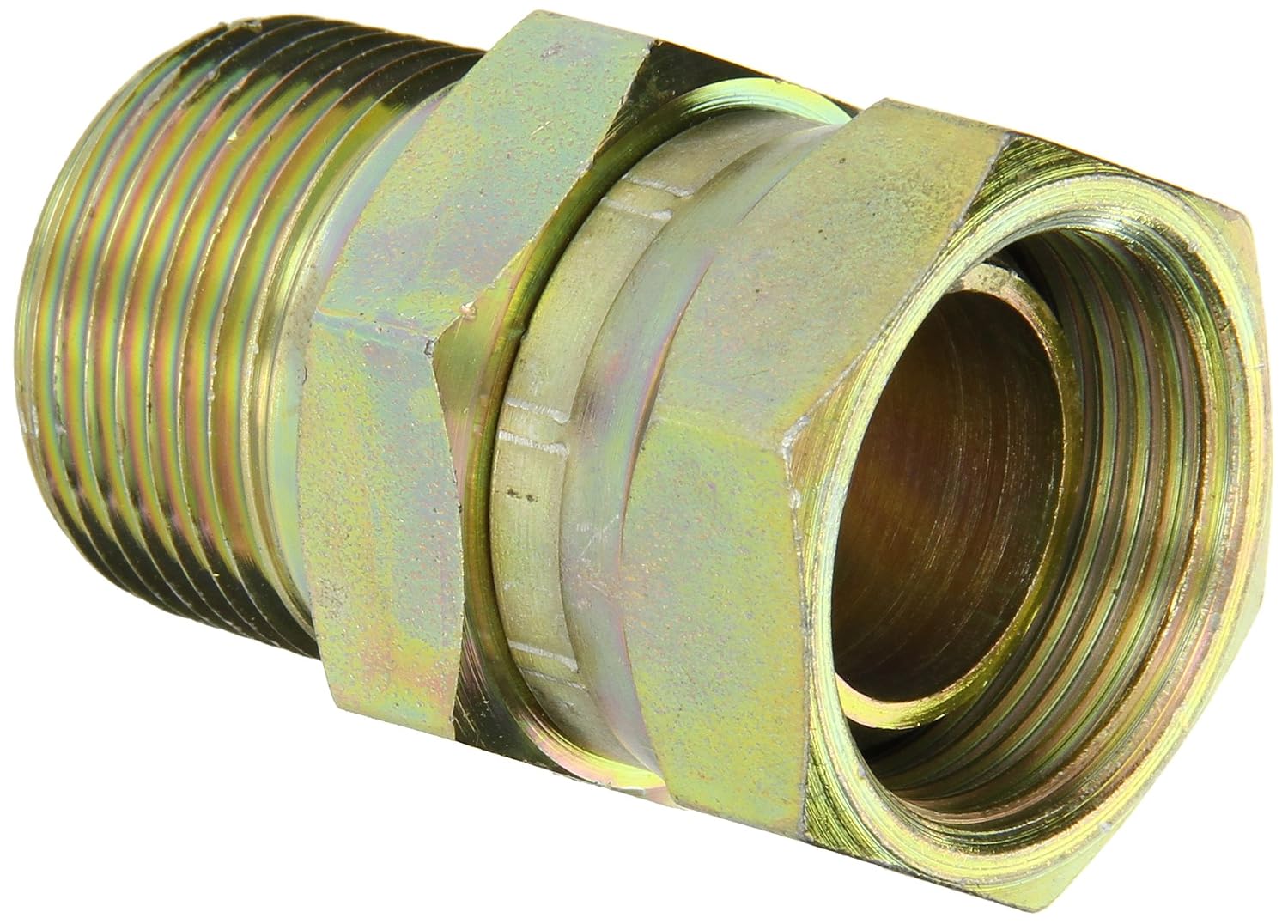

Eaton Weatherhead 9205X16X16 Carbon Steel Fitting, Swivel, Adapter, 1" NPSM Female x 1" NPT Male

Weatherhead

Based on 6 reviews Check latest price

Product description

  • Adapts 1" NPT male end to 1" NPSM female swivel. Plating - Zinc Plated
  • Carbon steel for durability and resistance to rupture under high pressure
  • For use with LP and natural gas, refrigeration, and hydraulic applications
  • Shape : Straight

User questions & answers

Question: I need to use this fitting in a potable water system. Can this fitting be used with a drinking water system or will it rust and fail
Answer: This fitting is steel, so it will eventually rust. It is designed for hydraulic applications on equipment running high pressure oil.
