Product description

Description:

Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack.



Feature:

Profile Dimensions: 33x40x24cm

Engraving area: 30x18x4.5cm

Spindle: 775 spindle motor

Softwear: GRBL control systems

support system: 24V 5.6A adapter

Stepper motor: fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M

Spindle: 775 spindle motor (12-36V) 24V:10000r / min

Supported System: Windows XP / Win 7 / Win 8 / Win 10 / Linux.

Drill bits: tip 0.1mm ,20 degree , diameter3.175mm. the package include 10pc.

clamps: 4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm



Usage:

can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material.



Package inclued:

1pcs Full set engraving machine

1pcs offline controller

4pcs clamp

10pcs bits

1pcs extension rod with ER11 collet

(Please contact us for English manual after you purchased)

• 【MYSWEETY CNC 3018-PRO】- CNC 3018-PRO is an upgraded version of 3018. Control software: GRBL; Working area: 30x18x4.5cm; Spindle: 775 spindle motor (12-36V) 24V:10000r / min. Supported System: Windows XP / Win 7 / Win 8 / Win 10.
• 【Offline Controller】- The offline controller is 1G Capacity. You can control the CNC router without connecting to the computer. The CNC router can be placed wherever you want, such as garage and workshop.
• 【New Control Board】- Integrated driver chip + fixed heat sink + external fan + sturdy casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage. 12 Months Warranty.
• 【Versatile】- This engraving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials.
• 【Simple Assembly】- The package come with an English manual and the software on USB disk. 🍀〖Note: Plug in the power cord to the control board first, then press the power switch, and then turn on the control board switch 〗. Please contact us if you have any question. Thank you!

User questions & answers

Question:	Can I switch out the motor to ingrave a logo on stainless steel plates and make this work on metal
Answer:	hi, it can't work on metal, This engraving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. thanks.
Question:	Will this machine cut out dollhouse furniture parts from wood
Answer:	Straight out of the box ... no. With modifications and upgrades ... yes. You wouldn’t want to cut the aluminum bed by mistake so a spoil board is a must. The spoil board should be milled flat and level. The collet that comes with the machine is 1/8”. You would probably need a 1/4” at a minimum for any serious work. The spindle motor works but is not very powerful. You will have to make multiple cuts to get all the way through pine or hardwood. The free software is engraving software. You would need to get real cad/cam software to create the tool paths to make a 3D part. The machine is very basic. What is there is a good starting point. I’ve been having fun playing with it and upgrading it.
Question:	Do you have a website where i can download the software and manual? i do not have an optical drive for the included cd
Answer:	Download the English manual : https://s3.us-east-2.amazonaws.com/3018pro/3018PRO_1.1.zip. If you have any question, please contact us firstly, thanks!
Question:	Hello can this machine cut as well as engrave
Answer:	Yes and no. It's NOT a router. Don't expect it to cut profiles out of 3/4" plywood. You could cut thin materials with it using the right bit, but you'll have a hard time finding 1/8" shank router bits at the hardware store. With the right bit, a good setup, and the proper programming to make shallow (0.005" or less) passes it can cut shapes out of wood or plastic. It will take a long time, but it can be done. I wouldn't recommend it if you're material is over 1/2" thick. If you want to make things out of thicker material you should look into CNC routers.

Product features

About product:

• Profile Dimensions: 33x40x24cm
• Engraving area: 30x18x4.5cm
• Spindle: 775 spindle motor(12-36V) 24V:10000r / min
• Software: GRBL control systems
• support system: Windows XP / Win 7 / Win 8 / Win 10.
• Stepper motor: fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
• Drill bits: tip 0.1mm ,20 degree , diameter3.175mm. the package include 10pc.
• Clamps: 4 pcs, Hold the thickness of 0-30mm, the inner slot width 6mm

Upgrade Version CNC 3018 Pro

1：Manual control: manually adjust the position of the three axes of XYZ as the starting point of carving, manually open or close the spindle.

2：Document engraving: the offline board can be linked to the GRBL control board for carving without storing a computer.

3：Storage file: After the offline board is connected to the computer, it is recognized as a USB mass storage device, and the engraving file can be directly accessed.

The USB socket on the board showing [Reader] can be connected to the computer with the Android data cable.

Module Available:

If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity. Both 2Pin and 3Pin module can be used.

Material that can be engraved:

The machine is quite neatly packed and it comes with an assembly instruction booklet.

• This engraving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials.

Simple Assembly:

1. Connect the power supply and connect the USB; 2. Install the driver; 3. To Determine your Machine's COM port; 4. Open grblControl software

If you need the manual and software of this engraving machine, Please see the link in the third point description.

Package inclueds:

1pcs Full set engraving machine

1pcs offline controller

4pcs clamp

10pcs bits

1pcs extension rod with ER11 collet

Product description

The Gripper is a revolutionary, universal pushing jig for all table saw, router table and jointer users. This is the first tool that grips and holds both sides of work piece during a ripping operation. Unlike a push stick or push block, the Gripper maintains balanced pressure on a work piece as it passes through and beyond the blade. Maintains a parallel, forward direction with the blade while keeping pressure against your rip fence to prevent burning. Eliminates the need to feed stock with your bare hands providing 100 protection. You can cut strips as thin as 1/4" without any special setup so there is no need to throw away those small scrap pieces. The unit can be offset to accommodate small, irregular shaped, pieces on the router table. Includes main body, handle, 1/4" side leg, 1/2" side leg, center leg, adjustable spacer, stabilizing accessory plate, balance support and comprehensive users manual.

• GR-200 Features Include: 3-Directional Force for total control of the workpiece and virtually eliminate kickback
• Moving-Blade-Guard Hand protection.Cutting Range (Table Saws):1/4 to 5 inch
• Precise 1/4" thin rips
• Stabilizes for cutting bevel rips, resawing, irregular-shaped stock, dowels, dados and more
• Made in the USA. A true MICROJIG Innovation.:

User questions & answers

Question:	Will this work to push or catch the end of the piece of wood on a router table ? Larry
Answer:	sure but this is a table saw tool a lot of cheaper push blocks will work for a router table
Question:	Does this come with the DVD
Answer:	Yes. The one I ordered did come with the instructional DVD.
Question:	Is the advanced version really that better than the version without the stabilizer add-on
Answer:	The advanced version can do a few things that the other one can't. Is it worth a few dollars to be able to use it a few more ways depends on what those few dollars are worth to you. I bought one of each, as you need two to handle longer things on a small table. This way I split the savings (or cost) a bit. Not the smartest answer, but it worked for me.
Question:	How wide of a cut can you make with the GR200 and what is the practical cut width limit - i.e. at what width is it better to use the saw blade guard
Answer:	I'm assuming that you mean making a cut while spanning the GRR-Ripper over the blade. None of the following measurements allow for blade clearance, so your actual ripping widths will be reduced by that clearance amount. Maximum distance from fence to inside edge of GRR-Ripper is 3-3/8 inches. Attaching the accessory gripper foot against the fence adds an inch, totalling 4-3/8. Mounting the stabilizing leg instead adds just under 2 inches, totalling ~5-5/16. I suppose you could add the flat accessory plate, gaining several inches, but the rig will easily skew against the fence and there is absolutely no reason to pass over the blade at that point anyway; it's just unnecessarily dangerous and the basic GRR-Ripper should be used as a conventional push block alongside the blade. To summarize, you can rip widths from about 1/4 inch (between blade and fence, as shown in their demos, though that gets the blade very close to plastic) up to about 3-1/4 inches with minimal blade clearance if you're very careful. Mounting the accessories takes that width to about 5-1/8. The GRR-Ripper is 3-5/8 outside width, so it's just as easy to go beside the blade at that width, and probably more stable. The height of the GRR-Ripper, when passing alongside the blade, keeps your knuckles farther from danger; mine are about 2-3/8 inches above the surface of the stock, so unless I just wildly throw my hand into the blade, I feel safer than feeding with a conventional push block, or certainly bare hands.If you do call your clearances too close and cut the plastic, there's no harm done beyond some expensive replacement parts.As a side note, if you want to play Jack the Ripper, you can allow the blade to protrude a full inch above your stock before it cuts into the top of your GRR-Ripper.I've said this before, but this is such a great product, superbly made, that I can't imagine risking my hands with unwieldy push sticks and short push blocks. I cut my left index finger with a knife in a moment of utter stupidity and have some joint and nerve damage. Every time I used typical long, wobbling push sticks, I had a thousand questions per second about where the saw was going to throw the wood--or the stick--when something slipped, and where my hands would fall in the confusion. With two GRR-Rippers, I am as comfortable at the saw as I am resting my hands on the kitchen counter. Total stability and confidence. Buy two, use them wisely, and keep your hands to hold your great-grandchildren.

Product features

Three Directions Of Force Gives You Superior Precision, Control And Safety.

1. Downward - Virtually eliminates kickback.

2. Inward - Keeps stock firmly against the fence.

3. Forward - Controls and feeds both sides of the stock for cleaner cuts.

Unbelievable Gripping Power with Green-GRIP

Green-GRIP is the proprietary non-slip material that gives you superior gripping power over workpieces and materials such as oak, cherry, walnut, ebony, pine, poplar, maple, plastics, and aluminum. Treaded grooves provide increased traction on the workpiece even with sawdust.

With the included Adjustable Spacer, you’ll get 54% more gripping area for your biggest projects (compared to the GRR-RIPPER GR-100). Easily cleaned with denatured or rubbing alcohol. No other push block’s grip comes close.

Superior Safety

The GRR-RIPPER is engineered to be a Moving-Blade-Guard shielding your hand throughout the cut. It’s unique design creates a Saw-Blade-Tunnel for the table saw blade to pass through while your hands are safe from contact.

Downward pressure prevents the workpiece from lifting off the table saw top or kicking back. Inward Pressure guides the workpiece along the fence substantially reducing burn and improving cut quality.

The included Stabilizing Plate keeps the stock against the fence without binding, and also provide 250% more stabilizing surface area (when compared to the GRR-RIPPER GR-100). More control gives you safer, smoother, and smarter cuts.

Versatility – Table Saws, Bandsaws, Router Tables, Jointers, and More.

The GRR-RIPPER is engineered for maximum control over your workpiece when freehand routing on your router table. The powerful hold keeps you in control of the workpiece. The Balance Support and Stabilizing Plate stabilize the work material for precision handling and detailed cuts. All the while, your hands are protected by the GRR-RIPPER.

Versatility – Table Saws, Bandsaws, Router Tables, Jointers, and More.

Rip long stock and significantly reduce burn on the table saw by using two GRR-RIPPERs with the hand-over-hand leapfrog technique. Virtually eliminate the need for stop-and-go feeding that results in unwanted burn marks on your stock. Rip from 16-inches to over 8-feet boards with two GRR-RIPPERs keeping both hands protected and guiding the stock smoothly along the fence.

Versatility – Table Saws, Bandsaws, Router Tables, Jointers, and More.

Cut straighter and safer veneers and resaws on the bandsaw with the GRR-RIPPER in a vertical position. Keeping even pressure on the cut from top to bottom and beginning to end prevents bandsaw drift. Use the Stabilizing Plate to handle your larger work material and stabilize your cut.

Versatility – Table Saws, Bandsaws, Router Tables, Jointers, and More.

For proper and safe face jointing, you need technique and reliable heavy-duty holding power. Strengthen your operation with our Green-GRIP non-slip material.

Product description

DashHound spial router bit with naco coated, specially designed for 2D and 3D CNC profiling and carving.



【Features】

· Micro-thin ceramic NaCo coating enables the router bit’s cutting edge to retain sharpness and lubricity.

· Prevents high heat and oxidation

· High precision grinded and polished, good rigidity, not easy to break.

· Efficiently cut materials such as varoius hard wood and soft wood , Plastics, PVC Foam Board, MDF, Composite etc.



【Application】

For use on CNC, table mount and handheld routers.



【Specification】

Material: solid carbide

Type: ball nose, Naco coated

Cutting Diameter: 1/16" (1.6mm)

Cutting Length: 1-1/2" (38mm)

Shank Diameter: 1/4"(6.3mm)

Overall Length: 3" (76.2mm)



【Warranty】

one year quality assurance.

30 days money back, if there are any problem with the item please contact us at first, we will offer new item exchange or refund policy.

• Carbide CNC router bit , high heat resistance and wear resistance.
• Cutting Diameter: 1/16" , Cutting Length: 1-1/2"
• Shank Diameter: 1/4", Overall Length: 3"
• NaCo Coating Creates a harder and tougher cutting edge, greatly increase the durability and thermal conductivity.
• Widely used in natural wood, Brass, Composite, Fiberglass, Plastics, Sign Board or more.

• ❶High-quality materials: Our Ball Nose Carbide End Mill is made of high-quality tungsten steel. It is a 0.6-0.8um ultra-fine grained material with high wear resistance.
• ❷Strong wear resistance: The surface of our Ball Nose Carbide End Mill is coated with a multilayer TiSiN coating. This can reduce 99% of frictional heat and tool wear.
• ❸Our Ball Nose Carbide End Mill head adopts a double-edged belt design for faster and smoother chip removal.
• ❹Chamfer design: The handle of our Ball Nose Carbide End Mill adopts a chamfer design. Easy installation and better fit to the machine tool makes Engraving Milling work more stable and protects the machine tool.
• ❺Wide range of applications: suitable for die steel, alloy steel, tool steel, stainless steel, cast iron, copper and other metals below HRC50. Widely used For CNC Engraving, Milling, Roughing, Hollowing, 3D sculpturing purposes.

Product features

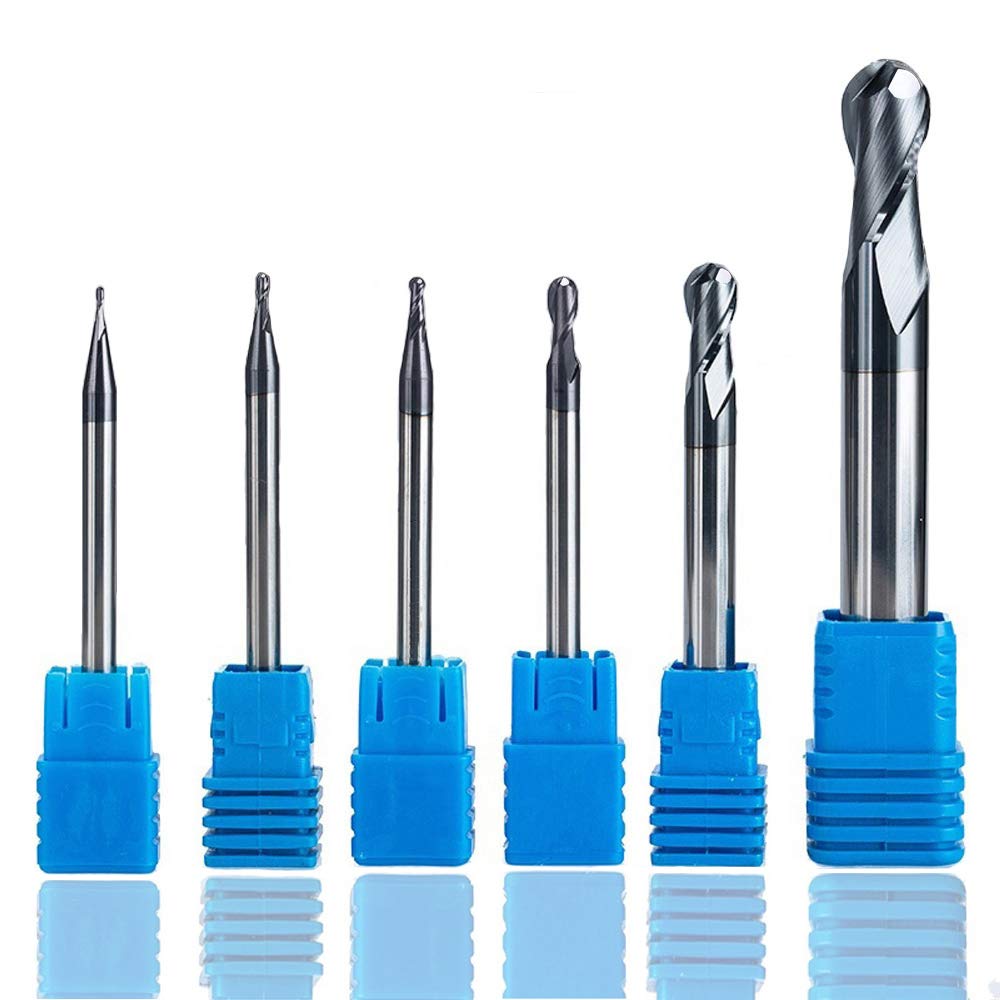

6 sizes

A variety of sizes can meet your different size requirements in the process of working

Strong wear resistance

The surface of our Ball Nose Carbide End Mill is coated with a multilayer TiSiN coating. This can reduce 99% of frictional heat and tool wear

double-edged belt design

Our Ball Nose Carbide End Mill head adopts a double-edged belt design for faster and smoother chip removal

Wide range of applications

suitable for die steel, alloy steel, tool steel, stainless steel, cast iron, copper and other metals below HRC50. Widely used For CNC Engraving, Milling, Roughing, Hollowing, 3D sculpturing purposes

High-quality materials

Our Ball Nose Carbide End Mill is made of high-quality tungsten steel. It is a 0.6-0.8um ultra-fine grained material with high wear resistance

High hardness

Our Ball Nose Carbide End Mill is made of high-quality tungsten steel. High hardness, not easy to break, long service life, save you money

Chamfer design

The handle of our Ball Nose Carbide End Mill adopts a chamfer design. Easy installation and better fit to the machine tool makes Engraving Milling work more stable and protects the machine tool

Product description

Precision woodworking hand pushing tool with adjustable/detachable components Utilizes multiple grooved non-slip pads for strong gripping & holding power Pushes & holds both sides of the work piece as it is being cut Pushes & holds the work piece as the saw blade passes through either right or left tunnel The handle, center leg & balance support are all fully adjustable

• Precision woodworking hand pushing tool with adjustable/detachable components
• Utilizes multiple grooved non-slip pads for strong gripping & holding power
• Pushes & holds both sides of the work piece as it is being cut
• The handle, center leg & balance support are all fully adjustable
• Stabilizes work piece as the saw blade passes through either right or left tunnel

Product features

Three Directions Of Force Gives You Superior Precision, Control And Safety.

1. Downward - Virtually eliminates kickback.

2. Inward - Keeps stock firmly against the fence.

3. Forward - Controls and feeds both sides of the stock for cleaner cuts.

Unbelievable Gripping Power with Green-GRIP

Green-GRIP is the proprietary non-slip material that gives you superior gripping power over workpieces and materials such as oak, cherry, walnut, ebony, pine, poplar, maple, plastics, and aluminum. Treaded grooves provide increased traction on the workpiece even with sawdust.

With the included Adjustable Spacer, you’ll get 54% more gripping area for your biggest projects (compared to the GRR-RIPPER GR-100). Easily cleaned with denatured or rubbing alcohol. No other push block’s grip comes close.

Superior Safety

The GRR-RIPPER is engineered to be a Moving-Blade-Guard shielding your hand throughout the cut. It’s unique design creates a Saw-Blade-Tunnel for the table saw blade to pass through while your hands are safe from contact.

Downward pressure prevents the workpiece from lifting off the table saw top or kicking back. Inward Pressure guides the workpiece along the fence substantially reducing burn and improving cut quality.

The included Stabilizing Plate keeps the stock against the fence without binding, and also provide 250% more stabilizing surface area (when compared to the GRR-RIPPER GR-100). More control gives you safer, smoother, and smarter cuts.

Versatility – Table Saws, Bandsaws, Router Tables, Jointers, and More.

The GRR-RIPPER is engineered for maximum control over your workpiece when freehand routing on your router table. The powerful hold keeps you in control of the workpiece. The Balance Support and Stabilizing Plate stabilize the work material for precision handling and detailed cuts. All the while, your hands are protected by the GRR-RIPPER.

Versatility – Table Saws, Bandsaws, Router Tables, Jointers, and More.

Rip long stock and significantly reduce burn on the table saw by using two GRR-RIPPERs with the hand-over-hand leapfrog technique. Virtually eliminate the need for stop-and-go feeding that results in unwanted burn marks on your stock. Rip from 16-inches to over 8-feet boards with two GRR-RIPPERs keeping both hands protected and guiding the stock smoothly along the fence.

Versatility – Table Saws, Bandsaws, Router Tables, Jointers, and More.

Cut straighter and safer veneers and resaws on the bandsaw with the GRR-RIPPER in a vertical position. Keeping even pressure on the cut from top to bottom and beginning to end prevents bandsaw drift. Use the Stabilizing Plate to handle your larger work material and stabilize your cut.

Versatility – Table Saws, Bandsaws, Router Tables, Jointers, and More.

For proper and safe face jointing, you need technique and reliable heavy-duty holding power. Strengthen your operation with our Green-GRIP non-slip material.

• 【SPECIFIC PARAMETERS】- Working Area: 600x400x75mm (15.6"*23.6"*2.8"). Work table dimension:750mm*480mm*15mm. Voltage: 110V TotalPpower: 1000W, Spindle Motor: 800W
• 【3 ROTARY AXIS】- Equipped with 3 rotating axis composed of Trapezoidal screws which can realize plane engraving.
• 【USB PORT】- Replace the traditional parallel Interface with USB, which can adapt to more operating systems(Windows 2000 / xp,win7,win8,win10).
• 【DURABLE QUALITY】- The aluminum backing plate and aluminum dust-proof plate are designed for easy cleaning and long-term use.
• 【WIDE APPLICATION】- Engraving Machine Can be widely used in the engraving of soft materials such as plastic, wood, acrylic, PVC, PCB, etc.Note: total power: 1000W, spindle motor: 800W

User questions & answers

Question:	What are the best bits to use on this
Answer:	I use amana and yorico 1/32, 1/16, 1/8, and 1/4 straight up and down cut bits to cut 1/16” inlays using primarily red maple, walnut, padauk, yellow and purple heart, as well as good Finnish birch ply. Although the spindle is quiet it’s not very strong so I generally limit depth of each pass to .005”. I also use amana 1/4 and 1/2” 60 degree bits to inscribe in walnut.
Question:	Is this machine capable of cutting very thin metals (26 gauge
Answer:	NO
Question:	The picture show a rotary attachment, is it included, or can it operate with a rotary device
Answer:	Mine came with a rotary attachment and the Mach 3 was already set up to use it including already step motor tuned
Question:	We want to use the machine to drill 3/16 inch holes in .6mm thick stainless steel. can it do this and is the software in english? thank you, jude
Answer:	IF YOU DID NOT BUY THE MACHINE YET,DON'T BUY IT. YOU HAVE EVERY POOR SUPPORT.
Question:	What size diameter are these
Answer:	http://www.amanatool.com/ams-148-4-pc-cnc-router-bit-set-2d-and-3d-carving-ball-nose-conical-ball-solid-sub-micrograin-carbide-zrn-coated-1-4-inch-shank-includes-1-32-dia-1-16-dia-1-8-dia-1-4-dia.html

Product features

AMS-148 4-Pc Solid Carbide Up-Cut Spiral 2D/3D Carving Ball Nose ZrN Coated CNC Router Bit Set, 1/4 Inch Shank, Includes 1/32, 1/16, 1/8 & 1/4 Diameters.

Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum & wood with CNC machines. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup. Some of Amana Tool carving tools, as you can appreciate have a very small diameter therefore any material chip-loads need to reflect that small size. It can however withstand RPM’s up to 60,000 RPMs. A directed air-blast to keep chips away along with cooling the tool and work piece are always welcome.

AMS-148 Set Includes: 46280, 46282, 46286, 46294.

Benefits of Zirconium Nitride (ZrN) Coating

- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting

- Have the tendency to run/spin much faster than an uncoated tool

- Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)

- High flute volume supports high feed rates and chip loads

- High aspect ratio for single pass deep-reach cutting

- Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites

Excellent for:

- Acrylic

- Aluminum

- Copper

- Ethafoam

- Fiberglass

- Graphite

- MDF/HDF

- Plastics

- PVC

- Wood

CNC Router Bits

Amana Tool offers a full range of top-quality precision CNC tooling for industrial applications, including CNC router tooling, insert tooling, spiral tooling, diamond tooling and tool holders. Amana Tool router bits for CNC machines provide superior smooth quality cuts everytime. Each CNC insert router bit body was designed for quick, precise replacements of dull knives. Replacement knives are secured with locking screws for maximum safety during CNC tooling. CNC Insert knives are long lasting and can be re-sharpened multiple times without affecting the original profile.

About Amana Tool

For over 40 years Amana Tool is specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. We provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

3 Rotary Axis

Equipped with 3 axis, able to realize plane engraving, whose effective working travel is 395(X)x600(Y)x70(Z)mm.With 2 chrome plate hard shafts (X axis: Dia.16mm; Z axis: Dia.13mm) and one aluminum support optical axis shaft (Y axis: Dia. 20mm) as sliding units and 1605 ball screws as its driving units, it has the feature of high precision, low noise and high efficiency.

Elaborate Controller

The engraving milling machine comes with a controller with built-in well-made transformer, which provides stable power for the control unit for long time continuous use, featuring one-to-one interface design and emergency stop button for high safety.

Exquisite Stepper Motor

Equipped with a 57 two-phase stepper motor(3A) on each of the three axis for easy movement, which are reliably connected by external couplings for high torque transfer. And the knobs with small handles on stepper motors can realize positioning adjustment. The 800W brand new water-cooled spindle motor on Z axis is able to reach the speeds of 24000 rpm/min(frequency converter speed regulation).

USB Port

This engraving machine is equipped with USB interface, which can be directly connected to the desktop computer. And instead of Optical Disc Driver, a USB driver is included for installing the MACH 3 software for engraving control.

Premium Quality

Made of 6061 aluminium alloy and 6063 industrial aluminum. Aluminum backing plate and dust-proof plate are effective in preventing chips from splashing onto the screw and the optical axis, for long-term use and easy cleaning. The large worktable (750x480x15mm) provides higher enforce-ability for engraving.

Widespread Use

This engraving milling machine can be widely used in the engraving of soft materials such as plastic, wood, acrylic, PVC, PCB, etc. It is a perfect tool designed for processing advertising signs, artwork, crafts, models, etc.

Product description

Yakamoz 3Pcs 90 Degree V-Groove Router Bits + 3Pcs Round Edge Groove Router Bits Woodworking Tool Kit with 1/4 Inch Shank

Feature:

100% New brand industrial quality router bits for router woodworking.

Total 6Pcs groove router bits set with multi-size for varies of needs for woodworing.

C3 Micro-grain tungsten carbide cutters and solid hardened steel bodies with anti-kickback design.

Build-up & heat resistant teflon coating with high precision, smooth cutting, special impact resistance, good wear resistance.

Mainly used for signmaking lettering,can be processed solid wood, hardwood, particleboard, mdf, etc.

Designed for a router table or desktop woodworking engraving machine like cnc hand-held and table-mounted portable router,can not be used for electric drill & drill machines.

Please avoid cutting ferrous metal and non wood materials,such as:steel,iron,sand,etc.

Specification:

Type: V Groove, Round Nose Groove

Shank Size: 1/4-Inch

3Pcs V-Groove Router Bits Size (Dia.*Height): 1/4"*1/4", 3/8"*3/8", 1/2"*1/2"

3Pcs Round Nose Groove Router Bits Size  (Dia.*Height): 1/4"*1/2", 3/8"*25/32", 1/2"*25/32"

Application: Miter folds - "create the perfect joint", Signmaking and lettering

To be used on: Router Machine, CNC Router Machine

Material: Solid Carbide

Package Included:

3 x V-Groove Router Bits

3 x Round Edge Groove Router Bits

• 3Pcs 90 Degree V-Groove Router Bits - 1/4" Shank, Cutting Diameter: 1/4", 3/8", 1/2", Cutting Height: 1/4", 3/8", 1/2"
• 3Pcs Round Nose Groove Router Bits - 1/4" Shank, Cutting Diameter: 1/4", 3/8", 1/2", Cutting Height: 1/2", 25/32", 25/32"
• V-groove & Round-groove router bits are great for grooving in many workpieces in woodworking projects for sign making or adding decorative accents to furniture and plaques.
• Premium C3 micro-grain tungsten carbide blades with Anti-Kickback design increased strength and utmost resistance for long life use.
• Specifically design for CNC and other automatic table-mounted portable routers. Cuts all composition materials, plywoods, softwoods, Acrylic, MDF, PVC, 3D engraving and chamfer, etc.

User questions & answers

Question:	Can a cnc router bit in a regular hand held router
Answer:	Yes if the router collet matches the shank diameter of bit.
Question:	I’m newbie ,Are theses good for sign making
Answer:	I use them for sign making as part of a collection of about a dozen bits. They are not the best but they do the job. I question how long they will stay sharp but for now they are working fine.

Product description

Type: Tapered Angle Ball Nose End Mill / Cone Cutters

-Flutes: 2 Flutes

-Coating: TiAIN

-HRC HRC55

radius=0.25mm Per side angle =5.12°

• 5PCS Tapered angle Ball Nose End Mill / Cone Cutters, super design for carving and clearing edge
• 1/8Inch Shank Diameter, 2 Flutes, TiAlN Coated for wear resistance
• Ball Raidus 0.25MM, Flute Length:15MM, Overall Length: 1-1/2Inch, Single Side Angle 5.12°
• The bits for CNC,Engraving machine.Plywood, hardwood, acrylic, 3D carving
• Suitable Material: 55HRC, Long service life, Decreasing the times of changing cutters,Saving production time

User questions & answers

Question:	Is the total angle 5.4* or
Answer:	5.4* from vertical, 10.8* total. Goes from 1/16" diameter at the tip down 1" cutting length to 1/4" diameter shank
Question:	What rpm, feed rate, and plunge rate should i use with this? i'm running a shapeoko xl
Answer:	It really depends on the wood you are using. Harder woods you want your plunge rate I usually will drop it to 30in a minute, so you don’t break the tip. I usually run about 14000-15000 rpms. Feed rate of 60-70in a minute depending on type of wood and depth of cut. In addition how much material you are removing at a time, usually about 6% of tip diameter. In some cases you can go faster but take your time and do it right. This is one of my favorite bits to use very clean engravings. I wanted to post a picture but it won’t let me.

Product features

46282-K CNC Solid Carbide Up-Cut Spiral Spektra Router Bit

Specially designed for 2D and 3D CNC profiling and carving in plastic aluminum & wood with machines such as "i-Carver", CNC Shark, ShopBot, Datron & Carvewright. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary Spektra (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction & heat buildup.

Tools are manufactured with high balance that allows them to run up to 60,000 RPMs. Adjust your chip load and feed rate accordingly.

Spektra Extreme Tool Life Coating

- nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

- Coating prevents high heat and oxidation which is detrimental to cutting tool performance.

- Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

- nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Excellent for cutting:

- Acrylonitrile-Butadiene-Styrene (ABS)

- Acrylic

- Acrylic Stone

- Aluminum

- Brass

- Bronze

- Composite

- Copper

- Corian

- Coroplast

- Dibond

- Ethafoam

- Ethylene-vinyl Acetate Foam (EVA)

- Expanded Polypropylene (EPP)

- Expanded Polystyrene Foam (EPS)

- Extruded Polystyrene Foam (XPS)

- Fiberglass

- Fiberglass PCB Board

- Foam Board

- Graphite

- HDPE

- HDU

- 20lbs High Density Urethane

- Lexan

- MDF/HDF

- PALFOAM

- Phenolics

- Phenolic Composites

- Plastics

- Poly (methyl methacrylate) (PMMA)

- Polyethylene Foam

- Polylam

- Polyurethane Foam

- PVC

- PVC Foam Board

- Sign Board

- Sign Foam

- Titanium

- Tooling Board

- Wood

- XPE (Cross Linked Polyethylene) Foam

CNC Router Bits

Amana Tool offers a full range of top-quality precision CNC tooling for industrial applications, including CNC router tooling, insert tooling, spiral tooling, diamond tooling and tool holders. Amana Tool router bits for CNC machines provide superior smooth quality cuts everytime. Each CNC insert router bit body was designed for quick, precise replacements of dull knives. Replacement knives are secured with locking screws for maximum safety during CNC tooling. CNC Insert knives are long lasting and can be re-sharpened multiple times without affecting the original profile.

About Amana Tool

Amana Tool is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. We provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Product description

Specification:

Material: Carbide

Edge: 3

Shank: 3.175mm

Tip: 0.1mm

Degrees: 20 30 45 60 90

Application: Majority of Plastics , PCB, Copper, Aluminum, Acrylic, PVC, Nylon,

Resin, Wood, Plywood, Hardwood, Glass fiber, Marble, etc.



NOTE:

When engraving harder materials, it is necessary to increase the speed and reduce the feed rate to avoid tool breakage



WHAT'S INCLUDED?

2pcs 20° x 0.1mm 3 Edge Pyramid Engraving Bits

2pcs 30° x 0.1mm 3 Edge Pyramid Engraving Bits

2pcs 45° x 0.1mm 3 Edge Pyramid Engraving Bits

2pcs 60° x 0.1mm 3 Edge Pyramid Engraving Bits

2pcs 90° x 0.1mm 3 Edge Pyramid Engraving Bits

• 【3 Edge Pyramid CNC Bits】 Contains 10 end milling cutters, five different cutting degrees (20°/ 30° / 45° / 60° / 90°)
• 【1/8” Shank】Tip: 0.1mm; Overall Length: 25mm / 28mm / 28mm / 29mm / 30mm
• 【Suitable Material】PCB, MDF, ABS, PVC, Acrylic, Nylon, Resin, Plastics, Density board, Wood, Plywood, Hardwood etc.
• 【Carbide Materials】Carbide has excellent properties such as high hardness, wear resistance, good strength and toughness, heat resistance and corrosion resistance, especially its high hardness and wear resistance
• 【Advantages Application】High precision grinding and concentricity, reducing the chance of burrs and deviations. For carving, cutting, engraving, milling, slotting, sculpturing. Ideal for three-dimensional sculpture, surface machining, 3D relief sculpturing, etc.

Product description

Installation tips:

The software perform better on the 32bites system computer.

We will send full MACH3 SOFTWARE to you,please contact seller after you buy

 Description:

1. This 6040T machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

2. It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc.

3. It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models,instrument panels, wooden products, etc.

4. The mini router Frame is movable. The machine can connect with computer as other external device such as printer, scanner...

Applicable :

1. Advertising&Design staff 2. PCB Engineer 3. Woodwork fans 4. Model fans 5. User should better have electronics background 6. DIY ability to repair



Spindle motor

（tips：1. The spindle motor must connect with the VFD.

2. It cannot directly connect with the supply voltage (AC110V).

3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.

• ENGRAVING MACHINE PARAMETERS】 X, Y, Z Working Area: 600(Y)*390（X）*120(Z)mm Outside dimension: 865*680*570mm（L*W*H） Table size: 770（Y）*490（X）mm Lathe structure: 6061/6063 Aluminium alloy Max. Feeding height: ≤100mm Drive unit: X axis---1605 Ball Screws Y axis---1605 Ball Screws Z axis---1204 Ball Screws Sliding unit: X axis---High intensity Chromeplate shaft Y axis---High intensity Chromeplate shaft Z axis---High intensity Chromeplate shaft Stepping motor: 57 two-phase 3A 150N.cm
• SPINDLE MOTOR-1】 Outside dimension: 65*158mm Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket VOLTS, current, power: AC110V, 60Hz, 5A, 1.5 KW VFD Spindle motor: 1.5 KW Water Cooled Spindle speed: 24000 rpm Max working frequency: 400Hz Principal axis collet: ER11collet, Standard configuration :6mm Nut Model: ER11-A Cooling: Water-cooling Speed ​​mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM
• SPINDLE MOTOR-2】Lubrication way: lubricated by high grease Repeat accuracy: 0.05mm Spindle precision: radial beat acuities 0.03mm Carving Instructions: G code / TAB files / nc file / NCC files Communication interface: through USB connection with computer Working Speed: 50-1500mm / min (different material with different speed settings) Maximum Idle speed: 0-1500mm/min
• HIGHLIGHTS OF WATER COOLING SYSTEM 】It can cool the spindle and protect the machine Avoid the spindle burn out Can engrave the high hardness or metal
• DESCRIPTIONS】Industrial fit for engraving machine controller was designed system Waterproof design, very durable, anti-dirt, oil spray Power by USB port Dimensions: 22 x 8 x 3cm The usb self-check light, you can type the " scroll" on the keyboard to activate it. Directional motion control: X+, X-, Y+, Y-, Z+, Z-, A+, A- Feed rate control: F+, F- Jog rate: J+, J- Spindle speed: speed up, slow down Programming: E-stop, cycle start, spindle on/off, Redo, single step, original point

User questions & answers

Question:	i want to engrave a round object, 24" PVC by 2.5" diameter. Will this machine do this with what it is sold with above
Answer:	Hello the round objects you means sphere or a flat circle?CNC 6040 can engrave flat circles If any other information you want to know, you can contact us by email, we can provide engraving machine engraving video case to you
Question:	Can a 2.2kw spindle be use instead of the supplied 1.5kw spindle
Answer:	Hi , no ,both need Change the control box with the spindle. if you use2.2kw spindle,you need use 2.2kw control box
Question:	Does this machine have limit switches on each axis
Answer:	Hi friend, CNC6040 no limit switches. CNC6090 & CNC8050 has limit switches. you can check their details in the store. and if you want to more informations just send email to me on Amazon.Much thanks.
Question:	Product description lists this as 220v, main heading says its 110v. which is it
Answer:	110V.

Product description

Unbelievable Gripping Power with Green-GRIP Green-GRIP is the proprietary non-slip material that gives you superior gripping power over workpieces and materials such as oak, cherry, walnut, ebony, pine, poplar, maple, plastics, and aluminum. Treaded grooves provide increased traction on the workpiece even with sawdust. With the included Adjustable Spacer, you’ll get 54% more gripping area for your biggest projects (compared to the GRR-RIPPER GR-100). Easily cleaned with denatured or rubbing alcohol. No other push block’s grip comes close. Superior Safety The GRR-RIPPER is engineered to be a Moving-Blade-Guard shielding your hand throughout the cut. It’s unique design creates a Saw-Blade-Tunnel for the table saw blade to pass through while your hands are safe from contact. Downward pressure prevents the workpiece from lifting off the table saw top or kicking back. Inward Pressure guides the workpiece along the fence substantially reducing burn and improving cut quality. The included Stabilizing Plate keeps the stock against the fence without binding, and also provide 250% more stabilizing surface area (when compared to the GRR-RIPPER GR-100). More control gives you safer, smoother, and smarter cuts. Enough hardware to outfit two GRR-RIPPERs. Includes 5 Heels, 2 Heel Spacers and mounting hardware, enough for outfitting 2 GRR-RIPPERs. Adjustable up to 1”. Replacement Heels available. For use with table saws, bandsaws, jointers and router tables.

• Includes GRR-RIPPER GR-200 Advanced 3D Pushblock for Table Saw + A Gravity Heel Kit - Made in the USA. A true MICROJIG Innovation.
• GR-200 - Features Include: 3-Directional Force for total control of the workpiece and virtually eliminate kickback
• Gravity Heel Accessory is a fully adjustable heel with auto-retracting technology for reducing blowout.
• Moving-Blade-Guard Hand protection, Precise 1/4" thin rips
• Stabilizes for cutting bevel rips, resawing, irregular-shaped stock, dowels, dados and more
