14 best threading dies

Product description

This 86pcs metric sae tap and die set are made of high carbon chromium bearing steel for superior durability and long-lasting performance. They are precision machined to exacting standards. They are the most commonly used style and perfect for any hand threading applications.



Feature

Material: high carbon chromium bearing steel

Type: Tap & Die

Tap And Die set: Titanium

Number of Pieces: 86pcs

Precision machined to exacting standards

Precision ground and polished surfaces to facilitate chip removal

Rust resistant

Easy to utilize

SAE TAP SIZES: 1/8"-27NPT, 4-40, 6-32, 8-32, 10-32, 10-24, 12-24, 1/4"-20, 1/4"-28, 5/16"-18, 5/16-24, 3/8"-16,3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18.



SAE DIE SIZES: 1/8"-27NPT, 4-40, 6-32, 8-32, 10-32, 10-24, 12-24, 1/4"-20, 1/4"-28, 5/16"-18, 5/16-24, 3/8"-16,3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18.



METRIC TAP SIZES: M3-0.5, M4-0.7, M5-0.8, M6-1.0, M7-1.0, M8-1.0, M8-1.25, M9-1.25, M10-1.5, M10-1.25, M11-1.5, M11-1.25, M12-1.75, M12-1.5, M14-2, M14-1.5, M16-2, M16-1.5



METRIC DIE SIZES: M3-0.5, M4-0.7, M5-0.8, M6-1.0, M7-1.0, M8-1.0, M8-1.25, M9-1.25, M10-1.5, M10-1.25, M11-1.5, M11-1.25, M12-1.75, M12-1.5, M14-2, M14-1.5, M16-2, M16-1.5



Package Content



1 X Adjustable Tap Wrench (M6 to M20 - 1/4" to 3/4")

1 X Long Handle Adjustable Tap Wrench (M3 to M12 - 1/16" to 1/2")

1 X T-Handle Tap Wrench

1 X Die Handle (M25 - 1")

1 X Long Die Handle (M38 - 1-1/2")

1 X Screwdriver

1 X Screw Pitch Gauge Metric

1 X Screw Pitch Gauge SAE

Important note: we have two color trays, Blue and gray, we ship the order at random color trays, but the tap and die is the same. Please check it out of the pictures

• This tap and die set are made of made of high carbon chromium bearing steel which are more stronger, An overall chromium coating improves the corrosion resistance of the generally used through-hardening bearing steel.
• 86 piece tungsten steel set comes in an organized, rugged plastic storage case
• Ideal for rethreading fasteners and fastener holes for auto and machinery repair. Perfect set for the professional craftsman
• Tap and die set is designed to thread cutting: tap is used to process internal thread, while the die is for external thread
• Known for their ability to start easily, these taps and dies are the most commonly used style and are perfect for most hand threading applications

User questions & answers

Question:	Is there a way a buy replace one? I have this set and need to replace a couple
Answer:	do not know never looked
Question:	Where is this tap & Die set made
Answer:	An overall chromium coating of 86pcs improves the corrosion resistance of the generally used through-hardening bearing steel. The cost of the Chromium coating is very high.
Question:	Why is the 110 piece set cheeper than this 86 pc set
Answer:	Instead of other tap and die sets which are mand of low carbonsteel, the Muzerdo tap and die set are made of made of high carbon chromium bearing steel which are more stronger.
Question:	What's the material of the tap set
Answer:	There are no left hand threaded taps or dies

Product description

EFFICERE 60-Piece Premium Tap and Die Sets is your best choice tools for hand threading jobs at home, garage, shop and work sites. It is perfect for a wide range of applications, such as auto repairs, metal fabrication, machinery, plumbing and a lot more. It can be used to both cut new threads and chase / renew existing threads. This set is made from highly durable GCr15 bearing steel, and cuts through a wide range of metal pipes and rods including carbon steel, cast iron, stainless steel, aluminum, brass, copper and much more. All the cutting teeth are professionally CNC (computer numerical controlled) machined and heat treated to Rockwell hardness 60 HRC for providing aggressive, clean and precise threading results. The taps and dies also feature a tapered design, allowing an easier start and preventing over threading. Set Includes: (27) Taps; (27) Dies; Adjustable Tap Wrench; T-handle Tap Holder; Adjustable Die Wrench; Flat Screw Driver; Thread Pitch Identifier; Storage Case; Tap and Die Sizes: (20-Piece) Metric taps and dies: M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1.0, M7 x 1.0, M8 x 1.25, M9 x 1.25, M10 x 1.0, M10 x 1.5, M12 x 1.75; (20-Piece) Numbered and Standard Fractional taps and dies for Coarse threads (UNC): #4 - 40 NC, #6 - 32 NC, #8 - 32 NC, #10 - 24 NC, #12 - 24 NC, 1/4” - 20 NC, 5/16” - 18 NC, 3/8” - 16 NC, 7/16” - 14 NC, 1/2” - 13 NC; (12-Piece) Numbered and Standard Fractional taps and dies for Fine threads (UNF): #10 - 32 NF, 1/4” - 28 NF, 5/16” - 24 NF, 3/8” - 24 NF, 7/16” - 20 NF, 1/2” - 20 NF; (2-Piece) Pipe Threader (NPT): 1/8” - 27 NPT;

• ▲ PREMIUM MATERIAL AND DURABILITY - Industrial grade GCr15 bearing steel construction ensures durability and tool longevity to withstand professional uses
• ▲ EXCELLENT CUTTING PERFORMANCE - All cutting teeth are precisely CNC machined and accurately heat treated to Rockwell hardness 60 HRC for best threading performance
• ▲ VERSATILITY AND TAPERED TEETH DESIGN - Perfect to create new threads or repair damaged threads on most metals like carbon steel, cast iron, aluminum, brass, copper and stainless steel; Taps (for internal threads) and Dies (for external threads) feature with tapered teeth that start threading more easily
• ▲ MOST POPULAR SIZES - Set includes (20) Metric taps and dies: M3x0.5, M4x0.7, M5x0.8, M6x1.0, M7x1.0, M8x1.25, M9x1.25, M10x1.0, M10x1.5, M12x1.75; (20) SAE Fractional taps and dies for coarse thread (UNC): 4-40 NC, 6-32 NC, 8-32 NC, 10-24 NC, 12-24 NC, 1/4-20 NC, 5/16-18 NC, 3/8-16 NC, 7/16-14 NC, 1/2-13 NC; (12) SAE Fractional taps and dies for fine thread (UNF): 10-32 NF, 1/4-28 NF, 5/16-24 NF, 3/8-24 NF, 7/16-20 NF, 1/2-20 NF; NPT tap and die: 1/8-27 NPT
• ▲ COMPREHENSIVE ACCESSORIES - Comes with Adjustable Tap Handle; T-type Small Tap Handle; Adjustable Die Handle; Thread Pitch Gauges; Slotted Screwdriver; Storage and Carry Case

User questions & answers

Question:	Can this tap a 14mm
Answer:	Reverse thread or left handed threads are very different and not readily found. While this is a great set it doesn’t contain tap and dies you need.
Question:	Need reverse threads set any ideas
Answer:	M3 is the smallest
Question:	Does this have 2.5mm tap and die or is 3mm the smallest
Answer:	I do not believe it does.
Question:	Doe's it have a 1/4 pipe thread tap
Answer:	Yes it will. You may have to drain the gas on some equipment depending on how you hang it though. It is certainly strong enough.

Product description

This complete set of SAE Standard and Metric taps and dies is perfect for the master mechanic or machine shop that has a wide variety of threading needs. 48 taps and 48 dies provide you with any necessary size, and our tools are designed from the ground up to bring GEARWRENCH innovations to our hard working users, like the 5 ratcheting head of our T handles or the patented Twist Lock guide system that secures any extension or cutting tool to the handle, producing straight threads on every cut.

From the Manufacturer

Gear wrench 114-Piece large ratcheting tap and diet set SAE/metric, consisting of: 82800 large ratcheting T wrench, 82801 large locking tap adapter, 82802 large hex die adapter, 3881 medium ratcheting T wrench, 3883, medium tap adapter, 3882 small tap adapter, 3884 medium die adapter, 82803 male extension adapter, 82804 female extension adapter, sliding T for adapters, 4mm hex key, 5 screw extractors, metric thread gauge, SAE thread gauge, 48 taps and 48 dies. Complete set of 48 taps and 48 dies, plus small, medium and large system of ratcheting T handles, locking tap adapters and hex die adapters. Taps and dies are made from high quality carbon tool steel. Gear wrenches ratcheting -I handle systems are perfect for the master Mechanic or Machine Shop. Set comes with blow molded case for safe and organized storage.

• Ratcheting T handles wind Dies with a 5° swing arc and have a reversing lever to eliminate hand over hand turning
• Twist lock guide system reduces the “walk back” of the die guide and keeps the dies centered while cutting
• Die adapters work on round and hex shaped Dies
• Die adapters work with the 3/8" Drive pass thru ratchet and socket system as well as socket Accessories
• Auto locking feature allow the tap adapters to be removed safely
• Drive extension adapters provide greater access in confined areas when used with 3/8" Drive Extensions
• Ratcheting t wrench works with GEARWRENCH pass thru socket system

User questions & answers

Question:	Where are these made
Answer:	the case is 20&3/4 in. wide X 13&1/4 in. deep X 3 in. high I hope this helps you.
Question:	It would be very useful to have the sizes of the taps and dies. 3mm-18mm doesn't cut it. does the set have a 17 x
Answer:	Yes it does include an m16 x 1.5 die & a tap of the same size. The set includes taps & dies for the following sizes.SAE: 4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20NC, 1/4-28NF, 5/16-18NC, 5/16-24NF, 3/8-16NC, 3/8-24NF, 7/16-14NC, 7/16-20NF, 1/2-13NC, 1/2-20NF, 9/16-12NC, 9/16-18NF, 5/8-11NC, 5/8-18NF, 3/4-10NC, 3/4-16NF. Metric: 3mm-0.50, 3mm-0.60, 4mm-0.70, 4mm-0.75, 5mm-0.80, 5mm-0.90, 6mm-0.100, 7mm-0.100, 8mm-1.25, 9mm-1.00, 9mm-1.25, 10mm-1.25, 10mm-1.50, 11mm-1.50, 12mm-1.50, 12mm- 1.75, 14mm-1.25, 14mm-2.00, 16mm-1.50, 16mm-2.00, 18mm-1.50, 18mm-2.50. The set also includes pipe thread tap & dies: 1/8-27NPT, 1/4-18NPT, 1/8-28BSP, 1/4-19BSP.
Question:	Can anyone give the overall dimensions of the case? Thanks
Answer:	Yes it's a tap and die and it's 3/4-20
Question:	Does it have a M16 x 1.5 die
Answer:	Now just five days or less ！Fast shipping ！

Product features

GEARWRENCH Ratcheting Tap & Die Sets

GEARWRENCH has taken the ratcheting wrench design and applied it to the tap & die. The ratcheting handles and adapters allow for easy back and forth movement required while cutting threads on either taps or dies. The 5° ratcheting arc with reversing lever eliminates hand over hand turning.

GEARWRENCH Racheting T Wrenches

The GEARWRENCH ratcheting T wrenches are available in 2 sizes - medium & large. Our twist lock guide system reduces the chance for 'walk back' of the die guard. Die adapters work on round and hex shaped dies and also fully integrate with our Pass-Thru ratchet and socket system. You can also extend the length of any of the GEARWRENCH taps and dies by combining the adapters with any standard 3/8 In. drive extension.

Product description

Cut and Repair Metal Threads Yourself

Neiko's 40-piece SAE Tap and Hexagon Die Set is a premium, precision tool kit for hand cutting, and repairing of metal threads in your home workshop or garage.

How Do Taps and Dies Cut?

Taps cut internal threads, such as those found in nuts or within pre-drilled holes. This is known as "tapping." Dies, cut external threads on rods, such as those on screws. This is known as "threading." Taps and dies are also used to repair damaged threads, known as "chasing" a thread. The included tap wrench, T-handle wrench, and screw pitch gauge literally put the power of your tap and dies in the palm of your hands, saving you time, money and hassles during your next project.

Maximized Durability and Usability

The cutting pieces of this tap die set feature high strength GCr15 alloy steel construction, and a titanium coating allowing them to cut through metals including cast iron, aluminum, brass, and carbon steel, while maintaining their durability and rust resistance. The taps and dies are sized from #4 to 1/2-inch, and feature coarse (UNC) fine (UNF) and national pipe (NPT) thread designations, ensuring usability in many hand threading applications.

The 40 Piece Set Includes:

• 10 - coarse thread (UNC) plug type taps (sizes: 4-40, 6-32, 8-32, 10-24, 12-24, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13)
• 10 - coarse thread (UNC) hexagonal dies (sizes: 4-40, 6-32, 8-32, 10-24, 12-24, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13)
• 6 - fine thread (UNF) plug type taps (sizes: 0-32, 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20)
• 6 - fine thread (UNF) hexagonal dies (sizes: 0-32, 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20)
• 1 - NPT die: 1/8"-27
• 1 - NPT tap: 1/8"-27
• 1 - adjustable tap wrench
• 1 - T-Handle tap wrench
• 1 - adjustable die wrench
• 1 - screwdriver
• 1 - screw pitch gauge
• 1 - ABS protective storage case

• CUT AND REPAIR SCREW THREADS: Tap and dies allow cutting and repair of external or internal threads by hand
• EASY-TO-START THREADING: Plug type, fluted coarse (UNC), and fine (UNF) tap and dies in SAE for easy-to-start hand threading applications
• HIGH STRENGTH ALLOY STEEL: GCr15 alloy steel construction provides superior blade hardness and thread cutting performance
• DURABLE AND ANTI-CORROSIVE: Titanium coating provides more rust resistance and durability than plain finished products
• HARD CASE INCLUDED: ABS hard case for organization, protection and safe storage

User questions & answers

Question:	Can I tap a 10-32 hole with this kit
Answer:	Probably not. My kit didn't come with a 10-32 tap, it has a 10-40 and the largest 32 thread pitch die was an 8-32.
Question:	What are these stupid sizes : we need them in mm . i hate american sizes . inch and feet and unc which i do not know what is it
Answer:	They sell them in metric sizes as well. With that said I'd save my money. The set I purchased lasted about 5 seconds. the taps broke after about three turns and the die wrench, I used for a fishing sinker.
Question:	Can you use this on wood
Answer:	I think that depending on what you are trying to accomplish, cutting either male or female threads in wood of any kind to mate with any kind of metal part is an exercise in futility. That said, you can glue threaded metal inserts into a hole drilled in the wood that will work much better. However if you want to mate wooden parts only such as in a workbench vise, this may be a feasible tool depending on what the largest size taps and dies are in the set. Traditionally though, wooden threads for this purpose are generally cut by hand with chisels and rasps and files due to coarse the threads must be to allow for the material strength difference.
Question:	It is inch or metric
Answer:	It is available in either metric or english, be sure to read the description carefully to order the one you want. I accidentally ordered the wrong one the first time and had to return it.

Product features

The DIY Machinist Kit

Have you ever needed to add an additional screw or threaded bolt into into a metal component, or maybe just clear a metal thread, but couldn't because you didn't have the tools? That's about to change.

Neiko's Tap and Hexagon Die Set is a premium, precision tool kit for hand cutting, and repairing of metal threads in your home workshop or garage.

Durability and Usability

This set feature high strength, high carbon chrome steel alloy construction (GCr15), and a titanium coating, allowing them to cut through metals including cast iron, aluminum, brass, and carbon steel, while maintaining their durability and rust resistance.

High Versatility

The taps and dies are SAE sized from #4 to 1/2-inch, and feature coarse (UNC) fine (UNF) and national pipe (NPT) thread designations, ensuring usability in many hand threading applications.

Easy Identification

Each piece is engraved with the proper sizes so you don't confuse yourself with trying to find the right size.

The Accessories you Need

Most accessories you'll need are included: T-handle tap wrench, adjustable tap wrench, adjustable die wrench, screwdriver, screw pitch gauge.

• CUT & RENEW THREADS: The ABN | Metric Tap and Dies Set 110-Piece Metal Threading Kit cuts and renews external and internal threads to exact standards; Ideal for professional machinists and DIY weekend warriors alike to rethread existing auto and machinery fasteners, remove screws/bolts, cut raw material; Tap wrench fits the different sizes of taps, thread taps are used to process internal thread, thread die set is for external thread, plug taps suitable for cleaning and rethreading
• FITS YOUR APPLICATION: Metric – Taper taps (2x0.4, 3x0.5, 4x0.7, 5x0.8, 6x7.5, 6x1, 7x0.75, 7x1, 8x0.75, 8x1, 8x1.25, 9x0.75, 9x1, 9x1.25, 10x0.75, 10x1, 10x1.25, 10x1.5, 11x0.75, 11x1, 11x1.25, 11x1.5, 12x0.75, 12x1, 12x1.25, 12x1.5, 12x1.75, 14x1, 14x1.25, 14x1.5, 14x2, 16x1, 16x1.5, 16x2, 18x1.5,); Plug taps (same size as taper taps); Dies (same size as taper taps); Tap wrenches (M3-M12 x 1/16”-1/2”, M6-M20 x 1/4”-3/4”); Die wrenches (25mm x 1”, 38mm x 1-1/2” OD); T-type tap wrench (M3-M6)
• BUILT TO LAST: Constructed from chromium-coated high carbon steel for maximum strength and corrosion resistance; Metric tap set has 3-4 flute abrasive cutting edges each so you can easily clean/repair and cut materials such as aluminum, iron, cast iron, alloy steel, carbon steel, abrasive steel, malleable cast iron, and other difficult to machine metal materials
• EASY STORAGE: Heavy-duty 17” x 2.25” x 12.75” inch (43.2cm x 5.7cm x 32.4cm) plastic blow-molded carrying case with 2 side latches and built-in handle for easy transportation, safe storage, and quick organization; Each compartment is labeled with sizing for simple identification
• PACKAGE CONTENTS: Combination set contains both metric taps and dies; Tap die set metric tap die metal threader package includes 35 taper taps, 35 plug taps, 35 dies, 2 tap holder wrenches, 2 die holder wrenches, 1 T-bar type tap wrench, and 1 carrying case; (Thread pitch gauge not included, but we recommend using these taps to light up threads from the bolt)

User questions & answers

Question:	Is this made in the United States of America
Answer:	No, this kit does not do any left had threading. You will have to look for a set that is specifically designated for left hand threading.
Question:	Are they made in the USA
Answer:	Since there's almost nothing made here in the US anymore I'd say offshore someplace. That being said though it's a pretty good, complete set. I've used in several times on the larger 3/4" and 7/8" tap sizes with good results and no tool breakage. It's also lifetime warranteed. I hope I can find where to get the warranty serviced if I ever do need it but Amazon helps with that if there is a problem.
Question:	Does the kit do left hand re-threading
Answer:	the set does not have that size. sorry it took so long to answer.

Product features

ABN | 110-Piece Metric Metal Threading Tool Kit Taps and Dies Set

Whether you are removing screws, creating new threads, or repairing damaged and worn ones, achieving a precise fit is essential. Finish metal threading and tapping while also chasing threads when they become damaged with the ABN | 110-Piece Metric Metal Threading Tool Kit Taps and Dies Set.

EXTERNAL AND INTERNAL USE

They restore threads of various sizes and are for both external and internal use so you can repair any type of threading by hand.

REMOVE IMPERFECTIONS

This set helps you work with damaged nuts, bolts and threads. When a replacement bolt is hard to find, you can use this thread tap set to remove imperfections from threads.

AVOID BINDING

To avoid binding when using holder, back off slightly and use a rocking motion to advance the threads and clear any loose chips. Tap sizes range from M2-M18 along with thread pitches from 0.4-1.5mm.

• CUT AND RENEW THREADS: The ABN Metric and SAE Standard Tap and Die 60-Piece Rethread Set Rethreading Kit for Cutting External and Internal Threads is a comprehensive set for cutting and renewing external and internal threads to exact standards
• SIZES: Metric taps 3x0.5, 4x0.7, 5x0.8, 6x1.0, 7x1.0, 8x1.25, 9x1.25, 10x1.0, 10x1.5, 12x1.75; UNC taps 4-40, 6-32, 8-32, 10-24, 12-24, 1/4, 5/16, 3/8, 7/16, 1/2; UNF taps 10-32, 1/4, 5/16, 3/8, 7/16, 1/2; Metric dies 3x0.5, 4x0.7, 5x0.8, 6x1.0, 7x1.0, 8x1.25, 9x1.25, 10x1.0, 10x1.5, 12x1.75; UNC dies 4-40, 6-32, 8-32, 10-24, 12-24, 1/4, 5/16, 3/8, 7/16, 1/2; UNF dies 10-32, 1/4, 5/16, 3/8, 7/16, 1/2; NPT tap 1/8-27; NPT die 1/8-27; Tap wrench M4-M12 3/16-1/2”; T-type tap wrench M3-M16 1/16-1/4”
• BUILT TO LAST: Constructed from hardened alloy steel for maximum strength and longevity; Can cut materials such as cast iron, steel, aluminum, copper
• EASY STORAGE: Heavy-duty plastic blow-molded carrying case for easy transportation, safe storage, and quick organization
• CONTENTS: Package includes coarse and fine threads numbered taps and dies from #4-40 to #12-24 and fractional taps and dies from 1/4"-28 to 1/2"-20, 1/8"-27 NPT tap and die, metric tap and dies from M3x0.5 to M12x1.75, thread gauge, tap handle, die handle, small tap chuck, and a carrying case for your convenience

User questions & answers

Question:	Does it have a chart on the drill bit that needs to be used with each tap
Answer:	My phones case is not at thick. I am assuming that mine is about 1/2 inch. But this product is working great for me. It seems to have enough space available to accommodate your phone's case. I am sorry I could not be of more help, but I haven't taken the time to get the exact measurements.
Question:	Are the taps tapered
Answer:	Spring loaded. Insert corner then stretch. Pull other corner then lock and rotate.
Question:	Will this set work on 1095 high carbon sterl
Answer:	yes i use my galaxy s 7
Question:	I need a 1 inch sae and metric tap and die does this kit come with it
Answer:	Sorry we returned it, opted for a magnetic cradel

Product features

Check This Out! - ABN Metric and SAE Tap and Die 60-Piece Set

Who We Are

Auto Body Now is a family owned company based out of South Dakota. We provide the Midwest with the highest quality auto body supplies and car care products on the market. We have an exceptionally strong Internet presence, sending out over 50,000 products each month. In fact, if you have purchased any of your auto body supplies or car care supplies online, there is a good chance we have had the opportunity to serve you.

About ABN Metric and SAE Standard Tap and Die 60-Piece Rethread Set Rethreading Kit for Cutting External and Internal Threads

A Closer Look

Cut and Renew Threads

This is a comprehensive set for cutting and renewing external and internal threads to exacting standards.

Product description

47750 Dies, Univ 1-2 Npt. This item is used for Handtools & Tool Organizers ,Other Hand Tools. This product manufacture by United States.

From the Manufacturer

Rigid 47750 DIES, UNIV 1-2 NPT. The Rigid 47750 DIES, UNIV 1-2 NPT is a pipe for a 504 Quick Opening Threader. The Rigid 47750 DIES, UNIV 1-2 NPT is a High Speed RH. The Rigid 47750 DIES, UNIV 1-2 NPT has a National Pipe Thread of 1" to 2" and a TPI of 11-1/2.

• Country Of Origin: United States
• Model Number: 47750
• Item Package Dimension: 9.0" L x 4.8" W x 0.8" H
• Item Package Weight: 1.31 lb

User questions & answers

Question:	replacement dies for model
Answer:	Yes they will fit on 535A, America Tools.
Question:	Do they fit rothenberg
Answer:	Yes they will fit the 815A die head
Question:	is this works for ridgid
Answer:	No, it is made in China!
Question:	Do these work with the 815A die heads
Answer:	No, They are made in China!

Product description

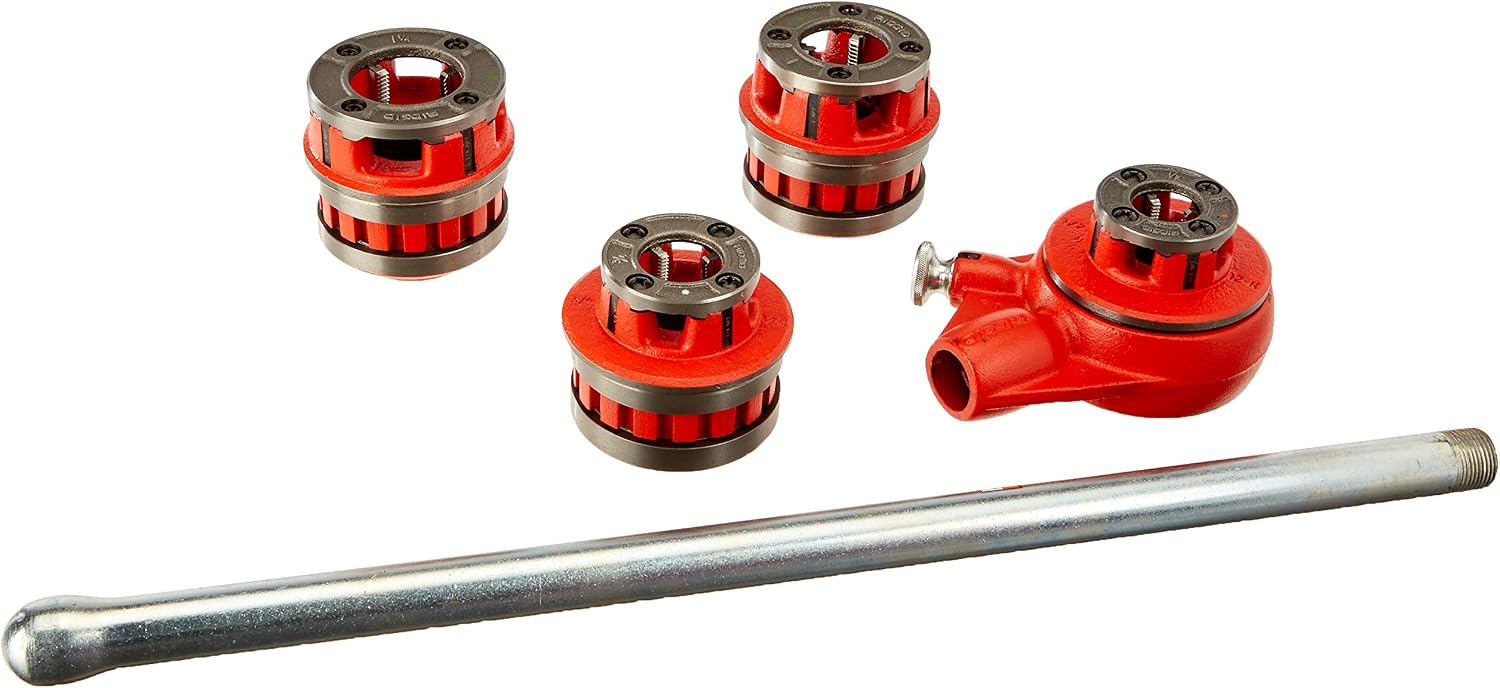

This item is 36480 THREADER, 12R 1/2- 1-1/4 NPT. This product is used for two-piece-threading-dies. This product manufacture by United States.

From the Manufacturer

Since 1923, Ridgid has remained the symbol of certainty to dedicated professionals of the expert trades. Every tool that bears the Ridgid brand is engineered to the same high standards of quality, strength and endurance as was that first heavy-duty pipe wrench more than 80 years ago. Ridgid covers its products with a lifetime warranty against defects in material or workmanship for the life of the tool. The Ridgid 36480 is an Exposed Manual Ratchet Threader Set. This set contains 12-R die heads, a ratchet assembly, a ratchet handle and alloy dies. This set's capacity is 1/2-Inch to 1-1/4-Inch

• This item is 36480 THREADER, 12R 1/2- 1-1/4 NPT
• This product is used for two-piece-threading-dies
• This product manufacture by United States

User questions & answers

Question:	Are these dies suitable for stainless steel
Answer:	They are Standard American Pipe Thread used by most projects involving Rigid Conduit and water lines, explosive/hazardous gases and liquids would be a reason for a special thread design.
Question:	can I use this tool to cut threading on mild steel
Answer:	Handle is 23 3/4" bare, assembled to Ratchet length is 29." The Set I have came in its own Ridgid case,,, only shy the 1 1/2 & 2 inch dies, didn't need those sizes, have 1/4 through 1 1/14 inch dies. (12-R Dies)
Question:	Are the threads for electrical or gas
Answer:	Sorry not familiar with the 690, but they work just fine in a 300 machine.
Question:	How long is just the handle and how long is handle with rachet? Reason is im looking to see if it fits in my tool box or spend the money and have case
Answer:	Yes, these fit the rothenburger pipe threader.

Product description

This set can improve the efficiency of processing threading and provides necessary tools for hand tapping operation. Adjustable dies allow the user to over or under cut their threads as well as providing precision threading with adjustment of the set screw. Hexagon dies can replace with round dies. The hardness provides aggressive clean and precise threading results. The Taps and dies feature a tapered design allowing an easy start and preventing over threading. The following accessories are included: (17) Taps for internal Threads; (17) Dies for external Threads; Long Handle Adjustable Tap Wrench; T-Handle Tap Wrench; Adjustable Die Wrench; Mini 1/8” Flat Screw Driver; Thread Pitch Gauge; Storage and Carry Case. Tap and Die Sizes: Coarse Thread (NC): 4-40 NC, 6-32 NC ,8-32 NC, 10-24 NC, 12-24 NC,1/4-20 NC, 5/16-18 NC3/8-16 NC, 7/16-14 NC, 1/2-13 NC; Fine Thread (NF):10-32 NF, 1/4-28 NF, 5/16-24 NF, 3/8-24 NF, 7/16-20 NF, 1/2-20 NF; Pipe Thread (NPT): 1/8 NPT 27

• ✔PROFESSIONAL HEAVY-DUTY COMPREHENSIVE SET ideal for rethreading fasteners and fastener holes, cutting or renewal internal or external threads. Precision milled SAE tap and die set for cutting raw material or repair existing threads, remove screws and more.
• ✔SUPERIOR QUALITY made of GCr15 bearing steel suitable for lifelong durability, and superior strength. Suitable for cutting in steel, copper, aluminum, cast iron etc. All cutting teeth are professionally CNC machined and accurately heat treated to Rockwell hardness 60 HRC for superior threading performance
• ✔WELL ORGANIZED IN THE CARRYING CASE - Heavy-duty plastic carrying case for easy transportation, safe storage, and quick organization preventing from accessories to fall apart.
• ✔ PROFESSIONAL AND PERSONAL USE this tap and die kit is ideal for DIY projects at home, auto and machinery workshop and many more.

User questions & answers

Question:	Are the dies round or hex
Answer:	Yes
Question:	Where is this set made
Answer:	I don't see why not, (using the right threading oil) I have threaded Monell Ridgid Conduit with these tools and it is "way though" compared to regular pipe. Go slow, lots of oil, and back it off a lot, watch and feel your cut. If it does not cut smooth, chatters and jumps the steel is too hard.

Product description

NORTOOLS 40-Piece Premium SAE Tap and Die Set is the perfect choice for your hand threading jobs at home, garage and shop. It can be used to either cut new threads or chase existing threads.



What You Get

(10) UNC Taps : 4-40,6-32,8-32,10-24,12-24,1/4,5/16,3/8,7/16,1/2

UNF Taps : 4-40,1/4,5/16,3/8,7/16,1/2

(10) UNC Dies : 4-40,6-32,8-32,10-24,12-24,1/4,5/16,3/8,7/16,1/2

UNF Die : 4-40,1/4,5/16,3/8,7/16,1/2

NPT Tap :1/8-27

NPT Die : 1/8-27

Tap Wrench:1/2"capacity

Screwdriver

T-Type Tap Wrench:1/4"capacity

Screw Pitch Gauge

Die Wrench : 1" O/D



Feature

1. This set is made from highly durable GCr15 bearing steel, and cuts through a wide range of metal pipes and rods including carbon steel, cast iron, stainless steel, aluminum, brass, copper and much more.



2. All the cutting teeth are professionally CNC (computer numerical controlled) machined and heat treated to Rockwell hardness 60 HRC for providing aggressive, clean and precise threading results.



3. The taps and dies also feature a tapered design, allowing an easier start and preventing over threading.

• ALLOY TOOL STEEL
• Imported
• ☑REMIUM MATERIAL AND DURABILITY: Industrial grade GCr15 bearing steel construction ensures durability and tool longevity
• ☑EXCELLENT CUTTING PERFORMANCE: All cutting teeth are precisely CNC machined and accurately heat treated to Rockwell hardness 60 HRC for best threading performance
• ☑TAPERED TEETH DESIGN: Tapered coarse and fine taps and dies start threading more easily and smoothly, and prevent over threading
• ☑ALL-INCLUDED SET: This kit comes with a full range of most popular SAE taps & dies with both coarse and fine sizes, plus all needed wrenches, handles, a gauge and a storage case
• ☑VERSATILITY AND WIDE APPLICATION: Perfect to create new threads or repair damaged threads on plastic, aluminium... a good tool for home, backyard, garage mechanic...also can use them on small engines like: snow blowers, lawn mowers and outboard motors...Our big recommendation is that before you use any tap or die in this set, is to buy a small can of 3-in-one oil for use as a thread cutting oil

User questions & answers

Question:	Can this set nortools 24 pcs tap and die set be used for threading hard wood screws and nuts? 1/2 inch size
Answer:	China. (surprise!)

Product description

A fine three-part set in sizes from 1/2" to 1-1/2". The two-handled threadbox cuts the male threads, a matching tap die cuts the internal female threads, and a bottoming tap finishes off the female section.Threadbox is made of long-lasting hardwood with internal aluminum wear fittings and a steel cutter.Scroll down or click here for more information on the Tap and Die Set.

• Three-part set in sizes from 1/2 inch to 1 and 1/2 inches
• Two-handled threadbox cuts male threads, while matching tap die cuts internal female threads
• Bottoming tap finishes off the female section
• Made of long-lasting hardwood with internal aluminum wear fittings and a steel cutter

User questions & answers

Question:	What size bit is needed for a starter hole prior to tapping
Answer:	Both taps and the rods for turning them come together in a plastic sleeve. Also included is the stock and die and instruction page.
Question:	What is the TPI for these cutters, and does if differ based on the diameter of the work piece
Answer:	These will definitely work well with Walnut and Oak. Usually it's best to use hard woods vs soft woods for this, only because of how the threading affects it.
Question:	Hi , on the listing i saw two parts to cut the female threads .but in the cart im only seeing one ,could you please explain thank you
Answer:	perhaps my problem lies with me. the steel seems too soft to be much use on anything but the softest metals. dies strip before any pressure is applied. again, I'm a klutz...
Question:	What type of wood does these work best? Walnut, Oak
Answer:	Round

Product description

Drill America DWT Series Qualtech carbon steel hex die is for dressing over bruised or rusty threads, this is the most cost effective rethreading tool available. No special holder is required for this type of die, any wrench large enough will suffice. Ideal for maintenance in the shop or field.

• Made of carbon steel
• Right-hand cut tools have a cutting action that engages when they are run in a clockwise direction
• Hex die is for dressing over bruised or rusty threads
• No special holder is required for this type of die, any wrench large enough will suffice
• Ideal for maintenance in the shop or field

User questions & answers

Question:	What die handle size can be used with dwthx51618lh left hand hex die, 5/16" - 18", size of die is 0.7 inches
Answer:	The 22m x 1.25 hex dies have Approx. 1-5/8 across the flats.
Question:	I'm looking for a die to cut threads for a metric plumbing pipe for a sink sprayer I bought from China. Will this work or is this for a 16mm bolt
Answer:	I assume you mean the markings to know what size it is. It is laser etched. It says 14mm x 1.50 start this side.
Question:	How big a socket do I need for the M22 x
Answer:	From the directions: For the 1/2" Kit use a 3/8" Drill bit. For the 3/4" Kit use a 5/8" Drill bit. For the 1" Kit use a 7/8" Drill bit. For the 1-1/4" Kit use a 1-1/8" Drill bit. For the 1-1/2" Kit use a 1-3/8" Drill bit.From me: Use hard wood! And, ALWAYS Lubricate your tap with Linseed Oil or Tung Oil!
Question:	is the die stamped or laser-etched? thanks
Answer:	TPI for 3/4" is 6, same as a broom handle. TPI are standard for all these products, so look at another supplier who states the TPI for the diameter. Garret Wade does not state in their product description.

Product features

No Special Holder Required

Unlike round dies, Drill America Carbon Steel Hex Dies do not require a special holder. Any wrench large enough will suffice.

Product description

With 17 taps and 17 dies in a full range of coarse and fine sizes from 3 to 12 mm, the TEKTON 39-pc. Tap and Die Set (Metric) is the ideal all-purpose set for your garage or shop. These tapered plug taps and dies are the most commonly used style and are perfect for most hand threading applications. They are known for their ability to start easily, either cutting new material or chasing lightly damaged threads. With proper technique and the right lubricant, these taps and dies will cut mild carbon and alloy steel, cast iron, aluminum, brass and bronze.

Set Includes:

• Long Handle Tap Wrench
• "T" Handle Tap Wrench
• Die Stock
• 1/8 in. Flat Screwdriver
• Thread Pitch Gauge
• (17) Plug Type Taps
• (17) Dies

Tap and Die Sizes:

• Coarse Thread: 3 x 0.5, 3 x 0.6, 4 x 0.7, 4 x 0.75, 5 x 0.8, 5 x 0.9, 6 x 1.0, 7 x 1.0, 8 x 1.25, 10 x 1.5, 12 x 1.75
• Fine Thread: 6 x 0.75, 7 x 0.75, 8 x 1.0, 10 x 1.25, 12 x 1.5
• Pipe Thread (NPT): 1/8 NPT 27

• High-quality milled alloy tool steel
• Cut new material or chase lightly damaged threads
• 3- and 4-flute plug taps and dies for hand threading applications
• Tapered coarse and fine taps and dies start easily and prevent overthreading
• Storage case keeps everything neat and organized

User questions & answers

Question:	where is it made
Answer:	10 mm diameter, 1 mm pitch, grade 8
Question:	It has the oxygen sensor size
Answer:	Stainless steel is much harder than mild steel. You can use this kit, however it would be trickey at best. The taps and dies are made of high speed steel, and arnt much harder than stainless. Your best bet would be to look for a set made of cobalt, or better yet carbide or carbied tipped.
Question:	I've got a nut with the following specs: M10X1-8 ZNS3. Will this kit do the trick? I don't know what the 1-8 means. Is it 1mm? is it 1 and
Answer:	Doesn't require a die handle; just use the appropriate size box wrench or socket wrench. Much better control and even application of torque.
Question:	Will this work on stainless steel
Answer:	This is rethread die. Not really good to cut new threads. For 16 mm bolt or straight threads. Not for pipe threads if that what you want.

• CLEAN CUT RESULTS: Start straightforward DIY hand tapping, threading, and chasing with the Hi-Spec Metric Tap and Die Tool Set. Cut new material or chase lightly damaged threads and recover old screws, rusty nuts and bolts, and spark plugs. Complete in a tool box tray case
• 18 PIECE METRIC TAP & DIES: Most popular thread sizes and pitches of three and four flute tapered and plugged taps, and dies. 9 x Metric Taps: M3 to M12. 9 x Metric Dies: M3 to M12
• METAL RULES: With taps and dies made from GCr15 Alloy steel, a high carbon chromium bearing steel with high hardness, high contact fatigue performance, and good wear and corrosion resistance, the Hi-Spec Tap and Die Set will tap and thread typical metals such as carbon alloy steel, cast iron, aluminium, brass and bronze
• THREADING/FORMING & CHASING: Clean up old, broken and damaged threads with The Hi-Spec Tap and Die Set. The taps cut internal threads and dies cut external thread with their coarse and fine threads. Use these cutting tools with cutting oils for the quickest and most efficient way of adding a screw thread to a work piece
• ACCESSORIES & STORAGE CASE: 2 x Tap and Die Wrench handles with steel alloy bodies and adjustable fittings for turning the taps and dies. Items are neatly organised in a slimline case for easy access and packing in a tool box or storage on a shelf

Product features

Metric Taps

M3x0.5, M4x0.7, M5x0.8, M6x1.0, M7x1.0, M8x1.25, M9x1.25, M10x1.5, M12x1 .75

Metric Dies

M3x0.5, M4x0.7, M5x0.8, M6x1.0, M7x1.0, M8x1.25, M9x1.25, M10x1.5, M12x1 .75

Handles

Zinc alloy body, carbon steel holding blocks, A3 steel chrome-plated handles

Adjustable Tap Wrench Handle

• 19.5cm / 7-11/16" long
• M3 to M12 & 1/16 to 1/2"

Die Wrench Handle

• M25 / 1"
• 20.0cm / 7-7/8" long
