3 best stud finder for tile

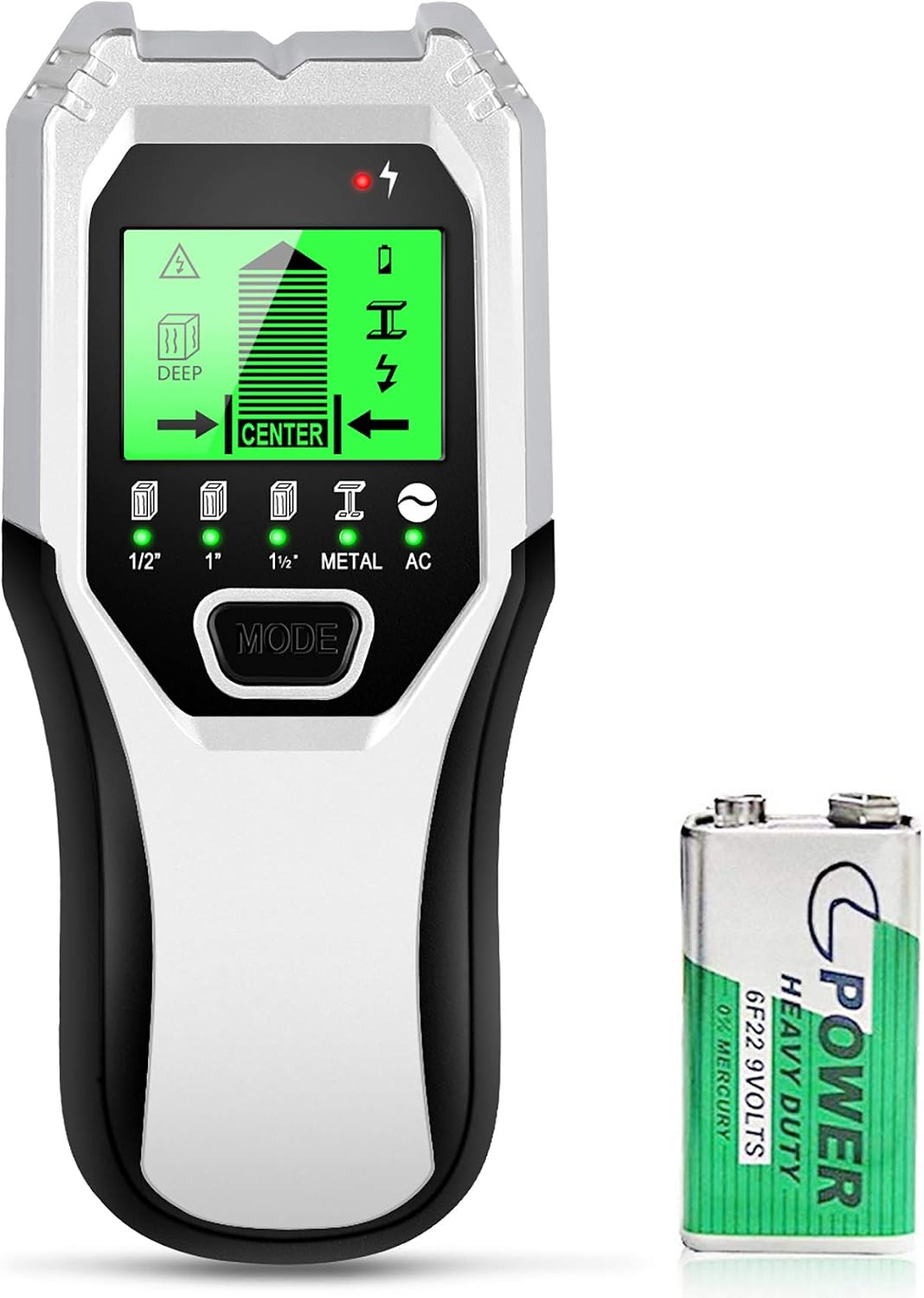

Name: Stud Finder Sensor Wall Scanner - 4 in 1 Electronic Stud Sensor Beam Finders Wall Detector Center Finding with LCD Display for Wood AC Wire Metal Studs Joist Detection
Brand: Tavool
Price: 46 USD
Availability: InStock
Rating: 4.2 (250 reviews)

Finding studs behind tiled walls can be challenging because traditional stud finders that rely on detecting changes in density are often less effective when dealing with tile. However, there are a few specialized tools and techniques you can use to locate studs behind tile:

Magnetic Stud Finders: Magnetic stud finders are one of the more reliable options for locating studs behind tiled walls. They work by detecting the screws or nails that are used to attach the tile to the wall. When the tool encounters metal fasteners, it reacts, indicating the presence of a stud. These stud finders are relatively simple to use and are often effective.
Electronic Stud Finders: Some electronic stud finders are designed specifically for use on tiled walls. They use different technologies, such as radar or capacitive sensors, to detect changes in the wall's composition. These can work on tile, but their accuracy may vary depending on the thickness and composition of the tile.
Visual Inspection: In some cases, you can visually inspect the wall for signs of stud locations.Look for patterns in the tile or any visible screws, which may indicate the presence of a stud. Keep in mind that this method is not always reliable, and it may require removing or damaging some tiles to get a better view.
Measuring from Corners: You can also measure from the corners of the wall to estimate the location of studs. Standard stud spacing is typically either 16 inches or 24 inches apart. By measuring from a corner and using this standard spacing as a guide, you can make an educated guess about where the studs might be.
Knocking: While not as precise as other methods, tapping or knocking on the wall can sometimes help you identify the location of a stud. A hollow sound may indicate an area between studs, while a solid sound may suggest a stud. This method is best used in conjunction with other techniques.

When working with tile, it's important to be careful to avoid damaging the tiles or the wall. If possible, practice your stud-finding technique in an inconspicuous area before attempting to locate studs in a more visible part of the wall. Additionally, consider using a stud finder that is specifically designed for use on tile or other challenging surfaces to increase your chances of success.

Below you can find our editor's choice of the best stud finder for tile on the market

Stud Finder Sensor Wall Scanner - 4 in 1 Electronic Stud Sensor Beam Finders Wall Detector Center Finding with LCD Display for Wood AC Wire Metal Studs Joist Detection

Tavool

Based on 24 reviews Check latest price

User questions & answers

Question:	Is there an instruction manual online? I misplaced the manual that came in the box
Answer:	Si puede solicitar un manual de instrucciones en [email protected]
Question:	Will this locate studs behind bathroom tiles
Answer:	If your tile wall has cement backer board, then this device will not work. If your tile is backed by sheetrock, then it will probably work unless your tile is took thick. I wouldn't trust it to locate pipes behind tile, so take care if you're working in a bathroom.
Question:	Is the battery included
Answer:	No the 9volt battery is not included.
Question:	Can this detect a stud behind plaster walls
Answer:	This tud finder can quickly locate metal, studs, joists, pipes, live AC wire behind all kinds of walls floors and ceilings but except the cement board wall, you can use it on popcorn ceilings, plaster walls, textured surfaces,etc

Product features

Stud Scan Detection

Deep Scan Mode scans through 2 layers of drywall up to 1.5 in. (38 mm) deep. DeepScan Mode is a higher sensitivity scanning mode that should be used when there are extra layers of wallboard or paneling. To minimize false positives and/or finding other objects further behind the wall that may not be a stud, always start your scan in StudScan Mode first.

Metal Scan Detection

Tavool wall canner will locate metal studs in StudScan, DeepScan, and Metal Scan Modes. Since Tavool stud finders are looking for a change in density behind drywall, not a particular material, in StudScan and DeepScan Modes the detector will react to metal studs the same as it would for wooden studs.

After you detect the center of a object, Please Use Metal Scan to determine if the previous reading in Stud scan was a wood stud, metal stud, or pipe.

Live AC Wire Detection

AC Wire detection indicates the presence of live, unshielded electrical wiring up to 2 inches (51 mm) deep. In all modes, this wall scanner always detect and indicate the Live AC Wire.

Note: AC Wire Detection works in both StudScan / DeepScan / MetalScan Modes. The AC Wire Detection Icon will flash when live, unshielded wires are detected.

Step 1:Calibrate the tool before every scan

After choose the mode, press and hold the scan button( on the side of the tool) to calibrate this tool. Wait for the reducing bars disappeared and beep to confirm calibration has completed.

In stud/deep mode, put it on the wall where you want to detect to calibrate it ;In AC/Metal mode, put it in the air to calibrate it.

Step 2: Scan the wall

Hold down the button, then move the stud finder along the wall slowly, if shake or lift the scanner accidently, the device needs to be re-calibrate.

The narrow on the screen togather with the beep signal alter, guides you to find the location of the stud.

Step 3: Find the location of the stud

When the signal bar is full and the beep alarm is loudest, it means you have found the center of an object.Mark it with your pencil.

Then choose the Metal Scan mode to test whether it is a metal. After you confirm that it is not a metal, it means that you found the center of a stud. (More details refer to the above description of "Metal Scan Detection")Then you can drill it to hang thing

Franklin Sensors FS710PROProSensor 710+ Professional Stud Finder with Built-in Bubble Level & Ruler,Yellow

Franklin Sensors

Based on 3 reviews Check latest price

Product description

High accuracy: uses 13 sensors to give accurate readings every time; one-step operation: just press the button; when placed on wall LED lights instantly indicate studs; deep sensing: more sensor pad area than other scanners results in deeper scan; triple accuracy technology analyzes and triangulates data from all the sensors for highest accuracy; Built-in bubble level makes this 2 tools in 1!

Prosensor 710+ professional stud finder with built-in bubble level and ruler
Small
Yellow

User questions & answers

Question:	does it detect floor studs under carpet and padding
Answer:	Scan goes 1.5 inches on deep scan most subfloors are 1 inch plus carpet and pad.....my guess is no. Im guessing you need to add floor outlet. In that case look for hvac vents in floor to show orientation of floor joices. Best thing ive done is drill 1/8 inch hole and put long steel wire down through insulation then go in crawl to see if in between floor joices. Ive seen some electricians just drill it where homeowner wants floor outlet and if they hit joice they just drilled it out and installed floorbox to hide mistake. Most stud finders dont do good on flooring
Question:	Does it work on metal studs
Answer:	Yes.
Question:	Our walls are 3/4 inch tongue and groove. Will this be able to detect through that
Answer:	The ProSensor 710+ should detect through wood tongue and groove walling material.
Question:	will it detect and show studs behind plaster and lath
Answer:	This unit can detect studs through lath and plaster, but it is not guaranteed as it is on drywall. Because lath and plaster usually is usually thicker and less consistent, it could lead to some inconsistent readings. The multiple sensors and deep sensing capabilities on this stud finder give it a better chance on lath and plaster, but it cannot be guaranteed.

Product features

ProSensor 710

Unlike conventional stud finders which use only 1 or 2 sensors, the Franklin Sensors ProSensor 710 uses 13 sensors simultaneously to detect studs. This multi-sense technology eliminates the calibration step other brand stud finders require. Just put it on the wall and press the button. It's quick and easy.

The ProSensor 710 can detect multiple studs simultaneously. It accurately displays the center and edges of a stud at the same time.

Stud Finder Sensor Wall Scanner - 5 in 1 Electronic Stud Sensor Locator Wood Beam Joist Finders Wall Detector Edge Center Finding with LCD Display for Wood Live AC Wire Metal Studs Detection (Silver)

Tavool

Based on 6 reviews Check latest price

Product features

Stud Scan Detection

This stud locator has 3 stud scan modes. Deep Scan Mode scans through 2 layers of drywall up to 1.5 in. (38 mm) deep. DeepScan Mode is a higher sensitivity scanning mode that should be used when there are extra layers of wallboard or paneling. To minimize false positives and/or finding other objects further behind the wall that may not be a stud, always start your scan in StudScan Mode first.

Metal Scan Detection

After you detect the center of a object, Please Use Metal Scan to determine if the previous reading in Stud scan was a wood stud, metal stud, or pipe.

Wire Warning Detection

Wire Warning detection indicates the presence of live, unshielded electrical wiring up to 2 inches (51 mm) deep. For Safety, in all modes, this wall scanner always detect and indicate the Live AC Wire.

Note: WireWarning Detection works in both StudScan / DeepScan / MetalScan Modes. The WireWarning Detection Icon will flash when live, unshielded wires are detected.

Step 1:Calibrate the tool before every scan

After choose the mode, press and hold the scan button( on the side of the tool) to calibrate this tool. Wait for the reducing bars disappeared and beep to confirm calibration has completed.

In stud/deep mode, put it on the wall where you want to detect to calibrate it ;In AC/Metal mode, put it in the air to calibrate it.
