10 best dual class d amplifiers

Product description

The Dual Electronics DBTMA100 Micro Wireless Bluetooth 2 Channel Stereo Amplifier with Class D Amplifier/Universal Plug In/Stereo RCA Outputs/100 Watts Peak Power makes the best addition to any indoor or outdoor project. Your portable Bluetooth micro amplifier will connect effortlessly to your smart device, will remember past paired devices for instant connectivity and maintain a strong wireless connection for up to 100 feet. Dont let its compact and light weight construction fool you your micro Bluetooth amplifier packs a serious acoustic punch. With its efficient Class D design it has 100 Watts of Peak Power, 25W x 2 RMS, 4-8 Ohms of impendence and a frequency range between 20Hz-22kHz. There is no need to replace your wired speakers for Bluetooth ones when you can simply convert them with your Dual micro Bluetooth amplifier and get more power in the transition. Our design will allow you to easily connect your wired speakers via the Quick Release speaker wire outputs and Stereo RCA outputs are for expandability so you can start enjoying your favorite music, new stations or podcasts in no time. Its sleek design incorporates an illuminated heat sink and front panel volume, bass and treble rotary knobs for a true statement piece like no other. Backed by our 1 Year Warranty that guarantees a hassle free experience with excellent customer service.

• |BLUETOOTH 4.2 CONNECTIVITY| – your portable Bluetooth micro amplifier will connect effortlessly to your smart device, will remember past paired devices for instant connectivity and maintain a strong wireless connection for up to 100 feet
• |DUAL CHANNEL CLASS D BLUETOOTH AMPLIFIER| – your portable Bluetooth Dual micro amplifier enables you to have 100 Watts of Peak Power, 25W x 2 RMS, 4 – 8 Ohms of impedance & a frequency response between 20Hz-22kHz for unrivaled sound quality
• |WIRED SPEAKERS INTO BLUETOOTH SPEAKERS| – with your micro Bluetooth amplifier there is no need to replace your wired speakers, just insert the speaker wires into the quick release terminals and you instantly have Bluetooth speakers for your enjoyment
• |ILLUMINATED HEAT SINK & FRONT PANEL| – with its illuminated heat sink and front panel that includes the volume, bass and treble rotary knobs this will be a statement piece like no other
• |DUAL LU SPEAKER LINE| – don’t forget to add the top selling Dual Electronics LU43 or LU53 speakers with your DBTMA100 for the best outdoor/indoor acoustic experience
• |1 YEAR WARRANTY & DIMENSIONS| – guaranteed high quality and reliability with hassle-free parts and labor warranty including excellent customer service / 3” x 6” x 11” and 3 lbs

User questions & answers

Question:	I have a set of speakers already installed. can this bluetooth amplifier be used to power other speakers (i.e., other than the dual speakers
Answer:	We have not but the literature suggests “yes.” You would heed an interface to transmit the signal. This thing outputs pretty impressively fir its’s size.
Question:	can you control the amplifier from the bluetooth device. ie when the auxillary is used as an input
Answer:	The manual says only a U-drive is supported. I haven't tested this on my new unit, because I don't see how you could list and choose files.
Question:	Will this run a pair of bose 251 outdoor speakers
Answer:	Hello. No, it doesn't support aptx.
Question:	Will the amp power 4 speakers? 2 on the speaker outputs, and 2 on the rca outputs
Answer:	That's correct. I have one and the volume does not control the sub out.

Product features

Micro Bluetooth 2 Channel Stereo Class-D Amplifier |Universal Plug-In | Stereo RCA Outputs |100 Watts Peak Power | 100ft of extended Wireless Bluetooth Range

Your new DBTMA100 portable Bluetooth micro amplifier will instantly transform your wired LU43 or LU53 speakers into Bluetooth speakers. Simply connect your existing speaker wire to the quick release terminals and you will instantly have Bluetooth speakers for your enjoyment.

Efficient Class-D Bluetooth Amplifier

Not only is it portable, light weight and has built-in Bluetooth but it's also efficient and powerful. Your Dual micro amplifier enables you to have 100 Watts of Peak Power, 25W x 2 RMS, 4-8 Ohms of Impedance and a Frequency Response between 20Hz-22kHz.

Illuminated Heat Sink & Front Panel

By far an amazing statement piece. Impress your friends and family with it's Illuminated Heat Sink and Front Panel that includes the volume, bass and treble rotary knobs.

Bluetooth 4.2 with 100 ft Wireless Range

Your portable Bluetooth micro amplifier will connect effortlessly to your smart device, will remember past paired devices for instant connectivity and maintain a strong wireless connection for up to 100 ft / 33 meters.

Class-D 2 Channel Bluetooth Amplifier

The efficient design of your Class-D 2 Channel Bluetooth Amplifier provides you with 100 Watts of Peak Power, 25W x 2 RMS, 4-8 Ohms of Impedance and a Frequency Response between 20Hz-22kHz.

Illuminated Heat Sink & Front Panel

This model is a show stopper with its Illuminated Heat Sink and Front Panel that includes the Volume, Bass & Treble rotary knobs for ease of adjustment in any condition.

Made for the LU Speaker Line

The DBTMA100 was made specifically for our LU Speaker line (LU43PB. LU43PW, LU53PB & LU53PW) and will instantly convert them from wired speakers into Bluetooth speakers that you can enjoy in our outdoor/indoor spaces.

Product description

Get the compact stability and great sound of the Planet Audio Pulse PL4000.1D Monoblock Class D Amplifier. This powerful 1-Ohm stable Amplifier features 4000 Watts Max Power with a MOSFET power supply to give your music a boost. Customize the sound with Variable Low Pass Crossover, Bass Boost, Subsonic Filter and Switchable Phase Control. Tweak the levels with the Remote Subwoofer Control. For double the performance and power, strap on another PL4000.1D for a total power of 8000 Watts @2-Ohms. When space is limited but your passion for great sound is not, Pulse Amplifiers with blue illuminated end panel strips and logo are just what the doctor ordered to power up your music and get your heartbeat racing. Drive your tunes with the Planet Audio PL4000.1D.



For further product details, please scroll down.

• Power - 4000 Watts Max x 1 @1-Ohm, 2000 Watts Max x 1 @2-Ohms, 1000 Watts Max x 1 @4-Ohms, 8000 Watts Max x 1 @2-Ohms strapped
• MOSFET Power Supply - A MOSFET is an electrical switch that allows the flow of electrical current. It controls the output voltage and current precisely by removing the output current sensing loss & eliminating all secondary feedback circuitry
• Class D - Power loss is significantly reduced making the amplifier highly efficient. Excess energy is stored until it’s needed instead of being converted into heat. Reduction in size/weight, reduced power waste, smaller heat sink, compact circuitry
• 1 Ohm Stable - Able to continuously power loads of 1 Ohm without encountering difficulties such as overheating. Typically made to power up subwoofers that demand the heavier power load requirements to be able to perform the way they were made to
• Strapping Capable - You are able to strap two PL4000.1D amplifiers and double the power that is being sent to your subwoofers. You now have the ability to connect more subwoofers to take advantage of the extra power
• Variable Subsonic Filter - To prevent your subwoofer(s) from bottoming out, the variable subsonic filter filters out frequencies below the subwoofer(s) specified low frequency limits and allows the driver to reach a maximum safe excursion
• Variable Low-Pass Crossover - Subwoofers reproduce sound based on a number of different low-range frequencies. You can set exact sound specifications for the bass frequency reproduction

User questions & answers

Question:	Can this amp keep up 3 skars vvx-8v3 8" 800w
Answer:	Dont know mine was fried when I got it
Question:	Will this amp push my 15in power Acoustik 3900 watts and 1900rms
Answer:	The PL4000.1D should work with your setup. Thank you.
Question:	Acabo de pedir este amplificador y mi duda es si podre conectar mis 2 subwoofer ac12d 1800 w cada 1 conectados en paralelo
Answer:	Si es muy buena idea
Question:	Will this amp push 2 15" american bass subs in a probox
Answer:	This amp can produce a maximum of somewhere around 1500 watts RMS at 1 ohm. Compare that with the max RMS rating of your 2 subs. The seller is full of crap, it's impossible to produce more than 1728 watts RMS with a max input amperage of 120amps.

Product features

Class D and MOSFET

Class-D amps run more efficiently and generate more power using a more compact design than traditional Class A/B amps.

Metal Oxide Semiconductor Field-Effect Transistors quickly switch from full to non-conduction for high efficiency output.

Strapping Capability and 1 Ohm Stable

Strap two amplifiers together to get double the power at an impedance of 2-Ohms.

1-Ohm stable gives you maximum power for superior wattage and performance without overheating. The greater the power the more current drawn from your vehicle's electrical system.

Variable Low Pass Filter and Subsonic Filter

Variable low-pass filter gives you control over the frequencies that pass through to the subwoofer.

Subsonic filter restricts low-frequencies below the specified setting for better subwoofer protection and performance.

Subwoofer Level Control and Bass Boost

A wired remote lets you easily control the subwoofer level for customized output and superior sound.

Variable Bass Boost allows you to adjust the low bass within the boost range to just the way you like it.

Pre-Amp Outputs and Low Level Inputs

This unit's Pre-Amp outputs let you expand your system by adding one amp or signal processor.

Low-level inputs accept pre-amp output signals to allow for the addition of amps and processors to units equipped with RCA Pre-amp outputs.

Short Protection and Phase Control

Automatic shut-off protects the amplifier if it gets too hot or if speakers fail causing a short.

Phase control lets you switch the speaker phase with the amp if your speakers or subwoofer are hooked up 'out of phase'.

Variable Input Control and Switchable Input Sensitivity

The Variable Input Control allows the amplifier input to match the output signal from the head unit to achieve optimum performance when adjusted properly.

Switchable input sensitivity provides adjustable control over the input signal from the head unit to achieve customized balance between power and sound quality.

LED Illuminated Logo and End Panels

The Planet Audio Logo has blue backlit illumination and the End Panels have blue illuminated light strips.

Product description

Planet audio TR4000.1D Class D car amplifier - 4000 Watts, 1 ohm stable, digital, monoblock, MOSFET power supply, great for subwoofers

• Power - 4000 Watts Max x 1 @1-Ohm, 2000 Watts Max x 1 @2-Ohms
• Class D - Power loss is significantly reduced making the amplifier highly efficient. Excess energy is stored until it’s needed instead of being converted into heat. Reduction in size/weight, reduced power waste, smaller heat sink, compact circuitry
• Mosfet Power Supply - A MOSFET is an electrical switch that allows the flow of electrical current. It controls the output voltage and current precisely by removing the output current sensing loss & eliminating all secondary feedback circuitry
• 1 Ohm Stable - Able to continuously power loads of 1 Ohm without encountering difficulties such as overheating. Typically made to power up subwoofers that demand the heavier power load requirements to be able to perform the way they were made to
• Strapping Capable - You are able to strap two TR4000.1D amplifiers and double the power that is being sent to your subwoofer(s). You now have the ability to connect more subwoofers to take advantage of the extra power
• Variable Subsonic Filter - To prevent your subwoofer(s) from bottoming out, the variable subsonic filter filters out frequencies below the subwoofer(s) specified low frequency limits and allows the driver to reach a maximum safe excursion
• Variable Low-Pass Crossover - Subwoofers reproduce sound based on a number of different low-range frequencies. You can set exact sound specifications for the bass frequency reproduction

User questions & answers

Question:	Would the tr4000.1d amp it's enough or to much for my two memphis 10" 400rms 800peak single coil 4 ohms
Answer:	Hello, The TR4000.1D should work with your setup. Thank you.
Question:	Will this push two 2000 watt vm 15's
Answer:	It should do quite nicely I have it pushing 4 VM 12's an it still has power to go. Am running mine off 0ga wire cause I have noticed with out good power an ground it will heat up.
Question:	Is it power hungry? And can it push 2 12 kickers
Answer:	Yes your power supply needs to b very strong, i wud suggest you get a power cap! I have this amp pushing 2 15 kicker comp right now, very powerful!!
Question:	Just purchased tr5000.1d... what is the best 2 15" subwoofers out there i could possibly run on this mean machine
Answer:	Hello Robert, We do offer some great 15 inch speakers like the AC15D, but I would recommend the BBD12 as our best speaker. Thank you.

Product features

Class D and MOSFET

Class-D amps run more efficiently and generate more power using a more compact design than traditional Class A/B amps.

Metal Oxide Semiconductor Field-Effect Transistors quickly switch from full to non-conduction for high efficiency output.

Strapping Capability and 1 Ohm Stable

Strap two amplifiers together to get double the power at an impedance of 2-Ohms.

1-Ohm stable gives you maximum power for superior wattage and performance without overheating. The greater the power the more current drawn from your vehicle's electrical system.

Variable Low Pass Filter and Subsonic Filter

Variable low-pass filter gives you control over the frequencies that pass through to the subwoofer.

Subsonic filter restricts low-frequencies below the specified setting for better subwoofer protection and performance.

Subwoofer Level Control and Variable Bass Boost

A wired remote lets you easily control the subwoofer level for customized output and superior sound.

Variable Bass Boost allows you to adjust the low bass within the boost range to just the way you like it.

Variable Input Control and Switchable Input Sensitivity

The Variable Input Control allows the amplifier input to match the output signal from the head unit to achieve optimum performance when adjusted properly.

Switchable input sensitivity provides adjustable control over the input signal from the head unit to achieve customized balance between power and sound quality.

Phase Control

Phase control lets you switch the speaker phase with the amp if your speakers or subwoofer are hooked up 'out of phase'.

Short Protection

Automatic shut-off protects the amplifier if it gets too hot or if speakers fail causing a short.

LED Illuminated Logo

The Planet Audio Logo is Illuminated with blue backlighting.

Product description

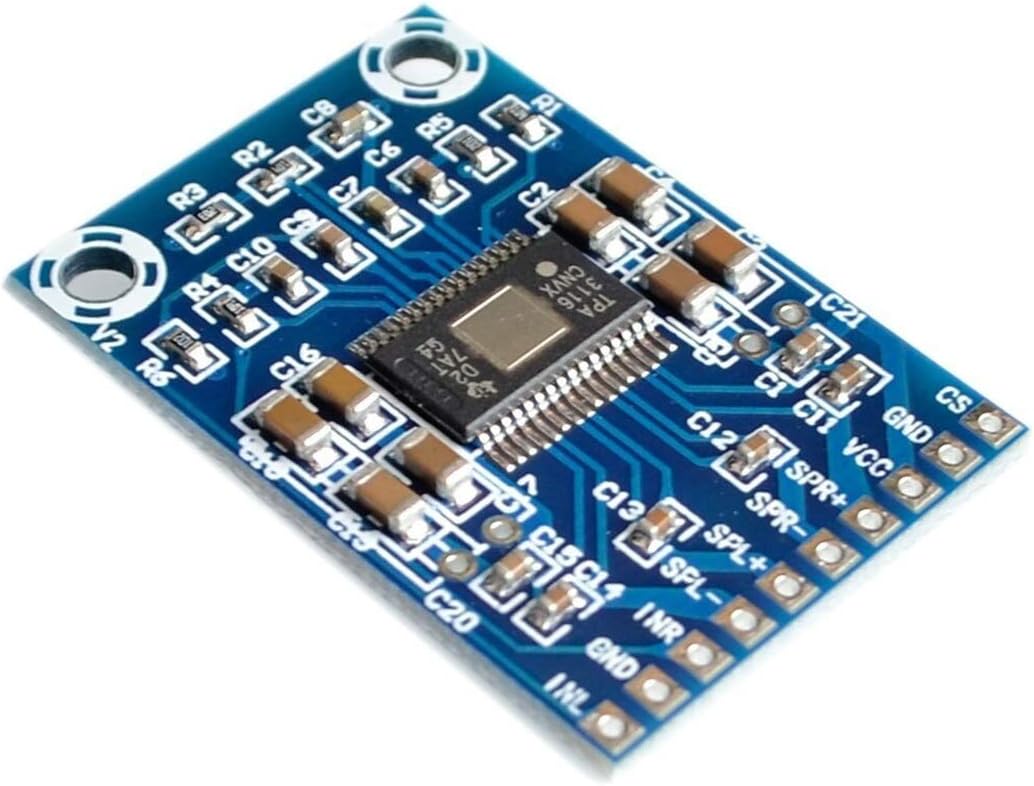

What is the TPA3116D2 chip?

TPA3116D2 is a Class D power amplifier IC launched by TI, with very high index parameters. The highest modulation frequency can reach 1.2MHZ, and the high-power output distortion is less than 0.1%

I hate reading the manual? Please be assured that you do not read the manual!

We have added a variety of interface logos on the cool black shell, so that you can see at a glance, even if you do not need a manual, you can connect it correctly.

How many signal input methods does it have? Bluetooth & AUX !

When these two input methods input signals at the same time, the Bluetooth input method is the priority input method. If you want to use AUX, please disconnect the Bluetooth connection.

Is it durable? This is beyond doubt!

This amp board has 4 kinds of protection mechanisms: overvoltage protection, undervoltage protection, overheat protection, short circuit protection, which means it is not easy to be damaged!

Warm reminder:

The power switch on the board is a standby switch. After the switch is turned off, the machine is in a low-power standby state. To completely turn off the power or unplug it for a long time, you can unplug the DC plug on the machine. Properly increasing the voltage or reducing the speaker impedance can effectively increase the output power.

Packing:

ZK-TB21 Amplifier Board * 1

Protective Shell * 1 Set

DC Jack * 1

Knob * 5

Screwdriver* 1

7 * 24 hours after-sales service:

Paying attention to customer experience and satisfying customers is our service tenet. If you have any questions about the product, or the product has quality problems, please contact us at any time, we will give you a 100% satisfactory answer.

• 【TPA3116D2 HIFI Chip Solution】 Stereo Dual-channel Output to Ensure Continuous Serial High-power Operation, THD ≤0.1%. Wide Voltage Input DC: 12-24V;
• 【Treble & Bass Control】 If You Are Tired of The Inherent High& Low Bass, Why Not Try The High & Low Control Knob! This Will Make You Feel Like Being In A Movie Theater
• 【Bluetooth and AUX Function】 Bluetooth 5.0 version, Transmission Distance Is Farther. The Transmission Distance Can Reach 49 Feet In An Open Environment. If your Play Device Does Not Have Bluetooth, You Can Also Input Audio Signals Through The 3.5MM Headphone Plug
• 【Safety Protection】 This Amp Board Has Overheat Protection, Reverse protection, Circuit Protection, Over-voltage and Under-voltage Protection
• 【7 * 24 Hours After-sales Service】 Paying Attention To Customer Experience And Satisfying Customers Is Our Service Tenet. If You Have Any Questions About The Product, or The Product Has Quality Problems, Please Contact Us At Any Time, We Will Give You A 100% Satisfactory Answer

User questions & answers

Question:	will this work with my 1080p projector to power external speakers
Answer:	You would have to get your projector to either connect to Bluetooth audio or use a cable to connect to a 1/8th inch jack. You will also need a power supply for the unit
Question:	can I connect a dual subwoofer (2 ohm + 2 ohm
Answer:	No. It's rated for 4 ohm at the lowest. I tried a 3ohm home stereo sub and the amp went into auto protect. It is a good little amp but dont expect too much power. Actual output on the sub channel is about 30w.
Question:	Does the low pass crossover for the bass control also serve as the high pass control for the main channels, or is it set at a fixed point
Answer:	They seem to overlap reasonably and has decent tone control. I have no issue getting good sound in 2.1 mode with 6 inch mains and 10 inch sub.
Question:	what kind of power supply does this come with? will i need to buy standard U.S. 110 wall plug power supply
Answer:	It does not come with a power supply

Product description

Parameters:



Work: D Class

Quiescent current: 20mA

Efficiency: 90%

Rated output power: 10W +10W

Frequency response: 20Hz to 50KHz

Operating voltage: DC 7.5-15V

Recommended power supply voltage: 12V, the center PIN of 12VDC is +

Power Interface: 5.5 socket

• Adopts Pam8610 chip, No filter, low static current, EMI, power consumption and heat generating.
• With 5 5 DC outlet as power supply interface; high efficiency of 90 percent.
• With LED power supply indicator, power supply switch and mute switch, easy to operate.
• Operating Voltage: DC7 5-15v, recommended power supply: DC12V.
• With over-current, temperature, short-circuit protection, hence safe for use.

User questions & answers

Question:	w +10w but what are the ohms and watts of using one speaker output instead of both
Answer:	It would be the same for one speaker. It is a stereo amplifier, but there is not a way of bridging or combining the stereo outputs into a mono output, so if you just use one channel, it would still be limited to 10W into 8 Ohms.
Question:	does someone have a pinout of this board. like what are the connections
Answer:	The only pinout that is not obvious is the audio out. The four hole green terminal block is the audio out. I believe the two middle holes are the negative while the two outer holes are positive audio lines. The big barrel jack is for 12 V power input while the audio input is the regular 3.5 mm audio jack.
Question:	What are the mounting hole dimensions
Answer:	Tough question as the holes are not square to each other. The following are very-very close, center-center of each hole: 1" parallel and near the volume control; 7/8" parallel and near the opposite edge; 1 3/8" 2 holes along the edge near the volume control; 1 3/8 (but not square to any edge) parallel and near the speaker outputs. In general, though, I'm pretty happy with this amp. Easy connections, pretty loud to 4" speakers.
Question:	Do you have any recommendations on power supply
Answer:	Any 12 V 1 amp power supply will drive the board. However, you are better with a power supply that have very good filter to avoid interference that can be amplified by the board.

Product description

Please plug the power cord into the amp the wall, plug the audio cables into amp switch on.

You need to connect the amp to the power supply first, then plug the power supply into the 110V AC outlet.

Don't worry about the sparks, because this is class d amplifier, the capacitors need to charge when the power in, it's normal and safe.



Amplifier parameter:

THD: ≤ 0.05%

SNR: ≥ 95dB

Weight: approx. 400g

Power supply: 24V 6A

Power supply range: 12v-24v

Terminating impedance: 4hm - 8Ohm

Frequency Range: 20Hz - 30Hz (±3dB)

Dimensions: approx. 10.5cm x 9cm x 3.5cm/4.1" x 3.5" x 1.3"

Supplied Accessories: Amplifier, Power supply, Power cord.



Power adapter parameters:

Input voltage: AC100 - 240V 50/60HZ

Output voltage: DC24V 6A

Output current: 6A

Plug style: 5.5mm*2.1mm

Output line length: 1m

Input line length: 1m



Package Includes:

1 x Digital Amplifier

1 x US Power Adapter

1 x Power cord

• 🔊THOUGHTFUL DESIGN -- Home Hi-Fi integrated amplifier, Exclusively designed for the customers who pursue HiFi sound. Ship with 24V power adapter and power cord, you can use directly.
• 🔊DURABLE -- Advanced circuitry design, built-in speakers protection circuit, solid aluminum chassis for long time use, small size, good looks, simple functionality, and excellent sound quality.
• 🔊EASY TO CONNECT -- Perfectly suited for your desktop or a smaller space in your home or office, digital amplifier is easy to connect to your audio system with no software to install or settings to change.
• 🔊MULTIPURPOSE -- Suitable for outdoor / bookshelf / computer / desktop / ceiling / floor-standing speakers, can be used as an input for iPod, mobile phone, MP3 player, TV, CD player, or streaming media player, also suitable for car audio amplifier.
• 🔊QUALITY GUARANTEED -- Aluminum shell and Aluminum knob to sure high quality, comes a 24V power supply that can fit with the amplifier well. Please contact us once you find a product received has failed your expectation, we will do best to respond to your satisfaction.

User questions & answers

Question:	Hi, how many amps can it take safely? have to get a 12v to 24v converter, but cant find a 6a output, only a 5a or 8a
Answer:	The way you word that question you make it sound like the amp get amperage pushed into it. That's not exactly the way it works. Voltage is the force. A better question is how many VOLTS can it take. I believe the answer is somewhere around 35v. As to the amperage, that is a question of DRAW. How many amps will the amplifier DRAW? It depends on what you ask it to do, ie how load will you try to make it. Loader means it will try to draw more amps. At some point your power supply won't be able to deliver more. So the amp won't get any loader. If you had a PS that could deliver 1000 amps at some point the amplifier would simply stop drawing more as it will have reached it's peak draw. I have no idea what that might be but I can assure you more is better. Think of your house wiring. You have a 200 AMP service. Your house isn't "taking" 200 amps. It is simply able to provide it if necessary. If you had a 400 amp service it would not change a single thing about how bright your lights get or how cold your refrigerator gets. I hope my long winded answer helps. In short, I say try it. You won't hurt anything just trying.
Question:	Will this amp push to JL audio subs
Answer:	Yes depending on which varient and size of JL you are asking about.
Question:	Can I run 2 18in Rockville subs on this amp
Answer:	Yes, amp is da truth
Question:	What gauge terminals should I use
Answer:	4 gauge
Question:	Does this amp work with bmw and honda head units with balanced differential line signal? like jl and kicker amps
Answer:	Yes since it doesn't have RCA outputs you'll have to use an adapter and adjust the gain levels accordingly. for the prices amp is hard to be punished it for months and it still begging for more.

Product description

Manufactured By Atomic Market



Parameters:



Work: D Class

Quiescent current: 20mA

Efficiency: 90%

Rated output power: 10W +10W

Frequency response: 20Hz to 50KHz

Operating voltage: DC 7.5-15V

Recommended power supply voltage: 12V, the center PIN of 12VDC is +

PCB board size: (40 * 40) mm

Power Interface: 5.5 socket



NOTE:

It is NOT acceptable to connect the - outputs of the L & R speakers together.

• 2*10W Dual Channel Hi-Fi 2.0 Digital Mini Audio Amplifier Board Module
• PAM8610 chip
• Operating voltage: DC 7.5-15V
• Recommended power supply voltage: 12V, the center PIN of 12VDC is +
• Power Interface: 5.5 x 2.1 socket

User questions & answers

Question:	How to use with l + r pc speakers that have the - already connected together (share one 3.5 mm connector
Answer:	Are your PC speakers powered? If so, the 3.5mm connector is a line input from your PC's output. You need to bypass that input, and connect directly to the individual speakers, i.e.; replace the amplifier, don't add another amp to the existing.
Question:	Does it come in a case, or is there something that is designed to house it
Answer:	It doesn't come with a case. It has holes in it for standoff mounts or just screwing it into boards (which is what I did). 3d printing a case is probably the best solution.

Product description

PAM8610 Digital Amplifier Board 2x15W Two Channel Stereo Class D

Technical parameters:

1. Supply voltage: DC 7V-15V

2. Output power: 10w + 10w (8 load)

3. Efficiency: 90%

4. Shutdown Current: 4uA

5. Quiescent current; 20mA

6. SNR: 86%

7. Total harmonic distortion: 5W / 1KHz / 8 ---- 0.1%

8. Frequency range: 20Hz-20KHz

9. Input impedance: 15K

10. Output Impedance: 4-8

11. Amplifier board size: 30mm * 25mm * 2.5mm

How to use:

1. The power supply voltage limit is 16.5V, do not use more than this voltage.

2. The power supply is recommended for 12v, 3A power supply filter better.

3. 4-8 inch stereo speakers recommended.

4. Do not short-circuit the audio output to each other or shorted to ground.

5. Carefully check before electricity, ensure wiring is correct before electricity.

• PAM8610
• 2x15W Two Channel Stereo
• Class D
• Digital Amplifier Board

Product description

This product is suitable for electronic product accessories.

• DC 12V-24V 2x50W Dual Channel Mini Digital Amplifier D Class 50W+50W TPA3116D2 XH-M562 Amplifier 50W Power Amplifier Board
• If you have any questions, you can contact us.

Product description

MUSYSIC's audio engineers have specifically designed the new MU-Series power amplifiers to be perfect companions to the popular Club Series loudspeakers. To achieve this, they made sure that the amplifiers are capable of delivering power that matches the power handling capabilities of the Club Series Speakers, and equipped them with ATR (Accelerated Transient Response) technology for ultimate punch and clarity to deliver a signal that will result in optimum system performance. Each MU-series amplifier is equipped with this specially designed circuit so that it delivers output tailored to the specific response of the Club Series speakers. All models feature both XLR and 1/4-inch TRS inputs, and Speakon, Banana binding post outputs. High performance with exceptional efficiency, sweepable high and low pass filters for matching output to any loudspeakers, a compact and durable 2U chassis, and variable speed cooling dual fans.

• Stereo Output Power: "2x4800W PEAK, 2x2400W Program, 2x1200W RMS @ 2Ω" "2x2400W PEAK, 2x1200W Program, 2x600W RMS @ 4Ω" "2x1200W PEAK, 2x600W Program, 2x300W RMS @ 8Ω"
• Bridge Output Power: "4800W PEAK, 2400W Program, 1200W RMS @ 4Ω" "2400W PEAK, 1200W Program, 600W RMS @ 8Ω"
• Frequency Response: 20Hz-20KHz,+0,-1dB at watts / THD+N(20Hz-20KHz) ＜0.23％20Hz-20KHz / Siew Rate ＞30V/us / Damping Factor ＞150 / Output Circuitry Class AB / Signai to Noise Ratio ≥96dB / Cross Talk ＞80dB / lnput Sensitivity(8Ω) 1V / input lmpedance 20 k Ω baiance / 10 k Ω unbalanced unbalance balancing 20 k / 20 k /
• Dual cooling fans / Connectors Input: XLR input, 1/4" input: Speakon connector Output: Speakon, locking type socket, Banana plug connection output, Power Requirements: 115v 50/60 hz
• Controls Panel: the power switch, channel 1 and channel 2 channel gain control; After the board: working mode, pressure limit./ lndicators Panel: the power switch, channel 1 and channel 2 channel gain control; After the board: working mode, pressure limit./ Amplifier Protection With short circuit, overload, overheat, cut peak pressure limit, dc, soft start, relay zero current switch, super audio and radio frequency protection device.

User questions & answers

Question:	what is the rms wattage bridged into a 4 ohm load @ <0.1% thd? the specifications in the description aren't clear on this
Answer:	In the real world your going too see a single bridged output of about 300watt into a 4ohm speaker. It will push more but it will clip or go over 0.1% and start sounding bad...
Question:	Would this be capable of driving 2 yamaha br 15 an 2 yamaha br12 speakers. rated at 400 watts rms @ 8 ohms
Answer:	I have 4 speakers 600 W each and I have no problem with it,I believe you will be good I’m very happy with this amp.
Question:	I just obtained an Alembic preamp and need something to power a 1 15" cab. I really want a single space amp. Any experience for musical instruments
Answer:	Perfect for your purpose. Class-D amp will give you high quality digital sound.
Question:	i am running my system anolog with Peavey sp4 dual speakerswith 4000 watts a piece. will this amp push them better than QSC 2450 that i have
Answer:	Yes, will work but don't want to compare with QSC 2450. We only put quality product in the market and let consumer to decide which one is good.
