13 best cal test electronics banana plugs

Product description

SMD tweezers with two gold plated 4mm banana plugs. Voltage maximum: 400Vms. Current maximum: 2A. 100cm length RG-174/U cable type. PVC jacket material. 0 To +50 degree C temperature. RoHS (2002/95/EC) compliant.

• SMD tweezers with two gold plated 4mm banana plugs
• 400 Vms voltage max
• Maximum current 2A
• RG-174/U cable type
• PVC jacket material

Product description

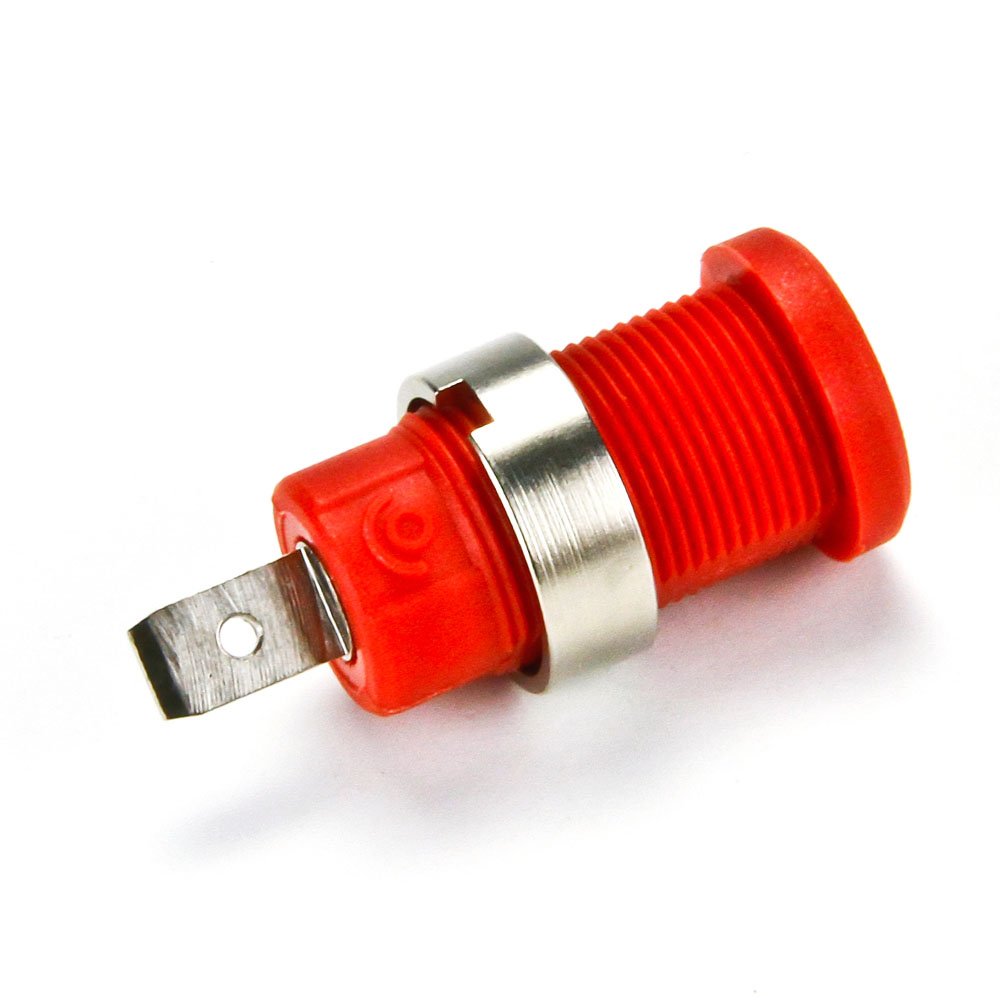

4mm Safety Banana Jack (socket) accepts sheathed or shrouded banana plugs and meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III and 600 V CAT IV. Round panel nut allows for compact placement and assembly. Termination is with a 0.188" faston termination. Body made of polyamide (nylon) and brass, nickel plated jack and nut. Body thread: M12 x 0.75mm. Maximum panel thickness: 0.40". Use assembly tool model CT2246A. Current Max: 36 A. Resistance Max: <12 mohm. Temperature: -20 to +80 degree C. RoHS (2002/95/EC) compliant. Red color.

• 4mm safety banana jack (socket) accepts sheathed or shrouded banana plugs
• Meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III and 600 V CAT IV
• Round panel nut allows for compact placement and assembly
• Termination is with a 0.188" faston termination
• Body made of polyamide (nylon) and brass, nickel plated jack and nut

Product description

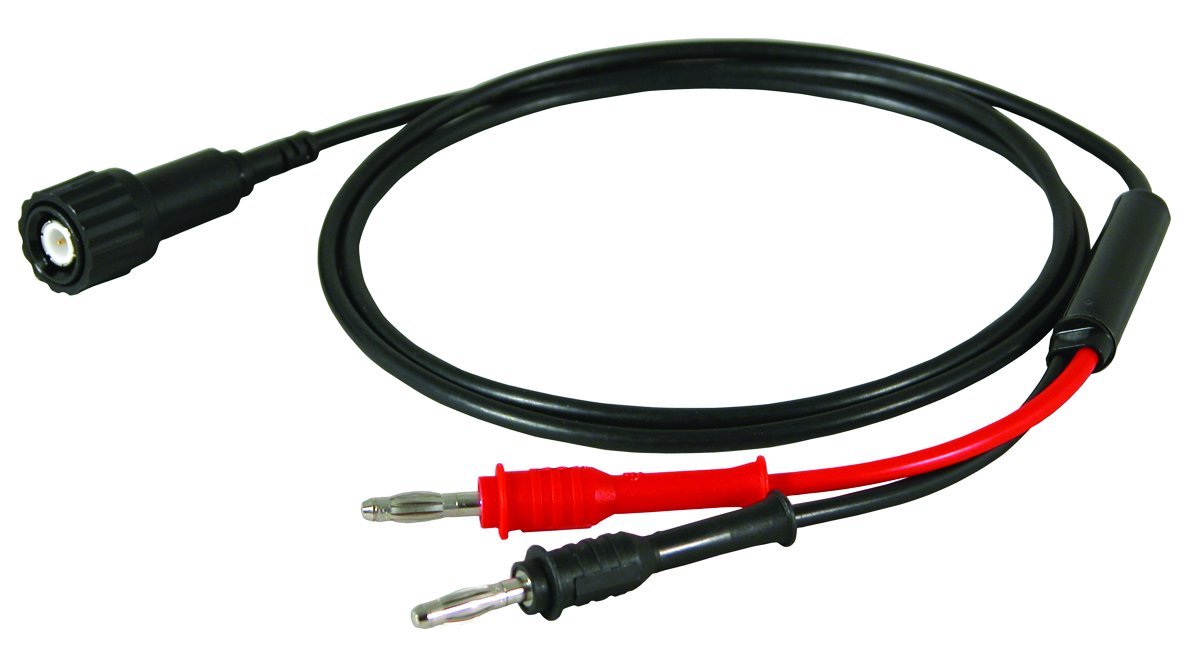

Standard BNC breakout assemblies for instrument interconnection. Insulated BNC male coaxial connector to banana plug breakout cable. Designed for most common testing applications. The breakouts feature high quality connectors with gold plated center contacts. Silicone leads for flexibility at low temperature. IEC rating: 33 VAC / 70 VDC. Current max.: 3 A. Impedance 50 ohm. Cable type: custom coaxial. Jacket material: PVC. Temperature: 0 to +50 degree C. RoHS (2002/95/EC) compliant. Black color.

• Standard BNC breakout assemblies for instrument interconnection
• Insulated BNC male coaxial connector to banana plug breakout cable
• Designed for most common testing applications
• The breakouts feature high quality connectors with gold plated center contacts
• Silicone leads for flexibility at low temperature

Product description

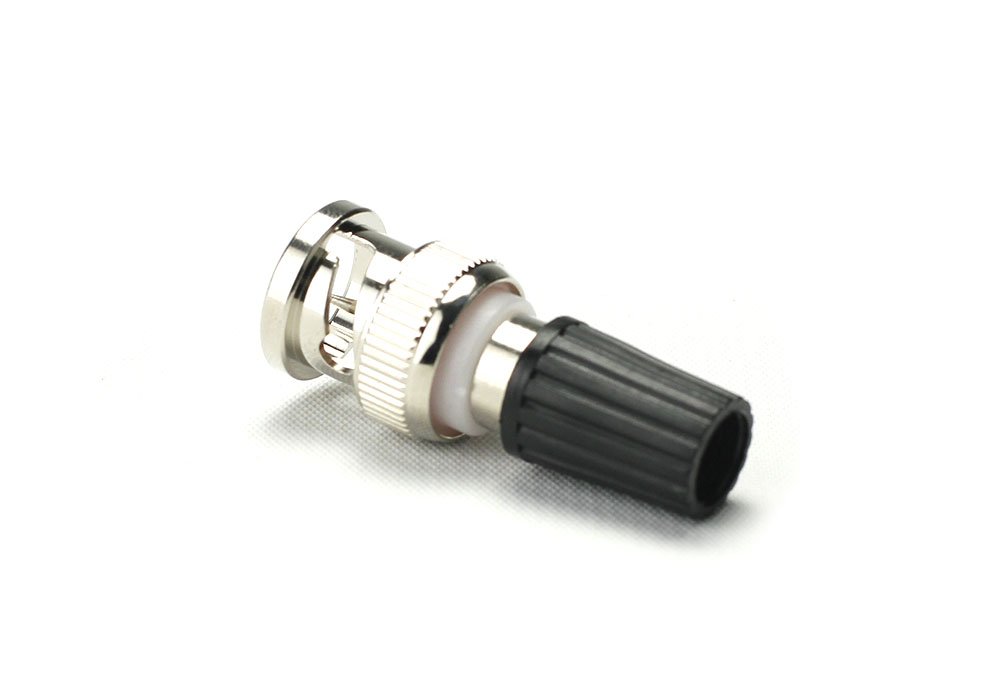

BNC male to binding post. Adapts a BNC female cable, component or equipment to single binding post. Connections can be made to the binding posts by spade lug, banana plug or wire lead. Allows a BNC female instrument connector to accept a standard banana plug. Voltage maximum: 500 Vrms. Current maximum: 3 A. Connector grade: General Purpose. Impedance: 50 ohm. Temperature: 0 to +50 degree C. RoHS (2002/95/EC) compliant. Black color.

• BNC male to binding post
• Adapts a BNC female cable, component or equipment to single binding post
• Connections can be made to the binding posts by spade lug, banana plug or wire lead
• Allows a BNC female instrument connector to accept a standard banana plug
• 3 Amp maximum current

Product description

- Applications---Electrical or laboratory electrical test work, such as engine repair, HVAC system diagnostics and testing, fire alarm testing, motor, fuel pump and starter testing, test bench troubleshooting, etc.



- Features --- silicone rubber, double insulation, double end, low eccentricity, flexible, durable, acid resistant, alkali resistant.



- Test lead cable can be used for electrical or laboratory electrical test work.



- Used to connect components to wires.



- Easy to install and safe, suitable for covering insulated plastic boots.



-Performance: high elasticity, electroplated surface, strong electrical conductivity, pressure resistance, etc.



- Cables are often used in schools, and physical laboratories can assemble circuits quickly and inexpensively. They are very useful



-Clyxgs is committed to producing reliable, affordable electronic test equipment Tools and Education Kits



Note: Due to the resolution, brightness, contrast and other factors of the computer screen, the actual color may be slightly different from the picture. I hope to understand. search results



Have a nice shopping day!

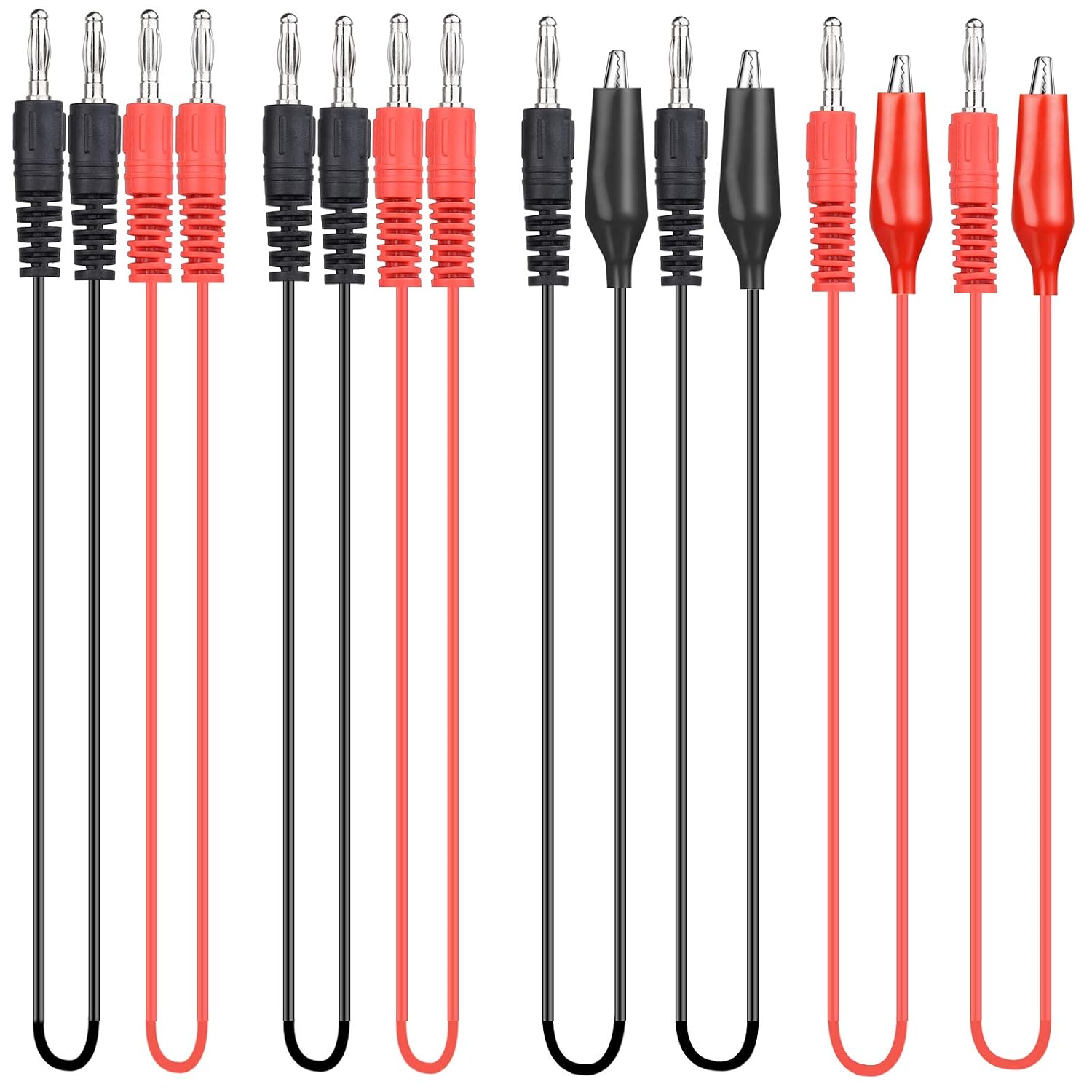

• Line thickness 3mm/0.11IN, length 95cm37.4in (excluding head)
• Color: red, black Alligator clip opening range: 9mm/0.36in
• Connector type: Banana plug + banana plug, alligator clip + banana plug(banana plug about 4.6mm in diameter)
• Material: copper wire, metal and PVC insulation sleeve
• Package Contents: Banana plug lead 4 + Crocodile Head Banana Plug 4

• High Quality stackable banana plug, good compatibility and delicate BNC connector.
• Full integration of injection molding, durable to use, coaxial cable spec : PVC, 50Ω（50ohms Impedance）
• Red and black lead spec: PVC,0.4mm2, rated cuttent: 5A; Voltage: 500V
• Applies to all BNC interfaces (such as Oscilloscopes, Signal generators, Video surveillance, etc.)
• Line length: 120cm, package : 1 x Test Cable

Product features

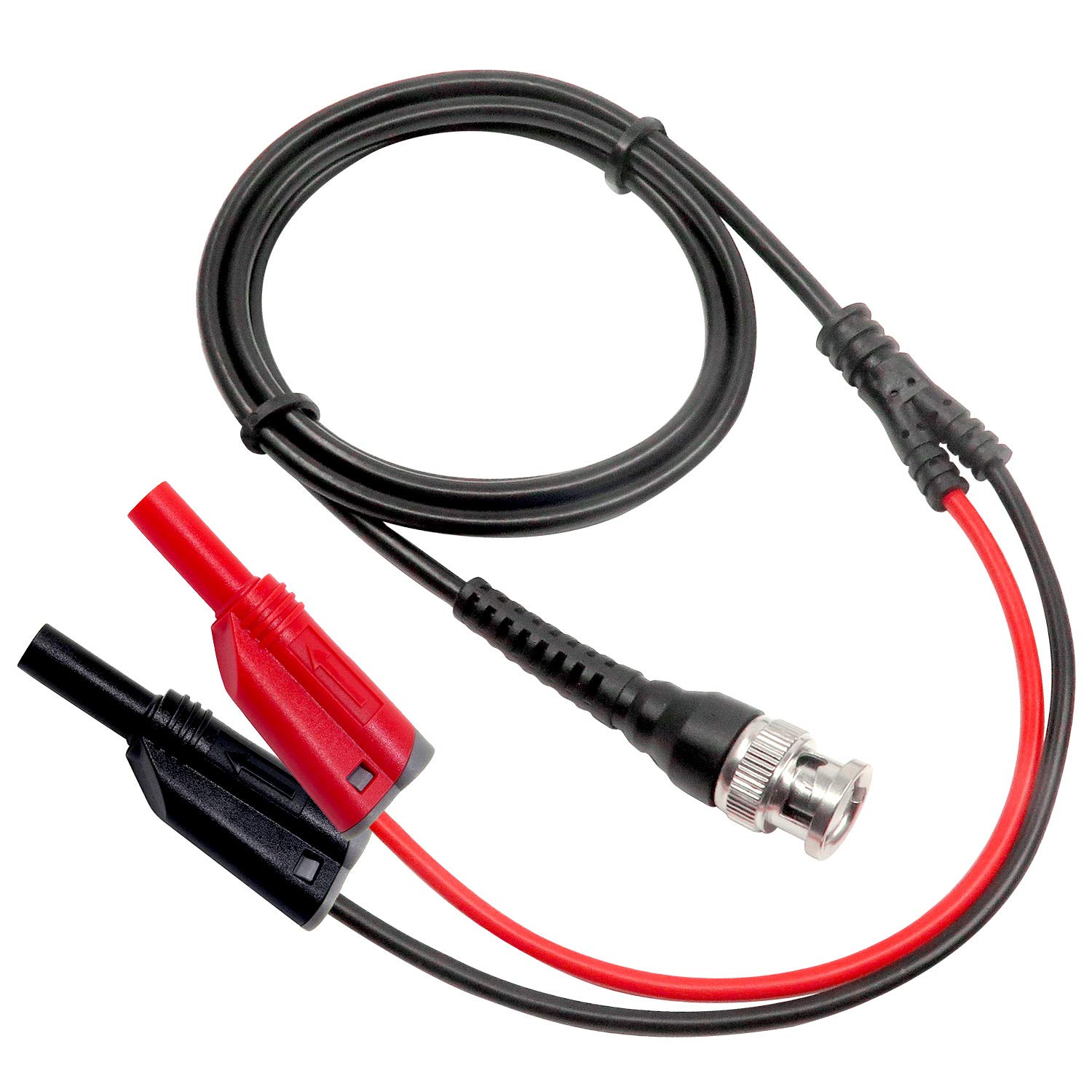

Amadget Coaxial Cable BNC Male to Dual Banana Plug Test Lead for Oscilloscope

BNC Material: Pure Copper

Cable outside Diameter: Φ4.0mm

Conductor outside Diameter: Φ3.0mm

Cable Impedance: 50Ω

Rated cuttent: 5A

Maximum input voltage: 500Vpck

Test Leads Interface: BNC

Conductor Length: 20cm

Tatal Length: About 120cm

Product description

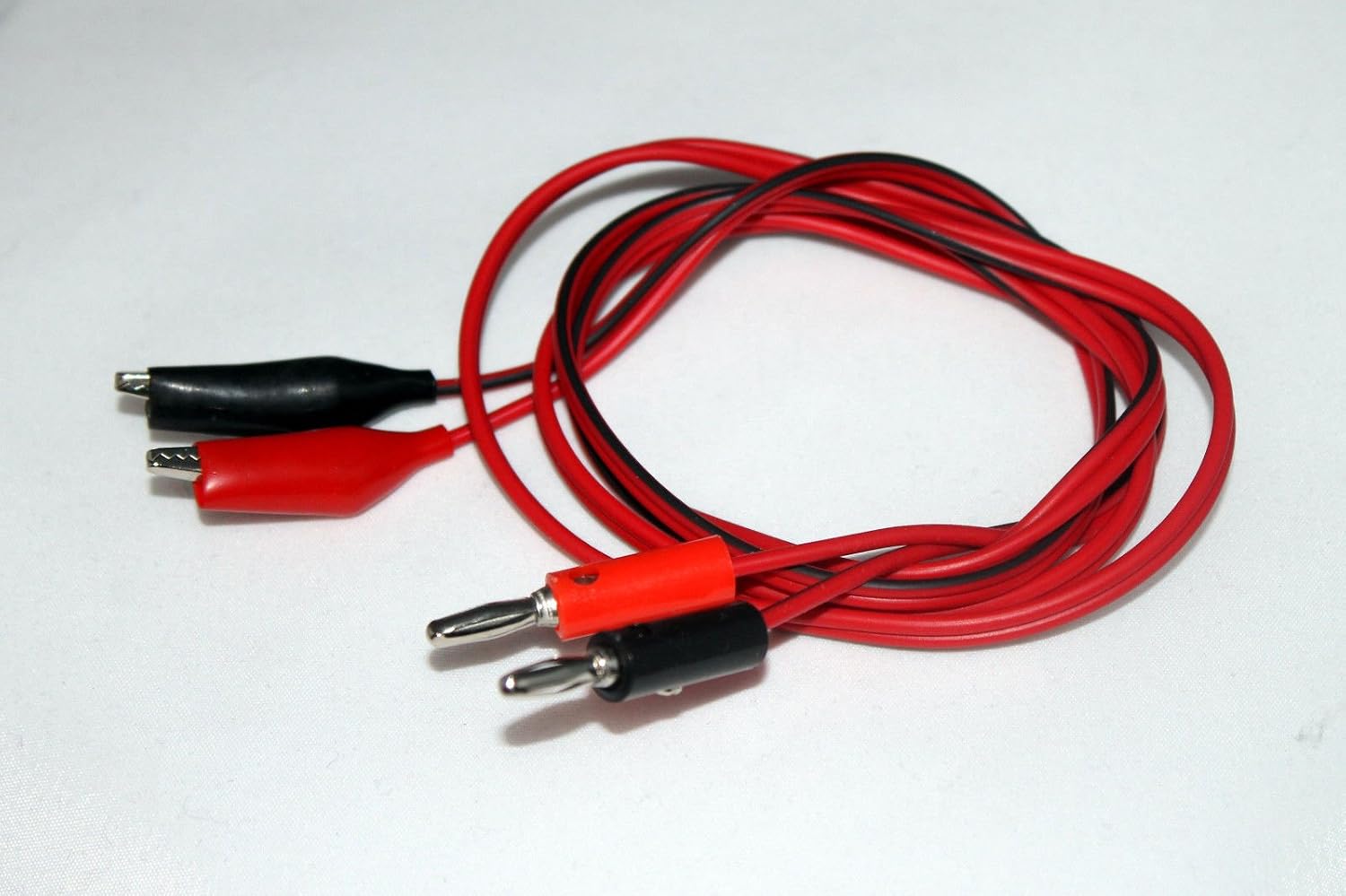

Alligator Clip to Banana Male Plug Test Lead Cables (US Stock; Fast Handling)

• Alligator Clip to Banana Male Plug Test Lead Cables (US Stock; Fast Handling)

User questions & answers

Question:	What size is the banana male plug
Answer:	4 mm, will work on most plugs.
Question:	Where made
Answer:	Maybe in china, but still a nice set. Just glue the covers so the clips stay in place. They spin if not glued.

Product description

Electrical test leads suitable for use with multimeters, -

power supplies and other electronic equipment. -

- Banana Plug:2mm (small) ,Gold, Copper -

- Cable Lenght:50cm

• 1. Banana Plug: 2mm (Small)
• 2. Material: Gold-Plated Copper
• 3. Cable Lenght: 0.5M
• 4. Electrical Test Leads Suitable For use with Multimeters, Power Supplies and Other Electronic Equipment.
• 5.Package:1+ red+1 blue +1 Green +1 Yellow +1 Black,

Product description

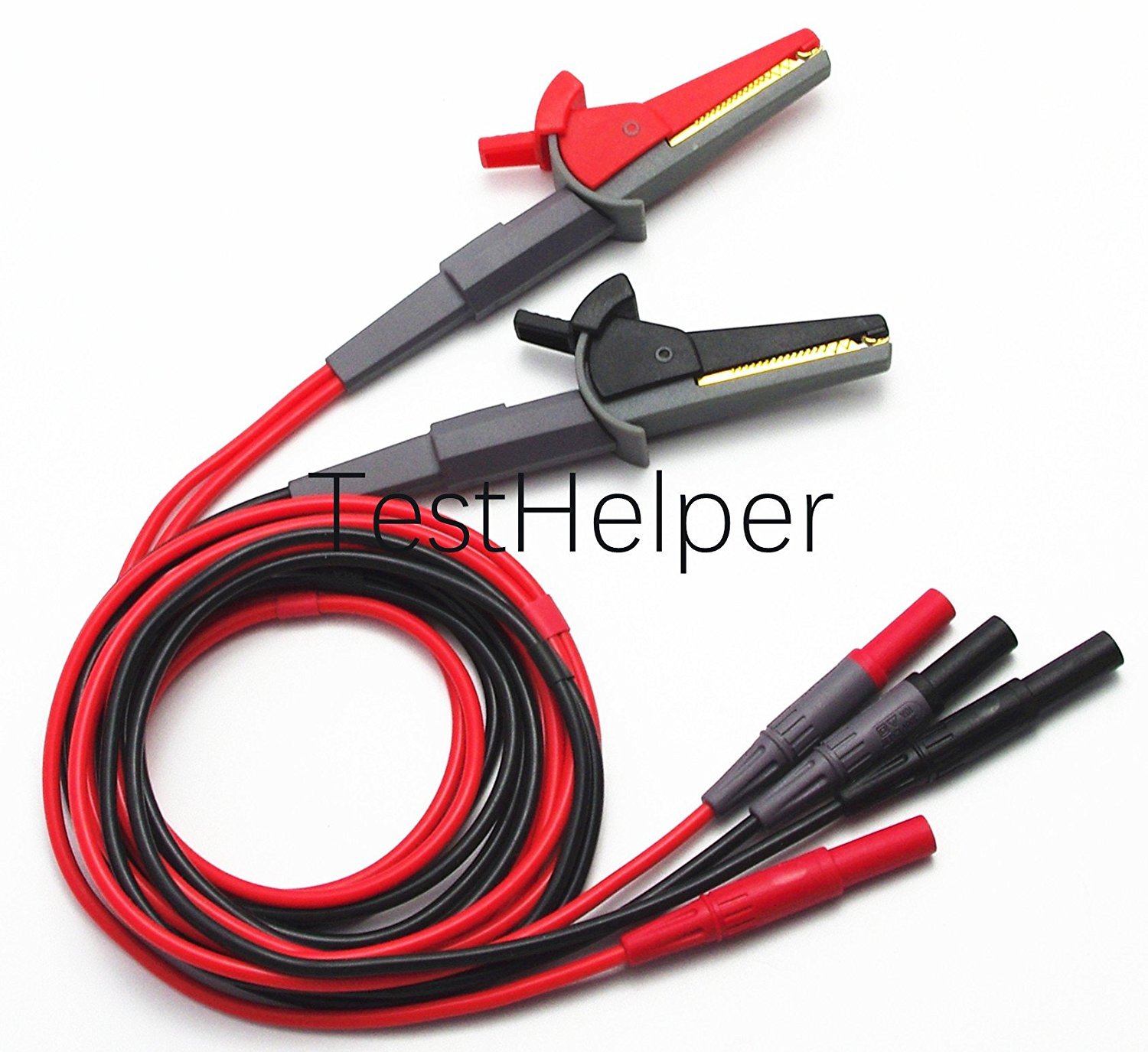

Specification:

1. Multi-Purpose testing leads, double insulation with standard diameter's banana plug

2. Wire length: 1M

3. Application: suitable for LCR meters UT612/UT611

4. CAT IV 600V 10A

5. Durable, stable and of high performance



Model:

TH-TL200



Package Including:

1 x Red Alligator Test Lead

1 x Black Alligator Test Lead



Brand:

TestHelper

User questions & answers

Question:	i remove the protive end caps plug ins and get no continuity looking down into end looks like banana plug ends are still protected with plastic
Answer:	The plastic sheath over the banana plug will slide back when the plug is inserted into a banana socket that accepts sheathed banana plugs. I bought these test leads for a low-resistance DCR bridge that requires Kelvin leads. I didn't realize that my test equipment didn't accept sheathed banana plugs, so I bought 2 sheathed banana plug to unsheathed banana plug adapters, like TestHelper part # MTF456, which has a female end for your sheathed banana plug test leads, and a bare banana plug at the other end. The leads are very nice. Hope this helps. RSF
Question:	Reasking: Do these have a shield on each cable (for separate guard/ground), or do they only have the single conductor in each cable
Answer:	No shield. Single conductor in each cable.
Question:	Do the covers of the bananna probes retract or are the solid
Answer:	banana probe
Question:	Do these have a shield on each cable (for separate guard/ground), or do they only have the single conductor in each cable
Answer:	These are low ohms probe leads that use two conductors at the test point to use Kelvin resistance measurements that eliminate the resistance in the test leads. Thes leads are used with measurements that are in milliohms, that standard ohm meters can't measure. They are also used with high voltage insulation tests that can use as much as 50 V to 1,000 V for checking insulation resistance.

Product description

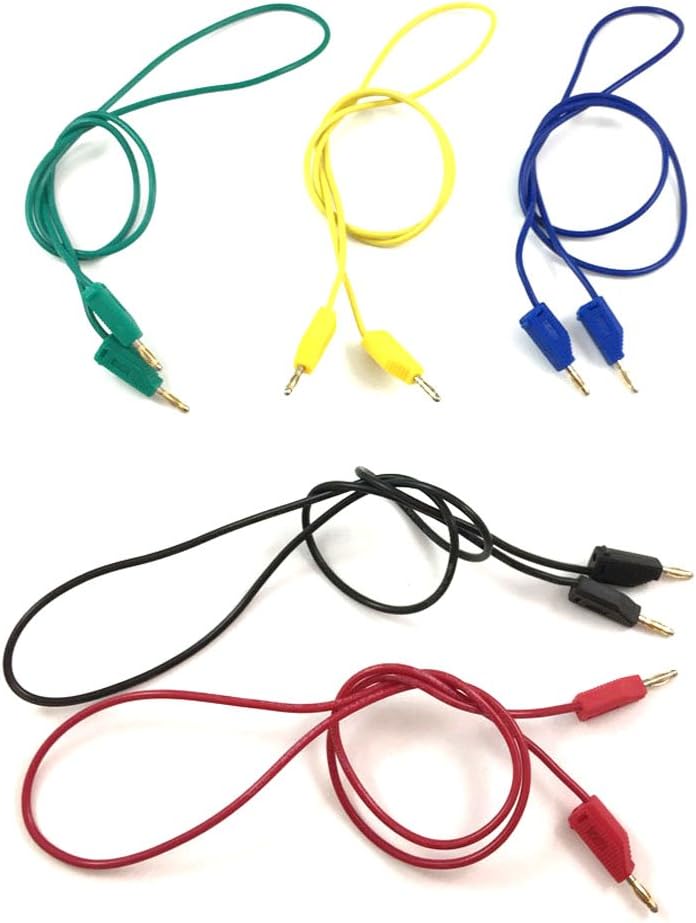

1 pair (red, black) multi stacking 4mm banana plug patch cords. Nickel plated banana plugs. 36" (90cm) long PVC insulated leads. 30V rms or 60V DC, 15A. One year warranty.

• 1 pair (red, black) multi-stacking 4mm banana plug patch cords
• Nickel plated banana plugs
• 36" (90cm) long PVC insulated leads
• 30V rms or 60VDC, 15A
• 1 year warranty

User questions & answers

Question:	I see that they are rated to 60 vdc, what is their voltage rating for ac voltage
Answer:	30VAC would be the limit.
Question:	I see that they are rated to 60 vdc, what is their voltage rating for ac voltage
Answer:	The AC rating is 30V RMS.

Product description

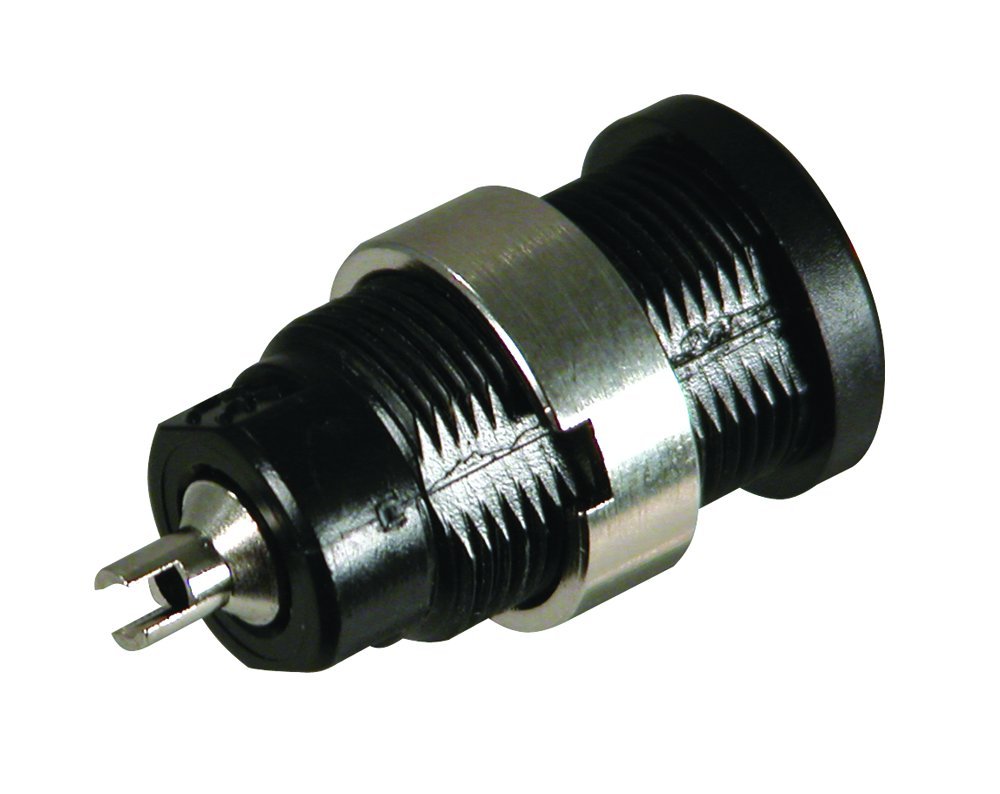

The 4mm safety jack (socket) accepts sheathed or shrouded banana plugs and meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III and 600 V CAT IV. Round panel nut allows for compact placement and assembly. Termination is with 0.080" (2mm) solder slot for wire attachment. Body made of polyamide (nylon); brass/nickel plated jack and nut. Body thread: M12 x 0.75mm maximum panel thickness: 0.40" (10mm). Use assembly wrench tool set. IEC rating: 1,000 V CAT III / 600 V CAT IV. Current max: 25 A. Resistance max: <12 mohm. Temperature: -20 degree to +80 degree C. RoHS (2002/95/EC) compliant. Black color.

• 4mm safety jack (socket) accepts sheathed or shrouded banana plugs
• Meets the latest international safety standard IEC 61010-031 to 1,000 V CAT III and 600 V CAT IV
• Round panel nut allows for compact placement and assembly
• Termination is with 0.080" (2mm) solder slot for wire attachment
• Black color

Product description

Twist Guard test leads offer adjustable length test tips for use in different measurement environments. Includes removable 4mm lantern tips that thread onto the lead tip. Fluke TL175 are the only test leads as tough as your meter. Patented TwistGuard extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements. New WearGuard lead wire wear indication. Each test lead is covered by two layers of silicone insulation; inner contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacement. Double Insulated Silicone leads. TL175 test leads withstand high temperatures and remain flexible in cold temperatures. Extra-heavy duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure. Universal input plugs are compatible with all instruments that accept standard 4mm shrouded banana plugs. Probes always show correct category rating for tip being used. Exposed probe tip length: 19mm to 4mm (0.75" to 0.16"). Ratings: CAT II 1000V, CAT III 1000V, CAT IV 600V, 10A maximum, Pollution Degree 2. Environmental ratings: -20 to 55 degree C (-4 to 131 degree F), altitude: 2000m (6,562'). Conforms to EN61010-031. 1 year warranty.

From the Manufacturer

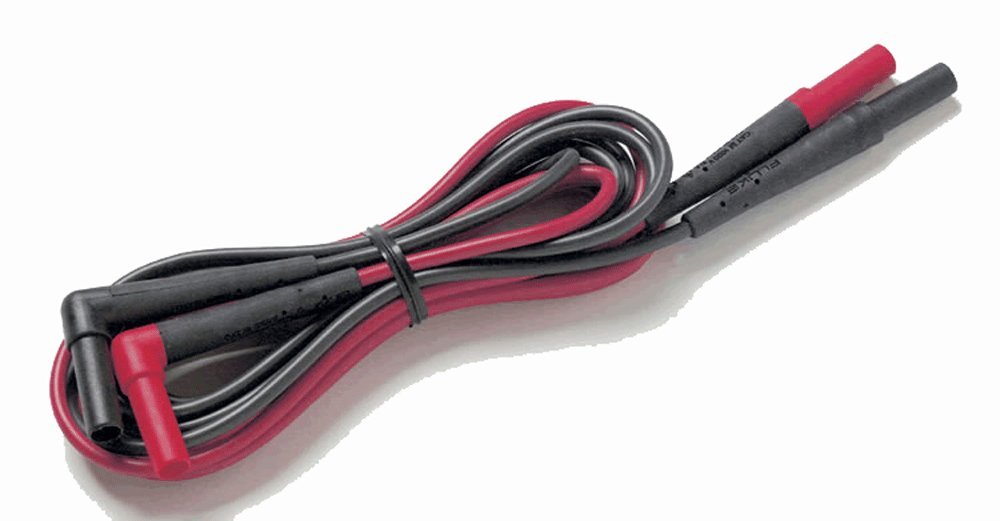

The Fluke TL224 SureGrip Silicone insulated test leads provides the convenience of attaching clips, hooks and grabbers, as needed. The leads are 60-Inch (1.5 m) long, offer reinforced strain relief, and include banana jack terminations that allow a great variety of test lead configurations. The DMM test leads are one pair (red, black) of silicone insulated leads with a safety shroud and a right angle connector on one end and a straight connector on the other. The set has a 600 V CAT IV, 1000 V CAT III, 10 A rating and are UL listed. SureGrip accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement. The Fluke TL224 SureGrip Silicone Insulated Test Leads are sold as one set per package. Expand your testing capability or update your tools with test lead sets and kits. Designed for industrial, electrical, and electronic needs, the collections range from starter to master test lead selections. Because they are an integral part of the complete measurement system, worn or under-rated test leads can cause inaccurate readings and pose a serious shock or electrocution hazard if live wires are read as being de-energized. To avoid these risks, use the correct test probe for the application. Test leads are replaced on average every 18 months.

• DMM test leads (red, black) with safety shrouded, standard diameter banana plugs
• Right angle connector on one end and straight connector on the other
• Reinforced strain relief
• 1.5 meter silicone insulated wire resists heat & cold
• Cat iv 600 v, cat iii 1000 v, 10 a rating; UL listed
• Suregrip accessories are designed to improve steadiness in slippery hands
• Rubber over molded surfaces and finger hugging curves give the user a comfortable, reliable grip

User questions & answers

Question:	Do these work with the fluke ac280 suregrip hook clips
Answer:	They work with accessories. Twist to extend the prongs to use accessories.
Question:	Will these work with my fluke
Answer:	The TL224 will work with the Fluke-177
Question:	Will they work on a Fluke 110 meter
Answer:	They are the standard plug that fits most all meters.. I'm not familiar with the 110.. if it takes the standard plug in type, I'm sure these will work also
Question:	Will these leads work for my Tenma which is rated Cat 3, 600v, 10amp? Thanks
Answer:	They are direct replacements for my Fluke 75 leads that wore out. So I would say yes. My Fluke 75 maxes out at 1000V DC, 750V AC for voltage measurement. The Fluke 75 also maxes out at 10A AC and 10A DC for current measurement. I did not go to Fluke's website to see if they have a performance rating for the leads but I have been using the Fluke 75 for over 20 years so I guess it was time for new leads!

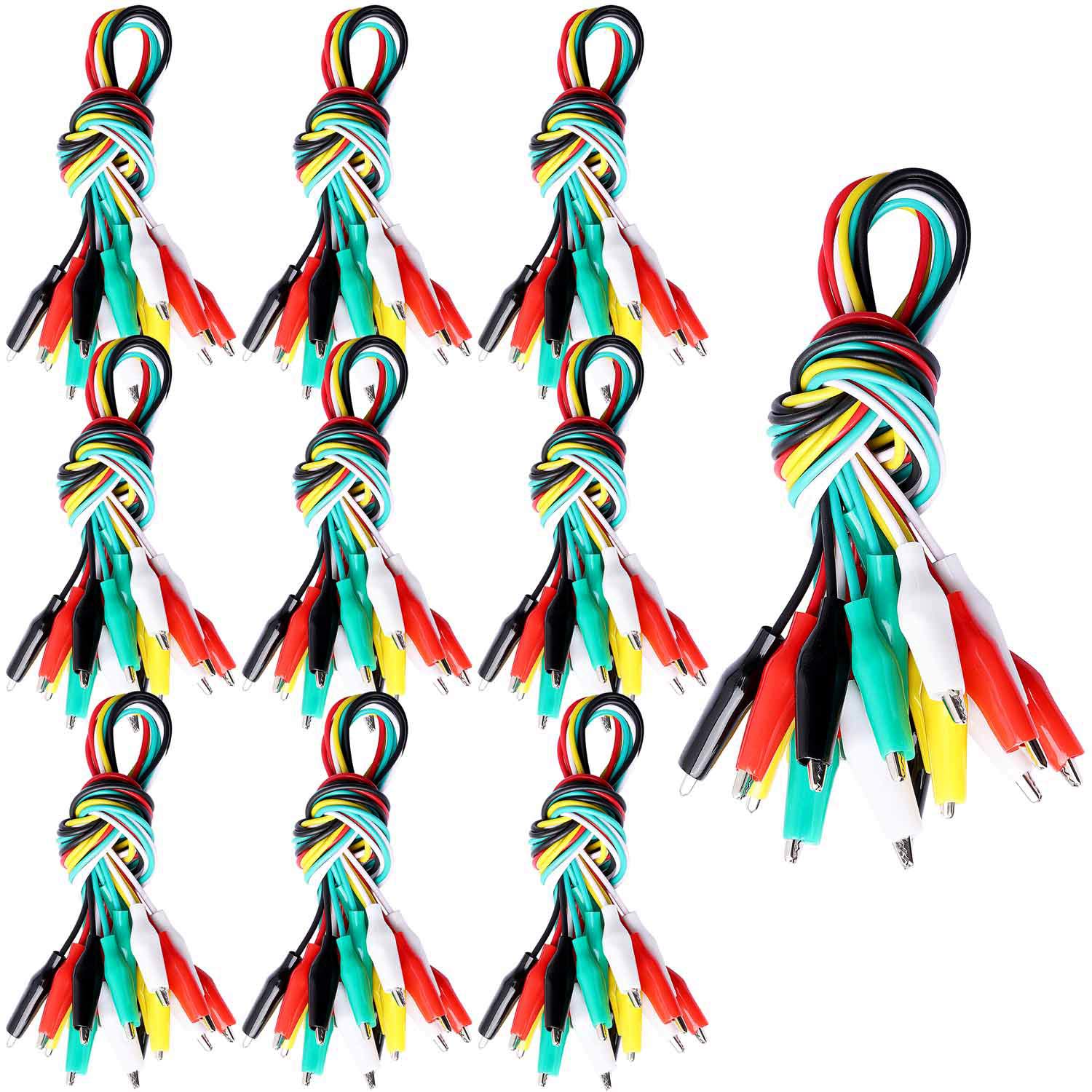

• 100 Test leader & 5 colors, help keeping track of wires - green*20, yellow*20, red*20, white*20, black*20
• Length-50 cm/19 in, Test lead-1 in.The clips soldered and stamping to the wires
• 22-AWG copper with PVC insulation
• Crimped clips clamp securely for most jobs, insulated clips are flexible to slide back and forth to adjust the clip exposure
• Handy for most light electronics works such as experiments, breadboarding, prototyping or diagnosing faulty safety switches
