13 best pomona banana plugs

Pomona banana plugs are a type of electrical connector commonly used in electronic test and measurement equipment. Here's some information about them:

Design:
- Pomona banana plugs have a distinctive design. They consist of a cylindrical metal pin with a banana-shaped, spring-loaded collar around it. This collar can be compressed, allowing the plug to be inserted into a corresponding socket or jack.
Usage:
- They are primarily used for making temporary electrical connections between electronic devices and test equipment like oscilloscopes, multimeters, and other instruments.
Compatibility:
- Pomona banana plugs are designed to fit into standard 4mm (0.16 inch) banana jacks, which are found on a wide range of test and measurement equipment. This standardization allows for interchangeability between different brands and models.
Materials:
- They are typically constructed from high-quality materials such as brass or nickel-plated brass for good conductivity and corrosion resistance.
Insulation:
- The plug is usually encased in a plastic or rubber insulator, which provides electrical isolation and protection.
Color Coding:
- Pomona banana plugs often come in various colors. This helps in easy identification and organization of multiple connections, especially when dealing with complex setups.
Variants:
- There are different variants available, including straight plugs and right-angled plugs. The choice between these depends on the specific application and the layout of the equipment.
Safety:
- Banana plugs and jacks are designed to be safe for use with low voltage and low current applications.They are not intended for use in high-voltage or high-current environments.
Durability:
- Pomona is known for producing durable and reliable connectors, designed to withstand the rigors of regular use in testing environments.
Common Applications:
- They are widely used in electronics labs, workshops, and industrial settings for tasks like troubleshooting, circuit testing, and signal analysis.

Remember, if you're dealing with specific electrical applications or equipment, always follow safety protocols and use appropriate connectors and accessories recommended by the manufacturer or industry standards.

Below you can find our editor's choice of the best pomona banana plugs on the market

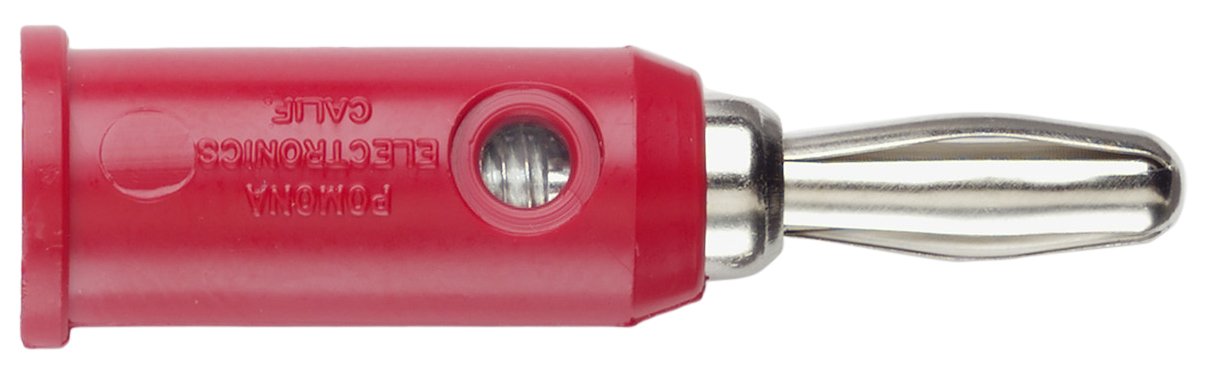

Pomona 1325-2 Banana Plug, SOLDERLESS, RED (Pack of 10)

Pomona

Based on 5 reviews Check latest price

Product description

The 1325-2 is a Stackable Banana Plug in red. Cable attachment is solderless, and is simplified by means of set screws. Accepts wire gauges between 18-22 AWG. The connector is polypropylene insulated, with nickel plated beryllium copper springs. Replacement set screws available in our 4914 model.

Product features

Pomona 1325-2 Banana PLUG, SOLDERLESS,, RED (Pack of 10)

Applications:

Test & Measurement, Calibration, Research & Development, Electrical, Electronics Design, Manufacturing, Instrumentation, Computer Hardware, Sound & Video, Aerospace.

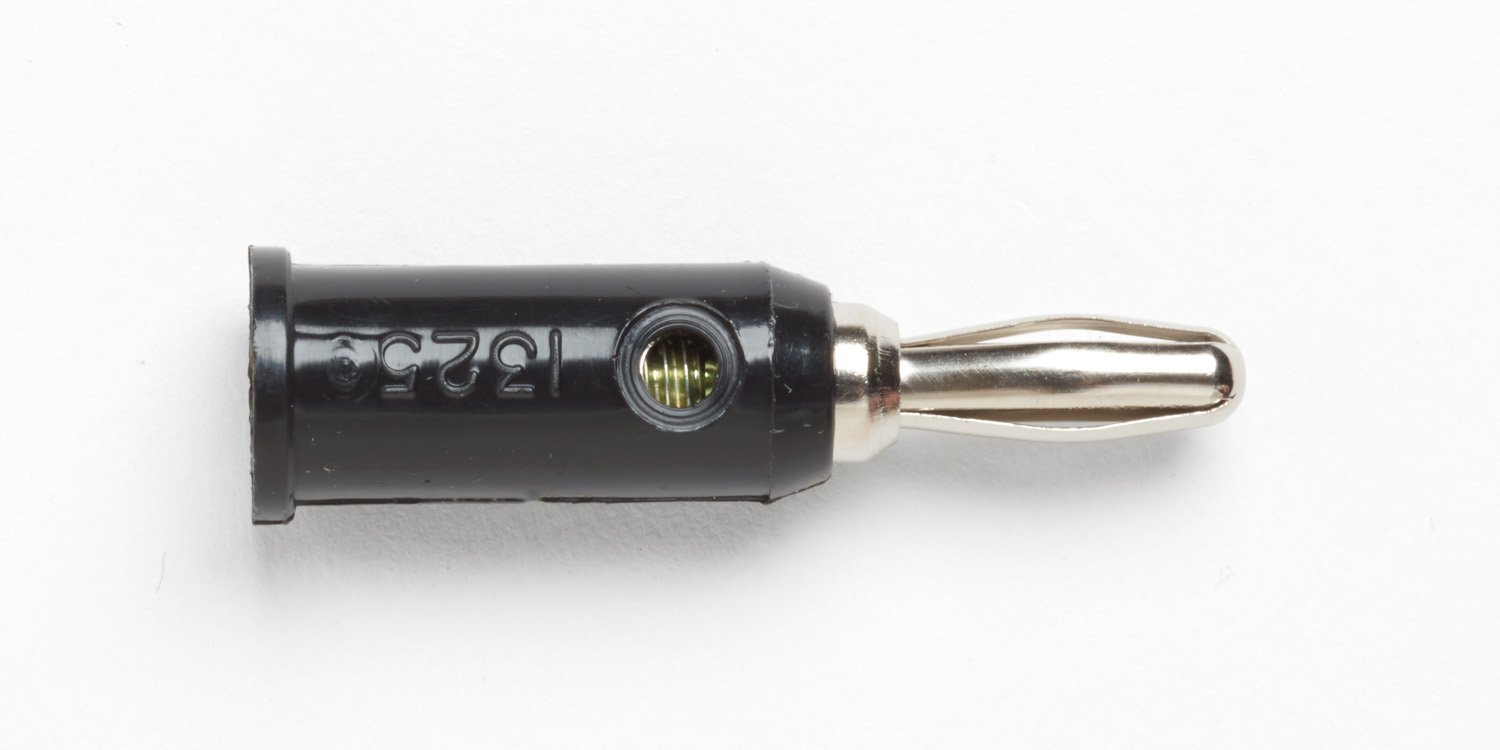

Pomona 1325-0 Banana Plug, SOLDERLESS, Black (Pack of 10)

Pomona

Based on 6 reviews Check latest price

Product description

The 1325-0 is a Stackable Banana Plug in black. Cable attachment is solderless, and is simplified by means of set screws. Accepts wire gauges between 18-22 AWG. The connector is polypropylene insulated, with nickel plated beryllium copper springs. Replacement set screws available in our 4914 model.

Product features

Pomona 1325-0 Banana PLUG, SOLDERLESS,, BLACK (Pack of 10)

Applications:

Test & Measurement, Calibration, Research & Development, Electrical, Electronics Design, Manufacturing, Instrumentation, Computer Hardware, Sound & Video, Aerospace.

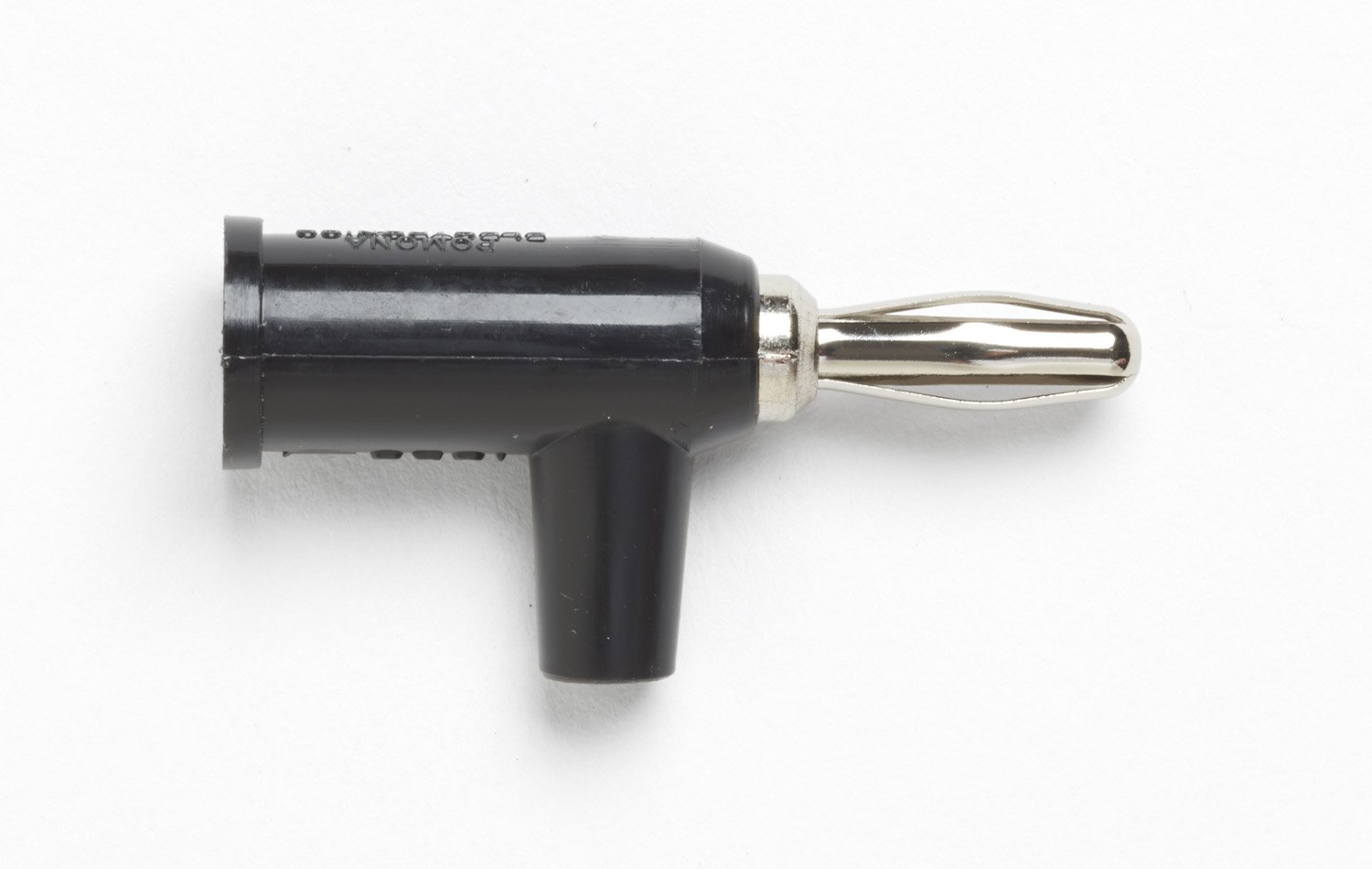

Pomona 1825-0 Banana Plug with Safety Collar, SOLDERLESS, Black (Pack of 10)

Pomona

Based on 22 reviews Check latest price

Product description

The 1825-0 is a black do-it-yourself solderless stack-up Banana Plug with safety collar, screw contact termination, nickel-plated zinc die-cast body, nickel-plated beryllium copper spring, Polypropylene Insulation, zinc-plated steel set screw (8-32 single slot).

Product features

Pomona 1825-0 Banana Plug With Safety Collar, Solderless, Black (Pack Of 10)

The 1825-0 is a do-it-yourself solderless stack-up Banana Plug with safety collar in black, screw contact termination, nickel-plated zinc die-cast body, nickel-plated beryllium copper spring, Polypropylene Insulation, zinc-plated steel set screw (8-32 single slot).

Applications:

Aerospace, Computer Hardware, Electronics Design, Electronics Service, Instrumentation, Manufacturing, Sound & Video, Telecommunications, Test & Measurement.

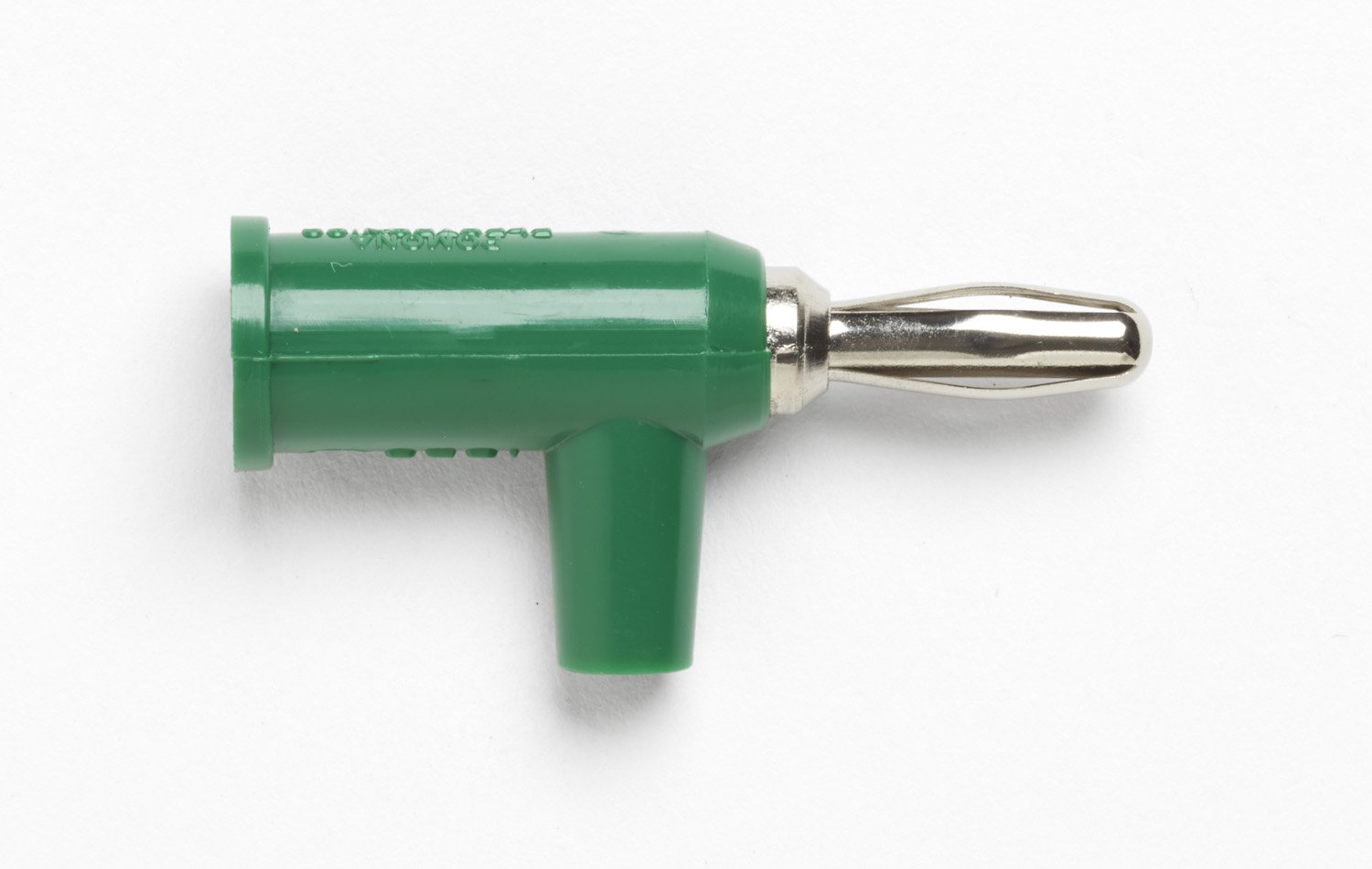

Pomona 1825-5 Banana Plug with Safety Collar, SOLDERLESS, Green (Pack of 10)

Pomona

Based on 2 reviews Check latest price

Product description

The 1825-5 is a green do-it-yourself solderless stack-up Banana Plug with safety collar, screw contact termination, nickel-plated zinc die-cast body, nickel-plated beryllium copper spring, Polypropylene Insulation, zinc-plated steel set screw (8-32 single slot).

Pomona 1825-2 Banana Plug with Safety Collar, SOLDERLESS, RED (Pack of 10)

Pomona

Based on 18 reviews Check latest price

Product description

The 1825-2 is a red do-it-yourself solderless stack-up Banana Plug with safety collar, screw contact termination, nickel-plated zinc die-cast body, nickel-plated beryllium copper spring, Polypropylene Insulation, zinc-plated steel set screw (8-32 single slot).

User questions & answers

Question:	Can i use 12 guage speaker wire with this plug
Answer:	From the manufacturer: "Designed to fit on the end of any 22 AWG to 18 AWG wire." You might be able to cram a 12 gauge conductor into these connectors, you may have to remove some strands. The insulation will probably not fit into the collar.

Product features

Pomona 1825-2# Banana Plug, Stackable, 15A, Screw, Red

The 1825-2# is a red Banana Plug features screw termination, brass body with nickel plating, polypropylene insulation, steel set screw (8-32 single slot) with zinc plating. This banana plug is fits for 0.161 to 0.166-inch (4 to 4.2mm) diameter standard panel and binding post banana jacks.

Applications:

Test & Measurement.

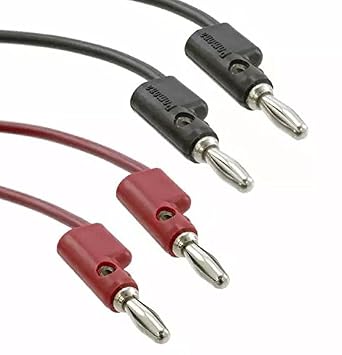

Pomona B-24-02 Banana Plug Patch Cord (Set) (Pack of 2)

Pomona Electronics

Based on 23 reviews Check latest price

Product description

The B-24-02 is a set of black and red 24-inch Patch Cords with Stackable Banana Plugs on both ends, polypropylene insulated, and PVC insulated tinned copper wire, that can be cross and vertically stacked for test versatility. The connector insulation is molded onto the connector and wire for superior strength and durability. Banana plug springs are nickel plated beryllium copper for long insertion life.

User questions & answers

Question:	Ignage shows 1 red & 1 black. Product details says that the color is red. Whazzaup
Answer:	This is a set which includes1 red and 1 black patch cord.
Question:	Are these banana 3 or 4 mm
Answer:	They are 4 mm
Question:	what is wire gauge
Answer:	There is no marking on the wire. Pomona says 18 awg cable (Pomona’s Catalog 2016, p. 41)
Question:	What is the length
Answer:	The length is 24 inches.

Product features

B-24-2 - B Stack-Up Banana Plug Both Ends, 24"

The B-24-0 is a 24-inch red Patch Cord with Stackable Banana Plugs on both ends, polypropylene insulated, and PVC insulated tinned copper wire, that can be cross and vertically stacked for test versatility. The connector insulation is molded onto the connector and wire for superior strength and durability. Banana plug springs are nickel plated beryllium copper for long insertion life.

Applications:

Test & Measurement, Calibration, Research & Development, Electrical, Electronics Design, Manufacturing, Instrumentation, Computer Hardware, Sound & Video, Aerospace.

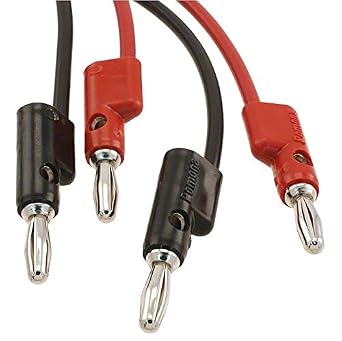

Pomona B-36-02 Banana Plug Patch Cord (Set) (Pack of 2)

Pomona Electronics

Based on 48 reviews Check latest price

Product description

The B-36-02 is a set of black and red 36-inch Patch Cords with Stackable Banana Plugs on both ends, polypropylene insulated, and PVC insulated tinned copper wire, that can be cross and vertically stacked for test versatility. The connector insulation is molded onto the connector and wire for superior strength and durability. Banana plug springs are nickel plated beryllium copper for long insertion life.

Mates to Model #1581, 2854 or standard Banana Jack
Cross and vertical stacking banana plug
Ideal for providing jumpers or chassis boxes

User questions & answers

Question:	How many patch cords are in the set
Answer:	Two
Question:	What's the average Resistance if the wires
Answer:	The previous answer to this question is incorrect. These are pure wires. They have almost no resistance. My HP 3468B multimeter in 4-wire ohms mode measures these wires at 0.021 ohms, essentially almost no resistance at all.
Question:	Is this two cords in total? Or four
Answer:	Two cords total.
Question:	Do these come in longer lengths such as twenty or
Answer:	36 inch is the longest we have 2249-C-120=120 inch & stock 144,180,240,300,360, 600inch

Product features

B-36-2 - B Stack-Up Banana Plug Both Ends, 36"

The B-36-0 is a 36-inch red Patch Cord with Stackable Banana Plugs on both ends, polypropylene insulated, and PVC insulated tinned copper wire, that can be cross and vertically stacked for test versatility. The connector insulation is molded onto the connector and wire for superior strength and durability. Banana plug springs are nickel plated beryllium copper for long insertion life.

Applications:

Test & Measurement, Calibration, Research & Development, Electrical, Electronics Design, Manufacturing, Instrumentation, Computer Hardware, Sound & Video, Aerospace.

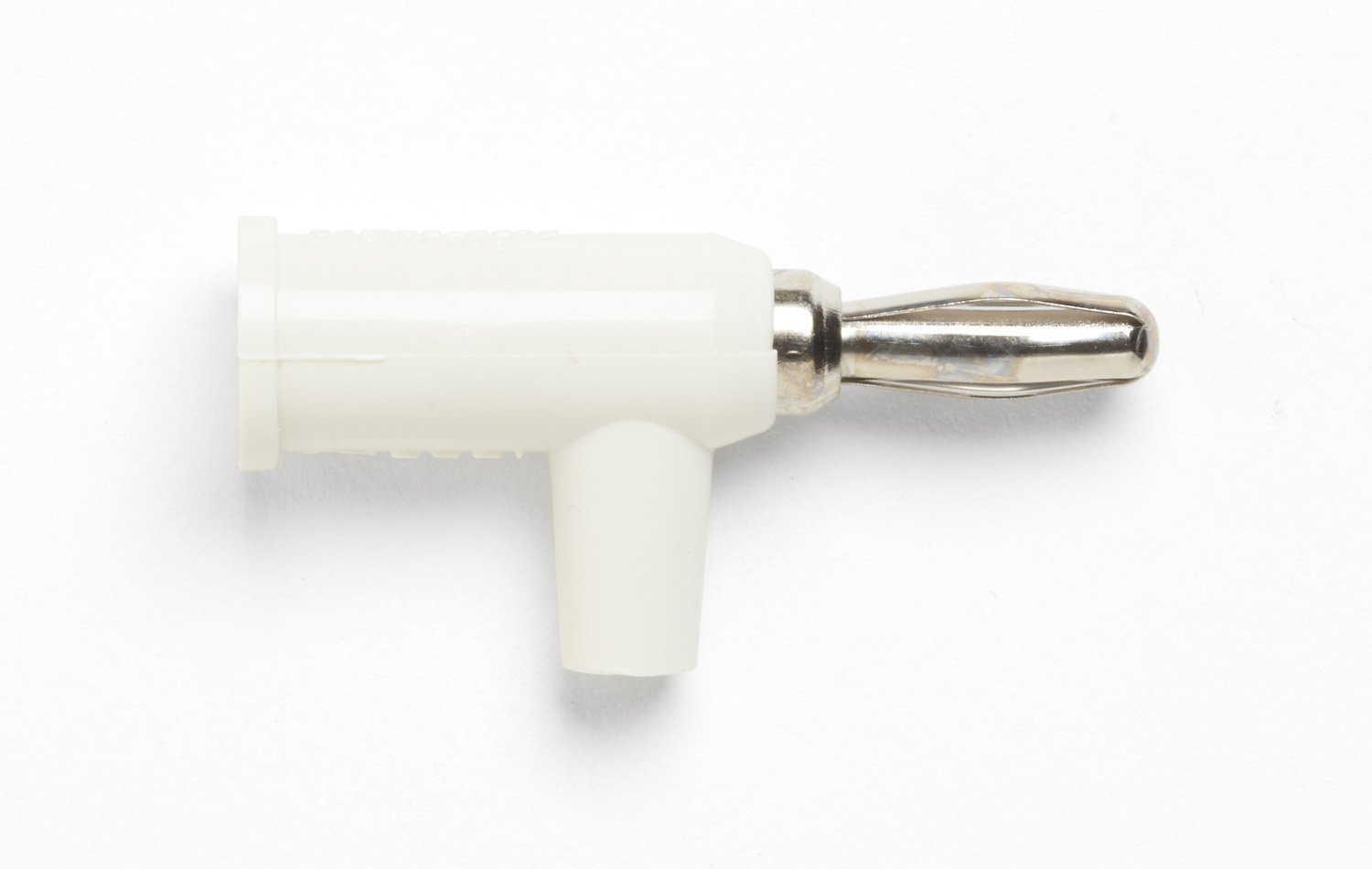

Pomona 1825-9 Banana Plug with Safety Collar, SOLDERLESS, White (Pack of 10)

Pomona

Based on 2 reviews Check latest price

Product description

The 1825-9 is a white do-it-yourself solderless stack-up Banana Plug with safety collar, screw contact termination, nickel-plated zinc die-cast body, nickel-plated beryllium copper spring, Polypropylene Insulation, zinc-plated steel set screw (8-32 single slot).

Product features

Pomona 1825-9 Banana Plug with Safety Collar, Solderless, White (Pack of 10)

The 1825-9 is a do-it-yourself solderless stack-up Banana Plug with safety collar in white, screw contact termination, nickel-plated zinc die-cast body, nickel-plated beryllium copper spring, Polypropylene Insulation, zinc-plated steel set screw (8-32 single slot).

Applications:

Aerospace, Computer Hardware, Electronics Design, Electronics Service, Instrumentation, Manufacturing, Sound & Video, Telecommunications, Test & Measurement.

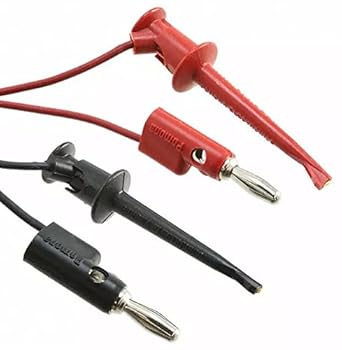

Pomona Minigrabber Test Clip To Stacking Banana Plug

Pomona

Based on 111 reviews Check latest price

Product description

The 3782-24-02 is a set of black and red Minigrabber Test Clip to Stacking Banana Plug patch cord in 24-inch length. The patch cord provides a Minigrabber output from any standard size Banana Jack connections. The banana plug can be both cross or vertically stacked. The Minigrabber insulation is glass filled nylon with gold plated beryllium copper contacts, on 20 AWG PVC wire. The banana plug is polypropylene insulated, molded directly to the wire, with nickel plated beryllium copper springs for long insertion life.

User questions & answers

Question:	Will this set fits keysight handheld testers
Answer:	This Pomona lead set will fit any tester that has standard 4mm banana lugs. Is there a particular tester you use?
Question:	It says "set" in the description, and everywhere else on the web it's sold as red/blk set. Does this item contain two test leads? A red and a black
Answer:	You should receive One Red and One Black lead as a Set of two leads.
Question:	will this work with an older simpson
Answer:	Hello, I do not know the dimensions for the Simpson 260 input jacks. The Pomona item you selected has 4mm diameter banana plug and its 14.21mm long.
Question:	Can these handle 18v at a maximum of 10a? they're listed as 20 awg, which is typically rated up to 13a. i planto use these with a dc power supply
Answer:	The ratings on the 3782-24-02 are Operating Voltage: Hand-held testing: 30VAC/60VDC Max. Hands free testing in controlled voltage environments: 300 WVDC Current: 5 Amperes Cont. So we can't recommend using them at 10A.

Product features

Pomona 3782-24-02 Minigrabber/Banana Plug (Set) (Pack of 2)

The 3782-24-2 is a Minigrabber Test Clip to Stacking Banana Plug patch cord in 24-inch length and in red. The patch cord provides a Minigrabber output from any standard size Banana Jack connections. The banana plug can be both cross or vertically stacked. The Minigrabber insulation is glass filled nylon with gold plated beryllium copper contacts, on 20 AWG PVC wire. The banana plug is polypropylene insulated, molded directly to the wire, with nickel plated beryllium copper springs for long insertion life.

Applications:

Test & Measurement, Research & Development, Calibration, Electronics Design, Electronics Service, Computer Hardware, Instrumentation.

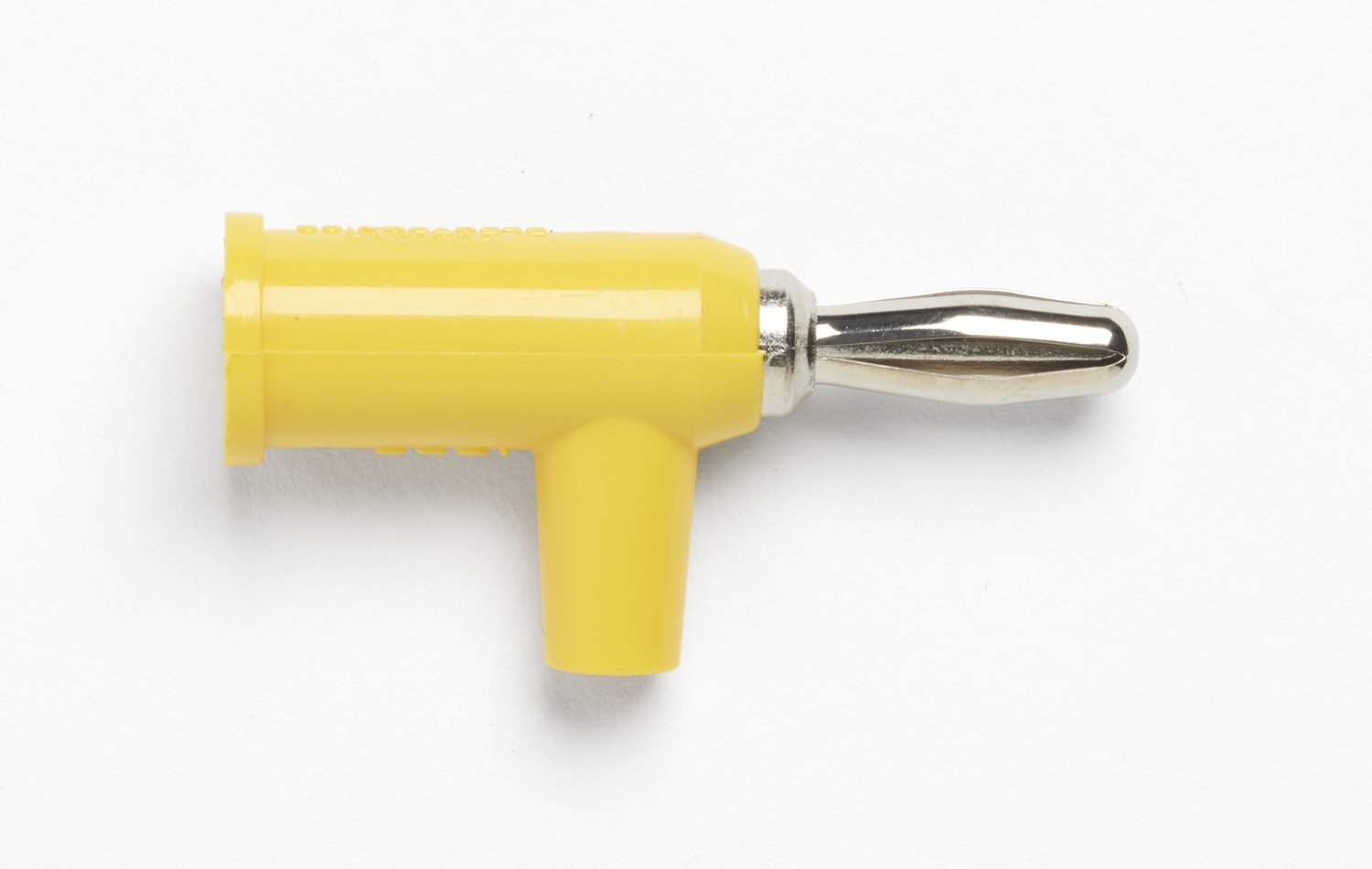

Pomona 1825-4 Banana Plug with Safety Collar, SOLDERLESS, Yellow (Pack of 10)

Pomona

Check latest price

Product description

The 1825-4 is a yellow do-it-yourself solderless stack-up Banana Plug with safety collar, screw contact termination, nickel-plated zinc die-cast body, nickel-plated beryllium copper spring, Polypropylene Insulation, zinc-plated steel set screw (8-32 single slot).

Product features

Pomona 1825-4 Banana Plug with Safety Collar, Solderless, Yellow (Pack of 10)

The 1825-4 is a do-it-yourself solderless stack-up Banana Plug with safety collar in yellow, screw contact termination, nickel-plated zinc die-cast body, nickel-plated beryllium copper spring, Polypropylene Insulation, zinc-plated steel set screw (8-32 single slot).

Applications:

Aerospace, Computer Hardware, Electronics Design, Electronics Service, Instrumentation, Manufacturing, Sound & Video, Telecommunications, Test & Measurement.

Pomona B-48-0 Banana Plug Patch Cord (Black)

Pomona

Check latest price

Product description

The B-48-0 is a 48-inch black Patch Cord with Stackable Banana Plugs on both ends, polypropylene insulated, and PVC insulated tinned copper wire, that can be cross and vertically stacked for test versatility. The connector insulation is molded onto the connector and wire for superior strength and durability. Banana plug springs are nickel plated beryllium copper for long insertion life.

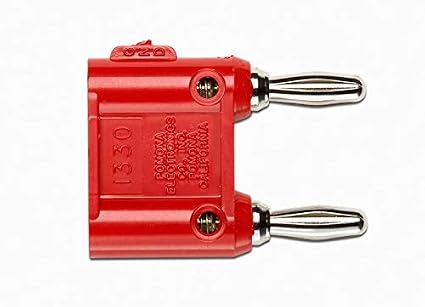

Pomona Double Banana Plug, 15A, Screw, Red - 1330-2

Pomona

Based on 2 reviews Check latest price

Product description

DOUBLE BANANA PLUG, 15A, SCREW, RED; Gender:Plug; Connector Mounting:Cable Mount; Current Rating:15A; Voltage Rating:60VDC; Contact Plating:Nickel Plated Contacts; Connector Colour:Red; Contact Material:Brass; Body Material:Brass RoHS Compliant: Yes

Price For: Each Connector Type: Banana Plug Series: 1330 Gender: Plug Contact Termination: Screw Current Rating: 15A Voltage Rating: 5kV Contact Plating: Nickel Contact Material: Brass Connector Color: Red RoHS Compliant: Yes

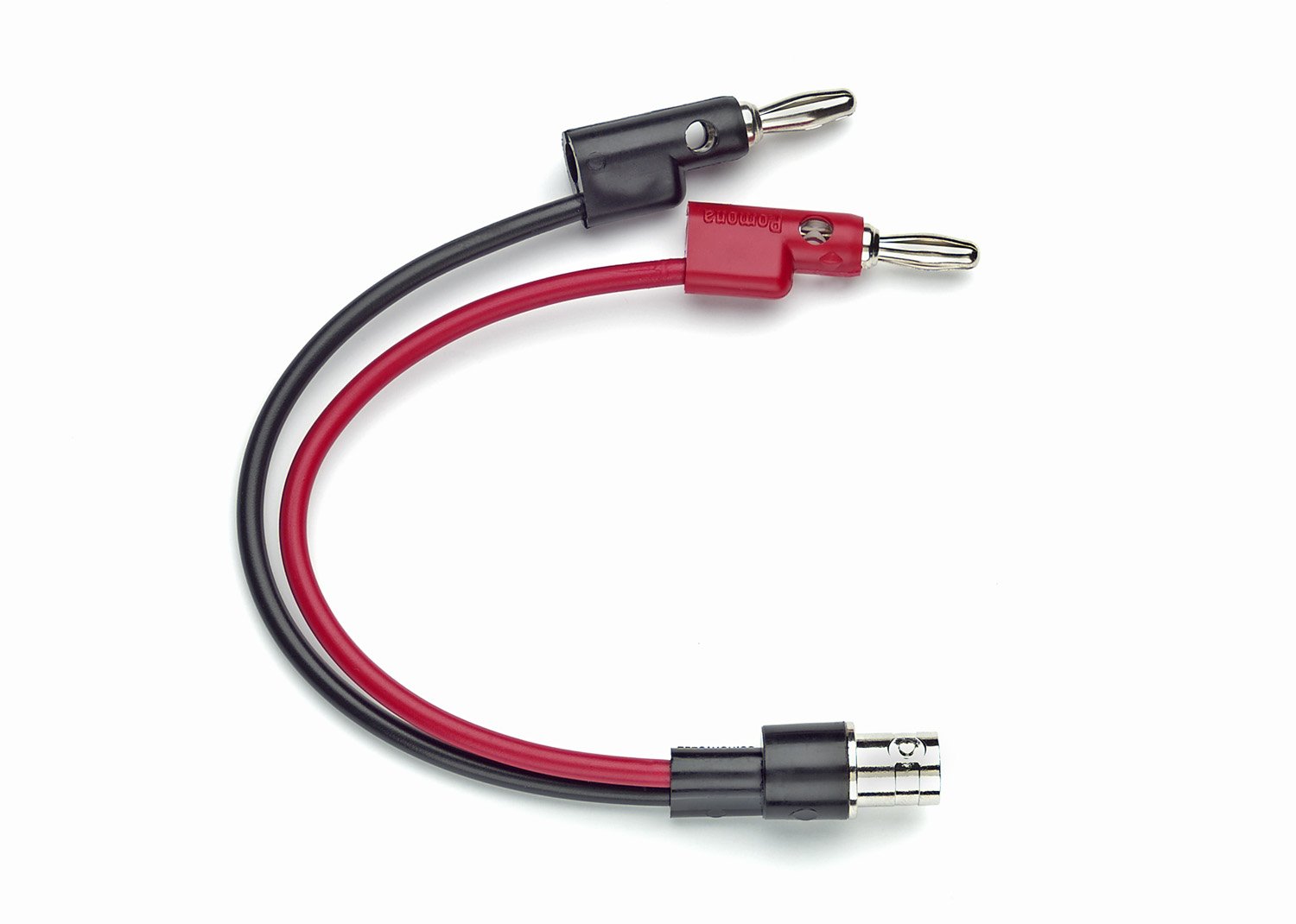

Pomona 3073 BNC (F) to Banana Plugs

Pomona Electronics

Based on 56 reviews Check latest price

Product description

The 3073 is a BNC Female to Multi-Stacking Banana Plug Breakout. "Breakouts" are designed to convert standard coaxial cables to test cables. By connecting proper breakout receptacle or plug to corresponding cable plug or receptacle, any standard coaxial cable becomes a test cable. It is rated 30 Vac/60 Vdc for handheld applications, and rated 500 Vrms for handsfree applications.

Converts BNC cables with male plugs to stackable banana plugs for versatility
BNC connector and banana plugs are molded directly to the wire for pull strength durability and dust and moisture resistance
BNC center contact is gold plated Beryllium Copper for corrosion resistance, low contact resistance and long insertion life

User questions & answers

Question:	how to connect second teas monitor
Answer:	not sure what a teas monitor is. but if you mean a test monitor they have 5 BNC connectors on them RBG and two for video level. this product is not for that purpose.
