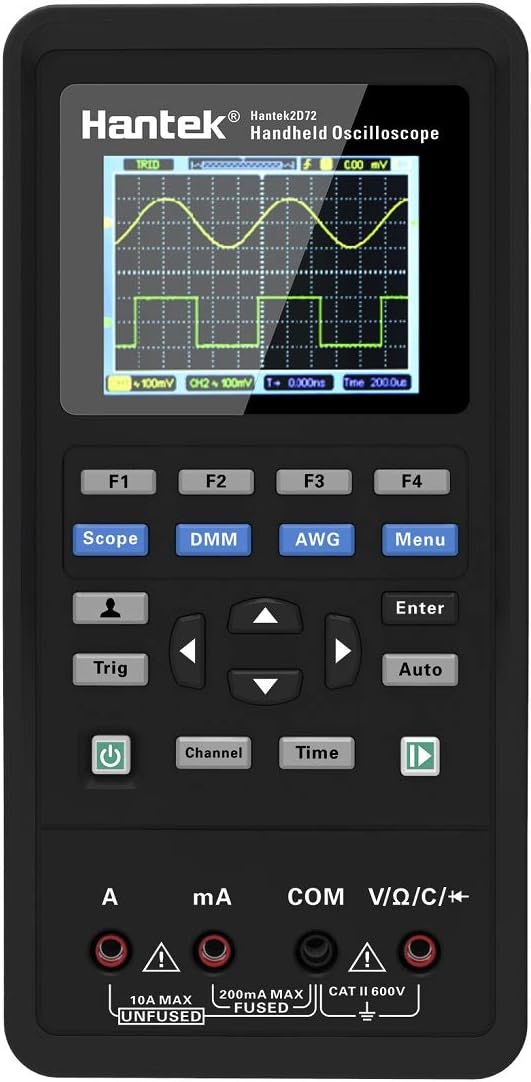

3 in 1 Dual Channel Oscilloscope + Waveform Generator + Multimeter

250M Sampling rate, 40MHZ Bandwidth.

10MV-10V Vertical resolution

Minimalist keyboard design simplify operation，easy to use

Auto automatic measuring function

Key tone settings

Color highlight LCD screen,legible even in bright sunligh

Adjustable backlight brightness, backlight

Auto power off

Digital voltmeter function.





Specification

Sample Rate Range: 250MSa/s(Single-channel), 125MSa/s(Dual-channel)

Waveform Interpolation: (sin x)/x

Record Length: Max. 6K for single-channel; 3K samples per dual-channel

SEC/DIV Range: 5ns/div~500s/div 1, 2, 5 sequence

A/D Converter: 8-bit resolution,each channel sampled simultaneously

VOLTS/DIV Range: 10mV/div~10V/divat input BNC

Bandwidth Limit, typical: 20MHz

Low Frequency Response (-3db): ≤10Hz at BNC

Rise Time at BNC, typical: ≤5ns

DC Gain Accuracy : ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div

Note: Bandwidth reduced to 6MHz when using a 1X probe.

Mode : Auto, Normal, single

Level : ±4 divisions from center of screen

Slope : Rising, Falling, Rising & Falling

Source : CH1/CH2

Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X

Maximum Input Voltage: 150VRMS





Standard Accessories:

1 * 3-in-1 Oscilloscope

2 * Clip Probes

1 * Test Probe

1 * Power Adapter

1 * USB Type-C Charging Cable

1 * Multimeter Probe

1 * Storage Bag and Manufacturer Certificate

• Function: Oscilloscope + Multimeter+ Waveform Generator; 70 MHz Digital Oscilloscope with 2 channels -- Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel).
• Simplify operation, convenient to use: 250M Sampling rate, 70MHZ Bandwidth. 10MV-10V Vertical resolution; Auto automatic measuring function; Key tone settings, Adjustable backlight brightness, Backlight, duration and auto power off time. Digital voltmeter function, Cursor measurement, reference waveform,waveform Storage function.
• Multifunction Digital Multimeter Function, High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry. Digital multimeter which can be used to measure AC/DC voltage/current, resistance, diode,capacitance, on-off test.
• Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface 18650 replaceable lithium battery power system; Be able to recharged by 5V/2A large current or ordinary computer USB port,allow while charging, very convenient and handy; Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months.
• We offer 1 year warranty with 30 days worry-free return, so 100% satisfaction and zero hassle returns guaranteed. Please don't hesitate to contact us when you use the item.

User questions & answers

Question:	Can you generate a signal and read a signal at the same time. eg. inject a waveform into an op amp and see its output
Answer:	Dear buyer, Good day, Yes,generate a signal and read a signal can be at the same time. Thanks and have a nice day. withUtrade
Question:	what probes and cables are included
Answer:	Everything that’s in the photo: ONE Scope probe w/BNC Connector, Two alligator to BNC scope connectors, one regular meter probe set, one needle-tip meter probe set, and several probe tip adapters which screw on in place of the needle-tip probes. Also includes wall-plug charger and necessary USB cable,
Question:	Is there an instruction manual
Answer:	You can download the user munual by going onto our website, and clicking through the following buttons: Products-->Handheld Oscilloscope-->Hantek2000 Series (Recommended for online class)-->Download You'll see quick guide, software, firmware, FPGA, programming tool, and mannual for Hantek 2D72. For your information, I can't send you the aforementioned URL according to Amazon's regulations, and our website doesn't get Spanish version. Sorry for your inconvenience.
Question:	Is the included probe 10X
Answer:	The package includes 1 peace of 10X probe. And it can be used with 100X probes(such as Hantek T3100), which is not included in the package.

Product description

Model:Hantek1008

Vertical System

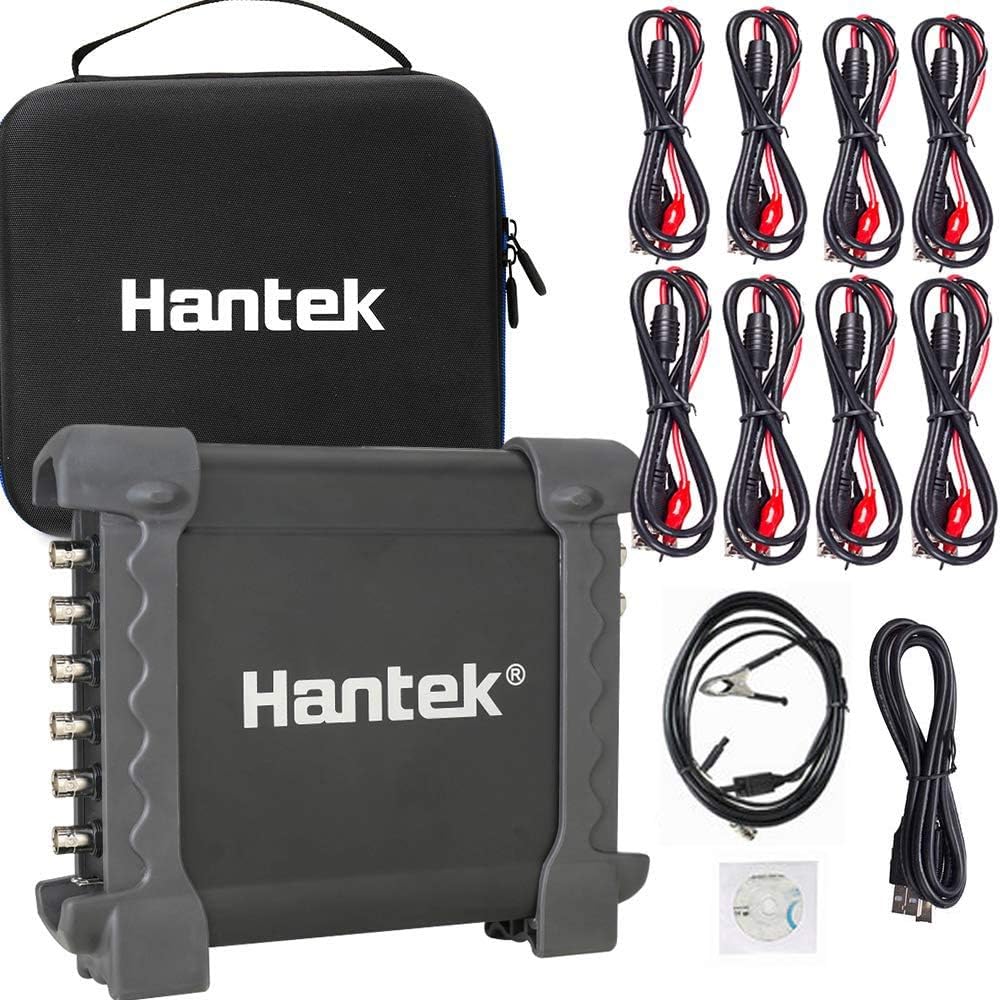

Analog Channel:8

Input Impedance:Resistance: 1MΩ

Input Sensitivity:10mV/div to 5V/div

Input Coupling:DC

Resolution:12 bits



Horizontal System



Memory Depth:4K

Max. Input:400V (DC+AC Peak)

Real-Time Sampling Rate:2.4MSa/s

Time BaseRange:1ns/div to 20000s/div(1-2-5sequences)

Time Base Precision:±50ppm



Trigger System



Time Base Range:1ns/div to 20000s/div(1-2-5sequences)

Time Base Precision:±50ppm

Trigger Source:CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8

Trigger Mode:Edge



X-Y Mode



X-Axis Input:CH1

Y-Axis Input:CH2



Cursors and Measurement



Voltage Measurement:Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot

Time Measurement:Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Cursors Measurement:Horizontal ,Vertical, Track, Auto Measure Modes

Waveform Signal Process:+,- , x,÷, FFT, Invert

Voltage Range:10mV to 5V/div @ x 1 probe 100mV to 50V/div @ x 10 probe 10V to 5000V/div @ x 1000 probe 100V to 50000V/div @ x 10000 probe 200mV to 100V/div @ 20:1

Current Range:100mA to50.0A/div @ CC65(20A) 1000mA to500.0A/div @ CC65(65A) 1A to100.0A/div @ CC650(60A) 1A to200.0A/div @CC1100(100A) 10A to2000.0A/div @CC1100(1100A)

FFT:Rectangular, Hanning, Hamming, Blackman Window

Math:Addition, subtraction, multiplication, division



Programmable Generator



Channel:8

Output Level:LVTTL

Frequency Range:0-250kHz

Interface:USB 2.0(Full Speed)

Power:No need extra power supply

Size & Weight:185 x 150 x 27 (mm); 0.35kg

User questions & answers

Question:	Can this be used with labtop
Answer:	Dear buyer, Good day. Thank you for your ask. Yes, this oscilloscope can be used with labtop, but only in windows system. Thanks and have a nice day. withUtrade
Question:	Is it compatible with an OTC genisys touch which has a scope tab
Answer:	Hell nahh.. you can find waveforms online. I use this and all data or Mitchell after I pull a code with my $30 code reader because ya need to know what is currently happening the computer could be lying or wrong. Try isn’t.net the otc genesis is garbage. Most scanners are. I have made people retire with a $4 harbor freight volt meter.
Question:	es compatible con windows 8 o con windows
Answer:	Dear buyer, Good day. Thank you for ask. This oscilloscope 1008C is works with windows 8 and windows 10. Thanks and have a nice day. withUtrade
Question:	Which version of the scope is best to buy a b or c
Answer:	Dear buyer, Good day. Thank you for your ask. 1008A/1008B/1008C are the same version of scope. only the different is about accessories, and 1008C has more. Thanks and have a nice day. withUtrade

Product description

Feature:

70MHz bandwidths

1GSa/s Real Time sample rate

Large (7.0-inch) color display,WVGA(800x480)

Record length up to 40K

Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.

USB host and device connectivity, standard

Multiple automatic measurements

Four math functions, including FFTs standard

Provides software for PC real-time analysis

VGA Optional

Specification:

Bandwidth: 70MHz

Channel: 2

Real-Time Sample: 1GSa/s

Equivalent Sample: 25GSa/s

Memory Depth: 40K

Rise Time: 5ns

Time Base Accuracy: ±50ppm

Time Base Range: 8ns/div-40s/div

Input Impendance: 1MΩ

VOLTS/DIV Range: 2mV/div～5V/div

A/D Converter: 8 bit

Bandwidth Limit: 20MHz

Trigger Types: Edge, Video, Pulse, Slope, Over time, Alternative

Trigger Source: CH1, CH2, EXT, EXT/5, AC Line

Math: +,-,x,÷,FFT

Size: 313mm x 108mm x 142mm

Weight: 2.08KG

Standard Probe: PP90

Package including:

1 x DSO5102P Digital Oscilloscope

2 x Probes

1 x Power Line

1 x USB Cord

1 x CD

User questions & answers

Question:	What powers the scope/ internal battery? usb? wall wart? voltage
Answer:	It is wall plug for 102/240 50/60 hz. It comes with a British plug and an universal adapter. I used a standard PC cord Instead of the adaptor. For my USA electrical system. It works fine.
Question:	Is this a 100mhz, 70mhz or 20mhz scope? ridiculous question? look at above specifications and let me know which one
Answer:	I think your question may be aimed at the fact that this scope's ANALOG bandwidth is 20 Mhz, but it's digital bandwidth is 100 Mhz. All digital scopes in this modest price range have this slightly confusing anomaly, however, and doesn't alter the fact that this is an excellent scope...and one that can easily be up-rated to 200 Mhz. I have owned mine for two years now and am very pleased with it.
Question:	Can this unit be used for spectrum analysis
Answer:	No
Question:	Can you combine X and Y to make use of a quick checker
Answer:	Yes. The hantek 5102 family has a mode that plots X vs Y --press the display button, and select DSO nide XY. You can then use this to display a component checker output. See for example, the response from DC5AJ in the web page https://www.eevblog.com/forum/testgear/component-tester-on-oscilloscopes/. The XY mode is 1 MHz only, and displays outputs as dots, so there are some flexibility limits.

Product description

Oscilloscope  Functions:

Horizontal

Sample Rate Range: 250MSa/s(Single-channel), 125MSa/s(Dual-channel)

Waveform Interpolation: (sin x)/x

Record Length: Max. 6K for single-channel; 3K samples per dual-channel

SEC/DIV Range: 5ns/div~500s/div 1, 2, 5 sequence

Vertical

A/D Converter: 8-bit resolution,each channel sampled simultaneously

VOLTS/DIV Range: 10mV/div~10V/divat input BNC

Bandwidth Limit, typical: 20MHz

Low Frequency Response (-3db): ≤10Hz at BNC

Rise Time at BNC, typical: ≤5ns

DC Gain Accuracy: ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div

Note: Bandwidth reduced to 6MHz when using a 1X probe.

Acquisition

Acquisition Modes: Normal

Trigger

Type: Edge

Mode: Auto, Normal, single

Level: ±4 divisions from center of screen

Trigger Level Accuracy: 0.2div X volts/div within ±4 divisions from center of screen

Slope: Rising, Falling, Rising & Falling

Source: CH1/CH2



Input

Coupling: DC, AC or GND

Input Impedance,DC coupled: 25pF±3 pF, 1MΩ±2%

Probe Attenuation: 1X, 10X

Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X

Maximum Input Voltage: 150VRMS

Measurement

CursorVoltage difference between cursors: △V; Time difference between cursors: △T

Automatic Measurements: Frequency, Amplitude

Arbitrary Waveform Generator Mode

Waveform Frequency: Sine: 1Hz~25MHz; Square: 1Hz~10MHz; Ramp: 1Hz~1MHz; EXP: 1Hz~5MHz

Sampling: 250MSa/s

Amplitude: 2.5Vpp(50Ω): 5Vpp(High impedance)

Frequency Resolution: 0.10%

Channel: 1CH waveform output

Waveform Depth: 512Sa

Vertical Resolution: 12 bit

Output Impedance: 50 Ω

For more information please visit:http://www.hantek.com.cn/en/ProductDetail_13174.html

• Oscilloscope + Waveform Generator + Multimeter multi-function lab tool. It is outgoing right-hand product for engineers

User questions & answers

Question:	Can s usb port be added to the empty slot
Answer:	Not that I am aware of. There is a USB C port for both charging and connecting to a PC to work with the Hantek app that shows the device screens and let you control it from your PC and also adds some features like math to the scope display.
Question:	Which versions include the case
Answer:	Hantek 2D series and Hantek 2C series all include the case.
Question:	can it check 120VAC line voltage
Answer:	No do not use the scope to check the AC line you may destroy your equipment. It is better to use a DVM for that because it is designed for it.
Question:	Does the ac adapter have a u.s. plug or a euro type? the adapter that you show is euro, but i need u.s. type
Answer:	The standard plug is EU version. Usually, we will put US convert plug. But sometime the warehouse may forget. If the product you received is not US version. Please let me know. I will refund the US convert plug costs for you.

Product description

Features:

100MHz bandwidths

1GSa/s Real Time sample rate

Large (7.0-inch) color display, WVGA(800x480)

Record length up to 40K

Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.

USB host and device connectivity, standard

Multiple automatic measurements

Four math functions, including FFTs standard

Provides software for PC real-time analysis



Specifications:

Model:DSO5102P

Bandwidth:100MHz

Channel:2

Real-Time Sample:1GSa/s

Equivalent Sample:25GSa/s

Memory Depth:40K

Rise Time:3.5ns

Time Base Accuracy:±50ppm

Time Base Range:4ns/div-40s/div

Input Impendance:1MΩ

VOLTS/DIV Range:2mV/div～5V/div

A/D Converter:8 bit

Position Range:±50V(5V/div),±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div),±400mV(20mV/div～2mV/div)

DC Gain Accuracy: ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div

Bandwidth Limit:100MHz

Trigger Types:Edge,Video,Pulse,Slope, Over time, Alternative

Trigger Source:CH1,CH2,EXT,EXT/5, AC Line

Math:+,-,x,÷,FFT

Cursor Measurement: Voltage difference between cursors: △V; Time difference between cursors: △T; Reciprocal of △T in Hertz (1/ΔT);

Auto Measuerment:Frequency, Period, Mean,Pk-Pk,Cycli RMS,Minimum, Maximum,Rise time,Fall Time,+Pulse Width,-Pulse Width,Delay1-2Rise, Delay1-2Fall,+Duty,-Duty,Vbase,Vtop, Vmid,Vamp,Overshoot,Preshoot,Preiod Mean,Preiod RMS, FOVShoot, RPREShoot,BWIDTH,FRF

Accessories:

2*Probes

1*USB Cable

1*Power cable

1*Replaceable Test Wires Probes set

User questions & answers

Question:	What is the maximum current this device can handle
Answer:	oscilloscopes do not directly measure current, only voltage.
Question:	What mains voltage does this use? i noticed that the label on the picture says 110-240vac. is this correct? is it ok for a 220vac country
Answer:	Going by the label on the back, it is shown as you indicated.... 100 - 240 vac. 30 watts max. I am using 120 vac so I cannot test it using the higher voltage. I think it will be OK for 220vac.
Question:	What is the warranty
Answer:	One year
Question:	Again, can it be a spectrum analyser? don't kow what fft is
Answer:	FFT is Fast Fourier Transfer, which mathematically performs the same function as a spectrum analyzer, but with significant limitations.

Product description

Features:

•200/100/70MHz bandwidths

•1GSa/s Real Time sample rate

•Large (7.0-inch) color display, WVGA(800x480)

•Record length up to 40K

•Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.

•USB host and device connectivity, standard

•Multiple automatic measurements

•Four math functions, including FFTs standard

•Provides software for PC real-time analysis

Specifications:

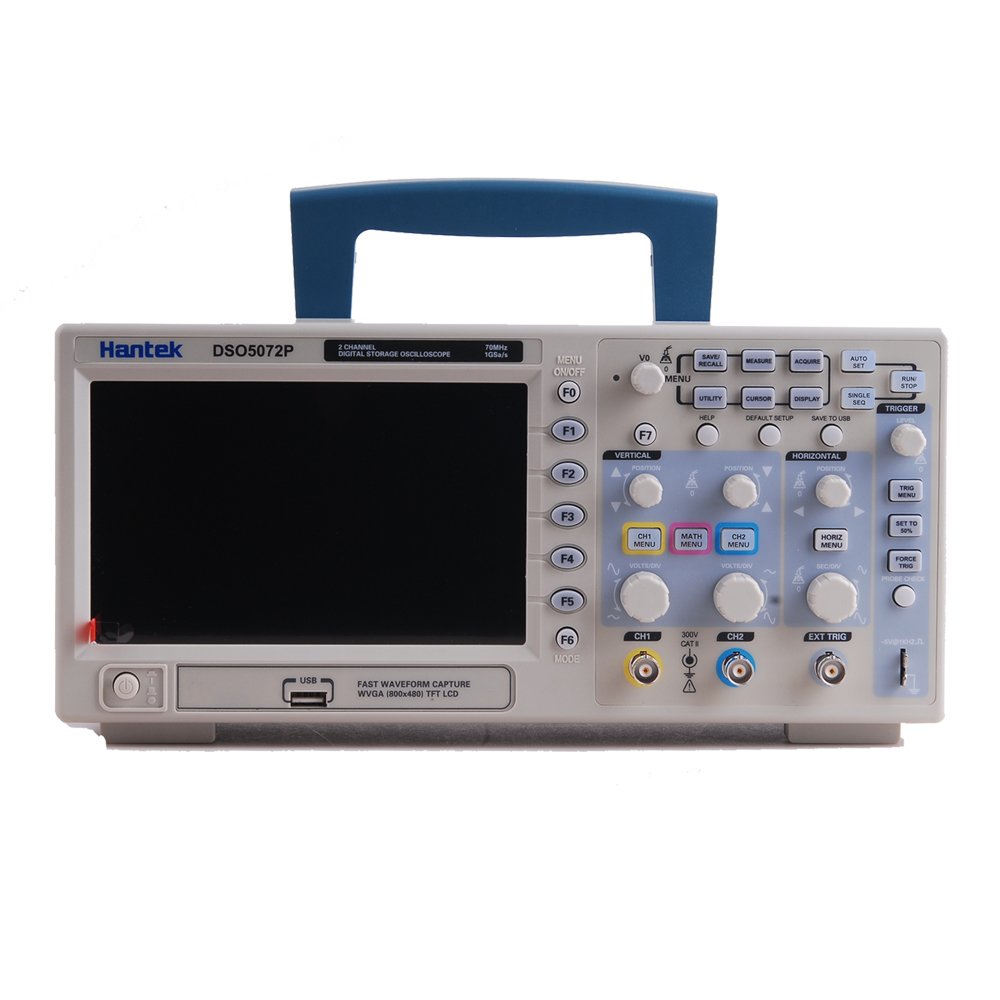

•Model:DSO5072P

•Bandwidth:70MHz

•Channel:2

•Real-Time Sample:1GSa/s

•Equivalent Sample:25GSa/s

•Memory Depth:40K

•Rise Time:5ns

•Time Base Accuracy:±50ppm

•Time Base Range:4ns/div-40s/div

•Input Impendance:1MΩ

•VOLTS/DIV Range:2mV/div～5V/div

•A/D Converter:8 bit

•Position Range:±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div)

•DC Gain Accuracy:

±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;

±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div

•Bandwidth Limit:20MHz

•Trigger Types:Edge,Video,Pulse, Slope, Over time, Alternative

•Trigger Source:CH1,CH2,EXT,EXT/5, AC Line

•Math:+,-,x,÷,FFT

•Cursor Measurement:

Voltage difference between cursors: △V;

Time difference between cursors: △T;

Reciprocal of △T in Hertz (1/ΔT);

•Auto Measuerment:Frequency, Period, Mean,Pk-Pk,Cycli RMS,Minimum, Maximum,Rise time,Fall Time,+Pulse Width,-Pulse Width,Delay1-2Rise, Delay1-2Fall,+Duty,-Duty,Vbase,Vtop, Vmid,Vamp,Overshoot,Preshoot,Preiod Mean,Preiod RMS, FOVShoot, RPREShoot,BWIDTH,FRF

•Display:7" TFT 16K Color LCD,800*480 dots

User questions & answers

Question:	we can use this item dso 5072 for squre wave and triangle wave
Answer:	Yes, of course. The waveform displays voltage with respect to time no matter what the input. However, you have to be careful of bandwidth, for both the probes and the scope. For instance, a square wave is a sum of the fundamental frequency and the odd harmonics. If you wanted to display a square wave at 1MHz, then the fundamental frequency is 1Mhz, but to make it square, it would also have energy at 3MHz (3rd harmonic), 5 MHz (5th harmonic), 7Mhz (7th harmonic), etc. The more harmonics, the more square the wave. Now, suppose you wanted to look at a 40MHz square wave. Fundamental=40Mhz. 3rd Harmonic=120Mhz... which is outside the bandwidth of this scope, as are all the harmonics, even the 2nd at 80MHz. Therefore, it would not Accurately display a 40Mhz square wave. It would be on the screen, but not a true representation of the signal. So yes, it will, but be careful the harmonics needed to represent a square, triangle, or sawtooth waveform. Each has different harmonic needs. The 70MHz Bandwidth is really only for sine waves. Assuming you are satisfied with the 7th harmonic (which is pretty good for most things), then you are limited to around a 10MHz square wave if you need to be accurate.
Question:	What is bandwidth limit (20MHz
Answer:	It is a feature of many oscilloscopes to limit the bandwidth (via a low pass filter) - essentially converting this 70 MHz BW scope into a 20 MHz BW scope. It is used to smooth away noise that may be hiding features of a waveform.
Question:	Can you do an X-Y eisplay of voltages on both the horizontal and vertical axes
Answer:	Yes. it has XY mode.
Question:	Will the included software run on Windows 7, 64-bit. Is the USB driver for windows 7, 64-bit included
Answer:	The drivers must be downloaded. The drivers will required you turn off driver signing in Windows 8+.

User questions & answers

Question:	what is the max input voltage to it
Answer:	It is 35V peak to peak with X1 setting for the clip probes. This scope does not do reversed polarity. It has floating ground which has pros and cons. Hope this helps.
Question:	Is this real time sampling or equivalent time sampling
Answer:	Their web site states - http://www.hantek.com/en/ProductDetail_2_31.html - High performance, 250MS/s real-time sampling, 20MHz-80MHz bandwidth.
Question:	The USB cable has three connections, one type B and two type A. What's the other type A for? Thanks
Answer:	The type B connector connects to the scope and the type A (black) is for power and data and connects to your PC. The second type A (red) is for power only. So if you are using your PC on battery and want to conserve power you can connect the red type A connector to a power source. At least that is Hantek's explanation.
Question:	Does this scope with other scope software
Answer:	Besides the OEM software, others have taken a try at writing software for the 6022BE, Open6022BE by Richard K. being the most successful. At this writing, there is also BasicScope by R. Young (me), PC Scope, and c6022be from CuriousTech. Someone wrote a Linux driver that can communicate with the scope, but no one has yet come forward with a full application. Open6022BE and BasicScope are free and open-sourced, by the way.

Product features

One advice for your purchase

You get what you pay for. A Toyota doesn't drive like a Ferrari, but drives you around.

Hantek 6022BE doesn't support AC coupling per se, which could be easily worked around by using a capacitor on the end of the scope. However, it works with many 3rd party applications, including Openhantek, H-scope, and Openscope. Since Hantek 6022BE is PC based, it is convenient to take screenshots right away and share scope software output in a video conference.

Do your due diligence by comparing available devices.

Note:

1) This entry level oscilloscope is updated to be compatible with Windows 10;

2) It works with Android via Openscope or H-scope, and Linux via Openhantek;

3) It can run on OSX through virtual box or virtual machine;

4) Try basic scope software, which might be better than the original source code.

Product description

Description:

DSO4000C Series:

2 Channel Digital Oscilloscope + Arbitrary Waveform/Function Generator + Synchronizing Signal + External Trigger.

The Keys for osilloscope and waveform generator is seperated for convenient to operate it simultaneously.

Large and clear display (800 x 480 7 inch LCD color display, Resolution 64 k), more clear and realistic waveform.

Oscilloscope: 1GSa/s Sample Rate, 200/100/70 MHz Bandwidth, more than 20 kinds of auto measurement functions.

Powerful Trigger Function: Edge, Video, Pulse, Slope, Over time, Alternative.

Arbitrary Waveform/Function Generator: 25 MHz, 12 bits resolution, 200 MHz DDS, Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC is easy to simulate transducer.

Support SD card, VGA function (optional).

Integrated USB Host, Support USB disk storage, USB interface/SD card system update.

Features:

100 MHz Bandwidth; 1gsa/s Sample Rate.

2 Channel Oscilloscope; 40 k Record Length.

7 inch 64 k color LCD display, Resolution 800 x 480.

32 kinds of Automotive measurement with FFT function.

25 MHz Arbitrary waveform output (Sine wave up to 75MHz).

Powerful trigger function: Video, Edge, Pluse Width, Slope, Overtime, Alternate Trigger.

Package includeds :

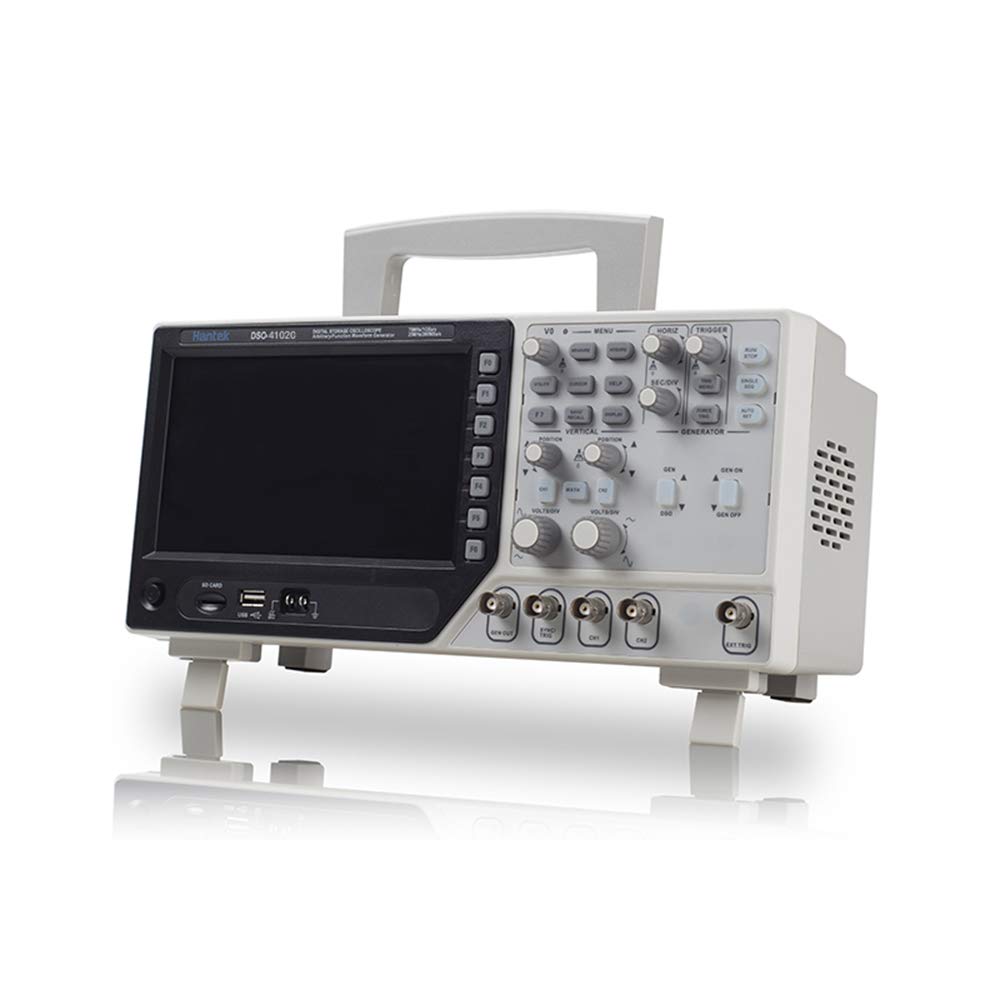

1 x Hantek DSO4102C Handheld Digital Multimeter Oscilloscope

2 x Passive Probe

1 x Alligator Clip Cable

1 x USB Cable

1 x CD

1 x User Manual

User questions & answers

Question:	I do not see any multimeter functions. Why do you describe this oscilloscope as a multimeter? Does it measure ohms
Answer:	Hi dear, this oscilloscope doesn't contain multimeter functions, could not test ohms, we will try to amend it.
Question:	I was about to purchase this and read there actually is NO multimeter function? False
Answer:	Yes, there is not.

Product description

This is the latest software, please download before install:http://hantek.com/en/ProductDetail_13_13170.html Please do contact us fistly, if you have any problems in this.

Video Help Function, provides the video help of diagnostic which can be watching online, The diagnostic result can be generated diagnostic report., printed or taken screenshot by pushing one key, many methods to save the data(txt，csv，rfc，xls，doc，jpg). Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal.

General Oscilloscope

InputImpedance:Resistance: 1MΩ

Input Sensitivity:10mV/div to 5V/div

Input Coupling:DC

Resolution:12 bits

Memory Depth:4K

Max. Input:400V (DC+AC Peak)

Real-Time Sampling Rate:2.4MSa/s

Bandwidth:100K

Time BaseRange:1ns/div to 20000s/div(1-2-5sequences)

Time Base Precision:±50ppm

Trigger Source:CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8

Trigger Mode:Edge

X-Axis Input:CH1

Y-Axis Input:CH2

Voltage Measurement:Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot

Time Measurement:Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Cursors Measurement:Horizontal ,Vertical, Track, Auto Measure Modes

Waveform Signal Process:+,- , x,÷, FFT, Invert

FFT:Rectangular, Hanning, Hamming, Blackman Window

Math:Addition, subtraction, multiplication, division

Interface:USB 2.0(Full Speed)

High pressure ignition probe:1

Programmablesignal generator:

Channel:8CH

Output Level:LVTTL

Frequency Range:0-250kHz

NOTE: Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7/8/10

Package Including:

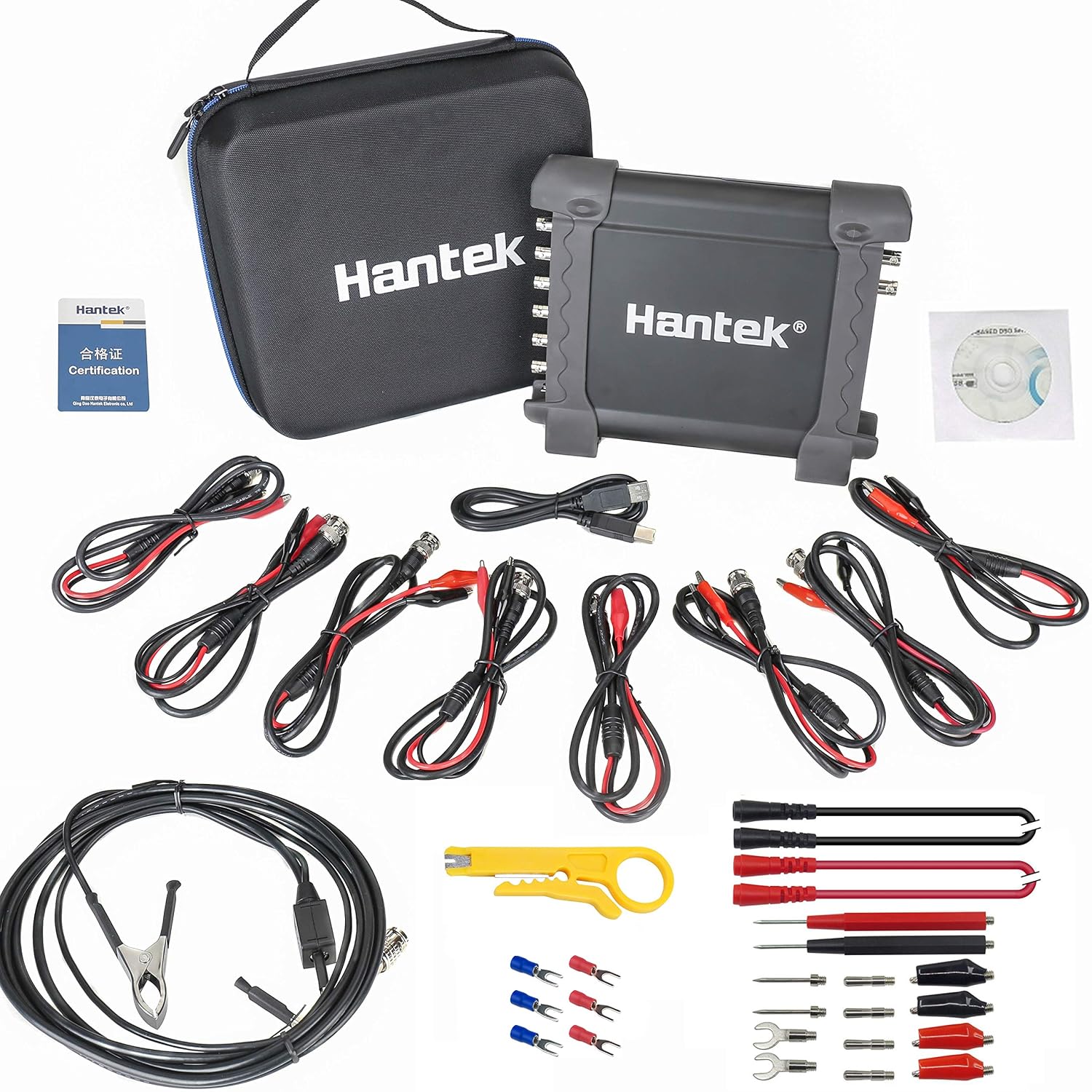

1x Hantek 1008C USB Automotive Diagnostic Programmable Generator

1x USB Line

1x Auto Probe HT-25

8x Alligator Clip Lines

1x CD

1x Cerfication Card

• Compliance with Windows10
• Software supports English

User questions & answers

Question:	Can I use it on my motorcycle. Test fuel pump etc
Answer:	Yes, you could use it on the test fuel pump of your motorcycle.
Question:	Como se utiliza para diagnostico de un vehiculo
Answer:	SE pueden hacer muchas pruebas, verificando las señales en diferentes puntos. siguiendo el diagrama del vehiculo, a demas el equipo tiene unas pruebas ya pre establecidas con la forma de señal esperada para poder compararla, me refiero a prueba de algunos sensores. El equipo es muy confiable
Question:	The a/c setting on input setup does not seem to be enabled.... am i doing anything wrong or is this something that will be coming soon
Answer:	none
Question:	does this show secondary wave patterns
Answer:	Yes it does

Product description

Description:



DSO4000C Series:

2 Channel Digital Oscilloscope + Arbitrary Waveform/Function Generator + Synchronizing Signal + External Trigger.

The Keys for osilloscope and waveform generator is seperated for convenient to operate it simultaneously.

Large and clear display (800 x 480 7 inch LCD color display, Resolution 64 k), more clear and realistic waveform.

Oscilloscope: 1GSa/s Sample Rate, 100MHz Bandwidth, more than 20 kinds of auto measurement functions.

Powerful Trigger Function: Edge, Video, Pulse, Slope, Over time, Alternative.

Arbitrary Waveform/Function Generator: 25 MHz, 12 bits resolution, 200 MHz DDS, Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC is easy to simulate transducer.

Support SD card, VGA function (optional).

Integrated USB Host, Support USB disk storage, USB interface/SD card system update.



Features:

100 MHz Bandwidth; 1gsa/s Sample Rate.

2 Channel Oscilloscope; 40 k Record Length.

7 inch 64 k color LCD display, Resolution 800 x 480.

32 kinds of Automotive measurement with FFT function.

25 MHz Arbitrary waveform output (Sine wave up to 75MHz).

Powerful trigger function: Video, Edge, Pluse Width, Slope, Overtime, Alternate Trigger.



Package includeds :

1 x Hantek DSO4102C Handheld Digital Multimeter Oscilloscope

2 x Passive Probe

1 x Alligator Clip Cable

1 x USB Cable

1 x CD

1 x User Manual

1 x Replaceable Test Wires Probes set

User questions & answers

Question:	When i turn it off and turn it on the frequency is lost, it returns each time to 1 khz. is it possible to configure this scope to keep my frequ
Answer:	Dear buyer, Good day, this scope is unable to keep your frequency when it is turn off and turn on again. Thanks and have a nice day. withUtrade
Question:	Does this scope have a vga (rs-232) output? factory website says it's optional
Answer:	Mine has neither VGA nor RS232 however it does have a USB type B to attach the scope to your pc. On your pc you can run ttscope to view and control the scope remotely. From experience, ttscope is prone to crash. I'm not sure why the website would say VGA optional? Just FYI, VGA and RS232 use two different interfaces. Although they are both D-sub interfaces, RS232 has two rows of pins and VGA uses 3 rows.
Question:	Does the waveform generator have am, fm modulation capability
Answer:	Dear buyer, Good day. Thank you for your ask. This waveform generator have not am, fm modulation capability. Thanks and have a nice day. withUtrade
Question:	Adaptador Ac es a 110v o 220v
Answer:	Dear buyer. Goo day. This oscilloscope is 110V-240V input. so no matter 110V or 220v, it all works. Thanks and have a nice day. withUtrade

Product description

Key features:

1:4CHoscilloscope EXT AFG DVM auto range function

2:250MHz bandwidth，minimum range 500μV /div,1GS/s sample rate.

3:Over 32 types of auto measurement function.

4:Advanced digital trigger system,high trigger sensitivity.

5:Over 14 types of trigger function: edge,overtime,pulse,pattern, interval, etc.

6:Serial bus triggering and decode,Bus protocol information can be quickly and intuitively displayed in table form.

7:Function/arbitrary signal generator25MHz,12BitS resolution,200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc.,easy to simulate the sensor.

8:Integrated USB Host/Device,convenient to communicate with PC.Support U-stick storage/systerm update.

9:Support a variety of SCPI remote control command.

10:Support optional RS232 port,LAN port. (Optional).

11:Stable and reliable quality,sturdy and durable.



Specifications:

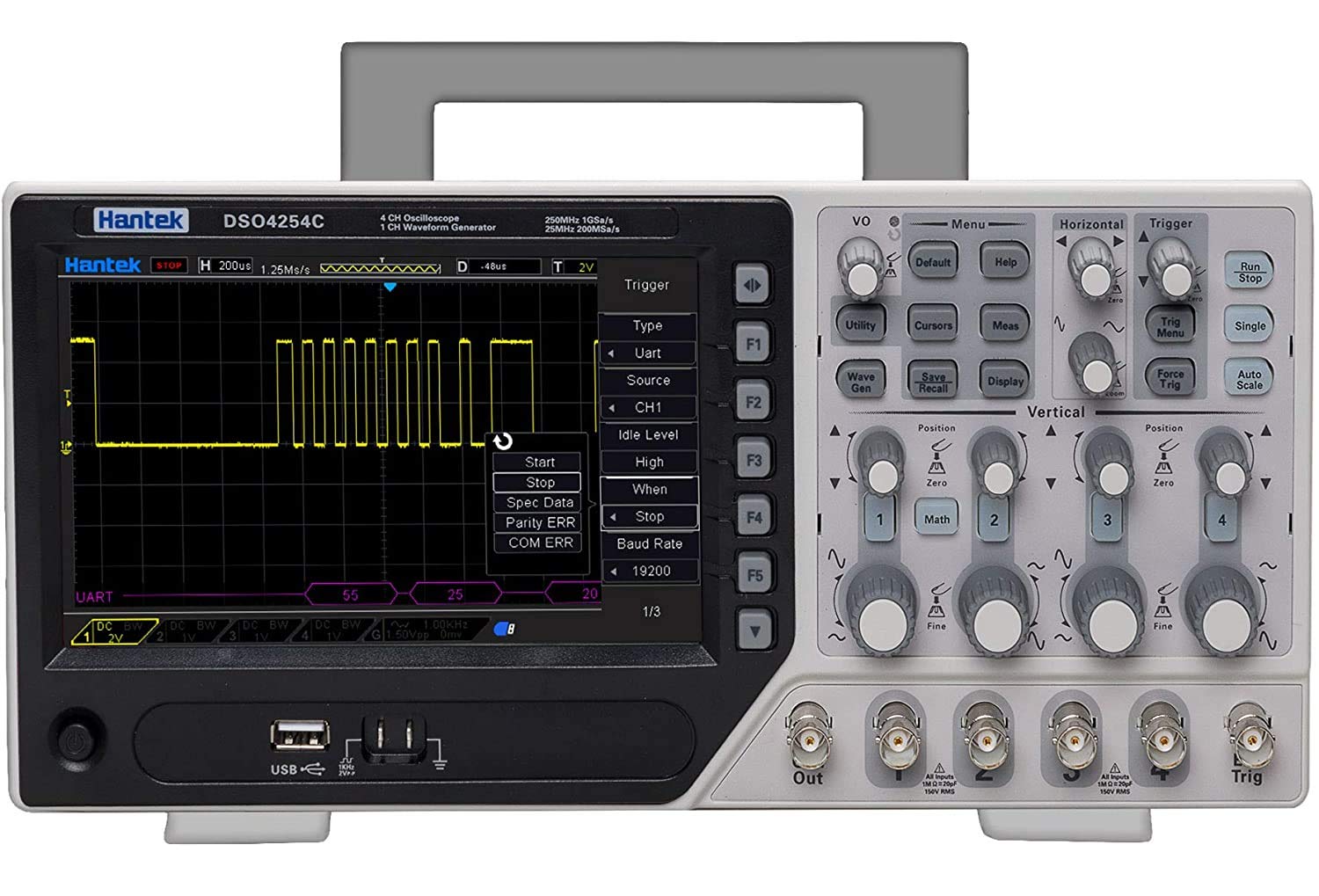

1: Model: DS04254C

2: Bandwidth: 250 MHz

3: Sample rate range: 1 GS / s

4: Output voltage, typical: Over 2Vpp with ≥1MΩ load

5: Frequency, typical: 1kHz

6: Supply voltage: 100-120VACRMS (± 10%), 45Hz to 440Hz, CATII.120-240VACRMS (± 10%), 45Hz to 66Hz, CATII.

7: Power consumption:<30W

8: Operating temperature: 0-50 ℃ (32-122 ℉)

9: Storage temperature: -40 ~ + 71 ℃ (-40 ~ 159.8 ℉)

10: Mechanical shock operation: Arbitrary waveform generator mode

11: Waveform Frequency

Sine: 0.1HZ-25MHZ

Square: 0.1 Hz ~ 10 MHz

Ramp: 0.1HZ-1MHZ

EXP: 0.1 Hz - 5 MHz

12: DAC: 2K ~ 200MHz adjustable

13: Channel: 1CH waveform output

14: Waveform Depth: 4KSa

15: Record Length:Maximum 64K samples per single-channel; Maximum 32K samples per dual-channel (4K, 32K optional)



Package Included:

1 x DSO4254C Oscilloscope

4 x Probe

1 x USB cable

1 x Power cable

1 x CD

• 250MHz bandwidth, minimum measurement range 500μV /div,1GS/s sample rate,advanced digital trigger system,high trigger sensitivity.
• The high-resolution 7-inch color LCD screen (800x480 pixels),provides more than 14 trigger functions: edge, overtime, pulse, pattern, interval, etc.
• Function/arbitrary signal generator25MHz,12BitS resolution, 200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc.,easy to simulate the sensor.
• Note:Before use,please read the instructions enclosed with the product.

User questions & answers

Question:	The "brand" is listed as aiteme. is that the designer/manufacturer? the seller? the scope image says "hantek". which is it
Answer:	We are the seller of Hantek, and this product is Hantek.

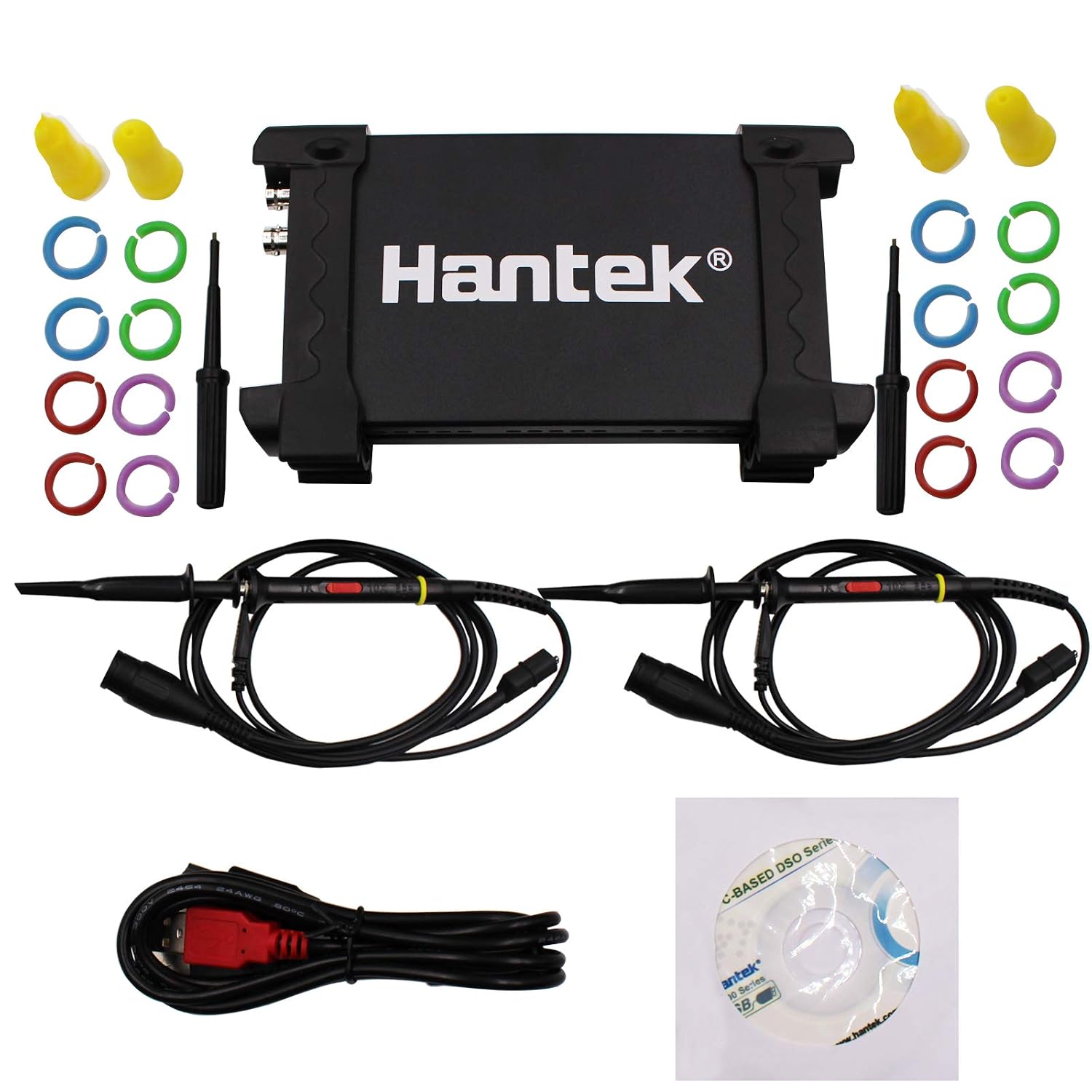

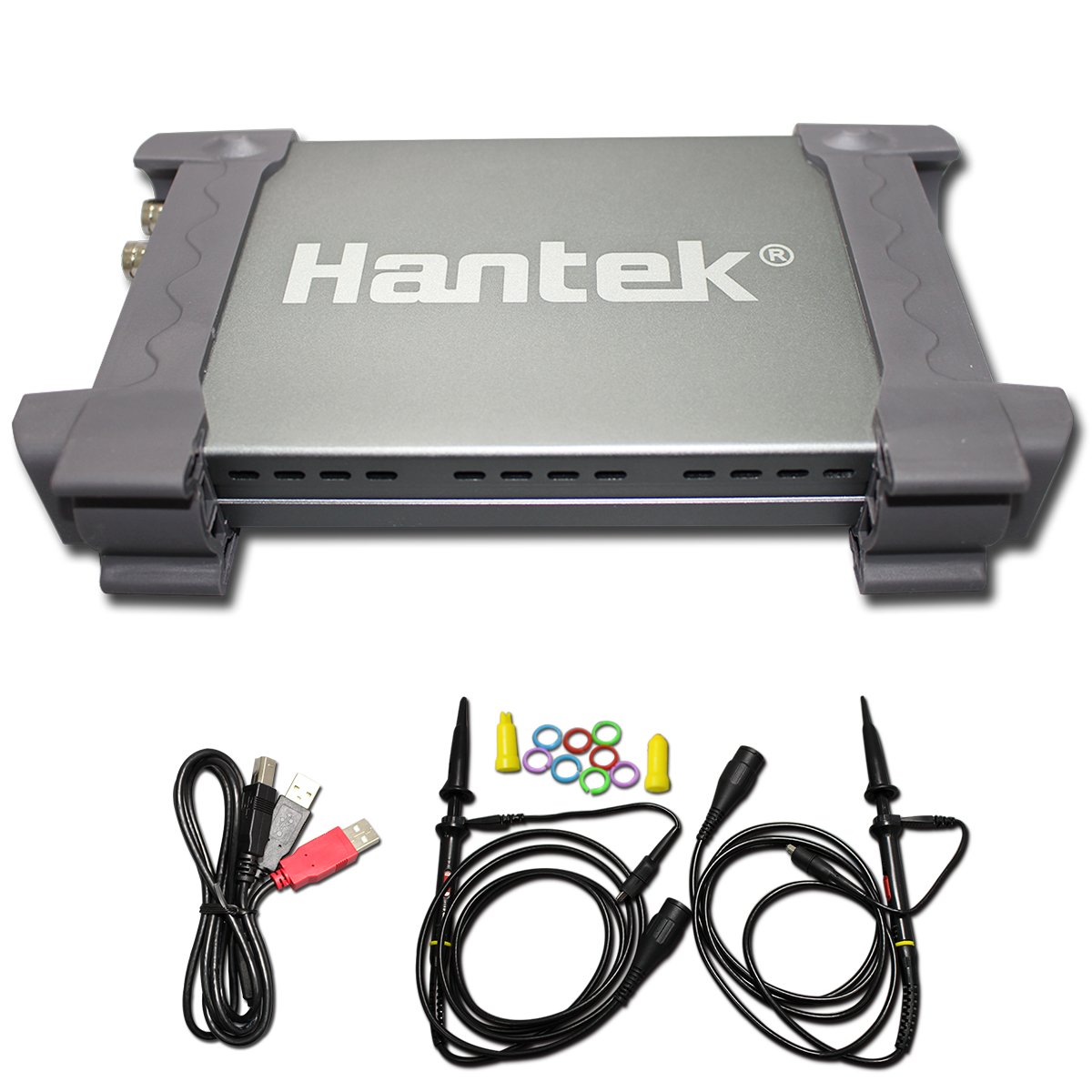

• USBXITM STANDARD INTERFACE - the hantek 6022be oscilloscope easily inserted into the USBXITM chassis to form a combined instrument for project use;
• USB2.0 PORT - there is no need extra power supply for the portable oscilloscope, it can be connected to pc through the USB port for power directly, similar interface with desktop oscilloscope, easy to use;
• OPERATING SYSTEM - this hantek oscilloscope supports Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA;
• POWFUL FUNCTION WITH SMALL SIZE - the usb oscilloscope owns ore than 20 kinds of automatic measurement functions, PASS/FAIL Check function, suitable for technical application;

User questions & answers

Question:	Can this model be used for automotive
Answer:	yes,it can be used for auto diagnosis, but need additional probes, like HT307/CC-65/CC-650/HT25/HT30A/HT201 etc
Question:	What is the max dc and ac voltage that can be measured with this model
Answer:	Max. Input +/- 5V with a X1 probe. Input protection 35Vpk (Without external attenuation DC + peak AC
Question:	Supports windows
Answer:	Yes, works great on my windows 10 laptop. Can got to their website for latest driver.
Question:	Does it have XY mode
Answer:	yes, the software does.

Product features

Multifunction as a pc oscilloscope

• 23 kinds of automatic measurement functions, PASS/FAIL Check, be suitable for technical application.
• Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
• Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
• FFT spectral analysis function.
• One computer can connect many DSO, extend channel easily.

NO external pwoer source required

• USB2.0 interface;
• insert to PC use directly

Standard USBXITM interface

• easily inserts into USBXITM housing to make up a combination instrument;

Lightweight and portable

• Dimension size: 20.5x12 x3.5cm/8.07 * 4.7 * 1.38in (L * W * H)
• DSO Weight: 400g
• Package Size: 23 * 17 * 7.5cm / 9.05 * 6.7 * 2.95in (L * W * H)
• Package Weight: 724g / 25.54oz

Product description

The SDS1000X-E series employs a new generation of SPO (Super-Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/divan innovative digital trigger system with high sensitivity and low jitter, and waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X -E also employs a 256 -level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding forIIC,SPI,UART,CAN,LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new1million point FFT math function that gives the SDS1000X -E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co -processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT’s new SDS1000X -E cannot be matched anywhere else in this price class. The four channel series includes even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels(Option), an externals powered 25 MHz AWG module(Option), a USB WIFI adapter(Option),and an embedded application that allows remote control via web browser.Optional MSO capability

• 100Mhz, 4 channels, 1Gsa/use, 1Mpts fft
• Standard decoder: iic, spi, uart/Rs232, can, lin
• 16 digital channels (mso) (four channel series only, option)
• USB AWG module(four channel series only, option)
• USB WIFI adapter(four channel series only, option)
• NOTE: Refer User guide included along with the product before use

User questions & answers

Question:	Can I decode ic, spi, uart/Rs232, can, lin signals with the the scope, i.e. without the sla1016 module
Answer:	Yes! Decoding is included with the base model! There is no need to purchase a software license (or "hack" the scope) to unlock the decoding options.
Question:	Is siglent sds1104x-e good for a beginner
Answer:	The SDS 1104X-E is a great scope. It is considered an entry level instrument. It is excellent for the individual entering the electronics field.
Question:	Does this item include the optional items(16ch logic decoder, usb awg and usb wifi
Answer:	For WiFi you can use an Access Point that can be operated in "Client Mode". I am using a TP-Link N300 (WR802N) and it works very well. The other options really seem to require special firmware/license upgrades.
Question:	Some say this scope is "noisy". Is it useful for measurements where the range is +/- 20 mV
Answer:	its noisy in the fact the fans arent quite. Not because of line noise... 20mv is not a problem

Product features

Key Features

• Math co-processor speeds front panel operation
• Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
• Low background noise and 500 μV / div to 10 V / div voltage scales
• Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN
• On-screen Bode plot and web-browser control (standard on 4 channel only)
• WiFi control (optional on 4 channel only)
• True measurement and math can use all 14 Mpts of memory
• Large 7-inch TFT-LCD display with 800 * 480 resolution

Gate and Zoom Measurement

Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility.

Hardware-Based High Speed Pass/ Fail Function

The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

1Mpts FFT

The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.Four-channel series support Peaks, Markers, a variety of numbers.

History Waveforms (History) Mode and Segmented Acquisition (Sequence)

Playback the latest triggered events using the history function.Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store riggered waveforms and timestamp of each frame.

Serial Bus Decoding Function (Standard)

SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

True Measurement to 14 M Points

SDS1004X-E can measure all sampled data points up to 14 Mpts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use.

Bode Plot (Four Channel Series Only)

SDS1004X-E can control the USB AWG module or control an independent SIGLENT SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR). It can also show the result lists, and export the data to a USB disk.

Web Control (Four Channel Series Only)

With the new embedded web server, users can control the SDS1004X-E USB WIFI Adapter series only) from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel
