13 best digital oscilloscopes

Product description

200Mhz, 1Gsa/s, The SDS1202X-E Series employs a new generation of Spo technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It has a minimum vertical input range of 500 UV/Div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400, 000 frames/sec (sequence mode). it also employs a 256-level intensity Grading display function and a color temperature display mode not found in other models in this Class. Siglent’s new oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering. Decoding is standard configuration including IIC, SPI, UART, can, LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1M points FFT math function that gives the sds1000x-e very high frequency resolution when observing signal Spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and high performance of the sds1000x-e Series cannot be matched else anywhere at this price. Channels 2CH+1EXT, Memory depth :7 Mpts/CH (Dual-Channel); 14 Mpts/CH (Single-Channel)/ data sheet(contains data for product relating to speed). Secure erase feature.

• 200 mhz bandwidth
• Real-time sampling rate up to 1 gsa/use
• IRecord length up to 14 Mpts
• Standard serial bus triggering and decode, supports iic, spi, uart, Rs232, can, and lin
• 1M points fft

User questions & answers

Question:	What type of probes are you guys using with these? Will 100mhz probes work on this 200mhz machine
Answer:	100mhz probes will physically work with this oscilloscope (I use a 100mhz differential probe with this due to cost limitations), but be well aware of the limitations of the probes, readings will be less accurate at 100mhz and nearly unusable at the 200mhz range of the oscilloscope. The oscilloscope does come with 4 ok probes that are rated at 200mhz. You are always better off using probes that are rated at least as high as the oscilloscope or higher, your results depend on it.
Question:	Can this model be upgraded by the USB
Answer:	I have seen 1 update to the SDS1202X-E since I have had it. The update was done by placing the update file on a USB drive, and then selecting the file. It was quick and easy.
Question:	Is there a way to use this as a spectrum analyzer ? an sa can cost easily as much as this scope. i am impressed
Answer:	You realize this scope only has an input analog bandwidth of 200 Mhz. The typical low end spectrum analyzer about ($1500) has a bandwidth up to 1.5-2.0 Ghz. SA's also generally come with a tracking generator, which outputs a signal at the exact same frequency being measured at that moment, so you can pass it through a device to measure it's spectrum attenuation. For frequency's below 200 Mhz, the FFT function on this scope will give you some of the same data a SA would give under some conditions. A SA has an enormously more sensitive input. If you connect an antenna to a SA input, it gives a very good display. An antenna connected to the input of this/most oscilloscopes will not show much of anything, as there is not enough signal strength. A SA will also generally have a much higher resolution spectrum,. If you show 200 Mhz of spectrum on this scope, with a 1 million sample FFT, that gives 1/2 million FFT buckets, so each must be about 400 Hz wide. In favor of the oscilloscope, if you're only dealing with low frequencies, a typical spectrum analyzer has a lower frequency limit, like often in the 5 khz range, so is useless below that. For audio work, a scope with a good FFT is way more useful than a RF SA. The FFT function on this scope looks a lot better than on the Rigol scopes due to it's much larger sample size limit.
Question:	Product dimensions shows 16.53 pounds - Shipping weight is 7.5 pounds. Is the box filled with helium
Answer:	All weights listed are in US pounds, not Kg. The weight of the unit is 5.51 pounds (2.49929396 kg) and the shipping weight is 7.2 pounds (3.26586506 kg.) No helium included! Hehe.

Product features

Key Features

• Math co-processor speeds front panel operation
• Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
• Low background noise and 500 μV / div to 10 V / div voltage scales
• Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN
• On-screen Bode plot and web-browser control (standard on 4 channel only)
• WiFi control (optional on 4 channel only)
• True measurement and math can use all 14 Mpts of memory
• Large 7-inch TFT-LCD display with 800 * 480 resolution

Gate and Zoom Measurement

Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility.

Hardware-Based High Speed Pass/ Fail Function

The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

1Mpts FFT

The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.Four-channel series support Peaks, Markers, a variety of numbers.

History Waveforms (History) Mode and Segmented Acquisition (Sequence)

Playback the latest triggered events using the history function.Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store riggered waveforms and timestamp of each frame.

Serial Bus Decoding Function (Standard)

SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

True Measurement to 14 M Points

SDS1004X-E can measure all sampled data points up to 14 Mpts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use.

Bode Plot (Four Channel Series Only)

SDS1004X-E can control the USB AWG module or control an independent SIGLENT SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR). It can also show the result lists, and export the data to a USB disk.

Web Control (Four Channel Series Only)

With the new embedded web server, users can control the SDS1004X-E USB WIFI Adapter series only) from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel

Product description

The SDS1000X-E series employs a new generation of SPO (Super-Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/divan innovative digital trigger system with high sensitivity and low jitter, and waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X -E also employs a 256 -level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding forIIC,SPI,UART,CAN,LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new1million point FFT math function that gives the SDS1000X -E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co -processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT’s new SDS1000X -E cannot be matched anywhere else in this price class. The four channel series includes even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels(Option), an externals powered 25 MHz AWG module(Option), a USB WIFI adapter(Option),and an embedded application that allows remote control via web browser.Optional MSO capability

• 100Mhz, 4 channels, 1Gsa/use, 1Mpts fft
• Standard decoder: iic, spi, uart/Rs232, can, lin
• 16 digital channels (mso) (four channel series only, option)
• USB AWG module(four channel series only, option)
• USB WIFI adapter(four channel series only, option)
• NOTE: Refer User guide included along with the product before use

User questions & answers

Question:	Can I decode ic, spi, uart/Rs232, can, lin signals with the the scope, i.e. without the sla1016 module
Answer:	Yes! Decoding is included with the base model! There is no need to purchase a software license (or "hack" the scope) to unlock the decoding options.
Question:	Is siglent sds1104x-e good for a beginner
Answer:	The SDS 1104X-E is a great scope. It is considered an entry level instrument. It is excellent for the individual entering the electronics field.
Question:	Does this item include the optional items(16ch logic decoder, usb awg and usb wifi
Answer:	For WiFi you can use an Access Point that can be operated in "Client Mode". I am using a TP-Link N300 (WR802N) and it works very well. The other options really seem to require special firmware/license upgrades.
Question:	Some say this scope is "noisy". Is it useful for measurements where the range is +/- 20 mV
Answer:	its noisy in the fact the fans arent quite. Not because of line noise... 20mv is not a problem

Product features

Key Features

• Math co-processor speeds front panel operation
• Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
• Low background noise and 500 μV / div to 10 V / div voltage scales
• Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN
• On-screen Bode plot and web-browser control (standard on 4 channel only)
• WiFi control (optional on 4 channel only)
• True measurement and math can use all 14 Mpts of memory
• Large 7-inch TFT-LCD display with 800 * 480 resolution

Gate and Zoom Measurement

Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility.

Hardware-Based High Speed Pass/ Fail Function

The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

1Mpts FFT

The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.Four-channel series support Peaks, Markers, a variety of numbers.

History Waveforms (History) Mode and Segmented Acquisition (Sequence)

Playback the latest triggered events using the history function.Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store riggered waveforms and timestamp of each frame.

Serial Bus Decoding Function (Standard)

SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

True Measurement to 14 M Points

SDS1004X-E can measure all sampled data points up to 14 Mpts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use.

Bode Plot (Four Channel Series Only)

SDS1004X-E can control the USB AWG module or control an independent SIGLENT SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR). It can also show the result lists, and export the data to a USB disk.

Web Control (Four Channel Series Only)

With the new embedded web server, users can control the SDS1004X-E USB WIFI Adapter series only) from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel

Product description

ADS1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope for the maintenance and R & D industry.



Specifications:

Material: ABS

Color: black+white

Analog band width: 100MHz * 2

Number of channels: 2 channels

Maximum real time sampling rate: 1GSa/s

Vertical sensitivity: 50mV/div~500V/div

Horizontal time base range: 50S/div~10nS/div

Maximum test voltage: 40V (1X probe), 400V (10X probe)

Storage depth: 240Kbit

Input resistance: 1M

ADC precision: 8bits

Coupling mode: AC/DC

Trigger mode: Single, Normal, Auto

Trigger edge: Rising edge / Falling edge

External trigger voltage: 0~40V

Display: 7 inch - 800*480

Operating: capacitive touching screen + gesture

Extension ports: USB picture export

Power supply: 1 * lithium battery, 6000mAh (included)

Item size: 184 * 124 * 50mm / 7.2 * 4.9 * 2.0in

Package size: 200 * 134 * 60mm / 7.9 * 5.3 * 2.4in

Package weight: 700g / 1.5lb



Packing List:

1 * ADS1013D Oscilloscope Host

2 * Matching 100MHz Probe (1X and 10X)

1 * USB Cable

1 * User Manual

• 【Touch Screen】Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast. FFT display function, can analyze the spectral characteristics of the signal.Capacitive touching screen, the same as the touching mode of modern mobile tablet, is not a resistive touching screen with ancient nail operation. Screen brightness adjustment.Background grid brightness adjustment.
• 【Multi-functional】High measurement voltage range, 1X can measure 0~40V, 10X can measure 0~400V，100X can measure 0~4000V. Up to 12 parameters measurement: VPP，VP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Period.Cursor measurement function, it is convenient to manually measure the period and frequency and voltage.Complete triggering function (single, normal, automatic).At any time, the waveform display (pause function) is frozen.
• 【One-button Auto】This 2 channels oscilloscopes is equipped with high efficiency One-button AUTO.One-button waveform storage and screenshot.Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
• 【Humanized Use】This usb oscilloscope is equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis.Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.Ultra thin, easy to carry.
• 【Rechargeable】Built in 6000mAh rechargeable lithium battery，fully charged for 4 hours of continuous use at the highest screen brightness.Memory compression technology, waveform refresh screen does not flicker.Intelligent anti-burn，1X can withstand up to 400V withstand voltage.100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz，10X=100MHz)

User questions & answers

Question:	Does this oscilloscope include a charger for the battery
Answer:	yes
Question:	Has anyone purchased this? Are you satisfied with its performance and value? Any feedback or a review of capability vs specs will be appreciated
Answer:	Yes I am completely Satisfied. I work on military aircraft as a Civilian Contractor. I use this in the shop for component repair and it has performed flawlessly. I really like that it is a color display. I wanted that and the memory feature.
Question:	Does this have an XY mode
Answer:	Yes, it has an XY mode selection under MENU/System settings.
Question:	Does this scope allow you to drag and overlap both channels? Or are the channels vertically fixed
Answer:	Yes !! Just like shown in the picture -- you touch either trace (or both) and you can drag it up or down the screen -- where ever you want to place it. It is very simple to place them overlapping each other. This is a great little scope and I am very happy with it.

• 【Updated Digital Oscilloscope kit】One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display. Mass storage, 100 data/10 waveforms. Note:Battery: 3 * AA battery (not included)
• 【2 in 1 Multifunction Tester】Oscilloscope multimeter 2 in 1, improve your work efficiency. Multimeter measurement functions--AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.
• 【High Definition Color Screen】 The 240*320 color display is clearer, and the secondary display at the bottom provides more function menus. Historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.
• 【3 Safety Multimeter Oscilloscope】Double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over range, beep
• 【Unique Appearance Design】Silicone button, sensitive pressing function dial, accurate gear.The back bracket is tilted at 60° for easy viewing.

User questions & answers

Question:	can it use 2 channels at once
Answer:	no one channel only

Product features

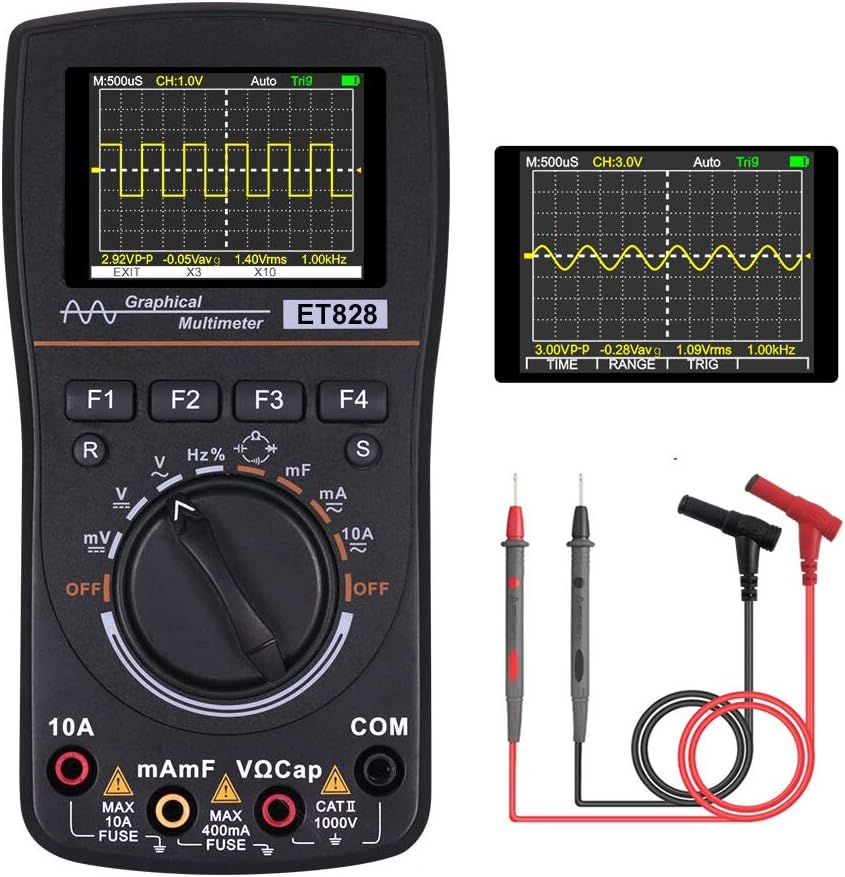

Updated Oscilloscope Multimeter 2 IN 1

8 Multimeter measurement functions--AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test. This handheld oscilloscope multimeter can be used for car maintenance, equipment maintenance, power system debugging and other occasions.

SAVE

100 Sets of Datas

+

10 Waveforms

REL + MAX

Relative Value : Rel effictively eliminates the influence of lead resistance on the result.

MAX/Min Test: Record the MAX/MIN value of the measurement process.

Same Screen Display

Historical data and real-time data are displayed on the same screen for easy analysis.

Waveform Display

Fast and accurate measurement, clear waveform display.

Specifications

• Material: ABS
• Input resistance: 10MΩ
• Display: 320*240 LCM, White Backlit, About 2.4 inches area
• Battery: 3 * AA battery (not included)
• Power consumption: about 80mA
• Use time: low light about 5 hours
• Use environment: 0~40℃, ＜75% RH
• Storage environment: -10~60℃, ＜90%RH
• Bandwidth: ACV/1MHz ACA/5KHz
• Max. real-time sampling rate: 2.5Msps

Product description

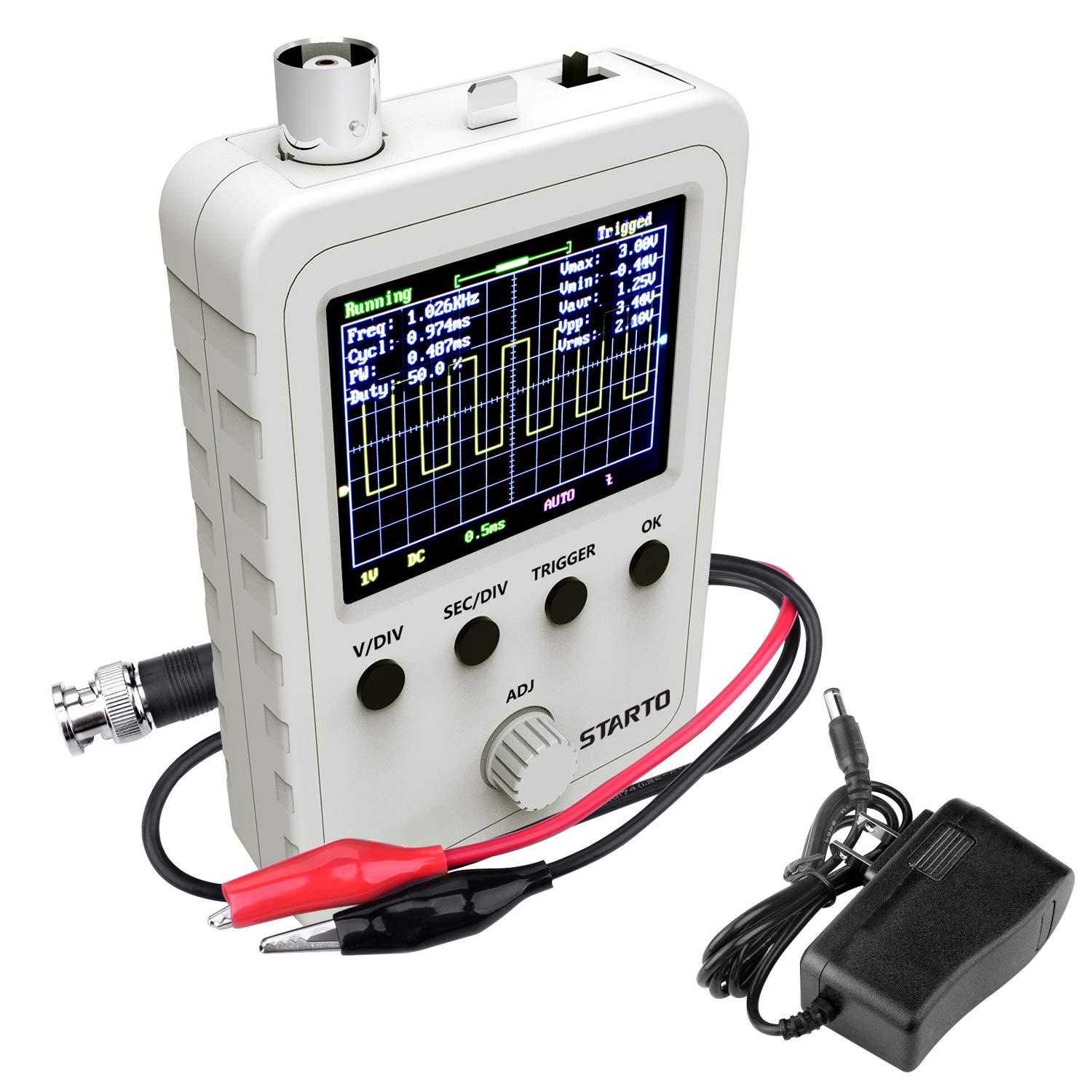

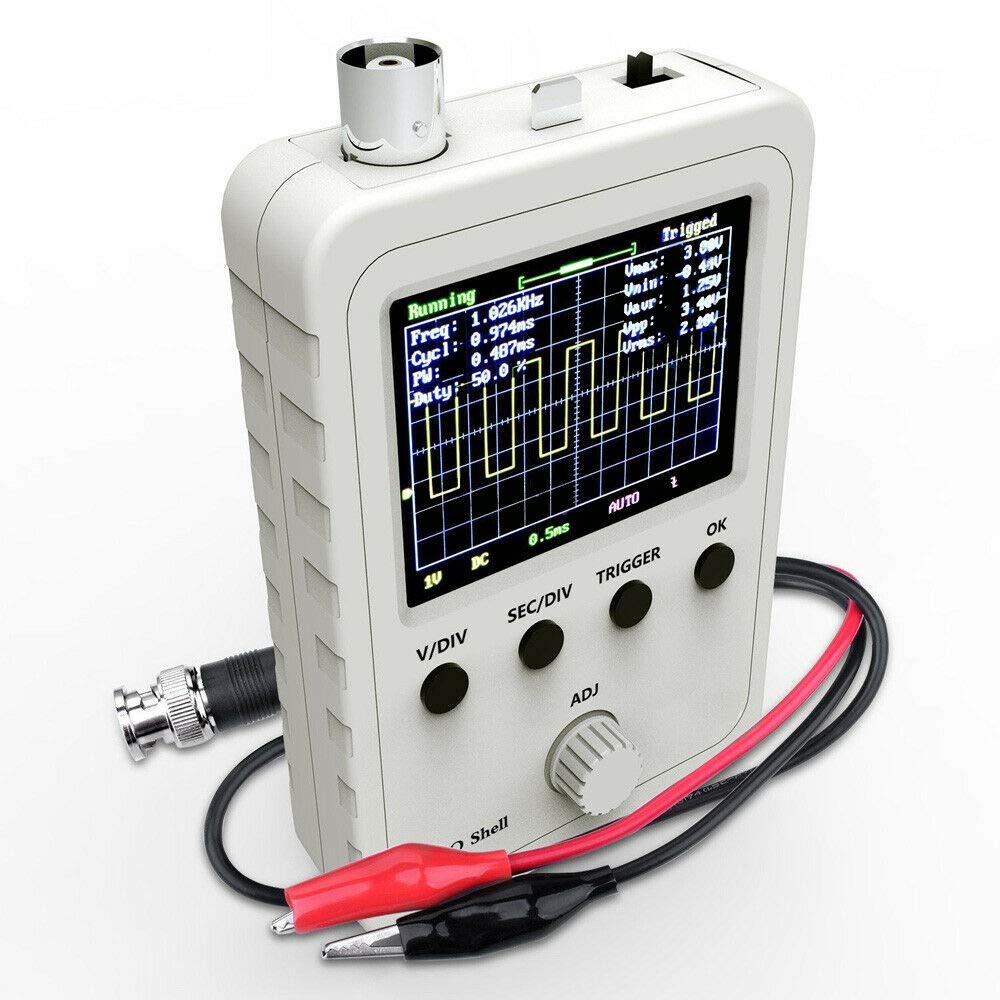

STARTO Digital Handheld Oscilloscope 2.4" TFT Kit with Power Supply and BNC-Clip Cable Probe Q15001 (Assembled Finished Machine)

• STARTO SQ15001 oscilloscope is an assembled finished machine. NOT DIY PART, it can be used directly to avoid assembling welding process problems and greatly saves the assembly time.
• The sensitivity has been extended in both directions in width and height, which is wider and higher than others. It reaches 5mV/div -- 20V/div, while others is only 10mV / div - 5v / div.
• It has been added the rotary encoder, makes parameter adjustment more quicker and easier
• For this updated digital oscilloscope, includes a 9V power adapter, so you can use it by plug it in directly, so convenience that you don't need to place another order for the power adapter.
• Detailed Operation instructions, troubleshooting guide and schematic are also provided.

User questions & answers

Question:	The 18-22 gauge red butt splices says 60 on the box but shows 50 at their web site. How many red butt splices are in the case
Answer:	I am the seller. The bonus kit has 60 red pieces instead of 50. Only if you buy from us "connector Supply". I tried to change it in the description but Amazon will not take the edit. This kit has 60 Red 75 Blue and 15 Yellow. Thank you.
Question:	Can the screen be put into persistence mode (like infitity, or 10 secs
Answer:	Hi friend, How are you doing? The Oscilloscope Kit can't do that. if there is any other problem, Please feel free to let us know( [email protected]) Best regards, gaofeiyangus
Question:	what is the analog board version
Answer:	Dear customer, This Oscilloscope Kit is a finished product,the analog board version only has one version.Welcone to contact us if you have questions. If there is any other problem, please let me know. Best regards, [email protected]
Question:	What size heat shrink tubing should I use for 4 guage power cable
Answer:	3/8"

Product features

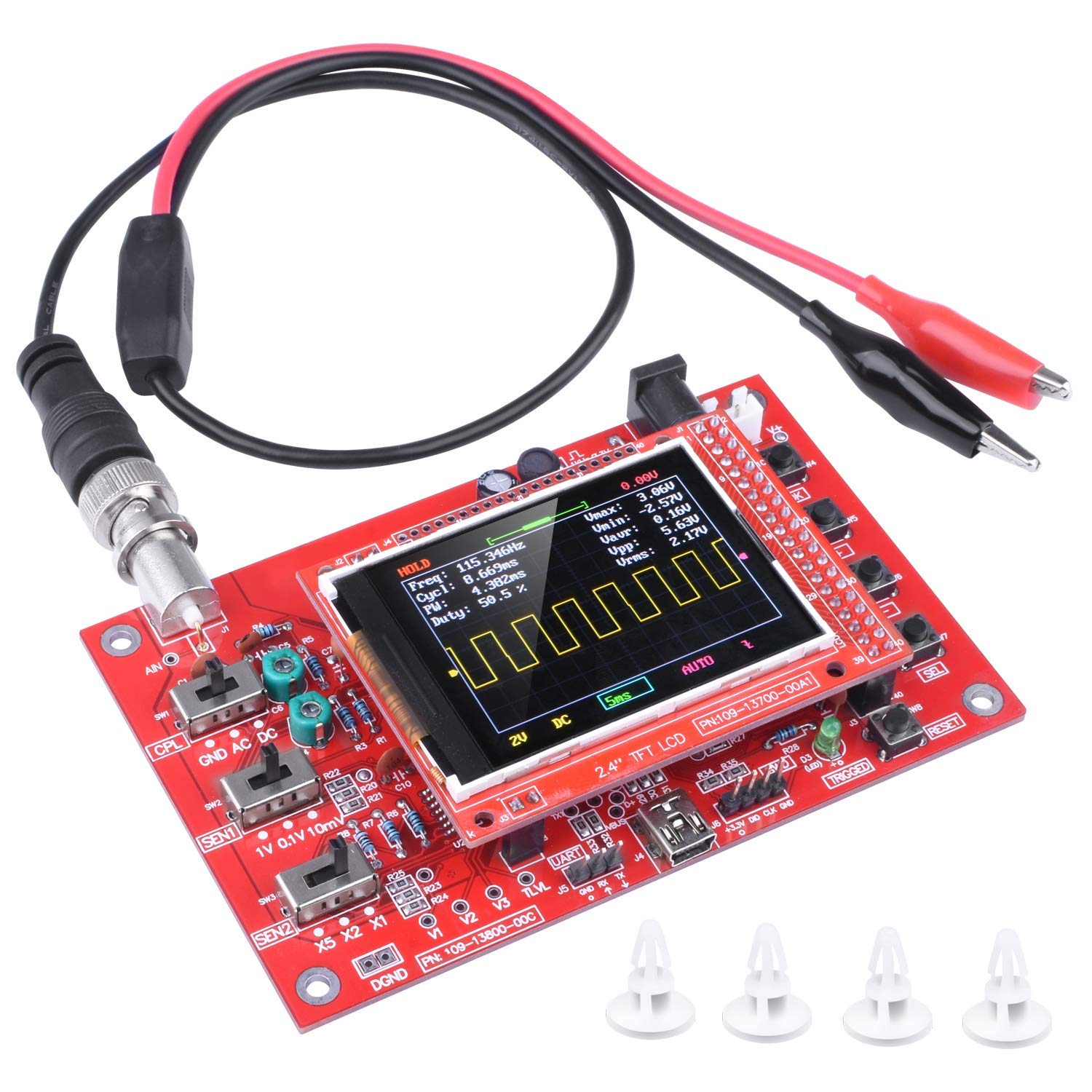

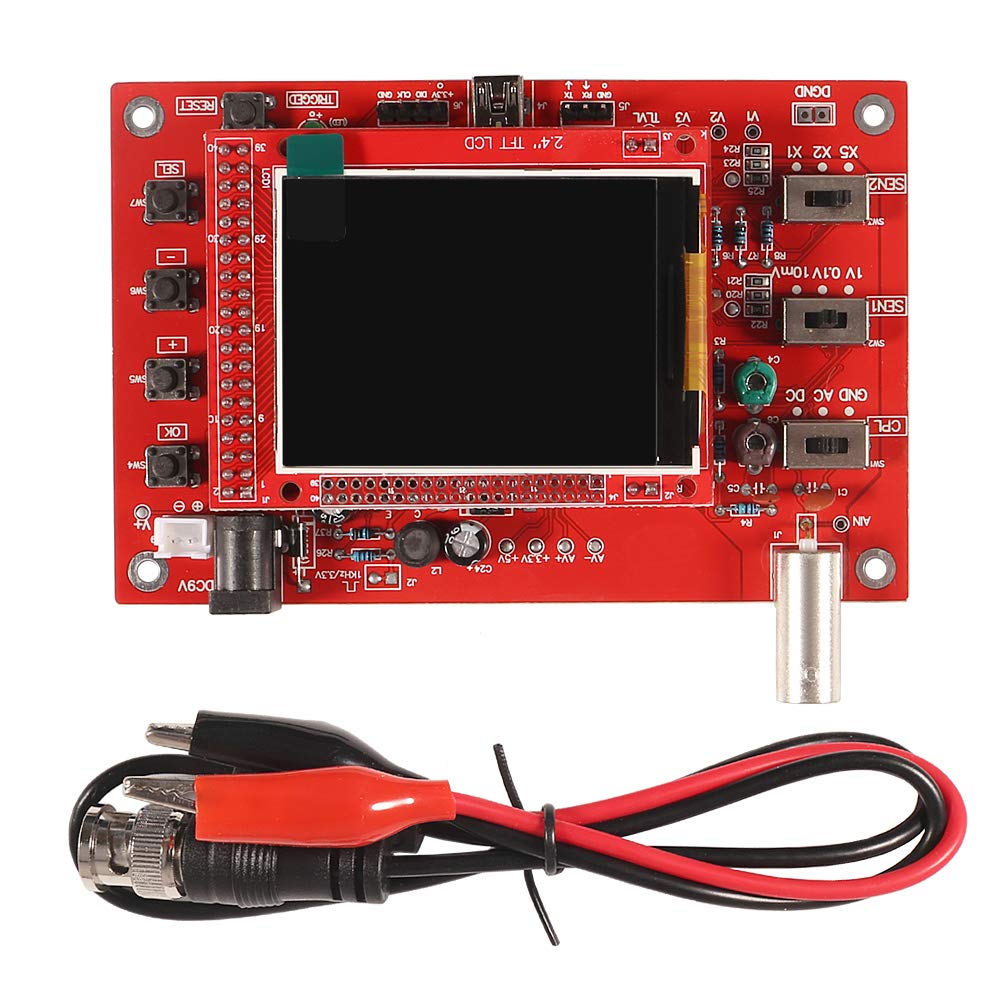

Check the main Board

Before mouting any parts to the main board connect a 9V power supply (center positive) to J7 on the board to check the display.

You should see the scope boots up to a screen similar to D1(LED) blinks twice.

Operations

Basic Button Functions

[V/DIV]: Select sensitivity or vertical position,The selected parameter indicator will be highlighted.

[SEC/DIV]: Select timebase or horizontal position. The selected parameter indicator will be highlighted.

[TRIGGER]: Select trigger mode, trigger level, and trigger edge. The selected parameter indicator will be highlighted.

[OK]: Enter HOLD state (freeze waveform). Pros it again will de-freeze.

[ADJ]: Adjust the parameter selected (highlighted). Short press toggles Fast Adjustment mode.

Couple switch: Set couple to DC, AC, or GND. When GND is selected the scope input is isolated from input signal and connected to ground (0V input).

• ASSEMBLED FINISHED: ETEPOPN EM001 digital DIY oscilloscope kit with case is an assembled finished machine No soldering/assembly work needs It can be used directly to avoid assembling /welding process problems and greatly save your time
• UPGRADED VERSION: The sensitivity of the EM001 has been extended both in width and height which is wider and higher than the others It reaches 5mV/div - 20V/div while the others is only 10mV/div - 5v/div
• HAND-HELD: This updated digital oscilloscope can be hand-held while the others can only be used by placing it on the desktop
• ROTARY ENCODER: It has been added the rotary encoder makes parameter adjustment more quicker and easier
• WHAT YOU GET: You will get a assembled oscilloscope and BNC-clip cable Detailed Operation instructions troubleshooting guide and schematic are also provided

User questions & answers

Question:	What is the rated voltage range for this scope
Answer:	50 volt max
Question:	Does it have any math functions? I want to measure AC current and voltage but have a wattage be the final output
Answer:	This is a one channel oscilloscope. I haven't found a way to trigger it with an external signal. If you want to find power, you can measure voltage, then use a shunt to measure current, and then manually find the product of those two. But you won't have a phase relationship; your answer will be not much better than if you'd done it with a multimeter. Also, be careful when you measure current: I don't know for sure on this scope, but most scope inputs are single ended, which could mess with you if you don't arrange the shunt carefully.
Question:	there are many power supplies, which specific one is for this O scope
Answer:	power supply came with unit
Question:	Can it use a 9v battery
Answer:	Yes, but you need a 9v battery adapter to a barrel plug, and make sure it's center positive.

Product features

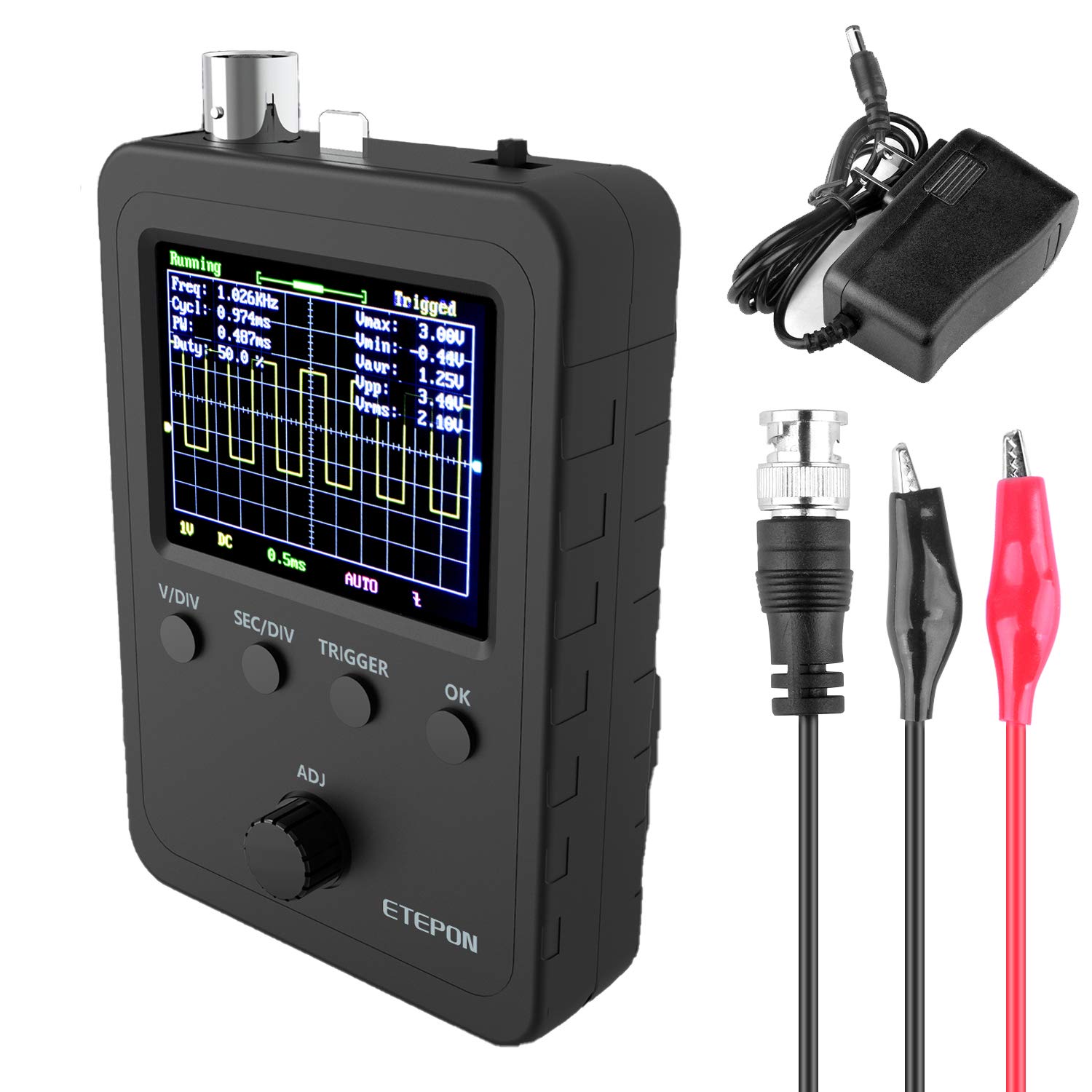

ETEPON EM001 Digital Oscilloscope

ETEPON EM001 digital oscilloscope kit 2.4” TFT is an assembled finished machine which can be used directly.

Unlike DIY oscilloscope kit, you don’t need to do assembly or soldering work before using, which will avoid some problem caused on soldering or assembling process and save your time.

Detailed Operation instructions, troubleshooting guide and schematic are also provided.

Pofessional Assembled

Display and MCU are mounted on the same board (mainboard) to avoid using inter-board pin-headers. Analog channel is placed on a separated board which contains most user install parts, so the analog and digital circuits can be better separated.

Sensitivity Extended

The sensitivity of the EM001 has been extended both in width and height, which is wider and wider than the others. It reaches 5mV / div - 20V / div, while others is only 10mV / div - 5v / div.

Hand-Held

This updated digital oscilloscope can be hand-held, while the others can only be used by placing it on the desktop.

Measuring Easily

Using the Auto/Normal/Single Trigger mode,it is easy to capture instantaneous waveform.

Rotary Encoder

It has been added the rotary encoder, makes parameter adjustment quicker and easier.

Hold Function

You can freeze waveform display at any time.And with waveform storage function you will not lose the waveform after power off.

Kindly Note

1. This oscilloscope runs on 9V power adapter. The power supply voltage must not exceed 10V. Otherwise it is possible to burn out the machine. 9v dc power supply should be center positive.

2. The kit contains a power adapter.If you have 9V power adapter at home, you can choose the one without adapter.

◕‿◕

If you have any question or meet any problem on using this oscilloscope, please feel free to contact with us!

• 𝐏𝐫𝐨𝐟𝐞𝐬𝐬𝐢𝐨𝐧𝐚𝐥 𝐃𝐞𝐬𝐢𝐠𝐧𝐞𝐝 : 2 channels, 100 MHz analog bandwidth @ 1 GSa/s Real-time sampling, 240kbit Sample memory depth.
• 𝐇𝐃 𝐒𝐜𝐫𝐞𝐞𝐧 : 7'' color TFT- LCD touch screen with 800 * 480 resolution.
• 𝐄𝐚𝐬𝐢𝐥𝐲 𝐌𝐞𝐚𝐬𝐮𝐫𝐢𝐧𝐠 :Auto/Normal/Single 3 Trigger modes,it is easy to capture instantaneous waveform.
• 𝐈𝐧𝐭𝐞𝐥𝐥𝐢𝐠𝐞𝐧𝐭 𝐀𝐧𝐭𝐢-𝐛𝐮𝐫𝐧 : Built-in high-voltage protection module,can tolerate a continuous voltage of up to 400V.
• 𝐕𝐞𝐫𝐬𝐚𝐭𝐢𝐥𝐞 : ASD1013D is widely applicable in the academic experiment, electronic product design,debugging and maintenance, electronic engineering education, etc.

User questions & answers

Question:	Can you couple XY for Lissajous mode display
Answer:	Yes I do it to balance audio amplifiers.
Question:	can i see СAN bus on this oscilloscope
Answer:	Yes of course. It’s a waveform
Question:	is it a storage scope
Answer:	yes,it build-in 1GB storage space to store up to 1000 screenshots + 1000 sets of waveform data. And support USB exprot.

Product features

DETAILS

• Number of Channel :2
• Analog Bandwidth :100MHz
• Max Real-time Sample Rate : 500MSa / s
• Max Sample Memory Depth :240KB
• Horizontal Sensitivity : 50S / div~10nS / div
• Vertical Sensitivity : 550 mV / div~500 V / div
• (Analog)Input Impedance:1M ohm
• Maximum Input voltage: 40 V (1X probe), 400 V (10X probe)
• Coupling: DC, AC
• Trigger Modes: Auto, Normal, Single

• Trigger Types : Rising/falling edge
• Roll Mode : Support
• Waveform Storage:Up to 2000 wave
• Storage : 1GB
• Waveform Manager:Support
• Display : 7 in color TFT- LCD with 800 x 480 resolution
• Power Supply : 6000 mAh lithium battery
• Dimension : 7.08*4.72*1.57 in
• Weight : About 600g

High Definition Full Screen

7 inch color TFT- LCD full Capacitive Touch Screen display with 800 * 480 resolution.

Professional Designed

2 channels , 100MHz analog bandwidth @ 1 GSa/s Real-time sampling , 240kbit Sample Memory Depth

Thinner & Ultra-light

7.08*4.72*1.57 in thinner size and 600g super light weight design,easy to caryy.

Powerful Waveform Manager & USB Export

One-key screenshot and saving design,built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data,and support UBS export.

Lissajous Figures Display & FFT Analysis Function

Lissajous figures display function can be used to determine the amplitude, frequency, and phase contrast of 2 groups of signals;

FFT analysis function can analyze the harmonic components of the signal.

Super-long Stand By Time

Built-in 6000mah high-quality lithium battery, which can last for 4 hours on a full charge.

• An assembled kit, just get it and use it.
• Designed as a training oscilloscope with simple, reliable and inexpensive circuit.
• With automatic, regular and one-shot mode, easy to capture the moment waveform.
• Partially open-sourced, the MCU has been programmed.
• Adjustable vertical displacement, and with instructions, which increase the likelihood of adding different features or developing new applications on the hardware for users.

User questions & answers

Question:	Can this work on a pc if attached to the usb port
Answer:	Do you mean for DC power? No. It requires about 9v dc, not the 5v usb provides. Do you mean you want the display to be on the PC over usb? Also no. The display has no provisions to be exported. This is a stand-alone device with no external computer access.
Question:	Can this be used to check how clean the <50 vdc output is from an ac adaptor
Answer:	It can detect DC power supply below 50V
Question:	Will this allow me to test automotive (can bus) signals? i haven't yet discovered the upper frequency limits of can
Answer:	Hello friend, the frequency range is 0-200KHZ, and with 1x probe, the maximum voltage that can be measured is 50V. This is the instruction for this oscilloscope: https://mega.nz/#!uJ1BnSyb!hBUGGcFN4F9HgdcOjE8RERXCvYkpOLrb4yrsKTOT3c4, please download it and see if it meet your needs.
Question:	Why is it called "Partially open-sourced" in description
Answer:	Partially open-sourced is referring to the accessibility and manipulation of the operating system. In a closed system, the source code is locked and cannot be manipulated. In a pure open system everything can be manipulated. Partially open is a blend. In this case it means some of the source code is open to the user to customize features and function but some aspects of the source code are locked.

Product features

Features:

--Fully assembled, not DIY Kit!

--It contains only the basically oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purposes, uses mostly through-hole parts: the heart is a Cortex-M3 ARM processor (STM32F103C8) from ST.

--It uses 2. 4-inch TFT LCD (320 X 240 dot-matrix, 262K colors) as its display element and displays nice and clear waveforms.

--Detailed assembly instructions are provided in combination with troubleshooting guide and schematic.

--Source codes are also available to allow user to add their own features.

Specifications:

Analog bandwidth: 0 - 200KHz

Sampling rate: 1Msps max

Sensitivity: 10mV/Div. - 5V/Div.

Sensitivity error:

Timebase: 10us/Div. - 500s/Div.

Record length: 1024 points Built-in 1KHz/3.

3V test signal Waveform frozen (HOLD) function available

Product description

Featuers

3 in 1 Dual Channel Oscilloscope + Waveform Generator + Multimeter

250M Sampling rate, 40MHZ Bandwidth.

10MV-10V Vertical resolution

Minimalist keyboard design simplify operation，easy to use

Auto automatic measuring function

Key tone settings

Color highlight LCD screen,legible even in bright sunligh

Adjustable backlight brightness, backlight

Auto power off

Digital voltmeter function.





Specification

Sample Rate Range: 250MSa/s(Single-channel), 125MSa/s(Dual-channel)

Waveform Interpolation: (sin x)/x

Record Length: Max. 6K for single-channel; 3K samples per dual-channel

SEC/DIV Range: 5ns/div~500s/div 1, 2, 5 sequence

A/D Converter: 8-bit resolution,each channel sampled simultaneously

VOLTS/DIV Range: 10mV/div~10V/divat input BNC

Bandwidth Limit, typical: 20MHz

Low Frequency Response (-3db): ≤10Hz at BNC

Rise Time at BNC, typical: ≤5ns

DC Gain Accuracy : ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div

Note: Bandwidth reduced to 6MHz when using a 1X probe.

Mode : Auto, Normal, single

Level : ±4 divisions from center of screen

Slope : Rising, Falling, Rising & Falling

Source : CH1/CH2

Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X

Maximum Input Voltage: 150VRMS





Standard Accessories:

1 * 3-in-1 Oscilloscope

2 * Clip Probes

1 * Test Probe

1 * Power Adapter

1 * USB Type-C Charging Cable

1 * Multimeter Probe

1 * Storage Bag and Manufacturer Certificate

• Function: Oscilloscope + Multimeter+ Waveform Generator; 70 MHz Digital Oscilloscope with 2 channels -- Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel).
• Simplify operation, convenient to use: 250M Sampling rate, 70MHZ Bandwidth. 10MV-10V Vertical resolution; Auto automatic measuring function; Key tone settings, Adjustable backlight brightness, Backlight, duration and auto power off time. Digital voltmeter function, Cursor measurement, reference waveform,waveform Storage function.
• Multifunction Digital Multimeter Function, High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry. Digital multimeter which can be used to measure AC/DC voltage/current, resistance, diode,capacitance, on-off test.
• Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface 18650 replaceable lithium battery power system; Be able to recharged by 5V/2A large current or ordinary computer USB port,allow while charging, very convenient and handy; Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months.
• We offer 1 year warranty with 30 days worry-free return, so 100% satisfaction and zero hassle returns guaranteed. Please don't hesitate to contact us when you use the item.

User questions & answers

Question:	Can you generate a signal and read a signal at the same time. eg. inject a waveform into an op amp and see its output
Answer:	Dear buyer, Good day, Yes,generate a signal and read a signal can be at the same time. Thanks and have a nice day. withUtrade
Question:	what probes and cables are included
Answer:	Everything that’s in the photo: ONE Scope probe w/BNC Connector, Two alligator to BNC scope connectors, one regular meter probe set, one needle-tip meter probe set, and several probe tip adapters which screw on in place of the needle-tip probes. Also includes wall-plug charger and necessary USB cable,
Question:	Is there an instruction manual
Answer:	You can download the user munual by going onto our website, and clicking through the following buttons: Products-->Handheld Oscilloscope-->Hantek2000 Series (Recommended for online class)-->Download You'll see quick guide, software, firmware, FPGA, programming tool, and mannual for Hantek 2D72. For your information, I can't send you the aforementioned URL according to Amazon's regulations, and our website doesn't get Spanish version. Sorry for your inconvenience.
Question:	Is the included probe 10X
Answer:	The package includes 1 peace of 10X probe. And it can be used with 100X probes(such as Hantek T3100), which is not included in the package.

Product description

Specifications:

Maximum Real-time Sampling Rate: 1Msps

Accuracy: 12Bit

Sampling Buffer Depth: 1024 bytes

Analog Bandwidth: 0-200KHz

Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)

Input Impedance: 1MΩ

Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)

Coupling Modes: DC / AC / GND

The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)

Supply Voltage: DC 9V

PCB Size: 117 X 76mm / 4.6 X 3in

Screen Size: 52 X 40mm / 2 X 1.57in

Tips:

This kit is soldered !

Package Included:

1 X DSO 138 digital oscilloscope board

1 X Probe

3 X User Manual(English)

• This DSO 138 The oscilloscope circuit boards components are pre-soldered, no need soldered by yourself.
• This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.Can freeze at any time waveform display (HOLD function).Comes 1Hz /3.3V square wave test signal source.
• With automatic, regular and one-shot modes, easy to capture the moment waveform.Available rising or falling edge trigger.Observable previous trigger waveform (negative delay).
• With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.Waveform storage function: will not lose the waveform after power off.
• Partially open-sourced,the MCU has been programmed, adjustable vertical displacement,and with instructions,which increase the likelihood of adding different features or developing new applications on the hardware for users.

User questions & answers

Question:	is the probe switchable between 1X and 10X
Answer:	No it is a 1x meter lead and reads up to 0-5volts A/C or DC.

Product description

Attention: 9V power supply and Probe not included.



Fully assembled DSO Shell oscilloscope, upgraded product of DSO138. With new design it offers more accurate and reliable measurements. 5mV/div sensitivity and low background noise make the device particularly useful for measuring weak signals. Come with a very detailed instructions and a probe to get you started easily. Require 9V DC power supply with 5.5mm (2.1mm center) jack and included here.



Features and specifications:

Maximum real-time sampling rate: 1 MSa/s

Analog bandwidth: 0 - 200 KHz

Sensitivity range: 5 – 20 mV/div

Maximum input voltage: 50 Vpk (1X probe)

Input impedance: 1M ohms/20pF

Accuracy: 12 bits

Record length: 1024 points

Coupling modes: DC / AC / GND

Time Base Range: 500s/Div – 10us / Div

Trigger modes: Auto, normal, and single

Trigger position: Center of buffer

Supply voltage: DC 9 V (8 – 10 V)



Current consumption: ~120 mA @ 9 V

Main board size: 94 x 65 mm (3.7 x 2.56 in)

Analog board size: 65 x 47 mm (2.56 x 1.85 in)

Screen size: 52 x 40 mm (2 x 1.57 in)

Package size: 14.5 x 10 x 3.7 cm (5.7 x 3.94 x 1.45 in)

Package weight: 179 grams (6.33 oz)



Package include:

1 x Fully Assembled Digital Oscilloscope

1 x User Manual (English)

1 x BNC Clip Probe



Note: DC Power Not included

• DC Power Not included. With Automatic mode, conventional mode and single trigger mode. Included 10:1 BNC probe and use 9V DC power charger (NOT Included), Convenient to capture the instantaneous waveform. With secondary development on the basis, can be changed to voltmeter, data loggers. 2.4-inch color TFT display
• Waveform parameter digital display include: Frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values and effective value; Adopts ARM Cortex-M3 processor (STM32F103C8)
• Rising or falling edge trigger are available, also the trigger level position and vertical displacement are adjustable. Short-circuit and open-circuit detection to find out the soldering error
• Observable the previous waveform before trigger (negative delay). Freeze waveform display at any time (HOLD function). Come with instructions, easy to install and operate
• Waveform storage function: Waveform will not lose when save/tune out the waveform/shutdown waveform. Test signal source with 1KHz /3.3V square wave

Product description

Rigol DS1054Z Digital Oscilloscope 50 MHz DSO 4 Channels 50 MHz Analog Bandwidth Total of 4 Analog Channels Maximum Waveform Capture Rate of up to 30,000 wfms/s Includes FREE software bundle BND-MSO/DS1000Z AT-DS1000Z - Advanced Triggering Option MEM-DS1000Z - Memory Depth Upgrade REC-DS1000Z - Real Time Waveform Record and Relay Option SA-DS1000Z - Serial Bus Analysis OptionFind out why the DS1054Z is one of the top selling oscilloscopes in the WORLD since its release in September 2014. Read the reviews! Let our customers tell you what they think of this unit. Schools, companies, students and home hobbyists love the DS1054Z. Backed by a 30 day money back guarantee you cannot go wrong with this unit.Customer FeedbackI have used the scope for basic measurements so far, mostly audio signals and comparisons of such signals. It works well and the construction is as good as that of expensive top-brand items. The packaging was adequate and protects the instrument well. RIGOL has tried hard to pass themselves as a decent company to buy equipment from and they have succeeded, at least with this scope. I have used lots of lab equipment for many years in college labs and this would fit perfectly in every lab, given its low price, specifications and support. Highly recommended for tight budgets and high expectationsCustomer Submitted ImageUltraVisionRigol's innovative UltraVision technology provides a deeper memory depth of 12Mpts standard and is upgradeable to 24 Mpts (with purchase of MEM-DS1000Z). The DS1104Z-S Plus also provides the ability to quickly focus in on certain piece of a recorded waveform.Full VisibilityThe large 7 display of the DS1104Z-S Plus, with a resolution of 800 X 480 pixels makes it possible to view all channels on a single screen. This makes for better usability and more efficient analysis.Ultra-fast Sampling RateRigol has give

User questions & answers

Question:	I know it can do an fft but does it show frequencies for the harmonics in a waveform? what's the frequency resolution for the fft? thanks
Answer:	Normally the FFT is done on the screen data, so only about 1024 points. I read there is a settings to use 16K FFT points. This means the maximum FFT frequency resolution would be sample frequency/16K. The competing Siglent scope is available (2 channel version) or on (as of 12/07/17) backorder (4 channel version), and they both have a 1M FFT size, so much higher frequency resolution. The 2 channel version also has 200 Mhz of analog bandwidth. You also can download the samples, and use some external program for the FFT analysis. Another option is to spend $150 and get the home (or even cheaper student version if you're a student) version of Matlab, although I'd verify if the FFT function needs any extra packages (which cost extra). You could talk to the scope over Ethernet via LXI to read the sample data. In theory, you could make a 12M signal capture, and your FFT resolution would be sample rate/12M, so if you sample at a gigasample, that comes to 1,000,000,000/12,000,000=83 hz FFT resolution on like a 50 Mhz signal. Of course sampling 1 gigasample on a 50/100 Mhz bandwidth scope may be overkill, so you might reduce the sample rate, improving the maximum FFT resolution. Also note the window function may degrade the resolution some (like in the 2x range), depending on which window function you use. The window function with the best frequency resolution tends to also have large sidebands (spectrum leakage into FFT bins next to a peak). I think the question is how much frequency resolution do you need? At what frequency range? An oscilloscope FFT is generally not an RF spectrum analyzer. For things like audio signals, this scope may give very useful frequency resolution. Note that if you're looking at digital signals (square waves) the harmonics are all odd, and the 50/100 Mhz bandwidth runs out fast (like a 10 Mhz square wave clock, has 30 Mhz, 50Mhz, 70Mhz, 90Mhz harmonics), so 50 Mhz of bandwidth barely can show the 5th harmonic).
Question:	Trying to decide between this and ds102e 100mhz 2ch. will be used with arduinos, raspberry pi and ble peripherals. can you offer a pros/cons for each
Answer:	I definitely prefer a 4-channel scope. For example: you can see SI, SO, CS and SCLK all at the same time on a SPI interface.
Question:	This unit has 12 mpts of memory upgradable to 24 mpts, how do you do that? where can i buy this option. thank you
Answer:	RigolNA is currently (Dec 2017) including free option BND-MSO/DS1000Z which "includes serial decode, deep memory, record mode, and triggering". I don't know if this is the same as 24 Mpts or if this option is included with this item.
Question:	I'm new to electronics as a hobby.should i go with this model or the 100mhz model for the same price. the books say go with a 100 mhz scope
Answer:	Well, the hardware of the 50MHz, 70MHz, and 100MHz versions of this scope are all identical actually, with the bandwidth limited by software. If you bought the 50MHz version (this item), you wouldn't be the first person to accidentally stumble upon web pages telling you how to generate and enter a license key that unlocks 100MHz bandwidth and a few other features...What you don't want is one of the older DS1000E series scopes, as they lack intensity-graded display and have only 2 channels, not 4.

• 𝐂𝐨𝐬𝐭 𝐄𝐟𝐟𝐞𝐜𝐭𝐢𝐯𝐞 : 100 MHz analog bandwidth,Real-time sampling rate up to 500MSa / s and the price is moderate.
• 𝐇𝐃 𝐒𝐜𝐫𝐞𝐞𝐧 : 2.4'' color TFT- LCD display with 320 x 240 resolution.
• 𝐏𝐨𝐫𝐭𝐚𝐛𝐥𝐞 : Ultra small form factor easy to hand-held and carry. it's always ready when you need it.
• 𝐎𝐧𝐞 𝐊𝐞𝐲 𝐒𝐚𝐯𝐢𝐧𝐠 : The built-in 64 MB flash storage for up to 2000 waveform images.The storage process is easy and fast.
• 𝐄𝐚𝐬𝐢𝐥𝐲 𝐌𝐞𝐚𝐬𝐮𝐫𝐢𝐧𝐠 : Auto/Normal/Single 3 Trigger modes,it is easy to capture instantaneous waveform.

User questions & answers

Question:	What is max. freq. of circuits this scope provides useful/predictable results? 200khz? 400khz? some reviews say >that is squirrely
Answer:	It works very well up to about 20 or 30 MHz. Above that, you'd be using a timebase setting below 100ns/div and it goes into a software-based triggering/display mode and can have a few issues. Limited memory depth means that it will alias, depending on input frequency and timebase setting. For example, at 100ns/div, it aliased for input signal components above 31.25 MHz in my tests. At 10us/div it aliases above 1.25 MHz. Etc. BUT - if you just hit the "Auto" button, it quickly and accurately showed just about anything I threw at it :-) Good little scope !
Question:	Is it easy for a newbie to use vs something like nscope
Answer:	I am not really a Newbie since I have been a "Ham" radio operator since the 1950s, but I have found this unit quite easy to use. The controls are very self explanatory and, although sometimes the manual is a little confusing, if one takes their time reading it they will get the answe in using the equipment. I like mine and use it frequently.
Question:	What is the more realistic bandwidth with reasonable accuracy, e.g. +/- 5% or better
Answer:	+/- 5% is probably asking a lot. But I found it to do maybe +/- 10% in many tests (except at 200 mV/div where mine seems to have a vertical gain error quite a bit more than that). Frequency-wise, the answer is basically around 20 or 30 MHz for sinewaves and works well at timebases of 100ns/div or longer. At a timebase of faster than 100ns/div, it appears to enter a software-assisted/based triggering/display mode that struggles with some waveforms. At 100ns/div or longer, it works very nicely (although it will alias if you are on a timebase setting that results in more cycles than the 320 width display will support). So I would say 20 or 30 MHz sinewaves (maybe 1 to 5 MHz for digital waveforms that have lots of harmonics if you want sharp edge displays). If you push it, and have a pure sinewave signal, you can get it to show stuff up to about 125 MHz before aliasing starts at the 6ns/div setting, but the vertical readout will be no-where near 5% accuracy.
Question:	What is the battery life like? does it use usb charging
Answer:	It does use USB charging. Not sure how long the battery lasts as I tend to use it about a half an hour at a time, but it feels like it should last about 6 hours.

Product features

DETAILS

• Number of Channel:1
• Analog Bandwidth:100MHz
• Max Real-time Sample Rate:500MSa / s
• Max Sample Memory Depth:128KB
• Horizontal Sensitivity:50S / div~6nS / div
• Vertical Sensitivity: 50 mV / div~100 V / div
• (Analog)Input Impedance:1M ohm
• Maximum Input voltage: 80 V (1X probe), 800 V (10X probe)
• Coupling: DC, AC
• Trigger Modes: Auto, Normal, Single

• Trigger Types: Rising/falling edge
• Scan Mode:Support
• Waveform Storage:Up to 2000 wave
• Storage：64MB
• Waveform Manager:Support
• Afterglow Adjustable:1--8
• Display: 2.4 inch color TFT- LCD with 320 x 240 resolution
• Power Supply: 3000 mAh lithium battery
• Dimension: 114mm X 74mm X 33mm
• Weight: About 300g

High Definition Screen

2.4'' color TFT- LCD display with 320 x 240 resolution.

Mini Size

Ultra small form factor easy to hand-held and carry.

Cost-Effective Designed

100 MHz analog bandwidth,Real-time sampling rate up to 500MSa/s.Equipped with high efficiency One-key AUTO,easy to use.

Easily Saving & Manager Waveform

Built-in 64M storage space, the maximum storage of 2000 waveform pictures. Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions.

Perfect Protection

High quality silicone protective cover,non- toxic,lead-free and safe,anti-slip,anti-fall and anti shaking,soft and comfortable touch.

Super-long Stand By Time

Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use.
