13 best quick lock shaft collars
Quick lock shaft collars are a type of mechanical component used in various industrial applications, particularly within power transmission systems. These collars play a crucial role in securing components onto a shaft, providing a reliable connection that can handle axial and radial loads, while also being easy to install and remove.
Key features and information about quick lock shaft collars include:
Design: Quick lock shaft collars typically have a two-piece design, consisting of a split collar with a clamping mechanism. The split allows for easy installation without the need to disassemble other components on the shaft.
Materials: They are commonly made from materials like steel, aluminum, or stainless steel to ensure durability and resistance to corrosion.
Clamping Mechanism: The quick lock feature of these collars allows for rapid installation and removal without the need for tools. This is especially useful in applications where frequent adjustments or maintenance are required.
Secure Connection: Once locked in place, quick lock shaft collars provide a secure and tight grip on the shaft, preventing slippage or movement during operation.
Applications: They are used in a wide range of industrial applications, including conveyor systems, packaging machinery, robotics, and any equipment where shaft components need to be secured and adjusted easily.
Sizing: Quick lock shaft collars come in various sizes to accommodate different shaft diameters. Proper sizing is essential for a reliable connection.
Cost-Effective: Their ease of use and reusability make them a cost-effective choice for many applications compared to other methods of shaft locking.
Compatibility: Quick lock shaft collars are compatible with various shaft materials, including steel, stainless steel, and even softer materials like aluminum.
Maintenance: Periodic inspection and maintenance are necessary to ensure that the collar remains securely in place and does not wear out over time.
In summary, quick lock shaft collars are a versatile and practical component within the realm of power transmission products and industrial machinery. Their ease of installation, secure grip, and compatibility with various shaft materials make them a valuable choice for engineers and technicians working on a wide range of equipment.
Below you can find our editor's choice of the best quick lock shaft collars on the market
Climax Metals Part 2C-100, Mild Steel, Black Oxide Plating, Clamping Collar, 1 inch bore, 1 3/4 inch OD, 1/2 inch Width, 1/4-28 x 5/8" Clamp Screw
Climax Metal Products Company
Product description
Two-Piece Clamping Collars are designed to handle applications that require greater axial load capacity than Set Screw Collars and One-Piece Clamping Collars without marring the shaft. Easily installed where major disassembly would otherwise be required. Effective on hard and soft shafts. Made from Steel with a Black Oxide finish.
- Effective on hard and soft shafts
- Design fully engages the shaft without marring
- 360 degree clamping force
- Easily installed where major disassembly would otherwise be required
- Black oxide provides some corrosion resistance
User questions & answers
| Question: | How many do you get |
| Answer: | Depends on your needs. I use one for each tool rest that I have, which is 6. That way I don't have to change them every time I change to a different tool rest. Hope that helps. |

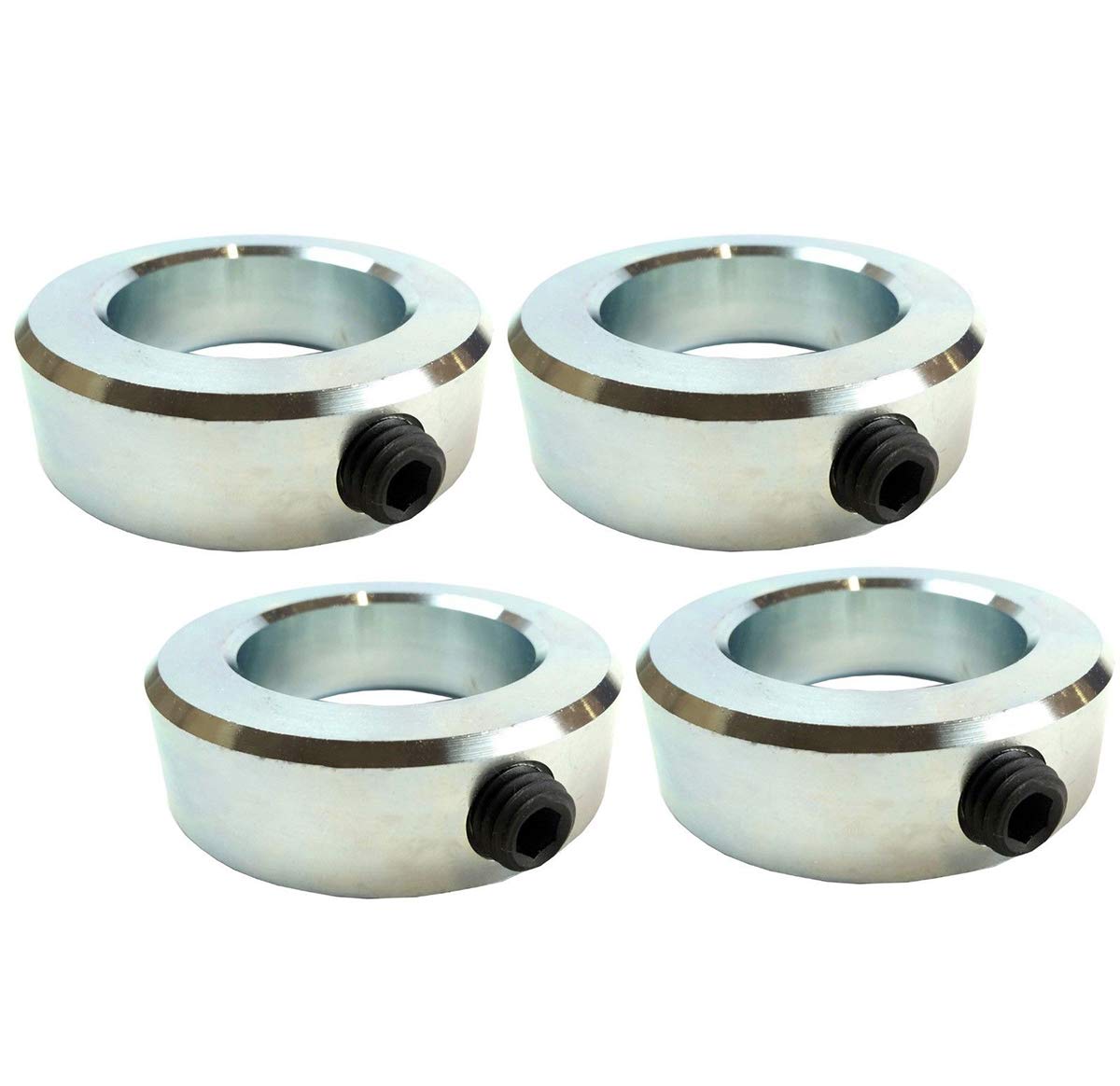

Jeremywell 01102-075-4PC 4-Pcs Set Screw Shaft Collar, Zinc Plated Steel, 3/4" Bore Corrosion Resistant .5625" Width.75 Carbon Steel (Pack of 4)
Jeremywell
Product description
Package of four 3/4 inch zinc plated shaft collars. Collar has a set screw to lock the piece in place. Bore diameter is 3/4 inch inches
User questions & answers
| Question: | How wide is the collar |
| Answer: | They are not very thick, its for a 3/4" shaft and it on the outside maybe 1" or 1 1/8". |
10 Pcs Shaft Collar Electroplate Ferronickel Shaft Lock Collar Ring Carbon Steel Hex Fixed Buckle DIY Technology Making Model Toys, Accessories(6.1mm)
Product description
Specification:
Item Type:Shaft Collar
Material:Electroplate Ferronickel
Type:
Inner Diameter:4.1mm/Outer Diameter:9mm/Thickness:5mm/Weight:2g/M3 Locking Hole
Inner Diameter:5.1mm/Outer Diameter:10mm/Thickness:5mm/Weight:2.4g/M3 Locking Hole
Inner Diameter:6.1mm/Outer Diameter:10mm/Thickness:5mm/Weight:2.4g/M3 Locking Hole
Inner Diameter:8.1mm/Outer Diameter:12mm/Thickness:5mm/Weight:2.6g/M3 Locking Hole
Package List:
10 x Shaft Collar1 x Hex Wrench
- Used for blocking position for the shaft and steel wire. When installing the wheel, use the wheel block to lock the inner limit or the periphery of the wheel to lock the steel wire or the landing gear axle. When the wheel is rotated, it does not run off
- Pattern edge makes the knob rotation easier.
- Carbon steel hex fixed buckle, can be used repeatedly without breaking.
- Appearance plating process, no rust, no scratch.
- Including 10 pcs shaft collar to meet your quantity needs.
Ruland QCL-5-A Anodized Aluminum Quick Clamping Shaft Collar, One Piece, 0.394" Width, 1.496" OD, 0.3125" Bore
Ruland Manufacturing
Product description
Shaft collars are commonly used as guides, spacers, mechanical stops, and for component alignment on a shaft. They are one of the most common power transmission components and are found on equipment in most industries.
Quick clamping shaft collars are designed for light duty power transmission applications and require no tools for installation or adjustments. They feature an integral handle that sits flush with the outer diameter when fully installed and can be actuated with one finger. Quick clamping shaft collars are well suited for applications that require frequent change outs of items such as media, guide rails, or setup fixturing. The tension-adjustment screw makes the collar compatible to wide shaft tolerances and allows for slight adjustments to axial holding power.
Quick clamping shaft collars are made from 6061 aluminum for lightweight. They have a standard black anodized finish and are supplied with stainless steel hardware. Quick clamping shaft collars are stamped with the Ruland name and bore size for ease of identification.
Ruland shaft collars are carefully made from select bar stock sourced exclusively from North American mills and are machined to a fine burr-free finish. Hardware exceeds DIN 912 12.9 standards for maximum torqueing capabilities and holding power. Ruland, founded in 1937, manufactures all products in our Marlborough, MA USA factory under strict controls using proprietary processes. Shaft collars are RoHS2 and REACH compliant.
User questions & answers
| Question: | Does this also fit the Edge Pro Apex |
| Answer: | Yes |
| Question: | Does this 50 edge pro professional sharpener system |
| Answer: | If you’re wondering if it works with an EP Professional, yes, it absolutely does. I’ve been using mine for roughly 6 months. You may have to adjust ur tension on the hex bolt when you first get it but it’s great thereafter. |
| Question: | Does this fit on the edge pro professional sharpener system |
| Answer: | It was supposed to, however, mine did not. I had to re-drill the hole with the appropriate size drill bit for the EdgePro rod in order to get it to fit on the rod. |
Climax Metal C-100-BO Shaft Collar, One Piece, Set Screw Style, Black Oxide Plating, Steel, 1" Bore, 1-1/2" OD, 5/8" Width, With 5/16-24 x 1/4 Set Screw
Climax Metal Products
Product description
- Setscrew shaft collar for applications supporting low axial loads and simple positioning
- Effective on shafts made of softer material than the setscrew material
- Steel for weldability and rust resistance with a black oxide finish for a decorative appearance and for resistance to stick-slip, white corrosion, and abrasion
- Includes a socket setscrew for securing the collar onto the shaft
- Operating temperatures range from -17 to 148 degrees C (0 to 300 degrees F)
User questions & answers
| Question: | I order 2 of these and they weren't delivered to my house but tracking says it was. Amazon refund/replacement will not work on this item. What do I do |
| Answer: | My answer is move on order a other set the cost for this item is low there many other places one can order this item without a problem. |
| Question: | Is there a misprint in the price? It says $1.93 for one, but the 4 pack says |
| Answer: | Yes |
| Question: | How many come in a pack |
| Answer: | One collar |
| Question: | will it work for barbells |
| Answer: | Maby larger ones but i would say no |
Aobbmok 5/8" Bore Solid Steel Style Zinc Plated Set Screw Shaft Collars for Lawn Tractor,Garage Doors
Aobbmok
Product description
✔4-Pieces 5/8" 15.875mm Bore Zinc Plated Set Screw Shaft Collars
✔Made of High quality Carbon Steel with Zinc Plated Coating, better weld ability and resistance to corrosion than the regular steel
✔This collar comes with a socket cup-point setscrew for securing the collar onto the shaft
✔Good axial and radial support performance, durable choice for nearly all types of machinery and industry, such as drive shafts, agricultural implements, medical equipment, gearbox assemblies, motor bases, machine tools, and paper and steel mill equipment, the automotive industry, the manufacturing industry, the hobby craft industry
- Product Name :Zinc Plated Set Screw Shaft Collars;
- ID:5/8"; OD:1 1/8"; Width:1/2"; Set Screw: 5/16-18×1/4;
- Material : High quality Carbon Steel with Zinc Plated Coating;
- Package Content : 4-Pieces 5/8" Zinc Plated Shaft Collars with 1Pcs Set Screw.
User questions & answers
| Question: | The product title says "1/4",5/16",3/8",1/2",5/8",3/4",7/8",1" " (eight sizes) but all photos show only four. Why do we get only four |
| Answer: | There are eight different sizes to choose from, and each order has 4 total, i myself needed the 1/4 inch for a shelf i made using a flap from an aircraft. hope this will help. |
| Question: | Looking for these diameter, but with a flat side for indexing on a shaft |
| Answer: | These are round. No flat side. Has screw to keep in place |
| Question: | What size is the steel set screw on the 1 inch bore collar |
| Answer: | Do not know. Would not take much to hold in place |
| Question: | what size s the set screws? thank you |
| Answer: | I'm not sure if you are asking the actual dimensions and thread specs but if you are wondering about the allen wrench size I used a 5/32" which worked but was a little sloppy so it may be 11/64" or something metric perhaps. |
Jeremywell 1/2" Bore Solid Steel Zinc Plated Shaft Collars Set Screw Style (10 PCS)
Jeremywell
Product description
10 Piece- Jeremywell?Set Screw Shaft Collar, Zinc Plated Steel, 1/2" Bore Corrosion Resistant
- Brand New
- Free Shipping within the Continental United States
- Same business day order processing before 12:30PM PDT
- Satisfaction Guaranteed
- Operating temperatures range from -17 to 121 degrees C (0 to 250 degrees F)
Climax Metal 2C-100-A Aluminum Two-Piece Clamping Collar, 1" Bore Size, 1-3/4" OD, With 1/4-28 x 5/8 Set Screw
Climax Metals
Product description
Our two piece clamp-on shaft collars are similar to the one-piece collars as far as how they work. Two piece clamp on collars come apart in two halves for easy installation and maintenance They promise not to mar the shaft. They clamp evenly around the shaft therefore providing excellent holding power. Made of lightweight polished aluminum to offer minimum weight and good corrosion resistance. Our shaft collars are available in several different styles to meet you or your customer’s needs. Climax Metal Products Co. in business for over 60 years is the leading manufacturer of shaft collars, rigid couplings & keyless locking assemblies. Climax Metals, where fair market pricing and excellent customer service is our promise to you.
- Effective on hard and soft shafts
- Design fully engages the shaft without marring
- 360 degree clamping force
- Easily installed where major disassembly would otherwise be required
- Aluminum is lightweight and corrosion resistant
AZSSMUK 2-Piece Clamping Collar, Black Oxide Plating, 2" Bore Size, 3" OD, with 5/16-24 Set Screw
DAOE
Product description
✔This Single Split Shaft Collar is made of solid Carbon Steel with Black Oxide Coating.
✔The Single Split Shaft Collar as known as wraps around the shaft so that the clamping forces will be distributed evenly.
✔Using the single split shaft collar has results in a tight fit and better holding power, without damaging the shaft by set screws. Clamp collars are designed to be easy to remove and adjust.
✔Suitable for nearly all types of machinery and industry, such as drive shafts, agricultural implements, medical equipment, gearbox assemblies, motor bases, machine tools, and paper and steel mill equipment, the automotive industry, the manufacturing industry, the hobby craft industry.
- Made of solid Carbon Steel with Black Oxide Coating
- Bore Diameter: 2", Outside Diameter: 3", Height: 11/16",With 5/16-24 Set Screw
- Package Content: 2-Pieces Single Split Clamp-On Shaft Collar with 2Pcs Set Screw.
User questions & answers
| Question: | How is inside diameter listed here? i need 3/4" inside - all these listed are for exterior diameter |
| Answer: | These are 1" inside diameter |
| Question: | I have some pipe with an OD just under 2", would the 1 3/4" bore or the 2" bore work to clamp onto that |
| Answer: | Probably not. These are only a few thousanths of an inch larger than the bore diameter posted. And close tightly on the 1 3/4" diameter shaft. |
GM2C-15-B - 15 mm ID 2PC Metric Clamp Collar, STL, BO
Climax Metal Products
Product description
This Listing is for - 15 mm ID 2PC Metric Clamp Collar, STL, BO- Part Number: GM2C-15-B
- 15 mm ID 2PC
- Metric Clamp Collar, STL, BO
Two-Piece Clamping Collar, Black Oxide Plating, 7/8" Bore Size, 1-5/8" OD, with 1/4-28 Set Screw
DAOE
Product description
✔This Clamp-On shaft collar is made of solid Carbon Steel with Black Oxide Coating. ✔The Double Split Clamp-On Shaft Collar as known as (Two-piece Shaft Collar) has the same feature as the Single Split Shaft Collar with additional flexibility and convenience.
✔The design of double split is for easy installation and disassembly, which reduces labor and downtime when adjustment, removal, or replacement is necessary.
✔This style of shaft collar uses the full seating torque of its set screws to apply an even distribution of forces around the shaft's circumference. These clamping forces provide the collar with a better and stronger holding power compare to the single split shaft collars.
✔Suitable for nearly all types of machinery and industry, such as drive shafts, agricultural implements, medical equipment, gearbox assemblies, motor bases, machine tools, and paper and steel mill equipment, the automotive industry, the manufacturing industry, the hobby craft industry.
- Made of solid Carbon Steel with Black Oxide Coating
- Bore Diameter: 7/8", Outside Diameter: 1-5/8", Height: 1/2",With 1/4-28 Set Screw
- Package Content: 2-Pieces Double Split Clamp-On Shaft Collar with 2Pcs Set Screw.
User questions & answers
| Question: | can I order it with and inch and a half boring |
| Answer: | Contact the manufacturer and ask if they have it/will make it. |
| Question: | What kind of hex key do these use? None of my hex keys fit well |
| Answer: | All i can tell you make sure you use the right hex key make sure it fit tight in the hole. |
| Question: | can I order it with and inch and a half boring |
| Answer: | Yes |
| Question: | can I order it with and inch and a half boring |
| Answer: | Yes but their sizes are Wroung . |
Jeremywell 1" Bore Single Split Shaft Collar Black Oxide Set Screw Style (4 PCS)
Jeremywell
Product description
4-PACK Jeremywell 1'' Bore One-Piece Clamping Collar, Black Oxide Plating, 1-3/4 OD, 1/2 Width Useful in nearly every type of machinery and industry, shaft collars are used in applications including gearbox assemblies, motor bases, machine tools, drive shafts, agricultural implements, medical equipment, and paper and steel mill equipment, among others. Clamping Collar, Black Oxide Plating,This shaft collar is suitable for use in various applications, including in the automotive industry to situate components in automobile power steering assemblies, the manufacturing industry to locate components on a conveyor belt system, and the hobby craft industry to hold wheels on axles in remote control vehicles, among others. Corrosion resistance (Black oxide painting ) One-piece clamping shaft collar for applications requiring a more uniform holding power and higher axial load capacity than setscrew collars Effective on both hard and soft shafts Steel for weldability and rust resistance with a black oxide finish for a decorative appearance and for resistance to stick-slip, white corrosion, and abrasion Includes forged socket-head cap screws for securing the collar onto the shaft Operating temperatures range from -40 to 176 degrees C (-40 to 350 degrees F)
- Brand New
- Free Shipping within the Continental United States
- Same business day order processing before 12:30PM PDT
- Satisfaction Guaranteed
- Applicable to both soft or hard shaft material
KOVPT 4Pcs Carbon Steel Single Split Shaft Collars Bore 1 inch Out Diameter 1 3/4
KANGNAN
Product description
Setscrew shaft collar for applications supporting low axial loads and simple positioning, It is commonly used for guiding, spacing, stopping, mounting, and component alignment This shaft collar is suitable for use in various applications, including in the automotive industry to situate components in automobile power steering assemblies, the manufacturing industry to locate components on a conveyor belt system, and the hobby craft industry to hold wheels on axles in remote control vehicles, among others.
Shaft collars are ring-shaped devices primarily used to secure components onto shafts. They also serve as locators, mechanical stops, and spacers between other components.
- Product Name : Blackening of Carbon Steel Shaft Collar ;
- Material : Carbon Steel ; Collar Style: Clamp Outside ;
- Bore Diameter : 1" (25.4mm) ; Outside Diameter : 1 3/4" (1.75 inch / 44.45mm) ;
- Width : 1/2" (0.5 inch / 12.7mm) ; Tolerance: +.0005/+.0025 ;
- Package : 4Pcs Shaft Collar
User questions & answers
| Question: | Is the item durable |
| Answer: | Yes |
| Question: | Whuch ones will fit a 1" bar? I just want to be sure i order the right ones |
| Answer: | 1” bore diameter should fit. |
| Question: | Where are these made |
| Answer: | Made in China. Thanks ! |
