Mounted cartridge block bearings are an essential component in various industrial and mechanical applications, providing support and enabling the smooth rotation of shafts. Here's what you need to know about mounted cartridge block bearings:

  1. Design and Purpose:

    • Mounted cartridge block bearings, often referred to as pillow block bearings, are designed to support a rotating shaft while allowing it to move linearly or pivot. They are commonly used to provide support and maintain the alignment of rotating equipment such as conveyor belts, fans, pumps, and other machinery.
  2. Construction:

    • These bearings consist of two main components: the bearing housing or cartridge block and the bearing insert (usually a ball or roller bearing). The housing is typically made of cast iron, stainless steel, or thermoplastic materials, and it houses the bearing insert.
  3. Mounting Options:

    • Mounted cartridge block bearings come in various designs to suit different applications. The most common mounting options include:
      • Set-screw: Bearings with set screws that tighten against the shaft to secure it in place.
      • Eccentric locking collar: Bearings with an eccentric collar that grips the shaft tightly when rotated, providing a secure fit.
      • Adapter sleeve: Bearings that use an adapter sleeve to fit different shaft sizes, allowing for easy installation and removal.
  4. Sealing and Lubrication:

    • Many mounted cartridge block bearings come equipped with seals or shields to protect the bearing and lubrication from contamination, moisture, and dust.Proper lubrication is crucial to reduce friction, heat, and wear in the bearing, extending its lifespan.
  5. Alignment and Adjustment:

    • Pillow block bearings are adjustable to ensure proper shaft alignment. This adjustability is essential for preventing premature wear and ensuring efficient operation. Misalignment can lead to increased friction and reduced bearing life.
  6. Load Capacity:

    • The load-carrying capacity of mounted cartridge block bearings varies depending on their size, design, and materials. It's essential to select a bearing that can handle the expected radial and axial loads in your application.
  7. Maintenance:

    • Regular maintenance is necessary to ensure the continued performance of mounted cartridge block bearings. This includes checking for wear, lubricating as needed, and addressing any issues with alignment or sealing.
  8. Application Areas:

    • Pillow block bearings are used in a wide range of industries, including manufacturing, agriculture, mining, and construction, where they are employed in conveyor systems, machinery, and various mechanical drives.
  9. Environmental Considerations:

    • When selecting mounted cartridge block bearings, consider the operating environment, including temperature, humidity, and exposure to chemicals or contaminants, to choose the appropriate materials and seals.

In summary, mounted cartridge block bearings, also known as pillow block bearings, are essential components in industrial and mechanical systems, providing support and alignment for rotating shafts. Selecting the right type and maintaining them properly is crucial for the efficient and reliable operation of machinery and equipment.

Below you can find our editor's choice of the best mounted cartridge block bearings on the market


UCFC205-14 Flange Cartridge Unit 7/8 Ball Bearings

VXB

Product description

UCFC205-14 Flange Cartridge Unit 7/8" Inner Diameter Bearing UCFC205-14 Flange Cartridge Unit, Set Screw Type, the inner Diameter is 7/8" inch. * Item: UCFC205-14 Bearing * Type: Flange Cartridge Unit * Basic Load (Cr): 14 KN * Basic Load (Cor): 7.85 KN * Bolt Size: 3/8" * Bearing No: UC205-14 * Housing No: FC205 * Quantity: One bearing Dimensions (Inches) a p e i s j k g f z Bi n 4-17/32" 3-35/64" 2-1/2" 25/64" 15/32" 15/64" 9/32" 53/64" 2.76" 1-5/32" 21/64" 9/16"

  • Item: UCFC205-14 Bearing
  • Type: Flange Cartridge Unit
  • Basic Load (Cr): 14 KN
  • Basic Load (Cor): 7.85 KN
  • Bolt Size: 3/8"

PGN - UCF205-16 Pillow Block Square Flange Mounted Bearing 1" Bore (2 PCS)

PGN

Based on 75 reviews Check latest price
  • ISO 9001:2008 CERTIFICATE
  • Solid Cast Iron Housing
  • Chrome Steel (AISI 52100) Ball Bearing for higher resistance and durability
  • Self Aligning Feature
  • Our high-quality bearing is made to reduce your replacement frequency and maintenance cost

User questions & answers

Question: If my shaft is 1.06" will it still fit this? i know it says " 1" bore" but what is the true bore
Answer: It is exactly 1.000". You have a 1 1/16" shaft and would need to machine the shaft to fit or find a bearing that size.
Question: What’s the over all stance of the bearing what’s the stick out
Answer: 1 1/4 inches

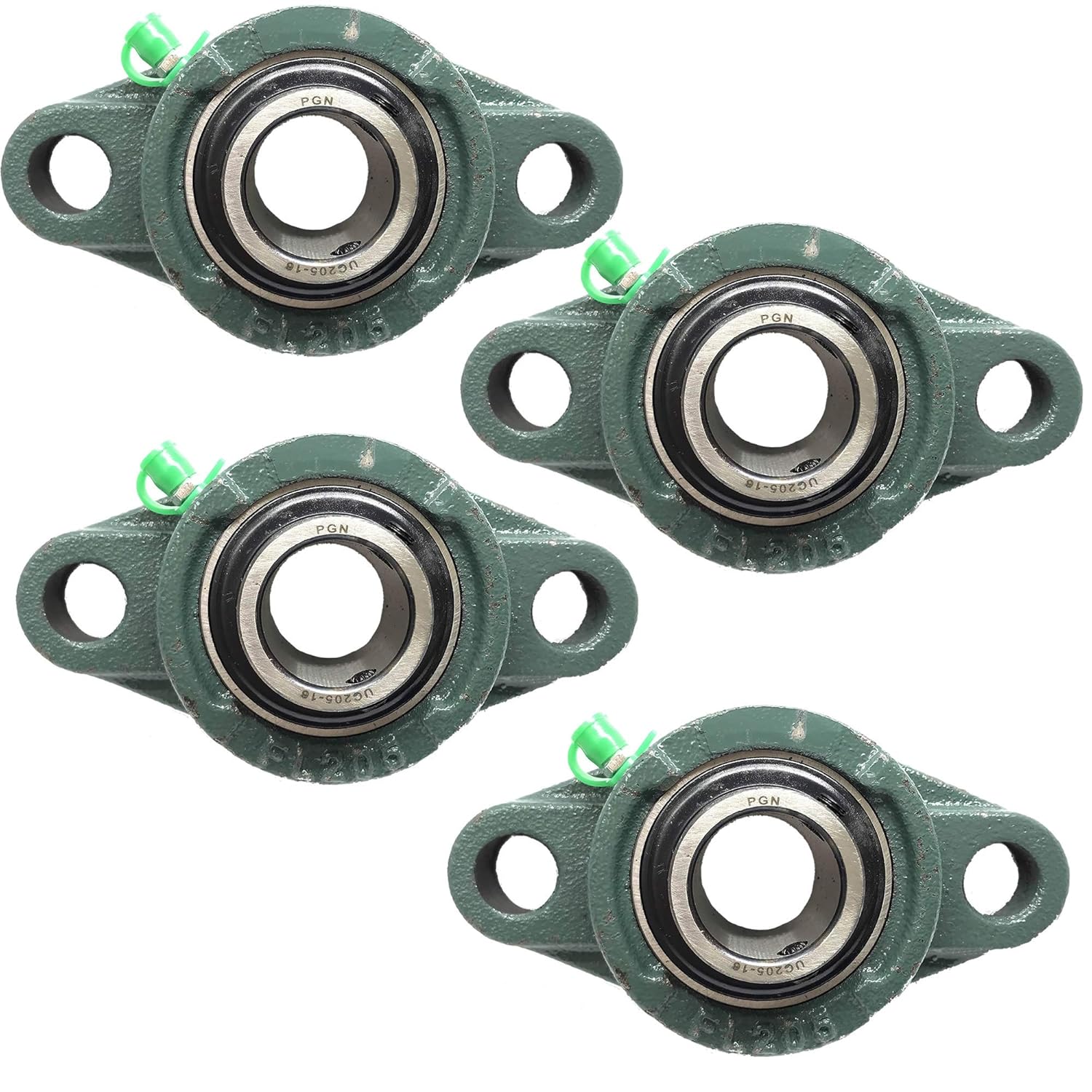

PGN - UCFL205-16 Pillow Block Flange Mounted Bearing 1" Inch Bore (4 PCS)
