14 best condensation pump for furnace
A condensation pump for a furnace is a vital component in high-efficiency heating and cooling systems.It plays a crucial role in managing the condensate that is produced during the heating or cooling process. Here's what you need to know about condensation pumps for furnaces:
Purpose:
- Condensate Management: High-efficiency furnaces and air conditioning systems produce condensate as a result of the combustion or cooling process. This condensate needs to be properly removed to prevent damage to the furnace and ensure efficient operation.
Operation:
- Collection: The condensate produced by the furnace or air conditioner is collected in a drainage pan or tray.
- Pumping: The condensation pump is responsible for pumping the collected liquid away from the furnace or air handler. It typically pumps the condensate through a small-diameter plastic or PVC pipe.
- Disposal: The pumped condensate is typically discharged into a drain or wastewater system, often through a dedicated drain line.
Key Features:
- Float Switch: Many condensation pumps are equipped with a float switch that activates the pump when the collected condensate reaches a certain level.
- Safety Overflow Switch: In addition to the float switch, some pumps have a safety overflow switch that can shut down the furnace or air conditioner if the pump fails, preventing water damage.
- Quiet Operation: Modern condensation pumps are designed to operate quietly to avoid disturbing occupants in the vicinity of the furnace or air handler.
- Easy Maintenance: These pumps are often designed for easy maintenance, with removable covers for cleaning and servicing.
Installation:
- Condensation pumps are typically installed near the furnace or air handler, often in a location where gravity drainage is not feasible.
- Proper installation includes connecting the pump to the condensate drain line and ensuring that the pump is level and securely mounted.
Maintenance:
- Regular maintenance is essential to keep the condensation pump in good working condition. This may include cleaning the pump, checking for clogs in the drain line, and testing the float switch and safety overflow switch.
Importance:
- A functioning condensation pump is critical to prevent water damage and ensure the efficient operation of the furnace or air conditioning system.
- Without proper condensate removal, water can accumulate in the furnace or air handler, leading to corrosion and reduced system efficiency.
Condensation pumps for furnaces are an integral part of HVAC systems, especially in high-efficiency units. They help manage the condensate produced during the heating and cooling process, ensuring that it is safely removed from the system to prevent damage and maintain efficient operation.
Below you can find our editor's choice of the best condensation pump for furnace on the marketProduct description
Motor — 1/30 HP
Discharge — 3/8" OD barbed
Housing/tank cover — ABS
Motor cover — ABS
Volute — ABS
Tank — ABS
Impeller — Glass filled polypropylene
Check valve — Acetal

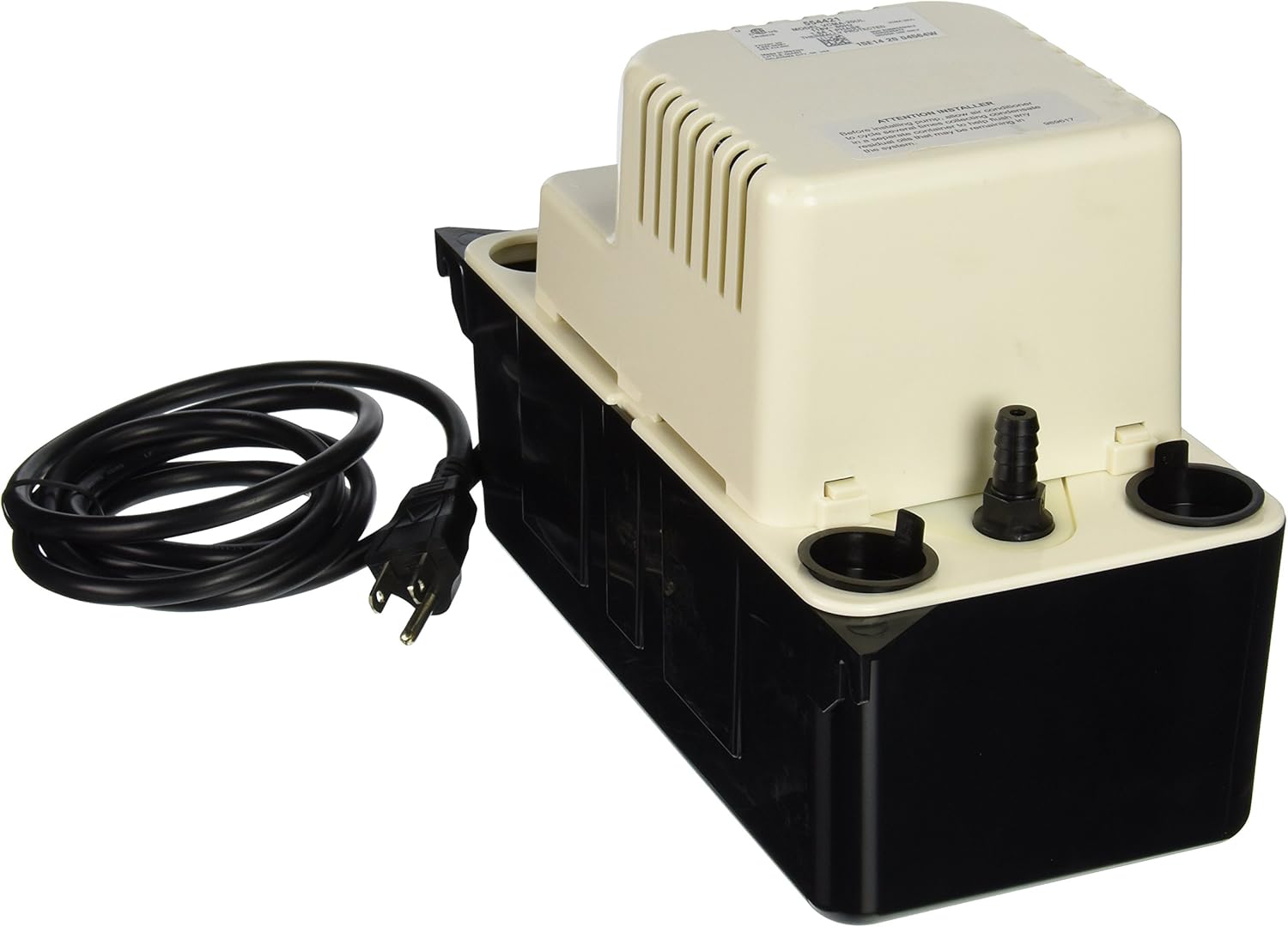

The VCMA-20ULS has a ½ gallon tank capacity. Little Giant VCMA Series is ideal for collecting, detecting and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers and other equipment where an automatic drain pump is required. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
It is designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
From the Manufacturer
Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. The VCMA-20ULS features a stainless steel pump shaft, a snap-action pump switch, a removable 3/8 inch barbed check valve, a 6 foot power cord, and a 1/30 horsepower high performance motor with thermal overload protection. The pump also features an ABS tank, ABS motor cover, and ABS volute. With a check valve, the VCMA-20ULS pumps 80 GPH (with a discharge head of one foot). The pump's tank has a capacity of 1/2 gallon.
- CONDENSATE REMOVAL PUMP: Little Giant Automatic Condensate Pump features safety switch, 1/2-gallon ABS plastic tank, and 6 ft. power cord; 1/30 HP pumps 80 gallons of water per hour
- AUTOMATIC HVAC PUMP: Ideal for collecting, detecting, and automatic removal of condensate from air conditioning equipment, dehumidifiers, high efficiency furnaces, condensing boilers, and other equipment where automatic drain pump is required
- STAINLESS STEEL MOTOR SHAFT: Vertical-type pump features stainless steel motor shaft and galvanized steel tank cover; Thermally protected motor is UL and CSA listed; Includes two 1-1/8” diameter inlet openings; Maximum water temperature: 140°F
- PUMP WITH SAFETY SWITCH: Includes safety switch which can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow; Discharge is a 1/4" FNPT or 3/8" O.D. barbed tubing adapter
- OPERATION AND WARRANTY: The Little Giant Condensate Pump is suitable for high-efficiency gas furnace applications that produce an acidic condensate; It has a 1-year warranty
- NEED ADDITIONAL ASSISTANCE? Contact the Little Giant Technical Service Line at 1.800.701.7894 if you need help with installation, warranty issues, or you have other questions about the product
User questions & answers
Question: | Does this pump have a safety switch |
Answer: | Yes, Andrew Bauer covered it well. However, you must regularly maintain the pump according to the manufacturer's instructions, or the safety switch won't work when needed. I didn't know about the maintenance requirement (thanks, installers), so my 18 year old old pump didn't stop the A/C and I ended up with water all over the place. The one time in 18 years I needed the safety switch and it didn't work! Just make sure you put pump maintenance on your calendar. |
Question: | All these pumps use 3/8" tubing. I have a 40' run (3.5' max lift). I think PVC would be easier to keep the drain line straight (no sags). Thoughts |
Answer: | A 40' run is a long way, but since your rise is only 3 1/2', that should not be a problem. I'm not a pro, but I expect the pump to work fine as long as you adhere to the 3/8" diameter. |
Question: | I want to connect this to our dehumidifier and drain out to the utility sink about 15 feet away. Can it go horizontal first then up? (about 3 feet |
Answer: | Absolutely, yes. The total "head" of your installation is only 3 feet, which is much less than the rated 15-20 feet. Should have no problem. |
Question: | Does it come with a built in check valve |
Answer: | Mine at times just stays running,check valve works. I have taken it apart and cleaned it still randomly stays running,have to pull out power cord then it works |
Product description
Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. of-the-art in pump design. If, after 30 days, you are having a problem with your Little Giant, Franklin, or Red Lion product, call the Franklin Electric Tech Support Team at 888-956-0000 for Troubleshooting and Warranty Instructions. The Tech Support Team is available M-F from 7:00am-4:30pm CST.
From the Manufacturer
Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. of-the-art in pump design. The VCMA-15ULST includes a safety switch 20-feet of tubing and a 6-foot power cord.
- CONDENSATE REMOVAL PUMP: Little Giant Automatic Condensate Pump features safety switch, 1/2-gallon ABS plastic tank, 6 ft. power cord, and 20 ft. tubing; 1/50 HP pumps 65 gallons of water per hour
- AUTOMATIC HVAC PUMP: Ideal for collecting, detecting, and automatic removal of condensate from air conditioning equipment, dehumidifiers, high efficiency furnaces, condensing boilers, and other equipment where automatic drain pump is required
- STAINLESS STEEL MOTOR SHAFT: Vertical-type pump features stainless steel motor shaft and galvanized steel tank cover; Thermally protected motor is UL and CSA listed; Includes two 1-1/8” diameter inlet openings; Maximum water temperature: 140°F
- PUMP WITH SAFETY SWITCH: Includes safety switch which can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow; Discharge is a 1/4" FNPT or 3/8" O.D. barbed tubing adapter
- OPERATION AND WARRANTY: The Little Giant Condensate Pump is suitable for high-efficiency gas furnace applications that produce an acidic condensate; It has a 1-year warranty
- NEED ADDITIONAL ASSISTANCE? Contact the Little Giant Technical Service Line at 1.800.701.7894 if you need help with installation, warranty issues, or you have other questions about the product
User questions & answers
Question: | how do you use this? how do you hook it up |
Answer: | Please note Anker USB C Hub, 5-in-1 USB C Adapter is incompatible with iPad Pro 2018 (which has a C port). We also have a note on our listing to remind customers of it. |
Question: | how do i clear the tubing going to the outside |
Answer: | Yes, it works with Samsung 9+. But it does not support Dex mode. |
Question: | How many total feet of lift is the pump rated for |
Answer: | Seems like the max 4K refresh rate is 30 Hz. Got this by looking at the 4th image which is labled 4K HD Video, at the bottom left corner, it says 30Hz in a blue circle. Secondly, Scrolling down to the product description from the manufacturer, the image right above the Vivid Video: Easily stream media to a bigger monitor or television in stunning 4K. also has the 30 Hz. |
Question: | Can this handle the volume of water excess for two humidifiers draining (2 Carrier furnaces |
Answer: | If its micro usb, theres only 5 pins at your connection, and thats all charge, and data. No hdmi. Needs more pins. |
Product description
Little Giant VCMA Series is ideal for collecting, detecting and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers and other equipment where an automatic drain pump is required. Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
From the Manufacturer
Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
- 1/30 hip high performance motor
- ABS tank, motor cover and volute
- 1/2 gallon tank capacity
- Stainless steel pump shaft
- Removable 3/8 inch barbed check valve
User questions & answers
Question: | I need a pump for my air bearing tone arm,does anyone know the output psi |
Answer: | This is basically a transfer pump that won't develope higher pressure if you are concerned about psi. |
Question: | If i plug it in so i still need to wire it for it to work |
Answer: | Nope, no more wiring will be needed. All you will need to do is ensure the water line from the A/C is in place, and the output hose is in place. It will work just fine at that point. I actually have a hose from a dehumidifier into it, as well as the line from the A/C, and it works perfectly for me. |
Question: | Do you know if this pump is 1.5 A 1 Phase |
Answer: | Hello, Yes, it is 1.5 Amps FLA and 1 Phase. Thank you, PartsZone Supply |
Question: | can the sensor be purchased separately |
Answer: | I would expect that since this unit works so well, three years for me, that it would be better to replace the entire unit rather than try to replace a sensor. |
Product description

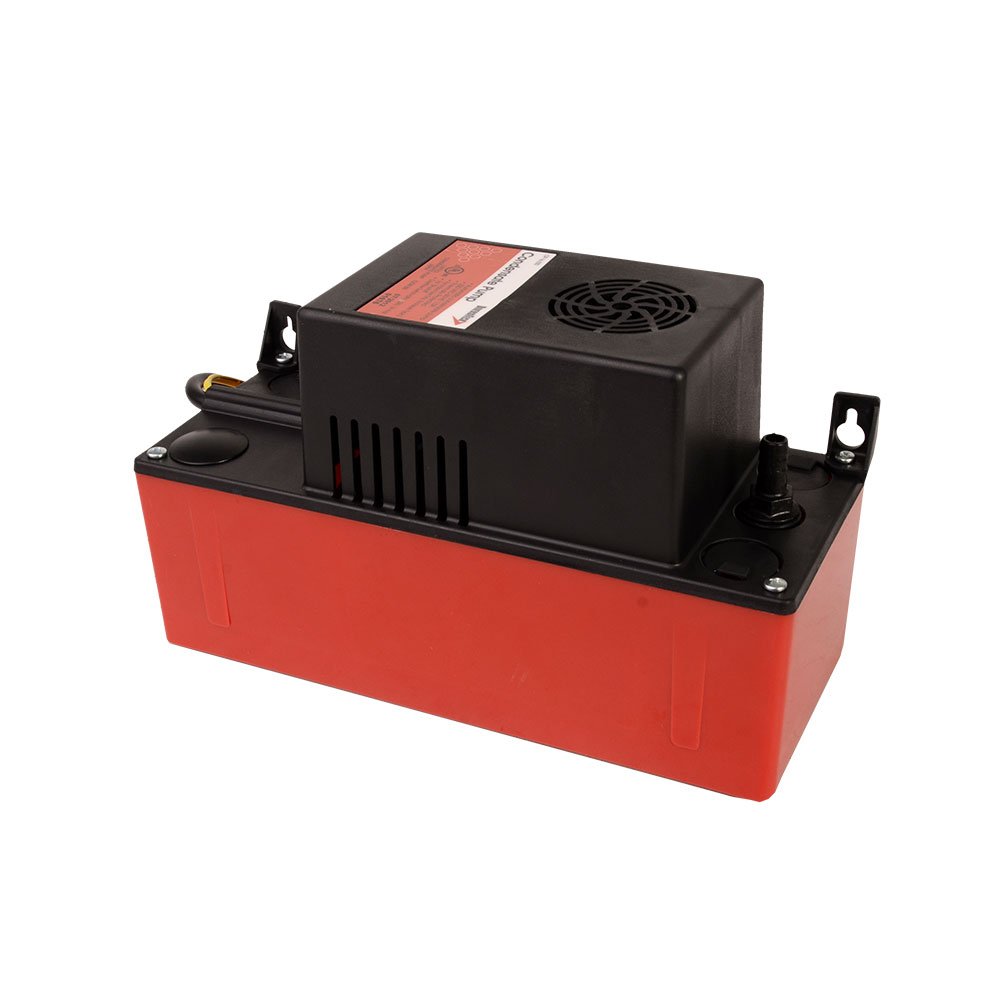

Diversities CP22 Condensate Pump includes 20 feet of 3/8" tubing and is suitable for use with condensate from HVAC systems including high efficiency furnaces and humidifiers which produce acidic condensate. This rugged pump has 22 feet of lift, compared to the typical 20 feet. Features and benefits include vibration dampening feet and motor mounts, metal hang tabs, four versatile inlet holes, an easy to understand indicator display, a simple float switch and check valve, and a pan pill dispenser. Integrating the high end CP22 into your system is easy. 1/4" inch quick connect terminals provide easy connection to the built in overflow switch. Three terminals are provided allowing the installer flexibility to connect air handler shutdown and optional alarm as needed. Switch features SPDT isolated contacts ready for connection to building automation systems. Continuous duty 140 F, maximum inlet temperature 160 F, not suitable for contact with steam or gasses that exceed 160 F.
- Country Of Origin: United States
- Model Number: CP-22T
- Item Package Dimension: 12.299999987454" L x 9.099999990718" W x 7.699999992146" H
- Item Package Weight: 6.3 lb
User questions & answers
Question: | Does it pump vertically |
Answer: | This pump is in my basement and it pumps water up to an outside port in the in the window pump works well water lift is about 8 ft. |
Question: | Is diversitech cp22t, same as cp |
Answer: | No, the t stands for tubing. It comes with tubing as the other does not. |
Question: | Is it normal for this pump to have a gurgling fountain like noise when turned up to |
Answer: | The gurgling is after the pump cuts off from removing water and air is moving back into the line. It should be fine. |
Question: | Does it come with a overfloat system shut off switch (it is a second switch that would give a signal to A/C system to shut down |
Answer: | Yes it does. It is a great unit with all the bells and whistles |
Product description
This condensate pump is suitable for use with condensate from high efficiency condensing furnaces and boilers which produce acidic condensate. 22' of lift compared to the typical 20'. Integrating the CP22 into your system is easy. 1/4" inch quick connect terminals provide easy connection to the built in overflow switch. 2 terminals are provided allowing flexibility to connect air handler shutdown and optional alarm as needed. Features Metal Hang Tabs Shatterproof stainless steel hang tabs have design for easy mounting. Tabs are located on convenient 8" centers. Indicator Lights Red, yellow, and green indicator lights show the pump status. Green for power applied, yellow for pump running, and red for high level alarm. A Float That Floats A float manufactured from foamed polyethylene is a simple, chemical and environmentally resistant, long lasting float. Rather than mold a trapped air float from a material that sinks, or use an expanded polystyrene (EPS) float, the float simply floats. Four Inlet Holes Four inlets versus two or three on other pumps provide the greatest installation versatility. Inlet holes have a reinforced wall for increased durability. Rubber Feet Rubber feet dampen vibration which reduces noise. Vibration Isolation An elastomeric motor mounting gasket dampens vibration. Check Valve Removable check valve for easy cleaning.
- The product is highly durable
- Model Number: CP-22
- Item Package Dimension: 11.799999987964" L x 6.799999993064" W x 6.199999993676" H
- Item Package Weight: 5.1 lb
User questions & answers
Question: | Que tan ruidosa es la bomba |
Answer: | Es muy silenciosa |
Question: | Is the 3/8" discharge tubing included |
Answer: | This discharge tubing is NOT included. However, it is a standardized part that can be easily obtained at your local hardware store. My tubing connected straight up with no thoughts coming from me. Great device! |
Question: | Can I wire it direct |
Answer: | It comes with a 3 prong plug but I guess if you want to cut it off and wire it in a box you could . |
Question: | Does this device have the effect of actually drying the outgoing air or does it only pump out condensation |
Answer: | This device takes the condensate from your HVAC device, coming from a drip pan, and pumps this condensate (water) out. This condensate can then be routed to a sink at a higher elevation. The outgoing air is dried out a bit, but the effect is secondary to its operation. |
Product description
HVAC Premium has been providing superior in quality service for many many years. Our products are second to none, and we’ve help numerous contractors, DIY projects, and home improvement & remodeling specialist complete their masterpiece. If you are looking for a top of the line unit to enhance your project look no further than HVAC Premium!
The HVAC Premium condensate removal tank is made and designed to automatically pump condensate water produced by A/C units, HVAC systems, dehumidifiers, and virtually anywhere you would need a condensate removal tank. Rest assured, this pump is easy to install in both new and existing applications.
Technical Specifications:
Voltage - 115V/60HZ
Length of Electric cord(m)- 1.8
Auto Switch On Sensor - Yes
L/H@0 FT - 250
GPH 1 FT - 67.57
Highest it can pump(M) - 4.6
GPH for highest - 1.24
Item size(mm) - 280x125x180
Backflow Stopper - Yes
- HVAC Condensate Removal Pump With Automatic Switch – Automatically scans, detects, and collects/removes the condensate from HVAC or Air Conditioning Equipment, dehumidifiers, furnaces, condensing boilers, and virtually anywhere a condensing pump is necessary. Suitable for Ducted Units; Floor Standing & Chassis Units; Cassette Units
- Pump Gallon is made of Flame Retardant ABS plastic, Motor Shaft is made of High Quality Flame Retardant Metal that does not corrode, and the Tank Cover is also made of High Quality Flame Retardant Metal
- Pump includes Automatic Safety Switch which can be wired to an alarm to warn of possible tank overflow ; Discharge is a 1/4" FNPT or 3/8
- Voltage is 115V/60Hz – See below in description for all TECHNICAL SPECIFICATIONS
- 100% Satisfaction Guaranteed – Don’t worry you’re covered by our 100% money back guarantee no questions asked.
Product description
Superior Pump 97154 Condensate Pump 1/50 HP with Safety Switch, 20ft Tubing and Stainless Steel Hose Clamp. Superior Pump builds condensate pumps that are truly built to last and are 100% factory tested. Superior Pump uses quality components including solid copper motor windings, heavy duty stainless steel drive shafts, high strength ABS tanks/housings, reinforced thermoplastic impellers, fan cooled thermally protected motors, 6’ power cords, barbed fitting discharges with internal check valves, and durable automatic switches. Superior Pump Condensate Pumps are designed for automatic removal of condensate from air conditioning coils, dehumidifiers, ice makers and refrigeration equipment when a drain is not accessible or practical. Pumps can also be used for high efficiency oil and gas-fired condensing furnace, tankless water heaters, and boiler equipment. Pumps feature four 1-1/8” inlet caps for ultra-easy drain pipe installation. Two stainless steel wall mount tabs can be installed on either side of the pump allowing pump to be mounted in most locations. Superior Pump model 97154, 1/50 HP 115 Volt Condensate Pump with 20 ft hose, will move water up to 88 gallons per hour and features a built in dual function safety switch with 8” leads. Pump is CSA certified and backed by a 1 year warranty.
- 1/50 HP Thermally protected fan cooled 115 Volt motor with automatic operation and stainless steel motor shaft
- Pump will move up to 88 gallons per hour and max head of 18 vertical feet
- 3/8" barbed discharge with built in check valve; 1/2 Gallon collection tank with four 1-1/8" inlet openings and removable caps
- Dual function NO (normally open) and NC (normally closed) safety switch with 8" lead wires
- Stainless steel wall mount tabs included; 6' power cord
User questions & answers
Question: | Does this unit pump and turn off automatically depending on moisture presence |
Answer: | This thing draws 25 watts. At 110 V that's less than 0.3 amps. Come on people, that's so little pretty much any extension cord can handle it without ANY significant voltage drop! Please before you answer, do a little math! |
Product features
Superior Pump 97154 1/50 HP Condensate Pump with Saftey Switch, 20ft Tubing and Stainless Steel Hose Clamp
Superior Pump uses quality components including solid copper motor windings, heavy duty stainless steel drive shafts, high strength ABS tanks/housings, reinforced thermoplastic impellers, fan cooled thermally protected motors, 6 ft. power cords, barbed fitting discharges with internal check valves, and durable automatic switches. Pump is designed for automatic removal of condensate from air conditioning coils, dehumidifiers, ice makers and refrigeration equipment when a drain is not accessible or practical. Pump can also be used for high efficiency oil and gas-fired condensing furnace, tankless water heaters, and boiler equipment. Pumps feature four 1-1/8 in. inlet caps for ultra-easy drain pipe installation. Two stainless steel wall mount tabs can be installed on either side of the pump allowing pump to be mounted in most locations. Pump will move water up to 88 gallons per hour and features a built in dual function safety switch with 8” leads. CSA certified (230584, by CSA, 2020).
Quality High Performance Motor
- 1/50 HP Motor
- High performance up to 88 gallons per hour.
- Fan cooled motor
- Large fan keeps motor cool which improves performance and increases pump longevity.
- Solid cooper motor windings
- Improves motor performance and efficiency.
- Safety switch
- Dual function NO (Normally Open) and NC (Normally Closed) safety switch with 8" lead wires.
Removable Check Valve
- Four 1-1/8 in. inlets
- Unique design allows drain pipe to be installed into any of the four inlets which makes pump easy to install in many locations.
- Includes 3 Inlet caps
- High quality inlet caps seal the tank and help to prevent liquid from exiting the pump.
- 3/8 in. OD barbed discharge
- Barbed discharge easily installs to most types of flexible discharge tubing.
- Internal removable check valve
- High quality ball type check valve prevents water in the discharge tube from flowing back into the tank.
- Easily removes for service.
Hose Kit, Impeller, Drive Shaft, ABS Construction
- 3/8 in. x 20 ft. Vinyl tubing and stainless steel hose clamp.
- Reinforced thermoplastic impeller
- 6 blade design for improved performance.
- Specifically designed for condensate applications.
- Heavy duty stainless steel drive shaft
- Ultra corrosion resistant.
- Recommended when used with high efficiency oil and gas furnaces.
- SOLID stainless steel.
- Heavy duty ABS construction
- Pump tank, motor cover, and upper pump housing are made from high quality ABS.
Automatic Operation with Backup Switch
- Automatic primary switch
- Automatically turns on and off pump depending on the water level in the tank.
- Automatic safety switch
- Will shut down condensing unit*, furnace* or thermostat* if condensate pump or system were to malfunction.
- Can be used to activate an external alarm* or relay* if condensate pump or system were to malfunction.
- 6 ft. power cord with ground
- High quality cord construction
- Built-in ground for increased safety
*Not Included
ABS Tank and Mounting Tabs
- Two stainless steel wall mount tabs
- High quality and ultra strong.
- Corrosion resistant.
- Slotted screw hole for easy installation and service.
- Four mounting tab slots
- Mounting slots located on both long sides of the pump. This allows pump to be mounted on either long side.
- High strength ABS collection Tank
- 1/2 Gallon capacity.
- Ribbed design improves strength.
- Easily removable for service.
Multiple Applications
- Removal of condensate from:
- Air conditioning coils
- Dehumidifiers
- Ice makers
- Refrigeration equipment when a drain is not accessible or practical
- High efficiency oil furnace
- High efficiency gas-fired condensing furnace
- Tankless water heaters
- Boiler equipment
Product description

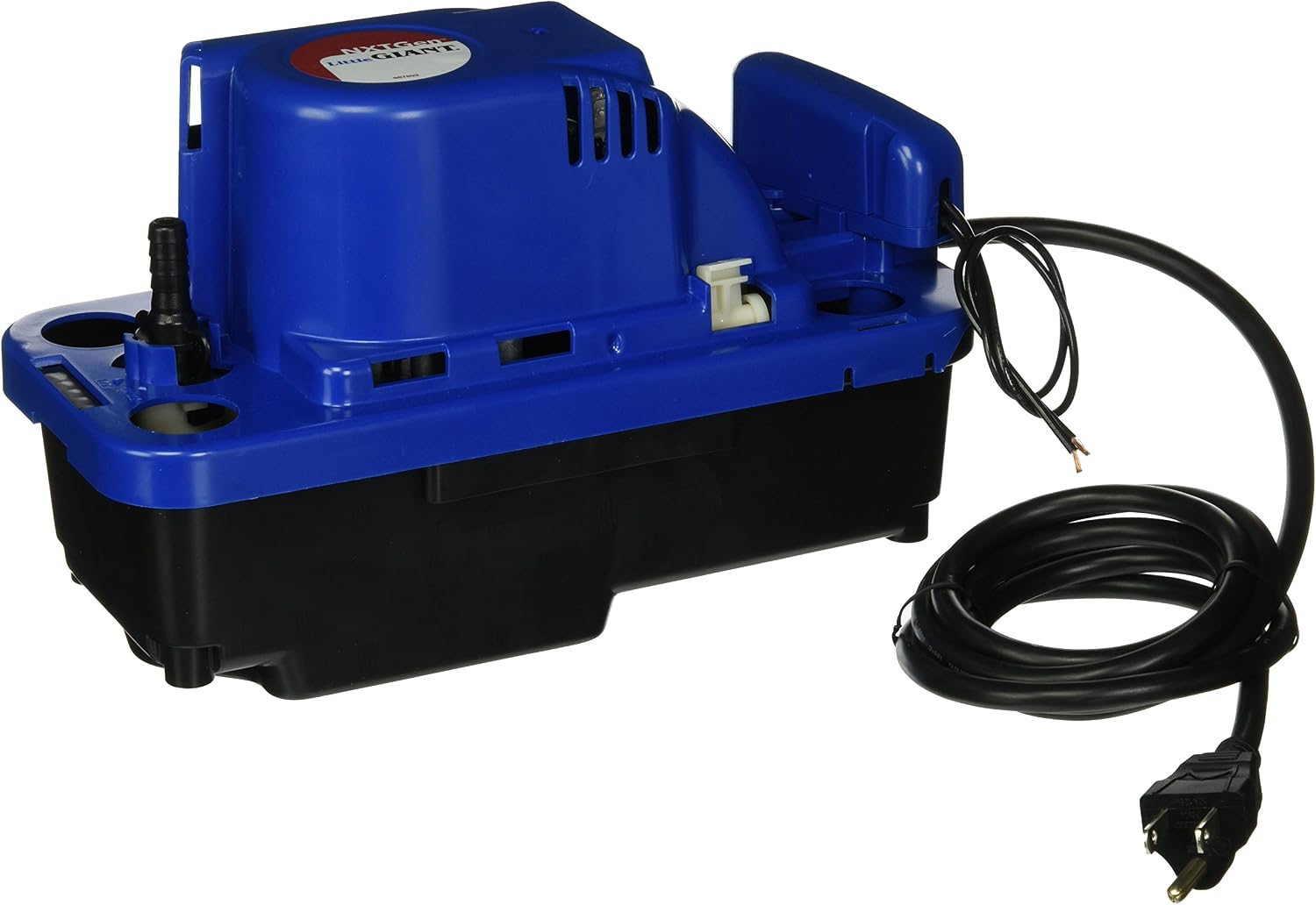

With Little Giant's latest technology, the VCMX Series is ideal for collecting, detecting, automatically removing condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Product Features: 1/30 Horse Power with overload protection New cooler running motor which extends the life of the pump Designed for continuous duty Covered by 12 month limited warranty Does not handle solid particulates Cover made from: Plastic Housing made from: Plastic Impeller made from: Glass-filled polypropylene Switch Type: Automatic Single phase operation 20' Cord included cCSAus listed Product Specifications: 1/30 Horse Power Voltage: 115V 1.5 Amp maximum operation 3/8" Discharge diameter Length: 10-3/10" Width: 5-1/10" Height: 6-4/5" Flow rates (GPH: gallons-per-hour): At 1 feet of head: 84 At 5 feet of head: 75 At 10 feet of head: 60 At 15 feet of head: 42 At 20 feet of head: 10 Shut Off (maximum head height): 21' If, after 30 days, you are having a problem with your Little Giant, Franklin, or Red Lion product, call the Franklin Electric Tech Support Team at 888-956-0000 for Troubleshooting and Warranty Instructions. The Tech Support Team is available M-F from 7:00am-4:30pm CST.
- Price For: Each Item: Condensate Pump Length: 10-5/16" Width: 5-7/64" Height: 6-51/64" GPH of Water @ 20 Ft. of Head: 10 GPH of Water @ 40 Ft. of Head: - Includes: Safety Switch Assembly, 6 ft. Power Cord, Thermal Overload Protector, Tank Anti-Sweat Sleeve with Bracket, Turn Check Valve Item: Condensate Pump HP: 1/30 Watts: 93 Voltage: 115 Amps: 1.5 Discharge: 3/8" Barb
- Float Material: Polypropylene GPH of Water @ 1 Ft. of Head: 84 GPH of Water @ 5 Ft. of Head: 75 GPH of Water @ 9 Ft. of Head: 64 GPH of Water @ 12 Ft. of Head: 54 GPH of Water @ 15 Ft. of Head: 42 Shaft Material: Stainless Steel Standards: cCSAus GPH of Water @ 30 Ft. of Head: - Shut-Off: 21 ft. Reservoir Capacity: 1/3 gal. Max. Temp.: 140 Degrees F Pump Type: Vertical Cord Length: 6 ft.
- Country of Origin (subject to change): Mexico
User questions & answers
Question: | Where does the safety switch wire to? My currently pump does not have this, so can I just leave the wires hanging |
Answer: | you mount it below a condensate drain, when the lower box gets full the pump turns on, and pumps the condensate thru the supplied tube to a drain or outside to the ground. |
Question: | What does the -C stand for in the model number |
Answer: | Shove a heavy gauge weed-wacker string through it. If that doesn't work try compressed air or replace the tube. You can get the replacement tube from Amazon. |
Question: | Is it normal for this poem to be so noisy I can hear it all the way through the house when it pumps |
Answer: | Look at the graph in the pictures As the pumping height increases the the flow rate decreases. At 10 feet it pumps 10 gallons per hour At 15 feet it pumps 0 gallons per hour |
Question: | I don’t see rubber feet enclosed... Does it have to be included? How should I level it on bracket it the tank doesn’t have flat bottom |
Answer: | I would say that should be no problem. As soon as the black tub fills, it triggers the pump, which is a great little workhorse. The pump capacity will be much more then the dehumidifiers. |
Product description
Condensate PumpFeatures:Vertical type pump unit1/2 gallon leakproof, rustproof, ABS tank with mounting tabsStainless steel motor shaft3 drain holes3/8" O.D. barbed discharge adapterBuilt-in check valve' shut-off head6' power cordUL/CSA listedThermal overload protectedSuitable for high-efficiency, gas furnace condensateConstruction:Motor . 1/30 HPIntermittent Liquid Temp. up to . 120DegreeFDischarge . 3/8" OD barbedHousing . ABSCover . ABSVolute . ABSImpeller . Glass filled polypropyleneSpecifications:Horsepower . 1/30Flow . 80 GPH at 1' of HeadCord Length . 6'Shut Off . 20Voltage . 115Hertz . 60Amps . 1.5Watts . 93Weight . 6Height . 7Width . 5Length . 11.
From the Manufacturer
Condensate PumpFeatures:Vertical type pump unit1/2 gallon leakproof, rustproof, ABS tank with mounting tabsStainless steel motor shaft3 drain holes3/8" O.D. barbed discharge adapterBuilt-in check valve' shut-off head6' power cordUL/CSA listedThermal overload protectedSuitable for high-efficiency, gas furnace condensateConstruction:Motor . 1/30 HPIntermittent Liquid Temp. up to . 120DegreeFDischarge . 3/8" OD barbedHousing . ABSCover . ABSVolute . ABSImpeller . Glass filled polypropyleneSpecifications:Horsepower . 1/30Flow . 80 GPH at 1' of HeadCord Length . 6'Shut Off . 20Voltage . 115Hertz . 60Amps . 1.5Watts . 93Weight . 6Height . 7Width . 5Length . 11
- UL/CSA listed
- 1/30 HP motor
- 1/2 gallon ABS tank, motor cover and volute
- Removable 3/8" barbed check valve
User questions & answers
Question: | If pump fails, will water spill out or back up in the input line? I want to use with dehumidifier which has auto stop, prefer it to back up |
Answer: | You can use Little Giant but not the VCMA-20 series. Your original Hartell pump is 115 volts, the VCMA-20 is 230 volts. If you want to use Little Giant, use the VCMA-15 series. |
Question: | How many gallons does it pump in an hour |
Answer: | Shipping is 5 to 7 days and one year warranty. I have hard water and it lasts about 6 years, and I buy the rebuilding kit to restore the unit. |
Question: | There are so many models. Which one do I buy? I need to pump 8 ft high and 55ft down a long basement to sump pump |
Answer: | Correct. The pump starts via a float switch that is integrated into the unit. The water has to reach a certain level within the bottom housing then the pump will start. |
Question: | What is the difference between the VCMA 20UL, the 20ULS, the 20ULT, and the 20ULST |
Answer: | No that is optional |
Product description
Little Giant's latest technology, VCMX Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. The VCMX-20ULST features a 1/30 HP high performance motor with patent-pending cooling design to increases pump life. The oil-resistant tank and check valve eliminates the problem of cracked tanks with exposure to oil. The pump also features a 1/4 turn check valve which allows servicing without removal of tubing. This feature helps to eliminate water spills. This pump includes a mounting bracket for easy installation, a safety switch, a 6 foot power cord, and 20 feet of tubing. The pump's rubber feet absorb vibration on hard surface installations and its slimmer footprint size offers flexibility in tight spaces. The VCMX-20ULST pumps 84 GPH at a discharge head of one foot.
- 1/30 hp high performance motor
- Fully automatic: start, stop, safety switch
- Check valve outlet: 3/8" (9.5 mm), for 3/8" (9.5 mm) ID
- CCSAus listed
- Options: safety switch, 20 ft (6 m) of 3/8" (9.5 mm) tubing, and anti-sweat sleeve
User questions & answers
Question: | I have an overflow pan for my central a/c unit. Can this pump sit in the pan to drain if the pan becomes full or does it eliminate the pan by pumping directly from the a/c. Have already had one ceiling lick because of a clogged drain line. Thanks for any info |
Answer: | The pump replace the pan and has an automatic shut off that can be connected to heat/air system to shut it down so humidifier and airconditioner are also shut off if pump fails. The pump can be set up to pump to drain or sink. |
Question: | My pump has stopped working, can I temporarily use just a hose that drains the water until I get another pump, or will that harm my furnace |
Answer: | You may want a pro to check out what you have but I would not risk water damage inside a house or damage to the furnace. |
Question: | What does the safety switch do |
Answer: | Per the manufacturer: http://www.franklin-electric.com/media/documents/995641.pdf**Some models equipped with external, float activated switchfor automatic high level water detection(safety overflow switch)**For models with safety overflow switch: dual function NOand NC operation (set to NO from factory for equipmentshut down connection)**Models equipped with safety overflow switch includetwo 5" switch lead wires |
Question: | does the pump fits in a dehumidifiers trays |
Answer: | it is not made to be inside a dehumidifier tray. you will need to rub a tube or garden hose from the drain on the humidifier drain tub to the hole on top of the pump. then it will pump the water out from the pump holding tank. |
Product description
Engineered for exceptional reliability, the Raybend AC Condensate Pump is perfect for both new and replacement applications. Everything included ensures an easy installation. This is an extremely reliable condensate pump for air conditioner units, furnaces, and dehumidifiers. The pump's motor is encapsulated in epoxy to eliminate any exposure to water and moisture. This condensate pump uses synchronous motor technology for durability and quiet operation.
- Automatically detects and removes condensation from dehumidifiers, furnace, or AC - Condensate pump with a 1/20 HP high-performance motor that creates up to 18 feet of lift
- High-quality condensate pump for air conditioner, dehumidifier, or furnace
- Built-in safety switch that shuts off the connected unit’s power if the reservoir tank reaches an unsafe level
- Maximum flow rate: 173 Gallons Per Hour
- Includes 3/8" discharge hose
User questions & answers
Question: | Can I use garden hose (3/4") as inlet from dehumdifier to this pump? or do I need adapter to convert from 3/4" garden hose |
Answer: | The issue of flammability is not likely with the pad, but the flammability of hay/straw and styrofoam. If you do use an electric heating pad or light bulb around hay/straw, styrofoam or other flamable products, expect those materials to ignite and burn. For example, if you're using straw inside a cat shelter, expect the shelter to burn/melt and loose the investment as well as now having a BBQ cat. The same with a barn, however a barn will be a larger investment likely not easily recoverable from. Judging possibly risks, the cat, even within a small dedicated cat shelter, may not awake and may also suffer carbon monoxide exposure, possibly injurying or killing, especially the younger cats. Would I put electrical devices around hay or styrofoam, likely not unless I actively monitored the light bulb and/or heating pad! Search YouTube videos for other hay/stray electrical fires with farm/barn animals! |
Question: | what are the inlet sizes |
Answer: | Since I use mine outdoors in a cat house for the local strays, I do place an old thin towel on top of the light fleece cover that the warmer comes with. This way I can wash it and the cover doesn't get dirty. I would not use a cat bed on top of it. I'd be concerned that the bottom of the bed would get heated, but not the cat. |
Question: | Can I set the unit into a small bucket and have it drain automatically when the water gets to that level? The ac unit drips into a small bucket |
Answer: | If you can get your cat to lay on it, it should be fine (it is hard, but I bought one with a fleece cover). It is my understanding that the power doesn't "shut off" at 40 degrees, but the heating element does. I didn't use this long (literally about 5 hours total) as it didn't work for me, but please review some of the other comments re this product. Some people did have problems with burning of the elements, but others love it, have multiple ones and have no problems. I use "Snuggle safe" discs instead, which can provide @ 8-12 hours of heat after microwaving (if you get be sure to follow directions, do not overheat). You can control how hot these get by how long you microwave it, so these worked better for me & I didn't have to bother with cords/electricity. I placed mine under towels or blankets & used indoors or outdoors as needed. I've used for both feral outdoor and elderly indoor cats. Ive also used self-warming pads, and those worked well for indoor cats. |
Product description
HVAC Premium has been providing superior in quality service for many many years. Our products are second to none, and we’ve help numerous contractors, DIY projects, and home improvement & remodeling specialist complete their masterpiece. If you are looking for a top of the line unit to enhance your project look no further than HVAC Premium!
The HVAC Premium condensate removal tank is made and designed to automatically pump condensate water produced by A/C units, HVAC systems, dehumidifiers, and virtually anywhere you would need a condensate removal tank. Rest assured, this pump is easy to install in both new and existing applications.
Technical Specifications:
Voltage - 115V/60HZ
Length of Electric cord(m)- 1.8
Auto Switch On Sensor - Yes
L/H@0 FT - 250
GPH 1 FT - 67.57
Highest it can pump(M) - 4.6
GPH for highest - 1.24
Item size(mm) - 280x125x135
Backflow Stopper - Yes
- HVAC Condensate Removal Pump With Automatic Switch – Automatically scans, detects, and collects/removes the condensate from HVAC or Air Conditioning Equipment, dehumidifiers, furnaces, condensing boilers, and virtually anywhere a condensing pump is necessary. Suitable for Ducted Units; Floor Standing & Chassis Units; Cassette Units
- Pump Gallon is made of Flame Retardant ABS plastic, Motor Shaft is made of High Quality Flame Retardant Metal that does not corrode, and the Tank Cover is also made of High Quality Flame Retardant Metal
- Pump includes Automatic Safety Switch which can be wired to an alarm to warn of possible tank overflow ; Discharge is a 1/4" FNPT or 3/8
- Voltage is 115V/60Hz – See below in description for all TECHNICAL SPECIFICATIONS
- 100% Satisfaction Guaranteed – Don’t worry you’re covered by our 100% money back guarantee no questions asked.
Product description
The product Cond. Pump, 120v, 16Ft Lift. The product is highly durable. Product Category > Rough Plumbing. Made in Vietnam.
- The product is highly durable
- Model Number: CP-16
- Item Package Dimension: 13.0" L x 16.0" W x 15.0" H
- Item Package Weight: 5.0 lb
User questions & answers
Question: | Does this come with the drain tubing |
Answer: | I had both the medium size and the large size of this pet bed warmer. My cats preferred the medium. Even though it is long and narrow, it gives them a choice; the whole bed is not heated but if they get too warm they could roll off of it without having to leave the bed. The large one gave them no option in the cat bed so I put it on the couch where they could still use it but could roll off of it partway when too warm. Unfortunately the large one somehow became WAY TOO HOT I think the thermostat broke. I didn't realize it until my sick old cat would not lie down, and when I put my hand on it, it was scorching hot! I cut off the cord and threw it out so no one else would try to use it. The medium ones have always worked well for me. I would think you could bend the large one somewhat up the side of the cat's bed but you might want to consider the medium size so they can choose whether to lie directly on the heat or not. I realize your question is an old one but maybe this will help you or someone! |
Question: | is this quieter than the little giant 1/50hp? completely new to these pumps but little giant seems very loud for what it is |
Answer: | I only buy the K&H heating pads for my cats. The reason is they are low wattage and hold a constant 101 temperature which is the body temperature of a cat. I have used this heating pad for over 15 years. I wouldn't use any other brand they last a long time. |
Question: | What inner diameter size tubing does it need for the discharge |
Answer: | This product is meant to be put inside of a pet's bed under 1/2" to 1" of fabric. We do not supply separate covers for this product. |
Question: | I will have a 10ft lift then a straight run of about 14 feet of tubing then about 5ft down to the drain. Will this pump be enough |
Answer: | For those who want to know, the cost per day can be figured out by: (watts/1000) * hours * cost per kilowatt-hour. So, if you're using the 4 watt model, 24 hours, with an electric rate of 13 cents per kWH, then it would be: (4/1000)*24*.13 = $0.012 dollars per day. Or in other words, about 37 to 38 cents per month. |
Product description
Keep that condensate out of your atmosphere with this Little Giant VCMA 15ULS Series 1/50 HP Condensate Removal Pump. For removal of condensate air from air conditioners, gas furnaces, and condensing boilers, this 1/50 HP pump gets the job done. It has a half-gallon ABS tank, motor cover, volute, stainless steel shaft, and a snap action switch. It features 3 inlet drain holes, thermal overload protection, and a safety switch. Rid of the condensate in your life with this Little Giant VCMA 15ULS Series 1/50 HP Condensate Removal Pump.
User questions & answers
Question: | I’m using this for a dehumidifier that will be run 24.7. Is this pump strictly plug and play |
Answer: | The top, where the drain needs to enter pump, is 1 3/4” from floor. If pan is flat on floor it will be about same elevation, I think - so - no. If you can somehow get the pump lower or if you replace water heater - raise heater ... |
Question: | Hooked unit up and Not draining |
Answer: | It can connect to the Ac to shut it down but it needs to be plugged in by itself |
Question: | Can I attach a central AC drain and a dehumidifier drain |
Answer: | I don't know the answer. Google and contact the Little Giant folks. |
Question: | Can this be an easy replacement for a failing Hartell Kt3x-1ul |
Answer: | it has a lengthy "whoosh" as it is pumping the water (10-12 seconds). The whoosh is quiet and certainly not irritating at all. Indeed I sometimes like to hear it to know my whole house humidifier is running...it is quieter than my furnace (which is quiet--and new)...but the air flow of the furnace masks any sound from the pump. With a door closed, you will not hear much... |
Latest Reviews
View all
Just For Men Beard Trimmers
- Updated: 08.03.2023
- Read reviews

Mabis Body Tape Measures
- Updated: 25.07.2023
- Read reviews

Optima Marine Battery Chargers
- Updated: 06.05.2023
- Read reviews

Battery For Rvs
- Updated: 14.05.2023
- Read reviews

Car Audio Battery
- Updated: 02.05.2023
- Read reviews
