12 best diaphragm valves

Product description

The unique design of the Studor Mini-Vent provides plumbing ventilation to prevent the loss of water seals in traps without the need for costly roof penetration and vent piping. Studor Mini-Vent Air Admittance Valve with PVC Adapter is a one way valve used for branch or single fixture ventilation. It protects the water trap seals and does not allow sewer gases and smells to leak into the living space. When a negative pressure in the drainage pipe occurs, the valve opens to allow the entrance of air. When the pressure is balanced the Mini-Vent closes absolutely tight, so the foul air cannot escape. Fits: 1-1/2 or 2-inch x 2.625-inch vent height x 2-inch vent diameter. PVC construction with a temperature rating of -40 to 150 deg F.

From the Manufacturer

The Mini-Vent is a solution for any single fixture and for a group of fixtures connected to a single branch, i.e. branch ventilation in residential/domestic and commercial applications. It can also be used with other Studor AAVs to complement larger and high rise building drainage systems and is ideal for all single fixtures: washing machines, toilets, sinks, baths and showers, etc.

• Compact air admittance valve with PVC adapter
• Ideal for a single fixture or group of fixtures; capacity of 160 DFUs (drain fixture units) on a branch and 24 DFUs on a stack
• Creates ventilation that prevents the loss of water seals in traps; uses gravity to automatically close seal and prevent circulation of unpleasant bathroom or drain odors
• Fits 1-1/2- and 2-inch piping; temperature rating of -40°F to 150°F (-40°C to 65.6°C); complies to ANSI/ASSE 1050 and 1051; this style air admittance valve is not recognized as a mechanical vent in the International Building Code
• Exclusive vermin protection system keeps out bugs and foreign objects

User questions & answers

Question:	Why is this product listed under electronics > computers&accessories > networkingproducts > networkadapters > powerlinenetworkadapters
Answer:	Amazing hose expands to double its length and then miraculously returns to its original size when water shuts off.
Question:	Are these suitable for exterior vent pipes
Answer:	Usually take my hoses "inside" in the winter, so have no experience with an expandable hose in winter weather
Question:	what is life span for mini vent
Answer:	Yes, this hose should work great for the boat.
Question:	will the threads screw into a 1 1/2 threaded fitting
Answer:	Hello, We offer a 1 year warranty on our hoses. Please email our support team at [email protected] so we may assist you. Thank you.

Product features

Mini-Vent Air Admittance Valve with PVC Adapter

With its compact design, the Studor Mini-Vent Air Admittance Valve with PVC Adapter offers a simple drain and waste venting solution.

Great for venting a single fixture or a group of bathroom fixtures, the Mini-Vent air admittance valve is designed to fit 1-1/2- and 2-inch pipes and excels in tight applications. This one-way valve automatically opens and takes in fresh air when negative pressure (suction) occurs from a fixture discharging into the plumbing system.

Ideal for a Single Fixture or Group of Fixtures

Designed for residential and commercial use, the Studor Mini-Vent Air Admittance Valve (AAV) can be used in conjunction with other Studor AAVs to complement larger high-rise building drainage systems. With a capacity of 160 DFUs (drain fixture units) on a branch and 24 DFUs on a stack, this economical negative pressure valve creates essential ventilation that prevents the loss of water seals in traps, eliminating the need to install expensive and unsightly roof penetrations and vent piping.

Uses Gravity to Automatically Close Seal

When the water flow stops, the Mini-Vent closes naturally due to gravity, preventing the circulation of any unpleasant bathroom or drain odors.

The active air valve is designed with an exclusive vermin protection system to keep out insects and foreign objects.

Product description

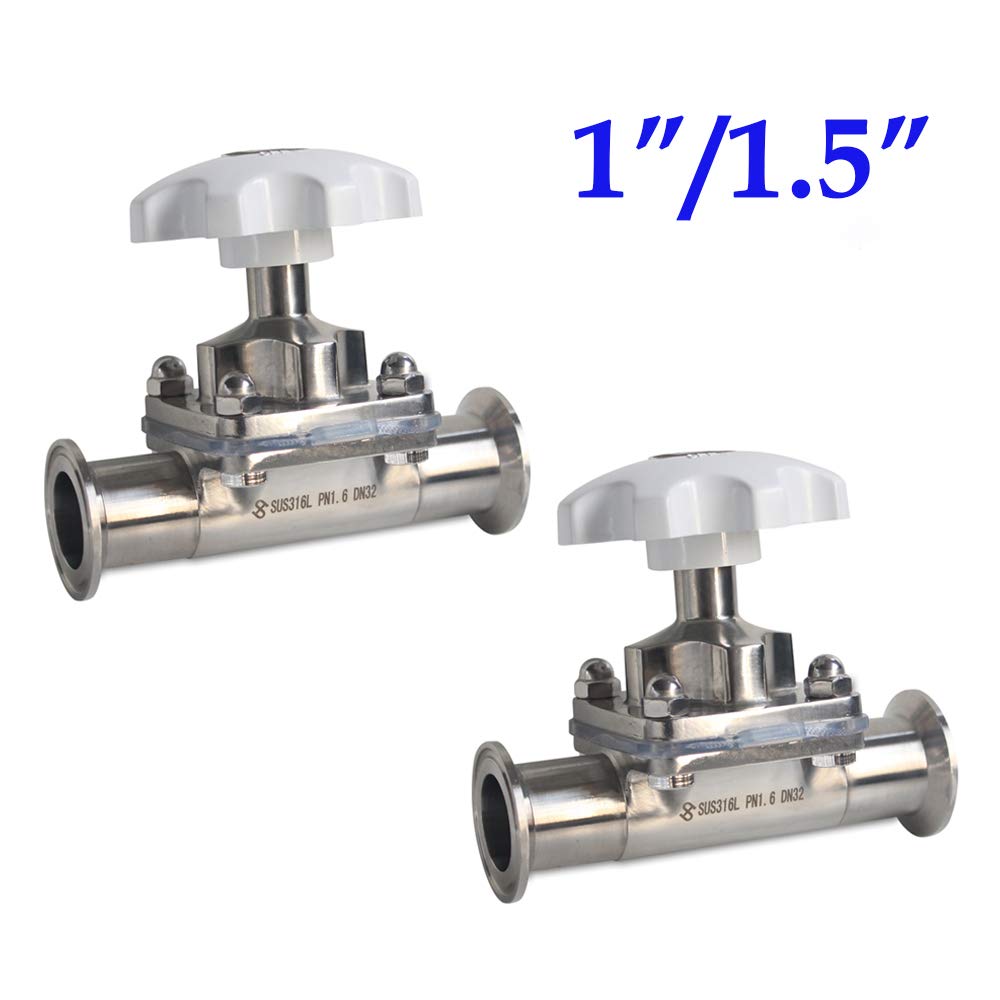

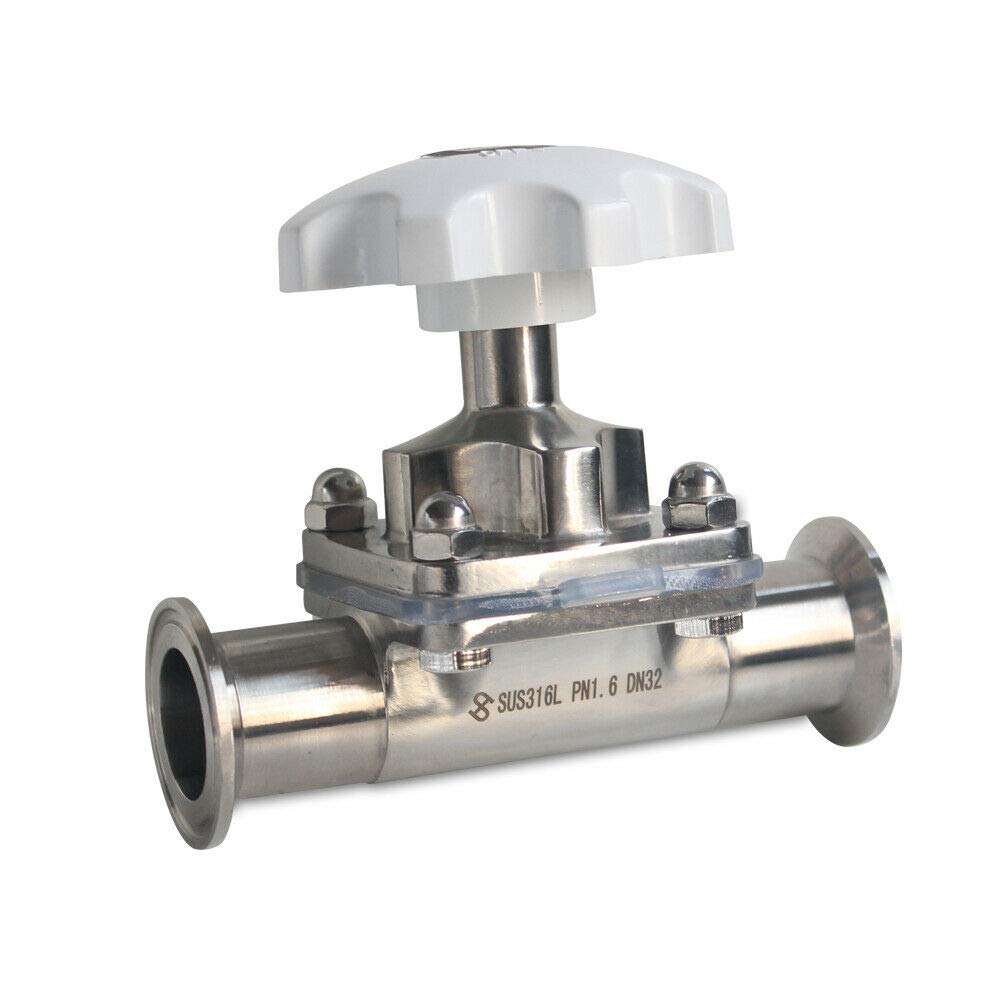

This forged/cast stainless steel diaphragm valve is suitable for controlling ultra-pure, sterile, corrosive or abrasive fluids. It is sealed from harsh fluids by high-quality neutral chemical diaphragms for a variety of applications. Such as food and beverage, pharmaceutical, biotechnology, semiconductor industry, etc.





product manual

Medium temperature : -10°C～+150°C

Body material : Stainless steel SUS316L

Sealing material: EPDM, PTPE, Silicone

Surface polishing accuracy um : Outside Ra<6.3-Inside Ra<0.5

Drive mode: pneumatic

Working pressure : PN1.0

Connection method : Clamp type

Applicable medium: water, oil

Industry standard: ISO SMS 3A DIN



The package contains:

1* valve

• ♛ SPECIFICATION - medium temperature: -10°C~+150°C; main material: stainless steel SUS316L; sealing material: EPDM, PTPE, silicone resin; surface polishing accuracy um: external Ra <6.3-internal Ra <0.5.
• ♛ CONTROL FLUID - This forged/cast stainless steel diaphragm valve is suitable for controlling ultrapure, sterile, corrosive or abrasive fluids.
• ♛ WORKING PRINCIPLE - stainless steel diaphragm valve is sealed from harsh fluids by high-quality neutral chemical diaphragms for a variety of applications.
• ♛ APPLICABLE PLACES - The stainless steel diaphragm valve can be used in different fields such as food, beverage, pharmaceutical, biotechnology, semiconductor industry and so on.
• ♛ THE PACKAGE CONTAINS - 1 valve.If you have any questions, you can contact KOUGER customer service, we will give you a satisfactory answer within 24 hours!

Product description

All the products are shipped from US warehouse(CA or NJ)!

All the products are shipped from US warehouse(CA or NJ)!

All the products are shipped from US warehouse(CA or NJ)!



Specification:

- Medium temperature : -10°C～+150°C

- Body material : Stainless steel SUS316L

- Sealing material: EPDM, PTPE, Silicone

- Surface polishing accuracy um : Outside Ra<6.3-Inside Ra<0.5

- Drive mode: pneumatic

- Working pressure : PN1.0

- Connection method : Clamp type

- Applicable medium: water, oil

- Industry standard: ISO SMS 3A DIN



Features:

- This forged/cast stainless steel diaphragm valve is suitable for controlling ultra-pure, sterile, corrosive or abrasive fluids.

- It is sealed from harsh fluids by high-quality neutral chemical diaphragms

- Suit for a variety of applications such as food and beverage, pharmaceutical, biotechnology, semiconductor industry, etc.



The package contains:

- 1* valve

• ★Medium temperature : -10°C～+150°C
• ★This forged/cast stainless steel diaphragm valve is suitable for controlling ultra-pure, sterile, corrosive or abrasive fluids.
• ★It is sealed from harsh fluids by high-quality neutral chemical diaphragms
• ★Suit for a variety of applications such as food and beverage, pharmaceutical, biotechnology, semiconductor industry, etc.
• ★Shipping from USA, only 3- 5 days delivery.

Product description

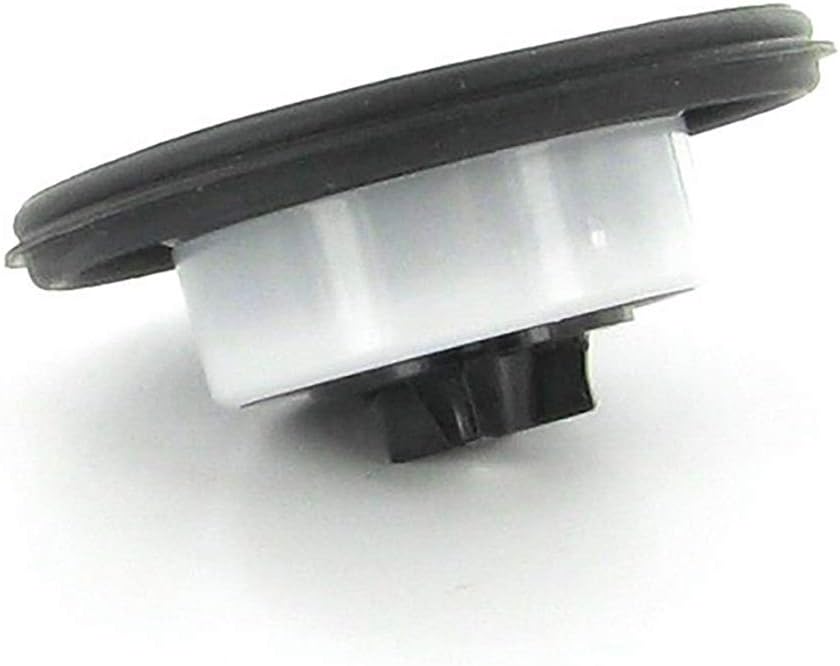

Restore your in-line and anti-siphon valve to optimal operation with the Toro SANTOPRENE Diaphragm for Jar-Top Valves.

• Power source type: Hydraulic Powered
• Easy To Replace
• No Assembly Required
• Double-Beaded To Help Provide A Leak-Proof Seal

User questions & answers

Question:	Will this fit Toro 53381 valves
Answer:	If you are past the return date, I think that’s the end of the story... Mine is not doing well either and I got mine the end of May 2020. I honestly would not recommend this hose to anyone.
Question:	I have some Lawn Genie jar top 1" valves that are about 18 years old. Are these the correct diaphragms
Answer:	I guess you could but when you turn off the water the hose shrinks. It also does not stretch out to 25 or whatever feet until you turn on the water.
Question:	will this fit rain pro 8410t
Answer:	They are probably extra washers for the hose and spray attachment.
Question:	Will these fit irritrol 2400/2600 model valves
Answer:	I'm not sure what you mean by "Cut on"? Don't Physically CUT the Hose. IF you mean "Turning it on" for just a quick fill, it works fine -- However the Hose was Designed to EXPAND to it's Full Length Once it is Totally Filled/Pressurized.

Product description

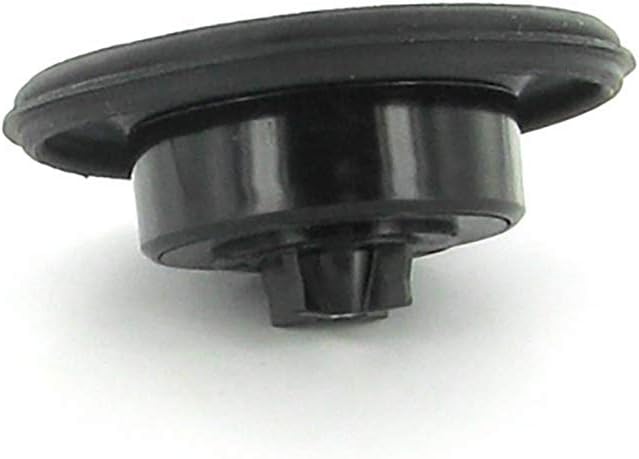

Irritrol 100236 1" Valve Replacement Diaphragm 1" Valve Replacement Diaphragm For Irritrol 2400, 2700DPR, 2600 ValvesFeatures & BenefitsFits Irritrol 2400, 2700DPR, 2600 Valves listed below: 2400S 2400SF 2400T 2400TF 2400T-B 2400TF-B 2400T-M 2400TF-M 2600T 2600TF 2711DPR 2713DPRProduct Details 1" Valve Replacement Diaphragm For Irritrol 2400, 2700DPR, 2600 ValvesRelated Articles & VideosArticles How To Replace An Irrigation Valve Diaphragm Repair or Replace an Irrigation Valve? Identification Of Different Irrigation ValvesVideos Jar Top Valve Diaphragm Replacement Repairing A Jar-Top Type Sprinkler Valve

User questions & answers

Question:	Is this compatible with Richdel valve valve in system
Answer:	If you plug this into your pc, it will free up hard drive admittance and the network will all speed up.. but the adaptor hasent been invented yet, guess the manufacturers have high hopes..
Question:	What size washer do I need for this
Answer:	My understanding is they are only for use inside. They eliminate the need to connect new fixtures to the main stack.
Question:	will it fit a
Answer:	We just replaced two, both had replaced vents that were about 8 years old.
Question:	Will this fit a 2500 TF valve
Answer:	Yes, this screws directly into a 1 1/2" pipe threading. It also comes with an adapter for a 2" pipe.

Product description

Carefully engineered for ease of use, the robust Hunter PGV irrigation valve diaphragm is compatible with all Hunter PGV-101G and PGV-101-ASV valves to maximize longevity and performance.

• Heavy-duty, double-beaded diaphragm seal ensures leak-free performance
• Loosen the four captive bonnet bolts to install the diaphragm in minutes
• Captive plunger ensures easy access to valve solenoid and eliminates the possibility of lost parts during disassembly

Product features

Hunter Industries

Corporate headquarters located in San Marcos, California

We’re committed to providing professional-grade irrigation solutions that create beautiful landscapes, maximize water savings, and conserve energy.

Product description

Irritrol 539001 Replacement Diaphragm for 2500/2700APR 1 in. 214B Valves Features & Benefits Fits 2500, 2700 and 1" 200B Series Valves Does not work with the 2700DPR series.

Product description

This hard working, heavy-duty valve offers the best features of Hunter's top-of-the-line valves. Built with enough durability to handle the rigors of most residential and light commercial sites, the PGV is available in an array of configurations. For smaller landscape applications, the PGV is available in four 1" body configurations: angle, globe, male x male, or male x barb design.

• In turn, each model is available in either a flow control or non-flow control version
• For larger landscape applications, the PGV comes in both 1-1/2" and 2" globe/angle models
• All models feature durable high-grade construction and a rugged diaphragm

User questions & answers

Question:	Is this valve threaded or slip
Answer:	53381 is an older valve that requires a different diaphragm. The correct part number is Toro part 53184 or 35-2824.
Question:	Does the valve come with 24vac solenoid
Answer:	the only diaphrams that work on genie valves are genie replacement diaphrams or richdale diaphrams
Question:	Is it compatible with Orbit timer
Answer:	“While it appears that the Rain Pro 8410T has a universal diaphragm that is compatible with other manufacturers’ valves, we have not tested our 53804 diaphragm on other manufacturers’ valves so cannot guarantee that it will in fact fit.”
Question:	Is this compatible with hunter pro c system
Answer:	Yes, this is the correct diaphragm for those valves.

Product description

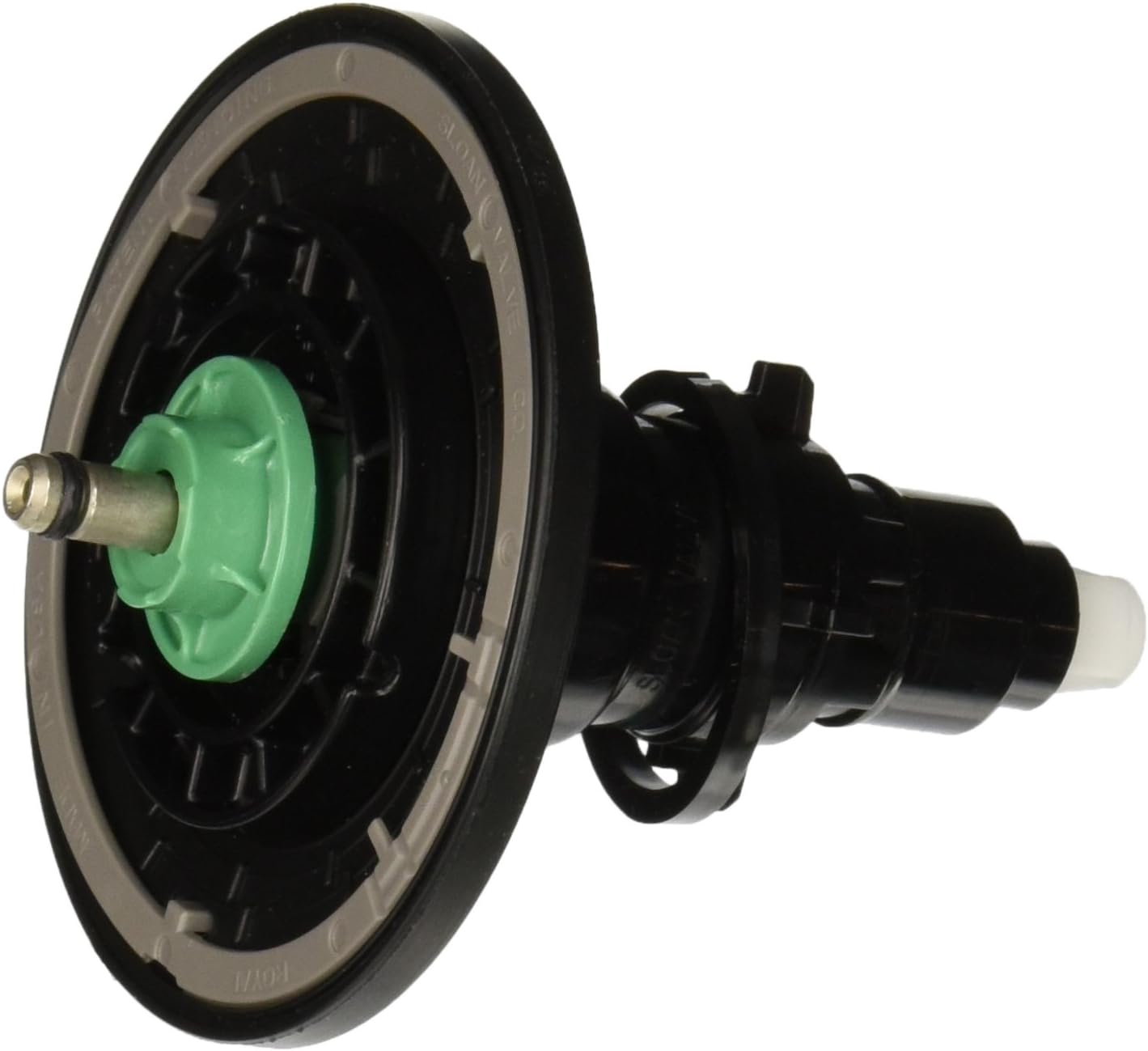

Sloan Valve 3325001 EBV-1020-A parts, BLACK

From the Manufacturer

Since 1906, Sloan Valve has been the world's leading manufacturer of water-efficient solutions that are built to perform, guaranteed to last, and are designed with the hopes of promoting a healthy environment through water conservation.

• Sloan ebv-1020-a optima plusurinal flex tube diaphragm kit, 1.6, 3.5, or 4.5 gph - 193150
• This is highly durable
• This is manufactured in china
• Inside Parts Assembly Closet
• For Sloan products
• Replaced EBV-10-A-16 and EBV-10-A-35
• Replacement part

User questions & answers

Question:	Is this as pictured? The new version is a plastic tip not metal. It helps to prevent the rust. Trying to figure out if this is the new one or old
Answer:	I don't know the brand you mentioned. However I found that this diafram part was not the problem. It was the solenoid. Since the irritrol complete valve was only About 25.00 , it pays to buy the whole valve. You get both the diafram and the solenoid.
Question:	Can I buy it here
Answer:	I don't believe you need a washer - at least I didn't. I just popped out the old diaphragm and popped in the new one. I think the "washer" is sort of just part of the diaphragm. Be ready, though: there is a spring in there that will pop out when you take the valve apart, and you will need it because the diaphragm doesn't come with a spring. Good luck!
Question:	Is this as pictured? The new version is a plastic tip not metal. It helps to prevent the rust. Trying to figure out if this is the new one or old
Answer:	I am sure yes
Question:	is this for toilets bowls
Answer:	It's looks okey but you can call irritrol directly. If you are having leaking problem at the sprinkler head then I recommend you replace the entire valve. It's only about 25dollars . You won't have to remove the old valve, just swap out the top . Most leaking problems are caused by the solenoid on the upper Portion of the the controller. You will get a diaphragm with the new controller anyway. Just some experience talking, I made the mistake of just ordering the diaphragm in the past and wound up later ordering a controller.

Product description

For use with SRV, PGV-ASV, PRO-ASV, PGV-100G, PGV-101G, PGV Jar Top, PGV-100A and PGV-101A plastic valves

• The Hunter 33-2100 is the Valve Diaphragm Assembly for Hunter PGV 1 inch Valves and all ASV and SRV

User questions & answers

Question:	Did people get exactly what is pictured here with Hunter doc? or just got the Diaphragm in some brown plastic bag? Mine came in brown plastic bag
Answer:	This is a threaded valve.
Question:	Will it probably fix my water leaking through sprinkler head? Seems like water keeps flowing even when system is shut and causing the head leak
Answer:	Yes, it does. Thank you
Question:	Does assembly include spring
Answer:	It should work. As long as the operating voltage is the same. I use a Rainbird controller with my Hunter valves.
Question:	does it fit pgv jar top
Answer:	Yes

Product description

3301037 Features: -Application: Drain. -Made in the United States. Application: -Drain. Product Type: -Sleeve. Country of Manufacture: -United States.

From the Manufacturer

Since 1906, Sloan Valve has been the world's leading manufacturer of water-efficient solutions that are built to perform, guaranteed to last, and are designed with the hopes of promoting a healthy environment through water conservation.

• Plastic
• Imported

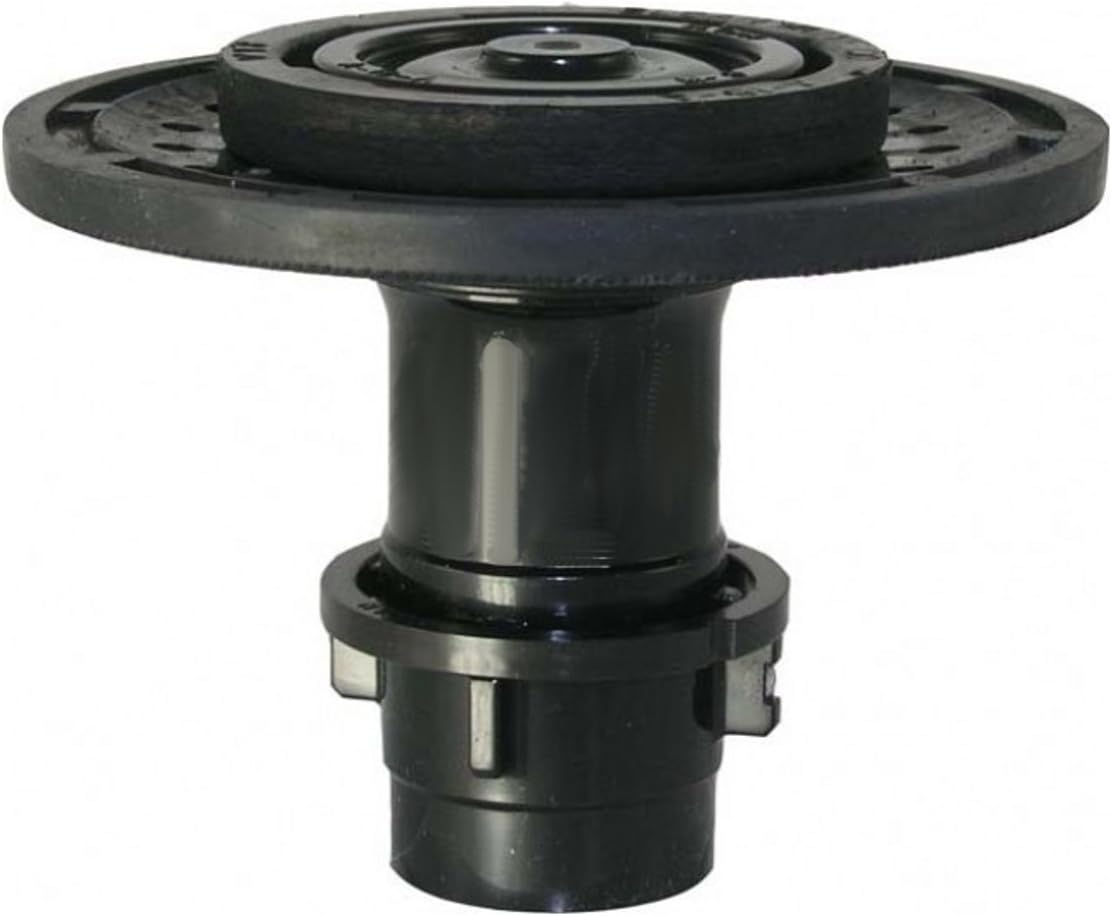

• SloanA-37-A Urinal Repair Kit, 1. 5 Gpf - 3301037
• This is highly durable
• This is manufactured in united states
• Consists of: Diaphragm (A156A), Guide (A163A), Relief Valve (A19AU), and Disc (A15A)
• Urinal Repair Kit

User questions & answers

Question:	sloan royal urinal valve leaks at handle and does not stop flush. what parts needed
Answer:	yes
Question:	Tapa plástica que cubre el diafragma
Answer:	The ones that I received are the plastic tips.
Question:	Description says a37a, tech details say a35a. which part is it
Answer:	Yes, toilets - Not urinals

Product description

The BlowTie Spunding Valve is used to release excess pressure on a pressurized fermenter or from a receiving keg during pressure transfers. This diaphragm spunding valve is much more accurate than the spring and poppet style, and works much better at lower pressures.



Pressure Fermentation

Pressure fermentation is becoming more and more popular at the homebrew level, but in order to do it safely and accurately, you need a way to release excess pressure. You'll pressurize your vessel to your desired psi, but once fermentation begins and those hungry, active yeast start creating CO2, the pressure inside the vessel will increase. Attach a spunding valve and set it to your desired pressure, and it will blow off when the pressure gets to high and close up again when it's back to your desired psi.



Pressure Transfers

Even if you don't have a pressurizable fermenter, you may have done pressure transfers from keg to keg during filtering or after fining. During pressure transfers, it's a good idea to have a bit of head pressure in the receiving keg, especially if you're transferring beer that is already carbonated. Having a spunding valve in place will allow you to consistently control the head pressure and give you more consistent results, without losing carbonation in the process.



Diaphragm vs. Poppet

With the poppet style spunding valve, a spring pushes against a poppet to keep the valve closed. When the poppet lifts up to open, the surface area the gas pushes against becomes larger, and the spring has to work harder to push the poppet down and reseal the valve. This can lead to more gas being released than intended, and the remaining pressure in your vessel may be at a lower psi than your spunding valve’s set psi.

• BlowTie Spunding Valve is used to release excess pressure on a pressurized fermenter or from a receiving keg during pressure transfers.
• This diaphragm spunding valve is much more accurate than the spring ann poppet style, and works much better at lower pressures.

User questions & answers

Question:	Is the release pressure adjustable? What is the range
Answer:	This is the new version. it seems everything is made of plastic these days. It is well made by Sloan and will hold up well.
