12 best sensor module for radars

Product description

This 5-Port Microwave Radar Detector Sensor Module is designed for detecting human beings and moving objects with the Doppler technique microwave induction with the features of high sensitivity, long sensing distance, high reliability, wide detection angle and power supply voltage range. Used for human body adaptive forward lighting system, security alarm system,etc.



Parameters:

Operating Voltage & Current: 4-28V; 2.8mA(typical), 3mA(max)

Detection Distance: 5-7m

Transmitting Power: 20mW(typical);30mW (max)

Output Voltage & Voltage Driving Capacity: 3.2-3.4V; 100mA

Trigger Way: repeat trigger

Output Control Level: 0V~3.3V

Operating Temperature: -20~80℃

Storage Temperature: -40~100℃



Adjustment Part Introduction:

1. C-TM

Adjust repeat trigger time, default trigger time is 2s; increasing capacitor's capacity will make repeat trigger time longer; and actual counting trigger time can operate as below: Stick capacitor on C-TM, test 9196 3-pin frequency F, repeat trigger time T=(1/f)*32768



2. R-GN

Detection distance adjustment; connect with resistor and detection distance will become shorter; if not connect, detection distance is 7m; if connect with 1M ohm resistor, detection distance is 5m



3. R-CDS

Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS, CDS connects with photoresistor, you can close detection function at night



Notices:

1.No metal obstruction directly in front of the sensing surface.

2.Reserve more than 1cm of space at the front and back of the sensing surface.

3.Keep the module and mounting carrier plane as parallel as possible.

4.Use wires to connect input and output ports, don't directly plug into the circuit, otherwise it may cause signal interference and affect the sensing distance due to being too close to other circuits, and then the module doesn't work.

• ✔【Doppler Technique Microwave Induction】: The RCWL-0516 Microwave Radar Sensor Module is equipped with Doppler radar technology which is specially designed for detecting objects' motion. With high anti-jamming capability that it'll not be affected by wind, heat or other environmental factors.
• ✔【RCWL-9196 Chip】: Equipped with the special signal processing chip RCWL-9196, the radar sensor module has the features of high sensitivity, long sensing distance(5-7M), high reliability, wide detection angle and wide power supply voltage range(4.0-28.0V).
• ✔【5 Ports for Varying Needs 】: 3V3(3V3 Power Output); GND; OUT(Control output. It will output high level when detect moving objects); VIN( Input voltage; 4-28V); CDS(Enable control chip; OUT will output low level all the time when the power is lower than 0.7V)
• ✔【Penetration Testing Capability】: Compared with the traditional infrared induction PIR, this sensor module has the penetration detection ability.
• ✔【Wide Application】--This motion sensor module can be widely used for human body adaptive forward lighting system, security alarm system and so on.

User questions & answers

Question:	Can this detect rodents such as mice and rats? If so, any estimate for the range
Answer:	Hey, Follow below to switch cm/in for the pedometer! 1.press "MODE" button to enter Days Record screen then hold "SET" button until ADj stop flashed. 2.after that,press "RES" button to convert when cm/in flashing. It will save setting. Please watch instruction video if still confusing.
Question:	I found the blank side (not the side with components) is the one that is sensetive (5m detection) not what specs say.. anyone else sees the same
Answer:	It doesn't. I used the internet to convert values. It doesn't have to be reset each walk. Instructions say it holds data for 7 days, then restarts. You can also press Res for 3 secs to clear all saved data.
Question:	Can I have the output be like an open or close relay instead of voltage out? I want to use it like a dry contact, based on it triggering
Answer:	Yes,It‘ll count steps when you doing exercise in place. Its 3D Pedometer basically it's taking a sensor of space shaking. So when wearing it, it should be clipped in proper place
Question:	How about detecting when a gopher reaches a certain position, even though he is pushing dirt ? OR waving a wand above ground to find where its at
Answer:	Yup, it is already in the unit. Just pull the remove tag out of the pedomter on the back before use and no need screwdriver to open the batter cover.

Product description

Parameters:

1.Operating Voltage: 4-28V

2.Operating Current: 2.8mA (typical);3mA (max)

3.Detection Distance: 5-7m

4.Transmitting Power: 20mW (typical);30mW (max)

5.Output Voltage: 3.2-3.4V

6.Output Voltage Driving Capacity: 100mA

7.Trigger Way: repeat trigger

8.Output Control Low Level: 0V

9.Output Control High Level: 3.3V

10.Operating Temperature: -20~80 celsius

11.Storage Temperature: -40~100 celsius



About pin header:

CDS = No connection

VIN = 5vdc (+) (9v battery also Ok)

OUT = 3.3vdc signal out when triggered

GND = 0vdc (-)

3V3 = No connection (in most applications)



About Adjustment Part:

C-TM: Adjust repeat trigger time (default 2 s). Adding a capacitor will give a longer repeat trigger time.

R-GN: Detection distance adjustment (default 7 m). Adding a resistor the detection distance will become shorter. If connected with a 1-MΩ resistor, detection range is about 5 m.

R-CDS: By adding a resistor (in parallel with the internal 1-MΩ resistor), user can change the light detection threshold as per individual requirement. This is applicable only when a light sensor is soldered in its pads (CDS) on the front of the circuit board. A 47–100K resistor works fine with standard 5-mm LDRs



Note:

A: Works with Nodemcu Document link: https://github.com/jxmot/ESP8266-RCWL0516#rcwl0516-details

B: Works with Arduino Document link : https://www.hackster.io/remnis/coolest-motion-detection-sensor-ever-d2d688

• ❃❃This Microwave Radar Detector Sensor Module is designed for detecting human beings and the moving objects with the Doppler technique microwave induction.
• ❃❃High sensitivity, high induction distance, high reliability, large induction angle, wide power supply voltage range, etc. it is widely used in various kinds of human body induction lighting and alarm and so on.
• ❃❃Can work with (for) arduino/nodemcu/wemos etc. Can be widely used for human body adaptive forward lighting system, security alarm system and so on.
• ❃❃Package Includes: 6 X RCWL-0516 Module Microwave Radar Sensor.
• ❃❃If you have any questions, you can contact us and we will give you a satisfied solution.

Product description

Description:

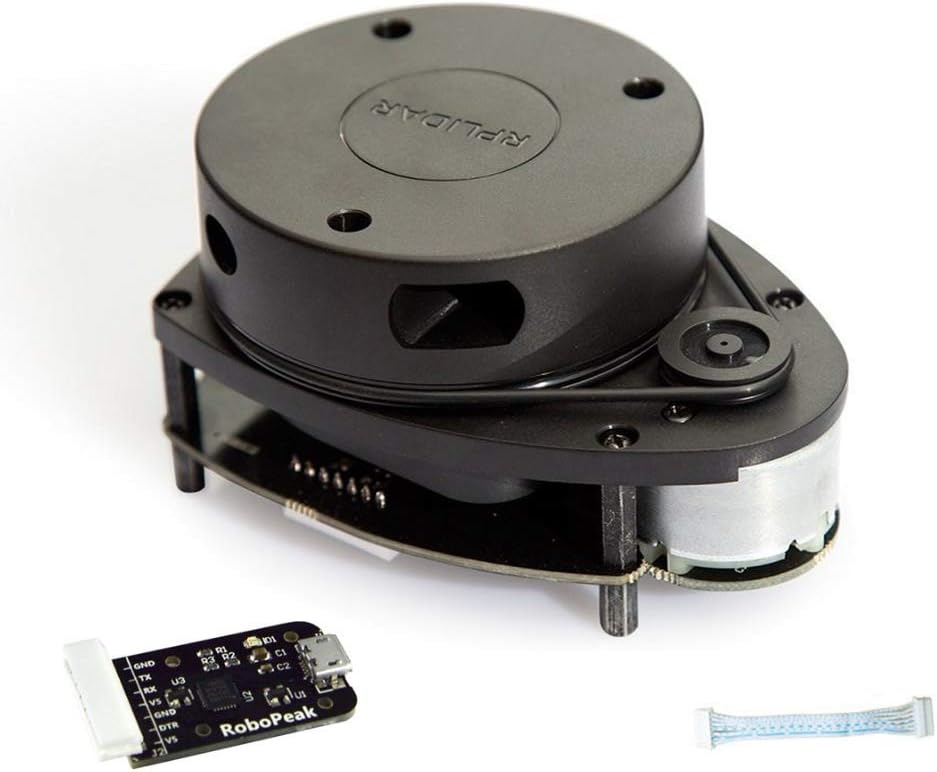

RPLIDAR A1 is a low cost 360 degree 2D laser scanner (LIDAR) developed by SLAMTEC.

Most traditional non-solid LIDARs use slip ring to transfer power and data information, however, they only have thounds of hours of life due to mechanical wearing out.

Slamtec has integrated the wireless power and optical communication technology to self- design the OPTMAG technology, which breakouts the life limitation of traditional LIDAR system. It fixes the electrical connecttion failure caused by the physical wearing out so as to prolong the life span.



RPLIDAR is the designed sensor for applying SL AM algorithm, ideal for Robot Navigation and Localization.



Plug and Play

Just connecting the RPLIDAR and a computer via a micro USB cable, you can use the RPLIDAR without any coding job

1. Build-in serial port and USB interface

2. Open source SDK and tools

3. Integration with ROS



RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellent in all kinds of indoor environment and outdoor environment without sunlight.



Application:

· Home service /cleaning robot navigation and localization

· General robot navigation and localization

· Smart toy’s localization and obstacle avoidance

· Environment scanning and 3D re-modeling

· General simultaneous localization and mapping (SLAM)



Specifications:

Measurement Performance

Distance Range: 0.15 - 6m,White objects

Angular Range: 0-360 Degree

Distance Resolution: <0.5mm

Angular Resolution: ≤1Degree

Sample Duration: 0.5ms

Sample Frequency: 2000~2010Hz

Scan Rate: 1~10HzTypical: 5.5Hz

Dimensions: 98.5mm x 70mm x 60mm

Battery is not included

Measures distance data in more than 8000 times/s

360 Degree Omnidirectional Laser Range Scanning

Package Included:

1 X RPLIDAR A1（PWM motor driver embedded）

1 X Cable

1 X USB Adapter

• ▶ RPLIDAR A1 is based on laser triangulation ranging principle and uses high- speed vision acquisition and processing hardware developed by Slamtec. The system measures distance data in more than 8000 times per second.
• ▶The system can perform 360 degree scanning within 6meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling. RPLIDAR A1’s scanning frequency reached 5.5 hz when sampling 360 points each round. And it can be configured up to 10 hz maximum
• ▶360 Degree Omnidirectional Laser Range Scanning. The core of RPLIDAR A1 runs clockwise to perform a 360 degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.
• ▶The sample rate of LIDAR directly decides whether the robot can map quickly and accurately. RPLIDAR improves the internal optical design and algorithm system to make the sample rate up to 8000 times, which is the highest in the current economical LIDAR industry.
• ▶How to email us? Please click “Stemedu”(you can find "Sold by Stemedu" under Buy Now button), in the new page, click “Ask a question” to email us. Technology Support : http://www.slamtec.com/en/Support#rplidar-a1

User questions & answers

Question:	Does it include black little embedded board on the first picture of product as well
Answer:	It just goes to sleep. I put mine on my shoes so I get a better count put it on six days a week. Love it you will to.

Product description

Model:HFS-DC06

Frequency:5.8G

Waveband:ISM band

Size:39*22*11 mm

Input Voltage:DC 5V

6.Minimum Input Current:30mA

7.Output Type:High level signal

8.Connection Type: VCC connects with power positive,GND connects with negative;GND and OUT connect with level signal outptut

9.Installation Height:2-6 m

10.Sensing Distance:right forward 12m

11.Sensing Angle:right forward cone 360 degree

12.Sensing Time : 2s

Material:ABS

color:green

Notice:

1.Please use more than 30mA current power supply to drive this module,and voltage should be stable

2.It is not advisable to install this module by the side of large scale metal,and please don't put it to completely close metal shell,or its performance will be destroyed

Package included :

1 X HFS-DC06 5.8GHz Microwave Radar Sensor (If the number of products received is incorrect, please contact us . we will refund or give you a replacement)

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• Input Voltage:DC 5V
• Output Type:High level signal
• Connection Type: VCC connects with power positive,GND connects with negative;GND and OUT connect with level signal outptut
• Package included : 1 X HFS-DC06 5.8GHz Microwave Radar Sensor (If the number of products received is incorrect, please contact us . we will refund or give you a replacement)
• We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Product description

Specifications:

Transmitting Frequency: min:24GHz  typ:24.125GHz max:24.25GHz

Output Power:16dbm (typ)

Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32

Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB

Operating Temperature:-20~60℃

Operating Current: typ:30MA, max:40MA

Operating Voltage: typ:5.5V

Pulse Width: typ:10US

IF Output:-300~300MV

Size: 25 x 25 x 7mm/0.98 x 0.98 x 0.27inch

Weight: 5g

Package Included:

1 x Microwave Body Induction Module

• ★★★★★Non-contact detection,moving object detecting
• ★★★★★This module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc
• ★★★★★Provide various frequency range standards:-UK,-F
• ★★★★★Advanced low consumption PHEMT oscillator
• ★★★★★Independent transmitting and receiving route, can get the big gain

Product description

Description:

Wide operating voltage range: 4-28V

Can output 3.3V power supply

Blocking time, adjustable distance

Using special signal processing control chip RCWL-9196

Compared with the traditional infrared induction PIR, the penetration detection ability



About pin header:

CDS = No connection

VIN = 5vdc (+) (9v battery also Ok)

OUT = 3.3vdc signal out when triggered

GND = 0vdc (-)

3V3 = No connection (in most applications)



C-TM: Adjust repeat trigger time (default 2 s). Adding a capacitor will give a longer repeat trigger time.

R-GN: Detection distance is adjustable (default 7 m). Adding a resistor the detection distance will become shorter. If connected with a 1-MΩ resistor, detection range is about 5 m.

R-CDS: By adding a resistor (in parallel with the internal 1-MΩ resistor), user can change the light detection threshold as per individual requirement. This is applicable only when a light sensor is soldered in its pads (CDS) on the front of the circuit board. A 47–100K resistor works fine with standard 5-mm LDRs



Package Included:

5 X RCWL-0516 Microwave Radar Sensor Module

5 X 4P Bend Pin Headers



FAQ:

Q: Can you use the RCWL-0516 with an ESP8266? Or will you get random false positive results?

A: I've done a short term test with the ESP8266 on a NodeMCU board. It seems to work just fine. The ESP greater Version 12-E is shielded and is FCC certified. So it should, by definition, not interfere with other electronics. However, one viewer reported random false positive results on a long shot.

Q: Is the water in the human body responsible for the detection?

A: Probably. I tested it with one empty and one water filled bottle. And even with a cat. And it seems that the bigger the object the further away it can be detected.

• 🚩 This RCWL-0516 module has the characteristics of high sensitivity, high induction distance, high reliability, large induction angle, wide power supply voltage range, etc. it is widely used in various kinds of human body induction lighting and alarm and so on.
• 🚩 The RCWL-0516 microwave radar sensor module can detect inert object at the condition that it has enough density, volume and it is in motion.
• 🚩 Microwave radar sensor will sense motion through most anything. The more shielding there is, the less detection range you get. I can detect motion through glass, drywall walls, ceilings and floors. It is very sensitive. You might have to filter the power supply. Tutorials contact us.
• 🚩 It can work with (for) arduino/nodemcu/wemos etc.; It can detect human, cat, rat, water. Works with Arduino and Nodemcu Document link, please contact us.
• 🚩 How to contact us? Please click "Stemedu" (you can find "Sold by Stemedu" under Buy Now button), in the new page, click "Ask a question" to email us

User questions & answers

Question:	Can detect the heart bit by analyzing the received signal? within 0.5 to 2 meteres
Answer:	Clock is 12 hour.
Question:	Since this emits rf, is this legal to use in diy projects? do we need to get any permission/certification
Answer:	It could work,but don't put it in the water
Question:	Im trying to activate a very small dc motor with this....what else do i need
Answer:	This activity tracker has one tiny screw.. Battery lasts a long time. When not in motion screen goes blank to save on battery.
Question:	What is a human rat cat? Sounds Terrible, thank goodness I haven’t detected one yet
Answer:	Yes,this sport pedometer works indoors as well as outdoors.you just need to make sure when using it the pedometer is has the buttons facing the ground and mount the unit perpendicular to the ground on your right waist. If you clip it on you side ways or upside down it will not count anything. this is sports pedometer,design for continuous exercise,slight movement is not count.this features is for more accurate count your steps.

Product description

This Microwave Body Induction Module is Non-contact detection, moving object detecting. Provide various frequency range standards: -UK,-F. This module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc.

Advanced low consumption PHEMT oscillator. Single channel operation. Independent transmitting and receiving route, can get the big gain. High sensibility, high flexibility, low cost, operating distance is 15m.



Specifications:

Transmitting Frequency: min:24GHz  typ:24.125GHz max:24.25GHz

Output Power:16dbm (typ)

Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32

Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB

Operating Temperature:-20~60℃

Operating Current: typ:30MA, max:40MA

Operating Voltage: typ:5.5V

Pulse Width: typ:10US

IF Output:-300~300MV

Size: 25 x 25 x 7mm/0.98 x 0.98 x 0.27inch

Weight: 5g



Package Included:

1 x Microwave Body Induction Module



Note:

1, Please allow small errors in the dimensions due to accidental imprecise manual measurement.

2, The color of the item you received may be slightly different from that displayed on photos, as the brightness and color varies in different computer screen.

• Non-contact Design: Non-contact detection, moving object detecting. Provide various frequency range standards: -UK, -F
• Widely Applications: This module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc
• Economical: Advanced low consumption PHEMT oscillator. Single channel operation
• High Efficiency: Independent transmitting and receiving route, can get the big gain
• High Sensitive: High sensibility, high flexibility, low cost, operating distance is 15m

Product description

Description:

1. Type: Microwave Sensor

2. Chip: HB100

3. Frequency: 10.525GHz

4. Voltage: DC 5V¡À0.25V

5. Current: 40mA

6. Size: Length 37mm *width 45mm *height 8mm

Application:

1. Automatic door startup

2. Car, House intrusion alarm

3. Collision warning

4. Traffic monitoring

• HB100 10.525GHz Microwave Doppler Radar Detector Probe Wireless Sensor
• Chip: HB100
• Frequency: 10.525GHz
• Voltage: DC 5V¡À0.25V
• Size: Length 37mm *width 45mm *height 8mm

Product description

This Microwave Radar Detector Sensor Module is designed for sensing human beings and the moving objects with the feature of microwave induction using the Doppler technique. It has the features of Intelligent Induction and Intelligent Delay. It supports to install a photosensitive sensor(NOT INCLUDED) to control the output state of the radar sensor module to achieve energy-saving function according to the external light intensity.



Wide Application :



1. Security

2. Intelligent Lighting

3. Body sensors toys

4. Industrial automation and control

5. Auto-sensing electrical equipment

6. Battery-powered automatic control



Parameter :



1. Working voltage: 3.3-20VDC

2. Standby quiescent current: <3mA

3. Transmit power: <2mW

4. The working environment temperature: -20℃~+80℃

5. Trigger: Repeat Trigger (default)

6. The output signal: TTL level; high->3.3V/Low->0V

7. Detection angle: 360°(spherical)

8. Detection range: 6-8 meters (when ordering optional). The default setting 7 meters

9. The working delay: 1 second to 120seconds, the default setting 30S

• ✔【Doppler Technique Microwave Induction】: This microwave radar sensor module can proactively sense human beings and other moving objects. It has the ability to penetrate, and only the metal material can shield the signal transmission of the microwave module. With high anti-jamming capability that it'll not be affected by wind, heat or other environmental factors.
• ✔【Intelligent Induction】: The high-frequency induction module output Vout will output TTL high level when someone enters into the detection range (Detection Range: 6-8 meters. The default is 7m). And after a delay cycle, the output will be back to TTL low level.
• ✔【Intelligent Delay】: Once the sensor module startup, if there is human activity in the delay time period, the module output terminal Vout will continue to output TTL high level until the person leaves and then outputs a low level after a delay period.
• ✔【Supports Photosensitive Control (NEED DIY)】: It supports to install a photosensitive sensor(NOT INCLUDED) to control the output state of the radar sensor module to achieve energy-saving function according to the external light intensity.
• ✔【Wide Application】: This motion sensor module can be widely used in 1) Security; 2)Intelligent Lighting; 3)Body sensors toys; 4)Industrial automation and control; 5)Auto-sensing electrical equipment; 6)Battery-powered automatic control.

User questions & answers

Question:	can it detect through sheetrock, glass, wood, or does it require unobstructed air-only line-of-sight? What is signal degradation through materials
Answer:	Very unreliable in outdoor applications.
Question:	There are three white wires on a harness. how do i know which is +,gnd,io
Answer:	Yes, the clip can be turned around. This is a GREAT Pedometer!!!!
Question:	Plane of aim? Should the board be oriented horizontally of vertically for best efficiency of detection
Answer:	Dear, The usual place and most suitable to wear the pedometer is to clip it to the waist. The pedometer has a tri-Axis Sensor technology and will count steps even if you keep it in your pocket. Best Regards
Question:	Where is any documentation for this product (Electrical connections, software interface, any information to make it useable/useful
Answer:	When you get to the step part to put in your steps in set-up, and you are at 10,000, did you press the mode button on the bottom middle to have it increase by 1000? It can be tricky to do.

Product description

When tested objects, the range of area is not less than 0.5 square meters and the plane requests as smooth as possible, otherwise ,it will affect the results of measuring.

• HC-SR04 Ultrasonic Sensor Distance Module: using IO trigger for at least 10us high level signal
• This module has stable performance and accurate measurement distance.
• Detection distance: 0.78~196 in/ (2cm~500cm); High precision: up to 0.12 in/(0.3 cm); Detection angle: <15 °.
• This module is fully Compatible with GH-311 anti-theft module.

User questions & answers

Question:	What are the hole dimensions
Answer:	Exact size I am not sure. But I can just fit a M1.6 screw through the hole.

Product description

HB100 Microwave Doppler Radar Wireless Module Motion Sensor HB100, Microwave Motion Sensor, Motion Detector

• HB100 Microwave Doppler Radar Wireless Module Motion Sensor HB100, Microwave Motion Sensor, Motion Detector

Product description

The module has the characteristics of high sensitivity, high induction distance, high reliability, large induction angle, wide power supply voltage range, etc. it is widely used in various kinds of human body induction lighting and alarm and so on.

Product Introduction:

Operating Voltage:4-28V

Operating Current:2.8mA (typical);3mA (max)

Detection Distance:5-7m

Transmitting Power:20mW (typical);30mW (max)

Output Voltage:3.2-3.4V

Output Voltage Driving Capacity:100mA

Trigger Way:repeat trigger

Output Control Low Level:0V

Output Control High Level:3.3V

Operating Temperature:-20~80 celsius

Storage Temperature:-40~100 celsius

Adjustment Part Introduction:

1.C-TM

Adjust repeat trigger time,default trigger time is 2s;increasing capacitor's capacity will make repeat trigger time longer;and actual counting trigger time can operate as below: Stick capacitor on C-TM,test 9196 3-pin frequency F,repeat trigger time T=(1/f)*32768

2.R-GN

Detection distance adjustment;connect with resistor and detection distance will become shorter;if not connect,detection distance is 7m;if connect with 1M ohm resistor,detection distance is 5m

3.R-CDS

Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS ,CDS connects with photoresistor,you can close detection function at night

Note:microwave modules can not be large-scale applications in the same area, otherwise there will be mutual interference. Between single individuals over distance greater than 1M

Package including

5* Microwave Radar Sensor Module

• Wide operating voltage range: 4-28V
• Can output 3.3V power supply
• Blocking time, adjustable distance
• Using special signal processing control chip RCWL-9196
• Compared with the traditional infrared induction PIR, the penetration detection ability

User questions & answers

Question:	Can this be used to determine the distance and speed of an object
Answer:	Yes, the embedded board is included, the cable included too
Question:	Do these work even in a 3D printed box? I see someone else lined a box to lower the sensitivity. Was the whole module in the box
Answer:	I imagine it would. It picks up small animals like cats or even a half-bottle of water. If you want to test how far and "small" of an object fill a bottle of water little by little, with a sensor setup. Continue to fill the bottle of water until the sensor sees it. This will determine "how much water" an animal needs inside of it to be detectable at a certain distance. For a human, the distance is 4-5 meters for fairly reliable detection (smaller movements are LESS noticed, like fingers or turning your neck). Somewhere between 3-4 meters is where this thing really shines, almost no human movement goes undetected.. fingers, slightest movement of the neck, breathing. I would confidently recommend that these would detect small rodents.
Question:	Anyone know what the output on these are? High/low? Do you
Answer:	Both sides should work the same. Try rotating the device and try again. The reflective environment is a real factor.
Question:	Is this sensitive to rain? (I don't want it to be
Answer:	The device has no relay, so no dry contact. But, you can easily have the output go to the base of a switching transistor or the gate of a mosfet to switch your load on or off. FYI .... if you intend to use this outdoors, don’t bother. It needs the reflective surfaces of a indoor environment to operate correctly.
