13 best drok car amplifiers

• Parameters: DROK audio amplifier board working voltage is DC 8-26V, can be powered by 12V, 24V; output power is 15W stereo (24V 8ohm)/ 10W stereo (12V 8 ohm), if connect 4 ohm or 2 ohm speaker, the power will be automatically limited to 15W.
• Artificial Material: this New-designed stereo amplifier module is made of noble black immersion gold circuit board, PAM8620 chip, imported KEMET speaker capacitor, large-capacity filter capacitor for channels. Besides, we customized black copper terminal blocks and gold-plated audio input terminal blocks for this new amplifier module.
• High Performance: the class D power amp module is with high efficiency of over 90%, general harmonic distortion noise is less than 0.2%, low quiescent current and noise suppression.
• Safe Protection: the 2 channel amp board is designed with input reverse connection protection, short circuit protection, over heat protection, overcurrent protection, overvoltage protection, undervoltage protection; what's more, EMI is allowed to pass.
• Additional Function: it is available to connect external mute function (MUTE: High level mute, factory default low level); available to add an external Shutdown (SD: the chip will be Shutdown at low electricity level, factory defaults high electricity level.

User questions & answers

Question:	I keep getting a ground noise, any idea what might cause this
Answer:	I used a ground loop eliminator. It's the only way to clean up the noise
Question:	Is the light still on when u turn the unit off using the pot
Answer:	If you are turning the unit off why the light will still be on?
Question:	What is the frequency response
Answer:	My best guess by ear is about 250 HZ to 15,000. It is not audiophile quality but is at a great price for what you get. Most people wouldn't be able to tell the difference.
Question:	if I were to use it in an automotive application for a center dash speaker, and wish to wire into a receiver amp turn on, would this work and how
Answer:	I have never tried to connect the amplifier in the automobile circuit. But, in my opinion, for an amplifier, it does not matter in which circuit it works. The amplifier is designed to amplify the audio signal between the receiver and the speakers. It is only necessary to observe the conditions of sufficiency of the input signal to the amplifier and sufficient current supply of the amplifier.

Product features

DROK Digital Amplifier Board

• Working voltage range DC 8-26V, canbe powered by 12v or 24v

• Output power is 15W stereo (24V 8ohm)/ 10W stereo (12V 8 ohm)

• Class D Dual Channel 15W+15W

More Amplifier Kits for your Option!

• PARAMETER --- operating voltage DC 9V-18V, recommend DC 12V; max output power 2x35W (18V/4Ohm); can be connected 4~8 ohms speakers.
• PROPERTY --- class AB, 2.0 dual channel.
• INPUT METHOD --- 3.5mm audio cable input.
• PROTECTION --- input reverse connection protection; short-circuit protection; over-current protection; over-temperature protection.
• FEATURES --- volume adjustment knob; noble black immersion gold circuit board; KEMET speaker capacitor, large-capacity filter capacitor for channels; black copper terminal blocks; gold-plated audio input terminal blocks.

User questions & answers

Question:	Can I run this in mono
Answer:	Not without modifications. It was designed as a stereo amp
Question:	Can it be bridged
Answer:	No

Product features

Immersion Gold PCB

• Well laid out
• High performance
• Stable and reliable

High Grade Components

• Pure copper wiring terminal
• Gold-plated 3.5mm audio input socket
• KEMET audio capacitance
• High capacity filter capacitance

Volume Control Potentiometer

• Turn left to decrease volume.
• Turn right to increase volume.

Multiple Protections

• Over-current protection
• Over-heat protection
• Input reverse connection protection
• Short-circuit protection

Product description

DROK 30W+30W Car Audio Stereo Amplifier Board



Parameter:

Working voltage: DC 9-18v, recommend 12V

Max output power:35W*2 (18V 4 Ohm), can be connected to 4-8 ohm speakers.

Frequency range: 20Hz~2kHz, ±1dB

Input method: 3.5mm audio cable input/3P extension cable input

Dimension: 101x64x45mm



Protection:

Power supply input reverse connection protection;

Short-circuit protection;

Over-current protection;

Over-temperature protection.



Package Included:

1x Power Amplifier Module with Case

1x 30cm 3-pin Shielding Cable

• PARAMETER --- working voltage DC 9-18V, recommend 12V; max output power 35W*2 (18V 4Ω), can be applied to 4-8Ω speakers.
• APPLICATION --- can be applied to automotive audio stereo system DIY; can be applied to test bench; can be applied to bookshelf speakers, etc.
• PROPERTY --- class AB, 2.0 dual channel.
• INPUT METHOD --- 3.5mm audio cable input/3P extension cable input.
• PROTECTION --- input reverse connection protection; short-circuit protection; over-current protection; over-temperature protection.

User questions & answers

Question:	Will this mix both inputs
Answer:	Hello there, No. It is a stereo in and stereo out.
Question:	Is it plug and play or you have to use a soldering iron for the parts
Answer:	This is plug and play. No soldering required. Assembly is required if you want build the acrylic enclosure (parts provided with the amplifier board).
Question:	Is this amp bridgeable
Answer:	No
Question:	What is the frequency range
Answer:	Hi, the frequency range of the amplifier module is 20Hz--20kHz, ±1dB.

Product features

Dual Audio Input Methods

• 3.5mm gold-plated audio input socket
• 3P pure black audio input terminal

Immersion Gold PCB

• Well laid out
• High performance
• Stable and reliable

High Grade Components

• KEMET audio capacitor
• Nichicon capacitor
• Monolithic filter capacitor
• Metal film resistor
• No distortion
• Little noise

Multiple Protections

• Input reverse connection protection
• Short-circuit protection
• Over-current protection
• Over-heat protection

• New Version: No more women voice. We have upgraded the board replacing the women voice with beeps to indicate the connection status.
• Parameter: DROK blue~tooth audio amplifier board wide input voltage range is DC 4.5V-27V, can be powered by 12v or 24v, output power is 50Wx2, SNR is 102dB. No POP sound when powering this module, skipping song or pausing.
• 2 Audio Input Ways: user can directly connect this blue~tooth speaker board with wire~less Blue~tooth 3.0/4.0/4.1, or choose the headphone (Line in) way.
• 2 Powering Methods: the digital amplifier module is equipped with wiring blocks and DC 2.1mm socket which is compatible with most laptop’s power port.
• Protective Function: the BT amp is designed with acrylic protective shell, reverse connection protection, over-voltage protection, under-voltage protection, over-heat protection, short-circuit protection.

User questions & answers

Question:	Any way to get rid of the voice at start up and connecting to bluetooth? I keep it turned up pretty high so I can control it with my phone
Answer:	That is a gripe for me too. For a non-technical user, no. One could insert a volume control or speaker switch between the amp and speakers or if you have a microcontroller programming interface, one may be able to delete it. Otherwise, just put on your ear protection!
Question:	Does it detect aux input when an aux cable is plugged in or when the circuit is complted with whatever device you are connecting
Answer:	Switches to aux input as soon as a cable is plugged in. There is a mode button that lets you switch between blue tooth and aux inputs.
Question:	how do you use the controls if it is inside a box/home speaker
Answer:	The unit itself allows access to the controls however if you enclose the Amp inside a box or speaker the only control you would have is the Bluetooth INPUT volume. The Amp would be set at a fixed OUTPUT volume. I hope this helps to answer your question.
Question:	How many amps are required for this board? Would 12V - 6A be enough
Answer:	Unfortunately, the manufacturer does not provide very detailed specs on the internal workings of this amp, so the exact internal voltage powering the amp is unknown. Best rule of thumb I would go by in regards to power supply, is to use a power brick or direct-wire supply that provides at least 100w total watts (50w x 2). In the case of a 12v supply, I'd look for at least 9A. Under-powering the amp will not affect most listening, unless you're cranking metal at top volume. However, going with a <100w power supply can result in clipping at higher volumes. Luckily, this stuff is mostly fool-proof, so run with a brick you've got handy, and if you run into clipping/distortion at the preferred volume, find a bigger one.

Product description

DROK 30W+30W Dual Channel 2.0 Car Audio Stereo Amplifier Module



Parameter：

Working voltage: DC 9-18V, recommend 12V

Output power: 35W*2 max (18V 4Ω), can be connected to 4-8Ω speaker

Input method: 3.5mm audio cable input

Dimension: 71x64x72mm



Protection:

Power supply input reverse connection protection;

Short-circuit protection;

Over-current protection;

Over-temperature protection



Package Included:

1x Stereo Amp Module

• PARAMETER --- working voltage DC 9-18V, recommend 12V; max output power 35W*2 (18V 4Ω), can be applied to 4-8Ω speakers.
• APPLICATION --- for bookshelf speaker; for test bench; for car auto audio stereo sound system DIY
• PROPERTY --- class AB, 2.0 dual channel.
• INPUT METHOD --- 3.5mm audio cable input.
• SAFE PROTECTION --- power supply input reverse connection protection; short-circuit protection; over-current protection; over-temperature protection.

User questions & answers

Question:	RCA inputs
Answer:	NO...3.5 mm input. Get skw cables..good for the $$$$
Question:	What kind of power needs are required? How many amps
Answer:	5 amp or more current rating. I reccoment 12v digital power supply. Alitove makes good stuff.
Question:	What screws are used to secure the plastic case to the columns
Answer:	those should be included in the kit.
Question:	What chip is in this
Answer:	TDA 7377. Class AB with set gain. Recommend 12v switching power supply because 8-9 volt 5 amp power transformers are hard to come by. Higher voltage the chip gets hot. Recommend changing out the input capacitors ( the little white squares next to the chip.) but thats a challenge. My speakers don't like tubes and this little amp is just fine for my apartment. 30 watts is for 4 ohms speakers...mine are 6 so I get okay power. Recommend SKW 3.5mm cables for input.

Product description

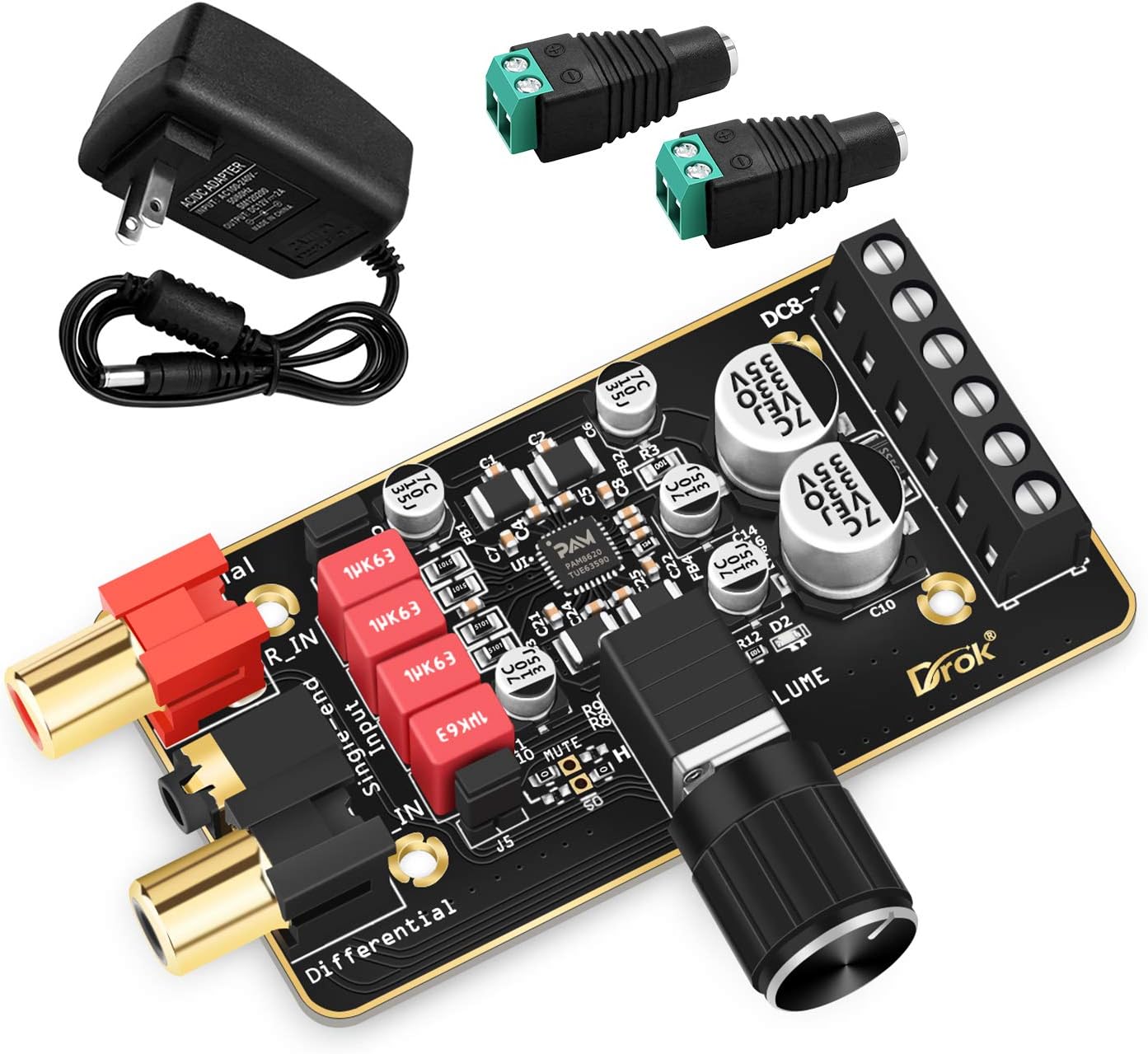

DROK 15W+15W Audio Amplifier Module with Power Adapter



Power Amplifier Board Specification:

Working Voltage: DC 8-26V, can be powered by the attached 12V power adapter.

Output Power: 15W stereo (24V 8ohm) / 10W stereo (12V 8ohm), if connected to 4ohm or 2ohm speaker, the power will automatically be limited to 15W.

Input Method: single-ended (default); difference (switch by the jumper)

Efficiency: >90%

THD (total harmonic distortion) & noise: <0.2%

Board Dimension: 75.69*41.96mm/2.98*1.65 inch



Features:

Low quiescent current

Noise suppression

Materials: high-grade pure black immersion gold circuit board, WIMA red sound capacitor, large capacity filter capacitor. Special customized pure black copper terminals, gold-plated audio input terminals.

Protective Functions: input reverse connection protection, short-circuit protection, over-current protection, over-heat protection, over-voltage protection, low-voltage protection, EMI is allowed to pass.



Other Functions:

External mute function (MUTE: high level mute, factory default low level)

External turn-off function (SD: low-level chip turn off, factory default high level)

To use the mute/sd function, just remove the resistance next to the MUTE welding spot and add a switch between the welding spot under the resistance and the welding spot next to MUTE/SD.



Power Adapter Specification:

Output Voltage: DC 12V



Package Included:

1x Class-D Amplifier Board

1x 12V Power Adapter

2x Male DC Connector

• PARAMETER --- DROK audio amplifier board working voltage DC 8-26V, can be powered by the attached 12V power adapter; output power 15W+15W.
• MULTI-PROTECTIONS --- the digital amp board comes with input reverse connection protection, short circuit protection, over-heat, over-current, over-voltage, under-voltage, and EMI is allowed to pass.
• ARTIFICIAL MATERIAL --- black immersion gold circuit board, PAM8620 chip, KEMET speaker capacitor, large-capacity capacitor, black copper terminal, gold-plated audio input terminal blocks.
• OUTSTANDING PERFORMANCE --- the audio amp module is with high efficiency of over 90%, general harmonic distortion noise is less than 0.2%, low quiescent current and noise suppression.
• APPLICATION --- this power amplifier module can be used for DIY home audio stereo sound system and speaker.

User questions & answers

Question:	Input impedance
Answer:	8ohms
Question:	Do i just cut off the end of the power supply since there isn't a plugin on the board for it, then plug the red and black wires to dc + and
Answer:	A short piece of red and black wire is all you need to connect the adapter to the Amp then you can plug in and out the power supply.

Product features

DROK Digital Amplifier Board with 12V Power Adapter

• Working voltage range DC 8-26V, canbe powered by 12v or 24v

• Output power is 15W stereo (24V 8ohm)/ 10W stereo (12V 8 ohm)

• Class D Dual Channel 15W+15W

More Amplifier Kits for your Option!

Product description

Parameter:

Input Voltage: DC 9-18V, recommend 12v

Output Power: can be connected to 4-8 ohm speakers，max output 35W+35W (18V 4ohm)

Chip: TD7377pro2

Frequency range: 20Hz~20kHz, ±1dB

Input method: 3.5mm audio input/3P expansion input terminal

PCB size: 58.67*55.12mm

Overall Size (including heat sink): 90.56*55.12*26.65mm



Protection:

Power supply input reverse connection protection;

Short circuit protection;

Over current protection;

Over temperature protection



Note:

Please connect the PCB board in accordance with the wiring diagram. The power supply cannot be connected to the channel terminal, or the IC will burn.



Package Included:

1x Automotive Amplifier Board

1x 30cm 3-pin Shielding Cable

• DROK amplifier board input voltage range is DC 9-18v; output power is 30W+30W; can be connected to 4-8 ohm speakers.
• High Performance: Adopts high-grade pure black immersion gold circuit board, KEMET speaker capacitor, double NICHICON large-capacity filter capacitor per channel, high-quality monolithic filter capacitor and metal film resistor. These provide a high performance for this audio amplifier board.
• Specially-customized Terminals: The automotive amplifier module adopts specially-customized pure black copper terminals, gold-plated audio access terminals and 3P pure black terminals.
• Adjusting Knob: This dual-channel amplify module is comes with a adjustable knob, the volume can be adjusted conveniently.
• Safe Protection: The stereo amp board is designed with input reverse connection protection, short-circuit protection, over-current protection, over-heat protection, which can protect your device perfectly and extend its service life.

User questions & answers

Question:	On the "B Version" can you hook up two different inputs at the same time
Answer:	Yes. I have the aux cable input coming from a phone (playing music) and the screw terminal input coming from a microcontroller (playing sounds using an Arduino library) and both sounds can play at the same time.
Question:	Can I conect this amp. Direct to car radio
Answer:	The inputs on this amp are line (Aux) level inputs, so if you have an aftermarket car stereo, you can come out of the line level outputs (RCA jacks) into this amp. If you have a factory stereo you should NOT hookup to the speaker wires. The speaker outputs will overload the amp inputs and cause distortion. The inputs on the amp have a common ground, and this would damage most factory stereo outputs.
Question:	Is the 3P pure black audio input terminal the same as the 3.5mm input
Answer:	From the limited documentation that comes with it, yes.
Question:	can i use it on 16 ohm guitar speaker
Answer:	The data sheet for the TDA7377 doesn't say so, but in stereo bridge mode, it should not work with the design parameters. HOWEVER. Do be aware that the limit of power output is voltage on this design; even at 18V, 16 ohm speakers will probably reduce it to closer to 5W or 6W per channel. I would suggest a design that's based on 8 to 16 ohm speakers,. not a 2 to 4 ohm speaker design. Now if you had four of those speakers you could wire in parallel, it would probably work fine (since that would then end up 4 ohms effective.)

Product features

Dual Audio Input Methods

• 3.5mm gold-plated audio input socket
• 3P pure black audio input terminal

Immersion Gold PCB

• Well laid out
• High performance
• Stable and reliable

High Grade Components

• KEMET audio capacitor
• Nichicon capacitor
• Monolithic filter capacitor
• Metal film resistor
• No distortion
• Little noise

Multiple Protections

• Input reverse connection protection
• Short-circuit protection
• Over-current protection
• Over-heat protection

Product description

DROK Digital Amplifier Board 100W



Parameters:

Voltage range: DC 10-25V

Output power: 100W (Max)

Output load: 4-8 Ohm (Recommend)

Frequency response range: 14-100KHz

Signal-to-noise ratio (SNR): not less than 100DB

Switching frequency: 1.2MHz

Chip: TPA3116x2

Reverse connection protection: Yes (Positive and negative reversal is not energized.)

The number of channels: one left channel and one right channel (PBTL)



Special Notes:

1. The speaker of each channel must be connected in strict accordance with the wiring diagram. If reverse the connection, will seriously reduce the sound effects.

2. The current ability of external power supply 5V port is within the limits of 100mA. Super-power use is strictly prohibited.

3. Increasing the power supply voltage appropriately and using relatively low impedance speakers, can be very effective to improve the output power.

4. We recommend for adequate power supply (the current must be large enough), otherwise, it cannot give play to the power of amplifier and speaker.

5. Although the product is a digital amplifier, there still will be heating phenomenon during the use, it is normal.





Package Includes:

1 × TPA3116D2 Digital Amplifier Board

• DROK digital amplifier board is operated by wide working voltage DC 10-25V with reverse connection protection.
• The power amplifier is made of high performance amplifier chip TDA3116D2, 2 channel stereo amplifier, 50W+50W output power.
• The amp board is designed with a volume potentiometer, you can easily turn the voice high and down.
• 4-8 ohm speakers are highly recommended for this DROK digital amplifier.
• Note: to ensure this stereo amplifier work better, please add adequate power supply (the current must be large enough).

User questions & answers

Question:	I'm trying to find an adapter that will plug in the the three pin socket on the board. What is the format of the input interface on the board called
Answer:	It's a JST-XH connector. Your cheapest option with Prime would be this: https://www.amazon.com/HRB-Balance-Charger-Silicon-Connector/dp/B06XS89PTX/ref=sr_1_2?rps=1&ie=UTF8&qid=1531229149&sr=8-2&keywords=jst-xh&refinements=p_85%3A2470955011 I would save the money and just solder to the board, but that is just me.
Question:	I’d like to pwr a 5V chromecast frm the board but don’t want to split power frm something important; do you know of a DC pwr adptr that can do both
Answer:	if DC pwr adptr is enough current power (several amps) , then you can do both.
Question:	Has anyone tried using this for an electric guitar stereo amp setup? If so, how well does it work
Answer:	It *can* work, I have tested other DROK units with success (for 'practice' and experimentation only. I haven't used this particular unit that way (was considering it, thus my presence here). But, I had used 2 other DROK module amps for that purpose: one built upon the TDA7297 and another on the TDA7377. They DO work (so-so), however keep the following in mind: 1. These units are designed to take an ACTIVE (powered) signal and amplify it. A guitar signal normally is passive and will need some sort of boost or pre-amp between the guitar and the DROK to produce sufficient volume levels. I run my signal from guitar into a Joyo American Sound / Vox emulator and through a compressor and reverb unit before going to amp module. 2. The input impedance on most of these amps is LOW (about 10k-30k). The typical input impedance on a regular guitar amp is about 500k-1M. This has implications for your signal -- in terms of quality and quantity. For certain, you will notice a shift in the higher frequencies (you''ll have to compensate by adjustment levels and EQ quite a bunch). 3 .Getting a comparable output signal to an amp listed as (50W, 25W, etc) will require the DROK amp unit being powered by a potent / matching power supply. Give it the max power listed for this unit (24V should do the job about as well as possible) and make sure available amps are sufficient too. They can work. Be prepared to tweak and experiment a bit, but overall, it's dirt cheap and you'll learn a lot too. If you really want to dig down deep into the details, go hunt down a datasheet for the amplifier chip (TPA3116D2 - I believe). With adequate power, you can get 2x30W into 8ohms with that chipset.
Question:	whats the 5v out for
Answer:	I have not used mine yet. But I would assume it might be used to power a fan?

Product description

Parameters:

PAM8403 Mini Power Amplifier Board.

Dimension:30 x 22 x 16mm (do not including potentiometer handle)

Operating voltage: DC 3-5.5V

Max output: 3Wx2 (5V 4Ω)

Efficiency: 90%



Note:

1.You can use USB port on computers to offer 5V power supply for the amplifier board

2.Potentiometer with switch, can adjust the volume and control the power switch

3.Suitable for battery or portable electronics products,suitable for long time steady usage.

4.Please make sure operating voltage less than 5.5V, or the module will be damaged

5.Without reversed connection protection, meaning the module will burn if wires are connected reversely



Package includes:

1x Mini Amplifier Board

User questions & answers

Question:	Did you guys just splice a USB wire and soldered it to this or did you use a 5v Power Adapter and spliced that? Need Power ideas for this amp
Answer:	Hi Javier, I used an Agilent 66332A power supply for one of the applications of this amplifier. All of the connections on this amp use solder, so I just had a few inches of wire soldered to the power connections and some test leads with spring clips from the power supply to the power wires of the amp. For another application, my co-worker just used one of the small USB wall power adapters that commonly comes with most phones and tablets these days and chopped up a micro-usb cable to solder to the power connections. As long as the cable you use is up to USB spec, it will have a red and black wire it in. Red being positive and black being negative.Please let me know if that helps out and will try to provide more info if I can.
Question:	Is there a link to the mfg datasheet somewhere
Answer:	http://www.alldatasheet.com/datasheet-pdf/pdf/246505/PAM/PAM8403.html
Question:	Opinion question: could this be used as a box guitar pre-amp or is it too powerful for such? (Not an elec whiz here). ty
Answer:	I wouldn't use it for pre-amp (amped again later, mixboard, recording). It's not balanced or regulated like other equipment wants. For making little speakers in shipping boxes with elmers glue and a spare usb cable, this is fantastic.
Question:	Could those who claim to have achieved loud volume from this help out with power supply and speaker specs? Would be much appreciated
Answer:	I guess this won't help you over a year later but, you need to make shure of 3 things, voltage and amperage of the power supply, and the sensitivity of the speaker. The ideal power supply for this would be a usb phone charger that outputs over 1A. As far as the rating to look for on a speaker, the wattage and impendance don't matter. The wattage is only useful in seeing if the speaker will catch on fire if I run full power from this amp, it does not indicate anything else. The impendance is usefull in two ways, to see how much wattage the amp will push, and to see if the amp will kill itself trying to drive these speakers. Neither one of these is useful here as you usually won't have less than 4 ohms impendance (what this amp is rated for) unless you specifically take multiple speakers and wire it that way, and 3 watts isn't going to blow any speaker unless it is made of wet toilet paper (even then it's iffy). The only thing you need to worry about is the sensitivity of the speaker, which is measured in db as the measured volume of the speaker at 1 meter away with 1 watt powering it, you can find good cheap, speakers that are rated around 90db. if you put this amp on a 90db rated speaker you should get about 95db out of it which is loud enough to cause permanant hearing damage. It is also the hardest rating to find because it is the least used, even though the ratings people use to guage loudness have nothing to do with being loud and this rating is what they are looking for. I hope this helps someone.

Product description

Parameters:

Voltage range: DC 10-25V

Output power: 50W (Max)

Output load: 4-8 Ohm (Recommend)

Frequency response range: 14-100KHz

Signal-to-noise ratio (SNR): not less than 100DB

Switching frequency: 1.2MHz

Reverse connection protection: Yes (Positive and negative reversal is not energized.)

Quantity of channels: one left channel and one right channel



Use Notes:

1. The speaker of each channel must be connected in strict accordance with the wiring diagram. If reverse the connection, will seriously reduce the sound efficiency.

2. The current ability of external power supply 5V port is within the limits of 100mA. Super-power use is strictly prohibited.

3. Increasing the power supply voltage appropriately and using relatively low impedance speakers, can be very effective to improve the output power.

4. We recommend for adequate power supply (the current must be large enough), otherwise it cannot give play to the power of amplifier and speaker.

5. Although the product is a digital amplifier, but there still will be heating phenomenon during the use, it is normal.

Package Includes:

1 × TPA3116 Amplifier Board

• This DROK digital amplifier is operated by wide working voltage DC 10-25V with reverse connection protection.
• With a volume potentiometer, you can easily turn the voice high and down.
• Made of high performance amplifier chip, double channel stereo amplifier, 25W+25W output power.
• 4-8 ohm speakers are highly recommended for this DROK digital amplifier.
• Note: to ensure this stereo amplifier work better, please add adequate power supply (the current must be large enough).

User questions & answers

Question:	If using all channels, speakers and bass shaker are rated 50w, my safe bet would be 12v 16a
Answer:	If your speaker+bass shaker load comes to 4 Ohms, TPA3116 powered by 12V can only cleanly (1% THD) push about 15 Watts per channel before an abrupt jump into high distortion. Feeding an 8 Ohm load while powered by 12V jumps to high distortion after only about 8 Watts per channel. In either case most of your available 16A current potential is wasted. Use an inexpensive DC-DC converter to boost your power supply's 12V output to 20V or so. That will allow TPA3116 to operate into higher power levels before distortion dramatically rises. Select a boost converter rated for at least 6A output or more.
Question:	I need a mini amplifier with bluetooth 25w / ch. but exactly the very small size to fit inside a socket box. Anything to indicate to me
Answer:	This amp has the power but no blue tooth built in, if physical size is the controlling criteria, I would look to SVS, as a first stop. They may be able to direct you to a 3rd party supplier? I have several devices from them that work well. Best of luck, jerzil.
Question:	Can you provide a drawing showing the center heights of the input audio jack and volume pot
Answer:	I would take out my calipers and measure it for you but the better method woould be to buy a male or female jack and gauge your measrurements on scribed marks on a flat surface. The volume pot height is 1/2 of the standing off the plane of the pc board. Hope that help, jerzil.
Question:	Does this need a external crossover, and if it does it go before or after the amp
Answer:	Boss, Usually crossover networks go after the amp. The need for a crossover usually depends on what you want to do with it. My advice is use the unit stock and see if you like the results before spending more on gadgets. Mike

Product description

Features:

Three kinds of audio input: Blue~tooth receive; USB decoding play; TF card decoding play.

Power: DC5V; Effective blue~tooth transmission distance: 10-15 meters.

Support multiple formats: MP3, WMA, WAV, FLAC.

The front output can directly promote headphones or connect rear amplifier.



Key Operation:

MODE: press the "MODE" button to switch among three kinds of audio input, Blue~tooth receive; USB decoding play; TF card decoding play.

NEXT: short press the "NEXT" button to play the next song, long press the "NEXT" button to increase volume.

BACK: short press the "BACK" button to play the previous song, long press the "Back" button to decrease volume.

EQ: sound effect manager(only valid under USB or TF card playing mode).

Audio Output: for connecting headphones, active loudspeaker box or amplifier(if yours is passive loudspeaker box, please connect amplifier first).



Connection:

1. First off it's a Micro USB connection for power, powered by DC 5V, or if you want to solder your own power then you can take that route if you like. Then connect headphones or active loudspeaker box or amplifier to the audio output.

2. Open the Blue~tooth function of your cell phone or other devices with Blue~tooth audio stream output support(such as laptops, tablet PCs, etc.), please first delete other blue~tooth devices that had been connected to your phone before on your phone(or the blue~tooth connection will be unstable), and then the phone will automatically search and pair with the module, no pairing codes or button mashing needed. After a successful connection, the phone will show that the module Xpecial audio has been connected, while the LED blinks blue.



Package Includes:

1 x Blue~tooth Audio Receiver Board

User questions & answers

Question:	Can i power this with a 7.4 volt lithium battery
Answer:	If you use the correct step down module yes. There are quite a few DC to DC converters that should work. I use a 12V to 5V step down in my car to run this thing.
Question:	What version of Bluetooth does this support
Answer:	this appears to be a bluetooth v2.1 device, but it should work with any BT device.
Question:	Does it have any feedback noise when connected to the same power supply
Answer:	I just purchased it and it does have serious feedback noise in that situation while charging/powered . I have a 12v 7ah SLA battery for power . Had to order a MPow noise suppressor , hope it works . Costs $9 so add that to BT board for total $19 . Not sure if it is worth that . Mpow has a unit with built-in battery included for less .
Question:	does this have the annoying "bluetooth device is ready to pair" voice when it comes on
Answer:	Yes

Product description

15W+15W Audio Amplifier Board



Parameters:

Working voltage: DC8-26V, can be operated by DC 12V 24V

Output power: 15W stereo (24V 8ohm)/ 10W stereo (12V 8 ohm), if connect 4-ohm or 2-ohm speaker, the power will be automatically limited to 15W

Input methods: single-ended (default)

difference (to choose by the jumper)

Efficiency: >90%

THD (total harmonic distortion)&noise: <0.2%

Low quiescent current

Noise suppression

Size: 75.69*41.96mm

Materials: high-grade pure black immersion gold circuit board, import WIMA red sound capacitor, each channel large capacity filter capacitor. Special customized pure black copper terminals, gold-plated audio input terminals.

Protective functions: input reverse protection, short-circuit protection, over-current protection, over-heat protection, over-voltage protection, low-voltage protection, EMI.



Other functions:

External mute function (MUTE: High level mute, factory default low level)

External turn-off function (SD: Low-level chip turn-off, factory default high level)

To use the mute/sd function, just remove the resistance next to the MUTE welding spot and add a switch between the welding spot under the resistance and the welding spot next to MUTE/SD.



Stereo Speaker



Parameters:

Rated power: 15W

Impedance: 4Ω

Sensitivity: 90dB

Effective Frequency: 108Hz-20kHz

Equivalent capacity: 2.5L

Outer diameter: 78mm

Height: 52mm

Hole diameter: 71mm



Power Adapter

Output voltage: DC 12V



Package Included:

1x Audio Amplifier Board

2x 15W+15W Speaker

1x 12V Power Adapter

2x Male DC Connector

• AMPLIFIER BOARD --- working voltage DC 8-26V; output power 15W stereo, efficiency over 90%; general harmonic distortion noise less than 0.2%.
• BOARD FEATURES --- multi-protections (input reverse connection protection, short circuit protection, over-heat, over-current, over-voltage, under-voltage; EMI is allowed to pass); artificial material (noble black immersion gold circuit board, PAM8620 chip, KEMET speaker capacitor, large-capacity filter capacitor, black copper terminal, gold-plated audio input terminal blocks).
• AUDIO SPEAKER --- rated power 15W; impedance 4 ohm; effective frequency 108Hz~20kHz; sensitivity 90dB; outer diameter 78mm; height 52mm; hole diameter 71mm.
• SPEAKER FEATURES --- anti-magnetic design; blended bomb wave, strong fatigue resistance; high-quality rubber edge.
• PACKAGE INCLUDES --- 1x 15W+15W audio amplifier board, 2x 15W 4 Ohm Stereo Speaker, 1x 12V power adapter, 2x male DC connector.

User questions & answers

Question:	Where is the power supply connected to the amplifier
Answer:	Dear customer, Please refer to our wiring diagarm, power supply is connected to middle screw terminal. You can use DC plug to screw terminal connector. Best regards, DROK
Question:	Can i use 18650 lithium ion batteries to run this instead of a 12v battery
Answer:	The instructions that came with the unit says the amplifier will except 8 to 26v dc. I used 12v dc at 5 amps and it works fine. It looks like the 18650 batteries are 3.7vdc each, so you may need to connect 4 in series to get around 14.8vdc.
Question:	Does it come with speaker wire
Answer:	Dear customer, Speaker wire is not included. Best regards.

Product features

DROK Digital Amplifier Kit

• Working voltage range DC 8-26V, canbe powered by 12v or 24v
• Output power is 15W stereo (24V 8ohm)/ 10W stereo (12V 8 ohm)
• Class D Dual Channel 15W+15W

• Package Included: 1x Audio Amplifier Board 2x 15W+15W Speaker 1x 12V Power Adapter 2x Male DC Connector

More Amplifier Kits for your Option!

Product description

Features:

Amplifier chip: TDA7498

Output power: 100W+100W (Vcc = 36 V, RL = 6Ω, THD: 10%)

Output power: 80W+80W (Vcc = 34 V, RL = 8Ω, THD: 10%)

Wide range single power supply: 15-34VDC(recommended 24V)

Applicable speaker impedance: 8 ohm best(4 ohm or 6 ohm also works)

Four fixed gain settings available: 25.6 dB, 31.6 dB, 35.1 dB and 37.6 dB

Adopts differential input to minimize common-mode noise

Protection: short-circuit protection, over temperature protection

With standby and mute features

High efficiency: 90%



Description:

The TDA7498 is a 100W+100W dual-BTL class-D audio amplifier with single power supply designed for home theater and active speaker applications. It adopts 36-pin PowerSSO packaging with exposed pad up (EPU), more convenient to mount a separate heatsink.



Mode:

The TDA7498 has three kinds of modes: standby, mute and normal working mode(you can set the mode by shorting the pins shown on pictures).

Standby mode: all circuits closed, at a low power state;

Mute mode: all input signals connects ground, the duty cycle of forward/backward PWM output signal is 50%;

Normal working mode: the amplifier works normally.



Package Includes:

1 x TDA7498 Amplifier Board

User questions & answers

Question:	How loud is the amp with 4 ohm speakers
Answer:	The amp will put out amount 40 watts per channel into 4 ohms. That's plenty loud.
Question:	will a 24v 6A 120w charger work
Answer:	If you are looking at the 2x100W version, you aren't going to be able to turn it up to full volume, at some point turning the volume up will cause the audio to collapse. For the 2x100W version, you will want a supply that can provide probably 250W at least. For the 2x160W version of this you will want a 350W/400W or better supply if you want to be able to get full power out either. If you don't intend to turn it up that high you can get away with less though and this should work depending on the charger.EDIT:This power supply will run either version of this amp. They can also be found cheaper on eBay, search "24v power supply" and select one with a 15A (360W) rating or better.https://www.amazon.com/3DMakerWorld-Switching-Power-Supply-400W/dp/B00IF93H6W/ref=sr_1_2?s=industrial&ie=UTF8&qid=1486689403&sr=1-2&keywords=24v+400W
Question:	Wouks a computer power Supply work to power this
Answer:	you will need a 24volt 5amp 120watt power supply like this one available on Amazon; by MEAN WELL24V 5A 120W Regulated Switching Table-Top Power Supply
Question:	can I use 14 gauge speaker wire, or will it not fit
Answer:	I think it's too big. In any case, if you solder a short piece of wire onto the 14 GA, there won't be any measureable difference.
