13 best stereo plugs

• Perfect for replacing worn out plugs for headphones or making a cable to a desired length or replacing a broken connector.
• Wiring diagram: PIN 1,Tip- Left audio; PIN 2,Ring- Right Audio; PIN 3,Sleeve-Ground
• Easy to handle,you really don't have to be a professional to do this. Just insert the cables in the hoops, twist and lock in place, and only then solder.
• Suitable for the cable up to 5mm, if your cable is too thin, just use some sleeve to hold it properly to avoid the movement
• Package include: 10 Pack connector + Some shrinkle tubing

User questions & answers

Question:	If I want to prevent audio coming through tab speakers, will putting one of these in trick the tablet into thinking it's sending signal to headphones
Answer:	It will if the unit mutes your speaker (it will act like a open or broken wires).
Question:	Will these work with headphones that have volume up/down buttons
Answer:	It should. This is TRRS, meaning there are 4 electrical contacts, as opposed to the 3 contacts on your regular TRS aux heads. They both have a contact for ground, your left speaker, and your right speaker. The difference with this one is that the 4th contact is connected to your volume button(s). Just solder the wires to the right contacts and you should be fine.
Question:	New to soldering. On first try everything worked but the mic, can you confirm the mic wire solder placement on the sleeve
Answer:	Looking at the jack from the tip to the jacket, there are four contacts to solder the wires to: Tip, Ring1, Ring2 and the Sleeve. Wiring is as follows: - For OMTP (mostly older smart phones): Tip = Left Speaker; Ring1 = Right Speaker; Ring2 = Microphone; Sleeve = Ground - For CTIA (e.g. Xbox, Apple devices): Tip = Left Speaker; Ring1 = Right Speaker; Ring2 = Ground; Sleeve = Microphone See http://www.pineapplefreefall.com/fixing-the-xbox-one-stereo-headset/ for more details and a picture showing jack wiring.
Question:	Will this work while swimming
Answer:	No. It doesn't. This is not waterproof one

Product description

An Amazon Brand

• 6 pairs of banana plugs (12 plugs total) for easily installing speakers
• Self-crimping teeth for easy installation
• Durable 24k gold plating provides corrosion protection and ensures high-quality audio
• Female connection on base of each plug for connecting multiple speakers from a single output
• Accepts 12 to 18 AWG speaker wires; includes black and red rings for color coding the wires
• Backed by an Amazon Basics limited one-year warranty

User questions & answers

Question:	Which end of the banana do you plug it into
Answer:	The top, where the stem attached to the tree -- where you normally start peeling the banana. But, no need to peel first before using these, as they will plug right into the stem.
Question:	which is thicker a 12 gauge wire or a16 gauge wire
Answer:	I read somewhere that says the gauge number is actually a fraction of an inch. So the higher the fraction the smaller the wire. e.g. 1/12" is larger than 1/16"
Question:	Is the banana plug the same as an rca plug
Answer:	No. It's a single conductor.
Question:	The female connection each plug is said to have is hard to visualize. Is there a picture demonstrating its use
Answer:	It is pretty simple. You should have a whole in the middle of where your speaker wire hooks in. Instead of using raw wire you can attach it to the plug and then plug it in the receiver jack.

• 【CLOSED TYPE DESIGN WITH DUAL SCREWS】WGGE Banana Plugs Audio Jack Connector, 24k Gold Dual Screw Lock Speaker Connector for a lifetime of use, with a crystal clear signal.Isolates wires which keep them from shorting out and the two set screws keep the wire connection secure. (Sold by W&G GLOBAL ELECTRONICS INC)
• 【EASY INSTALLATION/MATERIAL】 Banana plugs make speaker wire installation a breeze and are great to use with A/V receivers, amplifiers, surround sound systems, banana wall plates. Material:Pure Copper, gold plated, Pure copper made, non-magnetic.
• 【COLOR CODED AND GOLD PLATED CONNECTORS】 Banana connectors are gold plated to resist corrosion and the collar is color coded for polarity identification
• 【WORKS WITH MULTIPLE SIZES OF SPEAKER WIRE】 Accepts wire size up to 4mm. Accepts 8AWG to 20AWG speaker wire.Double screws locking, no soldering.
• 【18 MONTHS WARRANTY】WGGE Banana Plugs come with 18 Months Warranty.

User questions & answers

Question:	Would these be a tighter fit on the back of my car receiver where i have 3 ( sets ) of rca outputs and of course 2 amps
Answer:	You can't replace RCA plugs with banana plugs. Two different animals. RCA carries the signal in the center plug and ground on the outer portion. Banana plugs are just one connection, not two.
Question:	Will this fit polk speaker t15 and t
Answer:	Will fit any make speaker or receiver with with banana plug setup
Question:	are these compatible with an early 1990's yamaha receiver and yamaha speakers
Answer:	Possibly. It fits mine which is a Yamaha RX-V730 Av receiver.
Question:	Is the body conductive? Is there a danger of accidental shorting out
Answer:	I got home today and ohm'd them out. Yes they are conductive from the gold banana plug to the silver colored metal jacket. Again they fit pretty snug into the banana plug receptacles on the amp and they are far enough apart I'm not worried about them getting shorted. Unless your dropping metal on them or something like that they should be fine.

Product features

WG-009 Banana Plugs

WGGE Banana Plugs Audio Jack Connector, 24k Gold Dual Screw Lock Speaker Connector for a lifetime of use, with a crystal clear signal. Isolates wires which keep them from shorting out and the two set screws keep the wire connection secure.

Easy to installation.

Double screws locking

the two set screws keep the wire connection secure, no soldering.

Rotary Tightening

Easy to installation / Great connection

A/V receivers, amplifiers, surround sound systems, banana wall plates

Accepts wire size up to 4mm. Accepts 8 - 20AWG speaker wire

Installation instraction

Red/Black color-coded for polarity identification

Product description

Application：



NANYI 1/8"(3.5mm) Male to 1/4"(6.35mm) Female adapter, connect headphones to with audio devices.

widely work with headphone, karaoke system, home audio equipment, amplifiers, mixing console, home theater devices or AV receivers, Piano, bass, guitar...;



Features:



● Connector: 6.35mm (1/4 Inch) Stereo Jack Male To 3.5mm (1/8 Inch) Stereo Jack Female,

Mics and Headphones to be plugged into a 6.35mm(1/4) stereo jack socket input



● Compatible headphones, sennheiser HD518 HD555 HD558 HD595 HD598 HD650 HD700 HD800, GRADO, AKG, audio-technical, Beyer dynamic, Sony etc.



● Material: Made of Pure Copper wire inside



● The new second generation colorful design, make life more exciting.



● Pure copper connectors resist corrosion and ensure minimal signal loss.



● 360 degree grip treads help easy plugging and unplugging.



● Made of solid brass copper, with a much longer service life compared with those plastic one.



Connectors:

- Connector 1: 6.35mm (1/4 Inch) Stereo Plug Male

- Connector 2: 3.5mm (1/8 Inch) Stereo Jack Female



Package includ：

NANYI Audio adapter x 1 Pack.

• GOOD HELPER: Helps you connect all 1/4 Inch (6.35mm) female socket devices to a 1/8" (3.5mm) male plug extension cable or adapter (For example, connect the piano to the headphones with a 1/8 Inch(3.5mm) extension cable).
• NEW UPGRADED VERSION: They are sturdy and perfectly fit, Solved the problem that you need to change frequently when using the old adapter.
• NEW DESIGN: Cables snap in/on nice and snug. No cracking, humming or cutting out. For very little money there is a dramatic improvement in fidelity.
• IT IS COOL: it has a strong body that is made entirely, has a solid structure, and a black coat, perfect for carrying around.
• CUSTOMER SERVICE: A hassle-free 18-month warranty and friend customer service.

User questions & answers

Question:	I bought one of these 2 days ago and it only works when it's halfway into my focusrite solo scarlett gen 3 interface. is this normal
Answer:	That doesn’t sound normal to me. I would check it on another device to make sure it’s not your focusrite that’s defective.
Question:	I bought the 1/4 male to 1/8 female and tried to plug in my apple earbuds but it wont fit. Do I need the 1/4 male to 1/8 female
Answer:	I had to use that in order to plug into my Stereo receiver to connect to regular headphone jack cable. so in short yes, as only a Sony cable plugs into their headset.
Question:	Which adapter should i purchase to use apple earbuds to a ypt-360 yamaha keyboard? would be greatly appreciated
Answer:	Nanyi 1/4 male to 1/8 female connector
Question:	Would this work if I plugged it into my headphones to connect to a microphone
Answer:	This will work on virtually any device with an old 1/4" plug that you are trying to reduce to 3.5 mm. I actually connected a set of old earphones to my AT2020+ mic and it worked fine. One problem: it's about 3" and heavy when assembled. A new device with 3.5 mm connection can be damaged if not careful. For a mic connection I recommend buying a new high quality set of earphones with a 3.5 mm connector.

• Can accept bare wire, spades, or other banana plugs. Can accept 12 to 18 AWG speaker wires.
• Color coded black/red rings for maintaining proper polarity
• Secure, positive contact with binding posts
• Corrosion resistant, 24K gold plated brass plug
• Each order includes FIVE pairs (10 plugs total)

User questions & answers

Question:	How do you connect these to a 12 volt "go Box" cover
Answer:	I do not know what a "go box" is.
Question:	When you disconnect the plugs, isn't it easy to short them by touching each other? looks like the whole piece is the same conductor
Answer:	If I understand your question correctly, once the plugs are disconnected from the receiver,there is no signal going through them, therefore no danger of short. You shouldn't be connecting or disconnecting the speakers with the unit on. Actually more likely to short out trying to install using bare wire connections instead of banana clips. The clips cover the bare wire so no chance of a stray strand or two shorting across the back of your component.
Question:	I have used open screw plugs for years; are there any substantial advantages to the closed screw type
Answer:	The big advantage is when installed correctly, you won't have any chance of stray wires sticking out. So then less chance of shorting the wires. On 14 gauge and smaller wire, it shouldn't be that hard to do to install correctly, easily. On 12 gauge wire, the maximum recommended for the monoprice plugs, the insulation doesn't fit very well into the body of the plug, so you just have to strip more insulation off to get it to go easier.One possible downside to them is that the wires stick straight out the back instead of coming out of the side. If you have wall mount speakers with a narrow clearance, that could be an issue. But you could get the open screw style to fix that. At the receiver, it was beneficial to me.
Question:	How do you connect these (closed and open type) to the speaker wire
Answer:	First I unscrew the banana connector, splice the wire and stick the open wire through the hole and fold it over the threading, then I screw the banana connector back together. I use two pairs of vise grips as it gets a little tough screwing them back together by hand since the wire catches the threads on the banana connectors. Hope this helped

Product features

Monoprice Gold Plated Speaker Banana Plugs

Banana plugs make speaker installation a breeze. They are designed for use with amplifiers or speakers that use traditional binding posts. Not only is it easier to make the connection on the back of your amp, it is safer, with no chance of stray wire strands creating a short across contacts.

These high quality plugs are the open screw type and can accept bare wire, spades, or other banana plugs. They are sized to fit speaker wire from 12 to 18 AWG. Each pair comes with one plug color coded red and the other coded black, for easy polarity identification.

The plug body is made of brass, which is then plated with gold to help prevent corrosion and ensure smooth connections.

This multi-pack includes five pairs of plugs, perfect for connecting the satellite and center channel speakers in a 5.1 channel setup.

Features:

• Can accept bare wire, spades, or other banana plugs
• Can accept 12 to 18 AWG speaker wires
• Color coded black/red rings for maintaining proper polarity

• Secure, positive contact with binding posts
• Corrosion resistant, 24K gold plated brass plug
• Each order includes five pairs (10 plugs total)

Product description

Banana plugs make speaker installation a breeze. They are designed for use with amplifiers or speakers that use traditional binding posts. Not only is it easier to make the connection on the back of your amp, it is safer, with no chance of stray wire strands creating a short across contacts. These high quality plugs are the closed screw type and can accept bare wire or spades. They are sized to fit speaker wire from 12 to 18 AWG. Each pair comes with one plug color coded red and the other coded black, for easy polarity identification. The plug body is made of brass, which is then plated with gold to help prevent corrosion and ensure smooth connections. This multi-pack includes five pairs of plugs, perfect for connecting the satellite and center channel speakers in a 5. 1 channel setup.

• Can accept bare wire or spades. Can accept 12 to 18 AWG speaker wires.
• Color coded Black/red rings for maintaining proper polarity
• Secure, positive contact with binding posts
• Corrosion resistant, 24K Gold plated brass plug
• Each order includes five pairs (10 plugs total)

User questions & answers

Question:	im trying to make my own test leads for different applications, will these work/fit with a voltmeter
Answer:	Depends. It should fit as the multimeters use standard banana plug socket innerds, but for years commercial test leads have no longer used bare plugs because of the hazards associated with accidental contact which would be shockingly dangerous if working with high voltage (yes, these meters are routinely used in high voltage electrical applications - my meter carries a CAT III rating for use with 1000V, CAT IV for 600 V). BUT, I mainly use my meter on ham radio stuff and sometimes on cars - all low voltage DC applications.I just ordered these to make a current (amperage) test rig with Anderson Power Pole sockets. Again, I stress that I am working with voltage running significantly less than 30V (sometimes 24 V systems in aviation or other automotive systems), but I will wrap the plug bodies in heat shrink insulation to minimize likelihood of contact.
Question:	I've read that these plugs can accept 12-18 AWG wire; however, I'd like to know what you all have used/what is working best
Answer:	I use 12 gauge on my fronts and 14 on my surrounds with no issues. The 12 gauge was a little difficult to get wrapped back around and then screw down, but I really don't know of any banana plug that would we easier, without going to the kind where they use a screw to fasten. This is the easier, cleaner look in my opinion!
Question:	The description says: "Can accept bare wire and spades. " How do you connect spades
Answer:	As PCKIDZ replied, this is a two function connector.The banana plugs are pushed into the hole in the end.If you unscrew the barrel which is knurled, the smaller shaft is exposed, where you can slip on your spade lug and then tighten the knurled shaft to secure the lug.
Question:	whats the differance between open screw and closed screw banna plugs
Answer:	"Open Screw" type plug (side wire) allows for daisy chaining or stacking additional banana plugs to the back. This is desirable in DJ applications if you're running a speakers in parallel and if your amp can handle the low impedances. Closed Screw type has the wire at the back.

Product features

Brass Body Construction

The plug body is made of brass, which is then plated with gold to help prevent corrosion and ensure smooth connections.

Color Coded Black/Red Rings For Maintaining Proper Polarity

Each pair comes with one plug color coded red and the other coded black, for easy polarity identification.

Can Accept 12 To 18 AWG Speaker Wires

These high quality plugs are the closed screw type and can accept bare wire or spades. They are sized to fit speaker wire from 12 to 18 AWG.

• RCA adapter length is 8Inch (Appr:20CM), 3.5mm mini-jack to 2-RCA stereo audio Y adapter cable
• RCA Female Stereo Plug is perfect to plug a portable CD player, MP3 player, iPod, smartphone, tablet, PC sound card, and other devices with aux connector into the existing RCA connections
• RCA (M) to 2 RCA (F) stereo audio Y adapter subwoofer cable will send your music from an MP3 player to a stereo system.
• Plugs audio cable is designed to split a stereo signal, high-quality polished connectors and corrosion-resistant 3.5mm connectors; prevent radio frequency interference (RFI) and electromagnetic interference (EMI).
• 2-RCA stereo audio Y adapter cable one end has a female 3.5mm stereo mini jack and the other end has two color-coded male RCA plugs (left and right audio channels).

User questions & answers

Question:	What is the AWG wire size
Answer:	any size you want to use. look at distance.
Question:	Does this work TV to headphones
Answer:	Check your tv audio output connections. If it’s RCA jacks and you are using headphones with a 1/8 mini jack you’ll need the Male RCA to female mini stereo jack..if you have a 1/8 mini headphone output you’ll want a male to female mini stereo extension long enough allow comfortable viewing.
Question:	is the cable shielded? unless i missed it not in description
Answer:	The cable appears to be shielded but should not provide any interference.
Question:	Think you meant red and white in description
Answer:	Very satisfied

Product features

Superior Construction

1. 3.5mm Stereo male Gold Plated

2. Soft Cotton Braided

3. Oxygen-free copper conductor

4. Cable Length: 8inch

Wide Compatibility

Compatible with most RCA-enabled analog stereo audio and video components, such as your smartphones, MP3, PC, Tablets, Home Theater, HDTV, Gaming Consoles, Hi-Fi Systems and more.

Convenient to Use

Connects a computer to an external stereo amplifier, through standard RCA cables.

It's also a convenient way to connect portable CD players and other audio sources with 3.5mm jacks to a stereo receiver or multimedia speakers.

Product description

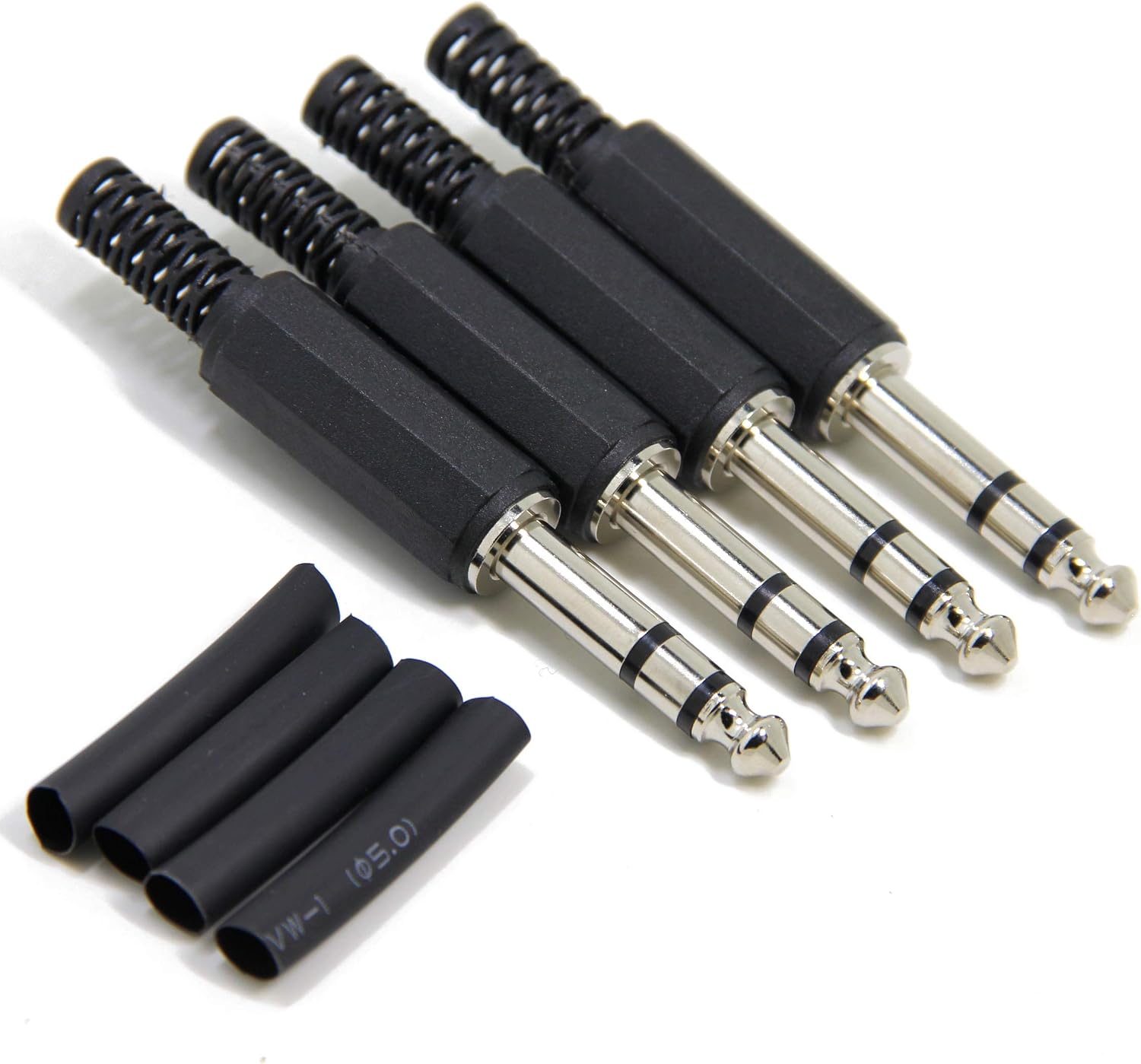

1、Perfect for replacing worn out plugs on patch cables or making a cable to a desired length or replacing a broken connector.

2、Easy to handle,you really don't have to be a professional to do this. Just insert the cables in the holes, twist and lock in place, and only then solder.

3、Cost-effective, the plastic version with full brass plug, cheap economic.Suitable for the cable up to 6mm, if your cable is too thin, just use some sleeve to hold it properly to avoid the movement

4、Wiring diagram: the short PIN connect to Tip, The middle length pin is Ring, The longer one is connected to GROUND.

5、This listing comes with 4-Pack connectors with some shrinkle tube. it saves you much and makes you always have enough backup.Additional shrinkle tube make it a plus for you

• - Perfect for replacing worn out plugs on patch cables or making a cable to a desired length or replacing a broken connector.
• - Easy to handle,you really don't have to be a professional to do this. Just insert the cables in the holes, twist and lock in place, and only then solder.
• - Cost-effective, the plastic version with full brass plug, cheap economic.Suitable for the cable up to 6mm, if your cable is too thin, just use some sleeve to hold it properly to avoid the movement
• - Wiring diagram: the short PIN connect to Tip, The middle length pin is Ring, The longer one is connected to GROUND.
• - This listing comes with 4-Pack connectors with some shrinkle tube. it saves you much and makes you always have enough backup.Additional shrinkle tube make it a plus for you

Product description

Get the most out of your home audio system by ensuring the best connection from your speaker cable to your receiver with the Sewell deadbolt banana plugs. Using self crimping teeth These plugs provide a simple, secure, and low profile connection without requiring soldering or screws. These 1.6” inch plugs are extremely low profile making it so you can put your speakers or receiver closer to the wall. Unlike other banana plugs that use low quality metals like zinc alloy The Sewell deadbolt banana plugs use pure copper and high Quality brass with 24K Gold plating. Installation one of the best things about the deadbolt banana plugs is that installation is quick, secure, and requires no tools. Just follow these steps. Feed the cable through the bottom piece. Push the cable back over the teeth on the bottom piece. Screw the top piece to the bottom one. You're finished. All in all you should only need 10-20 seconds for this entire operation. What are banana plugs? Today, many electronics use the banana plug interface, also known as binding post (referring to This connection in its female form). this female binding post connection that accepts this banana plug is found commonly on virtually all audio/video receivers, speaker wall plates, and more. Banana plugs offer an alternative to inserting a bare speaker wire into the equipment. Often a bare speaker connection is not as reliable as a guaranteed banana plug connection. Wires tend to get pulled out or frizzy after time passes. Banana plugs require only one install, giving you a permanent and robust connector at the end of your speaker wire.

• 24k Gold Plating on Connector and Crimping Teeth
• Fast Lock technology makes it easy for self crimping a reliable connection.
• Heavy Duty Brass Casing for maximum durability
• Wider base minimizes shorting for maximum signal transfer.
• Maximum Wire Size 8 AWG (10 AWG suggested)

User questions & answers

Question:	Are these 4mm or 2mm diameter pins. I need 2mm but none of the good banana plugs are labeled
Answer:	4mm. All banana plugs come in one standard size.
Question:	Can i use these on a 12v system as power feeds? if so how many amps? looking for at least 15a on 12v
Answer:	That should work fine on a 12v power supply, we use those plugs for a similar purpose on the variable power supply that we have here in the lab.
Question:	Can I use with 18 gauge speaker wire
Answer:	Yes 18 gauge stranded wire will work fine.
Question:	I have the old style speakers that have the connection that you press to push the speaker wire into. Will this work with the new style plugs
Answer:	If you are asking if the banana plug will fit into the connectors you push the speaker wire into then the answer is probably no. For that type of connector I would consider coating the ends of the speaker wire with a thin layer of solder once the ends are in good shape so they will be easier to connect and disconnect.

Product features

Deadbolt Banana Plugs

Get the most out of your home audio system by ensuring the best connection from your speaker cable to your receiver with Deadbolt Banana Plugs by Sewell. These high quality plugs use self-crimping teet to provide an extremely secure and low profile connection without solder or screws. That means that you will not only speed up your install time, but their low profile allows you to put your speakers or receiver closer to the wall.

Fast Install

Thanks to our Quick-Lock technology, you can install each Deadbolt banana plug in around 30 seconds.

Low Profile

Deadbolts are one of the smallest banana plugs, giving you a cleaner install and allowing you to keep your equipment closer to the wall.

High Quality Components

Deadbolts feature connectors that are coated in 24k gold to ensure a great connection that lasts the life of the cable.

Product description

Designed to connect a 3.5mm Cable and covert it to a 6.35mm plug. Used with Mixers and music applications. It can connect earphones and headphones, electric pianos, guitars, and other instruments, mixers, and specialist audio, speakers, microphones or Phones, MP3 players into amplifiers.

Specifications

-Input 3 Conductor Stereo 3.5mm (1/8 inch) Jack

-Output 3 Conductor Stereo 6.5mm (1/4 inch) Plug

• Convenient and cost-effective 3-pack 6.35 (1/4 inch) Plug (Male) to 3.5mm (1/8 inch) Jack (Female) Stereo Adapter
• Perfect for a 6.35 stereo port to accept a standard stereo cable with 3.5mm plug
• Connect Headphones or Microphones with 1/8 inch plugs to Audio devices with a 1/4 inch Stereo jack
• Makes your favorite headphones or other devices compatible with most pro audio and home audio equipment!
• 360 degree grip treads help easy plugging and unplugging

User questions & answers

Question:	Is this TRS (tip ring and sleeve
Answer:	To tell you the truth I was not aware of a TRS plug until your question arose, I just needed an adapter for my 1/8 inch cable plug to accomodate the 1/4 inch input on my guitar amp for my mp3 player. After googling a pic with an explanation of tip, ring & sleeve it appears to be a TRS plug. Incidentally it works fine, the balance good and it weeds out any unwanted noise. I also use a similar adapter for my Pimentel Acoustic guitar because the adapter hole for the electronics on my guitar is 1/8 inch
Question:	Has anyone used this to convert 3.5 mm microphone to 6.5 mm? Or this only work for headphones
Answer:	These are for stereo signal for headphones or microphones (they use the same standard plugs). However, they will not work for headphone/microphone combos like you might use with a cell phone. The headphones might work but the microphone won't.
Question:	Anyone use these with a Casio PX
Answer:	Keyboards use standardized connectors since many decades ago for headphones- this adapter fits the standard 1/4" jack and reduces it to the 1/8" mini headphone jack. So , yes, if there is a headphone jack on your keyboard, it WILL fit.
Question:	Has anyone used these with a behringer 4 input 1 output mixer? I bought other ones that only give sound out of the left
Answer:	I have had the same issues with all of the ones I have bought. A friend informed me to make sure the jack on the headphones or whatever you are plugin in has only 2 rings not the standard 3. Hope that helps

Product description

The Scosche FD02B wire harness connects an aftermarket stereo receiver or amp in Select 1986 to 2004 Ford vehicles. Designed specifically to fit these compatible car's and other select vehicles. Plugs directly into the factory harness without cutting any wires. The wire and connectors are from factory high-grade materials.

The FD02B is compatible with the following vehicles:

FORD AEROSTAR 1985 to 1991 With Rear Headphone & Equalizer

FORD AEROSTAR 1985 to 1997 Standard

FORD ASPIRE 1994 to 1997

FORD BRONCO Full Size 1987 to 1996

FORD BRONCO II 1987 to 1988

FORD BRONCO II 1989 to 1990 Standard

FORD CLUB WAGON 1992 to 1997

FORD CONTOUR 1995 to 1999 Standard

FORD CROWN VICTORIA 1986 to 1989

FORD CROWN VICTORIA 1992 to 1997 Standard

FORD ECONOLINE 1987 to 1996

FORD ECONOLINE/E VAN 1997 to 1997

FORD ESCORT 1987 to 2003

FORD ESCORT 1991 to 1996 Standard

FORD EXP 1987 to 1988

FORD EXPEDITION 1997 to 1997 Standard

FORD EXPLORER 1991 to 1997 Standard

FORD F SERIES PICKUP 1987 to 1996

FORD F-150 1997 to 1998

FORD F-250/350 SUPER DUTY PICKUP 1997 to 1997

FORD F-250/350 SUPER DUTY PICKUP 1998 to 1998 Standard

FORD FOCUS 2000 to 2004

FORD FOCUS 2002 to 2002 4 Door/5 Door

FORD LTD CROWN VICTORIA 1990 to 1991 Standard

FORD MUSTANG 1987 to 1993

FORD MUSTANG 1994 to 2000 Standard

FORD PROBE 1989 to 1992

FORD PROBE 1993 to 1997 Standard

FORD RANGER 1987 to 1994

FORD RANGER 1995 to 1997 Base: Manual windows/locks

FORD RANGER 1995 to 1997 Standard

FORD TAURUS 1986 to 1995 Standard

FORD TEMPO 1988 to 1994

FORD THUNDERBIRD 1987 to 1988

FORD THUNDERBIRD 1989 to 1997 Standard

FORD WINDSTAR 1995 to 1998 Standard

LINCOLN LSC 1987 to 1989

LINCOLN MARK VII 1987 to 1989

LINCOLN TOWN CAR 1987 to 1989

MAZDA B SERIES PICKUP 1994 to 1997 Standard

MAZDA NAVAJO 1991 to 1994 Standard

MERCURY CAPRI 1991 to 1995

MERCURY COUGAR 1987 to 2000

MERCURY GRAND MARQUIS 1987 to 1989

MERCURY GRAND MARQUIS 1990 to 1997 Standard

MERCURY LYNX 1987 to 1987

MERCURY MARQUIS 1987 to 1988

MERCURY MOUNTAINEER 1995 to 1999 Standard

MERCURY MOUNTAINEER 1996 to 1997

MERCURY SABLE 1986 to 1995

MERCURY TOPAZ 1988 to 1994

MERCURY TRACER 1991 to 1999

MERCURY VILLAGER 1993 to 1998 Standard

NISSAN QUEST 1993 to 1998

• Connects an aftermarket car stereo to the factory radio wiring harnesses.
• Not compatible with factory amplified amp systems.
• Direct Connection to the factory wiring harness without cutting any wires.
• Manufactured with factory quality wire and connectors.
• Standard color coded wires for an easier installation.

User questions & answers

Question:	i got the fd02b connector. what i needed was the other part that plugs into the radio
Answer:	That plug should come with the aftermarket radio. Our harness plugs into the factory connector out of the car; the other end of our harness splices to the wires coming out of the aftermarket radio. If you have any other questions, please call our Tech Support line at 1-800-363-4490 ext 1.
Question:	Will this fit a 2003 ford escort Zx2 and will I need any additional harnesses
Answer:	No
Question:	I have a 94 aerostar with the eq/amp mounted under the head unit. will this harness work
Answer:	Unfortunately Ford used multiple radios with different wiring back then. You would have to just remove yours to see if you have the basic blk/gry plugs..probably will work as most of the trucks were the same wiring.
Question:	can i use this to replace the aftermarket in my 89 bronco
Answer:	Yes if your factory radio has 2 plugs?Ford uses two different radios, 1 plug or 2? Pretty much all the trucks/broncos were the same wiring. You can also look at a wiring schematic to confirm. Although mine is a 96 F350 and a different dash.but the radios looked identical. Cheap casette!

Product features

Dash Kits

Antennas and Adapters

Wire Harnesses

Complete Installation Solutions

Electronic Dash Kits

Interfaces

USB and Backup Camera Interfaces

Speaker Adapters

• Adapts 1/ 4 inch stereo jack into mini (3.5 mm) stereo jack
• Stereo headphones only, not suitable for phone earphones with microphone
• Can be applied to mixers and music applications
• Enbles your headphones or other devices to be compatible with most pro audio and home audio equipments
• 360 Degree grip tread enables easy plugging and unplugging

User questions & answers

Question:	So I just brought a blue tooth aux for my van but the plug is to small. Will this work for extending the plug to be able to work
Answer:	This item converts from the standard small socket (6.35mm) to the older standard normal audio socket (3.5mm or 1/4 inch). I do not know what you have in your van, but you could measure it to see if it matches.
Question:	Would these fit into a Focusrite Scarlet Solo
Answer:	No machine wrong dont buy
Question:	My piano keyboard has a 3.5 connector for a pedal. Can this adapter down-size from a standard pedal at 6 mm to a
Answer:	No. It works the opposite way so it would be too big to fit in your keyboard's input.
Question:	If a plug them in, will my samsung headphones mic work
Answer:	i GOT THEM SO MY WIFE COULD PLAY THE ORGAN WITH EARPHONES ON. That is all I know.

Product description

2.5mm stereo 3 pole male plug to bare wire replacement audio cable.

Wiring diagram: PIN 1 - red wire is the left channel; PIN 2 - white wire is the right channel; PIN 3 - black wire is ground.

Perfect replacement 2.5mm male plug connector to bare wire audio cable for worn-out or broken headphone headset earphone speakers cable repair.

Easy to handle, you really don't have to be a professional to do this. Connect the corresponding bare wires together, wrap and seal the bare wire with insulating tapes.

Package contents: 2-Pack 10 inch 2.5mm stereo 3 pole male plug connector replacement audio cable.

• Perfect replacement 2.5mm male plug connector to bare wire audio cable for worn-out or broken headphone headset earphone speakers cable repair.
• 2.5mm stereo 3 pole male plug to bare wire replacement audio cable.
• Wiring diagram: PIN 1 - red wire is the left channel; PIN 2 - white wire is the right channel; PIN 3 - black wire is ground.
• Easy to handle, you really don't have to be a professional to do this. Connect the corresponding bare wires together, wrap and seal the bare wire with insulating tapes.
• Package contents: 2-Pack 10 inch 2.5mm stereo 3 pole male plug connector replacement audio cable.
