14 best engine timing lights
Engine timing lights are diagnostic tools used in the automotive industry to measure and set the ignition timing of an internal combustion engine.Ignition timing refers to the precise moment when a spark plug should fire in the engine's cylinder during the combustion cycle. Proper ignition timing is crucial for optimal engine performance, fuel efficiency, and emission control. Here are key points about engine timing lights:
Purpose:
- The primary purpose of an engine timing light is to assist in adjusting the ignition timing to the manufacturer's specified settings.
Ignition Timing:
- Ignition timing is the process of setting the time when the spark plug fires in relation to the position of the piston in the cylinder. Correct ignition timing ensures that combustion occurs at the right moment for efficient power generation.
Timing Lights:
- Timing lights are handheld devices equipped with a strobe light and a sensor. They are used to visually indicate the timing of the spark in relation to the position of the crankshaft.
How it Works:
- The timing light is connected to the vehicle's battery and the number one spark plug wire. As the engine runs, the timing light strobes in sync with the firing of the spark plug.
Adjustment:
- The mechanic or technician adjusts the ignition timing by rotating the distributor to align the timing marks on the engine's crankshaft pulley or flywheel with the timing reference specified by the vehicle's manufacturer.
Vacuum Advance and RPM:
- Some timing lights come with additional features, such as the ability to measure engine RPM (revolutions per minute) and detect vacuum advance. These features can aid in more comprehensive diagnostics and tuning.
Diagnostic Test Measurement Tools:
- Engine timing lights fall into the category of diagnostic test measurement tools, which are essential for identifying and resolving issues within a vehicle's engine and other systems.
Tools and Equipment:
- Timing lights are part of the toolkit used by automotive technicians and mechanics. They are especially useful during tune-ups, engine diagnostics, and performance enhancements.
Two Types of Timing Lights:
- There are generally two types of timing lights: inductive timing lights and adjustable advance timing lights. Inductive timing lights are the more common type and are suitable for most vehicles.
Importance in Engine Performance:
- Proper ignition timing is crucial for engine efficiency, power output, and fuel economy. Incorrect timing can lead to poor performance, increased fuel consumption, and emissions issues.
Regular Maintenance:
- Checking and adjusting ignition timing is a routine part of engine maintenance, and timing lights facilitate this process.
Safety Considerations:
- When using a timing light, it's important to follow safety guidelines, such as keeping clear of moving engine parts and wearing appropriate protective gear.
Overall, engine timing lights play a vital role in ensuring that the ignition timing of an engine is correctly set, contributing to optimal performance and efficient operation.
Below you can find our editor's choice of the best engine timing lights on the market
INNOVA 3568 Digital Timing Light
INNOVA
Product description
The INNOVA Advance Timing Light features a direct reading advance dial, which adjusts from 0-60 degrees. This enables user to check base timing, mechanical advance or retard, and electronic advance or retard applications . This timing light works with most ignition systems (conventional, electronic and computer controlled systems - domestic and import). The slim, rotating barrel offers better aim at the timing mark. Additional features include: detachable leads with inductive pickup, protective hand guard for one-hand operation and patented skip circuitry test up to 9,990 RPM. Proper ignition timing is critical in order to achieve peak engine performance and to ensure maximum fuel economy.
- Top-of-the line timing light for the selective do-it-yourselfer
- Split-screen digital LCD readout displays tachometer and advance functions simultaneously
- Slim, rotating barrel for better aim at timing mark
- Works with most ignition systems: conventional, electronic and computer controlled systems - domestic and import
- Patented Skip Circuitry Test up to 9,990 RPM
- Digital Advance: 0 degree to 90 degree
User questions & answers
| Question: | Why do some buyer reviews mention rpm reading by this timing light when all other evidence indicates it does not feature rpm reading |
| Answer: | The 5568 most definitely displays RPM, perfect for setting idle speed, or open throttle RPM on lawn and garden equipment. |
| Question: | Would this work on my 2004 infiniti FX45? I just need to know if I need only this tool or I need other items with it. Any advise is really appreciated, if another tool is recommended for the same car then please let me know |
| Answer: | Squareguard currently comes in one size only (W3.5" X H4.84") |
| Question: | Does this light work correctly with wasted spark setups or does it require the plug fire only every other crank revolution to show correct advance |
| Answer: | Squareguard can be purchased in 1,3,5 pack versions.. Buying multiple Squareguard's will help you to weave your pocket squares to the holder and keep them ready to go. Squareguard is also used to keep your pocket squares organized. |
| Question: | does this timing light display rpm's |
| Answer: | Not sure I used to put in my books as an Author for my business card to go in. Works great! |
Product features
Innova 3551
The Innova 3551 entry level Inductive Timing Light works with most ignition systems (DIS, conventional, electronic and computer controlled systems - domestic and import), providing a simple and efficient means to check timing, diagnose a no-spark condition and more.
Innova 3555
The Innova 3555 Advance Timing Light features a direct reading advance dial that adjusts from 0-60 degrees; enabling the user to check base timing and advance or retard timing. This timing light works with most ignition systems (conventional, electronic and computer controlled systems - domestic and import) with a patented skip circuitry to test up to 9,990 RPM.
Innova 3568
The Innova 3568 Digital Timing Light features a split-screen LCD readout that displays tachometer and advance functions simultaneously (Digital Tach: 249 to 9,990 RPM / Digital Advance: 0-90 degrees).
Innova 5568
The Innova 5568 Pro Digital Timing Light is made from a heavy-duty, ABS, shock proof housing encased by a molded boot for extra protection against the engine fan blades and accidental drops. It features a backlit screen for easier viewing in hard to see places. The four function digital readout displays tachometer ranges from 249-9,990 RPM, Advance Degrees (2 and 4 cycle) 0-90 degrees, dwell (2-12 cylinders) from 0-180 degrees and voltage from 10-16 volts DC.
Easy to Use
Plug and Play design allows for quick setup and use.
Adjustable Barrel
The slim and adjustable barrel allows for better aim at the timing mark in tighter spaces.
Detachable Leads
Detachable leads and inductive pickups makes setup and storage quick and easy.
Customer Support
Support in English and Spanish available Monday-Saturday from our ASE certified technicians in our Headquarters located in Irvine, California.

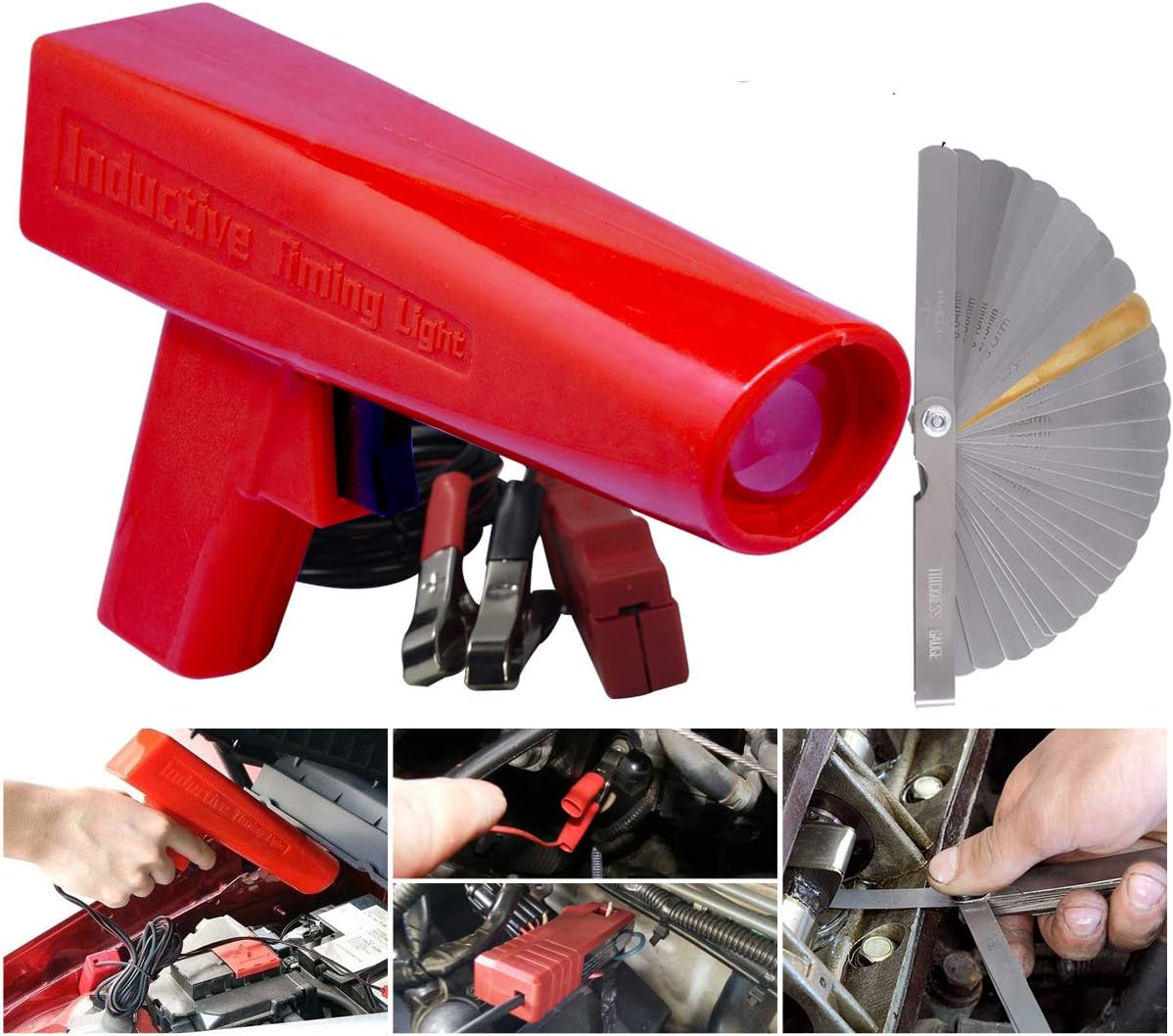

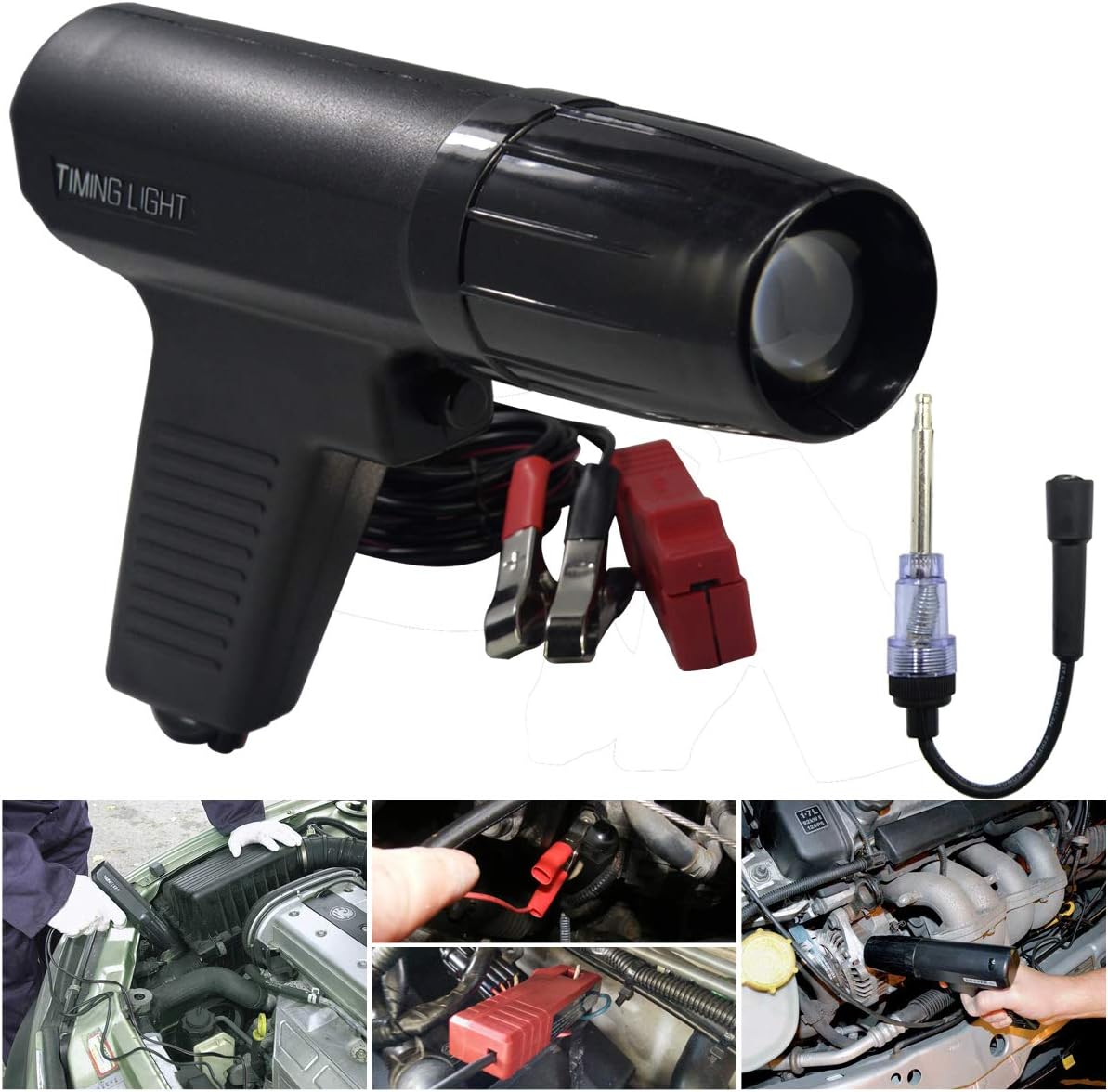

Engine Timing Light with Spark Plug Tester,Inductive Timing Light Gun Timing Light Ignition Testers Engine Ignition Coil Tester for Car Motor Motorbike Vehicle Motorcycle Marine Lawnmower
Product description
Born for Engine Timing,Beyond Your Limits!
Does your engine suddenly starts to thump or shudder ?
Will you be seriously concerned and feel not confident ?
This could be result of engine’s timing being a little off or mean something more serious
Now you can diagnose by yourself with Dirautos Timing Light !
Connect Dirautos Timing Light
►1 : Switch off engine
►2 : Red clip to positive terminal of battery
►3 : Black clip to negative terminal of battery
►4: Connect largest clip to #1 spark plug
How Dirautos Timing Light Work
Because of timing light's stroboscopic effect, the timing light ‘freezes’ motion of pulley. This allows to see if spark is firing before or after TDC and by how many degrees .Speed up to 10000rpm
How To Know Proper Timing Specifications
Check Vehicle Emission Control Information Label, which should contain specification. The service manual specific should also report it
Engine Ignition Spark Tester As Gift
Diagnostic tool for any engine with spark plug, can diagnose ignition/engine outboard motor issues or fault in fuel delivery system
Questions May Faced
Will This Work for Carbureted Vehicles and Injection
As long there is spark plug wires going to the spark plugs then it should work
Will Work On Diesel Engines
Diesel vehicles do not have spark plugs or distributor. Dirautos timing lights will not work on diesel engines
Will Work On 6 Volt System
For 6volt electrical systems requires a separate 12 volt automotive battery. It will work just need 12 battery to 6 volt vehicle
What You Get
1X Inductive Timing Light
1X Spark Plug Engine Ignition Tester
1X User Manual
Warm Tips It is always better to read the instructions first :)
- ★ Timing Light Will Extend The Life of Engine ★- It doesn't exactly inspire confidence when you're feel a sudden succession of shudders or thumps emanating from your car engine.Knocking,could be sign of something dire.or could just mean the engine's timing is a little off.You could spend dollars to repair place.Or you could diagnose problem on your own using a timing light.Properly adjusted timing, in turn,helps to make sure your engine works at peak power and efficiency.Who doesn't want that?
- ★ Never Have To Worry About Running Out of Power★ -The cool thing about timing lights is that unlike a flashlight, you never have to worry about running out of power the light. That is, as long as your car runs and is connected to a working 12-volt battery. With the engine off, you merely clamp the timing light's red wire to the battery's positive terminal, then the black wire to the battery's negative terminal. Lastly, you take the signal wire and clamp directly to Number 1 spark plug wire.
- ★ Ergonomic Pistol Grip Design ★ - First, you should know that timing lights come in a few different shapes and sizes.But most people would probably prefer the much cooler, ray gun-shaped, "pistol grip" variety.Because they're more ergonomic inside the close confines of a car's engine bay (yeah, that's it). Handle pistol-type design conforms to the engineering design, the button is comfortable, feels good, facilitates the operation.
- ★ Extended Length Cables Easy Connect To Car's Engine Bay★ - Sensor Clips Cable length up to 4.54 ft .Never worry about the length of the cable is not long enough.Adapts to all kinds of 12V battery for automobiles, motorcycles, ATVs, personal watercraft, RVs, boats, airplanes, golf carts, lawn mower, etc .
- ★ Engine Ignition Spark Tester As Bonus ★- Use this ignition spark tester to check the condition of the ignition system at each cylinder without going to expensive mechanics.The spark tester connects between the spark plug and spark plug wire in seconds to troubleshoot dirty spark plug connections, defective points and bad cables or connections.
User questions & answers
| Question: | Will this timing light work with my race car with a 16 bolt battery system |
| Answer: | I know it works on 12v systems. I don't recommend this iight. Leads are WAY too short and it needs the adaptor to get a reading. You just can't clip on a wire. For a race car get a good one. Spend the money.. MSD etc |
| Question: | Does this have an rpm meter on it? can it check idle speed |
| Answer: | No it does not |
| Question: | Llldoes this unit have an advance dial? And does it have a positive stop at |
| Answer: | No this is just a basic light..hooks to battery and number one spark plug wire . |
| Question: | Direct ignition can be done with this gun |
| Answer: | If you mean,does the spark plug spark normally while you are timing, the answer is yes. If you mean, can you connect this in line between the spark plug and the spark plug, that is NO, but it is not necessary since power comes from the battery rather than the current flowing through the spark wire during a spark. |

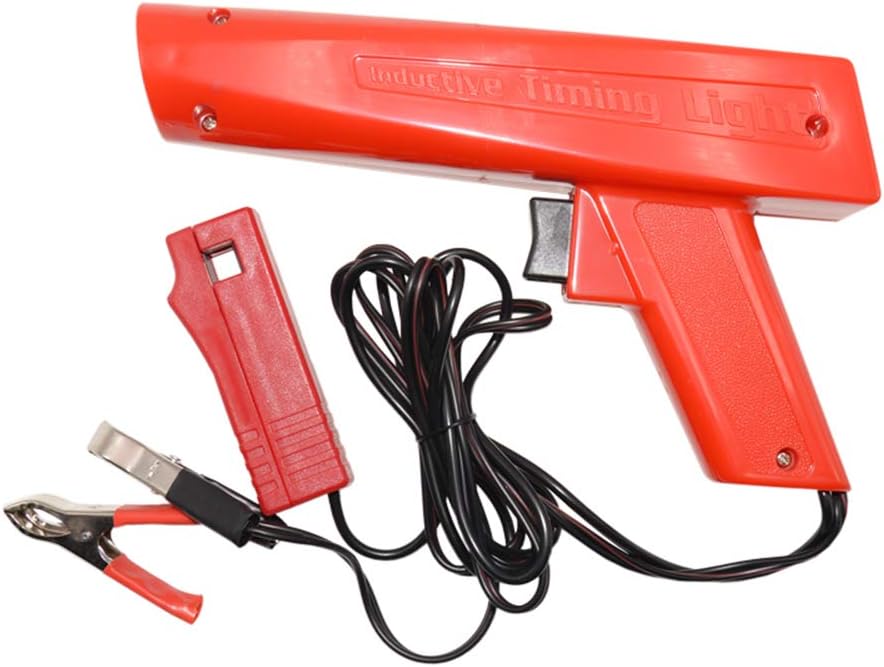

Automotive Timing Light 12V, Inductive Ignition Timing Light Gun for 2&4 Stroke Petrol Engine for Old Classical Car Motorcycle
- Ignition Timing Light: Design to re-timing your car's ignition to get the best performance that you can. Suitable for car, vehicle motorcycle, marine,all two-stroke and four-stroke gasoline engines, easily operate on 12V ignition systems
- Handle Pistol-type design:Ergonomically designed with comfortable press keys, great Press feeling and easy operation. And the high quality makes it be worn hardly.
- Sensor Clips: The sensor clip is red and black to distinguish positive and negative poles, easy to use and more secure. It's sliding clamp-on inductive pick-up, for easy and safe hookup.
- Advance Function: Capable of testing the ignition timing scale on the engine flywheel or belt pulley intuitively to adjust appropriately.Able to detect the automotive knock suppression control system and vacuum advance angle control system, change its advance angle with the speed change.
- Attention: The power supply is 12V with red connecting to positive and black to negative. The high voltage wire induction clamp is clamped on the high voltage line of cylinder with the arrow on the induction clamp pointing to the direction of the spark plug for normal working.
User questions & answers
| Question: | How long is the cord |
| Answer: | Hi dear, The longth of cord is 51.2inch. Thanks for asking, hope this help |
| Question: | Which system this timing light apply for |
| Answer: | Hi dear Ambroisa, The timing light applies for 6V&12V ignition system. Thanks for asking, hope this help |
| Question: | Would this work on ignition coils instead of spark plug wires |
| Answer: | I wouldn't think so. These type of timing lights have to be connected to #1 spark plug wire to work and read correctly. Unfortunately, I actually never received mine, it got lost in shipping and I had to be refunded. It ships from China or someplace in Asia, so the wait is awful long, I waited for close to 2 months for mine, which as I said, never arrived... |
| Question: | Does it come in a carrying case |
| Answer: | No |
Product features
INDUCTIVE TIMING LIGHT
Does your engine suddenly start to thump or shudder?
This could be a result of the engine’s timing being a little off or mean something more serious
Now you can diagnose by yourself with OBDMONSTER timing Light!
Connect
Red clip to positive terminal of battery, black clip to negative terminal of battery, connect largest clip to #1 spark plug
Switch on Engine
Aim at Target
Aim timing light at the crankshaft scale of the pulley and pull the trigger
Check
Check timing
Will Work on Diesel Engines？
No
Diesel vehicles do not have spark plugs or distributor, so this timing lights will not work on diesel engines
Will Work on 6-Volt System？
Yes
On 6-volt electrical systems, use an auxiliary 12-volt battery to power timing light. Connect BLACK clip to negative (-) post and RED clip to positive (+) post on auxiliary 12- volt batter

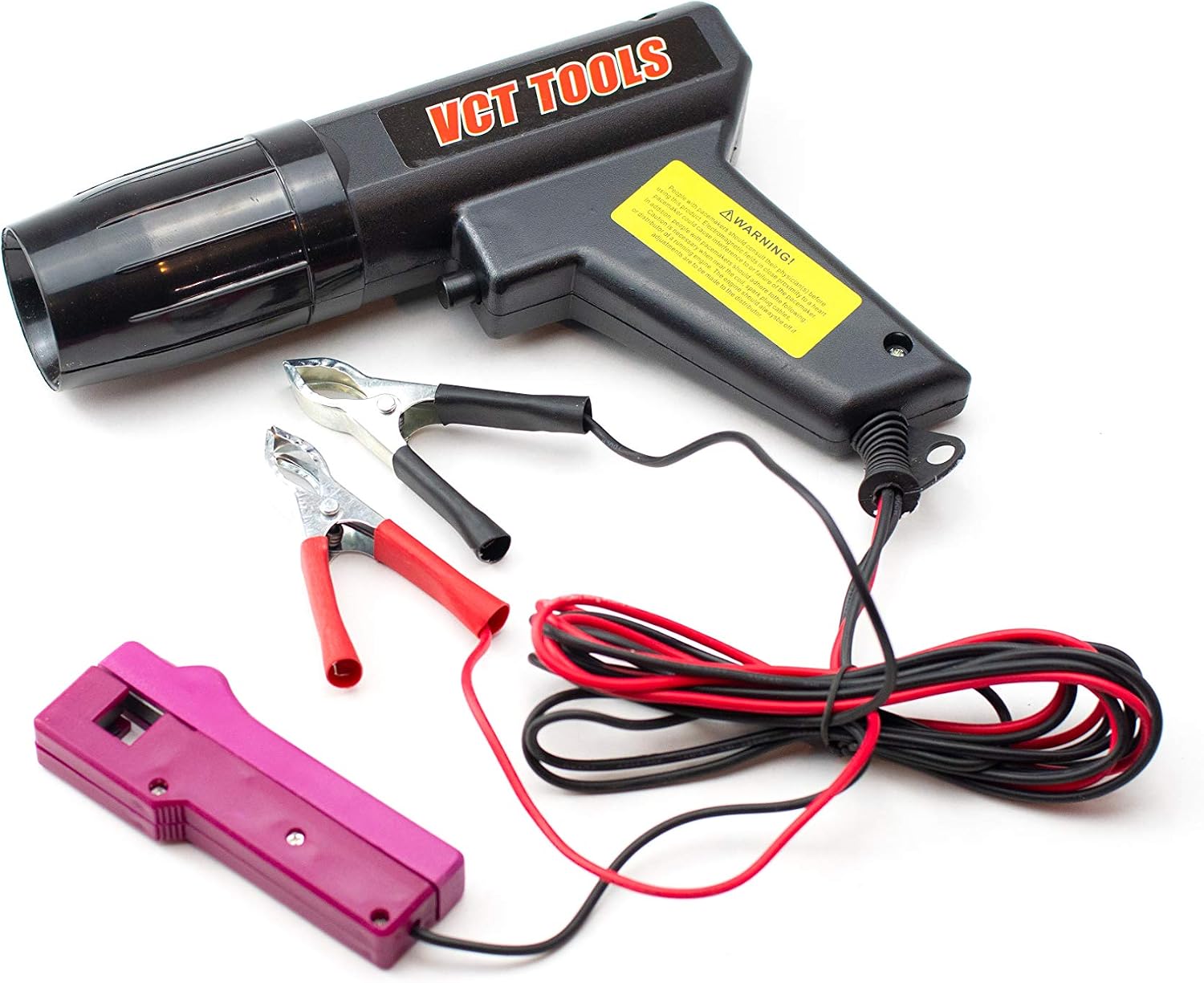

VCT Xenon Timing Light Automotive Tools Cars Truck Engine Auto Shop DIY Tool
Product description
FEATURES · Xenon Automotive Timing Light · Bright Xenon Bulb Makes Timing Mark · High Visibility; Very Easy To Read · Highly Accurate At Any Speed · Clamp-on Inductive Pick-up Trigger Activated · Dependable Solid State Circuit · Automatic Reverse Polarity & Overload Protection · 4FT Long Electrical Wire of Clamp · 4FT Long Test Electrical Wire · Works On All Import & Domestic Gasoline Engines · Easy To Use
- FEATURES · Xenon Automotive Timing Light · Bright Xenon Bulb Makes Timing Mark · High
- CARS & TRUCKS Pro Xenon Automotive Timing Light Tune Up F10 This Item Is Brand New!
- Visibility; Very Easy To Read · Highly Accurate At Any Speed · Clamp-on Inductive Pick-up
- Trigger Activated · Dependable Solid State Circuit · Automatic Reverse Polarity & Overload
- Protection · 4FT Long Electrical Wire of Clamp · 4FT Long Test Electrical Wire · Work
Performance Tool W80578 Self-Powered Timing Light
Performance Tool
Product description
The Performance Tool W80578 Self-Powered Timing Light is designed for all gas engines, outdoor power equipment, motorcycle, snow mobile, mowers and tractors, works with magnetos. Detachable inductive pick up can be easily hooked up. Powered by 2 D cell batteries (not included).
- Perfect for street rods, race cars and power boats
- Detachable inductive pick up can be easily hooked up
- Works with magnetos
- Designed for all gas engines, outdoor power equipment, motorcycle, snow mobile, vehicle, mowers and tractors
- Powered by two rechargeable or standard D cell batteries (not included)
User questions & answers
| Question: | My farm tractor started doesn't kickin all the time so i use a screw drive to jump across it. will the heavy duty remote be up to the task |
| Answer: | I must turn the ignition on or on ACC for the cigarette lighter to work. I have this problem with my vehicle. So, when I replaced my battery, before disconnecting the battery, I turned my ignition to ACC, plugged in the saver, then replaced the battery. My computer memory was saved. So, unless the computer has a flash drive memory that does not erase, this device will work if ACC turned on is required. It would be nice for someone else to verify or refute this experience. |
| Question: | Are the wires heavy enough to work with the increased amperage of an old 6 volt starting system |
| Answer: | It may.....laser show is intense |
| Question: | Does it have a little light on it to show if its on |
| Answer: | Yes. It will work. |
| Question: | So apparently I'm stupid. How do you use this? I put a new battery on the terminal and plugged it in my lighter and had to redo my radio |
| Answer: | Mark sure tje power switch is on |
Product features
Performance Tool W80586 Remote Starter Switch
Allows one person to start and crank the engine from either side of the vehicle.
Caution!
Exercise care when making this connection because battery voltage is always present at the solenoid or starter relay. Personal injury may be caused if leads are shorted to a ground through tools, wires or wristwatch.
Turn the ignition switch to the On position before using the Remote Starter Switch if you wish to start the engine.
If the vehicle is equipped with an engine Hot indicator, the lamp test circuit which is in the ignition system could be damaged if the remote starter switch is energized with the ignition switch in the Off position.
Key in the off position would be used if you’re just cranking the engine over for special jobs like setting valves, or testing compression.
Typical Connection to Fender Mounted Solenoid (Ford)
This relay may have three or four terminals, two large ones and one or two small ones.
1. Remove the wires connected to the small terminal if only one small terminal is provided. If two small terminals are present, remove the wires from the small terminal marked S.
2. Connect one lead of the Remote Starter Switch to the bare small terminal where the wires were just removed.
3. Connect the other lead of the Remote Starter Switch to the Battery Terminal of the relay.
4. Crank the engine by depressing the Remote Starter Switch.
Typical Connection to Starter Mounted Solenoid (GM)
This relay may have three or four terminals, two large ones and one or two small ones.
1. Connect one lead of the Remote Starter Switch to the small terminal of the solenoid marked S. Be cautious as these connections are exposed and very close together.
2. Connect the other lead of the Remote Starter Switch large battery terminal on the solenoid. This is the heavy cable coming from the battery.
3. Crank the engine by pulling the trigger on the Remote Starter Switch.
Actron CP7527 Inductive Timing Light
Actron
Product description
Actron's CP7527 Inductive Timing Light is designed for standard base timing with on/off touch control. Simple and easy to use tool for measuring and setting initial timing, checking and measuring centrifugal advance, and measuring vacuum advance on gasoline powered vehicles. Works on vehicles equipped with conventional, electronic, computer controlled, DIS, or 2-cycle ignition systems. Features a super bright Xenon flash that makes it easy to see timing marks - even in daylight. The all-metal inductive pickup and durable ABS housing offer rugged reliability while heat resistant over molding on battery clips prevents burned fingers. Works on 6V and 12V vehicles (6V use requires a separate 12V automotive battery for power). Includes comprehensive instruction booklet. 1 year warranty.
- Actron's CP7527 Inductive Timing Light is designed for standard base timing with on/off touch control
- Use to measure and set initial timing, check and measure centrifugal advance, and measure vacuum advance
- Works on gasoline powered vehicles equipped with conventional, electronic, computer controlled, DIS, or 2-cycle ignition systems
- Features: super bright Xenon flash that makes it easy to see timing marks, all-metal inductive pickup, durable ABS housing, and heat resistant over molding on battery clips
- Includes comprehensive instruction booklet; 1 year warranty
User questions & answers
| Question: | Will this work on diesel engines |
| Answer: | My limited understanding of diesel engines is that they don not have spark plugs or distributors. If that's the case, I don't see how a timing light could work. I could be wrong. |
| Question: | Is the pick up clip multi directional? The other timing lights I have owned always had an arrow pointing to the spark plug side |
| Answer: | There is no arrow or pointer on the pickup of the unit that I have. It works great but honestly I haven't used it very often. I am a mechanic on my vehicles only and only the two old school ones at that. |
| Question: | Does this have an rpm reader setting |
| Answer: | This timing light does not have an integral tachometer where the CP7529 does have a Tach. Thanks for your question. |
| Question: | Will this work for a 1983 Honda 750 v45 Magma motorcycle |
| Answer: | as best I can tell, the V45 is a V4 which all actron timing lights are compatible with. In researching, we could not tell how the plug wires are routed, however believe the clamp will connect properly given enough length available on the plug wire. Please consult the factory shop manual for additional details. |
Product features
Actron Diagnostic Tools and Equipment Help You Solve Problems Fast
Actron's broad range of diagnostic tools and test equipment is designed for ease of use, consistent performance, and superior accuracy. Whether using one of our robustly featured diagnostic scan tools to diagnose a wide variety of engine, transmission, ABS, and airbag issues, or one of our mechanical or electronic testers to verify pressures, temperatures, timing or electrical conductivity, Actron tools deliver the consistent, repeatable results that make modern or vintage vehicle diagnostics simple for both DIYers and professional technicians alike.
Actron CP7529 Digital Timing Light with Advance, Tachometer, Flashlight, and LED Display, Gray
Actron
Product description
Actron's CP7529 Digital Timing Light features microprocessor-controlled circuitry and is loaded with advanced features including a bright LED display, mode indicator lights, and flashlight. The ideal timing light for the heavy do-it-yourselfer or professional technician. Use to measure engine RPM and advance, and set initial timing, check and measure centrifugal advance, and measure vacuum advance. Works on gasoline powered vehicles equipped with conventional, electronic, computer controlled, DIS, or 2-cycle ignition systems. Digital LED tachometer display reads 0-9999 RPM. Advance display indicates to 1/10. Handy 2/4 cycle and RPM/advance mode lights help you keep track of settings and multi-task. RPM/advance selector button and up/down buttons that increase or reduce the advance make operation simple and easy. Features a super bright Xenon flash that makes it easy to see timing marks - even in daylight. The all-metal inductive pickup and durable ABS housing offer rugged reliability while heat resistant over molding on battery clips prevents burned fingers. Works on 6V and 12V vehicles (6V use requires a separate 12V automotive battery for power). Includes comprehensive instruction booklet in English, Spanish, and French. 1 year warranty.
- Actron's CP7529 Digital Timing Light features microprocessor-controlled circuitry and is loaded with advanced features including a bright LED display, mode indicator lights, and Xenon flashlight
- Use to measure engine RPM and advance, and set initial timing, check and measure centrifugal advance, and measure vacuum advance
- Works on gasoline powered vehicles equipped with conventional, electronic, computer controlled, DIS, or 2-cycle ignition systems
- Digital LED tach display reads 0-9999 RPM, advance display indicates to 1/10; includes: 2/4 cycle and RPM/advance mode lights, RPM advance selector button, and up/down buttons
- Features: super bright Xenon flash, all-metal inductive pickup, durable ABS housing, heat resistant over molding on battery clips, and comprehensive instructions in English, Spanish, & French
User questions & answers
| Question: | The RPM meter works with bikes of one cylinder |
| Answer: | The question of whether 6 volt will power the light? Actron to the rescue...NOT! As already suggested, plug the red and black battery clips to a 12 volt battery. Youre in bussiness, Xcept RPM. |
| Question: | Is this good for v8’s |
| Answer: | The opening is 10mm, so it would be close either way. I think you should wait for response from a user in the field. We don't have any samples of this type of plug wire. You are welcome to mail me a one inch sample and I can let you know. My email is [email protected], or I can be reached at 800-227-1603 x102. Steve White/President/ESI |
| Question: | Will this work on a classic car |
| Answer: | Yes it will work on a two stroke outboard motor, however you need to be in low light because the units light isn't real bright |
| Question: | Can this light be used on a 6 volt car |
| Answer: | No it doesn't. 130 is not a tach/advance timing light. The D cell battery power source limits its function to standard timing. Being powered by D cells brings other advantages that 12 volt powered units can not match, such as timing pull start engines from snowmobiles for example. Further, it is never reliant on being tethered to a vehicle battery, which may be located in inaccessible places. |
Product features
Actron Diagnostic Tools and Equipment Help You Solve Problems Fast
Actron's broad range of diagnostic tools and test equipment is designed for ease of use, consistent performance, and superior accuracy. Whether using one of our robustly featured diagnostic scan tools to diagnose a wide variety of engine, transmission, ABS, and airbag issues, or one of our mechanical or electronic testers to verify pressures, temperatures, timing or electrical conductivity, Actron tools deliver the consistent, repeatable results that make modern or vintage vehicle diagnostics simple for both DIYers and professional technicians alike.
Houkiper Engine Timing Light Automotive,Xenon Ignition Timing Light Gun, Advance Inductive Strobe Timing Light Tool for Car Vehicle Motorcycle, Marine
Product description
PLEASE NOTE: before adjusting the timing, the "dwell angle" or "gap" should be adjusted on vehicles fitted with contact breaker points.
Operating Instructions:1.Clamp the inductive pick-up around the number one spark plug wire. Make sure the arrow on it is facing towards the spark plug.
Do not allow the inductive pick-up to touch the exhaust manifold or surrounding parts as these areas become extremely hot and will damage the inductive pick-up.
2.Connect the RED clamp to the positive (+) battery terminal.
3.Connect the BLACK clamp to a secure engine ground such as the alternator bracket or the engine block. For safety reasons, do not use the negative (-) battery terminal or fuel system components as a ground connection point.
Features:★ Design to re-timing your cars ignition to get the best performance that you can.
★ Superior performance at all speeds through 10000rpm maximum rating.
★ Bright bulb provides concentrated light for high visibility of timing mark.
★ Detachable clamp-on inductive pick-up for easy and safe hookup.
★ Suitable for car, motorcycle, all two-stroke and four-stroke gasoline engines, easily operate on 12V ignition systems.
Specification Type: Xenon Timing Light Tool
Input voltage: 12V
Speed: 200-10000rpm
Working temperature: 0-40C
Material: Plastic
Color: Red
Pistol Grip Handle: 25*15*4.5cm/9.83*5.9*1.77''(L*W*H)
Inductive Clamp: 10*3.5*2cm/3.93*1.38*0.79''(L*W*H)
Inductive Clamp Cable: 120cm/3.94ft
Sensor Clips Cable: 130cm/4.26ft
Package includes:
1 x Inductive Timing Light Gun
- ★ Ignition Timing Light: Design to re-timing your car`s ignition to get the best performance that you can. Suitable for car, vehicle motorcycle, marine,all two-stroke and four-stroke gasoline engines, easily operate on 12V ignition systems
- ★ Safe Professional Engine Timing Light : Solid-state burnout-proof polarity with automotive reverse, it is polarity and overload protection. It`s sliding clamp-on inductive pick-up, for easy and safe hookup
- ★ Pistol Grip Design: Handle pistol-type design conforms to the engineering design, the button is comfortable, feels good, facilitates the operation
- ★ Sensor Clips: The sensor clip is red and black to distinguish positive and negative poles, easy to use and more secure. And the color of the wire is also different to prevent the glue sleeve of the clip to come off and difficult to distinguish
- ★ One Year and 100% Money Back Promise: We are devote to provide happy shopping experience for our customers.If you aren't completely satisfied with our we will give you a full refund or new replacement. So just take a try of our xenon timing light gun
Engine Timing Light with Feeler Gauge 32 Blades,Inductive Timing Light Gun Timing Light Ignition Testers Engine Ignition Coil Tester for Car Motor Vehicle Motorcycle Marine Lawnmower Measuring Gap
Product description
Born for Engine Timing, Beyond Your Limits!
Does your engine suddenly starts to thump and shudder ?
Will you be seriously concerned and feel not very confident ?
This could be the result of the engine’s timing being a little off or it could also mean something more serious
Now you can diagnose problems yourself with Dirautos Timing Light !
Easy Connect Dirautos Timing Light
►Step1 : Switch off engine of your car
►Step2 : Clamp red clip to positive terminal of car battery
►Step3 : Clamp black clip to negative terminal of car battery
►Step4: Connect largest clip directly to the wire of #1 spark plug wire
How Dirautos Timing Light Work
Because of timing light's stroboscopic effect, the timing light ‘freezes’ the motion of the pulley. This allows to see if the spark is firing before or after the TDC and by how many degrees .Speed up to 10000rpm
How To Know Proper Timing Specifications
You can check the Vehicle Emission Control Information Label, which should contain timing specification. Alternately, the service manual specific to your vehicle should also report it
32 Blade Stainless Steel Feeler Gauge As Gift
Inch Sizes：0.0015, 0.002, 0.0025, 0.003, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.010, 0.011, 0.012, 0.013, 0.014, 0.015, 0.016, 0.017, 0.018, 0.019, 0.020, 0.021, 0.022, 0.023, 0.024, 0.025, 0.026, 0.028, 0.030, 0.032, 0.035
What You Get
1X Inductive Timing Light
1X 32 Blade Stainless Steel Feeler Gauge
1X User Manual
Warm Tips : Before using Dirautos Timing Light , it is always better to read the instructions first, it is more detailed :)
- ★ Timing Light Will Extend The Life of Engine ★- It doesn't exactly inspire confidence when you're feel a sudden succession of shudders or thumps emanating from your car engine.Knocking,could be sign of something dire.or could just mean the engine's timing is a little off.You could spend dollars to repair place.Or you could diagnose problem on your own using a timing light.Properly adjusted timing, in turn,helps to make sure your engine works at peak power and efficiency.Who doesn't want that?
- ★ Never Have To Worry About Running Out of Power★ -The cool thing about timing lights is that unlike a flashlight, you never have to worry about running out of power the light. That is, as long as your car runs and is connected to a working 12-volt battery. With the engine off, you merely clamp the timing light's red wire to the battery's positive terminal, then the black wire to the battery's negative terminal. Lastly, you take the signal wire and clamp directly to Number 1 spark plug wire.
- ★ Ergonomic Pistol Grip Design ★ - First, you should know that timing lights come in a few different shapes and sizes.But most people would probably prefer the much cooler, ray gun-shaped, "pistol grip" variety.Because they're more ergonomic inside the close confines of a car's engine bay (yeah, that's it). Handle pistol-type design conforms to the engineering design, the button is comfortable, feels good, facilitates the operation.
- ★ Extended Length Cables Easy Connect To Car's Engine Bay★ - Sensor Clips Cable length up to 4.41ft .Never worry about the length of the cable is not long enough.Adapts to all kinds of 12V battery for automobiles, motorcycles, ATVs, personal watercraft, RVs, boats, airplanes, golf carts, lawn mower, etc .
- ★ Stainless Steel Feeler Gauge As Bonus★ - Use feeler gauge to measure gap.This is flexible easy to get into all places. Blades are able to be together or can unscrew finger nut to take feeler out. 2 Different units of measuring: Dual marked metric and imperial, 0.0015 in/ 0.04 mm to 0.035 in/ 0.88 mm, the numbers of size are etched into feeler gauge for easy identification.Perfect for setting lifter, sparking plug, points gap etc. With anti-rust oil on feeler gauge to prevent rust.
User questions & answers
| Question: | I am having a problem with this light not working does it matter if I run a 16 vote system |
| Answer: | Probably. If i had to guess why it is not working right , id say it has to do with the resistance in the circuit. I know these are cheap lights, people have said they work a few times, some have said once. I myself have one and it worked fine but i have a 87 honda. A light like this is best for old cars. Nothing newer than 2005 for sure. Maybe you have a hybrid or something with a wacky system voltage but ive never seen a car run on anything other than 12 but i know they exist. If you have a new car with lots of computer controlled engine management features, chances are, you wont be able to set the timing perfect with the cheap light anyway. If its 16 volts from the factory and not a mod, you are probably going to struggle. If its 16 volts to accomodate spotlights or amps or some entertainment mod, and it was factory at 12volts , then make sure your not changing the resistances of your spark plugs by draining off too much power from the alternator to run those extra lights or amps. Make sure the AC and radio and amps and lights are all turned off and do a alternator draw test. Batterys are 12volts but alternators run 14 and 15 volts to keep the battery from being drained under full load. A 16volt system.....is that an alternator or a 16 volt battery because to have a 16 volt system youd need the battery itself to always push out more than 12v. A 12v battery with a 16 volt alternator is still a 12 volt system. If you switched to 16v where all the wires in your car are still for12v then you run risks of burning wires flowing too much resistance. Your spark plug coil packs may not be inducting enough. Hope all this helps. |
| Question: | Where is this Product made |
| Answer: | The package says made in Taiwan. |
| Question: | can i use this with a 6 volt system |
| Answer: | Package says for use of a 12 volt system |
XCSOURCE Professional Ignition Timing Light Strobe Lamp Inductive Petrol Engine for Car Motorcycle Marine MA1167
Product description
Features:
Design to re-timing your cars ignition to get the best performance that you can.
Suitable for automotive, agricultural, marine engines, easily operate on 12V ignition systems.
Impact resistant ABS housing, reverse polarity protected, accurate up to 10000rpm
Focused lens provides concentrated light for high visibility of timing mark.
Detachable clamp-on inductive pick-up for easy and safe hookup.
PLEASE NOTE: before adjusting the timing, the "dwell angle" or "gap" should be adjusted on vehicles fitted with contact breaker points.
Specifications:
Model: TL-122
Input voltage: 12V
Trigger point: high volt coil of No.1 spark plug
Speed: up to 10000rpm
Working temperature: 0-40C
Package includes:
1 x Inductive Timing Light
- Design to re-timing your cars ignition to get the best performance that you can.
- Suitable for automotive, agricultural, marine engines, easily operate on 12V ignition systems.
- Impact resistant ABS housing, reverse polarity protected, accurate up to 10000rpm
- Focused lens provides concentrated light for high visibility of timing mark.
- Detachable clamp-on inductive pick-up for easy and safe hookup.
ESI 130 Self - Powered Timing Light
Electronic Specialties
Product description
The original battery powered timing light, built with quality to last. There is no need to connect to a 12 volt battery for power. This unit is powered by two “D” cell flashlight batteries. Great tool for marine, smowmobile, industrial, racing engines and other small engine timing. Don’t accept a copy.
- Accurate up to at least 14, 000 RPM
- For 2 or 4 cycle engines, all ignition systems
- Protective heat sleeving withstands high temps (1200F)
- Standard lead length 4 feet
- Bright flash at all speeds
- Requires 2 D cell batteries
User questions & answers
| Question: | will the pickup fit over taylor pro 409 10.4mm plug wires |
| Answer: | Absolutely! |
| Question: | Will this work on two stroke outboard motor |
| Answer: | Dont know what a vibrometer is but it's a good timing light. |
| Question: | Does the ESI 130 show rpm & ignition timing |
| Answer: | Yes, the strobe doesn't concern about the number of strokes, it simply detect the electrical signal running through the HT lead on its way to the spark plug. In fact, most 4-stroke motorcycles operate their ignition like a two-stroke engine, sparking every time a piston is near TDC. This is called a Waste spark since it doesn't do anything for the engine, but simplify the ignition system. So as long as you have an HT lead between the coil and spark plug cap, it will work. Some modern engines have the coil build into the spark plug cap and these may not work with this strobe. |
| Question: | does this work with MSD ignition boxes |
| Answer: | James, Thanks for the inquiry. Yes the timing light will work with solid copper wires. The light will also work with MSD ignitions. |
FreeTec Engine Timing Light Gun Xenon Induction Timing Light Xenon Ignition Timing Light Gun Compatible for Car Vehicle Motorcycle
- Equipped with a bright xenon light, which ensures high visibility even in daylight
- suitable for all petrol-powered vehicles with a 12 V ignition
- Allows the synchronization of the ignition system with the movements of the camshaft
- Tune the stoboscope lamp to your ignition.
- Product specifications: 12V / 10W.
MSD Ignition 8992 Timing Light
MSD
Product description
Inductive Timing LightTiming Light
- Tough and easy to use
- Extremely accurate
- Inductive pickup is detachable for storage
- Intense strobe visible during daylight
- Provides stable timing signals
User questions & answers
| Question: | Will this work on 62 chevy stock ignition |
| Answer: | Hello, no it does not. Thanks, Speed Unlimited |
| Question: | Will this light work with a magneto distributor |
| Answer: | Worked on my HEI |
| Question: | Does this light work on blaster 2 msd ignition |
| Answer: | I wasted hundreds of dollars trying these different car timing lights, some which claimed they work with motorcycles. None of them worked so I designed my own timing light which you can also make and use at night on your engine: http://www.dragonfly75.com/motorbike/timinglight.html |
| Question: | does it come with a case |
| Answer: | It has a 2-stroke option. Have not used it tho. |
KKmoon Engine Timing Light Automotive, ZC100 Professional Inductive Ignition Timing Light, Timing Light, Repair Engine Automobile Detection for Car Motorcycle Ship
Product description
This ignition timing machine is suitable for automobiles, motorcycles and all two-stroke or four-stroke gasoline engines. It adopts impact-resistant ABS shell, and the working voltage is 12V. It can detect car knock suppression control system and vacuum advanced angle control system.
Features:
Re-timing design makes your car ignition get the best performance.
Suitable for cars, agricultural and marine engines, easily operate on 12V ignition systems.
Impact-resistant and fine-quality ABS housing.
Focused lens provides light for high visibility of timing mark.
Detachable clamp-on inductive pickup, easy and secure to connect.
The ergonomically designed handle makes you feel more comfortable.
Fine-quality material, practical and easy to use.
Solid-state burnout-proof polarity with automotive reverse, it is polarity and overload protection.
Specifications:
Material: ABS
Model: ZC100
Main color: Red
Input: 12V
Working temperature: 0-40℃
Trigger point: No.1 cylinder high-voltage spark plug
Speed: 200-10000r/min
Package size: 25*12*5cm / 9.84*4.72*1.97in
Package weight (approx.): 500g / 17.64oz
Notes:
1. The power supply is 12V.
2. Electrode: Red +, Black -.
3. It can be used only when the arrow on the sensor clip points to spark plug.
Package List:
1 * Inductive Ignition Timing Light
- Focused lens provides light for high visibility of timing mark.
- Re-timing design makes your car ignition get the best performance.
- Suitable for cars, agricultural and marine engines, easily operate on 12V ignition systems.
- Detachable clamp-on inductive pickup, easy and secure to connect.
- The ergonomically designed handle makes you feel more comfortable.
Latest Reviews
View all
Log Tote For Firewood
- Updated: 02.03.2023
- Read reviews
Kids Laptop For 8 Year Old
- Updated: 15.02.2023
- Read reviews
American N As
- Updated: 07.07.2023
- Read reviews
Stylus For Kids
- Updated: 13.04.2023
- Read reviews
Monocular Telescope For Spy Birds
- Updated: 12.02.2023
- Read reviews
