12 best diagnostic scan tools

Product description

Car diagnostic scanner

OS601 is a cost-effective upgraded version of OBDII scanner for determining the cause of the Check Engine Light. Equips with a 2.4-inch color screen and shows live vehicle sensors data in text and graph format. Support all the 10 OBDII test modes, enhanced Mode 6, read&erase codes, code definitions and playback data from the car ECU. It enables you to inspect monitor before Smog check, and switch off the MIL.

How to get started?

Simply plug into the OBD2 port on your car and turn ignition on and you ready to go.

No matter where you are, let this gadget accompanies with you. Let you decide if it's something you can fix or need more advanced help. Save money and time.

Where's the OBDII interface?

It is often under the dash, or under a panel below the handbrake in the center console.

What is OBD-II?

On-board diagnostics (OBD) is an automotive term referring to a vehicle's self-diagnostic and reporting capability. Vehicles produced after 1996 use OBD-II, which is a standardized system that simplifies the process a whole lot. These vehicles all use a common diagnostic connector and a set of universal trouble codes. Though only emission-related codes and data are required to be transmitted through it according to U.S. legislation, most manufacturers have made the OBD-II Data Link Connector the main connector in the vehicle through which all systems are diagnosed and reprogrammed.

At the most basic level, the check engine light indicates that some sensor, somewhere in your engine, exhaust, or transmission, has provided unexpected data to computer. That could indicate a problem with the system the sensor is responsible for monitoring, a bad sensor, or even a wiring issue.

Why I can't erase the fault code?

Once the monitors are reset, the MIL will either remain out because the DTC was corrected by the proper repair, or it will illuminate because it has again detected the problem.

• Universal Compatibility: Applicable to MOST US-based cars (made in 1996 or later), EU-based cars (made in 2001 or later), Asian cars (made in 2008 or later), and all OBD II/EOBD/CAN-compliant vehicles.
• Smog Check: Clearly shows whether the emission-related systems are operating properly or ready for inspection and maintenance testing; turns off check engine light and resets monitors; views freeze frame data, read live PCM data stream, EVAP system test data, On-Board Monitor test data and display live O2 sensor test data.
• Shows the code and what the code means directly. Able to retrieve generic (PO P2 P3 and UO) manufacturer specific (P1, P3, and U1) codes and pending codes, and vehicle information (VIN, CID and CVN). And can store the data you have viewed (DTCs, freeze Frame, live data, etc).
• Supports all OBDII protocols, including ISO9141, KWP2000, J1850 PWM, J1850 VPW and CAN (Controller Area Network).
• No battery needed, just plug it into the OBDII port and start diagnosis. Features a 2.5-foot flexible plug and a 7-button panel. Supports DTC look-up, and software upgrade. Supports multi-language display (English, German, Spanish, Dutch, Russian).

User questions & answers

Question:	Funciona para un Aveo
Answer:	No se
Question:	Why I can't erase the fault code
Answer:	Thank you for your question. At the most basic level, the check engine light indicates that some sensor, somewhere in your engine, exhaust, or transmission, has provided unexpected data to computer. That could indicate a problem with the system the sensor is responsible for monitoring, a bad sensor, or even a wiring issue. A fault code which provide a jumping off point in the diagnostic process. Then probably the vehicle still has a an issue. Codes only erase if the problem is repaired.
Question:	How can update os601? when do i need to upgrade it
Answer:	Contact the seller for an upgrade package. The upgrade is free. Anytime
Question:	How do you upgrade the software once it is out of date
Answer:	Thank you for your question. In most cases, the upgrade is to fix bugs in the software. In general, a six-month upgrade is sufficient (Because the support for the OBD-II protocol is stable). For other situations of upgrade or diagnosis, you can collect the corresponding model information and send it to us to provide more services. 【How to upgrade?】Connect scan tool with PC through Mini B connector(5 pin) at the bottom of the machine, migrate the upgrade data into it. For more detailed information, please email us via the station and we will send you the upgrade file. May you have a nice day! Warm Regards, Juta Auto

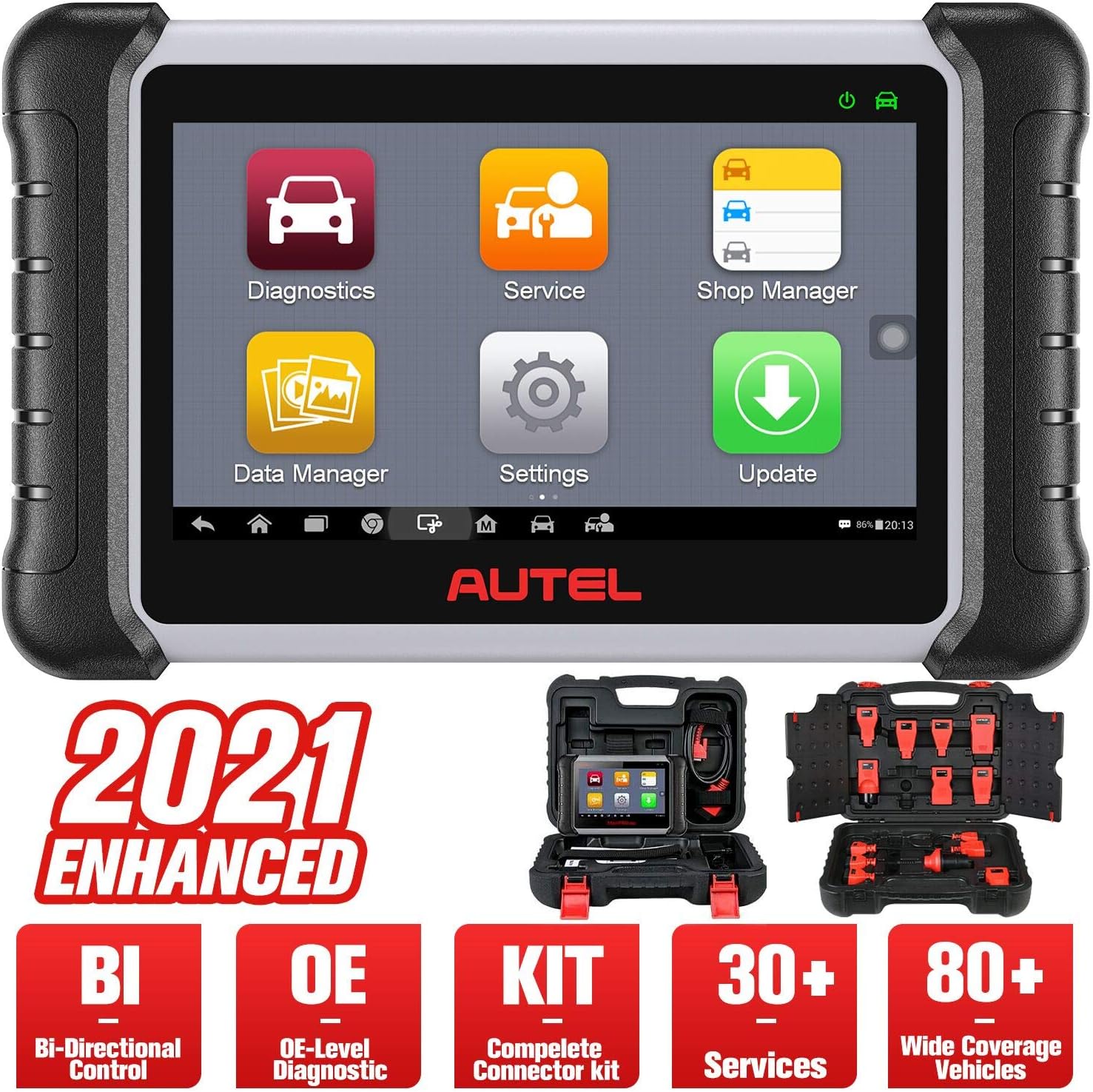

• 👍【2021 NEWEST VERSION, UPGRADED OF MP808, DS808】Autel MaxiPro MP808K automotive diagnotic tool comes with complete 11 connectors that can access more vehicle models and modules and is an upgraded version of Autel MP808 and DS808. Equipped with the same software as Autel MaxiSys MS906, MP808K is your best value choice of bi-directional scan tools for the money! To check compatibility, please send VIN number to 🚘auteldirect @ outlook.com🚘 directly.
• 👍【COMPREHENSIVE SERVICE FUNCTIONS】 MP808K diagnostic scanner comes with 25 service Options like Oil Reset, ABS brake bleed, EPB, SAS, DPF, BMS, Suspension, Key Fob Coding, Injector Coding, Power Balance, Turbo Calibration, VGT, Transmission Adaption, Throttle Adaptation, matching and etc. NOTE: 25 Service Options do NOT work on all vehicles. Please send VIN number to 🚘auteldirect @ outlook.com🚘 to check compatibility.
• 👍【OE-LEVEL DIAGNOSIS ON ALL SYSTEMS】Autel MP808K car diagnsotic tool can access and scan all electronics systems on over 80 makes and models to read and clear codes, view live data and graph it, perform active tests and vehicle-specific service and special functions that previously only available in dealership scan tools that cost $1000 or more. With Auto VIN and Auto Scan, it’s easy to use and greatly shortens diagnostic sessions. NOTE: Auto VIN feature does NOT work on all vehicles.
• 👍【EXTENSIVE VEHICLE COVERAGE】 MP808K diagnostic scanner tablet comes with extensive vehicle coverage for more than 80 US, Asian and European vehicle makes. With complete 11 connector kit, it can access more vehicle models and modules than MP808, DS808. To check compatibility, please send VIN number and functions to 🚘auteldirect @ outlook.com🚘 directly before purchase!
• 👍【WE GOT YOUR BACK】 Autel MP808K automotive diagnostic scanner comes with 12 Months Free Software Updates and is backed by 30 Days REPLACEMENT or FULL REFUND, 12 Months free from defects after-sales services & technical support by US-based seller Autel Direct and Autel HQ. If there are any questions or issues, please feel free to contact our 7/24 service team via 🚘auteldirect @ outlook.com🚘.

Product description

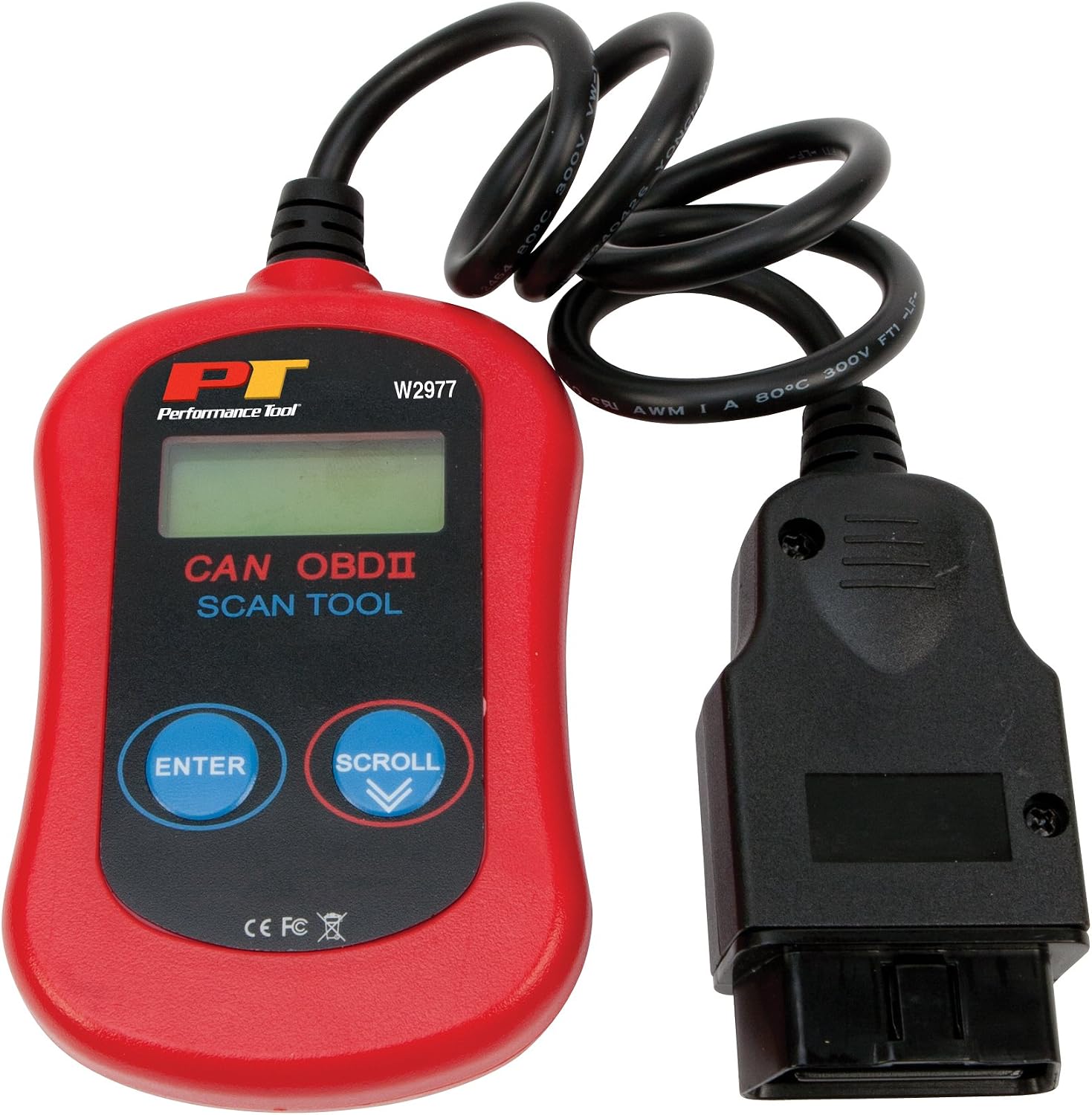

CAN OBDII Diagnostic Scan Tool.

• Works with MOST 1996 and later include American, European and Asian cars
• Supports all OBD2 protocols including the newer (CAN) Controller Area Network
• Reads your (DTC) Diagnostic Trouble Codes for identification
• Turns off check engine light (MIL)
• Erases (DTC) trouble codes and resets the OBD2 system
• Will not work with: 2007 Chevy Silverado

User questions & answers

Question:	can this work with toyota mr 2 spyder
Answer:	I was told by my machcanic, neighboor, that this meter works on any car, or truck, with the computer connector under the left side of steering wheel.
Question:	will this read ABS codes for Jeep
Answer:	The can read for vehicles 1996 and newer.
Question:	Is unit compatible with obd2, obdll, Obd
Answer:	Works with most 1996 and later include American, European and Asian carsSupports all OBD2 protocols including the newer (CAN) Controller Area Network
Question:	Does this work on a 2002 chevy suburban 5.3 liter c
Answer:	As far as I know the port is standard, like a USB port.

Product features

Diagnostic Scan Tool Vehicle Coverage

The Performance Tool OBD II Scan Tool is specially designed to work with all OBD II compliant vehicles, including those equipped with the next-generation protocol-Control Area Network (CAN). It is required by EPA that All 1996 and newer vehicles (cars and light trucks) sold.

in the United States must be OBD II compliant and this includes all Domestic, Asian and European vehicles. A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate 'OBD II Certified'. Additionally, Government regulations mandate that all OBD II compliant vehicles must have a 'common' sixteen-pin Data Link Connector (DLC). For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Check Engine Light

The Check Engine Light must be on for the Diagnostic Scan Tool to send a trouble code. If there is not a check engine light on then there is nothing the vehicle's computer can relay to the scan tool. If there is not a check engine light on, it does not guarantee that there is nothing wrong with the vehicle.

If you believe there is something wrong with your vehicle, take it to a professional mechanic.

Where to Connect

Locate the 16-pin Data Link Connector (DLC) and plug into the scan tool cable connector to the DLC. Location may vary depending on vehicle make and model but should in the area between the steering wheel and peddles.

Caution: Don’t connect or disconnect any test equipment with ignition on or engine running.

Scan Tool Display

Wait for the LCD display to read:

'C.A.N. OBD2'.

Once you see this screen, you are clear to move onto the next step and insert your key.

Ignition in The ‘On’ Position

Turn the ignition on. But do not start the engine. Press the enter button. A sequence of messages showing the OBD2 protocols will be observed on the display until the vehicle protocol is detected.

No Codes Message

If there are no Diagnostic Trouble Codes retrieved, the display will indicate 'No codes'.

If you receive a no codes display then the computer from the car is not transmitting trouble code. It does not guarantee that there is nothing wrong with the vehicle.

If you believe there is something wrong with your vehicle even after a 'No Codes' display, take it to a trained professional mechanic.

Link Error Message

If a 'Link error!' message shows up:

1) Verify that the ignition is in the 'On' position.

2) Check if the code reader’s OBD II connector is securely connected to the vehicle’s DLC (Picture 2 above).

3) Verify that the vehicle is OBD2 compliant.

4) Turn the ignition off and wait for about 10 seconds.

5) Turn the ignition back to on and repeat the procedure from step 5.

Diagnostic Trouble Codes

Read the Diagnostic Trouble Codes by pressing the scroll button. Once you have identified the trouble code, reference page 18-45 of the user manual that is included with the scan tool. (if you do not have the manual you can find it in the link above or the manufacture website for and PDF copy). The code you receive will give you a general location of where the problem is occurring.

Erase Check Engine Codes

Do not erase the codes before the system has been checked completely by a technician.

1) If you decide to erase the DTCs, Select '2. erase' from the main menu by pressing the enter button.

2) A message of 'Erase? Yes/ No' comes up asking for your confirmation.

3) If you do not want to proceed with erasing the codes, press the scroll button to exit.

4) If you do wish to proceed to erase the codes, then press the enter button.

5) If the codes are cleared successfully, an 'Erase Done!' message will show on the display. Press the enter button to Return to the Main Menu list.

Diagnostic Trouble Code (DTC) Definitions

Caution: Parts or components should not be replaced based on only a DTC without first consulting the vehicle service manual for more information on possible causes of the fault as well as required testing procedures.

1,000 of the most common trouble codes are in the manual (which can be found in the link above) from pages 18-45.

If you can not find the code that is appearing on your scan tool then you can find it by simply searching online for that code that appears.

If you believe there is something wrong with your vehicle, take it to a professional mechanic.

• Read and clear your Check Engine Light and all other vehicle systems. Get your unlimited free vehicle specific Repair Reports, generated from our database of millions of fixes verified by Professional Automotive Technicians
• As easy to use as a code reader with all the capabilities of an expensive handheld scan tool, plus the benefits of your smartphone or tablet (free app updates, portability, saving data, interactive graphing of live data)
• Officially licensed and certified for Apple and Android devices
• The BlueDriver App and BlueDriver Sensor work exclusively with each other to ensure quality
• BlueDriver is the Professional OBD2 Diagnostic Scan Tool trusted by mechanics and developed by Professional Engineers in North America

User questions & answers

Question:	Will the device display "short term and long term" fuel trim data
Answer:	Thank you for your question. This tool will have free future updates, but cannot be guaranteed for life. This tool was just released less than a year ago so tool is already up to date. The next available update will be sometime next year. The updates will always be free.
Question:	Will is run a abs bleeder test
Answer:	Thank you for your question. The 3160RS never needs to be charged so no charging cable is required. The 3160RS and all of our code readers link to a vehicle through that vehicle's 10-15 amp accessory fuses. If any of the vehicles accessory fuses are blown, tool will not link to vehicle. Batteries for this tool are not needed as well. Batteries are optional and are only used to pair tool to Bluetooth/Wifi without being linked to vehicle, and to look at stored information in tool if not connected to vehicle.
Question:	so the device is 100 and u have to buy more apps
Answer:	Thank you for your question. Yes, there is a light at the end of the DLC cable plug.
Question:	Do you only hook up to it when check engine is on or it stays plugged in
Answer:	Thank you for your question. The 3160RS will support TPMS, steering angle reset, EPB, ABS brake bleeding, transmission temperature, oil level, oil life, and brake pad life for most 1996 and newer vehicles. The 3160G doesn't offer any of these features. The 3160RS just came out less than a year ago and will have free, future updates. The 3160G has been out for almost 5 years now. The 3160RS uses are RS2 app which is only compatible with a smart phone or tablet. The 3160G uses our original RS software which is compatible on a computer, laptop, or smart phone.

Product features

The Right Fix. Always.

BlueDriver will match your vehicle's make, model, and trouble code to a specific fix from a database of millions of repairs. Your Repair Report will always contain fixes that have been verified by ASE Certified Technicians, so no more googling unreliable fixes that waste your time and money.

The BlueDriver Sensor, paired with the free BlueDriver App (iOS or Android), gives you a complete vehicle repair solution. No other scan tool or code reader offers this level of insight into how to fix your vehicle.

BlueDriver Offers More. Period.

BlueDriver reads (and clears) all the codes the other guys read and the ones they don't. BlueDriver's Enhanced Diagnostics give you complete access to information normally only accessible to professional mechanics on their most expensive scan tools.

What are ENHANCED diagnostics?

All vehicles with an OBD2 port are required to output basic information when the Check Engine Light comes on. However, a lot of important information (such as ABS, Airbag, Climate Control, etc.) is left behind by other scan tools and code readers. Only BlueDriver gives you the complete set of diagnostics on a wide range of manufacturers.

Get Enhanced Diagnostics On:

• Classic design, fast scan and clear trouble codes, even a beginner can use this unit to read the error code, find out what the problem is and perhaps fix it. Save money and time.
• Works on MOST 1996 US-Based, 2000 EU-Based and Asian cars, and newer OBD II & CAN domestic or import vehicles. Supports English, German, French, Spanish, Finnish, Dutch, Russian and Portuguese.
• Easily determines the cause of the check engine light. I/M monitor readiness test, turn off the MIL (check engine light) as well as view freeze frame data. Read hard (memory) / pending (intermittent) and historic codes and show definitions.
• The AD310 scanner is well built with a large LCD display (128 x 64 pixel) that has white backlight and contrast adjustment, indicates test results directly. No need any Batteries or Charger, gets the power directly from the OBDII Data Link Connector in your vehicle.
• It's equipped with a 2. 5 feet long cable and made of a very thick flexible insulator. There are 4 buttons on AD310. The Up and Down button for scrolling the menu, the Enter and Exit button allow for navigation back and entering menu.

Product features

Key Features

Code Definition

• 🎁【Great Gift Idea for Valentine’s Day】: Top preset choice for your father, husband, brother or boyfriend.EVERY CAR OWNER WILL NEED IT! It comes with high-quality case with rugged and handy design.Get NT644 Elite full system diagnostic scanner and give your lover a surprise!

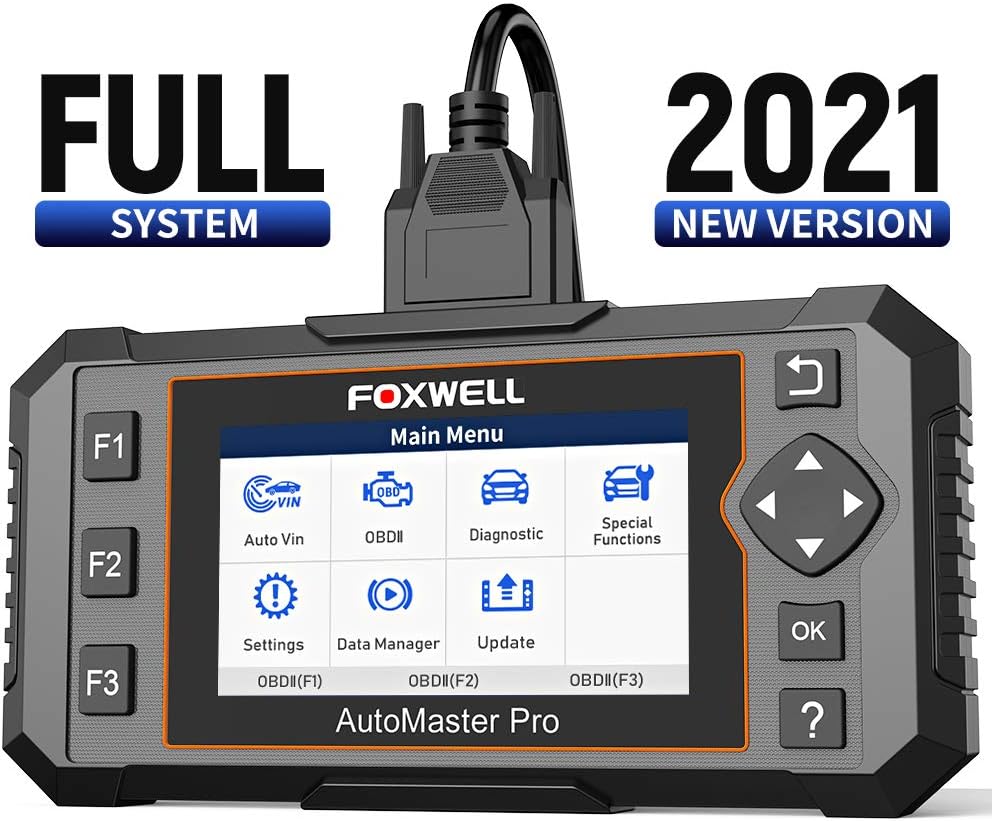

• 🎄【Multifunctional Full System Car Scan Tool】 FOXWELL NT644E code reader car diagnostic tool has the ability to do a thorough and full diagnosis on many available electronic control modules from drive System, body system, chassis system and electrical system. NT644E diagnostic code scanner will read and reset fault codes for these systems, and turn off the warning light after the cause issue is located and solved.
• 🎄【19 HOT Maintenance Reset Features】Besides the powerful diagnostic functions, this professional automotive scanner can be regarded as a comprehensive service reset tool, what are included: EPB, SAS,Oil light reset,DPF,TPS,TPMS,BRT,ABS Bleeding,gear learn,Injector,CVT,A/F adjust, clutch adaption,PRIME fuel pump,seat match, turbo, windowsdoor and language change.
• 🎄【AUTOVIN】+【Data Record and Print】+【DTC Lookup】 FOXWELL NT644E will bring you an easier and faster diagnostic experience by offering many add-on features like get your VIN automatically, record your diagnostic data and print diagnostic report, get clear and detailed DTC definition and etc. More is waiting for your exploration.
• 🎄【FULL OBDII Test Modes】This auto scanner diagnostic code scanner contains full OBDII test modes, such as read codes, clear codes, live data, I/M readiness, O2 Moniter test, Freeze frame, On-board monitor test, vehicle information and component test.
• 🎄【Multilingual support and lifetime update】12-month warranty and lifetime free update are offered.You don't need to pay annual subscription any more. In addition, the car scanner code reader contains more than 13 kinds of language.(Spanish is also supported) No need translator again.Efficient technical support within 24 hours is extra advantage.

Product features

FOXWELL NT644 Elite-Comprehensive Diagnostic Scanner

1. Full System Scan (Not 4 System Scan): There are many 4 system code readers in the market which can only support diagnosis for limited systems, but this FOXWELL obd2 scanner will perform full scanning on all available control modules. The supported system may vary from different car model. Please confirm it before testing.
2. 19 Service Reset (Not 2 Service Reset): Besides the diagnostic function, this automotive diagnostic tool is a maintenance reset tool as well. With the device, you will have access to 19 commonly used service reset features, which saves the high maintenance cost for you.
3. Full OBDII Test Modes: Of course the automotive scan tool also covers all OBDII functions what the most popular code readers do in the market. (like top 100 seller under code reader & scan tool).
4. Live Data in Graph: choose the factor you want, such as Engine coolant temp ,vehicle speed sensor, intake air temp and engine oil temp, then they will be shown in single or multi graph according to your need.
5. AUTOVIN: you will get the vehicle VIN information after pluging the device into the OBDII port of your car. Then this diagnostic code reader will read the vehicle information automatically.
6. Data Print: download the update tool and connect the NT644 Elite obd2 scanner for cars to the computer. Choose the targeted report and it will be printed immediately.

Full System Diagnostic Scanner

There are various kinds of code reader scan tools in the market. However, most of them are only for 4 system or for individual car brand. But what if you want to diagnose other systems like suspension, BCM, ESP, PCM or Air condition...? Then you will find a 4 system code reader is helpless for you. Instead, a full system car diagnostic scanner will solve the problem for you since it will scan all available systems of your car and troubleshoot the cause issue in minutes. Additionally, this car diagnostic scanner for cars will read fault codes and reset it after the repair, then your warning light will be turned off.

The supported full sytems are but not limited to :

Engine/Transmission/SRS/ABS/Chassis/SAS/DPF/TPS/ESP/Suspention/Headlamp/Air condition....

(Please kindly note that the supported systems may vary from different car models. You can check before the testing.)

19 Hot Commonly Used Service Reset Features

1.ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

2.SAS: Steering Angle Sensor Calibration lets you perform calibration of the Steering Angle Sensor.

3.Oil Service Reset: Allows you to reset the service lamps on the instrument cluster. The Service Indicator System is designed to alert the driver when the vehicle is due for a service.

4.DPF: Diesel Particulate Filter Regeneration lets you perform the DPF cleaning to clear the blockage through continuous burning of the particulates captured in the DPF filter. When a DPF regeneration cycle is completed, the DPF light automatically goes off.

5.EPB: Electronic Parking Brake allows you to perform the service and maintenance of brake systems, including deactivation and activation of the brake control system, bleeding brake fluid, opening, and closing brake pads, and setting brakes after disc or pad replacement, on multiple brands of vehicles where electronic brake systems are fitted.

6.TBA/TPS: Throttle Body Alignment Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).

7.Injector Coding: This function is to reset and match the date after the injector is replaced.

8.TPMS: Tire Pressure Monitoring System Programming allows you to check the tire sensor IDs from the vehicle ECU and to perform TPMS programming and reset after tires and/or TPM sensors are replaced and/or tires are rotated.

9.BRT: Battery Replacement Lets you to new battery validated, how to clear faults from the dashboard and display.

10.CVT: This function is used to reset the compensation code and initialize the ECT after a solenoid valve or valve body assembly has been replaced.

11.A/F Adjust: Correspondingly change the fuel supply to change the steam production of the boiler and maintain the energy balance in the combustion process.

12.Gear Learning: Crankshaft position sensor adaptive learning.

CLUTCH adaptation /Seat Match /Language Change /Windowsdoor /Turbo

(The supported service reset function will vary from specific year and mode. Please kindly check it before the testing.)

Get NT644 Elite Replace your OBDII Code Reader

• Reading Codes: Present some diagnostic trouble codes after scanning the vehicle.
• Reseting Codes: Clear the fault codes after doing the repair according to the prompt of the scanner.
• Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
• I/M Readiness Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
• Freeze Frame: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
• On-Board Monitor Test: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
• O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. (Note:If the vehicle uses a controller area network (CAN) protocol to communicate, this function is not supported by vehicle)
• On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
• Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
• Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.1.BRT, Battery Replacement

No Softeware Subscription

Some diagnostic scanner will need to pay for extra fee for each vehicle or function and even for annual subscription. However, NT644 Elite full system scan tool will comes with all existed software, which will save a lot for you.You will enjoy lifetime update all the time. No need to pay the annual subscription. What's more, you will have chance to get latest bugfix update.

Notice: There are lots of vehicles under each car brand and the compatibility for each vehicle will differ. You can confirm it before the purchase.

Please kindly note, if you encounter incompatibility or defective issues, kindly provide the model, year, VIN of your vehicle info , the issue is likely to be fixed via software or hardware upgrade.

Built-in DTC Library

Tired of searching DTC on google each time, there is built-in DTC library in NT644 Elite code reader scan tool.

1.Find "DTC lookup" menu under OBDII

2.Click it and input the DTC number like P0112

3. The vehicle code reader will show you the definition of the DTC, and you can click "?" to find more detailed description.

Live Data Stream in Graph

3 steps to graph live data stream

1.Find "Live Data' menu

2. Select the factor you want to display

3.Click "graph" and done

you can change the display mode such as single graph, multi-graph and merge graph.

Multilingual Support

12 languages supports：English, Spanish, French, German, Italian, Russian, Portuguese, Japanese, Korean,Swedish,Hungarian,Thai.

Let NT644 Elite be the Safeguard on your trip!

Still Confused with FOXWELL NT6X4 series? Here is a quick FAQ helping you figure it out.

NT614 Elite: 4 main system scanner + 2 Special Functions (EPB+Oil Service Reset)

NT634: 4 main system code reader + 11 Special Functions

NT624 Elite: Full system scanner + 2 Special Functions (EPB+Oil Service Reset)

NT644 Elite: Full system scanner + 19 Special Functions (Oil Service+EPB+DPF+ABS Bleed+TPS+BRT+CVT...)

Notice:

• NT644 Elite car scanner can be used out of box and you don't need to update it before the use.
• If you want to update to get newer version later, please kindly refer to the update instruction or check the update video on the product page.
• If the storage of the memory card is not enough for newer version, please kindly delete/uninstall old version or some software you won't use.
• Mac system will NOT be supported for update. Only windows system will be compatible.
• Please kindly note, if you encounter incompatibility or defective issues, kindly provide the model, year, VIN of your vehicle info , the issue is likely to be fixed via software or hardware upgrade.

Product description

Retrieve generic and manufacturer specific diagnostic trouble codes(DTC), clear codes and turn off check engine light. Follow the correct order to use the OBD2 scanner: Engine off- Plug it in- Turn ignition on.

• TURN OFF CHECK ENGINE LIGHT: MS300 check engine code reader can read, clear generic, manufacturer-specific and pending codes. It enables you to figure out why CEL is on like a pro and turn off check engine light instantly after proper repair.
• MECHANIC APPROVED: MS300 OBD2 scanner works with most OBDII compliant(OBD2 protocols: KWP2000, ISO2000, ISO9141, J1850 VPW, J1850 PWM, and CAN) sedans, SUVs and light trucks post-1996 for US cars, post-2000 for EU-based and Asian cars.
• DIAGNOSE IN SECONDS: MS300 auto code reader features easy to use 2 button design to read, clear DTCs to help home mechanics locate car problems fast. With an intuitive interface and easy-to-read backlit screen, this diagnostic code reader is easy to use.
• SMOG CHECK: MS300 car code reader retrieves I/M Readiness status to check emission-related systems like misfire monitor, fuel system monitor, comprehensive components monitor, O2 sensors, EVAP to help your vehicle ready pass the annual smog check.
• NO BATTERY NEEDED: MS300 OBDII scan tool communicates with vehicles through standard 16-PIN OBD2 cable and it’s powered by vehicle directly- no battery needed. Please follow the correct usage order: Engine off- Plug MS300 in- Turn Ignition On.
• RETRIEVE VIN NUMBER: MS300 engine code readers can retrieve VIN (Vehicle Identification Number) on 2002 and newer vehicles supporting Mode 9 for quick vehicle identification and cut time spent locating the cause why the check engine light is on.
• Retrieves generic and manufacturer specific Diagnostic Trouble Codes (DTC), includes definitions lookup software on CD and displays DTC definitions on screen

Product features

Autel MaxiScan MS300 OBD2 Scanner Code Reader Turn Off Check Engine Light Smog Check

AUTEL STORY

Autel is one of the major manufacturers of professional diagnostic tools, equipment and accessories in the automotive aftermarket. Autel, with automotive experts of years of experiences in the industry, has been committed to creating maximum value to customer worldwide by providing quality-assured, user-friendly, cost-effective and innovative products since its foundation more than 15 years ago.

Autel MaxiScan MS300

The MaxiScan MS300 code reader supports all OBDII protocols, including KWP2000, ISO2000, ISO9141, J1850 VPW, J1850 PWM and CAN. Though small in size, the MS300 is able to retrieve the same emission related information as large expensive scanners. MS300 works with most post 1996 vehicles that are OBDII compliant (including CAN).

• TURN OFF CHECK ENGINE LIGHT: Autel MS309 OBDII scanner is an easy-to-use plug-n-play check engine code reader that read and clear codes. This little code scanner retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes and displays DTC definitions on the TFT color screen. It can check engine related fault codes, easily find out what caused the check engine light comes on, turn off MIL light(Malfunction Indicator Light).
• FREEZE FRAME DATA FOR ACCURATE DIAGNOSIS: This MS309 check engine code reader comes with viewing freeze frame function that enables you to retrieve data recorded in the ECU of the condition under which the fault occurs to figure out why the check engine light is on and cut down test drive cycle verification time. It includes important engine parameters such as RPM, vehicle speed, mass airflow, engine load, fuel pressure, short/long term fuel trim, engine coolant temperature and etc.
• READINESS STATUS TO PASS SMOG CHECK: The Autel MS309 car diagnostic scanner tool comes with I/M Readiness function to check the operations of the Emission System on OBD2 compliant vehicles. It includes vehicle-specific number of monitors like misfire monitor, fuel system monitor, comprehensive components monitor, O2 sensors, EVAP system and etc, making this OBD2 scan tool an excellent scan tool to help get your vehicle ready to pass the annual smog check.
• UNMATCHED COMPATIBILITY: Autel MS309 compact pocket code reader supports all OBD2 protocols: KWP2000, ISO2000, ISO9141, J1850 VPW, J1850 PWM and CAN. This OBD2 code scanner is compatible with all OBDII-Compliant vehicles, passenger cars or light trucks, post 1996 in US, post 2000 for EU-based and Asian cars.
• RETRIEVE VEHICLE INFO: The Autel MS309 automotive OBD2 scanner enables retrieval of the Vehicle Identification No. (VIN), Calibration ID(s), Calibration Verification Nos. (CVNs). This function is most useful to check whether the ECU matches your car when you are buying a used car. The MS309 auto car scanner comes with LIFETIME FREE software updates and is backed by 45 Day Money Back and 12 Months US Seller . Purchase now and go fix something!

User questions & answers

Question:	will this work on my 2000 Toyota Prado dieselwith 1KZ engine
Answer:	Hi there, I am with BAFX Products. Sadly it will not read any ABS/SRS?VSC or any other codes. The only codes it is able to read are those which cause your vehicles "check engine" light to illuminate. Any other lights require more specialized tools for reading. Best regards, BAFX Products
Question:	Will this work on a Nissan X trail T
Answer:	yes, I'm using Windows Phone 8 on Nokia 920 with OBDAutoDoctor application. You need to connect the PIC18F2480 via Bluetooth, before starting an OBD2 scan tool application. On Windows Phone 8 only a few OBD2 app are available. OBDAutoDoctor is free but get only some information from the car. I just found how to unlock the pro version...It's a in-app purchase...click "..." at the bottom of the app to upgrade. The Pro version is available for $7.99.
Question:	i used this tool and all is said was manufacturer control. no code number with it? what does that mean? 1998 ford explorer sport
Answer:	Hi Christopher - I am with BAFX Products Support.In MOST vehicles you will be ok leaving the adapter plugged in as long as the vehicle is driven every few days. However we make the following recommendations:1) Do not leave the adapter plugged in if it will not be driven for 24-48 hours2) If your area is to be experiencing extreme cold unplug the adapter as the combination of cold and the adapter will drain it faster3) If your battery is more than a 1-2 years old you will want to be very careful about leaving it plugged in, older batteries do not hold the same juice as the newer ones4) If you have an electronics heavy vehicle such as BMWs tend to be we do not recommend leaving it plugged in as the vehicles electronics do not always fully power down either5) If you have any other device plugged into the vehicle while it is off via cigarette ports or whatever we then also recommend removing the adapterI hope that these tips and information are found helpful. If you have any further questions you may always reach out to us through the Amazon messaging system at any time!Best regards,BAFX Products Support
Question:	Can you use this to diagnosis why check engine light is on and figure out why car wont start? even of car wont start
Answer:	I can confirm that this adapter WILL read (I haven't tried to clear yet) ABS codes on Ford (2001 Ranger 4.0L), using FordSysFree or MotorDataOBD Free (both Android). ABS codes are in the Cxxxx range. Mine picked up, correctly, C0034 - Front Right Wheel Speed Sensor Failure. While other adapters may be able to read these codes with other Android Apps, this ELM327 BAFX adapter does capture ABS codes for Ford. That is the only one I can confirm. Yes, FORScan for PC should also pick up these codes with this adapter. I have not tested Torque PRO, but I don't believe it will read ABS codes with this adapter.

Product features

MaxiScan MS309

Quickly scan and define vehicle Diagnostic Trouble Codes (DTCs) with this easy-to-use, compact code reader with the ability to view Freeze Frame Data, check I/M Readiness (Emissions) and monitor status. The MS309 is a go-to tool for quick vehicle health status.

View Freeze Frame

The Autel MS309 auto code reader is most useful while diagnosing continuous monitor faults like engine misfire and fuel control concerns.

When an emissions related fault occurs, the OBD II system not only sets a code but also records a snapshot of the vehicle operating parameters to help in identifying the problem. This set of values is referred to as Freeze Frame Data and may include important engine parameters such as engine RPM, vehicle speed, mass airflow, engine load, fuel pressure, fuel trim value, engine coolant temperature, ignition timing advance, or closed loop status.

Smog Check

MS309 engine scanner code reader comes with I/M readiness status check function that shows you whether all the emission related systems and components are operating within allowable limits to help you pass the annual Smog Check.

The engine scanner shows readiness status with series of readiness monitors: continuous monitors like misfire, fuel system and comprehensive components monitor and non-continuous monitors like EGR system, O2 sensors, Catalyst, Evaporative System, O2 Sensor Heater, Secondary air, Heated Catalyst and A/C system.

DTC Definitions

Autel MS309 supprots DTC definitions. The definitons will be displayed bellow the codes. It provides you an easier way to read and a quick understanding of what's the meaning of the fault codes that was detected.No need to search online for what's the codes meaning.

Retrieve Vehicle Information

MS309 automotive scanner retrieves the Vehicle Identification No. (VIN), Calibration ID(s), Calibration Verification Nos. (CVNs). This function is especially useful while you take this little pocket OBD2 code reader with you while buying a used car to check whether the VIN matches and make sure the ECU has not been replaced with a garbage car.

Turn Off Check Engine Light & Erase Codes

Autel MS309 scanner not only read and clear normal codes, but also retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1), and pending codes

Vehicle Coverage

Autel MS309 car OBD2 scanner is Compatible with domestic, Asian and European vehicles, 1996 and newer. And the auto scanner supports all 5 OBDII protocols: KWP2000, ISO2000, ISO9141, J1850 VPW, J1850 PWM and CAN.

• 【FASTER, STRONGER AND MORE POWERFUL THAN X431 V PRO】 ➤LAUNCH X431 V+ 4.0 has more advanced functions: Guiding Functions(compatible with VW,AUDI,SKODA,SEAT), Variant Coding ➤X431 V+ has wider vehicle coverage, supports AutoAuth for FCA SGW, which makes V+ compatible with Chrysler,Dodge,Jeep,Alfa Romeo and Fiat after 2017. ➤X431 V+ is compatible with Launch Heavy Duty Modules, while LAUNCH X431 V PRO is not. Getting more advantages from the images and Legal Disclaimer.
• 【2021 NEWEST VERSION DIAGNOSTIC TOOL+ ADVANCED OE-LEVEL FUNCTIONS】LAUNCH X431 V+ 4.0 scan tool adds loads of OE-Level features as ➤Online Coding (compatible with VW, Audi, Skoda, Seat) ➤Setting & Changeover (adblue reset, unlock the engine after a collision, cancel ABS driving test, and more) for Benz ➤Modification for BMW ➤Offline Coding ➤Customization ➤Personalization, for worldwide vehicle brands, and keep growing.
• 【31+ RESET SERVICES (ADAPTATION / INITIALIZATION / MATCHING) + ECU CODING】The LAUNCH X431 V+ diagnostic scanner gives you the ability to use dealership level relearn procedures to complete repairs or maintenance. Provides: Auto VIN Detect, ECU Coding, Key programming, ABS Bleeding, Injector coding, Gear Reset, SAS Reset, TPMS Reset, DPF Reset, IMMO Reset, BMS Reset, ETS Reset, Oil Reset, Brake Reset, AFS Reset, EGR Adaptation, GEARBOX, SUNROOF, SUS Reset and more to fully meet your needs.
• 【BI-DIRECTIONAL(ACTIVE TEST) + BEST HARDWARE +24 LANGUAGES】LAUNCH X431 V+ scan tool can actuate solenoids and actuators for active testing, send commands to many systems/components to test their working status, without using the vehicle controls. 9.0 Android tablet, 10.1 touch screen, 7000mAh rechargeable battery (up to 10+ hours battery life), 32 GB storage capacity. It supports Remote Diagnostic, diagnostic feedback and respond, Data Stream record and playback, Vehicle Health Report.
• 【ALL SYSTEM DIAGNOSTICS FOR 10000+ VEHICLES +5 YEARS WARRANTY】LAUNCH X431 V+ automotive scanner can read / erase codes, view live data, retrieve ECU version information, do active test and service functions for all systems including ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, Fuel System, Light System and A/C system etc. One-click Auto VIN is available with Wi-Fi enabled. Any problems please feel free to contact us via our Customer service email or message us on Amazon.

Product features

2021 Newest Version LAUNCH X431 V+ 4.0 OVER 200,000 CAR REPAIR SHOPS & MECHANICS 's First Choice !!!

[Key reasons to buy LAUNCH X431 V+]

• Full Systems Diagnoses + Active Test (Bi-directional Control)
• ADVANCED OE-LEVEL FUNCTIONS: Guided Functions +Online Coding +Setting & Changeover +Modification +Offline Coding + Customization + Personalization
• MORE ADVANCED FUNCTIONS ADDED IN 2021: Windows Calibration + Seats Calibration + Tyre reset + Language Change + A/F Reset A/F + Coolant Bleed + Transport Mode + Adblue Reset + NOx Sensor Reset NOx + Stop/Start Reset (!!! only LAUNCH X431 V + has this function while V PRO does not)
• Adaptation+ Matching+ 31+ Reset Services + Initialization + Coding + Key Programming + ECU Coding + Auto VIN + One Click Update + Diagnostic Report + Diagnostic Feedback
• 150+ Brands and 10000+ Cars supported + 24 Languages + 2 Years Free Update
• Support Diagnosing Heavy Duty Trucks with Extra X-431 HD Module
• Online Maintenance Resources: Operating skills, DTC Help, Automotive Technology handbook, Repair Case and How-to Videos.

Advanced Configurations (Better than LAUNCH X431 V PRO):

• Branded Tablet with 5.0 MP Pixel Rear Camera
• 10.1-inch HD Touch Screen: A brighter, clearer Screen let you " Deep Dive into Diagnostics"
• Andriod 9.0 System, make you smooth operation, Anti-Slip & Anti-Grease protective sleeve design
• Brilliant Battery Life: 7000mAh rechargeable battery (up to 10 Hours NON-STOP Using Time+ Long Stand-by Time)
• 32GB memory (supports extended to 128GB).
• Multi-PID Live Data Graphing IN 1 Screen: One screen can display 15 data stream (Graphic and textual), three more than V, which is easy to navigate.

2021 New Added OE-LEVEL Advanced Functions of LAUNCH X431 V+

1. Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
2. Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.
3. Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
4. Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.
5. Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.
6. Anti-theft IMMO Serivce: Compatible with Volkswagen / Audi / Skoda / Seat etc.
7. Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.
8. Power Balance: Compatible with Chrysler / GM / Ford etc.
9. Programmable Module Installation: Compatible with Ford / Mazda etc.
10. Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru etc.

31+ Mechanics Frequently USED Service Functions:

• ECU CODING – The Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.
• OIL RESET – Reset the oil life systems every time the oil and oil filter are changed;
• INJECTOR CODING– Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
• BRAKE RESET – Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
• SAS RESET – Perform steering angle sensor calibration and clear records;
• BAT.RESET – Evaluate the battery charge state, monitor the closed-circuit current, register the battery replacement, etc.;
• ABS BLEEDING– When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
• ELEC.THROTTLE RLRN – Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state;
• TPMS RESET – Tire pressure resetting is required to be performed after maintenance is performed;
• DPF REG – Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;
• GEAR LEARN – Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced;
• KEY PROGRAMMING – Help ECU to recognize the new keys when you need to add new keys.
• MORE ADVANCED FUNCTIONS ADDED: Windows Calibration + Seats Calibration + Tyre reset + Language Change + A/F Reset A/F + Coolant Bleed + Transport Mode + Adblue Reset + NOx Sensor Reset NOx + Stop/Start Reset (!!! only LAUNCH X431 V + has this function while V PRO does not)

GROWING FUNCTIONS:

Accompany with continuous update of Launch X431 software and program, More functions has been added : Head light Fitting, Seat Matching, Door and Window Initialization Study, Sunroof Initialization, Air Suspension Matching, Gearbox Matching, Injector Calibration, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change Reset, (depending on the specific car models, not for all cars, ). and more and more function will be improved and optimized.

Mechanics with 40 years of experience Highly Recommended ：Bi-Directional Diagnostic Scan tool LAUNCH X431 V+

Extensive Vehicle Coverage - 10000+ Cars supported:

• Aisa: Compatible with Changcheng, Daewoo, Huachen, Zhongxing, Indian Tata, JAC, Maruti, Perodua, Chery, Isuzu, Jinlong, Suzuki, Saipa, HM, Hmazda, Ikco, Malaysia Proton, Luxgen, Toyota, Changan, Futian, Honda, Wuling, V-class, Jpisuzu, Kia, Indian Maruti, Indian Mahindra, Malaysia Perodua, Hafei, Lifan, Mahindra, Nissan, Xiali, Zhongshun, Tata, Changhe, China GM, Saicmg, Mazda, Zhongtai, Daihatsu, BYD Flyer, Hyundai, Proton, Subaru, Ssangyong, Joylong, Mitsubishi,Gonow, Qoros, Maxus, Mvm
• Europe: Compatible with Vaz, Porsche, Maserati, BMW, Seat, VW, Audi, Citroen, Landrover, Smart, Renault, Skoda, Sprinter, Land Rover, Benz, Fiat, Opel, Volvo, Peugeot, Ferrari, Saab, Gaz, DR
• USA: Compatible with Gm, USAFord, Chrysler, Willy; Australia: Compatible with Austford, Holden; Brazil: Compatible with BXFiat, BXGM

[What Comes with LAUNCH X431 V+]

• X-431 V+ v4.0 host, QUICK START GUIDE, USER MANUAL, PIN envelope, Storage Case, CLIPPER, FUSE, BLUETOOTH ADAPTER (DBScar-4/DS301), SWITCHING ADAPTER, OBD 1 Adapter BOX, AIT I OBD16 Extension Cable, X-431 PRO5 USB A to Micro cable, Cigarette Lighter Line, Power Cable with Double Clamp;
• 24 special connectors for diagnosing different cars directly: AUDI-4, BENZ-14, BENZ-38, BMW-20, CHRYSLER-6, DAEWOO-12, DAIHATSU-4, FIAT-3, FORD-6+1, GAZ, GEELY-22, HONDA-3, KIA-20, MAZDA-17, MITSUBISHI/HYUNDAI-12+16, NISSAN-14+16, SSANGYONG-14, SSANGYONG-20, SUBARU-9, SUZUKI-3, TOYOTA-17, TOYOTA-22, UNIVERSAL-3, GM/VAZ-12;

[24 languages supported]: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional.

Thus, if you feel more comfortable with your native language, you can switch back and forth as necessary without encountering any sort of language barrier.

Bi-directional Control + Active Test + ECU Coding + All Systems Diagnostics

>> Want a Bi-directional scan tool ?

This diagnostic tool LAUNCH X431 V+ supports active test (Bi-directional control) to request information or command a module to perform specific tests and functions. For instance, in the case of OBD II generic information Mode 1, you can initiate a request for information from the powertrain control module, and the PCM responds by sending the information back to the scan tool for display. This LAUNCH X431 V+ also have the ability to actuate relays, injectors, coils, or perform system tests, etc.

ECU CODING

Because every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH X431 V+ is equipped with advanced ECU coding function for addressing the following issues:

1. After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.

2. By changing the code with the ECU coding, it’s easy to improve vehicle performance or stimulate high-end functions for the car.

3. ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

>> Want a Full-System diagnostic scanner ? LAUNCH X431 V+, OVER 100,000 CAR REPAIR SHOPS & MECHANICS 's First Choice !

To diagnose car comprehensively, LAUNCH X431 V+ scan tool can read DTCs and data streams, perform active test, Coding for ALL systems. For instance: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics, ....etc.

Online Maintenance Resources, mainly including 4 parts:

• Operating skills, which mainly introduces how to use diagnostic tool to solve common faults of some models, such as resetting BMW brake warning lights;
• DTC Help, which introduces the troubleshooting method for a specific fault code of some models, for example, how to eliminate the U0196 fault code of Chrysler 300C;
• Automotive Technology handbook, circuit diagrams of certain modules of some models, component introduction, fastener tightening specifications, such as the 2009 GM enclave body maintenance information, which describes the bumper and instrument specifications, and the tightening specifications of each component Screw force.
• Repair Case, repair cases of some car models.

Auto-Detect for Quick Diagnosis

Once this diagnostic tool and the given car are properly connected, this diagnostic tool LAUNCH X431 V+ stars auto-detected process. With only one click, you can scan your car’s detailed version information, also all diagnostic trouble codes and live data stream of full electrical control units. If needed, you can only view the diagnostic information of the selected systems in the forms of checks.

Report printing & upload

This diagnostic tool can automatically generate a diagnostic report when diagnostic work is successfully finished. Generated diagnostic report will be saved and sent to the email box. You are allowed to print the diagnostic report out for asking assistance or recording history fault information. With Wi-Fi Connection, you can even upload the diagnostic report and find solutions with people who are familiar with vehicle repair, or who are encountering the same issue.

Additional Features

• Remote Diagnosis offers a reliable and secure remote control unit, which is designed for providing users with technical support.
• Diagnostic Feedback allows you to submit any issues you can’t immediately fix. With the support of professional experts, LAUNCH will make great efforts to provide you with the best solutions as soon as possible.
• Online Database is fully filled with abundant repair cases and automotive technology handbook for your easier retrieval and reference.

• 😀【Vehicle CEL Doctor】The obd2 scanner can quickly help you read DTCs (engine fault codes), locate bad O2 sensor, access to emissions readiness status, turn off check engine light(CEL) or MIL(Malfunction Indicator Lamp) , reset monitor, read enhanced data and retrieve VIN of your vehicle.
• 😀【Accuracy】Live data in both graph and text forms. Accurately read vehicle error codes for most Worldwide cars, SUVs, light truck and 12V diesels equipped with Obd2. Besides, the car scanner also shows live vehicle sensors data in text and graph format and allows you to focus on any suspicious or symptom-specific data parameters.
• 😀【Worthy to Own】Recommended by Mechanic Scotty Kilmer on Youtube. Supports data logging and Printer compatible. Unique PATENTED design, clearly arranged keypad, 2.8" wide color screen with Life-Time Free software update and 1 year quality assurance, it deserves to own. Supported by EXCLUSIVE engineer and service team for product and service quality. (Please note currently the package does not include a CD. )
• 😀【Smog Check Helper】Read/Erase and I/M readiness hot keys make it easy to use this car computer reader right out of the package. Red-Yellow-Green Leds and build-in speaker indicate the readiness status for smog test. The obdii scan tool also help catch intermittent problems and confirm repairs during a drive cycle, so that help you quickly determine the health of the car.
• 😀【Home Necessity】NT301 car scanner is open to global customers. No battery required, it is charged directly from the OBDII interface in your vehicle (please turn your vehicle ignition on), making it convenient for Home and Autoshop Mechanics. It is recommended as a necessity in your toolbox and one of the best gifts for father. (Quick Start Guide is included in the package.)

Product features

FOXWELL NT301 OBD2 SCANNER

As everybody who has cars knows, people always spend hundreds of even thousands of dollars on their vehicles just because the engine light was on. However, most of them don't know they could make it off themselves with dozens of dollars - using NT301 obdii code scanner. This auto code reader could resolve most reasons which caused engine light on, and tell you what’s wrong with your car engine, and if it is necessary to be sent to workshop. Altogether, the Foxwell NT301 car diagnostic scan tool would save you much time and money. It is also a great choice if you are looking for an obd scanner well-built, easy-use with wide vehicle coverage. (Please note, UPDATE IS NOT NECESSARY before utilization, and NO NEED TO REGISTER on Foxwell website before update. The upgraded NT301 cable is long enough to use at the passenger seat. )

Product Features:

1. Supports multiple code requests: Generic, manufacturer specific and pending codes.

2. Clears codes, turns off Check Engine Light (CEL) and resets monitors.

3. DTC definition can be automatically displayed after reading, press "HELP" button with DTC guide for possible causes if codes show the small "?" icon.

4. Reads freeze frame data which shows engine conditions such as fuel trim, fuel pressure, engine coolant temp, etc. at the time the Malfunction Indicator Lamp(MIL) was set.

5. Reads, records, graphs & playbacks(data logging) live sensor data.

6. Reads live O2 sensor/on-board monitor test data.(Full OBD modes including Mode 6 and Mode 8)

(Beeping: means your NT301 has diagnosed faults codes in your car. If you do not wish to hear the noise, please enter Settings to set it.)

Full OBD Service Modes

The Foxwell NT301 OBD2 universal check engine light tool is made to easily read and erase engine codes. It is an enhanced OBD II and EOBD scanner that covers all obd2 protocols and all OBD diagnostic services, therefore it will work with virtually any vehicle equipped with obd2 and view more powertrain diagnostic data than other obd2 scan tool.

Specially Designed for Home Diagnostics

The code reader car diagnostic tool is specifically designed for car owners to identify problems with their vehicles before taking them to a mechanic. It is therefore ideal for use at home, and is very easy to use. Moreover, it will save lots of car maintenance costs for you. Simply plug it in and hit enter. It supports all OBD II functions, and will therefore work for all vehicles compatible with standard obdii protocols.

Enhanced OBD II functions

NT301 obd2 scan tool can not only read and clear engine fault codes, save money for you, but also have some enhanced functions which could help you find some deep problems so that makes your diagnosis easier.

LED Notifications: Red-Yellow-Green LEDs and build-in speaker indicate the readiness status for smog check. This engine diagnostic tool can also help catch intermittent problems or confirm repairs during a drive cycle.

Data Log: The NT301 engine code reader records PIDs for later use to help you diagnose intermittent driving performance problems which can not be determined by any other methods.

DTC Help: Press "HELP" button with DTC guide for possible causes if codes show the small "?" icon.

VIN Retrival: Automatic VIN acquisition and decoding make it much easier to read manufacturer specific codes and enhanced mode 6 data.

Print Data: If you are unable to determine the problem, you can print out the diagnostic data and send the data to your mechanic for help.

Save Time and Money

Perform a complete diagnosis of your car anytime, anywhere with Foxwell NT301 check engine light diagnostic tool. It is designed for fast use so you can get the results you want in the shortest time with one-click hot keys for reading/clearing DTCs. It enables you repair the problem yourself, or let you know exactly what needs replacement in case you need to take your car to a repair shop. This helps you avoid blind maintenance and repair costs that could amount to hundreds or thousands of dollars. You also avoid being pushed to buy parts that you do not need because you know exactly what is wrong with your vehicle.

To know if you are ready for a smog check, press I/M button(rubber) for 3 seconds.

User-friendly Design

Hand-held size, clearly arranged keypad, menu-driven navigation, hotkeys and 2.8'' color screen together make the engine tool extremely easy to use.

What live data can be read by this device?

How much data can be read depends on the vehicle, there are over 40 graphing live data (Download the Specification Sheet to get a whole list), to list some: FUELSYS(fuel system status), LOAD_PCT(Calculated load value),ECT(Engine Coolant Temperature), SHRTFT(Short term fuel trim-bank), LONGFT(Long term fuel trim-bank), Engine RPM, VSS(Vehicle Speed Sensor), SPARKADV(Ignition timing advance for cylinder 1), IAT(Intake air temperature), MAF(Mass Air Flow), TP(Absolute Throttle Position), O2SLOC(Location of Oxygen Sensors), O2B1S2(Oxygen sensor output voltage (B1-S2), SHRTFT(Short term fuel trim), OBDSUP(OBD requirements), MIL_DIST( Distance traveled while MIL activated), EQ_RATB1S1(Equivalence Ratio Bank 1, Sensor1), O2B1S1(Oxygen sensor output voltage), EVAP_PCT(Commanded Evaporative Purge), etc.

Optional Carrying Case

With this Foxwell NT301 protection carrying case, you can prevent it from being damaged whether you place it in a trunk, toolbox, or garage.

Can it be upgraded on MAC system?

Sorry, the NT301 scan tool can be updated on Windows systems only(including windows 10), please visit Foxwell official website and download NTWonder and update.

Will it read ABS/ airbag codes?

Sorry, NT301 obdii scanner is able to read and clear check engine information which is part of OBDII system, but it cannot work on non-OBDII systems(ABS/airbag/oil service light,ect.). While FOXWELL NT630 Plus can reset airbag/abs service light, FOXWELL NT614 Elite support transmission and can reset oil service light and EPB, and FOXWELL NT624 Elite can do a full-system diagnostics.

• 🍀【A FREE PROTECTION CASE for U】: There is a main unit with OBD 16PIN diagnostic cable, user’s manual -- Instructions on Tool Operations, USB Cable -- Connect to a Computer for Upgrading Online and ►one FREE Protection Case for you. As usual, on the OBD market, you sholud pay for the Protection Case, but in our store, you can get it free.
• 🍀【OBD/EOBD 2 Modules in 1】: Full 10 modes OBD2 diagnostic functions: read and erase fault codes, view I/M readiness, data stream, freeze frame data, retrieve auto vehicle information, O2 Sensor test to accurately locate bad O2 sensor, advanced onboard monitoring, and the EVAP test function which enable you initiate a leak test for the vehicle’s EVAP system.
• 🍀【Realtime Live Data in Graph】: NEXAS NL101 car obd2 scanner helps you to check the car engine fault codes, displays the error code definition, finds out what caused and the result of the check engine light on, turn-off Malfunction Indicator Lamp (MIL), provides you the solution methods and reduce/avoid maintenance costs. Show real-time live data in graph to diagnose your vehicle. Save Time and Money.
• 🍀【Rare Unique Battery Check】: The NL101 car code reader can read real-time battery voltage, monitor car battery health status, and give out 6 warning tips for your to maintain your battery. It offers such useful information for entry-level Pros and DIYer that they can quickly and efficiently troubleshoot OBD2/EOBD problems on vehicles, meantime also watches out the battery power situation.
• 🍀【"?" Help & DTC Lookup & I/M】: NEXAS NL101 can help you explain the "?" on All Live Data, Freeze Frame and etc. when you don't know the meaning of the diagnosis. And you can go to the DTC Lookup to find the error codes when you don't know the meanings of them. You can one-click the I/M Monitor to perform emission readiness status, indicate whether various systems related to emissions on the vehicle are operating normally, and are ready for inspection and maintenance testing.
• 🍀【Multi-Languages & Vehicles】: English, Spanish, French, Deutsch, Italian, Russian, Portuguese, Finnish etc. Works on all cars, mini vans and light duty vehicles (OBDII & CAN) from 1996 and latest – American cars released from 1996 years, European cars released from 2000 years and Asian cars released from 2006 years. 🚩Especially Japanese cars released from 2006 years.
• 🍀【Long Press the "ESC" Key】: When you wanna exit the interface, LONG PRESS the "ESC" key, remember, LONG PRESS, not press once, or press twice in succession. 🚩Before using our product, you can use it directly without updating the software.
• 🍀【Adjust the Screen Brightness】: It’s normal that the screen can’t be seen clearly because of reflection problems outdoors. The same happens when we use mobile phones outdoors. Just adjust the screen brightness of the OBD2 scanner to the maximum.

Product features

NEXAS NL101 OBD2 Scanner Check Engine Light Car Code Reader Automotive Diagnostic Tool Fault Code Scanner, Car Check Engine

The NEXAS NL101 is specially developed for car, min van and light vehicles, which supports all 10 modes of OBDII test (EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing etc.) for a complete diagnosis and enables users to read DTCs, clear DTCs and view the live engine data stream with a live color graphing. It covers a wide range of vehicles since it offers multiple data bus protocols, such as CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000.

NL101 obd2 scanner works on all cars, mini vans and light duty vehicles (OBDII & CAN) from 1996 and latest:

1. American cars released from 1996 years
2. European cars released from 2000 years
3. Asian cars released from 2006 years, Especially Japanese cars released from 2006 years.

As an unique feature while other OBD scanner dose not have, NL101 could quickly check the vehicle’s battery health, read out the current battery value and give out 6 levels of battery warnings for your knowledge. It can be connected to PC through the USB cable for upgrade to keep updated with the latest software version.

Notice: NL101 may automatically reset while being disturbed by strong static electricity. THIS IS A NORMAL REACTION.

Top Reasons to Choose NL101:

1. OBD/EOBD 2 modules in 1.
2. Live data show in Graph, the data are straightforward to know.
3. Battery check, it is seldom to have in the same product.
4. Multi-Languages, English, Spanish, French, Deutsch, Italian, Russian, Portuguese, Finnish etc.
5. A F-REE Protection Case for U, you don't need to pay for it, but most products on the market need to, that is the other product doesn't have.

OBD II Modes of Operation:

Here is a basic introduction to the OBD II communication protocol. Mode byte: The first byte in the stream is the mode number. There are 10 modes for diagnostic requests. The first byte in the response data bytes is this same number plus 64. For example, a mode 1 request would have the first data byte = 1, and the response would have the first data byte = 65. Here is a brief description of the modes:

• Mode 01 – Identifies the Powertrain information and shows current data available to the scan tool. This data includes: DTC set, status of on-board tests, and vehicle data such as engine RPM, temperatures, ignition advance, speed, air flow rates, and closed loop status for fuel system.
• Mode 02 – Displays Freeze Frame data. Same data as in mode 1,but it was captured and stored when a malfunction occurred and a DTC was set. Some of the PIDs for mode one are not implemented in this mode.
• Mode 03 – Displays the type of powertrain or emission related DTCs stored by a 5 digit code identifying the faults. There may be more than one response message if there are more trouble codes than will fit in the data bytes of the response message, or if there are more than one ECU computer responding.
• Mode 04 – Used to clear DTCs and Freeze Frame data. This clears all diagnostic trouble codes that may be set including freeze frame data and readiness monitors.
• Mode 05 – Displays oxygen sensor test results. This mode displays the oxygen sensor monitor screen and the test results gathered about the oxygen sensor. There are ten numbers available for diagnostics: 01) Rich-to-Lean O2 sensor threshold voltage. 02) Lean-to-Rich O2 sensor threshold voltage. 03) Low sensor voltage threshold for switch time measurement. 04) High sensor voltage threshold for switch time measurement. 05) Rich-to-Lean switch time in ms. 06) Lean-to-Rich switch time in ms. 07) Minimum voltage for test. 08) Maximum voltage for test. 09) Time between voltage transitions in ms.
• Mode 06 – Non-continuously Monitored Systems test results.There are typically a minimum value, a maximum value, and a current value for each non-continuous monitor. This data is optional, and it is defined by a given vehicle maker if it’s used.
• Mode 07 – A request for DTCs (pending) from Continuously Monitored Systems after a single driving cycle has been performed to determine if repair has fixed a problem. This is used by service technicians to verify repair was performed properly and after clearing diagnostic trouble codes.
• Mode 08 – This special Control Mode requests control of the on-board system, test, or component bi-directionally (where applicable). This mode is manufacturer specific.
• Mode 09 – Reports vehicle information. This information includes vehicle VIN number and calibration information stored in the vehicle ECUs.
• Mode 0A – Requests Emission-Related Diagnostic Trouble Codes with Permanent Status. This mode is required for all emissions-related DTCs.The presence of permanent DTCs at an inspection without the MIL illuminated is an indication that a proper repair was not verified by the on-board monitoring system.

NEXAS NL101 OBD2 Automotive Scanner Engine EVAP Battery OBDII Scanner PK CR3001 ELM327 Professional EOBD OBD Car Diagnostic Tool

When more than one vehicle control module is detected by the scan tool, you will be prompted to select the module where the data may be retrieved. The most often to be selected are the Power train Control Module [PCM] and Transmission Control Module [TCM].

CAUTION: Don’t connect or disconnect any test equipment with ignition on or engine running.

1. Turn the ignition off.
2. Locate the vehicle’s 16-pin Data Link Connector (DLC).
3. Plug the scan tool cable connector into the vehicle’s DLC.
4. Turn the ignition on. Engine can be off or running.
5. Turn on the scan tool. Use the "UP/DOWN" scroll button to select OBDII/EOBD from the Main Screen.
6. Press the "OK" button to wait for the Menu to appear. A sequence of messages displaying the OBDII protocols will be observed on the display until the vehicle protocol is detected.
7. View a summary of system status (MIL status, DTC counts, Monitor status) on screen. Press [OK]

If the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit) more than three times, a “LINKING ERROR!” message shows up on the display.

• Verify that the ignition is ON;
• Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
• Verify that the vehicle is OBD II compliant;
• Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and repeat the procedure.

If the “LINKING ERROR” message does not go away, then there might be problems for the scan tool to communicate with the vehicle. Contact your local distributor or the manufacturer’s Customer--Service department for assistance.

I/M Ready Test & I/M Readiness Hot Key:

The Ready Test can be used as a convenient readiness test tool by automotive technicians to determine if the tested vehicle is ready for an emission test. By visual and audible indication,you will learn a vehicle’s monitors readiness. Repairs to the emissions-control systems of a 1996 or newer vehicle cause the vehicle’s computer (ECU) memory to be cleared. The vehicle must go through a drive cycle to allow the ECU to perform a series of tests to ensure that the repair was successful, and before a state mandated emissions test can be conducted. But how will you know when it is ready? With this scan tool, you don’t have to drive around endlessly and continuously coming back to the repair shop for retest if all required tests by the ECU are completed. And you could also do a quick check of the vehicle to determine if it is ready to receive an emission test without the hassle of connecting your vehicle to the analyzer or having to use a complicated scan tool.In the following cases, this function is especially useful.

• You bought a used car and the check engine light had been cleared to mask potential problems.
• You disconnected the battery for tune-ups and other engine repairs, dead battery replacement, car radio installation and car alarm installation.
• You used a scan tool to clear the DTCs.
• Your car has been sent to repair.

I/M refers to Inspection and Maintenance that is legislated by the Government to meet federal clean-air standards. I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.

The purpose of the I/M Readiness Monitor Status is to indicate which of the vehicle’s Monitors have run and completed their diagnosis and testing, and which ones have not yet run and completed testing and diagnosis of their designated sections of the vehicle’s emissions system.

The I/M Readiness Monitor Status function also can be used (after repair of a fault has been performed) to confirm that the repair has been performed correctly, and/or to check for Monitor Run Status.

Note: N/A means not available on this vehicle; INC means incomplete or not ready and OK means Completed or Monitor Ok.

CHECK ENGINE LIGHT:

Quickly and accurately to read the engine fault code, built-in DTC look up library to show the DTC definitions,make it easy to determine the cause of the Check Engine Light(MIL), and turn off Check Engine Light by erasing the trouble codes and Monitors reset.

Battery Monitor: NL101 could quickly check the vehicle’s battery health, read out the current battery value and give out 6 levels of warnings for your knowledge:

• A. <10.8V(before Starting): Too Low; Change your battery, otherwise, might not be able to start;
• B. 10.8V-11.8V(before starting): Slightly low; Difficult to start, please turn off other electronics and start vehicle to charge;
• C. 11.8V-12.8V(before starting): Normal;
• D. 12.8V-13.2V(after starting): Too Low; Might not be able to charge the battery, please check other electrical load;
• E. 13.2V-14.8V(after starting): Normal;
• F. >14.8V: Too High; Might damage the battery, please check the engine stabilizer.

Power Supply: The power of the NL101 is provided via the vehicle’s Data Link Connector (DLC). Follow the steps below to power it up:

1. Find DLC on the Vehicle: The DLC is the connector where diagnostic code readers interface with the vehicle’s on-board computer and usually located in the driver’s cab. A plastic DLC cover may be found for some vehicles and you need to remove it before plugging the OBD II cable. If it cannot be found, refer to the vehicle’s service manual for the location.
2. Plug OBD II cable to the vehicle’s DLC.

One Click "Help" for Data Stream & View Freeze Frame:

• This item enables you to view all data stream items and the live waveform of all selected items.Some data stream have the help information ,press the [?] .
• When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.

Note: If DTCs were erased, Freeze Data may not be stored in vehicle memory depending on vehicle.

Location of the Data Link Connector (DLC): The DLC (Data Link Connector) is the standardized 16-cavity connector where diagnostic scan tools interface with the vehicle's on-board computer. The DLC is usually located 12 inches from the center of the instrument panel (dash), under or around the driver side for most vehicles. If Data Link Connector is not located under dashboard, a label should be there telling location. For some Asian and European vehicles, the DLC is located behind the ashtray and the ashtray must be removed to access the connector. If the DLC cannot be found, refer to the vehicle service manual for the location.

Package Accessories：

• Main Unit with OBD 16PIN Diagnostic Cable
• User’s Manual -- Instructions on Tool Operations
• USB Cable -- Connect to a Computer for Upgrading Online

DTC Lookup:

The DTC Lookup function is used to search for definitions of DTCs stored in the DTC library and for code breaker information.

1. From Main Screen (Figure 4.1), use the [UP] / [DOWN] scroll button and [RIGHT] / [LEFT] scroll button to select DTC Lookup and press the [OK] button.
2. From DTC Lookup screen,use the [RIGHT] / [LEFT] button to move to the desired character,use the [UP] / [DOWN] button to change selected digit/character and press the [OK] button to confirm.
3. View the DTC definition on screen. When DTC definition covers more than one screen,use the LEFT/RIGHT button or UP/DOWN button to view additional information on previous/next screens.

Here we list some frequently asked questions and answers relating to NL101:

• Question: System halts when reading data stream. What is the reason? Answer: It may be caused by a slackened connector. Please turn off the NL101, firmly connect the connector, and switch on it again.
• Question: Screen of main unit flashes at engine ignition start. Answer: Caused by electromagnetic disturbance and this is normal phenomenon.
• Question: There is no response when communicating with on-board computer. Answer: Please confirm the proper voltage of power supply and check if the throttle has been closed, the transmission is in the neutral position, and the water is in proper temperature.
• Question: Why are there so many fault codes? Answer: Usually, it’s caused by poor connection or fault circuit grounding.

• NOT COMPATIBLE WITH iOS DEVICES - (iPhones, iPads etc); OUR BLUETOOTH OBD2 scanner IS ONLY COMPATIBLE WITH ANDROID OR WINDOWS DEVICES; For iOS devices, see our WiFi OBD Reader
• READ & RESET - Our OBD2 diagnostic scanner tool will work on all cars purchased in the USA model year 1996 or newer; Unlike other OBD2 scanners, ours works on ALL OBD2 protocols including J1850 and CAN; With our scan tool you can read & reset the check engine light on your car with ease
• REAL TIME - Monitor the diagnostic sensors in your vehicle in real time for things like O2 data, fuel pressure, EVAP system & more; Car reporting an EVAP code? Check your O2 readings to see which sensor is faulty and get it fixed; React quickly to problems like a professional mechanic
• HUGE APP SELECTION - 3rd party app must be downloaded to use; Choose from many OBDII apps such as Torque Pro, Piston, Dash Command, OBD Fusion & more; Some OBDII readers limit you in which apps you can use, not BAFX Products; Choose an app at a price that meets your needs
• This OBD2 scanner does not read ABS, SRS, TPMS or Oil Change lights; WARRANTY - 2 Year manufacturer warranty with USA based friendly support staff; Don't be left stranded by support

User questions & answers

Question:	Will it read ABS codes
Answer:	I do not know...if you have a security light flashing I would go to an Auto Zone they will do a free scan to tell you what is wrong with it and if it can be fixed or you may have to go to a dealership to have it fixed ....
Question:	Does this work with Windows Phone
Answer:	The Maxiscan MS300 is also an Autel product. It is a legacy product that has been superseded by the Autel AutoLink AL301¹. As is customary for these entry-level devices, it only reads / reports the generic OBD II codes. To move up to manufacturer specific codes one must move up to the Autel AutoLink AL319². Keep in mind that not ALL manufacturer specific codes are possible to read / report on. Some are kept secret by the vehicle manufacturer to ensure the dealer techs get a shot at your wallet once in a while. ^_^¹ http://www.auteltech.com/autelcms/Code%20Readers&Code%20Scanners/357.jhtml² http://www.auteltech.com/autelcms/Code%20Readers&Code%20Scanners/358.jhtml
Question:	can i leave it plugged in
Answer:	Yes.It has an I/M Readiness mode that is able to show you the details of the readiness of each major emission monitor. There is even a button on the device that can select this directly without having to navigate through the menus.There is also a lamp on the device that indicates if any emission monitor is not ready.It is my understanding that the requirements for I/M readiness for each vehicle may differ from state to state.I had a problem with an air monitor coming ready after I identified, resolved, and cleared the underlying code. It took miles of specific type of driving to clear this monitor status (which cannot be cleared by the device.)When I returned to the inspection station I was informed that all monitors are not required to be ready to pass New York state inspection, and that my extra driving for this situation was unnecessary.
Question:	does it pick up abs codes
Answer:	It gives a text explanation of the code (eg. Nissan code P1135 = 'Intake Valve Timing Control Bank 2'). Beyond that, you're having to look online or in service manuals to determine what the message actually means and how to resolve it.

Product features

Quickly Diagnose and Analyze Car Problems

Warning lights flashing up like an airport runway? Tear your eyes from that depressing dashboard and connect your BAFX Products Diagnostic Car Scanner & Reader Tool.

See what the issue with your car is within moments, and depending on your model you can -

•Read and clear your ‘Check Engine' light

•Identify those annoying car troubles before they become serious

•Get readings on your emissions to ensure you’ll pass any tests

•Check you air/fuel ratio •Confirm your O2 sensors are working properly

•Obtain info on a variety of other car readings

Reliable and Consistent

It’s no secret that many diagnostic car scanners on the market aren’t very dependable.

Either they only work on a limited number of car models, don’t pick up on important issues, or simply suffer from bad connectivity which makes them inconsistent and difficult to use.

At BAFX Products we’ve made it our mission to bring you a diagnostic scanner with solid Bluetooth connectivity that works on the broadest range of car models.

Put simply, at this cost it cannot be beat.

Works on Most Car Models After 1996

While most competitor’s products only work on a limited selection of vehicles, ours works across a broader range of protocols.

The result is that ours are far more likely to work on your car. And your wife’s car. And your friends’ cars…

Android and Windows Compatible

Who says iOS users get to have all the fun?

This product is specially constructed to work exclusively with Android and Windows devices,

Simply install a suitable third-party app (we recommend ‘Torque Pro’) and get to work!

Can Be Used Internationally

Think this diagnostic scanner can only be used in the good old US of A?

Think again, because it can be put to use on a wide selection of cars in a broad range of countries.

If you want to know if it will work on your car model and in your country then simply send us a message to find out.
