12 best power modules

Product description

5V/3.3V Power Supply Module for MB102 Prototype Board Breadboard



Feature:

Input voltage: 6.5-9V (DC) or USB power supply

Output voltage: 3.3V, 5V switchable

Maximum output current;700mA

Two-way independent control can be switched to 0V, 3.3V, 5V

Onboard two 3.3V, 5V DC output pin

Note:

This is the power supply module, without Prototype Paper PCB Board.

Package Include:

5* Power Supply Module

• HiLetgo 3.3V 5V Power Supply Module
• Output voltage: 3.3V, 5V
• Maximum output current: <700mA
• Input voltage: 6.5-9V (DC) or USB power supply
• Onboard two 3.3V, 5V DC output pin

User questions & answers

Question:	I bought this 9v power supply for this, but the board doesn't work (no light when switched on). a different 9v barrel i have works fine....why
Answer:	Sounds as if the one 9 volt power supply is bad. Is it possible polarity of one 9 volt supply is reversed. Best bet is to get a meter and check.
Question:	Is the DC input center positive
Answer:	Yes, the center, also known as the 'Tip' is positive and the outside part also know as the 'Ring' is negative or ground. In this case negative input equals ground.
Question:	what size barrel for the dc power supply
Answer:	5.5x2.5
Question:	So the description in the title says that the power unit can handle 6.5-12v input, but the description says 6.5-9v input. so which is it? 9v or 12v
Answer:	I have used both 9v and 12v dc wall adaptors with stable results on both 3.3v and 5v outputs.

Product description

Package included:

Power Module x 1

Features:

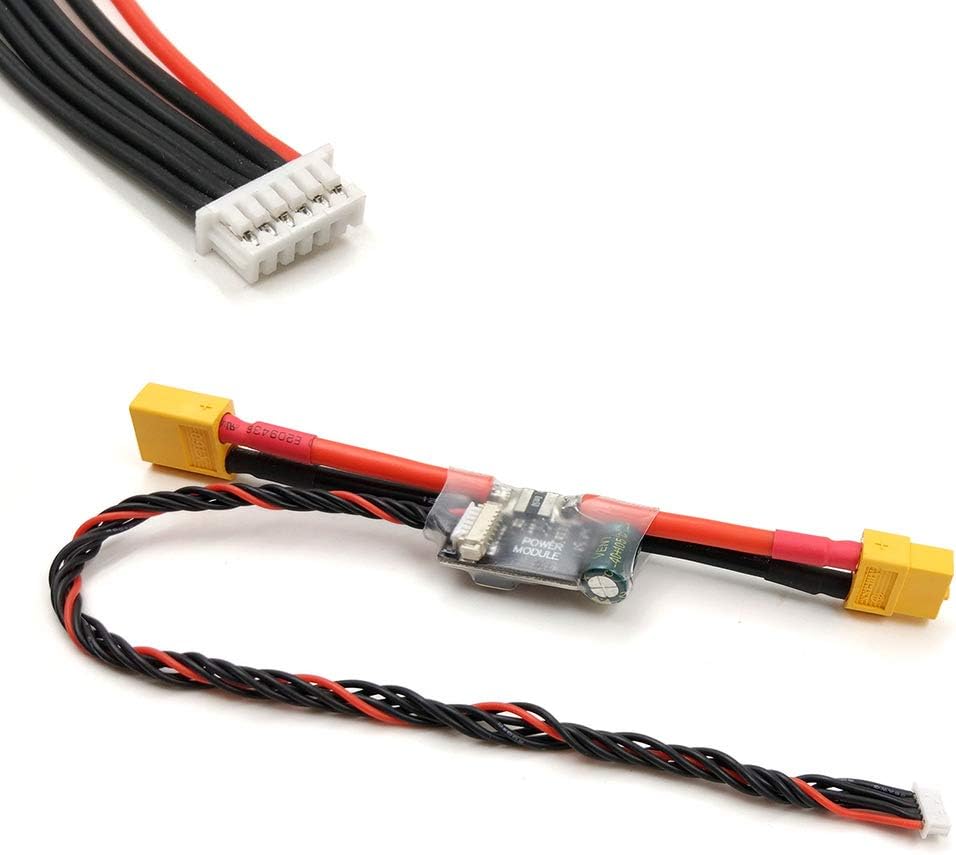

The Power Module incorporates both a way to power your flight controller and accessories as well as report battery voltage and current back to flight controller for logging and telemetry data. The on-board switching regulator outputs about 5.3V at a maximum of 2.25A and can be used up to 28Volts (6S LiPo) and at a maximum of 90 amps.

Specification::

●Maximum input voltage: 28V 6S

●Maximum input current: 90A

●BEC output voltage: 5.3V

●Maximum BEC output continuous current: 2.25A

●6-pin cable length: 250m

●Main cable plug: XT60

●Dimensions: 25mm x 21mm x 9mm

●Net weight: 25g

Note:

The Power Module is rated at 2.25 Amps to power the flight controller, receiver and peripherals (GPS and Telemetry radio) ONLY. To power servos use an ESC with an adequate BEC or a standalone BEC plugged into the output bus.

• There is a 220uf electrolytic capacitor in the Power Module can effectively prevent destroyed by a high voltage pulse.
• 6-pin 1.25 connector suitable for Pixhawk/APM
• Used up to 28V (6S LiPo) and at a maximum of 90A
• The outputs voltage of BEC is about 5.3V. Maximum BEC output continuous current: 2.25A
• The Power Module is ready to use with XT60 connectors pre-fitted, and shrink wrapped for protection.

User questions & answers

Question:	Will this connect to the Pixhawk
Answer:	Yes, it is OK

Product description

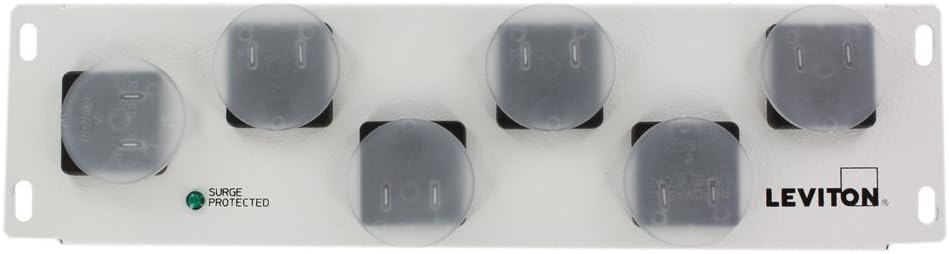

Leviton offers reliable surge protective AC Power Modules and J-Box kits. Both the AC Power Module and the J-Box kits work with the Series 140, 280 and 420 Structured Media Centers. Choose either surge protective for optimum protection or non-surge protective. The surge protected options provide EMI/RFI filtering that meets UL 1449 standards. The AC Power Modules feature two 15-Amp duplex receptacles and the J-Box kit features one 15-Amp duplex receptacle. AC Power surge module with 6 NEMA receptacles for Input: 120Vac, 50/60-Hz Max Current 15-Amp UL Vpr: L-N/L-G/N-G: 600Vp

• 6-Outlet Module features diagnostic LED indicating surge protection is operating
• 6-Outlet Module features manually resettable circuit breaker
• Unit mounts into opening at bottom of Structured Media Center

User questions & answers

Question:	Does this fit in Leviton 47605-28W Series enclosure
Answer:	Yes, the Leviton 48212-6S AC Power Surge Module does fit in the Leviton 47605-28W Series enclosure. I installed this setup last year with no issues.
Question:	Will this fit in a leviton 47605-21e smc 21-inch series, structured media enclosure
Answer:	Yes, this will fit all Leviton Structure Media Centers.

Product description

Leviton offers reliable surge protective AC Power Modules and J-Box kits. Both the AC Power Module and the J-Box kits work with the Series 140, 280 and 420 Structured Media Centers. Choose either surge protective for optimum protection or non-surge protective. The surge protected options provide EMI/RFI filtering that meets UL 1449 standards. The AC Power Modules feature two 15-Amp duplex receptacles and the J-Box kit features one 15-Amp duplex receptacle. This AC Power Module with surge suppression provides power to distribution modules, incorporating multi-stage protection from power surges. Designed to be used alone or as part of a whole house surge protection network. Connects to a dedicated 15 Amp AC power circuit to provide power to the distribution modules in the Structured Media enclosures.

From the Manufacturer

Leviton offers reliable surge protective AC Power Modules and J-Box kits. Both the AC Power Module and the J-Box kits work with the Series 140, 280 and 420 Structured Media Centers. Choose either surge protective for optimum protection or non-surge protective. The surge protected options provide EMI/RFI filtering that meets UL 1449 standards. The AC Power Modules feature two 15-Amp duplex receptacles and the J-Box kit features one 15-Amp duplex receptacle. This hospital-grade, AC Power Module with surge suppression provides power to distribution modules, incorporating multi-stage protection from power surges. Designed to be used alone or as part of a whole house surge protection network. Connects to a dedicated 15 Amp AC power circuit to provide power to the distribution modules in the Structured Media enclosures.

• In excessive power surges, a built-in alarm sounds to warn user that power is now unprotected
• Safety clips protect outlets against dust, dirt and debris
• Two cable knock-outs on bottom for power service connections
• Incorporates two 15 Amp Outlets

User questions & answers

Question:	Will these fit in my leviton 49605-30w rf-transparent structured media enclosure
Answer:	Leviton's website should contain documentation that states what accessories are designed to work with the 49605-30w rf-transparent structured media enclosure. https://www.leviton.com/en/products/49605-30w
Question:	Do you need two romex wires going to this to have both outlets working or just one
Answer:	The duplex receptacles (outlets) included with the 47605-DP can share the same 120v 15A circuit. Our product instructions provide the recommended wiring method. Product instructions can be found on Leviton’s website. For additional support please contact Leviton Technical Support, contact information can be found on Leviton’s website.
Question:	Will leviton 47605-dp double duplex ac power module fit in the knockout in 47605-42n enclosure
Answer:	It does mount inside the box on the bottom but if you have wires coming in through the bottom, then you may have to find another spot for it.
Question:	Does this come with the cable to “daisy chain” off of an electrical outlet, or is that something that would have to be purchased from like Home Depot
Answer:	No, it has an assortment of knockouts all around it. You'll want to pick up a pack of the 3/8" nm cable clamps to keep the Romex secured to one of the knockouts. Obviously you'll want to pick up some Romex as well. If it's on a 15 amp circuit, use 14/2 (easier to work with), if it's a 20 amp circuit, you'll need to use 12/2. Just go to breaker, and figure out which circuit you're pulling from, and then you'll know which wire to pick up. These are the clamp connectors you want; https://www.homedepot.com/p/Halex-3-8-in-Non-Metallic-NM-Twin-Screw-Cable-Clamp-Connectors-5-Pack-20511/100133208

Product features

Our History of Ingenuity

After immigrating from Russia to the United States, Isidor Leviton opened a small tin-smiting business in 1906, where he produced mantle tips used for gas lighting. With the invention of Edison’s light bulb, Leviton shifted to manufacture a single electrical product: the pull-chain lamp holder. During our earliest years in business, the population of New York City began to increase dramatically. Leviton supplied the switches, outlets, light sockets and other electrical parts for them. During the 1940s, Leviton also helped manufacture parts for machinery. Our Journey from electrical to lighting to networking, Leviton is engineering thoughtful solutions that help make life easier, efficient and productive.

Leviton 47605-DP

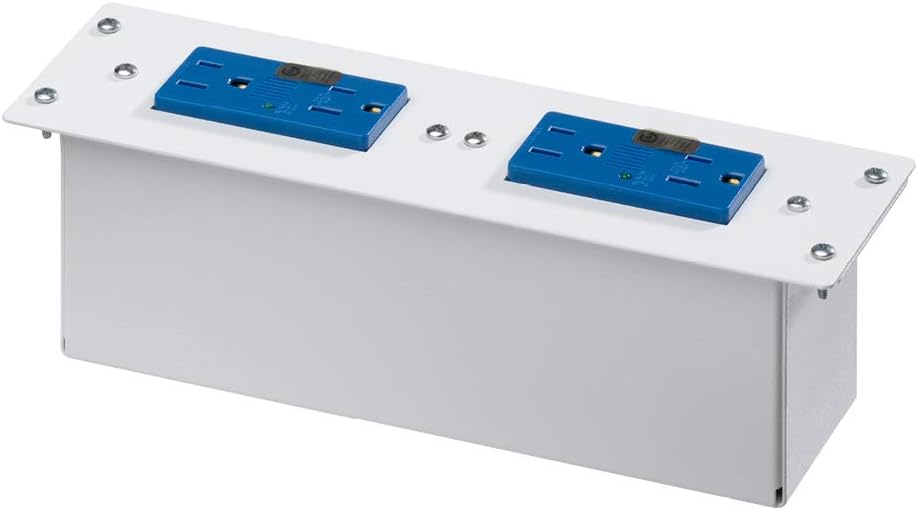

This AC Dual Power Module with surge suppression provides power to voice, video, audio, and data distribution modules – routers, switches, modems, audio distribution modules, and security modules – mounted inside a Leviton Structured Media Center enclosure. Equipped with TVSS (Transient Voltage Surge Suppression) outlets, the AC Power Module provides protection from transient voltage surges, and is intended for use where sensitive equipment would benefit from protection against the damage caused by such surges. A green indicator light on the face of the unit, when continuously lit, indicates surge protection is in effect. When the indicator light is off, the receptacle is no longer providing suppression. When protection is lost, an audible alarm will beep continuously. This power supply easily drops into a cutout in the bottom of the Structured Media Center. This design allows you to install the power required without taking up valuable space inside the enclosure.

Product description

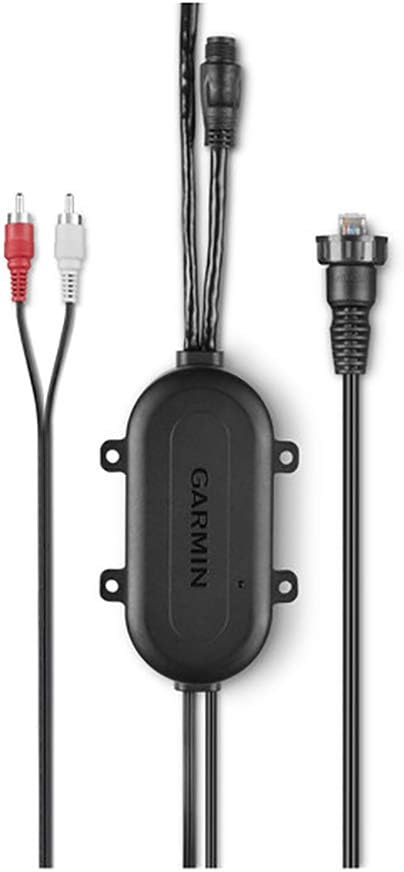

GXM 53 Power and Audio Module, MFG# 010-12527-00, Cable with integrated electronics that supplies power and a data link to the GXM 53 antenna and breaks out audio.

• Country Of Origin: United States
• Product Type: Fishing Equipment
• Item Package Dimensions: 8" L X 6.75" W X 2" H
• Item Package Weight: 1.0 Pounds

Product description

Enclosure Power Strip Module - Half Width, AC1031

• 3 top outlets designed for pw-series power strups
• 3 side outlets designed for most low Voltage transformers
• Power switch controls all outlets
• 15a/UL rated
• Power cord with right angle plug

User questions & answers

Question:	Is this item also a Surge protector
Answer:	It absolutely is not. On-Q documentation calls out P/N 364569-02-V1 for this. That part is an outlet that provides surge protection.
Question:	Does this onq power strip come with the push pins to snap into an onq enclosure or do you need to buy the metal piece and push pins separately
Answer:	It comes with everything you need to secure the power strip in their boxes. It has hooks on one side and push pins on the other.
Question:	Is UL listed
Answer:	The box states, “15A/UL Listed”.
Question:	How long is the cord
Answer:	Mine is approx. 7 '' from the entrance into the box to the end of the plug.

Product features

Optimal Size for Enclosures

Half-width size allows two modules to be mounted side-by-side in the enclosure.

Power Packed

Designed to power up to six devices, 15A/UL rated. Power switch controls all outlets with overcurrent protection.

Installation Flexibility

Package includes three IEC C13 adapters and one IEC C7 ("figure-8") adapter to vertically stack On-Q power supplies neatly in the enclosure.

About Legrand

Our comprehensive On-Q product offering — which includes wall plates, jacks, straps, tools, modules and enclosures — simplifies installations and reduces time on site. We specialize in meeting the right specifications for any project — residential or light commercial — with solutions that exceed your needs.

Product description

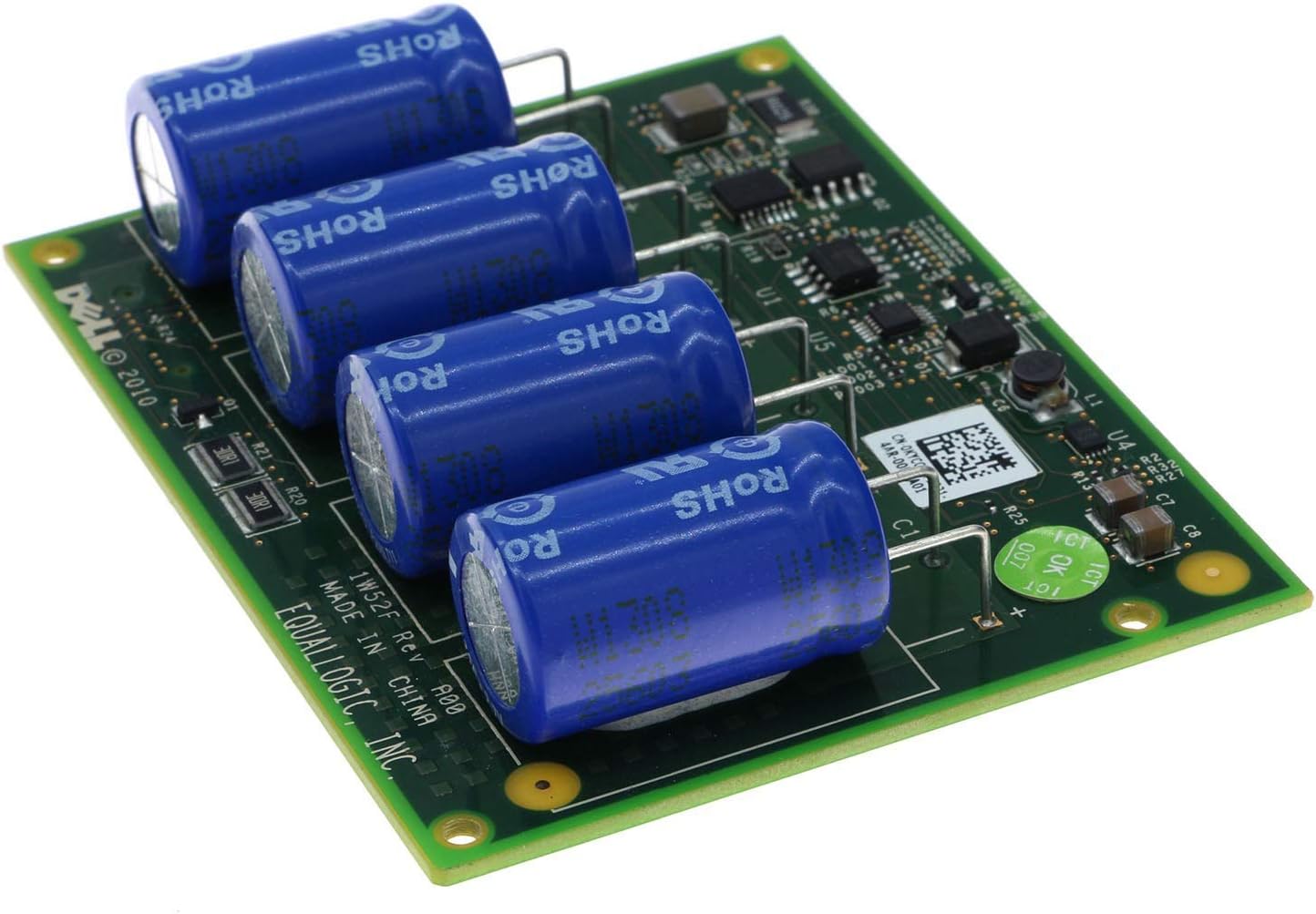

Package include: 1x Power Module Board

Comaptible with models: FOR Dell EqualLogic KYCCH N7J1M C2F PS4100 PS6100 PS6110 PS6210

• 100% Brand new and high quality.
• 6 Months Quality Warranty
• Special skill and techniques required proper installation. Please check both the models and pictures before purchasing.

Product description

Description

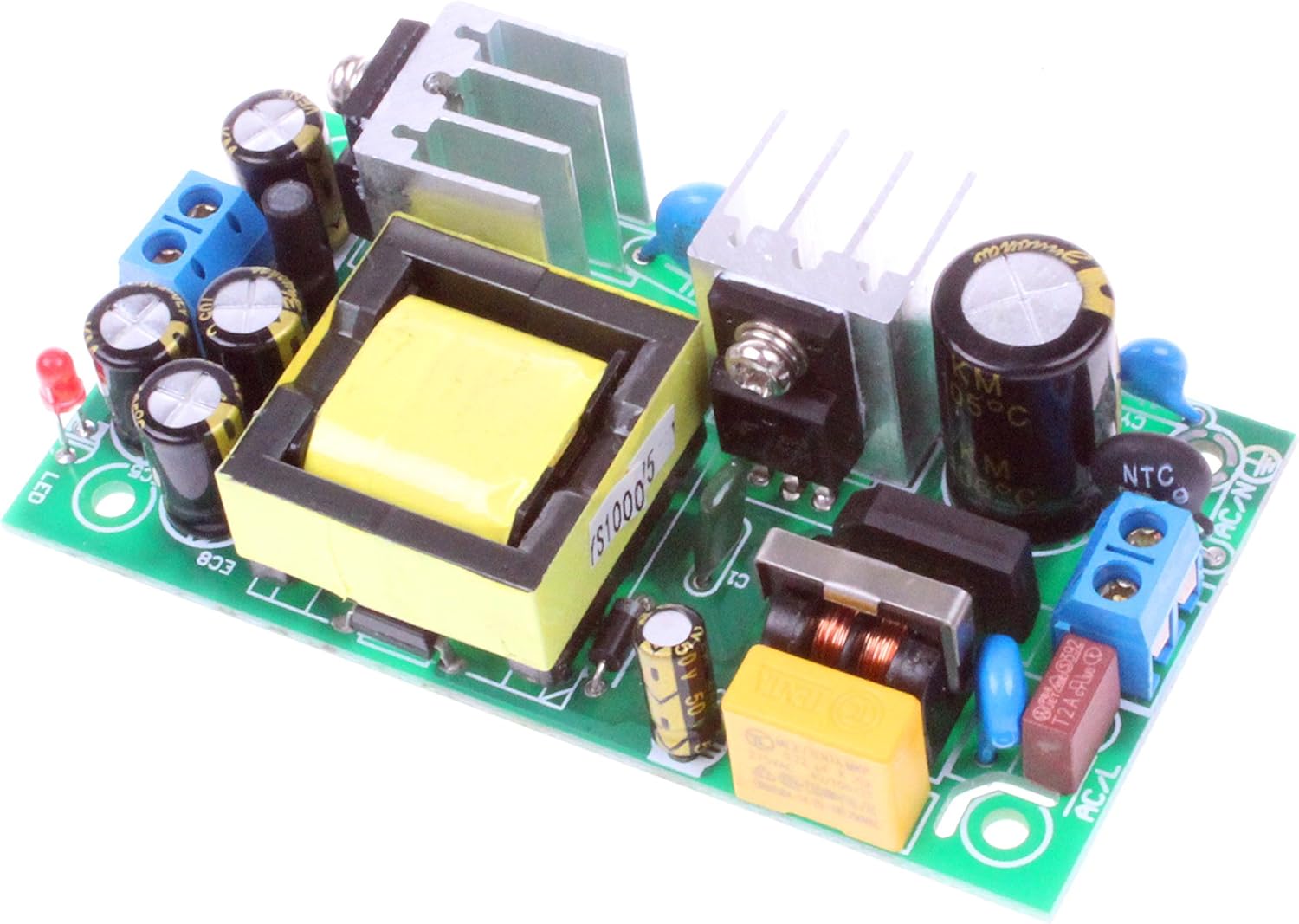

Isolated Precision Buck Power Supply Module ，Wide voltage range input with overload, short circuit, over temperature protection. Ultra-small size and high efficiency.



Output parameters:

Output voltage: 12V ±1%.

Output current: 2A 2000mA.

Ripple: less than 60mVp-p.

Output accuracy: ±1%.

Voltage regulation rate: ±1%.

Load adjustment rate: ±1%

Rated power: 24W.

Output adjustable range: not adjustable.

Establish, rise, hold time: 500ms, 80ms, 80ms / 220V AC.

Input parameters:

Input voltage range: AC 100- 264V.

Input current: less than 0.2A. (Average current 0.03A-0.1A).

Frequency range: 47-63Hz.

Efficiency: about 80%.

Start surge current: COLD START 30A/230V / AC.

Leakage current: less than 2mA / 220V AC.



Protection features:

Over power protection: 150-170% rated power. (Fault removal is automatically restored).

Overvoltage protection: VH: >50%.

DC short circuit protection: The power supply is intermittently separated. (Fault removal is automatically restored).



Environmental parameters:

Working temperature: -15 ° C - +50 ° C @ 100% LOAD , +60 ° C @ 60% LOAD;

Working humidity: 20%-90% RH.

Storage temperature, humidity: -20 ° C - +85 ° C, 10% -95% RH.



Safety and EMC standards:

Withstand voltage: I/P-O/P: 1KV AC 1min.

Insulation resistance: I/P-O/P: 500VDC / 100M Ohms.



Package Included:

1Pcs 12V 2A 2000mA AC-DC Precision Buck Power Supply Module

• Isolated Precision Buck Power Supply Module ，Wide voltage range input with overload, short circuit, over temperature protection. Ultra-small size and high efficiency.
• Input voltage range: AC 100- 264V. Frequency range: 47-63Hz.
• Output voltage: 12V +/-1%. Output current: 2A 2000mA .
• Ripple: less than 60mVp-p. Output accuracy: +/-1%. Voltage regulation rate: +/-1%.
• Product Dimensional Drawing Download Link: https://www.amazon.com/clouddrive/share/l8YSnukMbTCXFVwR4ePwkRReASDjjKBM8WM0d6G0nOp

User questions & answers

Question:	Does this create a lot of heat in an enclosure. How much ventilation would be necessary if it does heat up
Answer:	Normally, there is no need to add a radiator at room temperature. If the ambient temperature is high, then additional heat sink devices, such as fans, need to be added. If you need to add a shell, I suggest you add a metal shell such as aluminum, because metal materials have better heat dissipation, not only will not affect the heat dissipation of the module, but also help heat dissipation. The following is the output ratio of the module at different temperatures: -15℃ ： 75% Rated power； -10℃ ： 85% Rated power； 0℃ ： 100% Rated power； 10℃ ：100% Rated power； 20℃ ：100% Rated power； 30℃ ：100% Rated power； 45℃ ：100% Rated power； 50℃ ：90% Rated power； 60℃ ：70% Rated power；
Question:	Does this power converter require a minimum current or can it be operated disconnected from a load
Answer:	Hi, can you describe your problem more specifically? I don't quite understand what you mean. This module can disconnect the load during the power supply process and will not affect the power supply module. But the best way to operate is to disconnect the power supply first and then disconnect the load. This can better protect the load equipment.
Question:	Regarding the ac-input of the 1-amp version; which pin is line and which pin is neuteral (l/n)? thanks
Answer:	The AC input terminals of the module are marked with "AC/L, AC/N".
Question:	what is the size of unit out of box
Answer:	87x46x25mm（LxWxH） Product Dimensional Drawing Download Link: https://www.amazon.com/clouddrive/share/l8YSnukMbTCXFVwR4ePwkRReASDjjKBM8WM0d6G0nOp

• Input voltage range is AC110-220V, output voltage range is DC 0-48V adjustable, output current can't be adjusted and it is up to your load, maximum output current is 10A, so this item will not fit for your device with over 10A current.
• LED display shows you real-time voltage, which makes it more convenient for you to adjust voltage. Case Material: Metal; Main Color: Silver Tone.
• Equipped with temperature control cooling fan: it will automatically operate when this power converter need to be cooled without any noise.
• Protection Function: over load protection, over voltage protection, short circuit protection, this protection will protect your load well. NOTE: before using, please select the input voltage 110V/220V according to your local voltage, to avoid damaging, switch is at right side of the item.
• Widely used in Industrial automation, Radio, Broadcasting, LED display, communications, Security cameras, Lighting, Computer.

User questions & answers

Question:	How much power it draws when idle
Answer:	I don't really know and not very concerned. In my application it only powers one device, and I switch it completely off when not in use.
Question:	Another customer indicated that his unit came with a 10k ohm pot installed, plus an extra 4.7k ohm pot. what is the purpose of the extra pot
Answer:	Different sized pots can control how granular the adjustment, the response and may impact voltage drift from the original set point. Smaller pot less precision. I have ordered several of these no quality issues yet.
Question:	Researching to see if this can be used to charge a large lithium battery. does this unit have cc/cv capability
Answer:	A battery is a collection of cells. If you are charging Lithium batteries, you should use a Load Balancer or a BMS made for the type of Lithium battery you have (i.e., Li-ion, Li-Po, etc..) This will balance the charge across all the cells in the battery. You should also use a charge controller -this is what prevents the battery from overcharging, and tapers the charge down as the voltage reaches the end stages of charging. This power supply should work IF the charge controller is set so that it will not draw more current (Amps) than this power supply can handle. Good BMS's and Charge controllers are programmable. BMS's and charge controllers can be built into the Lithium battery, but you need to make sure BEFORE using anything to charge up a battery of this type. NEVER over-charge a Lithium battery. Do your research, be safe.
Question:	Can this item be used to power an Acorn Stairlift that needs 33vdc 1amp output power su? Because service tech wants $250 minimum to come to the house
Answer:	According to the specifications, this power supply will provide 0 - 33 VDC at 10 amps. If you only need 33 VDC at 1 amp to operate the Stairlift, this unit should work just fine.

Product features

Parameters:

• Input voltage: AC 110-220V ± 15%
• Output: DC 0-48V 10A
• Rated power: 480W

• In-door use only, for this switching power supply is not waterproof.
• LED display shows you real-time voltage, which makes it more convenient for you to adjust voltage.
• Built-in cooling fan, over temperature protection, overheating automatic shutdown protection; output overvoltage, overcurrent and short circuit protection.
• Pay attention to positive and negative, do not reverse.

Features:

1.Full load burn-in test

2.Great switching power supply for home appliances

3.Universal AC input/full range, cooling by automatic on/off cooling fan

4.A new style Switching Power Supply which can keep the voltage stability

5.LED Switching Power Supply, high quality material, durable and safety in use

Note:

Before using, please select the input voltage 110V/220V according to your local voltage, to avoid damaging, switch is at right side of the item.

If use motor, fan and other inductive load, please pay attention to the load’s maximum starting current parameter. This parameter shall not be higher than the power supply’s max. current.

Otherwise it may damage the power supply. Or allocate the soft starting protection circuit for the load to absorb the impact current.

Product description

Feature:

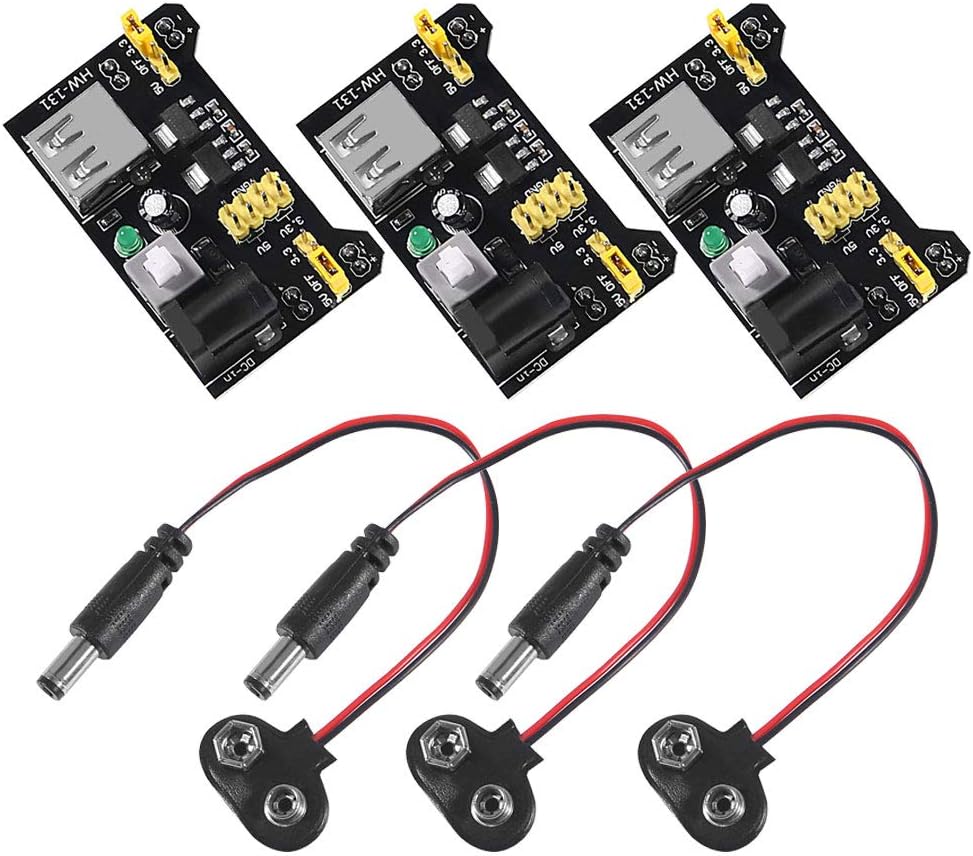

Breadboard Power Supply Module

For MB102 bread board

compatible with 5V, 3.3V

Input Voltage :6.5-12V (DC) or USB power supply

Output voltage: 3.3V, 5V switchable

Maximum Output Current: <700ma

Two way independent control

Can be switched to 0V, 3.3V, 5V

On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads

Size:approx.53x35x19mm

9V Battery Snap Power Cable T-type 5.5x2.1mm connector

Cable Length: About 10cm.

15cm stripped and tinned leads, 1 red and 1 black for easy identification and soldering;

Snap-on terminal connector for 9-volt battery or for DIY projects.

Package included:

3 x 5 V 3.3 V Breadboard Power Supply Module

3 x 9V Battery Snap Clip Power Cable

• There is a green LED to indicate the presence of power, and an ON / OFF latching switch to control the power to the board.
• The input voltage through the barrel socket must be between 6.5 V and 12 V. Hence, if you wish to use it to its maximum capability you will need to remain in that range. This is a non-adjustable fixed power supply model, which is good enough for most applications.
• Maximum output current to be 700 mA. However, it is probably better to use much lower voltages and current to be on the safe side in case you make a mistake on your breadboard circuit.
• With 9V battery snap power cable T-type 5.5x2.1mm connector.
• How to use: This is a plug-in power supply and the headers below the board simply plug-in to the breadboard. Once plugged in, the voltage rails to both sides on the breadboard then provide power. You then use the yellow jumpers to select the voltage levels required. This is a dual output 3.3 V, 5 V regulated board and you can have either voltage on either rail on the breadboard, which is very useful.

Product description

Product Description

Specifications:?

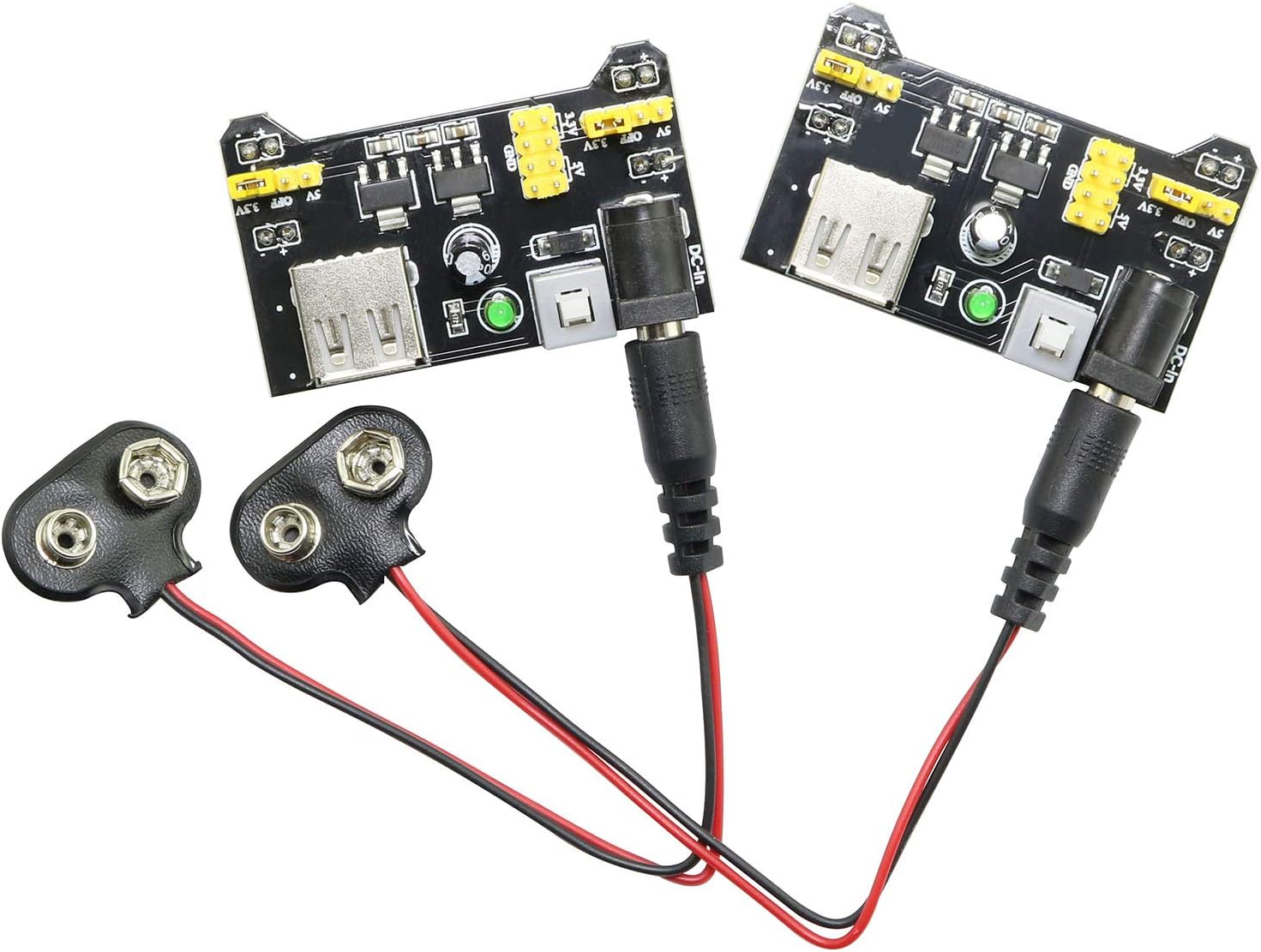

MB102 Prototype Board Breadboard

Product Name:Breadboard Power Supply Module.

BoardModel: MB102.

Output Voltage: 3.3v, 5V switchable.

Maximum Output Current: less than 700mA.

Input Voltage: 6.5-12v (dc) or USB power supply.

Two independent control, can switch to 0V, 3.3v, 5V.

The board has two sets of 3.3v and 5V DC output pins.

Note:

This is the power module, no prototype paper PCB board.



2.1mm x 5.5mm Male to 9V Battery Clip

Product Name: Battery Clip.

Cable length:6Inches.



Package :?2PCS MB102 Prototype Board Breadboard and 2PCS Battery Clip.

• Product Name:Breadboard Power Supply Module and Battery Clip.
• BoardModel: MB102. Output Voltage: 3.3v, 5V switchable.Maximum Output Current: less than 700mA.Input Voltage: 6.5-12v (dc) or USB power supply.
• Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V.
• Cable length:6Inches.Package :?2PCS MB102 Prototype Board Breadboard and 2PCS Battery Clip.
• This kit is a good power supply module for Arduino Raspberry Pi.

Product description

Dometic provides branded solutions for mobile living in the areas of Climate, Hygiene & Sanitation, Food & Beverage, Power & Control and Safety & Security. Our mission is to make the mobile life easy.

• Country of origin : China
• Right Hand Operation
• Part Number: 3851331011
• Package Dimensions : 6" L x 5" W x 3" H

User questions & answers

Question:	Will this work to change from lp to a/c ? my fridge only works on lp at the moment
Answer:	I changed this on mine but it would still only work in LP mode. I also had to change the board on the front of the fridge that controls LP/AC and temp.
Question:	Does this include the ignitor motherboard
Answer:	no this is just mother board . nothing to do with ignitor.
Question:	Does this board switch between a/c and lp? my current fridge is only working on lp
Answer:	That was my problem. I replaced it with this module. Everything works now.
Question:	Can I use this for my puma camper refrigerator? It’s the same part number. And model
Answer:	If you have the same model refrigerator, it doesn't mater what brand RV you have.
