11 best fiber cutting machines

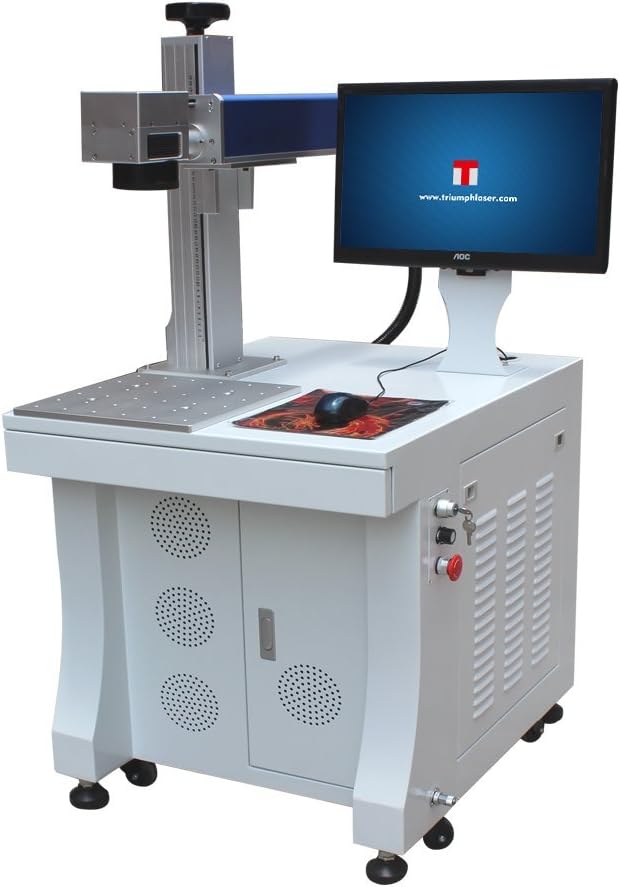

Product description

Video

software operation marking---https://youtu.be/x2Usb3RgGZI

Stainless steel black engraving---https://youtu.be/0-WIHZ9GgIs

Steel engraving and cutting---https://youtu.be/eIrPlyombq8



User manual

https://drive.google.com/open?id=0B1RPb-RHDufBVVlJbWpXVVRXWWM



Feature:



High peak power and excellent beam quality.

Good touch interface and powerful control system.

Advanced digital high speed scanning galvanometer, small volume, quick speed, good stability.

Modular design, separate laser generator and lifter, more flexible, can marker on bigger area and complicated surface.

Be able to mark on aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

Adopt special flying marking control system, with good performance and easy operation.



Parameter:



Laser Type:Fiber Lasers Wavelength:1064nm

Laser Pulse Frequency:20-80Khz

Beam Quality:<1.4M2

Peak Laser Power:50W

Engraving Speed:<9000MM/S

Engraving area:<110x110mm or 200x200mm

Engraving Depth: less than or equal to 1MM

Repetition Precision: ±0.01MM Min.

Line Width: 0.02MM Min.

Character: 0.2MM

Cooling Mode:Air Cooling Graphic

Formats Supported:PLT. DST. AI. DXF. BMP.JPG.CAD. CDR. DWG

Power Source:AC 110V±10%, 50/60Hz

Working Temperature: 10-35 C

Working Humidity:below 75%(No condensation)

Working Environment: Clean;free of dust

Gross Power: below1000W

Safety Protection Class:IP54

Laser Generator Safety Class:IV

Adjustable Height Direction(Upper surface): 550-1200MM

Adjustable Height Direction(Side):400-1500MM

Front And Back Direction Adjustable Distance:0-200MM Marking

Angles:Any Angles

Laser Module Life:>100000 hours

Warranty:Two years

• Power supply 110v,60HZ.With rotary attachment which you can work with for any cylinder shape material for engraving.Protection eye goggles included.Foot switch is included.Testing aluminium sheets included.
• Engraving area 110x110mm and lens 200x200mm as spare.You can engrave all metals,polymer material,aluminum,stainless steel,copper,gun parts...
• Free maintenance/Lifetime 100000 hours,good support from our servicemen.Operation videos,tutorial videoes,manuals,tools...included.
• Computer included and Laser software EZCad installed,compatible 64bits or 32 bits computer system,supporting PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats,is installed,ready to work

User questions & answers

Question:	Do you carry one without the cabinet
Answer:	Yes we had customers who use our 50w machine for cutting thin silver and gold. Thanks
Question:	What is the difference between the 50 and
Answer:	Ours were very soft.
Question:	How tall is the adjustable pole and what’s the max engrave area in inches
Answer:	Blue
Question:	Can this be used to cut gold sheet 0.8mm thick to make nameplate necklaces
Answer:	I actually don’t have this blanket specifically but I will say I did not cover my newborns with thick blankets. I put them in warm pajamas with no blankets.

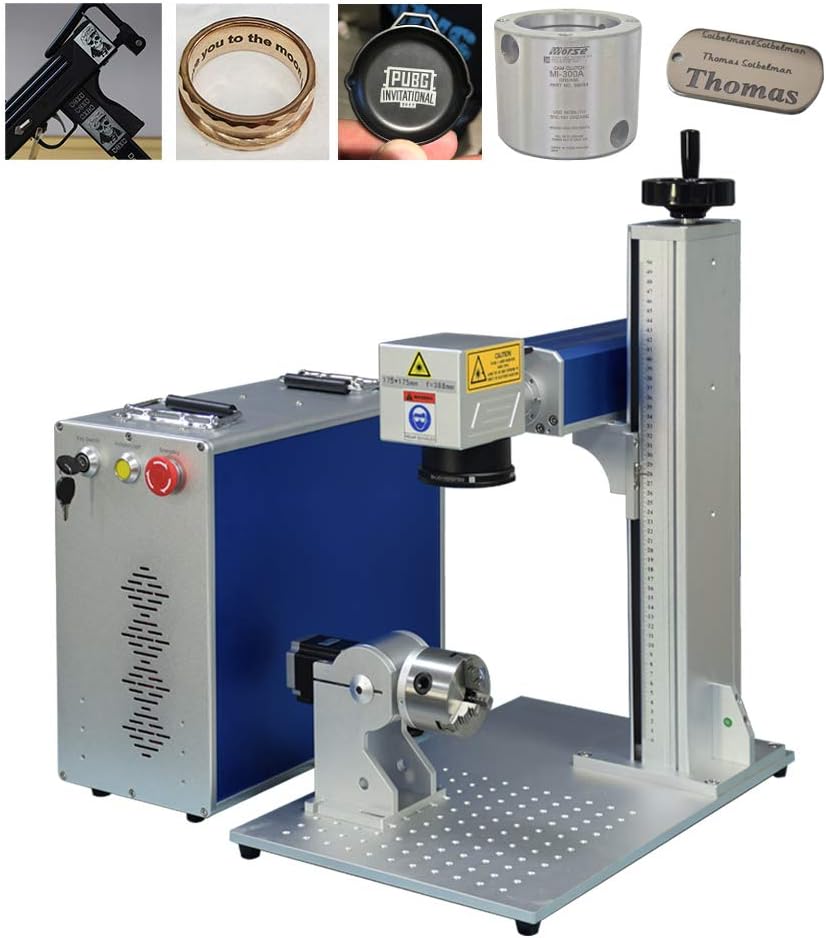

Product description

60W Mopa JPT M7 Fiber Laser Marking Machine 175x175mm Engraving Machine 80mm Rotary Axis

Packing List

1*Mopa 60W fiber laser marking machine(with 175*175mm lens)+1*D80 rotary +1*USB drive+1*USB line+1*power line+1*protective goggles+1*allen wrench+1*foot switch+2*positioning bar+some M6 positioning screws

Technical Parameter

1. Laser Source: MOPA JPT M7.  Output Laser Power: 60W  Lens(Marking Area): 175*175mm   Input Voltage：110V-240v 50-60Hz
2. Pulse width(2-500ns) Frequency: 1-4000KHz
3. Software: Original EZ CAD 2  Version: 2.14.7   Control Card: BJJCZ (Original)  Cooling Mode: air cooling
4. Marking Speed：275.6" /s（7000mm/s）  Engraving Depth ≤1mm
5. Maximum Material Thickness: 206mm(8.1inch) by 175*175mm lens
6. Galvometer: Sinogalvo Scanlab
7. Min. Line Width ≤0.0004" (0.01mm) Depends on the material
8. Min. Character: 0.008" (0.2mm) Depends on the material
9. Applicable: Windows XP/Vista/Win7/Win8/Win10
10. Communication Mode for Automation: TCP/IP, IO, RS232
11. Certificate: CE & FDA
12. Marking Content: Barcodes, Serial numbers, Text, Vector, Logos etc.

Mopa Laser Application

• Aluminium oxide thin sheet surface removal
• Anodized Aluminium black marking
• Metal deep marking
• Stainless steel color marking
• PC/ABS etc. plastics
• Transparent paint plastic buttons
• lectronics, semiconductor, ITO precision finishing
• Mopa 60w elct. is the high power and popular model which is also good for deep engraving and thin metal cutting

• 60W MOPA JPT M7 Fiber Laser Engraving Machine+80mm Rotary Axis+175x175mm Lens
• Genuine JPT MOPA laser source with 2 years warranty. Flexible control, independent adjustable pulse width(2-500ns) and frequency(1-4000KHZ)
• Mopa Advantages: Black and white marking on most metals and some plastics. Color marking on stainless steel and titanium. Black marking on anodized aluminum. Mopa 60w is the high power and popular model which is also good for deep engraving and thin metal cutting
• Genuine EZ CAD controller which supports Windows XP/Vista/Win7/Win8/Win10
• ETA: 7-9 working days to your door viaDHL etc. Express. No import duty. Local after-sale center in USA

User questions & answers

Question:	Will this cut 1mm sterling silver plate
Answer:	The tall of laser rod is 20inches. Wth spare lens you can engrave 8x8inches area. For more questions pls send us email.Thanks

Product description

Video

software operation marking---https://youtu.be/x2Usb3RgGZI

Stainless steel black engraving---https://youtu.be/0-WIHZ9GgIs

Steel engraving and cutting---https://youtu.be/eIrPlyombq8



User manual

https://drive.google.com/open?id=0B1RPb-RHDufBVVlJbWpXVVRXWWM



Feature:



High peak power and excellent beam quality.

Good touch interface and powerful control system.

Advanced digital high speed scanning galvanometer, small volume, quick speed, good stability.

Modular design, separate laser generator and lifter, more flexible, can marker on bigger area and complicated surface.

Be able to mark on aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

Adopt special flying marking control system, with good performance and easy operation.



Parameter:



Laser Type:Fiber Lasers Wavelength:1064nm

Laser Pulse Frequency:20-80Khz

Beam Quality:<1.4M2

Peak Laser Power:30W

Engraving Speed:<9000MM/S

Engraving area:<110x110mm or 200x200mm

Engraving Depth: less than or equal to 1MM

Repetition Precision: ±0.01MM Min.

Line Width: 0.02MM Min.

Character: 0.2MM

Cooling Mode:Air Cooling Graphic

Formats Supported:PLT. DST. AI. DXF. BMP.JPG.CAD. CDR. DWG

Power Source:AC 110V±10%, 50/60Hz

Working Temperature: 10-35 C

Working Humidity:below 75%(No condensation)

Working Environment: Clean;free of dust

Gross Power: below1000W

Safety Protection Class:IP54

Laser Generator Safety Class:IV

Adjustable Height Direction(Upper surface): 550-1200MM

Adjustable Height Direction(Side):400-1500MM

Front And Back Direction Adjustable Distance:0-200MM Marking

Angles:Any Angles

Laser Module Life:>100000 hours

Warranty:Two year

• More than 500 American customers,USA stock,2-5 day to your door,all cost covered.
• Engraving area 110x110mm with spare lens 200x200mm.Voltage:110V 60HZ
• With rotary attachment for cylinder engraving and with free goggles for eye protection
• Computer included and software installed ready to work,compatible with CORELDRAW, AUTOCAD, PHOTOSHOP format files.Support PLT, PCX, DXF, BMP, etc

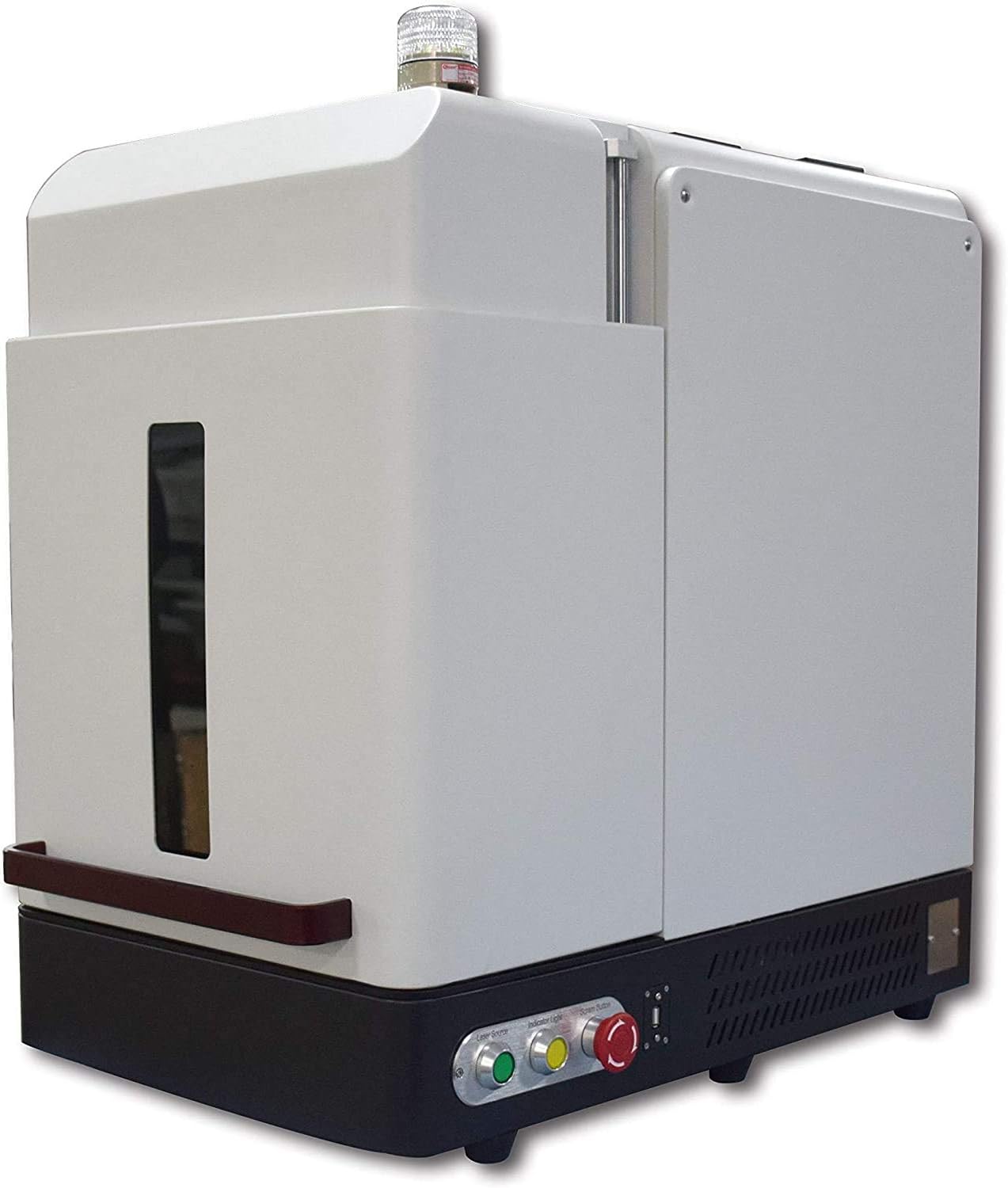

• For this model,the protection enclosure is optional.Laser source is long life time as 100000hours,free maintenance.If you have any questions, please feel free to contact us.

User questions & answers

Question:	Can it mark chrome plated parts without damaging the piece
Answer:	After you ordered, pls inform us your order number and your laser source request, we will ship you machine as you requested. Thanks!
Question:	Can this machine do number marking on pc/abs plastics? The plastic i would be using is white
Answer:	We replied you this question before.Yes you can.thanks
Question:	How would i be able to choose the type of laser source if i were to purchase this laser engraver
Answer:	Yes the protection enclosure is removable.If you don't want it,we can ship you without it.Pls inform us your request and order number once you ordered it.Thanks!
Question:	I own this unit, can I purchase a 50w head for it
Answer:	50w machine is with power,working faste and egraving deeper than 30w. Thanks

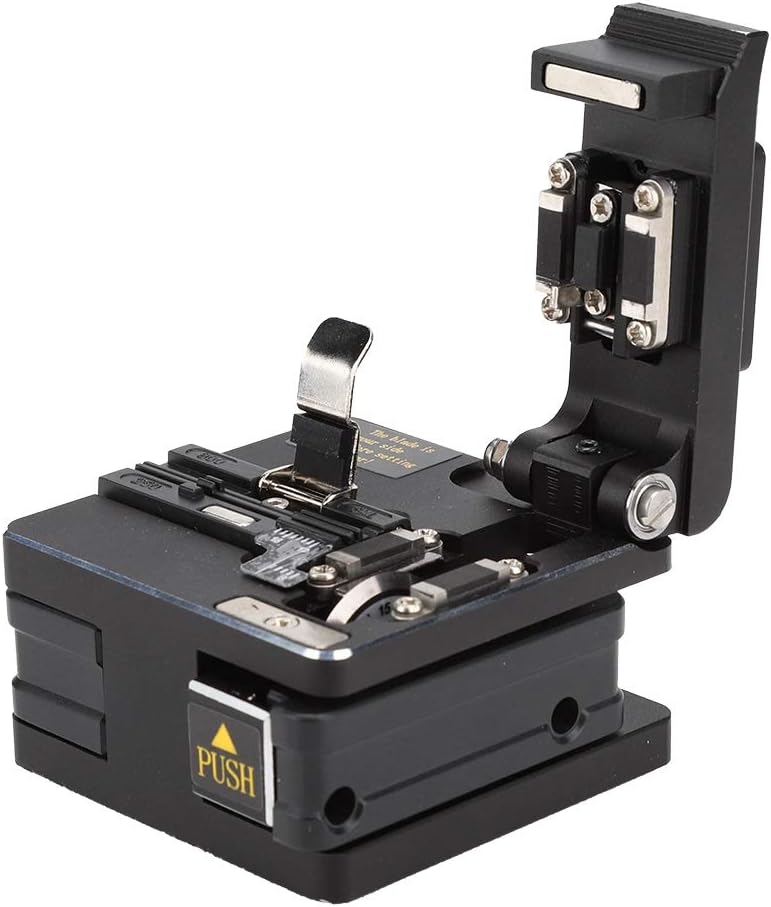

Product description

Features:

1. Suitable for telecommunications engineering and maintenance, CATVengineering maintenance, cable manufacturing.

2. For AUA-S2 series is a new high-precision fiber optic fiber cutting machine, perfect cutting angle, perfect fiber cross section.

3. Simple operation, more convenient to use, greatly improve work efficiency and productivity.

4. The cutting angle is stable and low temperature cutting.

5. Long cutting service life time. Excellent quality and durability.



Specifications:

Application: for Silicone fiber

Cutting bare fiber diameter: 125um

Fiber coating diameter: 250-900um

Shear angle: 0.5 (single core fiber)

Blade cutting service life time: 48,000 times

Size: Approx. 9.5*8.5*7.5cm/3.74*3.35*2.95inch

Model: High-precision fiber cutting machine automatically-return Knife



Package List:

1 * Cutting knife

2 * Six-angle screwdriver

1 * Package Bag

• Suitable for telecommunications engineering and maintenance, CATV engineering maintenance, cable manufacturing.
• For AUA-S2 series is a new high-precision fiber optic fiber cutting machine, perfect cutting angle, perfect fiber cross section.
• Simple operation, more convenient to use, greatly improve work efficiency and productivity.
• The cutting angle is stable and low temperature cutting.
• Long cutting service life time. Excellent quality and durability.

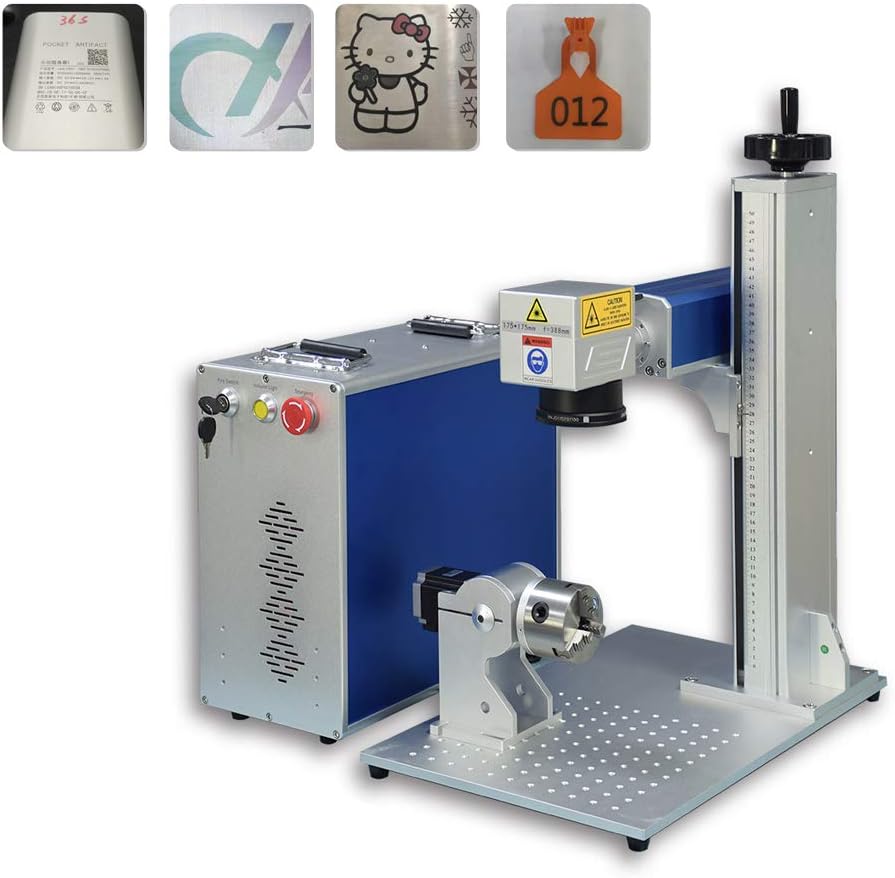

Product description

Packing Details:

1. 50W Fiber Laser Engraver with 175*175mm Lens
2. 80mm Rotary Axis (Clamping Range: 2-70mm)

Technical Parameters:

• Laser Power: 50W
• Marking Area: 175*175mm
• Max. Material Thinkness: 206mm
• Laster Source: RAYCUS; JPT/IPG Optional.
• Repetition Rate(Frequency):  50-100kHz @RAYCUS
• Pulse Duration: 90-150ns @RAYCUS
• Output power adjustment range 10%-100%
• Marking Speed: 7m/s
• Engraving Depth:≤1mm
• Min. Line Width: ≤0.01mm (Depends on the material)
• Min. Character: 0.2mm (Depends on the material)
• Input Voltage: 110V-240V/50-60Hz
• Power Consumption: 1000W
• Communication Mode for Automation TCP/IP, IO,RS232
• The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
• Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

• Laser Power: 50W+Lens(Marking Area): 175*175mm+80mm Rotary Axis (Clamping Range: 2-70mm)
• Default Laser Source: RAYCUS. Software: EZCAD2 supports WIN7/8/10.
• Marking on various metal like Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
• High-Rate of Electrical-Optical Conversion: up to 70%.Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm
• 2 Years Warranty; Customer and Technical Support. Easy Operation, English User Manual, VCD training video, software sending together with the machine

User questions & answers

Question:	Can it be used as a cutter too
Answer:	Dear Customer Only MOPA Fiber Laser can mark black on anodized alumium and stanless steel. Cermark is very expensive and mainly used for CO2 laser marker in our experience and if you have enough budget, MOPA JPT is better. Order link: https://www.amazon.com/dp/B0852W96RF?ref=myi_title_dp Thanks and best regards
Question:	can you get a cylindrical attachment
Answer:	Yes you can! If you don’t engrave deeply you never damage the parts. Thanks
Question:	Will the non mopa fiber lasers mark black on stainless steel? and can you mark black on anodized aluminum with the use of cermark and fiber lasers
Answer:	Yes you can. Thanks!

• 50W Fiber Laser Marking Machine Equipped JPT Laser Source and Dia.80mm Rotating Head.Laser Power: 50W. Marking Area: 175*175mm Engraving Depth:≤1mm(0.024in)
• Laser Source: JPT LP+ Series; Repetition Rate Frequency: 1-600kHZ; Pulse Duration: 200ns. Control board : BJ JCZ board(Original).EZCAD2.Compatible with Windows XP/Vista/7/8/10.Stable performance and high reliability.
• Applicable material: Fiber laser marking machine can work on all metals such as aluminum,stainless steel, brass, copper etc. and some of nonmetal such as nylon ,light button, ABS , PVC ,PES etc.
• Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
• Free Shipping.ETA:5 days.No Import Duty.2 year warranty.Remote assistance,Customer and Technical Support.English User Manual and Demo Video offered by USB flash disk along with the machine.Returnable for Non-human-induced Malfunction Machine.

User questions & answers

Question:	What software package does this come with
Answer:	Hi, the cost of the optional computer is $350. This machine price includes one free 80mm dia rotary axis. And this machine includes two lens, 110*110mm and 200*200mm. We can give you one 110mm lens and one 150mm lens, or one 150mm lens and one 200mm lens. Will ship the machine through DHL or Fedex, the shipping time is about 10 days. And usually, we will ship within 5 or 6 days. We are going to update the Asin to include the computer and 150mm lens. Best regards!
Question:	Would I need to pay Import duty fees
Answer:	Hi, yes, this machine has the original bjjcz controller board. This unit ships from Jinan city, Shandong province, China. It ships from factory directly. The machine price includes free Fedex express cost to your address. The Estimated Arrival Time is 10-12 days. When you order the machine, we can give one set of rotary axis (rotary chuck) free of charge. The machine comes with two scanning lens(110*110 and 200*200mm), double red light pointer, one rotary chuck, free Fedex cost to your address, 16G usb flash disk(training videos and manuals), TeamViwer online service. Best regards! Peter Peng
Question:	What is the cost of the optional computer? I'd also like a 150 lens and the rotary axis. How do I make this request @ time of purchase
Answer:	Dear customer It is a laser marking machine. Not good at cutting metal. Thanks
Question:	Hi, does this have the bjjcz controller board? also, where does this unit ship from? thank you
Answer:	Sure, it comes with an D80mm rotary axis and you can PM us for bigger size of rotary like D100mm, D125mm

Product features

Fiber Laser Marking Machine Parameters

• Marking Area: A Type.110×110mm(4.3×4.3in) B Type. 150×150mm(5.9×5.9in) C Type.175×175mm (6.9×6.9in)
• Maximum Material Thickness: 300mm(11.8in) by 110×110mm lens 250mm(9.8in) by 150 ×150mm lens 206mm(8.1in)by 175×175mm lens
• Laster Type and Optional Repetition Rate(Frequency): 1-600kHz by JPT LP+ Laser Source
• Pulse Duration: 200ns.
• Control board : BJ JCZ board(Original)
• Soft Program : EZCAD 2.14.7 (Compatible with Windows XP/Vista/7/8/10)
• Output poweradjustment range:10%-100%
• Laser Wavelength:1064nm
• Marking Speed:≤7000mm/s(275.6in/s)
• Laser Power :20W(Power consumption: 500W) 30W (Power consumption: 800W) 50W (Power consumption: 1000W)
• Engraving Depth:20W----- ≤0.2mm(0.008in) 30W------ ≤0.4mm(0.016in) 50W------- ≤1mm(0.039in)
• Connection：USB Connection.Packing Size:785*505*775mm Wooden Case
• Electrical Requirements:110V-240V/50Hz-60Hz(According to local electricity supply).

JPT Fiber Laser Engraver Advantages

• - Metal Deep Engraving
• - Metal Surface Processing
• - High Frequency Line Processing
• F-theta Scan Lens.Typically distortion less than 1%, Air-spaced design and high efficiency AR coatings excellent throughput and durability.
• EZCAD 2.14.7 Stable performance and high reliability,ensuring higher stability and shield-utilizing part of complex functions. Compatible with Windows XP/Vista/7/8/10.
• Quickly find the focal length without using a ruler, just to see if the red dots and red lines overlap on the surface of the product which you want to mark.
• Customer and Technical Support. Easy Operation, English User Manual and Video

JPT Laser source

Compared with Q-switching technology, JPT OLP series fiber laser is more flexible, supporting wider range of frequency adjustment and higher precise control. As compared to JPT M series fiber laser, the MOPA configuration adopts the pulse compensation, which enables minimum pulses deformation, hence makes the peak power of the fiber laser higher.

Galvometer

SINOGALVO 7110/ Scanlab

(optional))

Lens

Wavelength/Jollystar

(optional)

Three-Jaw Rotary Chuck Optional

D80mm Rotary Axis

• --80mm (3.15in) Three-jaw Rotary Axis + Drive.
• -- Internal Clamping Range:2-22mm. External Clamping Range:22-63mm
• --This rotary fixture is mainly for small hardware such as bracelets,Cigarette holder, Pen, Bearinge,tc.
• -- Rotary spring clamping, fast mounting and dismounting to improve work efficiencyAccurate Position.180°Rotary Positioning.Stable Positioning.
• -- Industrial Standard Interface. Use Aviation Plug Fits Various Board Card

Product description

Packing Details:

• Enclosure JPT LP-E 50W Fiber Laser Engraver with 110*110mm Lens
• 69mm Rotary Axis

Technical Parameters:

• Laser Power: 50W
• Marking Area: 110*110mm
• Max. Material Thinkness: 300mm
• Laster Source: JPT LP-E
• Repetition Rate Frequency : 1-600kHZ@JPT LP-E
• Pulse Duration: 200ns
• Output power adjustment range 10%-100%
• Marking Speed: 7m/s
• Engraving Depth:≤1.0mm
• Min. Line Width: ≤0.01mm（Depends on the material)
• Min. Character: 0.2mm（Depends on the material)
• Input Voltage: 110V-240V/50-60Hz
• Complete Power Consumption: 1000W
• Communication Mode for Automation TCP/IP, IO,RS232

Application Advantages:

• Silicone Keypad Marking
• Metal Deep Engraving
• Metal Surface Processing
• High Frequency Line Processing
• Communication Mode for Automation TCP/IP, IO,RS232
• The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.
• Applicable Material: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

• Laser Power: 50W+Marking Area: 110*110mm+Engraving Depth:≤1mm+D69 Rotary Axis
• Laser Source: JPT LP-E; Repetition Rate Frequency: 1-600kHZ; Pulse Duration: 200ns
• Galvanometer: Sino-Galvo; Lens: JollyStar; Software: EZCAD2.0 Supports Win7/8/10 and PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats. High-Rate of Electrical-Optical Conversion: up to 70%; Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm
• Marking on Metals like Aluminium Gold Silver Platinum Silver Titanium Brass Tungsten Carbide Nickel Stainless Steel Chrome Copper and non metals like ABS, PBT, Silicon, ABS, PS, Polymer and others.
• Totally-Closed Type with Observation Window; 2 years warranty. Customer and Technical Support; Easy Operation, English User Manual, VCD training video, software sending together with the machine. Ships by air and ETA: 7 to 10 Days.

User questions & answers

Question:	Are monthly payments avilable
Answer:	Hello, have a nice day! 1. Yes, we are able to set this machine up with a power supply for 220V single phase. 2. For software package, this laser machine comes with original bjjcz EzCad software. Best regards!
Question:	Focus adjustment? How is the focus adjusted on this model. Is it done manually or is electronic
Answer:	Hi, have a good day! Yes, you need to pay Import duty fees. The Import duty fees are few, it is about $160. And we will give you one free 80mm dia rotary axis as a gift, which cost is about $300. Best regards!

Product description

Automatic and convenient in grinding quick in cutting and bib in power. It is suitable for cutting fabric of cotton, wool, linen and leather etc. In batches. Having the features of large power, quick cutting and automatic grinding with emery belt.It can be used to cut cotton, wool, linen, chemical fiber, silk fabric, etc. Cutting is light, smooth operation, the use of comfort. Easy to grinding blade and sharp. Technical specifications Model: KC-3 Blade size: 6" or 8" or 10" for your choice Power Supply: 110V Electric motor:550W 8.8 amps Rotate speed 2800 rpm/110V Lubricating o***FREE ! 3 (three) additional blades***

• ✂️FREE ! 3 (three) additional blades.✂️ IKONIX KC-3 BLADE STAND UP STRAIGHT KNIFE CUTTER CUTTING MACHINE (REPLACES YAMATA FY-3, RICOMA CZD-3)
• ✂️INCLUDES BUILT IN KNIFE BLADE SHARPENER. CUTTER IS LIKE YAMATA CZD310, CZD 3, CZD3, FY3 FEIYUE, AND EASTMAN)
• ✂️Automatic and convenient in grinding quick in cutting and bib in power. It is suitable for cutting fabric of cotton, wool, linen and leather etc. In batches. Having the features of large power, quick cutting and automatic grinding with emery belt.
• ✂️It can be used to cut cotton, wool, linen, chemical fiber, silk fabric, etc. Cutting is light, smooth operation, the use of comfort. Easy to grinding blade and sharp. Parts are interchangeable with Eastman
• ✂️Technical specifications ✅Model: KC-3" ✅Power Supply: 110V ✅Electric motor:550W 8.8 amps ✅Rotate speed：2800 rpm/110V ✅Lubricating oil：#18 ✅Weight:15.5/18KG

User questions & answers

Question:	Does it has a warranty and how long
Answer:	40 pounds approx.
Question:	DO you sell
Answer:	Fabrics only.
Question:	How much does it weigh, package included
Answer:	Not really sure about gold, but yes for silver. I just haven't tried it on gold yet. Sorry
Question:	Will this cut polyurethane foam
Answer:	yes it will engrave on stainless steel. Thanks!
Question:	Hello , is this machine can marking and engraving on gold and silver sheet
Answer:	If you mark metal the area can be 200x200mm. Thanks
Question:	Will this machine engrave on stainless steel
Answer:	Hi,Edder,for engraving aluminium 1mm,yes,but not by one pass.And the smaller marking area,faster for deep engraving,for example 70x70mm.Certainly if you want to mark bigger area and not deep,you can buy optional lenses for 110x110mm or 150x150mm which you prefer.If you have more questions,feel free to write us.ThanksSincerelyIsaiah
Question:	what is the maximum measurement of engraving and if it can be sent from corel draw
Answer:	If Amazon supports this payment method, it can be.
Question:	Can it engrave 1mm deep on metals? Aluminum
Answer:	Done by electronic lifting. Press up&down button to control the lifting. Thanks

Product description

How to Adjust the focal length with external red assisted positioning?

https://youtu.be/fphPFPP7loQ



DIHORSE:



DIHORSE LLC is a leading specialist fiber laser system and CO2 laser supplier who found the company in 2009. We aim to build long-term cooperation and help you realize your own designs and business upgrade by providing high quality & cost-effective products, covering fiber laser marking/engraving/cutting machines, CO2 laser engraving and cutting system, fiber laser cleaning machine and CNC wood router. We offer professional pre-sales and after-sales service to every customer and prospect.

• Quickly find the focal length of the machine by adjusting the external red light and the red light that comes with the machine
• Easy installation
• Guarantee: 1-year warranty; lifetime online technical support. If you have any question just contact us via e-mail, we will provide you with the best after-sale service

• RD6442S is a replacement for the RD6442G. It has more features which can control multi head (double/single head)
• Laser Engraving and Cutting Machine RDC 6442 6442G 6442S
• Motor Control Signal: common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ
• USB: Max. transmission rate 12M bps; The longest distance is 5 meters. Network:Max. transmission rate is100M; Max. transmission distance is 200M.
• nterpolation: Linear/circular arc/B spline.3.5 inches Colorful. Display Screen Accuracy: + / - 0.5 pulse

Product description

Specifications:

Material: Aluminum alloy + stainless steel + CNC composite

Control Model: NEJE windows software, NEJE android APP, “NEJE Wireless” APP for iOS and macOS, Benbox for windows, LaserGRBL for windows. OFF-Line

Support System: Win7 / Win8.1/ Win10 / Android Phone ( Android 5.0 and above ), iOS Phone ( ios10.0 and above ), MacOS ( 10.15 and above )

Applicable Materials: Alumina oxide Metal and other non-reflective materials, (Wood, gray paper, leather, bamboo, blackening plastics, rubber, ect.), Can not work on the stainless steel, alloy, glass, and some reflective materials.

Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)

Wavelength: 450nm

Input power: approx. 12V2A ≈ 20W (without fan power)

Output optical power: 5.5W

Image Format: BMP .JPG .PNG .NC .DXF

Image Size:2266 * 2266pixels / 0.075mm point distance

Machine Supply Voltage: 12V3A

Control line installation method: pluggable

Focus range: 30-50mm

Best focal length: 40mm from the light exit

Note: NEJE Master comes standard with 12V2A charger. If you want to upgrade your old machine, you need to prepare another 12V3A power supply.

• 【New Version 450nm 20W laser tube】New version 20W Master Laser CNC Cutter with APP Control (for Windows, Mac , Android) excels in fast cutting and can cut materials from 3mm to 8mm thickness. t can cut wood (3-8mm). Depth of engraving (0.5-3mm wood), thickness of cutting(2mm). 4Pin laser design with temperature sensing and surge protection design can effectively extend the laser life.
• 【Off-Line Working & Large Working Area】 Multi-functional keys can support offline work: press 1 time to reset automatically, press 2 times to perform frame positioning, press 3 times to start engraving, press 4 times to stop engraving. Engraving range: 150 * 150mm or 160mm x 160mm in GRBL mode , accuracy up to 0.075mm point distance, 2000*2000px ultra-clear printing effect
• 【Protection function】Built-in gyroscope protection device. When the laser engraver machine is running, the built-in gyroscope will record the working position at the beginning. In the event of an accidental touch or machine shift, the machine will automatically stop working to prevent an accident.
• 【Easy to Operation】Provide professionals with the ability to directly parse the works designed by Inkscape and CAD software, directly execute .nc files and .dxf files, and execute them accurately. You can do the complex edits in PS / Inkscape / CAD or similar and just burn with the included program.
• 【Full-featured & Powerful】4A load current, capable of delivering powerful output power, 15,000 rpm fan and exquisite heatsink design, can keep temperature safe control within 60 degrees Celsius, maximizing protection laser life, no matter how high-intensity you use, no matter how you work how long. Full-featured that directly execute .BMP, .JPG, .PNG files and NEJE CLOUD provides thousands of engraving materials and resources to download and keep updating.

User questions & answers

Question:	Is 20 watt faster? I have a 4.5 and it’s slow
Answer:	hi， the 20W laser machine is faster ,and it's specific for cutter wood, if you are mainly need for engraving ,we would recommend 7W laser engraver machine
Question:	My nje master is not advancing. just burning the entire image on one line. can you help me resolve this problem
Answer:	Depends on what software you use. I had luck with the mobile apps and burning a bitmap file. The "CNC" mode leaves a bit to be desired and I had trouble with it
Question:	Will the software it comes with work on a Mac
Answer:	yes, our laser engraver works for Mac, MacOS ( 10.15 and above ).
Question:	What warranty does this item has
Answer:	30 days
