13 best computerized engravers

Product description

Note:

To avoid damage in transit, we will divide the product into 4 packages for delivery. If you only receive one package, please be patient and wait for others to arrive, or please contact us.

Package:

1 x Romote Control

1 x Main Unit (Frame)

1 x Main Unit (Base)

2 x Fence Baffle

1 x Control Box

1 x A Axis

1 x Sinal Cable for A Axis

1 x Pump

1 x 25Pin Parallel Lines

2 x Cutter 2*6mm

2 x Cutter 3*6mm

10 x 4*7mm Round Head

6 x 4*10mm Black Inner Six Angle Screw with Nut

8 x 5*20mm Black Inner Six Angle Screw

4 x 5*8mm Flat Philip's Head Screw with Nut and Gasket

8 x 6*24mm Black Flat Inner Six Angle Screw

12 x Aluminium Fastener

1 x 13-15# Wrench

1 x 14-17# Wrench

2 x Six Aangle Wrench 3mm

2 x Six Angle Wrench 4mm

1 x Teflon Tape

2 x Fuse 5A

1 x Power Cable

1 x Manual

Drive Unit

X axis/Y axis：1605 Ball Screws, Z axis：1204 Ball Screws

Sliding Unit

X axis/Y axis/Z axis：High Intensity Chromeplate Shaft

Stepping Motor：57 2Phase 3A 150N.cm

Spindle Motor

Outside Size：65*158mm

Material：304 Stainless Steel, Copper Coil, Pressure Cast Aluminum Pipe Water Jacket

Power：AC110V 50HZ 5A 1.5KW VFD

Spindle Speed：24000RPM

Max Working Frequency：400HZ

Principal Axis Collet：ER11Collet, Standard Configuration：6mm

Nut Model：ER11-A

Cooling：Water Cooling

Speed Mode：By adjusting the VFD output voltage and operating frequency 0-24000RPM

Lubrication Way：Lubricated by high grease

Repeat Accuracy：0.05mm

Spindle Precision：Radial beat acuities 0.03mm

Carving Instructions：G Code

Communication Interface：Through USB connection with computer

Maximum Idle Speed：1500mm/min

Working Speed：50-1500mm/min

• 【ENGRAVER MACHINE PARAMETERS】(Note: When you receive this machine, please contact us to send you the Operation Video and Mach3 Software.] X Y Z Working Area (Y*X*Z): 600*390*120mm; Outside dimension (L*W*H): 865*680*570mm; Table size (Y*X): 770*490mm; Lathe Structure: 6061/6063 Aluminum Alloy; Max. Feeding Height: ≤100mm.
• 【CONTROL BOX PARAMETERS】Operating Voltage: AC 110V; Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive; Computer connection: USB port; Command code: G code; Protection: Emergency stop button.
• 【PREMIUM MACHINE】The 1.5KW water-cooled VFD is available operating for long time,which can reinforced the processing abilty of the machine and can be used to process aluminum alloy and hard wood, water cooling spindle works more stable and durable. High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle.
• 【CAN CONNECT WITH COMPUTER】The mini router frame is movable. The machine can connect with computer as other external device such as printer , scanner... With the assist of the router 6040T, your design idea will be real-time display.
• 【WORK WITH VARIOUS MATERIALS】This Engraving machine can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc.

User questions & answers

Question:	Does this come with all the software needed
Answer:	The arbor size is 7/8"
Question:	Is there end stops with this unit
Answer:	Yes, once you remove gold ring it will be at 1" arbor.
Question:	Can I connect a 5 Axis
Answer:	The recommended rpm speed is 8700rpms for the 7" J-Slot
Question:	Does the machine work at 220 volts? Does the program have a Russian language? Is it possible to engrave and milling on mild steel or metal
Answer:	The blade is about 1/8" wide, but it will cut a slightly wider path.

Product description

Description

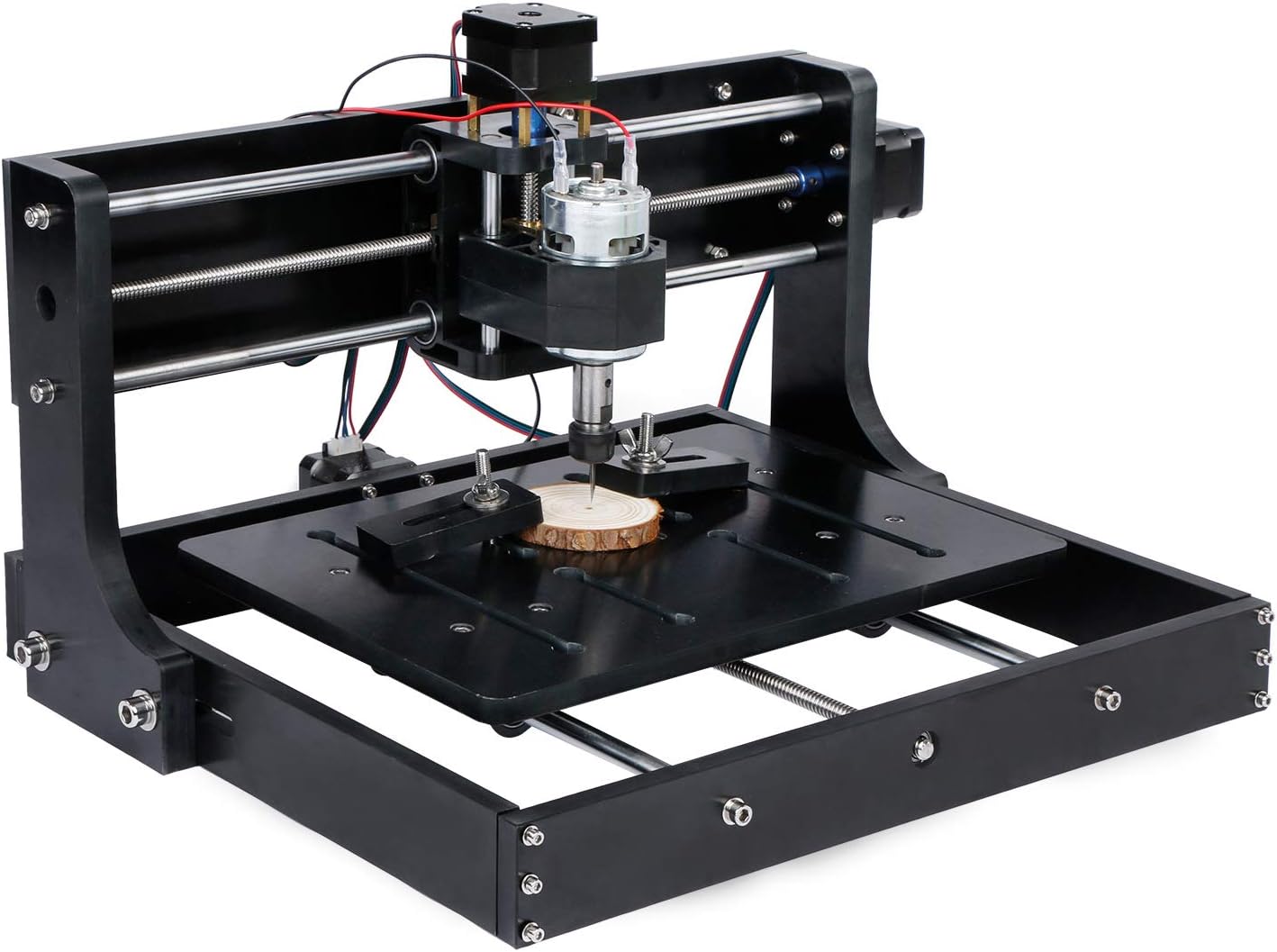

L&Z 3020 CNC Router is an excellent cost-effective entry level engraving machine for beginners. Assembly steps and parts have been minimized due to improved materials and constructions. Since the control system of L&Z engraver is built on open source Arduino and Grbl, plentiful software support, experience exchange, advanced tutorial and DIY ideas are available online. Now, start your first carving with our CNC machine. We provide professional support on your request.



SPECIFICATIONS



Effective Engraving Area: 300 x 200 x 45 mm (11.8 x 7.9 x 1.8”)

Frame Size: 400 x 330 x 240 mm (15.7 x 13.0 x 9.4")

Frame Material: Bakelite

Z-Axis Component Material: Nylon

Spindle: 775 motor, 12V, 3000 RPM; 24V, 7000 RPM; 36V, 9000 RPM

Rated power: 60W

Maximum power: 120W

Step Motor: 1.2 A, 12V, 0.25 nm torque Router Bits: 4-flute 1/8" shank spiral bits, titanium coated V-type bit 1/8" shank 30° 0.1 mm tip

Supported OS: Windows XP/7/8/10, Mac OS

Software: Grbl control(Candle), LaserGRBL

Power Supply: 24V/5A

• Bakelite body, characterized by water resistance, insulation and high temperature resistance, will provide more security for you.
• Further reduced screw holes make it easy to assemble and use.
• 4GB USB flash driver provided for free which contains video instructions and multiple Grbl-based software that supports both Mac and Windows. Easy to start.
• Works with plastics, acrylics, wood, bones, PVC and PCB.
• Extended Laser Module Available (Not included). You can add a laser module to start your new creativity.

User questions & answers

Question:	I need to know how to hook up the wires? There are no directions showing me how to do this
Answer:	Tap it with a hammer, then lay on a flat surface with the other arbor ring and gently tap it in with hammer.
Question:	Are there free returns. Is your Company in Ch
Answer:	abajo de la graina Tiene un botón lo apachurras hasta que le das vuelta hasta que se quede dura quiere decir que se atrancó y entonces pones la llave arriba de la gra Inna le das vuelta para el lado correcto y va a rodar el disco y para poner igual primero apachurras el botón de abajo hasta que se bloqueeY le das vuelta hasta que este totalmente segura la sueltas y primero haces un tes que todo este bien
Question:	Will these do round objects
Answer:	I wouldn't. It's for a wet saw.
Question:	Where can I buy the laser module for this machine
Answer:	7"

Product description

4 Axis CNC Kit for medium size Router Mill Plasma or Laser

Package include:

4 x 23HS2430B Nema23 stepper motor (Dual Shaft) 112mm,425oz-in,3A

4 x CW5045 stepper motor driver 50V,4.5A,256 high microstep

1 x 400W 36V/11A switching power supply

1 x 5 Axis breakout board V5 type

1 x DB25 parallel cable

1 x USB cable

English user manual will send by email.

I.  5 axis breakout board

It can most connection 5pcs driver and control 5pcs motor in the same time

It is with 4-wire limit switch to insure our safty movement

It is with relay port to contro the cnc spindle

Working voltage is 5VDC and support with MACH3,EMC2,KCAM4 software.

II.CW5045 motor driver

DC power input type:24V~50VDC ;

Output current:1.3A-4.5A ;

Mircostepping:1(1.8º) 1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256; 1/5,1/10,1/25,1/50,1/125,1/250  ;

Working environment:Temperature-15-40deg  Humidity<90% ;

It is fit for NEMA17-23 2 & 4 phase stepper motors which current is small than 4.5A,also can fit for small length NEMA34 2 & 4 phase stepper motors.

III. Stepper Motor (4 Lead Wire)

Step angle accuracy:+ -  5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy:+ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg  ----  +50deg

Insulation resistance:100ohm  Min,500VDC

(Front shaft 8mm dia and 21mm length;back shaft 8mm dia and 11mm length,425 oz-in or 28kg.cm holding torque)

IV.Switching power supply

400W,Input:100-120VAC or 200-240VAC,50/60Hz,Output:36v/9.7 A,single output switching power supply.

• Name:4 Axis CNC stepper motor controller kit;Model Number:23HS2430B/CW5045;Type:Hybrid
• Power supply:400W,36V/9.7A;
• Driver electric current:4.5A;Driver microstep:256microstep;24-50VDC
• Holding Torque:425oz-in/ 280Ncm;Step Angle(degrees):1.8;Phase:2;Shaft:Dual Shaft
• Support software:fit for MACH3/EMC2/KCAM4 etc;the user manual will be sent to your via amazon messages.if you didn't receive the manual,pls contact us directly.

User questions & answers

Question:	Will this setup work with linux cnc
Answer:	It actually cuts very clean, use a sanding stone and it will look great. If you want a very clean cut buy their continuous rim blade

Product features

Description:

• It can most connection 5pcs driver and control 5pcs motor in the same time
• It is with relay port to control the cnc spindle
• Working voltage is 5VDC and support with MACH3,EMC2,KCAM4 software
• Size:9x5.7cm

25-pin parallel port control

Please notice:

• This breakout board needs to be connected to the parallel port and USB port of the computer at the same time.
• The USB port on the board is only used to provide 5V input.

Can support limit switch

• It is with 4-wire limit switch port

CW5045 Driver

1、VCC+：DC power positive pole

2、GND：DC power cathode

3、A+、A-：Stepping motor one winding

4、B+、B-：Stepping motor other winding

5、PUL+、PUL -：Stepping pulse input+5V

6、DIR +、DIR-：Stepping motor direction input

Mircostepping

1(1.8°), 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256, 1/5, 1/10, 1/25, 1/50, 1/125, 1/250

23HS2430B Nema23 Stepper Motor

* Model Number: 23HS2430B

* Motor Type: Hybrid Stepper

* Step Angle: 1.8 deg.

* Holding Torque: 2.8Nm (425oz.in)

* Phase Resistance: 1.6ohms

* Rated Current/phase: 3A

* Inductance: 6.8mH+/-20%(1KHz)

Physical Specification:

* Frame Size: 57 x 57 x 112 mm

* Body Length: 112mm

* Number of Leads: 4

* Weight: 1.8kg

Front shaft 8mm dia and 21mm length,back shaft 8mm dia and 11mm length

Specification

• Model: S-400W-36V
• Output Current:11A
• Output Voltage:36V
• Output Frequency:85%
• Output Power: 400W

It comes with built-in cooling fan

Connection instruction

• L: Live wire
• N: Negative wire
• +V: DC power output “+”
• -V: DC power output “-“
• +V ADJ: output voltage regulation

110V or 220V

• Input: 115V/110V AC 50HZ or 230V/220V AC 60Hz
• Please flip the side input voltage selector switch

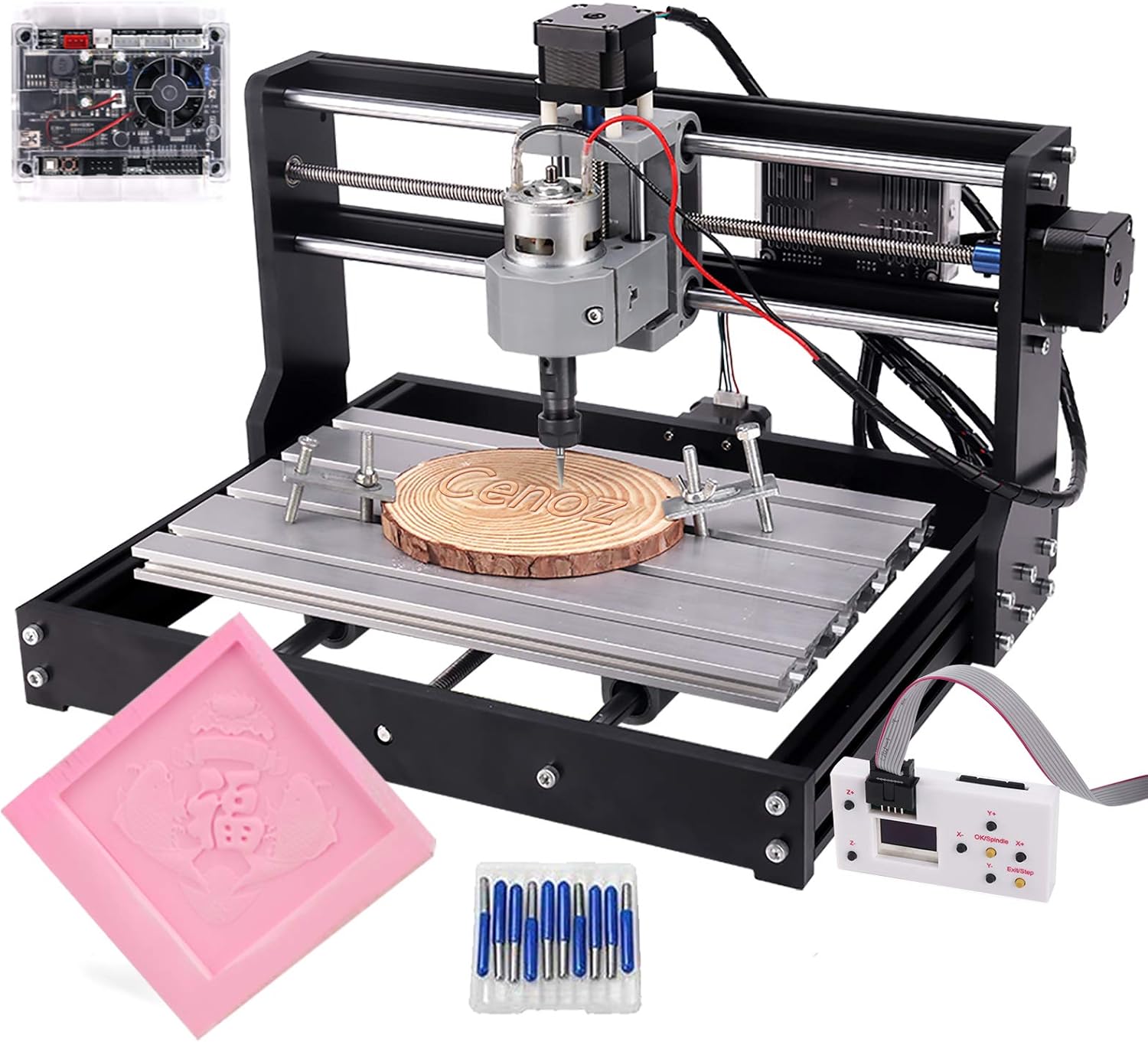

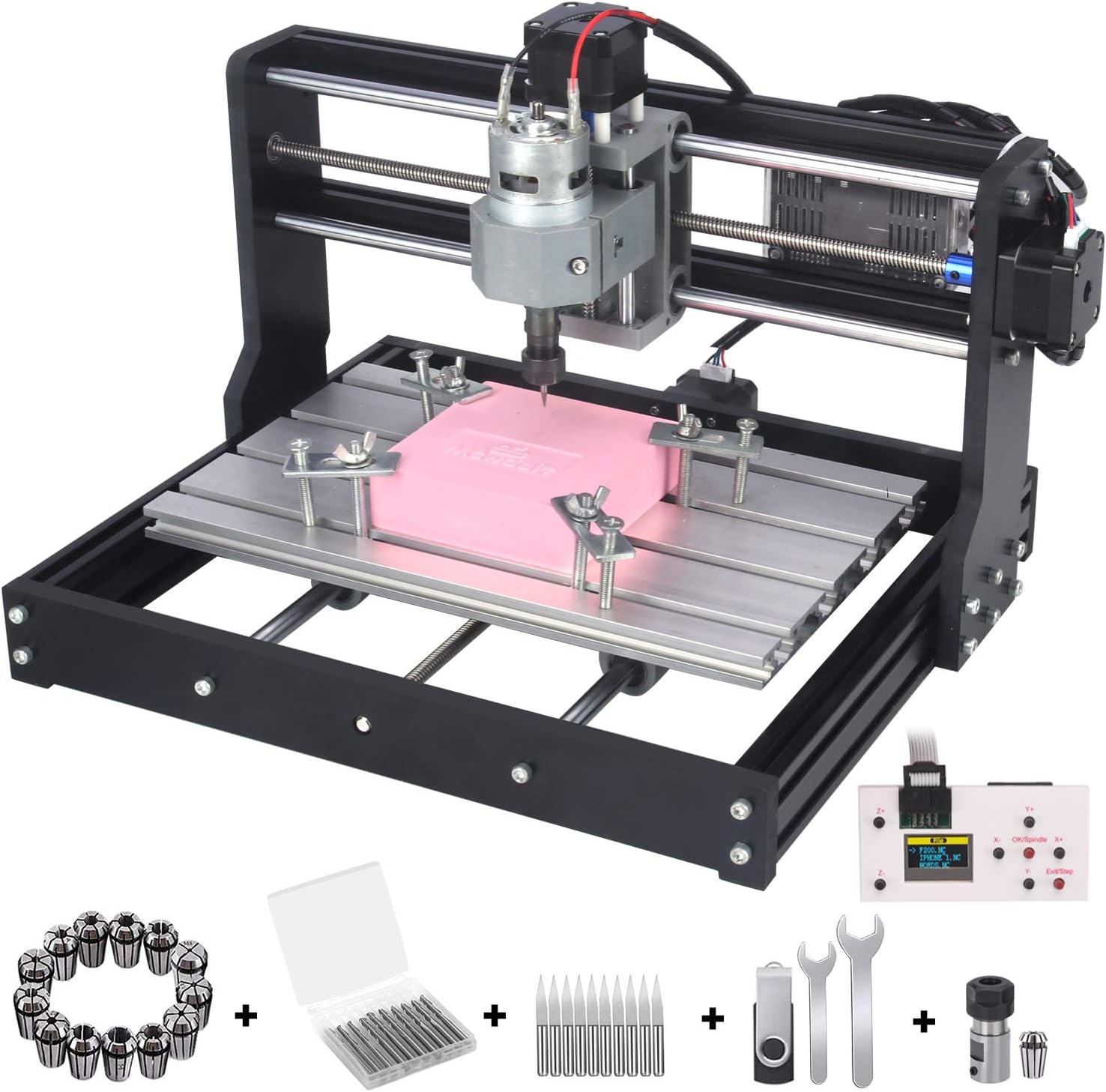

• 🎁【Update CNC 3018PRO】2-in-1 CNC 3018-PRO with 7000mW Module is an upgraded version of 3018. Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage.(🎄🎄:Provide technical support and electronic software)
• 🎁【CNC Engraving】 With an effective engraving area of 300 x 180 x 45 mm, the 3018pro-M can easily accommodate most projects. Control software: GRBL; Spindle: 775 spindle motor (12-36V) 24V:10000r / min. Supported System: Windows XP / Win 7 / Win 8 / Win 10.
• 🎁【7000mW Module】High precision - Focus < 0.1mm, High engraving power and long-term available. Can directly import pictures to lasergrbl for engraving, --Adding a pair of safety goggles protect your eyes from injury.
• 🎁【Offline Controller】 DO NOT need to connect the computer. Manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan. Note: Please don't use the computer and the Offline Controller at the same time, otherwise it will block the communication
• 🎁【Wide Application】Suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other like materials, but can not carve hard metal, jade and other hard materials.

Product features

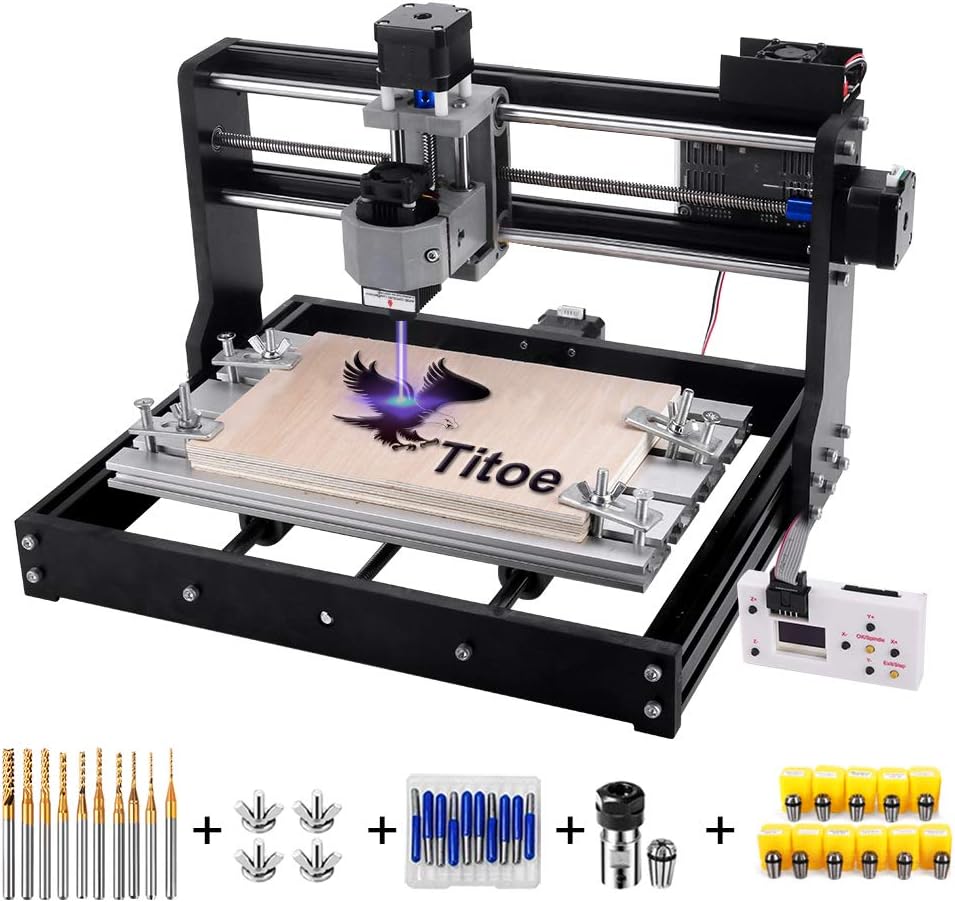

The Titoe CNC 3018Pro with 7000mW Module

Designed for the absolute beginner, the Titoe is a great tool for starting CNC learning. If wood-working is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models which you are coding and designing.

The Advantages of CNC 3018Pro Machine:

• 2-In-1 Design: Replacing the spindle with a suitable power head, The Titoe CNC 3018-PRO can be used as a CNC Router or a Engraver.Ea
• Easy to Assembly:All the parts are in the package. It only takes 20-60 minutes to assemble it. Search "Titoe 3018pro" to watch the instructional video on Youtube.
• Offline Controller: Take control of your 3018-PRO Desktop CNC machine with offline control, provide manual control of your mill without any computer.
• Upgraded Control Board: Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Case to extend the life of the control board. Self-contained short circuit protection to prevent it from burning due to overload.
• High Quality and Affordable: Make more with the 80% aluminum body and take advantage of the added stability for milling a wider range of materials.

CNC 3018pro Machine with Spindle Module

• Suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other like materials, but can not carve hard metal, jade and other hard materials.
• You will find the cnc 3018 pro is an excellent tool which allows you to try your DIY ideas on an inexpensive platform without the risk of damaging expensive equipment.

775 DC Motor Spindle

• Speed: 10000/min
• Rated Current: 1.5A
• Voltage: 24V
• High speed and high performance

Grbl Software

• It can support G-file not picture, such as nc, ncc, ngc, tap, tax.Port:Com*and Com # for option. If the first one does not work, you can choose the second one.Or check the manual.
• Note:
• It does not re present the actual speed, and it represents the ratio.And this percentage is not linear.
• 100 = 100/1000-------10%
• 1000 = 1000/1000------100% max

Customer Feedback

CNC 3018pro Machine with 7000mW Module

• Suitable for carve wood, plastic, acrylic, PCB CCL, but can not carve metal, jade and other hard materials.
• If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the 7000mw Module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity.

7000mW Module Set

Come a pair of glasses to protect you.

7000mW Software

• It can support the Image & Gcode.If the moving frame does not turn green, please click the lock in the lower left corner.
• Note:
• Turn on: M03 S500
• Adjustable: M03 S500/M03 S7000 S100/ S1000/S7000
• Turn off: M05

Customer Feedback

7000mW 7W Module:

• Wavelength: 450nm
• Power: 7W
• Output current: 3A
• Input voltage: DC 12V
• Working temperature: 10°-40°
• Please debug the 7000mW module before use.

Sturdy machine frame:

Sturdy aluminum and nylon, make the machine more work more stable, run and engrave better, one-piece molding, easy to install.We provide assembly video.

Upadate Control Board

GRBL 1.1 , The new control board adds fixed heat sink and external fan, as well as a sturdy shell, which greatly extends the service life of the control board.

Offline Control

With offline controller module, you can control the CNC router without connecting to the computer. The computer and the controller cannot be used at the same time.

Open Source

It’s built on Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and easy to find elsewhere online.

Titoe Service Team

• Please check if the accessories are complete when you get the package.
• There are installation videos in the installation package. Please watch the videos carefully before installation.If you cannot download the software from my page, please let us know in time.
• Software for Control the machine(3Axis)
• Software for Module(2Axis)
• The parameters in the GRBL software have been set specifically, changing them arbitrarily will cause engraving errors.
• GRBL software and offline controller are only compatible with G-codes such as NC files, TXT files and TAP files. ModuleGRBL software is compatible with G codes and pictures. Use software such as CopperCAM, Inkscape, MeshCAM, Carbide create and MasterCam to create G-code.
• Welcome to show us your carving works.

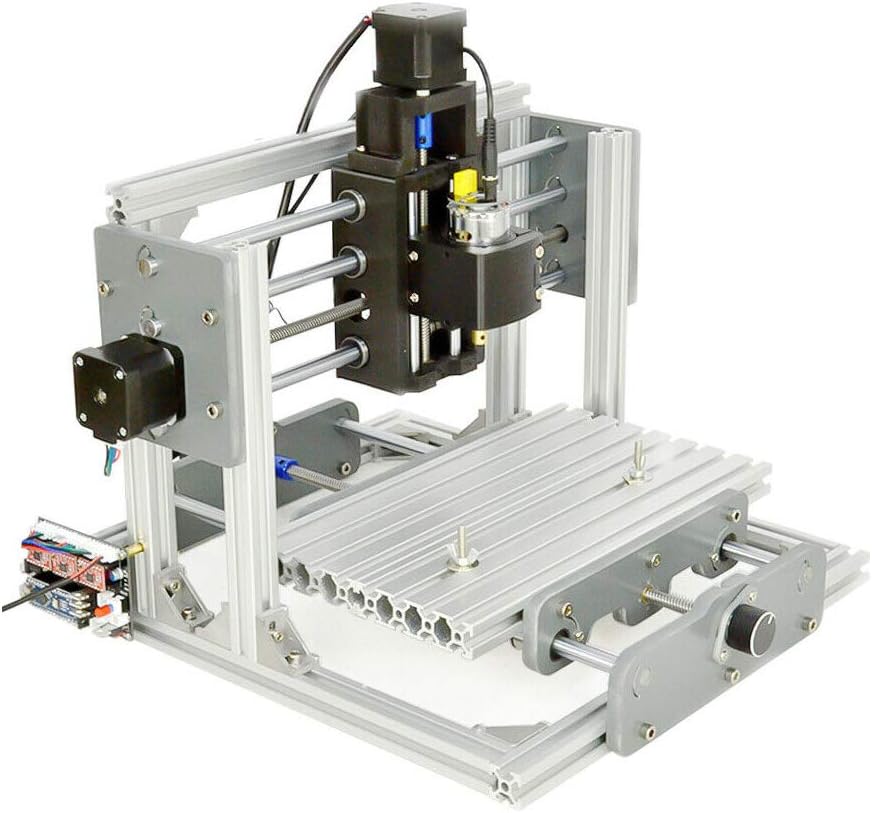

Product description

Engraving Materials:

The machine can carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other materials. Can not carve: hard metal (such as brass, steel, iron, etc), jade and other very hard texture items



Specification:

Machine size: 430 * 430 * 330mm

Net weight:5kg

Working area: 240 * 170 * 65mm / 9.44" x 6.69" x 2.55"

Power supply: 12V 5A

Positioning accuracy: 0.04mm

Processing accuracy: 0.08mm-0.1mm

Spindle motor: 555 spindle motor(diameter:35.5mm)

Shank diameter: 3.175mm

Frame: Aluminum, PVC, Plastic

Software: Grbl

Supported system: Win xp/Win7/Win8 (recommend Win7)



Package Included:

A Set Of Unassembed Engraver Machine Kit (Not including laser head)

Spindle motor×1

Power supply×1

Data lines×1

Knife×3



Note: You need to install by yourself

• This is a personal mini CNC engraving machine, perfect for artist, hobbyists and craft makers.Great for fun, study and research
• Not intended for production use.Requires self-assembly from scratch
• Includes all the components required for assembly
• Assembly requires a certain mechanical skill. We will send you the assembly instructions after the purchase
• This is a true DO IT YOURSELF kit. If you are a true Maker, DIY Handyman or an artist, this machine offer a great way to repeat processes and do things that no hand tool ever allowed you to do

User questions & answers

Question:	laser not included? can this engrave aluminum
Answer:	I used it on a wet tile saw to cut marble backsplash tiles, 1/2 inch thick. Worked great, lasted a long time. Not sure about the dry cutting, might be prone to chipping. Would spray it with water/spray bottle while you are trying to cut it maybe
Question:	can it cut carbon fiber
Answer:	I used this blade to cut 3/4" granite with my skill saw. The granite might be a little heavy to use on a table saw, hard to control.
Question:	Does this still ship without directions for assembly
Answer:	I don’t I use to cut granite works great on granite tiles and all kinds of rocks
Question:	I want to make a custom engraved knife would this work for that
Answer:	These are very good blades. I use them to cut out sink holes, in 1 1/4" granite. They last quite a bit. You'll have no trouble cutting your tile on a grinder. I use them on a battery grinder to cut 4" backsplash on site, dry.

Product features

The Titoe CNC 3018Pro with 3000mW Module

Designed for the absolute beginner, the Titoe is a great tool for starting CNC learning. If wood-working is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models which you are coding and designing.

The Advantages of CNC 3018Pro Machine:

• 2-In-1 Design: Replacing the spindle with a suitable power head, The Titoe CNC 3018-PRO can be used as a CNC Router or a Engraver.Ea
• Easy to Assembly:All the parts are in the package. It only takes 20-60 minutes to assemble it. Search "Titoe 3018pro" to watch the instructional video on Youtube.
• Offline Controller: Take control of your 3018-PRO Desktop CNC machine with offline control, provide manual control of your mill without any computer.
• Upgraded Control Board: Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Case to extend the life of the control board. Self-contained short circuit protection to prevent it from burning due to overload.
• High Quality and Affordable: Make more with the 80% aluminum body and take advantage of the added stability for milling a wider range of materials.

CNC 3018pro Machine with Spindle Modul

• 775 spindle motor
• Speed: 10000/min
• Rated Current: 1.5A
• Voltage: 24V
• High speed and high performance

3000mW Module Set

• Suitable for carve wood, plastic, acrylic, PCB CCL, but can not carve metal, necklace.
• If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the 5500mw Module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity.

Grbl Software

• It can support G-file not picture, such as nc, ncc, ngc, tap, tax.Port:Com*and Com # for option. If the first one does not work, you can choose the second one.Or check the manual.
• Note:
• It does not re present the actual speed, and it represents the ratio.And this percentage is not linear.
• 100 = 100/1000-------10%
• 1000 = 1000/1000------100% max

3000mW Software

• It can support the Image & Gcode.If the moving frame does not turn green, please click the lock in the lower left corner.
• Note:
• Turn on: M03 S500
• Adjustable: M03 S500/M03 S3000 S100/ S1000/S3000
• Turn off: M05

3000mW 3W Module:

Power: 3W

Output current: 3A

Input voltage: DC 12V

Working temperature: 10°-40°

With this module, it can absolutely give you different ways to unleash your creativity.

Offline Control

With offline controller module, you can control the CNC router without connecting to the computer. The CNC router can be placed wherever you want, such as garage and workshop.

Upadate Control Board

GRBL 1.1 , The new control board adds fixed heat sink and external fan, as well as a sturdy shell, which greatly extends the service life of the control board.

Open Source

It’s built on Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and easy to find elsewhere online.

Sturdy Machine Frame

Sturdy aluminum and nylon, make the machine more work more stable, run and engrave better, one-piece molding, easy to install.We provide assembly video.

Wide Application

Suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other like materials, but can not carve Hard Metal, Jade ,Stainless steel ,Glass, Jewelry and other hard materials.

Titoe Service Team

• Please check if the accessories are complete when you get the package.
• There are installation videos in the installation package. Please watch the videos carefully before installation.If you cannot download the software from my page, please let us know in time.
• Software for Control the machine(3Axis)
• Software for Module(2Axis)
• The parameters in the GRBL software have been set specifically, changing them arbitrarily will cause engraving errors.
• GRBL software and offline controller are only compatible with G-codes such as NC files, TXT files and TAP files. ModuleGRBL software is compatible with G codes and pictures. Use software such as CopperCAM, Inkscape, MeshCAM, Carbide create and MasterCam to create G-code.
• Welcome to show us your carving works.

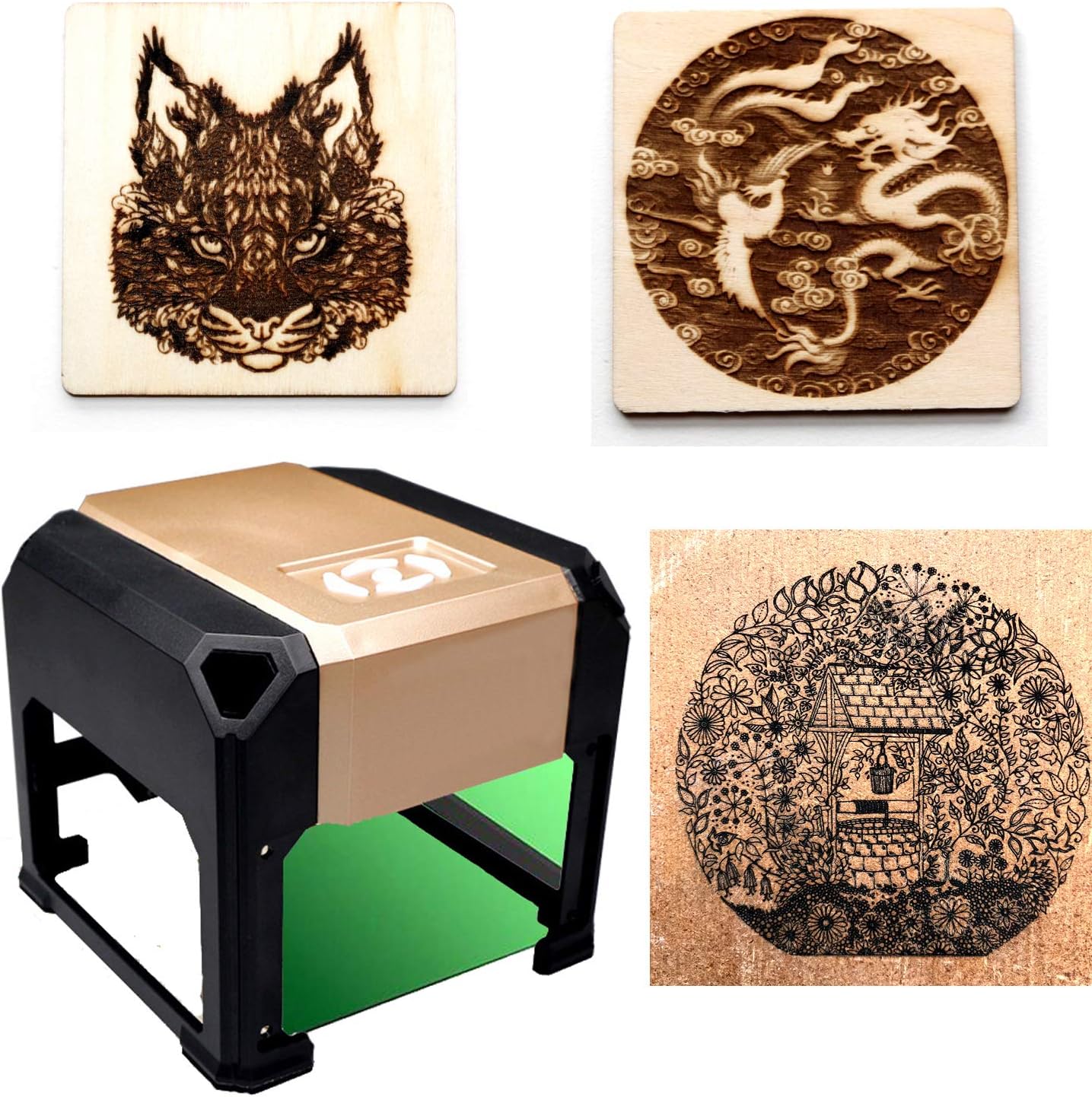

Product description

• Positioning Accuracy: 0.02mm Engraving range: 7.5*7.5CM, Engraving height: No limit
• 3000mW DIY desktop blue laser engraving machine is ideal for amateur laser engraving usage with grayscale printing,low-light positioning and freedom positioning functions.
• carved more material. It can carve the IC card, mobile phone case, wallet, dark plastic, wood (thick or thin), bamboo, kraft paper, acrylic, metal with paint coating, transparent, reflective material and other things can be carved, but must first do black Paint coat.
• Picture format: JPG / GIF / BMP / DIB / ICO / CUR /PNG
• Operating System: WIN-97/03/7/8/10 （▲Windows Vista / XP）


• Greater Power, Faster Speed, More Accurate Precision, If you are a true Maker, DIY Handyman or an artist, this machine offer a great way to that

Package List:

1 x Laser Engraver Printer.

1 x Power cord

1 x Green acrylic board

1 x Data cable

5 x Engraving test material

1 x USB Disk for driver and software.

1 x Manual

Product Size: 15.5x16.6x14.3cm

Size After Packing: 26x22.7x19.2cm

Product Weight: 0.56KG

Shell Material: ABS

Engraving Area: 75x75mm

Laser Head Power: 3000mW

• Positioning Accuracy: 0.02mm Engraving range: 7.5*7.5CM, Engraving height: No limit
• 3000mw DIY desktop blue laser engraving machine is ideal for amateur laser engraving usage with grayscale printing,low-light positioning and freedom positioning functions.
• carved more material. It can carve the IC card, mobile phone case, wallet, dark plastic, wood (thick or thin), bamboo, kraft paper, acrylic, transparent and other things can be carved, but must first do black Paint coat.(It can’t carve metal or glass).
• Picture format: JPG / GIF / BMP / DIB / ICO / CUR /PNG,Operating System: WIN-97/03/7/8/10 （▲Windows Vista / XP）
• Greater Power, Faster Speed, More Accurate Precision, If you are a true Maker, DIY Handyman or an artist, this machine offer a great way to that

User questions & answers

Question:	Can this engrave leather as well
Answer:	It will do leather, yes.
Question:	What eye protection should be worn while using this machine
Answer:	We purchased this as a gift. As far as we know the safety glasses, recommended with the engraver, are adequate.
Question:	Is this a "KIT" or is it ready to go as shown in photos
Answer:	Ready to go. Had it up and running in 15 mins.
Question:	Does it work on glass
Answer:	No

• This 3018 Pro Max CNC router come with upgraded design comparing to the old 3018: 2 mm acrylic baffles on each side for improved safety; redesigned mainboard makes adding limit/home switch possible, which will stop the tool spindle from leaving the engraving area (switch not included please contact us if you need one).
• 4GB USB-driver provided for free which contains video instructions and multiple Grbl-based software that supports both Mac and Windows. Easy to start.
• Works with plastics, acrylics, wood, bones, PVC and PCB.
• Extended Laser Module Available (Not included). You can add a laser module to this machine to start your new creativity.
• CE certified and one year warranty provided.

User questions & answers

Question:	is it stuck in GRBL , what else will it run
Answer:	Yes! If you choose to try these delicious cookies warmed up, place in the microwave, but for no more than 15-second intervals until it's reached your desired temperature. Be careful when removing from the microwave!
Question:	I am researching. Does this machine take gerber files from EagleCad
Answer:	It's not a rice krispie texture but they are soft, not mostly nuts/as dense as something like Kind bars.
Question:	can this cut through acrylic, or just engrave it
Answer:	All of our products are labeled according to the Food Allergen Labeling Act requirements. If milk, one of the top 8 allergenic foods, is in the product or if there is potential risk of exposure from milk, it will be clearly indicated under the ingredient statement on the package with a ‘contains milk’ or ‘may contain milk’ statement. This variety CONTAINS WHEAT, SOY, MILK AND COCONUT INGREDIENTS.
Question:	The usb that it brought i connected to my mac and it says "cannot open because mac doesn't support it" am i doing something wrong
Answer:	Doesn't say low fat on the box. It has 90 Calories, total fat is 2 g, Sodium 80mg, total Carbs 19g, suragrs 7g. Compared to other bars it is low "fat". The others on the market are much, much higher in carbs, fat, sugars.

Product features

CNC Router Operated by Mac

We have prepared Mac-based control software for those in need. The G-code sender is also based on open source GRBL, many tutorials and instructions are available online.

CNC Router Operated by Windows

The control board is integrated with the latest grbl1.1 firmware. Wood working and laser engraving are both available with L&Z CNC routers. Grbl-based CNC machine is easy to start for beginner.

• SPECIFICATIONS
• Effective Engraving Area: 300 x 180 x 45 mm (11.8 x 7.1 x 1.8”)
• Frame Size: 400 x 330 x 240 mm (15.7 x 13.0 x 9.4")
• Frame Material: Aluminum+Acrylic
• Z-Axis Component Material: Nylon
• Spindle: 775 motor, 12V, 3000 RPM; 24V, 7000 RPM; 36V, 9000 RPM
• Rated power: 60W
• Maximum power: 120W
• Step Motor: 1.2 A, 12V, 0.25 nm torque
• Router Bits: 4-flute 1/8" shank spiral bits, V-type bit 1/8" shank 30° 0.1 mm tip
• Supported OS: Windows XP/7/8/10, Mac OS
• Software: Grbl control(Candle), LaserGRBL, UGS
• Power Supply: 24V/5A

LOGO Carving

Spindle & Router Bits

Gallery

Offline controller

Product description

OVERVIEW



【SPECIAL ATTENTION!!!】

There MIGHT BE certain tuning or adjustment you need to process if your CNC router IS NOT CRONOS control board based, contact us if IT NOT WORKS !!!

【Software Download】 (Copy & Paste)

https://www.amazon.com/clouddrive/share/muzdonshoMoevknRPxZynrOgOuUQx9RJi6X8jviIwSV

This board is designed for the use of Mini CNC router 1610/2418/3018 and even with more advanced function of tool set, limit switch supportive, Laser supportive; Offline and blue tooth supportive.



TECHNICAL DETAILS



1. Laser output: 12V ; 775 motor output 24V

2. Laser output 2P/3P supports pwm TTL function

3. Support offline, Bluetooth function, Support the xyz limit switch, probe interface.

4. Connection interface: USB (USB-CH340)

5. Software: GRBL controller

6. Input voltage: 12-36V

7. Master chip: atmel 328P (arduino nano)

8. Stepper motor driver: A4988

9. Spindle drive chip: MOSFET (recommendation 12~36V, current : within 10A )

10. Spindle PWM speed: Support

12. Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)

13. Laser engraving: Support

14. Power Adapter 5.5-2.5mm DC interface

15. Tool set: Support

16. Limit Switch: Support

17.Double y-axis, all-round use,XYZ or XYY.

18.A4988 can be replaced with 8825 driver.



WHAT'S INCLUDED



1x GRBL 0.9J 3 axis control board

1x Offline Contral Board 1x USB cable

1x USB driver for software required

• →【Targeted CNC router & SPECIAL ATTENTION】: Designed for 3 Axis CNC router 1610; 2418; 3018, Managed by Software 0.9J USB GRBL Controller. There MIGHT BE certain tuning or adjustment you need to process if your CNC router IS NOT CRONOS control board based, contact us if IT NOT WORKS !!!
• Input voltage: 12-36V; Laser output: 12V ; 775 motor output 24V. 　.
• Stepper motor driver: A4988 /Support stepper motor: 12V, maximum current of 2A ; recommended within 1.5A ; Support stepper motor 42, 57
• Laser output 2P/3P supports pwm TTL function
• Master chip: atmel 328P (arduino nano).

User questions & answers

Question:	which z probe works with this board
Answer:	I have not tried to cut a brick but I see no reason why it wouldn't as the porcelain tiles are much harder. You can however use metal blades to cut brick which are cheaper and make a much wider cut and not as smooth but generally suitable for brick work unless you are looking for a really smooth finished surface on your brick cut.
Question:	Anyone recommend power cord for this board
Answer:	Cuts the glass well. There will be a small amount of chipping on the back side but I think any blade will do that. Front will be very clean cut. This is a great blade for the money
Question:	Anyone know a part number or source for the mate to the two pin "white" spindle connector
Answer:	Not it’s intended use, probably work but will wear extremely fast. Diamond blade( has hardened teeth) is the proper dry Saw for masonry, tile dry use. These blades excellent value for wet saw

Product description

Description:

Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack.



Feature:

Profile Dimensions: 33x40x24cm

Engraving area: 30x18x4.5cm

Spindle: 775 spindle motor

Softwear: GRBL control systems

support system: 24V 5.6A adapter

Stepper motor: fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M

Spindle: 775 spindle motor (12-36V) 24V:10000r / min

Supported System: Windows XP / Win 7 / Win 8 / Win 10 / Linux.

Drill bits: tip 0.1mm ,20 degree , diameter3.175mm. the package include 10pc.

clamps: 4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm



Usage:

can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material.



Package inclued:

1pcs Full set engraving machine

1pcs offline controller

4pcs clamp

10pcs bits

1pcs extension rod with ER11 collet

(Please contact us for English manual after you purchased)

• 【MYSWEETY CNC 3018-PRO】- CNC 3018-PRO is an upgraded version of 3018. Control software: GRBL; Working area: 30x18x4.5cm; Spindle: 775 spindle motor (12-36V) 24V:10000r / min. Supported System: Windows XP / Win 7 / Win 8 / Win 10.
• 【Offline Controller】- The offline controller is 1G Capacity. You can control the CNC router without connecting to the computer. The CNC router can be placed wherever you want, such as garage and workshop.
• 【New Control Board】- Integrated driver chip + fixed heat sink + external fan + sturdy casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage. 12 Months Warranty.
• 【Versatile】- This engraving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials.
• 【Simple Assembly】- The package come with an English manual and the software on USB disk. 🍀〖Note: Plug in the power cord to the control board first, then press the power switch, and then turn on the control board switch 〗. Please contact us if you have any question. Thank you!

User questions & answers

Question:	Can I switch out the motor to ingrave a logo on stainless steel plates and make this work on metal
Answer:	hi, it can't work on metal, This engraving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. thanks.
Question:	Will this machine cut out dollhouse furniture parts from wood
Answer:	Straight out of the box ... no. With modifications and upgrades ... yes. You wouldn’t want to cut the aluminum bed by mistake so a spoil board is a must. The spoil board should be milled flat and level. The collet that comes with the machine is 1/8”. You would probably need a 1/4” at a minimum for any serious work. The spindle motor works but is not very powerful. You will have to make multiple cuts to get all the way through pine or hardwood. The free software is engraving software. You would need to get real cad/cam software to create the tool paths to make a 3D part. The machine is very basic. What is there is a good starting point. I’ve been having fun playing with it and upgrading it.
Question:	Do you have a website where i can download the software and manual? i do not have an optical drive for the included cd
Answer:	Download the English manual : https://s3.us-east-2.amazonaws.com/3018pro/3018PRO_1.1.zip. If you have any question, please contact us firstly, thanks!
Question:	Hello can this machine cut as well as engrave
Answer:	Yes and no. It's NOT a router. Don't expect it to cut profiles out of 3/4" plywood. You could cut thin materials with it using the right bit, but you'll have a hard time finding 1/8" shank router bits at the hardware store. With the right bit, a good setup, and the proper programming to make shallow (0.005" or less) passes it can cut shapes out of wood or plastic. It will take a long time, but it can be done. I wouldn't recommend it if you're material is over 1/2" thick. If you want to make things out of thicker material you should look into CNC routers.

Product features

About product:

• Profile Dimensions: 33x40x24cm
• Engraving area: 30x18x4.5cm
• Spindle: 775 spindle motor(12-36V) 24V:10000r / min
• Software: GRBL control systems
• support system: Windows XP / Win 7 / Win 8 / Win 10.
• Stepper motor: fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
• Drill bits: tip 0.1mm ,20 degree , diameter3.175mm. the package include 10pc.
• Clamps: 4 pcs, Hold the thickness of 0-30mm, the inner slot width 6mm

Upgrade Version CNC 3018 Pro

1：Manual control: manually adjust the position of the three axes of XYZ as the starting point of carving, manually open or close the spindle.

2：Document engraving: the offline board can be linked to the GRBL control board for carving without storing a computer.

3：Storage file: After the offline board is connected to the computer, it is recognized as a USB mass storage device, and the engraving file can be directly accessed.

The USB socket on the board showing [Reader] can be connected to the computer with the Android data cable.

Module Available:

If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity. Both 2Pin and 3Pin module can be used.

Material that can be engraved:

The machine is quite neatly packed and it comes with an assembly instruction booklet.

• This engraving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials.

Simple Assembly:

1. Connect the power supply and connect the USB; 2. Install the driver; 3. To Determine your Machine's COM port; 4. Open grblControl software

If you need the manual and software of this engraving machine, Please see the link in the third point description.

Package inclueds:

1pcs Full set engraving machine

1pcs offline controller

4pcs clamp

10pcs bits

1pcs extension rod with ER11 collet

Product description

Package include:

1x 3 Axis GRBL control board V3.4

1x GRBL offline controller

1x USB cable

Specification:

Connection: USB (USB-CH340)

Support Software: GRBL controller, UniversalGcodeSender

Input voltage: 12-24V

Master chip: atmel 328P (arduino nano)

Spindle drive chip: MOSFET

Spindle PWM speed: Support

Support stepper motor: 12V, maximum current of 2A. (Any stepper motor 42, 57)

Power Interface: 5.5-2.5mm DC interface

Advantage

1.add the outer casing

2.add the power button switch

3.Use integrated imported stepper motor drive

4.Add the fan port to force heat dissipation;

5.add offline recognition

6.Improved USB interface

GRBL offline controller function:

1. Manually control: manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan

2. File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving, no need to connect PC computer

3. Save file: after the off-line controller connect PC, it will be recognized as USB, large capacity storage device, can access engraving file directly.

SD shows it is SD card condition, turn on power supply after insert SD card, otherwise, it won't work. SD card capacity 4G could be recognized.

Press X- or X+ button to switch

Control：Press confirmation button to access manually controlling page

File：Press confirmation button to access file page

Set：Press confirmation button to access setting page

On the off-line controller, buttons control corresponding actions.

SPN is spindle controlling,should press SPIN.

Fan is fan controlling, should press SMOD.

• Name: GRBL 1.1F 3 Axis Control Board V3.4+Offline Controller
• Input voltage: 12-24VDC (recommend 24VDC);
• Support GRBL Contol/Candle(3 axis);System:Windows XP/7/8/10;
• Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57);Support spindle:24V 2A Support Spindle PWM speed (0%-100%)
• Master chip: atmel 328P (arduino nano);Offline Control support SD card and tf card at the same time, standard capacity 1G, (notebooks generally have SD card interface, copy files are very convenient)

User questions & answers

Question:	Hello, does offline control come with sd card slot? and how do i connect a fan to the board to cool the laser
Answer:	My Eibenstock runs at 2,850 RPM and I've had no problems using this core bit on that coring machine. Ditto for my Weka, which I think is at 3,000 RPM. Just remember when drilling, all the pressure you need is the amount applied by 1 finger. The more pressure you apply, the more likely you are to break off one of the 3 "teeth" of the core bit.
Question:	What version of grbl? can i upload the latest versions 1.1g with the arduino-ide
Answer:	It depends on the size of the core bit. For example the 2" bit requires a 1 1/4" - 7mm arbor. This Amazon listing is for multiple sizes. Check the description on the exact one you need.
Question:	I can’t get your board to work with my lightburn software. what program/software do you recommend so i can control this from the computer
Answer:	No it does not, but you cam drill one in. Its actual not a drive pin. The pin prevents the blade from getting lose just in case the nut is not tighten right.
Question:	all my motors run in reverse . How do i correct this
Answer:	HI THE ARBOR SIZE IS 1 INCHES...

• ♞【Upgraded Version CNC 3018 Pro】 WE DO IT ! New Control Board -- Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage. Please check the video to know how to install and use the software.
• ♞【Offline Controller】Great for beginners. Upgrade from 128MB to 1G Capacity. Main advantages: 1,can operate without connect the computer; 2,Included SD card reader to write into the root directory G-code files or NC file; Support Manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle.
• ♞【Wide Application】Suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other materials, but can not carve hard metal, jade and other very hard texture of the items.The package include all parts of the mechanical parts and Install instruction and software( electronic control board, stepper motors, frame, power supply and so on ).
• ♞【Professional Factory Team】Please let us know if you need any help about the machine.

User questions & answers

Question:	Can you engrave dog tags
Answer:	Dog tags are stamped not engraved
Question:	I never got the offline controller. I seemed to have gotten everything else, but that. can you please send me one
Answer:	Please send an email to vendor’s customer support. They are very supportive.
Question:	Can this etch nickel? Or engrave nickel
Answer:	Hi friend, thanks for your question. sorry that this machine cannot engrave nickel. We recommend using it to carve wood, acrylic, plastic, MDF. Best
Question:	Do I need to pay for the computer system
Answer:	Hi friend, 1. To use a computer to control the operation of this machine, you need to have 1 driver and 2 software. 2. Drive: CH340 drive; Control software: Grbl (Imported gcode: *.nc, *.ncc, *.ngc, *.tap, *.cnc file ); These two are free, you can get it from this link: https://www.amazon.com/clouddrive/share/D5DXtCKJRpUy0CRerHsvfJ6B7Gmi9CBAGLwWemggAcS 3. Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape and so on. These softwares are paid and free, and you can get them from their official website. Or you can contact us at [email protected], I will send you free design software information. Thank you for your question. mcwdoit

Product features

Please let us know if you are NOT familiar with CNC, our team will assist you to master how to use this 3018Pro engraver. Thank you!

Specifications:

• Frame Materials: Aluminum + PF
• Frame Size: 40*33*24cm (15.7*13*9.4″)
• Effective Engraving Area: 30*18*4.5cm (11.8*7.1*1.8″)
• Power Supply: Output 24V, 5A
• XYZ Stepper Motor: 12V, 1.33A
• 775 Spindle: 24V, 0-10000 rpm

Notice:

1. This machine for a full set of spare parts, shall be installed by the buyers.
2. This 3018pro cnc router kit only comes with spindle engraving.
3. Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape and so on.
4. Comes with a paper manual and a USB flash drive, which contains the control software. If you don't get it, please download it from the link we provide.

Spindle Motor Works

• 775 Spindle can engrave on wood, bamboo, plastic, acrylic, MDF, PCB and soft aluminum.
• 775 Spindle can cut through thin woodboard, bamboo, plastic, acrylic, MDF, PCB.

Grbl 1.1f Software Controller

Please check the video - About how to install CH340 driver and use Grbl software.

• Speed: 0-1000 represents the ratio, not the actual speed value.
• Please let us know if you fail to install the CH340 driver on Windows 10.

Offline Manual Controller - Operate without connect the computer.

• Imported File Format: *.nc, *.ncc, *.ngc, *.tap, *.cnc;
• Use USB cable to connect computer and offline manual control for file transfer;
• Do not use offline manual control and software control at the same time.

• Quick assembly Version : All components of this 3018 pro cnc engraving machine no need to be positioned, which greatly reduces the time of assembly . It takes only about 20 minutes to complete assembly.
• Intelligent software: GRBL three-axis control board can be use on Win xp/Win7/Win8/Linux system ,reduce more operational problems .can engrave on plastics, soft aluminum, woods, acrylics, PVC, and PCB.
• Offline control way : Support offline controller , manually adjust X, Y, Z-axis without connecting to the computer and download files ,not only just a unique gift for your lover, family，friends ,but also satisfy your desire to create handicrafts perfectly .
• The latest control board : in order to meet most customers’ needs ,we upgrade the cnc milling machine , provide new version control board ,latest GRBL 3 axis control ,more power ,more precise , include Integrated Driver Chip + Fixed Heat Sink +External Fan +Sturdy .
• Any question welcome to contacting our professional team , we promise to solve your any issue in 24 hours .

User questions & answers

Question:	No setup instructions included. when i try to open link to manual "this xml file does not appear to have any style information." how do i setup
Answer:	Join the Facebook users group "Sainsmart CNC Router User Group" you'll find links to most stuff and people to help.
Question:	So no power supply comes with this and is there anything I would need to begin using it
Answer:	Hi , this mahcine does come with power supply , pls check the package and let us know if the item you received comes without it , we will reach you at the soonest
Question:	Do you guys have a version with auto homing, or a kit for it
Answer:	The software and control board that come with the machine CAN support homing, You have to add limit switches and change some settings. The Facebook group for this machine has a document on How to do this that I wrote. Mine will home perfectly now. You can also add a Z-probe and E-stop if desired.
Question:	the body can handle an upgrade of spindle? 300 watts for sure cant mill non ferous metals
Answer:	YES， but pls make sure the spindle you replace must be 775 spindle

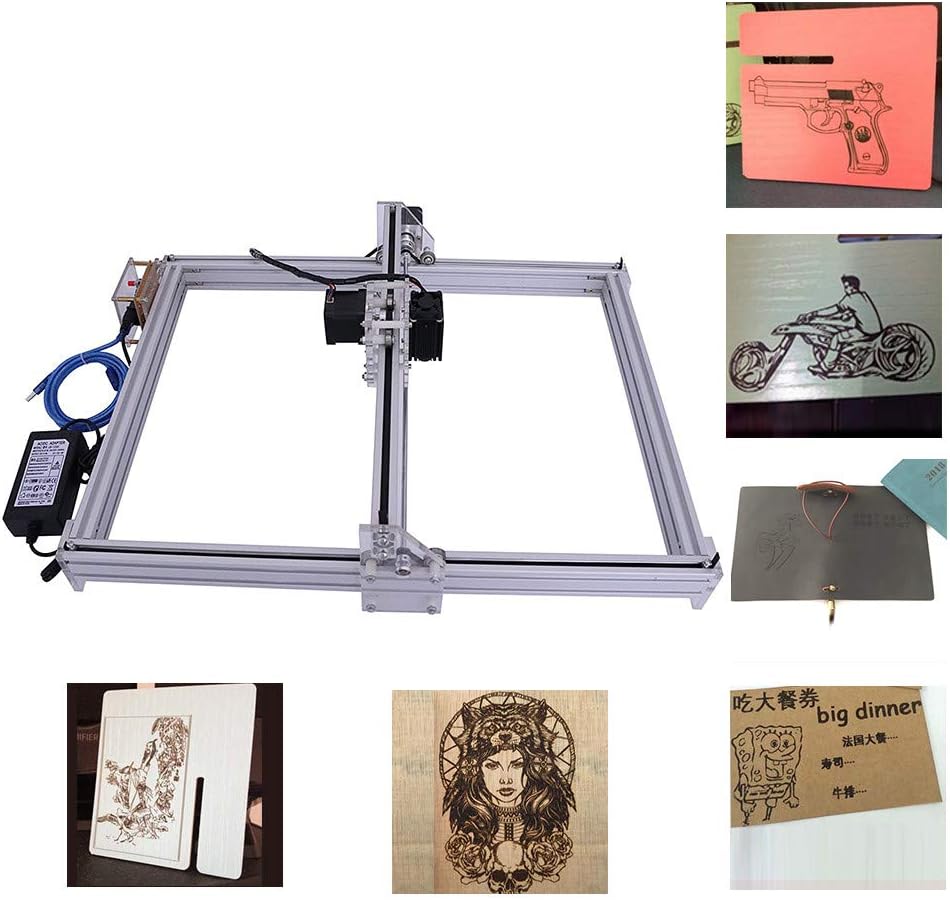

Product description

Applicable system(s):XP/win7/win8/win10 ，Mac is not compatible

Assemble guide video on http://www.bachinmaker.com/wikien/doku.php?id=bachin_d8-4050p

Notice: 500mw power only can engrave , can not cut , 2500mw and 5500mw can engrave and cut light wood . But can not cut hard wood .

if you only engrave, you choose 500MW ,

if you want to engrave and cut , you choose 2500MW or 5500mw,

The package include the Install video with flash memory disk, with detailed user manual and free software,buyers don‘t need to worry about machine Assembly .

Applicable Product and Non Applicable Scale:

This Wood engraving machine can not carve the following materials:

Metal (regardless of thickness), stone, ceramic, jade jewelry, reflective material, colorless transparent material, soft material (7w and 10w can engrave on metal)

This Wood engraving machine can carve the following materials:

Wood, paper, bamboo, horns, a little leather (wallet), plastic phone shell, photosensitive chapter, sponge paper

Specifications:

Construction: Body Aluminum + Acrylic

Voltage:110~240V

Engraving area: 40x50cm

power: 500mW

Carving materials: Wood, paper, bamboo, some cortex (purse), cell phone plastic shell, rubber, photosensitive chapter, sponges

Weight: 5kg

Package includes:

1pcs Wood Engraver DIY Kit Parts

1pcs Power supply

1pcs USB cable

1pcs Safety glasses

Notice:

The machine for a full set of spare parts, shall be installed by the buyers.

We suggest cnc-based buyers to buy,

this machine is not industrial grade level.

• This 500MW DIY desktop engraving machine is ideal for amateur engraving usage with grayscale printing,low-light positioning and freedom positioning functions.
• Can be processed material Wood , paper, bamboo, horns, a little leather (wallet),phone shell , photosensitive chapter, sponge paper
• It only need you to connect it to the computer,then you can print any pictures your like with your own creativity.
• Specifications: Construction: Body Aluminum + Acrylic Voltage:（12V 5A)110~240V Engraving area: 40x50cm

User questions & answers

Question:	Does anyone else's program crash? I'm on my fourth attempt at a larger project and it keeps shutting down mid-engrave
Answer:	If you are using a laptop and it goes to sleep mode it will stop all programs running. I have done a few large logos at slower speeds and that does happen. Need to change the sleep settings and see if that helps Cheers
Question:	Puede grabar en carbon fiber
Answer:	Can you engrave acrylic
Question:	what are the technical specs on the 2500mW laser? wave length
Answer:	Laser wavelength: 445nm Optical lens material: d-zk3 high efficiency light transmittance Power supply voltage: 12V Power control: PWM Power supply current: 2A Interface specification: 3 splicing 2.54 Light output shape: point adjustable focal length
Question:	Can I swap out the 500MW engraver for the 2500 or
Answer:	I have the 2500w version, and it's still 3 pins. The wires will definitely fit, and the AC adapter that came with the 2500mw laser is strong enough to power much more. You shouldn't need a 4 pin until you are over 10000mw.
