12 best amana gas dryers

• High-Quality Parts: All three parts including Belt 341241, Idler 691366 and Rollers 349241t meet or exceed all original manufacturer specifications for fit and performance. They offer the durability you need at a fraction of the cost of other alternatives.
• Notes: these dryer replacement parts are not original product but compatible spare parts; The mention of brand names and any related model designation above is only for purposes of demonstrating compatibility.
• Replace part number: 4392065 dryer repair kit is convenient to replace No. 26000279435, 26000279436, 279435, 279436, 279708, 279708MS, 279709, 279709MS, 279860, 279948, 4392065, 4392065VP, 587636, 80046, AP3131942.
• Fits：This set of parts fits all 29-inch large capacity Whirlpool made dryers. Compatible 29-inch-capacity brands include whirlpool, roper, kitchenAid, estate, and kenmore/sears with prefix 110. Check your dryer manual or reach out to us to confirm compatibility with your model.
• After-sales: Money-back guarantee - Whatever the reason, you are not satisfied, you can request for replacement or full refund. If you have any problem about your order, please feel free to contact us.

Product features

When do you need our Dryer Repair Kit

1 Your dryer is noisy

2 Will not start

3 No heat or not enough heat

4 Drum has stopped turning

5 Dryer is making loud, squeaking, or squealing noises while the drum is turning

1 x 691366 Idler

1 x 691366 Idler

2 x 349241t Rollers

2 x 349241t Rollers

1 x 341241 Belt

1 x 341241 Belt

4 x Tri-rings 2 x Clip

4 x Tri-rings

2 x Clip

To raise hinged top

This kit is for dryers with Iint screen located on top

In order to service the parts contained in this kit, the top must be raised and the front panel removed.

To raise hinged top

1. Disconnect power to or unplug dryer

2. Remove twoscrews from under lint screen. See

Figure 1

3. Push in the top locks with a putty knife. There is one lock 2-1/2" from each side. Lift the top as you depress the lock. Top is hinged at rear. See Figure 1

Front panel removal(1)

1. The dryer door design determines the front panel

removal procedure. The three designs are:

Door with full front panel-figure 2-see Section 2A

Door with 3/4 front panel-figure 3-see Section 2B

Full width door with 3/4 front panel-figure 4-see

Section 2C

Section 2A For Plug Door with Full front Panel

2-1. Remove door switch wiring and wiring clip from inside of

front panel.

2-2. Remove two screws from inside cabinet that holds the top of the front panel. See Figure 5.

Front panel removal(2)

Section 2B -For Plug Door with 3/4 Front Panel

2-1. Remove door switch wiring and wiring clip from inside of front panel.

2-2. Pull the toe panel toward you and lift off

2-3. Loosen the two screws at bottom of front panel. See Figure 5

2-4. Remove twoscrews from inside cabinet that hold the top of the front panel. See Figure 5

Section 2C-For Full Width Door with3/4 Panel

2-1. Remove door switch wiring and wiring clip from inside of front panel

2-2. Pull the toe panel toward you and lift off

2-3 Release hinge springs from cabinet base

2-4. Loosen the twoscrews from inside cabinet that hold the top of the front panel. See Figure 5.

Drum Removal

1. If drum belt is not broken, remove belt from metal motor pulley. See Figure 6

NOTE: Drum must be supported when removing belt

2. The drum can then be lifted through the cut-offs on the front flange of the cabinet sides. See Figure 6

3. Vacuum accumulated lint inside the dryer, taking care not to damage or disconnect any wiring from electrical parts

Installation Procedure Using Parts in this Kit

1. Remove support brace(if so equipped) from left-hand support roller. See Figure 7

2. Remove triangular rings from shafts by using a

screwdriver to pry the ring off the shaft, and remove the rollers. See Figure 7.

3. Install new rollers. Reinstall support brace. New triangular rings and clip are provided in kit

Reassembling the Dryer

1. Install the new idler pulley into the baseplate by positioning it in slots aligned with the motor pulley.

2. Check the wear on the white plastic ring inside the drum opening. If extreme wear is noticeable, replace ring

3. Place the new belt around the drum with the grooves facing the drum.

4. Install the drum and make sure it is resting on the

support rollers

5. Pass the free loop of the belt through the idler bracket and under the pulley. The belt is then looped over the motor pulley. See Figure 8

WARNING: Fire Hazard

Never operate dryer without rear drum seal/t in place. Align rear drum seal as shown

below. Failure to follow these Instruction scan result in death or fire

6. Reassemble the front panel to cabinet. Make sure door switch wiring is connected to the door switch on front panel. Check the wiring and make sure it is free from the revolving drum.

7. Place a small screwdriver or putty knife under the seal and on top of the bulkhead. See Figure 9.

8. Tum the drum by hand one full turn( counterclockwise)making sure the entire rear drum seal is riding on top of the ridge on the bulkhead and not tuned under.

9. Reassemble the dryer.

10.Reconnect power or plug in dryer.

Product description

The product is easy to use and handle. The product is highly durable. The product is manufactured in United States.

• Easy to use and handle
• The product is highly durable
• The product is manufactured in United states

User questions & answers

Question:	Can you dry a queen size comforter in it
Answer:	the W10240513 Washer Lid Latch Lock Strike is fit whirlpool washer, model # wtw5500xw2,looking forward to my answer help to you
Question:	Can you use it in your apartment
Answer:	fit Whirlpool W10251366
Question:	Does this require venting
Answer:	not fit W10338654A washer
Question:	Why can i get this same model at home depot for $399 new
Answer:	the lock is fit Roper rtw4516fw2

• KIT CONTAINS : 1× 3387134 Dryer cycling Thermostat, 1× 3977767 dryer thermostat, 1×3977393 thermal cutoff switch, 1 ×3392519 dryer thermal fuse.
• REPLACEABLE MODEL : ❶3387134 high-limit thermostat replaces: 306910, 3387134 3387135, 3387139, WP3387134VP , ❷3392519 thermal fuse replaces: 3388651, 3392519,694511, 80005, WP3392519VP, ❸3977393 dryer thermal fuse replaces: 279816, 3399848, PS334299, AP3094244, WP3977393, EAP334299, ❹3977767 thermal fuse replaces: 3399693, WP3977767, WP3977767VP, ( ※ You can check out picture 7 for more models)
• APPLICABLE BRAND RANGE : Replacement parts can compatible with most brands Whirlpool, Kenmore, Estate, Roper, Maytag, Inglis, Amana, KitchenAid, Crosley, Admiral, Magic Chef.
• HIGH QUALITY : Dryer thermostat & thermal cut off fuse kit made of premium quality material, non OEM parts but meets OEM manufacturing requirements.
• AFTER-SALE GUARANTEE : One year guarantee. We promise to provide quality products! For any quality problem, resend a new or unconditional full refund. Customer satisfaction is our tireless pursuit.

User questions & answers

Question:	Will this fit a Kenner’s 600 series model number
Answer:	Thank you for your question, it is suitable for model 110.69622800. good luck!
Question:	will this fits on microwave magic chef mco165uw? thank you
Answer:	I couldn't say , however, if you look up the replacement part that magic cheif calls for and that part comes up, im confident it will, although this part comes up fora dryer particularly it fits many other makes and models of appliances. hope this helps.
Question:	What replaces high limit thermostat in Kenmore gas dryer
Answer:	The part numbered 3387134 in the lower right corner of the first picture is High-Limit Thermostat.
Question:	I have a Whirlpool Cabrio dryer model wgd6200sw1. Will this kit for it
Answer:	yes

User questions & answers

Question:	Does this kit work in my whirlpool dryer model# wgd5810swo
Answer:	As far as I know Whirlpool uses the same components as Maytag! I usually remove all the components and clean them, inspect them and test them... afterwards I order the new ones after comparing the similarities. Best wishes!
Question:	I have a whirlpool sdg909wf dyer would this gas dryer kits fit my
Answer:	First thing you do is: clean the vent, replace the themo-fuse it’s about 2-dollars. It’s in line with the vent pipe, 9-out 10 times that was the problem? To answer your question yes I have that kit on stand bye (it’s cheap)
Question:	Will this fit my samsung dv42h5200gp/a
Answer:	I have whirlpool duet. My problem was clogged exhaust blew.my fuse. Would run but no heat. Get an ohms meter and probe your sensors.
Question:	I am considering purchasing this gas dryer repair kit and i would like to know if it would be the appropriate kit for my dryer which is
Answer:	Will these parts fix a maytag bravos MGDB800VQ0 gas dryer???

• ✅ FULL KIT SET: Includes 1 x 3387134 Dryer Cycling Thermostat, 1 x 3392519 Dryer Thermal Fuse, 1 x 3977767 Dryer High Limit Thermostat and 1 x 3977393 Dryer Thermal Cut-Off Kit.
• ✅ PREMIUM QUALITY: The replacement kit is made of high quality metal and plastic and is well tested by the manufacturer to ensure it meets OEM standards - Ensure long-lasting and stable performance. This kit fixes the following symptoms: No heat or not enough heat | Takes too long to dry | Too hot | Will not start | Shuts off too soon | Timer will not advance.
• ✅ REPLACEMENT PART NUMBER: ▶ 3387134 replaces: 306910, 3387134, 3387135, 3387139, WP3387134, WP3387134VP, PS11741405. ▶ 3392519 replaces: 3388651, 3392519, 694511, 80005, WP3392519VP, WP3392519, PS11741460. ▶ 3977767 replaces: 3399693, WP3977767, WP3977767VP, AP3131941, 898078, PS11742185. ▶ 3977393 replaces: 279816, 3399848, AP3094244, PS334299.
• ✅ HIGH COMPATIBILITY: It is made exactly fit for most top name brands (Whirlpool, Kenmore, Maytag, Roper, Crosley, Inglis, Estate, Amana, KitchenAid, Admiral, Magic Chef) and perfectly fits and replaces original parts so you can easily install it YOURSELF within few minutes. Fits models: [Kenmore] 110.6012990, 110.6012990, 110.76862692, 110.76901690, 110.77834792, 110.796228, 110.97263100, 110.97263800, 110.98762790, 11060012000, 11060012001, 11060012002, 11060022010, 1106012510, etc.
• ✅ 100% LIFETIME WARRANTY: For any reason, you're not completely satisfied, you can ask for a replacement or FULL refund, no questions asked.

User questions & answers

Question:	Will this work on a whirlpool wed8300sb
Answer:	yes
Question:	Will this work for maytag pyg2300aww model
Answer:	yes. I think 3 yrs old is best age to start
Question:	Will this item work with a Kenmore model
Answer:	Hi, thanks for asking! This kid's drum is made in China. Hope this would help ： ）
Question:	Will these parts fit Kenmore dryer model number
Answer:	Hi thanks for asking. Yes it can be played on floor.

Product features

3387134 & 3392519 & 3977767 & 3977393 Dryer Thermostat & Fuse Kit by BlueStars

Includes 1 x 3387134 Dryer Cycling Thermostat, 1 x 3392519 Dryer Thermal Fuse, 1 x 3977767 Dryer High Limit Thermostat and 1 x 3977393 Dryer Thermal Cut-Off Kit.

The replacement parts are made from durable high-quality material and well-tested by the manufacturer - Meets OEM standards - Ensure long-lasting and effective performance.

Fixes the following symptoms

1. Takes too long to dry
2. Shuts off too soon
3. Will not start
4. Too hot
5. No heat or not enough heat
6. Timer will not advance

3387134 Dryer Cycling Thermostat

Functions: This thermostat is used to maintain a temperature of 155 degrees in the dryer drum.The internal bias heater also allows this thermostat to provide a low heat temperature of approximately 140 degrees when the low temperature setting is selected.

Replaces part numbers: 306910, 3387134, 3387135, 3387139, AP6008270, WP3387134VP.

3392519 Dryer Thermal Fuse

Functions: This part is a safety mechanism that stops the flow of electricity to the motor circuit when a dryer overheats.

Replaces part numbers: 3388651, 694511, 80005, WP3392519, WP3392519VP, PS11741460.

3977767 Dryer High Limit Thermostat

Functions: This high-limit thermostat acts as safety mechanism to keep the dryer from overheating. Once the dryer temperature reaches 221 degrees Fahrenheit, this piece will shut down power to the heating element until it drops by 80 degrees Fahrenheit. Once the temperature decreases, the thermostat will restore heat in the dryer.

Replaces part numbers: 3399693, 3977767, AP6009043, WP3977767VP.

3977393 Dryer Thermal Cut-Off Switch

Functions: This thermal cut-off switch prevents the dryer from overheating when the dryer high limit thermostat fails in a closed circuit condition.

Replaces part numbers: 279816, 279816, 279816VP, 3399848, 3977393, AP3094244.

Perfect Fit

It is made exactly fit for most top name brands (Kenmore, Whirlpool, Maytag, KitchenAid, Amana, Crosley, Inglis, Admiral) and exactly replaces original parts.

Premium Quality

The product is made of strong & durable materials that prevents cracking and failing during the installation and use process.

Saving Solution

Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble.

Repair Solutions Buy With Confidence Promise

BlueStars’ replacement parts are manufactured of high-quality and durable materials free from harmful chemicals. By doing numerously strict tests and reviews performed by our experienced engineers and development team, we commit all products to meet OEM standards and are safe to use.

We also support customers with coverage on all products and 24/7 customer services which ensure you have a happy shopping experience. All is for us to build a relationship of confidence that you can count on.

• YMD Parts LLC are professional parts replacement company
• Model:includes 3392519 | WP3392519 dryer thermal fuse - PACK OF 2
• Compatibility: fits for most of dryers (Whirlpool, Kenmore, KitchenAid, Admiral, Estate, Crosley, Inglis, Maytag,Roper, Amana, Magic Chef)
• Directly Replaces: WP3392519, 3392519, 3388651, 694511, 80005, ET401, PS11741460, WP3392519VP, B071ZPDCVY, B00MZH0R4U, B00PDXA2CA, B0081EATSK, B011BWTX0S, B015YW8DJS, B008DK2NOK, B011OBNJLK, B00MZH0RZ4, B00IQ9VQL4, B011OBMGF0, B011OBN0X2, B00MZH0OPC, B00QMHDWUU, B00PDXA0KE, B0156N9Q1O, B000NCTOUM, B011BWTQ82, B00MZH0RK4.
• YMD Parts providing 12 months worry-free warranty and friendly customer service for any quality problems

User questions & answers

Question:	Does this work for maytag dryer medc215ew
Answer:	A Queen size comforter may be a little tight. I've dried twin size comforters with no problem!
Question:	Does this fit maytag med3500fw
Answer:	They sell water boxes that you can vent to and they collect the line. I had to use one in the basement in Boston.
Question:	Does this fit a maytag bravo model number medx655dw
Answer:	Chea ya buddy. Do you want all that lint & hot air sprayed into your house?
Question:	Will this fit model
Answer:	I have no idea. Probably that's what home Depot sells them for.

Product features

3392519 Dryer Thermal Fuse Replacement Part Compatible for Whirlpool, Kenmore, KitchenAid, Roper,Admiral, Estate, Inglis, Maytag, Amana, Magic Chef

The 3392519 dryer thermal fuse is used in dryers as a safety mechanism that stops the flow of electricity to the motor circuit when a dryer overheats. This replacement part features two 3/16 inch terminals and is sold individually.

When this fuse is faulty, your dryer will not start or it will not heat properly. This is a one-time fuse, meaning it cannot be re-set. It must be replaced when there is no longer continuity between the terminals.

It attaches to the blower wheel housing. Blown fuses can be caused by clogged ventilation and is recommended checking to make sure all the vents clear with proper air flow when you perform this repair.

3392519 Dryer Thermal Fuse Replacement Part

Whirlpool, Kenmore, KitchenAid, Admiral, Estate, Crosley, Inglis, Maytag, Roper, Amana, Magic Chef, and others.

Directly Replaces the Following Part Numbers:

WP3392519, 3392519, 3388651, 694511, 80005, ET401, PS11741460, WP3392519VP, B071ZPDCVY, B00MZH0R4U, B00PDXA2CA, B0081EATSK, B011BWTX0S, B015YW8DJS, B008DK2NOK, B011OBNJLK, B00MZH0RZ4, B00IQ9VQL4, B011OBMGF0, B011OBN0X2, B00MZH0OPC, B00QMHDWUU, B00PDXA0KE, B0156N9Q1O, B000NCTOUM, B011BWTQ82, B00MZH0RK4.

Product description

This is an O.E.M. authorized part. Fits with various FRIGIDAIRE Brand models. OEM Part # is 5303161099.

• This Is An O.E.M. Authorized Part
• Fits With Various Whirlpool Brand Models
• Oem Part # Is 49572A
• Brand Name: Whirlpool

User questions & answers

Question:	Will this work on ngd4655ew
Answer:	It worked perfectly on my ew2.
Question:	Will this work to convert a Hotpoint brand gas dryer to propane
Answer:	This will work, purchased and converted gas to propane.
Question:	Will this work on model #wgd9270xw1? if not, what will? thank you
Answer:	Model Number WGD9270XW1 uses a W10606694A
Question:	Will this work on a whirlpool cabrio gas dryer model number : wgd5600xw
Answer:	Yes. The 49572A converts the model number WGD5600XW0 dryer from Natural Gas to Propane.

Product description

4392065 Dryer Maintenance Kit for 29" wide dryers with the lint filter located on the top of the dryer,

include the parts most frequently replaced due to normal wear and tear.

This Suit Set Consists of:

341241 Drive Belt

WP691366 Idler Pulley

349241T Rear Drum Roller Kit

Replaces part #: 4392065RC, 4392065VP, 2014, 8106, 8237, 8238, 80046, 279435, 279436, 279708, 279709, 279860, 279948,

26000279435, 26000279436, 279708MS, 279709MS, 4392065VP, 587636, AP3131942, PS373087, EAP373087, etc.

Compatible Models

8530040, 8543000, 1CWD5100, 1CWED4800, 1CWED5100, 1CWGD4800, 1CWGD5100, 1MWED1750, 3DWED4800, 3DWGD4800, 3SWED4800, 3XLER5435,

4GNED4600, 4GWED4900, 4GWGD4900, 4KWED4750, 4KWED5790, 4PLEC8647, 4PLGC8647, 4PWED5905, 7EWED1510, 7EWED1730, 7EWGD1510,

7MGGX9868, 7MLGC9545, 7MLGC9900, 7MLGD8900, 7MLGQ8000, 7MLGR3624, 7MLGR4634, 7MLGR5620, 7MLGR7620, 7MLGR8620, 7MMGDC300,

7MMGDC410, 7MWED1600, 7MWED1800, 7MWG44500, 7MWG66007, 7MWG66800, 7MWG77900, 7MWG87600, 7MWG99930, 7MWGD1500, 7MWGD2150,

7MWGD7000, 7MWGD8000, 7MWGD9015, 7MWGD9919, 8BLGR5636, CEM2940, GCEM2900, GCGM2901, GEQ9858, GEW9878, GEX9868, GGQ9858,

GGW9878, GGX9868, LEB6000, LEC5000, LEC9000, LEN1000, LEN2000, LEQ5000, LEQ7000, LEQ8000, LEQ9030, LER2614, LER3624, LER4600, LER5620,

LER6620, LER7620, LER8620, LEV4634, LGB6000, LGC5000, LGC9000, LGN1000, LGN2000, LGQ7030, LGQ8000, LGQ9508, LGR3624, LGR4600,

LGR5620, LGR6611, LGR6620, LGR6636, LGR7620, LGR8620, LGV4634, WED4800, WED5000, WED7000, etc.

3ZMED5705, 4GMEDC100, 4GMEDC300, 4KMED5700, 4KMEDC100, 4KMEDC215, 4KMEDC300, 4KMEDC405, 4KMEDX505, 7MMEDC300, 7MMEP0080,

7MMGD6630, 7MMGDB855, 7MMGDC300, 7MMGDC400, 7MMGE7973, 7MMGL6741, 7MMGM0110, 7MMGP0030, 7MWGD1730, MED5600, etc.

If you have any question, please feel free to contact us.

• 4392065 Dryer Maintenance Kit include the parts most frequently replaced due to normal wear and tear: 341241 Belt, WP691366 Idler Pulley & 349241T Rear Drum Roller Kit.
• 4392065 Dryer Maintenance Kit Replace Part #: 4392065RC, 4392065VP, 2014, 8106, 8237, 8238, 80046, 279435, 279436, 279708, 279709, 279860, 279948, 26000279435, 26000279436, 279708MS, 279709MS, 4392065VP, 587636, AP3131942, PS373087, EAP373087, etc.
• 341241 Drive Belt is the most common belt used on Whirlpool, Kenmore, Inglis, Roper, Estate, Kitchen Aid, and other brand dryers. 92 1/4" long, 1/4" wide, 4 ribs, 3 grooves. Replaces some wider 5 rib belts
• WP691366 Idler Pulley keeps tension on the dryer drum belt. Improved design replaces some older teflon friction idler pulleys. For the matching belt use 341241 and rear drum support rollers 349241T.
• 349241T Rear Drum Roller Kit includes drum rollers, tri-rings, and a retaining washer. Fits most 29" wide Kenmore, Whirlpool, Estate, Roper, Kitchen Aid, and other brand dryers with the lint filter located on the top of the dryer. For the matching belt use 341241 idler pulley use 691366.

User questions & answers

Question:	Will this work for amana model ned700yq1 dryer
Answer:	yes, I looked up your Maytag model, this is the same part for your dryer, good luck!
Question:	Will this kit fit a Kenmore Elite model 110.65922401 dryer
Answer:	Im sure it will work. I have a Maytag and I just bought these and it worked great. I am sure they are pretty universal. Goodluck
Question:	Do these parts work on a Maytag medc500vw
Answer:	Yes,perfect and my dryer works again.
Question:	It this works on a whirlpool wed4900xw
Answer:	I'm pretty sure they are all the same. I have a Maytag, ordered with out looking at mine 1st. Working great now for 5 months. You get to so you have a backup if ever needed 😁 Good luck

• REPLACES Part Number WP3392519 - Dryer Thermal Fuse Exact Fit
• EASY TO INSTALL - Made to fit exactly top named dryers (Whirlpool, Kenmore, KitchenAid, Roper, Estate, Inglis, Crosley, Maytag, Amana, Admiral, Magic Chef)
• FIXES NO START ISSUES: Fixes no start, no heat, will not tumble or timer does not advance issues.
• SAVE TIME & MONEY- Easily and quickly repair or fix your clothes dryer
• LIFETIME WARRANTY - Will send replacement or refund regardless the reason if it fails - MONEY-BACK GUARANTEE

User questions & answers

Question:	is part # 3392519 same as part ap
Answer:	Seems to me that Whirlpool makes dryers and parts for many labels. So if it looks the same as what is on yours, buy it.
Question:	Does this fit whirpool duet wed70hebw
Answer:	Not certain but it's a pretty generic fuse. I would Google it or go to an appliance part website. That's what I did. Even got the repair video.
Question:	Would fit a whirlpool dryer WED7000dw
Answer:	Yes it should fit
Question:	What temperature is this rated for? The fuse I'm roaming on my kenmore says 91c or 196f on the wiring diagram
Answer:	Not sure . We googled the part number and this model was what the dryer had. Once we replaced it everything worked. There was nothing in the package other than the part.

Product features

3392519 Dryer Thermal Fuse

• ✅ 【PACKAGE INCLUDES】---Includes 1 x 3406107 Dryer door switch.Dryer door switch with 3 wires and connector.
• ✅ 【PREMIUM QUALITY】---3406107 door switch is replacement part for a dryer. This switch has a plastic actuator. It has 3 Wire Leads with a Plug as Pictured.It used to keep the dryer from operating when the dryer door is open. Part is housed on the inside of the appliance door. Product is plastic and white. Please check the compatibility with your previous part and appliance's model before ordering this replacement.
• ✅【 EASY TO INSTALL】---This dryer door switch Replacement for Whirlpool, Kenmore, , Roper, Amana, Crosley and more brand dryer. Replaces part numbers 3406107, 3405101, 3405100, 3406101, 3406100, 3406109, WP3406107VP, 528948, AP6008561, PS11741701, EAP11741701, etc.
• ✅ 【FIXES THE FOLLOWING SYMPTOMS】---You may have a faulty dryer door switch if your dryer not start, not shut off, not tumble, no heat, not enough heat. To confirm that the door switch is faulty, unplug the dryer when the symptom occurs.
• ✅ 【30 DAYS WARRANTY】---The product 3406107 dryer door switch supports 30 days return and exchange. Our company attaches great importance to the shopping experience of each customer.Risk-free shopping, If you have any quality problem during warranty period, please contact customer service in time. We will try our best to solve the problem. Customer satisfaction is our tireless pursuit.

Product features

3406107 Dryer Door Switch:

The 3406107 door switch is a simple on/off switch mechanism that prohibits the dryer from operating when the door is open. This part may need to be replaced if you find that the dryer is not starting, will not shut off or the door will not close properly.This 3-wire switch has a flat plug with round connections that fits and works exactly like the original part,and it can replace 2-wire switch,the part is made of sturdy & durable plastic to prevent breaking and leaking during the installation and use process.

FEATURES:

• This switch has a plastic actuator
• It has 3 Wire Leads with a Plug as Picture
• It can replace 2-wire switch

COMPATIBLE BRAND:

• Whirlpool
• Kenmore
• KitchenAid
• Roper
• Amana
• Crosley

FIXES THE FOLLOWING SYMPTOMS:

• Will Not Start
• Will not shut off
• Will not tumble
• Shuts off too soon
• No heat or not enough heat
• Door won’t close.

REPLACES PART NUMBERS:

• 3405100
• 3405101
• 3406100
• 3406101
• 3406109

PACKAGE INCLUDE:

1 PC ×3406107 Dryer door switch

WORKS WITH THE FOLLOWING MODELS NUMBER:

• Kenmore:11074956300,11074964300,11074966300,11074972301,11074976301,11074992301,11074994301,11074996300,11074996301,11075062500,11075062501,11075064500,11075066501
• Whirlpool:LER5620KQ0,7EWED1510YM0,7EWED1705YM0,7EWED1705YM1,7EWED1730YW0,7EWED5550YW0,7EWED5550YW1,7EWGD1510YM0,7EWGD1510YM1,7MDKG1501WQ0,7MGGQ9800ML0,7MGGQ9800PL0,7MGGQ9800PL1,7MGGW9868KL1,7MGGW9868KQ1,7MGGX9868JQ1,7MGGX9868JQ2,7MGX4626EZ0,7MLGC9545JQ0,7MLGC9545JQ1,7MLGC9545JQ4
• Crosley:CED137HXQ0,CED137HXW0,CED147HXW0,CEDS1043VQ0,CEDS1043VQ1,CEDS563MQ0,CEDS563MQ1,CEDS563RB1,CEDS563RQ1,CEDS563SQ0,CEDS563ST0,CEDS663SB0,CEDS663SQ0

Product description

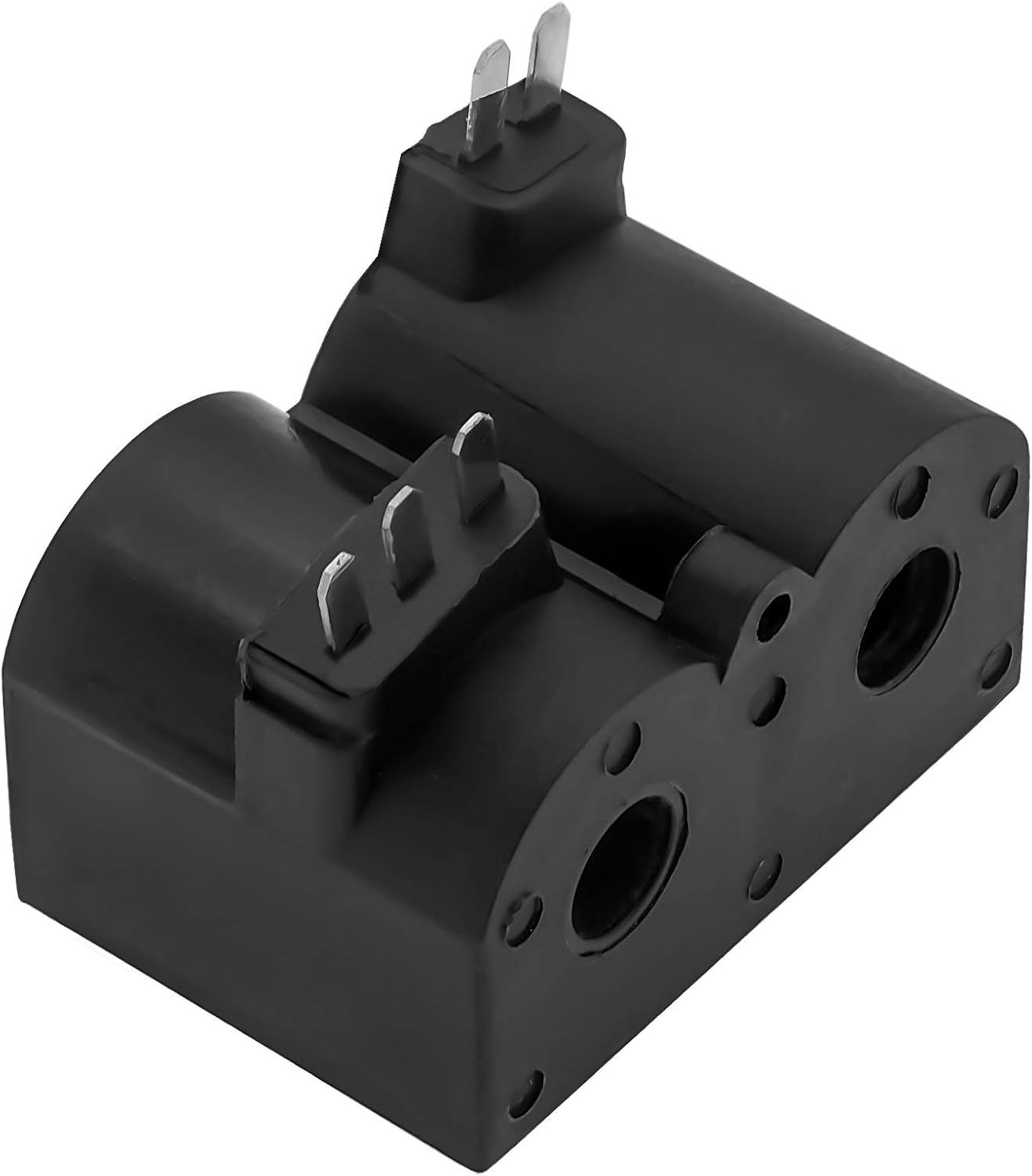

Dryer Gas Valve Coil Set for Whirlpool part number WPW10328463.



W10328463 Coil Valve Replaces : AP5177867, AP6019658, 1937870, AH3494728, EA3494728, PS3494728, W10295524, W10311021, W10273784, PS1175296.



Siwdoy Customer Service



Siwdoy is committed to providing each customer best customer service. if any question ,Please don't hesitate to contact us.

• Replaces part numbers: AP5177867, AP6019658, 1937870, AH3494728, EA3494728, PS3494728, W10295524, W10311021, W10273784, PS1175296
• W10328463 Dryer gas valve coil set replaces Whirlpool, Sears, Kenmore, Roper, Estate, KitchenAid
• Boost Hold Coil (3 prong), Secondary Coil (2 prong).
• Non original aftermarket part. Fits OEM Standards! Guaranteed to Exceed OEM Requirements!
• MONEY BACK GUARANTEE - For any reason you're not completely satisfied, you can ask for a replacement or full refund, no questions asked.

User questions & answers

Question:	I need the replacement for W10622159. Do you have something that works? Thanks
Answer:	Get OEM parts, the rubber on the wheels peels off after about a month
Question:	I need the replacement for w10175144? Can I used this one for my dryer? is a Maytag
Answer:	Maybe. Dont buy it unless you want to buy new parts in a month or two. Buy genuine Kenmore parts, it's a little more but last way longer
Question:	can i use this one for amana
Answer:	Buy OEM parts. The wheels only lasted for a couple months and were shredded
Question:	can i use this for amana
Answer:	It was great, repaired my dryer, it’s loke new

Product description

Appliance Replacement Part ER279311

• REPAIR PART NUMBER 304970
• REPAIR PART FOR WHIRLPOOL, AMANA, MAYTAG, KENMORE AND MORE
• PART MEETS ALL OEM QUALITY STANDARDS MANUFACTURED BY A THIRD PARTY
• Manufactured By Exact Replacement Parts

User questions & answers

Question:	Does this part fit a crosley gas dryer
Answer:	No I don't stock parts. I order as needed. Thanks
Question:	Does this part fit maytag neptune mdg5500aww
Answer:	use the numbers on the old one for a replacement
Question:	Hi.. There are 2 pictures listed above for this ignitor. Which picture best represents this item? Thanks
Answer:	it is all based on model number. most of the regular dryers use different part number 279834
Question:	The picture shows a metal bracket and screws and mine did not come with those
Answer:	Possibly. Look closely at your coils, and the picture shown. Earlier models use two separate coils, and the newer models use a joined coil. Although they work exactly the same, they mount differently, so they cannot be interchanged. My own dryer is an Amana, and uses this coil kit. Ps. Often, if the coil is bad, the valve will open for one cycle, then will not open again. So the dryer will begin to heat, then get cold.
